科米诺GRANDO RM V2-S专业高端工作站评测--4台RTX A6000遇上Ryzen Threadripper Pro 3975WX

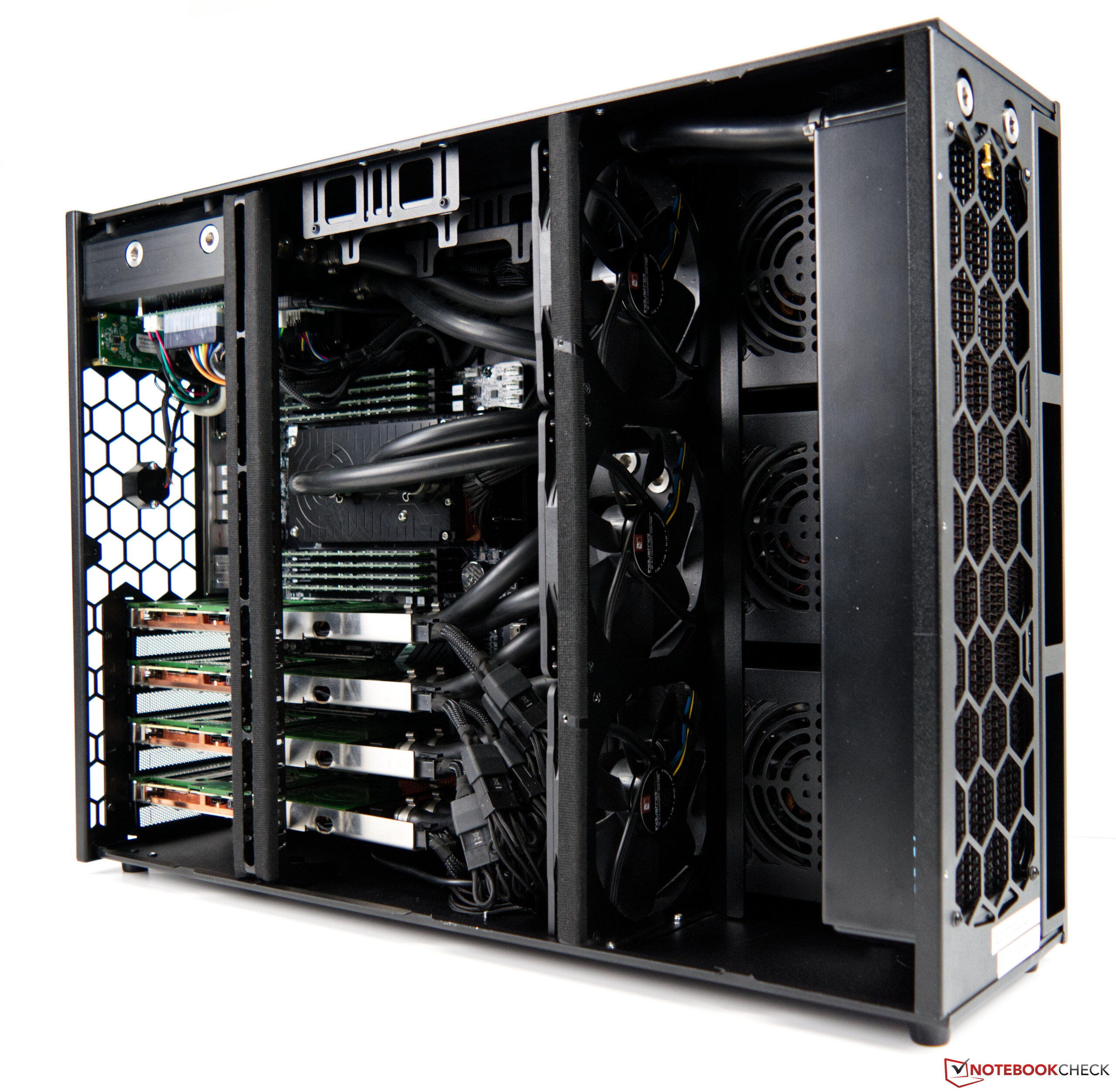

工作站按尺寸制作! 我们收到了来自科米诺的紧凑型19英寸工作站,它配备了四个Nvidia A6000和一个AMD Ryzen Threadripper Pro 3975WX。此外,还有液体冷却,据说可以保持CPU和GPU的正常运行。我们仔细查看了该系统,并解释了其优点和缺点。
GPU AMD Workstation

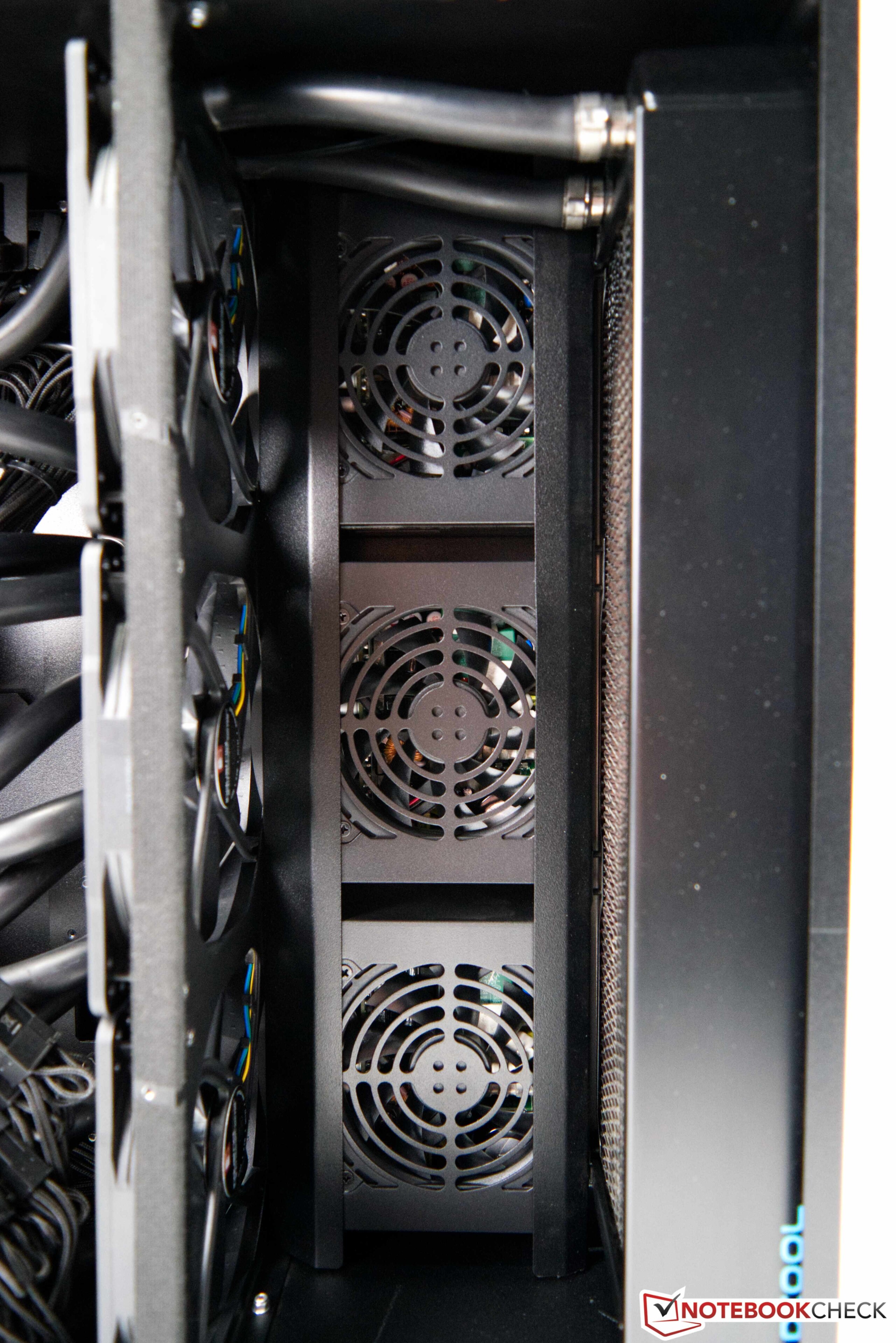

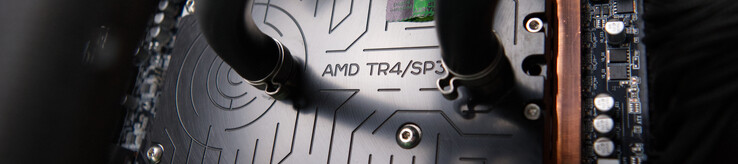

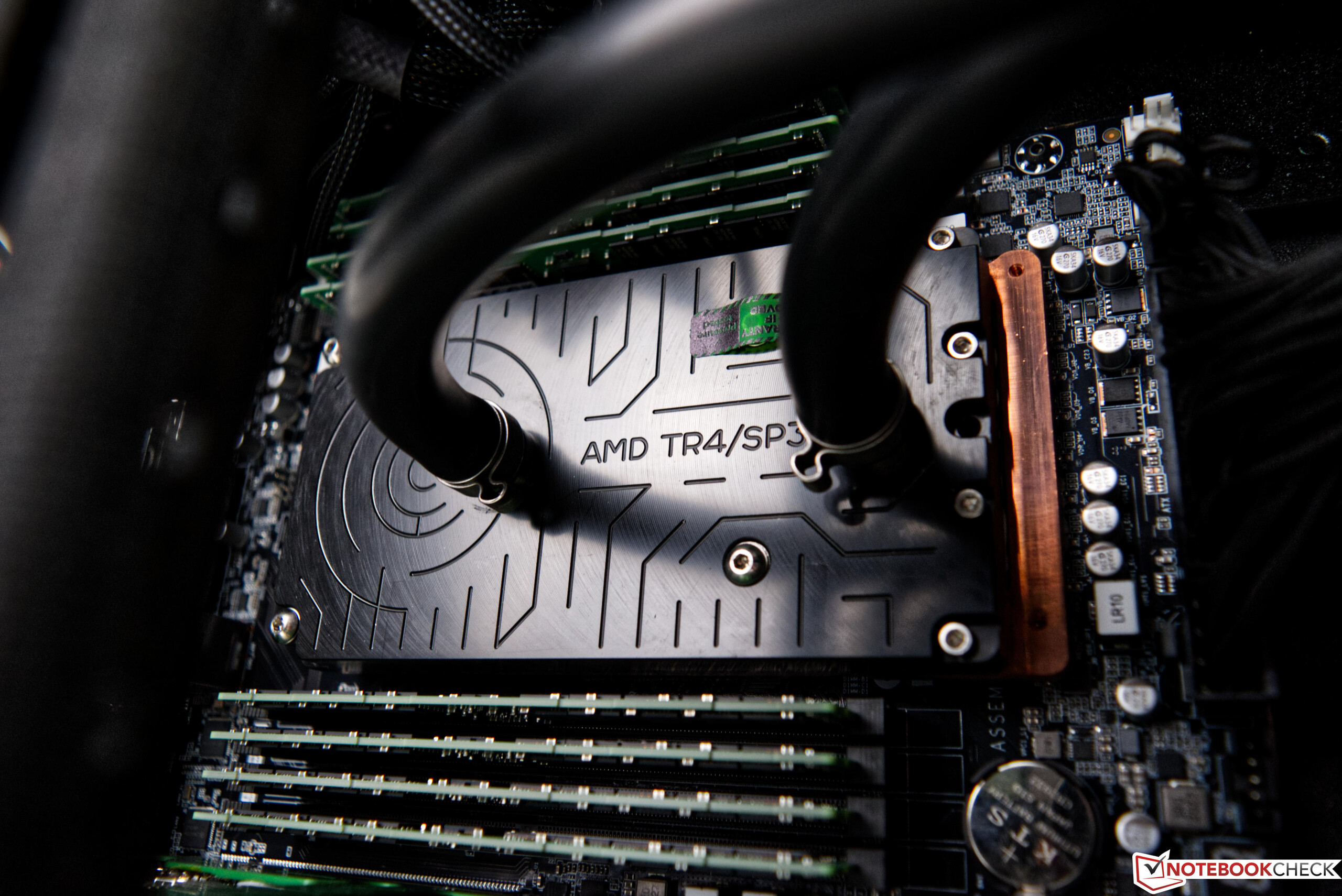

Comino是一家系统制造商,根据客户要求生产工作站和完整的多GPU数据中心解决方案。该制造商将整个系统与专门开发的液体冷却系统配对。由于完美的工艺和广泛的测试,Comino提供的系统具有服务器质量,即使是工作站或高端游戏PC。

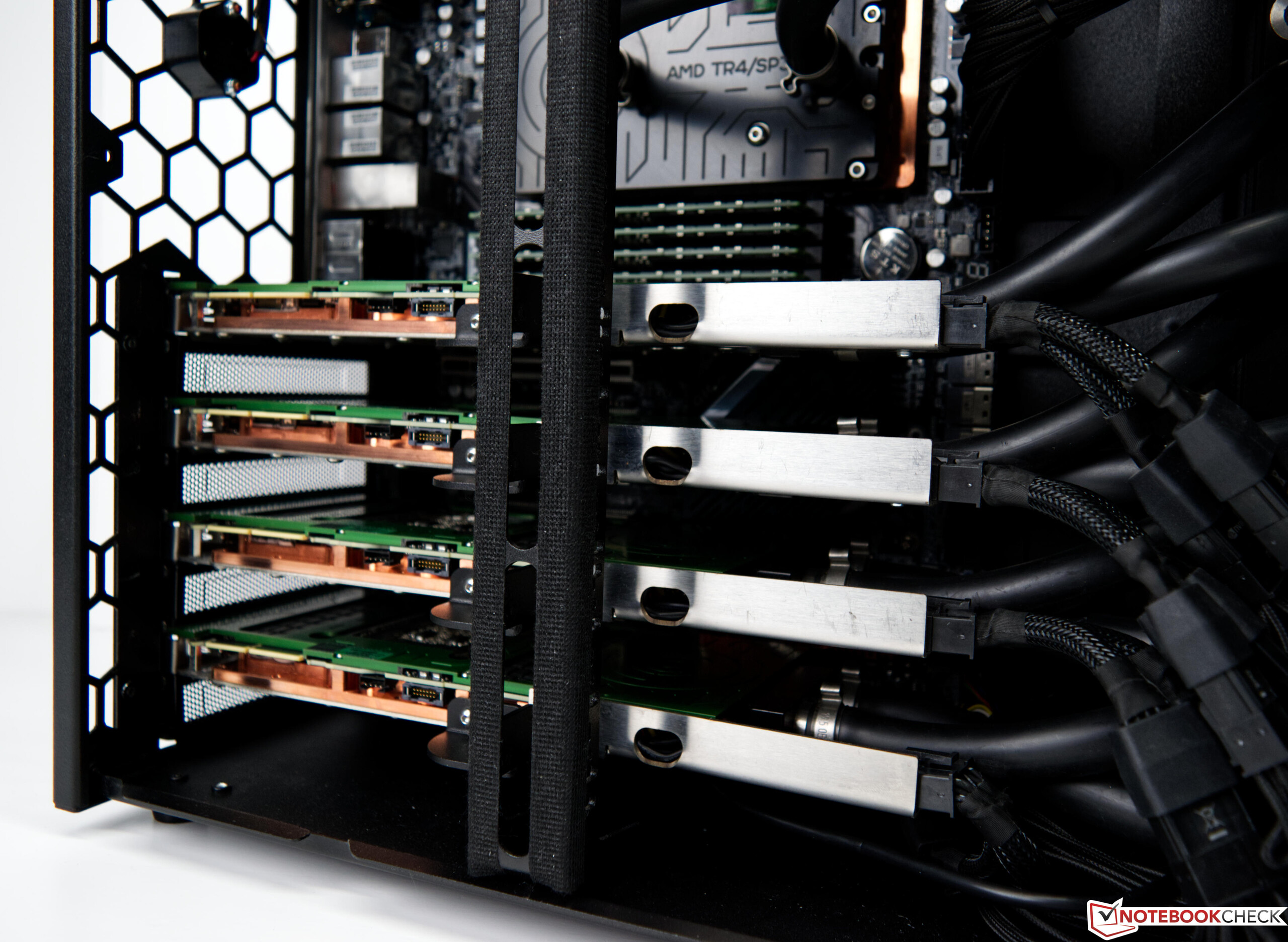

AMD Ryzen Threadripper Pro 3975WX与4个Nvidia RTX A6000 GPU同时亮相

制造商科米诺给我们送来了GRANDO RM V2-S工作站进行审查。整个系统被装在一个坚固的木箱里,里面有很多填充物,所以系统到达时没有损坏。特别是对于同时配备了水冷系统的即用型PC,安全和稳定的包装是必须的。科米诺在这里已经做好了一切。但现在到了系统本身。内置的是一个AMD Ryzen Threadripper Pro 3975WX具有总共32个核心的CPU和线程。因此,这个处理器是目前AMD第二快的AMD Ryzen Threadripper Pro CPU。Comino在这个配置中安装了4个Nvidia RTX A6000 显卡。每个都有48GB的VRAM,是NvidiaGeForce RTX 3090的两倍。但这还不够,因为这32个核心由高达512GB的内存支持。大家应该清楚,这种配置并不便宜,因为仅Nvidia RTX A6000就需要约5000欧元(约5659美元)。因此,这个系统的税前底线接近29,000欧元(约合32,824美元)也就不奇怪了。

那些不想挖得这么深的人也可以选择其他组件。在制造商的网站上有不同的配置,

处理器基准测试--32个内核和64个线程

淘宝网AMD Ryzen Threadripper Pro 3975WX是一个拥有32个核心的真正的计算怪物。只有在少数基准测试中, AMD Ryzen Threadripper Pro 3995WX在多核测试中脱颖而出。Comino GRANDO工作站的性能优势显然在于内置的冷却装置。这确保了32核可以调用最佳性能,从而可以击败AMD的据称更快的64核。AMD Ryzen Threadripper Pro 3975WX拥有32个核心和总共64个线程,最适合用于虚拟化。慷慨的512GB DDR4 ECC内存是这里的一个优势。然而,AMD Ryzen Threadripper Pro 3975WX不能依靠目前Zen3架构的优势,因为巨大的散热片下只安装了基于Zen2架构的Matisse模具。这导致了与最新的5000代Ryzen相比,在单核基准测试中的滞后。在单核性能方面,AMD Ryzen Threadripper Pro 3975WX与AMD Ryzen R9 3900X更具可比性。

关于进一步的比较和基准测试,我们参考了我们的CPU比较表.

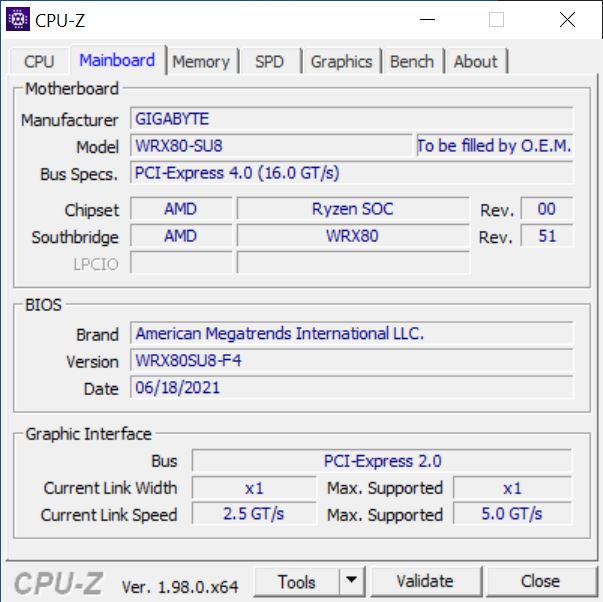

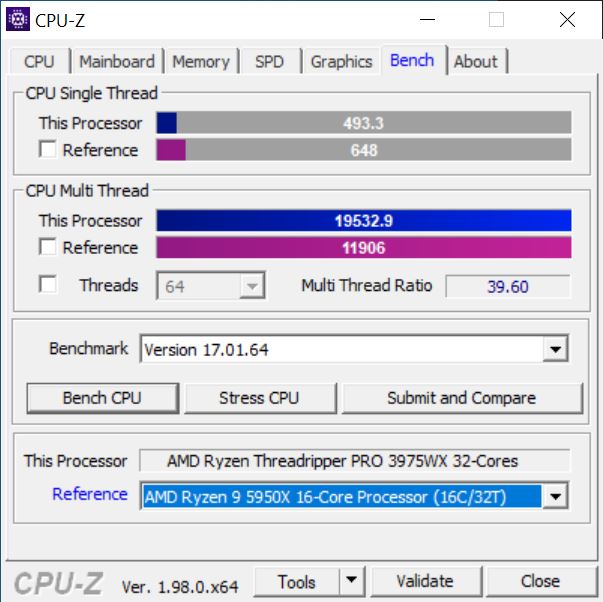

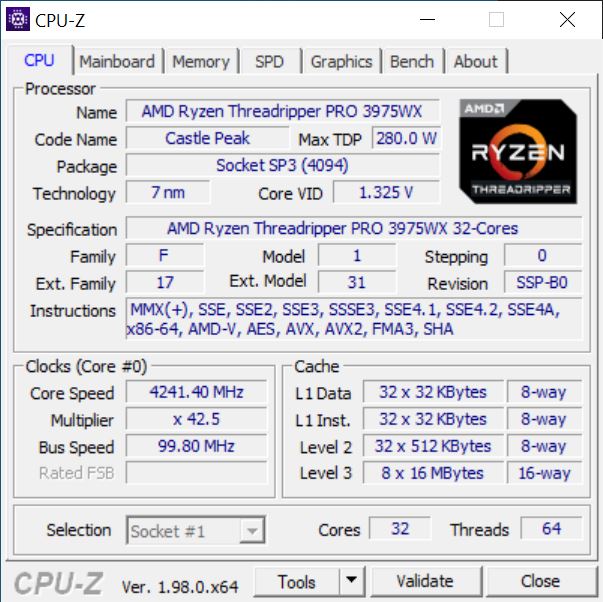

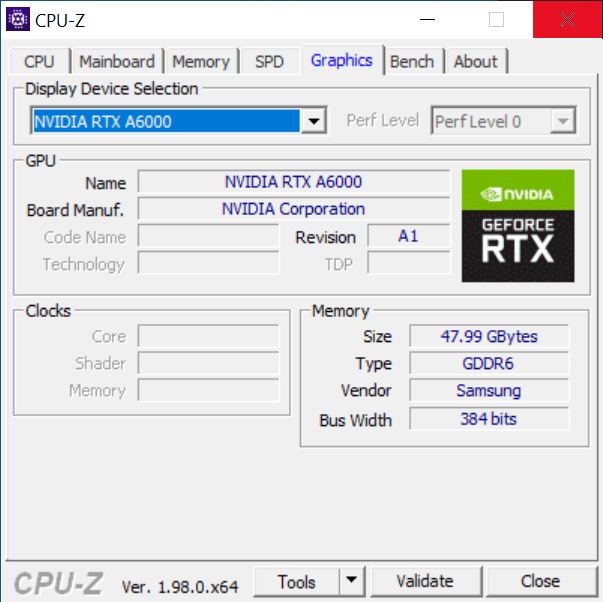

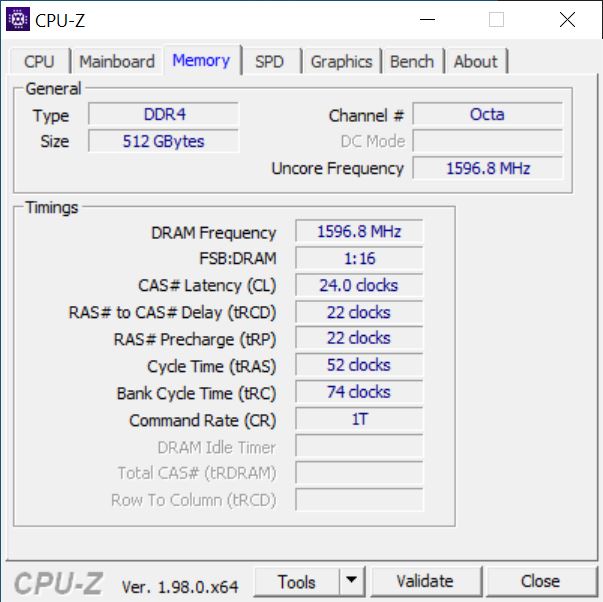

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

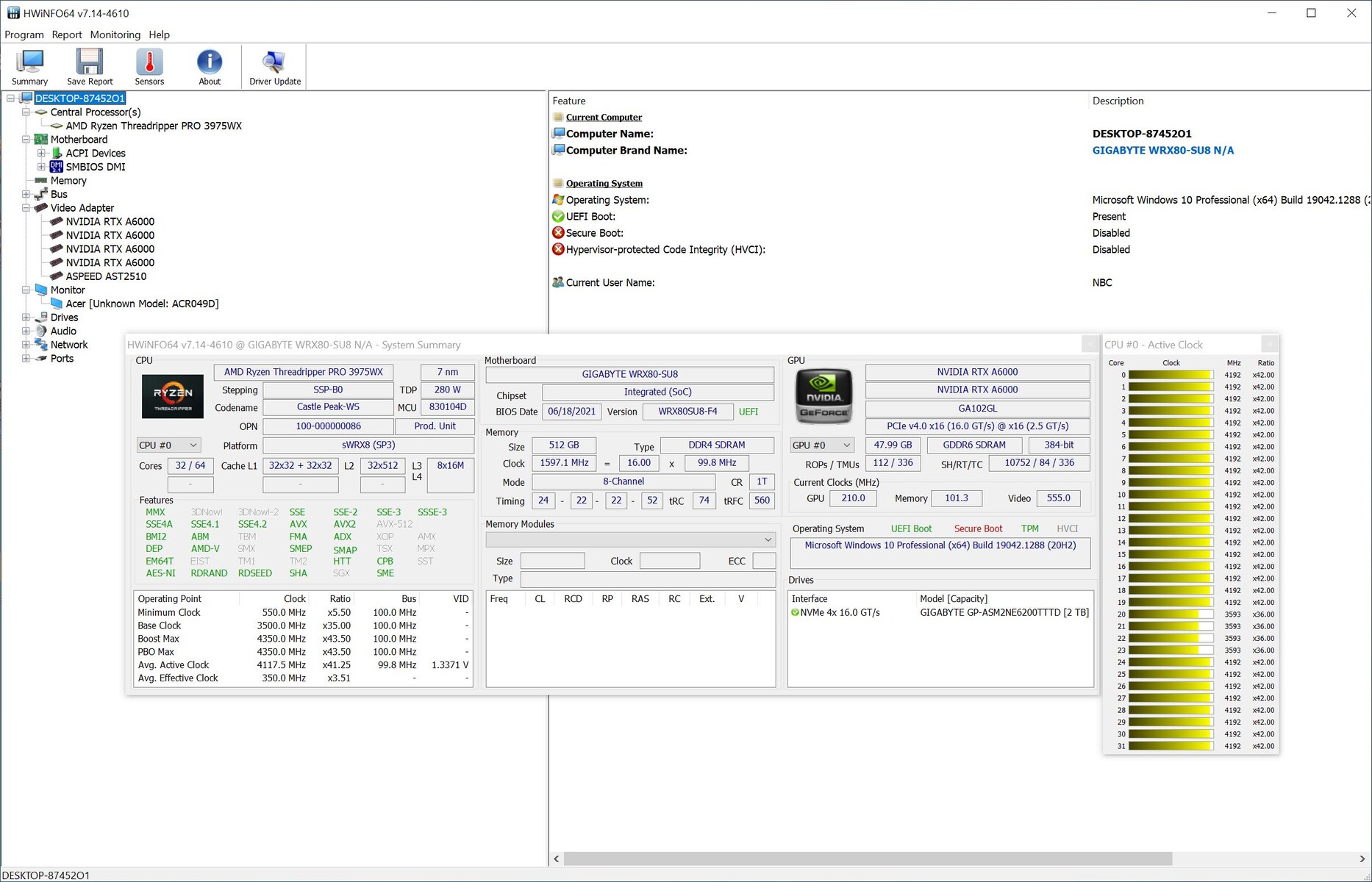

HWiNFO

CPU-Benchmarks Performance rating

Performance Rating - Percent
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
71.6 pt ∼72%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
71.1 pt ∼71%
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
70.7 pt ∼71%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
68.1 pt ∼68%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
65.6 pt ∼66%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
55.6 pt ∼56%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
54.5 pt ∼55%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
50.9 pt ∼51%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
46.1 pt ∼46%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
43.8 pt ∼44%
Cinebench R20
CPU (Multi Core)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
23571 Points ∼100% +43%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
16464 Points ∼70%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
10482 Points ∼44% -36%
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
10240 Points ∼43% -38%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
10000 Points ∼42% -39%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
8845 Points ∼38% -46%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
8629 Points ∼37% -48%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
6950 Points ∼29% -58%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
6910 Points ∼29% -58%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
5997 Points ∼25% -64%
CPU (Single Core)
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
766 Points ∼95% +53%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
647 Points ∼80% +29%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
641 Points ∼79% +28%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
639 Points ∼79% +28%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
514 Points ∼63% +3%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
500 Points ∼62%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
488 Points ∼60% -2%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
487 Points ∼60% -3%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
445 Points ∼55% -11%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
430 Points ∼53% -14%
Cinebench R15
CPU Multi 64Bit
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
9706 Points ∼100% +38%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
7053 Points ∼73%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
4492 Points ∼46% -36%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
4376 Points ∼45% -38%
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
4057 Points ∼42% -42%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
3717 Points ∼38% -47%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
3632 (3541.7min - 3632.07max) Points ∼37% -49%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
3110 Points ∼32% -56%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
3049 Points ∼31% -57%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
2436 Points ∼25% -65%
CPU Single 64Bit
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
286 Points ∼98% +42%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
272 Points ∼93% +35%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
271 Points ∼93% +35%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
262 Points ∼90% +30%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
209 Points ∼72% +4%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
208 Points ∼71% +3%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
201 Points ∼69%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
195 Points ∼67% -3%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
176 Points ∼60% -12%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
173 Points ∼59% -14%
Cinebench R11.5
CPU Multi 64Bit
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
54.3 Points ∼100% +4%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
52.2 Points ∼96%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
49.6 Points ∼91% -5%
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
47.06 Points ∼87% -10%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
41.78 Points ∼77% -20%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
38.39 Points ∼71% -26%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
33.44 Points ∼62% -36%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
27.07 Points ∼50% -48%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
26.76 Points ∼49% -49%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
21.6 Points ∼40% -59%
CPU Single 64Bit
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
3.49 Points ∼100% +59%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
3.14 Points ∼90% +43%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
3.14 Points ∼90% +43%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
3.1 Points ∼89% +42%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
2.36 Points ∼67% +8%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
2.36 Points ∼67% +8%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
2.19 Points ∼63%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
2.12 Points ∼61% -3%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
1.9 Points ∼54% -13%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
1.9 Points ∼54% -13%
Blender - v2.79 BMW27 CPU
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
190.3 Seconds * ∼1% -174%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
162.3 Seconds * ∼1% -134%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
152.7 Seconds * ∼1% -120%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
141 Seconds * ∼1% -103%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
125 Seconds * ∼1% -80%
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
121.1 Seconds * ∼1% -74%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
112.8 Seconds * ∼1% -63%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
110.7 Seconds * ∼1% -60%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
69.4 Seconds * ∼0%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
47.8 Seconds * ∼0% +31%
WinRAR - Result
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
13361 KB/s ∼77% +105%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
12503 KB/s ∼72% +91%
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
10792 KB/s ∼62% +65%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
9030 KB/s ∼52% +38%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
7529 KB/s ∼44% +15%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
7172 KB/s ∼42% +10%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
6689 KB/s ∼39% +2%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
6530 KB/s ∼38%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
4548 KB/s ∼26% -30%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
4261 KB/s ∼25% -35%
TrueCrypt
AES Mean 100MB
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
27 GB/s ∼100%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
26.9 GB/s ∼100% 0%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
26 GB/s ∼96% -4%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
21.2 GB/s ∼79% -21%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
19.5 GB/s ∼72% -28%
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
18.5 GB/s ∼69% -31%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
18.2 GB/s ∼67% -33%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
13 GB/s ∼48% -52%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
12.2 GB/s ∼45% -55%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
10.9 GB/s ∼40% -60%
Twofish Mean 100MB
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
4.8 GB/s ∼1% +2%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
4.7 GB/s ∼1%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
3.7 GB/s ∼0% -21%
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
3.7 GB/s ∼0% -21%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
3.2 GB/s ∼0% -32%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
3 GB/s ∼0% -36%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
2.9 GB/s ∼0% -38%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
2.9 GB/s ∼0% -38%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
2.9 GB/s ∼0% -38%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
1.9 GB/s ∼0% -60%
Serpent Mean 100MB
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
2.9 GB/s ∼1% +12%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
2.6 GB/s ∼1%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
2.4 GB/s ∼1% -8%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
1.9 GB/s ∼0% -27%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
1.9 GB/s ∼0% -27%
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
1.9 GB/s ∼0% -27%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
1.8 GB/s ∼0% -31%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
1.8 GB/s ∼0% -31%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
1.7 GB/s ∼0% -35%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
1.2 GB/s ∼0% -54%
Geekbench 4.1 - 4.4
64 Bit Multi-Core Score
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
81029 Points ∼100%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
80545 Points ∼99% -1%
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
63583 Points ∼78% -22%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
63233 Points ∼78% -22%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
51794 Points ∼64% -36%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
50801 Points ∼63% -37%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
43978 Points ∼54% -46%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
42329 Points ∼52% -48%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
36198 Points ∼45% -55%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
32029 Points ∼40% -60%
64 Bit Single-Core Score
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
8665 Points ∼100% +50%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
7976 Points ∼92% +38%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
7297 Points ∼84% +27%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
7216 Points ∼83% +25%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
5880 Points ∼68% +2%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
5820 Points ∼67% +1%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
5764 Points ∼67%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
5567 Points ∼64% -3%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
4903 Points ∼57% -15%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
4463 Points ∼52% -23%
HWBOT x265 Benchmark v2.2 - 4k Preset
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
46.6 fps ∼100% +8%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
43 fps ∼92%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
31.8 fps ∼68% -26%
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
30 fps ∼64% -30%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
27.8 fps ∼60% -35%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
25.5 fps ∼55% -41%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
20.9 fps ∼45% -51%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
19.8 fps ∼42% -54%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
18 fps ∼39% -58%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
17.5 fps ∼38% -59%
X264 HD Benchmark 4.0
Pass 1
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
368.5 (366min - 369max) fps ∼100% +38%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
338.5 (337min - 340max) fps ∼92% +26%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
335 (325min - 337max) fps ∼91% +25%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
309.5 (308min - 311max) fps ∼84% +15%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
268 (266min - 268max) fps ∼73%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
267.5 (266min - 268max) fps ∼73% 0%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
264 (261min - 266max) fps ∼72% -1%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
215 (214min - 216max) fps ∼58% -20%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
202.3 (200.47min - 203.47max) fps ∼55% -25%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
202 (198min - 202max) fps ∼55% -25%
Pass 2
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
221 (220min - 221max) fps ∼100% +15%
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
206 (206min - 206max) fps ∼93% +7%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
193 (192min - 193max) fps ∼87%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
192.5 (192min - 195max) fps ∼87% 0%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
191 (190min - 192max) fps ∼86% -1%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
157.5 (155min - 159max) fps ∼71% -18%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
147 (147min - 148max) fps ∼67% -24%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
144.9 (143.48min - 145.54max) fps ∼66% -25%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
137 (137min - 137max) fps ∼62% -29%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
116.5 (115min - 117max) fps ∼53% -40%

* ... smaller is better

More CPU-Benchmarks

Cinebench R23
Single Core
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
1998 Points ∼99% +55%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
1693 Points ∼84% +32%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
1649 Points ∼82% +28%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
1568 Points ∼78% +22%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
1286 Points ∼64%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
1249 Points ∼62% -3%
Multi Core
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
61102 Points ∼100% +43%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
42744 Points ∼70%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
27062 Points ∼44% -37%
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
27005 Points ∼44% -37%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
20634 Points ∼34% -52%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
15519 Points ∼25% -64%
Cinebench R10
Rendering Multiple CPUs 64Bit
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
112749 Points ∼100% +28%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
104638 Points ∼93% +19%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
99651 Points ∼88% +13%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
88079 Points ∼78%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
85956 Points ∼76% -2%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
80613 Points ∼71% -8%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
76051 Points ∼67% -14%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
76051 Points ∼67% -14%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
63266 Points ∼56% -28%
Rendering Single CPUs 64Bit
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
16144 Points ∼98% +59%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
14149 Points ∼86% +39%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
13279 Points ∼81% +30%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
12739 Points ∼78% +25%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
10352 Points ∼63% +2%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
10178 Points ∼62%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
9892 Points ∼60% -3%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
8763 Points ∼53% -14%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
8678 Points ∼53% -15%
wPrime 2.10
32m
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
6.109 s * ∼1% -68%
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
4.924 s * ∼1% -36%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
4.186 s * ∼1% -15%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
4.156 s * ∼1% -15%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
3.982 s * ∼1% -10%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
3.626 s * ∼1%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
2.81 s * ∼1% +23%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
2.564 s * ∼1% +29%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
2.538 s * ∼1% +30%
1024m
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
190.6 s * ∼2% -685%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
77.9 s * ∼1% -221%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
64.9 s * ∼1% -167%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
57.5 s * ∼1% -137%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
53.2 s * ∼1% -119%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
47.4 s * ∼1% -95%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
38.49 s * ∼0% -59%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
25.41 s * ∼0% -5%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
24.28 s * ∼0%
Geekbench 5.4
Multi-Core
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
28798 Points ∼100%
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
17854 Points ∼62% -38%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
16891 Points ∼59% -41%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
14881 Points ∼52% -48%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
12990 Points ∼45% -55%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
12160 Points ∼42% -58%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
11035 Points ∼38% -62%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
10501 Points ∼36% -64%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
10498 Points ∼36% -64%
Single-Core
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
2042 Points ∼100% +59%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
1885 Points ∼92% +47%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
1720 Points ∼84% +34%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
1682 Points ∼82% +31%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
1669 Points ∼82% +30%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
1285 Points ∼63%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
1250 Points ∼61% -3%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
1100 Points ∼54% -14%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
1095 Points ∼54% -15%
Geekbench 5.0
5.0 Multi-Core
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
31711 Points ∼100% +9%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
29094 Points ∼92%
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
17959 Points ∼57% -38%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
16570 Points ∼52% -43%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
15598 Points ∼49% -46%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
12974 Points ∼41% -55%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
11135 Points ∼35% -62%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
11008 Points ∼35% -62%
5.0 Single-Core
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
1968 Points ∼47% +51%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
1863 Points ∼45% +43%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
1683 Points ∼41% +29%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
1667 Points ∼40% +28%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
1306 Points ∼31%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
1271 Points ∼31% -3%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
1266 Points ∼31% -3%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
1247 Points ∼30% -5%
3DMark 11 - 1280x720 Performance Physics
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
28211 Points ∼98% +63%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
23423 Points ∼81% +35%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
21175 Points ∼74% +22%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
20452 Points ∼71% +18%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
18270 Points ∼63% +5%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
17518 Points ∼61% +1%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
17335 Points ∼60%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
17245 Points ∼60% -1%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
17222 Points ∼60% -1%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
12297 Points ∼43% -29%
7-Zip 18.03
7z b 4
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
141386 MIPS ∼100%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
140172 MIPS ∼99% -1%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
127792 MIPS ∼90% -10%
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
97671 MIPS ∼69% -31%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
95123 MIPS ∼67% -33%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
93092 MIPS ∼66% -34%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
82119 MIPS ∼58% -42%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
62746 MIPS ∼44% -56%
7z b 4 -mmt1
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
6974 MIPS ∼100% +36%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
6785 MIPS ∼97% +32%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
6652 MIPS ∼95% +29%
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
6571 MIPS ∼94% +28%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
5533 MIPS ∼79% +8%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
5333 MIPS ∼76% +4%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
5140 MIPS ∼74%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
5021 MIPS ∼72% -2%
R Benchmark 2.5 - Overall mean
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
0.561 sec * ∼12% -4%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
0.542 sec * ∼12% -1%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
0.538 sec * ∼12%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
0.4733 sec * ∼10% +12%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
0.4556 sec * ∼10% +15%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
0.4513 sec * ∼10% +16%
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
0.4216 sec * ∼9% +22%
LibreOffice - 20 Documents To PDF
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
72.5 s * ∼18% -6%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
68.2 s * ∼17%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
63.5 s * ∼16% +7%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
56.5 s * ∼14% +17%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
47.65 s * ∼12% +30%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
45.97 s * ∼12% +33%
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
40.6 s * ∼10% +40%
WebXPRT 3 - ---
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
320 Points ∼84% +62%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
291 Points ∼77% +47%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
284 Points ∼75% +43%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
239 Points ∼63% +21%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
229 Points ∼60% +16%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
217 Points ∼57% +10%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
198 Points ∼52%
Mozilla Kraken 1.1 - Total Score
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
954 ms * ∼1% -30%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
762 ms * ∼1% -4%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
736 ms * ∼1%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
566 ms * ∼1% +23%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
558 ms * ∼1% +24%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
544 ms * ∼1% +26%
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
481 ms * ∼1% +35%
3DMark
3840x2160 Fire Strike Ultra Physics
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
39462 Points ∼96% +55%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
39353 Points ∼95% +54%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
36154 Points ∼88% +42%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
28865 Points ∼70% +13%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
27685 Points ∼67% +9%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
27220 Points ∼66% +7%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
25515 Points ∼62% 0%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
25515 Points ∼62%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
24341 Points ∼59% -5%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
23094 Points ∼56% -9%
1920x1080 Fire Strike Physics
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
39600 Points ∼97% +57%
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
39112 Points ∼96% +55%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
35451 Points ∼87% +41%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
28927 Points ∼71% +15%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
28747 Points ∼71% +14%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
28606 Points ∼70% +14%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
27107 Points ∼67% +8%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
25166 Points ∼62% 0%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
25166 Points ∼62%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
23884 Points ∼59% -5%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
21457 Points ∼53% -15%
2560x1440 Time Spy CPU
Intel Core i9-12900K, Intel Core i9-12900K
i9-12900K, 3200 MHz
18431 Points ∼99% +65%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400 MHz
13650 Points ∼73% +22%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500 MHz
13433 Points ∼72% +20%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700 MHz
12633 Points ∼68% +13%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000 MHz
12436 Points ∼67% +11%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800 MHz
11880 Points ∼64% +7%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
11154 Points ∼60%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
TR Pro 3975WX, 3500 MHz
11061 Points ∼59% -1%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700 MHz
10946 Points ∼59% -2%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500 MHz
9886 Points ∼53% -11%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000 MHz
7663 Points ∼41% -31%

* ... smaller is better

科米诺GRANDO RM V2-S在Cinebench R15多循环中的表现

专门开发的冷却概念确保了良好的性能,这一点我们已经在CPU基准测试中看到。但即使在永久性负载下,冷却也不会达到其极限。因此,Cinebench R15多循环的所有得分都或多或少地与一些小的波动持平。该工作站以平均7121分的成绩掌握了50次运行。

010002000300040005000600070008000900010000Tooltip
GRANDO RM-S (4 Nvidia RTX A6000) AMD Ryzen Threadripper PRO 3975WX, AMD Ryzen Threadripper PRO 3975WX: Ø7121 (7059.65-7173.6)
AMD Threadripper 2970WX, AMD Radeon RX Vega 64 AMD Ryzen Threadripper 2970WX, AMD Ryzen Threadripper 2970WX: Ø4284 (4252.15-4316.86)
Lenovo ThinkStation P620 AMD Ryzen Threadripper PRO 3995WX, AMD Ryzen Threadripper PRO 3995WX: Ø9747 (9622.32-10101.01)

应用性能

在应用基准测试中,如果软件也能检索到所有显卡的性能,科米诺GRANDO RM V2-S工作站可以占据主导地位。LuxMark测试非常清楚地显示了可以预期的性能。在其他基准测试中,不幸的是,四个Nvidia RTX A6000的数量并没有显示出优势。根据渲染测试,有时是Nvidia,有时是AMD受益于性能。

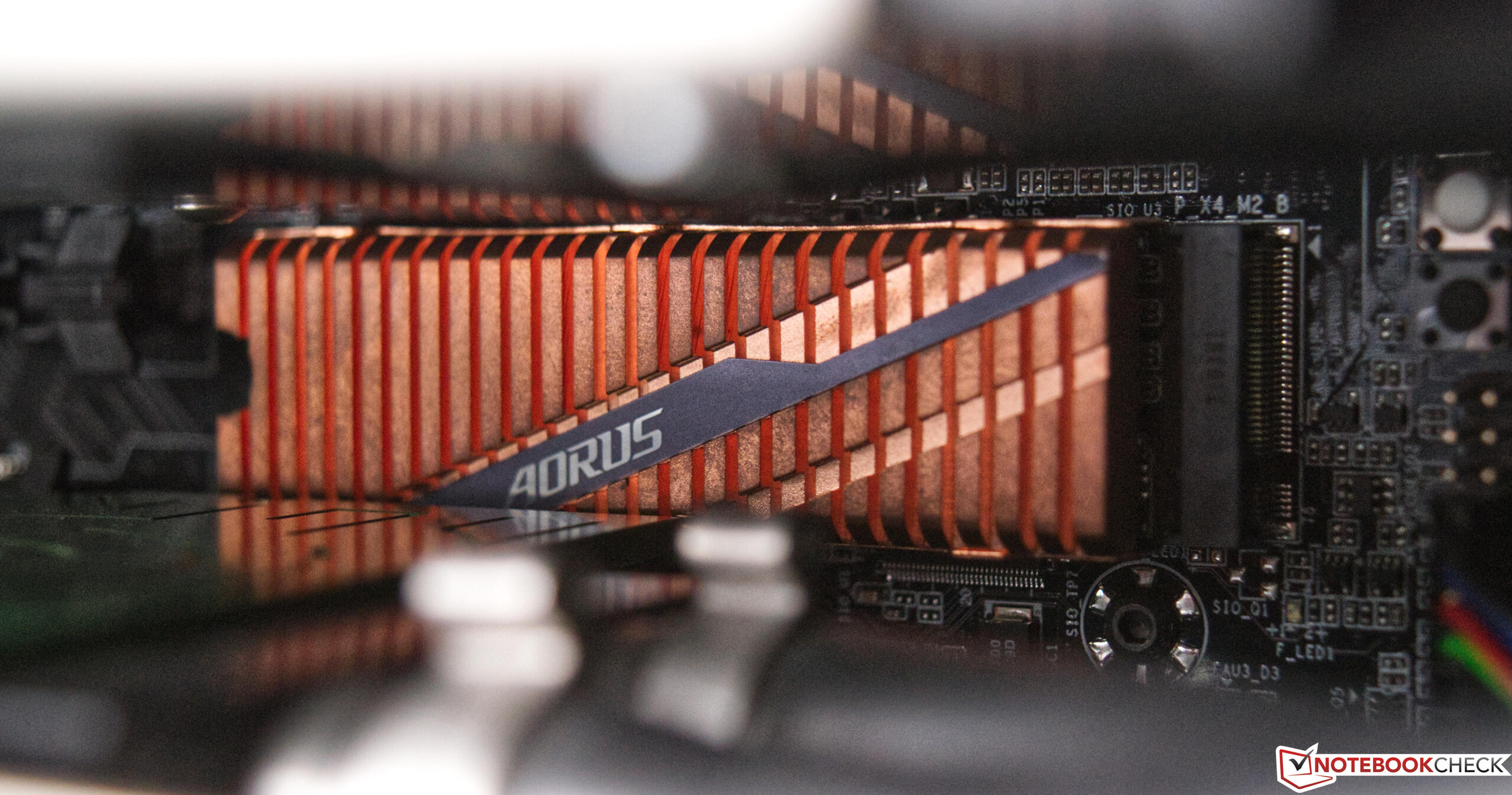

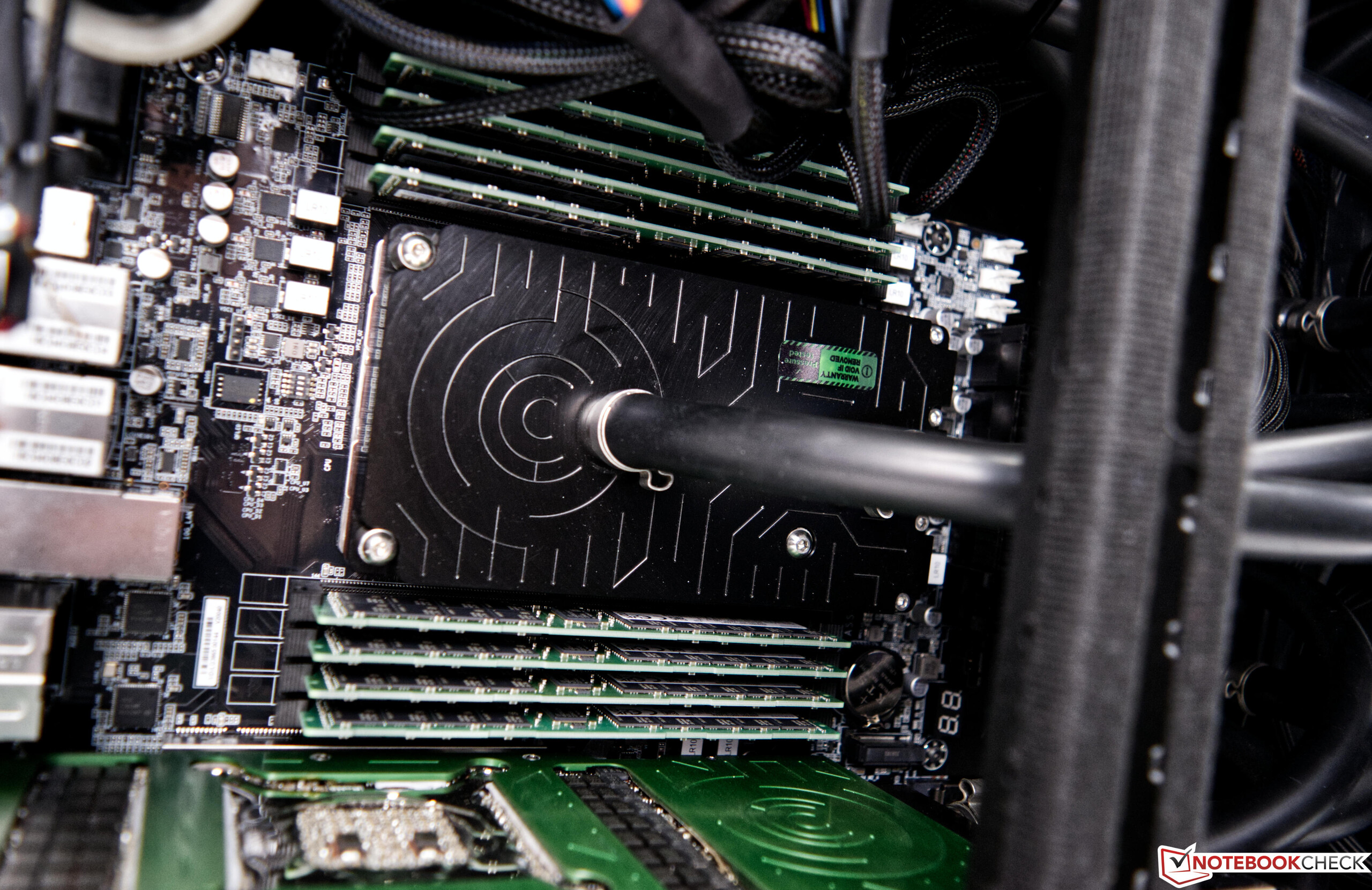

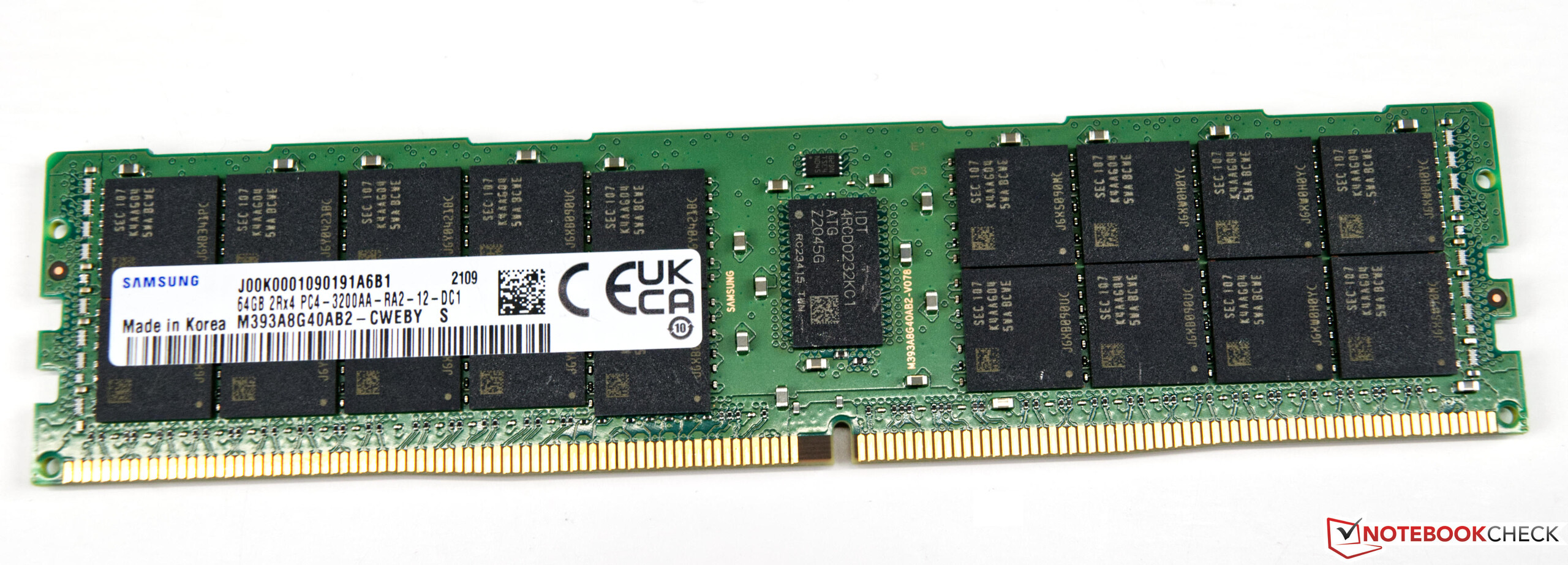

我们的测试样本安装的大容量存储包括2TB,由于NVMe协议,提供非常快的传输速率。我们还有512GB的DDR4工作内存,这对于正常的工作负荷来说绝对是超负荷的。任何订购这种工作内存的机器的人都应该知道如何使用它。

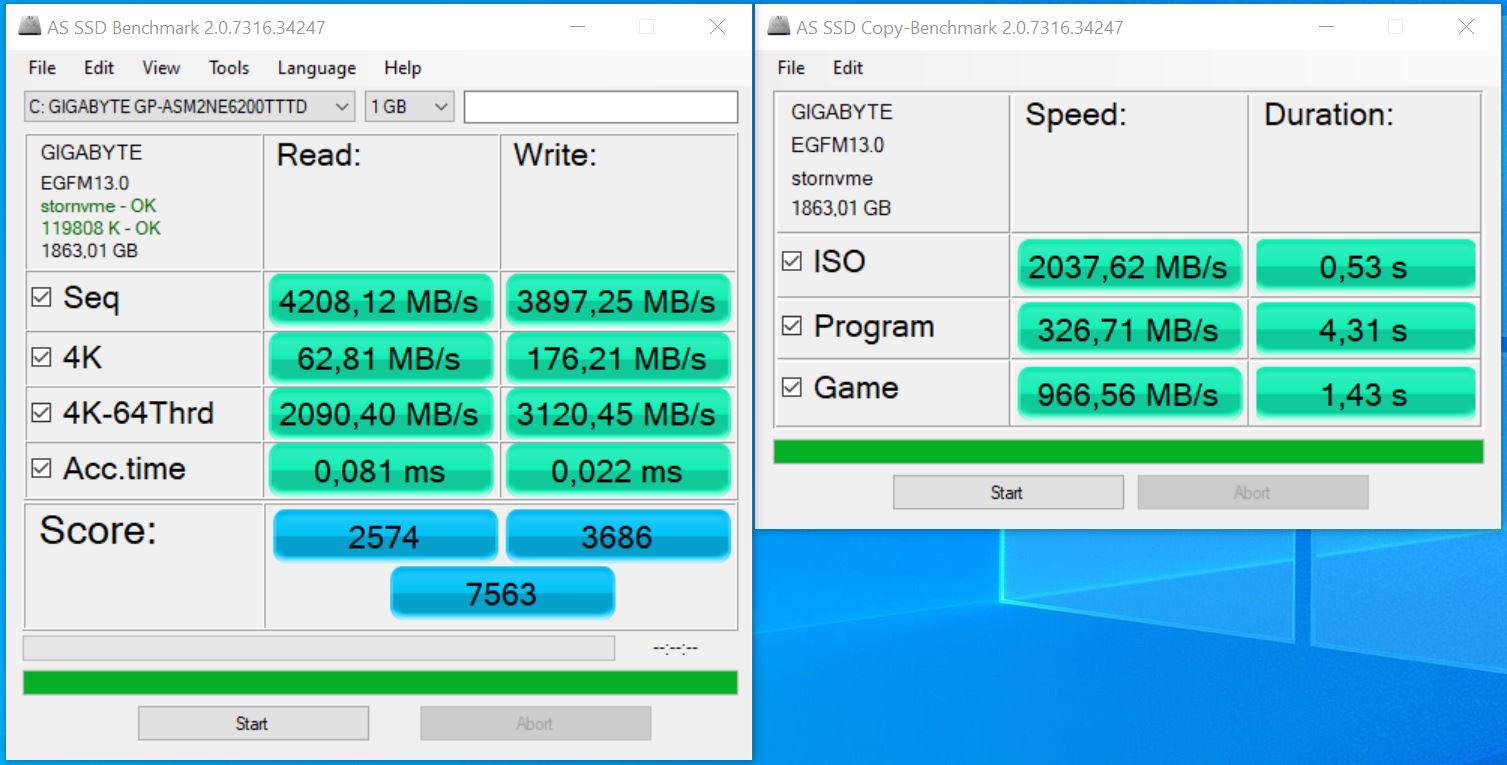

AS SSD
AS SSD

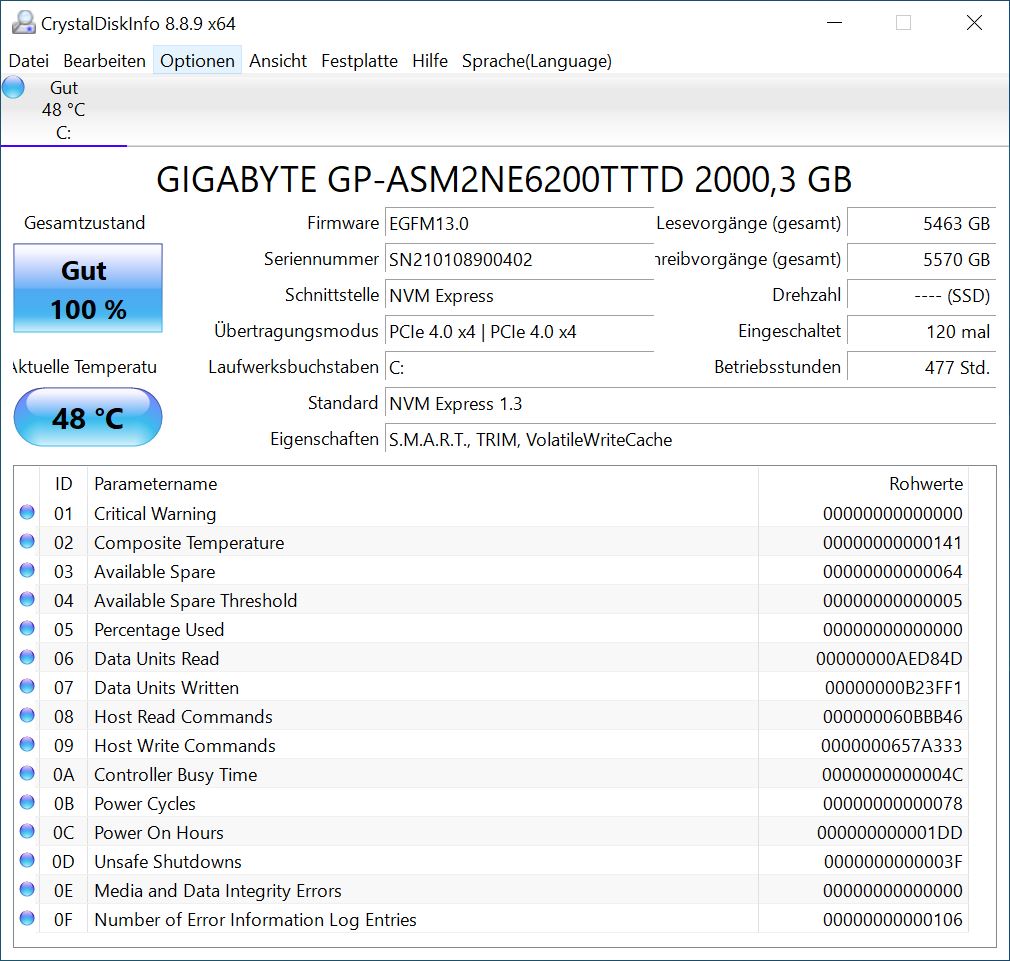

CDI
CDI

Render Tests in Performance Rating

Performance Rating - Percent
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
94.4 pt ∼94%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
69.8 pt ∼70%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX -1!
AMD Radeon Pro W6800
55.8 pt ∼56%
LuxMark v2.0 64Bit
Room GPUs-only
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
22134 Samples/s ∼100%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
5504 Samples/s ∼25% -75%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
4483 Samples/s ∼20% -80%
Sala GPUs-only
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
57054 Samples/s ∼100%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
14363 Samples/s ∼25% -75%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
3260 Samples/s ∼6% -94%
ComputeMark v2.1
1024x600 Normal, QJuliaRayTrace
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
17677 Points ∼100% +10%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
16101 Points ∼91%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
9695 Points ∼55% -40%
1024x600 Normal, Mandel Scalar
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
11336 Points ∼100% +12%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
10135 Points ∼89%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
8733 Points ∼77% -14%
1024x600 Normal, Mandel Vector
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
9648 Points ∼100% +11%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
8665 Points ∼90%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
7356 Points ∼76% -15%
1024x600 Normal, Fluid 2DTexArr
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
4262 Points ∼100% +2%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
4168 Points ∼98%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
3283 Points ∼77% -21%
1024x600 Normal, Fluid 3DTex
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
4867 Points ∼100% +18%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
4746 Points ∼98% +15%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
4141 Points ∼85%
1024x600 Normal, Score
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
47668 Points ∼100% +10%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
43210 Points ∼91%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
33935 Points ∼71% -21%
V-Ray 5 Benchmark
GPU CUDA
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
6733 mpaths ∼100%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
1659 mpaths ∼25% -75%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
1345 mpaths ∼20% -80%
GPU RTX
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
11043 mpaths ∼100%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
2806 mpaths ∼25% -75%
Performance Rating - Percent
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
89.3 pt ∼89%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
83.7 pt ∼84%
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
80.4 pt ∼80%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
79.3 pt ∼79%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
77.5 pt ∼78%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
77.3 pt ∼77%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
76.3 pt ∼76%
SPECviewperf 2020
3840x2160 Solidworks (solidworks-05)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
265 fps ∼100% +88%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
169 fps ∼64% +20%
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
158 fps ∼60% +12%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
154 fps ∼58% +9%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
153 fps ∼58% +9%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
153 fps ∼58% +9%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
141 fps ∼53%
3840x2160 Siemens NX (snx-04)
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
481 fps ∼100% +31%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
434 fps ∼90% +18%
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
370 fps ∼77% +1%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
367 fps ∼76%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
363 fps ∼75% -1%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
347 fps ∼72% -5%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
337 fps ∼70% -8%
3840x2160 Medical (medical-03)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
52 fps ∼100% +62%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
37.9 fps ∼73% +18%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
32.1 fps ∼62%
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
16.8 fps ∼32% -48%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
16.5 fps ∼32% -49%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
16.42 fps ∼32% -49%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
16.33 fps ∼31% -49%
3840x2160 Maya (maya-06)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
345 fps ∼100% +32%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
329 fps ∼95% +26%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
262 fps ∼76% 0%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
262 fps ∼76%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
257 fps ∼74% -2%
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
257 fps ∼74% -2%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
247 fps ∼72% -6%
3840x2160 Energy (energy-03)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
87.7 fps ∼100% +90%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
63 fps ∼72% +37%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
58.2 fps ∼66% +26%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
57.9 fps ∼66% +26%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
46.1 fps ∼53%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
39.1 fps ∼45% -15%
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
38.7 fps ∼44% -16%
3840x2160 Creo (creo-03)
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
129 fps ∼100% +71%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
126 fps ∼98% +67%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
113 fps ∼88% +49%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
111 fps ∼86% +47%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
109 fps ∼84% +44%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
87.8 fps ∼68% +16%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
75.6 fps ∼59%
3840x2160 CATIA (catia-06)
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
82.4 fps ∼100% +22%
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
79.7 fps ∼97% +18%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
78.6 fps ∼95% +16%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
78.2 fps ∼95% +16%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
77.2 fps ∼94% +14%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
76.2 fps ∼92% +13%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
67.5 fps ∼82%
3840x2160 3ds Max (3dsmax-07)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
162 fps ∼100% +69%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
137 fps ∼85% +43%
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
115 fps ∼71% +20%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
114 fps ∼70% +19%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
114 fps ∼70% +19%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
108 fps ∼67% +13%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
95.7 fps ∼59%
SPECviewperf 13
Solidworks (sw-04)
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
199 fps ∼100% +4%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
198 fps ∼99% +4%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
196.4 fps ∼99% +3%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
192 fps ∼96% +1%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
191 fps ∼96%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
174.6 fps ∼88% -9%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
173 fps ∼87% -9%
Siemens NX (snx-03)
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
638 fps ∼100% +6%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
604 fps ∼95%
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
516 fps ∼81% -15%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
493.4 fps ∼77% -18%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
478.5 fps ∼75% -21%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
450 fps ∼71% -25%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
437 fps ∼68% -28%
Showcase (showcase-02)
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
255 fps ∼100% +7%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
239 fps ∼94%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
216 fps ∼85% -10%
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
199 fps ∼78% -17%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
194 fps ∼76% -19%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
191.1 fps ∼75% -20%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
190.5 fps ∼75% -20%
Medical (medical-02)
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
184 fps ∼100% +2%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
180 fps ∼98%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
116 fps ∼63% -36%
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
93.6 fps ∼51% -48%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
90.8 fps ∼49% -50%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
90.6 fps ∼49% -50%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
90 fps ∼49% -50%
Maya (maya-05)
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
505 fps ∼100% +25%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
460.3 fps ∼91% +14%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
458 fps ∼91% +13%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
454 fps ∼90% +12%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
415 fps ∼82% +2%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
405 fps ∼80%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
395 fps ∼78% -2%
Energy (energy-02)
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
132 fps ∼100% +3%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
128 fps ∼97%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
87.8 fps ∼67% -31%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
53.7 fps ∼41% -58%
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
52.7 fps ∼40% -59%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
52 fps ∼39% -59%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
52 fps ∼39% -59%
Catia (catia-05)
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
467 fps ∼100% +30%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
430 fps ∼92% +20%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
415 fps ∼89% +16%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
389 fps ∼83% +8%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
374.8 fps ∼80% +4%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
371 fps ∼79% +3%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
359 fps ∼77%
3ds Max (3dsmax-06)
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
338 fps ∼100% +37%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
318 fps ∼94% +29%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
291.3 fps ∼86% +18%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
290.5 fps ∼86% +18%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
287 fps ∼85% +16%
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
265 fps ∼78% +7%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
247 fps ∼73%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
225 fps ∼100% +8%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
208 fps ∼92%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
196.8 fps ∼87% -5%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
185 fps ∼82% -11%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
182 fps ∼81% -12%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
174.9 fps ∼78% -16%
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
174 fps ∼77% -16%
1900x1060 Siemens NX (snx-02)
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
351 fps ∼100% +5%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
333 fps ∼95%
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
287 fps ∼82% -14%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
273.2 fps ∼78% -18%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
264.7 fps ∼75% -21%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
245 fps ∼70% -26%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
243 fps ∼69% -27%
1900x1060 Showcase (showcase-01)
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
255 fps ∼100% +8%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
237 fps ∼93%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
215 fps ∼84% -9%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
203 fps ∼80% -14%
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
200 fps ∼78% -16%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
191.1 fps ∼75% -19%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
190.8 fps ∼75% -19%
1900x1060 Medical (medical-01)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
165 fps ∼100% +6%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
159 fps ∼96% +2%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
156 fps ∼95%
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
108 fps ∼65% -31%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
90.7 fps ∼55% -42%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
87.8 fps ∼53% -44%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
87.8 fps ∼53% -44%
1900x1060 Maya (maya-04)
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
211 fps ∼100% +44%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
199 fps ∼94% +35%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
189.7 fps ∼90% +29%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
188.3 fps ∼89% +28%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
157 fps ∼74% +7%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
147 fps ∼70%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
144 fps ∼68% -2%
1900x1060 Energy (energy-01)
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
39.8 fps ∼100% +1%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
39.3 fps ∼99%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
37.8 fps ∼95% -4%
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
30.1 fps ∼76% -23%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
28.31 fps ∼71% -28%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
28.2 fps ∼71% -28%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
27.88 fps ∼70% -29%
1900x1060 Creo (creo-01)
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
187 fps ∼100% +47%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
173 fps ∼93% +36%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
173 fps ∼93% +36%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
141.9 fps ∼76% +12%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
136 fps ∼73% +7%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
127 fps ∼68%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
101 fps ∼54% -20%
1900x1060 Catia (catia-04)
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
290 fps ∼100% +39%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
269 fps ∼93% +29%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
262.7 fps ∼91% +26%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
248 fps ∼86% +19%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
237.7 fps ∼82% +14%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
229 fps ∼79% +10%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
208 fps ∼72%
1900x1060 3ds Max (3dsmax-05)
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
336 fps ∼100% +37%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
311 fps ∼93% +27%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
292.6 fps ∼87% +19%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
291.3 fps ∼87% +19%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
289 fps ∼86% +18%
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
262 fps ∼78% +7%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
245 fps ∼73%
PCMark 10
Score
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
8778 Points ∼100% +27%
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
8604 Points ∼98% +25%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
8480 Points ∼97% +23%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
7745 Points ∼88% +12%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
7474 Points ∼85% +8%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
6893 Points ∼79% 0%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
6893 Points ∼79%
Digital Content Creation
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
14607 Points ∼100% +23%
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
14573 Points ∼100% +22%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
13801 Points ∼94% +16%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
12357 Points ∼85% +4%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
11919 Points ∼82% 0%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
11919 Points ∼82%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
11863 Points ∼81% 0%
Productivity
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
11163 Points ∼100% +45%
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
10699 Points ∼96% +39%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
10079 Points ∼90% +31%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
10039 Points ∼90% +31%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
9425 Points ∼84% +23%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
7681 Points ∼69% 0%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
7681 Points ∼69%
Essentials
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
11255 Points ∼100% +16%
Intel Core i9-12900K, Intel Core i9-12900K
NVIDIA Titan RTX
11086 Points ∼98% +14%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
10964 Points ∼97% +13%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
10585 Points ∼94% +9%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
NVIDIA RTX A6000
9731 Points ∼86% 0%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
9711 Points ∼86% 0%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX
4x NVIDIA RTX A6000
9711 Points ∼86%

3D性能

当你仔细看一下游戏测试的细节时,工作站不应该主要被用作游戏平台,这一点就很清楚。特别是在两个Far Cry 游戏中,我们的测试样本在可玩的帧率方面有很大问题。在我们看的其他游戏中,情况看起来好一点,尽管Nvidia RTX A6000的性能有时明显落后于NvidiaGeForce RTX 3090。此外,游戏中完全没有多GPU支持,所以只能使用四个GPU中的一个。然而,如果你禁用四块显卡中的三块,单独使用的Nvidia RTX A6000的性能就会大大增加。这里变得非常清楚,Windows不应该是作为多GPU平台的首选。

关于进一步的比较和基准测试,我们参考了我们的GPU比较表.

Performance Rating - Percent
NVIDIA GeForce RTX 3090
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
93.3 pt ∼93%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
83.5 pt ∼84%
NVIDIA Titan RTX -6!
NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5
81.6 pt ∼82%
NVIDIA RTX A6000
NVIDIA RTX A6000, TR Pro 3975WX
81.5 pt ∼82%
4x NVIDIA RTX A6000
NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX
75 pt ∼75%
AMD Radeon Pro W6800
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
67.2 pt ∼67%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
62.2 pt ∼62%
3DMark
Fire Strike Extreme Graphics
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
25015 Points ∼100% +27%
NVIDIA GeForce RTX 3090
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
22075 Points ∼88% +12%
NVIDIA RTX A6000
NVIDIA RTX A6000, TR Pro 3975WX
21196 Points ∼85% +7%
AMD Radeon Pro W6800
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
19729 Points ∼79% 0%
4x NVIDIA RTX A6000
NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX
19729 Points ∼79%
NVIDIA Titan RTX
NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5
18131 Points ∼72% -8%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
17009 Points ∼68% -14%
1920x1080 Fire Strike Graphics
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
49735 Points ∼100% +78%
NVIDIA GeForce RTX 3090
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
41298 Points ∼83% +48%
NVIDIA Titan RTX
NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5
37550 Points ∼76% +34%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
35136 Points ∼71% +26%
AMD Radeon Pro W6800
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
27937 Points ∼56% 0%
4x NVIDIA RTX A6000
NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX
27937 Points ∼56%
NVIDIA RTX A6000
NVIDIA RTX A6000, TR Pro 3975WX
27511 Points ∼55% -2%
2560x1440 Time Spy Graphics
NVIDIA GeForce RTX 3090
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
18685 Points ∼100% +84%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
17603 Points ∼94% +73%
NVIDIA Titan RTX
NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5
15202 Points ∼81% +50%
AMD Radeon Pro W6800
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
12136 Points ∼65% +19%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
11473 Points ∼61% +13%
NVIDIA RTX A6000
NVIDIA RTX A6000, TR Pro 3975WX
10490 Points ∼56% +3%
4x NVIDIA RTX A6000
NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX
10167 Points ∼54%
3DMark 11
1280x720 Performance GPU
NVIDIA GeForce RTX 3090
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
55144 Points ∼100% +45%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
52046 Points ∼94% +36%
NVIDIA RTX A6000
NVIDIA RTX A6000, TR Pro 3975WX
50957 Points ∼92% +34%
NVIDIA Titan RTX
NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5
50224 Points ∼91% +32%
AMD Radeon Pro W6800
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
44404 Points ∼81% +16%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
43888 Points ∼80% +15%
4x NVIDIA RTX A6000
NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX
38132 Points ∼69%
1280x720 Performance
NVIDIA Titan RTX
NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5
41663 Points ∼100% +42%
NVIDIA GeForce RTX 3090
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
38620 Points ∼93% +32%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
38057 Points ∼91% +30%
NVIDIA RTX A6000
NVIDIA RTX A6000, TR Pro 3975WX
34321 Points ∼82% +17%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
34078 Points ∼82% +16%
AMD Radeon Pro W6800
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
30190 Points ∼72% +3%
4x NVIDIA RTX A6000
NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX
29277 Points ∼70%
Unigine Superposition
1280x720 720p Low
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
36452 Points ∼100% +56%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
34713 Points ∼95% +49%
NVIDIA GeForce RTX 3090
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
34649 Points ∼95% +48%
NVIDIA RTX A6000
NVIDIA RTX A6000, TR Pro 3975WX
24008 Points ∼66% +3%
4x NVIDIA RTX A6000
NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX
23343 Points ∼64%
AMD Radeon Pro W6800
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
22537 Points ∼62% -3%
1920x1080 1080p High
NVIDIA GeForce RTX 3090
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
23853 Points ∼100% +10%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
22265 Points ∼93% +3%
NVIDIA RTX A6000
NVIDIA RTX A6000, TR Pro 3975WX
22164 Points ∼93% +3%
4x NVIDIA RTX A6000
NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX
21617 Points ∼91%
AMD Radeon Pro W6800
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
19450 Points ∼82% -10%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
15832 Points ∼66% -27%
1920x1080 1080p Extreme
NVIDIA RTX A6000
NVIDIA RTX A6000, TR Pro 3975WX
12113 Points ∼100% +3%
NVIDIA GeForce RTX 3090
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
11806 Points ∼97% 0%
4x NVIDIA RTX A6000
NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX
11790 Points ∼97%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
10046 Points ∼83% -15%
AMD Radeon Pro W6800
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
8478 Points ∼70% -28%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
6804 Points ∼56% -42%
3840x2160 4k Optimized
NVIDIA RTX A6000
NVIDIA RTX A6000, TR Pro 3975WX
16166 Points ∼100% +2%
4x NVIDIA RTX A6000
NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX
15818 Points ∼98%
NVIDIA GeForce RTX 3090
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
15794 Points ∼98% 0%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
13471 Points ∼83% -15%
AMD Radeon Pro W6800
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
12133 Points ∼75% -23%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
9106 Points ∼56% -42%
7680x4320 8k Optimized
NVIDIA RTX A6000
NVIDIA RTX A6000, TR Pro 3975WX
7071 Points ∼100% 0%
4x NVIDIA RTX A6000
NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX
7036 Points ∼100%
NVIDIA GeForce RTX 3090
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
7002 Points ∼99% 0%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
5256 Points ∼74% -25%
AMD Radeon Pro W6800
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
4838 Points ∼68% -31%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
3586 Points ∼51% -49%
Metro Exodus - 3840x2160 Ultra Quality AF:16x
NVIDIA GeForce RTX 3090
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
70.6 (41.43min - 118.98max) fps ∼100% +5%
NVIDIA RTX A6000
NVIDIA RTX A6000, TR Pro 3975WX
70.4 (45.27min - 104.78max) fps ∼100% +5%
4x NVIDIA RTX A6000
NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX
67 (41.38min - 103.26max) fps ∼95%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
56.3 (40.14min - 64.28max) fps ∼80% -16%
AMD Radeon Pro W6800
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
54.7 (36.07min - 72.76max) fps ∼77% -18%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
42.3 (27.78min - 56.35max) fps ∼60% -37%
Far Cry New Dawn - 3840x2160 Ultra Preset
NVIDIA GeForce RTX 3090
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
97 (75min - 124max) fps ∼100% +169%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
94 (75min - 129max) fps ∼97% +161%
NVIDIA Titan RTX
NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5
84 (71min - 101max) fps ∼87% +133%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
70 (57min - 91max) fps ∼72% +94%
NVIDIA RTX A6000
NVIDIA RTX A6000, TR Pro 3975WX
63 (45min - 91max) fps ∼65% +75%
AMD Radeon Pro W6800
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
55 (42min - 77max) fps ∼57% +53%
4x NVIDIA RTX A6000
NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX
36 (20min - 55max) fps ∼37%
Far Cry 5 - 3840x2160 Ultra Preset AA:T
NVIDIA GeForce RTX 3090
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
105 (94min - 121max) fps ∼100% +483%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
95 (72min - 124max) fps ∼90% +428%
NVIDIA Titan RTX
NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5
83 (72min - 98max) fps ∼79% +361%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
70 (59min - 91max) fps ∼67% +289%
AMD Radeon Pro W6800
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
60 (49min - 75max) fps ∼57% +233%
NVIDIA RTX A6000
NVIDIA RTX A6000, TR Pro 3975WX
50 (35min - 70max) fps ∼48% +178%
4x NVIDIA RTX A6000
NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX
18 (11min - 27max) fps ∼17%
X-Plane 11.11 - 3840x2160 high (fps_test=3)
NVIDIA Titan RTX
NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5
117 fps ∼100% +73%
NVIDIA GeForce RTX 3090
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
92.8 fps ∼79% +37%
4x NVIDIA RTX A6000
NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX
67.8 fps ∼58%
NVIDIA RTX A6000
NVIDIA RTX A6000, TR Pro 3975WX
67.2 fps ∼57% -1%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
45.5 fps ∼39% -33%
AMD Radeon Pro W6800
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
45.1 fps ∼39% -33%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
40.1 fps ∼34% -41%
Final Fantasy XV Benchmark - 3840x2160 High Quality
NVIDIA RTX A6000
NVIDIA RTX A6000, TR Pro 3975WX
82.4 fps ∼100% +46%
NVIDIA GeForce RTX 3090
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
81.5 fps ∼99% +45%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
65.2 fps ∼79% +16%
NVIDIA Titan RTX
NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5
64.1 fps ∼78% +14%
AMD Radeon Pro W6800
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
60.8 fps ∼74% +8%
4x NVIDIA RTX A6000
NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX
56.3 fps ∼68%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
47.7 fps ∼58% -15%
Dota 2 Reborn - 3840x2160 ultra (3/3) best looking
NVIDIA Titan RTX
NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5
178.9 (147.4min) fps ∼100% +64%
NVIDIA GeForce RTX 3090
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
138.6 (69.8min) fps ∼77% +27%
NVIDIA RTX A6000
NVIDIA RTX A6000, TR Pro 3975WX
127.9 (109.8min) fps ∼71% +17%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
122.2 (105.8min) fps ∼68% +12%
4x NVIDIA RTX A6000
NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX
109.3 (82.8min) fps ∼61%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
105.8 (89.8min) fps ∼59% -3%
AMD Radeon Pro W6800
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
94 (67.5min) fps ∼53% -14%
The Witcher 3 - 3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off)
NVIDIA GeForce RTX 3090
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
148 fps ∼100% +4%
NVIDIA RTX A6000
NVIDIA RTX A6000, TR Pro 3975WX
146 (65.4min, 78.1P0.1, 117P1 - 396max) fps ∼99% +3%
4x NVIDIA RTX A6000
NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX
142 (35.4min, 62.7P0.1, 101P1 - 411max) fps ∼96%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
110 (97min - 117max) fps ∼74% -23%
NVIDIA Titan RTX
NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5
103 (57.9min, 71.8P0.1, 88.3P1 - 466max) fps ∼70% -27%
AMD Radeon Pro W6800
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
99.1 (58min, 70.3P0.1, 79.5P1 - 233max) fps ∼67% -30%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
63 fps ∼43% -56%
F1 2020 - 3840x2160 Ultra High Preset AA:T AF:16x
NVIDIA RTX A6000
NVIDIA RTX A6000, TR Pro 3975WX
137 (113min - 161max) fps ∼100% +1%
4x NVIDIA RTX A6000
NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX
136 (114min - 160max) fps ∼99%
NVIDIA GeForce RTX 3090
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
135 (116min - 157max) fps ∼99% -1%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
128 (106min - 152max) fps ∼93% -6%
AMD Radeon Pro W6800
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
109 (87min - 131max) fps ∼80% -20%
NVIDIA Titan RTX
NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5
101 (87min - 119max) fps ∼74% -26%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
83 fps ∼61% -39%
GTA V - 3840x2160 High/On (Advanced Graphics Off) AA:FX AF:8x
NVIDIA RTX A6000
NVIDIA RTX A6000, TR Pro 3975WX
155 (3.76min, 100P1 - 267max) fps ∼100% +12%
NVIDIA GeForce RTX 3090
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
151 (6.66min, 33.3P1 - 81.5max) fps ∼97% +9%
4x NVIDIA RTX A6000
NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX
139 (0.64min, 25P1 - 249max) fps ∼90%
NVIDIA Titan RTX
NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5
138 (6.01min, 100P1 - 287max) fps ∼89% -1%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
134 (15.5min, 55.6P1 - 252max) fps ∼86% -4%
AMD Radeon Pro W6800
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
125 (6.9min, 90.9P1 - 181max) fps ∼81% -10%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
96.5 (5.12min, 71.4P1 - 220max) fps ∼62% -31%
Strange Brigade - 3840x2160 ultra AA:ultra AF:16
4x NVIDIA RTX A6000
NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX
246 (41min, 167P1 - 401max) fps ∼100%
NVIDIA GeForce RTX 3090
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
150 (99min, 124P1 - 238max) fps ∼61% -39%
NVIDIA RTX A6000
NVIDIA RTX A6000, TR Pro 3975WX
149 (55.1min, 127P1 - 206max) fps ∼61% -39%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
133 (45.6min, 48.7P1 - 316max) fps ∼54% -46%
AMD Radeon Pro W6800
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
126 (91.9min, 104P1 - 184max) fps ∼51% -49%
NVIDIA Titan RTX
NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5
115 (98.4min, 101P1 - 148max) fps ∼47% -53%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
91 (73.6min, 77.5P1 - 121max) fps ∼37% -63%

Comino GRANDO RM V2-S with 4x Nvidia RTX A6000

low med. high ultraQHD4K
GTA V (2015) 169 162 142 88.5 88.4 139
The Witcher 3 (2015) 351 331 305 173 142
Dota 2 Reborn (2015) 154 135.3 126.8 115.3 109.3
Final Fantasy XV Benchmark (2018) 175 167 131 113 56.3
X-Plane 11.11 (2018) 109 96.8 78.3 67.8
Far Cry 5 (2018) 18 18 17 18 17 18
Strange Brigade (2018) 317 260 257 258 252 246
Far Cry New Dawn (2019) 40 40 38 37 37 36
Metro Exodus (2019) 119 106 95.7 87.9 83.5 67
F1 2020 (2020) 277 241 241 221 210 136
F1 2021 (2021) 328 303 278 159 149 96.8

Comino GRANDO RM V2-S with 1x Nvidia RTX A6000

low med. high ultraQHD4K
GTA V (2015) 177 171 160 96.2 95.8 155
The Witcher 3 (2015) 362 334 307 180 146
Dota 2 Reborn (2015) 160.5 144.8 138.7 131.2 127.9
Final Fantasy XV Benchmark (2018) 176 168 135 127 82.4
X-Plane 11.11 (2018) 109 97 78.1 67.2
Far Cry 5 (2018) 55 52 53 52 52 50
Strange Brigade (2018) 382 300 293 288 247 149
Far Cry New Dawn (2019) 71 66 68 65 63 63
Metro Exodus (2019) 120 109 96.8 87.9 84.1 70.4
F1 2020 (2020) 278 248 241 224 210 137
F1 2021 (2021) 333 313 281 162 155 99.7

排放

科米诺GRANDO RM V2-S的冷却效果出奇地好

科米诺GRANDO RM V2-S工作站的冷却概念很独特。无论是 AMD Threadripper Pro 3975WX以及四个 Nvidia RTX A6000显卡都是由专门开发的液体冷却系统冷却的。非常惊人的是使用了一个360毫米(约14.2英寸)的散热器。此外,机箱内还安装了三个140毫米(约5.5英寸)的风扇,以便将废热排出机箱。为此,你必须仔细看看机箱的结构,因为如果没有安装侧板,系统就不应该使用,因为否则风扇的压力就不足以迫使空气通过散热器。

在Prime95的压力测试中,32核的温度最高达到了69℃(156.2°F)。如果我们也启动FurMark,处理器的温度高达73℃(163.4°F),尽管我们注意到显卡的温度为57℃(134.6°F)。然而,FurMark在负载下只使用一个GPU。我们尝试了各种设置来改变这一点,但没有成功。然而,通过其他工具,有可能同时加载所有的显卡,以检查尽管只有一个散热器,冷却是否能够冷却所有组件。事实上,这是有可能的。然而,显卡的温度上升到略高于80°C(176°F),这仍然是在绿色区域内。如果我们考虑到总共有1480瓦的废热(CPU+GPU),底线是非常好的。关于Comino GRANDO RM V2-S的设计,应该提到它是一个19英寸的机架。因此,计划中的使用是在有空调的机房中,这应该会使温度得到更大的改善。在我们的测试环境中,测试时的温度是22.6 °C (~73 °F)。

压力测试Prime95和FurMark
压力测试Prime95和FurMark
压力测试 Prime95
压力测试 Prime95

极高的性能也有一个缺点

科米诺GRANDO RM V2-S工作站在能源消耗方面创造了新高。即使在空闲状态下,我们的测量设备也显示刚刚超过200瓦。一旦我们开始Prime95,它就会增加,达到平均580瓦。但这还不够,因为在游戏过程中必须提供近716瓦的能量。在最坏的情况下,我们测量了平均1,880瓦,其中我们将CPU和GPU加载到100%。然而,电源装置必须提供的最大功率高达1940瓦。电源,是的,你没看错。如果你已经仔细看了一下这个设置,你可以看到总共安装了三个SFF电源,每个750瓦。这些都提供了坚实的性能,即使在极端的负载下,也没有出现由于负载峰值过高而导致的系统故障。

使用Prime95进行压力测试时的能量消耗
使用Prime95进行压力测试时的能量消耗
游戏过程中的能量消耗
游戏过程中的能量消耗
能耗满负荷的CPU和所有GPU
能耗满负荷的CPU和所有GPU

Energy consumption of the Comino GRANDO RM V2-S
