审查。联想ThinkStation P620高端工作站的AMD Ryzen Threadripper Pro 3995WX和Radeon Pro W6800

64个(六十四个!)核心。 通过目前的ThinkStation P620,联想为紧凑型高端工作站提供了一个坚实的平台。我们在测试中仔细观察了这款13000欧元(约15292美元)的设备;它由AMD Ryzen Threadripper Pro 3995WX和全新的AMD Radeon Pro W6800组成。
Sebastian Bade 👁 (translated by DeepL/Stefan Hinum), 🇺🇸 🇩🇪 ...
Business Desktop AMD Workstation
, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,


联想在工作站领域已经有很长一段时间了,它通过ThinkStation P620系列提供了一个基于最新硬件的坚实平台。但制造商在这里并没有使用标准组件。相反,它使用了一个定制开发的平台,这是为工作站的需求而定制的。在我们的测试样本中,这个精心设计的模块化机箱配备了不亚于目前最强大的AMD处理器和AMD最新的工作站显卡。

AMD Ryzen Threadripper Pro 3995WX与AMD Radeon Pro W6800相遇

AMD Ryzen Threadripper Pro 3995WX是一个64核CPU,共有128个线程。显卡是AMD Radeon Pro W6800 ,它接替了AMD Radeon Pro W5700,现在像目前的桌面游戏显卡一样基于RDNA2。这意味着AMD Radeon Pro W6800还提供了对实时光线追踪的硬件支持,并且可以访问32GB的VRAM。有了高达256GB的DDR4内存,即使是内存密集型的应用程序也可以顺利掌握,因为由于AMD Ryzen Threadripper Pro 3995WX,有八通道支持,这导致了非常好的内存数据传输率。256GB的固态硬盘安装在我们测试的P620模型中,相比之下非常小。在选择配置时,可能最好选择下一个更大的型号。

说到选择的配置。你可以在联想的在线商店中尽情地定制联想ThinkStation P620。制造商在这里提供了多种选择。然而,想要购买我们正在评测的这个版本的设备的用户将不得不深挖自己的口袋。基本价格(3179欧元(约3739美元))与终极配置相差甚远。我们评测中使用的系统价格约为13,000欧元(约15,292美元)。

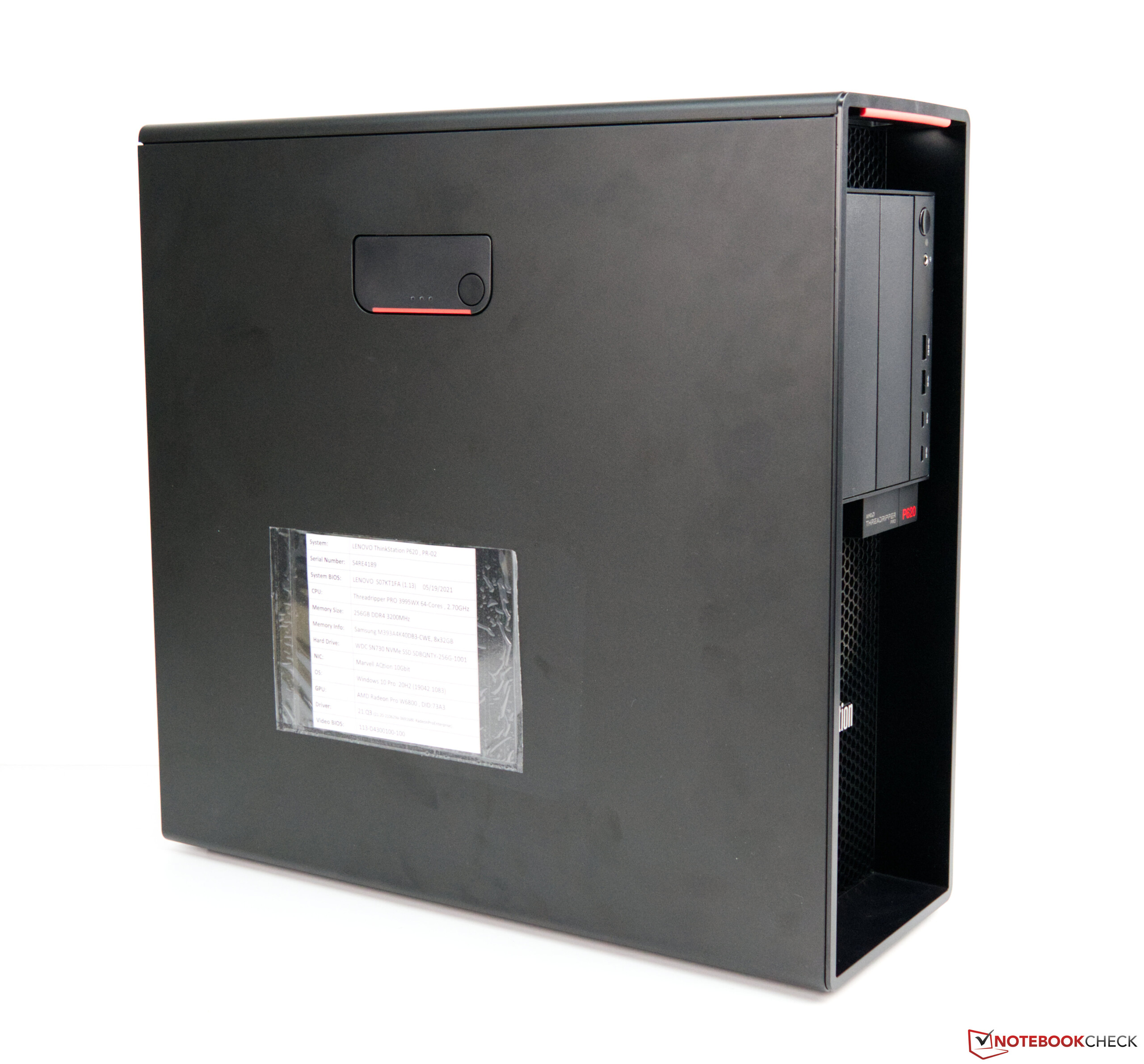

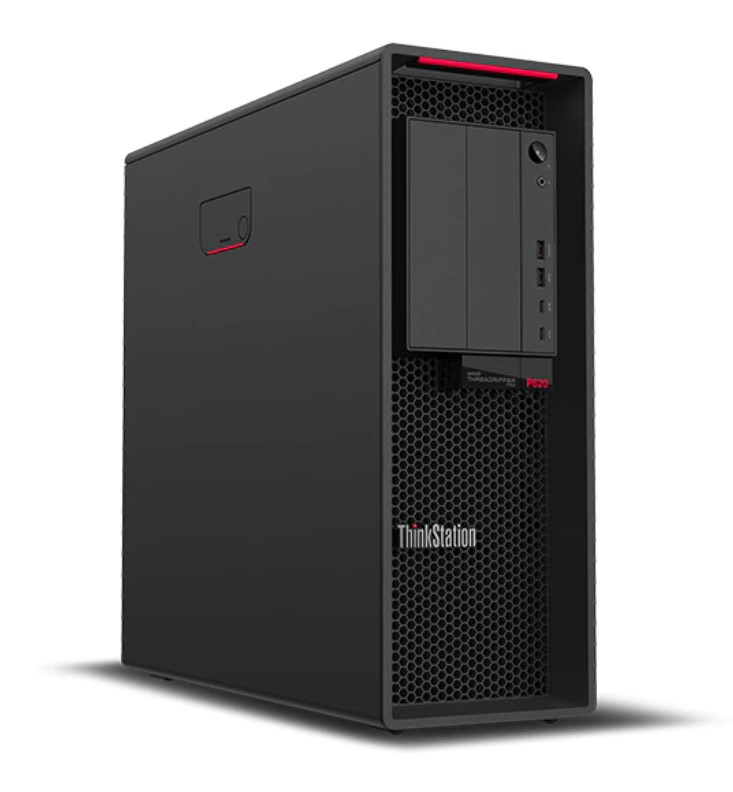

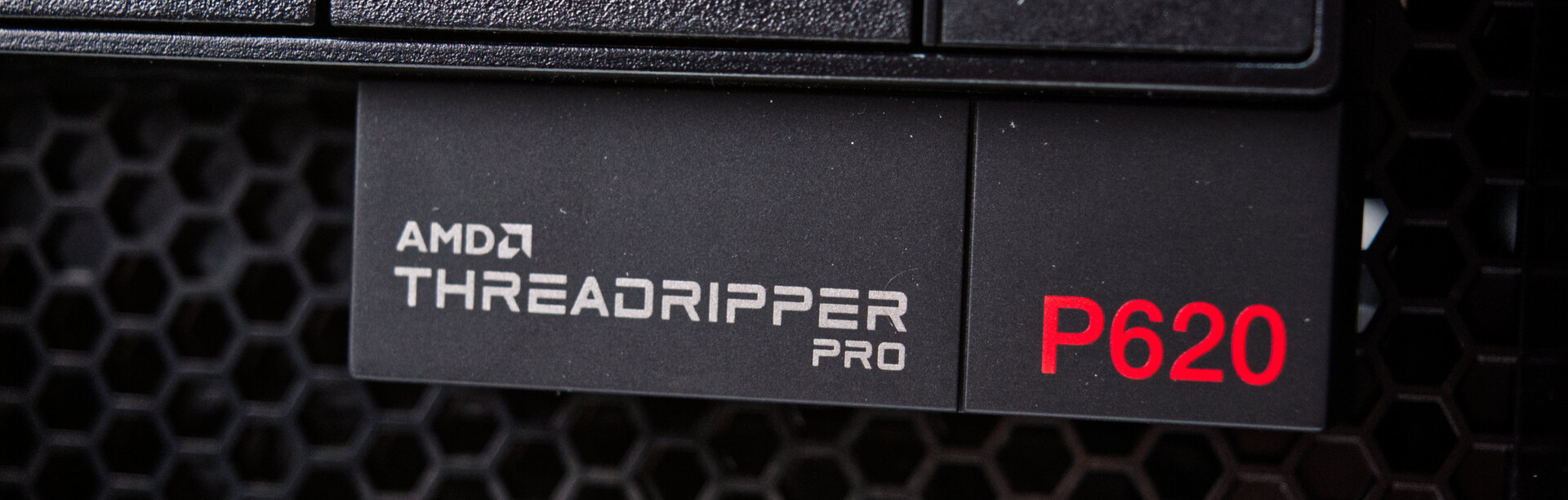

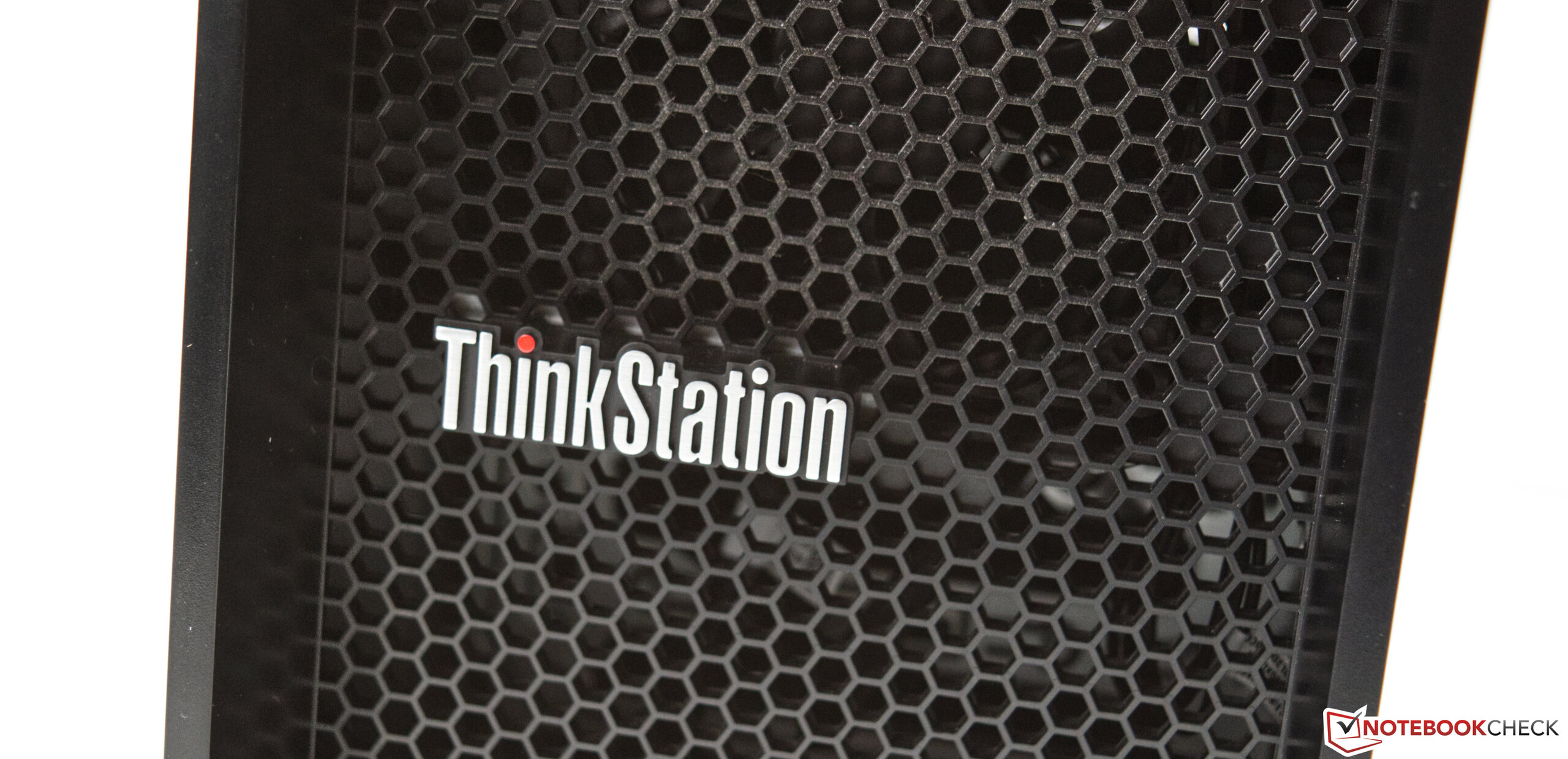

联想ThinkStation P620(来源:联想)。

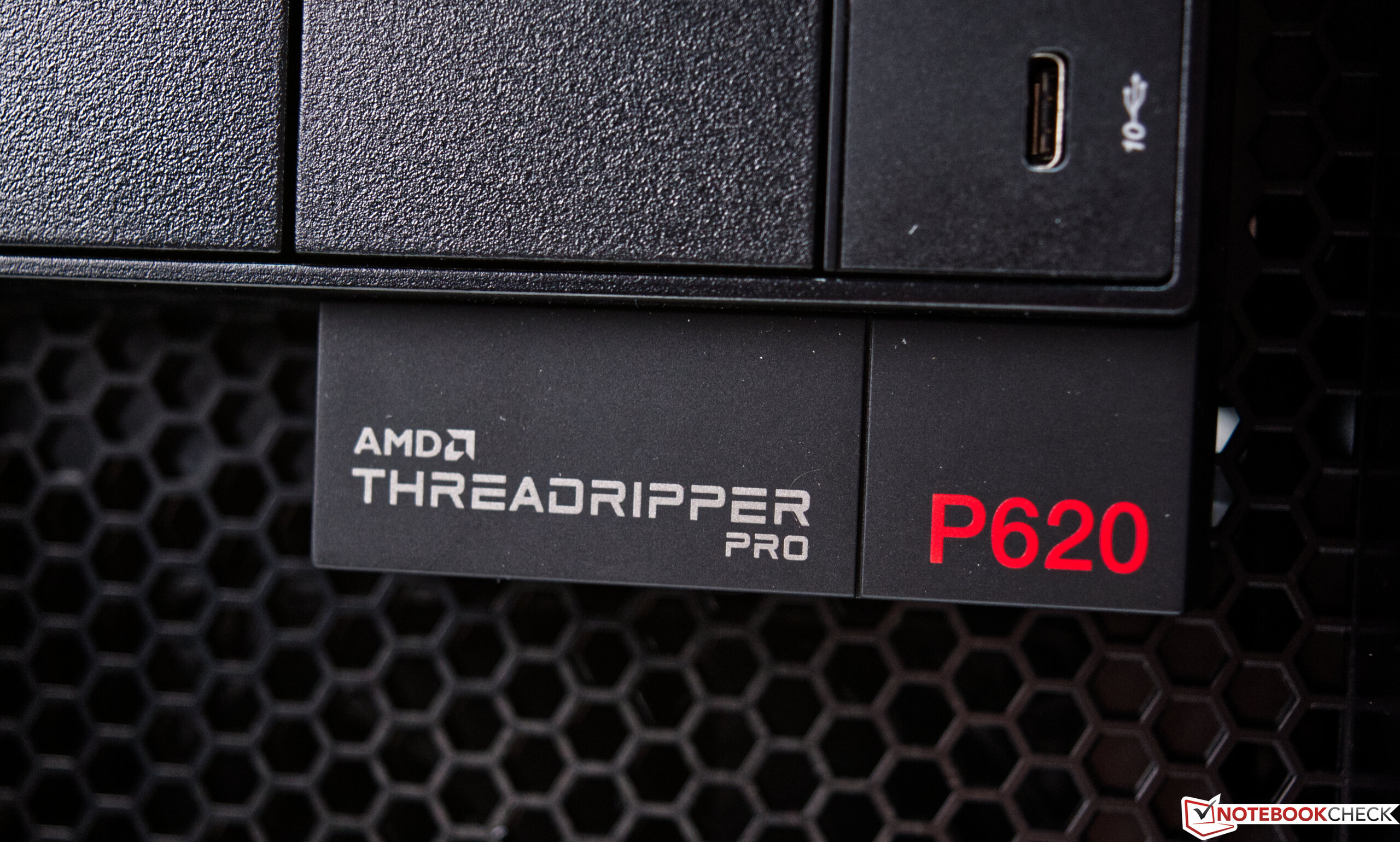

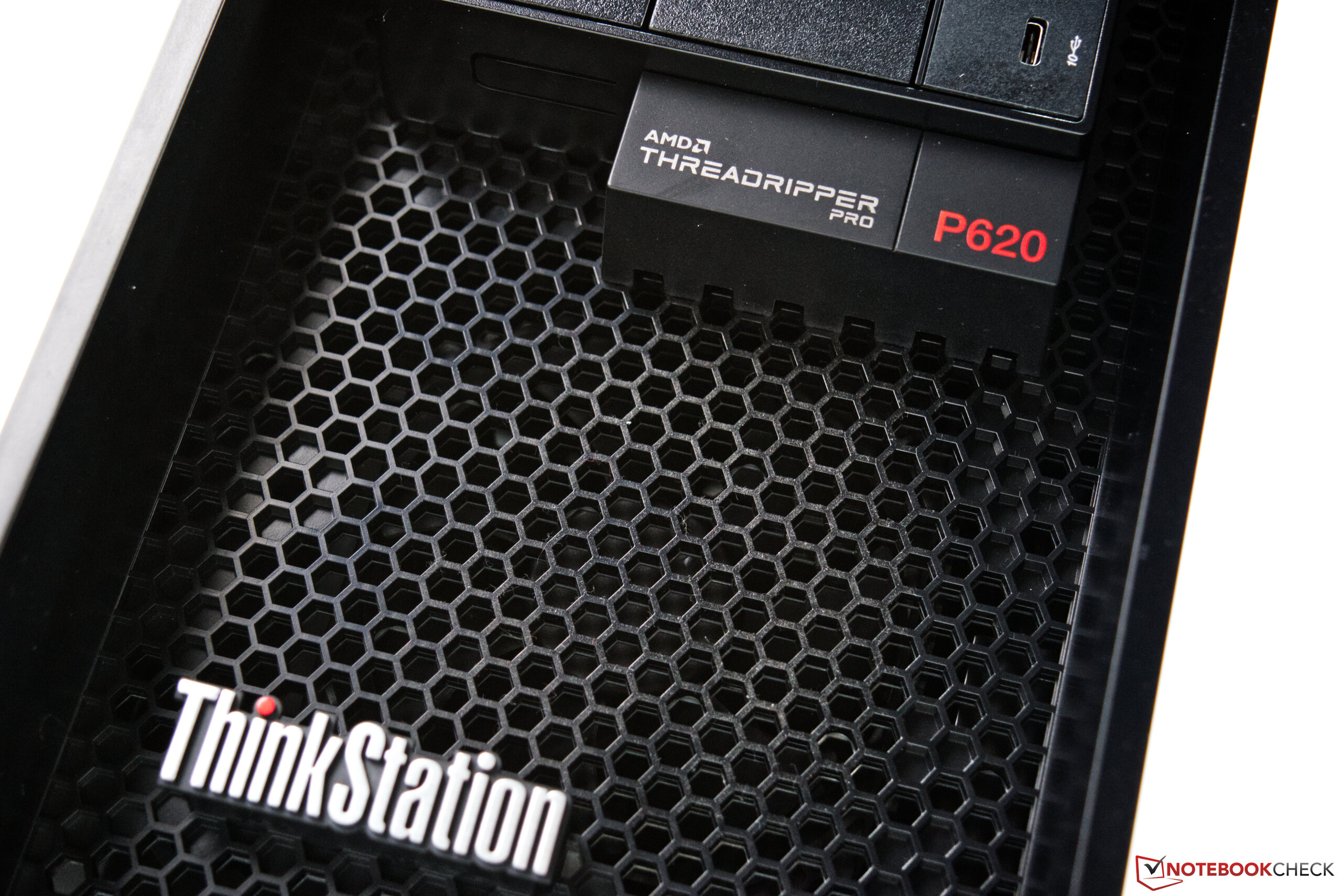

联想ThinkStation P620
联想ThinkStation P620
联想ThinkStation P620
联想ThinkStation P620
联想ThinkStation P620
联想ThinkStation P620
联想ThinkStation P620

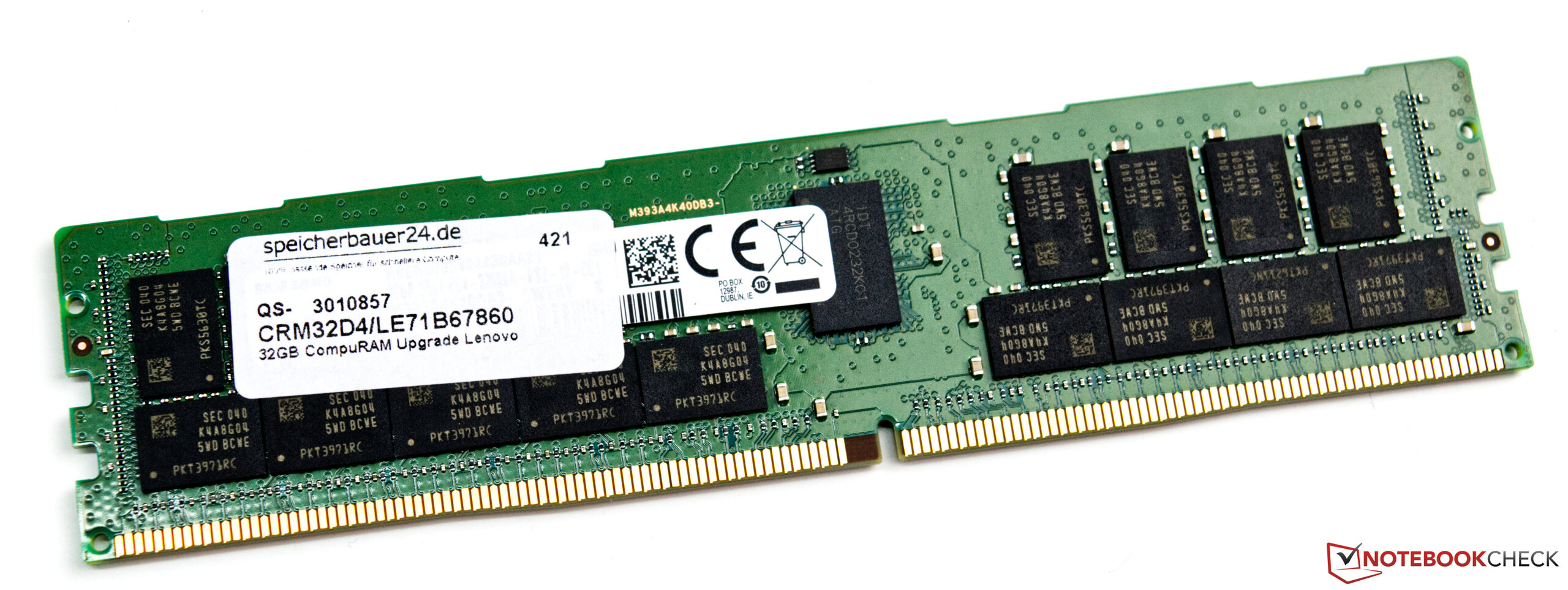

联想ThinkStation P620 - 内存

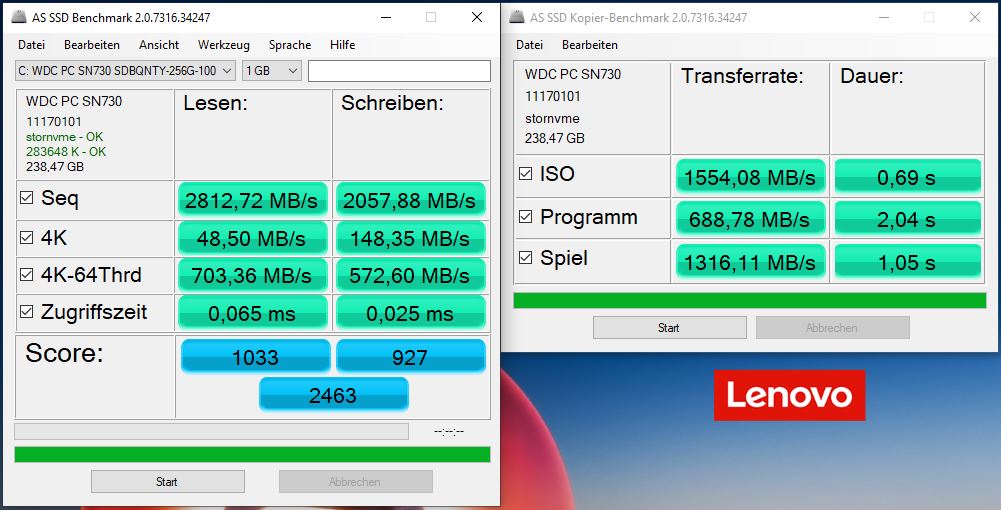

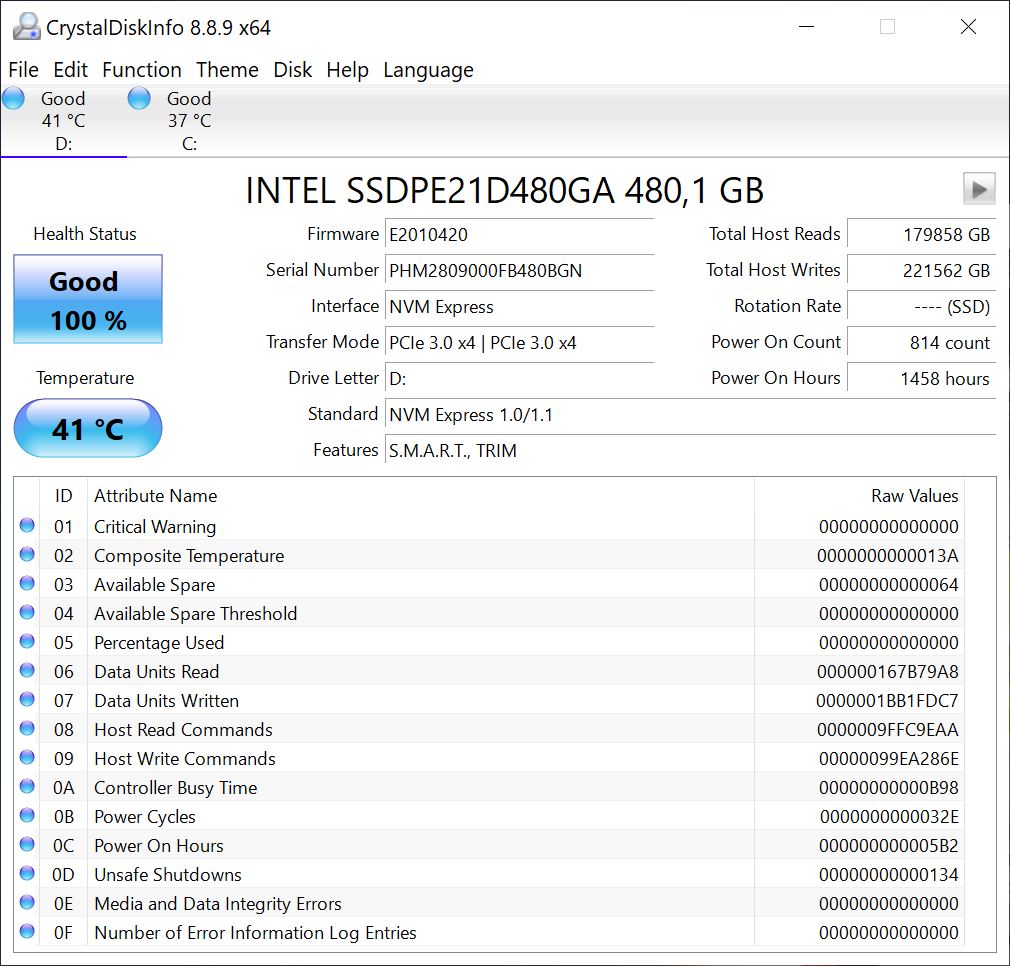

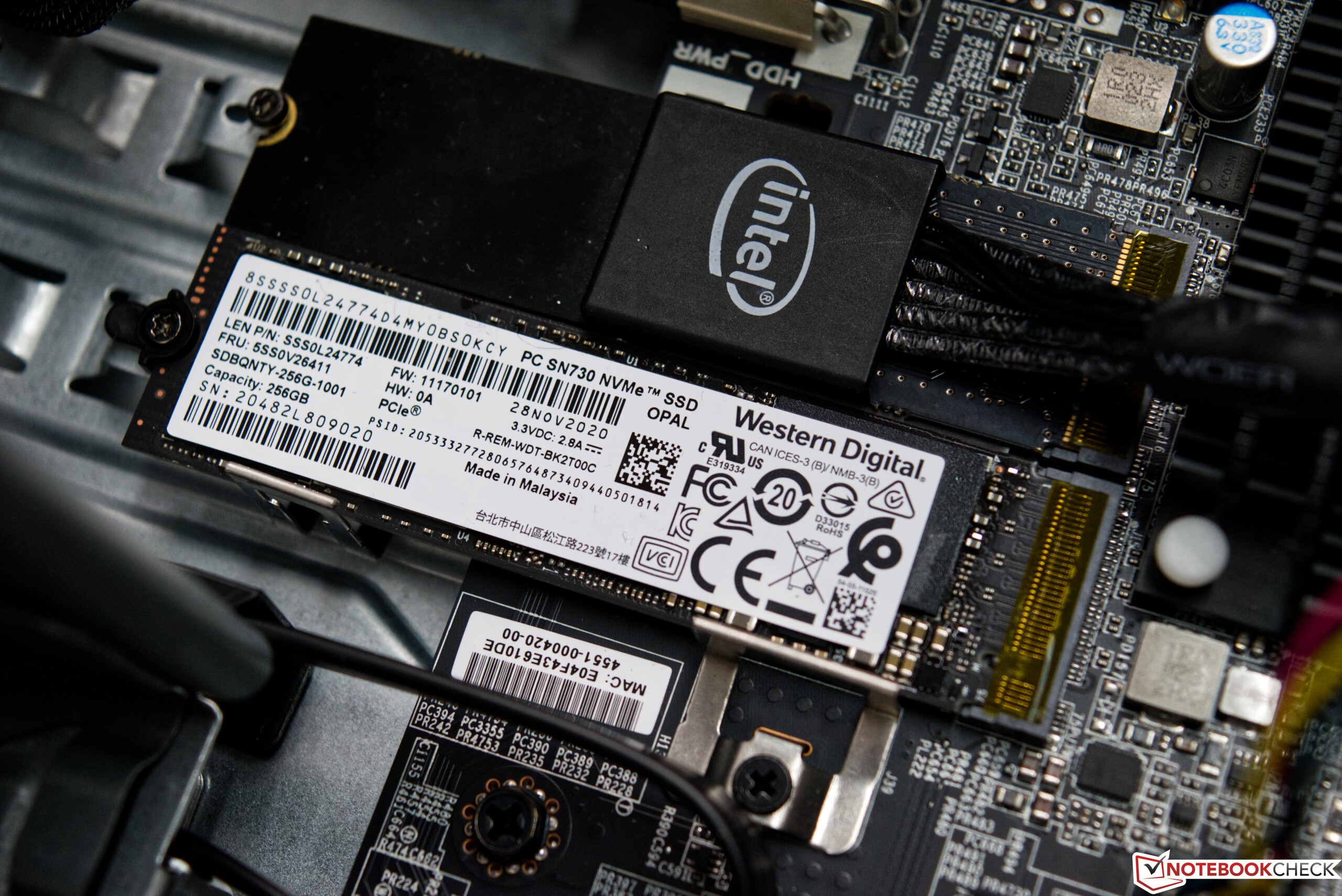

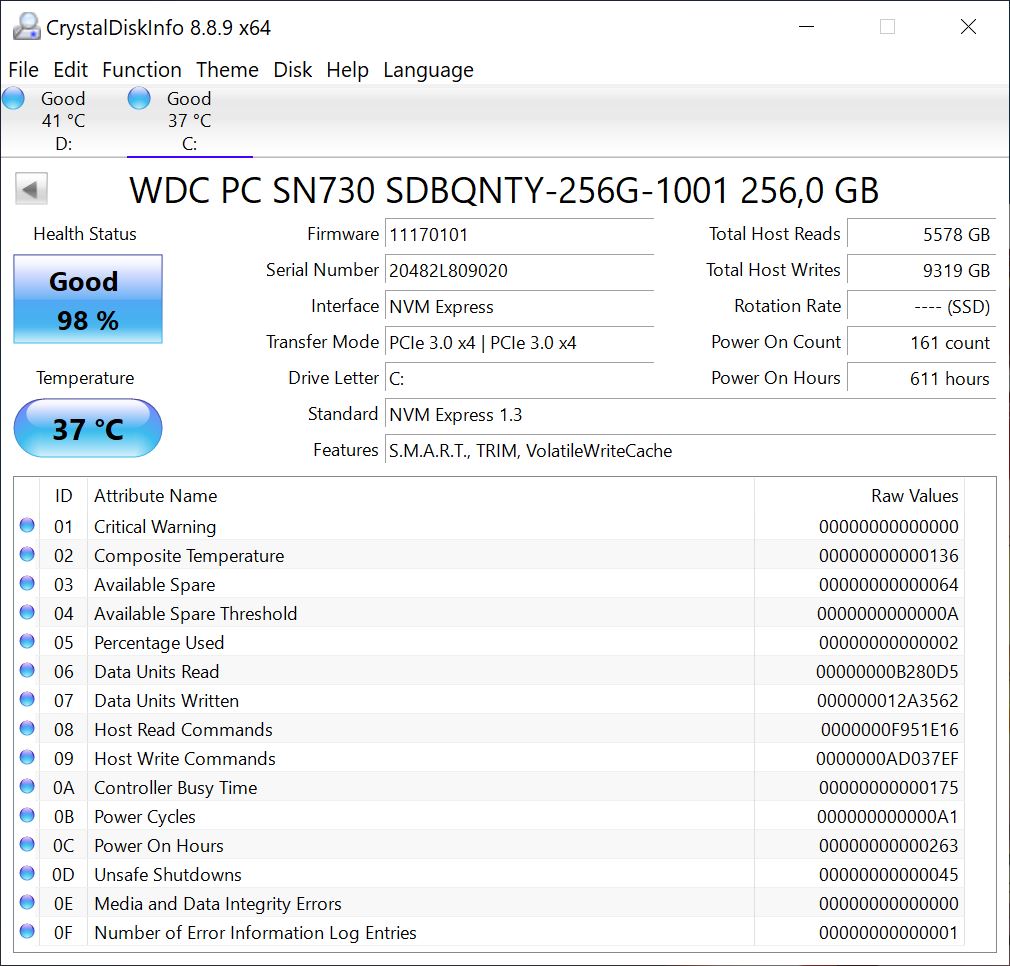

联想ThinkStation P620 - SSD

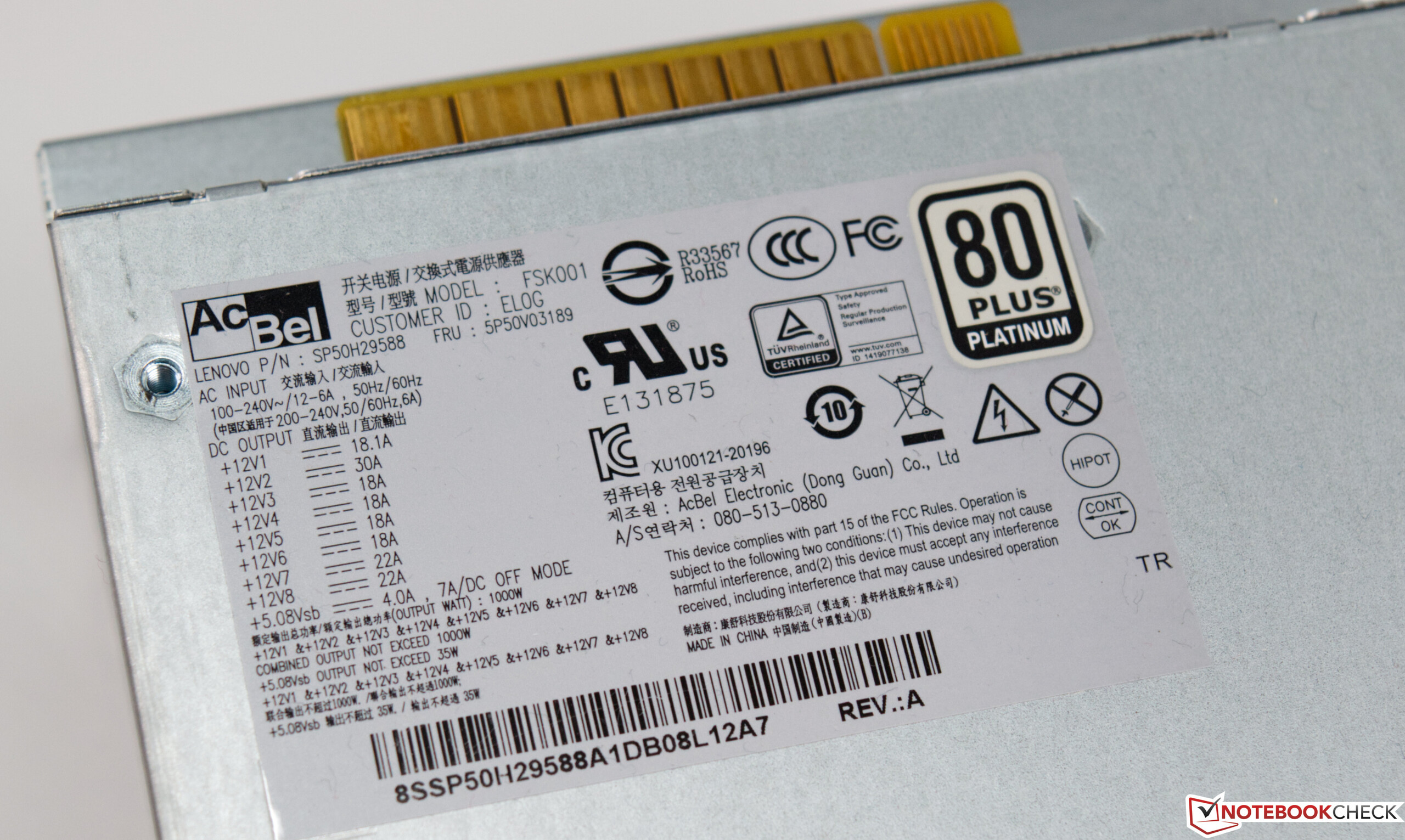

联想ThinkStation P620 - PSU

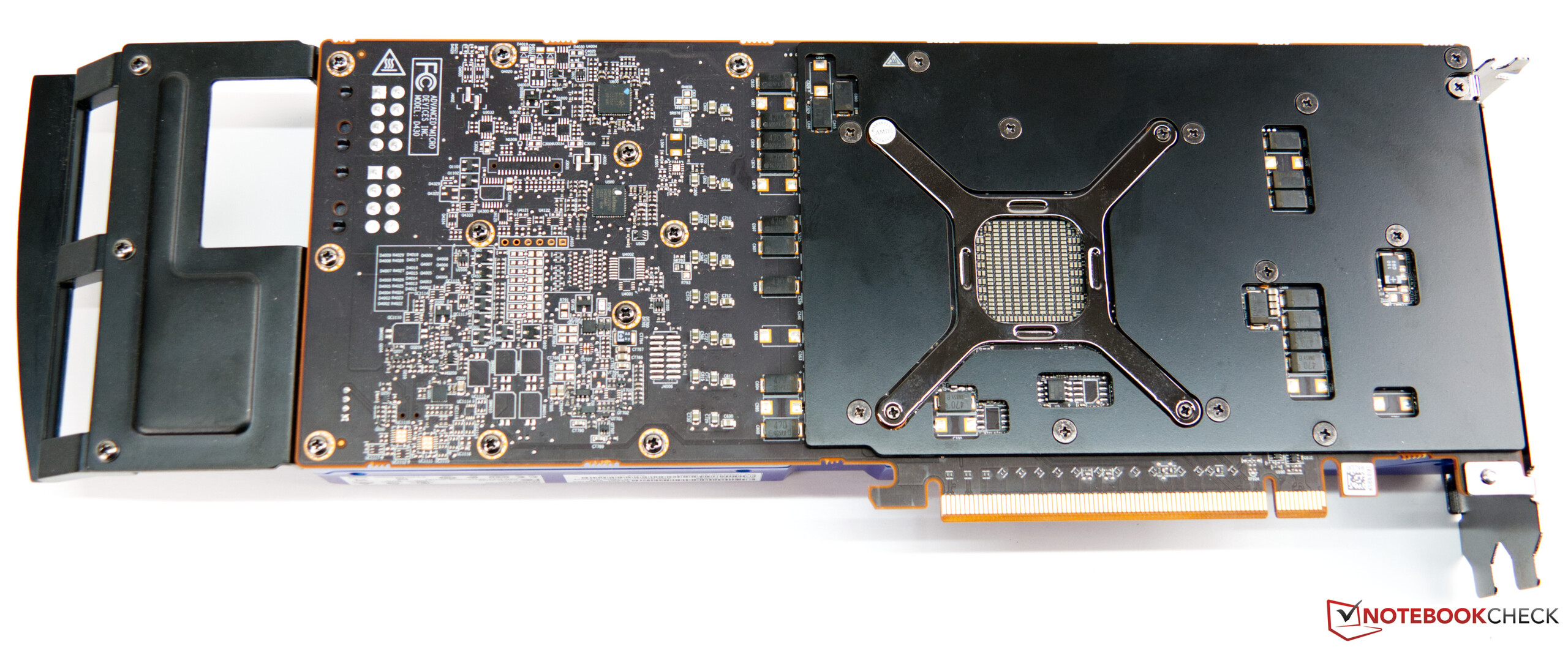

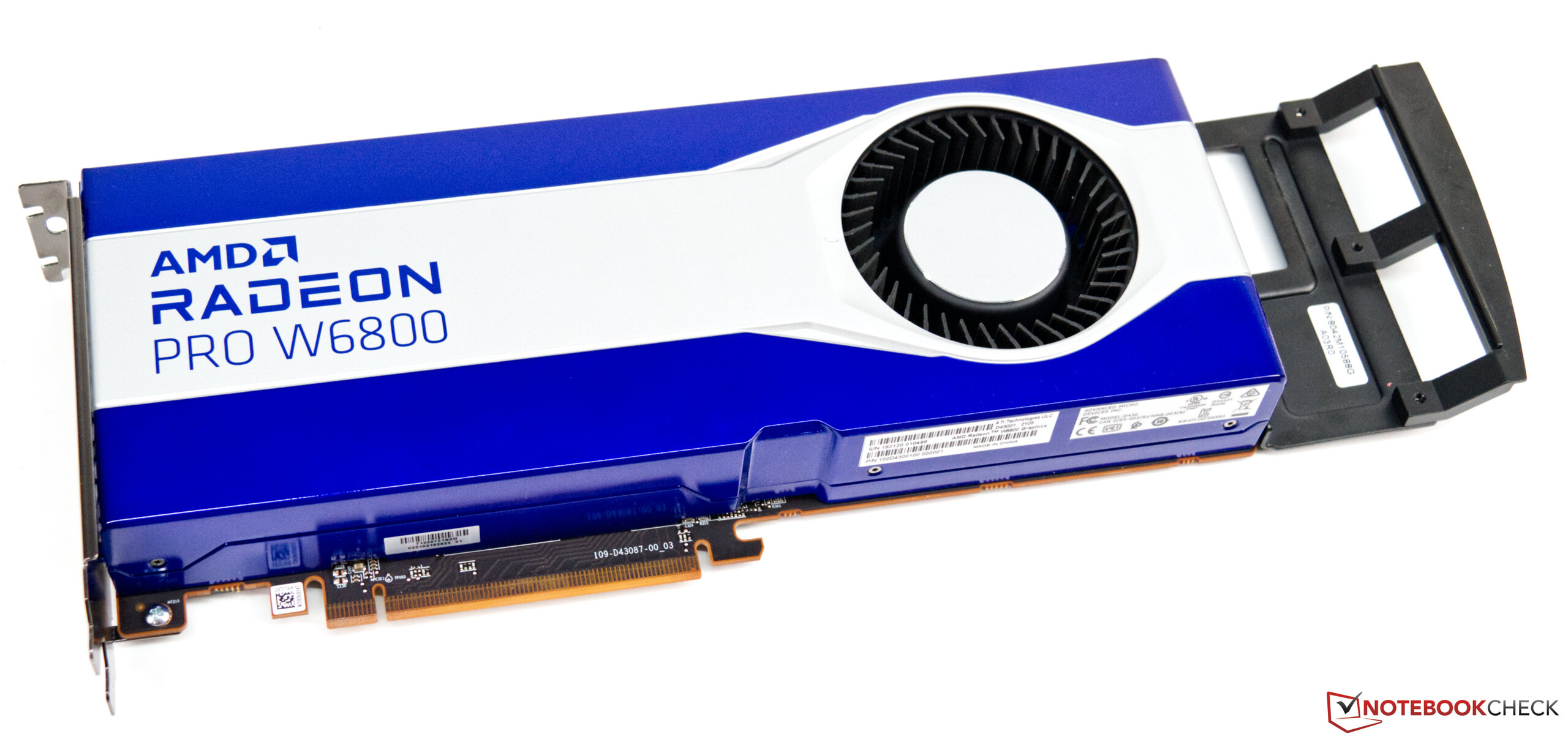

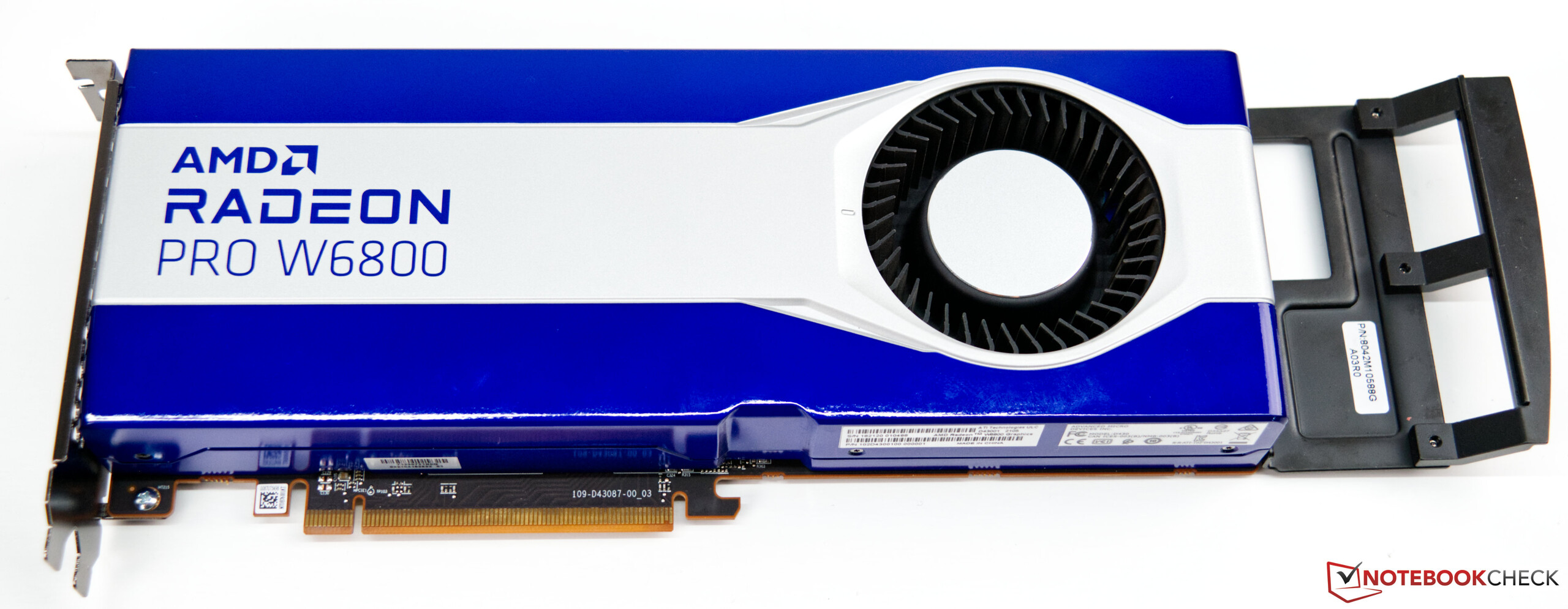

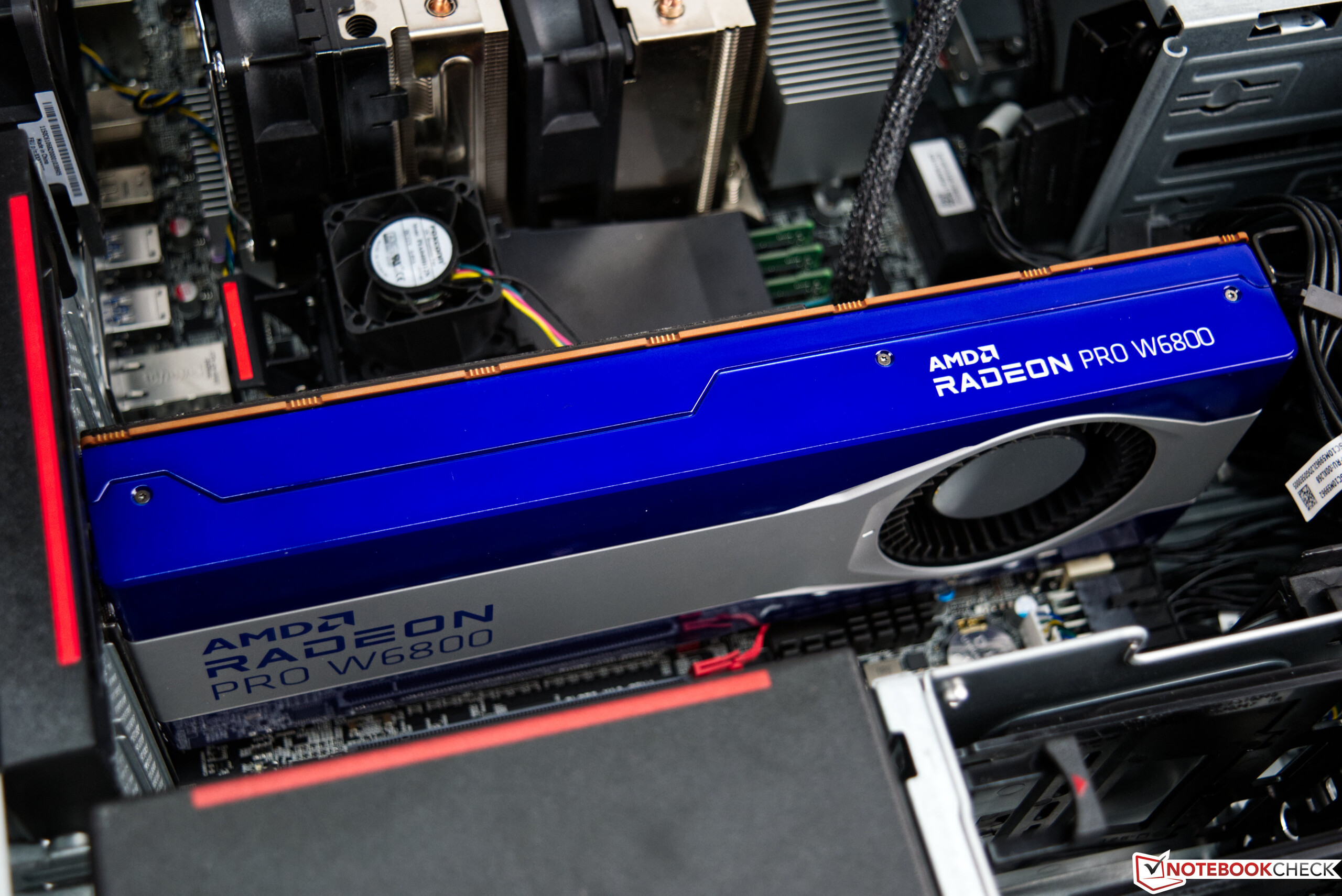

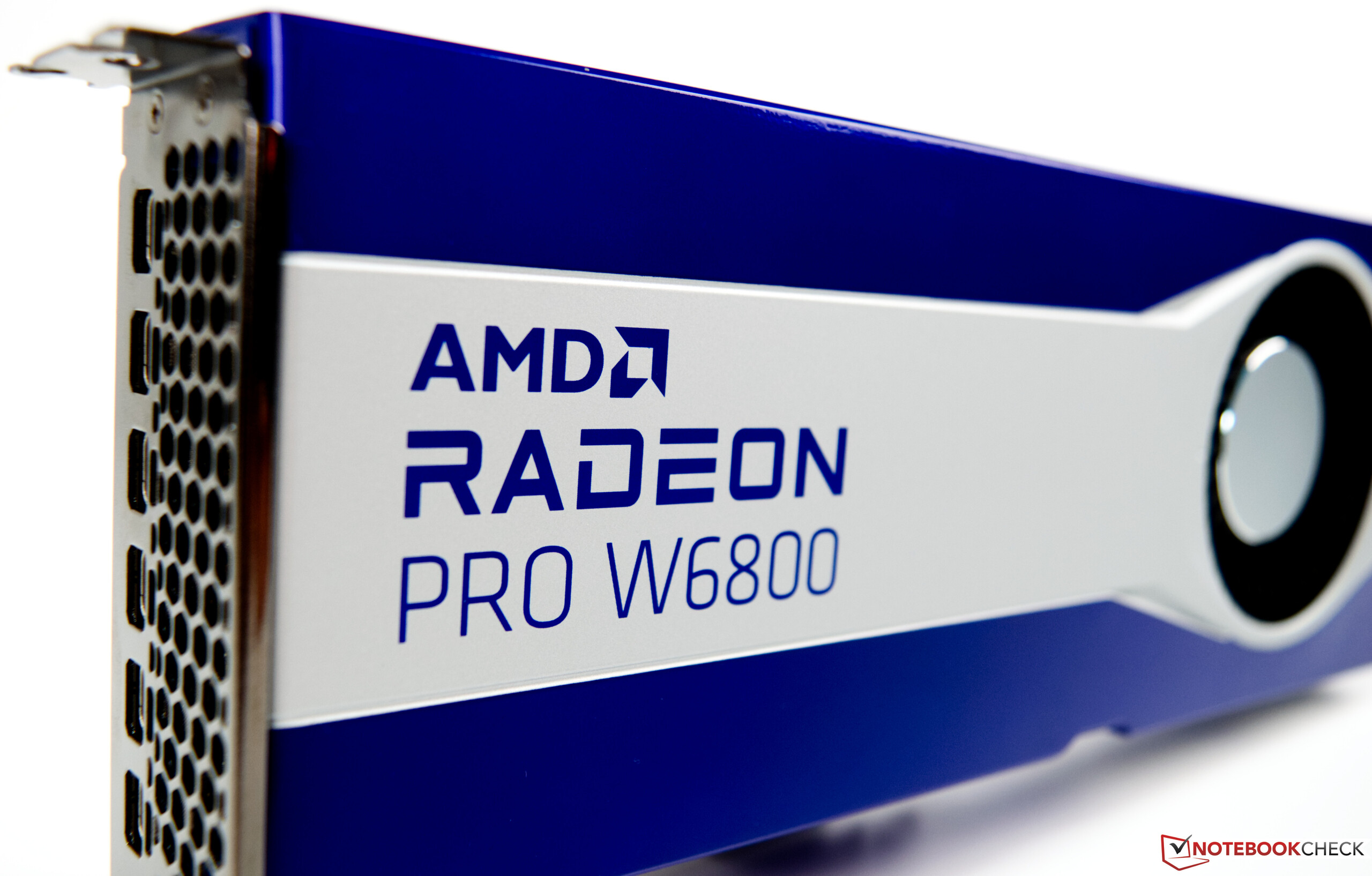

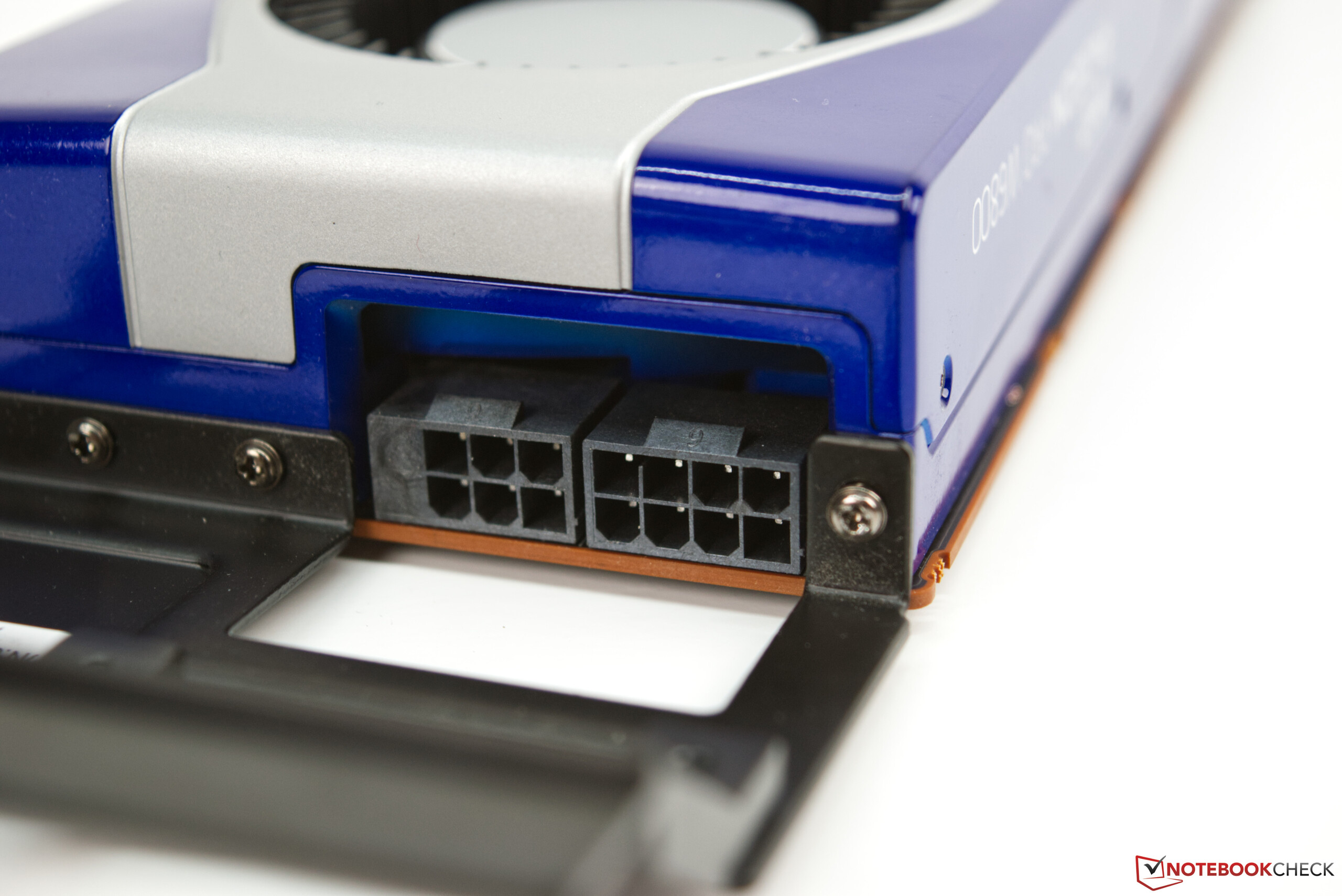

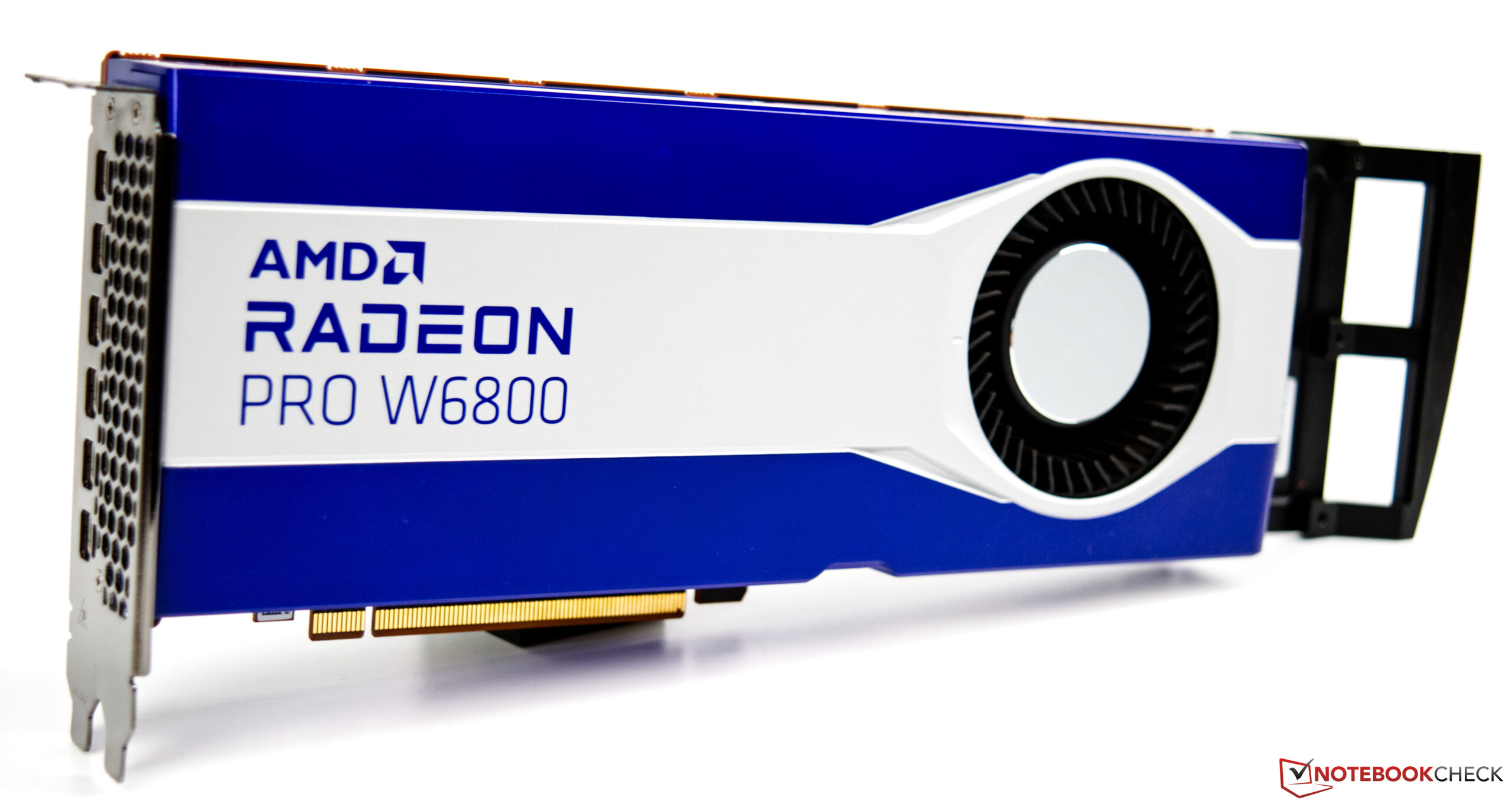

AMD Radeon Pro W6800
AMD Radeon Pro W6800
AMD Radeon Pro W6800
AMD Radeon Pro W6800
AMD Radeon Pro W6800
AMD Radeon Pro W6800
AMD Radeon Pro W6800
AMD Radeon Pro W6800

处理器基准测试--Threadripper Pro 3995WX是一个多核怪物

AMD Ryzen Threadripper Pro 3995WX考虑到多核测试的基准结果,是一个真正的处理怪物。AMD Ryzen Threadripper Pro 3995WX拥有64个核心和总共128个线程,最适合使用多个计算核心的应用。这也包括在一个系统上对几台电脑进行虚拟化,以及其他事项。凭借慷慨的256GB DDR4内存,这对旗舰机来说并不构成大的挑战。然而,AMD Ryzen Threadripper Pro 3995WX不能利用最新的Zen3架构,因为在巨大的散热器下安装了八个Matisse模具,而这些模具又是基于Zen2架构的。这也导致了与5000代Ryzen处理器相比,在单核测试中出现相对较大的赤字。同时,64核CPU的基本时钟频率为2.7GHz,也是比较保守的。尽管如此,我们的测试样本仍然可以与Intel Core i9-10980XE

关于进一步的比较和基准测试,请参考我们的CPU基准测试文章

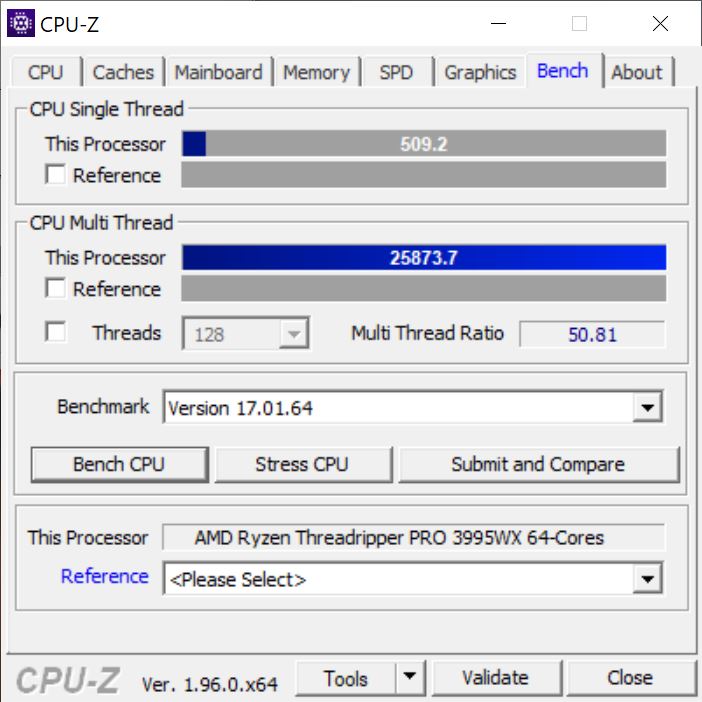

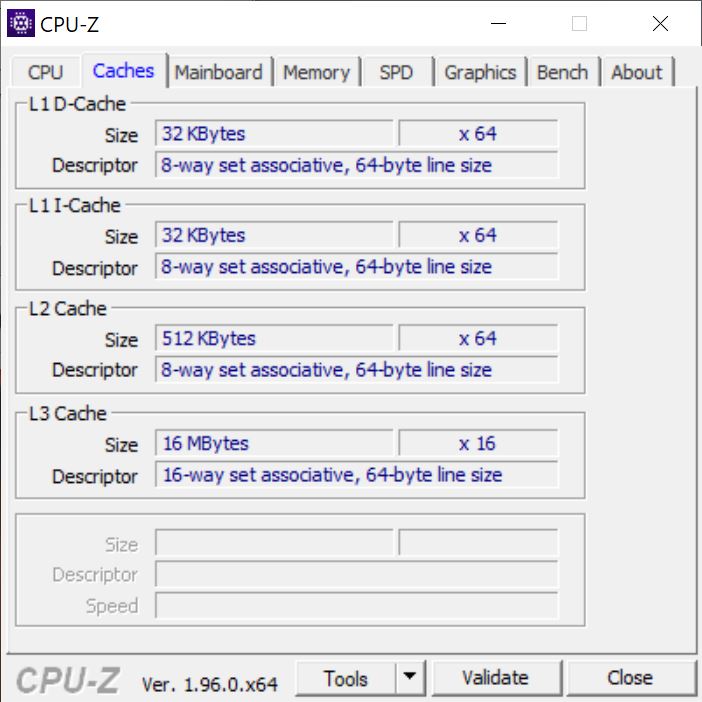

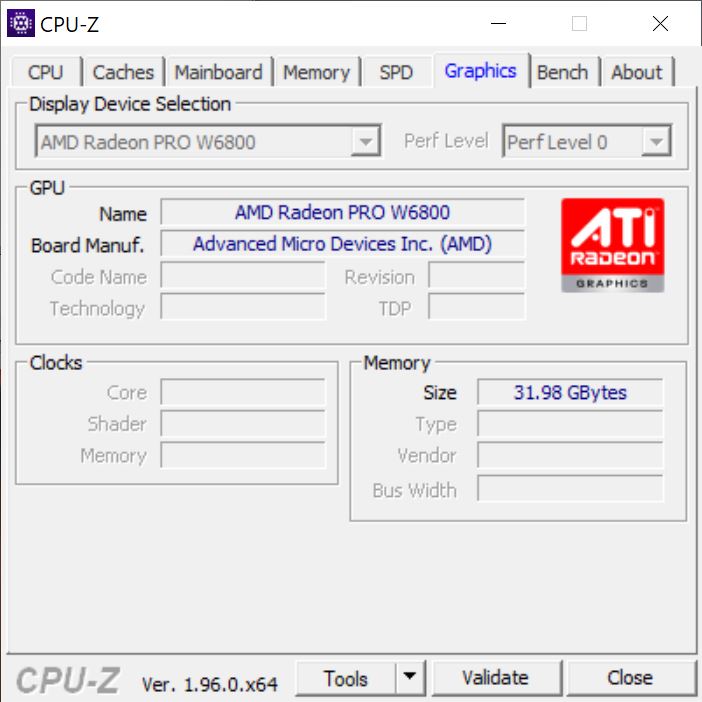

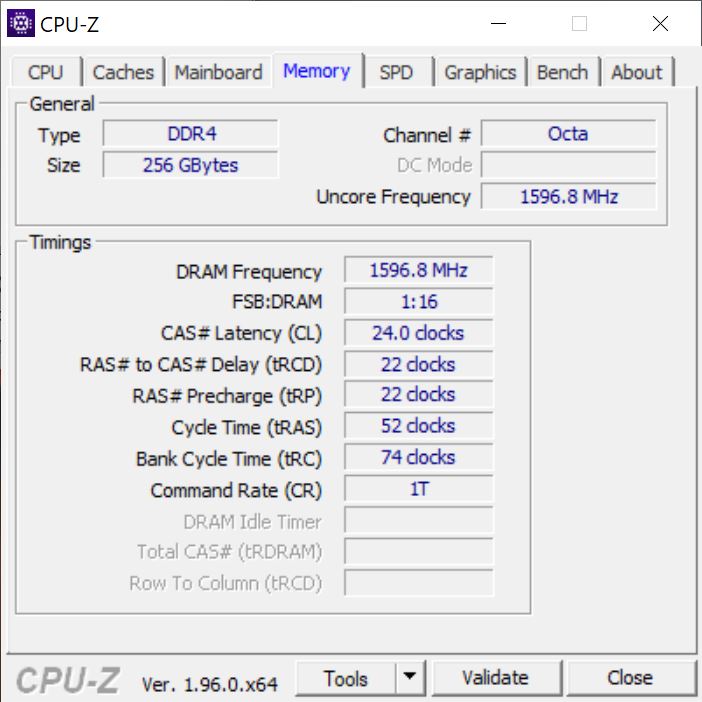

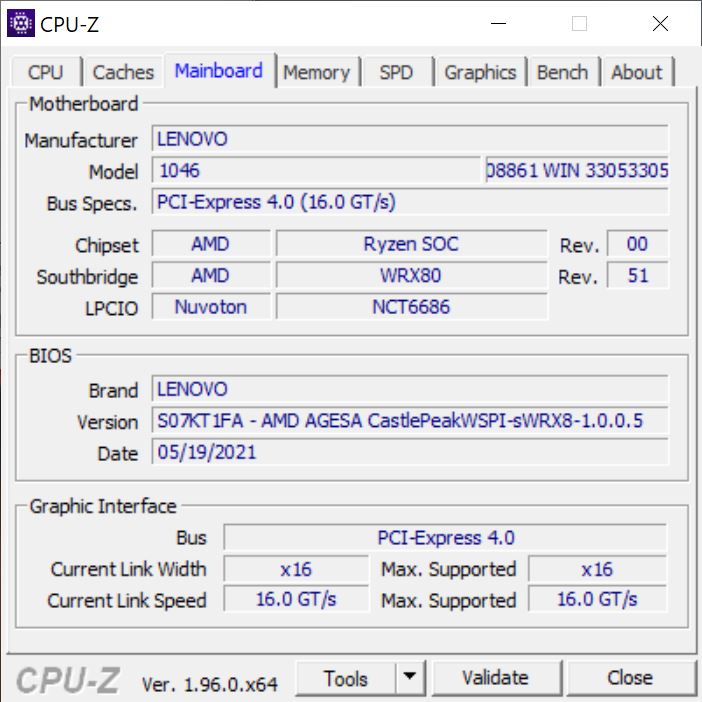

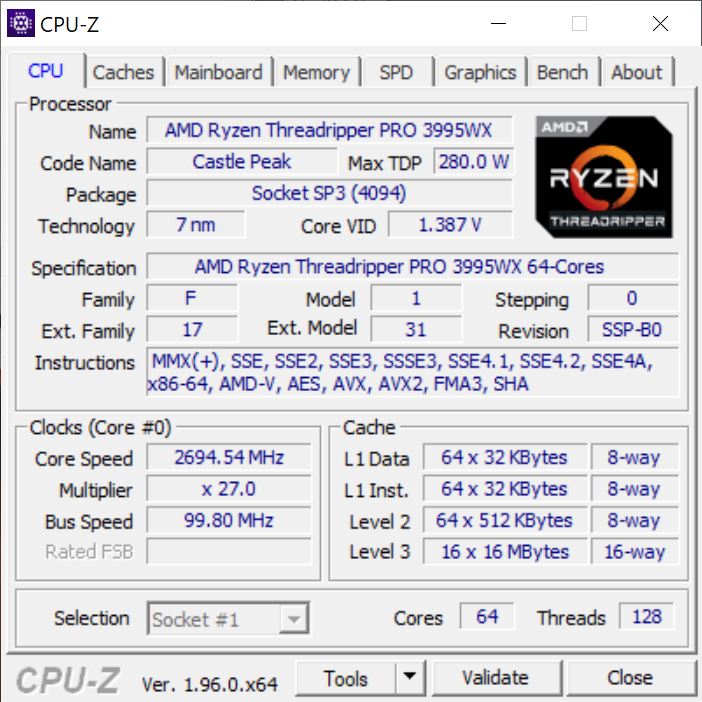

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
Cinebench R20
CPU (Multi Core)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
23571 Points ∼100%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
10482 Points ∼44% -56%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000
10000 Points ∼42% -58%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
8845 Points ∼38% -62%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
8629 Points ∼37% -63%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500
6950 Points ∼29% -71%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
6910 Points ∼29% -71%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
5997 Points ∼25% -75%
CPU (Single Core)
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
647 Points ∼80% +33%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
641 Points ∼79% +31%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
639 Points ∼79% +31%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
514 Points ∼63% +5%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
488 Points ∼60%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
487 Points ∼60% 0%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500
445 Points ∼55% -9%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000
430 Points ∼53% -12%
Cinebench R15
CPU Multi 64Bit
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
9706 Points ∼100%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
4492 Points ∼46% -54%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000
4376 Points ∼45% -55%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
3717 Points ∼38% -62%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
3632 (3541.7min - 3632.07max) Points ∼37% -63%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500
3110 Points ∼32% -68%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
3049 Points ∼31% -69%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
2436 Points ∼25% -75%
CPU Single 64Bit
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
272 Points ∼100% +39%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
271 Points ∼100% +39%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
262 Points ∼96% +34%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
209 Points ∼77% +7%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
208 Points ∼76% +7%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
195 Points ∼72%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500
176 Points ∼65% -10%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000
173 Points ∼64% -11%
Cinebench R11.5
CPU Multi 64Bit
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
54.27 Points ∼100%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
49.6 Points ∼91% -9%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
41.78 Points ∼77% -23%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
38.39 Points ∼71% -29%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
33.44 Points ∼62% -38%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500
27.07 Points ∼50% -50%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
26.76 Points ∼49% -51%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000
21.6 Points ∼40% -60%
CPU Single 64Bit
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
3.14 Points ∼100% +48%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
3.14 Points ∼100% +48%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
3.1 Points ∼99% +46%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
2.36 Points ∼75% +11%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
2.36 Points ∼75% +11%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
2.12 Points ∼68%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500
1.9 Points ∼61% -10%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000
1.9 Points ∼61% -10%
Cinebench R10
Rendering Multiple CPUs 64Bit
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
104638 Points ∼100% +22%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
99651 Points ∼95% +16%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
85956 Points ∼82%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
80613 Points ∼77% -6%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500
76051 Points ∼73% -12%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
76051 Points ∼73% -12%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000
63266 Points ∼60% -26%
Rendering Single CPUs 64Bit
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
14149 Points ∼100% +43%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
13279 Points ∼94% +34%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
12739 Points ∼90% +29%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
10352 Points ∼73% +5%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
9892 Points ∼70%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000
8763 Points ∼62% -11%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500
8678 Points ∼61% -12%
Blender 2.79 - BMW27 CPU
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
190.3 Seconds * ∼1% -298%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
162.3 Seconds * ∼1% -240%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500
152.7 Seconds * ∼1% -219%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
141 Seconds * ∼1% -195%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
125 Seconds * ∼1% -162%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
112.8 Seconds * ∼1% -136%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000
110.7 Seconds * ∼1% -132%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
47.8 Seconds * ∼0%
wPrime 2.10
32m
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
6.109 s * ∼1%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500
4.186 s * ∼1% +31%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000
4.156 s * ∼1% +32%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
3.982 s * ∼1% +35%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
2.81 s * ∼1% +54%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
2.564 s * ∼1% +58%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
2.538 s * ∼1% +58%
1024m
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
77.87 s * ∼1% -206%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
64.884 s * ∼1% -155%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
57.495 s * ∼1% -126%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500
53.159 s * ∼1% -109%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
47.4 s * ∼1% -87%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000
38.487 s * ∼0% -51%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
25.411 s * ∼0%
X264 HD Benchmark 4.0
Pass 1
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
338.5 (337min - 340max) fps ∼100% +28%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
335 (325min - 337max) fps ∼99% +27%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
309.5 (308min - 311max) fps ∼91% +17%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
267.5 (266min - 268max) fps ∼79% +1%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
264 (261min - 266max) fps ∼78%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
215 (214min - 216max) fps ∼63% -19%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500
202.305 (200.47min - 203.47max) fps ∼60% -23%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000
202 (198min - 202max) fps ∼60% -23%
Pass 2
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
221 (220min - 221max) fps ∼100% +15%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
192.5 (192min - 195max) fps ∼87%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
191 (190min - 192max) fps ∼86% -1%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
157.5 (155min - 159max) fps ∼71% -18%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
147 (147min - 148max) fps ∼67% -24%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500
144.88 (143.48min - 145.54max) fps ∼66% -25%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
137 (137min - 137max) fps ∼62% -29%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000
116.5 (115min - 117max) fps ∼53% -39%
WinRAR - Result
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
13361 KB/s ∼86% +100%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
12503 KB/s ∼80% +87%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
9030 KB/s ∼58% +35%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
7529 KB/s ∼48% +13%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
7172 KB/s ∼46% +7%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
6689 KB/s ∼43%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500
4548 KB/s ∼29% -32%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000
4261 KB/s ∼27% -36%
TrueCrypt
AES Mean 100MB
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
26.9 GB/s ∼100% +3%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
26 GB/s ∼97%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
21.2 GB/s ∼79% -18%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500
19.5 GB/s ∼72% -25%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
18.2 GB/s ∼68% -30%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
13 GB/s ∼48% -50%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000
12.2 GB/s ∼45% -53%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
10.9 GB/s ∼41% -58%
Twofish Mean 100MB
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
4.8 GB/s ∼1%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
3.7 GB/s ∼0% -23%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
3.2 GB/s ∼0% -33%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000
3 GB/s ∼0% -37%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500
2.9 GB/s ∼0% -40%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
2.9 GB/s ∼0% -40%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
2.9 GB/s ∼0% -40%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
1.9 GB/s ∼0% -60%
Serpent Mean 100MB
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
2.9 GB/s ∼1%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
2.4 GB/s ∼1% -17%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000
1.9 GB/s ∼0% -34%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
1.9 GB/s ∼0% -34%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500
1.8 GB/s ∼0% -38%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
1.8 GB/s ∼0% -38%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
1.7 GB/s ∼0% -41%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
1.2 GB/s ∼0% -59%
Geekbench 5.3
64 Bit Multi-Core Score
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
16891 Points ∼100% +14%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
14881 Points ∼88%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
12990 Points ∼77% -13%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500
12160 Points ∼72% -18%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
11035 Points ∼65% -26%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000
10501 Points ∼62% -29%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
10498 Points ∼62% -29%
64 Bit Single-Core Score
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
1885 Points ∼98% +10%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
1720 Points ∼90%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
1682 Points ∼88% -2%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
1669 Points ∼87% -3%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
1250 Points ∼65% -27%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500
1100 Points ∼57% -36%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000
1095 Points ∼57% -36%
Geekbench 5.0
64 Bit Multi-Core Score
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
31711 Points ∼100%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
16570 Points ∼52% -48%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
15598 Points ∼49% -51%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
12974 Points ∼41% -59%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
11135 Points ∼35% -65%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
11008 Points ∼35% -65%
64 Bit Single-Core Score
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
1863 Points ∼45% +47%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
1683 Points ∼41% +33%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
1667 Points ∼40% +32%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
1271 Points ∼31% 0%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
1266 Points ∼31%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
1247 Points ∼30% -2%
Geekbench 4.1 - 4.4
64 Bit Multi-Core Score
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
80545 Points ∼100%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
63233 Points ∼79% -21%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
51794 Points ∼64% -36%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
50801 Points ∼63% -37%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
43978 Points ∼55% -45%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
42329 Points ∼53% -47%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500
36198 Points ∼45% -55%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000
32029 Points ∼40% -60%
64 Bit Single-Core Score
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
7976 Points ∼97% +43%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
7297 Points ∼89% +31%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
7216 Points ∼88% +30%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
5880 Points ∼72% +6%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
5820 Points ∼71% +5%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
5567 Points ∼68%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500
4903 Points ∼60% -12%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000
4463 Points ∼54% -20%
3DMark 11 - 1280x720 Performance Physics
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
23423 Points ∼86% +34%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
21175 Points ∼77% +21%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
20452 Points ∼75% +17%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
18270 Points ∼67% +4%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
17518 Points ∼64%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500
17222 Points ∼63% -2%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000
12297 Points ∼45% -30%
7-Zip 18.03
7z b 4
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
140172 MIPS ∼100%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
127792 MIPS ∼91% -9%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
95123 MIPS ∼68% -32%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
93092 MIPS ∼66% -34%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
82119 MIPS ∼59% -41%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
62746 MIPS ∼45% -55%
7z b 4 -mmt1
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
6974 MIPS ∼100% +39%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
6785 MIPS ∼97% +35%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
6652 MIPS ∼95% +32%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
5533 MIPS ∼79% +10%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
5333 MIPS ∼76% +6%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
5021 MIPS ∼72%
HWBOT x265 Benchmark v2.2 - 4k Preset
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
46.6 fps ∼100%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
31.8 fps ∼68% -32%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
27.8 fps ∼60% -40%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
25.5 fps ∼55% -45%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
20.9 fps ∼45% -55%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
19.8 fps ∼42% -58%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000
18 fps ∼39% -61%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500
17.5 fps ∼38% -62%
R Benchmark 2.5 - Overall mean
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
0.561 sec * ∼12%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
0.542 sec * ∼12% +3%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
0.4733 sec * ∼10% +16%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
0.4556 sec * ∼10% +19%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
0.4513 sec * ∼10% +20%
LibreOffice - 20 Documents To PDF
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
72.5 s * ∼18% -14%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
63.5 s * ∼16%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
56.52 s * ∼14% +11%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
47.65 s * ∼12% +25%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
45.97 s * ∼12% +28%
WebXPRT 3 - ---
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
291 Points ∼93% +27%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
284 Points ∼90% +24%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
239 Points ∼76% +4%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
229 Points ∼73%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
217 Points ∼69% -5%
Mozilla Kraken 1.1 - Total Score
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
953.8 ms * ∼1% -25%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
762 ms * ∼1%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
566 ms * ∼1% +26%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
558 ms * ∼1% +27%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
544 ms * ∼1% +29%
3DMark
3840x2160 Fire Strike Ultra Physics
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
39353 Points ∼100% +54%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
36154 Points ∼92% +42%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
28865 Points ∼73% +13%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
27685 Points ∼70% +9%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500
27220 Points ∼69% +7%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
25515 Points ∼65%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000
23094 Points ∼59% -9%
1920x1080 Fire Strike Physics
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
39600 Points ∼100% +57%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
35451 Points ∼90% +41%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
28927 Points ∼73% +15%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
28747 Points ∼73% +14%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
28606 Points ∼72% +14%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500
27107 Points ∼68% +8%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
25166 Points ∼64%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000
21457 Points ∼54% -15%
2560x1440 Time Spy CPU
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
R9 5950X, 3400
13650 Points ∼94% +25%
Intel Core i9-11900K, Intel Core i9-11900K
i9-11900K, 3500
13433 Points ∼92% +23%
Nvidia Titan RTX, AMD Ryzen 9 5900X
R9 5900X, 3700
12633 Points ∼87% +15%
Asus X299 Prime Desktop, Intel Core i9-10980XE
i9-10980XE, 3000
12436 Points ∼85% +14%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
R9 3900X, 3800
11880 Points ∼82% +9%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
TR Pro 3995WX, 2700
10946 Points ∼75%
no name, AMD Ryzen Threadripper 2950X
TR 2950X, 3500
9886 Points ∼68% -10%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
TR 2970WX, 3000
7663 Points ∼53% -30%

* ... smaller is better

联想ThinkStation P620在Cinebench R15多重循环中的表现

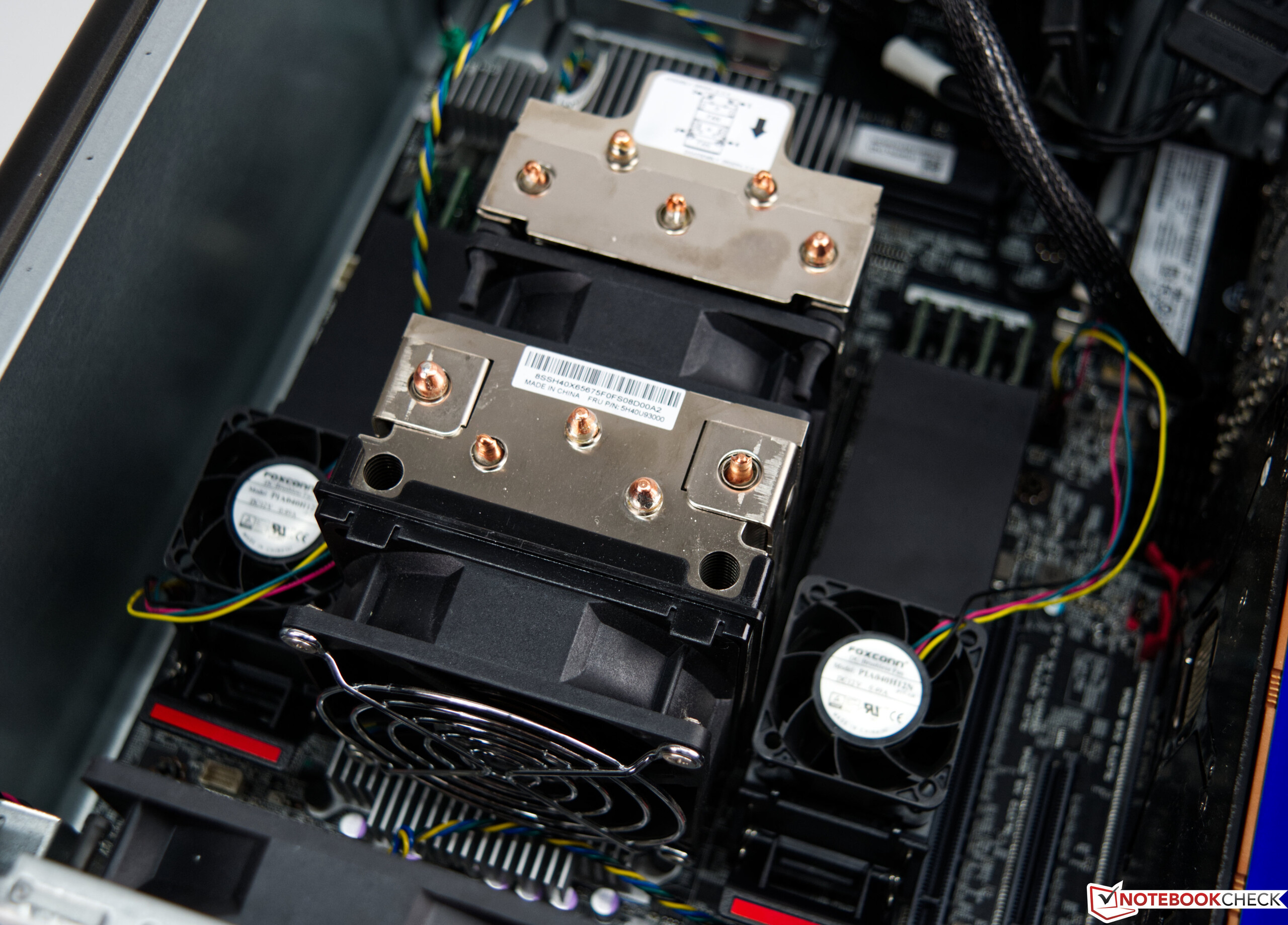

联想使用了带有两个风扇的塔式冷却器,这为AMD Ryzen Threadripper Pro 3995WX ,提供了足够的冷却。该工作站顺利地掌握了Cinebench R15多循环负载测试,并取得了9747分的可靠平均分数。与第一次运行相比,我们没能检测到性能的明显下降。

01000200030004000500060007000800090001000010101.019937.899967.619947.779930.499828.019920.639835.269818.369789.539715.819772.789687.589715.819720.539696.979666.519643.29699.329675.869678.29664.179699.329701.679751.349739.479737.19701.679763.249756.19729.999650.189706.389741.849763.249737.19708.749720.539661.849694.629659.59722.99659.59666.519622.329775.179739.479675.869722.99720.534295.074287.714273.54309.424309.424294.614280.8243024302.464287.714273.54280.824280.364280.824288.164266.214280.824266.214273.54273.54273.54258.944280.824266.214258.944280.364302.464273.54266.214309.424287.714266.214295.074287.714259.44295.074273.543024280.824316.864295.074287.714295.074273.54273.54252.154295.074295.074288.164302.464273.54273.54266.674280.824273.5Tooltip
Lenovo ThinkStation P620 AMD Ryzen Threadripper PRO 3995WX, AMD Ryzen Threadripper PRO 3995WX: Ø9747 (9622.32-10101.01)
AMD Threadripper 2970WX, AMD Radeon RX Vega 64 AMD Ryzen Threadripper 2970WX, AMD Ryzen Threadripper 2970WX: Ø4283 (4252.15-4316.86)

应用和渲染性能

在我们的测试配置中,联想ThinkStation P620在我们的应用基准测试中取得了相对不错的速率。AMD Radeon Pro W6800在我们进行的渲染测试中,如SPECviewperf 2020,可以显示它的能力。在许多个别学科中,它甚至明显快于Nvidia Titan RTX

,可以与Quadro RTX 6000相比。尽管如此,你必须在这里记住不同的驱动程序,因为Quadro以及Radeon Pro型号有特殊的驱动程序,提供额外的选项,并为专业应用中的高性能和稳定性进行优化。

我们的测试配置的内置存储提供了256GB的容量,由于采用了NVMe协议,它的传输速度非常快。由于存储空间非常有限,我们在这次审查中把英特尔Optane 905P加入系统。正如你在图片中所看到的,它在测试中也提供了非常好的速率。主板上总共可以安装两个M.2固态硬盘。后者为其他存储设备提供了额外的SATA端口。同时,还可以安装一个额外的SAS控制器,以建立一个故障安全的存储驱动器阵列(如RAID 5)。

As SSD (WD SN730)
As SSD (WD SN730)
CDI (WD SN730)
CDI (WD SN730)
AS SSD (Intel Optane 905P)
AS SSD (Intel Optane 905P)
CDI (英特尔Optane 905P)
CDI (英特尔Optane 905P)
SPECviewperf 2020
3840x2160 Solidworks (solidworks-05)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
265 fps ∼100%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
154 fps ∼58% -42%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
153 fps ∼58% -42%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
153 fps ∼58% -42%
3840x2160 Siemens NX (snx-04)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
434 fps ∼100%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
363 fps ∼84% -16%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
347 fps ∼80% -20%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
337 fps ∼78% -22%
3840x2160 Medical (medical-03)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
52 fps ∼100%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
16.5 fps ∼32% -68%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
16.42 fps ∼32% -68%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
16.33 fps ∼31% -69%
3840x2160 Maya (maya-06)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
345 fps ∼100%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
262 fps ∼76% -24%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
257 fps ∼74% -26%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
247 fps ∼72% -28%
3840x2160 Energy (energy-03)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
87.7 fps ∼100%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
58.2 fps ∼66% -34%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
57.9 fps ∼66% -34%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
39.1 fps ∼45% -55%
3840x2160 Creo (creo-03)
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
126 fps ∼100% +44%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
113 fps ∼90% +29%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
109 fps ∼87% +24%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
87.8 fps ∼70%
3840x2160 CATIA (catia-06)
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
78.6 fps ∼100% +3%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
78.2 fps ∼99% +3%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
77.2 fps ∼98% +1%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
76.2 fps ∼97%
3840x2160 3ds Max (3dsmax-07)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
162 fps ∼100%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
114 fps ∼70% -30%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
114 fps ∼70% -30%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
108 fps ∼67% -33%
SPECviewperf 13
Solidworks (sw-04)
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
198 fps ∼100% +14%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
196.41 fps ∼99% +14%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
174.58 fps ∼88% +1%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
173 fps ∼87%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
AMD Radeon RX Vega 64
102.2 fps ∼52% -41%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
AMD Radeon RX Vega 64
92.75 fps ∼47% -46%
Siemens NX (snx-03)
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
493.43 fps ∼100% +13%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
478.5 fps ∼97% +9%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
450 fps ∼91% +3%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
437 fps ∼89%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
AMD Radeon RX Vega 64
41.72 fps ∼8% -90%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
AMD Radeon RX Vega 64
38.37 fps ∼8% -91%
Showcase (showcase-02)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
216 fps ∼100%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
194 fps ∼90% -10%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
191.1 fps ∼88% -12%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
190.49 fps ∼88% -12%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
AMD Radeon RX Vega 64
110.36 fps ∼51% -49%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
AMD Radeon RX Vega 64
108.15 fps ∼50% -50%
Medical (medical-02)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
116 fps ∼100%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
90.83 fps ∼78% -22%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
90.61 fps ∼78% -22%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
90 fps ∼78% -22%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
AMD Radeon RX Vega 64
73.75 fps ∼64% -36%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
AMD Radeon RX Vega 64
30.86 fps ∼27% -73%
Maya (maya-05)
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
460.26 fps ∼100% +17%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
457.97 fps ∼100% +16%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
454 fps ∼99% +15%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
395 fps ∼86%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
AMD Radeon RX Vega 64
210.67 fps ∼46% -47%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
AMD Radeon RX Vega 64
195.62 fps ∼43% -50%
Energy (energy-02)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
87.8 fps ∼100%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
53.7 fps ∼61% -39%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
51.98 fps ∼59% -41%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
51.97 fps ∼59% -41%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
AMD Radeon RX Vega 64
23.76 fps ∼27% -73%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
AMD Radeon RX Vega 64
22.98 fps ∼26% -74%
Catia (catia-05)
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
429.98 fps ∼100% +11%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
415 fps ∼97% +7%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
389 fps ∼90%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
374.79 fps ∼87% -4%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
AMD Radeon RX Vega 64
240.57 fps ∼56% -38%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
AMD Radeon RX Vega 64
225.07 fps ∼52% -42%
3ds Max (3dsmax-06)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
318 fps ∼100%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
291.28 fps ∼92% -8%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
290.49 fps ∼91% -9%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
287 fps ∼90% -10%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
AMD Radeon RX Vega 64
158.33 fps ∼50% -50%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
AMD Radeon RX Vega 64
140.83 fps ∼44% -56%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
196.83 fps ∼100% +6%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
185 fps ∼94%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
182 fps ∼92% -2%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
174.89 fps ∼89% -5%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
AMD Radeon RX Vega 64
80.91 fps ∼41% -56%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
AMD Radeon RX Vega 64
72.43 fps ∼37% -61%
1900x1060 Siemens NX (snx-02)
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
273.22 fps ∼100% +12%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
264.67 fps ∼97% +9%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
245 fps ∼90% +1%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
243 fps ∼89%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
AMD Radeon RX Vega 64
23.16 fps ∼8% -90%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
AMD Radeon RX Vega 64
21.32 fps ∼8% -91%
1900x1060 Showcase (showcase-01)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
215 fps ∼100%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
203 fps ∼94% -6%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
191.14 fps ∼89% -11%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
190.76 fps ∼89% -11%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
AMD Radeon RX Vega 64
110.77 fps ∼52% -48%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
AMD Radeon RX Vega 64
110.27 fps ∼51% -49%
1900x1060 Medical (medical-01)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
165 fps ∼100%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
90.74 fps ∼55% -45%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
87.84 fps ∼53% -47%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
87.8 fps ∼53% -47%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
AMD Radeon RX Vega 64
50.24 fps ∼30% -70%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
AMD Radeon RX Vega 64
45.66 fps ∼28% -72%
1900x1060 Maya (maya-04)
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
199 fps ∼100% +27%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
189.72 fps ∼95% +21%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
188.29 fps ∼95% +20%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
157 fps ∼79%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
AMD Radeon RX Vega 64
104.59 fps ∼53% -33%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
AMD Radeon RX Vega 64
74.54 fps ∼37% -53%
1900x1060 Energy (energy-01)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
37.8 fps ∼100%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
28.31 fps ∼75% -25%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
28.2 fps ∼75% -25%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
27.88 fps ∼74% -26%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
AMD Radeon RX Vega 64
12.74 fps ∼34% -66%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
AMD Radeon RX Vega 64
12.13 fps ∼32% -68%
1900x1060 Creo (creo-01)
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
173 fps ∼100% +71%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
172.97 fps ∼100% +71%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
141.86 fps ∼82% +40%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
101 fps ∼58%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
AMD Radeon RX Vega 64
57.95 fps ∼33% -43%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
AMD Radeon RX Vega 64
52.09 fps ∼30% -48%
1900x1060 Catia (catia-04)
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
269 fps ∼100% +8%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
262.71 fps ∼98% +6%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
248 fps ∼92%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
237.68 fps ∼88% -4%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
AMD Radeon RX Vega 64
162.21 fps ∼60% -35%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
AMD Radeon RX Vega 64
150.62 fps ∼56% -39%
1900x1060 3ds Max (3dsmax-05)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
311 fps ∼100%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
292.56 fps ∼94% -6%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
291.33 fps ∼94% -6%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
289 fps ∼93% -7%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
AMD Radeon RX Vega 64
158.85 fps ∼51% -49%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
AMD Radeon RX Vega 64
144.46 fps ∼46% -54%
LuxMark v2.0 64Bit
Room GPUs-only
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
4483 Samples/s ∼100%
Sala GPUs-only
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
3260 Samples/s ∼100%
ComputeMark v2.1
1024x600 Normal, QJuliaRayTrace
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
9695 Points ∼100%
1024x600 Normal, Mandel Scalar
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
8733 Points ∼100%
1024x600 Normal, Mandel Vector
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
7356 Points ∼100%
1024x600 Normal, Fluid 2DTexArr
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
3283 Points ∼100%
1024x600 Normal, Fluid 3DTex
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
4867 Points ∼100%
1024x600 Normal, Score
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
33935 Points ∼100%
PCMark 10
Score
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
8778 Points ∼100% +27%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
8480 Points ∼97% +23%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
7745 Points ∼88% +12%
no name, AMD Ryzen Threadripper 2950X
AMD Radeon RX Vega 64
7451 Points ∼85% +8%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
AMD Radeon RX Vega 64
7298 Points ∼83% +6%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
6893 Points ∼79%
Asus X299 Prime Desktop, Intel Core i9-10980XE
NVIDIA GeForce GTX 1080 Ti (Desktop)
6809 Points ∼78% -1%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
AMD Radeon RX Vega 64
5481 Points ∼62% -20%
Digital Content Creation
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
14607 Points ∼100% +23%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
13801 Points ∼94% +16%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
11919 Points ∼82%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
11863 Points ∼81% 0%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
AMD Radeon RX Vega 64
10181 Points ∼70% -15%
no name, AMD Ryzen Threadripper 2950X
AMD Radeon RX Vega 64
8266 Points ∼57% -31%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
AMD Radeon RX Vega 64
7871 Points ∼54% -34%
Productivity
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
11163 Points ∼100% +45%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
10079 Points ∼90% +31%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
10039 Points ∼90% +31%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
AMD Radeon RX Vega 64
9420 Points ∼84% +23%
no name, AMD Ryzen Threadripper 2950X
AMD Radeon RX Vega 64
7703 Points ∼69% 0%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
7681 Points ∼69%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
AMD Radeon RX Vega 64
7120 Points ∼64% -7%
Essentials
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X
NVIDIA Titan RTX
11255 Points ∼100% +16%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X
AMD Radeon RX Vega 64
10998 Points ∼98% +13%
Nvidia Titan RTX, AMD Ryzen 9 5900X
NVIDIA Titan RTX
10964 Points ∼97% +13%
Intel Core i9-11900K, Intel Core i9-11900K
NVIDIA Titan RTX
10585 Points ∼94% +9%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX
AMD Radeon Pro W6800
9711 Points ∼86%
no name, AMD Ryzen Threadripper 2950X
AMD Radeon RX Vega 64
8203 Points ∼73% -16%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX
AMD Radeon RX Vega 64
7976 Points ∼71% -18%

3D性能

虽然AMD Radeon Pro W6800严格来说是一款高端工作站显卡,但我们选择了几个游戏来评估该GPU与最新游戏显卡的性能对比。凭借其内置的32GB VRAM,AMD Radeon Pro W6800实际上完全适用于4K游戏。鉴于AMD Radeon Pro W6800在我们测试的所有游戏中都实现了流畅的帧率,这也是这款显卡的可能。尽管如此,在直接与游戏显卡进行比较时,不可能忽视其不足之处。AMD Radeon Pro W6800通常排在NvidiaGeForce RTX 3070 AMD Radeon RX 6800 XT 之间。每个游戏的性能都不一样,这取决于驱动程序,有时甚至明显更差。出于这个原因,我们想再次指出,这不是一块游戏显卡,因此,所产生的性能并不反映这块显卡的设计目的。请参考我们的GPU基准测试文章,了解进一步的比较和基准测试。

3DMark
Fire Strike Extreme Graphics
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
25015 Points ∼100% +27%
Nvidia GeForce RTX 3090 Founders Edition
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
22075 Points ∼88% +12%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X, Intel Optane 905P 480GB 2.5
20007 Points ∼80% +1%
Lenovo ThinkStation P620
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
19729 Points ∼79%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
17009 Points ∼68% -14%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5
15722 Points ∼63% -20%
Average NVIDIA GeForce RTX 2070 Super (Desktop)
  (11382 - 11976, n=5)
11778 Points ∼47% -40%
Average NVIDIA GeForce RTX 2070 (Desktop)
  (9979 - 11423, n=5)
10987 Points ∼44% -44%
Average NVIDIA GeForce RTX 2060 Super (Desktop)
  (10182 - 10540, n=4)
10393 Points ∼42% -47%
1920x1080 Fire Strike Graphics
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
49735 Points ∼100% +78%
Nvidia GeForce RTX 3090 Founders Edition
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
41298 Points ∼83% +48%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X, Intel Optane 905P 480GB 2.5
37604 Points ∼76% +35%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
35136 Points ∼71% +26%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5
31020 Points ∼62% +11%
Lenovo ThinkStation P620
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
27937 Points ∼56%
Average NVIDIA GeForce RTX 2070 Super (Desktop)
  (22819 - 25799, n=6)
24384 Points ∼49% -13%
Average NVIDIA GeForce RTX 2070 (Desktop)
  (16770 - 24242, n=6)
21999 Points ∼44% -21%
Average NVIDIA GeForce RTX 2060 Super (Desktop)
  (20522 - 22516, n=5)
21669 Points ∼44% -22%
2560x1440 Time Spy Graphics
Nvidia GeForce RTX 3090 Founders Edition
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
18685 Points ∼100% +54%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X, Intel Optane 905P 480GB 2.5
17604 Points ∼94% +45%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
17603 Points ∼94% +45%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5
13111 Points ∼70% +8%
Lenovo ThinkStation P620
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
12136 Points ∼65%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
11473 Points ∼61% -5%
Average NVIDIA GeForce RTX 2070 Super (Desktop)
  (9564 - 10094, n=6)
9844 Points ∼53% -19%
Average NVIDIA GeForce RTX 2070 (Desktop)
  (7445 - 9656, n=6)
8952 Points ∼48% -26%
Average NVIDIA GeForce RTX 2060 Super (Desktop)
  (8546 - 8795, n=5)
8661 Points ∼46% -29%
3DMark 11
1280x720 Performance GPU
Nvidia GeForce RTX 3090 Founders Edition
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
55144 Points ∼100% +24%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
52046 Points ∼94% +17%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X, Intel Optane 905P 480GB 2.5
50087 Points ∼91% +13%
Lenovo ThinkStation P620
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
44404 Points ∼81%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
43888 Points ∼80% -1%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5
43005 Points ∼78% -3%
Average NVIDIA GeForce RTX 2070 Super (Desktop)
  (33257 - 37235, n=5)
34558 Points ∼63% -22%
Average NVIDIA GeForce RTX 2070 (Desktop)
  (22174 - 32373, n=7)
29866 Points ∼54% -33%
Average NVIDIA GeForce RTX 2060 Super (Desktop)
  (29148 - 30099, n=4)
29568 Points ∼54% -33%
1280x720 Performance
Nvidia GeForce RTX 3090 Founders Edition
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
38620 Points ∼100% +28%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
38057 Points ∼99% +26%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X, Intel Optane 905P 480GB 2.5
35399 Points ∼92% +17%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
34078 Points ∼88% +13%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5
33248 Points ∼86% +10%
Lenovo ThinkStation P620
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
30190 Points ∼78%
Average NVIDIA GeForce RTX 2070 Super (Desktop)
  (24879 - 28994, n=5)
26382 Points ∼68% -13%
Average NVIDIA GeForce RTX 2060 Super (Desktop)
  (22211 - 25745, n=4)
24240 Points ∼63% -20%
Average NVIDIA GeForce RTX 2070 (Desktop)
  (15341 - 27206, n=7)
23703 Points ∼61% -21%
Unigine Superposition
1280x720 720p Low
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
36452 Points ∼100% +62%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
34713 Points ∼95% +54%
Nvidia GeForce RTX 3090 Founders Edition
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
34649 Points ∼95% +54%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5
34602 Points ∼95% +54%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X, Intel Optane 905P 480GB 2.5
32183 Points ∼88% +43%
Average NVIDIA GeForce RTX 2070 Super (Desktop)

26742 Points ∼73% +19%
Average NVIDIA GeForce RTX 2060 Super (Desktop)

26634 Points ∼73% +18%
Lenovo ThinkStation P620
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
22537 Points ∼62%
1920x1080 1080p High
Nvidia GeForce RTX 3090 Founders Edition
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
23853 Points ∼100% +23%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
22265 Points ∼93% +14%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X, Intel Optane 905P 480GB 2.5
21912 Points ∼92% +13%
Lenovo ThinkStation P620
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
19450 Points ∼82%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5
17244 Points ∼72% -11%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
15832 Points ∼66% -19%
Average NVIDIA GeForce RTX 2070 Super (Desktop)

13655 Points ∼57% -30%
Average NVIDIA GeForce RTX 2060 Super (Desktop)

11421 Points ∼48% -41%
1920x1080 1080p Extreme
Nvidia GeForce RTX 3090 Founders Edition
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
11806 Points ∼100% +39%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X, Intel Optane 905P 480GB 2.5
10822 Points ∼92% +28%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
10046 Points ∼85% +18%
Lenovo ThinkStation P620
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
8478 Points ∼72%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5
8365 Points ∼71% -1%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
6804 Points ∼58% -20%
Average NVIDIA GeForce RTX 2070 Super (Desktop)

6167 Points ∼52% -27%
Average NVIDIA GeForce RTX 2060 Super (Desktop)

5049 Points ∼43% -40%
3840x2160 4k Optimized
Nvidia GeForce RTX 3090 Founders Edition
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
15794 Points ∼100% +30%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X, Intel Optane 905P 480GB 2.5
14243 Points ∼90% +17%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
13471 Points ∼85% +11%
Lenovo ThinkStation P620
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
12133 Points ∼77%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5
10673 Points ∼68% -12%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
9106 Points ∼58% -25%
Average NVIDIA GeForce RTX 2070 Super (Desktop)

8111 Points ∼51% -33%
Average NVIDIA GeForce RTX 2060 Super (Desktop)

6747 Points ∼43% -44%
7680x4320 8k Optimized
Nvidia GeForce RTX 3090 Founders Edition
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
7002 Points ∼100% +45%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X, Intel Optane 905P 480GB 2.5
6346 Points ∼91% +31%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
5256 Points ∼75% +9%
Lenovo ThinkStation P620
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
4838 Points ∼69%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5
4639 Points ∼66% -4%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
3586 Points ∼51% -26%
Average NVIDIA GeForce RTX 2070 Super (Desktop)

3434 Points ∼49% -29%
Average NVIDIA GeForce RTX 2060 Super (Desktop)

2873 Points ∼41% -41%
Metro Exodus - 3840x2160 Ultra Quality AF:16x
Nvidia GeForce RTX 3090 Founders Edition
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
70.6 (41.43min - 118.98max) fps ∼100% +29%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X, Intel Optane 905P 480GB 2.5
65.9 (38.48min - 122.03max) fps ∼93% +20%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
56.3 (40.14min - 64.28max) fps ∼80% +3%
Lenovo ThinkStation P620
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
54.7 (36.07min - 72.76max) fps ∼77%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5
48.6 (29.82min - 99.64max) fps ∼69% -11%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
42.3 (27.78min - 56.35max) fps ∼60% -23%
Average NVIDIA GeForce RTX 2070 Super (Desktop)
  (35 - 37, n=3)
36 fps ∼51% -34%
Average NVIDIA GeForce RTX 2070 (Desktop)
  (30.5 - 32.7, n=3)
31.7 fps ∼45% -42%
Average NVIDIA GeForce RTX 2060 Super (Desktop)
  (29.7 - 30, n=2)
29.9 fps ∼42% -45%
Far Cry New Dawn - 3840x2160 Ultra Preset
Nvidia GeForce RTX 3090 Founders Edition
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
97 (75min - 124max) fps ∼100% +76%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
94 (75min - 129max) fps ∼97% +71%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X, Intel Optane 905P 480GB 2.5
88 (71min - 110max) fps ∼91% +60%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5
72 (61min - 86max) fps ∼74% +31%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
70 (57min - 91max) fps ∼72% +27%
Average NVIDIA GeForce RTX 2070 Super (Desktop)
  (55 - 58, n=3)
56.3 fps ∼58% +2%
Lenovo ThinkStation P620
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
55 (42min - 77max) fps ∼57%
Average NVIDIA GeForce RTX 2070 (Desktop)
  (49 - 53, n=3)
51 fps ∼53% -7%
Average NVIDIA GeForce RTX 2060 Super (Desktop)
  (48 - 50, n=2)
49 fps ∼51% -11%
Far Cry 5 - 3840x2160 Ultra Preset AA:T
Nvidia GeForce RTX 3090 Founders Edition
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
105 (94min - 121max) fps ∼100% +75%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
95 (72min - 124max) fps ∼90% +58%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X, Intel Optane 905P 480GB 2.5
93 (78min - 109max) fps ∼89% +55%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5
70 (63min - 84max) fps ∼67% +17%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
70 (59min - 91max) fps ∼67% +17%
Lenovo ThinkStation P620
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
60 (49min - 75max) fps ∼57%
Average NVIDIA GeForce RTX 2070 Super (Desktop)
  (53 - 54, n=3)
53.7 fps ∼51% -10%
Average NVIDIA GeForce RTX 2070 (Desktop)
  (46 - 51, n=4)
48.5 fps ∼46% -19%
Average NVIDIA GeForce RTX 2060 Super (Desktop)
  (45 - 45, n=2)
45 fps ∼43% -25%
X-Plane 11.11 - 3840x2160 high (fps_test=3)
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X, Intel Optane 905P 480GB 2.5
104.8 fps ∼100% +132%
Nvidia GeForce RTX 3090 Founders Edition
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
92.8 fps ∼89% +106%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5
84.3 fps ∼80% +87%
Average NVIDIA GeForce RTX 2070 (Desktop)

82.2 fps ∼78% +82%
Average NVIDIA GeForce RTX 2070 Super (Desktop)
  (67 - 79.6, n=3)
75.3 fps ∼72% +67%
Average NVIDIA GeForce RTX 2060 Super (Desktop)
  (67 - 79, n=2)
73 fps ∼70% +62%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
45.5 fps ∼43% +1%
Lenovo ThinkStation P620
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
45.1 fps ∼43%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
40.1 fps ∼38% -11%
Final Fantasy XV Benchmark - 3840x2160 High Quality
Nvidia GeForce RTX 3090 Founders Edition
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
81.5 fps ∼100% +34%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X, Intel Optane 905P 480GB 2.5
66 fps ∼81% +9%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
65.2 fps ∼80% +7%
Lenovo ThinkStation P620
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
60.8 fps ∼75%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5
57.6 fps ∼71% -5%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
47.7 fps ∼59% -22%
Average NVIDIA GeForce RTX 2070 Super (Desktop)
  (40.6 - 41.6, n=3)
41.1 fps ∼50% -32%
Average NVIDIA GeForce RTX 2070 (Desktop)
  (37.1 - 39.3, n=4)
38.2 fps ∼47% -37%
Average NVIDIA GeForce RTX 2060 Super (Desktop)
  (34.9 - 35, n=2)
35 fps ∼43% -42%
Dota 2 Reborn - 3840x2160 ultra (3/3) best looking
Nvidia GeForce RTX 3090 Founders Edition
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
138.6 (69.8min) fps ∼100% +47%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5
128.5 (102.9min) fps ∼93% +37%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
122.2 (105.8min) fps ∼88% +30%
Average NVIDIA GeForce RTX 2070 Super (Desktop)
  (107 - 128, n=3)
118 fps ∼85% +26%
Average NVIDIA GeForce RTX 2070 (Desktop)

116 fps ∼84% +23%
Average NVIDIA GeForce RTX 2060 Super (Desktop)
  (105 - 116, n=2)
111 fps ∼80% +18%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
105.8 (89.8min) fps ∼76% +13%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X, Intel Optane 905P 480GB 2.5
98 (79.1min) fps ∼71% +4%
Lenovo ThinkStation P620
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
94 (67.5min) fps ∼68%
The Witcher 3 - 3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off)
Nvidia GeForce RTX 3090 Founders Edition
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
148 fps ∼100% +49%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X, Intel Optane 905P 480GB 2.5
114 (106min - 122max) fps ∼77% +15%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
110 (97min - 117max) fps ∼74% +11%
Lenovo ThinkStation P620
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
99.1 (58min, 70.3P0.1, 79.5P1 - 233max) fps ∼67%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5
90.9 (84min - 101max) fps ∼61% -8%
Average NVIDIA GeForce RTX 2070 Super (Desktop)
  (65.5 - 68, n=3)
66.7 fps ∼45% -33%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
63 fps ∼43% -36%
Average NVIDIA GeForce RTX 2070 (Desktop)
  (55.9 - 67, n=4)
62.3 fps ∼42% -37%
Average NVIDIA GeForce RTX 2060 Super (Desktop)
  (57 - 58.1, n=2)
57.6 fps ∼39% -42%
F1 2020 - 3840x2160 Ultra High Preset AA:T AF:16x
Nvidia GeForce RTX 3090 Founders Edition
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
135 (116min - 157max) fps ∼100% +24%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
128 (106min - 152max) fps ∼95% +17%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X, Intel Optane 905P 480GB 2.5
114 (100min - 136max) fps ∼84% +5%
Lenovo ThinkStation P620
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
109 (87min - 131max) fps ∼81%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5
88.7 (76min - 101max) fps ∼66% -19%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
83 fps ∼61% -24%
Average NVIDIA GeForce RTX 2070 Super (Desktop)

71.4 fps ∼53% -34%
Average NVIDIA GeForce RTX 2070 (Desktop)

61 fps ∼45% -44%
Average NVIDIA GeForce RTX 2060 Super (Desktop)
  (55.2 - 55.8, n=2)
55.5 fps ∼41% -49%
GTA V - 3840x2160 High/On (Advanced Graphics Off) AA:FX AF:8x
Nvidia GeForce RTX 3090 Founders Edition
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
151 (6.66min, 33.3P1 - 81.5max) fps ∼100% +21%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X, Intel Optane 905P 480GB 2.5
150 (12.6min, 100P1 - 343max) fps ∼99% +20%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
134 (15.5min, 55.6P1 - 252max) fps ∼89% +7%
Lenovo ThinkStation P620
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
125 (6.9min, 90.9P1 - 181max) fps ∼83%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5
117 (9.24min, 76.9P1 - 263max) fps ∼77% -6%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
96.5 (5.12min, 71.4P1 - 220max) fps ∼64% -23%
Average NVIDIA GeForce RTX 2070 Super (Desktop)
  (90.1 - 102, n=2)
96.1 fps ∼64% -23%
Average NVIDIA GeForce RTX 2070 (Desktop)
  (79.9 - 112, n=3)
92.6 fps ∼61% -26%
Average NVIDIA GeForce RTX 2060 Super (Desktop)
  (83 - 89, n=2)
86 fps ∼57% -31%
Strange Brigade - 3840x2160 ultra AA:ultra AF:16
Nvidia GeForce RTX 3090 Founders Edition
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600
150 (99min, 124P1 - 238max) fps ∼100% +19%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X, Intel Optane 905P 480GB 2.5
134 (59.3min, 111P1 - 180max) fps ∼89% +6%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5
133 (45.6min, 48.7P1 - 316max) fps ∼89% +6%
Lenovo ThinkStation P620
Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G
126 (91.9min, 104P1 - 184max) fps ∼84%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5
96.8 (66.9min, 82.6P1 - 127max) fps ∼65% -23%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600
91 (73.6min, 77.5P1 - 121max) fps ∼61% -28%
Average NVIDIA GeForce RTX 2060 Super (Desktop)

60.6 fps ∼40% -52%
low med. high ultraQHD4K
GTA V (2015) 181 169 152 89.7 88.1 125 fps
The Witcher 3 (2015) 354 236 199 157 99.1 fps
Dota 2 Reborn (2015) 143.6 119.3 99 85.7 94 fps
Final Fantasy XV Benchmark (2018) 178 174 137 106 60.8 fps
X-Plane 11.11 (2018) 62.2 52 45.4 45.1 fps
Far Cry 5 (2018) 73 70 65 62 64 60 fps
Strange Brigade (2018) 357 282 277 268 212 126 fps
Far Cry New Dawn (2019) 66 61 59 55 55 55 fps
Metro Exodus (2019) 124 121 186 172 171 54.7 fps
F1 2020 (2020) 300 283 225 179 109 fps

排放

联想ThinkStation P620出乎意料地安静

由于内置组件的原因,你不应该期望在排放方面达到顶级水平。然而,该系统在正常使用时的工作噪音令人惊讶,虽然可以听到,但并不令人讨厌。只有在满负荷的情况下,联想ThinkStation P620才会因其加速的风扇而引起人们的注意。不过,该系统的最大噪音为42.4 dB(A),仍然比一些游戏笔记本或移动工作站安静得多。尽管这种直接比较有些缺陷,但从主观角度看,该系统的音量似乎要好一些。刚一开机,系统就清楚地表明它可以变得更响。幸运的是,风扇控制在一段时间后会降低速度,因为你不会想在你的桌子下一直有55dB(A)的声音。

系统噪音(系统启动
系统噪音(系统启动
系统噪音(空闲使用)。
系统噪音(空闲使用)。
系统噪音(Prime95和FurMark
系统噪音(Prime95和FurMark
系统噪音 (TheWitcher 3)
系统噪音 (TheWitcher 3)

Threadripper Pro 3995WX保持冷静的头脑

AMD Radeon Pro W6800在极端负载下,其温度甚至略高于CPU(86 °C(约187 °F))。GPU-Z显示,热点温度最高为99℃(约210°F)。Radeon Pro W6800的径向风扇的旋转速度略低于2000转/分钟,相当于大约40%。不过,你也可以在Radeon驱动设置中手动调整速度。但那时它的声音变得相当快,这主要是由于单一的径向风扇造成的。这种设计的优点是可以直接将显卡的废热排出机箱外。

用Prime95和FurMark进行压力测试
用Prime95和FurMark进行压力测试
压力测试 Prime95
压力测试 Prime95
压力测试FurMark
压力测试FurMark

高负荷也让能源消耗激增

由于其强大的硬件,ThinkStation P620的能耗相比之下是相当高的。尽管如此,当你考虑到系统的预期性能时,就会把能耗放在心上。AMD Ryzen Threadripper Pro 3995WX指定的功耗高达280瓦,它在负载下有效地消耗。在86℃(约187°F)的温度下,它在负载下也非常热,但它仍然可以稳定地保持2.7GHz的基础时钟。我们注意到在压力测试中能耗最高,为420瓦。但与此同时,AMD Radeon Pro W6800在负载下需要高达250瓦的能量。这很快解释了为什么联想为该系统配备了一个1000瓦的电源适配器。

Energy consumption of the Lenovo ThinkStation P620

0306090120150180210240270300330360390420450480510437438440453436436442433434435434428437438441450431434443420407404411409417350107180189191189296448444444443445444448448449451450449452476446451446465440453447450464445493439444458446449457444454476453450449444451443447448446444446454449464453467465475456462447445448442444449454448464449452461448452460445454452450443453443451451457453445452455453465448462452453449453449443445447448445446452459447455448455449448447451442446446445456448449446450442450447450445448451450450448442455454447446445446442446455444448446443444449450447452446452448451446445448442449449442447449450444449460442450448445451450447446450449446445445443453448441445445446445445447446442450450446448453444460451449455449449460444449444445448444452447459448457447446453449453447446448449447447462442460450446449445445459451444447454448442449444464449464448443445452444458446450442450446446445439454441441435438429440430425429434435425424426418425431431432443423431425418430426423427423423428421427428441424427425428424427424432424420430424427426419422434424441425426433428425427424419428419420423433419427419422427425424443423422424423422419428425438422433432425443420421423424420424434424431422434421420424424422422433425420425436420417424434420442423424423422428420423427424420427423436437423443425432426434418426425419424428421428424419427425435419439428428425425430424425421422420435423424426438423428425425421426427427419426425422430428427424434423444425423428429418420425420421426421426422425424424424436423442419423431434433425427431425436434439440439454440457443447444448446447447440445444445444441450464443443445446444448442442442446442444443440454441443447454445448448445446443446445447447449447445446448441439445445447444442448445447443446447453443453450442447445453449445440456446460447443443451439447444447446446443444445444447448457445445445446447440444447446443439455447455448457449444443443444449443439444445449443461440456445446443443443447446447441440448440444444445442445444443441439446441442453443459446442452444449450443449444446446443442451455444461443449446447444450449444447448440460449450459445461444443445451447443451443438443449448452447456442445447446445447446444448450460441448452444461451440444447444450447447452443457443442445442440439445443450440438440451443457441442436434433429426433432427434433427430441428450428434435429447428435430428433429435429451428441437443431448429446427429428435434425424431435430436430444433435430425425434429429431426432424428429435426439428429431424432429433425429425424426430423429432434426443426428424435434426433424427434435437425454425445430443434442434431424427428424424432442425435425430430450432444429430431431427430427429435427428423428426448427437430427423423430427431432425428429432431433443427439433427437430428428431430427425427428435437427447425430431424430424433431430429429429434428426428425435428428430431429429429429437444428436429428431437432433434438428436429431439436442450442456441448443449460451447446449449461449450447454450445450456455448454445455451466445460448448453455454453449444444451448446456450459447458451450446450452450449459447457456461448465456450446453457446449450451456460454454447454449451454451452455457453468446456448463447460451453453457453452450457459460458452455447450455448449450449455451458452455459461455452450450453450459446445446461451451451451450449449446450444453449449460462462448450451448448450465448452449450453453455451445451449452453452453449455453457455463454448451450451452449466457458457459450457456448457454453449448447449449466456452456463445447453450456451453451449454446450449450450452452452459447462452446450449456449451453470454458448463448461449463443452450456454446454451449448450452462458463450460451450451453448450448449453449448450464457443464441458455449447452443450439444455444440434445434441445434441443435433446432434441442434445439437440440436439444437437434434436438442440439447436434440434440438447439438450432451442440445446438436437438437441438439438433441439438439448438439439441440435436434437437447438434440449443458442437433437433440439436432431439435450436461434448437435453438442437436436433438438454436443440446437448433454437436436435435435445435442436441444453439432442433442436442439433438444438456434449440435436436432438436437435438445449439448431453434445437433437438436441436437438436451434433434441436443436439439437440440435437437435442443443440440435451440438438444439437437436439437446439436438459437459443443445447441446441436440441446460442454445461444460444457454453454453446450449444462449450444453446467451455449447449448452444445454466448457443459448454450450448450447452453450462452448448450447454453447450446443446447452455448446452447450452444447455450443456447453446454450447445459449462454445448454447448444455451452444449463444465457461446452445446450452450446451444448449463446465447447451447451450444452447445453444458455465453448447449456452442447448448447448452459451463446463451448451463447450453449453448450448458448464449454452450452447453443454448450447452450459448466452446452447454449447449456447448454461451453445453455455451447451460447459443445450448455454452446451454456451447448469449464446450448458449457448443451446444453464453466448454456461443449447450449453449448447460447457442458446453445453448448445453444448449444444441449440446445449451449445445447443443452445442443444451441440443441438447441450449453453445444445453447460444451447448448443442451445445444450445457441458443454444456445446445441450443445444454443444442463443457441457443440448449445447451446447440442446456445460441445441443443444443445442445448447445454464443441451451445446445449443442444444442449445446442452445441448445444449448444443449443444445444455441455448450445461440443443446451443444441456450446445443441463446459449443448443443447446443445441448449447446456446464448448446445451451446445447447446445464445466444470443443440445445446442444445443450456451460444450445446444448449449452449448458447450452479473448444447449450447447450452455446447449445457447462457452450457449447447446448446450446450445463451461444455454464451465450458460453449452450452463448461448456458451459452447450450448452448454462445456453463447453447454445455465448470447452448451451456449448451458454452450450462446467451449449452447454447446448452449467448460450461446449450458452452452453447452452448466454460453445451455444455446447447448451450450444466453458453457447452449451449450459453458444447445463448462451450458451452450450455450450448462445470451449447448450447453453446445451451444453463445456446454453449449447475450447457453452457450459447462454450449447453449446444446455447450457446458448461445448445446450449449449450450461446468446457447464444452446453442454454465447449447461444469455463455446442457447442447448449444442449460446469442450449462450458446444447444450451451448463446462445463443449448446449447452452449448456440447444444441454445449442447443448447453443458450441443456444443441447442448443451444443447446447446451456448457444445451445452449448445446443449456447444447448442450452448452442445447444447444449448445444449454446453442449447447448459450448453442448467446448449445450450445444461447463448463447456447456446447445450446444448452464456461450454450460443457444444448445449447446455467451448446462450454447445446456451459445449444463448453449447449442447450448454470443462445453446458447458443448445447449448443448463444451447463446459452443446453452450451446466454445462454461452461454442445443447451450454464448452446457450461444443449445453446446452453445453449446450459447459443449449445449443445449455448449448460453450446447450450453455450449453448451451449446455447444446449443452446452447461446448455460451453445444455451451449446448450445445442458445464450454442442451444442446442449446448463447465445446453445448453449459445449442445459454462444457447449447446446445446454444450455454447461445452450448445451443449444446449446450450446449452448442451443449447449448457448453441458445443451451446448449446452452453455446467448453448449445451444452449445456446451442457448463455443442444449456450447447452450451455444464447465443448448448455446449448449445455449446452462442452453449451447453446447445446448451447447448462451462442447449443452449448453446441445461444463455458446444447450449441443443454448444445447447455451462446448445449454445449450448447444448455442455454469446450447444448450446457450442449450462451461444443447445454446446449450451451450452451462446466447457452451459449452446453445451451449461447456445456443458448444450449451447447446466450449448449448457446453450449451448446446447445461445454450446450451448451452444449449444443445449444446445444453453442444446442453450454444449451445450461450451443442449448448452448444456450458446446445448452451450445452445446449450444452449451450441446447446442448449449453445450448462451449444458453442443451453448450441459447456457448449446445448449447447450445451456444451451450445447446444443446449452449450445446446449451453445447452446450454460450450445443453451454446442457449457446460451441445444450450446449445446450452443448472450460450451444442448442440453443446445444440448443449448447445448454449448445439461443458444463445453446446446445446453449445456455450450443453448444452443439442455448443445450449450448454447454443445445451445449448446449445442443459448462444447445447446447444446449444447440451446461454456451446446443446445445449448442447455448458447440445444447448446448450441454444446450450446462455449446442447442451441455444459446443445444449448446467442448447443444449447450449449464448456445446446457440453441445445452447445443447453442463452448454444450450444445440440444452443454444448451453444442449446448453446439449447448454443449455448447441443451447444452444453447450455445453446454449450451446444446442445448446444445459445459442448451445450445447452446446445457451461444466446448447453449454451447454449452456460451456446467447464451465447450454448454451451452458451446450460452467446467451444460451449452459451458457455452460453462453453447456452448446451454448450446451452447452447451449448460446461447460455466448459451448448458451444449450447454455448466448461452450449452450443447449457449450450457444459458456447454448447453446445448444454444454450454448451454443446446445450443456449451453452448442448449450447452447448447446455447462447447443447447443448449448453448447456447451448449449447450453448451446455449450453448449460448450445453451446450452452446453452455447459445464450450447460449452447446451452452450452446458444460455453446458449449445447448454451443449451445453440448456443464448447444446452450446451445447445456445463443466443442443438442443437444441438440433450435444431430428427427427428427431434430427431428434429441430446429437429445429428431434431425426427431428428430438432445429448429431431431434428431428439428430445427448424429432446429437427433428426436430429434429429433429446426443433431427429430431428426433429437434430435441430429431437434431432436432437434432429431434431445428444433435433427432426436430430435440430434432448438430430434428432427433432431433437427458430447436444429447427446430433427437428428430432431435433438435434449431434432431431437436430433437431433438431442435442436433434437430435434435437437442444438436447446445440438439442440437440440439440439444444453444459450455445450450443447447442447449444446444459448461445442445457449454449442447446447447449441461449451447456453458444448446448448449452443463449450443451444458443452446442441450444442444451446447447455450444447443440449443442450445441444449446452445446450446447446445450442451448445447440449446458452442451442444446449447445445442451441447459440442454449447457455443444446443451443457446463450457442459440448451447440446445449445449465447450445455446456443443448448445447447447462451443451457447468445460444439451446445443449449445445450446442442461442454443452443440455445444446449443450444440
