华硕ExpertBook B5 Flip的评测。紧凑而持久的可转换设备,是大学、办公室和沙发的理想选择

别致的越野滑雪者。 华硕ExpertBook B5 Flip B5302FEA作为校园机型,对于学生、教师和其他人来说具有价格优势。但这台配有英特尔酷睿i5-1135G7和持久电池的可折叠机也是一个不错的选择,正如我们的评论所显示的那样,常规的价格几乎不高。
Marcus Schwarten, 👁 Andreas Osthoff (translated by DeepL / Ninh Duy), 🇺🇸 🇩🇪 ...
Laptop / Notebook Convertible / 2-in-1 Tiger Lake Business

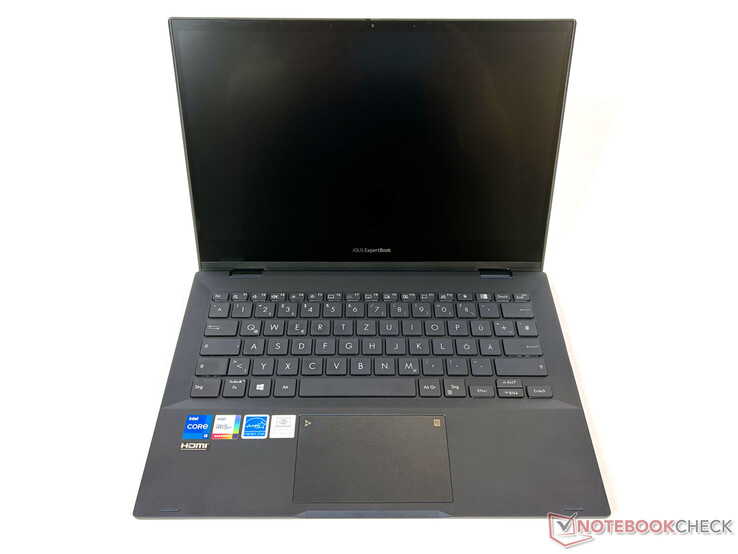

型号为B5302FEA-LG0081R的华硕ExpertBook B5 Flip是一款13.3英寸的紧凑型可折叠机,除了经典的笔记本之外,还可以作为平板电脑使用。作为教育型号,该设备以校园价格优势向学生、教师和其他符合条件的人提供,价格仅为899欧元(约合1,014美元)。

但该设备的零售价约为1,000欧元(约合1,128美元),对其他人来说也是一个不错的选择,正如我们对配备Intel Core i5-1135G7Intel Iris Xe G7 图形(80欧盟),16GB内存和512GB NVMe SSD的型号的审查所显示的那样。我们测试了采用IPS面板的机型。另外,该设备也可以使用OLED屏幕,但需要额外收费,并在其他配置变体中使用Intel Core i7-1165G7 ,以及更多或更少的存储空间。

在对华硕ExpertBook B5 Flip B5302FEA的评测中,我们邀请了其他几款转换机进行对决,它们都在类似的价格和设备联盟中发挥作用。这包括两个惠普设备,即Pavilion x360 14Spectre x360 13以及 Acer Spin 3,都采用相同的CPU和GPU。

加入它们的还有:华硕ZenBook Flip 13 ,搭载英特尔酷睿i7-1165G7 ,以及惠普ProBook x360 435 G8 ,搭载AMD Ryzen 7 5800U 。我们的评论揭示了华硕的ExpertBook B5 Flip在这个杰出的群体中的表现。

, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

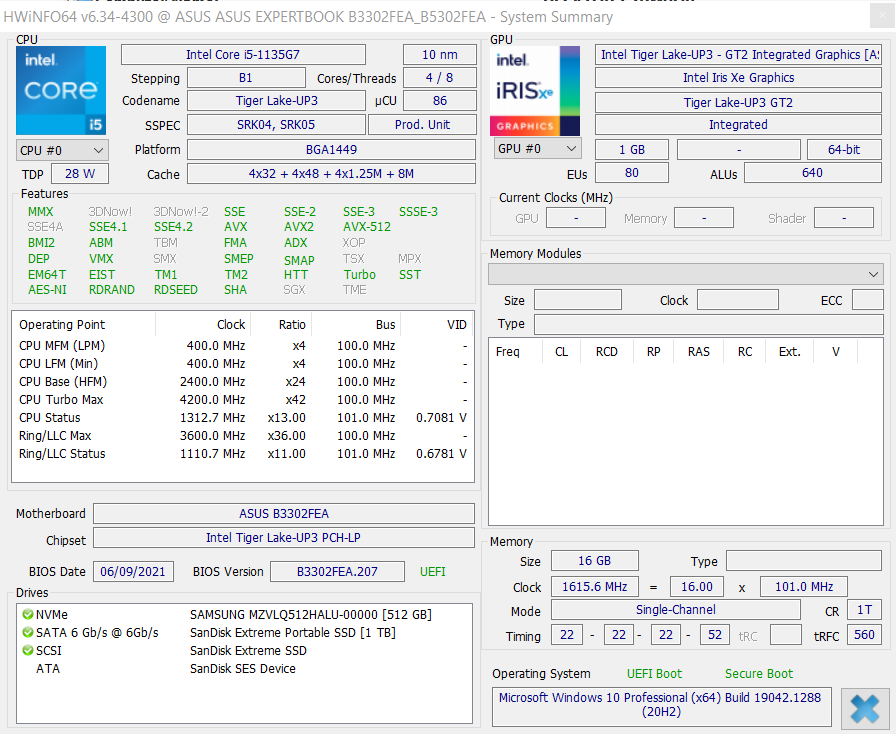

B5302FEA-LG0081R (ExpertBook B5 Series)
Processor

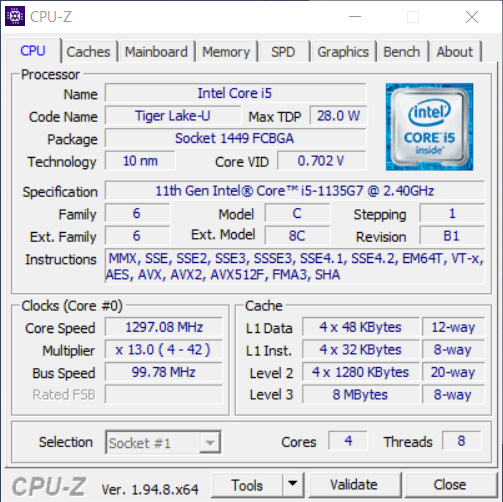

Intel Core i5-1135G7 4 x 2.4 - 4.2 GHz, 51 W PL2 / Short Burst, 18 W PL1 / Sustained, Tiger Lake UP3

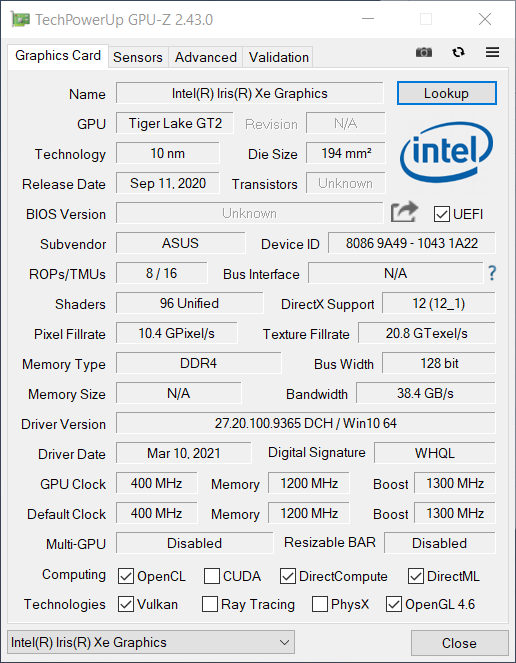

Graphics adapter
Intel Iris Xe Graphics G7 80EUs - 1024 MB, Core: 1300 MHz, Memory: 1200 MHz
Memory
16384 MB
, DDR4-3200 MHz SO-DIMM Single-Channel
Display
13.30 inch 16:9, 1920 x 1080 pixel 166 PPI, 1, native pen support, N133HCE-EN2, IPS, glossy: no, 60 Hz
Mainboard
Intel Tiger Lake-UP3 PCH-LP
Storage
Samsung PM991 MZVLQ512HALU, 512 GB
, 433 GB free
Soundcard
Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)
Connections
1 USB 3.1 Gen2, 2 USB 4.0 40 Gbps, 2 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: Combo, 1 Fingerprint Reader, Gigabit LAN per Micro HDMI Adapter
Networking
Intel Ethernet Connection I219-V (10/100/1000/2500/5000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.0
Size
height x width x depth (in mm): 16.9 x 309 x 210.6
Battery
66 Wh Lithium-Polymer
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 1
Primary Camera: 0.9 MPix 720p HD Webcam mit Kameraabdeckung
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, Eingabestift, LAN-Adapter, 24 Months Warranty
Weight
1.25 kg, Power Supply: 331 g
Price
899 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible competitors in comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
88.3 %
11/2021
Asus ExpertBook B5 Flip B5302FEA
i5-1135G7, Iris Xe G7 80EUs
1.3 kg16.9 mm13.30"1920x1080
81.8 %
09/2021
HP Pavilion x360 14-dy0157ng
i5-1135G7, Iris Xe G7 80EUs
1.5 kg19.9 mm14.00"1920x1080
85.7 %
Acer Spin 3 SP313-51N-56YV
i5-1135G7, Iris Xe G7 80EUs
1.4 kg16 mm13.30"2560x1600
87.3 %
09/2021
HP Spectre x360 13-aw2003dx
i5-1135G7, Iris Xe G7 80EUs
1.2 kg16.9 mm13.30"3840x2160
86.3 %
Asus ZenBook Flip 13 UX363EA-HP069T
i7-1165G7, Iris Xe G7 96EUs
1.2 kg13 mm13.30"1920x1080
85.7 %
08/2021
HP ProBook x360 435 G8 R7-5800U
R7 5800U, Vega 8 R5000
1.5 kg18 mm13.30"1920x1080

外壳。坚固的铝壳

华硕ExpertBook B5 Flip B5302FEA采用无烟煤的铝合金外壳。它具有高质量的结构,而且相当坚固,正如美国军事标准MIL-STD 810H的认证所显示的那样。根据华硕的说法,它应该能经受住从120厘米(约47英寸)高处跌落、冰冷温度等的考验,不会有任何问题。

底座单元是抗扭的,所以设备可以很容易地在角落里搬运。铰链是相当坚硬的。这可以防止移动过程中的 "晃动",但也使得用一只手打开成为一种技能游戏。

审查样本是我们比较领域中较轻的型号之一,约1.3公斤(约2.9磅)。它不是最紧凑和最薄的敞篷车,但它能很好地与其他车型竞争。因此,它在路上几乎没有任何重量,也不占用包里的空间。

Size comparison

322 mm 209 mm 19.9 mm 1.5 kg309 mm 223 mm 18 mm 1.5 kg309 mm 210.6 mm 16.9 mm 1.3 kg306.7 mm 194.5 mm 16.9 mm 1.2 kg305 mm 211 mm 13 mm 1.2 kg300 mm 220 mm 16 mm 1.4 kg

设备。带有两个Thunderbolt 4端口和一个HDMI 2.0端口的可转换设备

端口是ExpertBook的优势之一。由于有两个Thunderbolt 4端口和一个HDMI 2.0端口,最多可以连接三个外部显示器。然而,当设备插入时,两个USB-C端口中的一个被电源适配器占据。还有一个USB-A端口和一个组合音频端口,但遗憾的是没有读卡器。

华硕没有局域网端口,以保持可折叠机尽可能的薄。不过,通过左侧的相应端口可以进行有线互联网连接,这要归功于附带的LAN-micro-HDMI适配器。

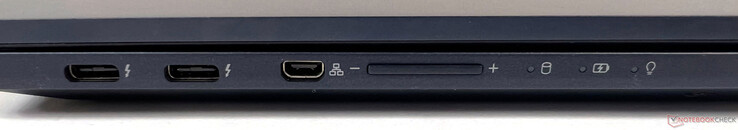

左边的连接器:2个Thunderbolt 4(40GBit/s,DisplayPort ALT模式1.4,Power Delivery 3.0),1个Micro HDMI(用于LAN)。
左边的连接器:2个Thunderbolt 4(40GBit/s,DisplayPort ALT模式1.4,Power Delivery 3.0),1个Micro HDMI(用于LAN)。

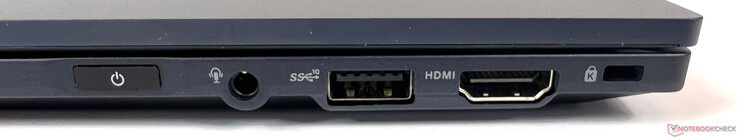

右边的连接:1个3.5毫米插孔(麦克风输入/音频输出合并),1个USB 3.2 Gen-2(10GBit/s),1个HDMI 2.0b,1个Kensington。
右边的连接:1个3.5毫米插孔(麦克风输入/音频输出合并),1个USB 3.2 Gen-2(10GBit/s),1个HDMI 2.0b,1个Kensington。

沟通

内置的英特尔Wi-Fi 6 AX201在华硕ExpertBook B5 Flip B5302FEA中表现出色。该测试设备确保了顶级排名,也使自己明显领先于Wi-Fi 6模块的平均水平,以及我们迄今为止测试的所有转换器。

Networking
iperf3 Client (transmit) TCP 1 m 4M x10
HP ProBook x360 435 G8 R7-5800U
Intel Wi-Fi 6 AX200
1409 (1274min - 1474max) MBit/s ∼100% +5%
Asus ExpertBook B5 Flip B5302FEA
Intel Wi-Fi 6 AX201
1339 (701min - 1486max) MBit/s ∼95%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Wi-Fi 6 AX201
1301 (929min - 1479max) MBit/s ∼92% -3%
HP Spectre x360 13-aw2003dx
Intel Wi-Fi 6 AX201
1228 (629min - 1324max) MBit/s ∼87% -8%
Average Intel Wi-Fi 6 AX201
  (49.8 - 1775, n=287)
1155 MBit/s ∼82% -14%
Average of class Convertible
  (216 - 1690, n=88, last 2 years)
961 MBit/s ∼68% -28%
Acer Spin 3 SP313-51N-56YV
Killer Wi-Fi 6 AX1650i 160MHz Wireless Network Adapter (201NGW)
758 (682min - 804max) MBit/s ∼54% -43%
HP Pavilion x360 14-dy0157ng
Wireless AC-9461
360 (181min - 385max) MBit/s ∼26% -73%
iperf3 Client (receive) TCP 1 m 4M x10
Asus ExpertBook B5 Flip B5302FEA
Intel Wi-Fi 6 AX201
1431 (1309min - 1555max) MBit/s ∼100%
HP Spectre x360 13-aw2003dx
Intel Wi-Fi 6 AX201
1380 (1300min - 1427max) MBit/s ∼96% -4%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Wi-Fi 6 AX201
1357 (1148min - 1476max) MBit/s ∼95% -5%
Average Intel Wi-Fi 6 AX201
  (136 - 1743, n=287)
1252 MBit/s ∼87% -13%
HP ProBook x360 435 G8 R7-5800U
Intel Wi-Fi 6 AX200
1235 (1079min - 1405max) MBit/s ∼86% -14%
Average of class Convertible
  (136 - 1585, n=88, last 2 years)
1016 MBit/s ∼71% -29%
Acer Spin 3 SP313-51N-56YV
Killer Wi-Fi 6 AX1650i 160MHz Wireless Network Adapter (201NGW)
887 (812min - 947max) MBit/s ∼62% -38%
HP Pavilion x360 14-dy0157ng
Wireless AC-9461
335 (325min - 338max) MBit/s ∼23% -77%
05010015020025030035040045050055060065070075080085090095010001050110011501200125013001350140014501500155013931486150315551499139515321483148713701449154714901413135913991481143014091400134513991394139614781392139513311395130933533733433533632533433533433233633733633633733433633533633833433333733533533433633533733586387190089488090492991089992494792592493394093388886981282386090185583984386985485085690414181406141013911389138613581348136814001413139313961407136613901300132513691408142713731400136813481418134313661353134913431373132111481314133113861459133613671338132313191366133113221348134414761347142813211471132813391320137514151448136314051309127412971316124511661172110611181256130813231207129512851218120210831141126110791167124712481241126412471283129013931486150315551499139515321483148713701449154714901413135913991481143014091400134513991394139614781392139513311395130933533733433533632533433533433233633733633633733433633533633833433333733533533433633533733586387190089488090492991089992494792592493394093388886981282386090185583984386985485085690414181406141013911389138613581348136814001413139313961407136613901300132513691408142713731400136813481418134313661353134913431373132111481314133113861459133613671338132313191366133113221348134414761347142813211471132813391320137514151448136314051309127412971316124511661172110611181256130813231207129512851218120210831141126110791167124712481241126412471283129070113611139141613641297122912431406134713291366122714361268148613571200120114061388138512421434137613911428123913921427181362353354339379361361361364351365362362353366359365361355364345372338385360366356361357773775799754682709766713751792754773707749738758777764789754790757772753767768789693804771629125012611232126812861238126112241243123912461250127213241309120612081193128411931145117311721153113012311199119311889291084113011541206111197113351144117913241426140013861479144814071385142011741435145413901428140814411383134413081336127412811375141214491369145914201426141813811451139414741441141214011451134814101333141614481455137314111465143114721422Tooltip
Asus ExpertBook B5 Flip B5302FEA Intel Wi-Fi 6 AX201; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø1430 (1309-1555)
HP Pavilion x360 14-dy0157ng Wireless AC-9461; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø335 (325-338)
Acer Spin 3 SP313-51N-56YV Killer Wi-Fi 6 AX1650i 160MHz Wireless Network Adapter (201NGW); iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø887 (812-947)
HP Spectre x360 13-aw2003dx Intel Wi-Fi 6 AX201; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø1380 (1300-1427)
Asus ZenBook Flip 13 UX363EA-HP069T Intel Wi-Fi 6 AX201; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø1357 (1148-1476)
HP ProBook x360 435 G8 R7-5800U Intel Wi-Fi 6 AX200; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø1235 (1079-1405)
Asus ExpertBook B5 Flip B5302FEA Intel Wi-Fi 6 AX201; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø1316 (701-1486)
HP Pavilion x360 14-dy0157ng Wireless AC-9461; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø354 (181-385)
Acer Spin 3 SP313-51N-56YV Killer Wi-Fi 6 AX1650i 160MHz Wireless Network Adapter (201NGW); iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø758 (682-804)
HP Spectre x360 13-aw2003dx Intel Wi-Fi 6 AX201; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø1207 (629-1324)
Asus ZenBook Flip 13 UX363EA-HP069T Intel Wi-Fi 6 AX201; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø1301 (929-1479)
HP ProBook x360 435 G8 R7-5800U Intel Wi-Fi 6 AX200; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø1409 (1274-1474)

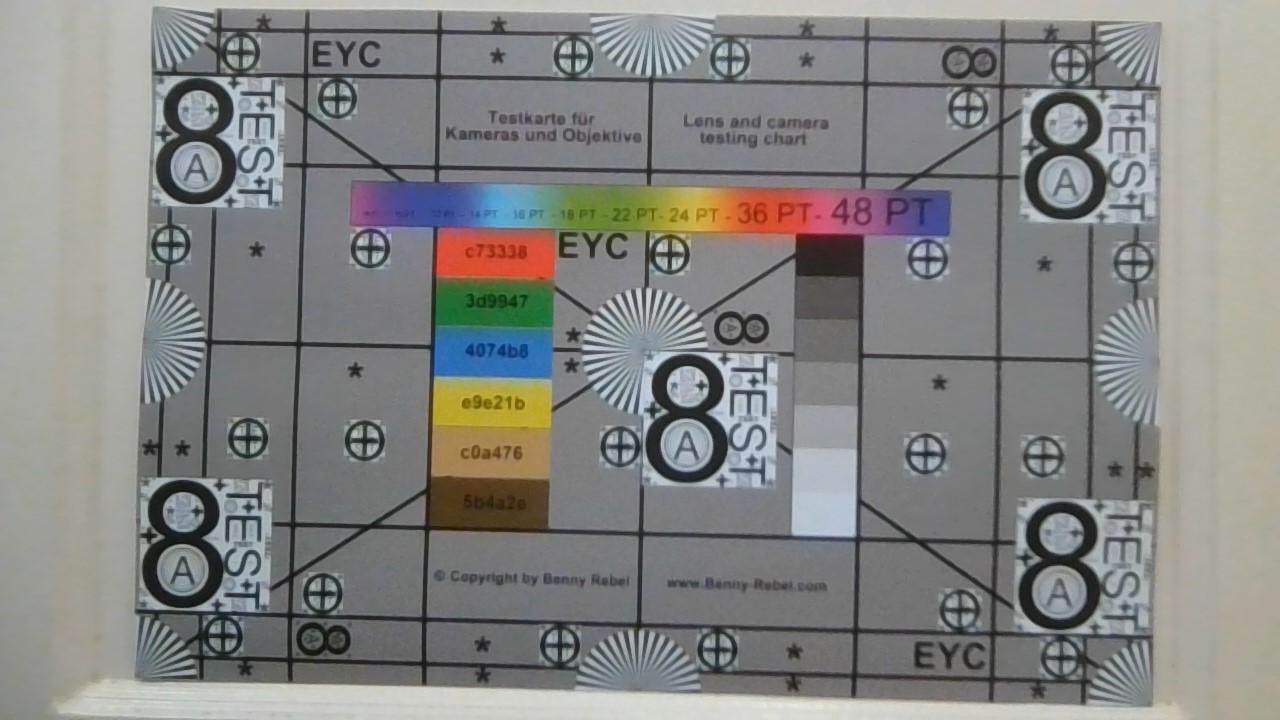

网络摄像头

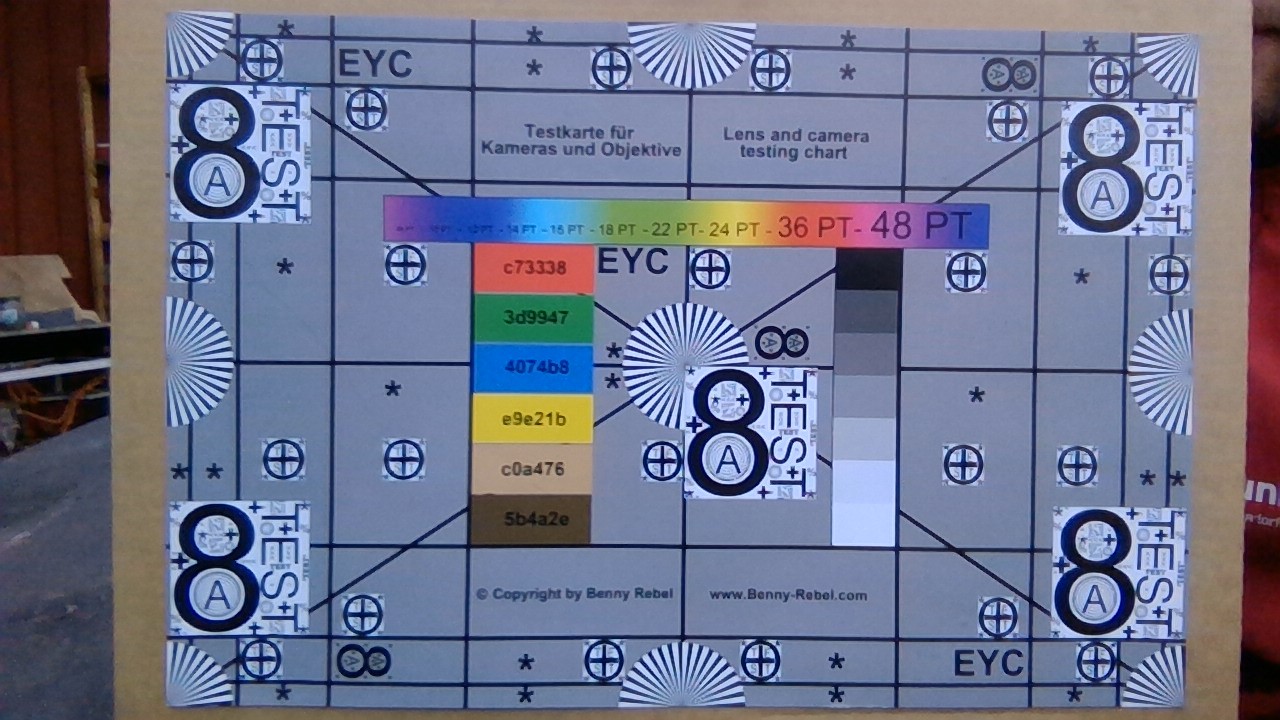

从纸面上看,720p高清网络摄像头没有什么特别之处,但在与其他转换器的对决中,配备了3D降噪技术(3DNR)的摄像头以8.29的成绩成为最小的Delta-E。锁定摄像头的机械滑块和麦克风的双向AI降噪音频技术也是积极的。因此,即使在嘈杂的环境中,该设备也能很好地用于视频会议等。

ColorChecker
25.3 ∆E
28.2 ∆E
28.7 ∆E
26.1 ∆E
33.8 ∆E
19.2 ∆E
23.8 ∆E
32.8 ∆E
20.5 ∆E
21.3 ∆E
20.2 ∆E
23.9 ∆E
26.1 ∆E
23.8 ∆E
23.6 ∆E
15.2 ∆E
25.4 ∆E
26.1 ∆E
1.8 ∆E
11.3 ∆E
24.5 ∆E
23.9 ∆E
22.6 ∆E
9.8 ∆E
ColorChecker HP Pavilion x360 14-dy0157ng: 22.4 ∆E min: 1.76 - max: 33.81 ∆E
ColorChecker
12.3 ∆E
13 ∆E
11.6 ∆E
9.5 ∆E
12.6 ∆E
8.9 ∆E
10.9 ∆E
9.6 ∆E
17.7 ∆E
5.1 ∆E
5.9 ∆E
8.4 ∆E
3.7 ∆E
3.6 ∆E
14.9 ∆E
2.1 ∆E
10.9 ∆E
8.1 ∆E
2.9 ∆E
1.7 ∆E
2.4 ∆E
5.2 ∆E
7.7 ∆E
10.2 ∆E
ColorChecker Asus ExpertBook B5 Flip B5302FEA: 8.29 ∆E min: 1.7 - max: 17.74 ∆E
Acer Spin 3 SP313-51N-56YVAcer Spin 3 SP313-51N-56YV
Acer Spin 3 SP313-51N-56YV
<a href="https://www.notebookcheck-cn.com/HP-Spectre-x360-13-aw2003dx.558633.0.html">HP Spectre x360 13-aw2003dx</a><a href="https://www.notebookcheck-cn.com/HP-Spectre-x360-13-aw2003dx.558633.0.html">HP Spectre x360 13-aw2003dx</a>
HP Spectre x360 13-aw2003dx
Asus ZenBook Flip 13 UX363EA-HP069TAsus ZenBook Flip 13 UX363EA-HP069T
Asus ZenBook Flip 13 UX363EA-HP069T
<a href="https://www.notebookcheck-cn.com/ProBook-x360-435-G8-AMD-Zen-3-Ryzen-CPU.555389.0.html">HP ProBook x360 435 G8 R7-5800U</a><a href="https://www.notebookcheck-cn.com/ProBook-x360-435-G8-AMD-Zen-3-Ryzen-CPU.555389.0.html">HP ProBook x360 435 G8 R7-5800U</a>
HP ProBook x360 435 G8 R7-5800U
<a href="https://www.notebookcheck-cn.com/ExpertBook-B5-Flip.580483.0.html">Asus ExpertBook B5 Flip B5302FEA</a><a href="https://www.notebookcheck-cn.com/ExpertBook-B5-Flip.580483.0.html">Asus ExpertBook B5 Flip B5302FEA</a>
Asus ExpertBook B5 Flip B5302FEA

安全问题

华硕在ExpertBook B5 Flip B5302FEA中安装了一个专用的TPM 2.0芯片,用于安全地存储密码和加密密钥等认证信息。电源按钮上有一个指纹传感器。还安装了一个Kensington锁端口。

辅料

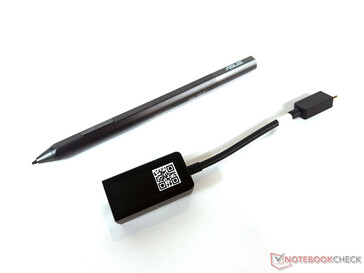

除了强制性的65瓦的电源,华硕还包括一支输入笔(磁力吸附在背面)和上面提到的网络适配器。

维护

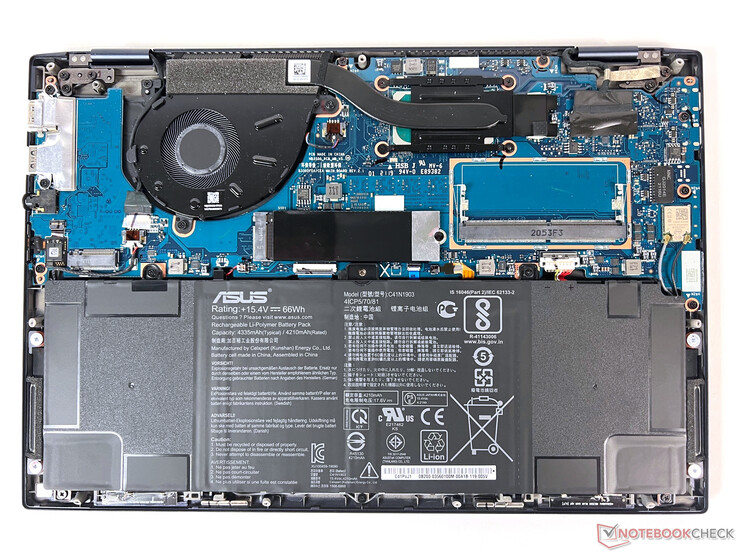

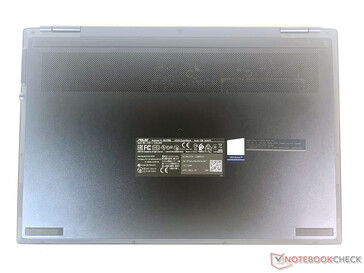

十个小十字螺丝挡住了里面的路。16GB的内存条是焊接的,可以补充第二条,最大32GB,最高48GB。电池是用螺丝固定的,M.2-2280固态硬盘也可以被替换。

担保

华硕在德国提供标准的两年保修。如果你有兴趣,你可以通过华硕高级护理购买延长保修期。华硕网站告知了有关条件和价格。

输入设备。触摸板变成数字键盘

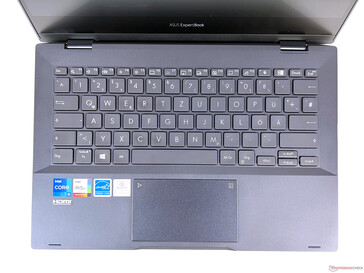

键盘

华硕很好地利用了设备的宽度来设计键盘--除了左右两边有2厘米(约0.8英寸)的薄边。当然,在这种设备尺寸下没有空间放置小键盘,但按键的尺寸还算合适。打字的感觉很好,但它可以更安静一些,触觉反馈的质量也可以更高。有一个背光,但它只能打开和关闭,不能调暗。

华硕为F1至F12键分配了一些功能,如打开和关闭摄像头,启动MyAsus应用程序和其他功能。积极的一面。键盘是防溅的,所以打翻的咖啡应该不会对它有什么影响。

触摸板

触摸板位于中心位置,尺寸为10 x 6厘米(约3.9 x 2.4英寸)。当快速移动时,这足以将鼠标从一个边缘移动到另一个边缘。Precision ,触觉效果也不错。然而,下边缘的点击面应该工作得更安静一些,这样,该设备也可以在安静的图书馆中使用而不会有遗憾。

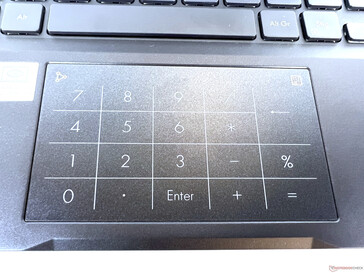

应该提到一个积极的特点。通过右上角的一个图标,触摸板变成了一个数字区域,从而取代了缺少的物理数字区域。这在使用计算器、电子表格等时特别方便。

显示。大量的光线,但也有一些阴影

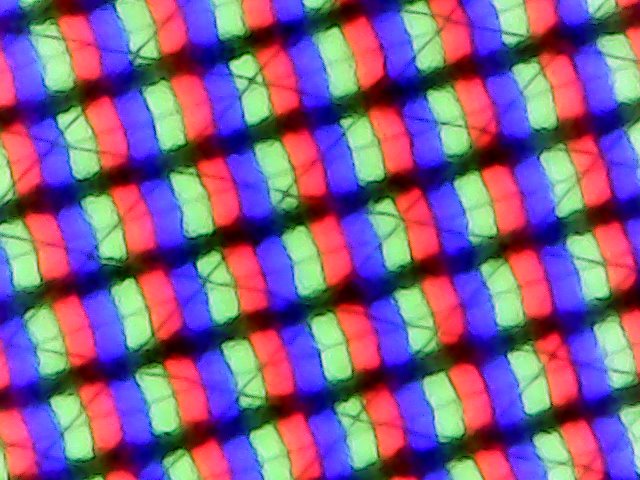

子像素结构
子像素结构

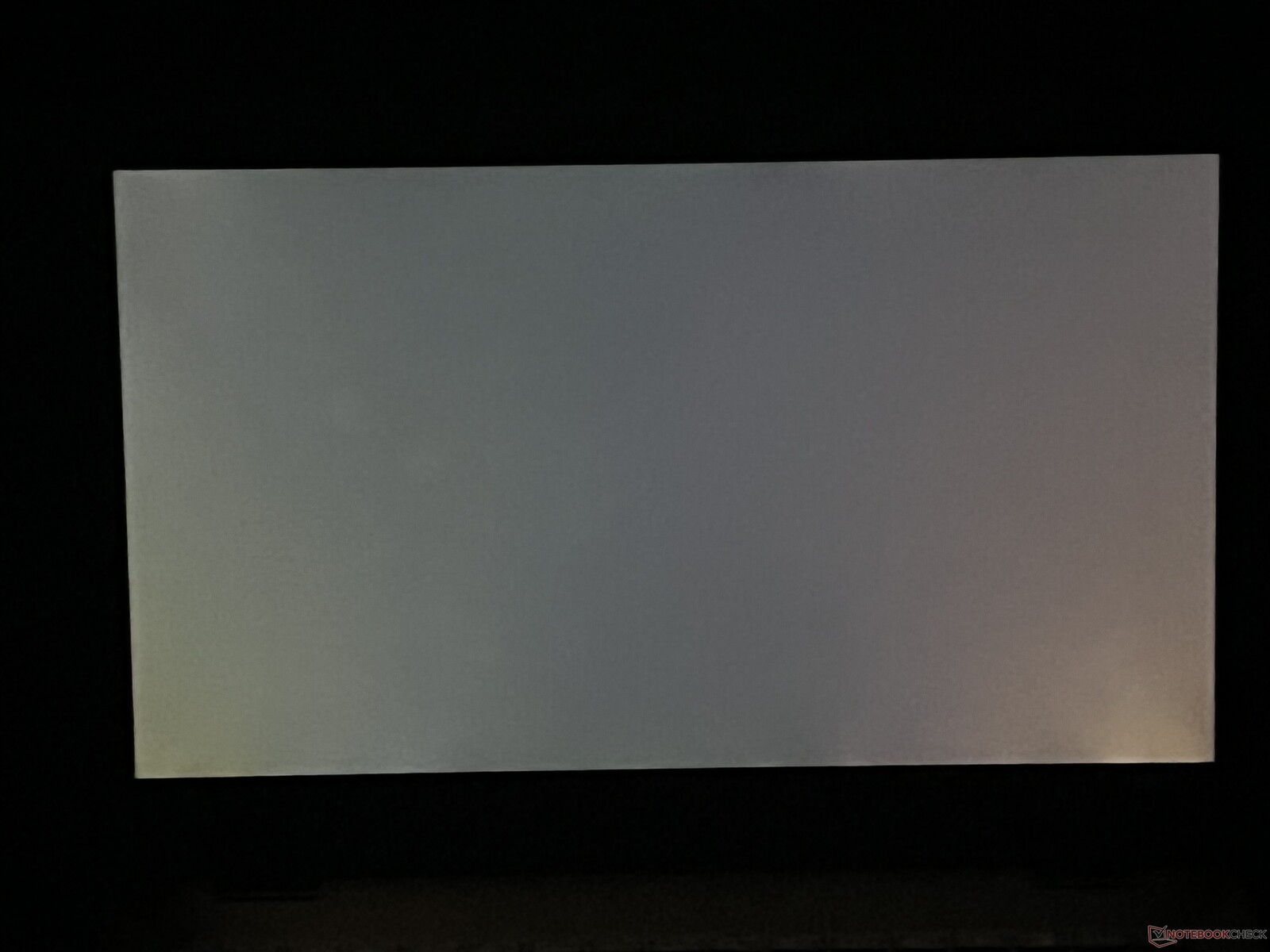

只在边缘有轻微的屏幕渗漏
只在边缘有轻微的屏幕渗漏

我们测试的设备没有配备可选的OLED,而是配备了带有LED背光的哑光IPS显示屏。它的分辨率为FHD(1,920 x 1,080像素),格式为16:9,占据了外壳盖子的76%。

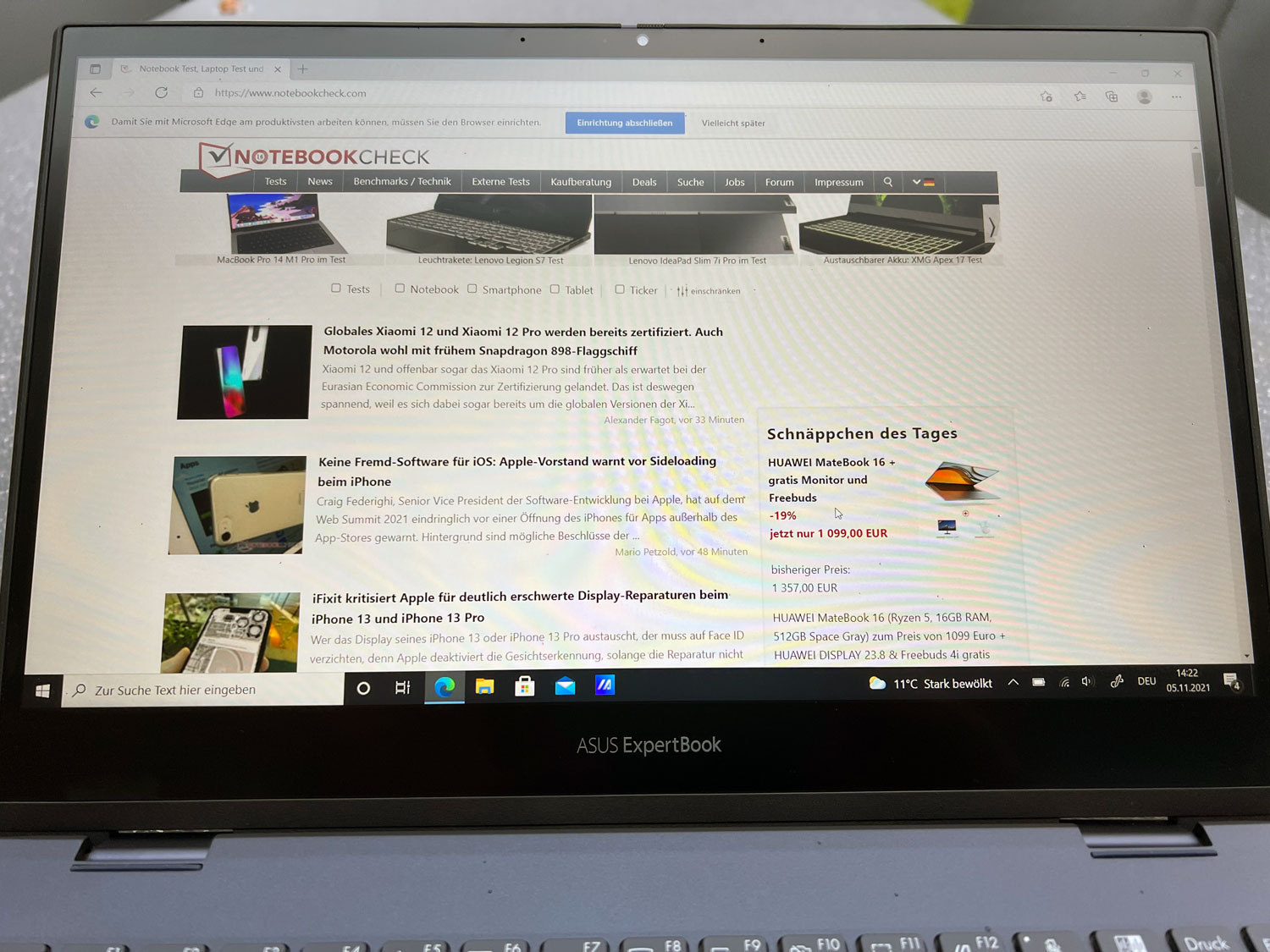

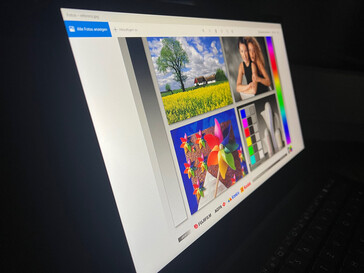

由于它是一个可转换的产品,显示屏可以通过稳定的铰链360度旋转到设备的背面,自然也提供触摸操作--无论是用手指还是附带的手写笔。在我们的测试中,这里没有明显的问题。

最大亮度略低于300cd/m²,这对于大多数应用来说应该是足够的。由于黑值很低,同时,面板实现了非常高的对比度,超过1,600:1,主观显示效果也非常好。此外,即使是明亮的表面在哑光面板上看起来也不会有太大的颗粒感。

这也适用于混浊,在显示完全黑色的图片时,几乎不发生混浊。你只能在边缘看到轻微的光晕。

286
cd/m²
285
cd/m²
283
cd/m²
283
cd/m²
299
cd/m²
277
cd/m²
291
cd/m²
293
cd/m²
274
cd/m²
Distribution of brightness
N133HCE-EN2
X-Rite i1Pro 2
Maximum: 299 cd/m² (Nits) Average: 285.7 cd/m² Minimum: 17.8 cd/m²
Brightness Distribution: 92 %
Center on Battery: 299 cd/m²
Contrast: 1661:1 (Black: 0.18 cd/m²)

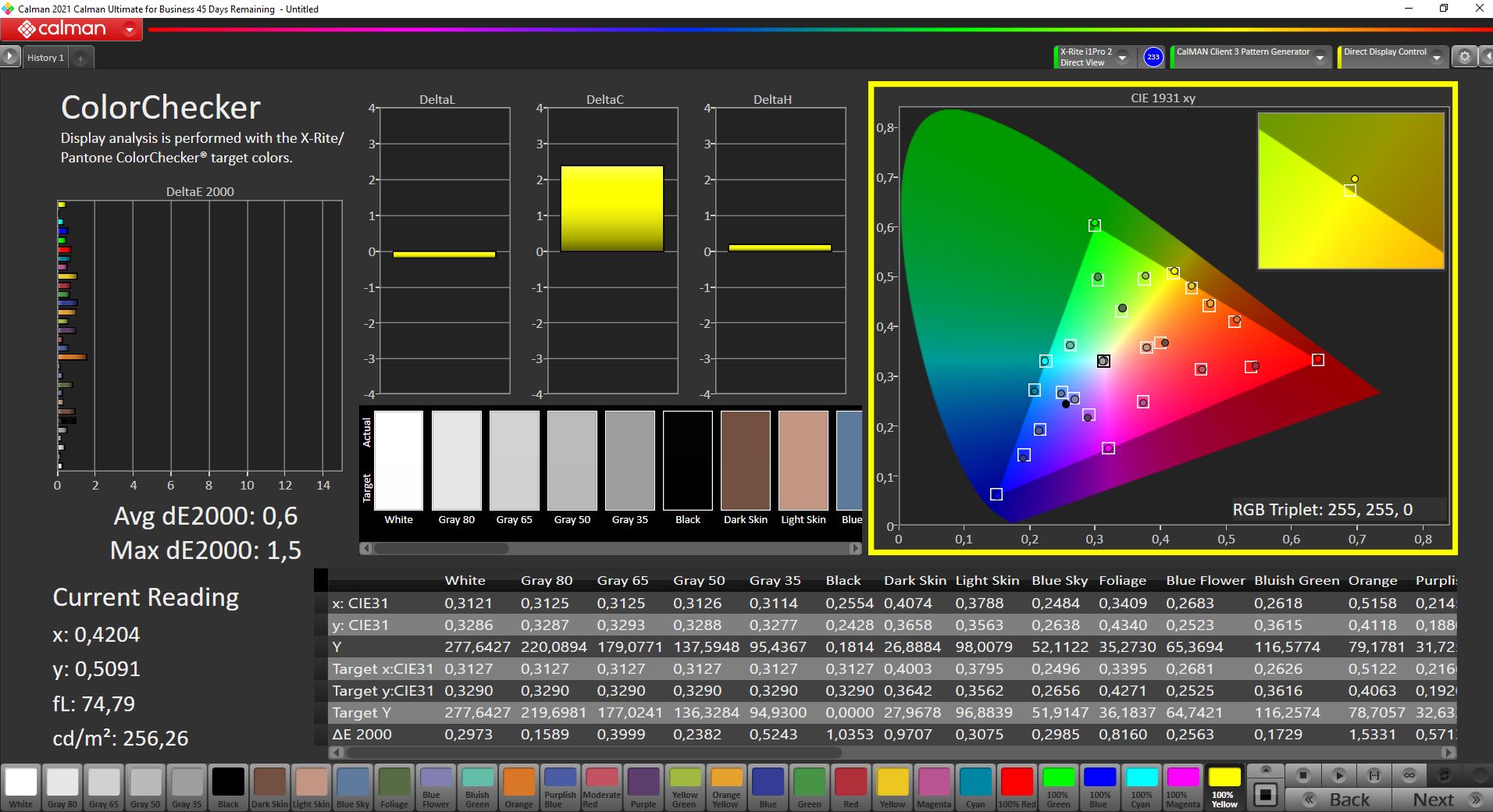

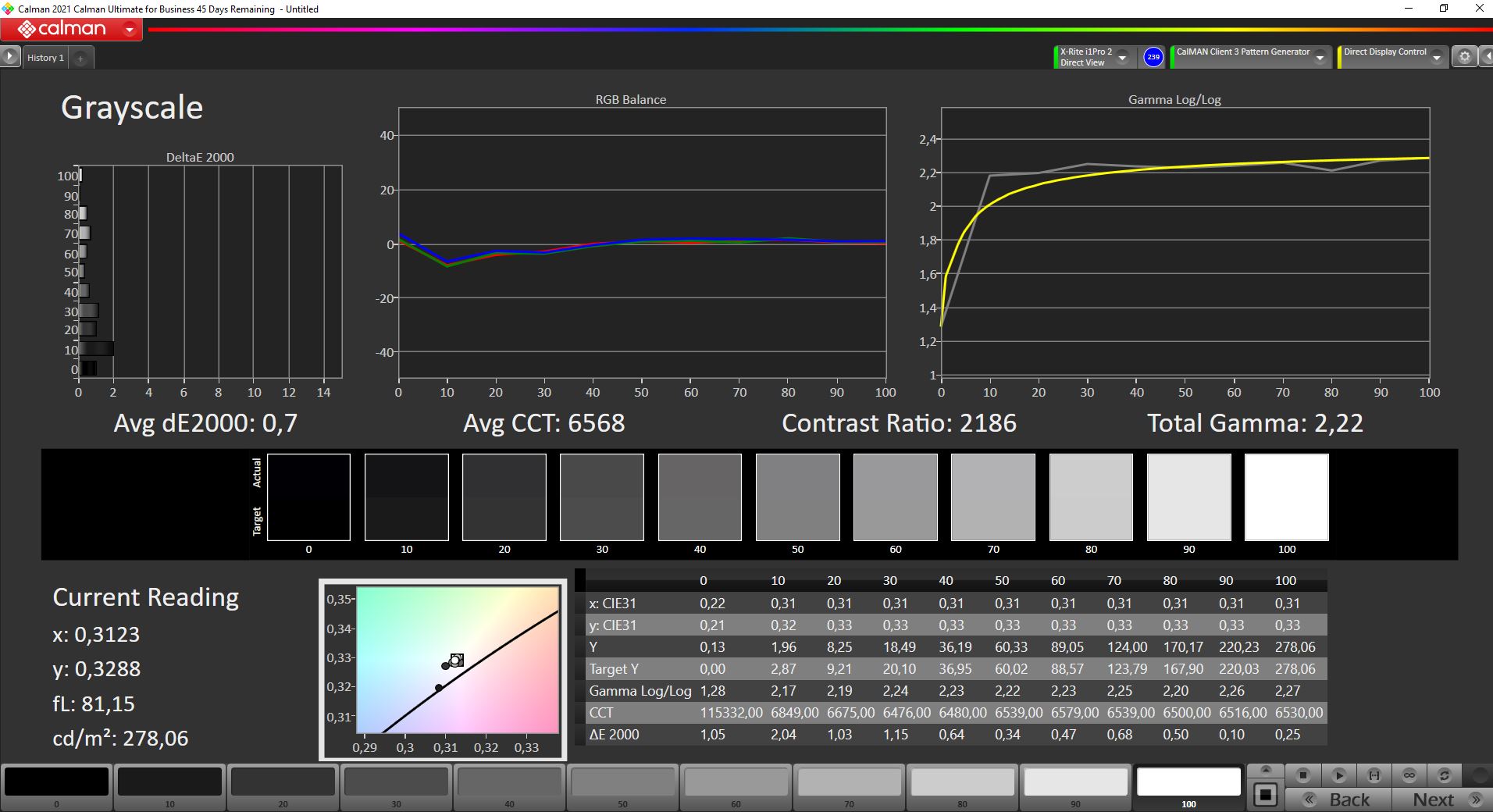

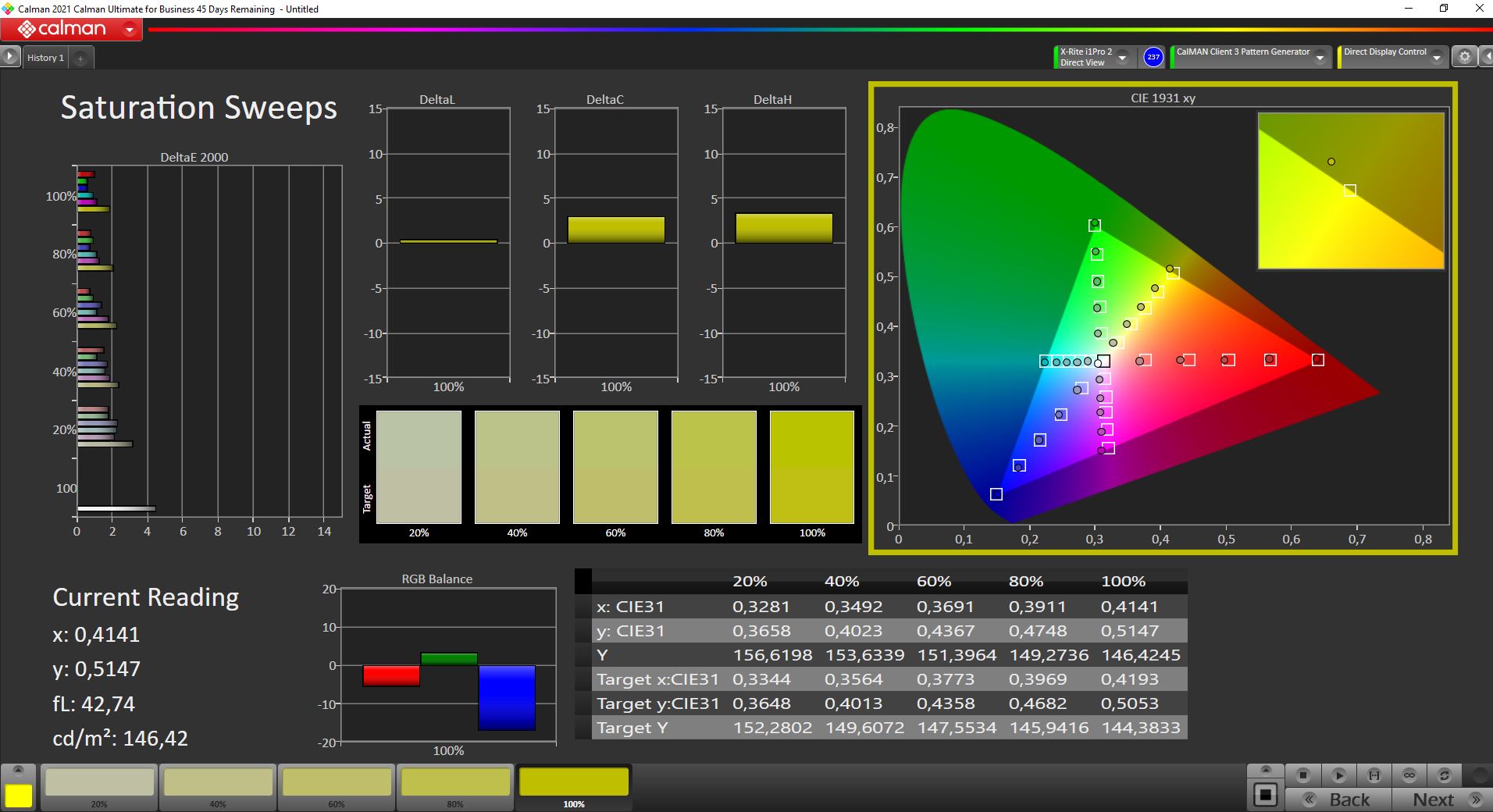

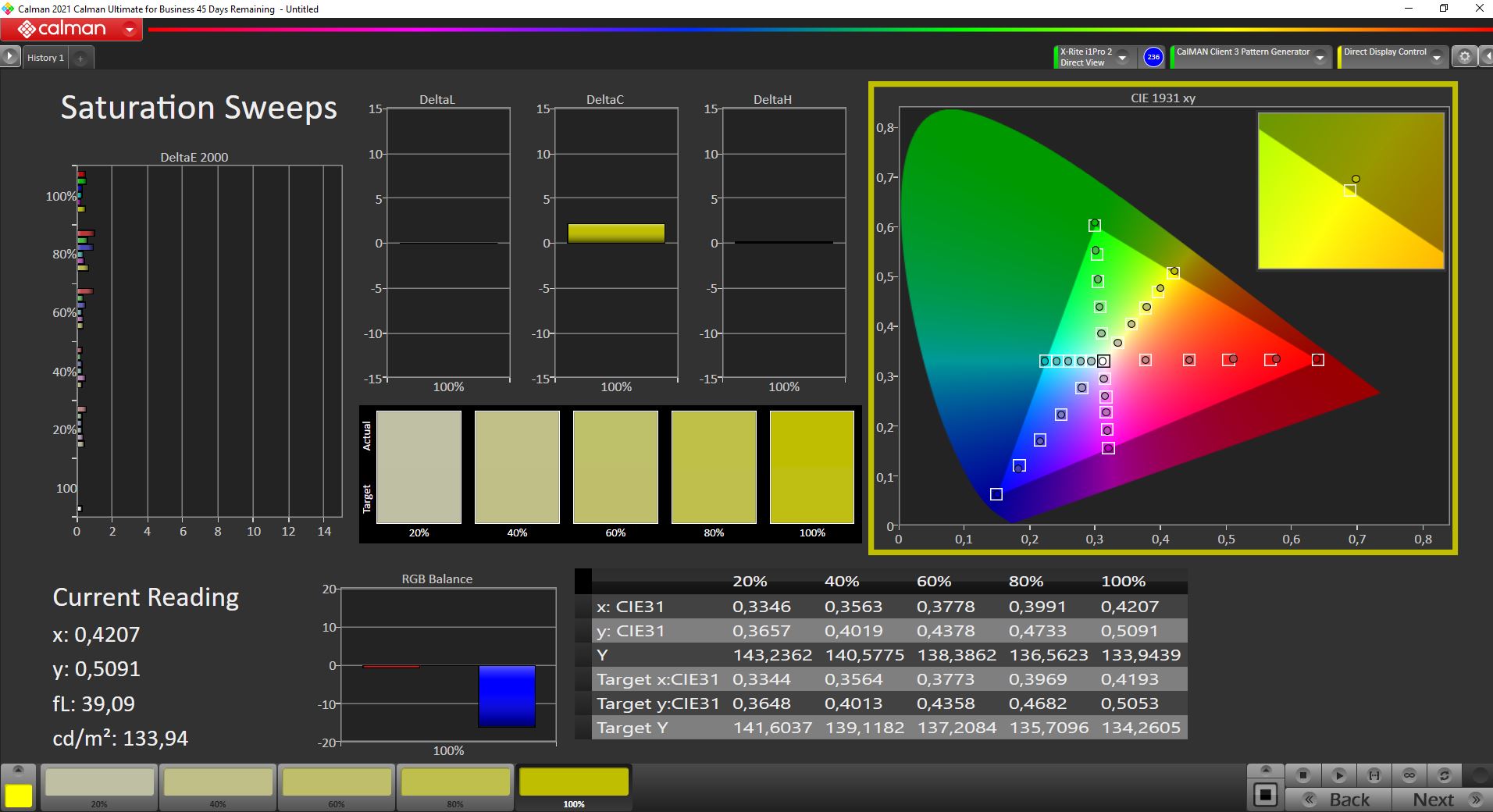

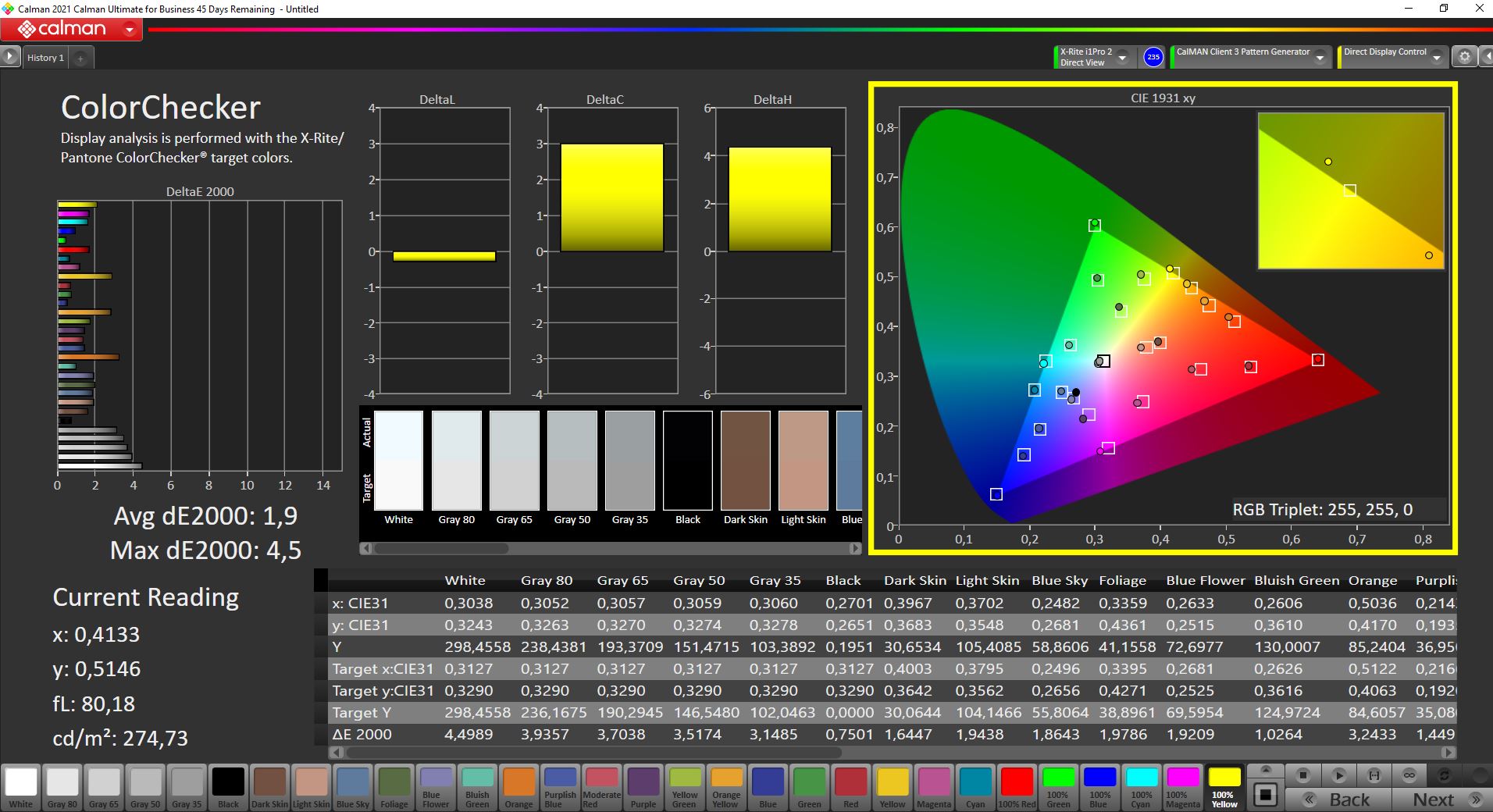

ΔE Color 1.9 | 0.59-29.43 Ø5.5, calibrated: 0.6

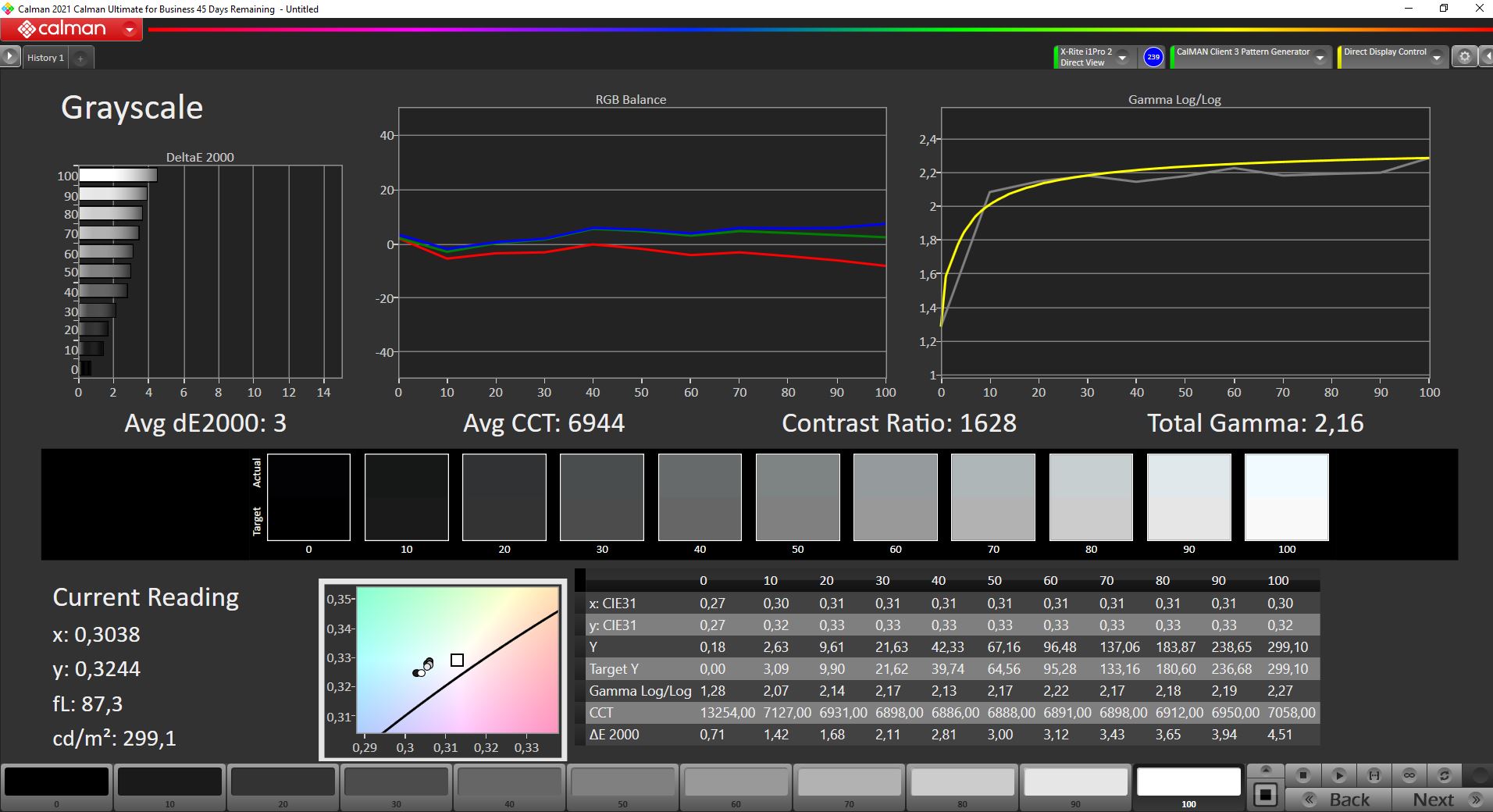

ΔE Greyscale 3 | 0.64-98 Ø5.7
68.5% AdobeRGB 1998 (Argyll 2.2.0 3D)
98.9% sRGB (Argyll 2.2.0 3D)
66.3% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.16
Asus ExpertBook B5 Flip B5302FEA
N133HCE-EN2, IPS, 1920x1080, 13.30
HP Pavilion x360 14-dy0157ng
Chi Mei N140HCA-E5B, IPS, 1920x1080, 14.00
Acer Spin 3 SP313-51N-56YV
AU Optronics AUOB493, IPS, 2560x1600, 13.30
HP Spectre x360 13-aw2003dx
Samsung SDC4149, OLED, 3840x2160, 13.30
Asus ZenBook Flip 13 UX363EA-HP069T
Samsung, SDC414A, OLED, 1920x1080, 13.30
HP ProBook x360 435 G8 R7-5800U
AUO4B2D, IPS, 1920x1080, 13.30
Display
-36%
11%
4%
-40%
Display P3 Coverage
66.3
42.7
-36%
78.76
19%
69.98
6%
40.1
-40%
sRGB Coverage
98.9
63.7
-36%
99.84
1%
88.49
-11%
59.9
-39%
AdobeRGB 1998 Coverage
68.5
44.2
-35%
77.55
13%
81.15
18%
41.4
-40%
Response Times
9%
-49%
27%
29%
-28%

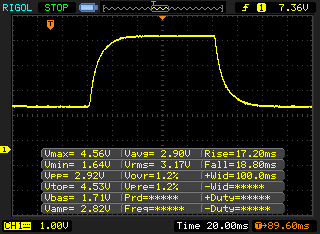

Response Time Grey 50% / Grey 80% *
36 ?(17.2, 18.8)
32 ?(15, 17)
11%
52 ?(26, 26)
-44%
2.8 ?(1.4, 1.4)
92%
2 ?(1, 1)
94%
42.8 ?(20, 22.8)
-19%

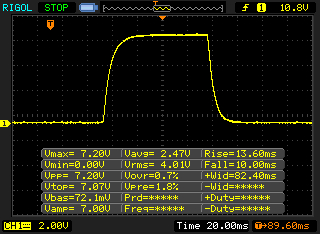

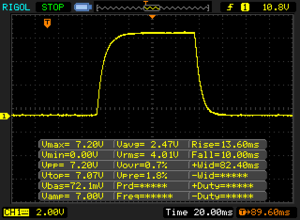

Response Time Black / White *
23.6 ?(13.6, 10)
22 ?(12, 10)
7%
36 ?(21, 15)
-53%
2.8 ?(1.3, 1.5)
88%
2 ?(1, 1)
92%
32 ?(18, 14)
-36%

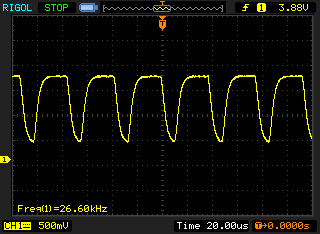

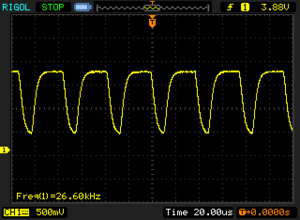

PWM Frequency
26600 ?(30)
242.7 ?(40)
-99%
60
-100%
Screen
-41%
-70%
-179%
-116%
-119%
Brightness middle
299
269
-10%
338
13%
355
19%
353
18%
304
2%
Brightness
286
241
-16%
307
7%
368
29%
359
26%
292
2%
Brightness Distribution
92
82
-11%
83
-10%
93
1%
95
3%
89
-3%
Black Level *
0.18
0.11
39%
0.27
-50%
0.1
44%
0.23
-28%
Contrast
1661
2445
47%
1252
-25%
3530
113%
1322
-20%
Colorchecker dE 2000 *
1.9
5.68
-199%
4.63
-144%
5.74
-202%
3.98
-109%
5
-163%
Colorchecker dE 2000 max. *
4.5
9.61
-114%
9.99
-122%
9.52
-112%
53.07
-1079%
17.7
-293%
Colorchecker dE 2000 calibrated *
0.6
1.64
-173%
6.69
-1015%
4.2
-600%
Greyscale dE 2000 *
3
4.95
-65%
6.76
-125%
2.2
27%
1.41
53%
2.1
30%
Gamma
2.16 102%
2.17 101%
2.37 93%
2.03 108%
2.39 92%
2.03 108%
CCT
6944 94%
6628 98%
5934 110%
6505 100%
6346 102%
6443 101%
Color Space (Percent of AdobeRGB 1998)
44.2
68
73.6
Color Space (Percent of sRGB)
63.7
98
88.6
Total Average (Program / Settings)
-23% / -32%
-36% / -50%
-49% / -89%
-44% / -77%
-62% / -89%

* ... smaller is better

在我们的分析中(CalMAN和X-Rite i1 Pro 2),测试设备的DeltaE很低,所以它几乎可以正确显示颜色。通过校准,偏差可以进一步减少,我们的校准配置文件可在上面免费下载。由于小的sRGB色彩空间几乎被完全覆盖,该面板也适用于编辑图片/视频。

卡尔曼:灰度
卡尔曼:灰度
CalMAN: ColorChecker
CalMAN: ColorChecker
卡尔曼:色彩饱和度
卡尔曼:色彩饱和度
CalMAN:灰度(校准的)。
CalMAN:灰度(校准的)。
CalMAN: ColorChecker (已校准)
CalMAN: ColorChecker (已校准)
CalMAN:色彩饱和度(已校准)。
CalMAN:色彩饱和度(已校准)。

显示屏在最高设置下实现了约285cd/m²的平均亮度,这几乎是均匀分布的。结合无光泽的表面,这足以确保该设备也能在户外使用。然而,在阳光非常充足的日子里使用时,它可能会更亮一些。由于采用了IPS,屏幕也有非常稳定的可视角度。

多云天气下的户外使用
多云天气下的户外使用
观点
观点

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
23.6 ms ... rise ↗ and fall ↘ combined↗ 13.6 ms rise
↘ 10 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 38 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (23.8 ms).
       Response Time 50% Grey to 80% Grey
36 ms ... rise ↗ and fall ↘ combined↗ 17.2 ms rise
↘ 18.8 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 636 (maximum) ms. » 34 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (37.6 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 26600 Hz ≤ 30 % brightness setting

The display backlight flickers at 26600 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 30 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 26600 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 52 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 21090 (minimum: 5 - maximum: 3846000) Hz was measured.

性能。GPU能阻止一个更好的结果

该测试设备配备了 英特尔酷睿i5-1135G7四核处理器,众所周知,它可以提升到4.2GHz。省略了专用的图形解决方案,而是依靠英特尔的Iris Xe图形。华硕安装了一个16GB DDR4-3200MHz SO-DIMM内存模块,它是焊接的,在单通道模式下工作。由于有一个空闲的插槽,可以选择将内存扩展到48GB。

除了Windows的性能水平,各种模式可以通过MyAsus应用程序进行设置。我们主要在平衡模式下进行基准测试。另外,还有性能和低语模式可供选择。在与Cinebench R15和3DMark 11的对比测试中,Boost模式并没有产生特别大的影响。另一方面,如果设备要尽可能安静地运行,游戏基准测试结果和性能又会降低20%。

HWInfo
HWInfo
CPU-Z
CPU-Z
GPU-Z
GPU-Z

处理器

英特尔酷睿i5-1135G7属于英特尔第11代CPU(Tiger Lake ),是便宜的笔记本和转换机中的一个流行处理器。它由四个核心组成,基本时钟为2.4 GHz,提升时钟为4.2 GHz。制造商可以使用该芯片的TDP为12至28瓦,而华硕使用的是最大的。

ExpertBook B5 Flip B5302FEA通常可以在性能测试中远远领先。在单核测量中,它仅次于惠普ProBook x360 435。 惠普ProBook x360 435 G8与AMD Ryzen 7 5800U。然而,在多核基准测试中,该CPU无法像往常一样跟上,明显落后于AMD的竞争对手。

即使是 华硕Zenbook Flip 13 ux363ea-hp069t配备了实际上更强大的 英特尔酷睿i7-1165G7排名落后于测试对象。在Cinebench R15的耐力测试中,该处理器的性能在开始时略有下降,然后稳定在一个水平上。基准测试没有显示出在电池模式下有任何值得注意的性能损失。

Cinebench R15 Multi Endurance test

0851702553404255105956807658509351020110511901275136014451530902.47843.58836.14824.56815.38801.09781.98766.77746.21730.66721.4702.58711.78712.17716.37714.36710.97715.96714.55715.15714.36711.35712.78717.36711.97688.22616.75605.37586.83593.44595.9612.67617.53608.65614.7604.35588.62610.2610.05600.47584.07604.81607.45596.53565.83565.2589.21570.87555.69587.93581.33551.56559.26580.64583.57553.31536.89561.73583.27557.69533.06563.86563.61529.91553.87824.1783.19766.78750.6725.08707.45690.67666.11676.78684.19672.87682.92682.01683.11683.28682.2685.67679.34688.43683.47683.71670.41683.28682.92684.57804.83760.01676.64722.49795.81682.5690.75806.6719.7676.98781.88750.81674.64753.51792.8685.88705.88808.96733.72677.68775.33781.31679.36722.18805.25715.78681.33809.47744.24677.66785.89773.57679.96749.34805.98695.07699.09811.8737.03674.52790.98772.05677.87754.4802.17692.56720.73808.34721.14684.9730.41722.14636.33599.66526.68499.75495.72493.89420.04410.05404.92425.88436.71438.46490.09474.46491.74492.39491.36489.96485.58490.51489.88488.78489.56492.19490.66492.02493.67493.38488.5489.31489.94492.47489.97488.87490.76491.27491.85491.08492.07487.3482.29494.07488.67493.15492.7495.13490.15492.961613.491597.251591.851592.231592.041574.561581.781542.081549.791547.631518.61508.921500.431491.371489.981487.821482.031474.0614721465.631466.281462.631461.41462.581464.88Tooltip
Asus ExpertBook B5 Flip B5302FEA Intel Core i5-1135G7: Ø750 (702.58-902.47)
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7: Ø584 (529.91-688.22)
Acer Spin 3 SP313-51N-56YV Intel Core i5-1135G7: Ø700 (666.11-824.1)
HP Spectre x360 13-aw2003dx Intel Core i5-1135G7: Ø739 (674.52-811.8)
Asus ZenBook Flip 13 UX363EA-HP069T Intel Core i7-1165G7: Ø498 (404.92-730.41)
HP ProBook x360 435 G8 R7-5800U AMD Ryzen 7 5800U: Ø1520 (1461.4-1613.49)
CPU Performance Rating: Percent
Cinebench R23: CPU (Multi Core) | CPU (Single Core)
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender 2.79: BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.3: 64 Bit Multi-Core Score | 64 Bit Single-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
85.2 pt ∼85%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
62.3 pt ∼62%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
61.3 pt ∼61%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
60.5 pt ∼61%
Average Intel Core i5-1135G7

59.4 pt ∼59%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
58 pt ∼58%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
55.8 pt ∼56%
Average of class Convertible

50.6 pt ∼51%
Cinebench R23 / CPU (Multi Core)
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
9539 Points ∼100% +73%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
5514 Points ∼58%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
5171 Points ∼54% -6%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
4894 (4681.8min - 4894.21max) Points ∼51% -11%
Average of class Convertible
  (709 - 12629, n=50, last 2 years)
4827 Points ∼51% -12%
Average Intel Core i5-1135G7
  (2786 - 6136, n=35)
4601 Points ∼48% -17%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
4477 Points ∼47% -19%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
4029 Points ∼42% -27%
Cinebench R23 / CPU (Single Core)
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
1423 Points ∼100% +5%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
1359 Points ∼96% 0%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
1355 Points ∼95%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
1337 Points ∼94% -1%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
1327 Points ∼93% -2%
Average Intel Core i5-1135G7
  (1062 - 1372, n=34)
1314 Points ∼92% -3%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
1297 Points ∼91% -4%
Average of class Convertible
  (382 - 1529, n=49, last 2 years)
1240 Points ∼87% -8%
Cinebench R20 / CPU (Multi Core)
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
3691 Points ∼100% +82%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
2030 Points ∼55%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
1854 Points ∼50% -9%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
1832 Points ∼50% -10%
Average Intel Core i5-1135G7
  (979 - 2382, n=41)
1795 Points ∼49% -12%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
1758 Points ∼48% -13%
Average of class Convertible
  (316 - 4953, n=88, last 2 years)
1668 Points ∼45% -18%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
979 Points ∼27% -52%
Cinebench R20 / CPU (Single Core)
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
555 Points ∼100% +6%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
522 Points ∼94%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
512 Points ∼92% -2%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
512 Points ∼92% -2%
Average Intel Core i5-1135G7
  (442 - 527, n=41)
506 Points ∼91% -3%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
490 Points ∼88% -6%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
467 Points ∼84% -11%
Average of class Convertible
  (152 - 604, n=88, last 2 years)
448 Points ∼81% -14%
Cinebench R15 / CPU Multi 64Bit
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
1613 (1461.4min - 1613.49max) Points ∼100% +79%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
902 (702.58min - 902.47max) Points ∼56%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
824 (666.11min - 824.1max) Points ∼51% -9%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
813 Points ∼50% -10%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
812 (674.52min - 811.8max) Points ∼50% -10%
Average Intel Core i5-1135G7
  (431 - 925, n=45)
792 Points ∼49% -12%
Average of class Convertible
  (144 - 2083, n=95, last 2 years)
728 Points ∼45% -19%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
688 Points ∼43% -24%
Cinebench R15 / CPU Single 64Bit
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
229 Points ∼100% +14%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
205 Points ∼90% +2%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
201 Points ∼88%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
200 Points ∼87% 0%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
198 Points ∼86% -1%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
197 Points ∼86% -2%
Average Intel Core i5-1135G7
  (172 - 205, n=42)
196 Points ∼86% -2%
Average of class Convertible
  (66.3 - 243, n=91, last 2 years)
175 Points ∼76% -13%
Blender 2.79 / BMW27 CPU
Average of class Convertible
  (246 - 4249, n=80, last 2 years)
937 Seconds * ∼100% -57%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
827.7 Seconds * ∼88% -39%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
766 Seconds * ∼82% -29%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
705 Seconds * ∼75% -18%
Average Intel Core i5-1135G7
  (499 - 1044, n=39)
671 Seconds * ∼72% -13%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
622 Seconds * ∼66% -5%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
595 Seconds * ∼64%
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
319 Seconds * ∼34% +46%
7-Zip 18.03 / 7z b 4
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
45985 MIPS ∼100% +93%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
23822 MIPS ∼52%
Average Intel Core i5-1135G7
  (14745 - 24873, n=41)
21272 MIPS ∼46% -11%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
21246 MIPS ∼46% -11%
Average of class Convertible
  (4498 - 57319, n=82, last 2 years)
20755 MIPS ∼45% -13%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
20529 MIPS ∼45% -14%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
19495 MIPS ∼42% -18%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
18948 MIPS ∼41% -20%
7-Zip 18.03 / 7z b 4 -mmt1
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
5366 MIPS ∼100% +13%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
4918 MIPS ∼92% +3%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
4842 MIPS ∼90% +2%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
4760 MIPS ∼89%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
4744 MIPS ∼88% 0%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
4660 MIPS ∼87% -2%
Average Intel Core i5-1135G7
  (3924 - 4867, n=41)
4659 MIPS ∼87% -2%
Average of class Convertible
  (2125 - 5623, n=81, last 2 years)
4397 MIPS ∼82% -8%
Geekbench 5.3 / 64 Bit Multi-Core Score
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
6093 Points ∼100% +37%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
5472 Points ∼90% +23%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
5165 Points ∼85% +16%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
5003 Points ∼82% +12%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
4873 Points ∼80% +10%
Average Intel Core i5-1135G7
  (3475 - 5472, n=38)
4721 Points ∼77% +6%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
4450 Points ∼73%
Average of class Convertible
  (707 - 8620, n=81, last 2 years)
4274 Points ∼70% -4%
Geekbench 5.3 / 64 Bit Single-Core Score
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
1551 Points ∼100% +13%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
1422 Points ∼92% +4%
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
1411 Points ∼91% +3%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
1398 Points ∼90% +2%
Average Intel Core i5-1135G7
  (1304 - 1428, n=38)
1386 Points ∼89% +1%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
1375 Points ∼89% 0%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
1369 Points ∼88%
Average of class Convertible
  (263 - 1566, n=81, last 2 years)
1201 Points ∼77% -12%
HWBOT x265 Benchmark v2.2 / 4k Preset
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
11 fps ∼100% +89%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
6.19 fps ∼56% +6%
Average Intel Core i5-1135G7
  (3.57 - 7.6, n=38)
5.86 fps ∼53% +1%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
5.83 fps ∼53%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
5.69 fps ∼52% -2%
Average of class Convertible
  (0.74 - 15.2, n=79, last 2 years)
5.36 fps ∼49% -8%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
5.04 fps ∼46% -14%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
4.07 fps ∼37% -30%
LibreOffice / 20 Documents To PDF
Average of class Convertible
  (40.7 - 175, n=76, last 2 years)
66.6 s * ∼100% -26%
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
60.2 s * ∼90% -14%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
55.8 s * ∼84% -6%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
53.8 s * ∼81% -2%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
52.7 s * ∼79%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
52.2 s * ∼78% +1%
Average Intel Core i5-1135G7
  (44.2 - 58.8, n=40)
52 s * ∼78% +1%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
46.6 s * ∼70% +12%
R Benchmark 2.5 / Overall mean
Average of class Convertible
  (0.504 - 2.12, n=77, last 2 years)
0.737 sec * ∼100% -17%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
0.652 sec * ∼88% -4%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
0.645 sec * ∼88% -3%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
0.645 sec * ∼88% -3%
Average Intel Core i5-1135G7
  (0.619 - 0.727, n=39)
0.642 sec * ∼87% -2%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
0.629 sec * ∼85%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
0.619 sec * ∼84% +2%
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
0.54 sec * ∼73% +14%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
902 Points
Cinebench R15 OpenGL 64Bit
73.7 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
201 Points
Help
Performance Rating
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
88.6 pt ∼89%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
67.9 pt ∼68%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
64.2 pt ∼64%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
60.7 pt ∼61%
Average Intel Core i5-1135G7

57.1 pt ∼57%
Average of class Convertible

54.5 pt ∼55%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
51.8 pt ∼52%
AIDA64 / FP32 Ray-Trace
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
10106 KRay/s ∼100% +43%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
7072 KRay/s ∼70%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
7040 KRay/s ∼70% 0%
Average Intel Core i5-1135G7
  (4313 - 7889, n=26)
6258 KRay/s ∼62% -12%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
5987 KRay/s ∼59% -15%
Average of class Convertible
  (152 - 12152, n=62, last 2 years)
5638 KRay/s ∼56% -20%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
5329 KRay/s ∼53% -25%
AIDA64 / FPU Julia
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
65780 Points ∼100% +121%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
29750 Points ∼45%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
28994 Points ∼44% -3%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
28466 Points ∼43% -4%
Average of class Convertible
  (569 - 65780, n=62, last 2 years)
27517 Points ∼42% -8%
Average Intel Core i5-1135G7
  (19402 - 31991, n=26)
26428 Points ∼40% -11%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
22393 Points ∼34% -25%
AIDA64 / CPU SHA3
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
2211 MB/s ∼100% +12%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
1979 MB/s ∼90%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
1955 MB/s ∼88% -1%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
1913 MB/s ∼87% -3%
Average Intel Core i5-1135G7
  (1316 - 2172, n=26)
1795 MB/s ∼81% -9%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
1519 MB/s ∼69% -23%
Average of class Convertible
  (66 - 2531, n=60, last 2 years)
1481 MB/s ∼67% -25%
AIDA64 / CPU Queen
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
84480 Points ∼100% +81%
Average of class Convertible
  (2104 - 99178, n=62, last 2 years)
48327 Points ∼57% +4%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
46642 Points ∼55% 0%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
46641 Points ∼55%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
46562 Points ∼55% 0%
Average Intel Core i5-1135G7
  (43403 - 46951, n=26)
46111 Points ∼55% -1%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
44661 Points ∼53% -4%
AIDA64 / FPU SinJulia
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
10008 Points ∼100% +125%
Average of class Convertible
  (121 - 13847, n=62, last 2 years)
4764 Points ∼48% +7%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
4443 Points ∼44%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
4439 Points ∼44% 0%
Average Intel Core i5-1135G7
  (3497 - 4445, n=26)
4209 Points ∼42% -5%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
4153 Points ∼41% -7%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
3736 Points ∼37% -16%
AIDA64 / FPU Mandel
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
35831 Points ∼100% +102%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
17771 Points ∼50%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
17489 Points ∼49% -2%
Average Intel Core i5-1135G7
  (12569 - 19356, n=26)
15959 Points ∼45% -10%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
15613 Points ∼44% -12%
Average of class Convertible
  (291 - 35831, n=62, last 2 years)
15492 Points ∼43% -13%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
14130 Points ∼39% -20%
AIDA64 / CPU AES
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
67259 MB/s ∼100% +8%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
65801 MB/s ∼98% +5%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
62523 MB/s ∼93%
Average Intel Core i5-1135G7
  (35072 - 67969, n=26)
59200 MB/s ∼88% -5%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
54358 MB/s ∼81% -13%
Average of class Convertible
  (104 - 88017, n=62, last 2 years)
43403 MB/s ∼65% -31%
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
39773 MB/s ∼59% -36%
AIDA64 / CPU ZLib
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
606 MB/s ∼100% +66%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
366 MB/s ∼60%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
354 MB/s ∼58% -3%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
345 MB/s ∼57% -6%
Average of class Convertible
  (161 - 776, n=64, last 2 years)
320 MB/s ∼53% -13%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
268 MB/s ∼44% -27%
Average Intel Core i5-1135G7
  (267 - 373, n=32)
263 MB/s ∼43% -28%
AIDA64 / FP64 Ray-Trace
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
5301 KRay/s ∼100% +41%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
3754 KRay/s ∼71%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
3733 KRay/s ∼70% -1%
Average Intel Core i5-1135G7
  (2226 - 4257, n=26)
3340 KRay/s ∼63% -11%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
3201 KRay/s ∼60% -15%
Average of class Convertible
  (84 - 6533, n=62, last 2 years)
3057 KRay/s ∼58% -19%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
2901 KRay/s ∼55% -23%
AIDA64 / CPU PhotoWorxx
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
45366 MPixel/s ∼100% +243%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
44209 MPixel/s ∼97% +235%
Average of class Convertible
  (680 - 52923, n=62, last 2 years)
26064 MPixel/s ∼57% +97%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
24181 MPixel/s ∼53% +83%
Average Intel Core i5-1135G7
  (9143 - 45366, n=26)
23535 MPixel/s ∼52% +78%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
13211 MPixel/s ∼29%
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
12258 MPixel/s ∼27% -7%

系统性能

在系统性能方面,ExpertBook B5 Flip通常处于i5-1135G7领域的顶端,但不得不让位于R7 5800U,来自于 惠普ProBook x360 435.在日常使用中,该系统运行平稳,在这个设备级别的常规任务中没有任何问题。

PCMark 10 / Score
HP ProBook x360 435 G8 R7-5800U
Vega 8 R5000, R7 5800U, Samsung PM991 MZVLQ512HALU
5334 Points ∼100% +14%
Asus ZenBook Flip 13 UX363EA-HP069T
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-1T00
4763 Points ∼89% +2%
Asus ExpertBook B5 Flip B5302FEA
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZVLQ512HALU
4687 Points ∼88%
Acer Spin 3 SP313-51N-56YV
Iris Xe G7 80EUs, i5-1135G7, Kingston OM8PCP3512F-AB
4676 Points ∼88% 0%
HP Pavilion x360 14-dy0157ng
Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G
4646 Points ∼87% -1%
HP Spectre x360 13-aw2003dx
Iris Xe G7 80EUs, i5-1135G7, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
4645 Points ∼87% -1%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (4026 - 4892, n=36)
4585 Points ∼86% -2%
Average of class Convertible
  (1429 - 5971, n=85, last 2 years)
4302 Points ∼81% -8%
PCMark 10 / Essentials
Asus ZenBook Flip 13 UX363EA-HP069T
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-1T00
10189 Points ∼100% +9%
HP Pavilion x360 14-dy0157ng
Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G
9753 Points ∼96% +4%
Acer Spin 3 SP313-51N-56YV
Iris Xe G7 80EUs, i5-1135G7, Kingston OM8PCP3512F-AB
9614 Points ∼94% +3%
HP ProBook x360 435 G8 R7-5800U
Vega 8 R5000, R7 5800U, Samsung PM991 MZVLQ512HALU
9476 Points ∼93% +1%
HP Spectre x360 13-aw2003dx
Iris Xe G7 80EUs, i5-1135G7, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
9414 Points ∼92% +1%
Asus ExpertBook B5 Flip B5302FEA
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZVLQ512HALU
9365 Points ∼92%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (8149 - 9856, n=36)
9344 Points ∼92% 0%
Average of class Convertible
  (3602 - 11505, n=85, last 2 years)
8853 Points ∼87% -5%
PCMark 10 / Productivity
HP ProBook x360 435 G8 R7-5800U
Vega 8 R5000, R7 5800U, Samsung PM991 MZVLQ512HALU
8336 Points ∼100% +31%
Asus ZenBook Flip 13 UX363EA-HP069T
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-1T00
6986 Points ∼84% +10%
Average of class Convertible
  (2411 - 8653, n=85, last 2 years)
6389 Points ∼77% 0%
Asus ExpertBook B5 Flip B5302FEA
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZVLQ512HALU
6376 Points ∼76%
HP Pavilion x360 14-dy0157ng
Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G
6371 Points ∼76% 0%
HP Spectre x360 13-aw2003dx
Iris Xe G7 80EUs, i5-1135G7, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
6289 Points ∼75% -1%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (5544 - 6504, n=36)
6228 Points ∼75% -2%
Acer Spin 3 SP313-51N-56YV
Iris Xe G7 80EUs, i5-1135G7, Kingston OM8PCP3512F-AB
6165 Points ∼74% -3%
PCMark 10 / Digital Content Creation
HP ProBook x360 435 G8 R7-5800U
Vega 8 R5000, R7 5800U, Samsung PM991 MZVLQ512HALU
5214 Points ∼100% +11%
Acer Spin 3 SP313-51N-56YV
Iris Xe G7 80EUs, i5-1135G7, Kingston OM8PCP3512F-AB
4684 Points ∼90% 0%
Asus ExpertBook B5 Flip B5302FEA
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZVLQ512HALU
4682 Points ∼90%
HP Spectre x360 13-aw2003dx
Iris Xe G7 80EUs, i5-1135G7, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
4595 Points ∼88% -2%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (3548 - 4989, n=36)
4503 Points ∼86% -4%
HP Pavilion x360 14-dy0157ng
Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G
4382 Points ∼84% -6%
Asus ZenBook Flip 13 UX363EA-HP069T
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-1T00
4121 Points ∼79% -12%
Average of class Convertible
  (886 - 6844, n=85, last 2 years)
3896 Points ∼75% -17%
PCMark 8 Home Score Accelerated v2
4684 points
PCMark 8 Creative Score Accelerated v2
6533 points
PCMark 8 Work Score Accelerated v2
3060 points
PCMark 10 Score
4687 points
Help
AIDA64 / Memory Copy
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
63889 MB/s ∼100% +193%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
60034 MB/s ∼94% +175%
Average of class Convertible
  (4939 - 98967, n=62, last 2 years)
41645 MB/s ∼65% +91%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
40141 MB/s ∼63% +84%
Average Intel Core i5-1135G7
  (18424 - 63889, n=26)
36523 MB/s ∼57% +67%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
21826 MB/s ∼34%
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
21599 MB/s ∼34% -1%
AIDA64 / Memory Read
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
63705 MB/s ∼100% +158%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
61511 MB/s ∼97% +149%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
46871 MB/s ∼74% +90%
Average of class Convertible
  (4031 - 67976, n=62, last 2 years)
43647 MB/s ∼69% +77%
Average Intel Core i5-1135G7
  (21776 - 63705, n=26)
40618 MB/s ∼64% +65%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
24654 MB/s ∼39%
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
24057 MB/s ∼38% -2%
AIDA64 / Memory Write
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
66442 MB/s ∼100% +183%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
66152 MB/s ∼100% +182%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
46521 MB/s ∼70% +98%
Average of class Convertible
  (5782 - 117946, n=62, last 2 years)
45125 MB/s ∼68% +92%
Average Intel Core i5-1135G7
  (21194 - 66747, n=26)
41346 MB/s ∼62% +76%
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
24125 MB/s ∼36% +3%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
23486 MB/s ∼35%
AIDA64 / Memory Latency
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
90.5 ns * ∼100% -6%
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
89.3 ns * ∼99% -5%
Average of class Convertible
  (71.4 - 169, n=64, last 2 years)
89 ns * ∼98% -4%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
88.2 ns * ∼97% -3%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
85.3 ns * ∼94%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
73.1 ns * ∼81% +14%
Average Intel Core i5-1135G7
  (70.3 - 92.2, n=32)
65.2 ns * ∼72% +24%

* ... smaller is better

DPC延迟

在我们的测试中,华硕ExpertBook B5 Flip的评测单元没有显示出任何明显的延迟,因此在这方面没有任何限制可言。

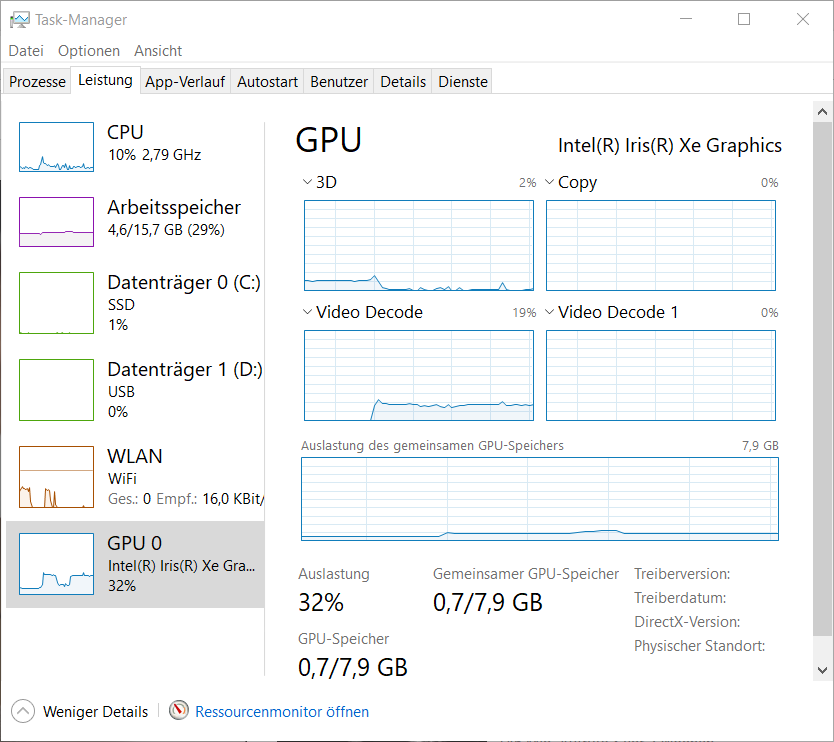

与4K视频的利用
与4K视频的利用

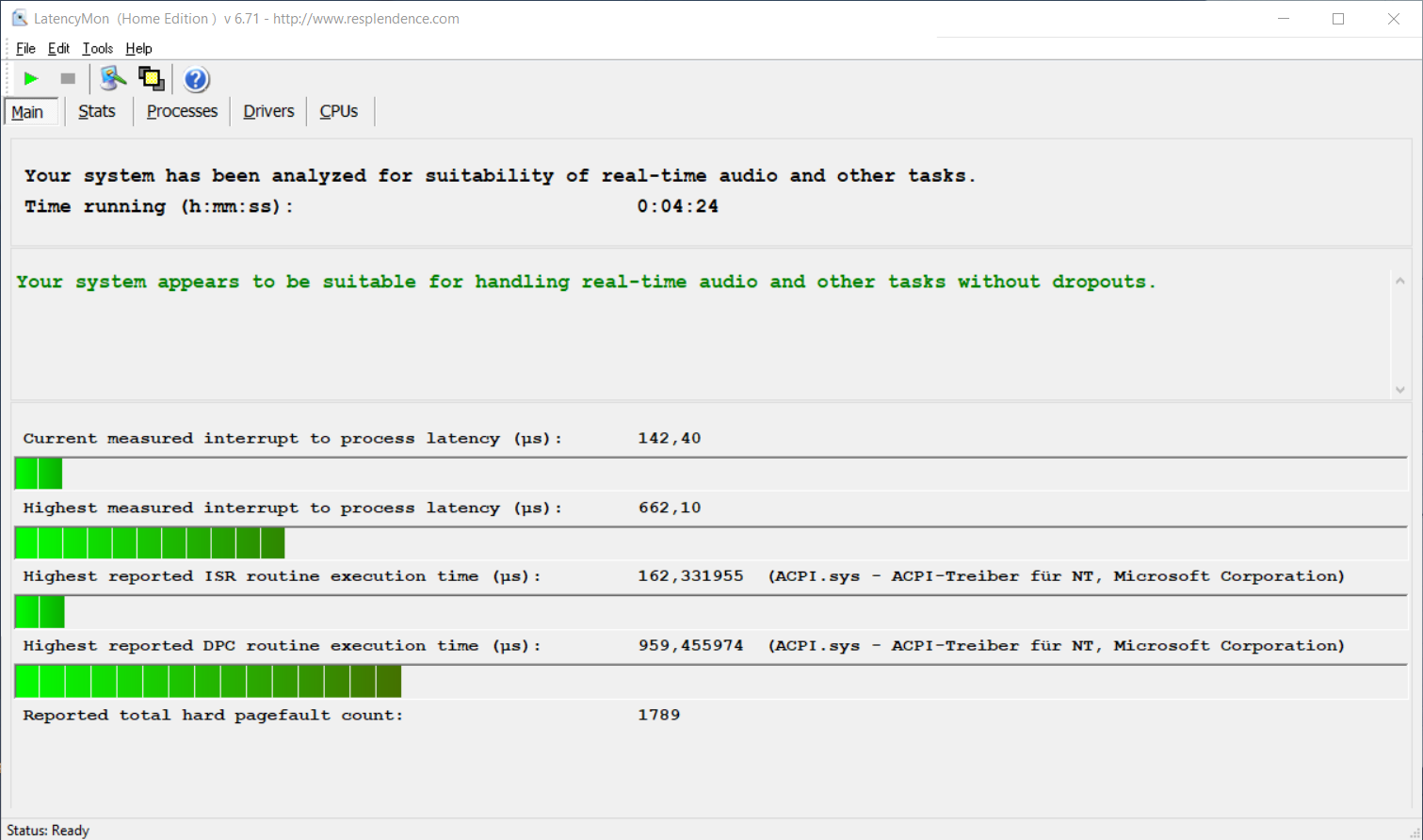

根据我们的标准程序,最大延迟
根据我们的标准程序,最大延迟

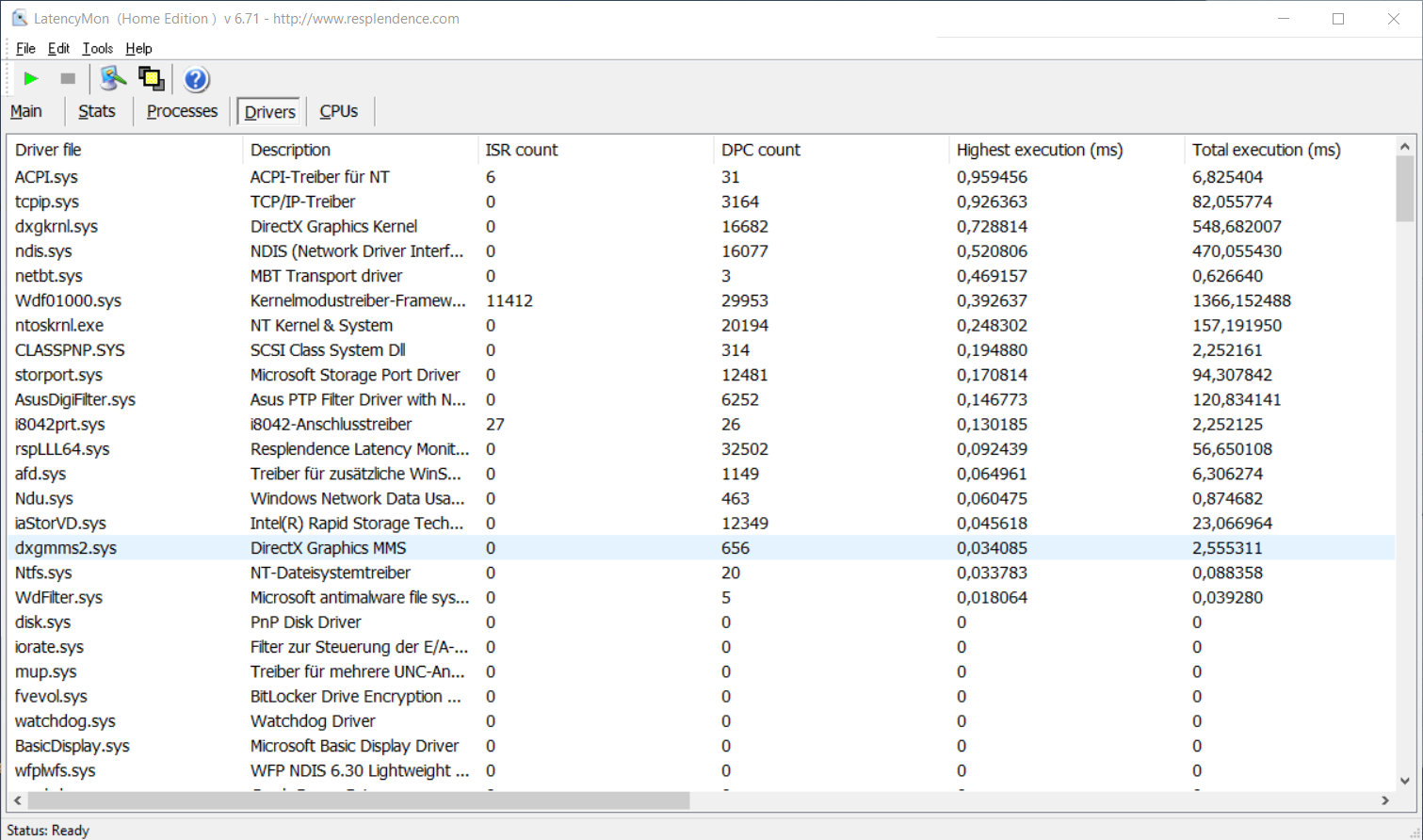

按最长的执行时间排序的驱动程序
按最长的执行时间排序的驱动程序
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Asus ZenBook Flip 13 UX363EA-HP069T
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-1T00
5262 μs * ∼100% -695%
HP Spectre x360 13-aw2003dx
Iris Xe G7 80EUs, i5-1135G7, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
2369.2 μs * ∼45% -258%
HP Pavilion x360 14-dy0157ng
Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G
1004.4 μs * ∼19% -52%
Acer Spin 3 SP313-51N-56YV
Iris Xe G7 80EUs, i5-1135G7, Kingston OM8PCP3512F-AB
911 μs * ∼17% -38%
Asus ExpertBook B5 Flip B5302FEA
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZVLQ512HALU
662 μs * ∼13%
HP ProBook x360 435 G8 R7-5800U
Vega 8 R5000, R7 5800U, Samsung PM991 MZVLQ512HALU
502.9 μs * ∼10% +24%

* ... smaller is better

大容量存储

安装的NVMe固态硬盘的容量为512GB,来自三星。在我们的基准测试中,它显示了坚实的性能,通常可以将自己定位在上半部分,甚至经常在比较模型的前三名。测得的速率通常高于,部分与三星PM991 MZVLQ512HALU的平均水平相当。并总是高于惠普ProBook x360 435 G8相同的硬盘驱动器。

Drive Performance Rating - Percent
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
82.3 pt ∼82%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
72.9 pt ∼73%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
66.5 pt ∼67%
Average Samsung PM991 MZVLQ512HALU

63.1 pt ∼63%
Average of class Convertible

61.9 pt ∼62%
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
57.2 pt ∼57%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
56.7 pt ∼57%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
55.1 pt ∼55%
DiskSpd
seq read
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
2141 (1958.32min - 2140.69max) MB/s ∼100% +41%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
1896 (1874.22min - 1895.81max) MB/s ∼89% +25%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
1515 (1481.19min - 1515.4max) MB/s ∼71%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
1509 (1485.59min - 1509.19max) MB/s ∼70% 0%
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
1506 (1024.93min - 1505.68max) MB/s ∼70% -1%
Average of class Convertible
  (509 - 4457, n=80, last 2 years)
1497 MB/s ∼70% -1%
Average Samsung PM991 MZVLQ512HALU
  (252 - 2025, n=12)
1359 MB/s ∼63% -10%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
1300 (1291.28min - 1299.61max) MB/s ∼61% -14%
seq write
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
1975 (1727min - 1974.5max) MB/s ∼100% +72%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
1481 (1382.02min - 1480.8max) MB/s ∼75% +29%
Average of class Convertible
  (431 - 4237, n=80, last 2 years)
1318 MB/s ∼67% +15%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
1215 (1171.85min - 1215.42max) MB/s ∼62% +6%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
1151 (1119.32min - 1150.71max) MB/s ∼58%
Average Samsung PM991 MZVLQ512HALU
  (197 - 1588, n=12)
1103 MB/s ∼56% -4%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
984 (975.74min - 984.19max) MB/s ∼50% -15%
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
923 (900.6min - 922.58max) MB/s ∼47% -20%
seq q8 t1 read
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
3421 (3222.12min - 3421.43max) MB/s ∼100% +57%
Average of class Convertible
  (546 - 6688, n=79, last 2 years)
2441 MB/s ∼71% +12%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
2406 (2140.14min - 2406.49max) MB/s ∼70% +10%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
2252 (2243.32min - 2252.44max) MB/s ∼66% +3%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
2181 (1985.6min - 2180.66max) MB/s ∼64%
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
2094 (956.28min - 2093.59max) MB/s ∼61% -4%
Average Samsung PM991 MZVLQ512HALU
  (254 - 2876, n=12)
2042 MB/s ∼60% -6%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
1989 (1732.56min - 1988.53max) MB/s ∼58% -9%
seq q8 t1 write
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
3078 (2987.6min - 3078.48max) MB/s ∼100% +126%
Average of class Convertible
  (377 - 4928, n=80, last 2 years)
1627 MB/s ∼53% +20%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
1470 (1437.6min - 1469.68max) MB/s ∼48% +8%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
1375 (1358.33min - 1374.87max) MB/s ∼45% +1%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
1360 (1328.2min - 1360.43max) MB/s ∼44%
Average Samsung PM991 MZVLQ512HALU
  (158 - 1607, n=12)
1224 MB/s ∼40% -10%
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
1142 (1115.13min - 1141.92max) MB/s ∼37% -16%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
983 (976.37min - 982.73max) MB/s ∼32% -28%
4k q1 t1 read
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
85.7 (36.2min - 85.73max) MB/s ∼100% +52%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
60.6 (59.66min - 60.6max) MB/s ∼71% +7%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
56.4 (56.2min - 56.37max) MB/s ∼66%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
48.5 (48.33min - 48.46max) MB/s ∼57% -14%
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
47.5 (46.55min - 47.5max) MB/s ∼55% -16%
Average of class Convertible
  (22.2 - 135, n=80, last 2 years)
47 MB/s ∼55% -17%
Average Samsung PM991 MZVLQ512HALU
  (7.83 - 56.4, n=12)
46.8 MB/s ∼55% -17%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
44.1 (42.36min - 44.09max) MB/s ∼51% -22%
4k q1 t1 write
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
268 (121.3min - 267.87max) MB/s ∼100% +72%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
208 (204.31min - 207.5max) MB/s ∼78% +33%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
156 (153.76min - 156.42max) MB/s ∼58%
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
145 (120.46min - 145.32max) MB/s ∼54% -7%
Average of class Convertible
  (44.4 - 330, n=80, last 2 years)
131 MB/s ∼49% -16%
Average Samsung PM991 MZVLQ512HALU
  (10.2 - 167, n=12)
127 MB/s ∼47% -19%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
118 (107.36min - 117.74max) MB/s ∼44% -24%
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
64.8 (64.5min - 64.83max) MB/s ∼24% -58%
4k q32 t16 read
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
1371 (1202.08min - 1370.81max) MB/s ∼100% +95%
Average of class Convertible
  (224 - 2833, n=80, last 2 years)
768 MB/s ∼56% +9%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
703 (697.35min - 703.06max) MB/s ∼51%
Average Samsung PM991 MZVLQ512HALU
  (10.8 - 1443, n=12)
691 MB/s ∼50% -2%
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
646 (570.74min - 645.6max) MB/s ∼47% -8%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
567 (565.52min - 566.56max) MB/s ∼41% -19%
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
561 (299.94min - 561.39max) MB/s ∼41% -20%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
312 (309.85min - 312.11max) MB/s ∼23% -56%
4k q32 t16 write
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
983 (978.13min - 983.35max) MB/s ∼100% +119%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
765 (718.87min - 764.99max) MB/s ∼78% +70%
Average Samsung PM991 MZVLQ512HALU
  (11.5 - 1125, n=12)
639 MB/s ∼65% +42%
Average of class Convertible
  (217 - 2378, n=80, last 2 years)
613 MB/s ∼62% +37%
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
458 (436.32min - 457.64max) MB/s ∼47% +2%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
449 (416.16min - 448.56max) MB/s ∼46%
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
388 (254.71min - 387.94max) MB/s ∼39% -14%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
364 (360.08min - 363.91max) MB/s ∼37% -19%
AS SSD
Score Total
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
3507 Points ∼100% +30%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
3221 Points ∼92% +20%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
2693 Points ∼77%
Average Samsung PM991 MZVLQ512HALU
  (1892 - 3818, n=11)
2666 Points ∼76% -1%
Average of class Convertible
  (117 - 8020, n=86, last 2 years)
2560 Points ∼73% -5%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
2084 Points ∼59% -23%
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
2067 Points ∼59% -23%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
1892 Points ∼54% -30%
Score Read
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
1512 Points ∼100% +38%
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
1277 Points ∼84% +16%
Average Samsung PM991 MZVLQ512HALU
  (879 - 1658, n=11)
1117 Points ∼74% +2%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
1097 Points ∼73%
Average of class Convertible
  (51 - 3400, n=86, last 2 years)
1013 Points ∼67% -8%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
879 Points ∼58% -20%
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
761 Points ∼50% -31%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
670 Points ∼44% -39%
Score Write
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
1638 Points ∼100% +52%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
1098 Points ∼67% +2%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
1076 Points ∼66%
Average of class Convertible
  (35 - 2938, n=86, last 2 years)
1058 Points ∼65% -2%
Average Samsung PM991 MZVLQ512HALU
  (589 - 1360, n=11)
1009 Points ∼62% -6%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
975 Points ∼60% -9%
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
929 Points ∼57% -14%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
589 Points ∼36% -45%
Seq Read
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
2767 MB/s ∼100% +44%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
2027.02 MB/s ∼73% +5%
Average Samsung PM991 MZVLQ512HALU
  (1397 - 2706, n=11)
1940 MB/s ∼70% +1%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
1936 MB/s ∼70% 0%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
1927.87 MB/s ∼70%
Average of class Convertible
  (242 - 4878, n=86, last 2 years)
1921 MB/s ∼69% 0%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
1748.42 MB/s ∼63% -9%
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
1337.36 MB/s ∼48% -31%
Seq Write
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
1368 MB/s ∼100% +69%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
1237 MB/s ∼90% +53%
Average of class Convertible
  (121 - 3660, n=86, last 2 years)
1109 MB/s ∼81% +37%
Average Samsung PM991 MZVLQ512HALU
  (783 - 1652, n=11)
1106 MB/s ∼81% +37%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
1057.15 MB/s ∼77% +31%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
941.12 MB/s ∼69% +17%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
807.26 MB/s ∼59%
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
651.9 MB/s ∼48% -19%
4K Read
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
61.85 MB/s ∼100% +14%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
54.17 MB/s ∼88%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
52.66 MB/s ∼85% -3%
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
46.86 MB/s ∼76% -13%
Average Samsung PM991 MZVLQ512HALU
  (40.4 - 54.2, n=11)
46.5 MB/s ∼75% -14%
Average of class Convertible
  (5.47 - 85.1, n=86, last 2 years)
46.3 MB/s ∼75% -15%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
44.06 MB/s ∼71% -19%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
40.35 MB/s ∼65% -26%
4K Write
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
182.71 MB/s ∼100%
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
140.06 MB/s ∼77% -23%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
133.46 MB/s ∼73% -27%
Average Samsung PM991 MZVLQ512HALU
  (99.5 - 183, n=11)
131 MB/s ∼72% -28%
Average of class Convertible
  (12.4 - 239, n=86, last 2 years)
127 MB/s ∼70% -30%
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
106.65 MB/s ∼58% -42%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
99.5 MB/s ∼54% -46%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
77.71 MB/s ∼43% -57%
4K-64 Read
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
1256.71 MB/s ∼100% +48%
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
953.61 MB/s ∼76% +12%
Average Samsung PM991 MZVLQ512HALU
  (645 - 1342, n=11)
877 MB/s ∼70% +3%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
850.24 MB/s ∼68%
Average of class Convertible
  (13.2 - 2827, n=86, last 2 years)
775 MB/s ∼62% -9%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
644.72 MB/s ∼51% -24%
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
565.27 MB/s ∼45% -34%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
451.06 MB/s ∼36% -47%
4K-64 Write
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
1361.3 MB/s ∼100% +68%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
925.71 MB/s ∼68% +14%
Average of class Convertible
  (10.2 - 2349, n=86, last 2 years)
820 MB/s ∼60% +1%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
812.43 MB/s ∼60%
Average Samsung PM991 MZVLQ512HALU
  (366 - 1066, n=11)
767 MB/s ∼56% -6%
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
756.76 MB/s ∼56% -7%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
736.16 MB/s ∼54% -9%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
365.75 MB/s ∼27% -55%
Access Time Read
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
0.188 ms * ∼100% -135%
Average of class Convertible
  (0.023 - 0.794, n=86, last 2 years)
0.1045 ms * ∼56% -31%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
0.104 ms * ∼55% -30%
Average Samsung PM991 MZVLQ512HALU
  (0.064 - 0.156, n=10)
0.0954 ms * ∼51% -19%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
0.08 ms * ∼43%
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
0.079 ms * ∼42% +1%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
0.068 ms * ∼36% +15%
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
0.051 ms * ∼27% +36%
Access Time Write
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
0.182 ms * ∼100% -810%
Average of class Convertible
  (0.017 - 1.105, n=86, last 2 years)
