华硕Chromebook Flip CX5在回顾。1,200欧元的Chromebook?

昂贵的。 华硕的二合一Chromebook ,拥有良好的硬件配置,背光键盘,以及带Power Delivery的USB-C端口。IPS触摸屏既可以用手指使用,也可以用单独购买的手写笔使用。
Sascha Mölck, 👁 Sebastian Jentsch (translated by DeepL/Stefan Hinum), 🇺🇸 🇩🇪 ...
Chromebook Convertible / 2-in-1 Tiger Lake Touchscreen

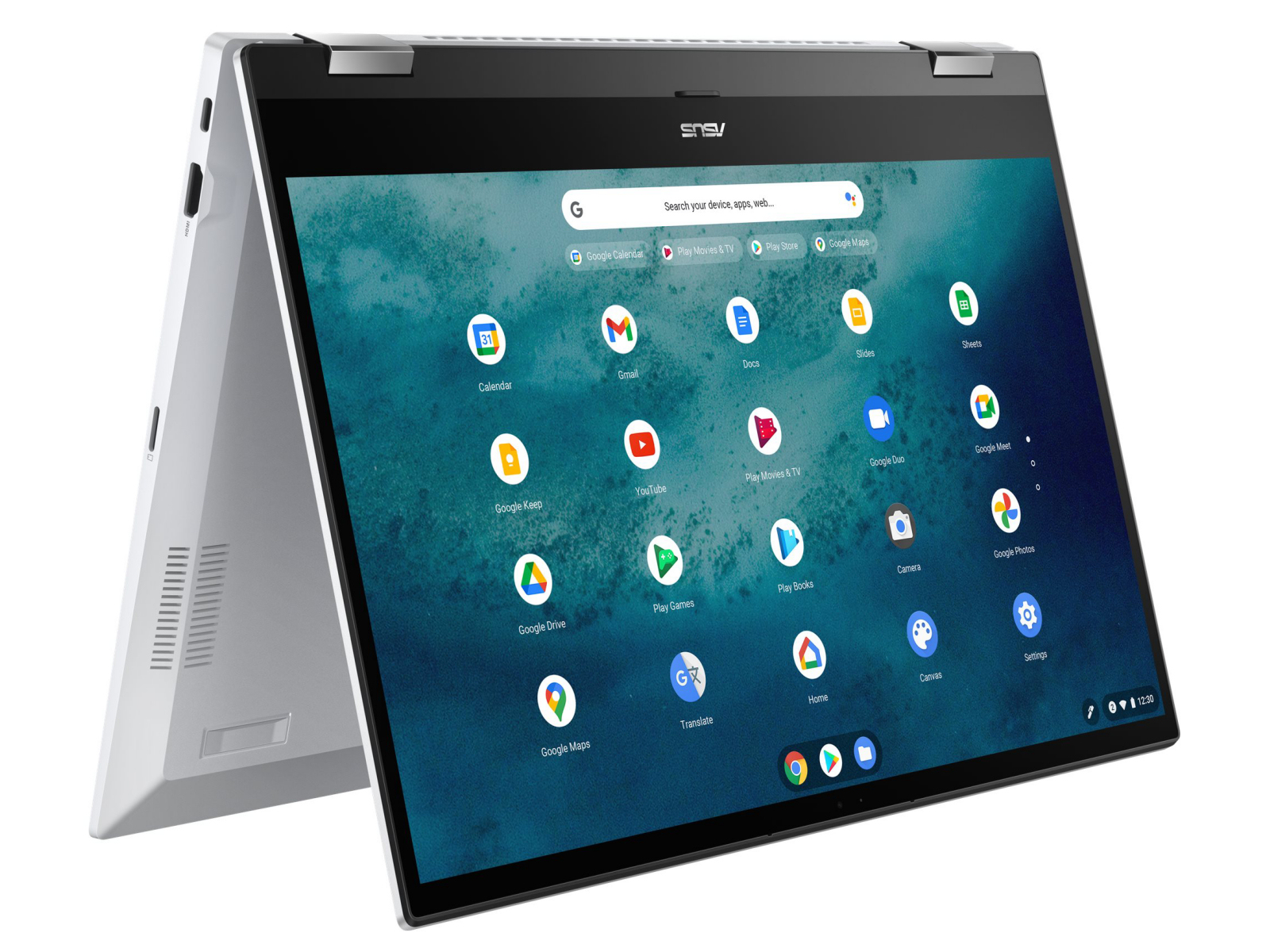

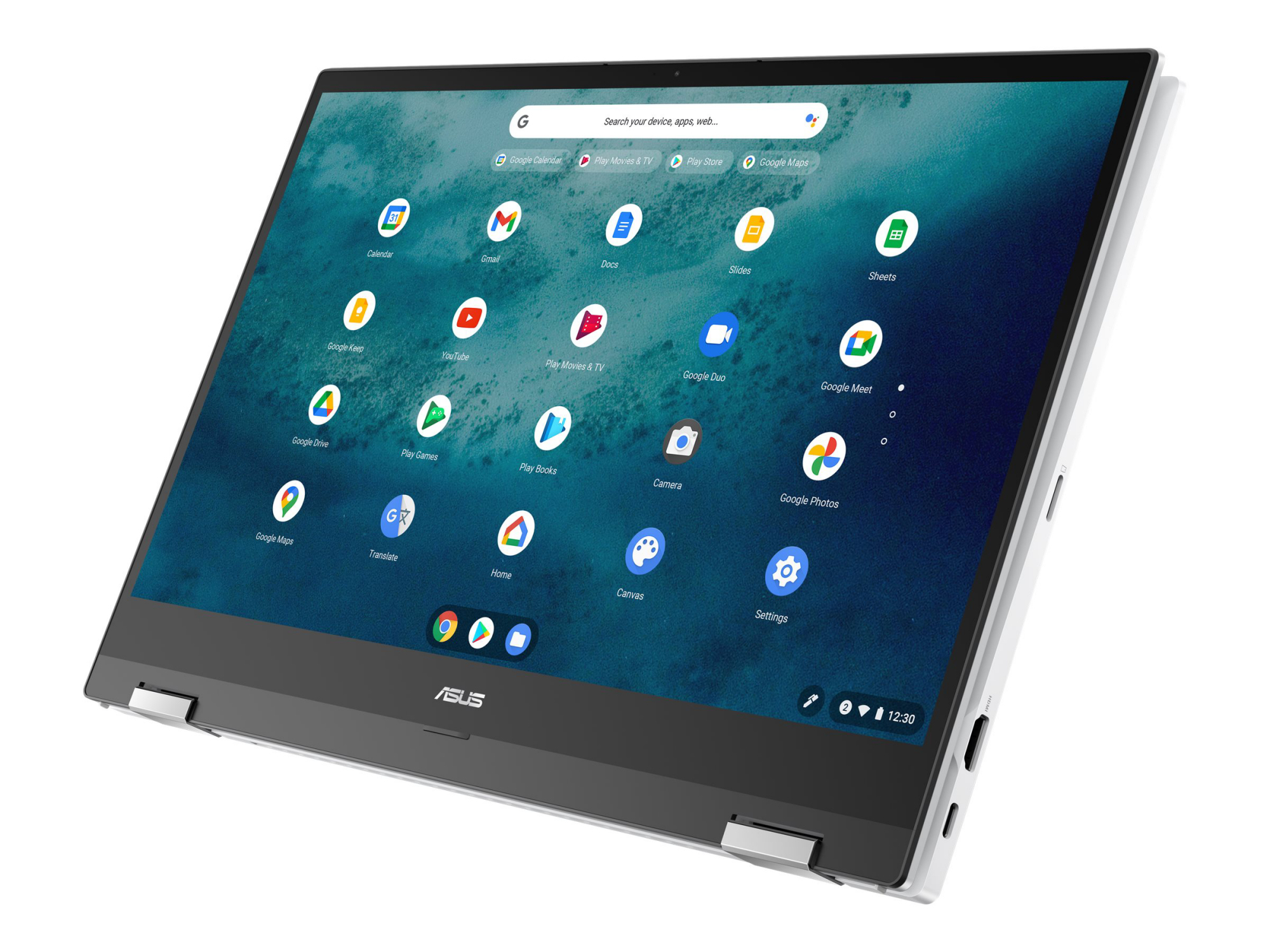

通过Chromebook Flip CX5,华硕推出了一款15.6英寸的二合一笔记本电脑,它采用了Core-i7-1165G7处理器。正如名字已经透露的那样,这里的操作系统不是微软的Windows 10,而是谷歌的Chrome OS。竞争对手包括惠普 Pavilion x360 15联想IdeaPad Flex 5 14ALC05华硕VivoBook Flip 14 TP470EZ ,以及宏基 Chromebook Spin 713 CP713-2W等设备

, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Asus Chromebook Flip CX5 CX5500FEA
Processor
Intel Core i7-1165G7 4 x 2.8 - 4.7 GHz, Tiger Lake UP3
Graphics adapter
Memory
16384 MB
, LPDDR4X
Display
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, capacitive, 10 touchpoints, native pen support, IPS, capacitive, 10 touchpoints, glossy: yes, 60 Hz
Storage
512 GB NVMe (M.2-2280), 450 GB free
Connections
3 USB 3.1 Gen2, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, Audio Connections: combined headset port, Card Reader: microSD, 1 Fingerprint Reader, Sensors: acceleration, gyroscope
Networking
Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5
Size
height x width x depth (in mm): 18.5 x 357 x 240
Battery
57 Wh, 4940 mAh Lithium-Polymer, Battery runtime (according to manufacturer): 11 h
Operating System
Google Chrome OS

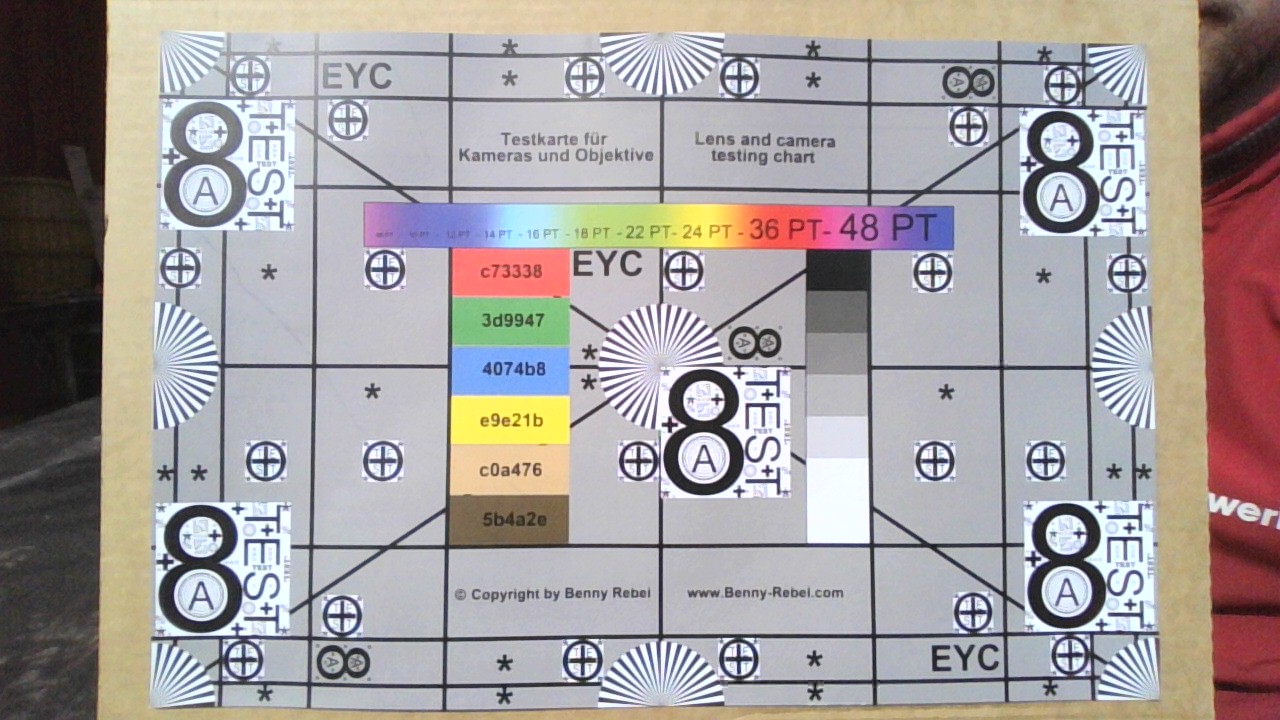

Camera
Webcam: HD
Primary Camera: 0.9 MPix
Additional features
Speakers: stereo, Keyboard: chiclet, Keyboard Light: yes, 24 Months Warranty
Weight
1.95 kg, Power Supply: 179 g
Price
1,299 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible contenders in comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
84 %
09/2021
Asus Chromebook Flip CX5 CX5500FEA
i7-1165G7, Iris Xe G7 96EUs
2 kg18.5 mm15.60"1920x1080
81 %
HP Pavilion x360 15-er0155ng
i5-1135G7, Iris Xe G7 80EUs
1.8 kg19.9 mm15.60"1920x1080
79 %
06/2021
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
R7 5700U, Vega 8 R4000
1.6 kg20.8 mm14.00"1920x1080
79 %
Asus VivoBook Flip 14 TP470EZ
i5-1135G7, Xe MAX
1.5 kg18.7 mm14.00"1920x1080
86 %
08/2020
Acer Chromebook Spin 713 CP713-2W-560V
i5-10210U, UHD Graphics 620
1.4 kg16.8 mm13.50"2256x1504

机箱和连接性--华硕敞篷车提供电源交付

CX5的双色外壳主要由塑料制成。只有盖子的背面是由铝制作的。机箱看起来制作精良,没有发现任何重大的稳定性缺陷。然而,底座应该更加坚硬,因为它可能被扭曲得有点厉害。电池被牢固地内置在设备中。取下底盖后可以接触到内部结构。

华硕为笔记本电脑配备了三个USB接口(1个Type-A,2个Type-C),所有这些接口都按照USB 3.2 Gen 2标准运行。USB-C接口支持Power Delivery和通过USB-C的DisplayPort。因此,该笔记本电脑有三个视频输出,加上HDMI输出。

microSD存储卡读卡器(参考卡:128GB AV Pro V60 microSD)在速度方面位居中下。WLAN芯片(英特尔AX201)支持802.11a/b/g/n/ac/ax标准并提供蓝牙5功能。

Size comparison

357.6 mm 229.2 mm 19.9 mm 1.8 kg357 mm 240 mm 18.5 mm 2 kg324 mm 220 mm 18.7 mm 1.5 kg321.5 mm 217.5 mm 20.8 mm 1.6 kg301 mm 235 mm 16.8 mm 1.4 kg

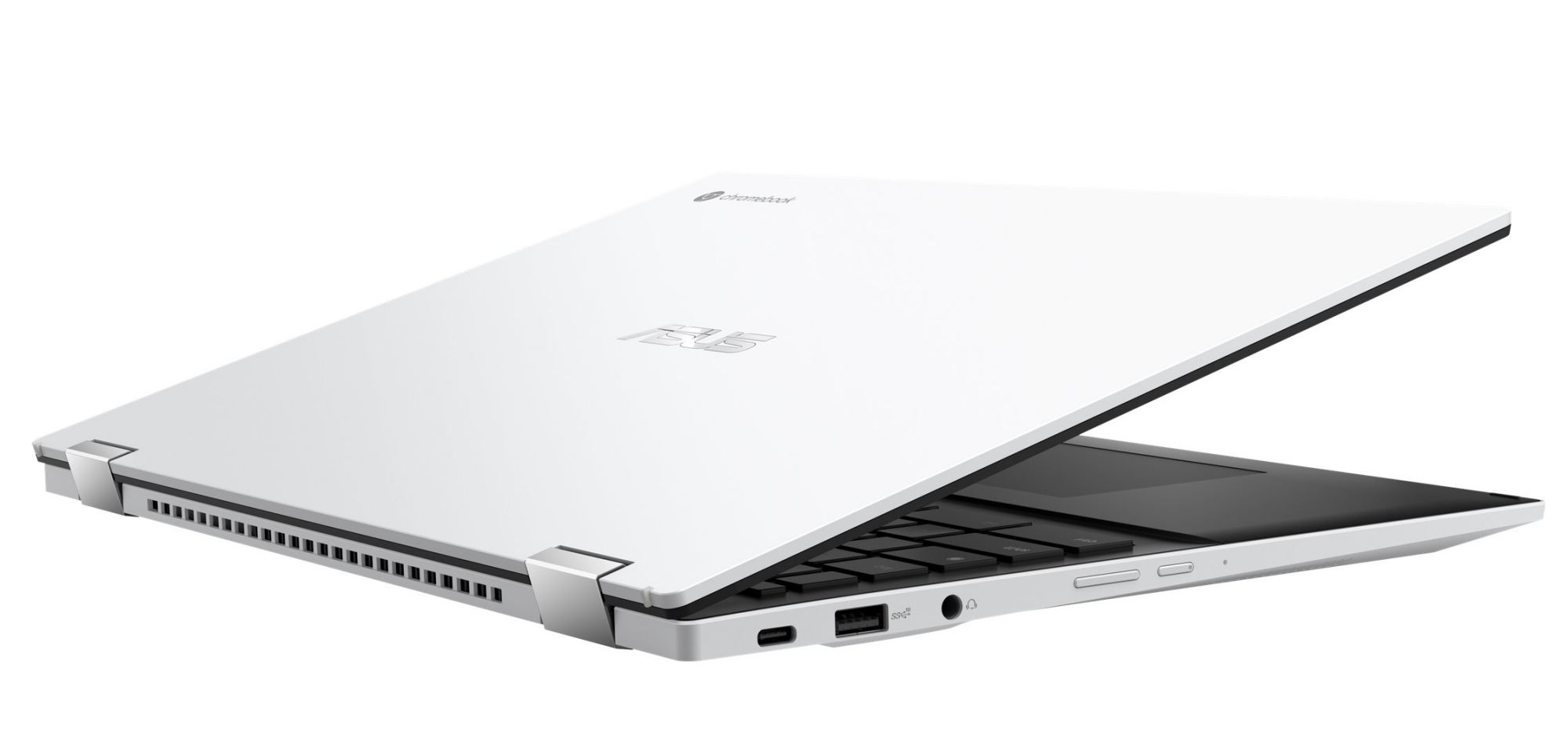

端口配置

右侧:存储卡读卡器(microSD),HDMI,USB 3.2 Gen 2(Type-C;Power Delivery,DisplayPort)。
右侧:存储卡读卡器(microSD),HDMI,USB 3.2 Gen 2(Type-C;Power Delivery,DisplayPort)。

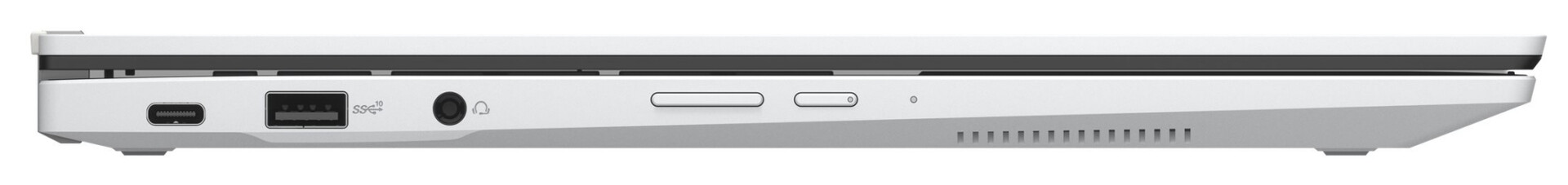

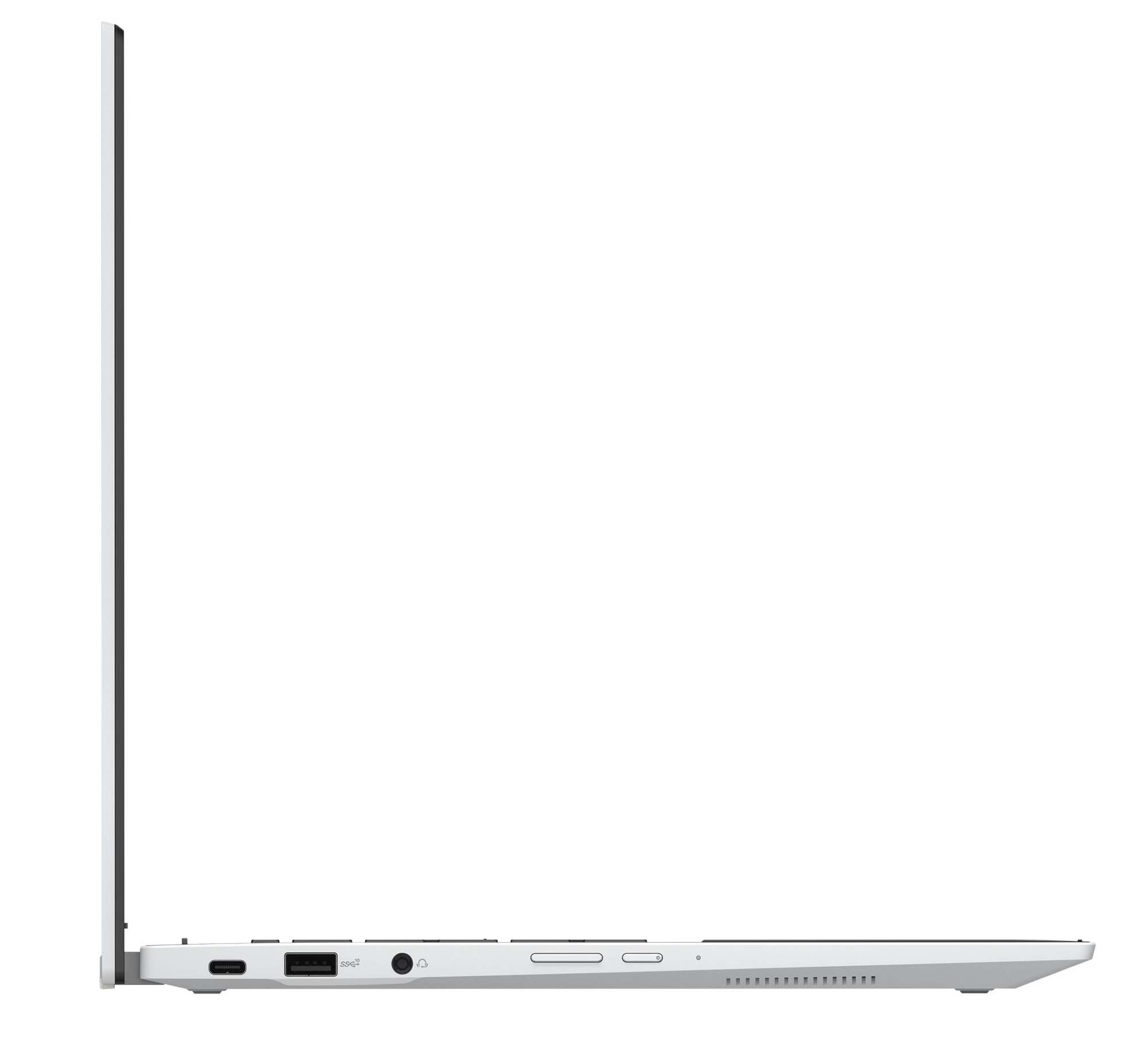

左侧。USB 3.2 Gen 2 (Type-C; Power Delivery, DisplayPort), USB 3.2 Gen 2 (Type-A), 组合式音频, 音量摇杆, 电源按钮
左侧。USB 3.2 Gen 2 (Type-C; Power Delivery, DisplayPort), USB 3.2 Gen 2 (Type-A), 组合式音频, 音量摇杆, 电源按钮
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Average of class Convertible
  (10 - 201, n=60, last 2 years)
81.5 MB/s ∼100% +43%
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
  (AV PRO microSD 128 GB V60)
74.3 MB/s ∼91% +30%
HP Pavilion x360 15-er0155ng
  (AV PRO microSD 128 GB V60)
74.3 MB/s ∼91% +30%
Acer Chromebook Spin 713 CP713-2W-560V
  (Toshiba Exceria Pro M501 microSDXC 64GB)
57 MB/s ∼70% 0%
Asus Chromebook Flip CX5 CX5500FEA
  (AV Pro SD microSD 128 GB V60)
57 MB/s ∼70%
Asus VivoBook Flip 14 TP470EZ
  (AV PRO microSD 128 GB V60)
26.6 MB/s ∼33% -53%
maximum AS SSD Seq Read Test (1GB)
Average of class Convertible
  (25 - 224, n=54, last 2 years)
98.3 MB/s ∼100%
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
  (AV PRO microSD 128 GB V60)
88.1 MB/s ∼90%
HP Pavilion x360 15-er0155ng
  (AV PRO microSD 128 GB V60)
85.3 MB/s ∼87%
Asus VivoBook Flip 14 TP470EZ
  (AV PRO microSD 128 GB V60)
27.6 MB/s ∼28%

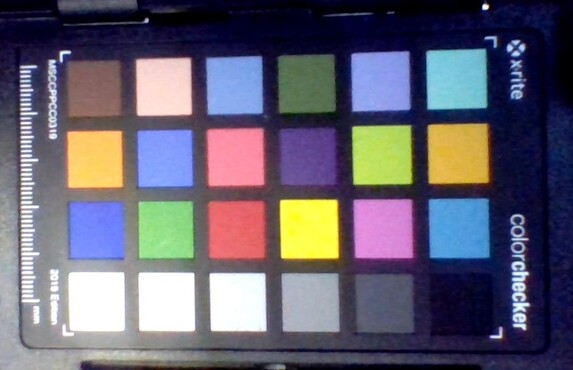

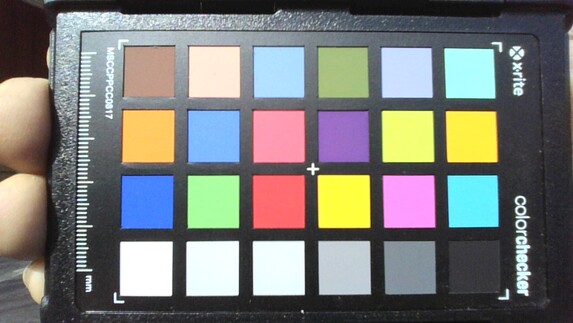

ColorChecker
28.8 ∆E
27.8 ∆E
30.1 ∆E
24.7 ∆E
31.1 ∆E
17.5 ∆E
21.5 ∆E
33.1 ∆E
22.4 ∆E
25.3 ∆E
17.7 ∆E
16.3 ∆E
28.5 ∆E
22.1 ∆E
22.8 ∆E
14.4 ∆E
24.5 ∆E
24.1 ∆E
1.8 ∆E
11.3 ∆E
25.3 ∆E
25 ∆E
20.7 ∆E
14.4 ∆E
ColorChecker HP Pavilion x360 15-er0155ng: 22.13 ∆E min: 1.76 - max: 33.13 ∆E

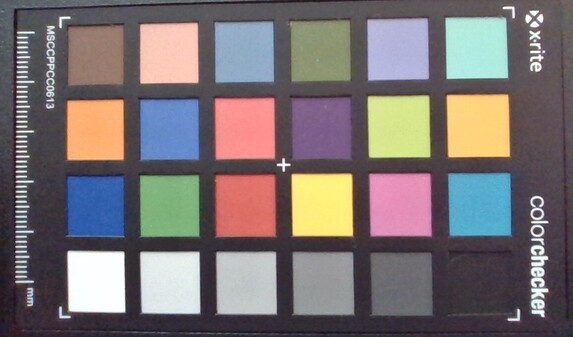

ColorChecker
29.3 ∆E
22.5 ∆E
29.1 ∆E
28.9 ∆E
26.1 ∆E
18 ∆E
22 ∆E
32.8 ∆E
21.2 ∆E
22.4 ∆E
17.1 ∆E
22.6 ∆E
27.4 ∆E
28.1 ∆E
22.7 ∆E
13.1 ∆E
23.1 ∆E
30.5 ∆E
2.3 ∆E
12.5 ∆E
22.9 ∆E
25.9 ∆E
24.6 ∆E
2.8 ∆E
ColorChecker Acer Chromebook Spin 713 CP713-2W-560V: 21.99 ∆E min: 2.33 - max: 32.77 ∆E
ColorChecker
9.4 ∆E
18.2 ∆E
15.9 ∆E
3.5 ∆E
12.9 ∆E
15.8 ∆E
23.8 ∆E
25.4 ∆E
18.7 ∆E
8 ∆E
7.9 ∆E
6.9 ∆E
27.8 ∆E
21.3 ∆E
19 ∆E
13.1 ∆E
16.5 ∆E
15.5 ∆E
2.3 ∆E
11.8 ∆E
22.3 ∆E
19.2 ∆E
11.8 ∆E
20.8 ∆E
ColorChecker Asus VivoBook Flip 14 TP470EZ: 15.33 ∆E min: 2.33 - max: 27.76 ∆E
ColorChecker
15.6 ∆E
14 ∆E
17.1 ∆E
17.6 ∆E
16.1 ∆E
13.4 ∆E
13.9 ∆E
18.4 ∆E
18.3 ∆E
12.2 ∆E
12.7 ∆E
12.7 ∆E
12.3 ∆E
12.2 ∆E
19.1 ∆E
10.9 ∆E
17.2 ∆E
14.4 ∆E
2.5 ∆E
8.8 ∆E
10.9 ∆E
12 ∆E
9.2 ∆E
8.2 ∆E
ColorChecker Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS: 13.32 ∆E min: 2.53 - max: 19.13 ∆E

输入设备--CX5500FEA配备了键盘背光灯

背光Chiclet键盘的平键具有较短的行程和明确的压力点。键盘提供的阻力是可以接受的。在打字过程中,键盘的弯曲度很小。不过这并不证明是令人讨厌的。总而言之,华硕在这里提供了一个适合日常使用的键盘。此外,具有多点触摸功能的ClickPad(约13 x 6.6厘米)的光滑表面使手指很容易在上面滑行。垫子的行程很短,压力点也很清晰。

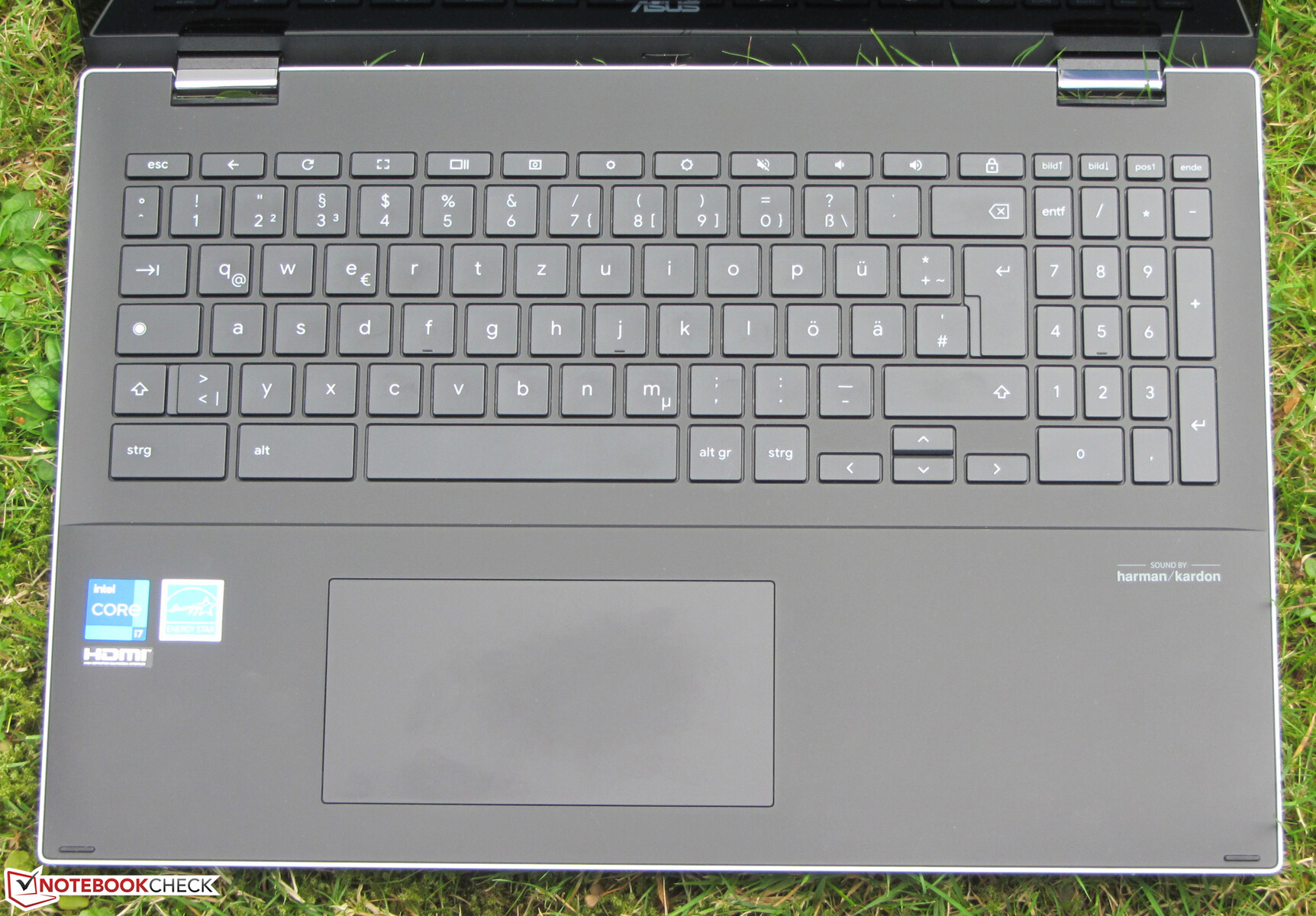

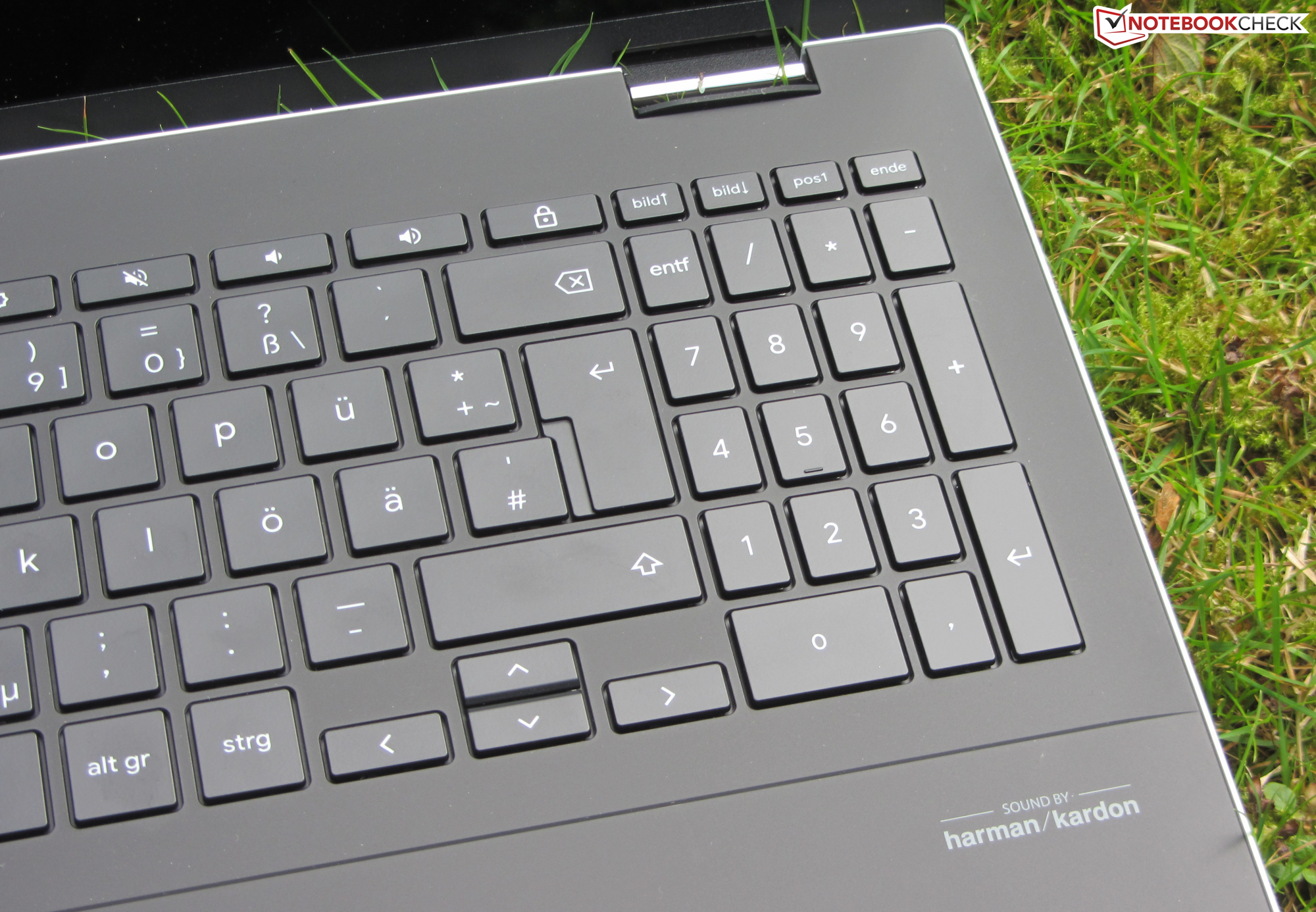

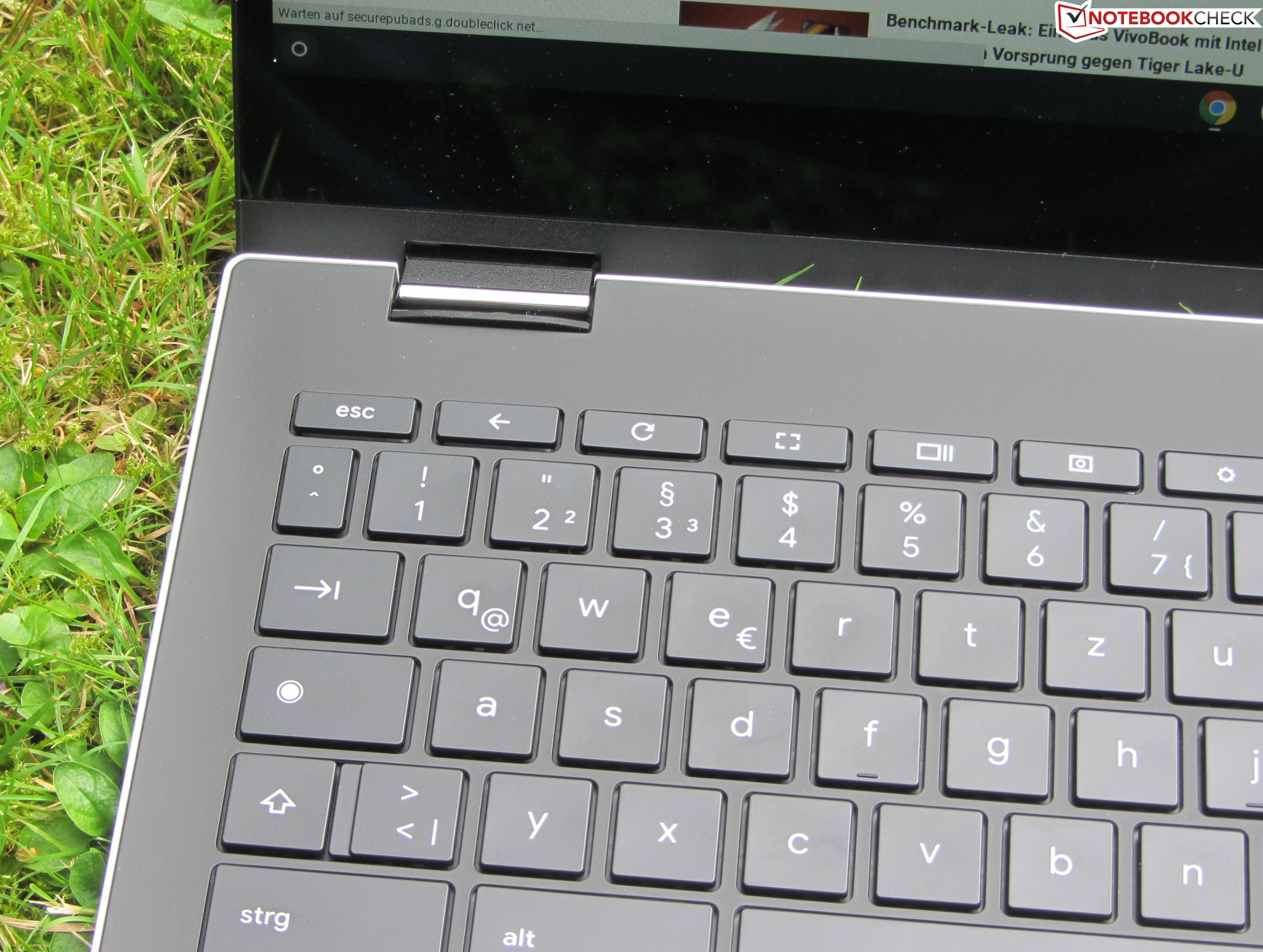

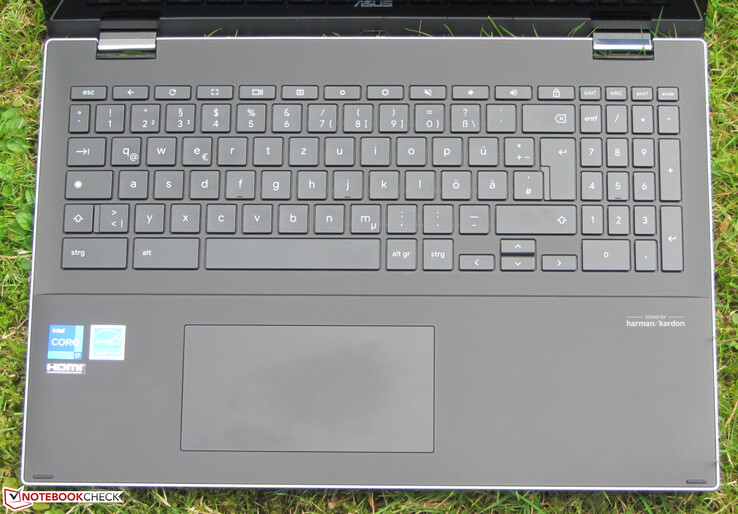

Chromebook Flip CX5的输入设备
Chromebook Flip CX5的输入设备

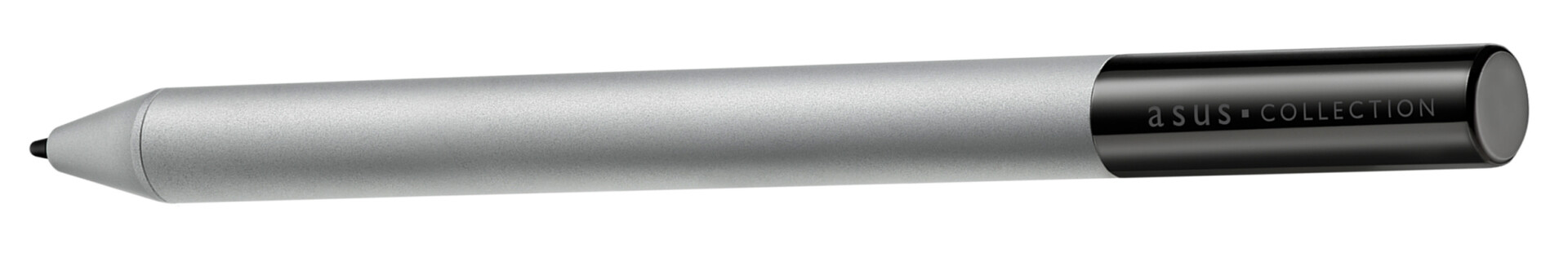

触摸屏(10个触摸点)对输入的反应很快。它可以用手指操作,也可以用华硕手写笔SA300(起价55欧元(约65美元)),该笔可单独购买。

華碩手寫筆SA300
華碩手寫筆SA300

显示器 - 板载IPS

虽然光泽的15.6英寸触摸屏(1920x1080像素)提供了良好的对比度(1,880:1),但平均亮度(259.1 cd/m²)太低。我们认为超过300cd/m²的数值才是好的。另一方面,没有检测到PWM闪烁。

285
cd/m²
261
cd/m²
266
cd/m²
255
cd/m²
282
cd/m²
241
cd/m²
250
cd/m²
253
cd/m²
239
cd/m²
Distribution of brightness
X-Rite i1Pro 2
Maximum: 285 cd/m² Average: 259.1 cd/m² Minimum: 7 cd/m²
Brightness Distribution: 84 %
Center on Battery: 284 cd/m²
Contrast: 1880:1 (Black: 0.15 cd/m²)
ΔE Color 5.55 | 0.59-29.43 Ø5.5
ΔE Greyscale 4.97 | 0.64-98 Ø5.7
Gamma: 2.41
Asus Chromebook Flip CX5 CX5500FEA
IPS, 1920x1080, 15.60
HP Pavilion x360 15-er0155ng
AU Optronics AUOC48A, IPS, 1920x1080, 15.60
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
Chi Mei N140HCA-E5B, IPS, 1920x1080, 14.00
Asus VivoBook Flip 14 TP470EZ
Chi Mei CMN N140HCA-EAC, IPS, 1920x1080, 14.00
Acer Chromebook Spin 713 CP713-2W-560V
IPS, 2256x1504, 13.50
Display
Display P3 Coverage
39.8
42.32
41.6
sRGB Coverage
59.7
62.69
62.1
AdobeRGB 1998 Coverage
41.1
43.87
43
Response Times
-12%
2%
-8%
27%
Response Time Grey 50% / Grey 80% *
35 (16, 19)
42 (19, 23)
-20%
38.4 (23.2, 15.2)
-10%
39 (20, 19)
-11%
36 (10, 26)
-3%
Response Time Black / White *
27 (15, 12)
28 (15, 13)
-4%
23.2 (12.4, 10.8)
14%
28 (16, 12)
-4%
12 (3, 9)
56%
PWM Frequency
25000 (20)
200 (40)
Screen
-25%
-55%
-37%
-14%
Brightness middle
282
249
-12%
236.7
-16%
205
-27%
426
51%
Brightness
259
246
-5%
221
-15%
186
-28%
388
50%
Brightness Distribution
84
93
11%
81
-4%
78
-7%
85
1%
Black Level *
0.15
0.29
-93%
0.2
-33%
0.22
-47%
0.56
-273%
Contrast
1880
859
-54%
1184
-37%
932
-50%
761
-60%
Colorchecker DeltaE2000 *
5.55
6.01
-8%
7.83
-41%
5.14
7%
2.25
59%
Colorchecker DeltaE2000 max. *
7.46
11.01
-48%
23.74
-218%
19.57
-162%
5.29
29%
Greyscale DeltaE2000 *
4.97
4.67
6%
8.6
-73%
4.1
18%
3.53
29%
Gamma
2.41 91%
2.79 79%
1.96 112%
2.2 100%
2.32 95%
CCT
6473 100%
6390 102%
5901 110%
6807 95%
6368 102%
Color Space (Percent of AdobeRGB 1998)
38
40.3
43.04
Color Space (Percent of sRGB)
59
62.3
62.1
Colorchecker DeltaE2000 calibrated *
3.8
3.17
Total Average (Program / Settings)
-19% / -23%
-27% / -43%
-23% / -31%
7% / -6%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

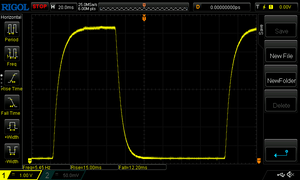

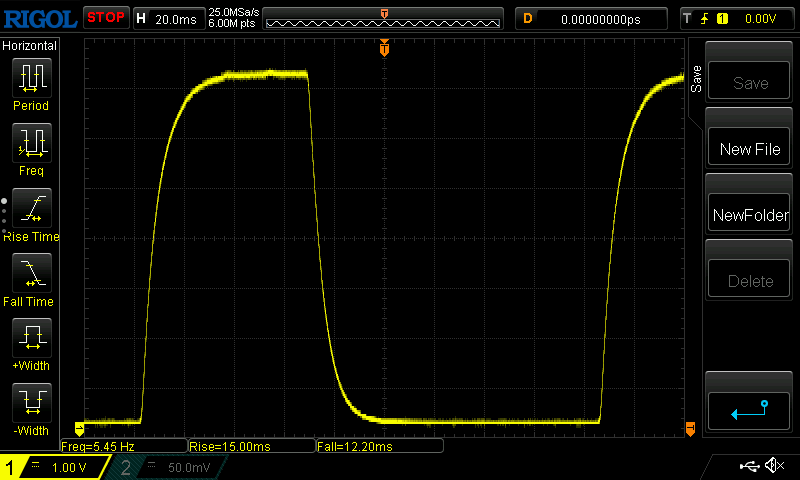

       Response Time Black to White
27 ms ... rise ↗ and fall ↘ combined↗ 15 ms rise
↘ 12 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 56 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (23.9 ms).

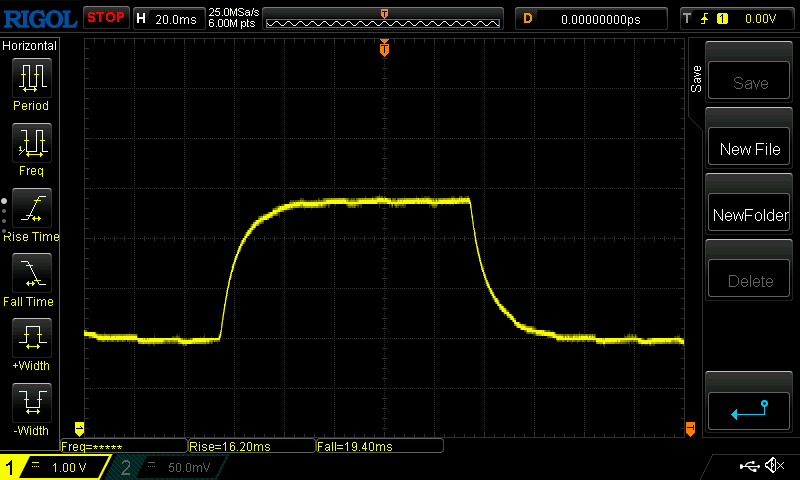

       Response Time 50% Grey to 80% Grey
35 ms ... rise ↗ and fall ↘ combined↗ 16 ms rise
↘ 19 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 636 (maximum) ms. » 32 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (37.8 ms).

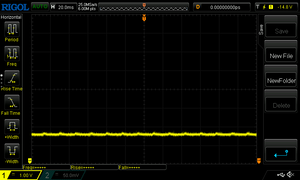

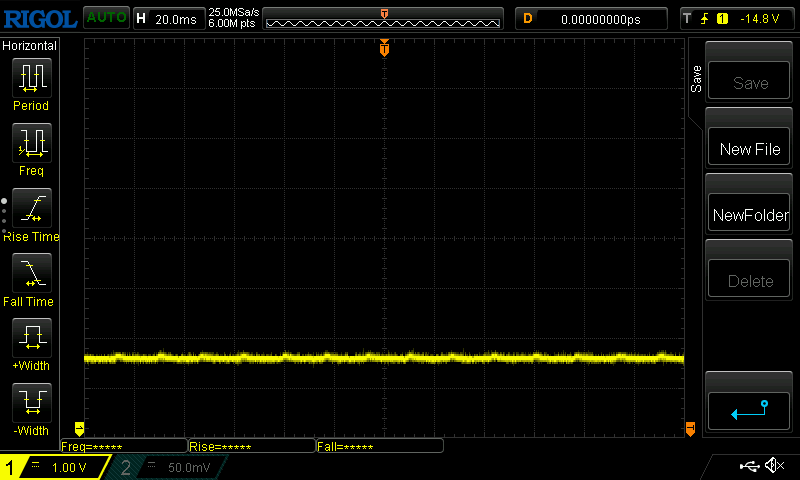

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 52 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 15334 (minimum: 5 - maximum: 2500000) Hz was measured.

该显示器提供了一个非常体面的色彩再现,但它没有达到目标(DeltaE小于3),偏差接近5.5。不过,它并没有受到蓝色色调的影响。

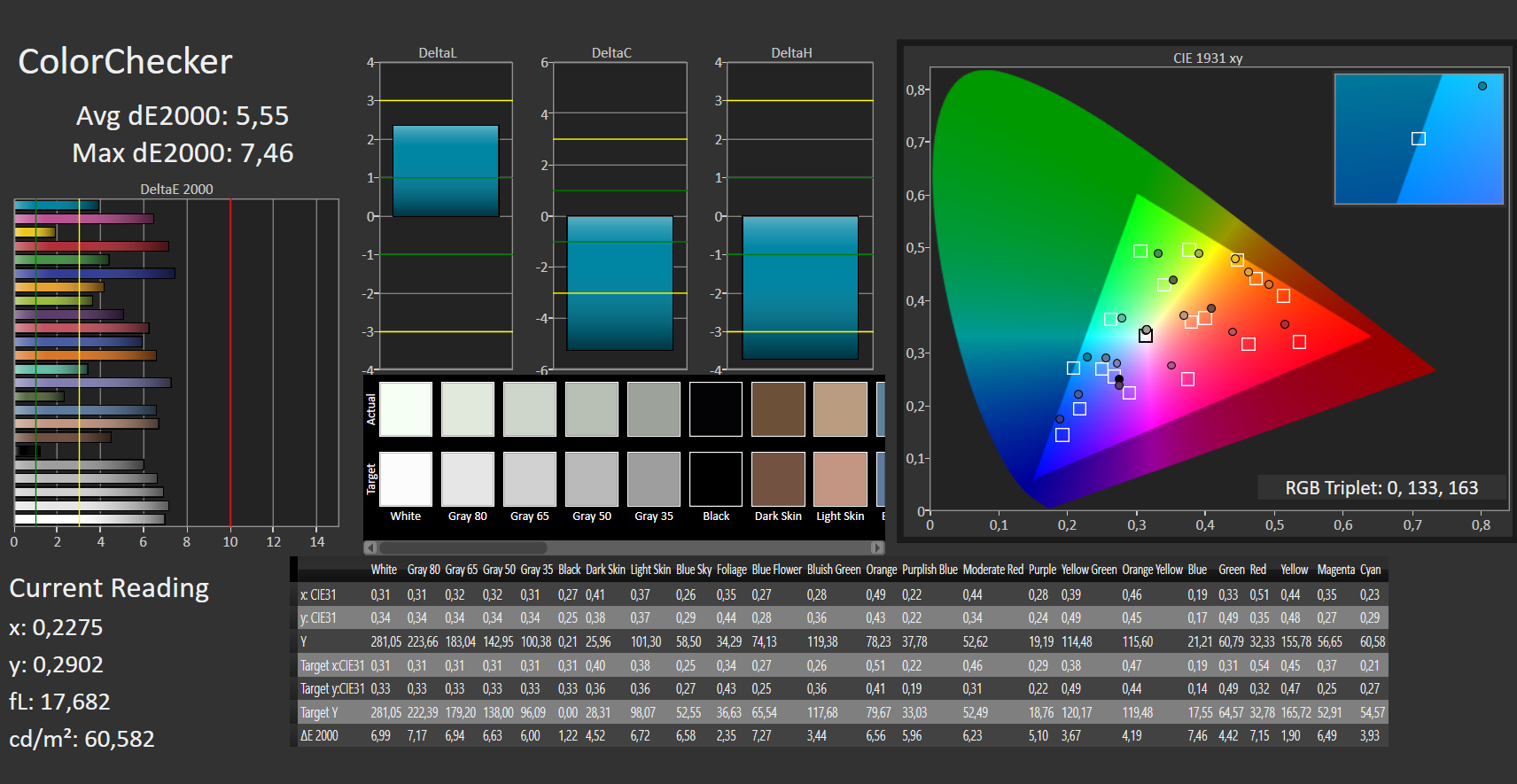

CalMAN - ColorChecker
CalMAN - ColorChecker

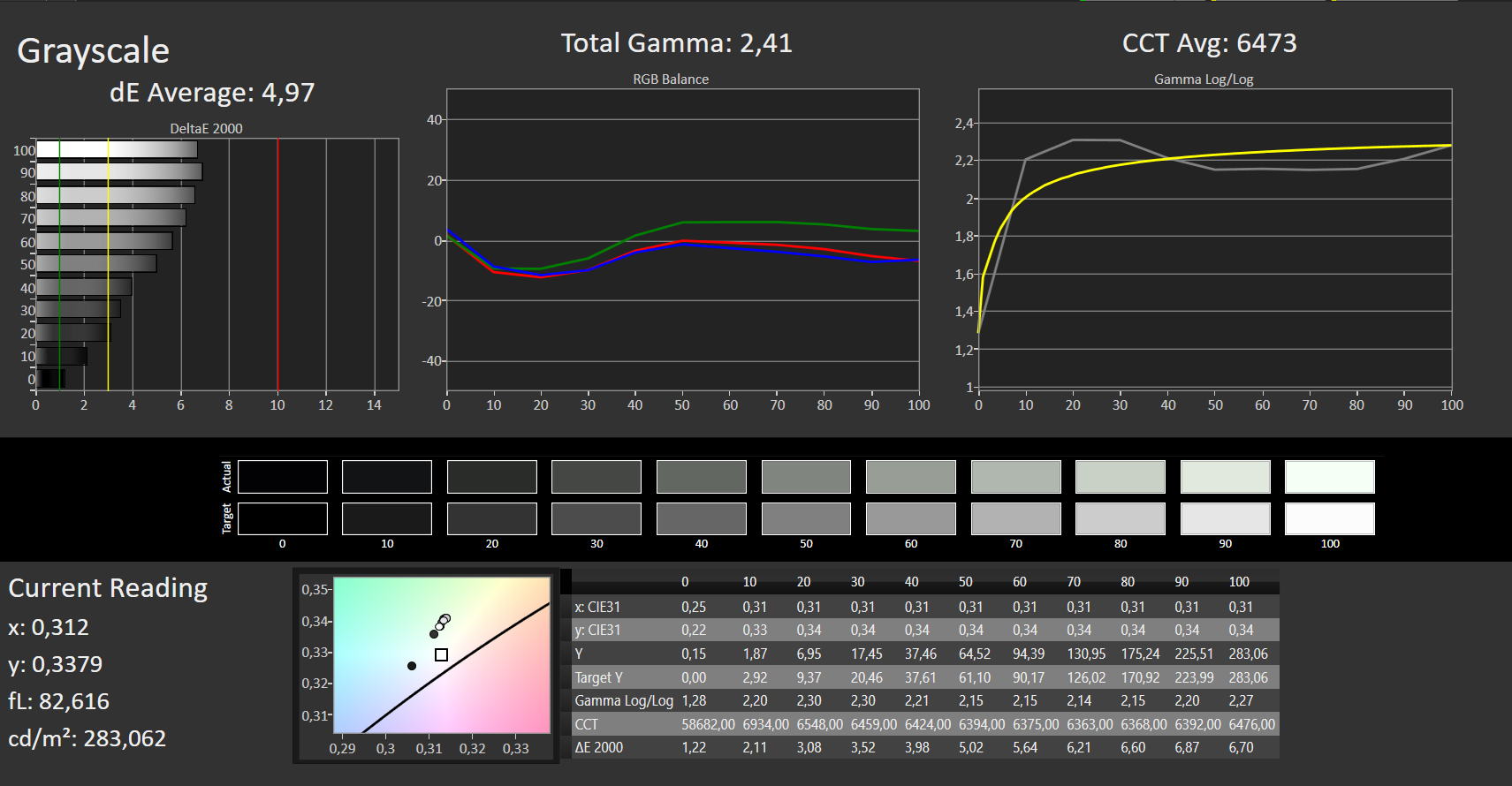

卡尔曼--灰鳞
卡尔曼--灰鳞

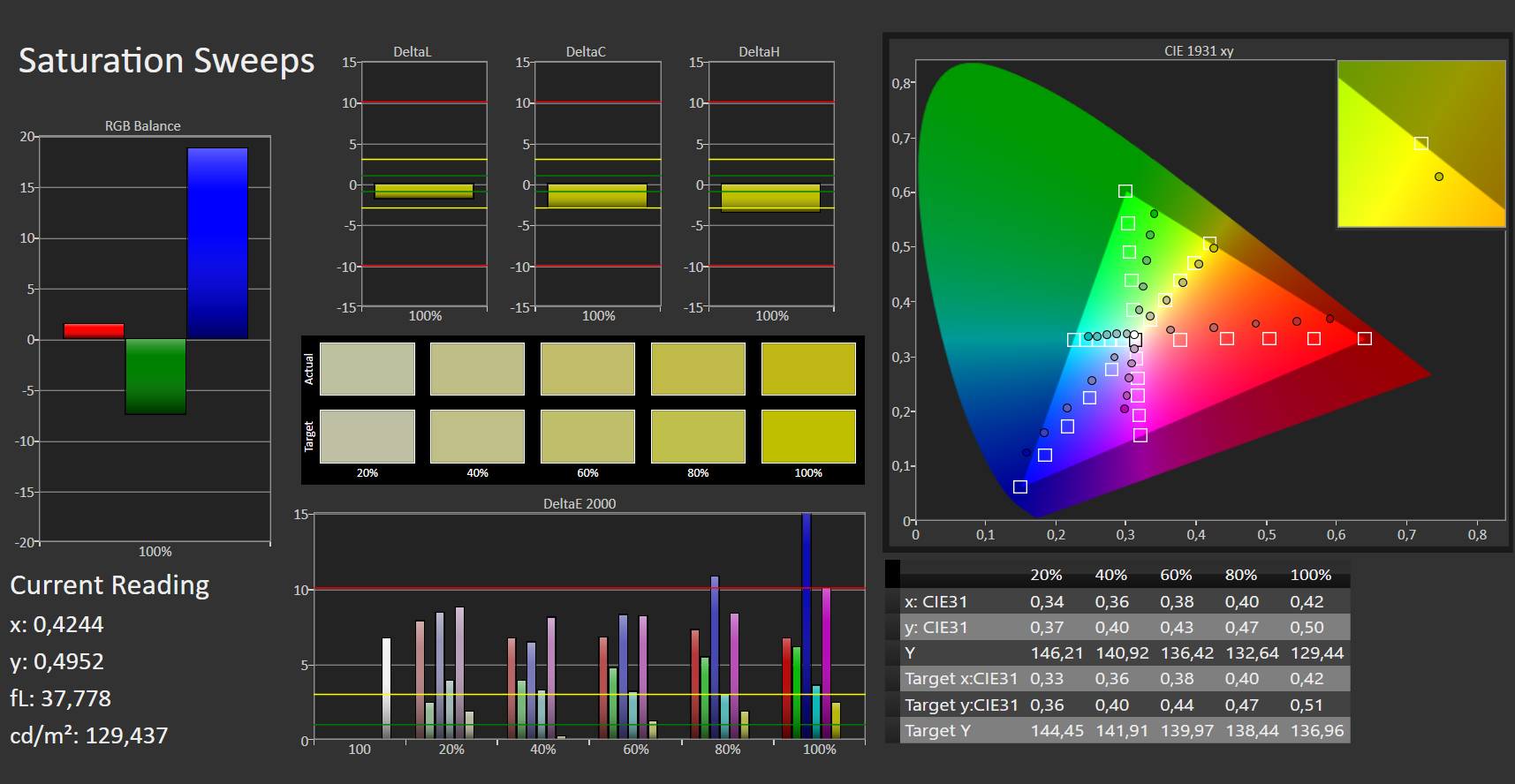

CalMAN - 色彩饱和度
CalMAN - 色彩饱和度

视角稳定的IPS面板可以从任何位置阅读。在户外,这通常会受到光泽的屏幕表面和低显示亮度的阻碍。

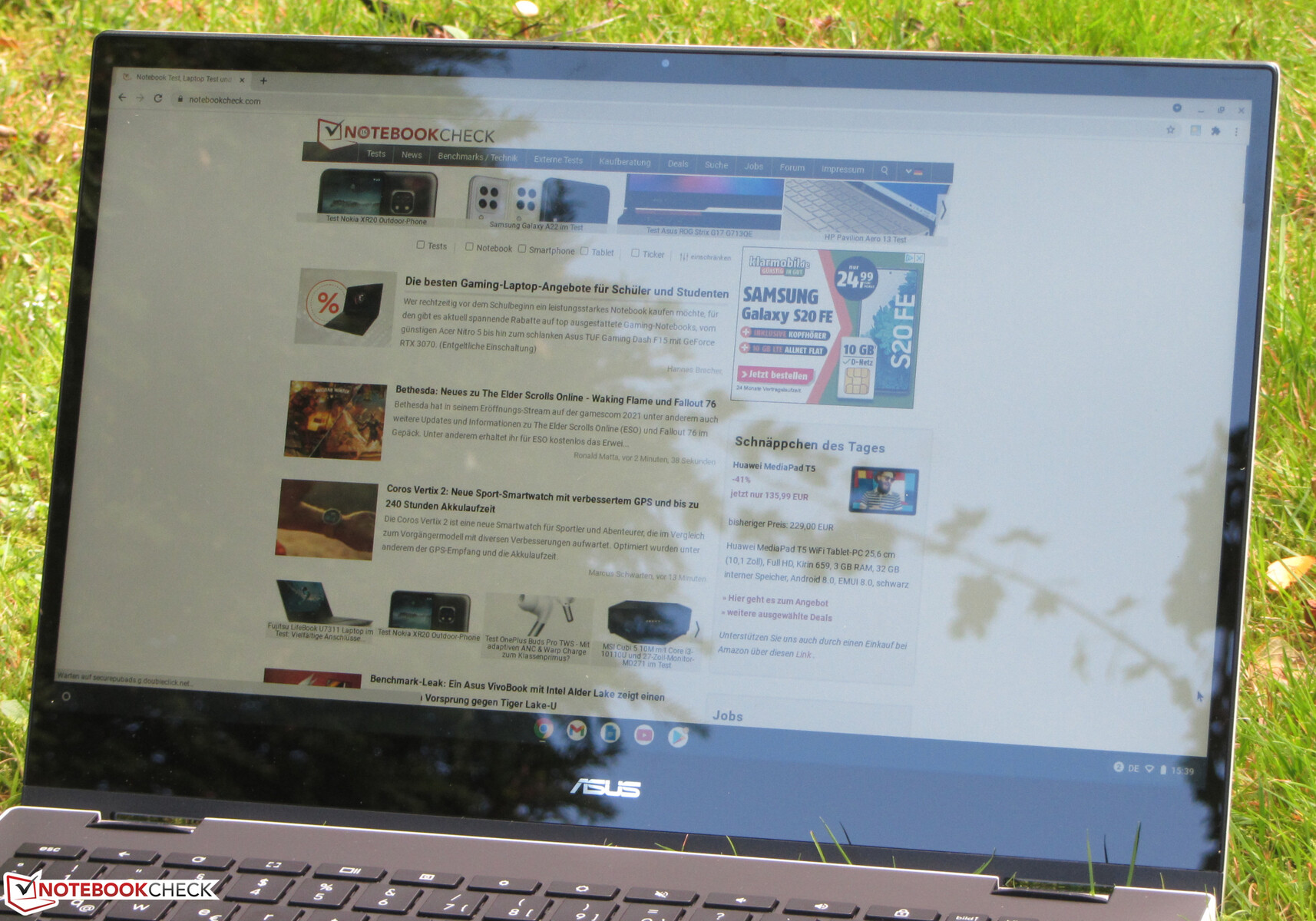

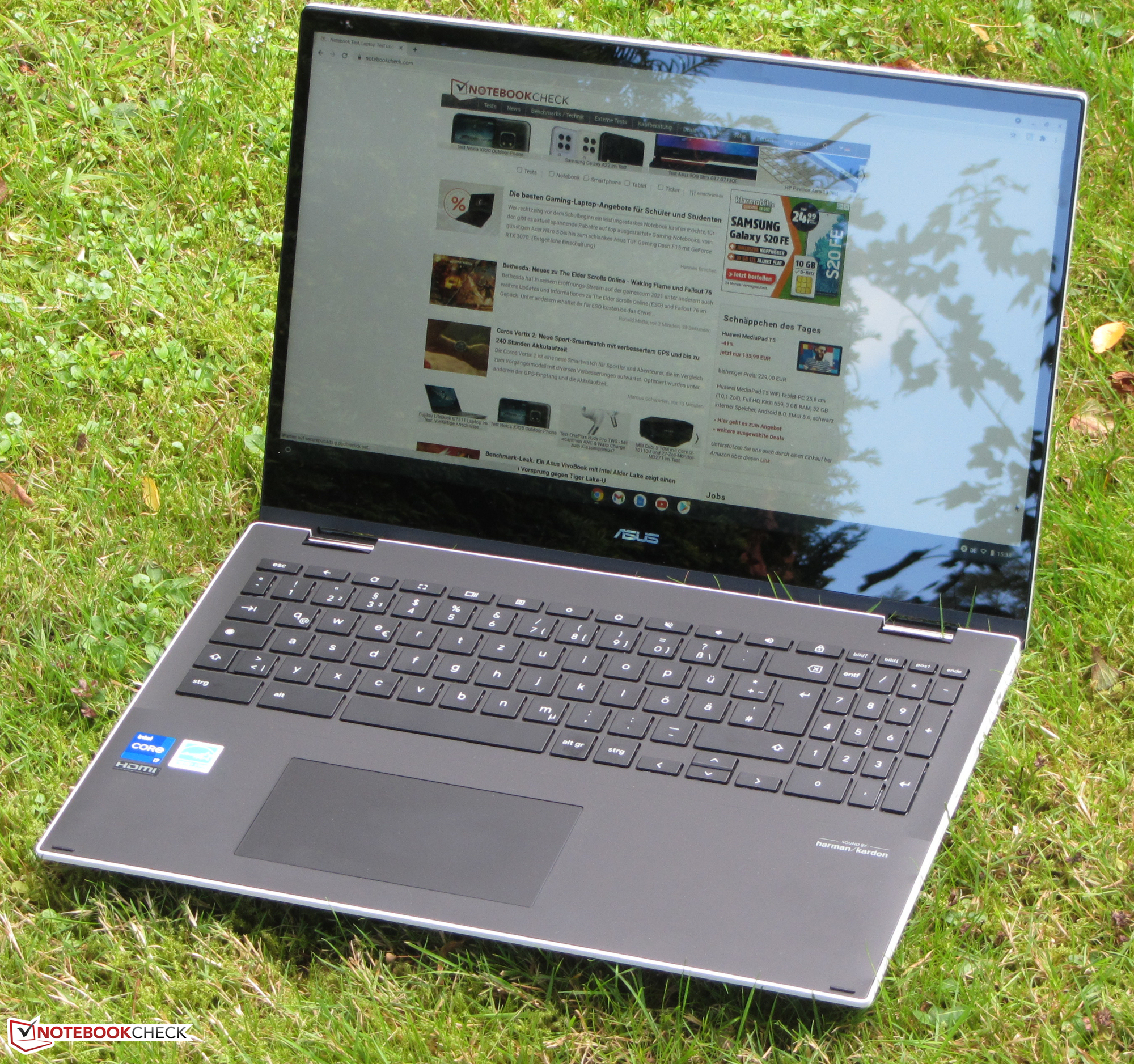

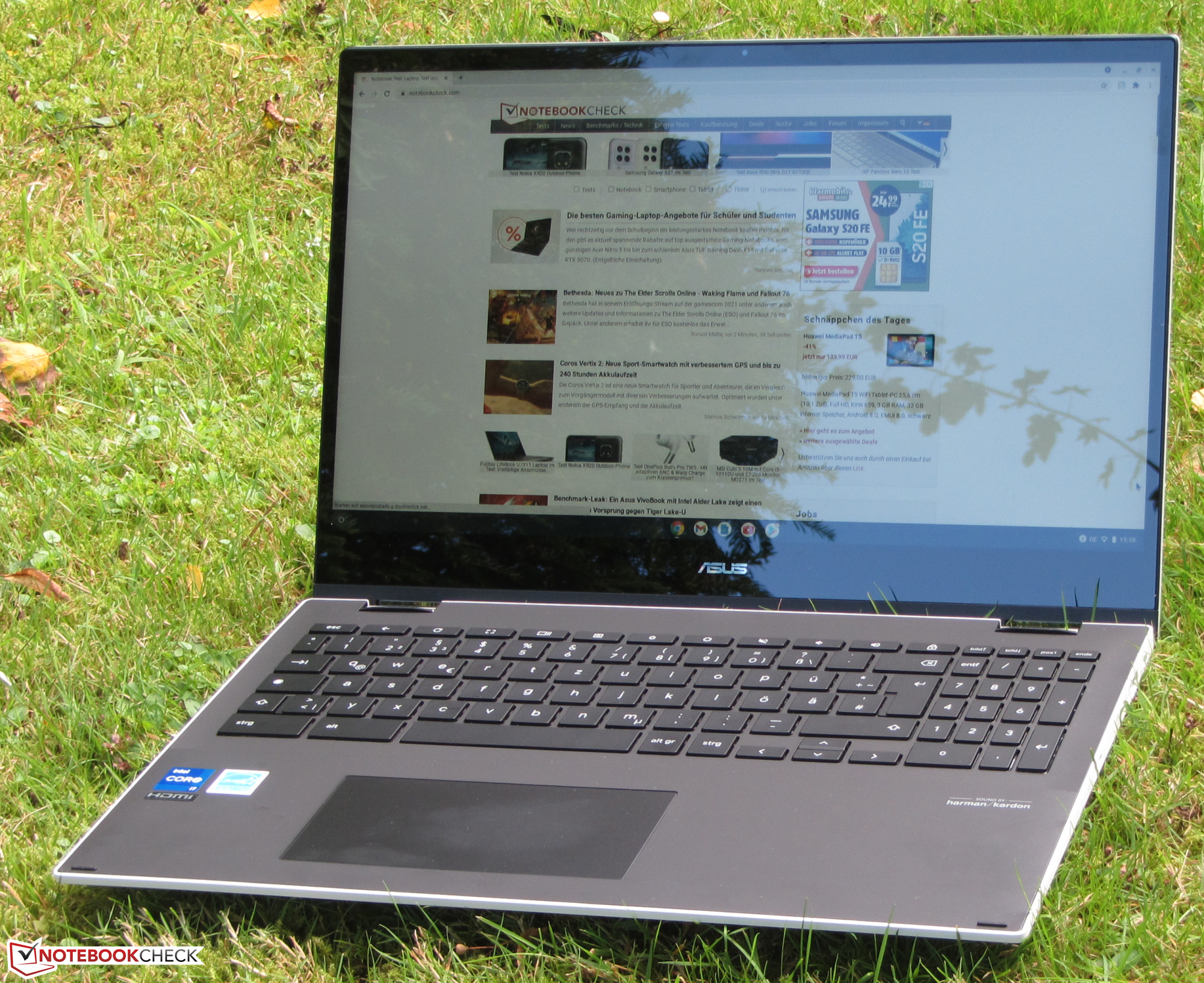

CX5在户外。
CX5在户外。

性能 - 华硕采用Tiger Lake

有了Chromebook Flip CX5,华硕在其产品系列中拥有了一款15.6英寸的Chromebook 转换器,为办公和互联网应用提供足够的性能。

处理器

Core i7-1165G7四核处理器(Tiger Lake)以2.8 GHz的基本时钟速率运行。通过Turbo可以提高到4.1 GHz(四个核心)或4.7 GHz(一个核心)。支持超线程(每个核心两个线程)。

该处理器在浏览器基准测试中表现良好,提供高于平均水平的结果。

Geekbench 5.3
64 Bit Single-Core Score
Average Intel Core i7-1165G7
  (882 - 1595, n=61)
1515 Points ∼100% +16%
HP Pavilion x360 15-er0155ng
Intel Core i5-1135G7
1417 Points ∼94% +9%
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7
1401 Points ∼92% +8%
Asus Chromebook Flip CX5 CX5500FEA
Intel Core i7-1165G7
1302 Points ∼86%
Average of class Convertible
  (263 - 1566, n=77, last 2 years)
1200 Points ∼79% -8%
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Ryzen 7 5700U
1186 Points ∼78% -9%
Acer Chromebook Spin 713 CP713-2W-560V
Intel Core i5-10210U
949 Points ∼63% -27%
64 Bit Multi-Core Score
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Ryzen 7 5700U
6630 Points ∼100% +71%
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7
5329 Points ∼80% +38%
Average Intel Core i7-1165G7
  (1821 - 5926, n=61)
5141 Points ∼78% +33%
HP Pavilion x360 15-er0155ng
Intel Core i5-1135G7
5059 Points ∼76% +31%
Average of class Convertible
  (707 - 8620, n=77, last 2 years)
4327 Points ∼65% +12%
Asus Chromebook Flip CX5 CX5500FEA
Intel Core i7-1165G7
3872 Points ∼58%
Acer Chromebook Spin 713 CP713-2W-560V
Intel Core i5-10210U
3314 Points ∼50% -14%
Sunspider - 1.0 Total Score
Average of class Convertible
  (136 - 716, n=5, last 2 years)
329 ms * ∼100% -142%
Acer Chromebook Spin 713 CP713-2W-560V
Intel Core i5-10210U (Chrome 90)
251.5 ms * ∼76% -85%
Average Intel Core i7-1165G7

136 ms * ∼41% -0%
Asus Chromebook Flip CX5 CX5500FEA
Intel Core i7-1165G7 (Chrome 92)
135.9 ms * ∼41%
Octane V2 - Total Score
Asus Chromebook Flip CX5 CX5500FEA
Intel Core i7-1165G7 (Chrome 92)
65153 Points ∼100%
Average Intel Core i7-1165G7
  (59389 - 66649, n=16)
63594 Points ∼98% -2%
HP Pavilion x360 15-er0155ng
Intel Core i5-1135G7 (Edge 91)
58872 Points ∼90% -10%
Average of class Convertible
  (9656 - 66881, n=43, last 2 years)
41700 Points ∼64% -36%
Acer Chromebook Spin 713 CP713-2W-560V
Intel Core i5-10210U (Chrome 90)
41604 Points ∼64% -36%
Mozilla Kraken 1.1 - Total Score
Acer Chromebook Spin 713 CP713-2W-560V
Intel Core i5-10210U (Chrome 90)
1066.9 ms * ∼100% -81%
Average of class Convertible
  (591 - 3957, n=90, last 2 years)
1036 ms * ∼97% -75%
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Ryzen 7 5700U (Chrome 82)
796 ms * ∼75% -35%
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7 (Chrome 82)
712 ms * ∼67% -21%
HP Pavilion x360 15-er0155ng
Intel Core i5-1135G7 (Chrome 82)
711 ms * ∼67% -20%
Average Intel Core i7-1165G7
  (591 - 764, n=61)
647 ms * ∼61% -10%
Asus Chromebook Flip CX5 CX5500FEA
Intel Core i7-1165G7 (Chrome 92)
590.8 ms * ∼55%
WebXPRT 3 - ---
Asus Chromebook Flip CX5 CX5500FEA
Intel Core i7-1165G7 (Chrome 92)
314 Points ∼100%
Average Intel Core i7-1165G7
  (213 - 314, n=55)
253 Points ∼81% -19%
HP Pavilion x360 15-er0155ng
Intel Core i5-1135G7 (Chrome 82)
240 Points ∼76% -24%
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Ryzen 7 5700U (Chrome 82)
217 Points ∼69% -31%
Average of class Convertible
  (48.2 - 314, n=76, last 2 years)
201 Points ∼64% -36%
Acer Chromebook Spin 713 CP713-2W-560V
Intel Core i5-10210U (Chrome 90)
190 Points ∼61% -39%
JetStream 1.1 - Total Score
Asus Chromebook Flip CX5 CX5500FEA
Intel Core i7-1165G7 (Chrome 92)
314.9 Points ∼100%
Average Intel Core i7-1165G7
  (258 - 315, n=14)
285 Points ∼91% -9%
HP Pavilion x360 15-er0155ng
Intel Core i5-1135G7 (Edge 91)
275.4 Points ∼87% -13%
Average of class Convertible
  (53 - 315, n=36, last 2 years)
229 Points ∼73% -27%
Acer Chromebook Spin 713 CP713-2W-560V
Intel Core i5-10210U (Chrome 90)
191.34 Points ∼61% -39%
Jetstream 2 - Total Score
Asus Chromebook Flip CX5 CX5500FEA
Intel Core i7-1165G7 (Chrome 92)
185.383 Points ∼100%
Average Intel Core i7-1165G7
  (162 - 185, n=22)
172 Points ∼93% -7%
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Ryzen 7 5700U (Edge 90.0.818.49)
148.33 Points ∼80% -20%
Average of class Convertible
  (32.2 - 185, n=29, last 2 years)
140 Points ∼76% -24%

* ... smaller is better

系统性能

流畅的系统没有造成任何问题。Chrome操作系统的加载速度很快,应用程序也能及时启动。该处理器为办公和互联网应用提供了足够的计算能力。

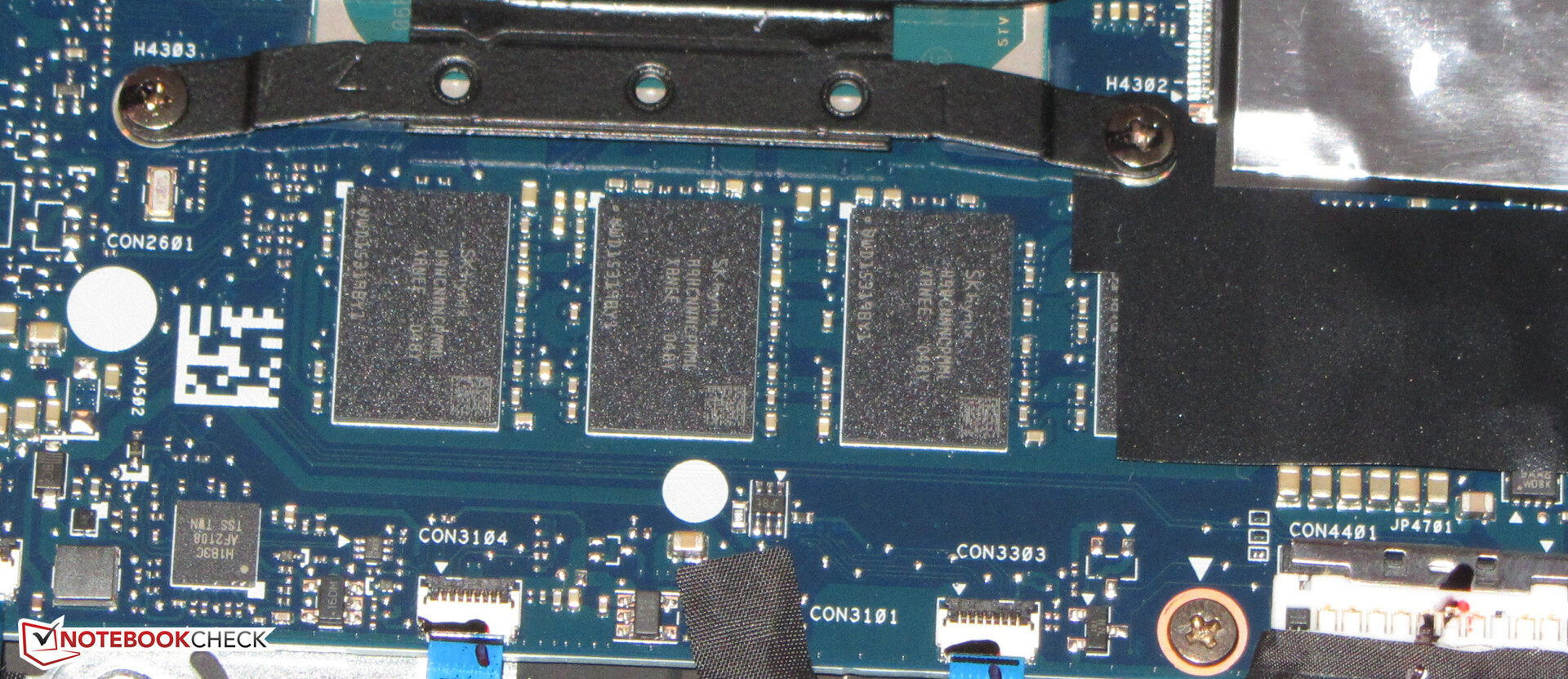

内存(16GB,LPDDR4X)是焊接的,不能扩展。
内存(16GB,LPDDR4X)是焊接的,不能扩展。
PCMark for Android / Work 3.0
Asus Chromebook Flip CX5 CX5500FEA
Iris Xe G7 96EUs, i7-1165G7
12778 Points ∼100%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs

12778 Points ∼100% 0%
Average of class Convertible
  (last 2 years)
12778 Points ∼100% 0%
PCMark for Android / Storage 2.0
Asus Chromebook Flip CX5 CX5500FEA
Iris Xe G7 96EUs, i7-1165G7
20627 Points ∼100%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs

20627 Points ∼100% 0%
Average of class Convertible
  (last 2 years)
20627 Points ∼100% 0%
CrXPRT 2 / Score
Asus Chromebook Flip CX5 CX5500FEA
Iris Xe G7 96EUs, i7-1165G7
181 Points ∼100%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs

181 Points ∼100% 0%
Average of class Convertible
  (41 - 181, n=2, last 2 years)
111 Points ∼61% -39%
CrXPRT 2 / Photo Effects
Average of class Convertible
  (206 - 1114, n=2, last 2 years)
660 Points ∼100% +220%
Asus Chromebook Flip CX5 CX5500FEA
Iris Xe G7 96EUs, i7-1165G7
206 Points ∼31%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs

206 Points ∼31% 0%
CrXPRT 2 / Face Detection
Average of class Convertible
  (1546 - 8609, n=2, last 2 years)
5078 Points ∼100% +228%
Asus Chromebook Flip CX5 CX5500FEA
Iris Xe G7 96EUs, i7-1165G7
1546 Points ∼30%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs

1546 Points ∼30% 0%
CrXPRT 2 / Offline Notes
Average of class Convertible
  (73 - 343, n=2, last 2 years)
208 Points ∼100% +185%
Asus Chromebook Flip CX5 CX5500FEA
Iris Xe G7 96EUs, i7-1165G7
73 Points ∼35%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs

73 Points ∼35% 0%
CrXPRT 2 / Stocks Dashboard
Average of class Convertible
  (115 - 533, n=2, last 2 years)
324 Points ∼100% +182%
Asus Chromebook Flip CX5 CX5500FEA
Iris Xe G7 96EUs, i7-1165G7
115 Points ∼35%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs

115 Points ∼35% 0%
CrXPRT 2 / DNA Sequence Analysis
Average of class Convertible
  (174 - 955, n=2, last 2 years)
565 Points ∼100% +225%
Asus Chromebook Flip CX5 CX5500FEA
Iris Xe G7 96EUs, i7-1165G7
174 Points ∼31%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs

174 Points ∼31% 0%
CrXPRT 2 / 3D Shapes
Average of class Convertible
  (5149 - 10680, n=2, last 2 years)
7915 Points ∼100% +54%
Asus Chromebook Flip CX5 CX5500FEA
Iris Xe G7 96EUs, i7-1165G7
5149 Points ∼65%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs

5149 Points ∼65% 0%

储存

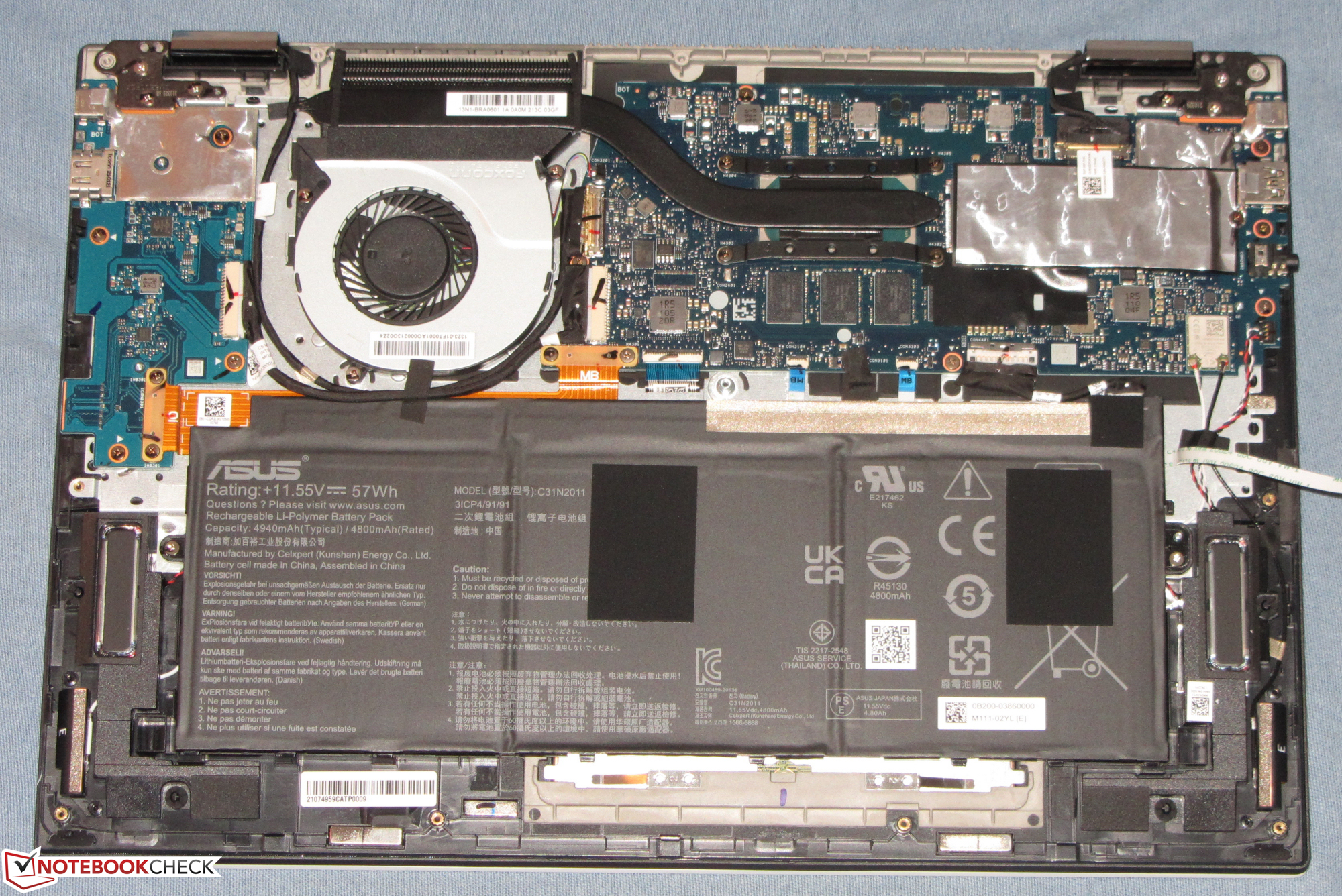

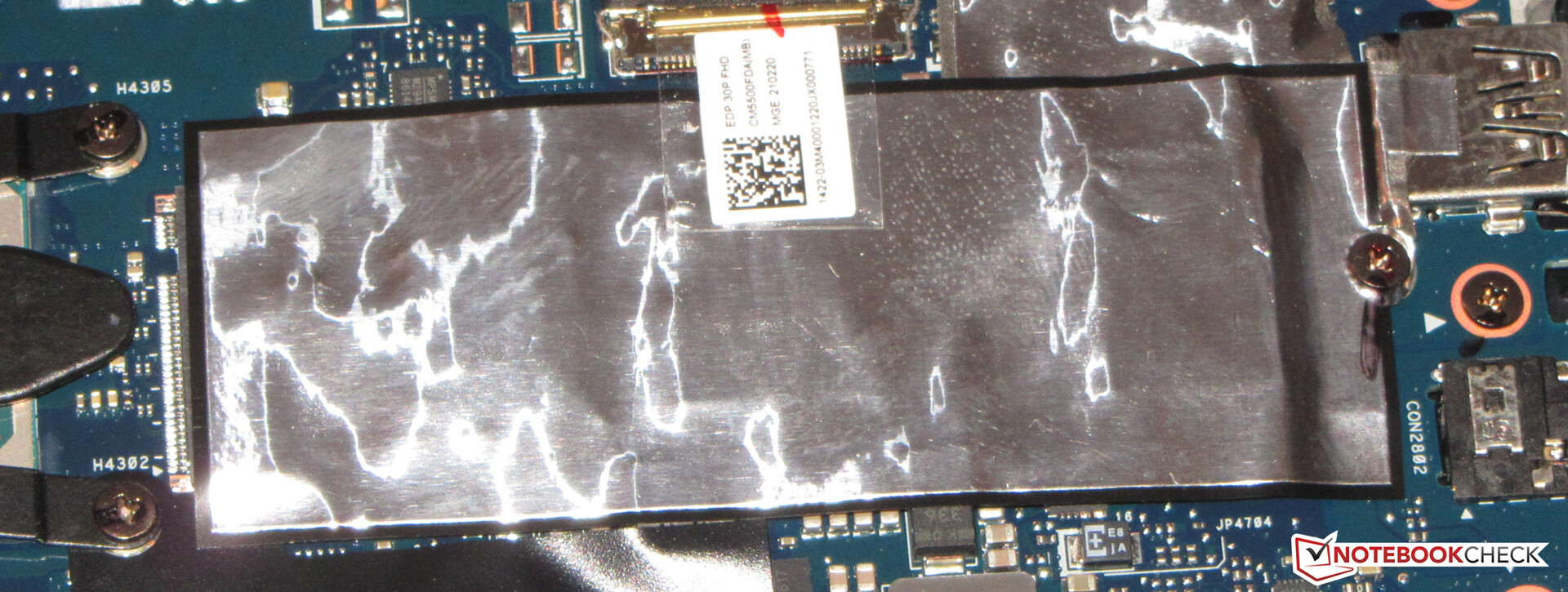

华硕为CX5配备了一块512GB NVMe固态硬盘(M.2-2280)。更换SSD是可能的。

一个NVMe SSD作为系统驱动器。
一个NVMe SSD作为系统驱动器。

图形卡

Iris Xe Graphics G7 96EU图形核心(400至1,300 MHz)负责图形输出。集成在GPU中的解码器可以在播放H.264和HEVC/H.265等常见格式的视频时卸载处理器。

3DMark
2560x1440 Sling Shot OpenGL ES 3.0 Unlimited Graphics
Asus Chromebook Flip CX5 CX5500FEA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
28890 Points ∼100%
Average Intel Iris Xe Graphics G7 96EUs

28890 Points ∼100% 0%
Average of class Convertible
  (1380 - 28890, n=3, last 2 years)
12759 Points ∼44% -56%
Acer Chromebook Spin 713 CP713-2W-560V
Intel UHD Graphics 620, Intel Core i5-10210U
8007 Points ∼28% -72%
1280x720 offscreen Ice Storm Unlimited Graphics Score
Asus VivoBook Flip 14 TP470EZ
Intel Iris Xe MAX Graphics, Intel Core i5-1135G7
271921 Points ∼100% +45%
Average Intel Iris Xe Graphics G7 96EUs
  (181153 - 212658, n=10)
200079 Points ∼74% +7%
Asus Chromebook Flip CX5 CX5500FEA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
187300 Points ∼69%
HP Pavilion x360 15-er0155ng
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
167562 Points ∼62% -11%
Average of class Convertible
  (21008 - 391093, n=38, last 2 years)
150311 Points ∼55% -20%
Acer Chromebook Spin 713 CP713-2W-560V
Intel UHD Graphics 620, Intel Core i5-10210U
79523 Points ∼29% -58%

Emissions and energy - The Asus Chromebook provides good battery life

噪声排放

总体而言,敞篷车产生的噪音很小。在日常使用中,风扇经常处于静止状态,一片寂静。只有在硬件负载较高时,风扇才会打开。最大声压级为41.8 dB(A),对于这个性能级别的设备来说是一个正常值。

Noise Level

Idle
26 / 26 / 26 dB(A)
Load
28.5 / 41.8 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 26 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2027.924.628.227.92531.327.932.231.33129.129.131.929.14026.32527.826.35028.729.428.628.76323.920.82423.98018.11822.618.110017.917.918.317.912519.618.418.419.616021.818.616.921.820023.219.31623.225020.316.814.220.331523.516.413.723.540024.216.11324.250025.415.612.525.463026.215.312.426.280026.716.112.626.7100027.816.712.427.8125031.619.912.731.6160031.716.312.931.7200036.416.313.736.4250031.51613.731.5315027.915.21427.940002715.114.127500025.815.214.425.8630022.915.314.522.9800021.316.715.121.31000023.918.21523.91250023.817.21523.81600018.715.413.518.7SPL41.928.525.941.9N3.41.10.73.4median 24.2median 16.3median 14median 24.2Delta2.81.212.8hearing rangehide median Fan NoiseAsus Chromebook Flip CX5 CX5500FEA
Asus Chromebook Flip CX5 CX5500FEA
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
HP Pavilion x360 15-er0155ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000)
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7, Intel Iris Xe MAX Graphics
Acer Chromebook Spin 713 CP713-2W-560V
Intel Core i5-10210U, Intel UHD Graphics 620
Noise
-3%
-5%
-16%
3%
off / environment *
26
26
-0%
24.6
5%
29.95
-15%
24.9
4%
Idle Minimum *
26
26
-0%
24.9
4%
29.95
-15%
24.9
4%
Idle Average *
26
26
-0%
24.9
4%
29.95
-15%
27
-4%
Idle Maximum *
26
26
-0%
24.9
4%
29.95
-15%
29.9
-15%
Load Average *
28.5
35.1
-23%
41.1
-44%
39.84
-40%
26.8
6%
Load Maximum *
41.8
39.6
5%
43.5
-4%
39.84
5%
32.9
21%
Witcher 3 ultra *
43.5
42.3

* ... smaller is better

温度

Chromebook 并没有发热太多。在负载情况下(Octane V2和Jetstream基准循环运行),在一个测量点上超过了40 °C(约104 °F)的标志。在日常使用中(办公和互联网应用),这些数值明显保持在绿色范围内。

Max. Load
 34.9 °C36.9 °C29.6 °C
 31.7 °C28 °C26.6 °C
 25.4 °C24.8 °C23.9 °C
Maximum: 36.9 °C
Average: 29.1 °C
28.5 °C34.5 °C41.4 °C
26.5 °C31 °C30.6 °C
24.2 °C24.9 °C25.7 °C
Maximum: 41.4 °C
Average: 29.7 °C
Power Supply (max.)  37.5 °C | Room Temperature 22.4 °C | FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 29.1 °C / 84 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 36.9 °C / 98 F, compared to the average of 35.3 °C / 96 F, ranging from 21.8 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 41.4 °C / 107 F, compared to the average of 36.6 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 23.5 °C / 74 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 25.4 °C / 77.7 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 28.5 °C / 83.3 F (+3.1 °C / 5.6 F).

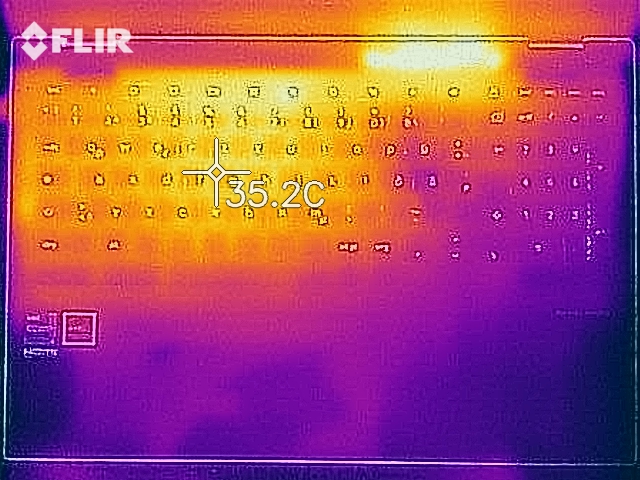

热量发展--顶部(负载)
热量发展--顶部(负载)

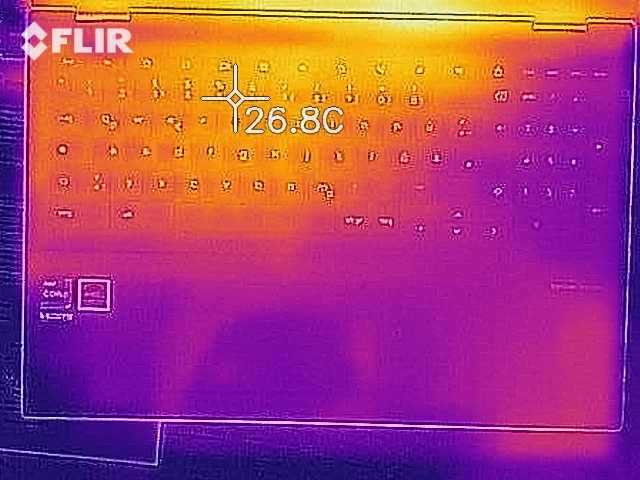

热量发展--顶部(空闲
热量发展--顶部(空闲

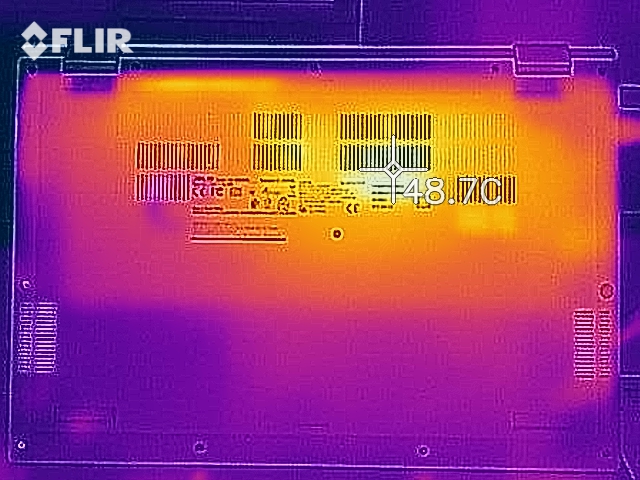

热量的发展 - 底部(负载)
热量的发展 - 底部(负载)

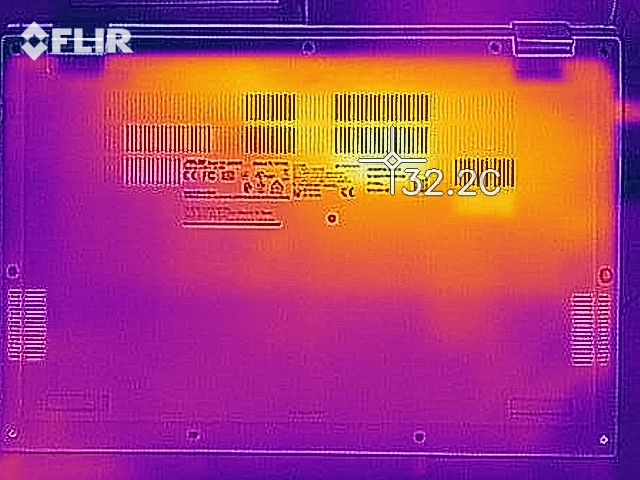

热量发展 - 底部(空闲)。
热量发展 - 底部(空闲)。
Asus Chromebook Flip CX5 CX5500FEA
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
HP Pavilion x360 15-er0155ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000)
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7, Intel Iris Xe MAX Graphics
Acer Chromebook Spin 713 CP713-2W-560V
Intel Core i5-10210U, Intel UHD Graphics 620
Heat
-5%
-33%
-10%
10%
Maximum Upper Side *
36.9
39.9
-8%
52.8
-43%
41
-11%
31.8
14%
Maximum Bottom *
41.4
43.1
-4%
42.8
-3%
41.2
-0%
36
13%
Idle Upper Side *
25.4
26.3
-4%
31.8
-25%
29.6
-17%
24.1
5%
Idle Bottom *
26.9
27.4
-2%
43
-60%
30
-12%
24.6
9%

* ... smaller is better

发言人

立体声扬声器产生了一个体面的声音,但它几乎没有任何低音功能。

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2027.128.227.12528.932.228.93130.331.930.34023.727.823.75030.528.630.56327.52427.58036.922.636.910044.518.344.512551.618.451.616054.416.954.420048.61648.625058.914.258.93156713.76740069.81369.850068.812.568.863068.912.468.980075.212.675.2100073.712.473.7125070.712.770.716007212.972200070.213.770.2250068.113.768.1315066.51466.5400069.414.169.4500070.314.470.3630077.314.577.380008215.1821000084.11584.11250075.31575.31600073.813.573.8SPL87.325.987.3N69.50.769.5median 69.8median 14median 69.8Delta5.715.720.921.920.927.232.127.228.335.528.319.22419.220.12620.120.321.720.316.722.816.717.920.517.916.318.616.321.214.521.228.614.528.647.213.547.253.914.353.957.113.457.15912.65961.710.561.768.911.368.97011.5707111.37171.811.371.876.212.176.276.512.476.576.412.876.477.61377.681.513.381.576.513.676.580.71480.781.914.581.974.713.274.762.913.262.988.724.888.771.40.671.4median 70median 13.2median 7015.2115.2hearing rangehide median Pink NoiseAsus Chromebook Flip CX5 CX5500FEAAcer Chromebook Spin 713 CP713-2W-560V
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Asus Chromebook Flip CX5 CX5500FEA audio analysis

(+) | speakers can play relatively loud (84.07 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 15.7% lower than median
(±) | linearity of bass is average (12.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.8% away from median
(+) | mids are linear (4% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.7% higher than median
(+) | highs are linear (5.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (12.3% difference to median)
Compared to same class
» 8% of all tested devices in this class were better, 2% similar, 90% worse
» The best had a delta of 6%, average was 21%, worst was 53%
Compared to all devices tested
» 8% of all tested devices were better, 2% similar, 90% worse
» The best had a delta of 3%, average was 20%, worst was 65%

Acer Chromebook Spin 713 CP713-2W-560V audio analysis

(±) | speaker loudness is average but good (81.93 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 39.2% lower than median
(±) | linearity of bass is average (11.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 5.3% lower than median
(+) | mids are linear (4.9% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 8.7% higher than median
(+) | highs are linear (4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (26.8% difference to median)
Compared to same class
» 81% of all tested devices in this class were better, 5% similar, 14% worse
» The best had a delta of 6%, average was 21%, worst was 53%
Compared to all devices tested
» 82% of all tested devices were better, 5% similar, 13% worse
» The best had a delta of 3%, average was 20%, worst was 65%

能源消耗

华硕笔记本电脑在能源消耗方面没有显示任何不正常的情况。在整个负载范围内,该设备是相当节俭的。附带的USB-C电源适配器的额定功率为45瓦。

Power Consumption
Off / Standbydarklight 0.3 / 0.5 Watt
Idledarkmidlight 3.4 / 6.5 / 7.8 Watt
Load midlight 12.5 / 30.1 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Asus Chromebook Flip CX5 CX5500FEA
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
HP Pavilion x360 15-er0155ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000)
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7, Intel Iris Xe MAX Graphics
Acer Chromebook Spin 713 CP713-2W-560V
Intel Core i5-10210U, Intel UHD Graphics 620
Power Consumption
-61%
-74%
-168%
-14%
Idle Minimum *
3.4
5.4
-59%
4
-18%
8.6
-153%
2.7
21%
Idle Average *
6.5
8.8
-35%
6.6
-2%
9.56
-47%
5.5
15%
Idle Maximum *
7.8
10.4
-33%
7
10%
25.82
-231%
6.7
14%
Load Average *
12.5
33
-164%
42.6
-241%
47
-276%
25
-100%
Load Maximum *
30.1
34.6
-15%
65.5
-118%
69.48
-131%
36
-20%
Witcher 3 ultra *
33.6
40.8
45.9

* ... smaller is better

电池寿命

在我们的实际Wi-Fi测试中,华硕CX5的运行时间达到了9:21小时。这里,用一个脚本来模拟访问网站所造成的负载。

Battery Runtime
NBC WiFi Websurfing Battery Test 1.3 (Chrome 92)
9h 21min
Battery Runtime - WiFi Websurfing 1.3
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
R7 5700U, Vega 8 R4000, 52 Wh
738 min ∼28% +32%
Acer Chromebook Spin 713 CP713-2W-560V
i5-10210U, UHD Graphics 620, 50.3 Wh
619 min ∼23% +10%
Average of class Convertible
  (248 - 1141, n=90, last 2 years)
574 min ∼22% +2%
Asus Chromebook Flip CX5 CX5500FEA
i7-1165G7, Iris Xe G7 96EUs, 57 Wh
561 min ∼21%
Asus VivoBook Flip 14 TP470EZ
i5-1135G7, Xe MAX, 42 Wh
440.9 min ∼17% -21%
HP Pavilion x360 15-er0155ng
i5-1135G7, Iris Xe G7 80EUs, 43.3 Wh
408 min ∼15% -27%

Pros

+ IPS显示屏
+ NVMe SSD
+ 几乎不发热
+ 大部分时间都在安静地运行
+ 良好的电池寿命
+ 背光键盘
+ USB 3.2 Gen 2
+ 通过USB-C显示端口
+ 电源交付
+ 三个视频输出
+ ax WLAN
+ Android 应用程序可以使用

Cons

- 反射性显示表面
- 焊接的RAM(不可扩展
- 价格高

结论 - 华硕将CX5的价格水平定得太高了

华硕Chromebook Flip CX5 CX5500FEA-E60012(90NX0361-M00120),由德国华硕提供。
华硕Chromebook Flip CX5 CX5500FEA-E60012(90NX0361-M00120),由德国华硕提供。

Core i7-1165G7处理器,16GB内存(板载,不可扩展),以及512GB NVMe固态硬盘(M.2-2280),使CX5具备了涉及Chromebook 的所有可以想象的应用场景。该设备通常安静地运行,几乎不发热。

手头的华硕Chromebook Flip CX5的配置变体提供了一个糟糕的性价比。

这款敞篷车并不缺乏耐力。一次电池充电足以让Wi-Fi运行时间达到9:21小时--这很好,但对于一个Chromebook ,并不突出。很好。CX5可以通过两个USB-C接口(USB 3.2 Gen 2;DisplayPort,Power Delivery)进行充电。

触摸屏(全高清,IPS)的得分是稳定的视角,体面的色彩再现,以及良好的对比度。不过,亮度太低。此外,它有一个光亮的表面。一个1200欧元(约1418美元)的设备在这方面应该做得更好。触摸屏可以用手指以及华硕手写笔SA300(起价55欧元(约合65美元),可以单独购买)来操作。

CX5的这一配置变体是我们迄今为止评测过的最强大的Chromebook 。这一事实导致了该设备的主要问题:它的价格略低于1,200欧元(约合1,418美元)--对于一个应用范围狭窄的二合一笔记本电脑来说,这是一笔很大的开支。该系列的入门级型号(Core i3-1115G4,8GB内存,128GB固态硬盘;约599欧元(约708美元))将是一个更协调的选择。

Chromebook Flip CX5的替代产品是AcerChromebook Spin 713 CP713-2W 。它 "只有 "一个13.5英寸的显示屏,但它是3:2的格式。此外,该设备提供稍好的电池寿命和全金属外壳。价格从550欧元(约650美元)起。

价格和可用性

在撰写本文时,华硕Chromebook Flip CX5在美国被列为 "即将上市"。你可以亚马逊 ,以699美元的价格预购该设备的入门级型号(Core i3-1110G4,8GB内存,128GB SSD,手写笔)配备酷睿i7-1160G7、16GB内存和512GB固态硬盘的版本可在制造商的在线商店 ,售价1049.99美元

Asus Chromebook Flip CX5 CX5500FEA - 09/04/2021 v7
Sascha Mölck

Chassis
75 / 98 → 77%
Keyboard
80%
Pointing Device
85%
Connectivity
54 / 75 → 72%
Weight
64 / 20-75 → 79%
Battery
87%
Display
78%
Games Performance
66 / 78 → 84%
Application Performance
95 / 85 → 100%
Temperature
94%
Noise
94%
Audio
79 / 91 → 87%
Camera
40 / 85 → 47%
Average
76%
84%
Convertible - Weighted Average

Pricecompare

Stephanie Chamberlain
Editor of the original article: Stephanie Chamberlain - Translator - 413 articles published on Notebookcheck since 2020
contact me via: LinkedIn
Stefan Hinum
Translator: Stefan Hinum - Founder, CEO, CFO - 18072 articles published on Notebookcheck since 2006
Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > 华硕Chromebook Flip CX5在回顾。1,200欧元的Chromebook?
Sascha Mölck, 2021-09- 9 (Update: 2021-09- 9)
