宏碁 Chromebook 14 工作版 (i5 6200U, 8 GB) 简短评测

Nino Ricchizzi (translated by Delta Zhang), 07/24/2017
Skylake Chromebook

Chrome 笔记本。 宏碁 Chromebook 14内建了完整的笔记本的硬件配置。作为一台办公工具,它是成功的。但是其硬件无法发挥其所有的性能。

Acer Chromebook 14 CP5-471-53QV
Graphics adapter
Intel HD Graphics 520
Memory
8192 MB
, DDR3 存储, 单通道, 固定, 板载
Display
14 inch 16:9, 1920x1080 pixel 157 PPI, IPS, glossy: no
Storage
32 GB eMMC Flash, 32 GB
Connections
3 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Kensington Lock, Audio Connections: 复合音频接口, Card Reader: SD卡读卡器
Networking
Intel Dual Band Wireless-AC 7265 (a/b/g/h/n/ac), Bluetooth 4.2
Size
height x width x depth (in mm): 22.4 x 330.9 x 227
Battery
45 Wh, 3920 mAh Lithium-Polymer, 3 芯电池
Operating System
Google Chrome OS
Camera
Webcam: 720p
Additional features
Speakers: 立体声扬声器, Keyboard: 巧克力键盘, Keyboard Light: yes, 24 Months Warranty
Weight
1.4 kg, Power Supply: 274 g
Price
420 Euro

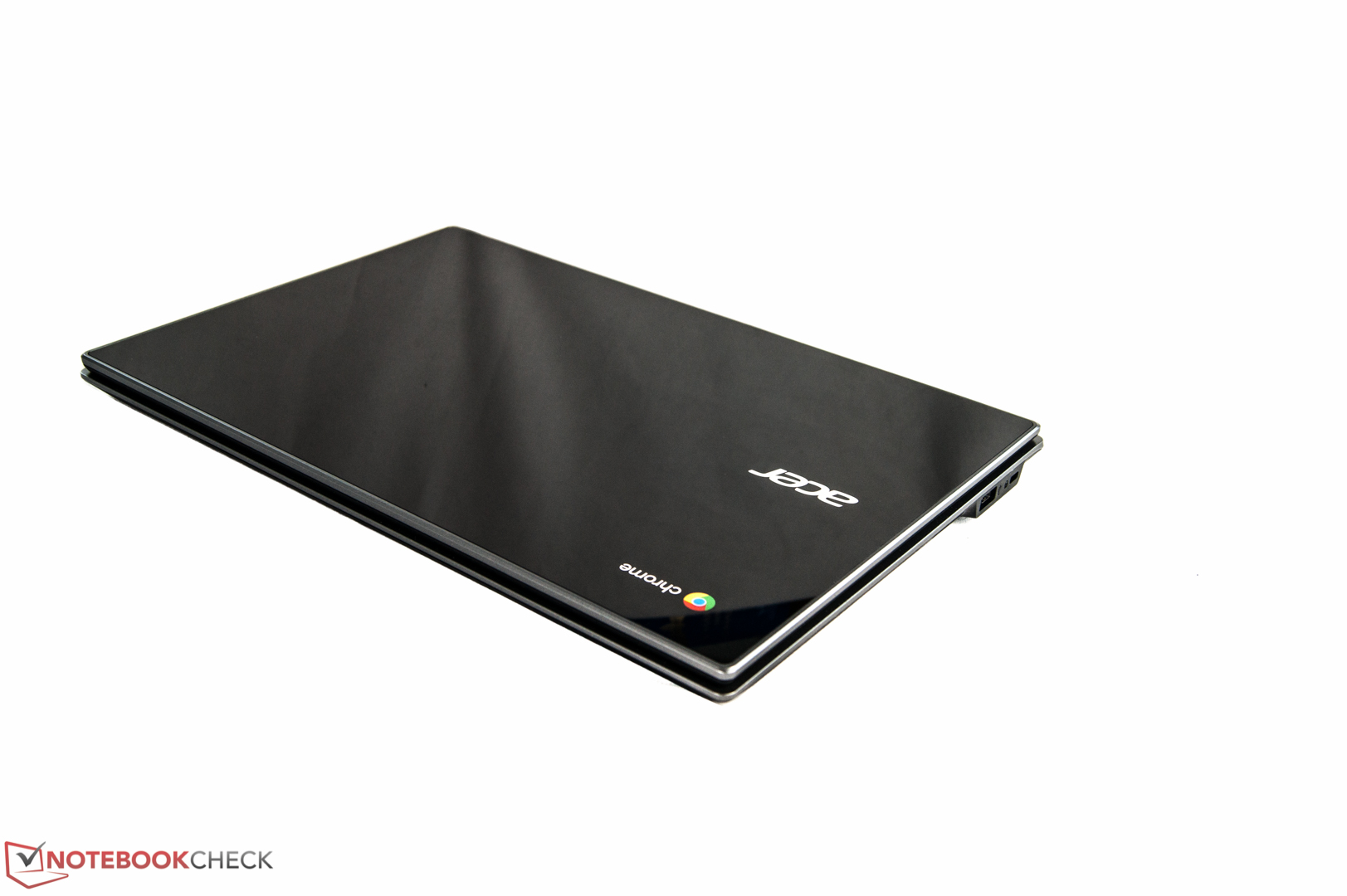

The back is graced by an elegant piano finish.

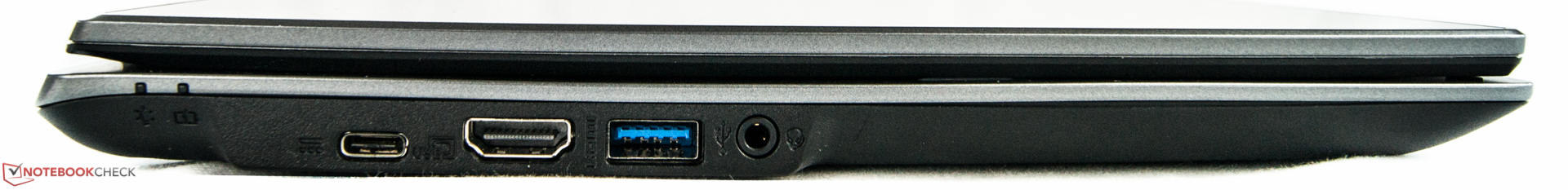

Left: USB Type-C port (power connection), HDMI port, 1x USB 3.0, audio combo
Left: USB Type-C port (power connection), HDMI port, 1x USB 3.0, audio combo

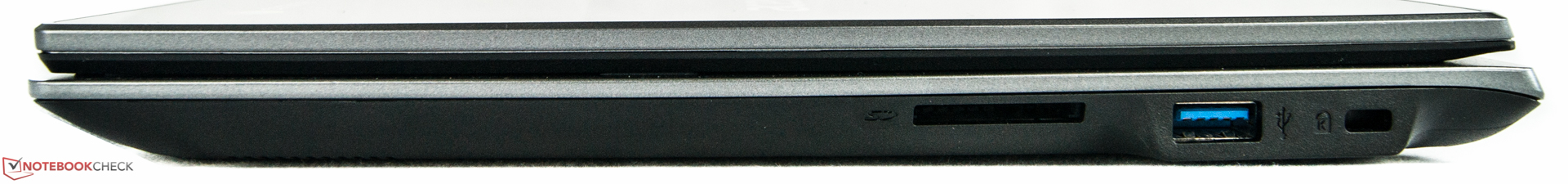

Right: SD card reader, 1x USB 3.0, Kensington Lock
Right: SD card reader, 1x USB 3.0, Kensington Lock
210
cd/m²
223
cd/m²
229
cd/m²
208
cd/m²
214
cd/m²
205
cd/m²
216
cd/m²
207
cd/m²
210
cd/m²
Distribution of brightness
X-Rite i1Pro 2
Maximum: 229 cd/m² Average: 213.6 cd/m² Minimum: 1.1 cd/m²
Brightness Distribution: 90 %
Center on Battery: 214 cd/m²
Contrast: 2140:1 (Black: 0.1 cd/m²)
ΔE Greyscale 3.86 | - Ø
Gamma: 2.42
Acer Chromebook 14 CP5-471-53QV
1920x1080, 14
Lenovo ThinkPad 13 Chromebook
1920x1080, 13.3
HP Chromebook 13 G1 Core m5
3200x1800, 13.3
Acer Chromebook R13 CB5-312T-K0YK
1920x1080, 13.3
Response Times
-16%
-10%
8%
Response Time Grey 50% / Grey 80% *
38 (19, 19)
37.6 (15.2, 22.4)
1%
39.2 (18, 21.2)
-3%
38 (14, 24)
-0%
Response Time Black / White *
27 (16, 11)
36 (5.2, 30.8)
-33%
31.6 (11.6, 20)
-17%
23 (5, 18)
15%
PWM Frequency
1389 (44)
Screen
-110%
-148%
-40%
Brightness
214
261
22%
330
54%
204
-5%
Brightness Distribution
90
92
2%
90
0%
88
-2%
Black Level *
0.1
0.601
-501%
0.804
-704%
0.23
-130%
Contrast
2140
437
-80%
442
-79%
835
-61%
Greyscale DeltaE2000 *
3.86
3.51
9%
4.35
-13%
3.99
-3%
Gamma
2.42 99%
2.17 111%
2.35 102%
2.45 98%
CCT
6276 104%
6476 100%
6269 104%
6380 102%
Colorchecker DeltaE2000 *
4.87
3.75
Total Average (Program / Settings)
-63% / -83%
-79% / -109%
-16% / -27%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

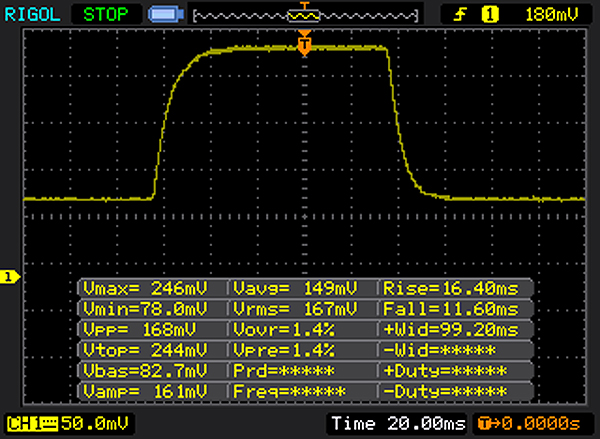

       Response Time Black to White
27 ms ... rise ↗ and fall ↘ combined↗ 16 ms rise
↘ 11 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 52 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (26.7 ms).

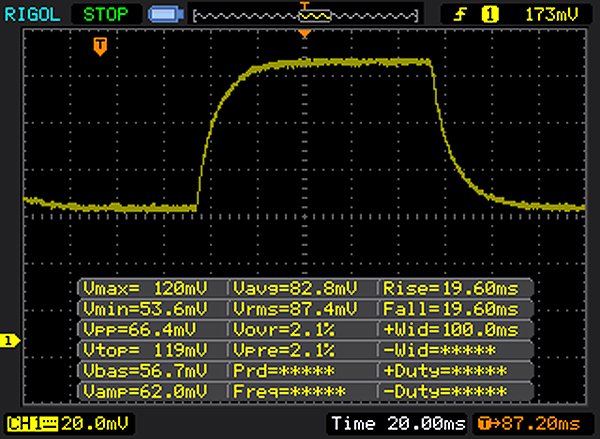

       Response Time 50% Grey to 80% Grey
38 ms ... rise ↗ and fall ↘ combined↗ 19 ms rise
↘ 19 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 34 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (42.8 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 57 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 6272 (minimum: 43 - maximum: 142900) Hz was measured.

JetStream 1.1 - 1.1 Total Score
Lenovo ThinkPad 13 Chromebook
173.25 Points ∼100% +22%
HP Chromebook 13 G1 Core m5
164.01 Points ∼95% +15%
Acer Chromebook 14 CP5-471-53QV
142.28 Points ∼82%
Acer Chromebook R13 CB5-312T-K0YK
56.99 Points ∼33% -60%
Sunspider - 1.0 Total Score
Acer Chromebook R13 CB5-312T-K0YK
577.7 ms * ∼100% -94%
Acer Chromebook 14 CP5-471-53QV
298.2 ms * ∼52%
HP Chromebook 13 G1 Core m5
228.8 ms * ∼40% +23%
Lenovo ThinkPad 13 Chromebook
213 ms * ∼37% +29%
Mozilla Kraken 1.1 - Total Score
Acer Chromebook R13 CB5-312T-K0YK
3297.2 ms * ∼100% -166%
Acer Chromebook 14 CP5-471-53QV
1240 ms * ∼38%
HP Chromebook 13 G1 Core m5
1055.9 ms * ∼32% +15%
Lenovo ThinkPad 13 Chromebook
1007 ms * ∼31% +19%
Octane V2 - Total Score
Lenovo ThinkPad 13 Chromebook
29435 Points ∼100% +7%
HP Chromebook 13 G1 Core m5
28478 Points ∼97% +4%
Acer Chromebook 14 CP5-471-53QV
27414 Points ∼93%
Acer Chromebook R13 CB5-312T-K0YK
10139 Points ∼34% -63%
WebXPRT 2015 - Overall Score
Acer Chromebook 14 CP5-471-53QV
373 Points ∼100%
Lenovo ThinkPad 13 Chromebook
359 Points ∼96% -4%
HP Chromebook 13 G1 Core m5
347 Points ∼93% -7%
Acer Chromebook R13 CB5-312T-K0YK
138 Points ∼37% -63%

Legend


Acer Chromebook 14 CP5-471-53QV Intel Core i5-6200U, Intel HD Graphics 520, 32 GB eMMC Flash

Acer Chromebook R13 CB5-312T-K0YK Mediatek MT8173C, PowerVR GX6250, 32 GB eMMC Flash

Lenovo ThinkPad 13 Chromebook Intel Core i5-6300U, Intel HD Graphics 520, 32 GB eMMC Flash

HP Chromebook 13 G1 Core m5 Intel Core m5-6Y57, Intel HD Graphics 515,

* ... smaller is better

Noise Level

Idle
30.6 / 30.6 / 31.7 dB(A)
Load
33.1 / 34 dB(A)



30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm distance)   environment noise: 30.6 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2030.636.537.435.53530.62530.730.632.23328.230.73131.829.331.230.525.431.84031.229.929.436.129.831.25030.129.630.537.728.530.16331.126.931.630.328.931.18029.727.728.530.429.129.710029.527.227.427.428.929.512527.126.926.925.828.427.116025.123.925.8272725.120026.124.125.726.523.826.125023.822.62423.322.723.831523.122.223.824.821.923.14002221.122.422.620.92250021.320.722.322.420.521.363020.520.22121.819.520.580020.719.521.821.918.420.7100020.618.82322.418.220.6125019.618.922.121.417.819.616002018.323.121.9182020001918.124.222.217.819250018.618.224.320.917.818.6315018.217.82019.417.918.2400018.117.819.719.417.918.1500018.317.719.7191818.3630018.317.519.218.91818.3800018.217.31919.117.918.21000018.317.319.11917.818.31250018.317.4191917.718.31600018.717.719.519.717.818.7SPL31.730.83433.230.731.7N1.71.521.91.51.7median 20Acer Chromebook 14 CP5-471-53QVmedian 18.8median 22.3median 21.9median 18median 20Delta2.72.22.32.62.12.735.440.135.435.635.535.629.931.129.929.629.829.629.729.529.735.733.335.730.727.830.726.92726.924.225.324.22424.32425.724.625.721.922.421.922.621.822.62020.32020.22020.219.418.919.418.718.118.717.317.717.31716.81716.616.316.616.216.116.215.915.615.915.715.515.715.415.415.415.31515.315.415.315.415.115.215.11514.91515.114.915.115.21515.229.329.129.31.31.21.3median 17HP Chromebook 13 G1 Core m5median 16.8median 173.63.53.6hearing rangehide median Fan Noise
Max. Load
 27.2 °C29.1 °C27.2 °C
 27.3 °C28.7 °C26.6 °C
 24.5 °C24.8 °C24.6 °C
Maximum: 29.1 °C
Average: 26.7 °C
24.6 °C32 °C29.2 °C
24 °C29.7 °C26.4 °C
24.1 °C24 °C24.2 °C
Maximum: 32 °C
Average: 26.5 °C
Power Supply (max.)  30.9 °C | Room Temperature 23.1 °C | FIRT 550-Pocket
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2040.73540.72538.928.238.93139.825.439.84041.229.841.25042.828.542.86343.928.943.98044.429.144.410045.828.945.812547.228.447.216049.22749.22005123.8512505422.75431559.221.959.240061.220.961.250063.520.563.563068.419.568.480073.318.473.310007018.27012506717.867160067.21867.2200067.617.867.6250062.717.862.7315067.217.967.240006917.969500062.11862.1630056.81856.8800059.417.959.41000062.317.862.31250065.717.765.71600062.517.862.5SPL7930.779N451.545median 62.5Acer Chromebook 14 CP5-471-53QVmedian 18median 62.5Delta6.22.16.235.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6Apple MacBook 12 (Early 2016) 1.1 GHzmedian 17.84.62.442.735.842.73933.33939.532.639.540.631.340.641.829.941.844.131.144.144.328.244.34528.34545.625.345.647.525.647.551.224.951.254.323.554.359.522.959.560.421.860.463.120.963.16619.96672.719.372.771.318.971.363.218.263.261.918.261.963.117.863.165.317.665.366.417.666.467.317.667.370.517.670.563.817.863.865.917.865.964.717.764.764.617.564.665.117.765.179.130.879.146.11.546.1median 63.8Acer Chromebook R13 CB5-312T-K0YKmedian 18.2median 63.83.92.33.9hearing rangehide median Pink Noise
Acer Chromebook 14 CP5-471-53QV audio analysis

(±) | speaker loudness is average but good (74 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.4% lower than median
(+) | bass is linear (5.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.1% higher than median
(+) | mids are linear (5.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3% away from median
(±) | linearity of highs is average (9.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (13% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 3% similar, 91% worse
» The best had a delta of 11%, average was 20%, worst was 48%
Compared to all devices tested
» 10% of all tested devices were better, 2% similar, 88% worse
» The best had a delta of 3%, average was 22%, worst was 53%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 2% similar, 97% worse
» The best had a delta of 9%, average was 19%, worst was 41%
Compared to all devices tested
» 1% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 22%, worst was 53%

Acer Chromebook R13 CB5-312T-K0YK audio analysis

(±) | speaker loudness is average but good (73 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.2% lower than median
(+) | bass is linear (5.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.2% away from median
(+) | mids are linear (6.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.5% away from median
(+) | highs are linear (5.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (11.9% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 33% similar, 67% worse
» The best had a delta of 12%, average was 17%, worst was 25%
Compared to all devices tested
» 7% of all tested devices were better, 2% similar, 91% worse
» The best had a delta of 3%, average was 22%, worst was 53%

Power Consumption
Off / Standbydarklight 0.37 / 0.49 Watt
Idledarkmidlight 2.7 / 6.2 / 6.7 Watt
Load midlight 14 / 24 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Acer Chromebook 14 CP5-471-53QV
6200U, HD Graphics 520, 32 GB eMMC Flash, IPS, 1920x1080, 14
Lenovo ThinkPad 13 Chromebook
6300U, HD Graphics 520, 32 GB eMMC Flash, IPS, 1920x1080, 13.3
HP Chromebook 13 G1 Core m5
6Y57, HD Graphics 515, , , 3200x1800, 13.3
Acer Chromebook R13 CB5-312T-K0YK
MT8173C, PowerVR GX6250, 32 GB eMMC Flash, IPS, 1920x1080, 13.3
Power Consumption
37%
-16%
6%
Idle Minimum *
2.7
0.77
71%
3.7
-37%
3.8
-41%
Idle Average *
6.2
5.11
18%
8.7
-40%
6.2
-0%
Idle Maximum *
6.7
5.88
12%
9.4
-40%
6.6
1%
Load Average *
14
7.43
47%
12
14%
11
21%
Load Maximum *
24
14.73
39%
18
25%
12.7
47%

* ... smaller is better

Battery Runtime
WiFi Surfing v1.3
9h 00min
Acer Chromebook 14 CP5-471-53QV
6200U, HD Graphics 520, 45 Wh
Lenovo ThinkPad 13 Chromebook
6300U, HD Graphics 520, 42 Wh
HP Chromebook 13 G1 Core m5
6Y57, HD Graphics 515, 45 Wh
Acer Chromebook R13 CB5-312T-K0YK
MT8173C, PowerVR GX6250, 53.9 Wh
Battery Runtime
WiFi Websurfing 1.3
540
536
-1%
404
-25%
773
43%
Battery Runtime
-1%
-25%
43%
Reader / Idle
1249
WiFi v1.3
540
536
-1%
404
-25%
773
43%
Load
170
150
Total Average (Program / Settings)
-1% / -1%
-25% / -25%
43% / 43%

Pros

+ 能够胜任工作的键盘
+ 低发热
+ 风扇安静工作
+ 电池续航时间出色

Cons

- SD卡读卡器速度偏低
- 屏幕亮度不足
- 外壳表面易刮擦
- 无法利用硬件全部的性能
- 板载内存存储

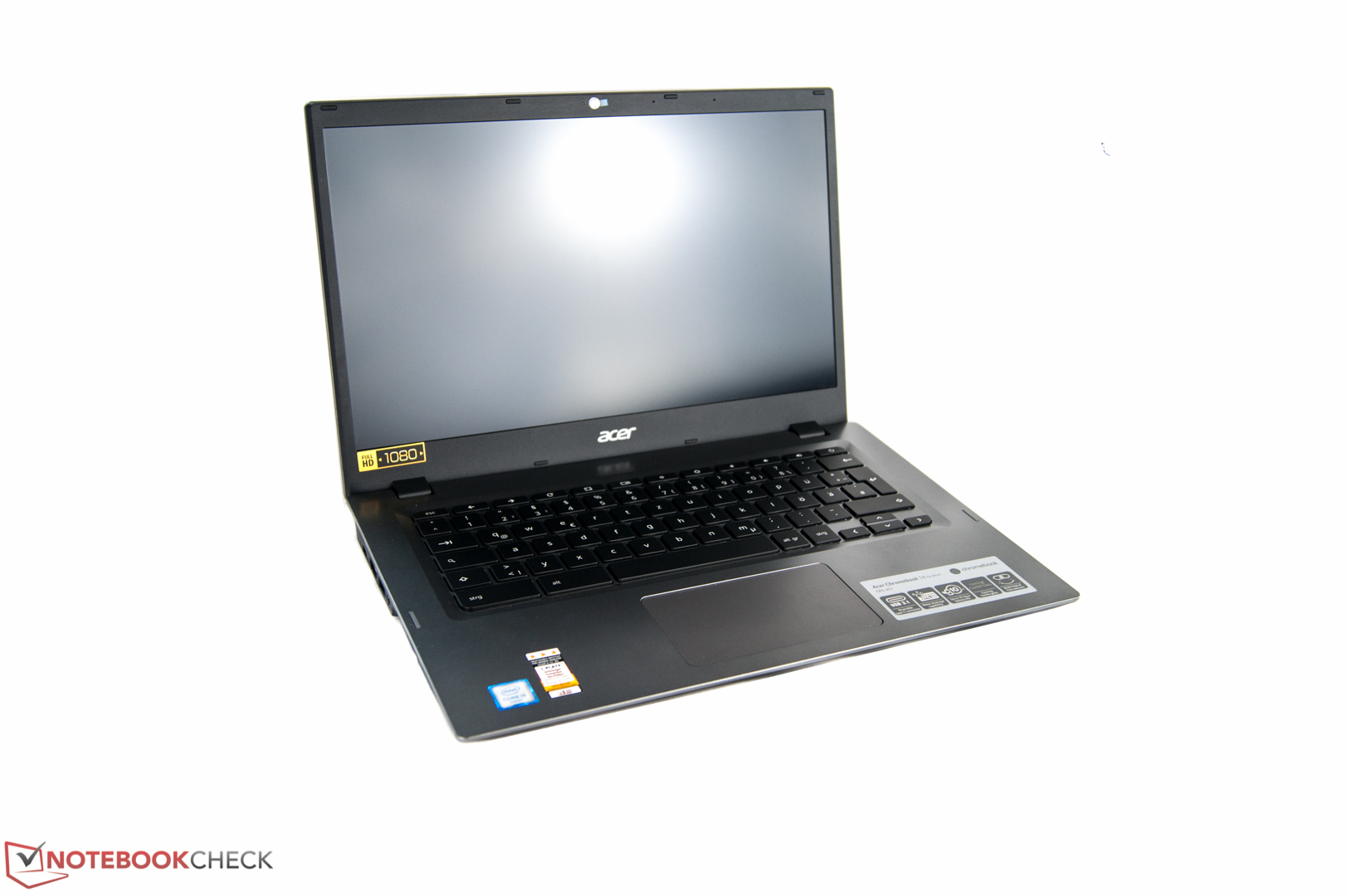

The Acer Chromebook 14, provided by notebooksbilliger.de
The Acer Chromebook 14, provided by notebooksbilliger.de

“工作用Chromebook。”这是宏碁对于他们新的Chromebook的看法:一台日常用办公设备。第一眼看上去就只要Chromebook有了很大的进步。它采用高亮钢琴烤漆取代了原本外壳花哨的颜色。糟糕的是它很容易吸附指纹。但对于一台工作用设备来说,更加重要的是输入设备的适应性。键盘能够很好的应对在办公室的长时间工作。但对于一台完整的商务设备来说,它还缺少很多的安全功能。

雾面IPS屏整体上来说还是很好的。色彩及灰阶的表现都不错。但是,这块屏幕的俩都不足。办公室中或户外的阳光直射都会对于操作造成很大的影响甚至是彻底无法操作。

其搭载的硬件引起了我们的注意。但是,它无法发挥其完整的性能,甚至在基准测试中被更弱的酷睿m5处理器超越。不过,系统的运行还是十分流畅的,比其他一些Chromebook运行的都要快。

宏碁 Chromebook 因为其出色的发热控制和9小时的电池续航时间而赢得了不错的评分。

宏碁 Chromebook 14 工作版达成了其既定目标:一台有着出色续航能力的日常工作用笔记本。

想要改用Chromebook作为其主力设备的用户应该考虑惠普Chromebook 13 G1。而联想 ThinkPad 13 Chromebook提供更强的性能。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

Acer Chromebook 14 CP5-471-53QV - 06/30/2017 v6
Nino Ricchizzi

Chassis
78 / 98 → 79%
Keyboard
75%
Pointing Device
78%
Connectivity
46 / 80 → 58%
Weight
70 / 67 → 100%
Battery
91%
Display
89%
Games Performance
0 / 68 →
Application Performance
76 / 92 → 83%
Temperature
97%
Noise
93%
Camera
53 / 85 → 62%
Average
77%
83%
Office - Weighted Average

Pricecompare

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > 宏碁 Chromebook 14 工作版 (i5 6200U, 8 GB) 简短评测
Nino Ricchizzi, 2017-07-24 (Update: 2017-07-24)
