惠普 Chromebook 13 G1 酷睿m5 笔记本电脑简短评测

Pixel的竞争者… 高端材质,审慎设计,高分辨率屏幕,出色性能。惠普试图重新定义Chromebook,为我们带来了最接近谷歌最早推出的Pixel的一款设备。
Chromebook Skylake
HP Chromebook 13 G1 Core m5 (Chromebook 13 Series)
Processor
Intel Core m5-6Y57 2 x 1.1 - 2.8 GHz, Skylake
Graphics adapter
Intel HD Graphics 515, Core: 900 MHz
Memory
8 GB
, DDR3L
Display
13.30 inch 16:9, 3200 x 1800 pixel 276 PPI, glossy: yes
Connections
3 USB 3.0 / 3.1 Gen1, Audio Connections: 3.5 mm Combo, Card Reader: microSD
Networking
Intel Dual Band Wireless-AC 7265 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Size
height x width x depth (in mm): 15 x 320 x 220
Battery
45 Wh, 3950 mAh Lithium-Ion
Operating System
Google Chrome OS
Camera
Webcam: 720p
Primary Camera: 1 MPix
Additional features
Speakers: 2.0, 前置, Keyboard: 孤岛式, Keyboard Light: yes, 12 Months Warranty, fanless
Weight
1.202 kg, Power Supply: 336 g
Price
819 USD
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



344 mm 239.8 mm 21.6 mm 1.8 kg323 mm 225 mm 20 mm 1.4 kg320 mm 220 mm 15 mm 1.2 kg300 mm 216 mm 22.3 mm 1.6 kg297 mm 218 mm 20.3 mm 1.2 kg297 mm 210 mm 1 mm 5.7 g

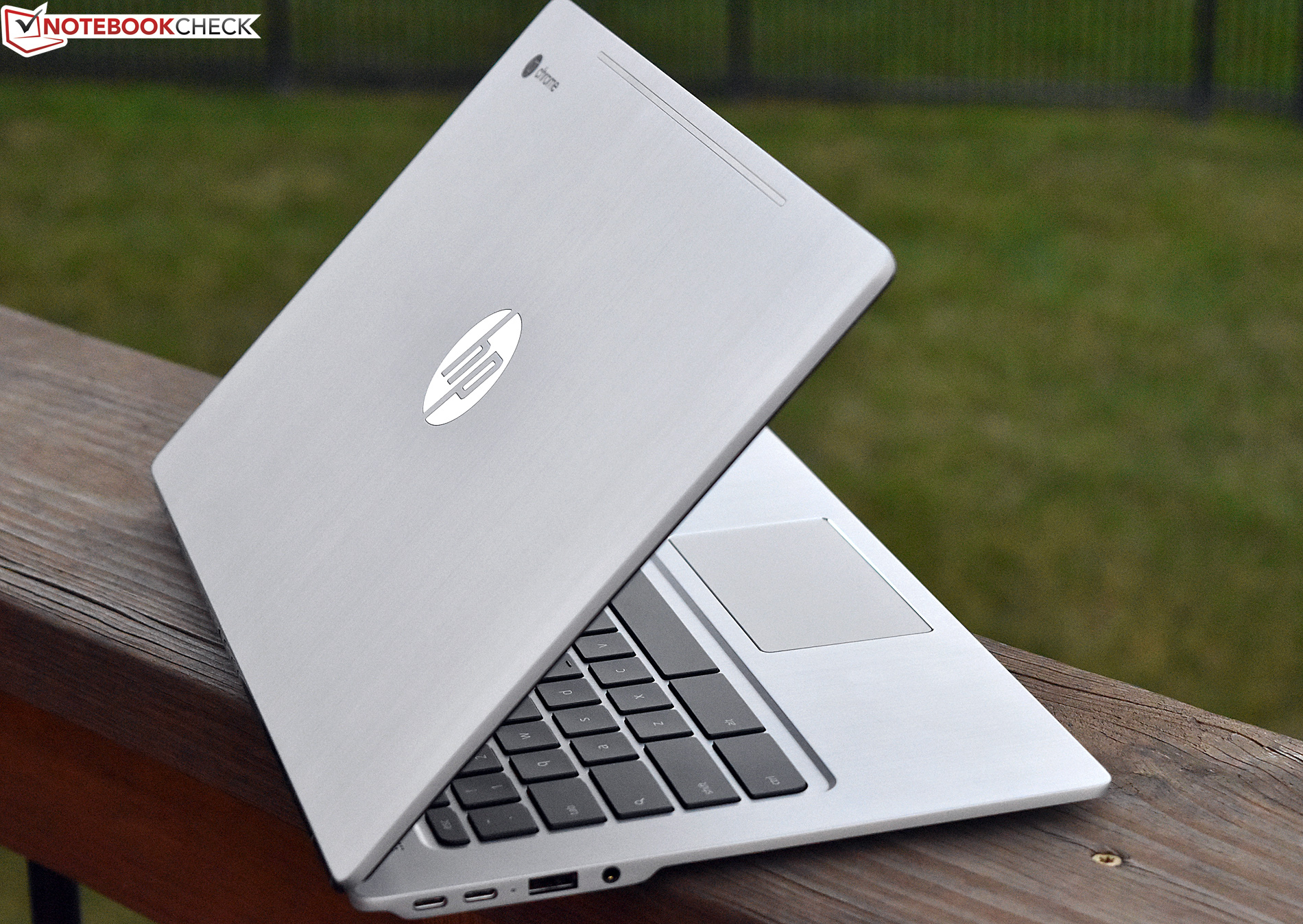

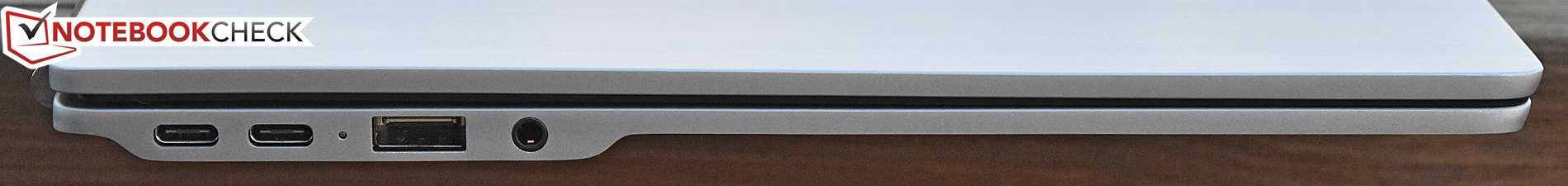

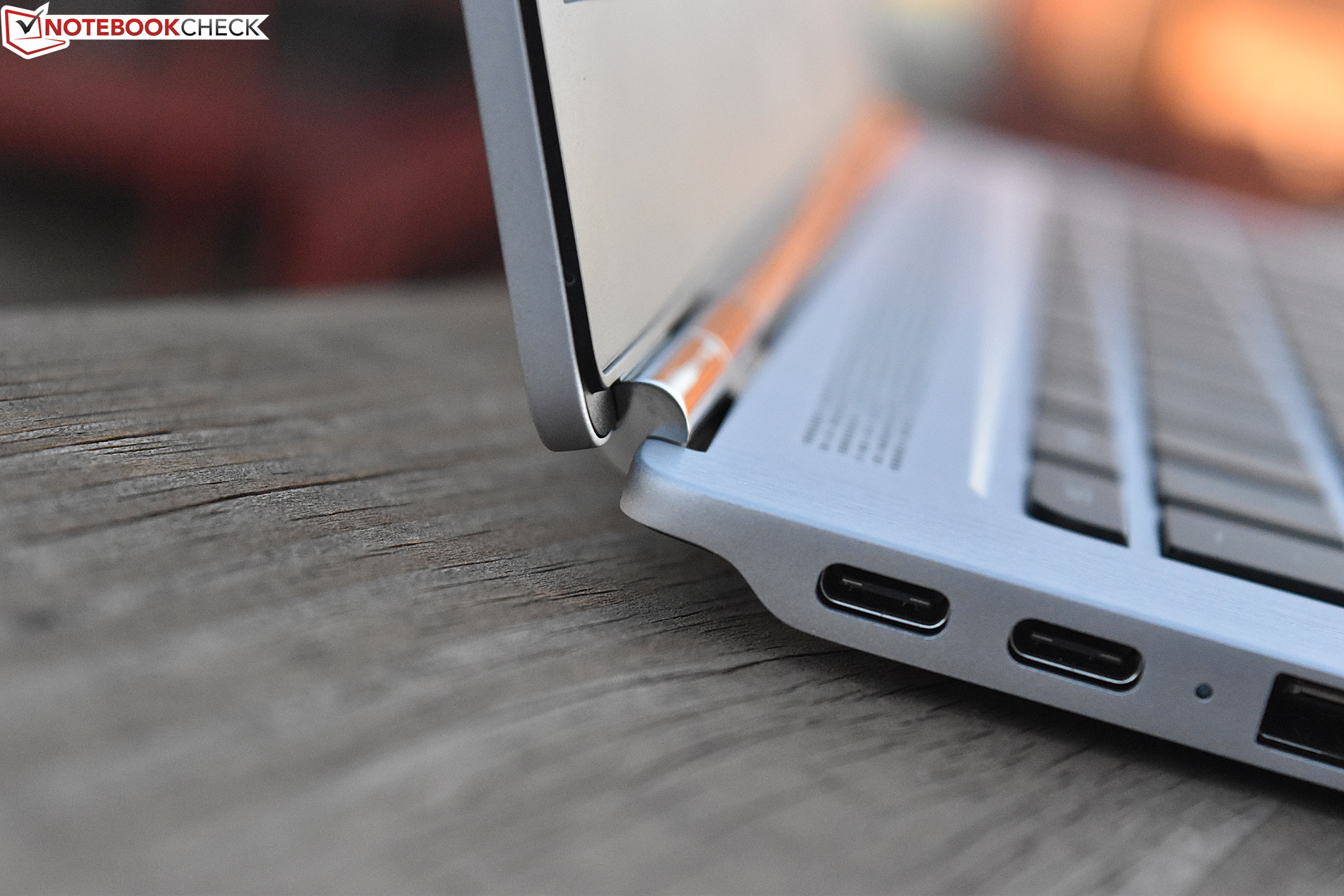

Left: USB 3.1 Type-C Gen 1 x 2, USB 3.0, 3.5 mm combo audio
Left: USB 3.1 Type-C Gen 1 x 2, USB 3.0, 3.5 mm combo audio

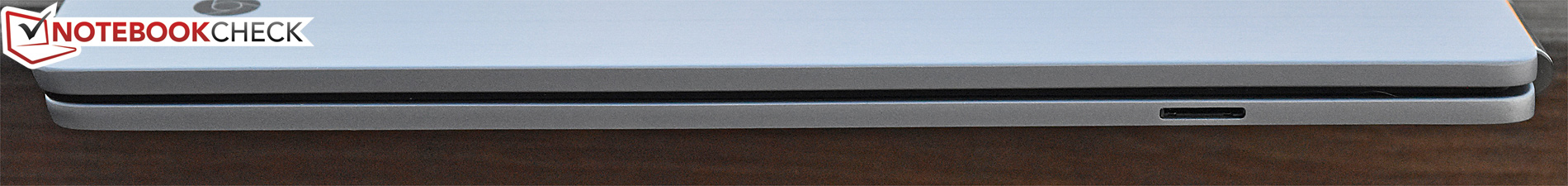

Right: microSD port
Right: microSD port
SD Card Reader - average JPG Copy Test (av. of 3 runs)
HP Chromebook 13 G1 Core m5

51.2 MB/s
Lenovo ThinkPad 13 Chromebook

50.9 MB/s -1%
318.9
cd/m²
324.3
cd/m²
330.3
cd/m²
319.6
cd/m²
355.5
cd/m²
318.8
cd/m²
328.1
cd/m²
345.5
cd/m²
329.9
cd/m²
Distribution of brightness
tested with X-Rite i1Pro 2
Maximum: 355.5 cd/m² (Nits) Average: 330.1 cd/m²
Brightness Distribution: 90 %
Center on Battery: 355.5 cd/m²
Contrast: 442:1 (Black: 0.804 cd/m²)
ΔE Color 3.75 | 0.5-29.43 Ø5
ΔE Greyscale 4.35 | 0.57-98 Ø5.3
Gamma: 2.35
HP Chromebook 13 G1 Core m5
13.30, 3200x1800
Lenovo ThinkPad 13 Chromebook
IPS, 13.30, 1920x1080
HP Chromebook 14 G1
TN, 14.00, 1366x768
Dell Chromebook 11-3120
TN LED, 11.60, 1366x768
Lenovo ThinkPad Yoga 11e 20D9000QGE
Lenovo HN116WXA-100, IPS, 11.60, 1366x768
Response Times
-5%
Response Time Grey 50% / Grey 80% *
39.2 ?(18, 21.2)
37.6 ?(15.2, 22.4)
4%
Response Time Black / White *
31.6 ?(11.6, 20)
36 ?(5.2, 30.8)
-14%
PWM Frequency
1389 ?(44)
Screen
-13%
1%
-12%
-3%
Brightness middle
355.5
262.9
-26%
226
-36%
273
-23%
285
-20%
Brightness
330
261
-21%
227
-31%
258
-22%
285
-14%
Brightness Distribution
90
92
2%
86
-4%
88
-2%
88
-2%
Black Level *
0.804
0.601
25%
0.4
50%
0.75
7%
0.4
50%
Contrast
442
437
-1%
565
28%
364
-18%
713
61%
Colorchecker dE 2000 *
3.75
4.87
-30%
6.39
-70%
Colorchecker dE 2000 max. *
7.15
12.18
-70%
Greyscale dE 2000 *
4.35
3.51
19%
5.41
-24%
Gamma
2.35 94%
2.17 101%
2.76 80%
CCT
6269 104%
6476 100%
6082 107%
Total Average (Program / Settings)
-9% / -11%
1% / 1%
-12% / -12%
-3% / -3%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

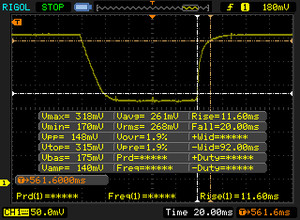

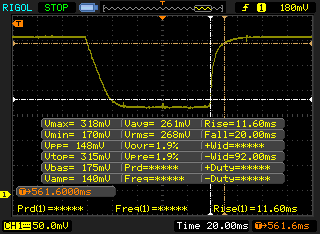

       Response Time Black to White
31.6 ms ... rise ↗ and fall ↘ combined↗ 11.6 ms rise
↘ 20 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 83 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21.6 ms).

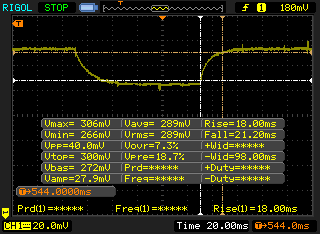

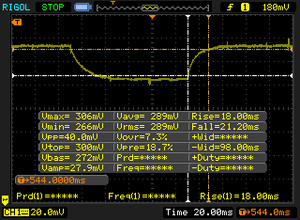

       Response Time 50% Grey to 80% Grey
39.2 ms ... rise ↗ and fall ↘ combined↗ 18 ms rise
↘ 21.2 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 54 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (33.9 ms).

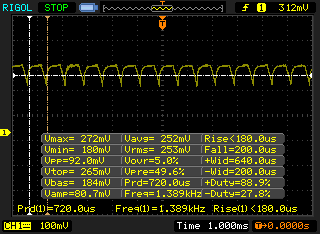

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 1389 Hz ≤ 44 % brightness setting

The display backlight flickers at 1389 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 44 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 1389 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18080 (minimum: 5 - maximum: 3846000) Hz was measured.

Sunspider v1.0
Sunspider v1.0
Kraken
Kraken

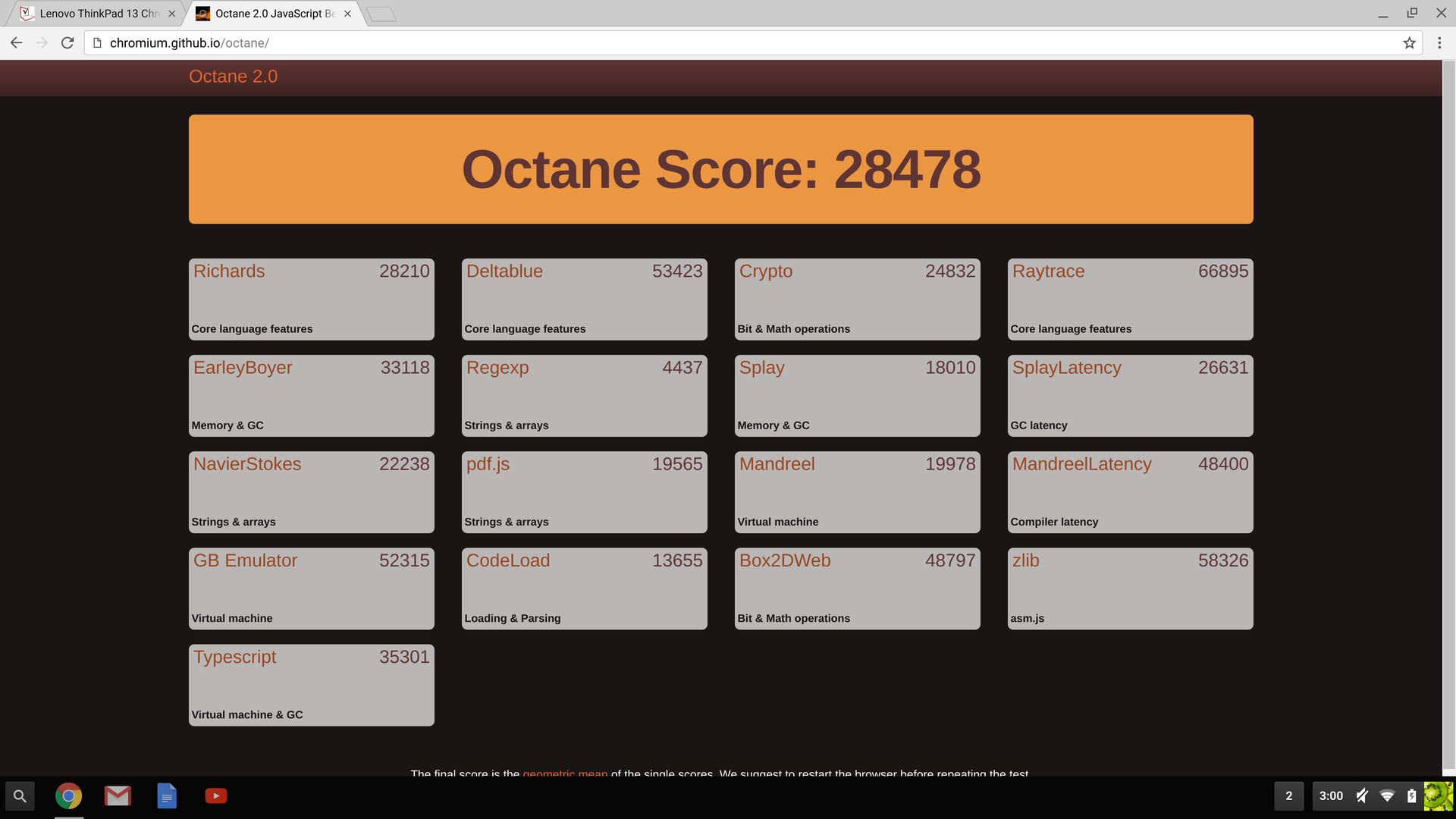

Octane v2
Octane v2
WebXPRT 2015
WebXPRT 2015
JetStream v1.1
JetStream v1.1

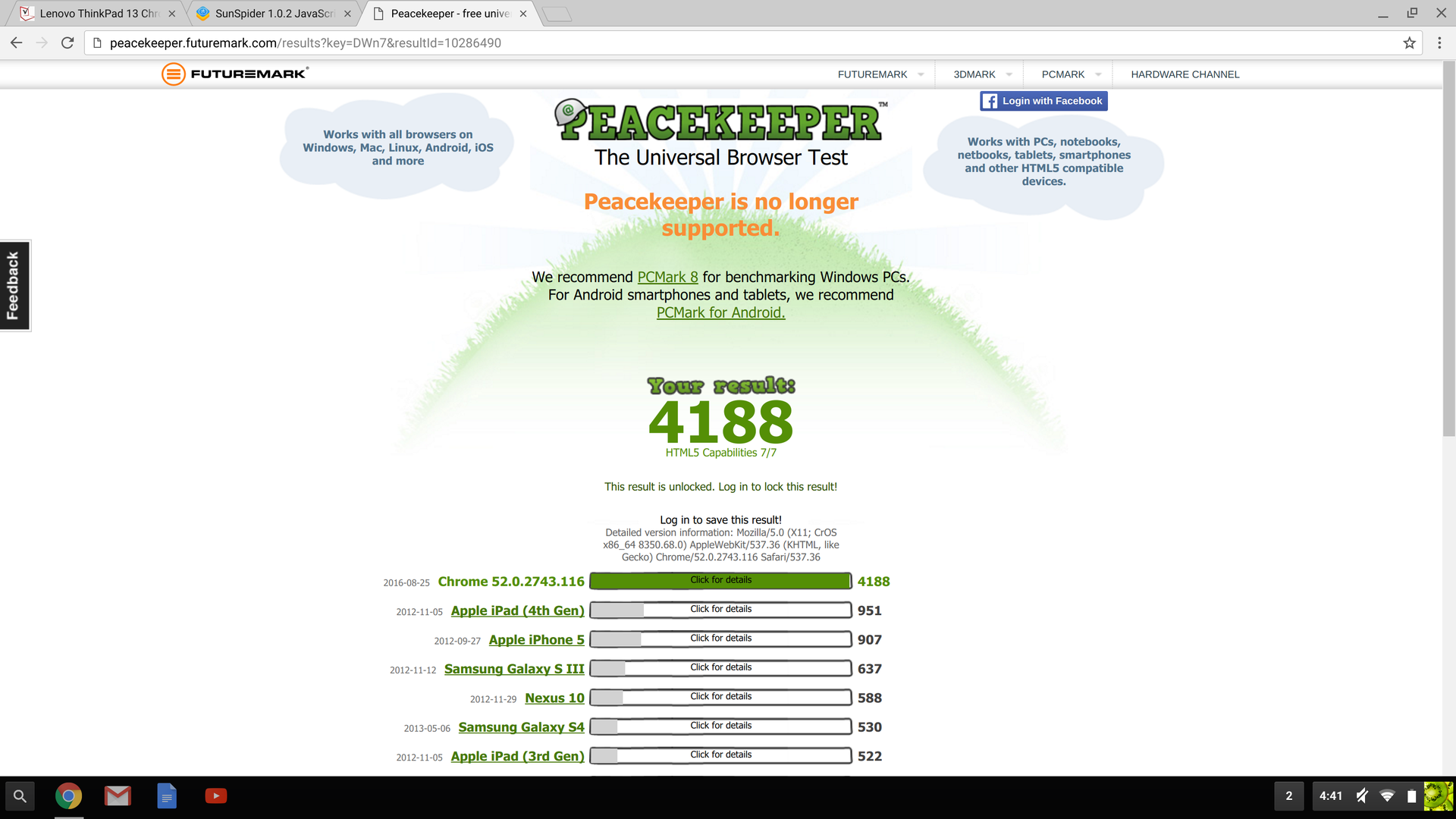

Futuremark Peacekeeper
Futuremark Peacekeeper

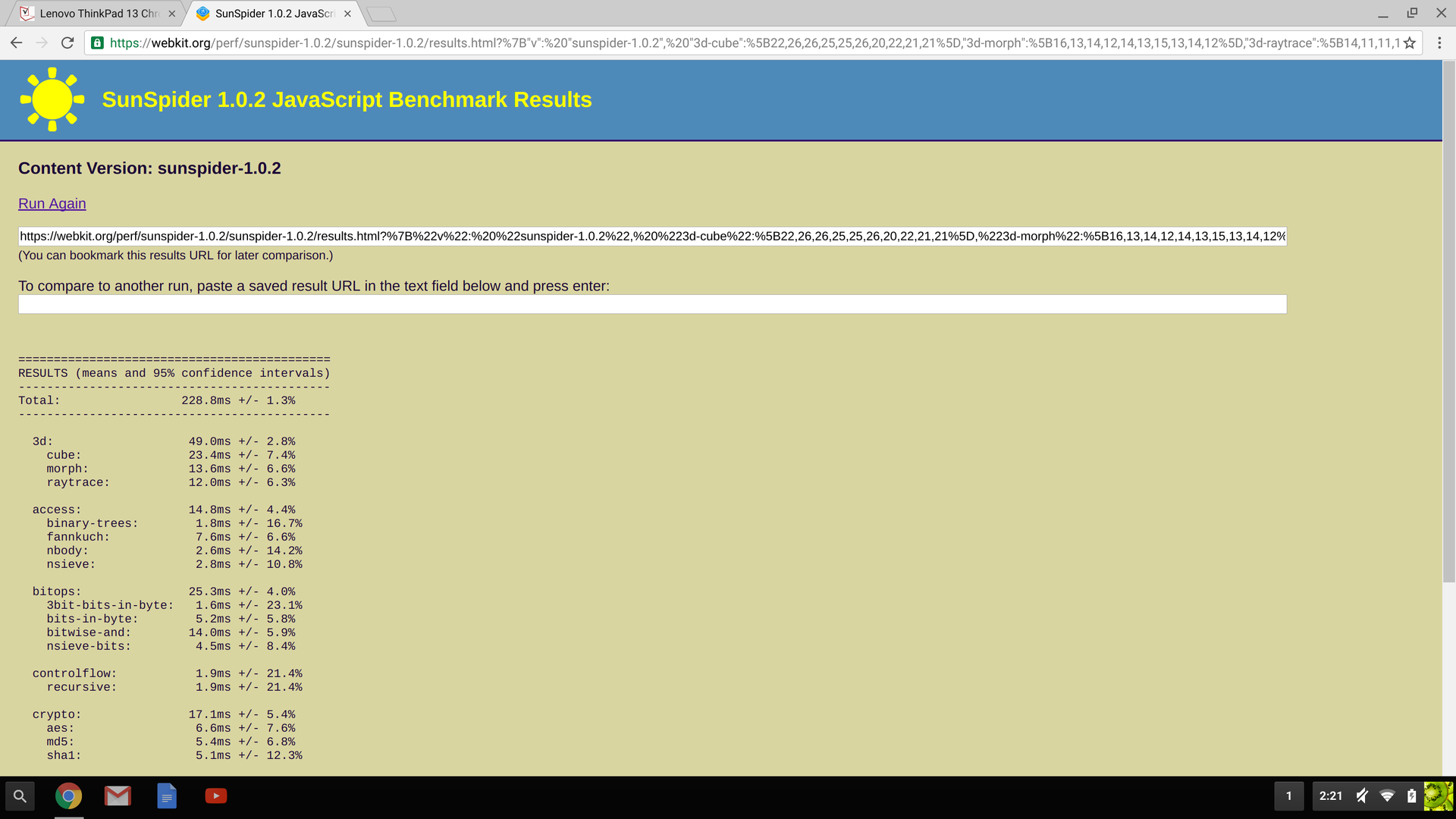

Sunspider - 1.0 Total Score
Dell Chromebook 11-3120
Intel Celeron N2840
554 ms * -142%
Lenovo ThinkPad Yoga 11e 20D9000QGE
Intel Celeron N2930
399.7 ms * -75%
HP Chromebook 14 G1
Intel Celeron 2955U
347.4 ms * -52%
HP Chromebook 13 G1 Core m5
Intel Core m5-6Y57
228.8 ms *
Lenovo ThinkPad 13 Chromebook
Intel Core i5-6300U
213 ms * +7%

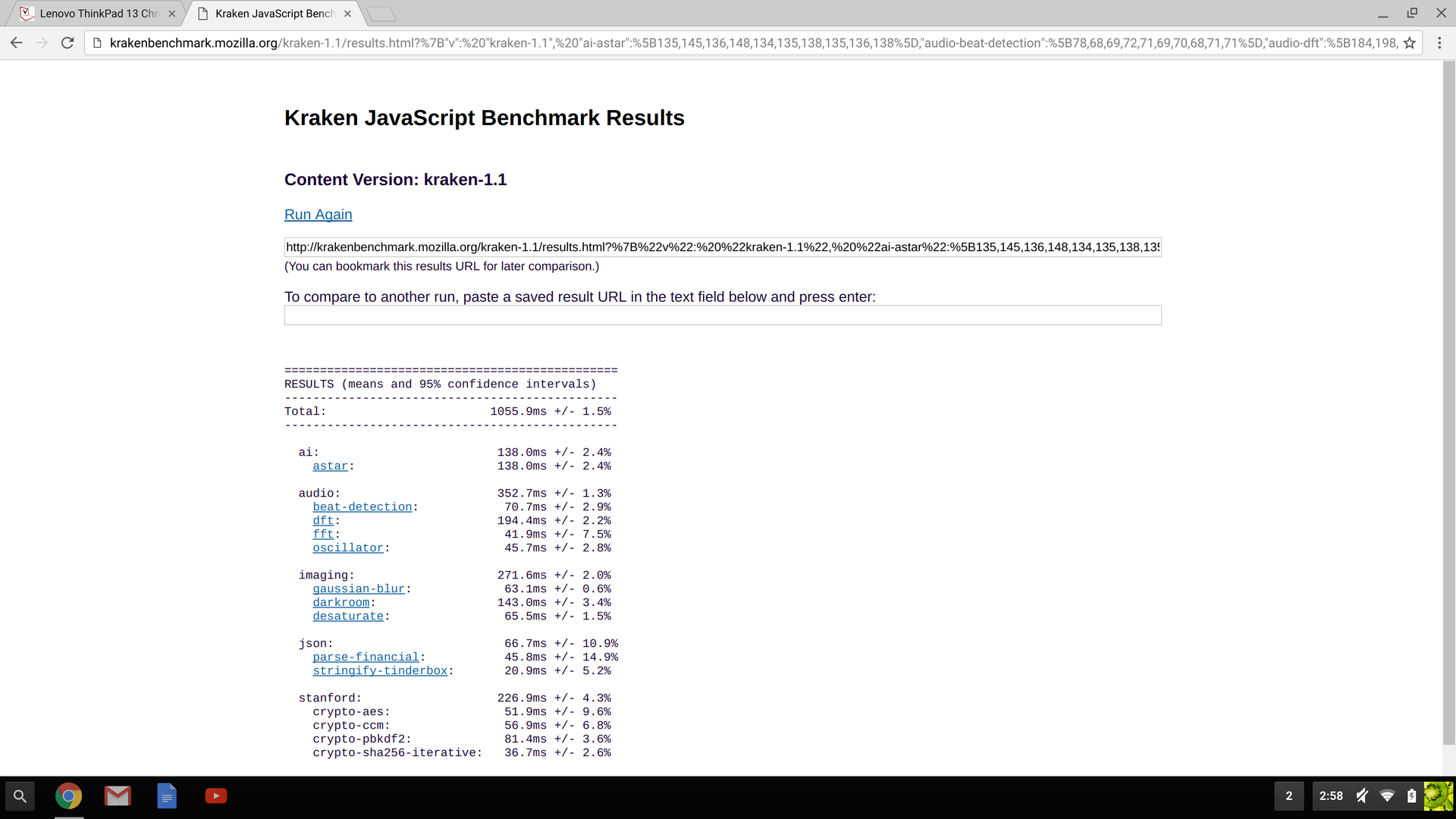

Mozilla Kraken 1.1 - Total
Lenovo ThinkPad Yoga 11e 20D9000QGE
Intel Celeron N2930
7470 ms * -607%
Dell Chromebook 11-3120
Intel Celeron N2840
3843 ms * -264%
HP Chromebook 14 G1
Intel Celeron 2955U
2564 ms * -143%
HP Chromebook 13 G1 Core m5
Intel Core m5-6Y57
1056 ms *
Lenovo ThinkPad 13 Chromebook
Intel Core i5-6300U
1007 ms * +5%
Octane V2 - Total Score
Lenovo ThinkPad 13 Chromebook
Intel Core i5-6300U
29435 Points +3%
HP Chromebook 13 G1 Core m5
Intel Core m5-6Y57
28478 Points
HP Chromebook 14 G1
Intel Celeron 2955U
12008 Points -58%
Dell Chromebook 11-3120
Intel Celeron N2840
8229 Points -71%
Lenovo ThinkPad Yoga 11e 20D9000QGE
Intel Celeron N2930
4167 Points -85%

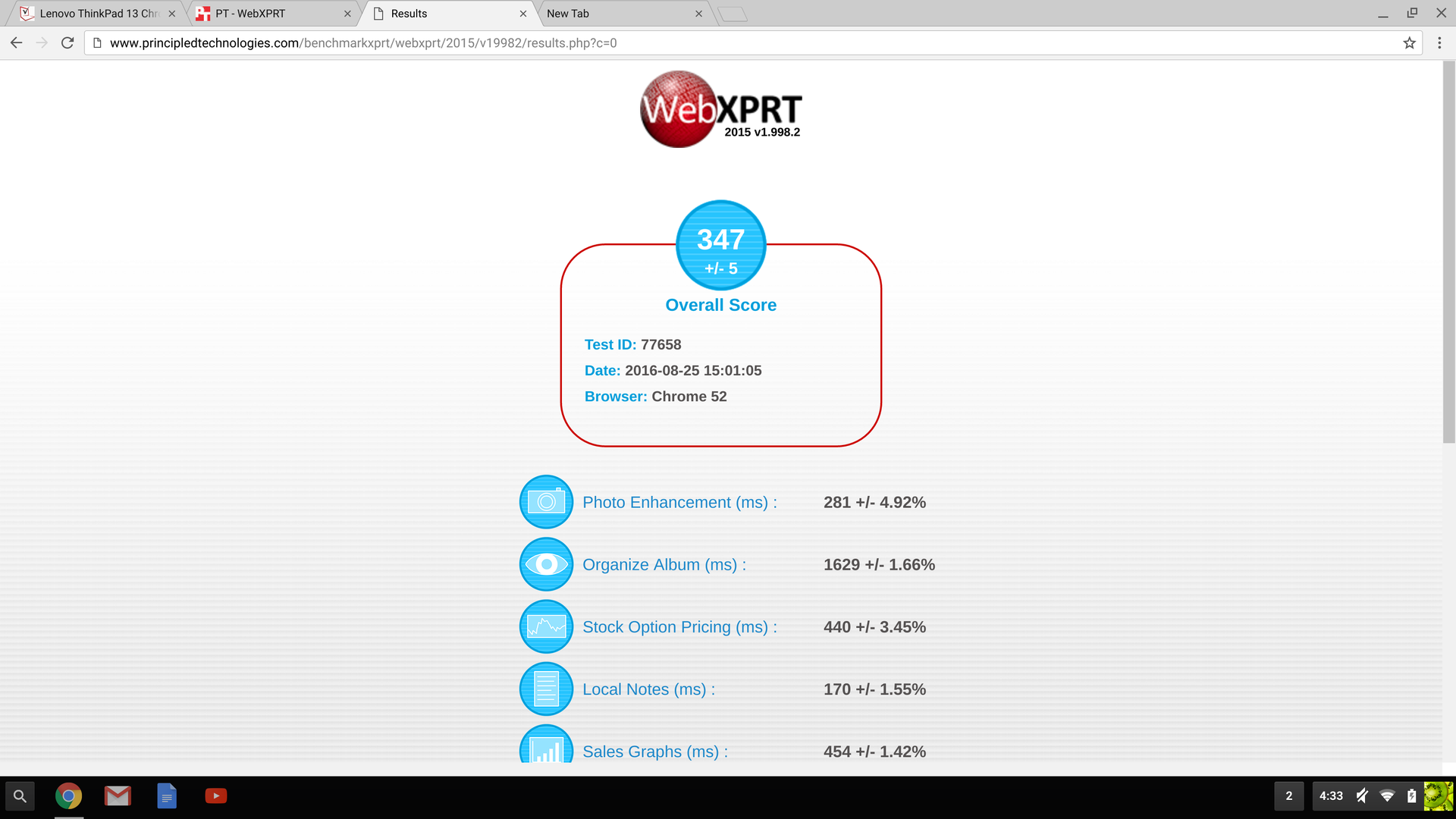

WebXPRT 2015 - Overall
Lenovo ThinkPad 13 Chromebook
Intel Core i5-6300U
359 Points +3%
HP Chromebook 13 G1 Core m5
Intel Core m5-6Y57
347 Points
Dell Chromebook 11-3120
Intel Celeron N2840
118 Points -66%

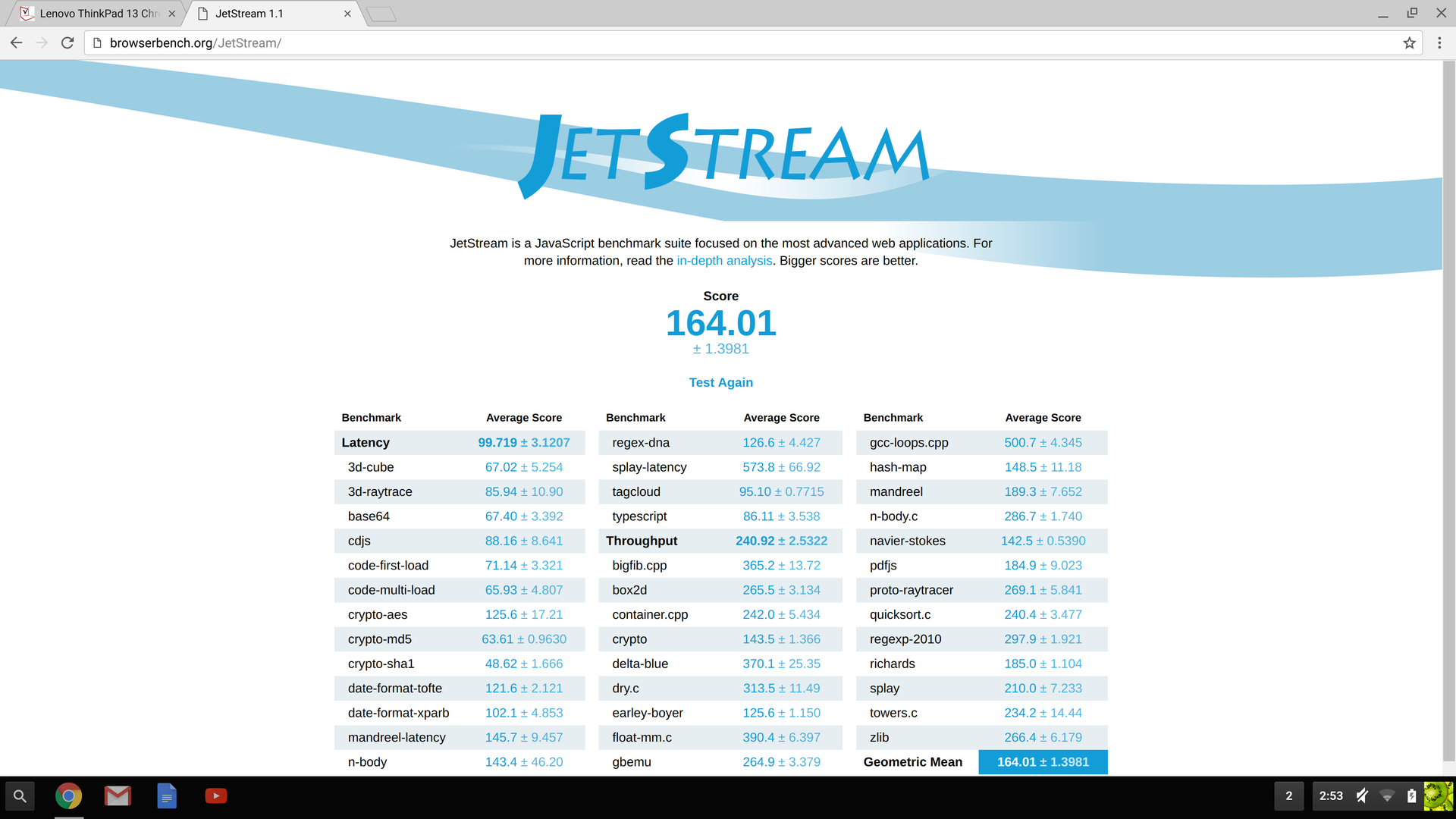

JetStream 1.1 - Total Score
Lenovo ThinkPad 13 Chromebook
Intel Core i5-6300U
173.3 Points +6%
HP Chromebook 13 G1 Core m5
Intel Core m5-6Y57
164 Points

* ... smaller is better

Max. Load
 34.2 °C39.2 °C31 °C
 28.4 °C29.4 °C28 °C
 26.2 °C26.2 °C25.6 °C
Maximum: 39.2 °C
Average: 29.8 °C
33.2 °C46 °C37.2 °C
29.6 °C32.2 °C30.6 °C
27.4 °C29.6 °C28.2 °C
Maximum: 46 °C
Average: 32.7 °C
Power Supply (max.)  31.8 °C | Room Temperature 20 °C | Raytek Raynger ST
(+) The average temperature for the upper side under maximal load is 29.8 °C / 86 F, compared to the average of 30.7 °C / 87 F for the devices in the class Subnotebook.
(+) The maximum temperature on the upper side is 39.2 °C / 103 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(-) The bottom heats up to a maximum of 46 °C / 115 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 26.2 °C / 79 F, compared to the device average of 30.7 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26.2 °C / 79.2 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (+2.1 °C / 3.7 F).
Power Consumption
Off / Standbydarklight 0.36 / 1.22 Watt
Idledarkmidlight 3.7 / 8.7 / 9.4 Watt
Load midlight 12 / 18 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
HP Chromebook 13 G1 Core m5
6Y57, HD Graphics 515, , , 3200x1800, 13.30
Lenovo ThinkPad 13 Chromebook
6300U, HD Graphics 520, 32 GB eMMC Flash, IPS, 1920x1080, 13.30
HP Chromebook 14 G1
2955U, HD Graphics (Haswell), , TN, 1366x768, 14.00
Dell Chromebook 11-3120
N2840, HD Graphics (Bay Trail), 16 GB eMMC Flash, TN LED, 1366x768, 11.60
Lenovo ThinkPad Yoga 11e 20D9000QGE
N2930, HD Graphics (Bay Trail), Toshiba MQ01ACF050, IPS, 1366x768, 11.60
Power Consumption
43%
-2%
37%
-6%
Idle Minimum *
3.7
0.77
79%
5.5
-49%
3
19%
4.6
-24%
Idle Average *
8.7
5.11
41%
8
8%
4.3
51%
7.8
10%
Idle Maximum *
9.4
5.88
37%
9.1
3%
4.6
51%
8.9
5%
Load Average *
12
7.43
38%
12
-0%
9.6
20%
14.8
-23%
Load Maximum *
18
14.73
18%
13.3
26%
10.2
43%
17.8
1%

* ... smaller is better

Battery Runtime
WiFi Websurfing
6h 44min
Load (maximum brightness)
2h 30min
HP Chromebook 13 G1 Core m5
6Y57, HD Graphics 515, 45 Wh
Lenovo ThinkPad 13 Chromebook
6300U, HD Graphics 520, 42 Wh
HP Chromebook 14 G1
2955U, HD Graphics (Haswell),  Wh
Dell Chromebook 11-3120
N2840, HD Graphics (Bay Trail), 43 Wh
Lenovo ThinkPad Yoga 11e 20D9000QGE
N2930, HD Graphics (Bay Trail), 34 Wh
Apple MacBook 12 (Early 2016) 1.1 GHz
6Y30, HD Graphics 515, 41.4 Wh
Battery Runtime
23%
6%
40%
-26%
39%
WiFi v1.3
404
536
33%
427
6%
566
40%
297
-26%
501
24%
Load
150
170
13%
231
54%
Reader / Idle
1249

Pros

+ 高品质机身
+ 时尚的金属机身

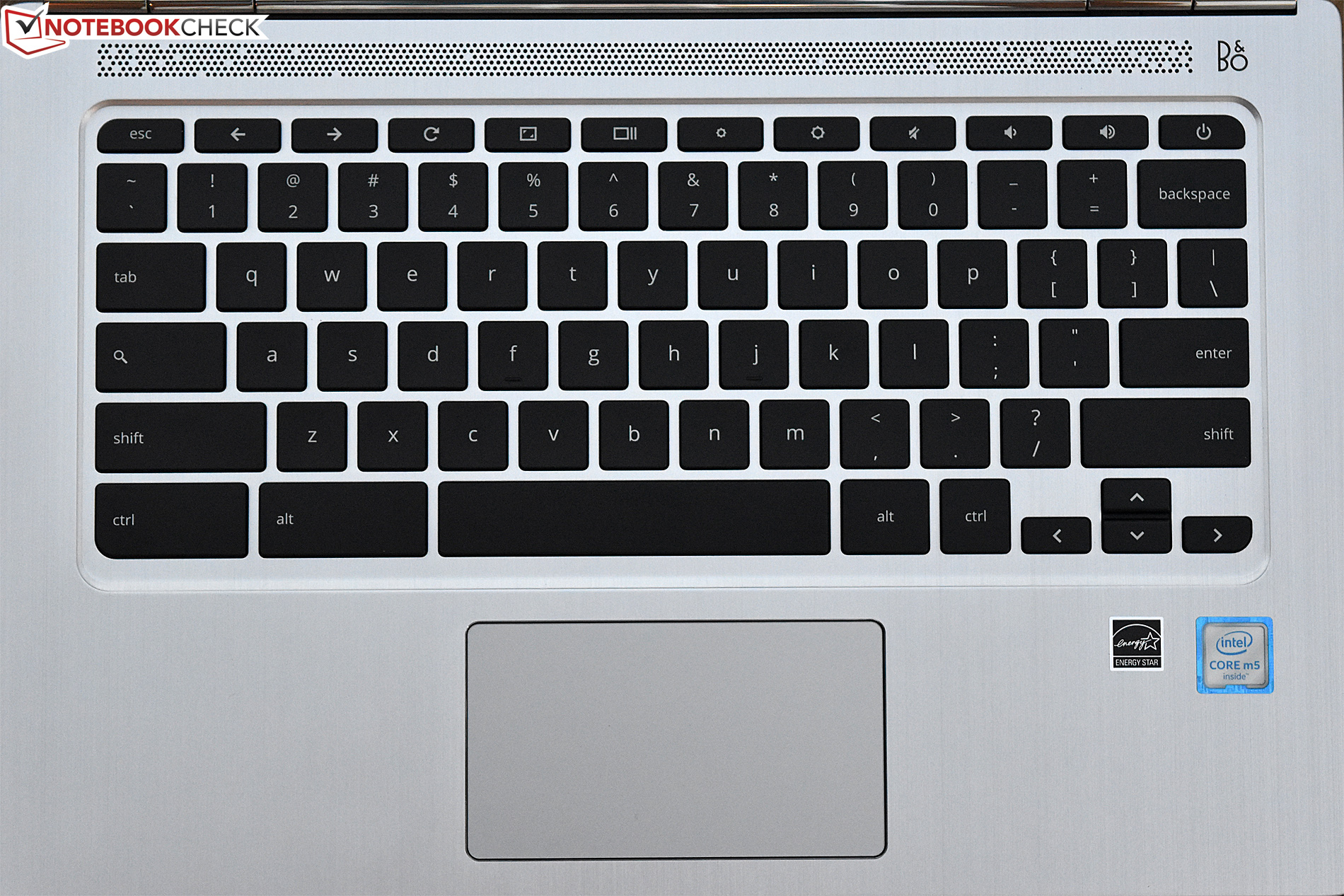

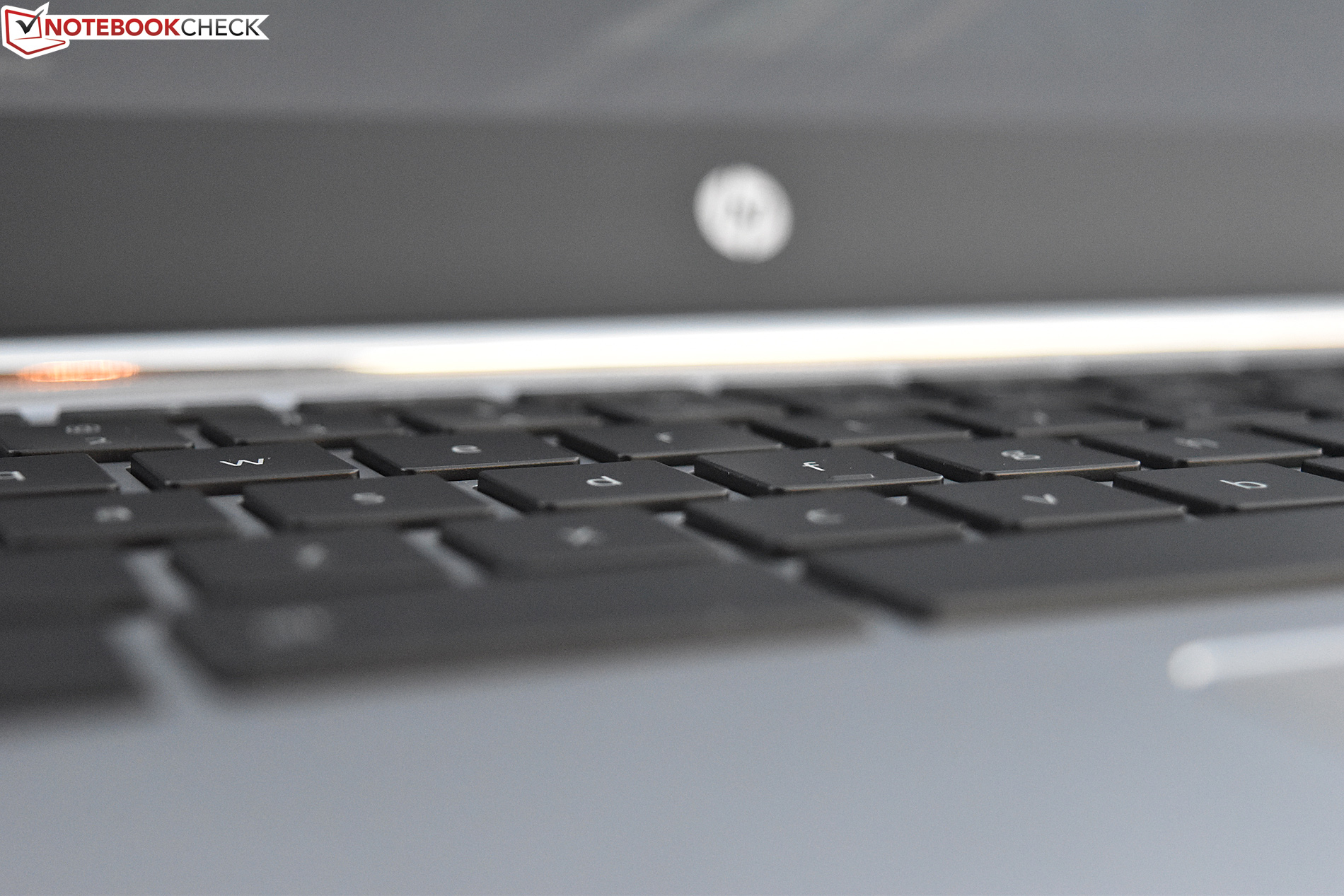

+ 非常优秀的键盘
+ QHD+屏幕
+ 高性能
+ 两个USB-C型接口

Cons

- 高售价(评测机型)
- 屏幕像素布局造成高分辨率下的锯齿边缘
- 整合触控版按键使用感受一般

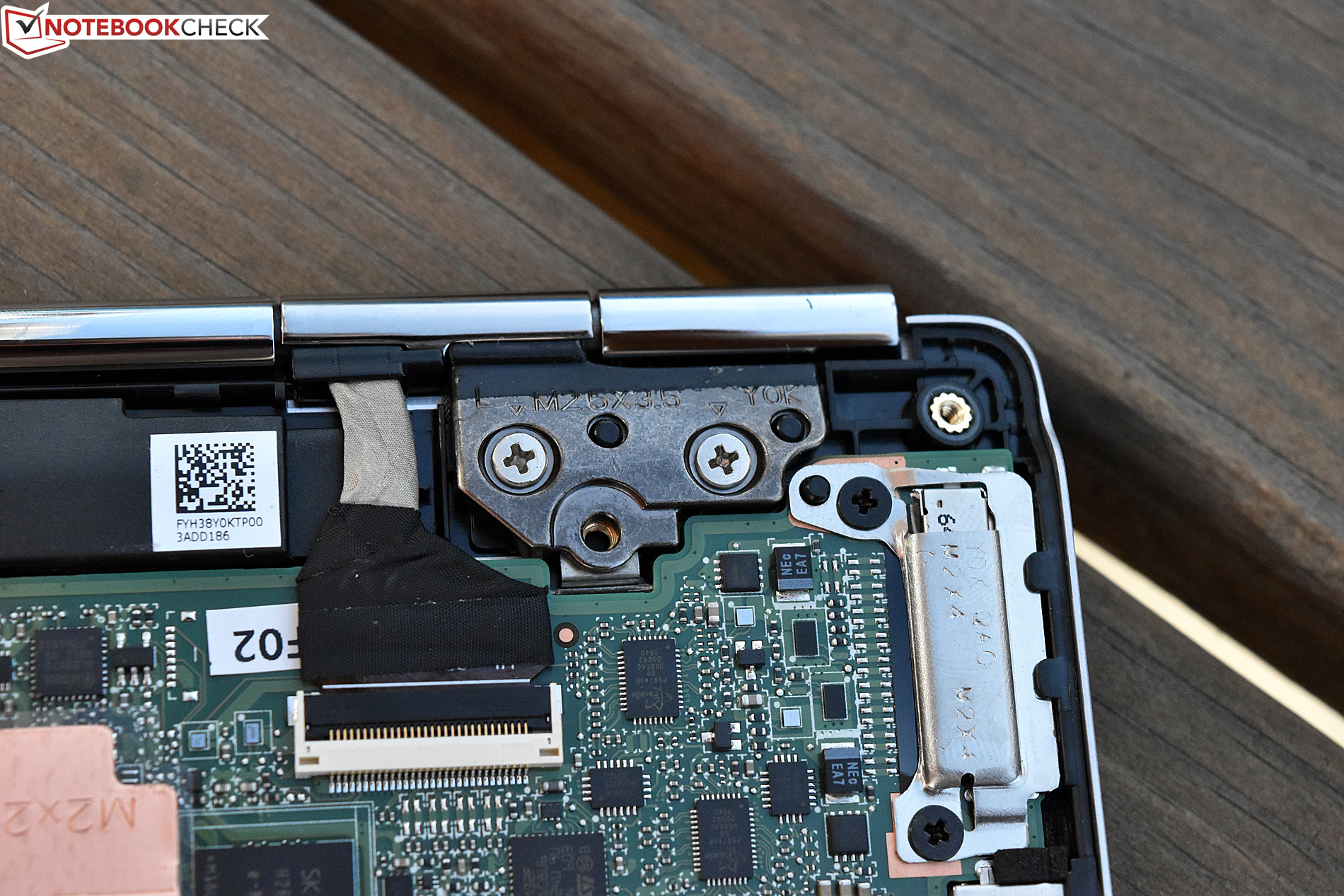

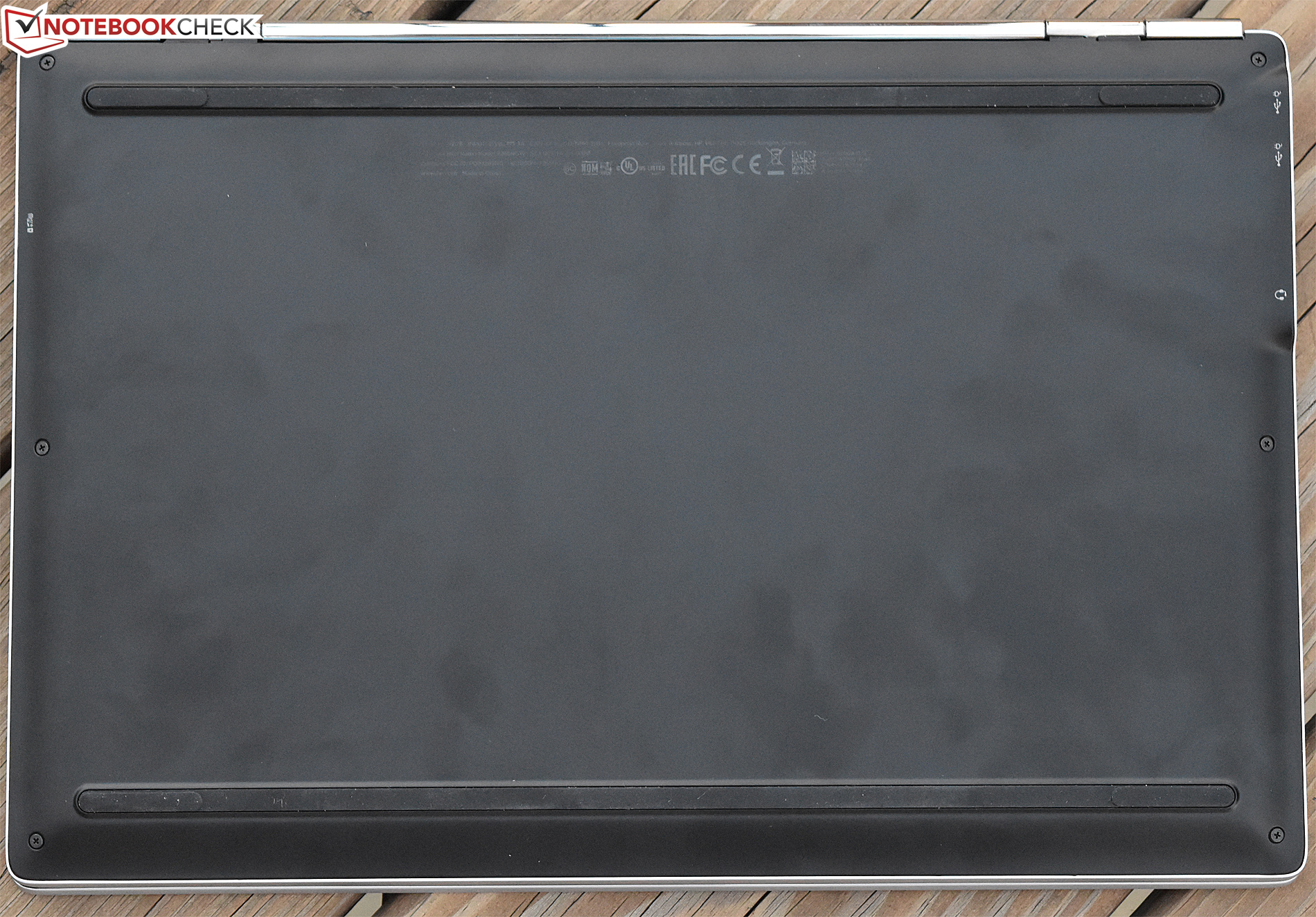

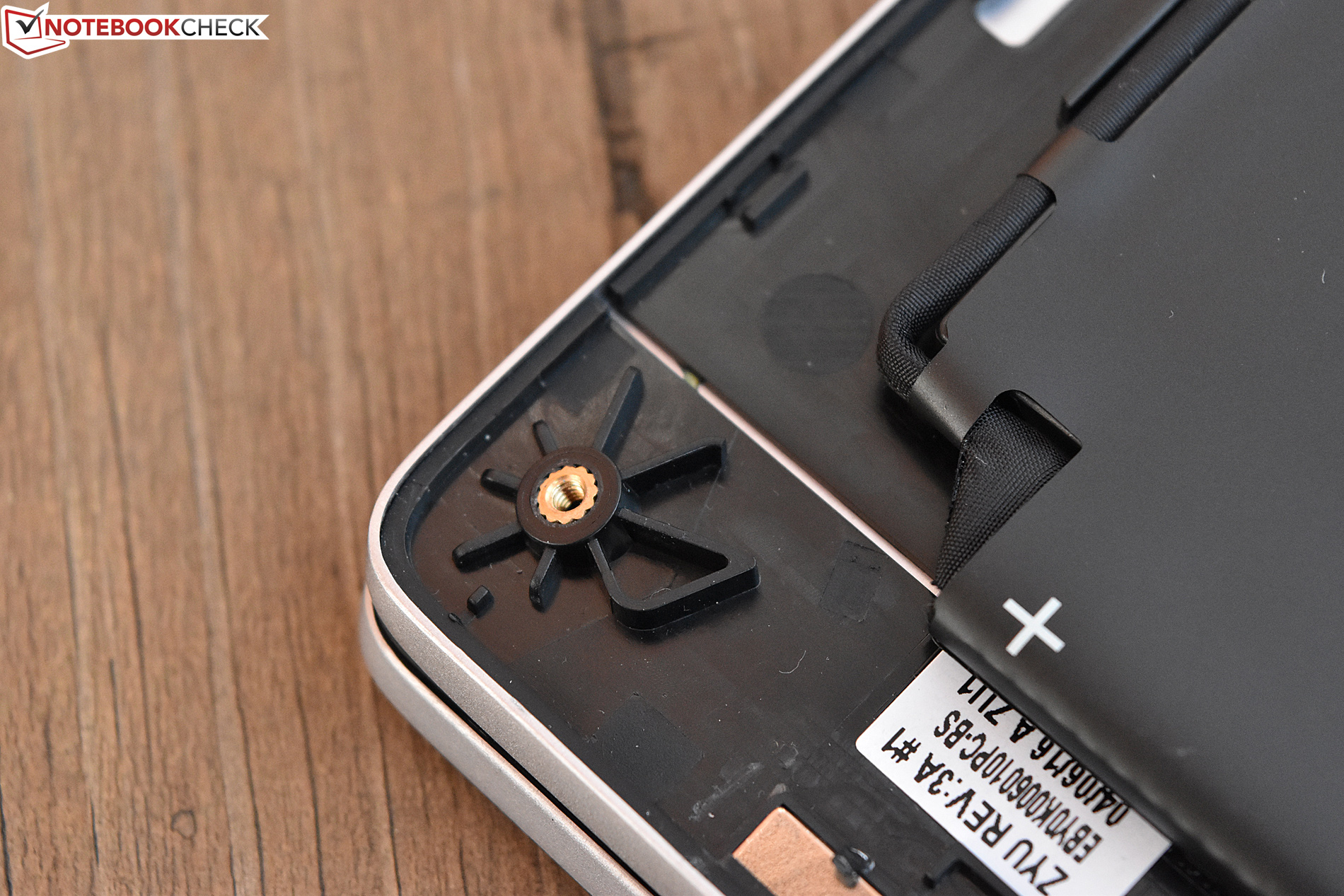

- 维护更新需要取下橡胶垫脚
The HP Chromebook 13
The HP Chromebook 13

从发布以来,惠普Chromebook 13 G1就注定将会成为Chrome OS机型中的一员不容忽视的猛将。尽管它的设计中心侧重性价比,惠普也明显把设计、美学、人体工程学放在了同样重要的位置。而其结果就是这台极具金属质感、灵巧的超便携设备,它的外观和质感都远超同价位产品,特别是它的入门机型,搭配奔腾双核处理器和4 GB内存、QHD+屏幕,售价仅499美元(约3325人民币)。

作为Chromebook来说,它的配置十分不错,在设计和成本间取得了巧妙的平衡,略为倾向于前者,这可能会吸引很多不喜欢采用塑料机身的设备的用户(可能会和ThinkPad 13 Chromebook同样受到这些用户的欢迎),更不用说带着这类玩具一样的设备参加商务会议了。惠普也为不那么在乎预算的用户提供了升级选项。增加100美元(约666人民币)它将可以升级到酷睿m3处理器,如果增加300美元(约1999人民币),则可以得到酷睿m5处理器和两倍的内存(8 GB)。

受到它自身特性的限制,Chrome OS最吸引人的地方可能还是廉价,惠普Chromebook 13的入门机型应该可以将此发挥到极致。

而我们所测试的819美元(约5457人民币)高配机型则性价比较低。虽然它仍然是一台出色的设备,但在这个价位上,同样的设计和屏幕面板就不那么让人惊艳了,将会落入与我们之前评测的ThinkPad 13 Chromebook一样的“出色…的Chromebook”这类产品中。只需再增加一点预算,用户就可以得到功能更完整的Windows超极本Mac,它们仍然在实用性上远远高于Chromebook。

不过在600美元及以下的市场上,惠普Chromebook 13酷睿m3和奔腾机型应该可以为现有机型带来一定的冲击。如果你已经在考虑Chromebook,那么这款机型极其值得参考。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里。

HP Chromebook 13 G1 Core m5 - 08/31/2016 v5.1(old)
Steve Schardein

Chassis
82 /  98 → 84%
Keyboard
89%
Pointing Device
81%
Connectivity
41 / 80 → 51%
Weight
73 / 35-78 → 88%
Battery
89%
Display
80%
Games Performance
0 / 68 → 0%
Application Performance
78 / 87 → 90%
Temperature
91 / 91 → 100%
Noise
100%
Audio
40 / 91 → 44%
Camera
73 / 85 → 86%
Average
76%
85%
Subnotebook - Weighted Average

Pricecompare

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > 惠普 Chromebook 13 G1 酷睿m5 笔记本电脑简短评测
Steve Schardein, 2016-09- 3 (Update: 2017-01-24)
