惠普14s with Ryzen in review:廉价的笔记本电脑让人看到了潜力

14英寸的主流产品,没有亮点。 slim 14s是制造商的一个面包和黄油模型。它可以配备从廉价到昂贵的硬件。我们看一下2021年的机型,配备流行的Ryzen 5000芯片。我们是否发现当前AMD一代的优势在这里也得到了证实?部分是的,部分不是。
Sebastian Jentsch, 👁 Sebastian Jentsch (translated by DeepL/Stefan Hinum), 🇺🇸 🇩🇪 ...
AMD Windows Laptop / Notebook

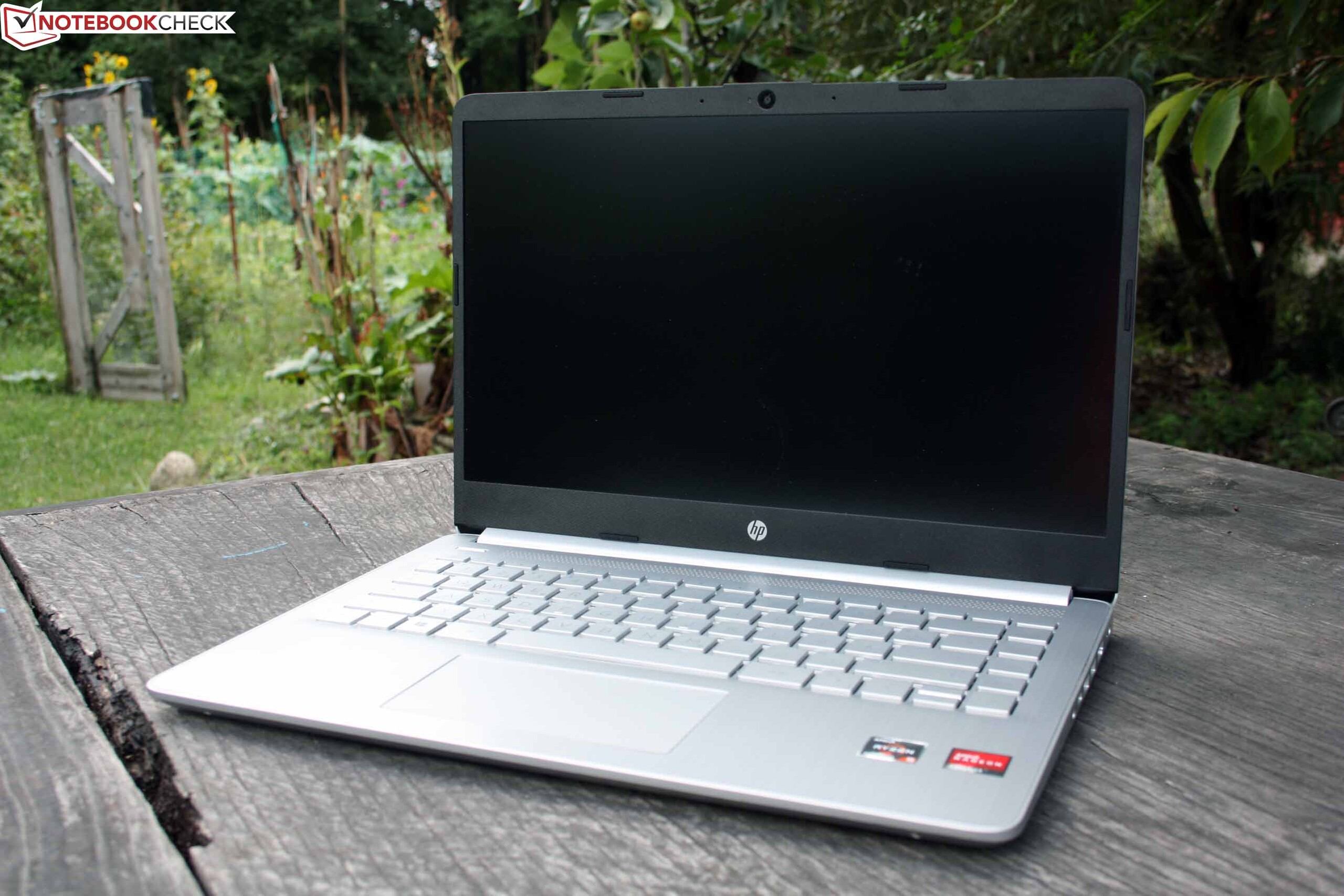

惠普14s - 苍白的面包和黄油副笔记本
惠普14s - 苍白的面包和黄油副笔记本

作为一个主流平台,惠普14s配备了制造商所有可以想象的变体的硬件。无论是英特尔还是AMD芯片,大的和小的硬盘,最小的或慷慨的工作内存配置。因此,从280欧元(约333美元,不含Windows系统)到近850欧元(约1010美元,英特尔高端),每个人都有自己的选择。

我们的测试模型处于较低的中场,价格为530欧元(约630美元,不含Windows),但理论上可以通过Ryzen 5000 SoC跟上英特尔的高端产品。你可以在评论中找到我们不推荐该机型的原因。

, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

HP 14s-fq1357ng
Processor
AMD Ryzen 5 5500U 6 x 2.1 - 4 GHz, 26 W PL2 / Short Burst, 15 W PL1 / Sustained, Lucienne U (Zen 2)
Graphics adapter
AMD Radeon RX Vega 7 - 512 MB, Memory: 1333 MHz, DDR4, Adrenalin 20.40.32
Memory
16384 MB
, DDR4-3200 (2x 8GB, 2 Slots)
Display
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, AUO403D, IPS, glossy: no, 60 Hz
Storage
Micron 2210 MTFDHBA512QFD, 512 GB
, 340 GB free
Soundcard
AMD Raven/Renoir/Van Gogh/Cezanne/Rembrandt - HD Audio Controller
Connections
3 USB 3.0 / 3.1 Gen1, 1 HDMI, Audio Connections: Combined, Card Reader: SD, Miracast
Networking
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.2
Size
height x width x depth (in mm): 17.9 x 324 x 225
Battery
41 Wh Lithium-Ion
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 720p
Primary Camera: 0.9 MPix
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: no, 12 Months Warranty
Weight
1.46 kg, Power Supply: 271 g
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible competitors in comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
77 %
09/2021
HP 14s-fq1357ng
R5 5500U, Vega 7
1.5 kg17.9 mm14.00"1920x1080
79 %
HP 14s-dq1431ng
i5-1035G1, UHD Graphics G1 (Ice Lake 32 EU)
1.5 kg18 mm14.00"1920x1080
86 %
Lenovo IdeaPad 5 14ALC05 82LM005YGE
R5 5500U, Vega 7
1.4 kg19.1 mm14.00"1920x1080
85 %
05/2021
Honor Magicbook 14 i7-1165G7
i7-1165G7, Iris Xe G7 96EUs
1.4 kg15.9 mm14.00"1920x1080
87 %
08/2021
Lenovo ThinkPad E14 G3-20Y7003SGE
R5 5500U, Vega 7
1.6 kg17.9 mm14.00"1920x1080

外壳和功能。可升级的子笔记本

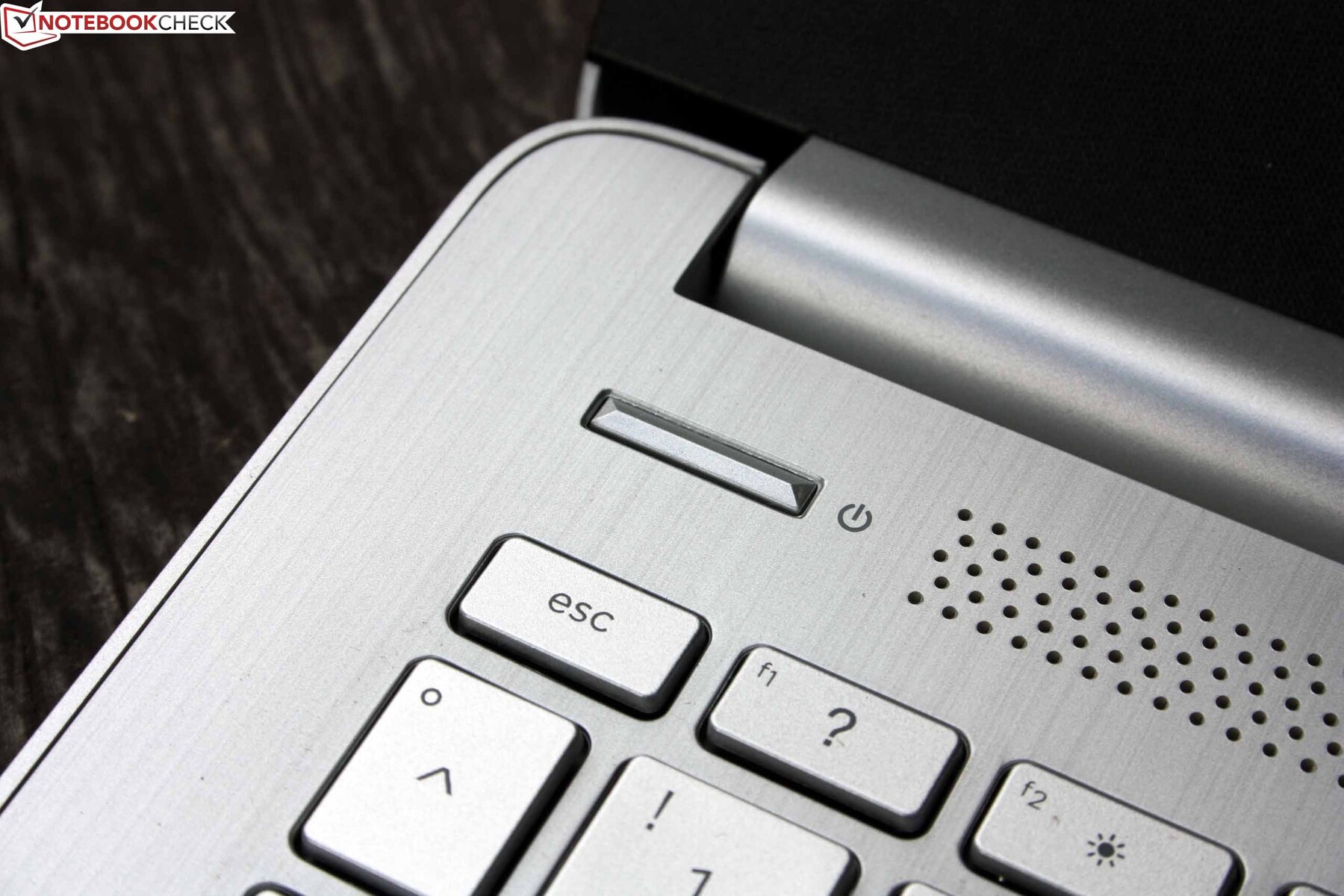

狭窄的开机是凹进去的,不可能这么快就被意外地按下。
狭窄的开机是凹进去的,不可能这么快就被意外地按下。

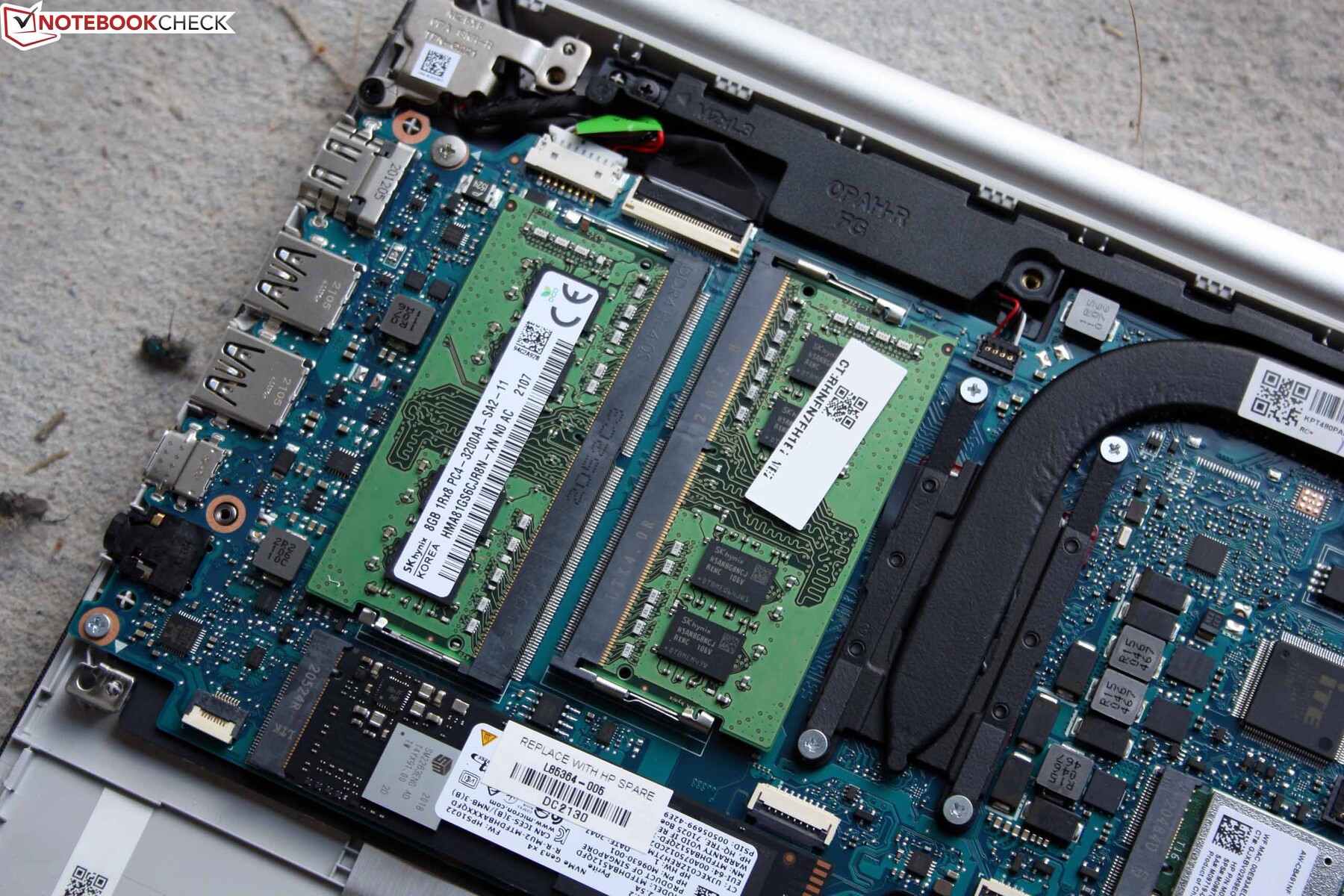

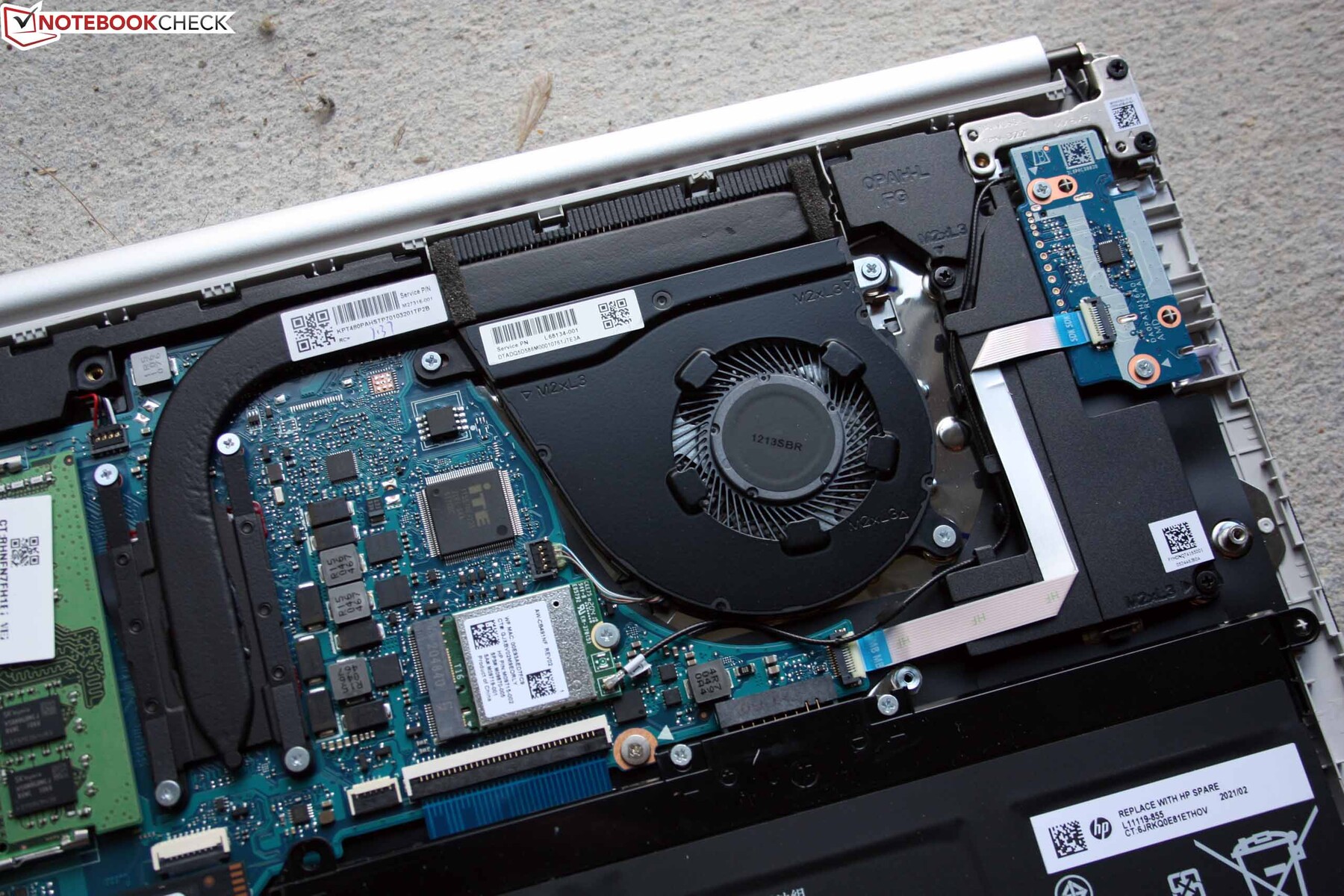

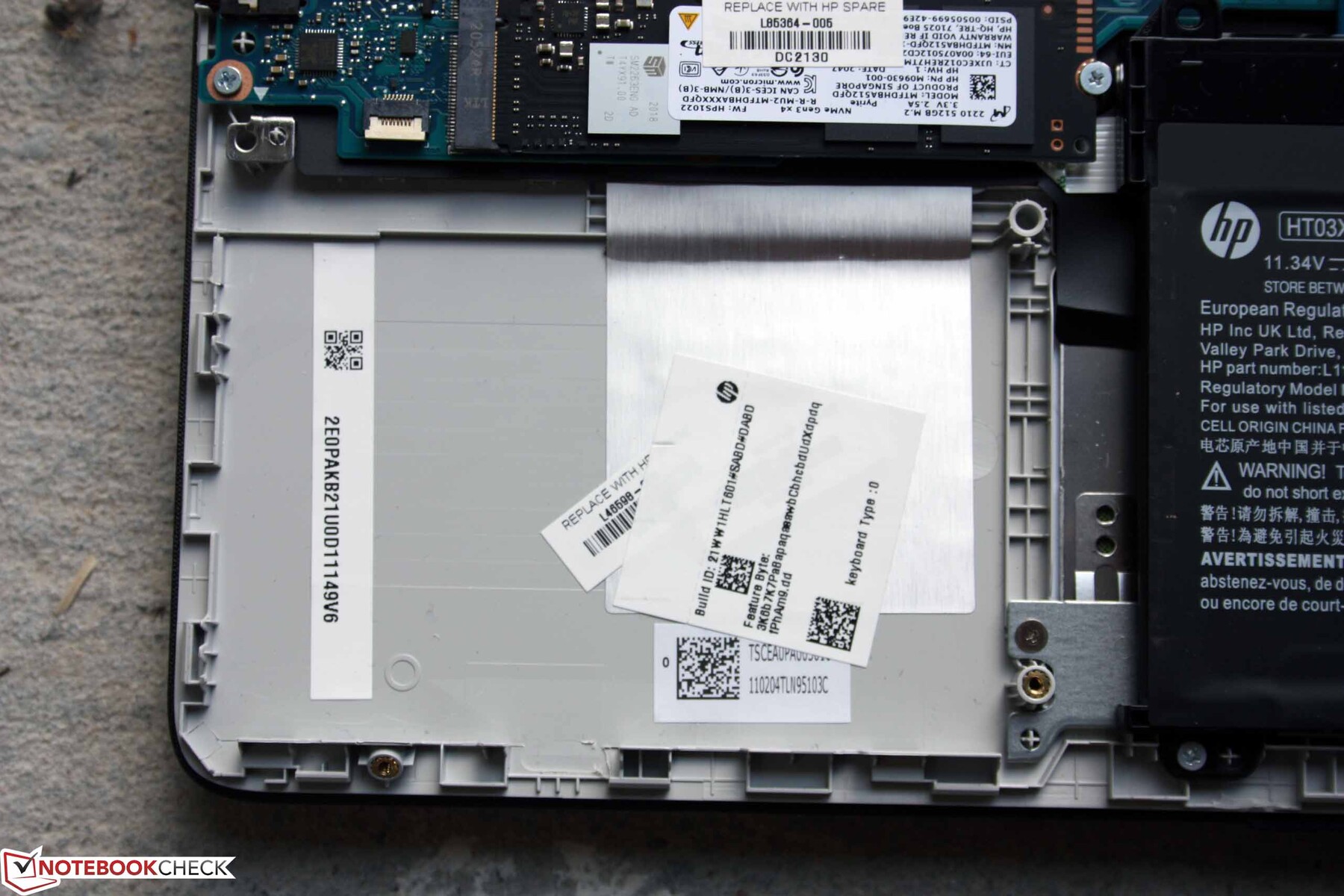

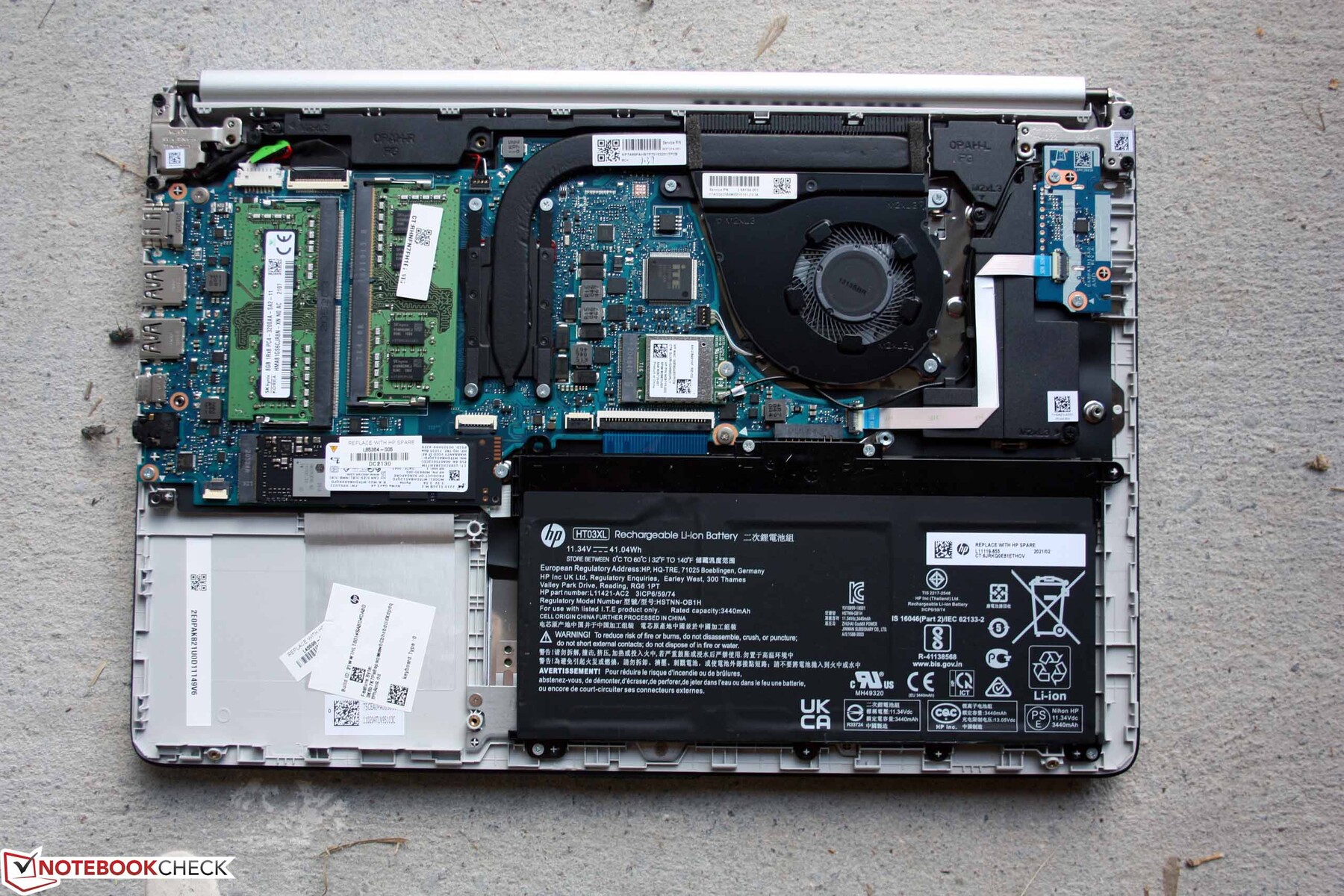

内存、固态硬盘和WiFi模块是可以更换的
内存、固态硬盘和WiFi模块是可以更换的
两个RAM插座
两个RAM插座

由于底座上有薄薄的铝板,塑料底盘看起来很悦目,但这对稳定性没有帮助。轻巧的底盘只具有相当的抗扭性,铰链上的运动会使结构的邻近区域变形。键盘的弯曲度很大,底座可以在有限的范围内从下面弯曲。显示屏上的压力导致了亮度的变化(在黑色图像中可以识别)。

该机型可以升级,有两个内存插槽,一个M.2 2280插槽用于SSD,一个M.2 2230用于WiFi芯片。由于测试结果不佳,我们会先抛出后者。SD卡读卡器也很慢,但幸运的是你并不经常需要它。弹出机制的缺失很令人讨厌。SD卡被简单地卡在插槽中,我们不得不用指尖在只伸出4毫米的卡上挣扎。

至少1.4公斤(约3.1磅)的重量是可敬的,联想的竞争对手更重更厚。端口在右边,而且距离很近,这可能会给USB加密狗带来问题,例如用于以太网。Type-C USB不能用于充电,也不适合作为DisplayPort输出--至少它拒绝与我们的Type-C转HDMI线一起工作。

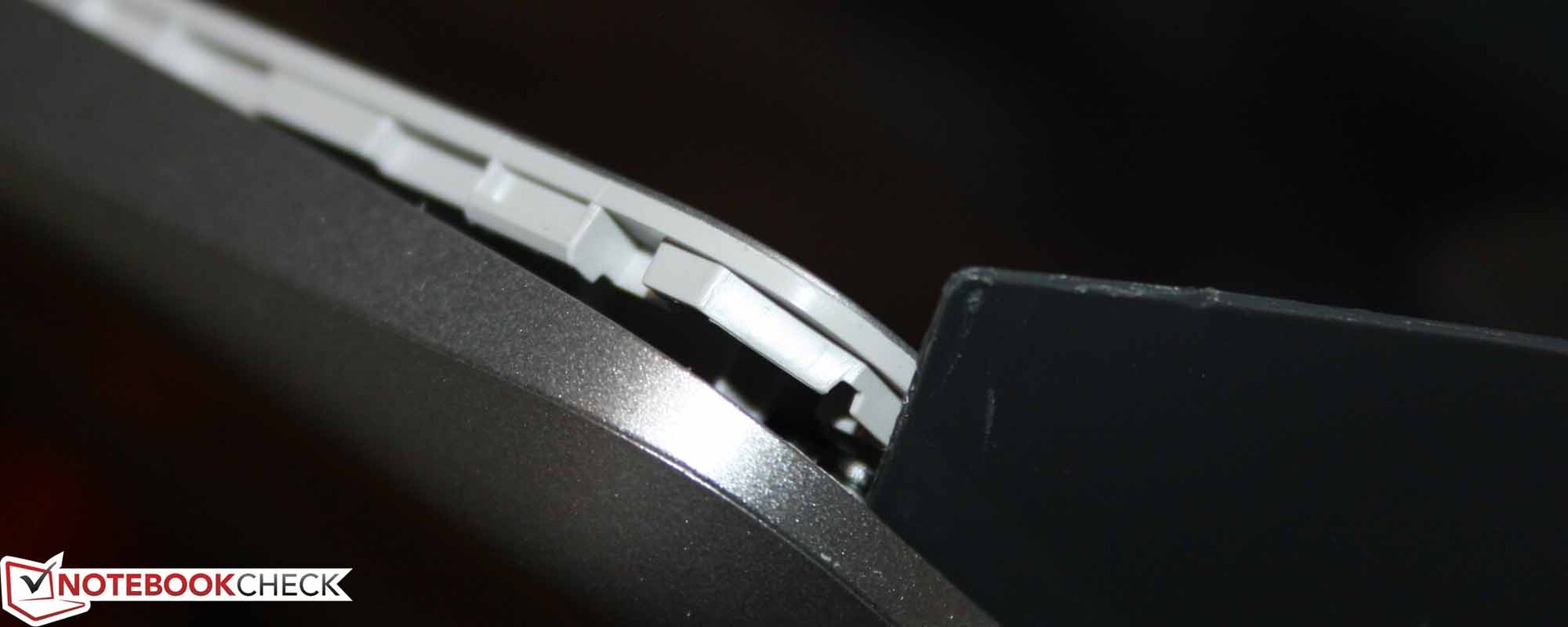

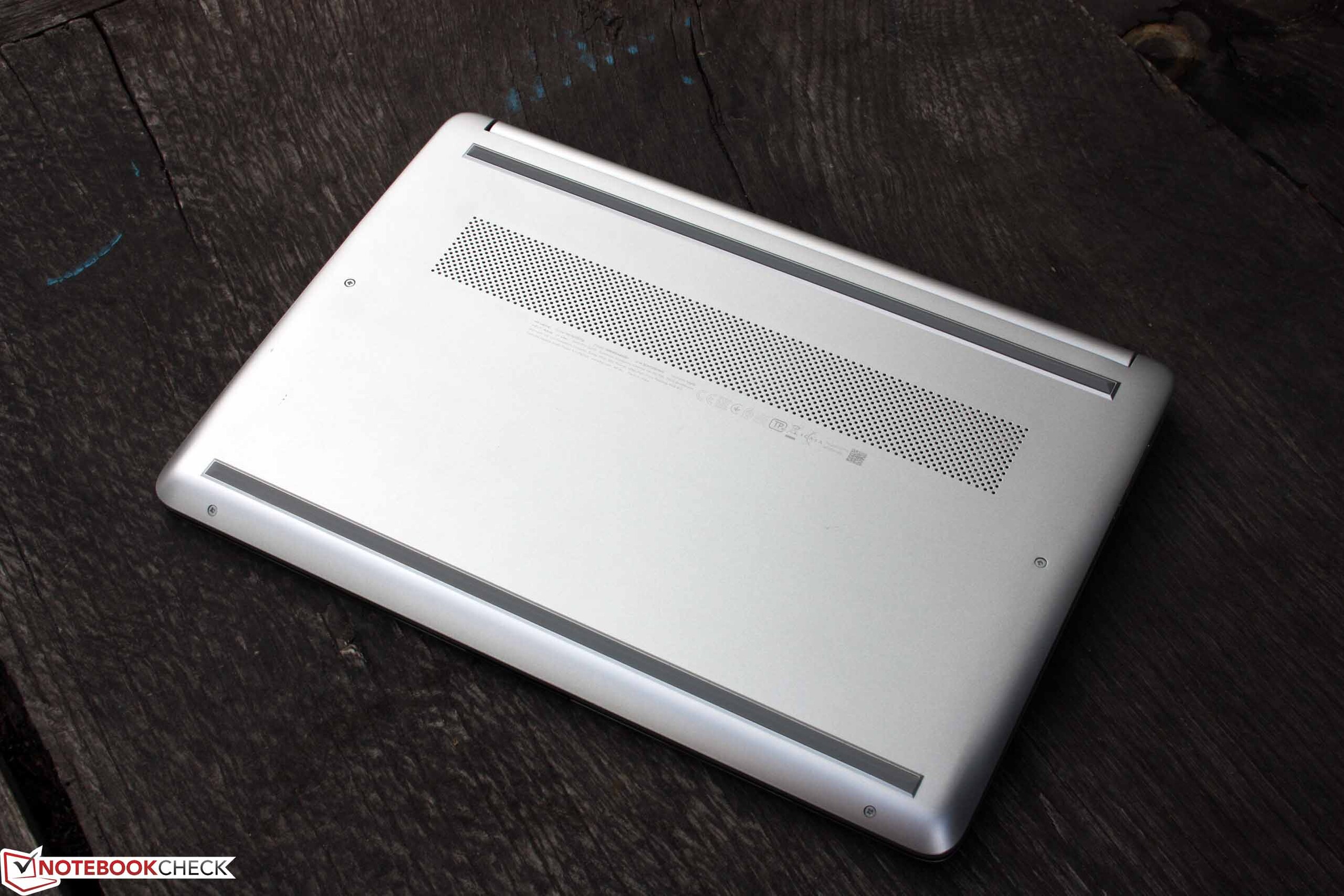

底部托盘必须用塑料铲子撬开,这不是很容易。此外,底部有螺丝,藏在底板下面。
底部托盘必须用塑料铲子撬开,这不是很容易。此外,底部有螺丝,藏在底板下面。

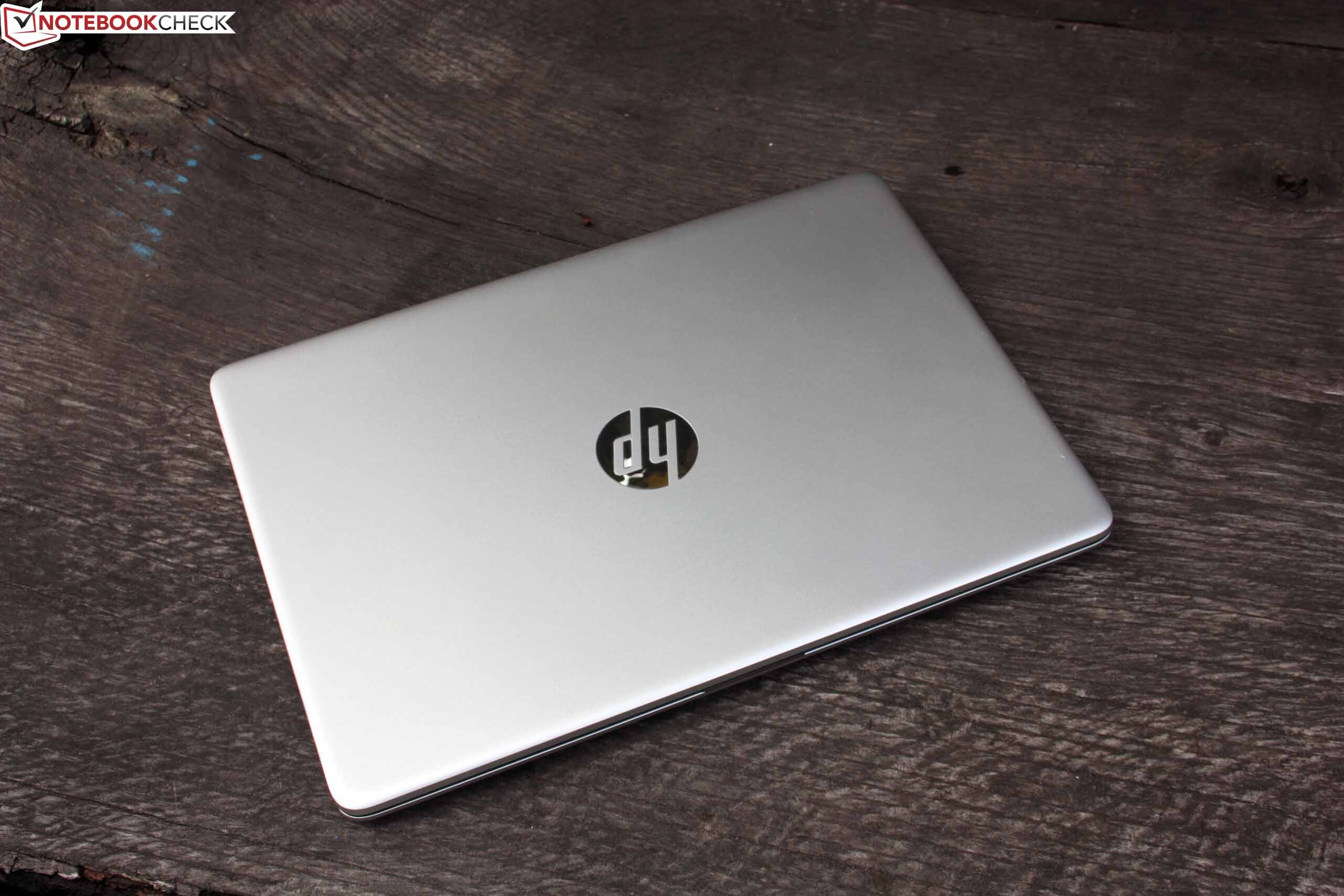

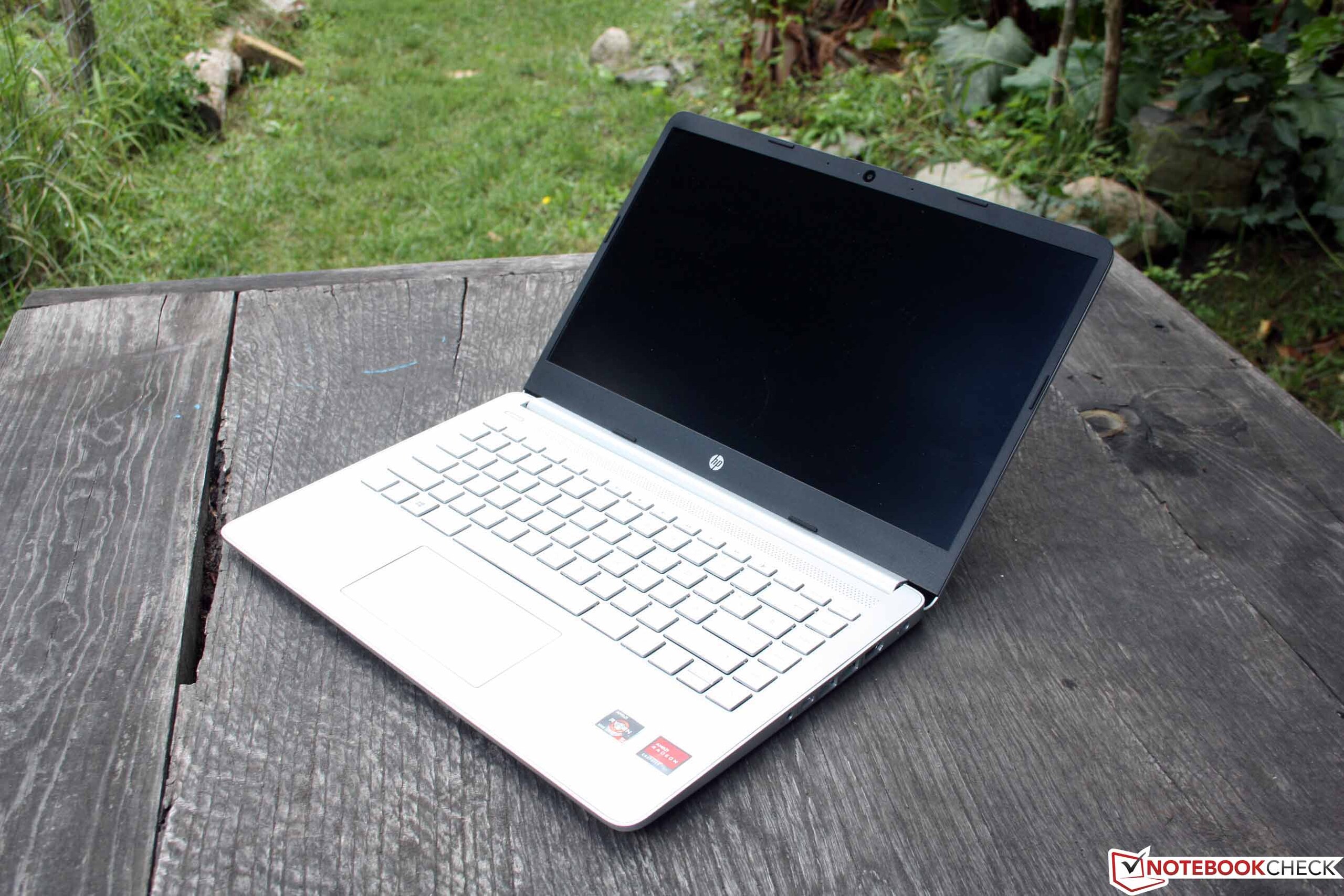

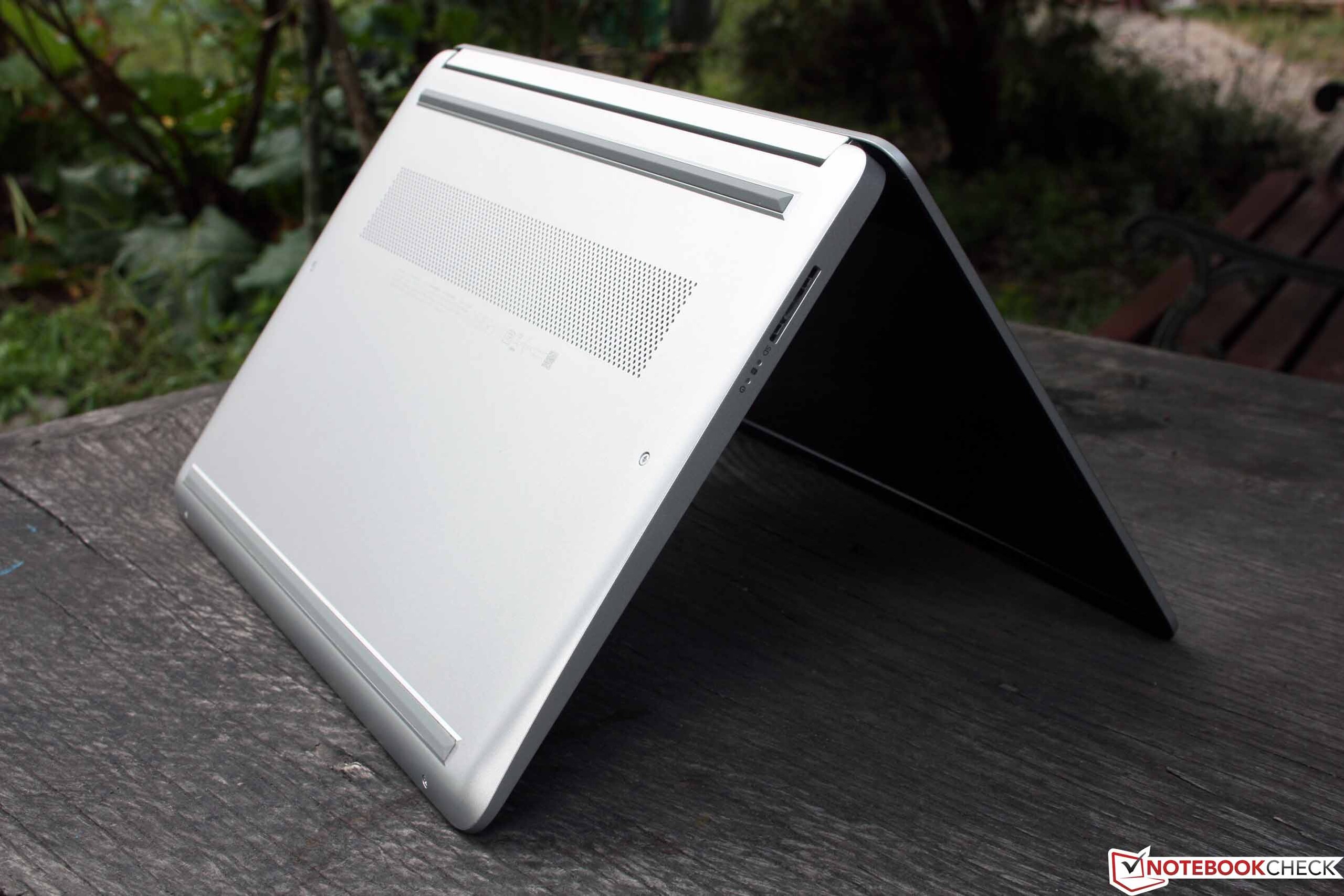

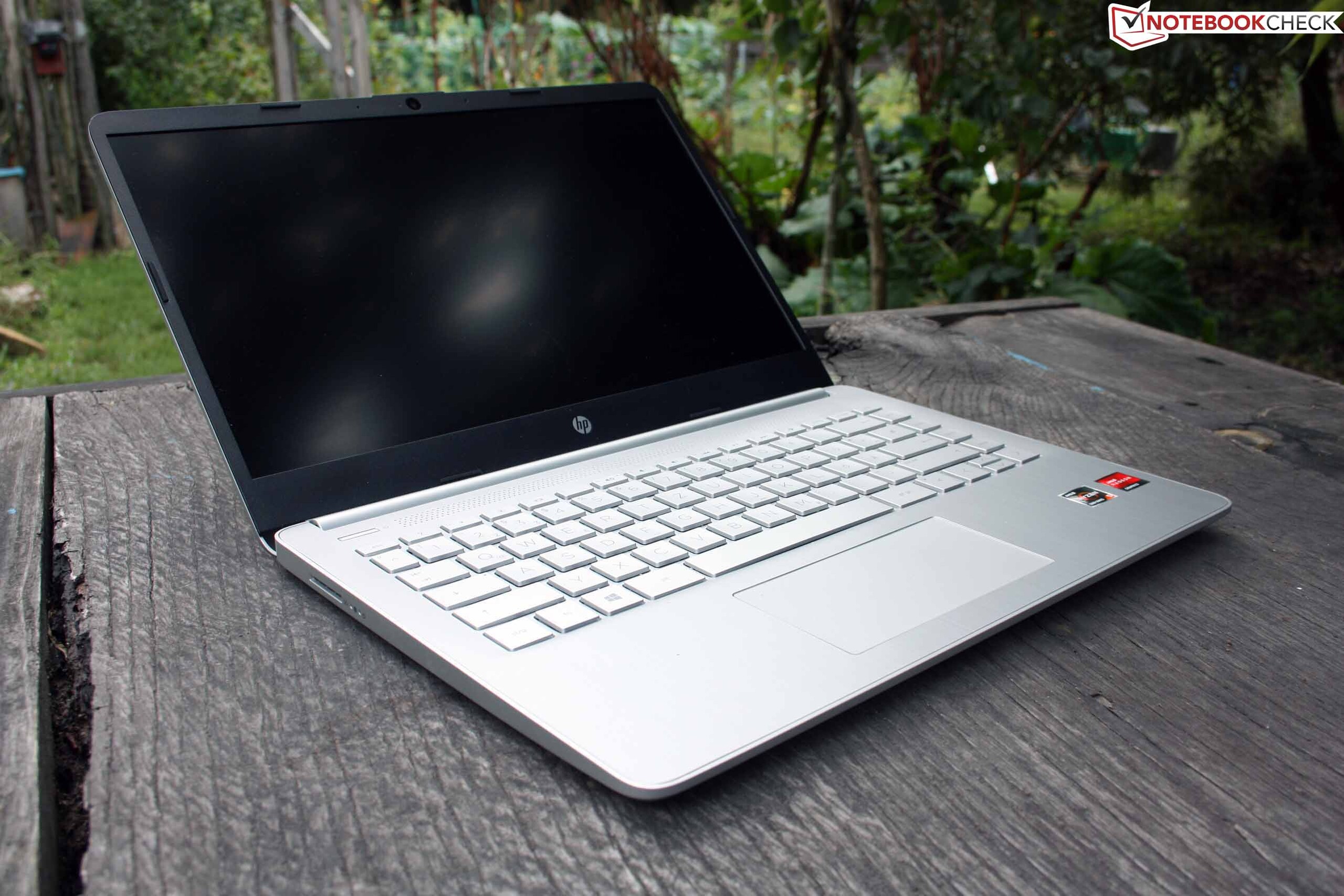

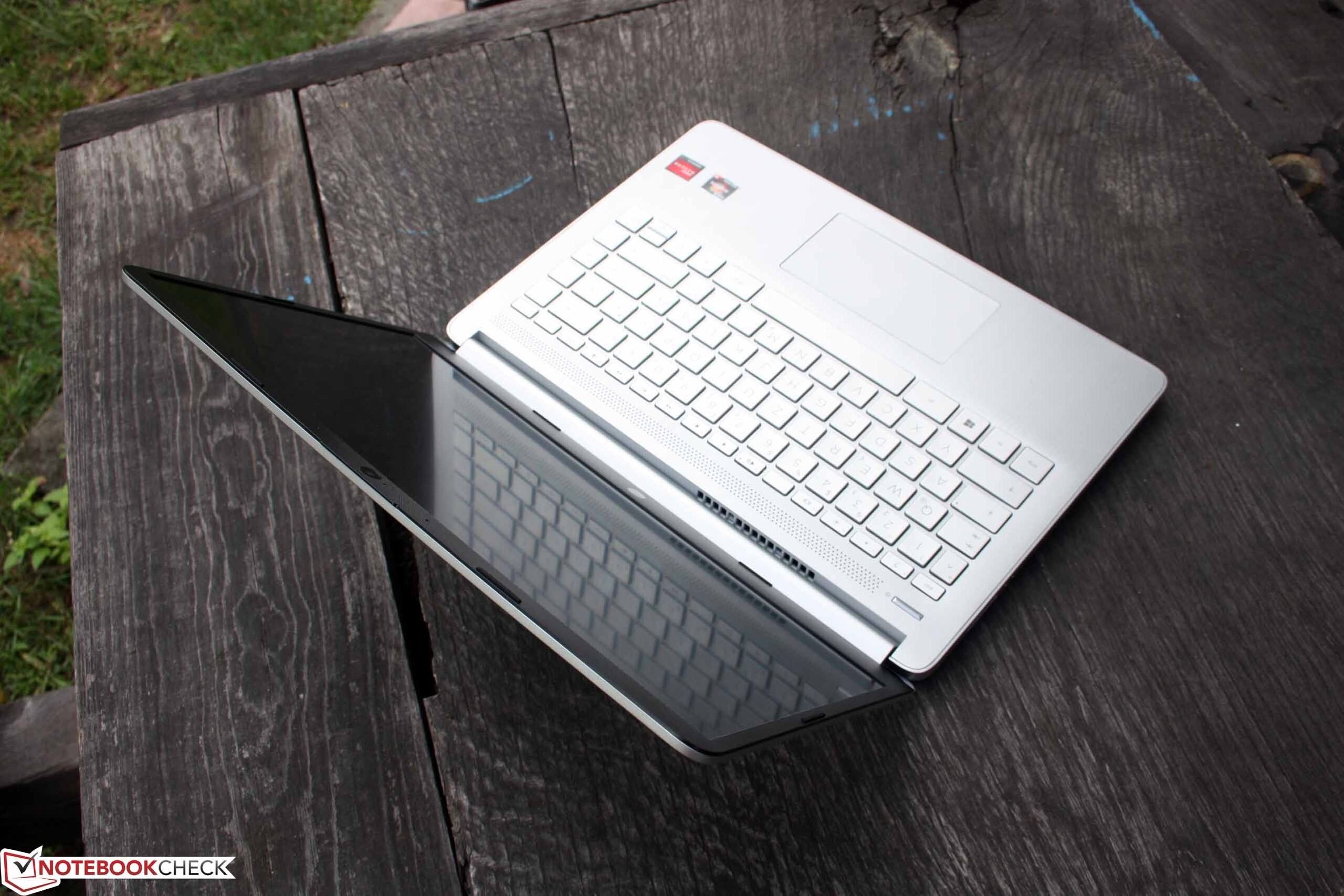

惠普14s - AMD Ryzen 5000变种 2021年
惠普14s - AMD Ryzen 5000变种 2021年
惠普14s - AMD Ryzen 5000变种 2021年
惠普14s - AMD Ryzen 5000变种 2021年
惠普14s - AMD Ryzen 5000变种 2021年
惠普14s - AMD Ryzen 5000变种 2021年
惠普14s - AMD Ryzen 5000变种 2021年
惠普14s - AMD Ryzen 5000变种 2021年

Size comparison

325 mm 232 mm 17.9 mm 1.6 kg324 mm 225 mm 17.9 mm 1.5 kg321.57 mm 211.59 mm 19.1 mm 1.4 kg322.5 mm 214.8 mm 15.9 mm 1.4 kg

连接设备

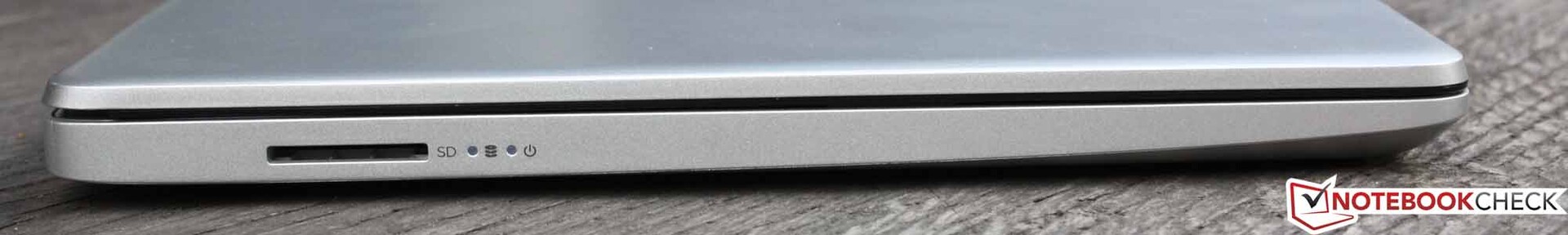

SD卡读卡器--没有弹出机制,拔出时几乎会折断指甲。
SD卡读卡器--没有弹出机制,拔出时几乎会折断指甲。

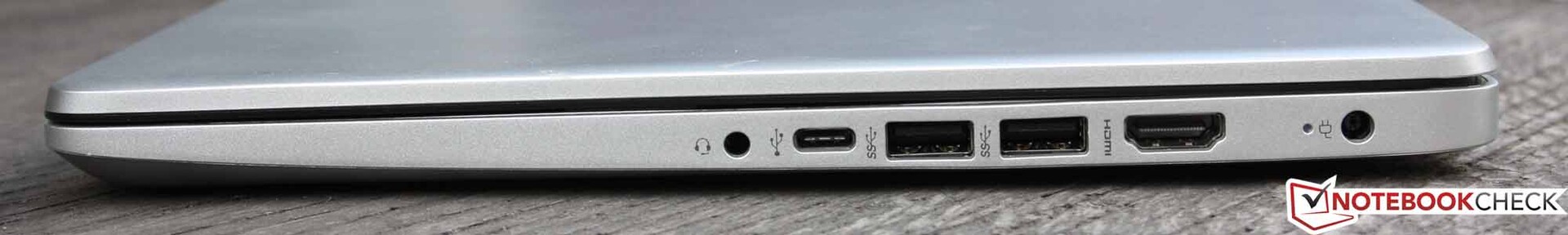

音频组合,3 x USB 3.0,一次为C型,两次为A型,HDMI 1.4b,空心插座(电源接口)。
音频组合,3 x USB 3.0,一次为C型,两次为A型,HDMI 1.4b,空心插座(电源接口)。
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Lenovo IdeaPad 5 14ALC05 82LM005YGE

77.5 MB/s ∼100% +128%
Average of class Subnotebook
  (14.9 - 195, n=52, last 2 years)
73.7 MB/s ∼95% +117%
HP 14s-dq1431ng
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
36.4 MB/s ∼47% +7%
HP 14s-fq1357ng
  (AV Pro SD microSD 128 GB V60)
34 MB/s ∼44%
maximum AS SSD Seq Read Test (1GB)
Lenovo IdeaPad 5 14ALC05 82LM005YGE

85.9 MB/s ∼100% +130%
Average of class Subnotebook
  (16.3 - 206, n=50, last 2 years)
84.9 MB/s ∼99% +128%
HP 14s-dq1431ng
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
38.7 MB/s ∼45% +4%
HP 14s-fq1357ng
  (AV Pro SD microSD 128 GB V60)
37.3 MB/s ∼43%
Networking
iperf3 Client (transmit) TCP 1 m 4M x10
Lenovo IdeaPad 5 14ALC05 82LM005YGE
Intel Wi-Fi 6 AX200
1380 (1117min - 1459max) MBit/s ∼100% +381%
Honor Magicbook 14 i7-1165G7
Intel Wi-Fi 6 AX201
1352 (674min - 1509max) MBit/s ∼98% +371%
Lenovo ThinkPad E14 G3-20Y7003SGE
RealTek Semiconductor RTL8852AE
870 (441min - 906max) MBit/s ∼63% +203%
HP 14s-dq1431ng
RealTek Semiconductor, Device ID: C821
663 (431min - 696max) MBit/s ∼48% +131%
HP 14s-fq1357ng
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
287 (152min - 308max) MBit/s ∼21%
Average Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
  (54.8 - 339, n=20)
278 MBit/s ∼20% -3%
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo IdeaPad 5 14ALC05 82LM005YGE
Intel Wi-Fi 6 AX200
1392 (1295min - 1594max) MBit/s ∼100% +370%
Honor Magicbook 14 i7-1165G7
Intel Wi-Fi 6 AX201
1191 (1067min - 1275max) MBit/s ∼86% +302%
Lenovo ThinkPad E14 G3-20Y7003SGE
RealTek Semiconductor RTL8852AE
790 (405min - 842max) MBit/s ∼57% +167%
HP 14s-dq1431ng
RealTek Semiconductor, Device ID: C821
632 (615min - 642max) MBit/s ∼45% +114%
HP 14s-fq1357ng
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
296 (271min - 305max) MBit/s ∼21%
Average Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
  (86 - 335, n=20)
266 MBit/s ∼19% -10%
05010015020025030035040045050055060065070075080085090095010001050110011501200125013001350140014501500155029830329930130030130130530230129729427728829029429629729628929228929130229130427129630029413661492135613211342132312951367132913481342132413461352136715621540140314911341134615631499159414981302134613281347131212461234117212311136114411011095115212111244120011921165124812151275122412501178123011891236115511271138118310671248122840566069578880680278079581283580180476379880878281580077375378779881381280879378080376984263163463763063162463563462462863063563662563063161563264262963862563662464263362562063963429830329930130030130130530230129729427728829029429629729628929228929130229130427129630029413661492135613211342132312951367132913481342132413461352136715621540140314911341134615631499159414981302134613281347131212461234117212311136114411011095115212111244120011921165124812151275122412501178123011891236115511271138118310671248122840566069578880680278079581283580180476379880878281580077375378779881381280879378080376984263163463763063162463563462462863063563662563063161563264262963862563662464263362562063963415228927729127630028827228630828427628330328428827427729629327428228529627728429928628528413911370141713981433144113951399139913861117140714221433145912871378132913671382138714061293136413691376139813741413140167413551334132413081331132811131333132713201361129513611374130612971206140013321330130614361446137515091425145714761441441863881881890828877892845895883898875834870874856876884871867906864884830873878873837839659674680676666669669670676673668666670652696680682678686673677687686678686672677623624431Tooltip
HP 14s-fq1357ng Realtek RTL8821CE HP 14s-fq1357ng Realtek RTL8821CE; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø295 (271-305)
HP 14s-fq1357ng Realtek RTL8821CE HP 14s-fq1357ng Realtek RTL8821CE; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø1391 (1295-1594)
Honor Magicbook 14 i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø1190 (1067-1275)
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U, AMD Radeon RX Vega 7; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø776 (405-842)
HP 14s-dq1431ng Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU); iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø631 (615-642)
HP 14s-fq1357ng Realtek RTL8821CE HP 14s-fq1357ng Realtek RTL8821CE; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø282 (152-308)
HP 14s-fq1357ng Realtek RTL8821CE HP 14s-fq1357ng Realtek RTL8821CE; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø1380 (1117-1459)
Honor Magicbook 14 i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø1329 (674-1509)
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U, AMD Radeon RX Vega 7; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø856 (441-906)
HP 14s-dq1431ng Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU); iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø663 (431-696)

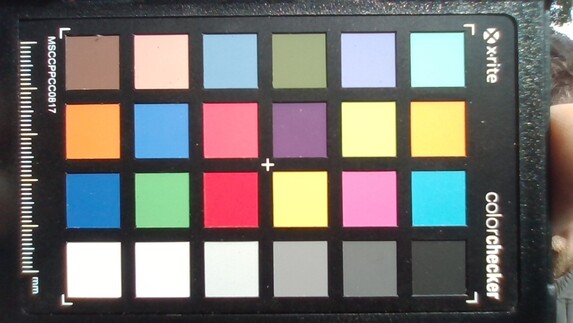

ColorChecker
20.9 ∆E
18.1 ∆E
25.9 ∆E
26.7 ∆E
25.5 ∆E
19.5 ∆E
14 ∆E
31.2 ∆E
17 ∆E
22.5 ∆E
20.1 ∆E
22.4 ∆E
26 ∆E
21.5 ∆E
17.5 ∆E
15.8 ∆E
21.8 ∆E
26.4 ∆E
2.5 ∆E
11.8 ∆E
21.6 ∆E
21 ∆E
22.8 ∆E
7.3 ∆E
ColorChecker HP 14s-fq1357ng: 19.99 ∆E min: 2.53 - max: 31.2 ∆E

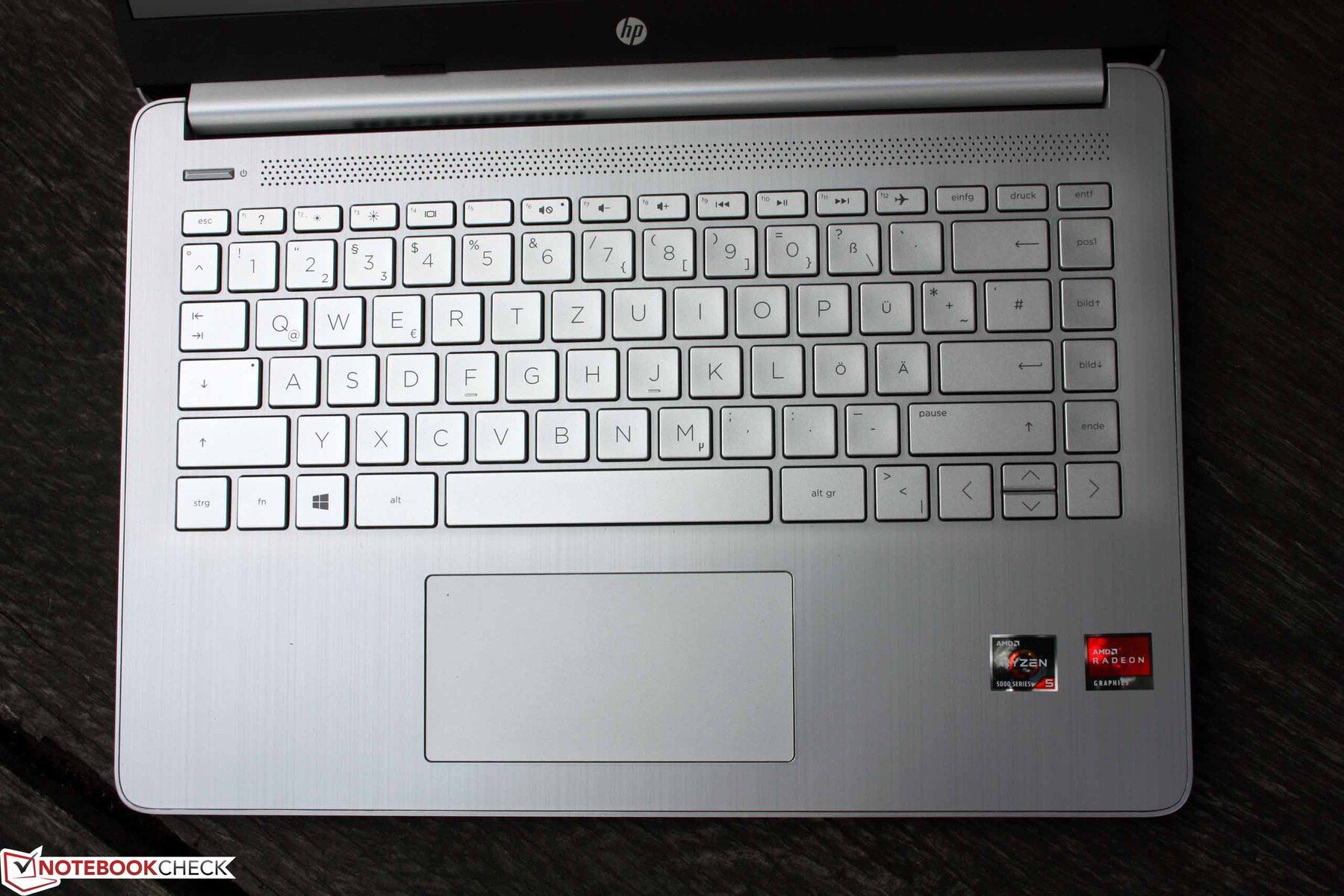

输入设备。惠普笔记本电脑被证明是弱点

该输入法因其屈服的子结构而受到影响。在打字时,按键会屈服,导致打字时有一种海绵状的感觉,没有什么乐趣。平滑的按键有清晰的行程,而且很安静。没有照明,而且字迹可以更强,符合我们的口味。很少需要的F键被设计成Fn辅助键。

宽大的点击板对边缘很敏感,只比掌托略低,有一个清晰的压力点。然而,行程很小。事实证明,穿透力很强的点击噪音是令人讨厌的。

笨拙的,因为摇晃的手写输入法
笨拙的,因为摇晃的手写输入法

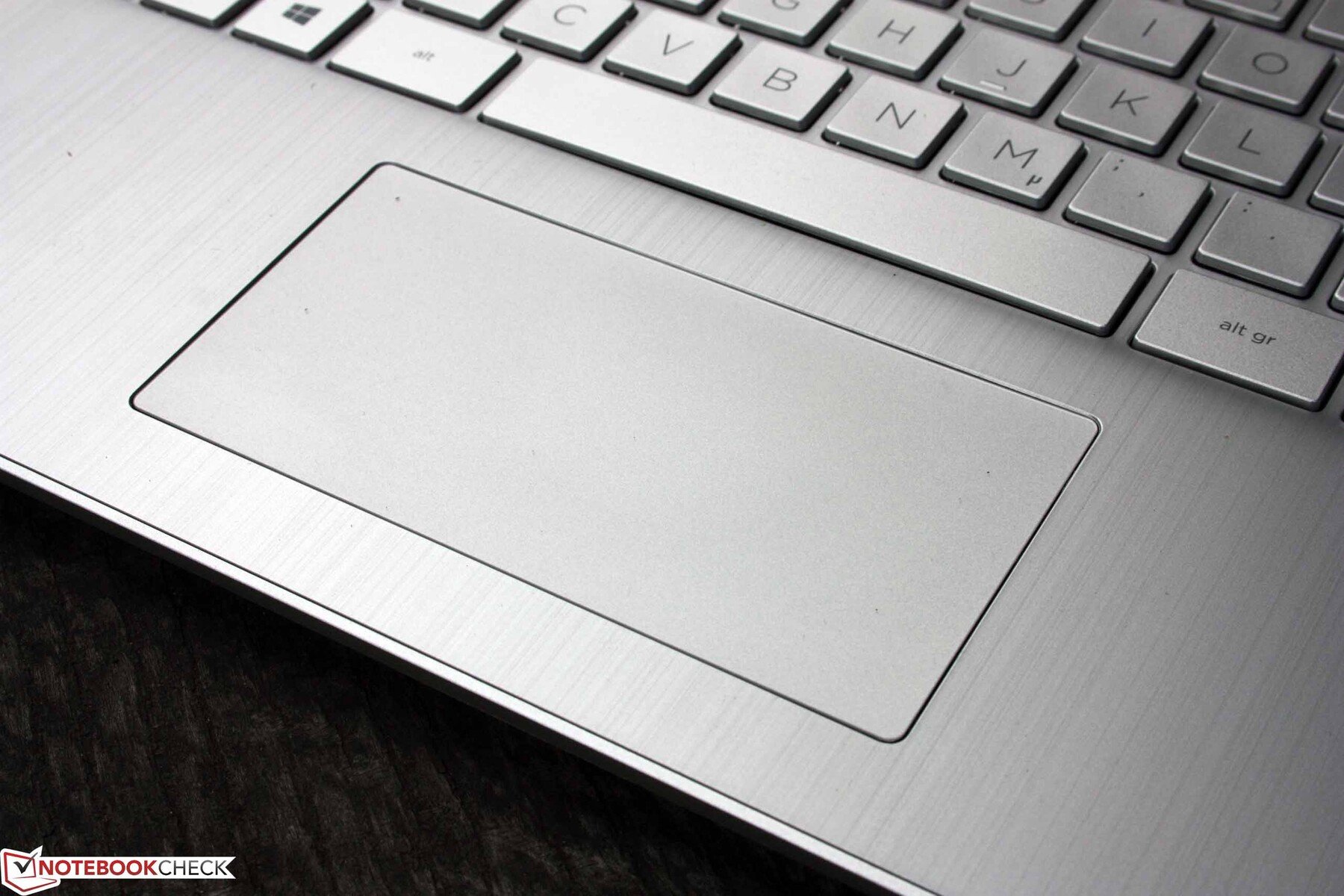

宽大、响亮的ClickPad
宽大、响亮的ClickPad

显示屏:不是一个最佳的笔记本显示屏

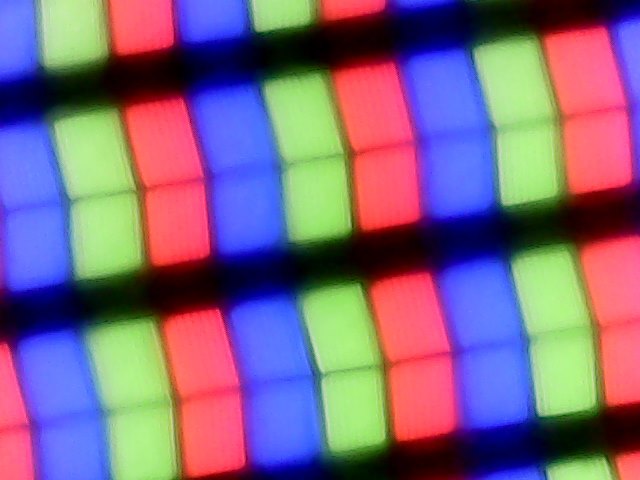

子像素HP 14s-fq1357ng
子像素HP 14s-fq1357ng

友达显示器配备了1920 x 1080像素,抗反射能力较弱,这意味着存在某种丝滑的光泽,这在阳光下也是令人讨厌的。平均223cd/m²的亮度对此无能为力。

对比度为978:1,这个数值几乎是英特尔姐妹产品的两倍,尽管根据命名法,它是相同的AUO面板类型。原因是黑值略低(0.22而不是0.16),英特尔姐妹的亮度更高。AMD Vari Bright没有激活,该设备没有像通常的AMD笔记本电脑那样与相应的Radeon软件一起工作。

227
cd/m²
216
cd/m²
205
cd/m²
226
cd/m²
220
cd/m²
232
cd/m²
217
cd/m²
242
cd/m²
222
cd/m²
Distribution of brightness
AUO403D
X-Rite i1Pro 2
Maximum: 242 cd/m² Average: 223 cd/m² Minimum: 12 cd/m²
Brightness Distribution: 85 %
Center on Battery: 220 cd/m²
Contrast: 978:1 (Black: 0.225 cd/m²)
ΔE Color 4.16 | 0.59-29.43 Ø5.5
ΔE Greyscale 2.35 | 0.64-98 Ø5.7
39.37% AdobeRGB 1998 (Argyll 2.2.0 3D)
57.05% sRGB (Argyll 2.2.0 3D)
38.11% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.62
HP 14s-fq1357ng
AUO403D, IPS, 1920x1080, 14.00
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AU Optronics B140HAN04.E, IPS, 1920x1080, 14.00
Honor Magicbook 14 i7-1165G7
BOE092E, IPS, 1920x1080, 14.00
Lenovo ThinkPad E14 G3-20Y7003SGE
NVM140FHM-N4V, IPS, 1920x1080, 14.00
HP 14s-dq1431ng
AUO403D, IPS, 1920x1080, 14.00
Display
-2%
69%
5%
1%
Display P3 Coverage
38.11
37.47
-2%
64.77
70%
40.3
6%
38.42
1%
sRGB Coverage
57.05
56.04
-2%
96.35
69%
59.5
4%
57.71
1%
AdobeRGB 1998 Coverage
39.37
38.71
-2%
66.14
68%
41.7
6%
39.71
1%
Response Times
-2%
27%
17%
4%
Response Time Grey 50% / Grey 80% *
41 (19, 22)
41 (18, 23)
-0%
31.2 (14.8, 16.4)
24%
35.2 (17.2, 18)
14%
41 (20, 21)
-0%
Response Time Black / White *
27 (15, 12)
28 (15, 13)
-4%
19.2 (10.8, 8.4)
29%
21.6 (12.4, 9.2)
20%
25 (14, 11)
7%
PWM Frequency
29800
Screen
-7%
20%
-3%
-8%
Brightness middle
220
357
62%
341
55%
341
55%
305
39%
Brightness
223
315
41%
313
40%
327
47%
264
18%
Brightness Distribution
85
82
-4%
87
2%
90
6%
81
-5%
Black Level *
0.225
0.455
-102%
0.27
-20%
0.26
-16%
0.16
29%
Contrast
978
785
-20%
1263
29%
1312
34%
1906
95%
Colorchecker DeltaE2000 *
4.16
3.98
4%
1.76
58%
5.1
-23%
5.44
-31%
Colorchecker DeltaE2000 max. *
7.43
6.92
7%
4.85
35%
17.6
-137%
20.42
-175%
Greyscale DeltaE2000 *
2.35
3.33
-42%
3.3
-40%
2.1
11%
3.23
-37%
Gamma
2.62 84%
2.47 89%
2.26 97%
2.11 104%
2.45 90%
CCT
6389 102%
6138 106%
7233 90%
6755 96%
7035 92%
Color Space (Percent of AdobeRGB 1998)
36
66
37
Color Space (Percent of sRGB)
56
89
58
Colorchecker DeltaE2000 calibrated *
1.01
4.4
4.72
Total Average (Program / Settings)
-4% / -5%
39% / 32%
6% / 2%
-1% / -4%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

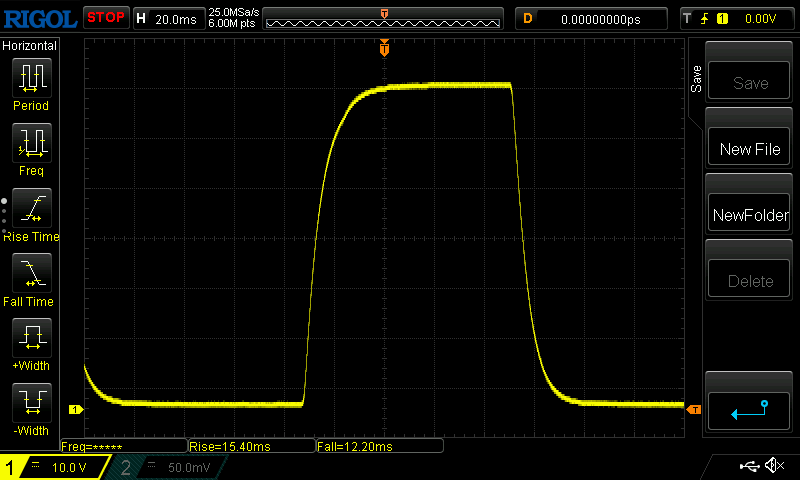

       Response Time Black to White
27 ms ... rise ↗ and fall ↘ combined↗ 15 ms rise
↘ 12 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 56 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (23.9 ms).

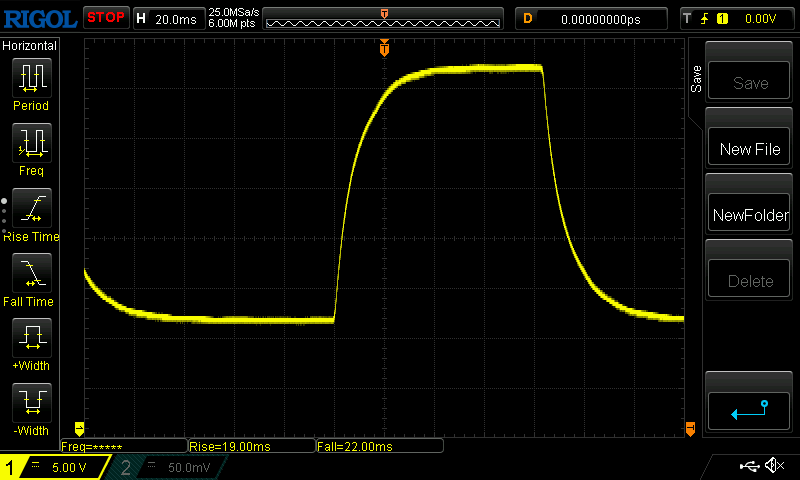

       Response Time 50% Grey to 80% Grey
41 ms ... rise ↗ and fall ↘ combined↗ 19 ms rise
↘ 22 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 636 (maximum) ms. » 52 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (37.8 ms).

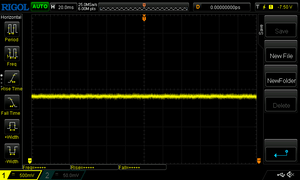

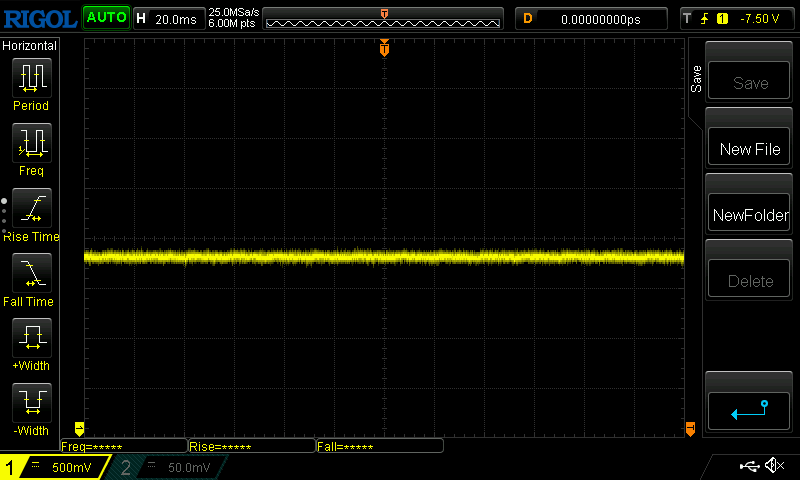

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 52 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 15356 (minimum: 5 - maximum: 2500000) Hz was measured.

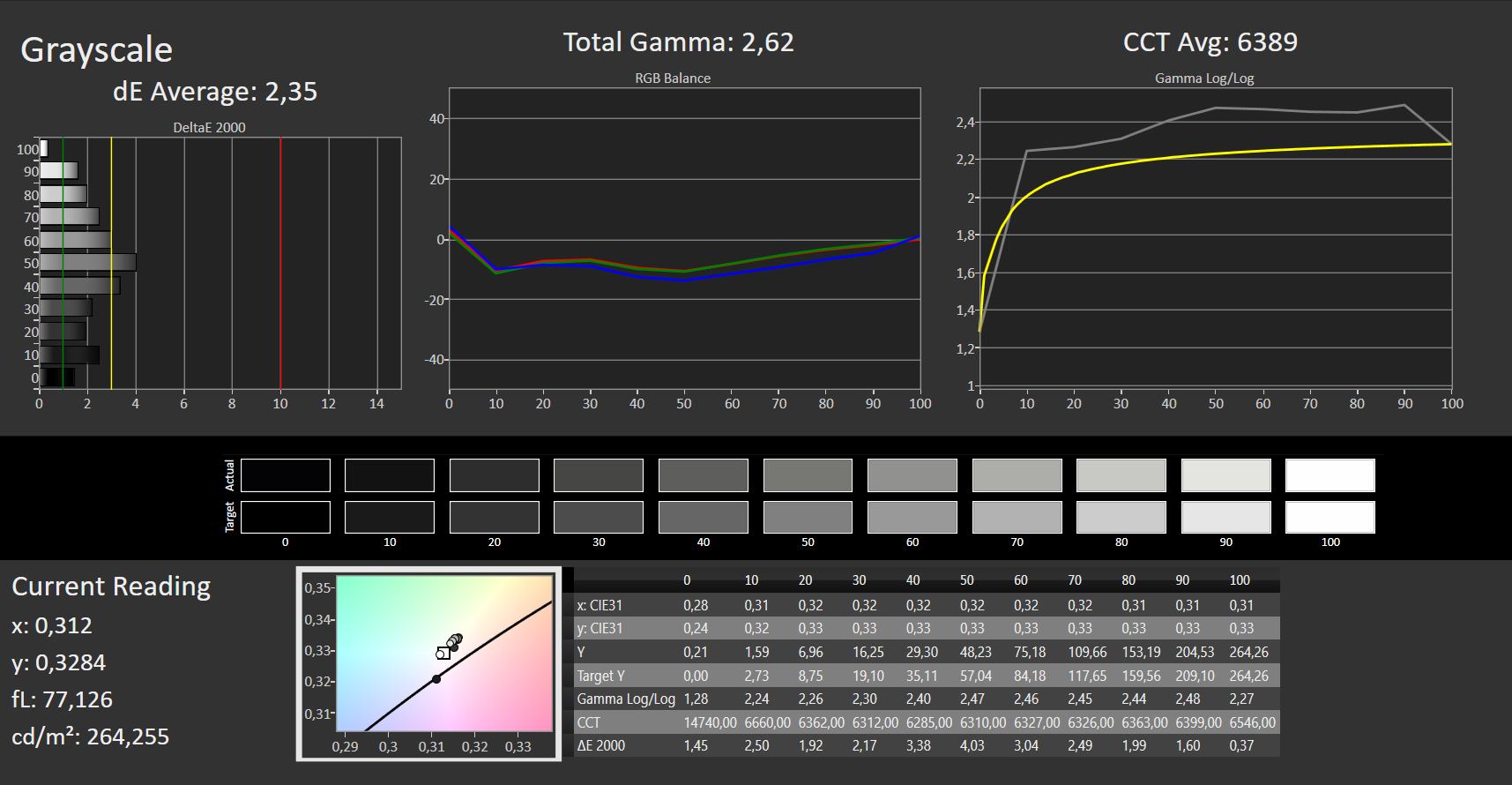

卡尔曼灰度
卡尔曼灰度

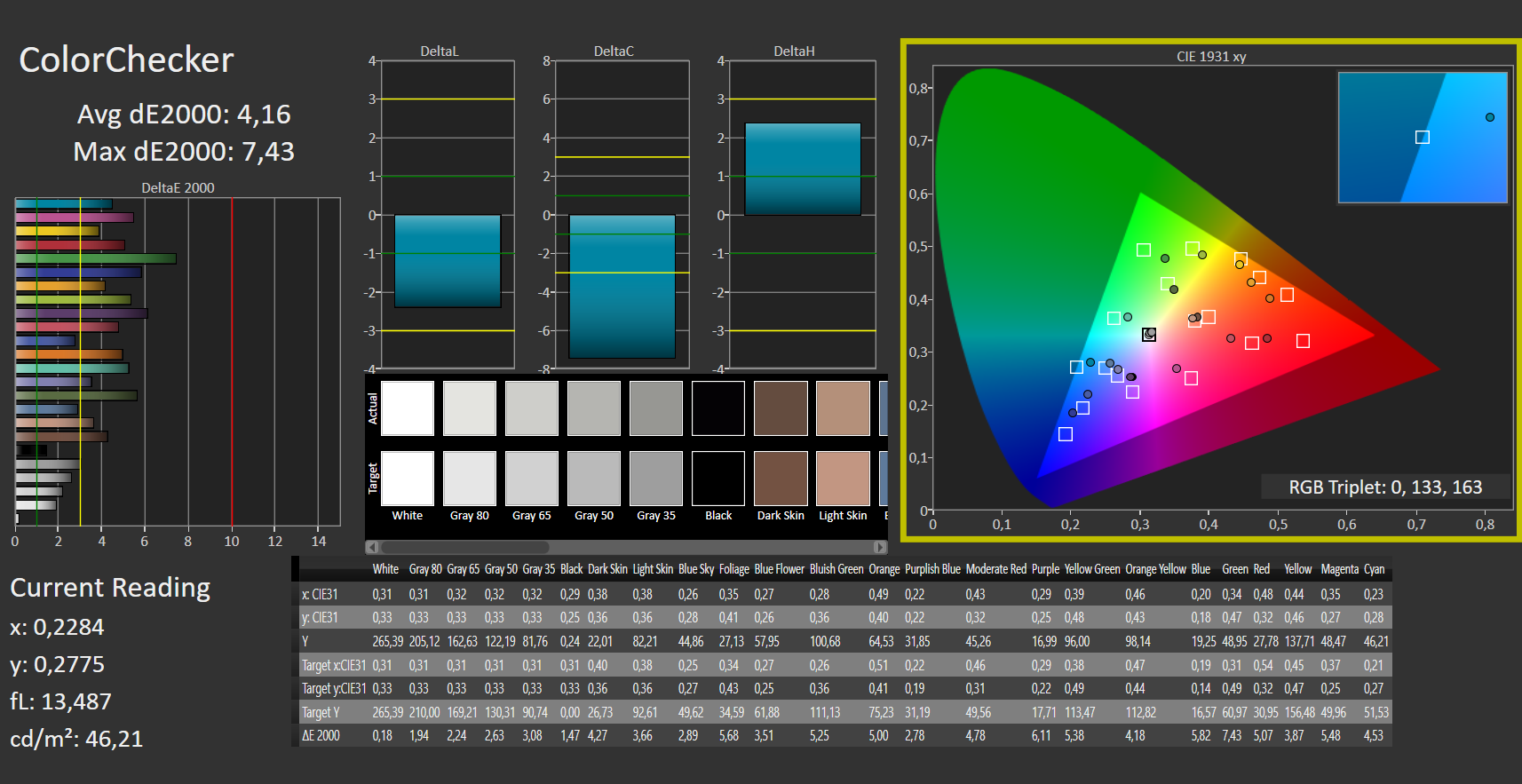

卡尔曼颜色检查器
卡尔曼颜色检查器

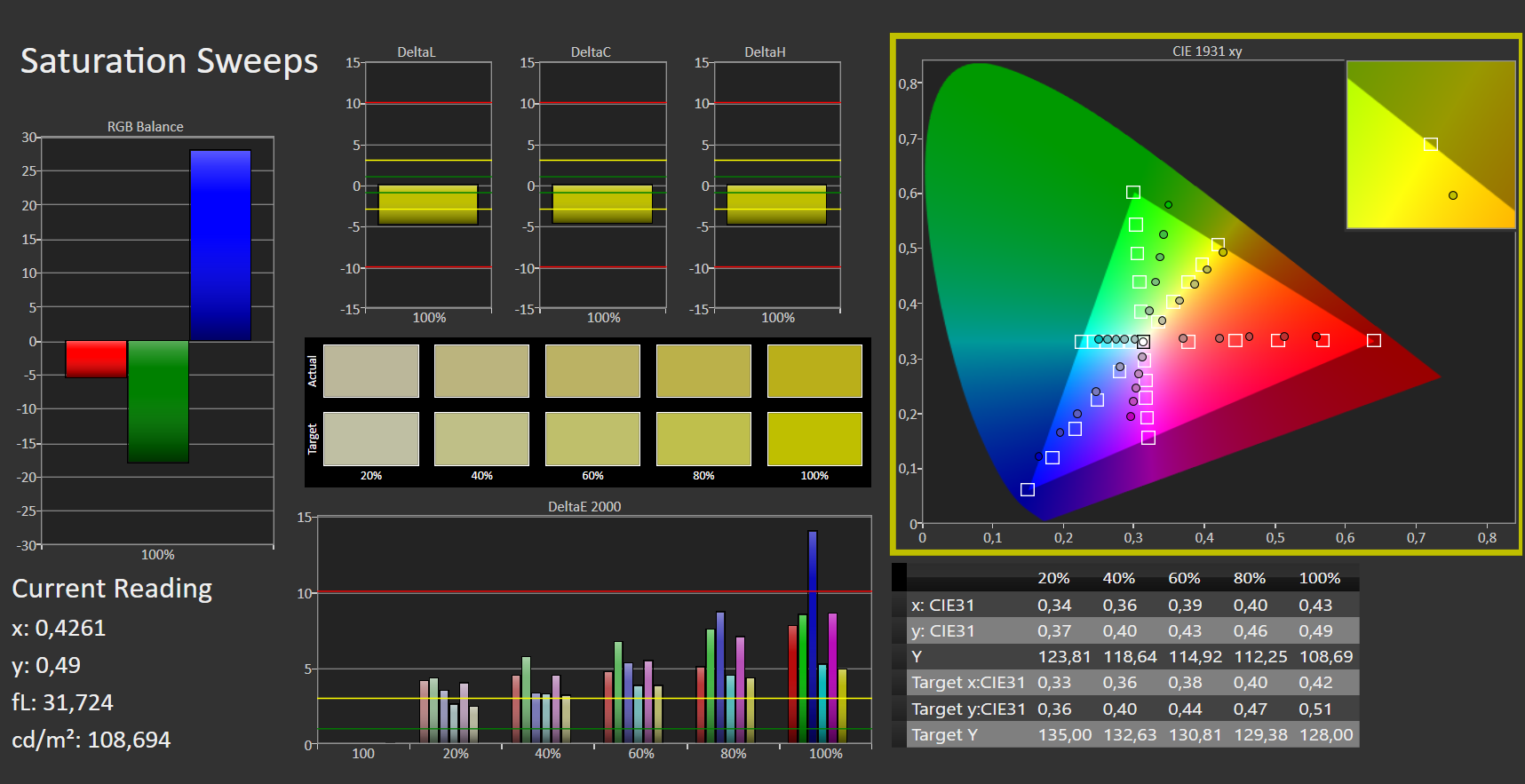

卡尔曼饱和度
卡尔曼饱和度

色彩也没有给14s带来提升;sRGB只覆盖了57%。如果你想在这个价格范围内寻找一个真正好的显示器,你最好选择 Honor Magicbook 14 i7-1165G7它能覆盖96%的sRGB,而且亮度更高。至少灰度再现得相当好(没有明显的偏蓝),而且在降低亮度时没有PWM。

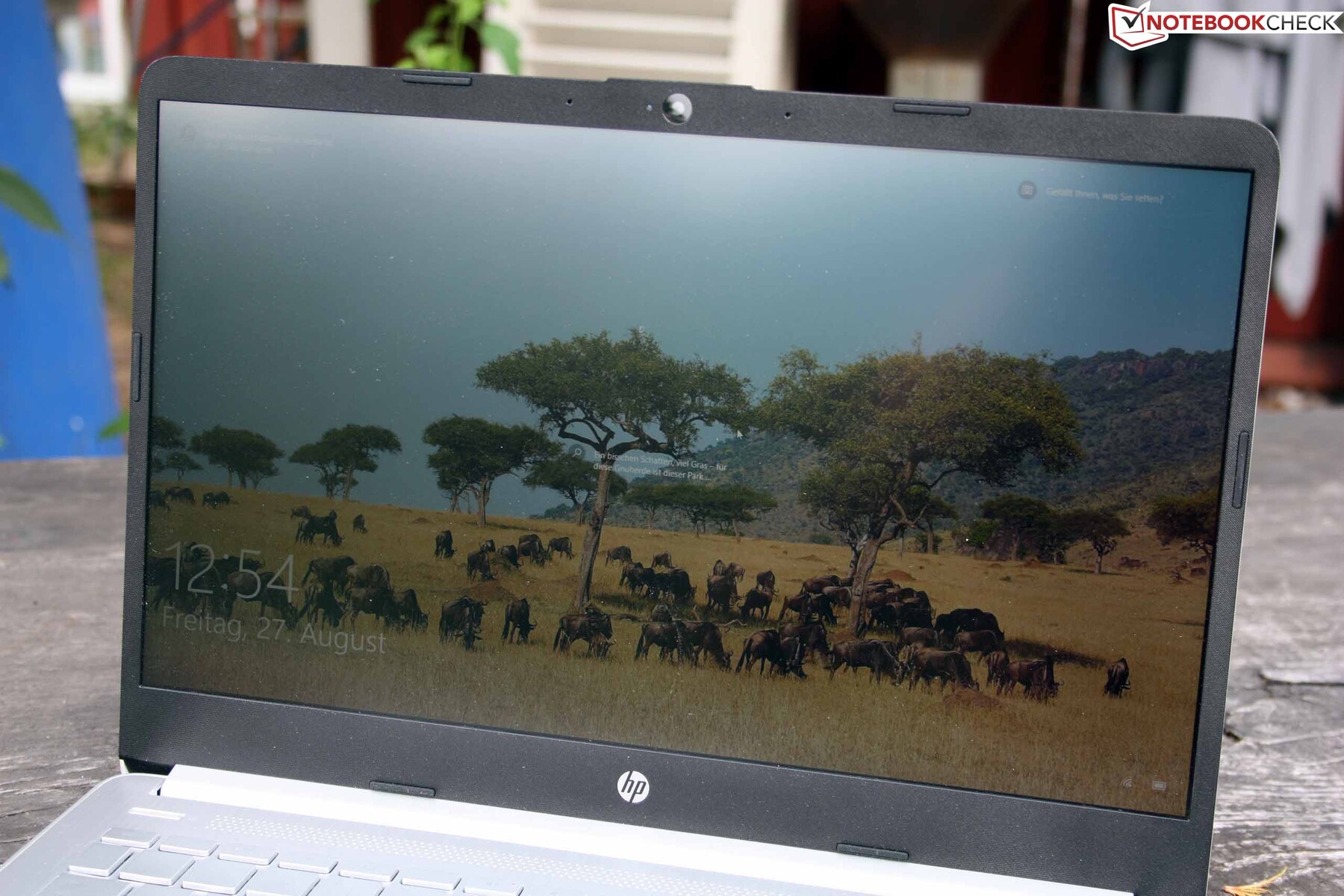

半哑光的面板和差的亮度,面板在阴暗处可以使用。
半哑光的面板和差的亮度,面板在阴暗处可以使用。

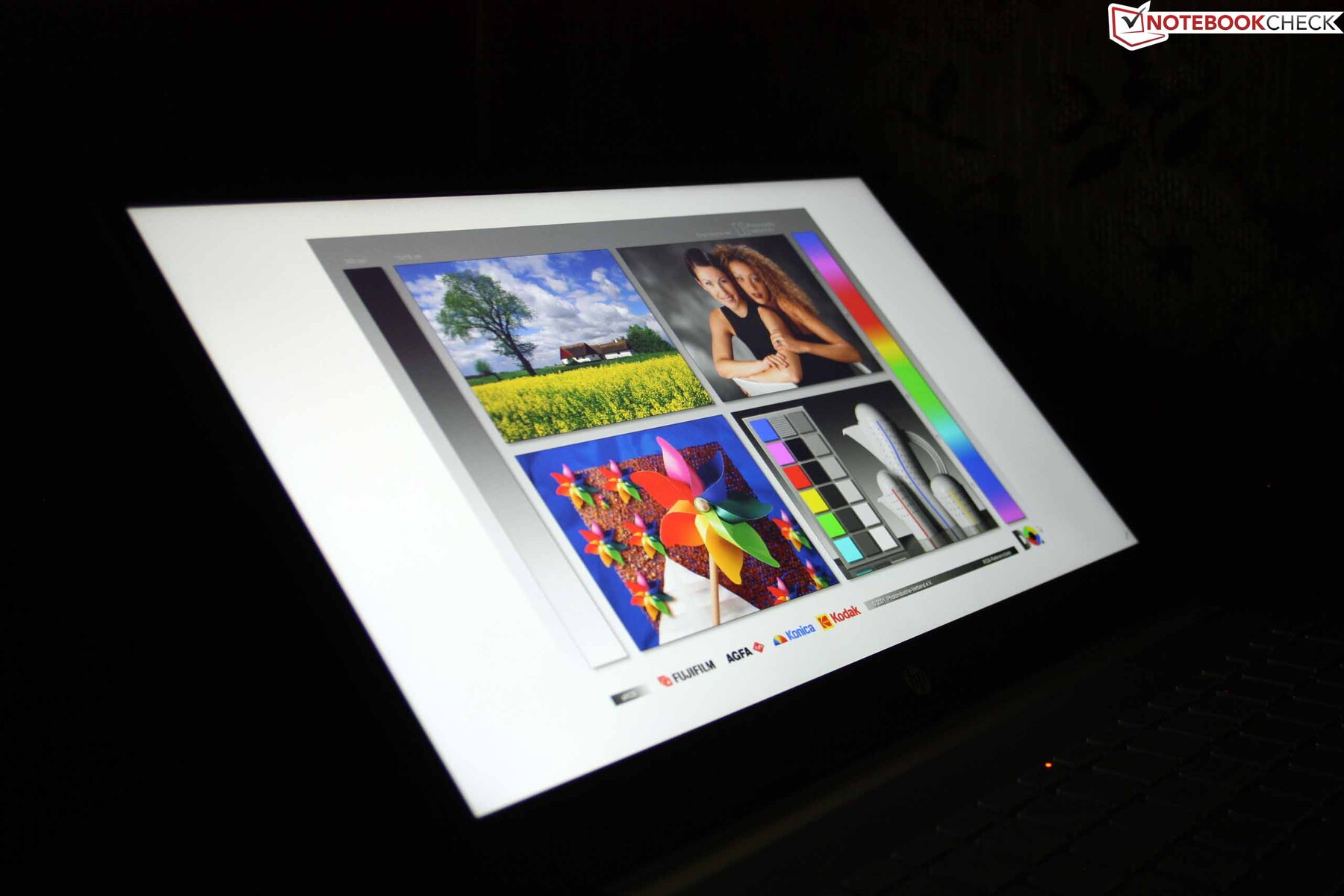

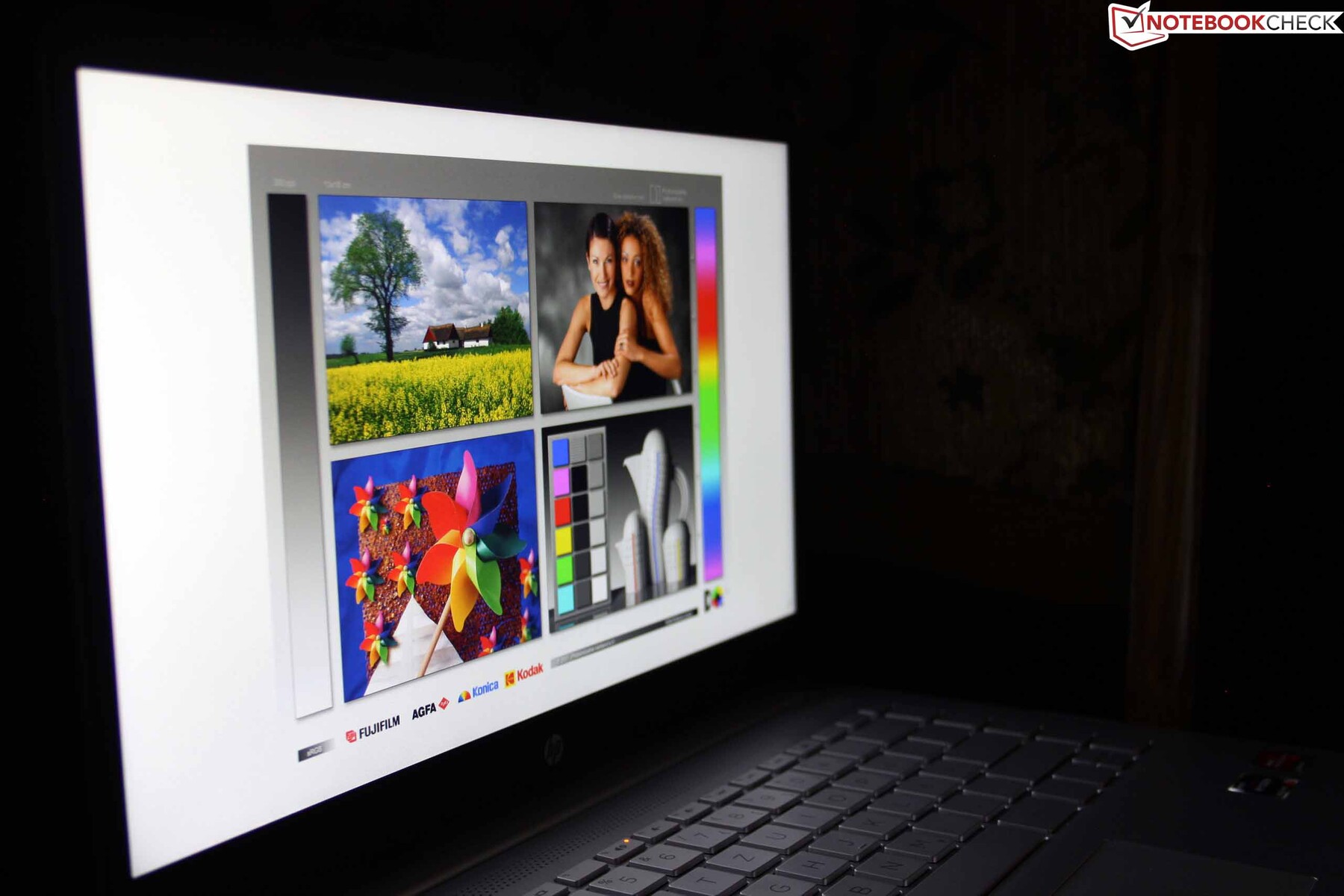

IPS面板的良好视角稳定性
IPS面板的良好视角稳定性
IPS面板的良好视角稳定性
IPS面板的良好视角稳定性

性能。AMD的笔记本处理器没有达到最高水平

Ryzen 5 5500U5700U和3500U是市场上可能的AMD配置,Athlon的变种也可能提供(在德国没有)。英特尔的姐妹们从赛扬N4500开始,到酷睿i3-1115G4,最后到i7-1165G7。AMD机型大多提供16GB内存,英特尔则提供8GB。

处理器

Ryzen 5 5500U ,涡轮增压高达4GHz,基础时钟为2.1GHz。六个Zen核心在芯片中工作,并增加了一个最高频率为1800 MHz的Radeon RX Vega图形单元。APU的图形和处理器部分都会根据散热条件改变其时钟。如果SoC上的温度过高,它就会节制时钟,直到废热沉降到一定限度以下。这在惠普14s中刚刚超过60度。

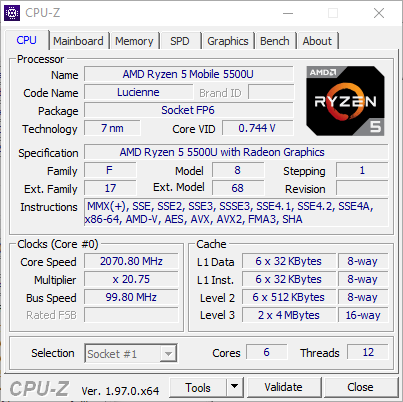

CPU-Z CPU
CPU-Z CPU

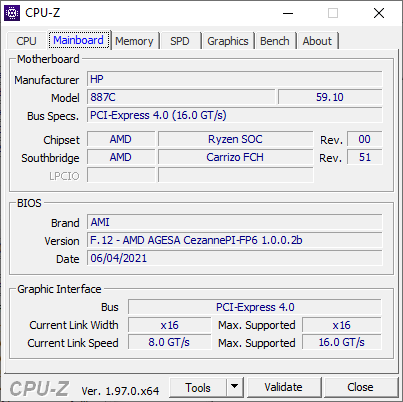

CPU-Z 主板
CPU-Z 主板

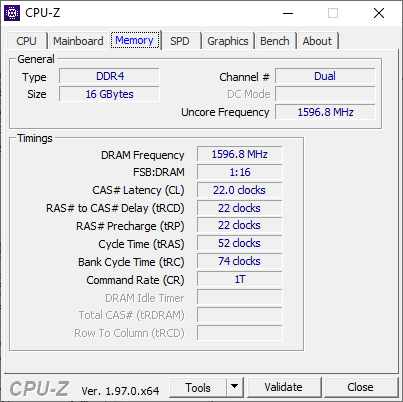

CPU-Z内存
CPU-Z内存

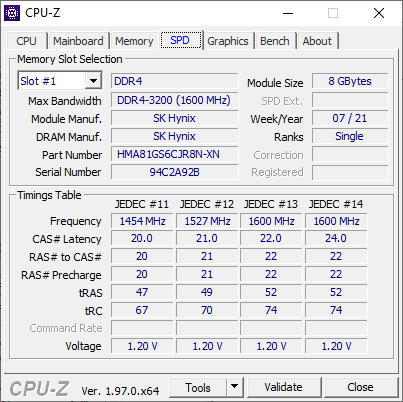

CPU-Z SPD
CPU-Z SPD

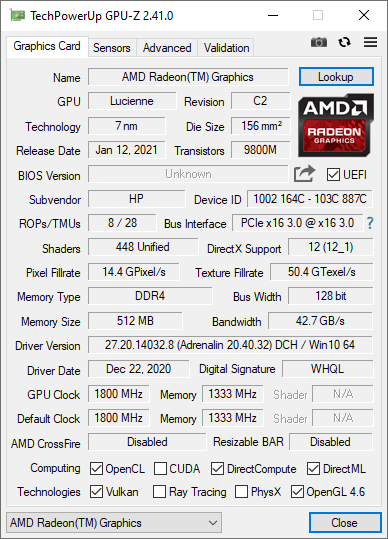

GPU-Z
GPU-Z

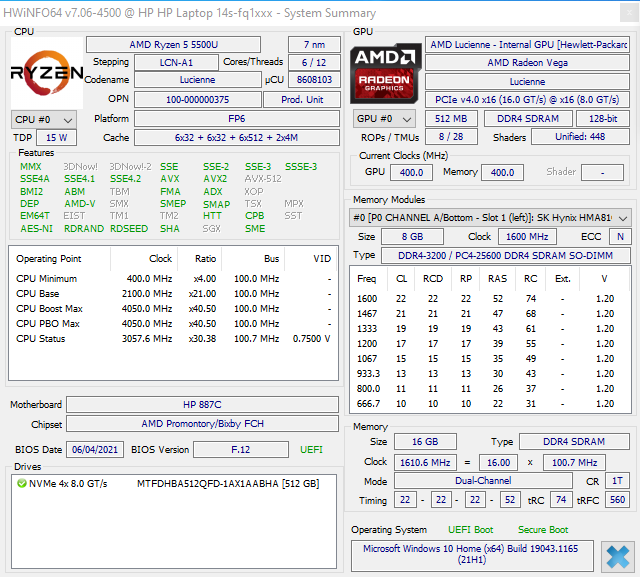

HWinfo摘要
HWinfo摘要

Cinebench R15 Multi Endurance test

06513019526032539045552058565071578084591097510401105117012351110.591063.861055.581056.361051.661049.841057.361038.39962.65947.891036.41051.941043.84964.16947.89945.43946.45940.71947.06950.62949.46945.63945.18940.2941.24944.84947.28946.39946.84945.11947.93948.05946.5943.8944.76944.49945.54944.2948.38942.62944.55947.15945.92946.05945.29948.11947.98915.16943.17943.621251.721248.711230.811213.71180.391150.351145.971146.161144.391139.671142.631145.281144.591146.21144.361140.021143.181142.331143.151142.631141.061145.381142.731145.3111671145.541166.491143.381146.461146.31134.461138.271138.731171.471142.961145.541144.661148.011144.391139.05762.33776.68782.86880.42873.69885.19885.23881.02885.23885.29884.54882.67884.54879.28885.92881.39882.65885.23883.94884.62887.51883.37883.35884.25881.991245.11240.541233.581234.611233.621230.281229.261236.711232.481231.831230.691226.881219.141209.481203.71191.91182.591179.111175.021167.581172.921166.661162.451174.741174.02334.83348.76330.27337.67350.05360.86336.48336.24328.96356.72337.46356.07328368.99346.92594.47322.23600.93351.4600.21325.82353.6337.07351.27339.76604.17346.43344.68352.13352.07367.7367.36602.12336.03578337.01578.98338.59369.63602.89341.65332.76354.35606.88342.05382.28592.21584.85339.67598.27Tooltip
HP 14s-fq1357ng AMD Ryzen 5 5500U: Ø970 (915.16-1110.59)
Lenovo IdeaPad 5 14ALC05 82LM005YGE AMD Ryzen 5 5500U: Ø1156 (1134.46-1251.72)
Honor Magicbook 14 i7-1165G7 Intel Core i7-1165G7: Ø870 (762.33-887.51)
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U: Ø1207 (1162.45-1245.1)
HP 14s-dq1431ng Intel Core i5-1035G1: Ø406 (322.23-606.88)

芯片 Ryzen 5 5500U不能永久地运行其4000MHz的Turbo,而只是几秒钟。在R15中,时钟在4秒后已经回到2500兆赫,然后稳定在3000兆赫以下。因此,在前七次运行中,分数悠然下降,但随后让步了一些,保持在950分的水平。A 联想ThinkPad E14 G3采用了相同的SoC,表明在长期使用中可以达到1160分。我们的 Ryzen 5 5500U在启动时(-11%)和加载时(-19%)比较弱。2100MHz的基础时钟没有被削弱。

单风扇冷却系统
单风扇冷却系统

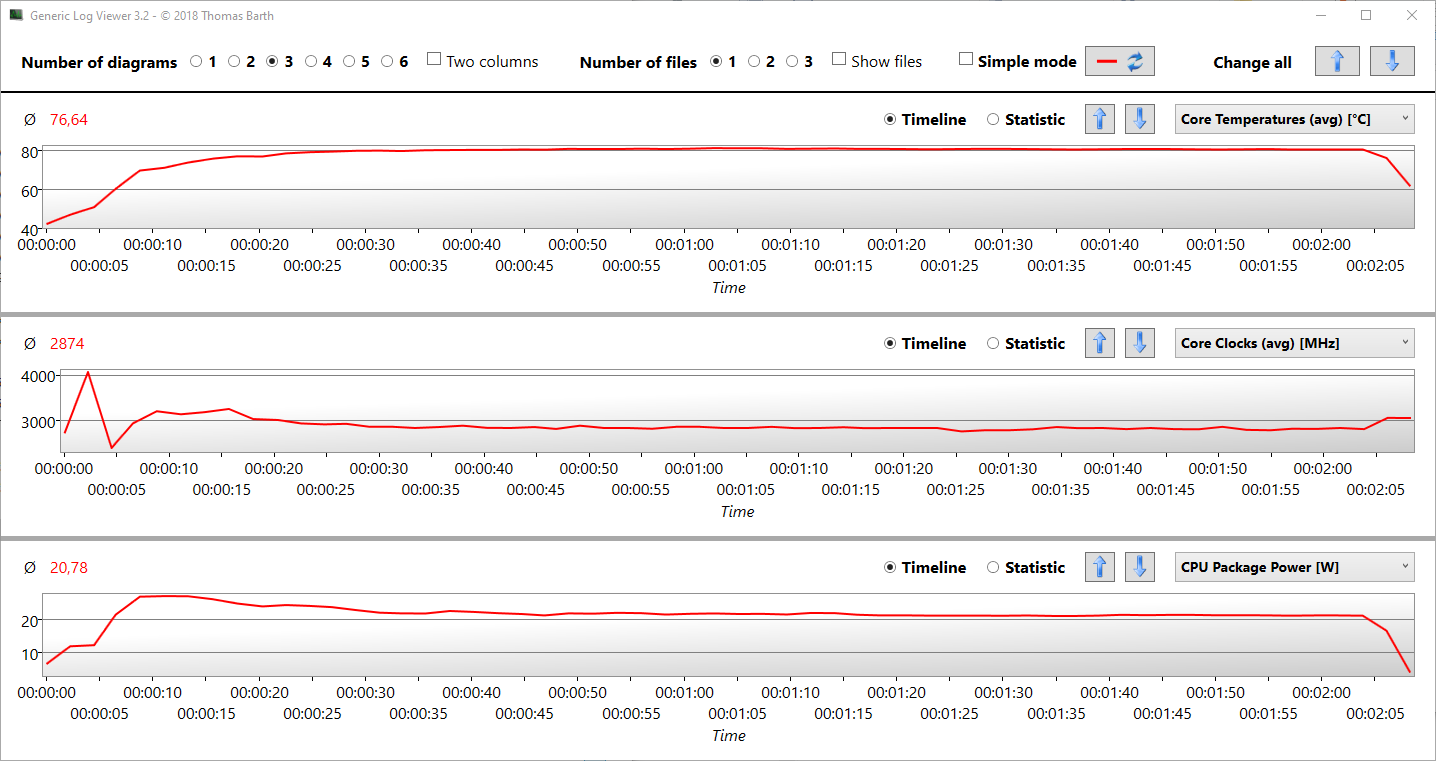

带有时钟和温度的Cinebench R15日志文件
带有时钟和温度的Cinebench R15日志文件
Cinebench R23: CPU (Single Core) | CPU (Multi Core)
Cinebench R20: CPU (Single Core) | CPU (Multi Core)
Cinebench R15: CPU Single 64Bit | CPU Multi 64Bit
Blender 2.79: BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.3: 64 Bit Single-Core Score | 64 Bit Multi-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R23 / CPU (Single Core)
Average of class Subnotebook
  (409 - 1526, n=43, last 2 years)
1306 Points ∼100% +12%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
1183 Points ∼91% +1%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
1178 Points ∼90% +1%
Average AMD Ryzen 5 5500U
  (1149 - 1183, n=7)
1170 Points ∼90% 0%
HP 14s-fq1357ng
AMD Ryzen 5 5500U
1167 Points ∼89%
Cinebench R23 / CPU (Multi Core)
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
7469 Points ∼100% +17%
Average AMD Ryzen 5 5500U
  (6030 - 8353, n=8)
7018 Points ∼94% +10%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
6964 Points ∼93% +9%
HP 14s-fq1357ng
AMD Ryzen 5 5500U
6394 Points ∼86%
Average of class Subnotebook
  (965 - 12181, n=45, last 2 years)
5549 Points ∼74% -13%
Cinebench R20 / CPU (Single Core)
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
577 Points ∼100% +28%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
461 Points ∼80% +2%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
459 Points ∼80% +2%
Average AMD Ryzen 5 5500U
  (452 - 461, n=8)
457 Points ∼79% +1%
HP 14s-fq1357ng
AMD Ryzen 5 5500U
452 Points ∼78%
Average of class Subnotebook
  (73 - 591, n=108, last 2 years)
433 Points ∼75% -4%
HP 14s-dq1431ng
Intel Core i5-1035G1
428 Points ∼74% -5%
HP 14s-dq1431ng
Intel Core i5-1035G1
428 Points ∼74% -5%
Cinebench R20 / CPU (Multi Core)
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
2886 Points ∼100% +30%
Average AMD Ryzen 5 5500U
  (2223 - 3213, n=9)
2652 Points ∼92% +19%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
2570 Points ∼89% +16%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
2242 Points ∼78% +1%
HP 14s-fq1357ng
AMD Ryzen 5 5500U
2223 Points ∼77%
Average of class Subnotebook
  (110 - 4704, n=108, last 2 years)
1707 Points ∼59% -23%
HP 14s-dq1431ng
Intel Core i5-1035G1
1210 Points ∼42% -46%
HP 14s-dq1431ng
Intel Core i5-1035G1
1210 Points ∼42% -46%
Cinebench R15 / CPU Single 64Bit
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
227 Points ∼100% +28%
HP 14s-fq1357ng
AMD Ryzen 5 5500U
177 Points ∼78%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
176 Points ∼78% -1%
Average AMD Ryzen 5 5500U
  (172 - 177, n=6)
176 Points ∼78% -1%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
172 Points ∼76% -3%
HP 14s-dq1431ng
Intel Core i5-1035G1
170 Points ∼75% -4%
Average of class Subnotebook
  (31 - 237, n=109, last 2 years)
169 Points ∼74% -5%
Cinebench R15 / CPU Multi 64Bit
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
1252 Points ∼100% +13%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
1245 (1162.45min - 1245.1max) Points ∼99% +12%
Average AMD Ryzen 5 5500U
  (995 - 1387, n=8)
1203 Points ∼96% +8%
HP 14s-fq1357ng
AMD Ryzen 5 5500U
1112 (946.23min - 1112.47max) Points ∼89%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
888 (762.33min - 887.51max) Points ∼71% -20%
Average of class Subnotebook
  (82.3 - 2024, n=115, last 2 years)
773 Points ∼62% -30%
HP 14s-dq1431ng
Intel Core i5-1035G1
606 Points ∼48% -46%
Blender 2.79 / BMW27 CPU
HP 14s-dq1431ng
Intel Core i5-1035G1
1002 Seconds * ∼100% -104%
HP 14s-dq1431ng
Intel Core i5-1035G1
1001.7 Seconds * ∼100% -104%
Average of class Subnotebook
  (4.2 - 6277, n=96, last 2 years)
875 Seconds * ∼87% -79%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
528 Seconds * ∼53% -8%
HP 14s-fq1357ng
AMD Ryzen 5 5500U
490 Seconds * ∼49%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
447 Seconds * ∼45% +9%
Average AMD Ryzen 5 5500U
  (358 - 490, n=7)
426 Seconds * ∼43% +13%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
393 Seconds * ∼39% +20%
7-Zip 18.03 / 7z b 4 -mmt1
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
5382 MIPS ∼100% +26%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
4341 MIPS ∼81% +2%
Average of class Subnotebook
  (1653 - 5800, n=98, last 2 years)
4322 MIPS ∼80% +1%
Average AMD Ryzen 5 5500U
  (4268 - 4349, n=7)
4312 MIPS ∼80% +1%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
4285 MIPS ∼80% 0%
HP 14s-fq1357ng
AMD Ryzen 5 5500U
4268 MIPS ∼79%
HP 14s-dq1431ng
Intel Core i5-1035G1
4231 MIPS ∼79% -1%
HP 14s-dq1431ng
Intel Core i5-1035G1
4231 MIPS ∼79% -1%
7-Zip 18.03 / 7z b 4
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
34899 MIPS ∼100% +12%
Average AMD Ryzen 5 5500U
  (31060 - 36829, n=7)
33728 MIPS ∼97% +9%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
31686 MIPS ∼91% +2%
HP 14s-fq1357ng
AMD Ryzen 5 5500U
31060 MIPS ∼89%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
25506 MIPS ∼73% -18%
Average of class Subnotebook
  (3267 - 54374, n=98, last 2 years)
21572 MIPS ∼62% -31%
HP 14s-dq1431ng
Intel Core i5-1035G1
13236 MIPS ∼38% -57%
HP 14s-dq1431ng
Intel Core i5-1035G1
13236 MIPS ∼38% -57%
Geekbench 5.3 / 64 Bit Single-Core Score
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
1573 Points ∼100% +41%
HP 14s-dq1431ng
Intel Core i5-1035G1
1219 Points ∼77% +9%
HP 14s-dq1431ng
Intel Core i5-1035G1
1219 Points ∼77% +9%
Average of class Subnotebook
  (293 - 1740, n=100, last 2 years)
1180 Points ∼75% +5%
HP 14s-fq1357ng
AMD Ryzen 5 5500U
1119 Points ∼71%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
1118 Points ∼71% 0%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
1109 Points ∼71% -1%
Average AMD Ryzen 5 5500U
  (882 - 1119, n=8)
1082 Points ∼69% -3%
Geekbench 5.3 / 64 Bit Multi-Core Score
HP 14s-fq1357ng
AMD Ryzen 5 5500U
5523 Points ∼100%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
5468 Points ∼99% -1%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
5360 Points ∼97% -3%
Average AMD Ryzen 5 5500U
  (3323 - 5641, n=8)
5180 Points ∼94% -6%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
5089 Points ∼92% -8%
Average of class Subnotebook
  (591 - 7590, n=100, last 2 years)
4339 Points ∼79% -21%
HP 14s-dq1431ng
Intel Core i5-1035G1
3858 Points ∼70% -30%
HP 14s-dq1431ng
Intel Core i5-1035G1
3858 Points ∼70% -30%
HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
8.77 fps ∼100% +21%
Average AMD Ryzen 5 5500U
  (7.23 - 9.59, n=7)
8.32 fps ∼95% +15%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
8.08 fps ∼92% +12%
HP 14s-fq1357ng
AMD Ryzen 5 5500U
7.23 fps ∼82%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
7.06 fps ∼81% -2%
Average of class Subnotebook
  (0.65 - 14.8, n=94, last 2 years)
5.58 fps ∼64% -23%
HP 14s-dq1431ng
Intel Core i5-1035G1
3.32 fps ∼38% -54%
HP 14s-dq1431ng
Intel Core i5-1035G1
3.32 fps ∼38% -54%
LibreOffice / 20 Documents To PDF
HP 14s-dq1431ng
Intel Core i5-1035G1
70.9 s * ∼100% -5%
HP 14s-dq1431ng
Intel Core i5-1035G1
70.88 s * ∼100% -5%
Average of class Subnotebook
  (12.9 - 281, n=88, last 2 years)
69.2 s * ∼98% -3%
HP 14s-fq1357ng
AMD Ryzen 5 5500U
67.3 s * ∼95%
Average AMD Ryzen 5 5500U
  (60 - 69, n=7)
64.8 s * ∼91% +4%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
62 s * ∼87% +8%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
61.9 s * ∼87% +8%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
47.4 s * ∼67% +30%
R Benchmark 2.5 / Overall mean
Average of class Subnotebook
  (0.501 - 2.21, n=94, last 2 years)
0.744 sec * ∼100% -20%
HP 14s-dq1431ng
Intel Core i5-1035G1
0.736 sec * ∼99% -18%
HP 14s-dq1431ng
Intel Core i5-1035G1
0.736 sec * ∼99% -18%
Average AMD Ryzen 5 5500U
  (0.614 - 0.636, n=7)
0.627 sec * ∼84% -1%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
0.625 sec * ∼84% -0%
HP 14s-fq1357ng
AMD Ryzen 5 5500U
0.622 sec * ∼84%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
0.614 sec * ∼83% +1%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
0.552 sec * ∼74% +11%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
1112 Points
Cinebench R15 OpenGL 64Bit
66 fps
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 CPU Single 64Bit
177 Points
Help

系统性能

PCMark在所有学科中都低于平均水平,但是-5到-15%不应该被高估。该系统在任何时候都能顺利工作,20个浏览器标签和几个程序并没有立即使惠普14s陷入困境。

PCMark 10 / Score
Lenovo IdeaPad 5 14ALC05 82LM005YGE
Vega 7, R5 5500U, Samsung SSD PM981a MZVLB512HBJQ
5193 Points ∼100% +8%
Lenovo ThinkPad E14 G3-20Y7003SGE
Vega 7, R5 5500U, SK Hynix BC711 HFM512GD3HX015N
5097 Points ∼98% +6%
Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
  (4809 - 5218, n=6)
5089 Points ∼98% +6%
Honor Magicbook 14 i7-1165G7
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-512G
5036 Points ∼97% +5%
HP 14s-fq1357ng
Vega 7, R5 5500U, Micron 2210 MTFDHBA512QFD
4809 Points ∼93%
Average of class Subnotebook
  (790 - 6414, n=105, last 2 years)
4185 Points ∼81% -13%
HP 14s-dq1431ng
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Intel Optane Memory H10 with Solid State Storage 16GB + 256GB HBRPEKNX0101AH
3676 Points ∼71% -24%
PCMark 10 / Essentials
Honor Magicbook 14 i7-1165G7
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-512G
9985 Points ∼100% +8%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
Vega 7, R5 5500U, Samsung SSD PM981a MZVLB512HBJQ
9303 Points ∼93% +1%
Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
  (9125 - 9789, n=6)
9294 Points ∼93% +1%
HP 14s-fq1357ng
Vega 7, R5 5500U, Micron 2210 MTFDHBA512QFD
9242 Points ∼93%
Lenovo ThinkPad E14 G3-20Y7003SGE
Vega 7, R5 5500U, SK Hynix BC711 HFM512GD3HX015N
9154 Points ∼92% -1%
Average of class Subnotebook
  (2544 - 10836, n=105, last 2 years)
8452 Points ∼85% -9%
HP 14s-dq1431ng
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Intel Optane Memory H10 with Solid State Storage 16GB + 256GB HBRPEKNX0101AH
8322 Points ∼83% -10%
PCMark 10 / Productivity
Lenovo ThinkPad E14 G3-20Y7003SGE
Vega 7, R5 5500U, SK Hynix BC711 HFM512GD3HX015N
7819 Points ∼100% +18%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
Vega 7, R5 5500U, Samsung SSD PM981a MZVLB512HBJQ
7717 Points ∼99% +17%
Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
  (6622 - 7942, n=6)
7567 Points ∼97% +14%
Honor Magicbook 14 i7-1165G7
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-512G
6802 Points ∼87% +3%
HP 14s-fq1357ng
Vega 7, R5 5500U, Micron 2210 MTFDHBA512QFD
6622 Points ∼85%
Average of class Subnotebook
  (1304 - 9852, n=105, last 2 years)
6284 Points ∼80% -5%
HP 14s-dq1431ng
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Intel Optane Memory H10 with Solid State Storage 16GB + 256GB HBRPEKNX0101AH
5483 Points ∼70% -17%
PCMark 10 / Digital Content Creation
Lenovo IdeaPad 5 14ALC05 82LM005YGE
Vega 7, R5 5500U, Samsung SSD PM981a MZVLB512HBJQ
5297 Points ∼100% +7%
Honor Magicbook 14 i7-1165G7
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-512G
5103 Points ∼96% +3%
Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
  (4774 - 5320, n=6)
5097 Points ∼96% +3%
Lenovo ThinkPad E14 G3-20Y7003SGE
Vega 7, R5 5500U, SK Hynix BC711 HFM512GD3HX015N
5023 Points ∼95% +2%
HP 14s-fq1357ng
Vega 7, R5 5500U, Micron 2210 MTFDHBA512QFD
4934 Points ∼93%
Average of class Subnotebook
  (405 - 6709, n=105, last 2 years)
3818 Points ∼72% -23%
HP 14s-dq1431ng
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Intel Optane Memory H10 with Solid State Storage 16GB + 256GB HBRPEKNX0101AH
2954 Points ∼56% -40%
PCMark 10 Score
4809 points
Help

DPC延迟

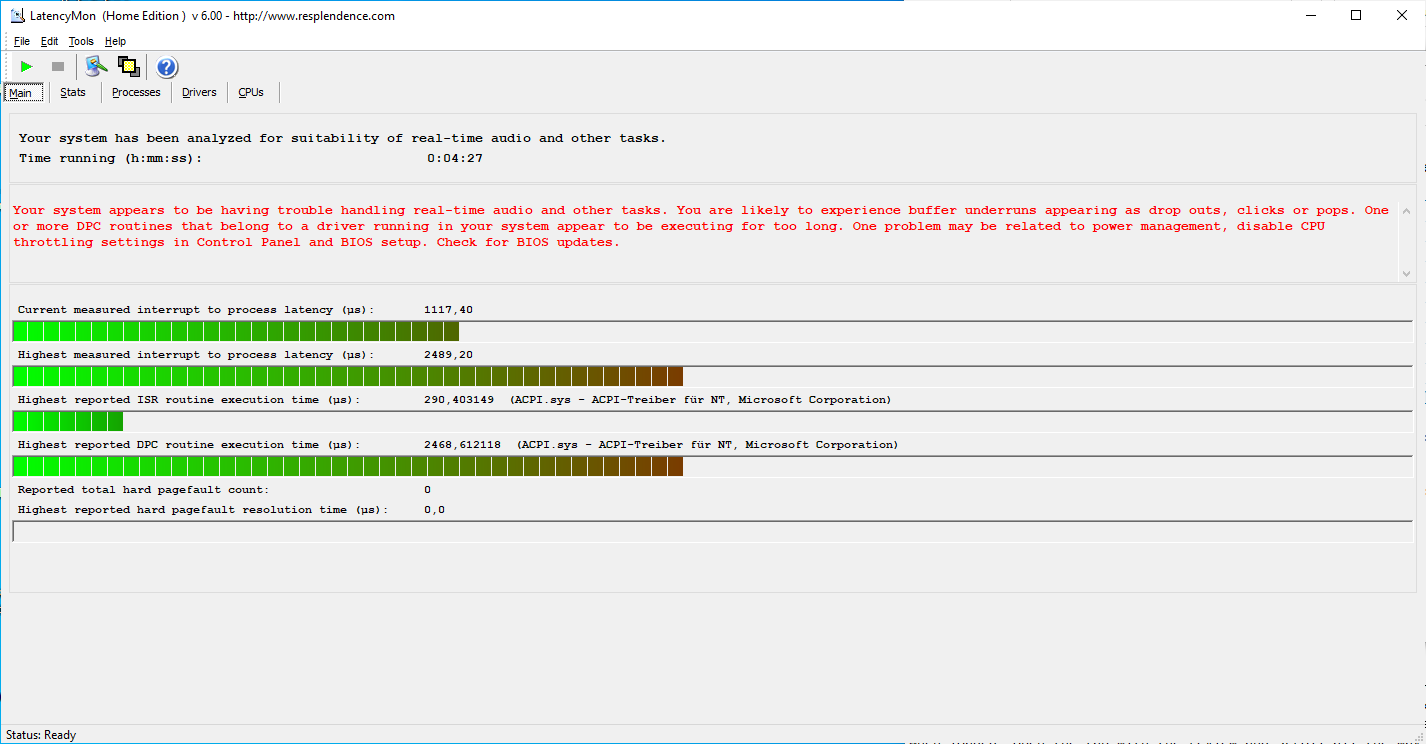

在使用LatencyMon的测试中,惠普14s显示中断时间增加,ACPI和网络驱动造成的延迟最高。因此,我们的测试配置不适合实时应用或类似的应用,但这可能随着未来的更新而改变。

Latency Mon主页
Latency Mon主页

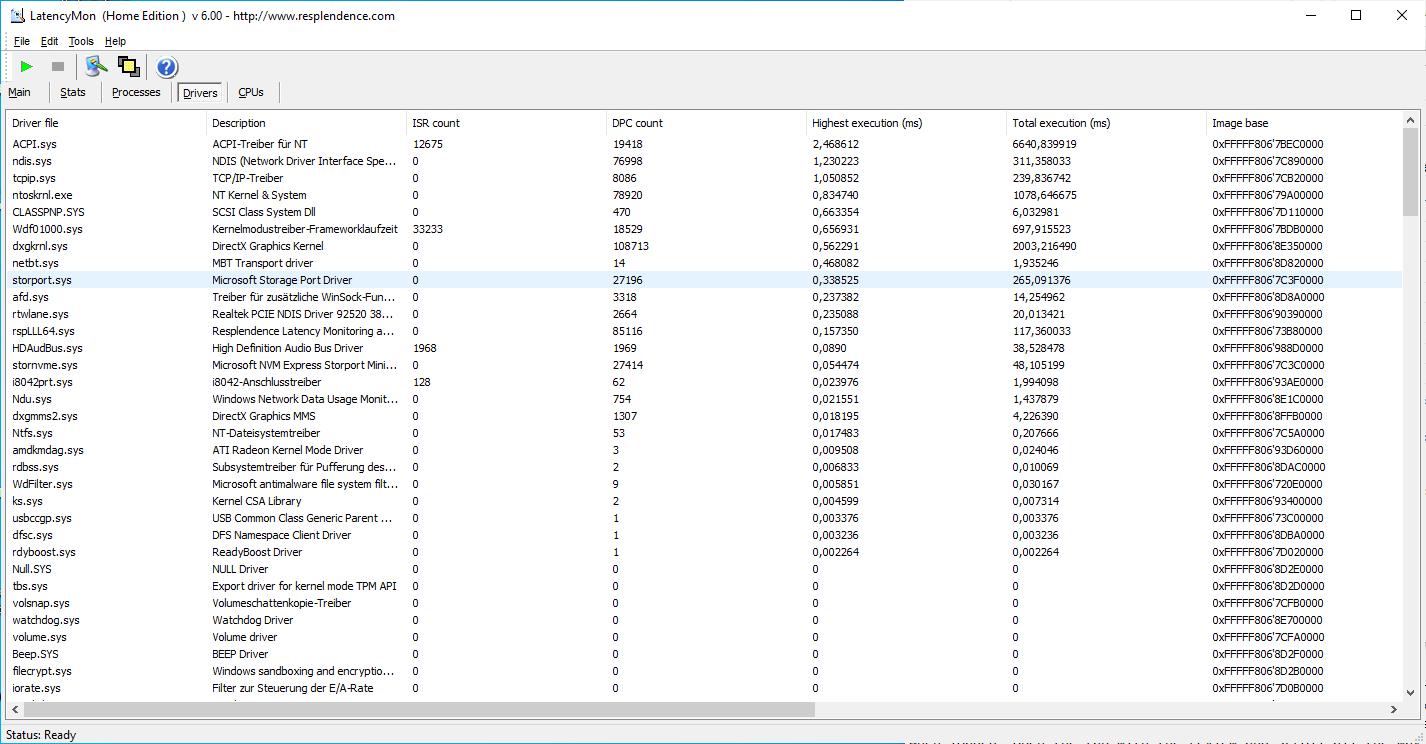

Latency Mon 驱动程序页面
Latency Mon 驱动程序页面
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
HP 14s-fq1357ng
Vega 7, R5 5500U, Micron 2210 MTFDHBA512QFD
2489 μs * ∼100%
Lenovo ThinkPad E14 G3-20Y7003SGE
Vega 7, R5 5500U, SK Hynix BC711 HFM512GD3HX015N
1229.4 μs * ∼49% +51%
HP 14s-dq1431ng
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Intel Optane Memory H10 with Solid State Storage 16GB + 256GB HBRPEKNX0101AH
887.3 μs * ∼36% +64%
Honor Magicbook 14 i7-1165G7
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-512G
591.6 μs * ∼24% +76%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
Vega 7, R5 5500U, Samsung SSD PM981a MZVLB512HBJQ
474.4 μs * ∼19% +81%

* ... smaller is better

大容量存储

有2.5英寸的空间,但没有SATA电缆
有2.5英寸的空间,但没有SATA电缆

这里安装的容量为512GB的PCIe固态硬盘美光2210(M.2 2280)在存储基准中实现了低于平均水平的写入和读取率。与WDC、三星和SK Hynix的竞争对手在这里更快。然而,采用英特尔Optane内存的姐妹产品惠普14s-dq1431ng(英特尔)却很容易被打败。

HP 14s-fq1357ng
Micron 2210 MTFDHBA512QFD
Lenovo IdeaPad 5 14ALC05 82LM005YGE
Samsung SSD PM981a MZVLB512HBJQ
Honor Magicbook 14 i7-1165G7
WDC PC SN730 SDBPNTY-512G
Lenovo ThinkPad E14 G3-20Y7003SGE
SK Hynix BC711 HFM512GD3HX015N
HP 14s-dq1431ng
Intel Optane Memory H10 with Solid State Storage 16GB + 256GB HBRPEKNX0101AH
Average Micron 2210 MTFDHBA512QFD

Average of class Subnotebook

CrystalDiskMark 5.2 / 6
57%
89%
37%
20%
5%
31%
Write 4K
94.82
93.32
-2%
223.7
136%
83.26
-12%
142.8
51%
96.7 (94.8 - 98.5, n=2)
2%
131 (4.58 - 269, n=100, last 2 years)
38%
Read 4K
48.93
38.87
-21%
51.17
5%
46.84
-4%
167.4
242%
50.8 (48.9 - 52.6, n=2)
4%
84.1 (7.11 - 3738, n=100, last 2 years)
72%
Write Seq
1059
2834
168%
2579
144%
2194.89
107%
232.1
-78%
1104 (1059 - 1149, n=2)
4%
1514 (37.3 - 4236, n=99, last 2 years)
43%
Read Seq
1620
2452
51%
2553
58%
2112.25
30%
1128
-30%
1746 (1620 - 1872, n=2)
8%
1682 (143 - 4101, n=99, last 2 years)
4%
Write 4K Q32T1
400
386.6
-3%
671.3
68%
439.69
10%
438
10%
385 (371 - 400, n=2)
-4%
376 (5.62 - 662, n=100, last 2 years)
-6%
Read 4K Q32T1
377.2
495.5
31%
760.7
102%
391.11
4%
491.2
30%
442 (377 - 507, n=2)
17%
406 (9.66 - 720, n=100, last 2 years)
8%
Write Seq Q32T1
1136
2981
162%
2721
140%
2484.3
119%
621.7
-45%
1145 (1136 - 1154, n=2)
1%
1826 (41 - 5222, n=100, last 2 years)
61%
Read Seq Q32T1
2073
3566
72%
3358
62%
2994.5
44%
1566
-24%
2161 (2073 - 2248, n=2)
4%
2696 (128 - 7102, n=100, last 2 years)
30%
AS SSD
58%
79%
46%
-49%
-5%
-2%
Seq Read
1784
2645.42
48%
3021.48
69%
2596
46%
676.97
-62%
1898 (1784 - 2011, n=2)
6%
2047 (236 - 5167, n=101, last 2 years)
15%
Seq Write
742
2627.11
254%
2340.84
215%
1460
97%
194.68
-74%
911 (742 - 1080, n=2)
23%
1297 (114 - 3952, n=101, last 2 years)
75%
4K Read
58.3
55.16
-5%
47.9
-18%
48.62
-17%
58.12
0%
56.8 (55.2 - 58.3, n=2)
-3%
46.1 (8.95 - 83.8, n=101, last 2 years)
-21%
4K Write
141.9
119.4
-16%
186.68
32%
113.42
-20%
124.05
-13%
134 (127 - 142, n=2)
-6%
124 (16 - 237, n=101, last 2 years)
-13%
4K-64 Read
582.2
1308.13
125%
1472.21
153%
1419.17
144%
219.59
-62%
586 (582 - 589, n=2)
1%
838 (21.1 - 2938, n=101, last 2 years)
44%
4K-64 Write
1046.9
1816.3
73%
1828.64
75%
1839.64
76%
638.44
-39%
1011 (976 - 1047, n=2)
-3%
977 (22.7 - 2245, n=101, last 2 years)
-7%
Access Time Read *
0.052
0.057
-10%
0.06
-15%
0.049
6%
0.109
-110%
0.0845 (0.052 - 0.117, n=2)
-63%
0.0871 (0.025 - 0.5, n=98, last 2 years)
-68%
Access Time Write *
0.046
0.031
33%
0.021
54%
0.032
30%
0.065
-41%
0.0495 (0.046 - 0.053, n=2)
-8%
0.0868 (0.017 - 0.774, n=101, last 2 years)
-89%
Score Read
819
1628
99%
1822
122%
1727
111%
345
-58%
832 (819 - 845, n=2)
2%
1089 (64 - 3512, n=101, last 2 years)
33%
Score Write
1263
2198
74%
2249
78%
2099
66%
782
-38%
1237 (1211 - 1263, n=2)
-2%
1231 (60 - 2737, n=101, last 2 years)
-3%
Score Total
2469
4667
89%
4973
101%
4658
89%
1305
-47%
2465 (2460 - 2469, n=2)
0%
2850 (163 - 7939, n=101, last 2 years)
15%
Copy ISO MB/s
1067
1475.56
38%
1167.81
9%
1024 (982 - 1067, n=2)
-4%
1319 (143 - 3306, n=71, last 2 years)
24%
Copy Program MB/s
597
538.37
-10%
589.9
-1%
582 (566 - 597, n=2)
-3%
477 (53.5 - 1087, n=71, last 2 years)
-20%
Copy Game MB/s
1019
1185.02
16%
1147.75
13%
929 (838 - 1019, n=2)
-9%
875 (127 - 1988, n=71, last 2 years)
-14%
Total Average (Program / Settings)
58% / 58%
84% / 83%
42% / 43%
-15% / -20%
0% / -2%
15% / 10%

* ... smaller is better

Micron 2210 MTFDHBA512QFD
CDM 5/6 Read Seq Q32T1: 2073 MB/s
CDM 5/6 Write Seq Q32T1: 1136 MB/s
CDM 5/6 Read 4K Q32T1: 377.2 MB/s
CDM 5/6 Write 4K Q32T1: 400 MB/s
CDM 5 Read Seq: 1620 MB/s
CDM 5 Write Seq: 1059 MB/s
CDM 5/6 Read 4K: 48.93 MB/s
CDM 5/6 Write 4K: 94.82 MB/s

Continuous power reading: DiskSpd Read Loop, Queue Depth 8

0180360540720900108012601440162018001980216023402520270028803060324034202091.922205.372206.842207.872209.752211.642211.662212.52212.712212.712213.732213.782214.152214.572214.572215.012215.22215.822216.662216.692217.292217.532218.162218.582218.792218.792218.792218.792219221922192220.052221.062221.062221.092221.092221.892222.352222.352222.942223.612223.822224.662224.872224.872225.712226.132228.012228.222229.061373.631643.333078.413221.643304.483496.793498.473498.683498.683498.893498.893500.153500.363500.363500.573500.783500.783500.993500.993500.993501.23501.43501.613501.823502.243502.243502.453502.453502.453502.873503.083503.083503.293503.53503.53503.713503.713503.713503.923503.923504.343504.763504.763504.973505.393505.393506.233507.073507.283525.733072.393431.633432.463432.673432.883433.723433.723433.723433.933434.143434.353434.563434.563434.773434.773434.773434.983434.983435.193435.193435.193435.193435.193435.193435.393435.393435.393435.393435.393435.393435.393435.63435.63435.63435.63435.63435.813435.813435.813435.813436.023436.023436.023436.233436.233436.233436.233436.233436.653436.863108.893319.233325.033325.873335.733336.613337.413339.753340.343340.793342.023343.913344.563344.563344.773345.383346.443346.643347.073347.073348.733349.573349.573349.793350.213350.413350.413350.633350.833351.463351.473351.473351.673351.683352.723352.933353.563353.773353.773353.983353.983353.983354.393354.613354.813356.283359.643360.063361.723361.93573.78730.02764.14766.09773.35773.64774.06774.27775.32776.37777.12777.33778.46778.88779.09779.42781.19783.5787.79788.21789.37789.79790.72791.26791.26791.47794.7798.18801.74806.77808.66814.74815.841068.51100.271200.21323.721344.311348.471348.681350.381351.41352.661352.661353.081354.9713561357.51358.331363.36573.78730.02764.14766.09773.35773.64774.06774.27775.32776.37777.12777.33778.46778.88779.09779.42781.19783.5787.79788.21789.37789.79790.72791.26791.26791.47794.7798.18801.74806.77808.66814.74815.841068.51100.271200.21323.721344.311348.471348.681350.381351.41352.661352.661353.081354.9713561357.51358.331363.36Tooltip
HP 14s-fq1357ng Micron 2210 MTFDHBA512QFD: Ø2216 (2091.92-2229.06)
Lenovo IdeaPad 5 14ALC05 82LM005YGE Samsung SSD PM981a MZVLB512HBJQ: Ø3405 (1373.63-3525.73)
Honor Magicbook 14 i7-1165G7 WDC PC SN730 SDBPNTY-512G: Ø3428 (3072.39-3436.86)
Lenovo ThinkPad E14 G3-20Y7003SGE SK Hynix BC711 HFM512GD3HX015N: Ø3343 (3108.89-3361.93)
HP 14s-dq1431ng Intel Optane Memory H10 with Solid State Storage 16GB + 256GB HBRPEKNX0101AH: Ø959 (573.78-1363.36)
HP 14s-dq1431ng Intel Optane Memory H10 with Solid State Storage 16GB + 256GB HBRPEKNX0101AH: Ø959 (573.78-1363.36)

图形卡

由于集成了Radeon RX Vega 7 SoC显卡,惠普14s有其局限性;这款14英寸的产品并非为游戏而设计。我们的游戏表立即显示了这一点。那里的游戏是3-5年前的,最多只能在中等设置下玩。如果你认真考虑目前的游戏,你应该寻找一个替代品

见:哪些游戏能在笔记本显卡上顺利运行?

3DMark 11 - 1280x720 Performance GPU
Honor Magicbook 14 i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
6194 Points ∼100% +8%
HP 14s-fq1357ng
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
5731 Points ∼93%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
5255 Points ∼85% -8%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
5118 Points ∼83% -11%
Average AMD Radeon RX Vega 7
  (3993 - 5731, n=22)
5040 Points ∼81% -12%
Average of class Subnotebook
  (410 - 12199, n=101, last 2 years)
4349 Points ∼70% -24%
HP 14s-dq1431ng
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
2443 Points ∼39% -57%
3DMark
1920x1080 Fire Strike Graphics
Honor Magicbook 14 i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
3988 Points ∼100% +18%
HP 14s-fq1357ng
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
3383 Points ∼85%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
3325 Points ∼83% -2%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
3253 Points ∼82% -4%
Average AMD Radeon RX Vega 7
  (2407 - 3778, n=25)
3226 Points ∼81% -5%
Average of class Subnotebook
  (313 - 8743, n=104, last 2 years)
2950 Points ∼74% -13%
HP 14s-dq1431ng
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
1550 Points ∼39% -54%
2560x1440 Time Spy Graphics
Honor Magicbook 14 i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1269 Points ∼100% +19%
HP 14s-fq1357ng
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
1064 Points ∼84%
Average of class Subnotebook
  (116 - 3276, n=87, last 2 years)
1015 Points ∼80% -5%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
1009 Points ∼80% -5%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
985 Points ∼78% -7%
Average AMD Radeon RX Vega 7
  (728 - 1091, n=21)
978 Points ∼77% -8%
3DMark 11 Performance
5982 points
3DMark Fire Strike Score
3073 points
3DMark Time Spy Score
1203 points
Help

游戏性能

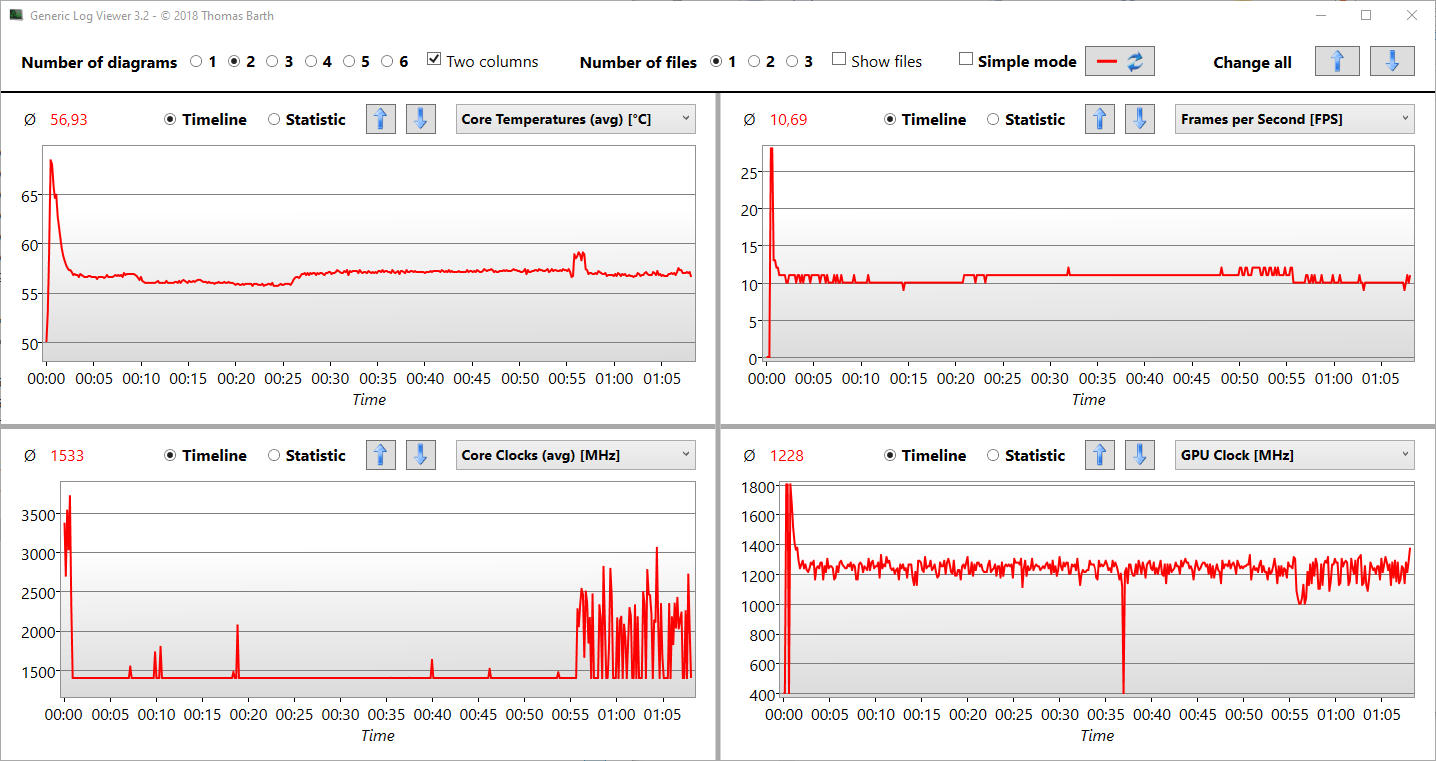

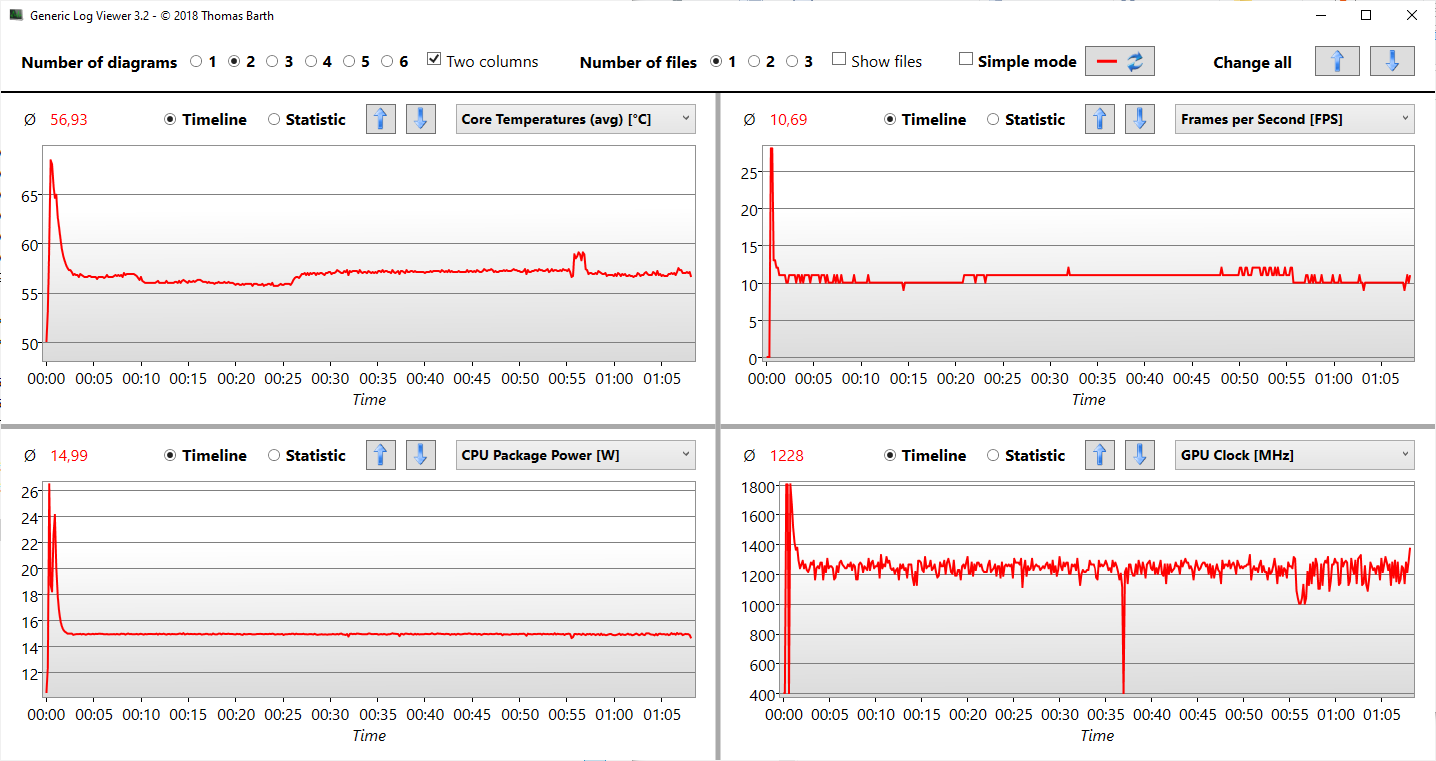

如果你用Ultra设置推动图形,你会遇到热限制,正如我们用Witcher 3 Ultra的测试所显示的那样。FPS保持在25分钟,然后与CPU和GPU时钟一起下降到10-11。在这里,GPU时钟从1800降到1200MHz,CPU时钟从3500降到1500MHz。这一切都发生在保持SoC的温度低于60摄氏度(140华氏度)。这对低废热很有好处,但却泄露了Radeon Vega RX的性能,然后低于平均值。

在测试中,中等程度的硬件密集型游戏和3DMarks并没有受到影响。与竞争对手相比,惠普14s的性能并不差,在某些情况下甚至领先于其他Vega RX 7s。带有iGPU Iris Xe的英特尔竞争产品大多被打败,即使有强大的Core i7 (Honor Magicbook 14i7).

Witcher 3 FPS-Diagram

01234567891011121314151313131213121212121211121211121211121212111211121112111211111112101211111111111110111111111111111110111111111110111110111111101111101111111011101111101110111011101110111111101110111111111011101110111011101011111011101111111011101111101110111110111011111011101110111011111011101111101111101111111011111011111011101110111110111011101111101111101110111111101111101110111011101110111110111011101110111110111011101110111011111011101110111110111011101111101110111110111110111110111110111011101110111111101111111011111011111011101110111110111011111011101111101110111111101111111011101110111011101110111011111011101110111011111011101110111110111011101110111110111011101110111011101110111011101110111011101111101110111111111010111110101110111011101111101110111011111011101110111011101011101110111011101110111011101110101110111010111110101110111010111011101011101110111010111011101110111011101110111010111010111011101011101011101011101011101011101110101110101110101110101011101011101011101011101011101011101011101110111010111010111010101110101011101011101011101010111010101110101110101010111010101110111091110101011101010111010101011101010101011101010101110101010111010111010111010111010101110101011101010101011101010101011101011101010101110101010101011101010101010101110101010101010101110101010101010101110101110101010101011101010111010111010101010111010101011101010101010101011101010101010101010111010101010101010101010101010101110101010101010101010101011101010101010101110101010911910101010101010101010101010101010101010101010101010101010101010911910101010101010101010101010101010101010101110101010101010101010101010101010101010101010109101010101010101010101010101010101010101010101010101010101011101091191010101010101010111010911101010101010101010101010101010101010101010101110101010101010111010101010101110109111010101010101010101010111010101010111010101011911101010101010101010101010111010101010101010101110101010101011101011101010101010101010101191110101011101010101110101010101010101011101010101010111010101010111010101010111010101011101010111010111010101110101110111010101011101011101110111010101011101010111010101011101010111010101110101011101011101010111010111010111010101110101110101110101011101010111010111010101110101110101110101110101111101110101110101011101010111011101011101011101110101110101110101110111010111010111011101110101110111010111011101011101110101111101111101010111011101111101110111011101111101110111110111011101110111110111110111011111011101111111011111011111011101110111011101111101111101111101110111011111011101110111110111011111011101111111011111011111011111011101110111110111011101111101111101111111011101110111110111011111011111011101111101111101111101111101111101111101110111110111110111011111011111110111110111011111011111011111011111011111111101111111110111110111011111011111011111011111011111011111011111111101110111111101111111011111110111111101111101111101111101111111011111110111011111111101210111111101111101111111011111011111110111111101111111110111111101111101111111011111011111110111111101111111011111111101111111011111011111110111111101111111111111111101111111111111011111111111111111111111110111111101111101111111011111110111111101111111111101111111110111111111111111110111111111011111111111011111111101111111110111111111110111111111211111111101111111111111011111111111111111111111111111111111110111111111110111111111011111111111111111111101111111111111012101111111111111111111110111112111111111111111111101111111111111111111111111111111111111111111111111012101211111111111111121111111111111111111111111111111111111111111111111111111111111111101112101111111112101111111111111111111111121110121012101111111211111111111111111112111111111111111111111111111111<
