Acer TravelMate P257-M-56AX 笔记本电脑简短评测

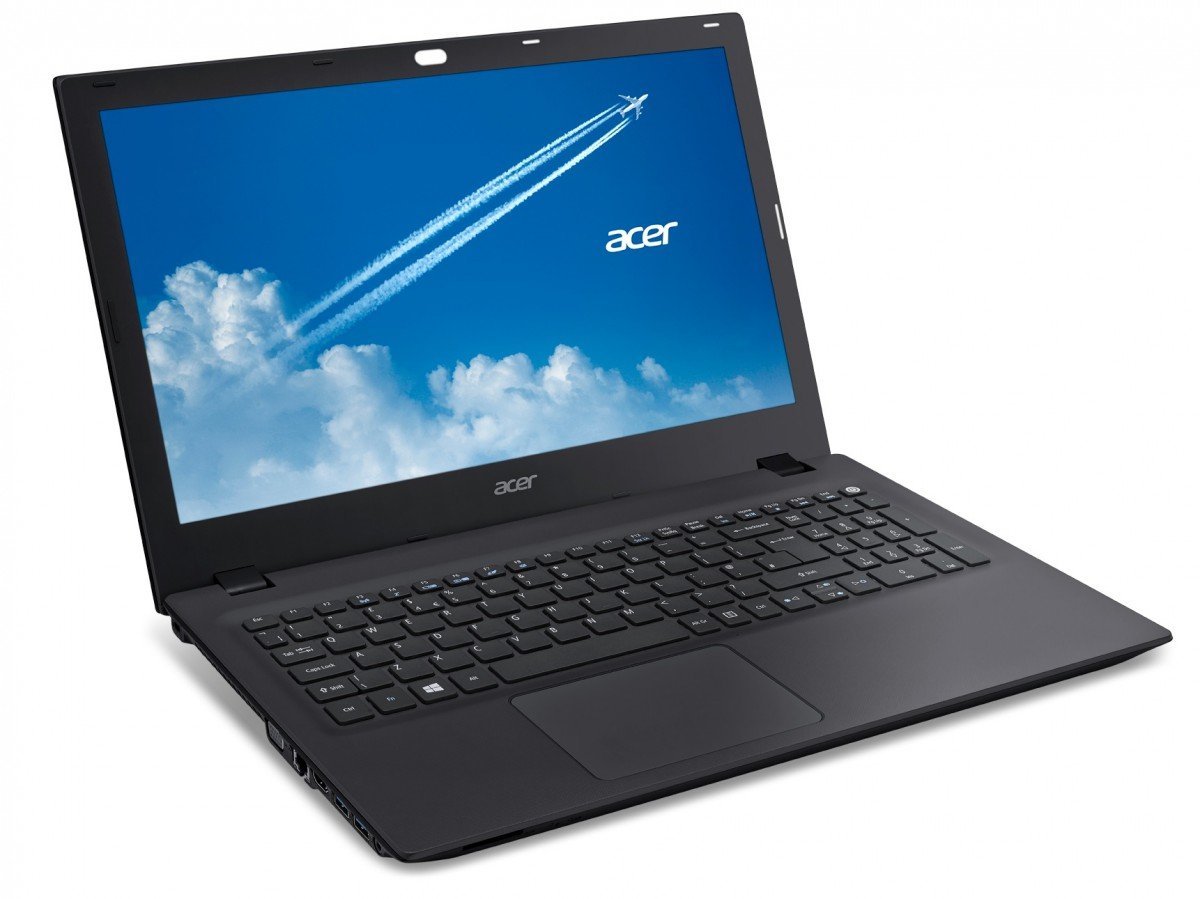

Acer TravelMate P257-M-56AX

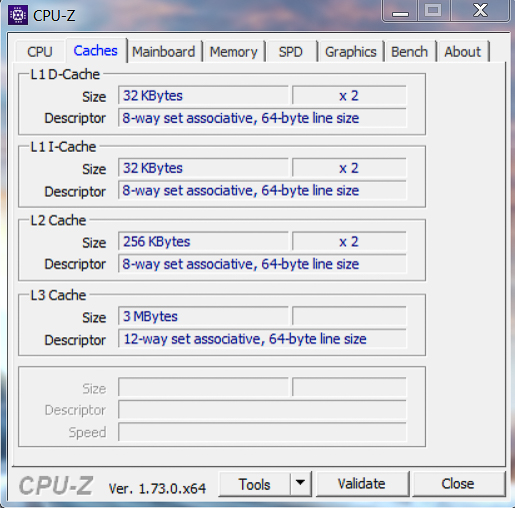

Processor

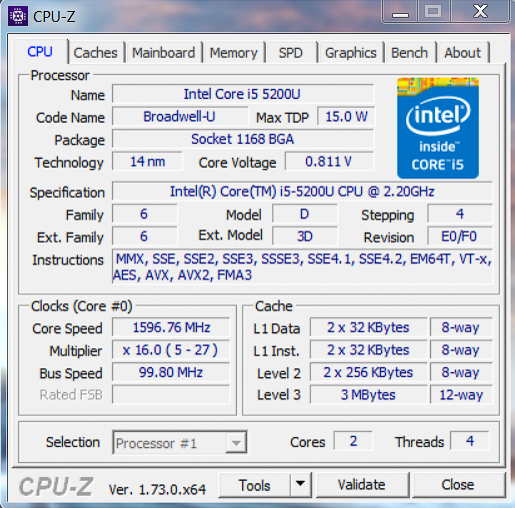

Intel Core i5-5200U 2 x 2.2 - 2.7 GHz, Broadwell
Graphics adapter
Intel HD Graphics 5500, Core: 900 MHz, RAM: 1600 MHz, DDR3, 10.18.14.4170

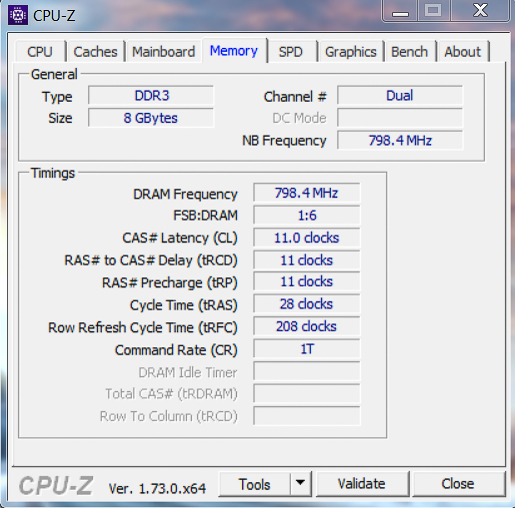

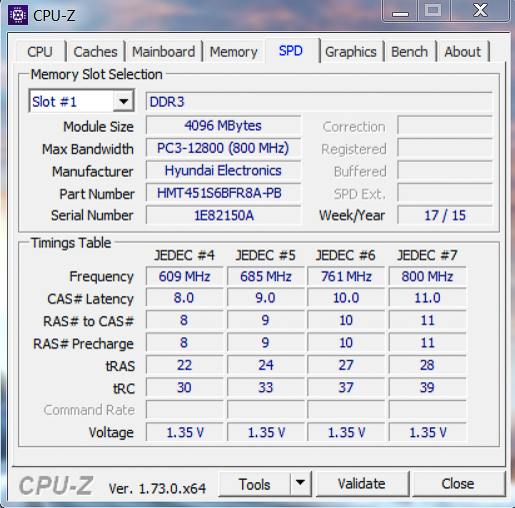

Memory
8 GB
, DDR3L 1600, 双通道，4个内存槽，2个已占用
Display
15.60 inch 16:9, 1920 x 1080 pixel, AU Optronics AUO38ED, TN LED, glossy: no

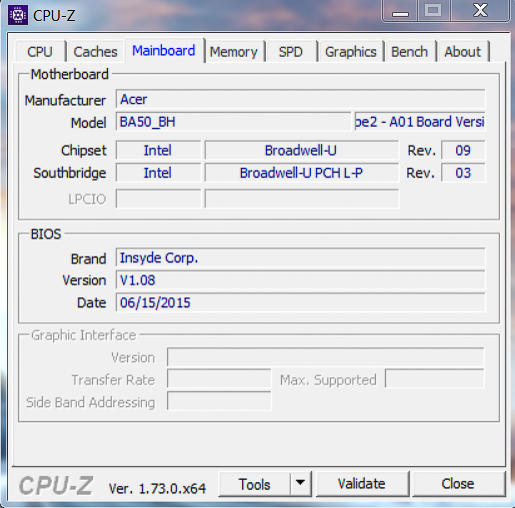

Mainboard
Intel Broadwell-U PCH-LP (Premium)
Storage
Kingston RBU-SC150S37256GD, 256 GB
Weight
2.4 kg, Power Supply: 148 g
Price
899 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||
AU Optronics AUO38ED tested with X-Rite i1Pro 2
Maximum: 238 cd/m² (Nits) Average: 209.6 cd/m²Brightness Distribution: 71 %
Center on Battery: 212 cd/m²
Contrast: 513:1 (Black: 0.4 cd/m²)
ΔE ColorChecker Calman: 9.76 | ∀{0.5-29.43 Ø4.79}
ΔE Greyscale Calman: 10.47 | ∀{0.09-98 Ø5}

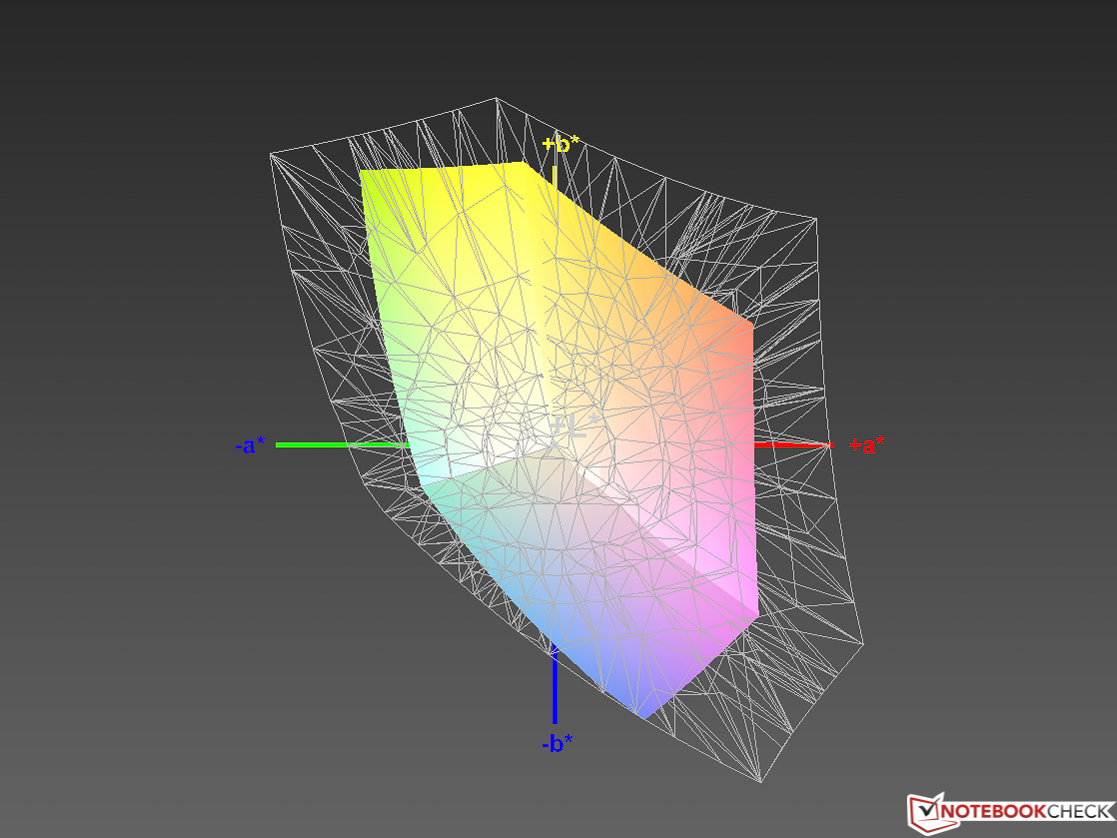

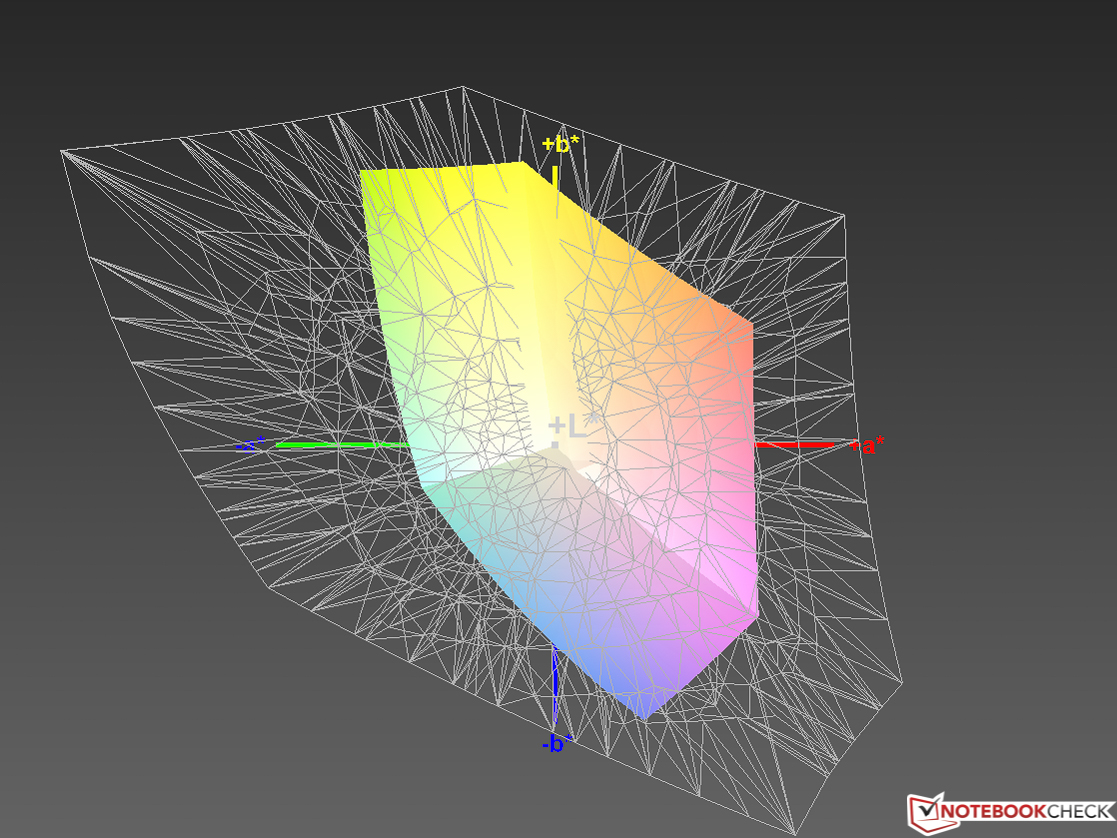

57% sRGB (Argyll 1.6.3 3D)
36% AdobeRGB 1998 (Argyll 1.6.3 3D)
39.04% AdobeRGB 1998 (Argyll 3D)
56.8% sRGB (Argyll 3D)
37.78% Display P3 (Argyll 3D)
Gamma: 2.56
CCT: 12103 K
| Acer TravelMate P257-M-56AX | Toshiba Tecra A50-C1510W10 | Fujitsu Lifebook A555 | Lenovo Z51-70 | |
|---|---|---|---|---|
| Display | 5% | 10% | 4% | |
| Display P3 Coverage (%) | 37.78 | 39.84 5% | 41.72 10% | 39.33 4% |
| sRGB Coverage (%) | 56.8 | 59.8 5% | 62.8 11% | 58.9 4% |
| AdobeRGB 1998 Coverage (%) | 39.04 | 41.17 5% | 43.1 10% | 40.65 4% |
| Screen | 1% | -6% | 2% | |
| Brightness middle (cd/m²) | 205 | 194.1 -5% | 180 -12% | 229 12% |
| Brightness (cd/m²) | 210 | 198 -6% | 174 -17% | 214 2% |
| Brightness Distribution (%) | 71 | 82 15% | 87 23% | 85 20% |
| Black Level * (cd/m²) | 0.4 | 0.539 -35% | 0.52 -30% | 0.45 -13% |
| Contrast (:1) | 513 | 360 -30% | 346 -33% | 509 -1% |
| Colorchecker dE 2000 * | 9.76 | 7.35 25% | 10.11 -4% | 10.51 -8% |
| Greyscale dE 2000 * | 10.47 | 6.88 34% | 10.92 -4% | 11.32 -8% |
| Gamma | 2.56 86% | 2.11 104% | 2.27 97% | 2.47 89% |
| CCT | 12103 54% | 8885 73% | 12639 51% | 12795 51% |
| Color Space (Percent of AdobeRGB 1998) (%) | 36 | 37.9 5% | 39.8 11% | 38 6% |
| Color Space (Percent of sRGB) (%) | 57 | 59.5 4% | 62.9 10% | 59 4% |
| Total Average (Program / Settings) | 3% /
2% | 2% /
-2% | 3% /
2% |
* ... smaller is better
| Cinebench R10 | |
| Rendering Multiple CPUs 32Bit (sort by value) | |
| Acer TravelMate P257-M-56AX | |
| Toshiba Tecra A50-C1510W10 | |
| Fujitsu Lifebook A555 | |
| Lenovo Z51-70 | |
| Rendering Single 32Bit (sort by value) | |
| Acer TravelMate P257-M-56AX | |
| Toshiba Tecra A50-C1510W10 | |
| Fujitsu Lifebook A555 | |
| Lenovo Z51-70 | |
| PCMark 8 | |
| Home Score Accelerated v2 (sort by value) | |
| Acer TravelMate P257-M-56AX | |
| Toshiba Tecra A50-C1510W10 | |
| Fujitsu Lifebook A555 | |
| Lenovo Z51-70 | |
| Work Score Accelerated v2 (sort by value) | |
| Acer TravelMate P257-M-56AX | |
| Toshiba Tecra A50-C1510W10 | |
| Fujitsu Lifebook A555 | |
| Lenovo Z51-70 | |
| PCMark 7 Score | 4293 points | |
| PCMark 8 Home Score Accelerated v2 | 3090 points | |
| PCMark 8 Work Score Accelerated v2 | 3979 points | |
Help | ||
Kingston RBU-SC150S37256GD
Sequential Read:
507 MB/s
Sequential Write:
337.5 MB/s
512K Read:
325 MB/s
512K Write:
346.8 MB/s
4K Read:
29.37 MB/s
4K Write:
93.9 MB/s
4K QD32 Read:
103.8 MB/s
4K QD32 Write:
217.7 MB/s
| 3DMark 11 - 1280x720 Performance GPU (sort by value) | |
| Acer TravelMate P257-M-56AX | |
| Toshiba Tecra A50-C1510W10 | |
| Fujitsu Lifebook A555 | |
| Lenovo Z51-70 | |
| 3DMark | |
| 1280x720 Ice Storm Standard Graphics (sort by value) | |
| Acer TravelMate P257-M-56AX | |
| Toshiba Tecra A50-C1510W10 | |
| Fujitsu Lifebook A555 | |
| 1280x720 Cloud Gate Standard Graphics (sort by value) | |
| Acer TravelMate P257-M-56AX | |
| Toshiba Tecra A50-C1510W10 | |
| Fujitsu Lifebook A555 | |
| Lenovo Z51-70 | |
| 3DMark 11 Performance | 1290 points | |
| 3DMark Ice Storm Standard Score | 51123 points | |
| 3DMark Cloud Gate Standard Score | 5179 points | |
Help | ||
| low | med. | high | ultra | |
|---|---|---|---|---|
| Tomb Raider (2013) | 62.2 | 31.3 | 19.4 | |
| BioShock Infinite (2013) | 44.6 | 24.1 | ||
| Dirt Rally (2015) | 99 | 22.6 |
Noise level
| Idle |
| 31.8 / 31.8 / 31.8 dB(A) |
| HDD |
| 32 dB(A) |
| DVD |
| 39.7 / dB(A) |
| Load |
| 35 / 37.6 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Voltcraft sl-320 (15 cm distance) | ||
(+) The average temperature for the upper side under maximal load is 30.8 °C / 87 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 34.3 °C / 94 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 42.1 °C / 108 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26 °C / 79 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32.4 °C / 90.3 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-4.8 °C / -8.6 F).
(+) The maximum temperature on the upper side is 34.3 °C / 94 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 42.1 °C / 108 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26 °C / 79 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32.4 °C / 90.3 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-4.8 °C / -8.6 F).
Power Consumption
| Off / Standby | 0 / 0.3 Watt |
| Idle | 3.2 / 5.5 / 6.4 Watt |
| Load |
31.8 / 33 Watt |

| |
Key:
min: ,
med: ,
max: Voltcraft VC 940 | |
| Acer TravelMate P257-M-56AX | Toshiba Tecra A50-C1510W10 | Fujitsu Lifebook A555 | Lenovo Z51-70 | |
|---|---|---|---|---|
| Battery runtime | 2% | 12% | -9% | |
| Reader / Idle (h) | 11.7 | 10.1 -14% | 9.5 -19% | |
| WiFi v1.3 (h) | 5.4 | 4.9 -9% | 5.7 6% | 4.8 -11% |
| Load (h) | 1.4 | 1.8 29% | 2.1 50% | 1.3 -7% |
| H.264 (h) | 6.5 |
Pros
+ 众多的机型配置选择

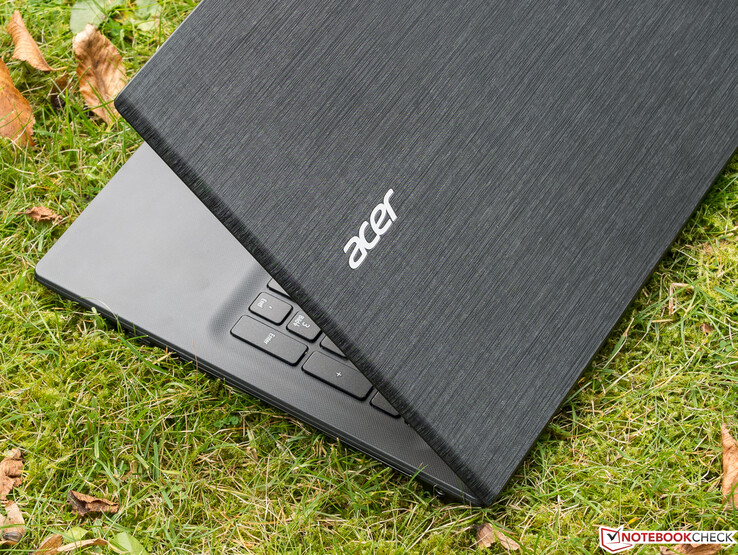

+ 坚固，高品质的机身
+ 个人品味：大量纹理图案
+ 双频Wi-Fi ac标准
+ 不错的输入设备
+ 性能无妥协，运行流畅
+ 256 GB固态硬盘
+ 非常安静清凉
+ 待机模式下非常节能
+ 尽管电池容量小，续航时间十分不错
Cons
- 容易沾染指纹...
- ...且不易清理
- DVD光驱呈一定角度
- 不拆机无法更换升级部件
- 所有的接口都在机身前面
- 无背光键盘
- 平庸的TN屏幕
- 不适合游戏
实际上Acer的TravelMate P257-M-56AX只需稍少降低一些售价就会十分值得推荐。我们认为，720欧元（约4940人民币）是个可以接受的价位，它的售价在未来几个月中应该会降低到这个水平。
在测试中，我们看到的是一款中规中矩，坚固耐用但在技术层面并不出彩的办公设备。它唯一的弱点是平庸的屏幕。
除了近乎完美的散热控制，这台测试机拥有大气的外观，坚固的高品质机身，十分优秀的输入设备，安静清凉的运行，充足的电池续航时间以及足够使用的性能。希望玩一些游戏的用户可以选择例如联想Z51-70或售价更高的搭配的GeForce 940MP2机型。
注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。
Acer TravelMate P257-M-56AX
- 10/27/2015 v4 (old)
Sven Kloevekorn
