联想 Z51-70 (Radeon R9 M375) 笔记本电脑简短评测

Name: Lenovo Z51-70
Brand: Lenovo

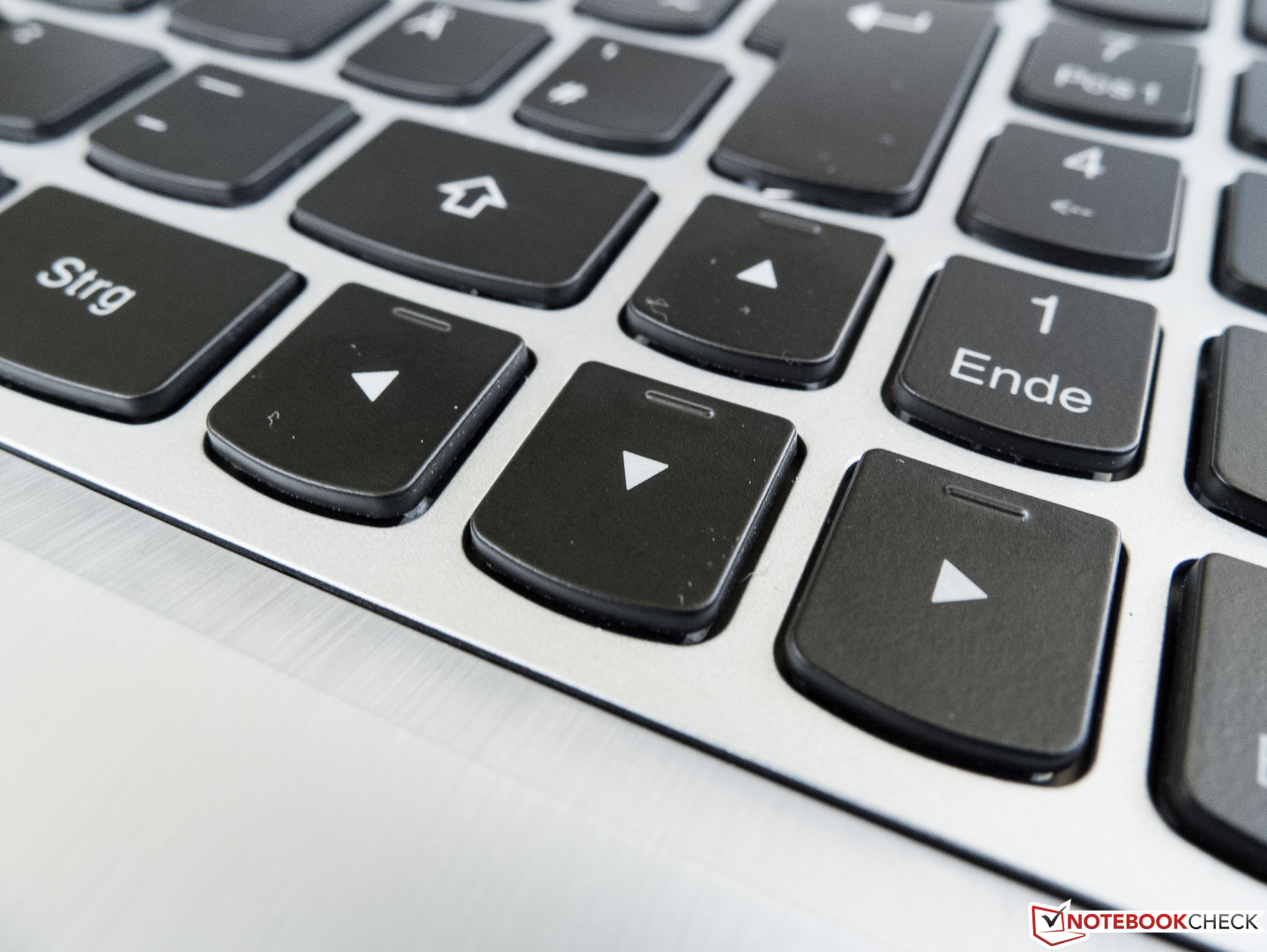

五味杂陈。 联想的这款新产品希望凭借中端显卡在多媒体产品中一展身手，不过它的屏幕和音响效果拖了后腿。它的键盘也可能会让需要用它来办公的用户失望。不过，它的其它方面，特别是性能，都十分出色。

Sven Kloevekorn, ✓ Stefanie Voigt (translated by Yuchen Wang), Published 10/21/2015 🇺🇸 🇩🇪 ...

Broadwell AMD Laptop / Notebook Windows

Test device courtesy of cyberport.de

Download your licensed rating image as PNG / SVG

Lenovo Z51-70 (Z51 Series)

Processor

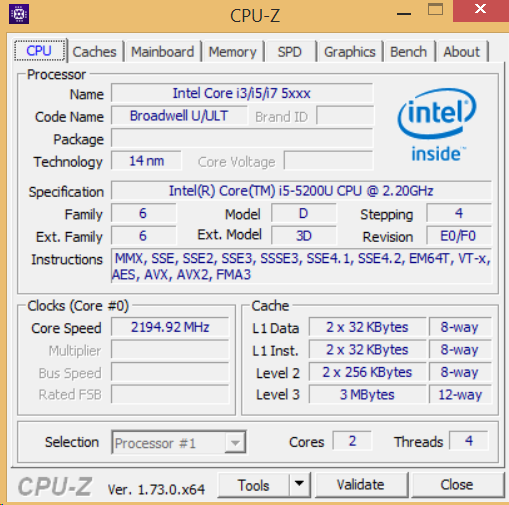

Intel Core i5-5200U 2 x 2.2 - 2.7 GHz, Broadwell

Graphics adapter

AMD Radeon R9 M375 - 2048 MB VRAM, Core: 1015 MHz, Memory: 2200 MHz, DDR3, 14.502.1002.1003, AMD Enduro

Memory

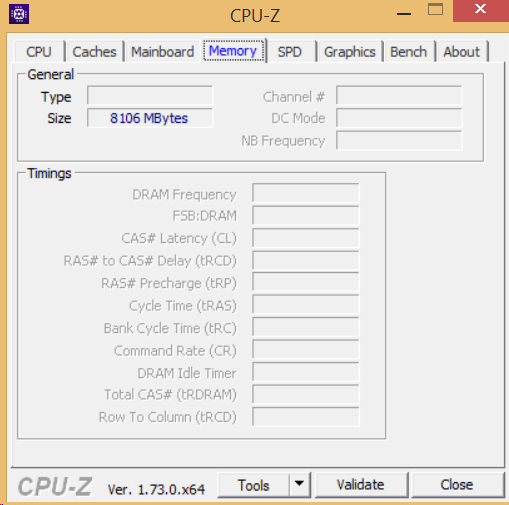

8 GB

, DDR3, 1600 MHz, 单通道, 2 内存槽, 1 已占用

Display

15.60 inch 16:9, 1920 x 1080 pixel, Chi Mei CMN15C4, TN LED, glossy: no

Mainboard

Intel Broadwell-U PCH-LP (Premium)

Storage

Samsung PM871 MZYLN256HCHP, 256 GB

Soundcard

Intel Broadwell PCH-LP - High Definition Audio Controller

Connections

1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Connections: 3.5毫米整合音频输入输出插口, Card Reader: SD/SDHC/SDXC

Networking

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3160 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0

Optical drive

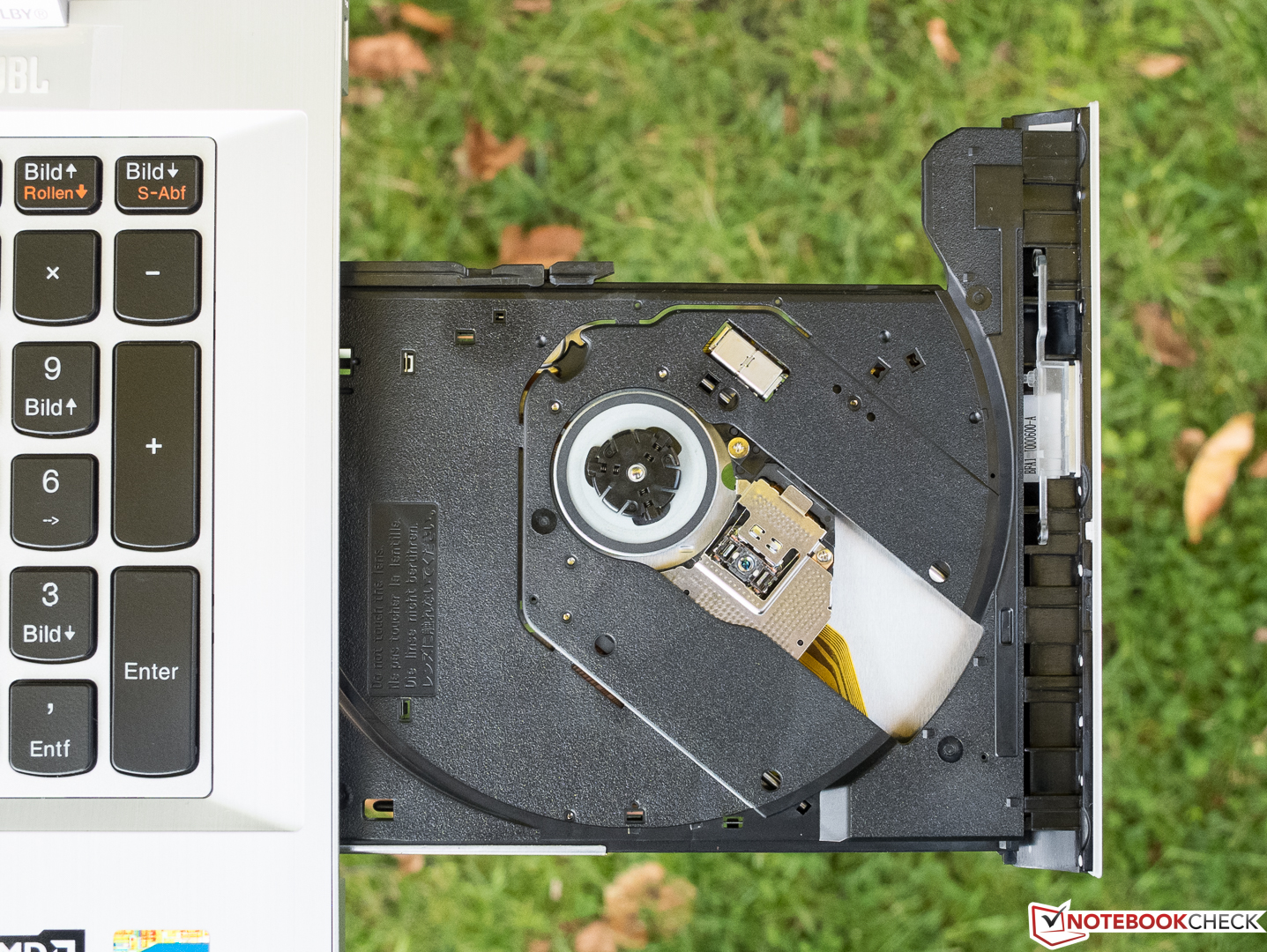

Matshita DVD-RAM UJ8HC

Size

height x width x depth (in mm): 26 x 380 x 265

Battery

32 Wh Lithium-Ion

Operating System

Microsoft Windows 8.1 64 Bit

Camera

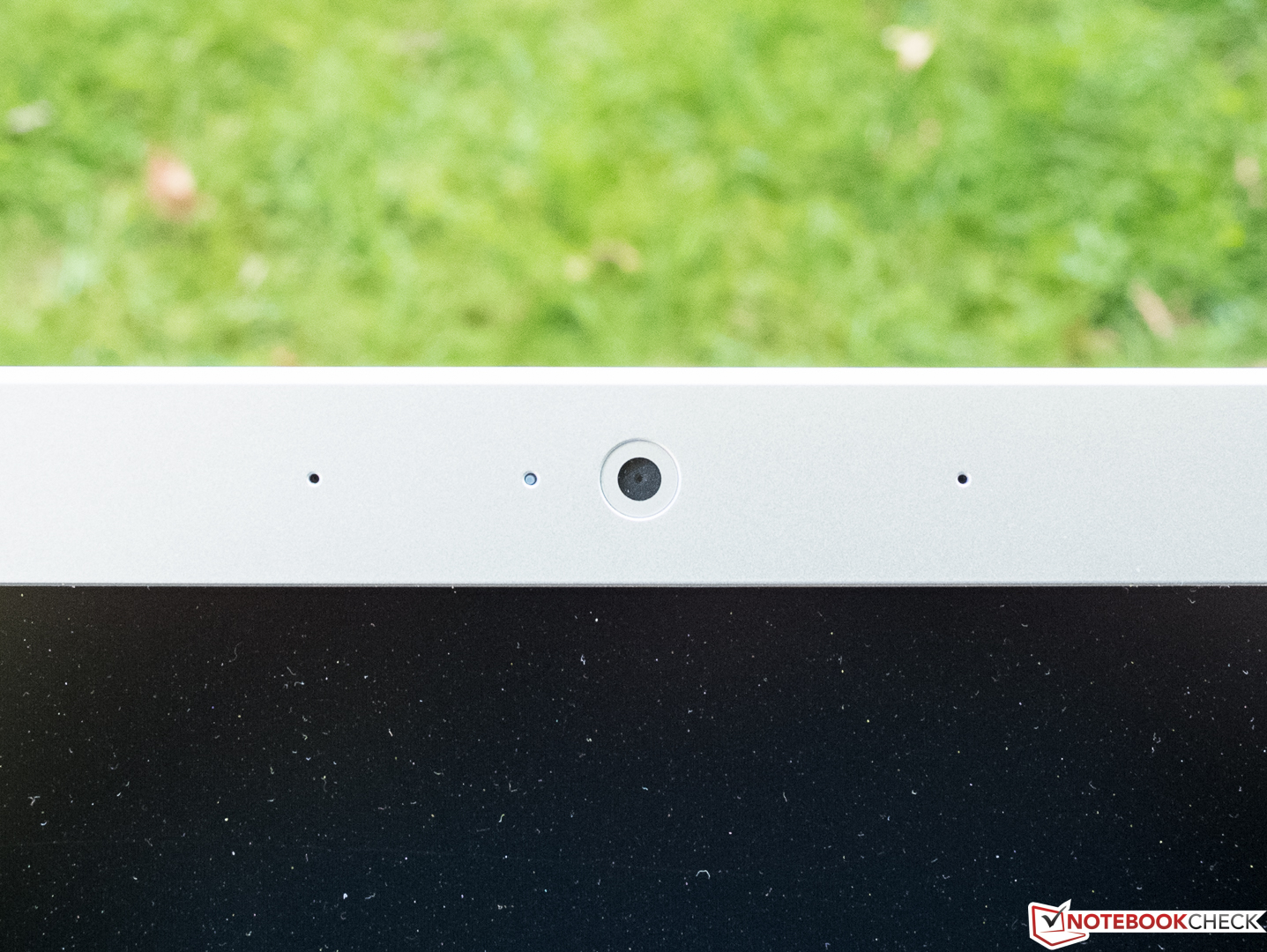

Webcam: HD

Additional features

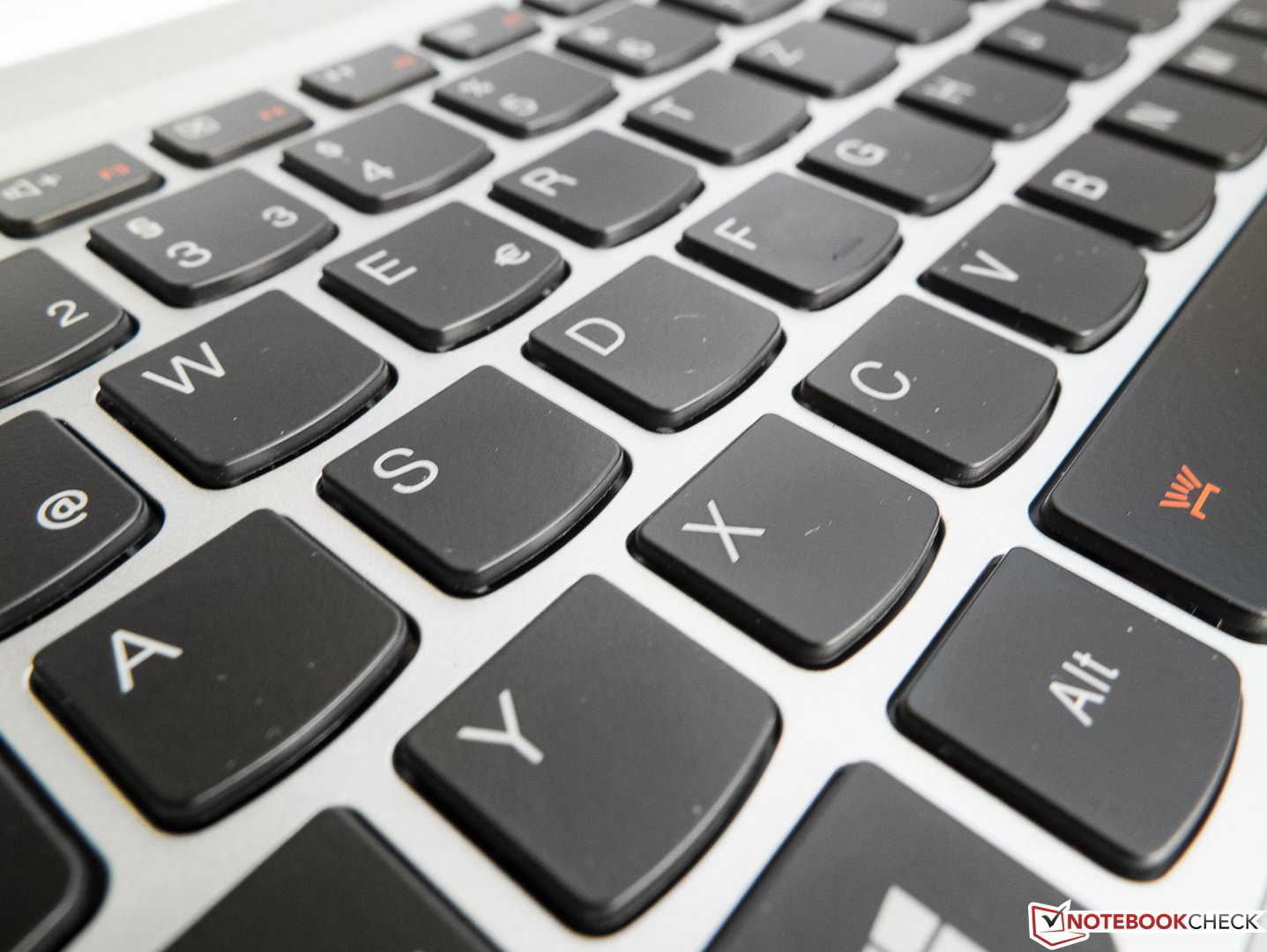

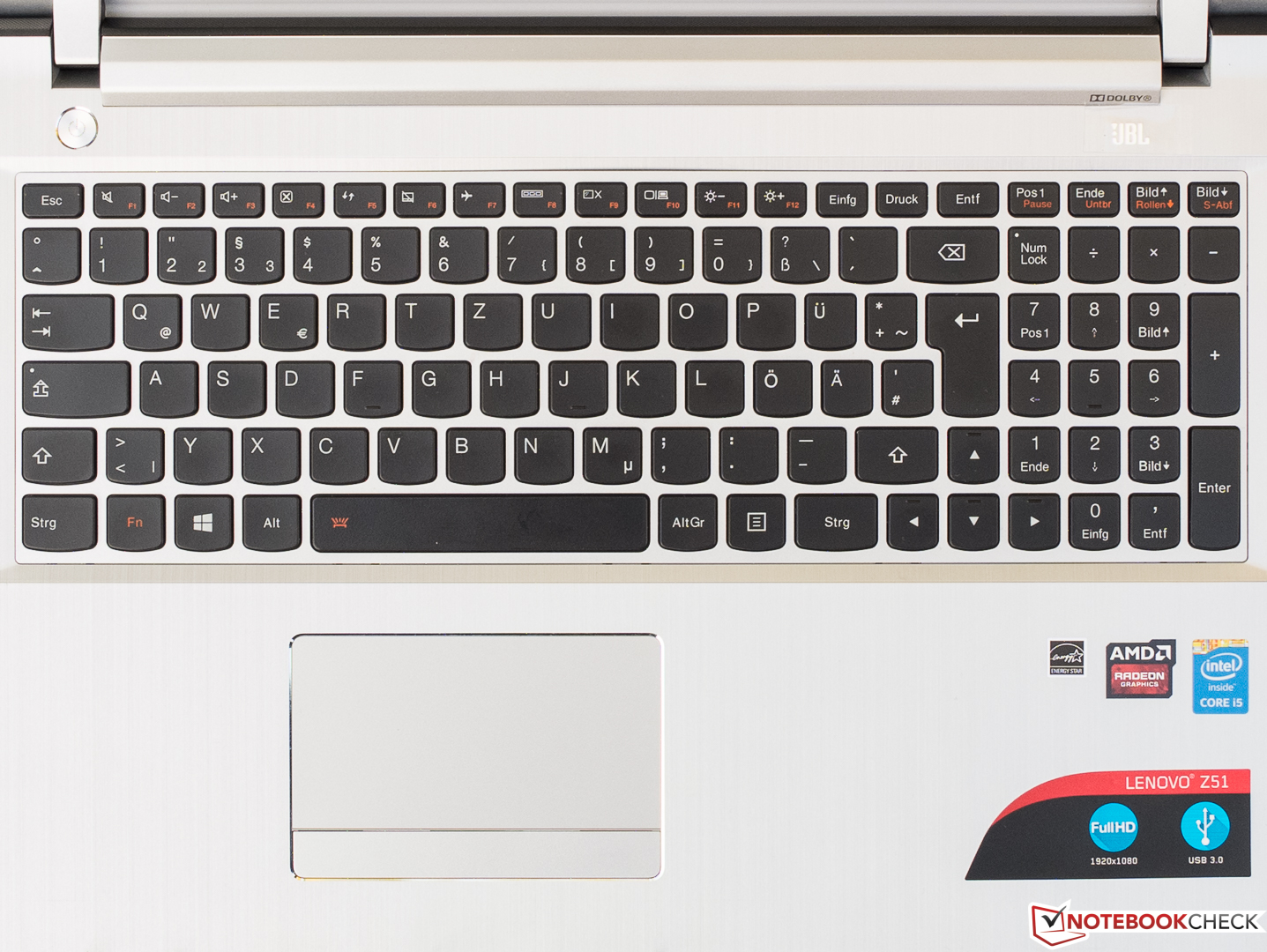

Speakers: 立体声, Keyboard: 孤岛式, Keyboard Light: yes, 24 Months Warranty

Weight

2.3 kg, Power Supply: 339 g

Price

799 Euro

Links

Lenovo homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

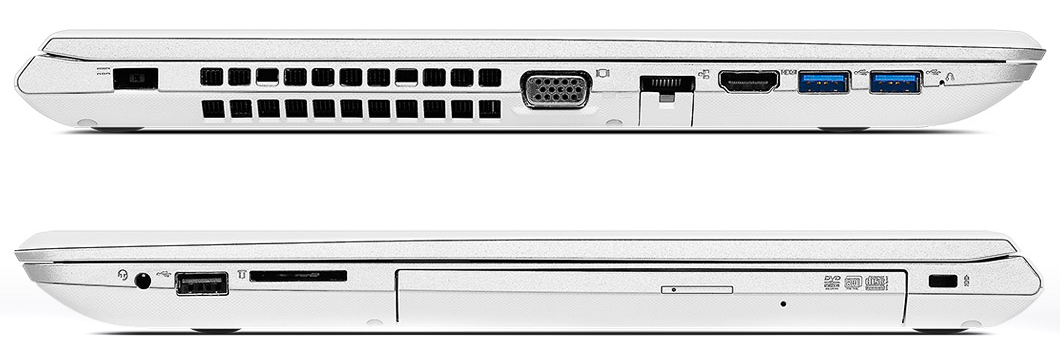

Right: power, vent, VGA, Ethernet, HDMI, 2x USB 3.0 / Left: audio in/out, USB 2.0, SD-card reader, DVD burner, Kensington


225 cd/m²	228 cd/m²	201 cd/m²
203 cd/m²	229 cd/m²	195 cd/m²
223 cd/m²	221 cd/m²	204 cd/m²

Distribution of brightness

Chi Mei CMN15C4 tested with X-Rite i1Pro 2

Maximum: 229 cd/m² (Nits) Average: 214.3 cd/m²
Brightness Distribution: 85 %
Center on Battery: 188 cd/m²
Contrast: 509:1 (Black: 0.45 cd/m²)
ΔE Color 10.51 | 0.5-29.43 Ø5
ΔE Greyscale 11.32 | 0.57-98 Ø5.3
59% sRGB (Argyll 1.6.3 3D)
38% AdobeRGB 1998 (Argyll 1.6.3 3D)
40.65% AdobeRGB 1998 (Argyll 2.2.0 3D)
58.9% sRGB (Argyll 2.2.0 3D)
39.33% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.47

Download ICC File (X-Rite i1Pro 2)

	Lenovo Z51-70	Acer Aspire V3-574G-59MA	Dell Inspiron 15-5558
Display		1%	5%
Display P3 Coverage	39.33	39.83 1%	41.22 5%
sRGB Coverage	58.9	59.5 1%	61.8 5%
AdobeRGB 1998 Coverage	40.65	41.21 1%	42.58 5%
Screen		11%	21%
Brightness middle	229	257 12%	177 -23%
Brightness	214	247 15%	176 -18%
Brightness Distribution	85	84 -1%	78 -8%
Black Level *	0.45	0.45 -0%	0.15 67%
Contrast	509	571 12%	1180 132%
Colorchecker dE 2000 *	10.51	7.36 30%	8.52 19%
Greyscale dE 2000 *	11.32	7.82 31%	9.72 14%
Gamma	2.47 ^89%	2.4 ^92%	1.85 ^119%
CCT	12795 ^51%	6939 ^94%	5036 ^129%
Color Space (Percent of AdobeRGB 1998)	38	38 0%	39 3%
Color Space (Percent of sRGB)	59	59.2 0%	61 3%
Total Average (Program / Settings)		6% / 9%	13% / 17%

* ... smaller is better

Cinebench R11.5 | Cinebench R15 | Cinebench R10

Cinebench R11.5
CPU Multi 64Bit (sort by value)
Lenovo Z51-70 Intel Core i5-5200U	2.84 Points
Acer Aspire V3-574G-59MA Intel Core i5-5200U	2.78 Points -2%
Dell Inspiron 15-5558 Intel Core i5-5200U	2.8 Points -1%
CPU Single 64Bit (sort by value)
Lenovo Z51-70 Intel Core i5-5200U	1.13 Points
Acer Aspire V3-574G-59MA Intel Core i5-5200U	1.26 Points +12%
Dell Inspiron 15-5558 Intel Core i5-5200U	1.26 Points +12%

Cinebench R15
CPU Multi 64Bit (sort by value)
Lenovo Z51-70 Intel Core i5-5200U	259 Points
Acer Aspire V3-574G-59MA Intel Core i5-5200U	258 Points 0%
Dell Inspiron 15-5558 Intel Core i5-5200U	261 Points +1%
CPU Single 64Bit (sort by value)
Lenovo Z51-70 Intel Core i5-5200U	96 Points
Acer Aspire V3-574G-59MA Intel Core i5-5200U	108 Points +13%
Dell Inspiron 15-5558 Intel Core i5-5200U	108 Points +13%

Cinebench R10
Rendering Multiple CPUs 32Bit (sort by value)
Lenovo Z51-70 Intel Core i5-5200U	8509 Points
Acer Aspire V3-574G-59MA Intel Core i5-5200U	8699 Points +2%
Dell Inspiron 15-5558 Intel Core i5-5200U	8642 Points +2%
Rendering Single 32Bit (sort by value)
Lenovo Z51-70 Intel Core i5-5200U	4176 Points
Acer Aspire V3-574G-59MA Intel Core i5-5200U	4131 Points -1%
Dell Inspiron 15-5558 Intel Core i5-5200U	4137 Points -1%

Cinebench R10 Shading 32Bit

6544

Cinebench R10 Rendering Multiple CPUs 32Bit

8509

Cinebench R10 Rendering Single 32Bit

4176

Cinebench R11.5 OpenGL 64Bit

38.7 fps

Cinebench R11.5 CPU Multi 64Bit

2.84 Points

Cinebench R11.5 CPU Single 64Bit

1.13 Points

Cinebench R15 Ref. Match 64Bit

98 %

Cinebench R15 OpenGL 64Bit

45.5 fps

Cinebench R15 CPU Multi 64Bit

259 Points

Cinebench R15 CPU Single 64Bit

96 Points

Help

... in comparison

PCMark 7 | PCMark 8

PCMark 7
Score (sort by value)
Lenovo Z51-70 Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP	5071 Points
Acer Aspire V3-574G-59MA GeForce 940M, 5200U, Kingston RBU-SC150S37256GD	4857 Points -4%
Dell Inspiron 15-5558 GeForce 920M, 5200U, Toshiba MQ01ABD100	2736 Points -46%
Lightweight (sort by value)
Lenovo Z51-70 Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP	5037 Points
Acer Aspire V3-574G-59MA GeForce 940M, 5200U, Kingston RBU-SC150S37256GD	4852 Points -4%
Dell Inspiron 15-5558 GeForce 920M, 5200U, Toshiba MQ01ABD100	2083 Points -59%
Productivity (sort by value)
Lenovo Z51-70 Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP	4021 Points
Acer Aspire V3-574G-59MA GeForce 940M, 5200U, Kingston RBU-SC150S37256GD	3840 Points -5%
Dell Inspiron 15-5558 GeForce 920M, 5200U, Toshiba MQ01ABD100	1454 Points -64%

PCMark 8
Home Score Accelerated v2 (sort by value)
Lenovo Z51-70 Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP	3612 Points
Acer Aspire V3-574G-59MA GeForce 940M, 5200U, Kingston RBU-SC150S37256GD	3187 Points -12%
Dell Inspiron 15-5558 GeForce 920M, 5200U, Toshiba MQ01ABD100	2830 Points -22%
Work Score Accelerated v2 (sort by value)
Lenovo Z51-70 Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP	4274 Points
Acer Aspire V3-574G-59MA GeForce 940M, 5200U, Kingston RBU-SC150S37256GD	4070 Points -5%
Dell Inspiron 15-5558 GeForce 920M, 5200U, Toshiba MQ01ABD100	3609 Points -16%

PCMark 7 Score		5071 points
PCMark 8 Home Score Accelerated v2		3612 points
PCMark 8 Work Score Accelerated v2		4274 points
Help

... in comparison

CrystalDiskMark 3.0

AS SSD

Samsung PM871 MZYLN256HCHP

Sequential Read: 515 MB/s

Sequential Write: 300.4 MB/s

512K Read: 447.8 MB/s

512K Write: 300.4 MB/s

4K Read: 37.61 MB/s

4K Write: 113.6 MB/s

4K QD32 Read: 398.4 MB/s

4K QD32 Write: 299.3 MB/s

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance GPU (sort by value)
Lenovo Z51-70 AMD Radeon R9 M375	3314 Points
Acer Aspire V3-574G-59MA NVIDIA GeForce 940M	2432 Points -27%
Dell Inspiron 15-5558 NVIDIA GeForce 920M	1704 Points -49%
Lenovo Z51-70-80K6 AMD Radeon R7 M360	2108 Points -36%

3DMark
1280x720 Cloud Gate Standard Graphics (sort by value)
Lenovo Z51-70 AMD Radeon R9 M375	8466 Points
Acer Aspire V3-574G-59MA NVIDIA GeForce 940M	8946 Points +6%
Dell Inspiron 15-5558 NVIDIA GeForce 920M	7214 Points -15%
Lenovo Z51-70-80K6 AMD Radeon R7 M360	5117 Points -40%
1920x1080 Fire Strike Graphics (sort by value)
Lenovo Z51-70 AMD Radeon R9 M375	1667 Points
Acer Aspire V3-574G-59MA NVIDIA GeForce 940M	1639 Points -2%
Dell Inspiron 15-5558 NVIDIA GeForce 920M	1157 Points -31%
Lenovo Z51-70-80K6 AMD Radeon R7 M360	1122 Points -33%

3DMark 06 Standard Score		11543 points
3DMark Vantage P Result		8275 points
3DMark 11 Performance		3269 points
3DMark Cloud Gate Standard Score		5932 points
3DMark Fire Strike Score		1514 points
Help

... in comparison

	low	med.	high	ultra
Crysis 3 (2013)	37.9	23.2
Tomb Raider (2013)		50	36.2	17.8
BioShock Infinite (2013)	89.2	52.9	44	16.3
Metro: Last Light (2013)	42	34.8	22.3
Battlefield 4 (2013)		43.8	30.6	11.9
Thief (2014)	27	22.7	19.4
GRID: Autosport (2014)	91 severe graphical problems	47 severe graphical problems	30 severe graphical problems	20 severe graphical problems
Fifa 15 (2014)			66.3	32.7
Middle-earth: Shadow of Mordor (2014)	36	25.5	15.5
Alien: Isolation (2014)	53.4	38.7	21.6
Civilization: Beyond Earth (2014)	48	32	21.6
Call of Duty: Advanced Warfare (2014)	55	34.4	17.4
Assassin's Creed Unity (2014)	28.5
Far Cry 4 (2014)	40.8	31.6	15.8
Dragon Age: Inquisition (2014)	36 severe graphical problems	34 severe graphical problems	21 severe graphical problems
Evolve (2015)	41.1	31.1	16.7
Battlefield Hardline (2015)	59.3	43.5	17.7
Dirt Rally (2015)		40	24.8
The Witcher 3 (2015)	9.8
Batman: Arkham Knight (2015)	27	22
Mad Max (2015)		36.3	18.6

Batman: Arkham Knight | Dirt Rally | Thief | Tomb Raider

Batman: Arkham Knight
1280x720 Low / Off AF:Trilinear (sort by value)
Lenovo Z51-70 AMD Radeon R9 M375,	27 fps
Acer Aspire V3-574G-59MA NVIDIA GeForce 940M,	21 fps -22%
Dell Inspiron 15-5558 NVIDIA GeForce 920M,	16 fps -41%
MSI GP72-2QEi781 NVIDIA GeForce GTX 950M,	56 fps +107%
1366x768 Normal / Off AF:4x (sort by value)
Lenovo Z51-70 AMD Radeon R9 M375,	22 fps
Acer Aspire V3-574G-59MA NVIDIA GeForce 940M,	18 fps -18%
Dell Inspiron 15-5558 NVIDIA GeForce 920M,	13 fps -41%
MSI GP72-2QEi781 NVIDIA GeForce GTX 950M,	46 fps +109%

Dirt Rally
1366x768 Medium Preset (sort by value)
Lenovo Z51-70 AMD Radeon R9 M375,	40.8 fps
Acer Aspire V3-574G-59MA NVIDIA GeForce 940M,	46.4 fps +14%
Dell Inspiron 15-5558 NVIDIA GeForce 920M,	33.1 fps -19%
HP Envy 15-w000ng x360 NVIDIA GeForce 930M,	42.2 fps +3%
Lenovo Z51-70-80K6 AMD Radeon R7 M360,	31.7 fps -22%
1920x1080 High Preset (sort by value)
Lenovo Z51-70 AMD Radeon R9 M375,	24.8 fps
Acer Aspire V3-574G-59MA NVIDIA GeForce 940M,	23.5 fps -5%
Dell Inspiron 15-5558 NVIDIA GeForce 920M,	16.8 fps -32%
HP Envy 15-w000ng x360 NVIDIA GeForce 930M,	21.4 fps -14%
Lenovo Z51-70-80K6 AMD Radeon R7 M360,	16.3 fps -34%

Thief
1024x768 Very Low Preset (sort by value)
Lenovo Z51-70 AMD Radeon R9 M375,	27 fps
Acer Aspire V3-574G-59MA NVIDIA GeForce 940M,	38.2 fps +41%
HP Envy 15-w000ng x360 NVIDIA GeForce 930M,	35.2 fps +30%
Lenovo Y40-59423035 AMD Radeon R9 M275,	26.8 fps -1%
1366x768 Normal Preset AA:FX (sort by value)
Lenovo Z51-70 AMD Radeon R9 M375,	22.7 fps
Acer Aspire V3-574G-59MA NVIDIA GeForce 940M,	24.4 fps +7%
HP Envy 15-w000ng x360 NVIDIA GeForce 930M,	22.6 fps 0%
Lenovo Y40-59423035 AMD Radeon R9 M275,	22.6 fps 0%
1366x768 High Preset AA:FXAA & Low SS AF:4x (sort by value)
Lenovo Z51-70 AMD Radeon R9 M375,	19.4 fps
Acer Aspire V3-574G-59MA NVIDIA GeForce 940M,	19.8 fps +2%
HP Envy 15-w000ng x360 NVIDIA GeForce 930M,	18.3 fps -6%
Lenovo Y40-59423035 AMD Radeon R9 M275,	19.3 fps -1%

Tomb Raider
1366x768 Normal Preset AA:FX AF:4x (sort by value)
Lenovo Z51-70 AMD Radeon R9 M375,	50 fps
Acer Aspire V3-574G-59MA NVIDIA GeForce 940M,	64.8 fps +30%
Dell Inspiron 15-5558 NVIDIA GeForce 920M,	43.3 fps -13%
HP Envy 15-w000ng x360 NVIDIA GeForce 930M,	58.7 fps +17%
Lenovo Y40-59423035 AMD Radeon R9 M275,	62.9 fps +26%
Lenovo Z51-70-80K6 AMD Radeon R7 M360,	36.7 fps -27%
1366x768 High Preset AA:FX AF:8x (sort by value)
Lenovo Z51-70 AMD Radeon R9 M375,	36.2 fps
Acer Aspire V3-574G-59MA NVIDIA GeForce 940M,	35 fps -3%
Dell Inspiron 15-5558 NVIDIA GeForce 920M,	25.7 fps -29%
HP Envy 15-w000ng x360 NVIDIA GeForce 930M,	31.9 fps -12%
Lenovo Y40-59423035 AMD Radeon R9 M275,	44.1 fps +22%
Lenovo Z51-70-80K6 AMD Radeon R7 M360,	29 fps -20%

Noise Level

Idle		32.1 / 32.1 / 32.8 dB(A)
DVD		36.8 / dB(A)
Load		39.4 / 40.7 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Voltcraft sl-320 (15 cm distance)

Max. Load

Idle


43.6 °C	39.7 °C	25.6 °C
41.8 °C	39.2 °C	25.7 °C
33.4 °C	34.8 °C	27 °C

Maximum: 43.6 °C
Average: 34.5 °C


25.7 °C	34.2 °C	37.2 °C
25.5 °C	32.3 °C	45.6 °C
25 °C	29.1 °C	29.8 °C

Maximum: 45.6 °C
Average: 31.6 °C

Power Supply (max.) 56.3 °C | Room Temperature 24 °C | Voltcraft IR-360

(±) The average temperature for the upper side under maximal load is 34.5 °C / 94 F, compared to the average of 31.2 °C / 88 F for the devices in the class Multimedia.
(±) The maximum temperature on the upper side is 43.6 °C / 110 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(-) The bottom heats up to a maximum of 45.6 °C / 114 F, compared to the average of 39.1 °C / 102 F
(+) In idle usage, the average temperature for the upper side is 26.7 °C / 80 F, compared to the device average of 31.2 °C / 88 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (34.8 °C / 94.6 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-6 °C / -10.8 F).

Power Consumption

Off / Standby	0.1 / 0.2 Watt
Idle	3.3 / 5.9 / 6 Watt
Load	55.1 / 55.2 Watt


Key: min: , med: , max: Voltcraft VC 940 Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Battery Runtime
WiFi v1.3 (sort by value)
Lenovo Z51-70 Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP	289 min
Acer Aspire V3-574G-59MA GeForce 940M, 5200U, Kingston RBU-SC150S37256GD	281 min
Dell Inspiron 15-5558 GeForce 920M, 5200U, Toshiba MQ01ABD100	337 min
Load (sort by value)
Lenovo Z51-70 Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP	75 min
Acer Aspire V3-574G-59MA GeForce 940M, 5200U, Kingston RBU-SC150S37256GD	91 min
Dell Inspiron 15-5558 GeForce 920M, 5200U, Toshiba MQ01ABD100	103 min

Battery Runtime

WiFi Websurfing		4h 49min
DVD		3h 06min
Load (maximum brightness)		1h 15min

Pros

+ 许多不同配置型号

+ 设计优秀的机身，品质可以接受

+ 双频千兆Wi-Fi ac标准

+ 背光键盘

+ 优秀的触控版

+ 不错的加速利用率

+ 运行非常流畅

+ 高速固态硬盘

+ 高性价比，长电池续航

Cons

- 更换电池或部件需要拆机

- 所有的接口都位于机身前部

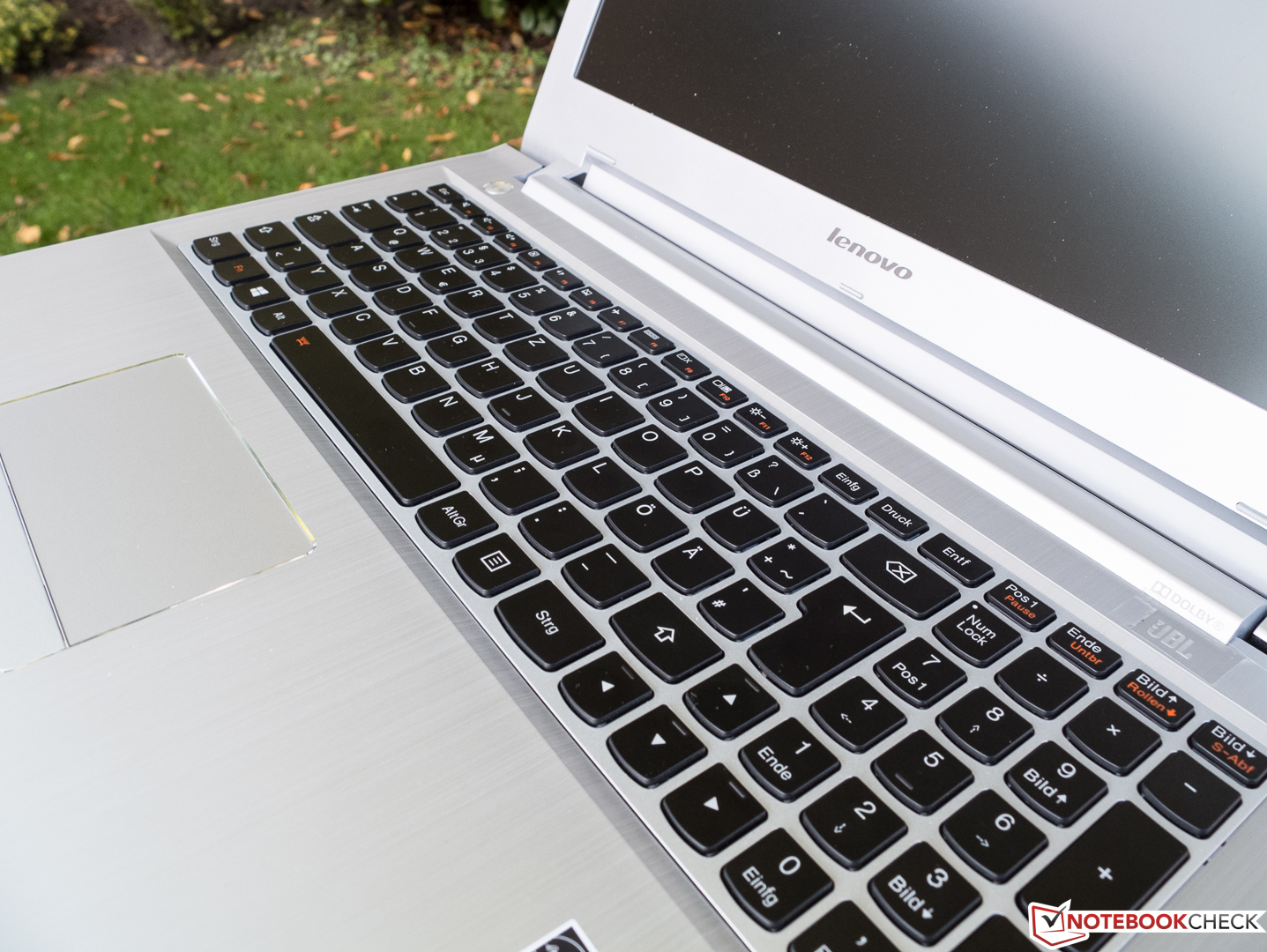

- 最多算是一般的键盘

- 暗淡，可视角度窄的TN屏幕

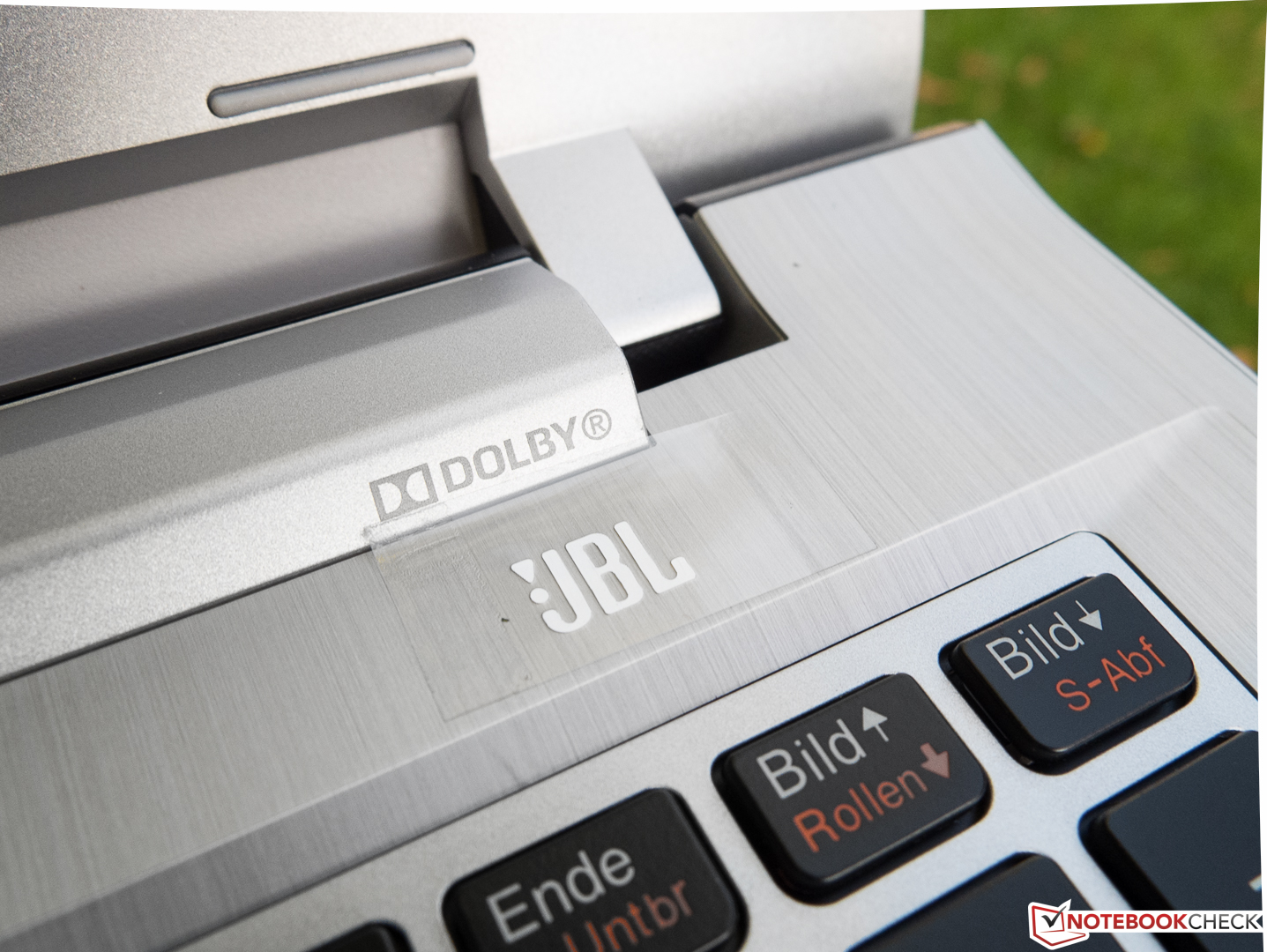

- 音响系统明显有瑕疵

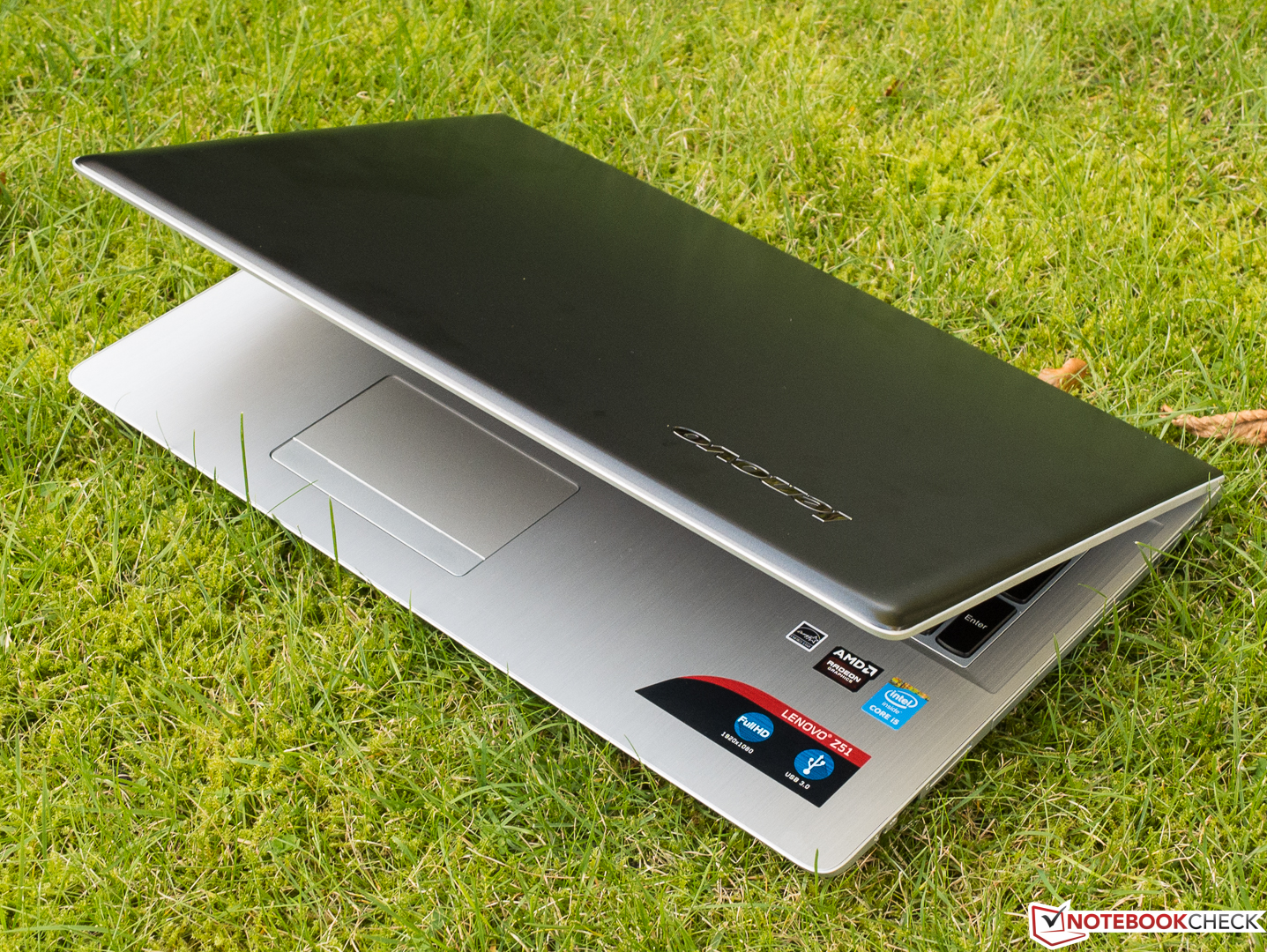

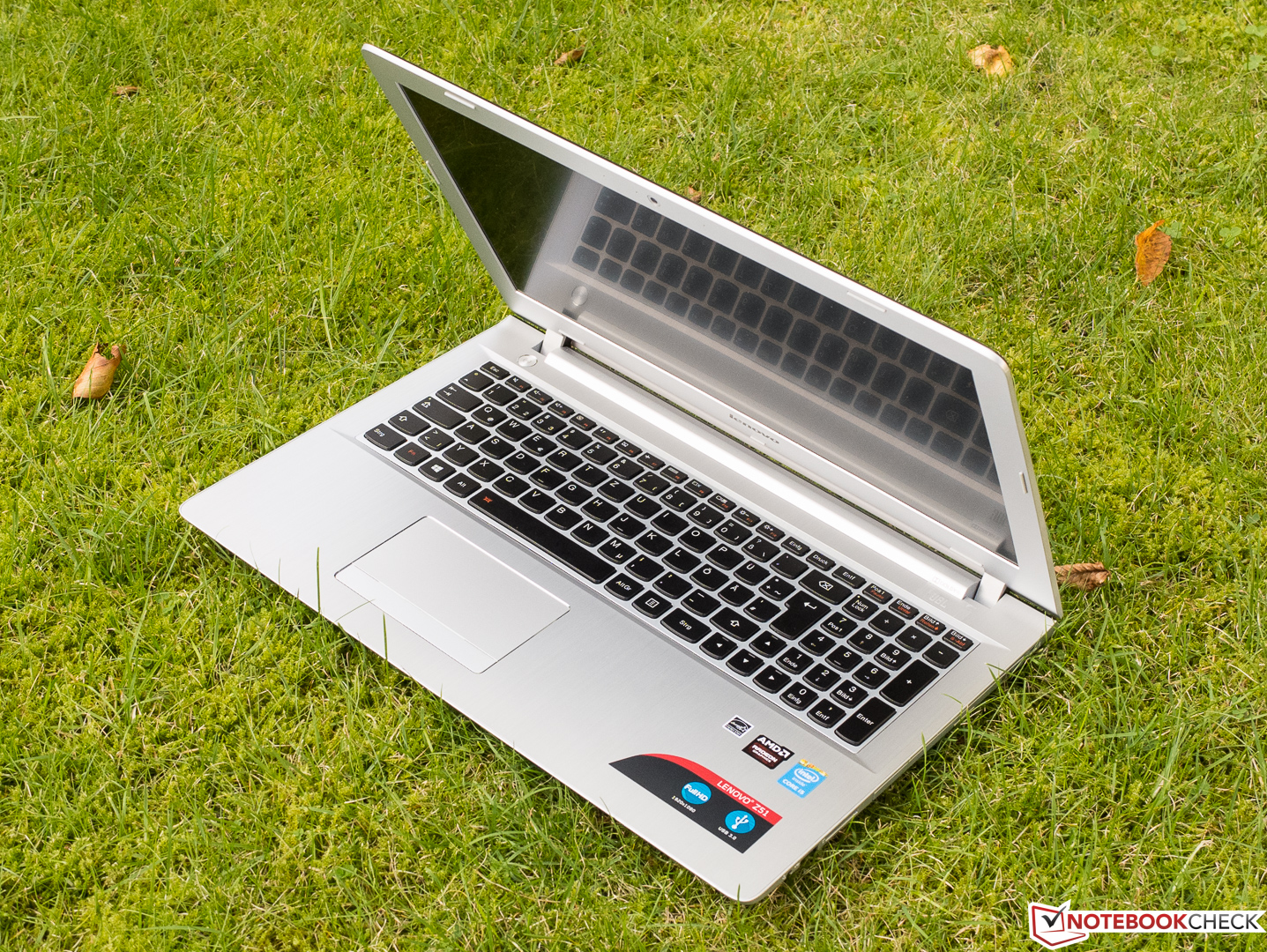

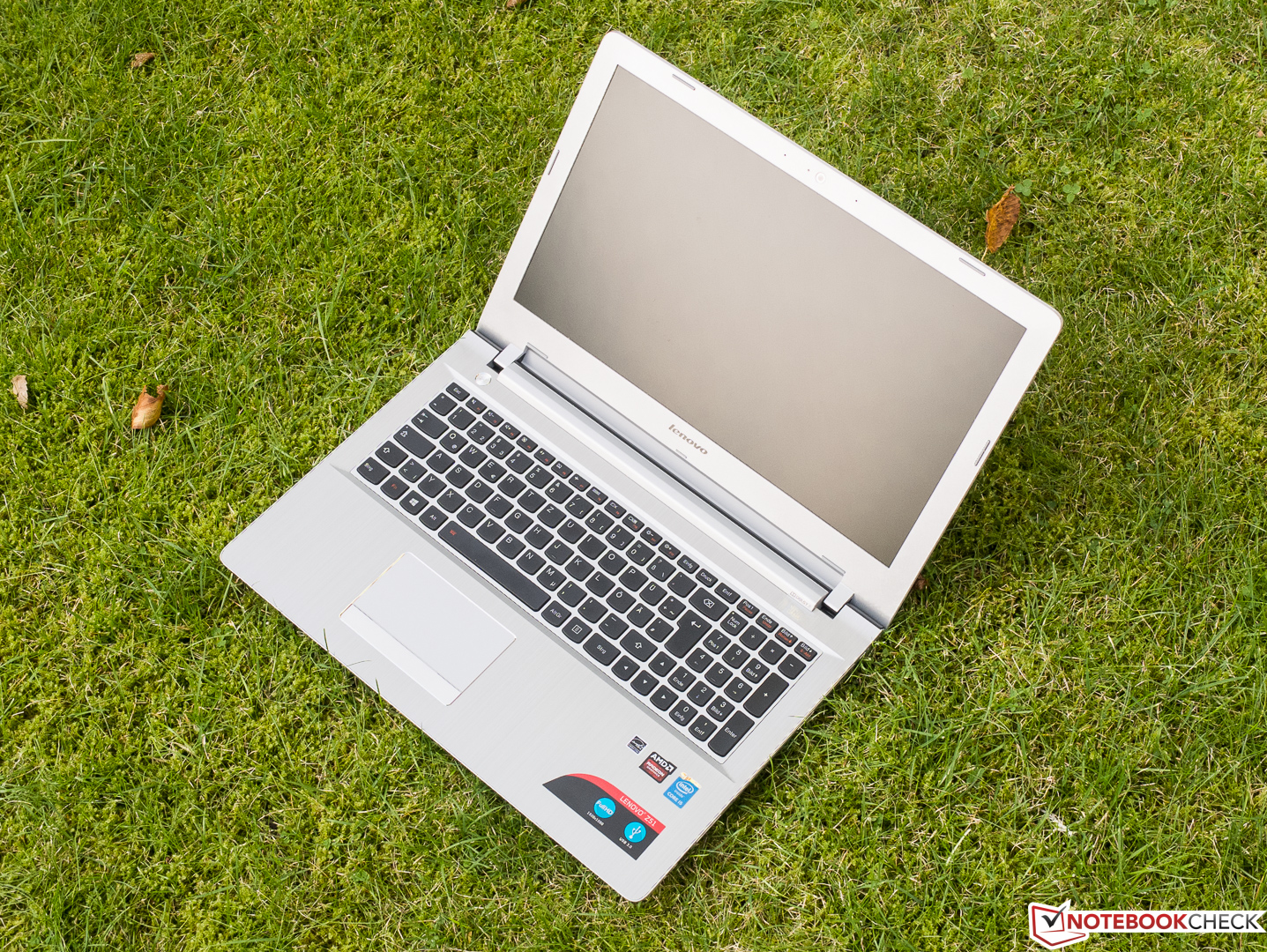

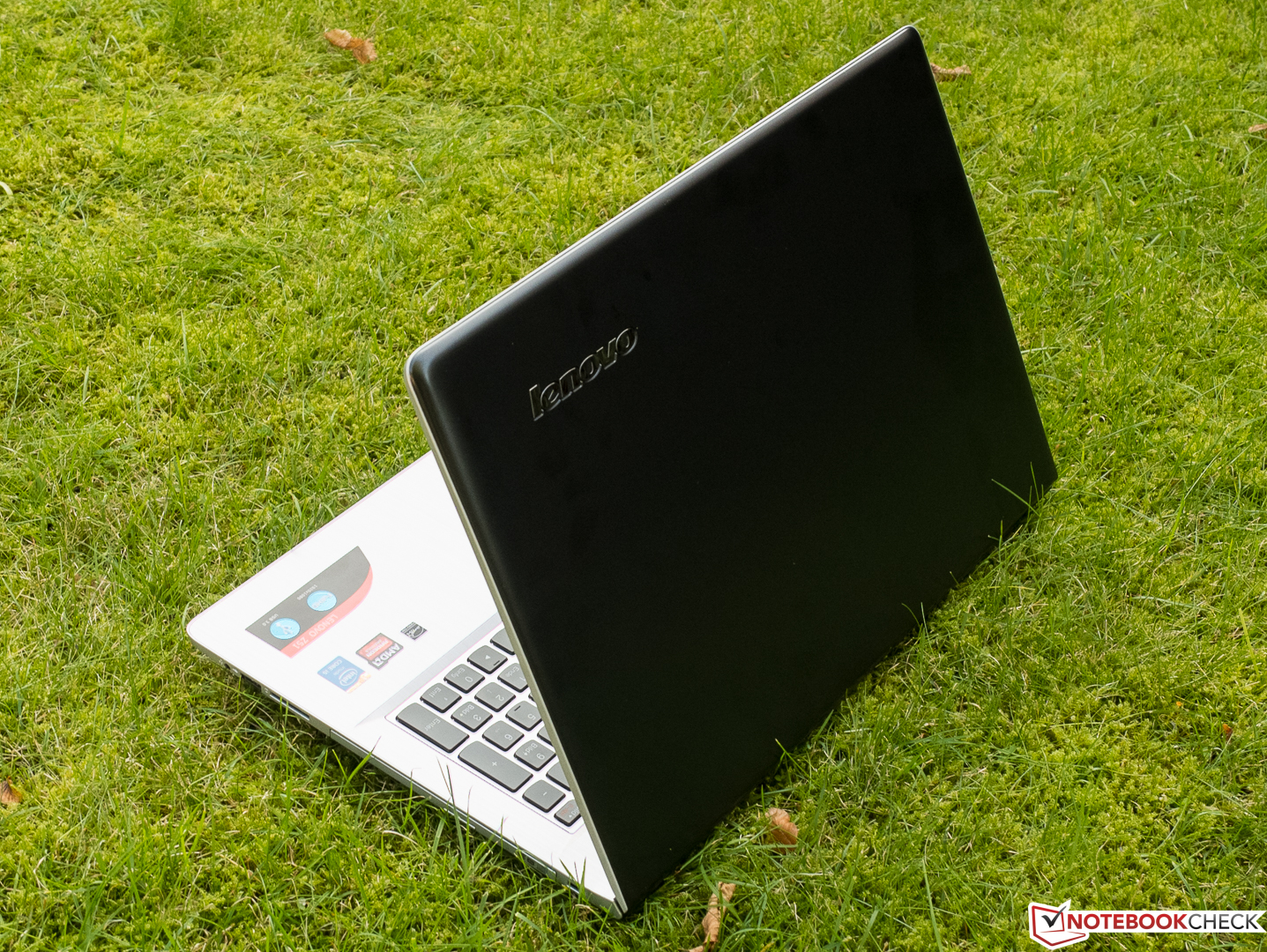

In review: Lenovo Z51-70. Test model courtesy of Cyberport.

联想承诺过的IPS屏幕在哪儿呢？不管怎么说，它都会给我们的测试机带来很大改观。结果我们不得不忍受一块磨砂的平庸TN技术屏幕，它的可视角度范围十分有限且色彩还原也需要改善。当然质量较差的键盘和较弱的可维护性也是值得一提的缺点。一些小的工艺瑕疵并不影响它机身设计的整体成功，特别是对于一台多媒体笔记本电脑来说。不过，音响系统的明显瑕疵给我们的测试编辑在评分时带来了不小的麻烦，因为我们不能为它减少一个评分点。

与此形成反差的是它的技术层面，强劲的处理器和高速固态硬盘提供了流畅的使用体验，这也是它的优势所在。

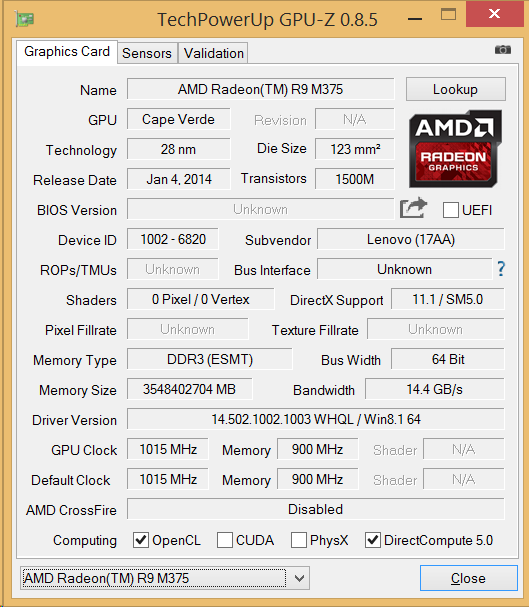

它的触控版十分优秀。最近一段时间表现欠佳的AMD也带来了令人满意的表现：Z51系列中所采用的最强的一款显卡是全新的Radeon R9 M375，它可以与同价位显卡如Nvidia GeForce 940M相竞争。我们不建议用户购买搭配较弱显卡的型号，因为它们已经进入了商务笔记本电脑的范围，而它的键盘却很难让人满意。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Lenovo Z51-70 - 2015-10-03 10/03/2015 v4^(old)
Sven Kloevekorn

Chassis

70 / 98 → 71%

Keyboard

71%

Pointing Device

82%

Connectivity

67 / 81 → 83%

Weight

61 / 20-67 → 87%

Battery

78%

Display

77%

Games Performance

79 / 85 → 93%

Application Performance

81 / 92 → 88%

Temperature

88%

Noise

86 / 95 → 91%

Audio

25%

Camera

42 / 85 → 49%

Average

70%

77%

Multimedia - Weighted Average

Pricecompare

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 联想 Z51-70 (Radeon R9 M375) 笔记本电脑简短评测

Sven Kloevekorn, 2015-10-21 (Update: 2015-10-22)
