联想 Yoga 3 11 变形本简短评测
Lenovo Yoga 3 11 80J8001WGE

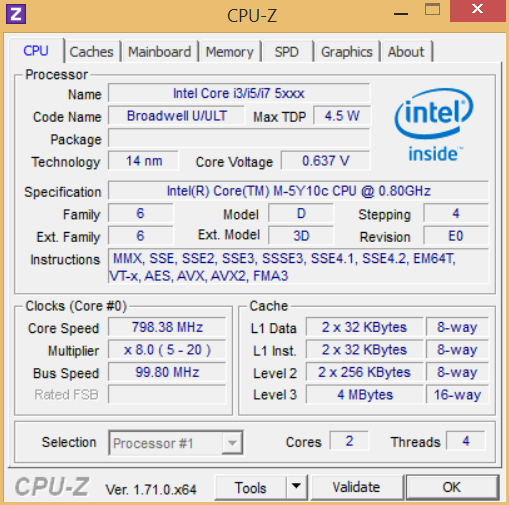

Processor
Intel Core M-5Y10c 2 x 0.8 - 2 GHz, Broadwell
Graphics adapter

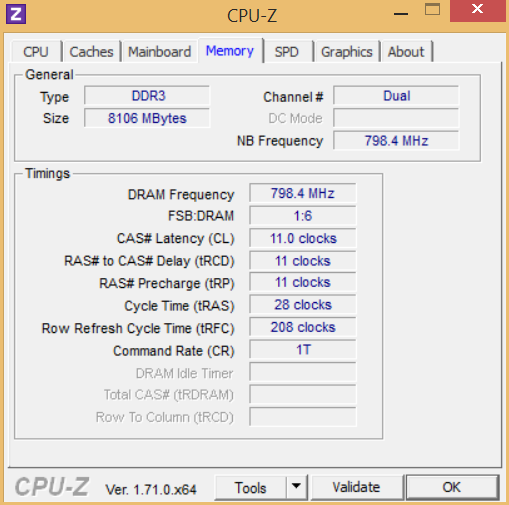

Memory
8 GB
, 双通道
Display
11.60 inch 16:9, 1920 x 1080 pixel, 10点触控, CMN1137 N116HSE-EBC, IPS, glossy: yes

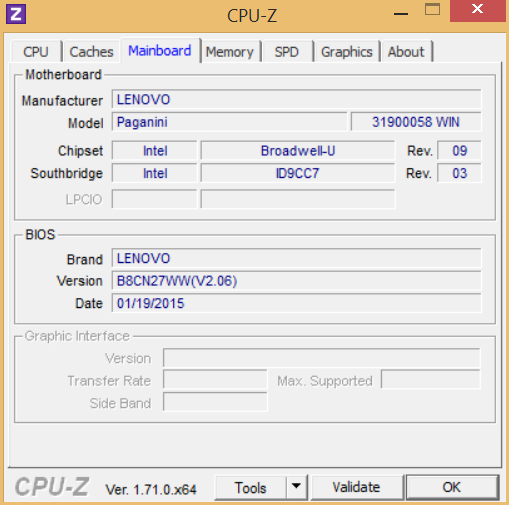

Mainboard
Intel Broadwell-Y PCH-LP (Premium)
Storage
Lite-On IT L8T-128L9G, 128 GB
, Lite-On IT L8T-128L9G
Weight
1.101 kg, Power Supply: 201 g
Links
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||
CMN1137 N116HSE-EBC tested with X-Rite i1Pro 2
Maximum: 308 cd/m² (Nits) Average: 285.7 cd/m²Brightness Distribution: 86 %
Center on Battery: 290 cd/m²
Contrast: 690:1 (Black: 0.42 cd/m²)
ΔE ColorChecker Calman: 6.5 | ∀{0.5-29.43 Ø4.79}
ΔE Greyscale Calman: 6.35 | ∀{0.09-98 Ø5}
65% sRGB (Argyll 1.6.3 3D)
42% AdobeRGB 1998 (Argyll 1.6.3 3D)
46.15% AdobeRGB 1998 (Argyll 3D)
65.7% sRGB (Argyll 3D)
44.54% Display P3 (Argyll 3D)
Gamma: 2.44
CCT: 7156 K
| Lenovo Yoga 3 11 80J8001WGE 1920x1080 IPS | Acer Aspire Switch 12 SW5-271-61X7 1920x1080 IPS | Asus Transformer Book T300 Chi 2560x1440 IPS | Lenovo ThinkPad Yoga 11e 20D9000QGE 1366x768 IPS | Dell Venue 11 Pro 7140 1920x1080 IPS | |
|---|---|---|---|---|---|
| Display | 62% | ||||
| Display P3 Coverage (%) | 44.54 | 77.4 74% | |||
| sRGB Coverage (%) | 65.7 | 97.5 48% | |||
| AdobeRGB 1998 Coverage (%) | 46.15 | 75.8 64% | |||
| Screen | 19% | 28% | 4% | 23% | |
| Brightness middle (cd/m²) | 290 | 385 33% | 368.1 27% | 285 -2% | 386 33% |
| Brightness (cd/m²) | 286 | 352 23% | 375 31% | 285 0% | 357 25% |
| Brightness Distribution (%) | 86 | 85 -1% | 92 7% | 88 2% | 84 -2% |
| Black Level * (cd/m²) | 0.42 | 0.48 -14% | 0.458 -9% | 0.4 5% | 0.4 5% |
| Contrast (:1) | 690 | 802 16% | 804 17% | 713 3% | 965 40% |
| Colorchecker dE 2000 * | 6.5 | 4.3 34% | 4.36 33% | 6.39 2% | 3.71 43% |
| Greyscale dE 2000 * | 6.35 | 3.73 41% | 2.63 59% | 5.41 15% | 5.4 15% |
| Gamma | 2.44 90% | 2.66 83% | 2.08 106% | 2.76 80% | 2.33 94% |
| CCT | 7156 91% | 6785 96% | 6743 96% | 6082 107% | 6666 98% |
| Color Space (Percent of AdobeRGB 1998) (%) | 42 | 66.94 59% | |||
| Color Space (Percent of sRGB) (%) | 65 | ||||
| Total Average (Program / Settings) | 19% /
19% | 45% /
37% | 4% /
4% | 23% /
23% |
* ... smaller is better
| Cinebench R15 | |
| CPU Multi 64Bit (sort by value) | |
| Lenovo Yoga 3 11 80J8001WGE | |
| Asus Transformer Book T300 Chi | |
| Dell Venue 11 Pro 7140 | |
| Acer Aspire Switch 12 SW5-271-61X7 | |
| Lenovo ThinkPad Yoga 11e 20D9000QGE | |
| CPU Single 64Bit (sort by value) | |
| Lenovo Yoga 3 11 80J8001WGE | |
| Asus Transformer Book T300 Chi | |
| Dell Venue 11 Pro 7140 | |
| Lenovo ThinkPad Yoga 11e 20D9000QGE | |
| Cinebench R11.5 | |
| CPU Multi 64Bit (sort by value) | |
| Lenovo Yoga 3 11 80J8001WGE | |
| Asus Transformer Book T300 Chi | |
| Dell Venue 11 Pro 7140 | |
| Acer Aspire Switch 12 SW5-271-61X7 | |
| Lenovo ThinkPad Yoga 11e 20D9000QGE | |
| CPU Single 64Bit (sort by value) | |
| Lenovo Yoga 3 11 80J8001WGE | |
| Asus Transformer Book T300 Chi | |
| Dell Venue 11 Pro 7140 | |
| Acer Aspire Switch 12 SW5-271-61X7 | |
| Lenovo ThinkPad Yoga 11e 20D9000QGE | |
| PCMark 8 | |
| Work Score Accelerated v2 (sort by value) | |
| Lenovo Yoga 3 11 80J8001WGE | |
| Asus Transformer Book T300 Chi | |
| Dell Venue 11 Pro 7140 | |
| Lenovo ThinkPad Yoga 11e 20D9000QGE | |
| Home Score Accelerated v2 (sort by value) | |
| Lenovo Yoga 3 11 80J8001WGE | |
| Asus Transformer Book T300 Chi | |
| Dell Venue 11 Pro 7140 | |
| Lenovo ThinkPad Yoga 11e 20D9000QGE | |
| PCMark 7 Score | 3414 points | |
| PCMark 8 Home Score Accelerated v2 | 2114 points | |
| PCMark 8 Work Score Accelerated v2 | 3253 points | |
Help | ||
| Lenovo Yoga 3 11 80J8001WGE HD Graphics 5300, 5Y10c, Lite-On IT L8T-128L9G | Asus Transformer Book T300 Chi HD Graphics 5300, 5Y71, SanDisk SSD i110 128GB | Dell Venue 11 Pro 7140 HD Graphics 5300, 5Y10a, Sandisk X110 M.2 SD6SP1M-128G | Acer Aspire Switch 12 SW5-271-61X7 HD Graphics 5300, 5Y10c, 128 GB SATA SSD | |
|---|---|---|---|---|
| AS SSD | -77% | -5% | 5% | |
| Score Total (Points) | 710 | 173 -76% | 648 -9% | 622 -12% |
| Score Read (Points) | 290 | 85 -71% | 302 4% | 307 6% |
| Score Write (Points) | 272 | 49 -82% | 199 -27% | 169 -38% |
| Access Time Read * (ms) | 0.173 | 0.398 -130% | 0.16 8% | 0.095 45% |
| Access Time Write * (ms) | 0.131 | 0.402 -207% | 0.104 21% | 0.079 40% |
| 4K-64 Read (MB/s) | 228.7 | 29.32 -87% | 242 6% | 234.8 3% |
| 4K-64 Write (MB/s) | 215.5 | 9.83 -95% | 152.5 -29% | 109.4 -49% |
| 4K Read (MB/s) | 18.28 | 10.75 -41% | 19.3 6% | 21.68 19% |
| 4K Write (MB/s) | 25.85 | 11.61 -55% | 33.22 29% | 45.2 75% |
| Seq Read (MB/s) | 432.5 | 446.4 3% | 405.4 -6% | 506 17% |
| Seq Write (MB/s) | 307.1 | 277.2 -10% | 134.7 -56% | 144.5 -53% |
* ... smaller is better
Lite-On IT L8T-128L9G
Sequential Read:
468.7 MB/s
Sequential Write:
322 MB/s
512K Read:
352.4 MB/s
512K Write:
318.9 MB/s
4K Read:
23 MB/s
4K Write:
34.96 MB/s
4K QD32 Read:
222.3 MB/s
4K QD32 Write:
216.7 MB/s
| 3DMark - 1280x720 Ice Storm Standard Graphics (sort by value) | |
| Lenovo Yoga 3 11 80J8001WGE | |
| Asus Transformer Book T300 Chi | |
| Dell Venue 11 Pro 7140 | |
| Lenovo ThinkPad Yoga 11e 20D9000QGE | |
| 3DMark 11 Performance | 498 points | |
| 3DMark Ice Storm Standard Score | 15348 points | |
| 3DMark Cloud Gate Standard Score | 1361 points | |
| 3DMark Fire Strike Score | 331 points | |
Help | ||
| Diablo III - 1024x768 Low / off (sort by value) | |
| Lenovo Yoga 3 11 80J8001WGE | |
| Tomb Raider - 1024x768 Low Preset (sort by value) | |
| Lenovo Yoga 3 11 80J8001WGE | |
| Lenovo ThinkPad Yoga 11e 20D9000QGE | |
| Dragon Age: Inquisition - 1024x768 Low Graphics Quality (sort by value) | |
| Lenovo Yoga 3 11 80J8001WGE | |
| low | med. | high | ultra | |
|---|---|---|---|---|
| Diablo III (2012) | 21 | 17 | 12 | |
| Tomb Raider (2013) | 23 | 14 | 8.6 | |
| Dragon Age: Inquisition (2014) | 11 | 7.6 | 3.1 |
| Lenovo Yoga 3 11 80J8001WGE HD Graphics 5300, 5Y10c, Lite-On IT L8T-128L9G | Asus Transformer Book T300 Chi HD Graphics 5300, 5Y71, SanDisk SSD i110 128GB | Dell Venue 11 Pro 7140 HD Graphics 5300, 5Y10a, Sandisk X110 M.2 SD6SP1M-128G | Acer Aspire Switch 12 SW5-271-61X7 HD Graphics 5300, 5Y10c, 128 GB SATA SSD | Lenovo ThinkPad Yoga 11e 20D9000QGE HD Graphics (Bay Trail), N2930, Toshiba MQ01ACF050 | |
|---|---|---|---|---|---|
| Heat | -13% | -16% | -5% | 7% | |
| Maximum Upper Side * (°C) | 36.6 | 43.4 -19% | 46.3 -27% | 43.6 -19% | 34 7% |
| Maximum Bottom * (°C) | 43.2 | 43 -0% | 47 -9% | 43.4 -0% | 36.5 16% |
| Idle Upper Side * (°C) | 26.5 | 32.4 -22% | 30.6 -15% | 27.5 -4% | 27.3 -3% |
| Idle Bottom * (°C) | 29.1 | 31.6 -9% | 33.3 -14% | 27.6 5% | 27.4 6% |
* ... smaller is better
(+) The average temperature for the upper side under maximal load is 31.1 °C / 88 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 36.6 °C / 98 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(±) The bottom heats up to a maximum of 43.2 °C / 110 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25.5 °C / 78 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26.5 °C / 79.7 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.9 °C / 82.2 F (+1.4 °C / 2.5 F).
(+) The maximum temperature on the upper side is 36.6 °C / 98 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(±) The bottom heats up to a maximum of 43.2 °C / 110 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25.5 °C / 78 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26.5 °C / 79.7 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.9 °C / 82.2 F (+1.4 °C / 2.5 F).
| Lenovo Yoga 3 11 80J8001WGE HD Graphics 5300, 5Y10c, Lite-On IT L8T-128L9G | Dell Venue 11 Pro 7140 HD Graphics 5300, 5Y10a, Sandisk X110 M.2 SD6SP1M-128G | Acer Aspire Switch 12 SW5-271-61X7 HD Graphics 5300, 5Y10c, 128 GB SATA SSD | Lenovo ThinkPad Yoga 11e 20D9000QGE HD Graphics (Bay Trail), N2930, Toshiba MQ01ACF050 | |
|---|---|---|---|---|
| Power Consumption | -18% | -43% | -44% | |
| Idle Minimum * (Watt) | 2.9 | 2 31% | 4.1 -41% | 4.6 -59% |
| Idle Average * (Watt) | 5.5 | 5.9 -7% | 8 -45% | 7.8 -42% |
| Idle Maximum * (Watt) | 5.7 | 6.2 -9% | 9.3 -63% | 8.9 -56% |
| Load Average * (Watt) | 11.3 | 19.1 -69% | 16.3 -44% | 14.8 -31% |
| Load Maximum * (Watt) | 13.6 | 18.2 -34% | 16.8 -24% | 17.8 -31% |
* ... smaller is better
Power Consumption
| Off / Standby |   0.1 / 0.7 Watt |
| Idle |  2.9 / 5.5 / 5.7 Watt |
| Load |
11.3 / 13.6 Watt |

| |
Key:
min: ,
med: ,
max: Voltcraft VC 960 | |
| Battery runtime | |
| WiFi v1.3 (sort by value) | |
| Lenovo Yoga 3 11 80J8001WGE | |
| Asus Transformer Book T300 Chi | |
| Lenovo ThinkPad Yoga 11e 20D9000QGE | |
| WiFi (sort by value) | |
| Dell Venue 11 Pro 7140 | |
| Acer Aspire Switch 12 SW5-271-61X7 | |
Pros
+ 轻盈坚固的机身

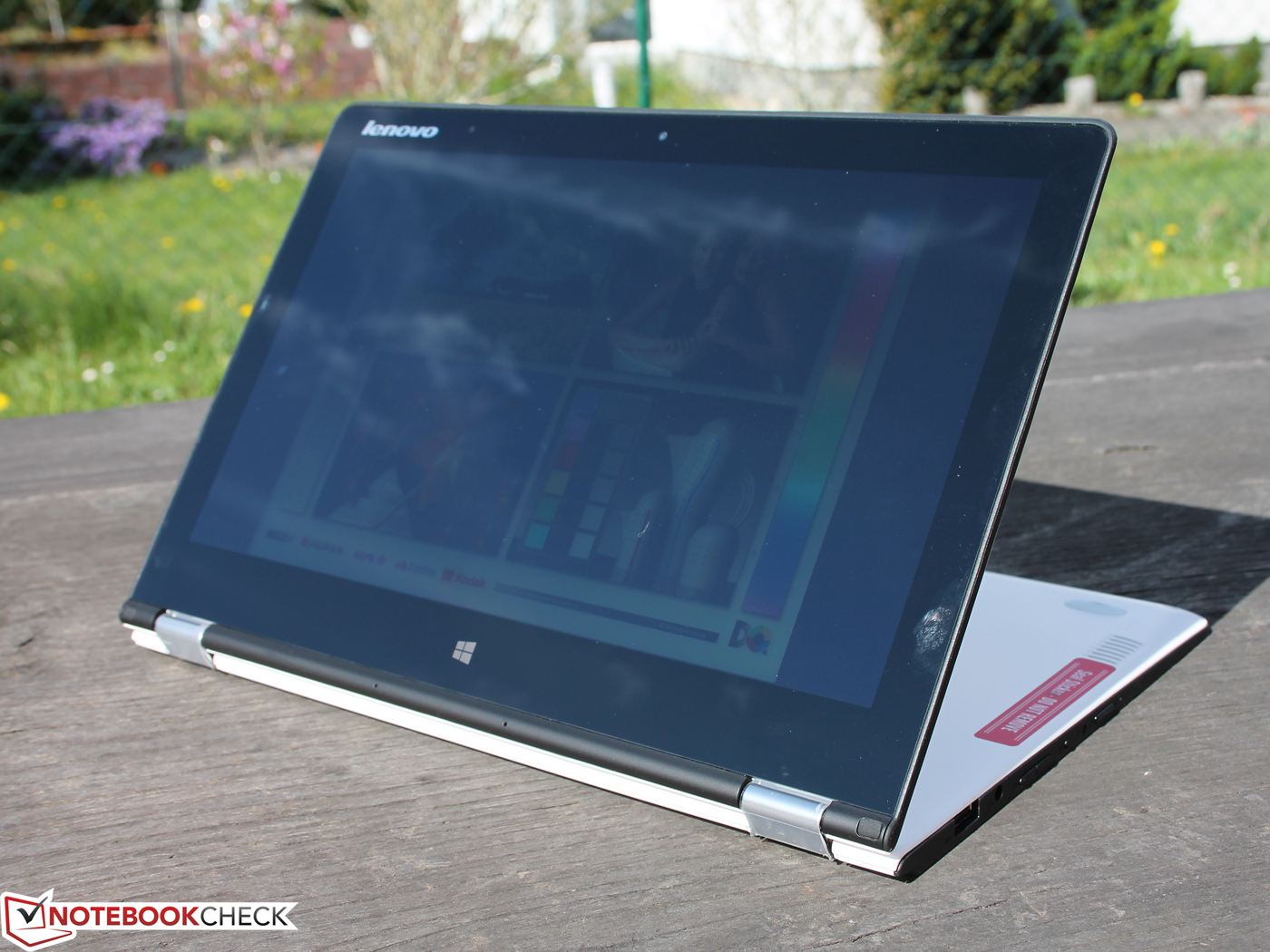

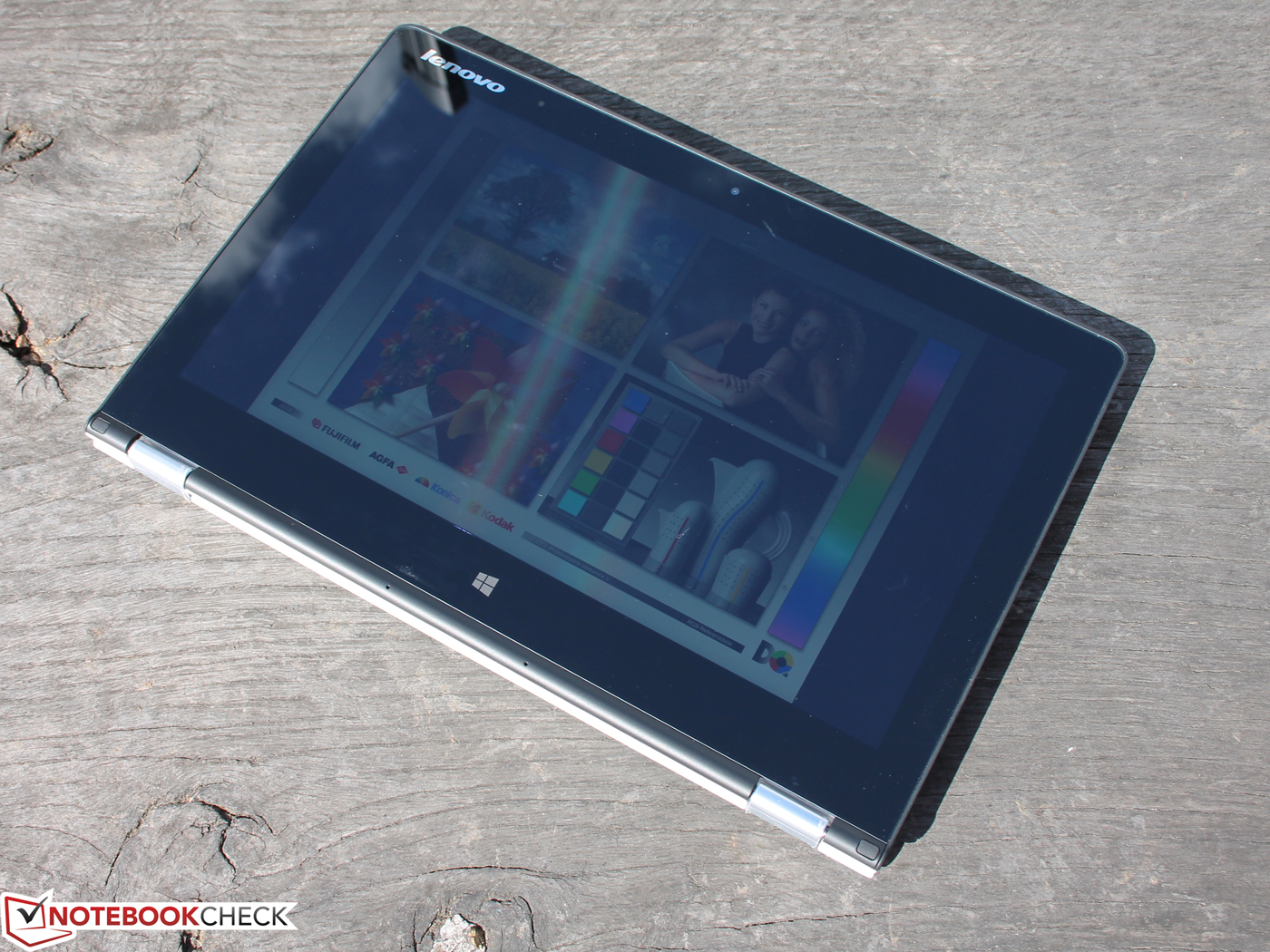

+ IPS屏幕的优秀色彩和可视角度范围
+ 长电池续航
+ 优秀屏幕亮度
+ 安静

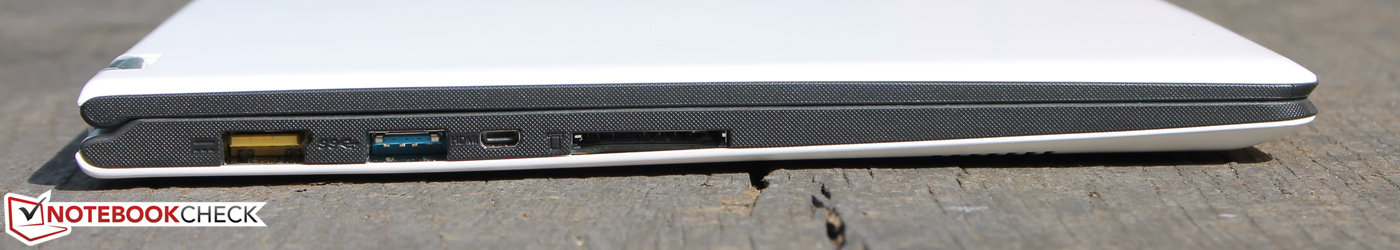

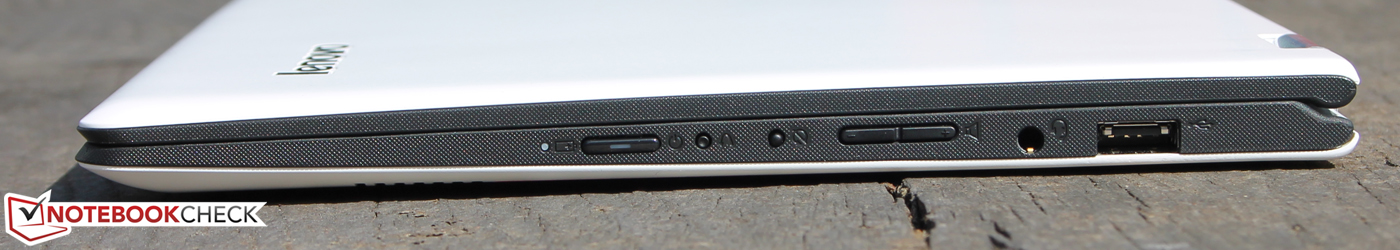

+ 三个全尺寸USB接口和HDMI接口
+ 合理的价位
+ 可以满足Windows操作系统需要的性能
+ 便于维护
Cons
- 机械输入设备的反馈较弱
- 作为平板电脑使用时屏幕有漏光现象

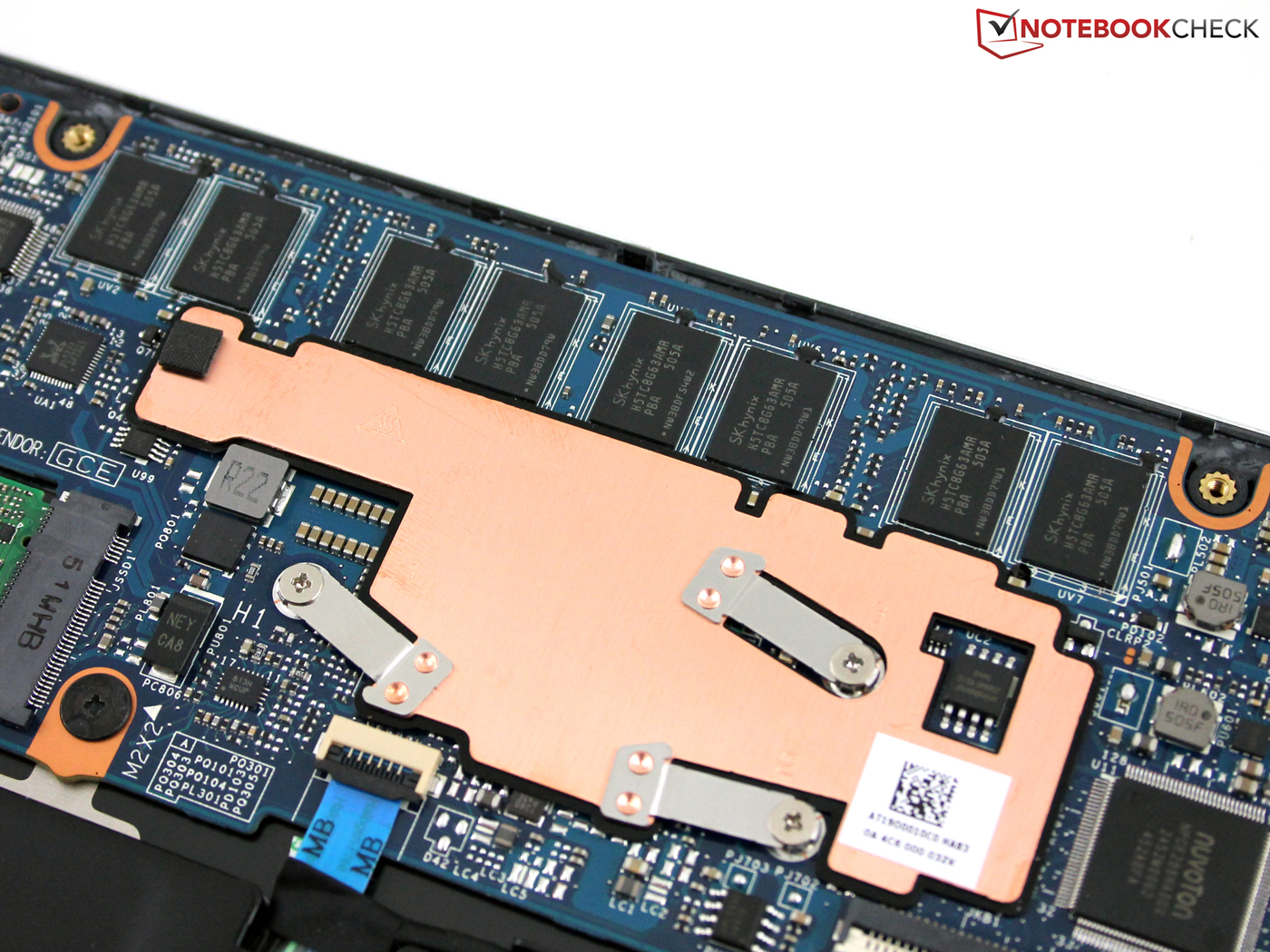

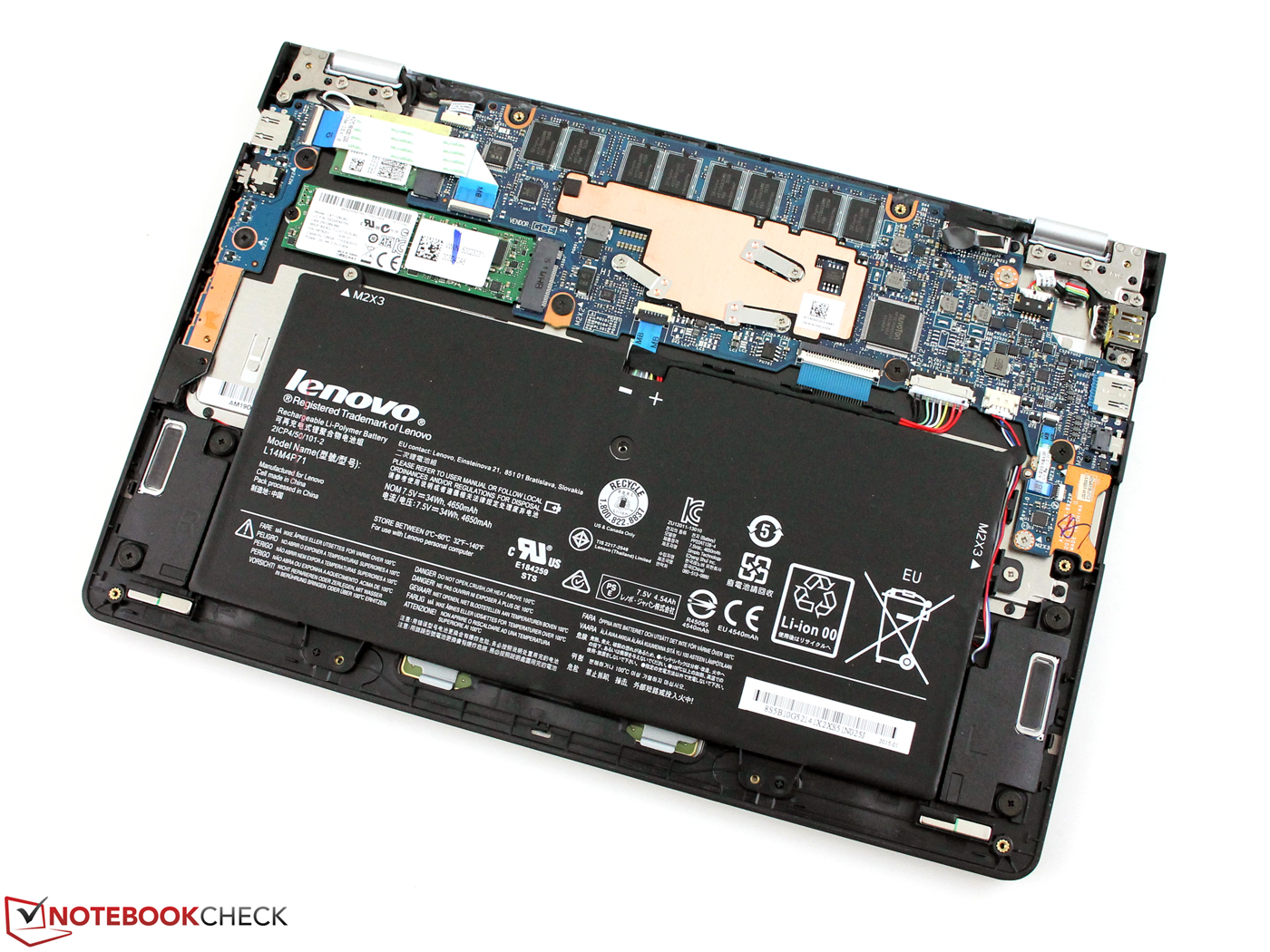

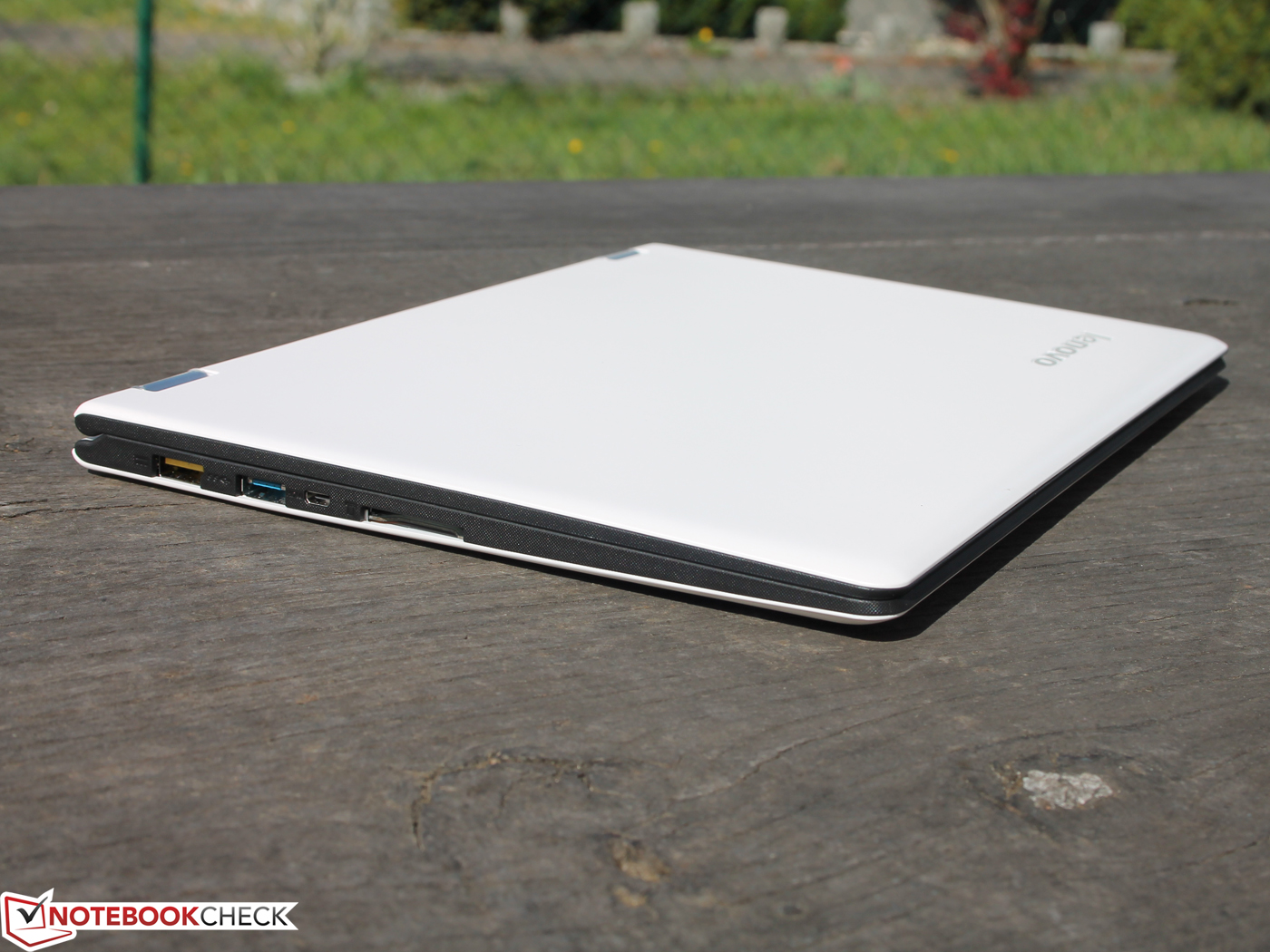

联想Yoga 3 11在很多方面都做得不错，不过最终没能让我们完全满意。不过，对于大部分设备来说都是如此。Yoga 3的优势在于紧凑轻盈的机身，在运行中可以保持安静。它的三个USB接口和Micro-USB接口十分易用，而7小时23分钟的电池续航时间也非常优秀。维护或升级Yoga 11不是难事，你只需要一把Torx螺丝刀。它的IPS屏幕色彩均衡，可视角度宽广，不过问题也由此而生。
按压屏幕边缘会引发漏光问题，同时机械输入设备的反馈也不够舒适，相机模组的效果也较差。它的性能不足以运行游戏，不过这对于潜在用户来说应该不会是个问题。另外一个小问题时运行时很快处理器和显卡就会因过热而降频。
整体上，联想Yoga 3是一款相对实惠的Core M变形本，十分适合移动使用。
如果你需要一台更加适合办公的设备，可以考虑看看Acer Switch 12。这台多模式设备可以适合很多场合，而笔记本电脑模式是它做得最好的之一。另外一款便携工作设备是戴尔Venue 11 Pro 7140，不过相比之下它的键盘也没有太大的优势。
注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。
