东芝 Satellite Radius 11 L10-B-101 变形本简短评测

Name: Toshiba Satellite Radius 11 L10-B-101
Brand: Toshiba

灵巧之极。 这是东芝在德国官网上描述它们的几款新变形本时所用的词汇。这个系列的产品以将笔记本电脑和平板电脑的重要功能合而为一作为设计重心。东芝是否能靠它获得成功呢？我们将从测试他们第一款售价约400欧元的机型开始了解。

Nino Ricchizzi, ✓ Stefanie Voigt (translated by Yuchen Wang), Published 12/13/2014 🇺🇸 🇩🇪 ...

Bay Trail Windows Convertible / 2-in-1

Asus Transformer Book T200TA HP Pavilion 11-n070eg x360 Toshiba Satellite Radius 11 L10-B-101 DIN A4 ❌

	Toshiba Satellite Radius 11 L10-B-101 HD Graphics (Bay Trail), N2840, Hitachi Travelstar Z5K500 HTS545050A7E380	HP Pavilion 11-n070eg x360 HD Graphics (Bay Trail), N2820, Seagate Momentus Thin ST500LT012-1DG142	Asus Transformer Book T200TA HD Graphics (Bay Trail), Z3775, 32 GB eMMC Flash
Display
Display P3 Coverage (%)			45.76
sRGB Coverage (%)			64.6
AdobeRGB 1998 Coverage (%)			47.14
Screen		-9%	28%
Brightness middle (cd/m²)	230	181 -21%	284 23%
Brightness (cd/m²)	205	161 -21%	275 34%
Brightness Distribution (%)	84	83 -1%	90 7%
Black Level * (cd/m²)	0.36	0.37 -3%	0.4 -11%
Contrast (:1)	639	489 -23%	710 11%
Colorchecker dE 2000 *	10.22	10.11 1%	4.56 55%
Greyscale dE 2000 *	11.7	10.72 8%	2.99 74%
Gamma	2.37 ^93%	2.7 ^81%	2.58 ^85%
CCT	13107 ^50%	13522 ^48%	6749 ^96%
Color Space (Percent of AdobeRGB 1998) (%)			42
Total Average (Program / Settings)		-9% / -9%	28% / 28%

* ... smaller is better


200 cd/m²	196 cd/m²	195 cd/m²
209 cd/m²	230 cd/m²	210 cd/m²
202 cd/m²	206 cd/m²	193 cd/m²

Distribution of brightness

Chi Mei N116BE-E42 CMN tested with X-Rite i1Pro 2

Maximum: 230 cd/m² (Nits) Average: 204.6 cd/m²
Brightness Distribution: 84 %
Center on Battery: 230 cd/m²
Contrast: 639:1 (Black: 0.36 cd/m²)
ΔE ColorChecker Calman: 10.22 | ∀{0.5-29.43 Ø4.79}
ΔE Greyscale Calman: 11.7 | ∀{0.09-98 Ø5}
Gamma: 2.37
CCT: 13107 K

Cinebench R10 | Cinebench R11.5

Cinebench R10
Rendering Single 32Bit (sort by value)
Toshiba Satellite Radius 11 L10-B-101	1334 Points
HP Pavilion 11-n070eg x360	900 Points -33%
Asus Transformer Book T200TA	1108 Points -17%
Rendering Multiple CPUs 32Bit (sort by value)
Toshiba Satellite Radius 11 L10-B-101	2533 Points
HP Pavilion 11-n070eg x360	1635 Points -35%
Asus Transformer Book T200TA	3997 Points +58%

Cinebench R11.5
CPU Single 64Bit (sort by value)
Toshiba Satellite Radius 11 L10-B-101	0.44 Points
HP Pavilion 11-n070eg x360	0.29 Points -34%
CPU Multi 64Bit (sort by value)
Toshiba Satellite Radius 11 L10-B-101	0.92 Points
HP Pavilion 11-n070eg x360	0.51 Points -45%

Legend

Toshiba Satellite Radius 11 L10-B-101 Intel Celeron N2840, Intel HD Graphics (Bay Trail), Hitachi Travelstar Z5K500 HTS545050A7E380

HP Pavilion 11-n070eg x360 Intel Celeron N2820, Intel HD Graphics (Bay Trail), Seagate Momentus Thin ST500LT012-1DG142

Asus Transformer Book T200TA Intel Atom Z3775, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash

Cinebench R10 Shading 32Bit

2476

Cinebench R10 Rendering Multiple CPUs 32Bit

2533

Cinebench R10 Rendering Single 32Bit

1334

Cinebench R10 Shading 64Bit

2478 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

3560 Points

Cinebench R10 Rendering Single CPUs 64Bit

1897 Points

Cinebench R11.5 CPU Single 64Bit

0.44 Points

Cinebench R11.5 OpenGL 64Bit

7.69 fps

Cinebench R11.5 CPU Multi 64Bit

0.92 Points

Cinebench R15 OpenGL 64Bit

6.43 fps

Cinebench R15 CPU Multi 64Bit

69 Points

Cinebench R15 CPU Single 64Bit

38 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Help

... in comparison

	Toshiba Satellite Radius 11 L10-B-101 HD Graphics (Bay Trail), N2840, Hitachi Travelstar Z5K500 HTS545050A7E380	HP Pavilion 11-n070eg x360 HD Graphics (Bay Trail), N2820, Seagate Momentus Thin ST500LT012-1DG142	Asus Transformer Book T200TA HD Graphics (Bay Trail), Z3775, 32 GB eMMC Flash
PCMark 7		-24%	66%
Score (Points)	1723	1462 -15%	2747 59%
Lightweight (Points)	879	765 -13%	1549 76%
Productivity (Points)	484	395 -18%	1149 137%
Entertainment (Points)	1455	1172 -19%	1820 25%
Creativity (Points)	4011	2141 -47%	5111 27%
Computation (Points)	8087	3185 -61%	6999 -13%
System Storage (Points)	1489	1532 3%	3763 153%

PCMark 7 Score		1723 points
PCMark 8 Home Score Accelerated v2		1225 points
PCMark 8 Creative Score Accelerated v2		1075 points
PCMark 8 Work Score Accelerated v2		1257 points
Help

... in comparison

PCMark 8 - Home Score Accelerated v2 (sort by value)
Toshiba Satellite Radius 11 L10-B-101 HD Graphics (Bay Trail), N2840, Hitachi Travelstar Z5K500 HTS545050A7E380	1225 Points
Asus Transformer Book T200TA HD Graphics (Bay Trail), Z3775, 32 GB eMMC Flash	1339 Points +9%

	Toshiba Satellite Radius 11 L10-B-101 HD Graphics (Bay Trail), N2840, Hitachi Travelstar Z5K500 HTS545050A7E380	HP Pavilion 11-n070eg x360 HD Graphics (Bay Trail), N2820, Seagate Momentus Thin ST500LT012-1DG142	Asus Transformer Book T200TA HD Graphics (Bay Trail), Z3775, 32 GB eMMC Flash
CrystalDiskMark 3.0		-3%	1514%
Read Seq (MB/s)	94.9	107.8 14%	92.8 -2%
Write Seq (MB/s)	92.4	95 3%	52.3 -43%
Read 512 (MB/s)	30.16	30.81 2%	84.3 180%
Write 512 (MB/s)	31.37	29.16 -7%	25.22 -20%
Read 4k (MB/s)	0.327	0.272 -17%	17.24 5172%
Write 4k (MB/s)	0.679	0.577 -15%	5.602 725%
Read 4k QD32 (MB/s)	0.649	0.669 3%	35.13 5313%
Write 4k QD32 (MB/s)	0.649	0.6 -8%	5.763 788%

CrystalDiskMark 3.0

Hitachi Travelstar Z5K500 HTS545050A7E380

Sequential Read: 94.9 MB/s

Sequential Write: 92.4 MB/s

512K Read: 30.16 MB/s

512K Write: 31.37 MB/s

4K Read: 0.327 MB/s

4K Write: 0.679 MB/s

4K QD32 Read: 0.649 MB/s

4K QD32 Write: 0.649 MB/s

3DMark - 1280x720 Cloud Gate Standard Score (sort by value)
Toshiba Satellite Radius 11 L10-B-101 HD Graphics (Bay Trail), N2840, Hitachi Travelstar Z5K500 HTS545050A7E380	1191 Points
HP Pavilion 11-n070eg x360 HD Graphics (Bay Trail), N2820, Seagate Momentus Thin ST500LT012-1DG142	575 Points -52%

3DMark 11 Performance		242 points
3DMark Ice Storm Standard Score		9423 points
3DMark Cloud Gate Standard Score		1191 points
Help

... in comparison

Tomb Raider | BioShock Infinite

Tomb Raider
1366x768 High Preset AA:FX AF:8x (sort by value)
Toshiba Satellite Radius 11 L10-B-101 HD Graphics (Bay Trail), N2840, Hitachi Travelstar Z5K500 HTS545050A7E380	7.3 fps
HP Pavilion 11-n070eg x360 HD Graphics (Bay Trail), N2820, Seagate Momentus Thin ST500LT012-1DG142	4.6 fps -37%
1366x768 Normal Preset AA:FX AF:4x (sort by value)
Toshiba Satellite Radius 11 L10-B-101 HD Graphics (Bay Trail), N2840, Hitachi Travelstar Z5K500 HTS545050A7E380	10.4 fps
HP Pavilion 11-n070eg x360 HD Graphics (Bay Trail), N2820, Seagate Momentus Thin ST500LT012-1DG142	7.1 fps -32%
1024x768 Low Preset (sort by value)
Toshiba Satellite Radius 11 L10-B-101 HD Graphics (Bay Trail), N2840, Hitachi Travelstar Z5K500 HTS545050A7E380	16.9 fps
HP Pavilion 11-n070eg x360 HD Graphics (Bay Trail), N2820, Seagate Momentus Thin ST500LT012-1DG142	13.7 fps -19%

BioShock Infinite
1366x768 High Preset (sort by value)
Toshiba Satellite Radius 11 L10-B-101 HD Graphics (Bay Trail), N2840, Hitachi Travelstar Z5K500 HTS545050A7E380	5.9 fps
HP Pavilion 11-n070eg x360 HD Graphics (Bay Trail), N2820, Seagate Momentus Thin ST500LT012-1DG142	4.92 fps -17%
1366x768 Medium Preset (sort by value)
Toshiba Satellite Radius 11 L10-B-101 HD Graphics (Bay Trail), N2840, Hitachi Travelstar Z5K500 HTS545050A7E380	6.8 fps
HP Pavilion 11-n070eg x360 HD Graphics (Bay Trail), N2820, Seagate Momentus Thin ST500LT012-1DG142	5.7 fps -16%
1280x720 Very Low Preset (sort by value)
Toshiba Satellite Radius 11 L10-B-101 HD Graphics (Bay Trail), N2840, Hitachi Travelstar Z5K500 HTS545050A7E380	15.01 fps
HP Pavilion 11-n070eg x360 HD Graphics (Bay Trail), N2820, Seagate Momentus Thin ST500LT012-1DG142	8.35 fps -44%

	low	med.	high
Anno 2070 (2011)	22.8	9.3	5.5
Tomb Raider (2013)	16.9	10.4	7.3
BioShock Infinite (2013)	15.01	6.8	5.9

Noise level

Idle		31 / 31 / 31 dB(A)
HDD		31.4 dB(A)
Load		31 / 31 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Voltcraft sl-320 (15 cm distance)

	Toshiba Satellite Radius 11 L10-B-101 HD Graphics (Bay Trail), N2840, Hitachi Travelstar Z5K500 HTS545050A7E380	HP Pavilion 11-n070eg x360 HD Graphics (Bay Trail), N2820, Seagate Momentus Thin ST500LT012-1DG142	Asus Transformer Book T200TA HD Graphics (Bay Trail), Z3775, 32 GB eMMC Flash
Heat		1%	-9%
Maximum Upper Side * (°C)	40.7		42.5 -4%
Maximum Bottom * (°C)	42.4		43 -1%
Idle Upper Side * (°C)	27.8	26.3 5%	33.2 -19%
Idle Bottom * (°C)	28.4	29.6 -4%	32.2 -13%

* ... smaller is better

Max. Load

Idle


27.3 °C	27.8 °C	25.34 °C
27.3 °C	26.8 °C	24.6 °C
25.9 °C	24.6 °C	23.4 °C

Maximum: 27.8 °C
Average: 25.9 °C


25.8 °C	28.4 °C	27.7 °C
23.7 °C	28.4 °C	26.8 °C
23.7 °C	24.3 °C	25.4 °C

Maximum: 28.4 °C
Average: 26 °C

Power Supply (max.) 27.6 °C | Room Temperature 21 °C | Voltcraft IR-360

(±) The average temperature for the upper side under maximal load is 33.4 °C / 92 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 40.7 °C / 105 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(±) The bottom heats up to a maximum of 42.4 °C / 108 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25.9 °C / 79 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.9 °C / 87.6 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.9 °C / 82.2 F (-3 °C / -5.4 F).

	Toshiba Satellite Radius 11 L10-B-101 HD Graphics (Bay Trail), N2840, Hitachi Travelstar Z5K500 HTS545050A7E380	HP Pavilion 11-n070eg x360 HD Graphics (Bay Trail), N2820, Seagate Momentus Thin ST500LT012-1DG142	Asus Transformer Book T200TA HD Graphics (Bay Trail), Z3775, 32 GB eMMC Flash
Power Consumption		-23%	20%
Idle Minimum * (Watt)	4.6	5.2 -13%	2.6 43%
Idle Average * (Watt)	5.8	7.6 -31%	4.9 16%
Idle Maximum * (Watt)	6.1	9.1 -49%	5.1 16%
Load Average * (Watt)	12.4	14.4 -16%	12.5 -1%
Load Maximum * (Watt)	15.5	16.1 -4%	11.7 25%

* ... smaller is better

Power Consumption

Off / Standby	0 / 0.1 Watt
Idle	4.6 / 5.8 / 6.1 Watt
Load	12.4 / 15.5 Watt


Key: min: , med: , max: Voltcraft VC 940

Battery runtime - WiFi (sort by value)
Toshiba Satellite Radius 11 L10-B-101 HD Graphics (Bay Trail), N2840, Hitachi Travelstar Z5K500 HTS545050A7E380	3.9 h
HP Pavilion 11-n070eg x360 HD Graphics (Bay Trail), N2820, Seagate Momentus Thin ST500LT012-1DG142	3.6 h
Asus Transformer Book T200TA HD Graphics (Bay Trail), Z3775, 32 GB eMMC Flash	5.3 h

Battery Runtime

Idle (without WLAN, min brightness)		6h 45min
WiFi Surfing		3h 52min
Load (maximum brightness)		2h 50min

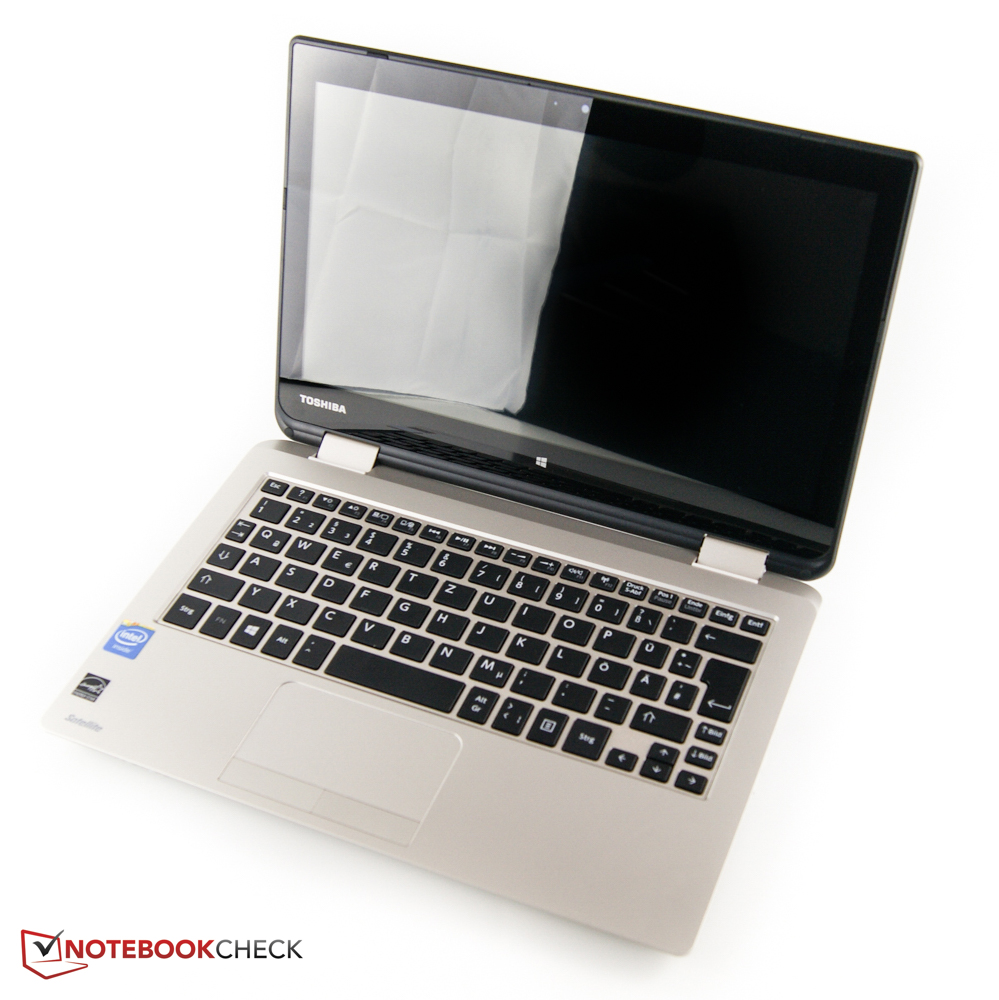

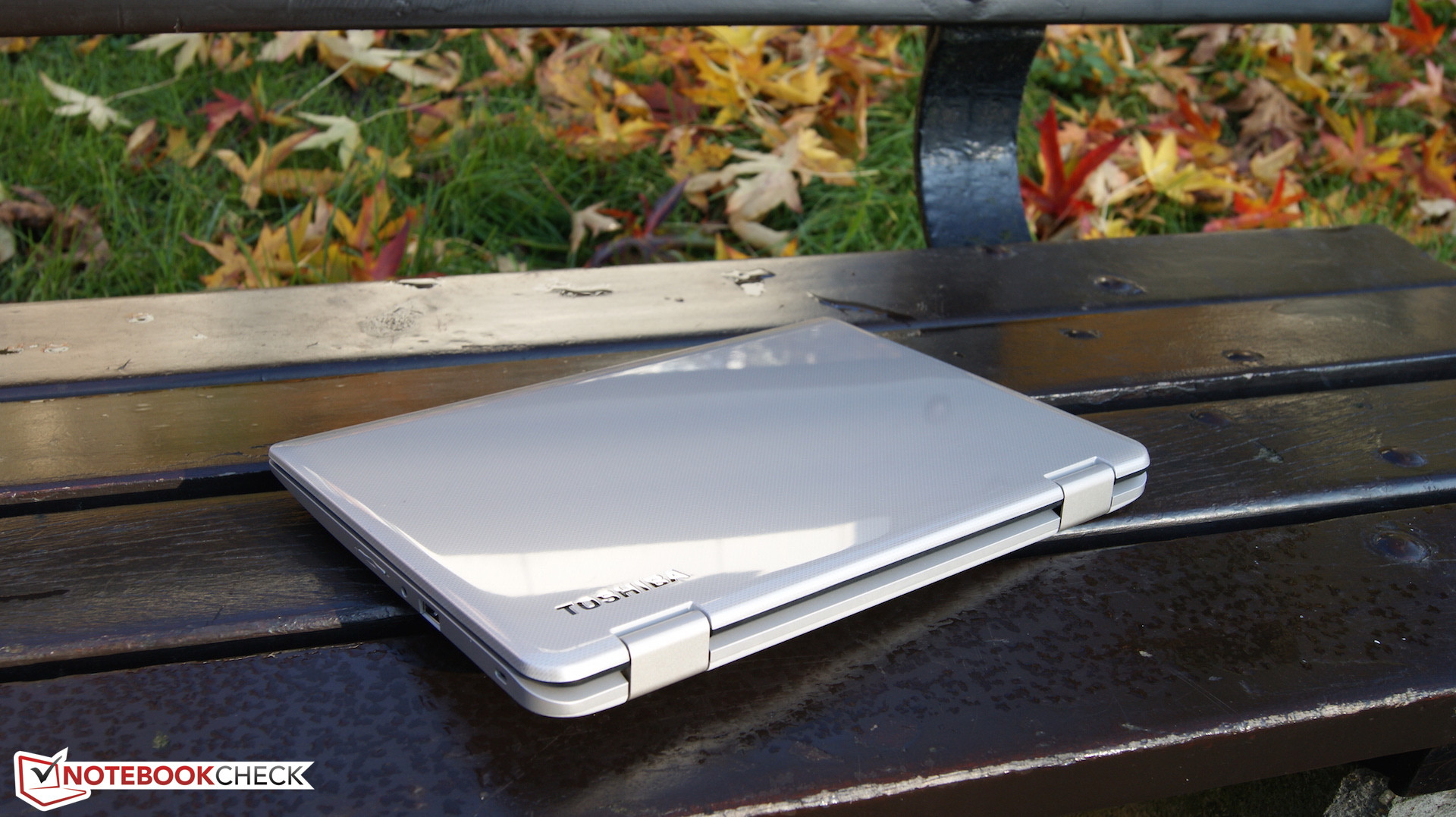

提到“灵巧之极”，东芝在一些方面做得非常好，但没能让他们的新变形本发挥出最大的潜力。它的高光机身表面本意可能是让这款Satellite看起来更上档次，但我们认为这并不成功。它的机身质量十分不错，不过光滑的表面很容易沾染指纹。它的键盘中规中矩，但用它长时间打字可能会有些辛苦，因为它的键程很短，且按键的尺寸不太统一。不过它的触控板用起来很方便。

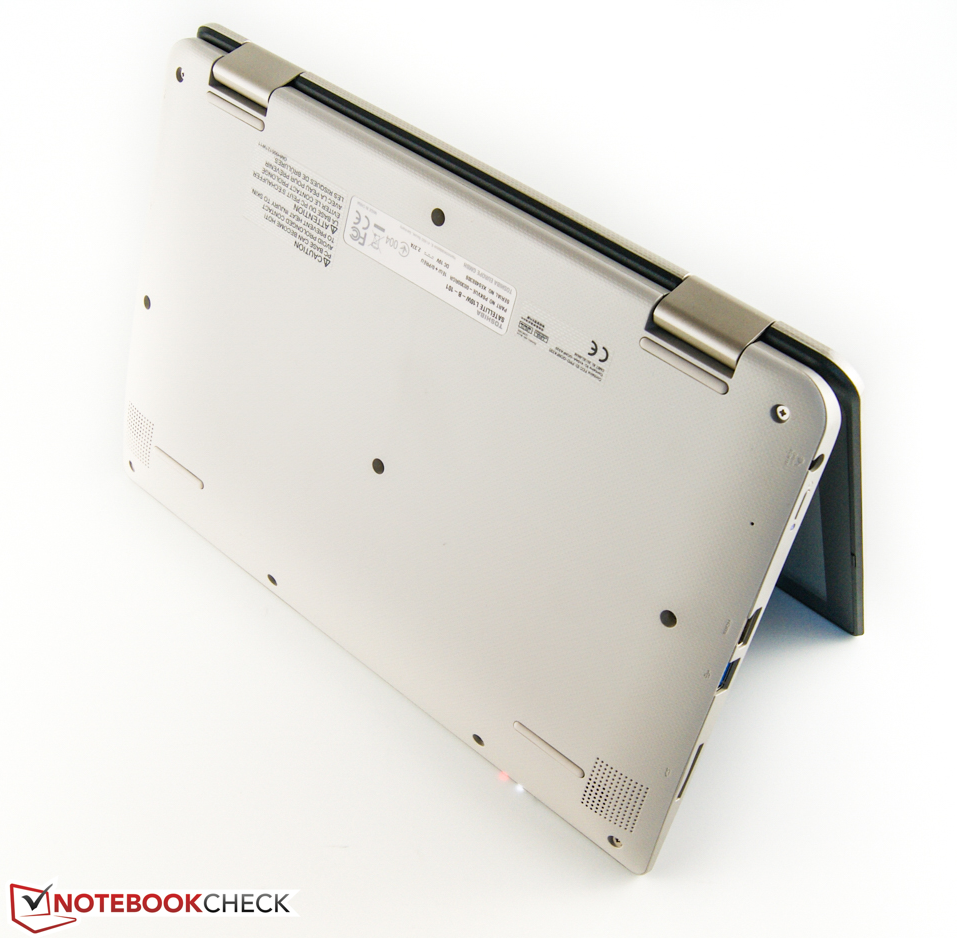

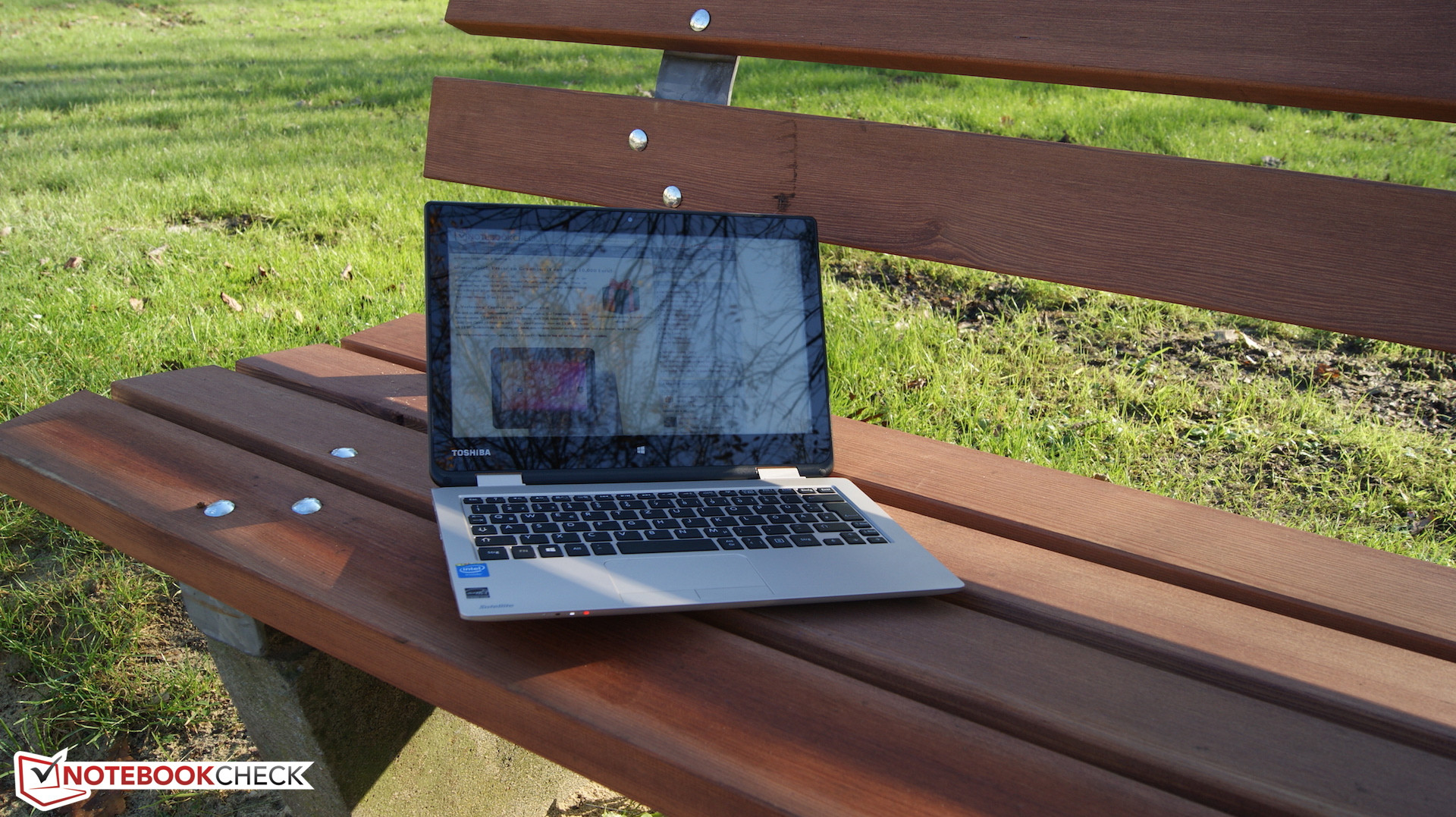

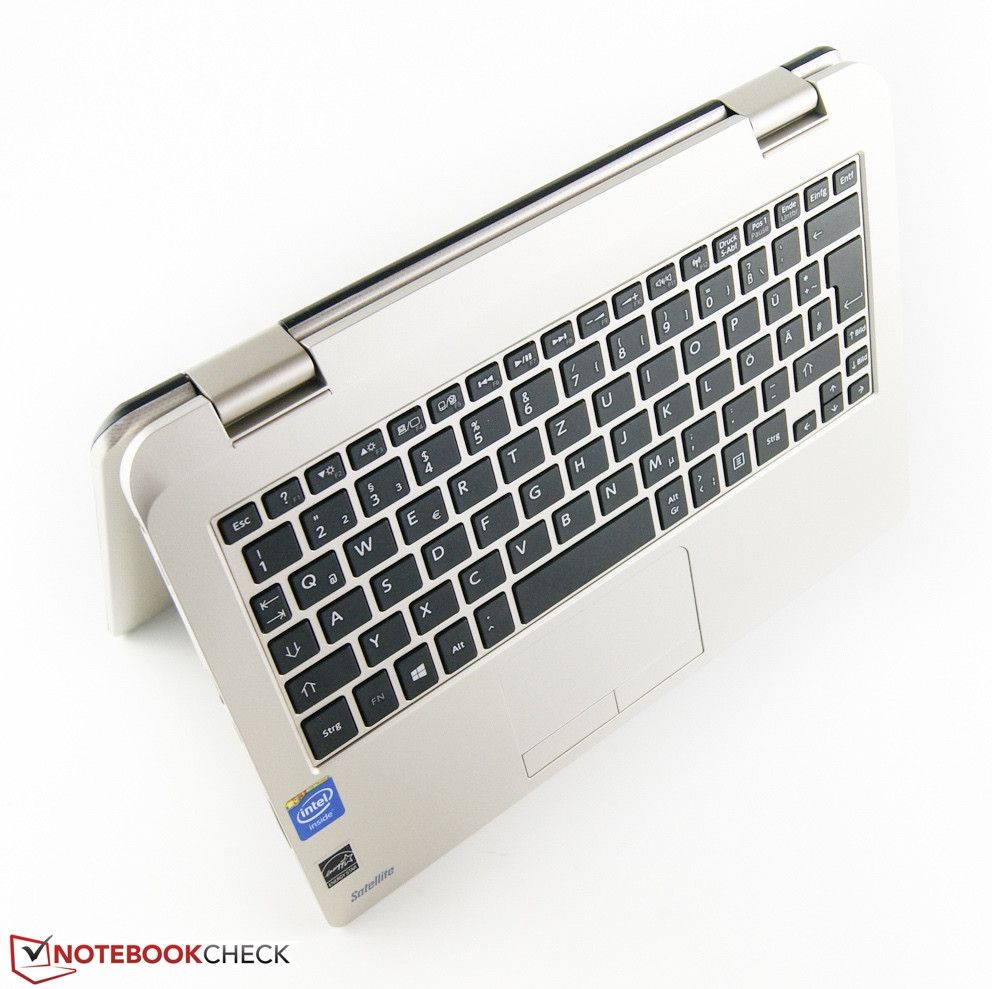

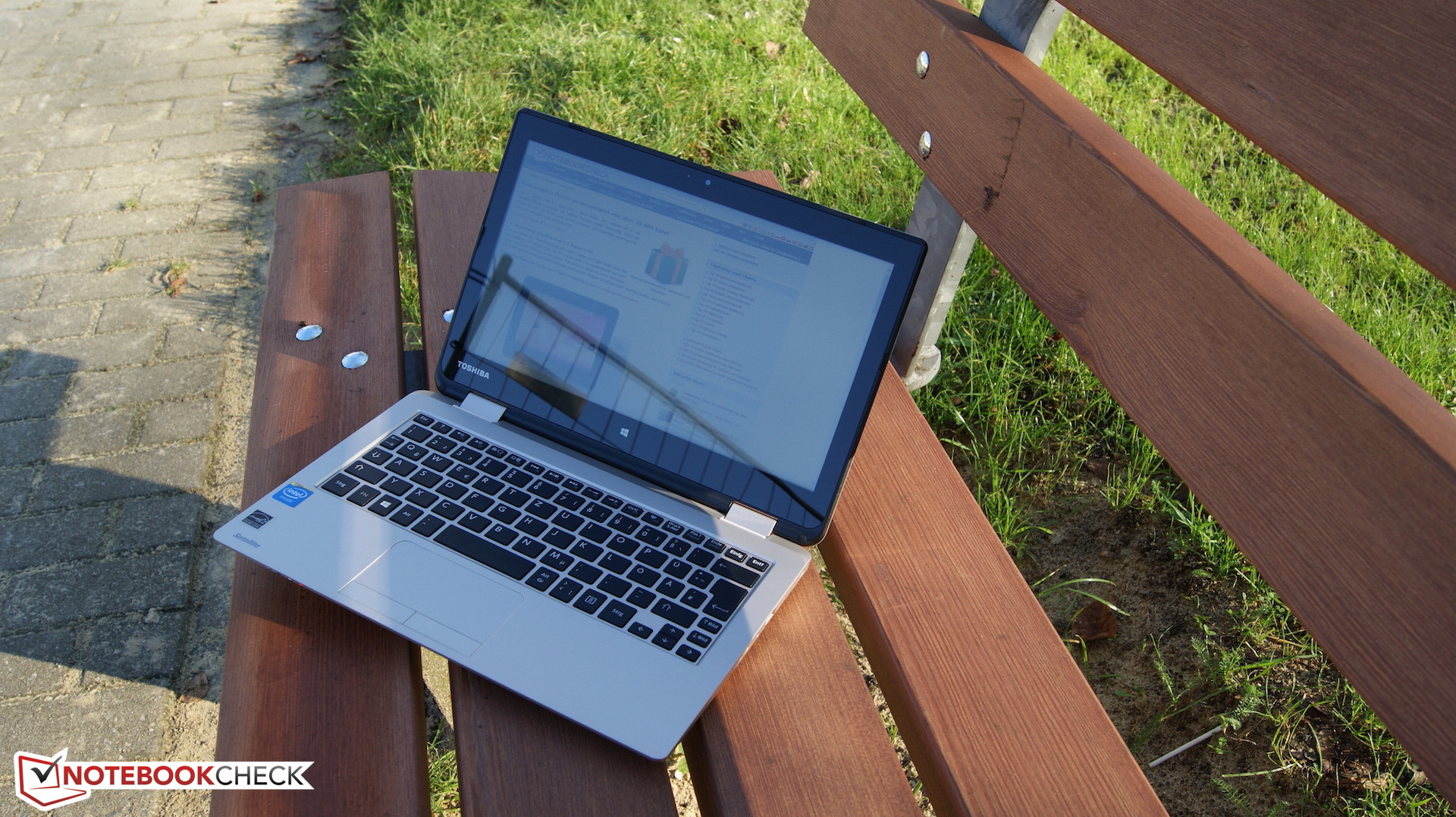

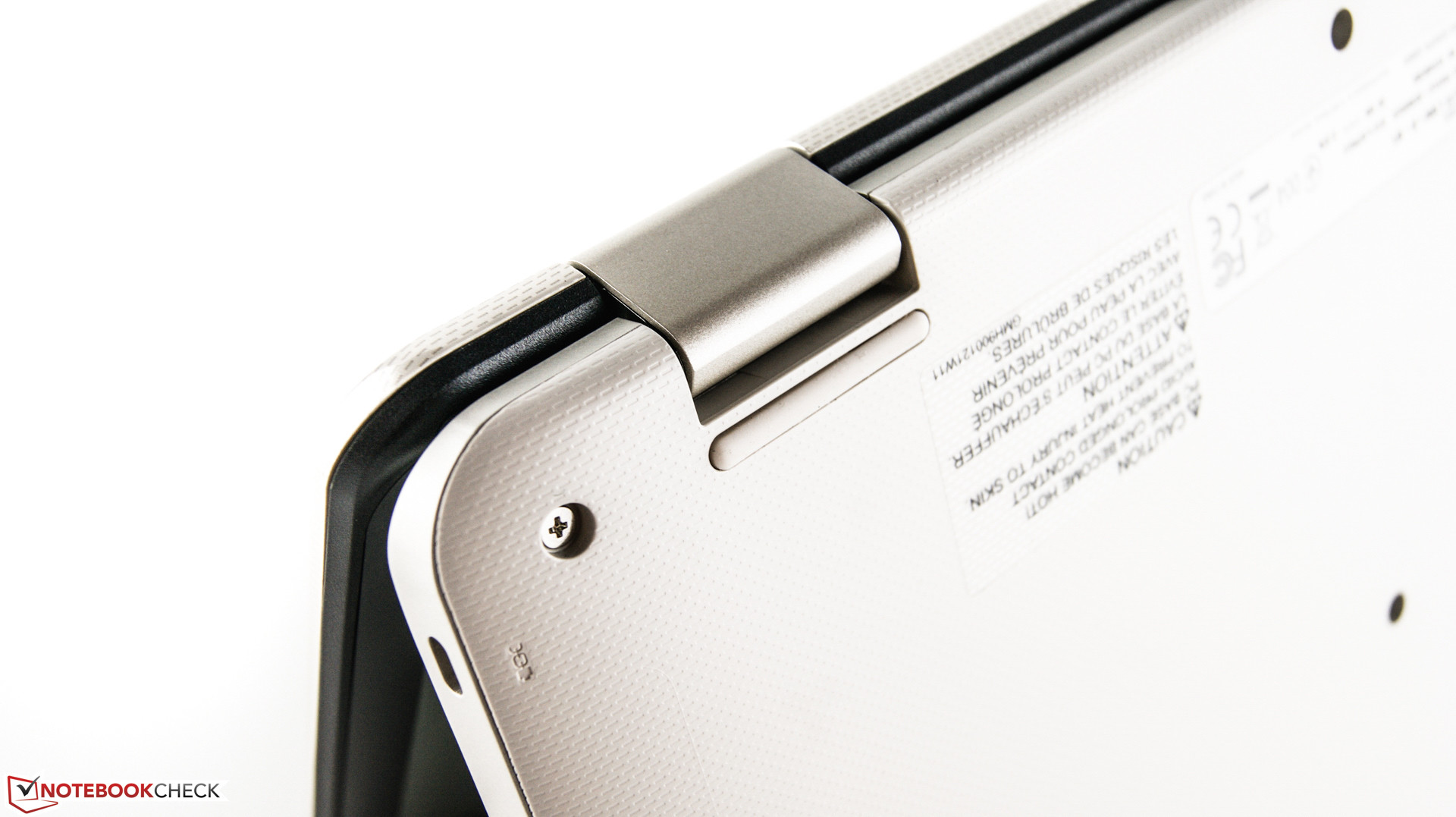

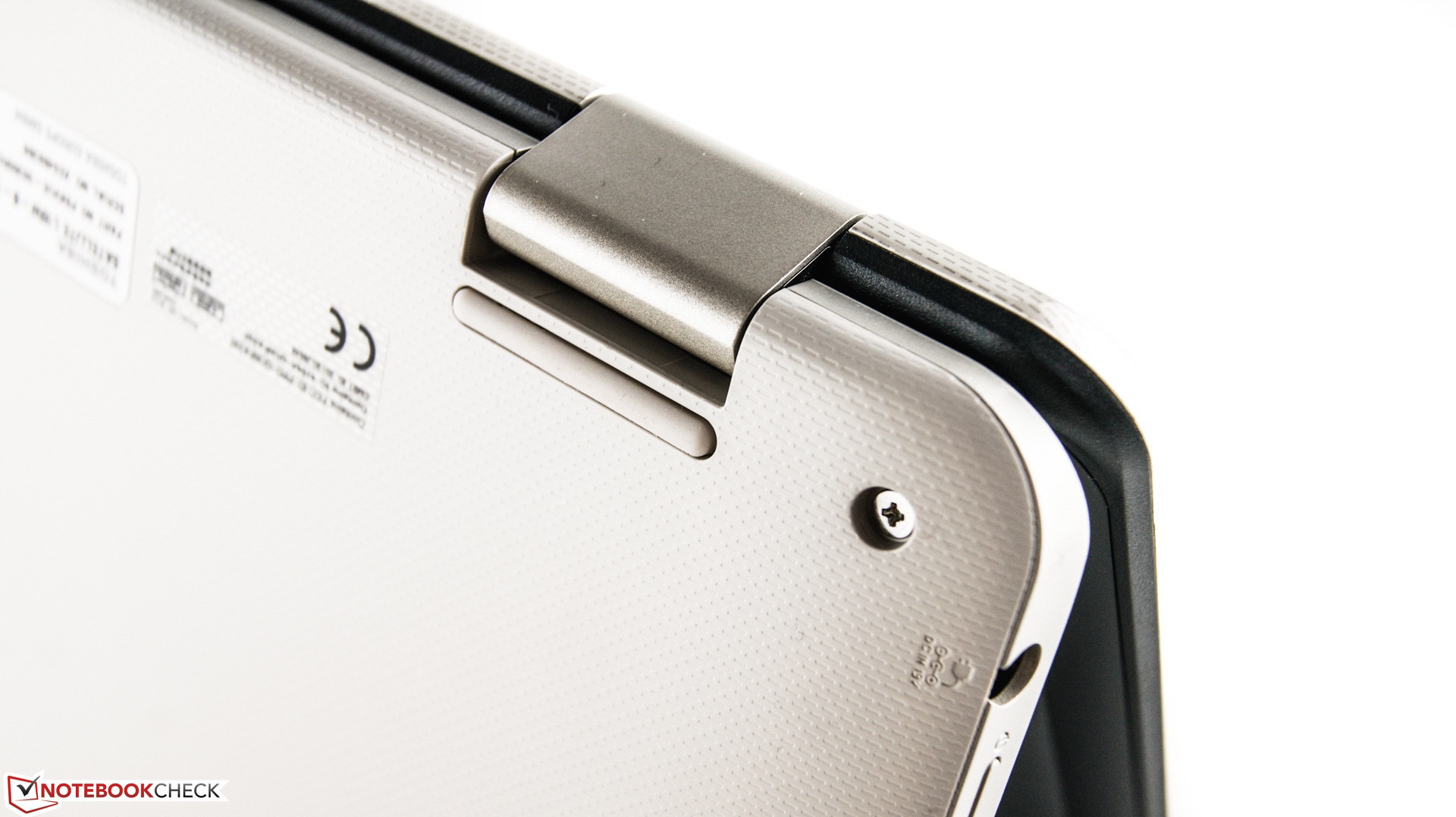

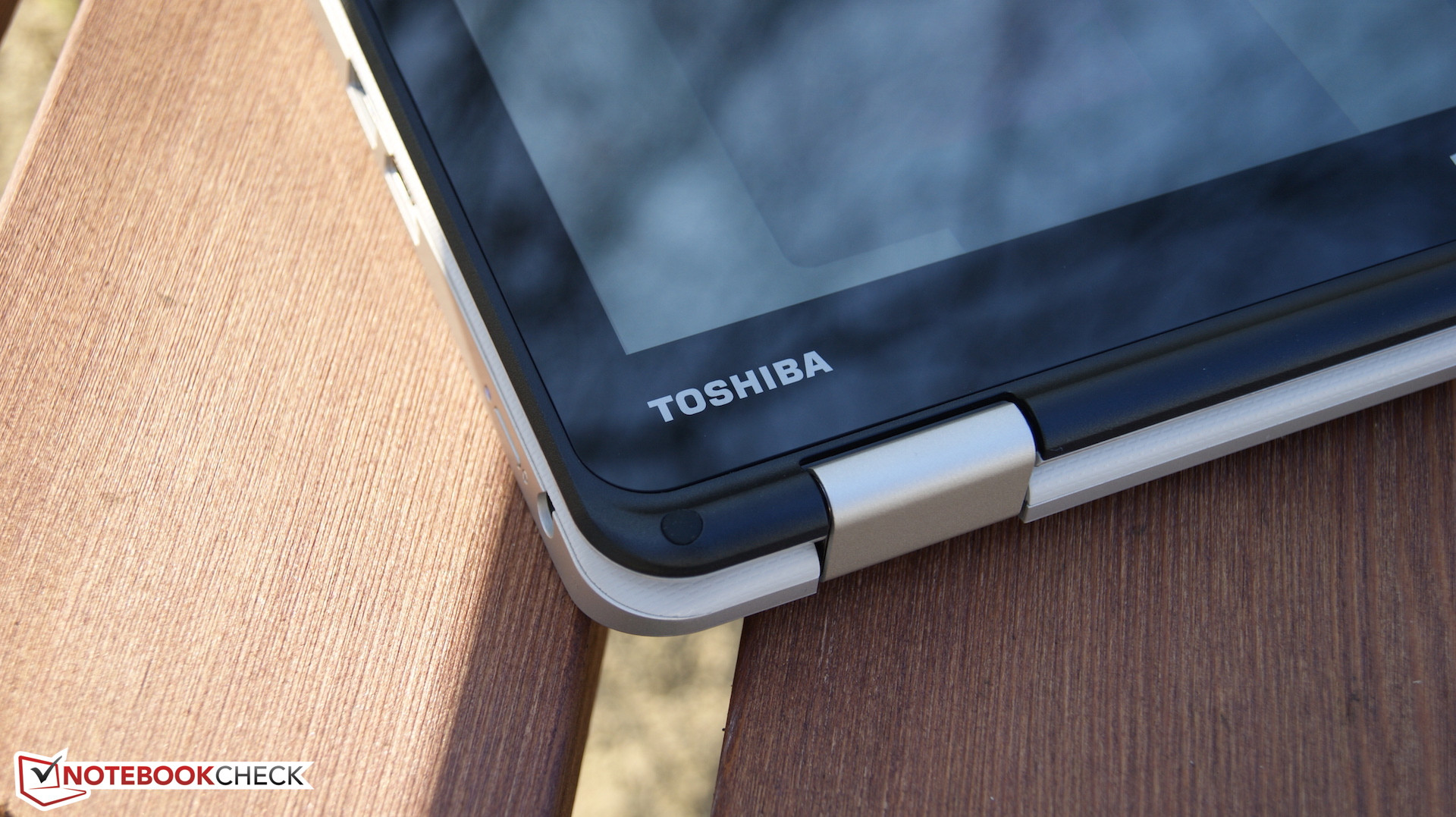

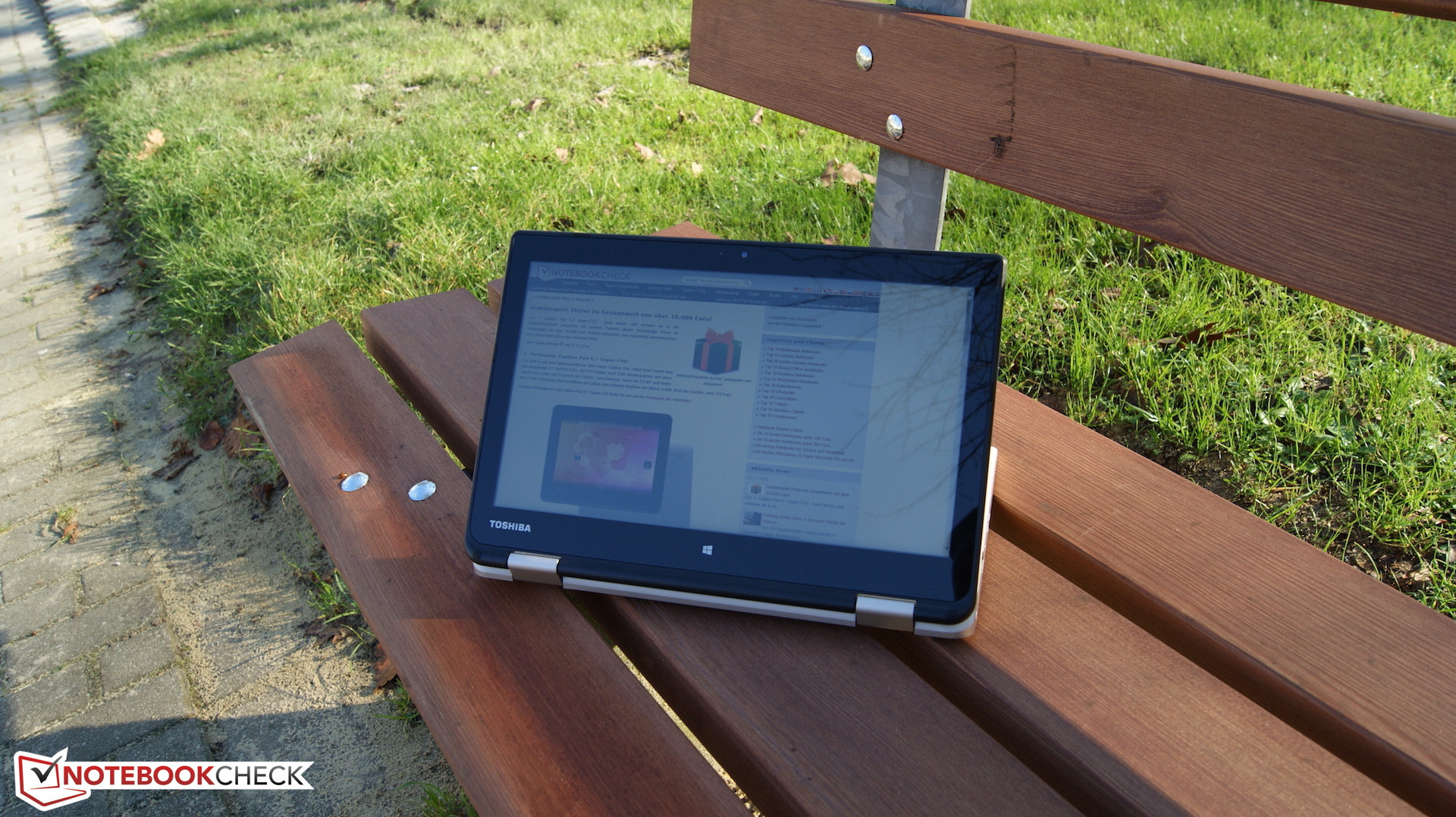

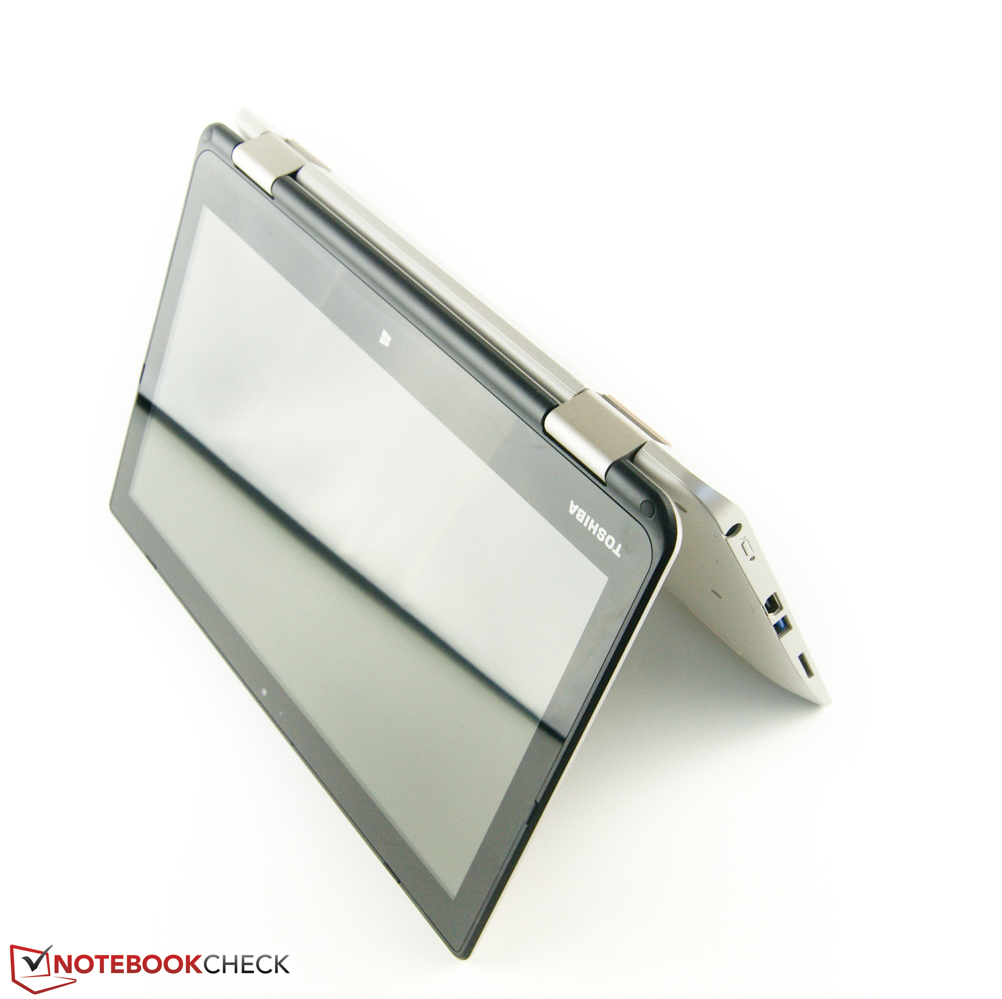

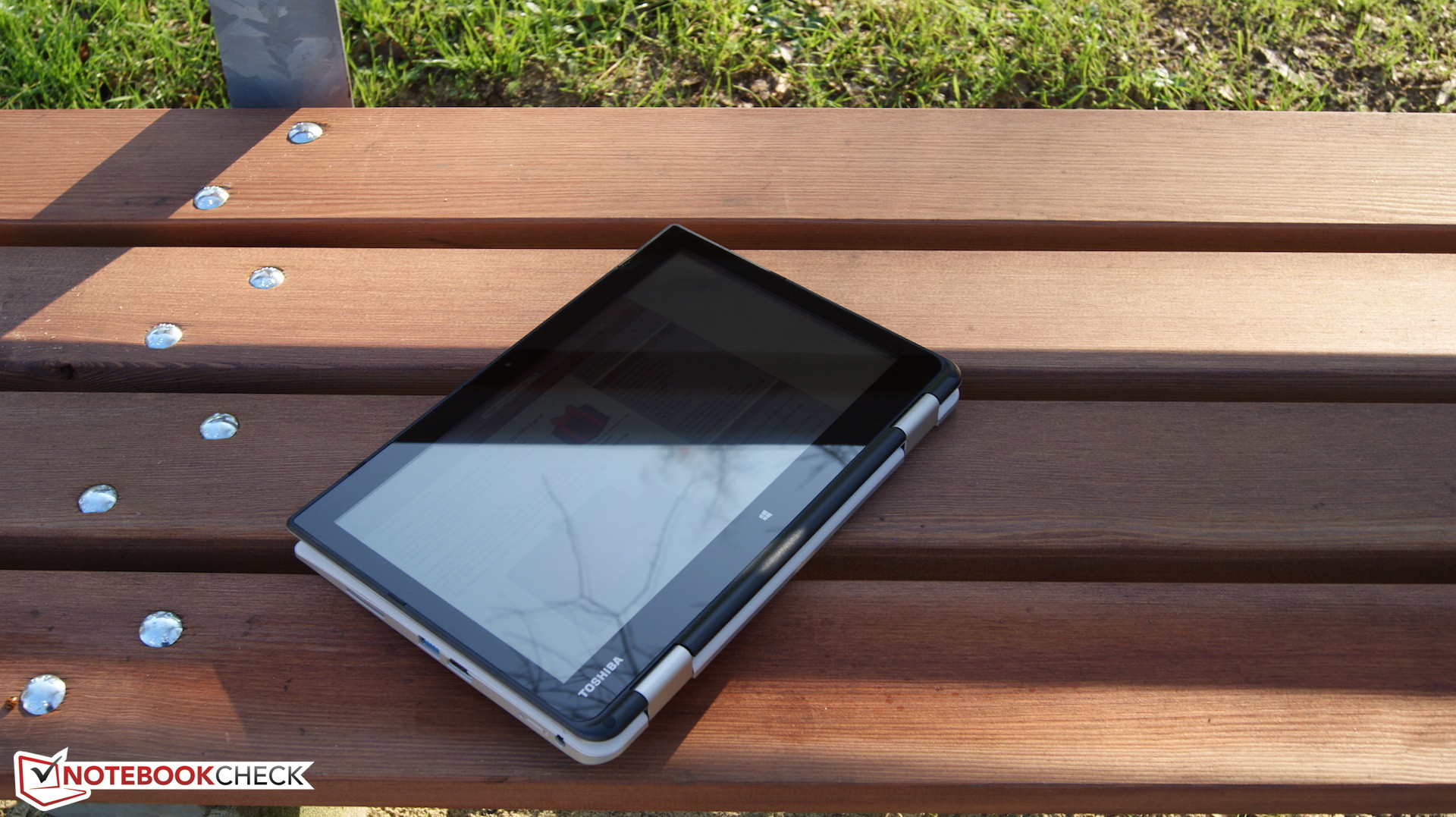

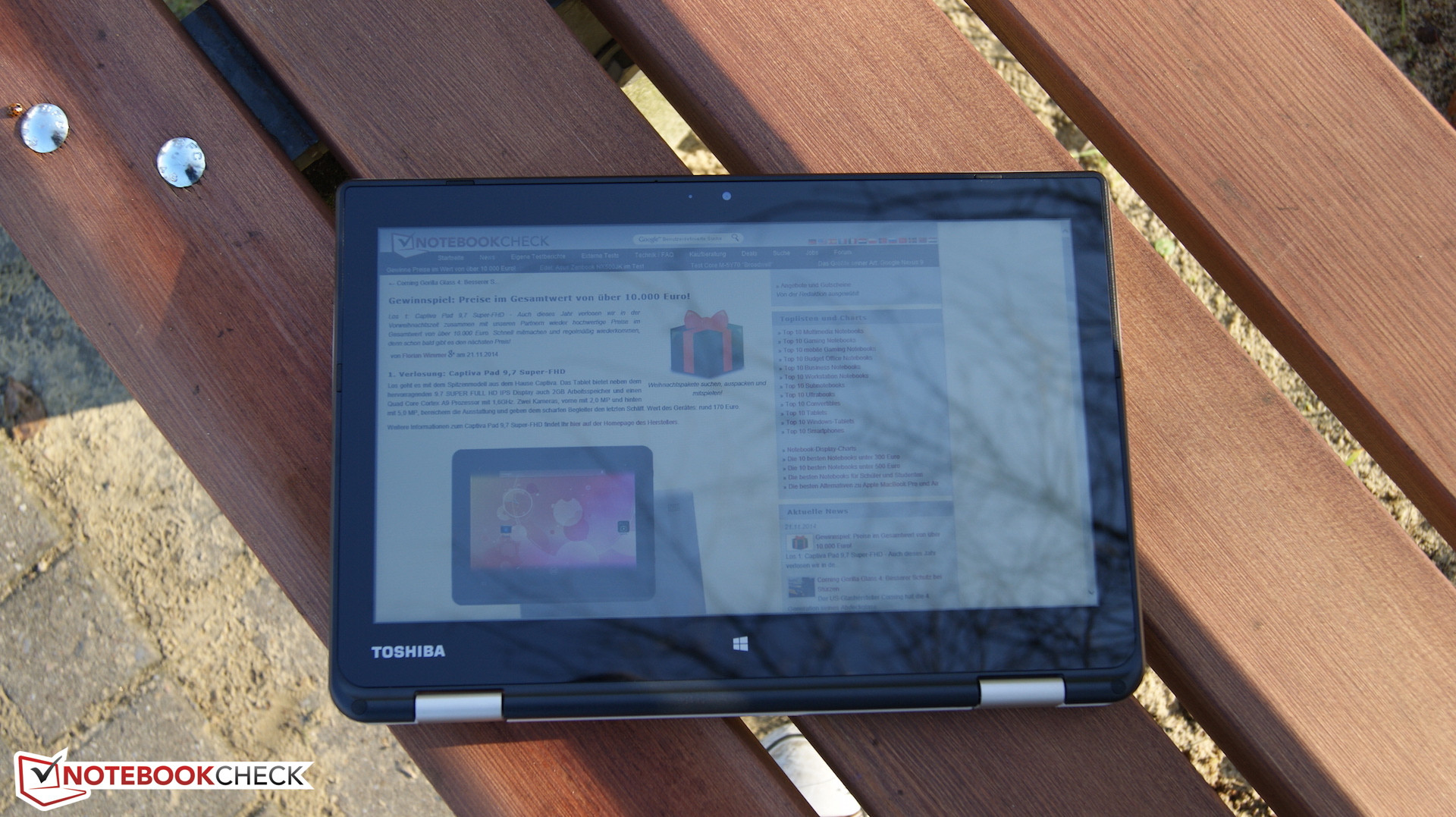

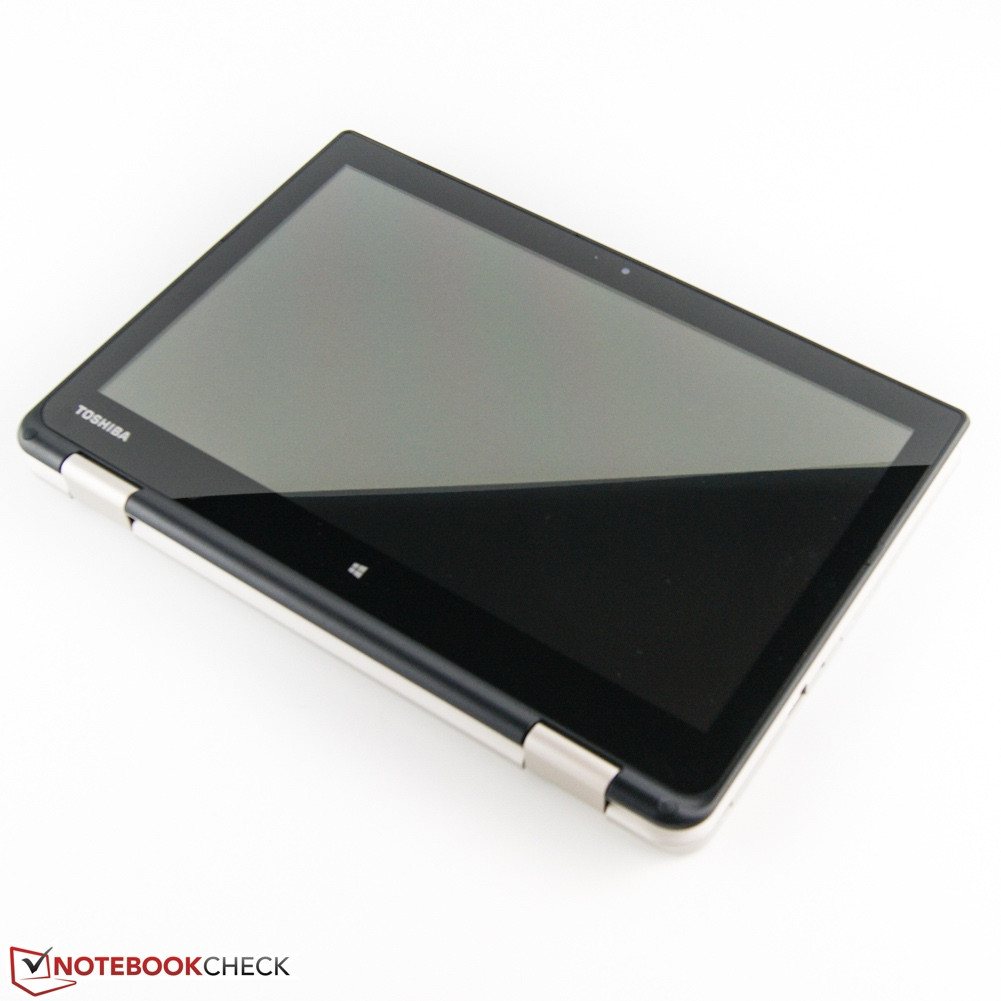

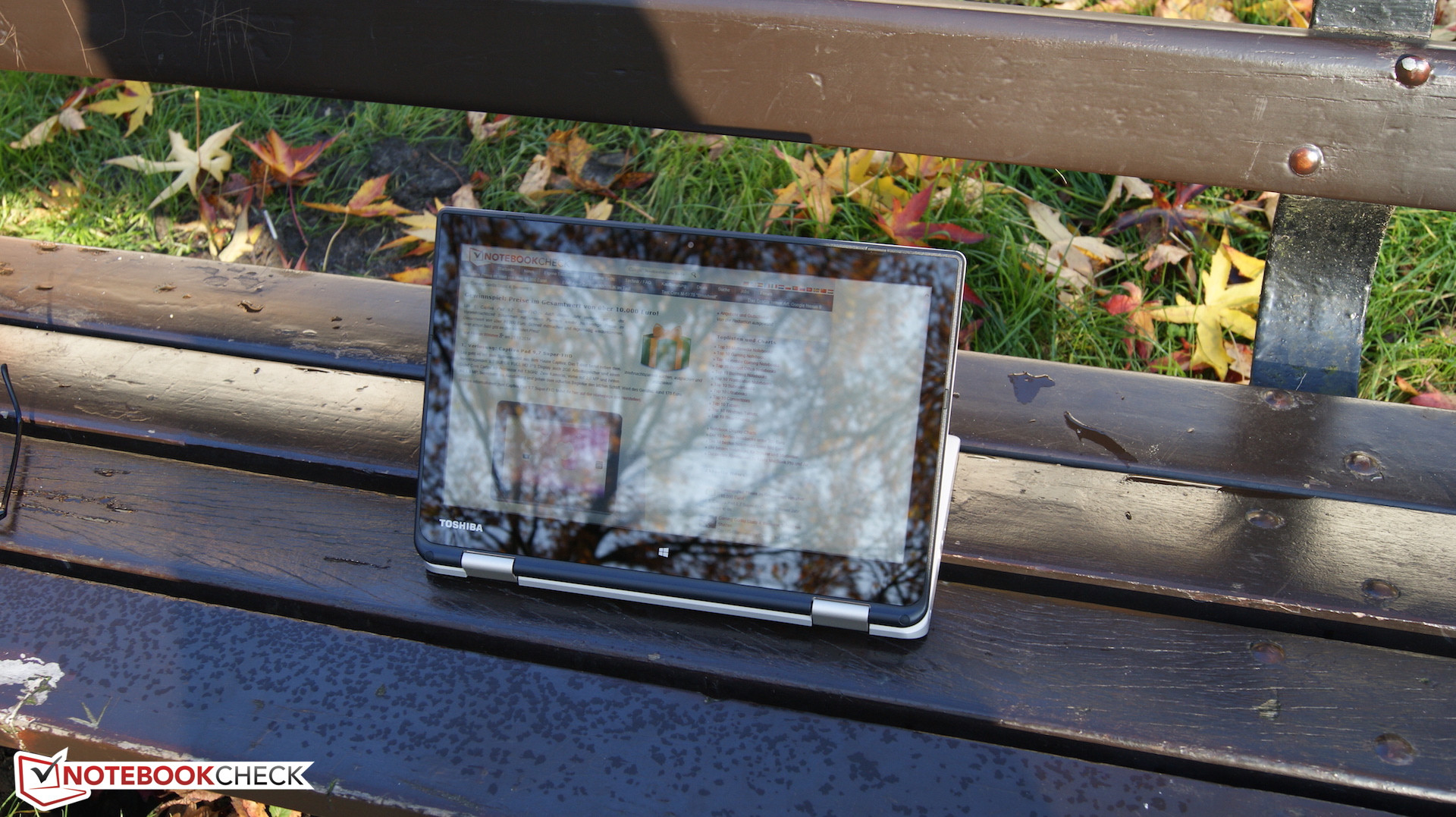

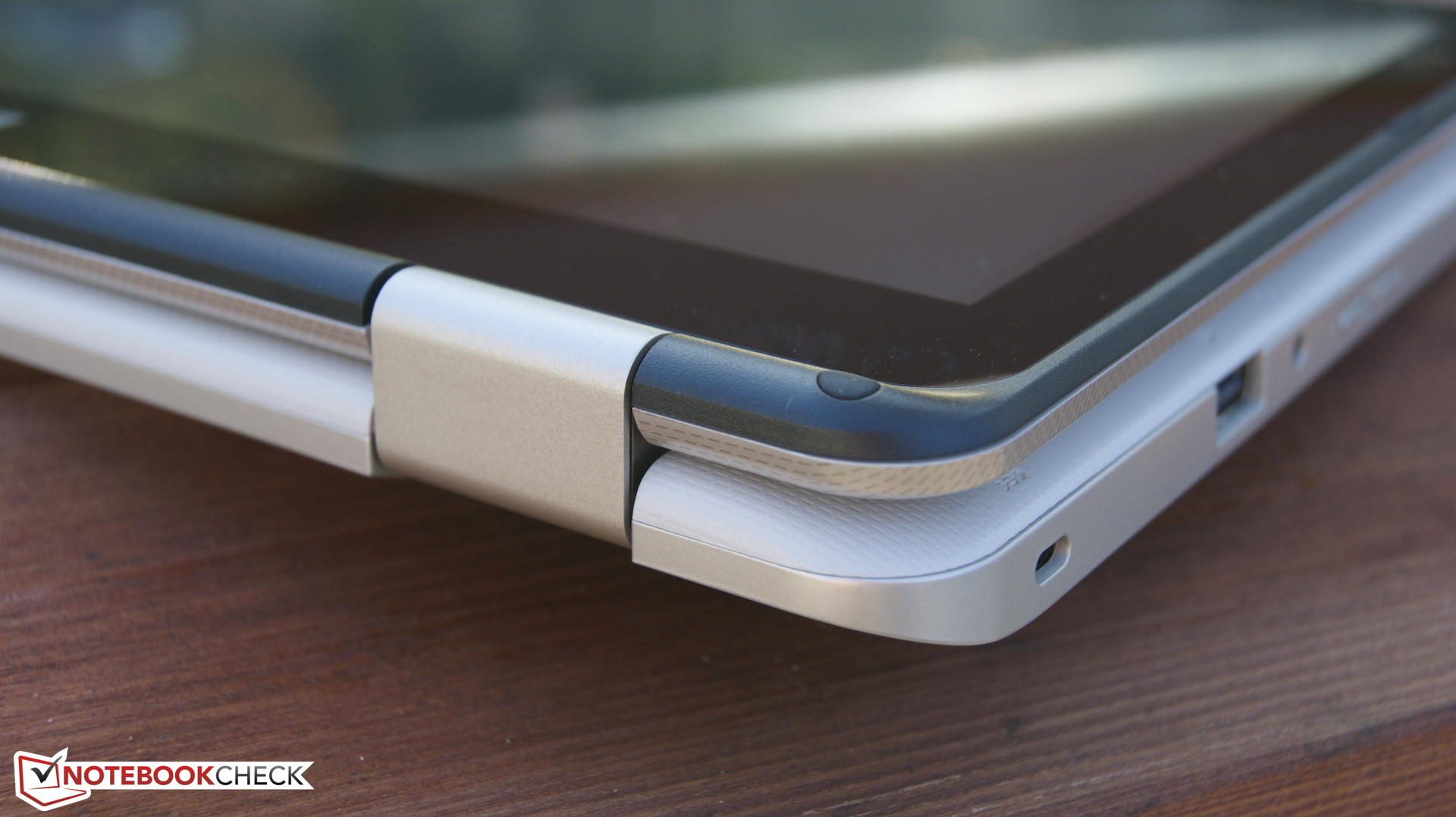

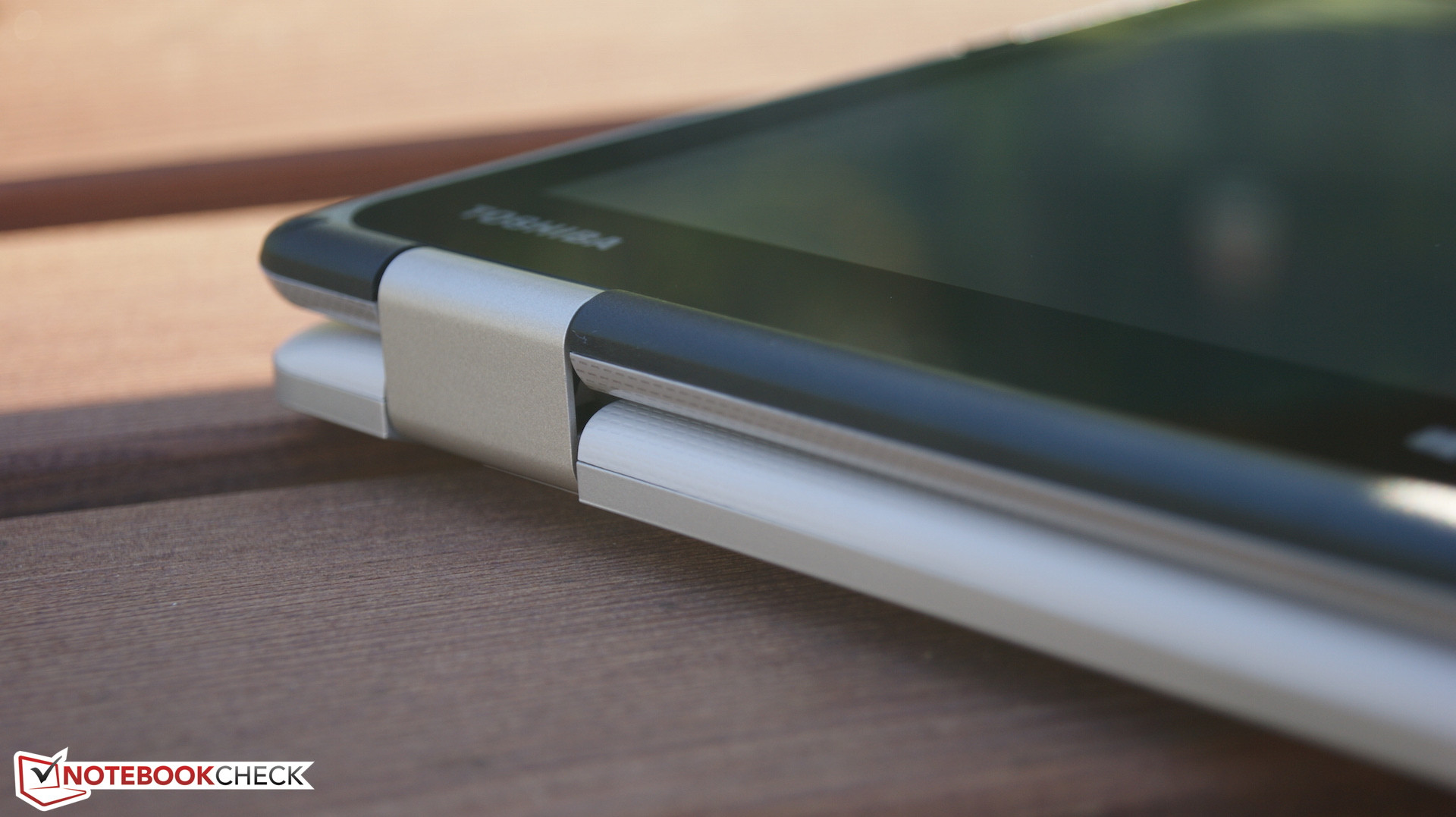

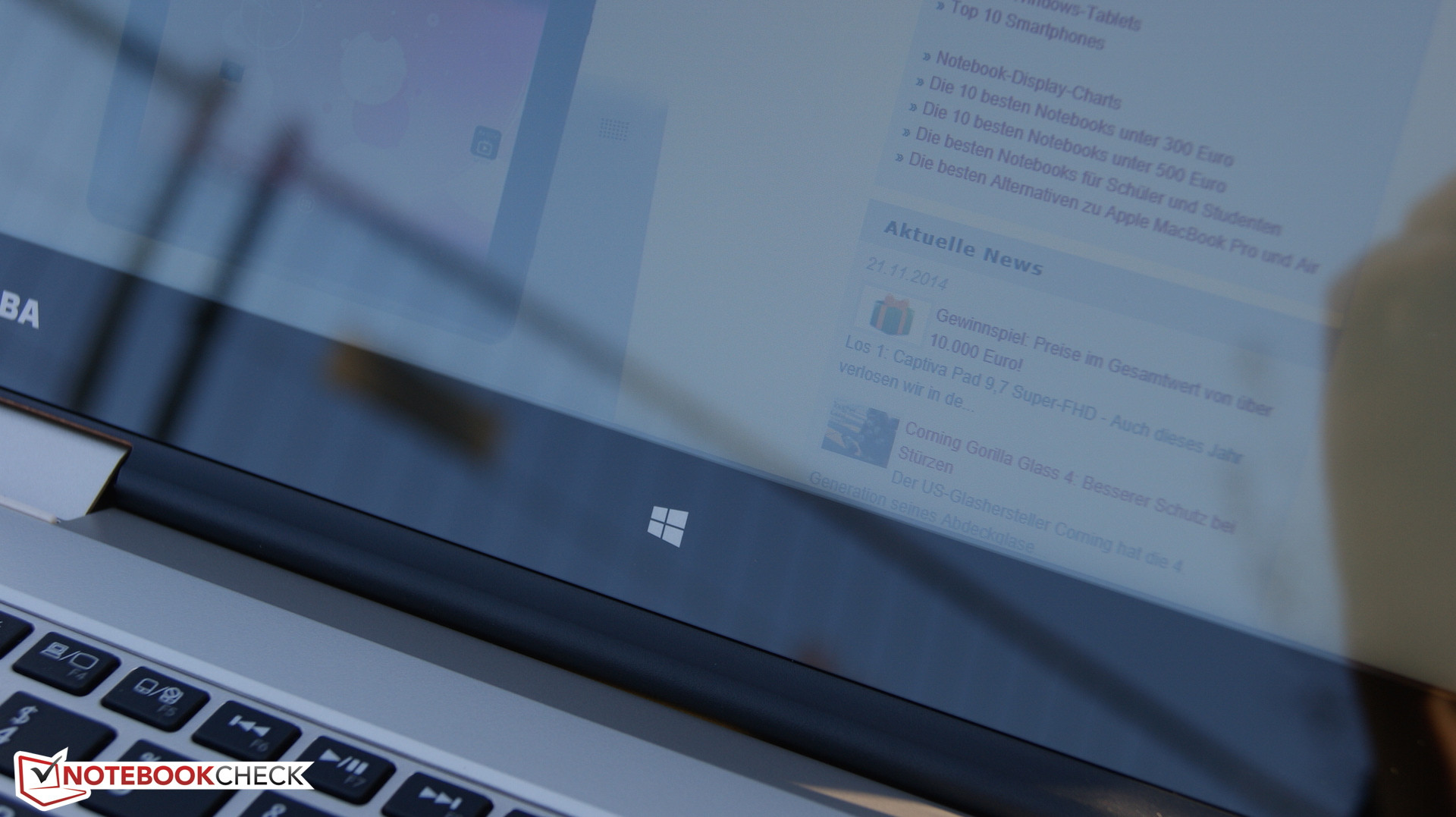

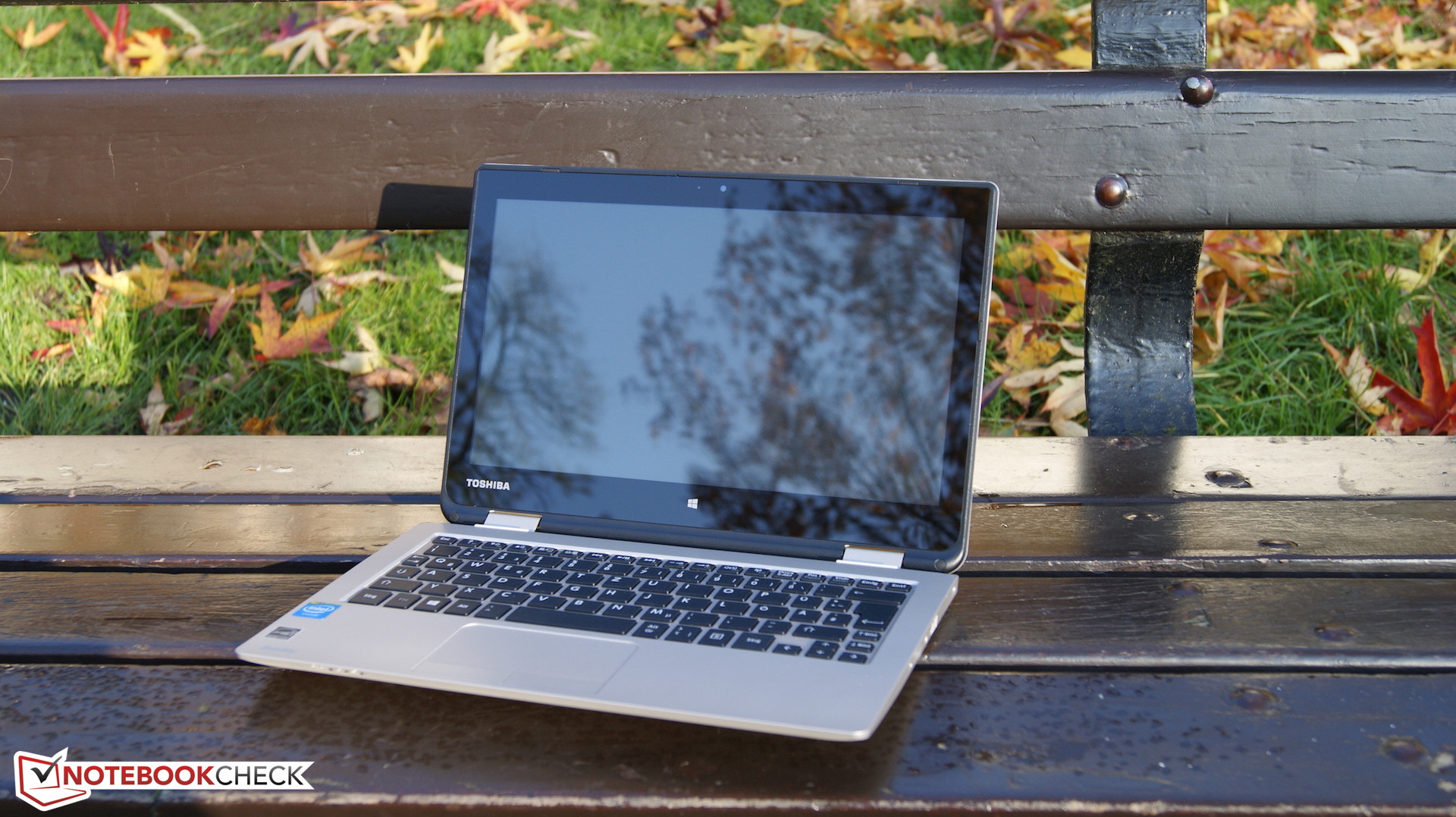

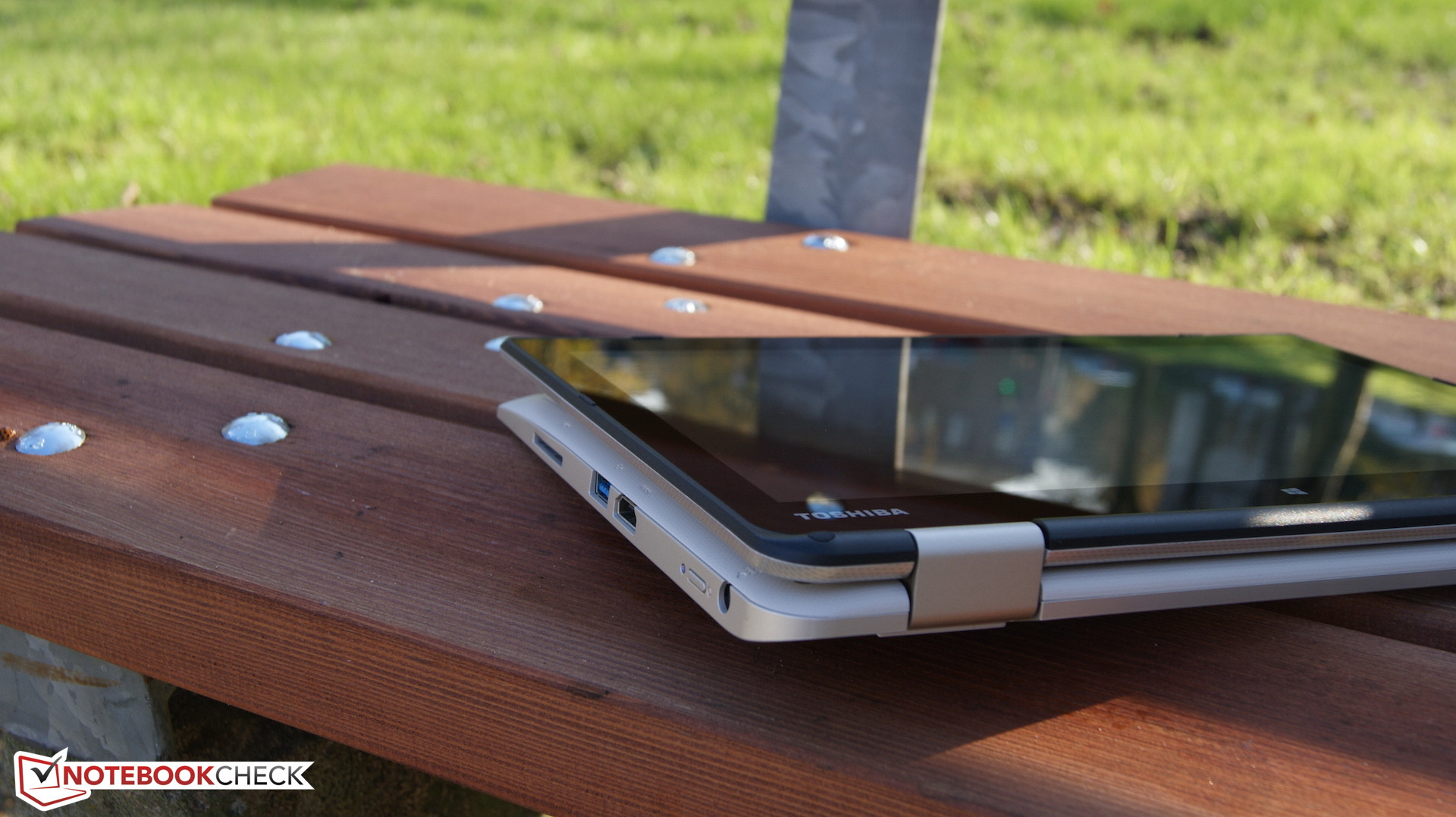

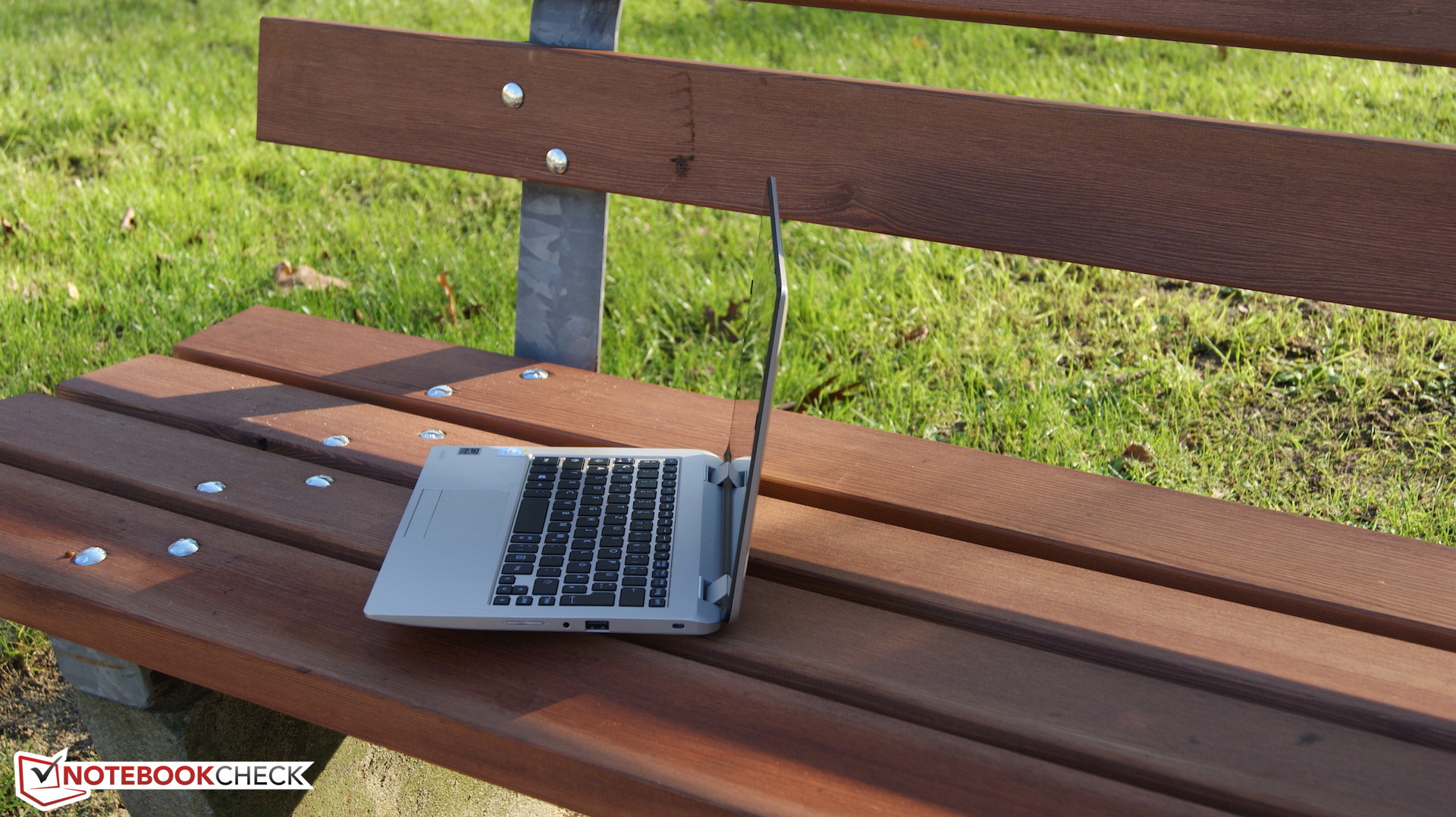

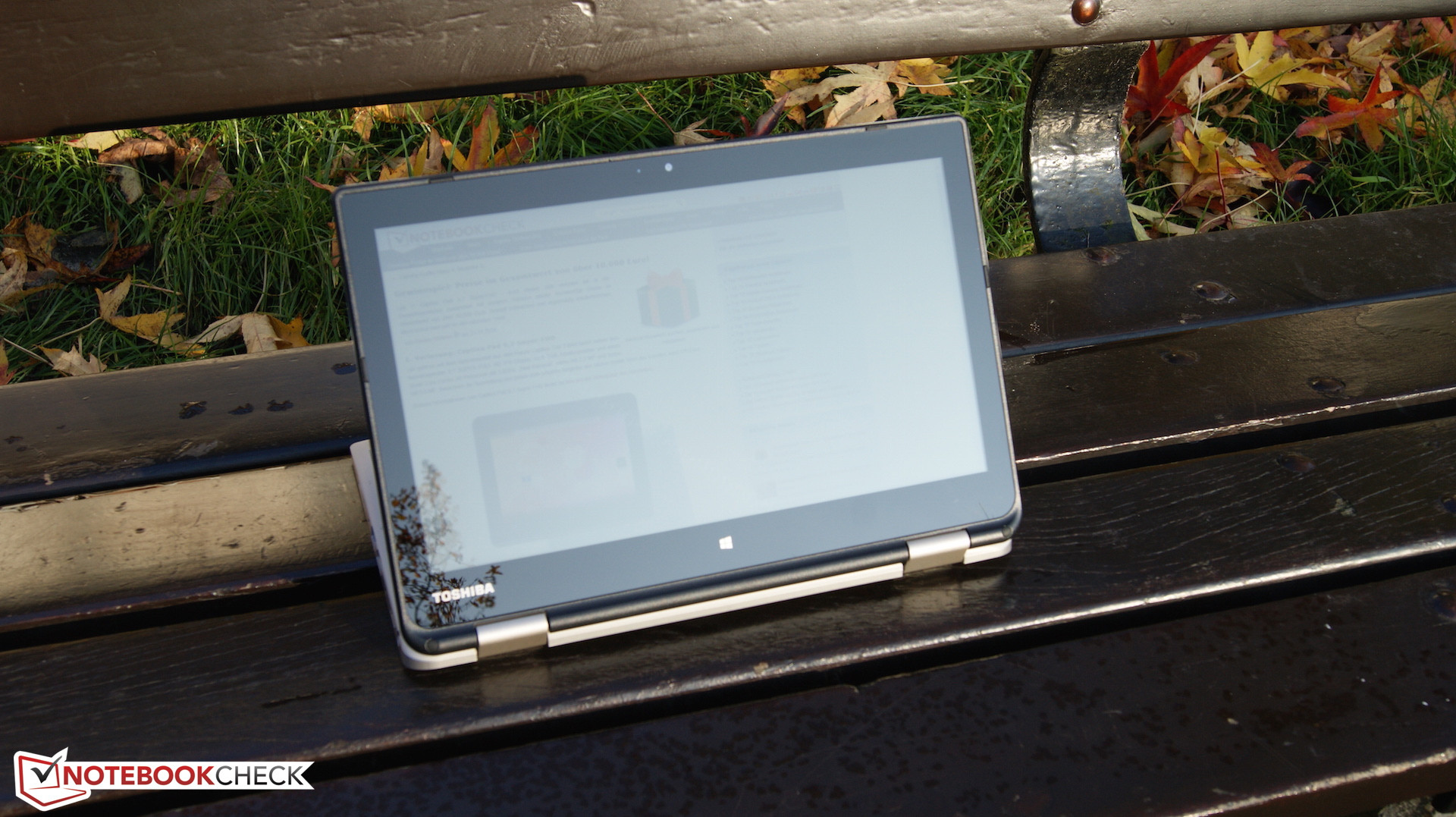

这款变形本配备了360度转轴，帮助实现设计中的灵活性和便携性。但它屏幕的低亮度和镜面材质很大程度上限制了户外使用。而它屏幕的窄可视角度则在平板模式下显得特别不便。我们的测试机配备了一颗64位处理器。我们对它的整体性能很满意，不过需要提醒用户注意的是它的节能处理器和集成显卡的性能仍然比较有限。L10在运行噪音控制方面表现非常优秀，因为它并没有使用散热风扇。在日常使用中它的电池可以坚持约4小时。遗憾的是，东芝并没有提供任何延长电池续航的选择，因此需要更长续航的用户可以考虑华硕 Transformer Book，它在测试中可以多坚持1小时24分钟。

考虑到仅400欧元（约3083人民币）的售价，11寸的东芝Satellite L10整体上是一款十分实用的变形本。之前我们也提到了，东芝为了节省成本而降低了屏幕和键盘的质量。考虑到售价，我们可以在一定程度上理解这样的设计，但我们仍然建议读者参考市场上其他的变形本产品，特别是华硕 Transformer Book。当然，后者只支持32位程序，不过它采用了IPS屏幕，因此屏幕的可视角度更广。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Editor of the original article: Bernie Pechlaner - Senior Tech Writer - 276 articles published on Notebookcheck since 2012

Please share our article, every link counts!

Download your licensed rating image as PNG / SVG

Specifications

Toshiba Satellite Radius 11 L10-B-101

Processor

Intel Celeron N2840 2 x 2.2 - 2.6 GHz, Bay Trail-M

Graphics adapter

Intel HD Graphics (Bay Trail), Core: 760 MHz, RAM: 667 MHz, igdumdim64 10.18.10.3910 / Win8.1 64

Memory

4 GB

, 板载, DDR3L

Display

11.60 inch 16:9, 1366 x 768 pixel, 电容型, Chi Mei N116BE-E42 CMN, TN, glossy: yes

Storage

Hitachi Travelstar Z5K500 HTS545050A7E380, 500 GB

, 5400 rpm, 5400 RPM

Soundcard

Intel Valleyview SoC - HD Audio Controller

Connections

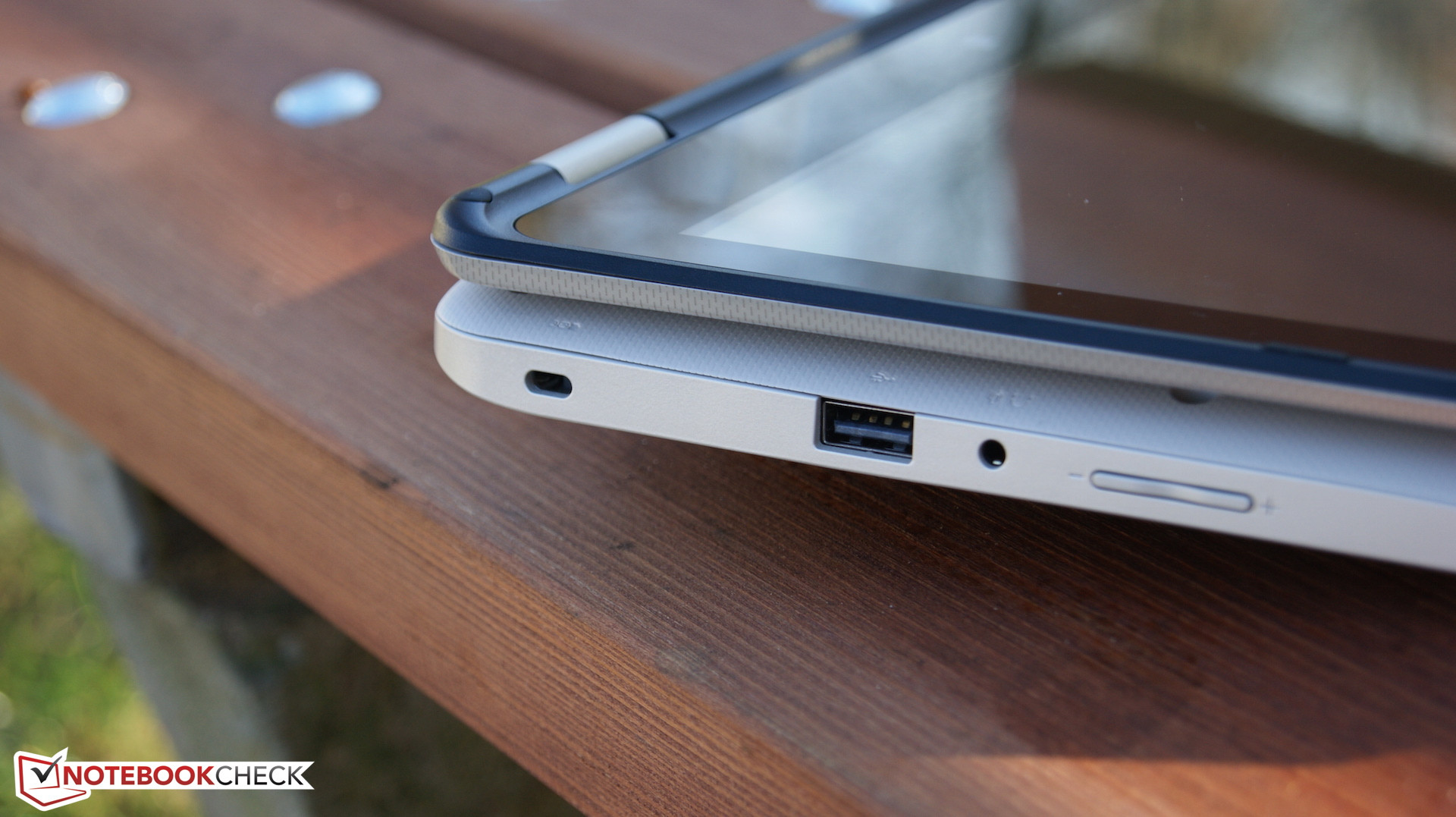

1 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Kensington Lock, Audio Connections: 整合耳机插口, Card Reader: SD, SDHC, SDXC, MMC, Sensors: 环境光传感器，陀螺仪

Networking

Realtek RTL8723AE Wireless LAN 802.11n (n = Wi-Fi 4/), Bluetooth Bluetooth® 4.0 + LE

Size

height x width x depth (in mm): 22 x 289 x 199

Battery

26 Wh Lithium-Ion, 2 芯

Operating System

Microsoft Windows 8.1 64 Bit

Camera

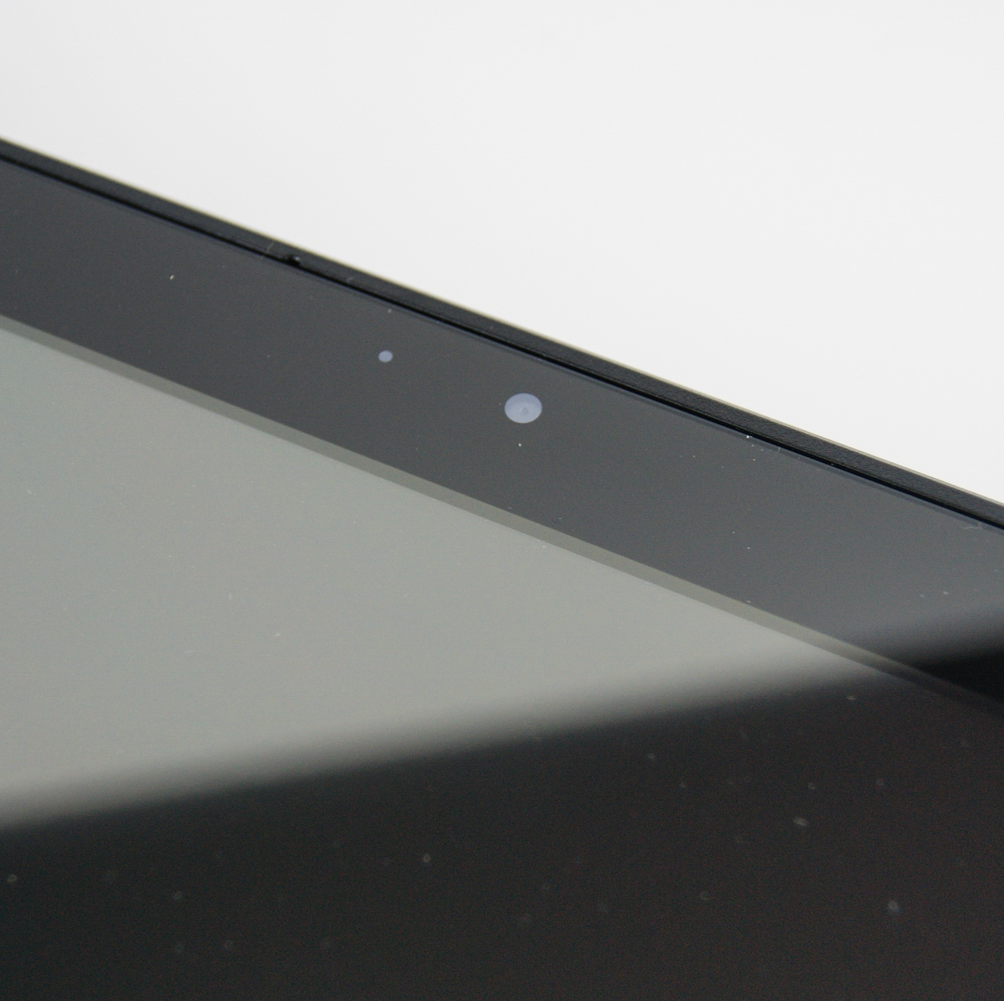

Webcam: 720p

Additional features

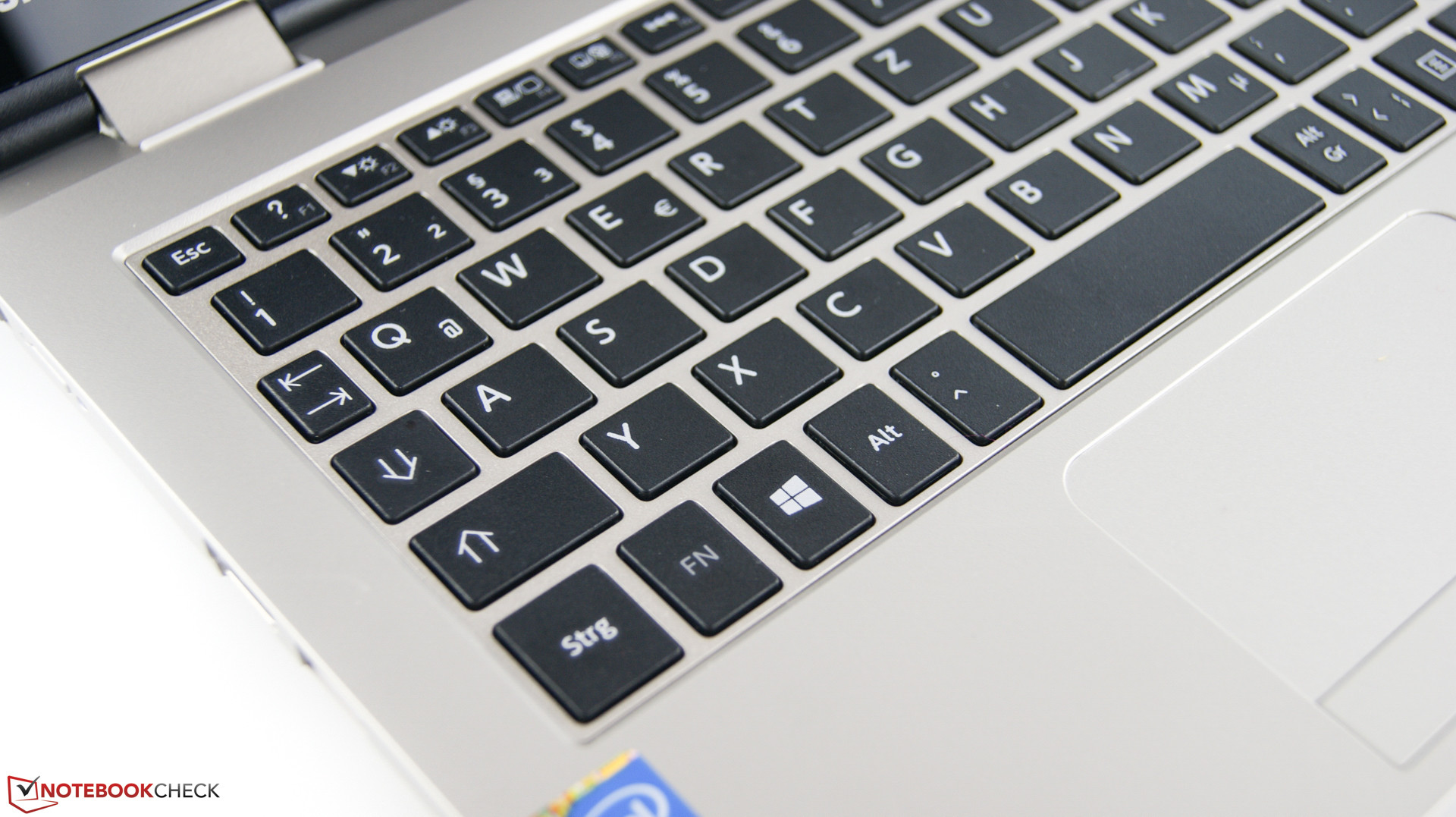

Speakers: 立体声扬声器, Keyboard: 孤岛式, Keyboard Light: no, TOSHIBA Eco Utility, TOSHIBA Function Key, TOSHIBA Media Player, TOSHIBA PC Health Monitor, TOSHIBA System Settings, Toshiba Display Utility , 12 Months Warranty

Weight

1.312 kg, Power Supply: 233 g

Price

400 Euro

Links

Toshiba homepage
Toshiba notebook section

Similar devices from a different Manufacturer

惠普 Stream 11 X360 支持3G 变形笔记本电脑简短评测
HD Graphics (Bay Trail)

Devices from a different Manufacturer and/or with a different CPU

华硕 Transformer Book T200TA 变形本简短评测
HD Graphics (Bay Trail), Atom Z3775

Devices with the same GPU

惠普 Pavilion x2 10-n013dx 变形本简短评测
HD Graphics (Bay Trail), Atom Z3736F, 10.10", 1.16 kg

Acer Aspire Switch 10E SW3-013 变形本简短评测
HD Graphics (Bay Trail), Atom Z3735F, 10.10", 1.189 kg

戴尔 Venue 10 Pro 5055 变形本简短评测
HD Graphics (Bay Trail), Atom Z3735F, 10.10", 0.656 kg

华硕 Transformer Book T100 Chi 变形本/平板电脑简短评测
HD Graphics (Bay Trail), Atom Z3775, 10.10", 1.092 kg

联想 Miix 3 10 变形本简短评测
HD Graphics (Bay Trail), Atom Z3735F, 10.10", 0.582 kg

Pros

+ 触控板

+ 噪音和温度控制

+ 硬盘

+ 平板功能

Cons

- 键盘

- 扬声器

- 色彩准确度和灰度

- TN屏幕的窄视角影响平板模式下的使用

- 仅12个月质保

Toshiba Satellite Radius 11 L10-B-101 - 12/01/2014 v4 ^(old)
Nino Ricchizzi

Chassis

66 / 98 → 67%

Keyboard

38%

Pointing Device

73%

Connectivity

53 / 80 → 66%

Weight

71 / 35-78 → 84%

Battery

86%

Display

74%

Games Performance

40 / 68 → 59%

Application Performance

48 / 87 → 55%

Temperature

90%

Noise

96%

Audio

30 / 91 → 33%

Camera

61 / 85 → 72%

Average

64%

72%

Convertible - Weighted Average
