Acer Aspire Switch 10E SW3-013 变形本简短评测

二合一起跑线。 Acer的10寸Switch系列跑出了不错的成绩。高性价比一直是它们的核心,全新的Switch 10E在性能和售价间又做得如何还尚待检验。让我们在接下来的评测中深入全面地对Acer Aspire Switch 10E进行分析吧。
Convertible / 2-in-1 Windows Tablet Laptop / Notebook
Acer Aspire Switch 10E SW3-013 (Aspire Switch Series)
Processor
Intel Atom Z3735F 4 x 1.3 - 1.8 GHz, Bay Trail-T
Graphics adapter
Intel HD Graphics (Bay Trail)
Memory
1971 MB
Display
10.10 inch 16:10, 1280 x 800 pixel, 10点触控, AU Optronics AUO15D4, IPS, glossy: yes
Storage
32 GB eMMC Flash, 32 GB
, Hynix HBG4e, 15 GB free
Soundcard
Intel SST Audio Device
Connections

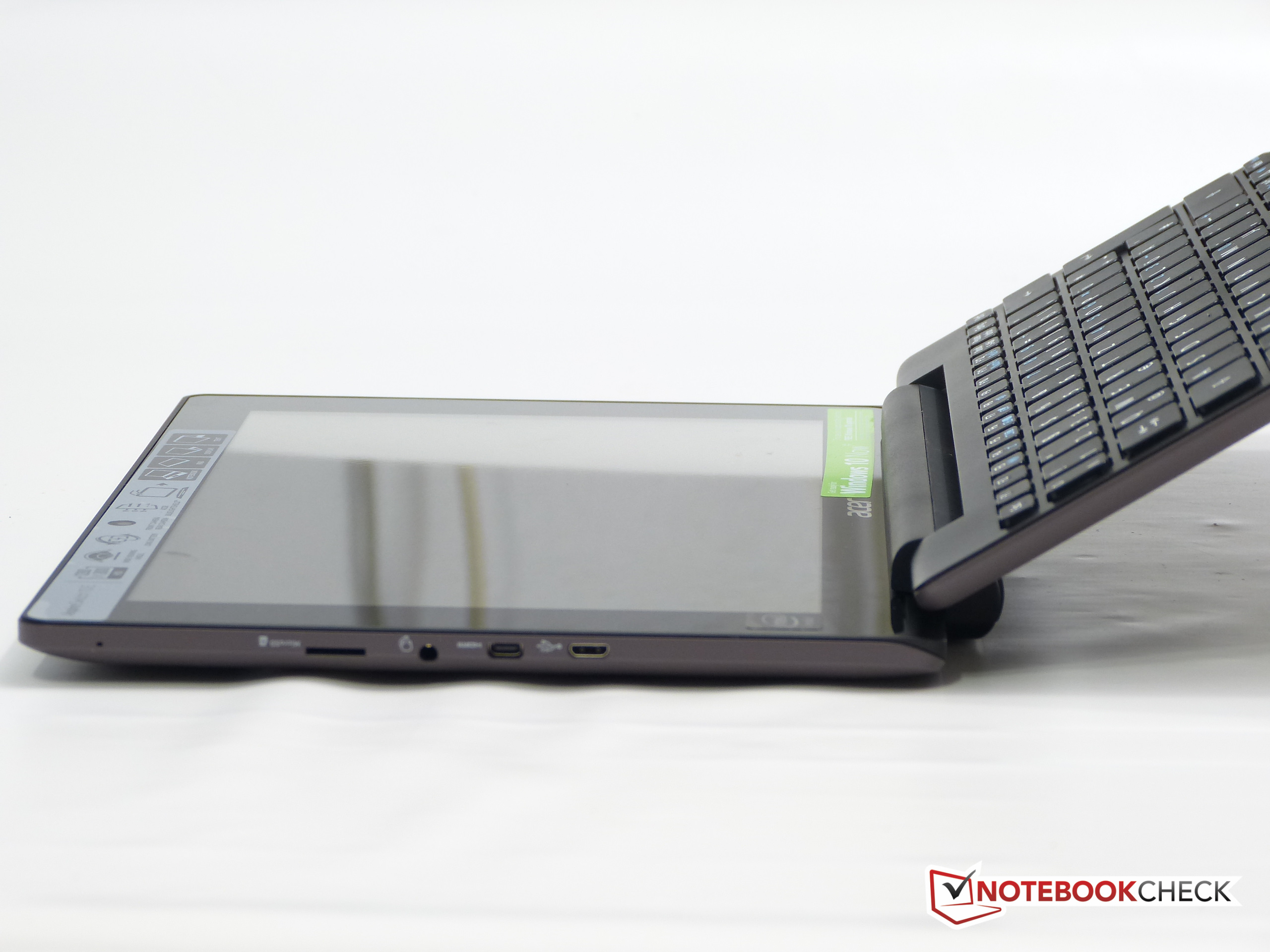

2 USB 2.0, 1 HDMI, Audio Connections: 耳机, Card Reader: MicroSD, Sensors: Kionix KXCJ9
Networking
Realtek RTL8723BS (b/g/n = Wi-Fi 4/), Bluetooth 4.0
Size
height x width x depth (in mm): 22.9 x 262 x 180
Battery
30 Wh Lithium-Polymer
Operating System
Windows 8.1 (32 Bit) + Bing
Camera
Webcam: 2个200万像素相机
Additional features
Speakers: 立体声, Keyboard: 孤岛式, Keyboard Light: no
Weight
1.189 kg, Power Supply: 76 g
Price
300 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



310
cd/m²
347
cd/m²
335
cd/m²
315
cd/m²
337
cd/m²
339
cd/m²
300
cd/m²
328
cd/m²
329
cd/m²
Distribution of brightness
AU Optronics AUO15D4 tested with X-Rite i1Pro 2
Maximum: 347 cd/m² (Nits) Average: 326.7 cd/m²
Brightness Distribution: 86 %
Center on Battery: 348 cd/m²
Contrast: 963:1 (Black: 0.35 cd/m²)
ΔE Color 6.24 | 0.5-29.43 Ø5
ΔE Greyscale 5.74 | 0.57-98 Ø5.3
67% sRGB (Argyll 1.6.3 3D)
43% AdobeRGB 1998 (Argyll 1.6.3 3D)
46.73% AdobeRGB 1998 (Argyll 2.2.0 3D)
67.2% sRGB (Argyll 2.2.0 3D)
45.18% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.26

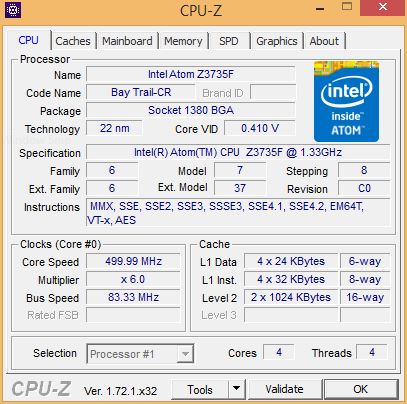

CPU Z overview information
CPU Z overview information

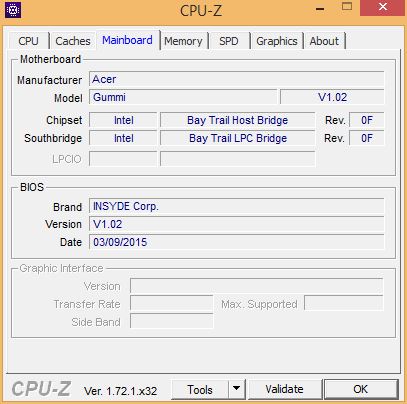

CPU Z mainboard information
CPU Z mainboard information

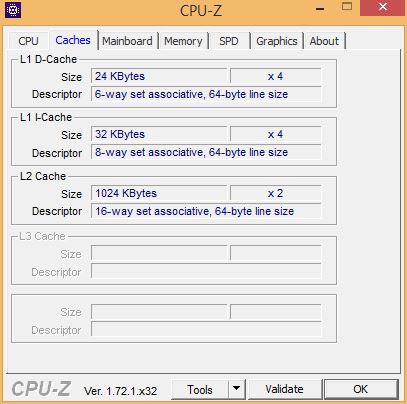

CPU Z cache information
CPU Z cache information

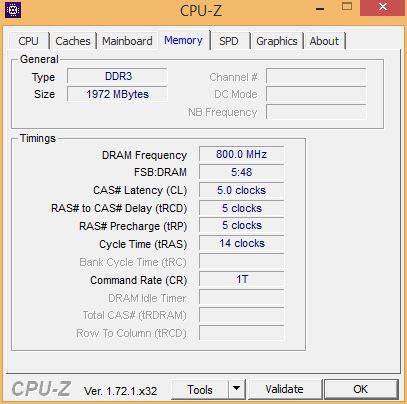

CPUZ memory information
CPUZ memory information

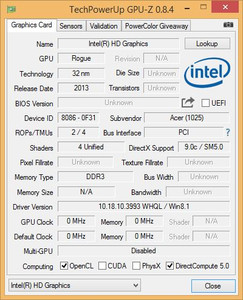

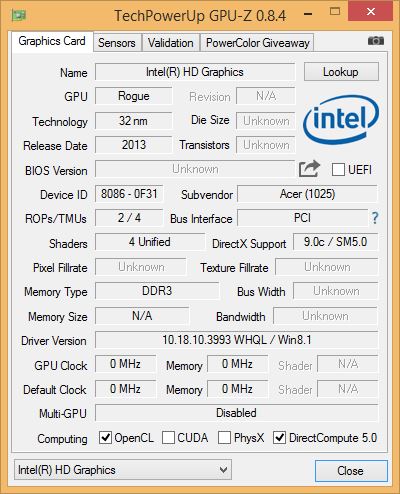

GPU information from GPUZ
GPU information from GPUZ

Cinebench R10 Rendering Single 32Bit
946
Cinebench R10 Rendering Multiple CPUs 32Bit
2898
Cinebench R10 Shading 32Bit
1760
Cinebench R11.5 OpenGL 64Bit
5.84 fps
Cinebench R11.5 CPU Multi 64Bit
1.07 Points
Cinebench R11.5 CPU Single 64Bit
0.31 Points
Help
Cinebench R10
Rendering Multiple CPUs 32Bit (sort by value)
Acer Aspire Switch 10E SW3-013
2898 Points
Asus Transformer Book T100TAL-DK021P
2514 Points -13%
Lenovo Miix 3 8
2935 Points +1%
Microsoft Surface 3
4356 Points +50%
Rendering Single 32Bit (sort by value)
Acer Aspire Switch 10E SW3-013
946 Points
Asus Transformer Book T100TAL-DK021P
744 Points -21%
Lenovo Miix 3 8
928 Points -2%
Microsoft Surface 3
1225 Points +29%
Dell Venue 11 Pro 5130-9356
1727 Points +83%
PCMark 7 Score
2350 points
Help
PCMark 7 - Score (sort by value)
Acer Aspire Switch 10E SW3-013
2350 Points
Acer Aspire Switch 10 SW5-011-12VU
2530 Points +8%
Lenovo Miix 3 8
2425 Points +3%
Dell Venue 10 Pro 5055
2351 Points 0%
Asus T100CHI-B1-BK
2705 Points +15%
Microsoft Surface 3
3029 Points +29%
3DMark 11 Performance
211 points
Help
low med. high ultra
World of Warcraft (2005) 44
low med. high ultra
World of Warcraft (2005) 44
Max. Load
 40.5 °C33 °C27.2 °C
 37 °C30.2 °C27.4 °C
 35.9 °C35 °C29.6 °C
Maximum: 40.5 °C
Average: 32.9 °C
27.1 °C36.1 °C42.5 °C
27.6 °C32.7 °C38 °C
29.1 °C32.7 °C36.5 °C
Maximum: 42.5 °C
Average: 33.6 °C
Power Supply (max.)  52.3 °C | Room Temperature 23.1 °C | Voltcraft IR-360
(±) The average temperature for the upper side under maximal load is 32.9 °C / 91 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 40.5 °C / 105 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 42.5 °C / 109 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25.3 °C / 78 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (35.9 °C / 96.6 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-7.8 °C / -14 F).
Power Consumption
Off / Standbydarklight 0 / 0.1 Watt
Idledarkmidlight 2.1 / 4.2 / 5.1 Watt
Load midlight 11 / 11.3 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Battery Runtime
Idle (without WLAN, min brightness)
15h 43min
WiFi Websurfing
6h 30min
Big Buck Bunny H.264 1080p
9h 53min
Videotest mit dem Video-Player von Windows 8.
Battery Runtime - WiFi Websurfing (sort by value)
Acer Aspire Switch 10E SW3-013
390 min
Microsoft Surface 3
437 min +12%
Asus Transformer Book T100TAL-DK021P
486 min +25%
Battery Runtime
Reader / Idle (sort by value)
Acer Aspire Switch 10E SW3-013
943 min
Microsoft Surface 3
828 min
Acer Aspire Switch 10 SW5-011-12VU
475 min
H.264 (sort by value)
Acer Aspire Switch 10E SW3-013
593 min
Acer Aspire Switch 10 SW5-011-12VU
290 min

Legend


Acer Aspire Switch 10E SW3-013 Intel Atom Z3735F, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash

Microsoft Surface 3 Intel Atom x7-Z8700, Intel HD Graphics (Cherry Trail), 128 GB eMMC Flash

Lenovo Miix 3 8 Intel Atom Z3735F, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash

Asus Transformer Book T100TAL-DK021P Intel Atom Z3735D, Intel HD Graphics (Bay Trail), 64 GB eMMC Flash

Acer Aspire Switch 10 SW5-011-12VU Intel Atom Z3745D, Intel HD Graphics (Bay Trail), Hynix HCG8E 64 GB

Pros

+ 优秀全面的性能表现
+ 屏幕在这个价位十分优秀
+ 电池续航时间在实际测试中表现出色

Cons

- 不支持USB 3.0
- 塑料感
- 搭配了较“旧”(2013-2014)的Atom处理器
- USB充电缓慢
- 无线信号较差

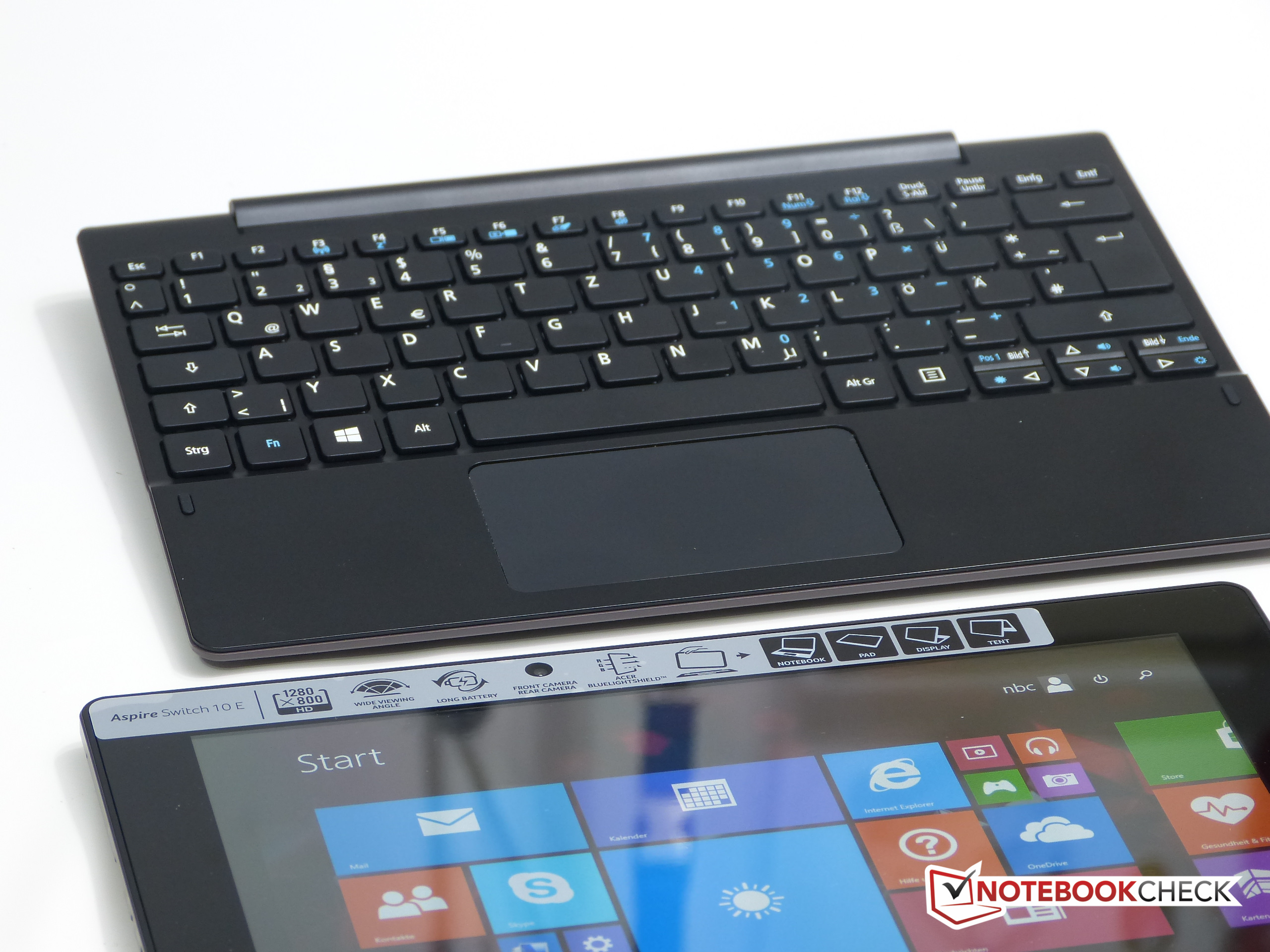

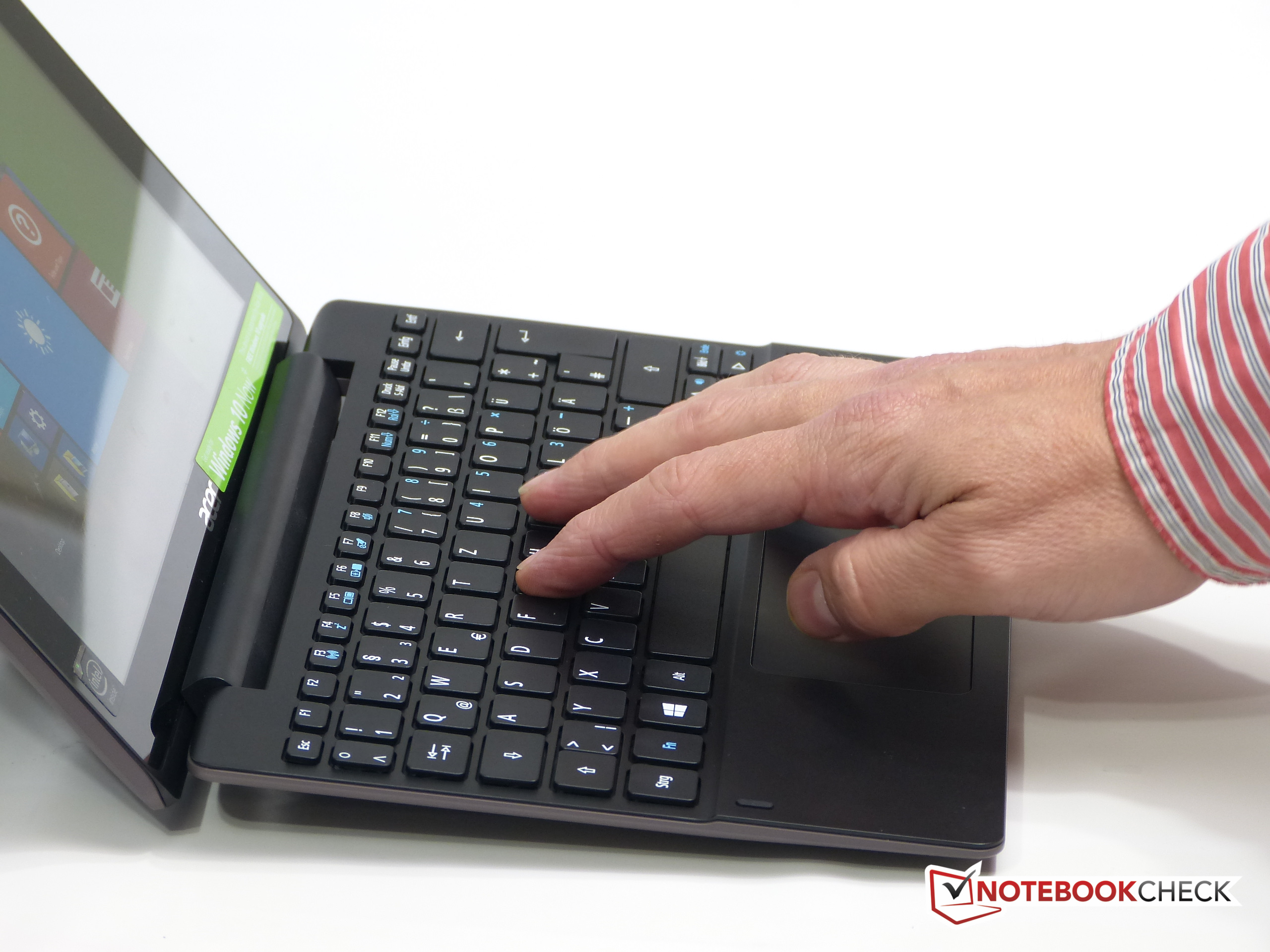

Acer Aspire Switch 10E看上去十分廉价,WiFi的表现也不理想。缓慢的USB充电可能会让一些人敬而远之,不过它也有一些值得一提的优点。一块优秀的屏幕,不错的电池续航时间,优秀的键盘、触控板,屏幕转轴的设计也十分实用。作为平板电脑轻盈的体重非常适合偶尔使用,加上键盘仅重1.2千克,再加上USB电源适配器仅1.3千克总重。

我们测试之后对10E的看法相比开箱时有了改观,这是一个好兆头。

它的“优秀屏幕”并不代表高分辨率,相对于高分辨率的低质量屏幕我们更倾向于低分辨率屏幕有优秀的亮度,可视角度范围和色彩。如果你对高像素密度比较在意的话,它可能会让你失望了。

我们测试之后对10E的看法相比开箱时有了改观,这是一个好兆头。在299欧元(约2048人民币)的入门级价位上,它提供了不错的价值,不过我们认为Acer甚至可以让它降价到250欧元,给它更强的竞争力;如果其他的竞争对手和Acer都不会很快推出Intel Atom X5机型的话。X5在显卡上的改进可能会是这台测试机所采用的Atom Z3735处理器所面临的最大挑战。

Acer Aspire Switch 10E十分适合家用,在这个情况下无线网模组的速度不会造成太大的问题,而轻盈灵活的平板加上站立模式作为小电视可以带来最大的实用性。我们并不建议商务、游戏或教育用户考虑这款平板,不过在度假时使用,Switch 10E可以完美胜任。

Switch 10E是一款“Windows 10 ready”设备,不过几乎所有其他PC也都是如此。我们测试的娱乐版机型预装了很多软件和软件链接,可能对于一部分用户来说并不实用,反而会有些烦人。垃圾软件对小硬盘的低端PC一点帮助也没有。而一年免费的Office 365加上1TB的在线云储存空间则相对来说更加实用。

在这个价位你也可以考虑其他的同类设备:惠普Pavilion X2 10(很快它会推出Windows 10/Atom X5版本),以及有促销活动的华硕Transformer Book T100。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里
