华硕 ROG GX800 笔记本电脑简短评测

Florian Glaser, Tanja Hinum (translated by Yuchen Wang), 07/20/2016
Gaming Geforce Laptop / Notebook Skylake Windows

高端设备。我们有幸成为最早对最新的GX800进行详尽测试的几家媒体之一。相比前代机型,华硕不仅改进了它的性能和尺寸,同时为它搭配了4K屏幕和G-Sync功能。它的散热系统足以支持强劲部件吗?我们的评测将会回答你对它所存的疑问。

Asus GX800 Prototype (GX800 Series)
Processor
Graphics adapter

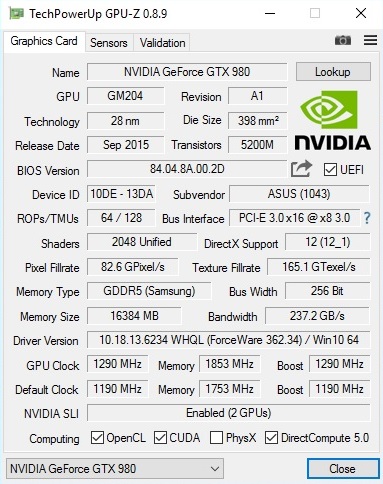

NVIDIA GeForce GTX 980 SLI (Laptop) - 16384 MB, Core: 1328 MHz, Memory: 3700 MHz, GDDR5, ForceWare 362.34 (368.39 for Games)
Memory
65536 MB

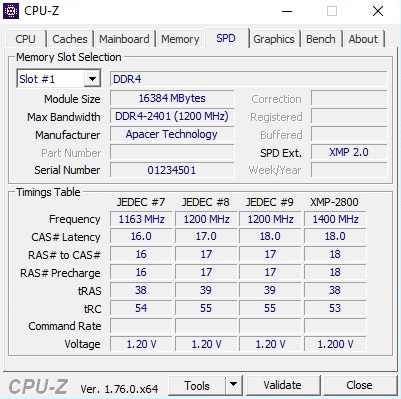

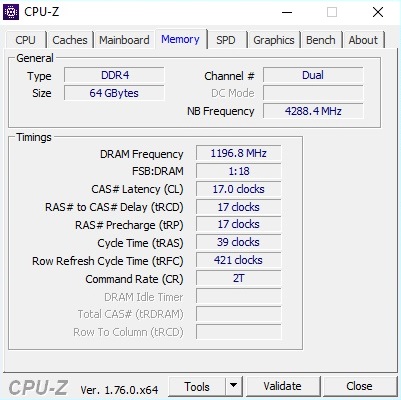

, 4x 16 GB DDR4-2400, 4/4插槽已占用, 双通道, 最大支持 64 GB
Display
18.4 inch 16:9, 1920 x 1080 pixel 120 PPI, Samsung 184HL (SDC4C48) , Super PLS, 全高清, glossy: no
Mainboard

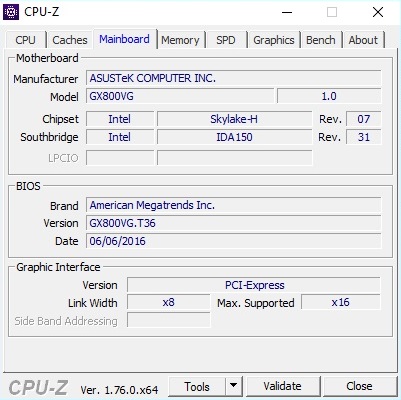

Intel CM236 (Skylake PCH-H)
Storage
3x Samsung SM951 512 GB NVMe M.2 (RAID 0), 1536 GB
Soundcard
Realtek ALC286 @ Intel Sunrise Point PCH - High Definition Audio Controller
Connections
3 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 耳机,麦克风, Card Reader: SD,SDHC,SDXC, WiFi 天线
Networking
Realtek PCIe GBE Family Controller (10/100/1000/2500/5000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.1
Size
height x width x depth (in mm): 45 x 458 x 338
Battery
76 Wh Lithium-Ion, 8 芯
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 高清 (720p @ 30 fps)
Additional features

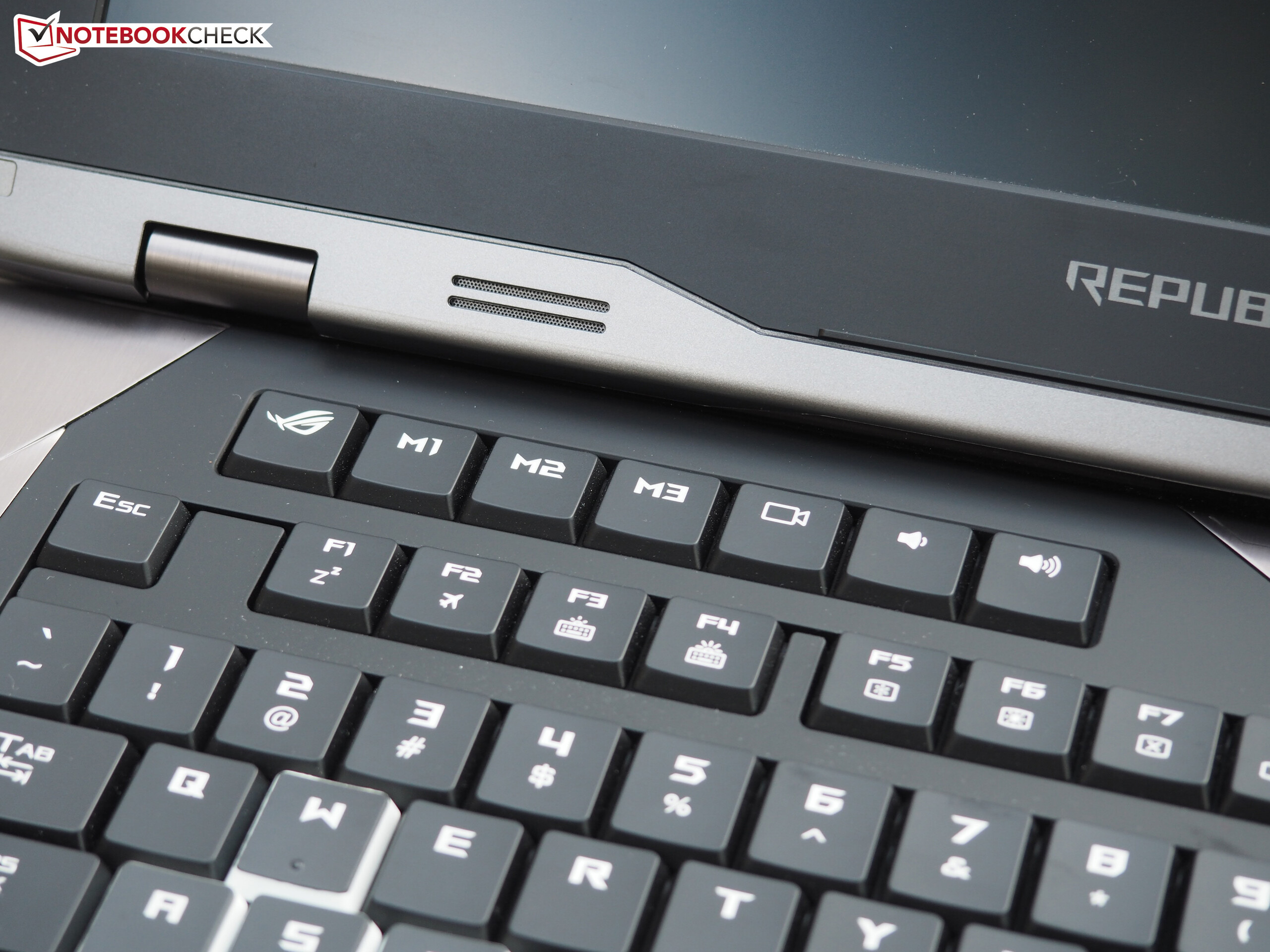

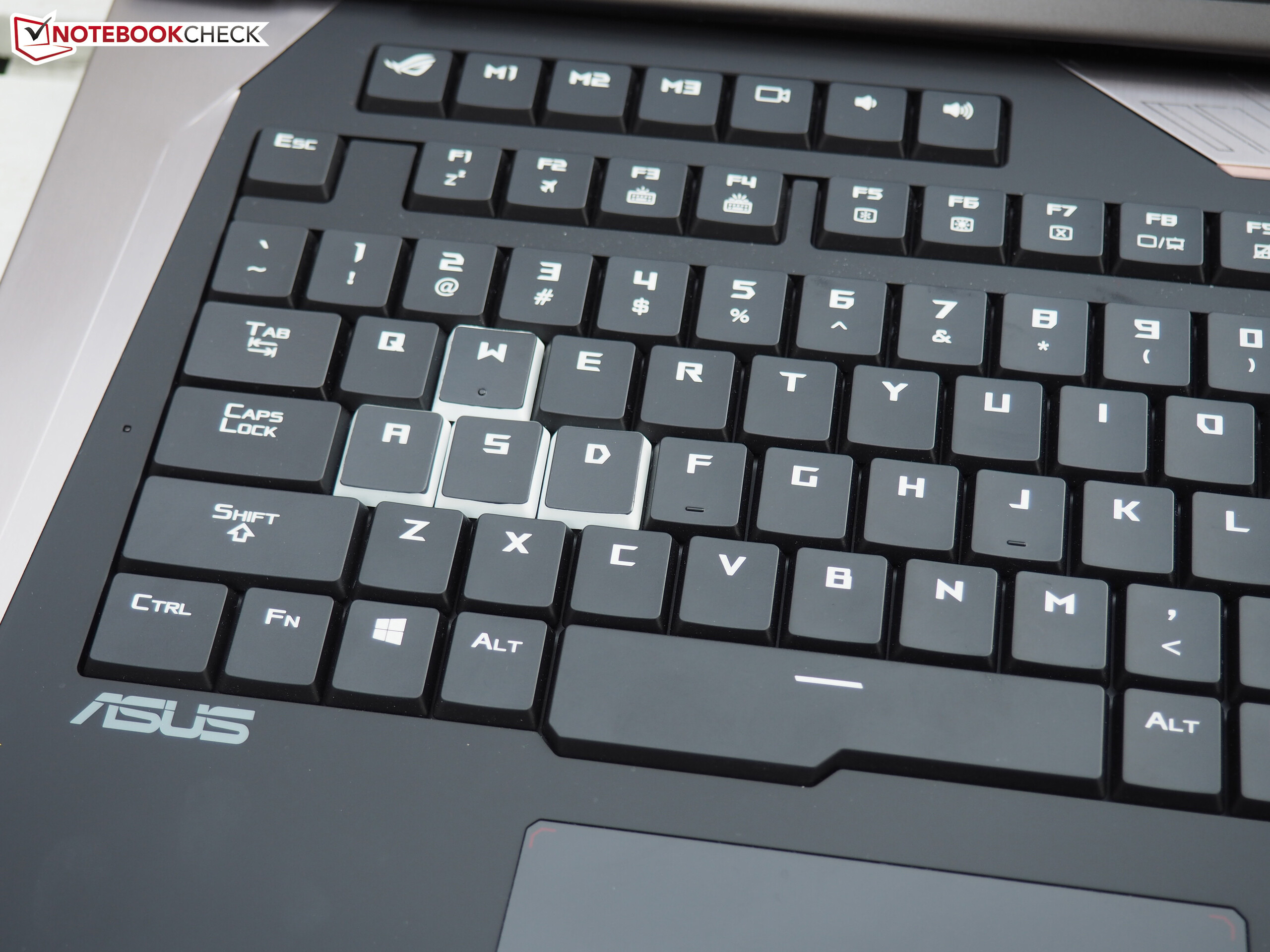

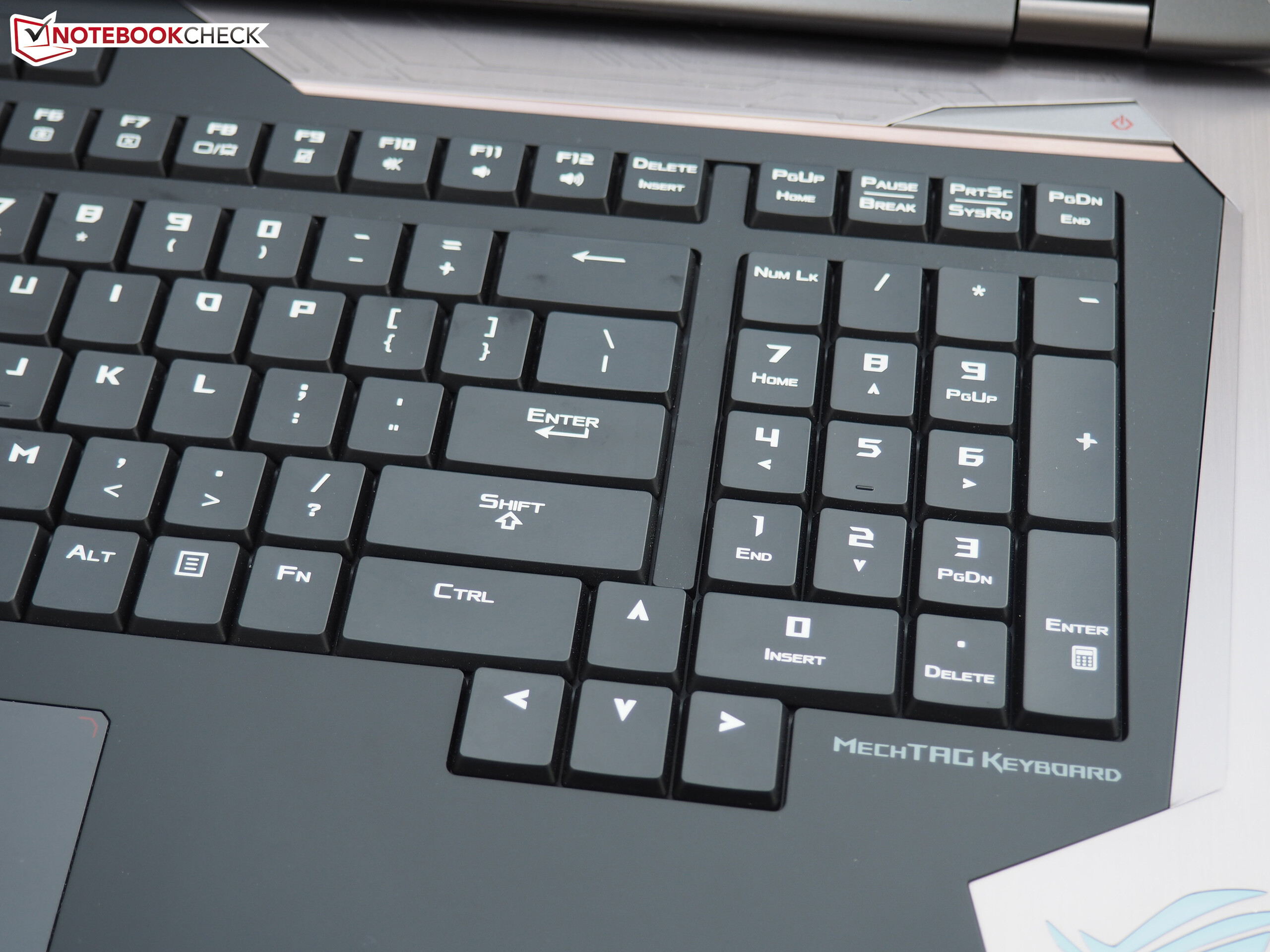

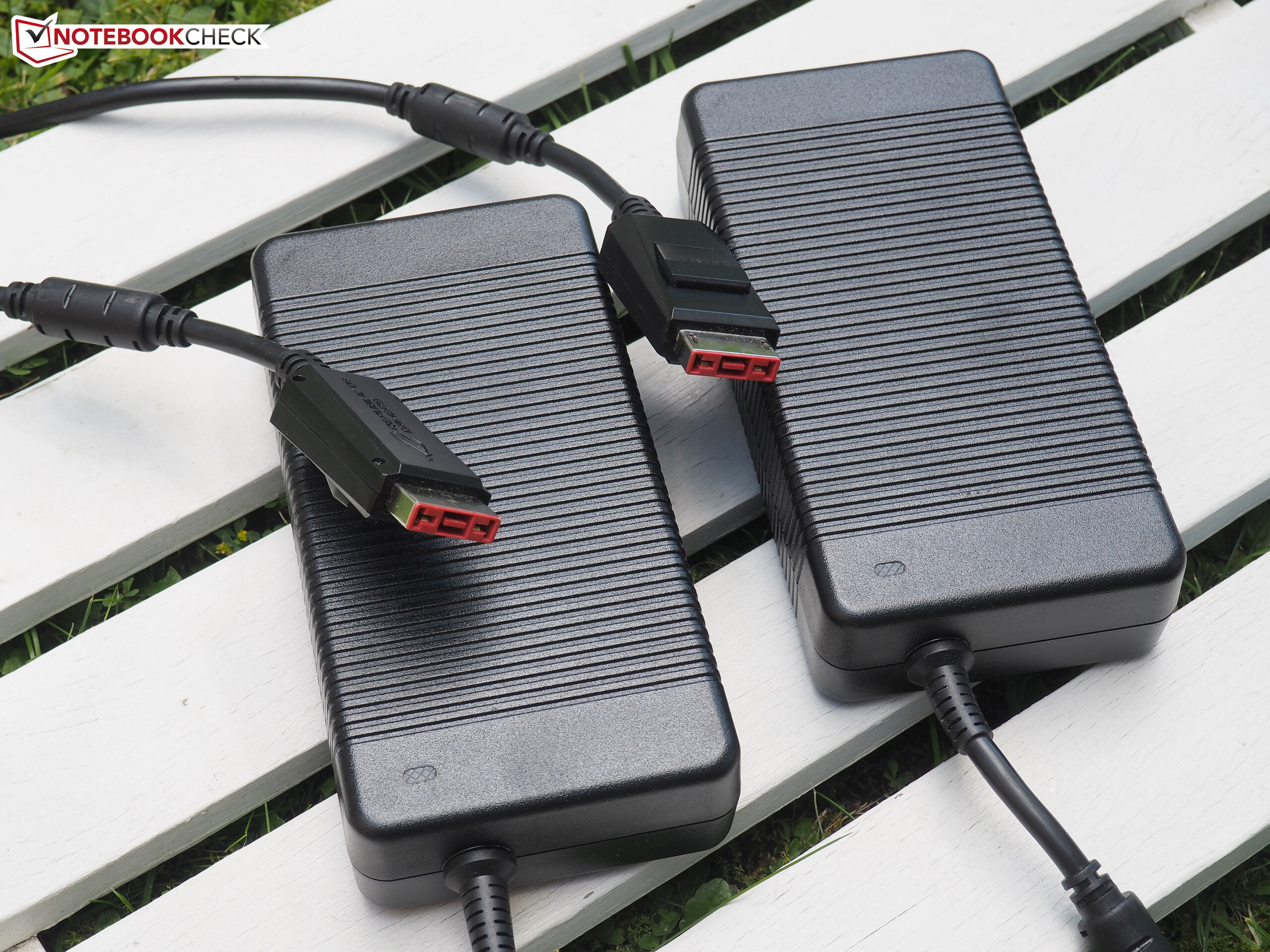

Speakers: 4.0, Keyboard: 机械, Keyboard Light: yes, 电源适配器: 2x 330 瓦, 水冷: Hydro Overclocking System, McAfee安全套装, MS Office 365 试用版, 一些生产商提供的工具软件, 24 Months Warranty
Weight
5.69 kg, Power Supply: 2 g
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Size Comparison

456 mm 330 mm 49 mm 5 kg458 mm 338 mm 45 mm 5.7 kg428 mm 308 mm 45 mm 5 kg430 mm 312 mm 38 mm 3.9 kg

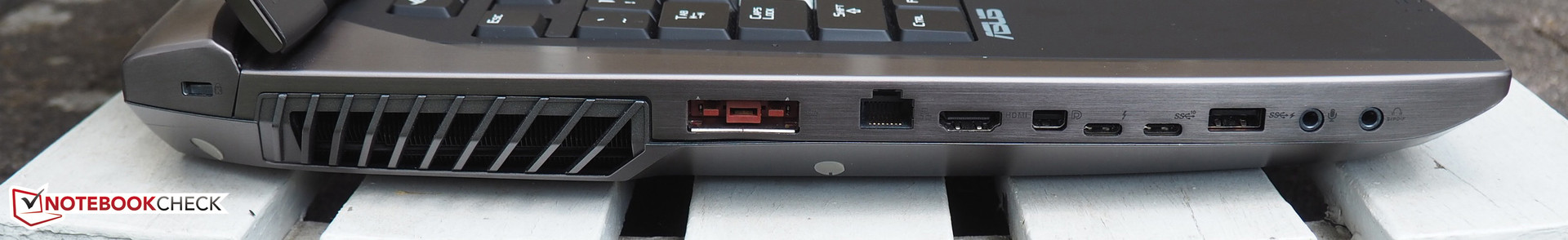

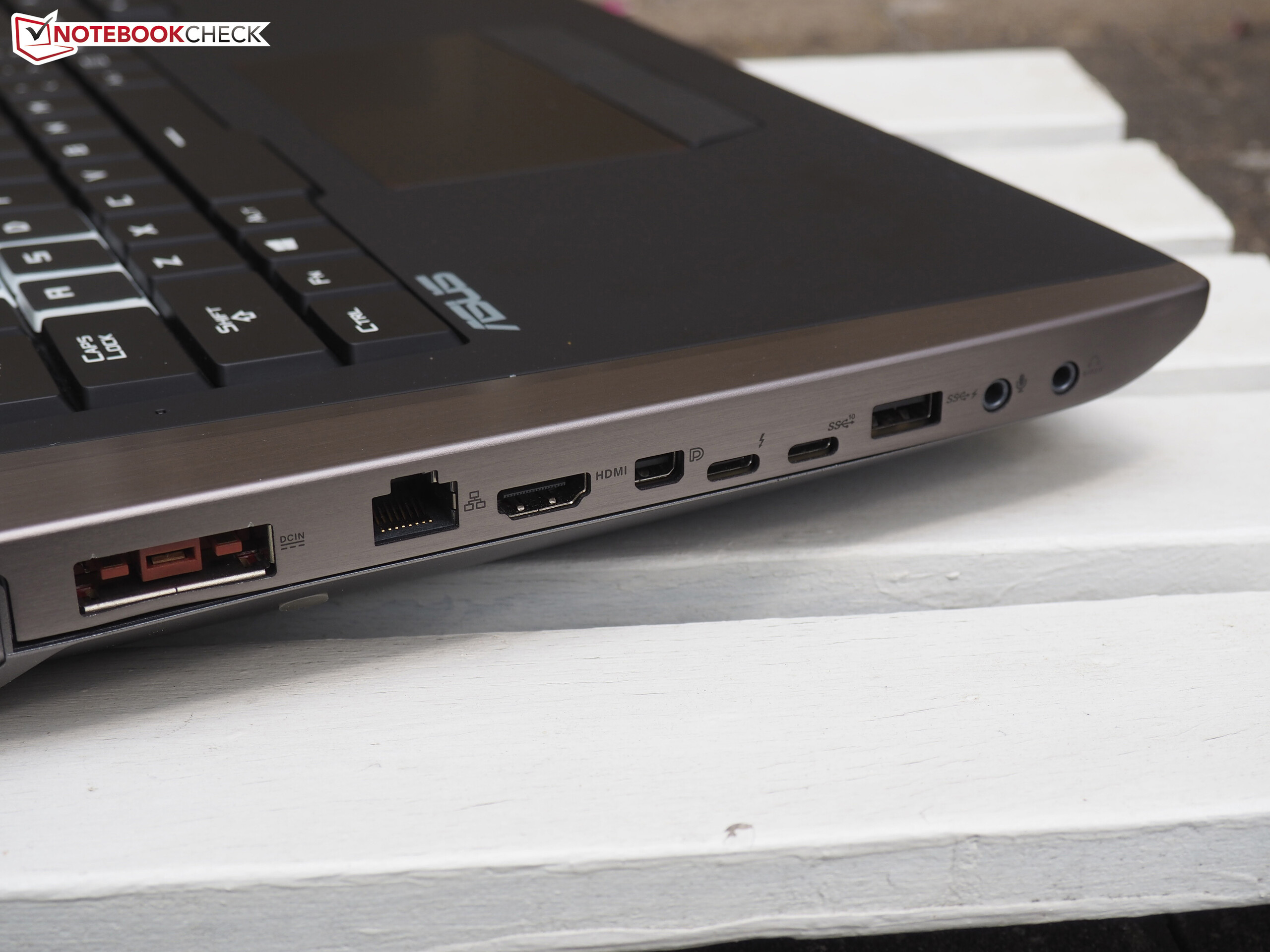

Left side: Kensington lock, power, RJ45-LAN, HDMI 2.0, Mini-DisplayPort 1.4, Thunderbolt 3.0, USB 3.1 Type-C, USB 3.0, microphone, headphones
Left side: Kensington lock, power, RJ45-LAN, HDMI 2.0, Mini-DisplayPort 1.4, Thunderbolt 3.0, USB 3.1 Type-C, USB 3.0, microphone, headphones

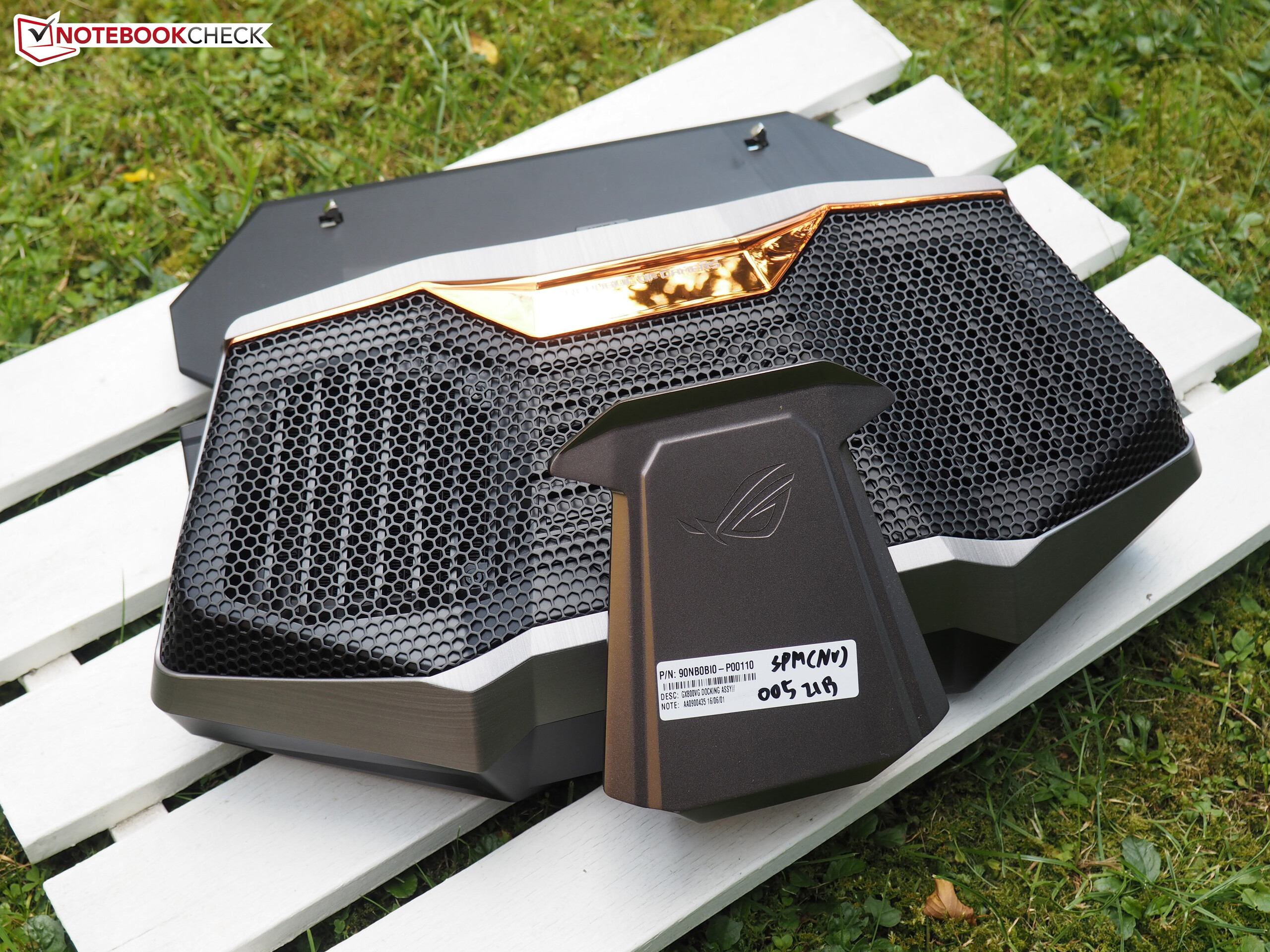

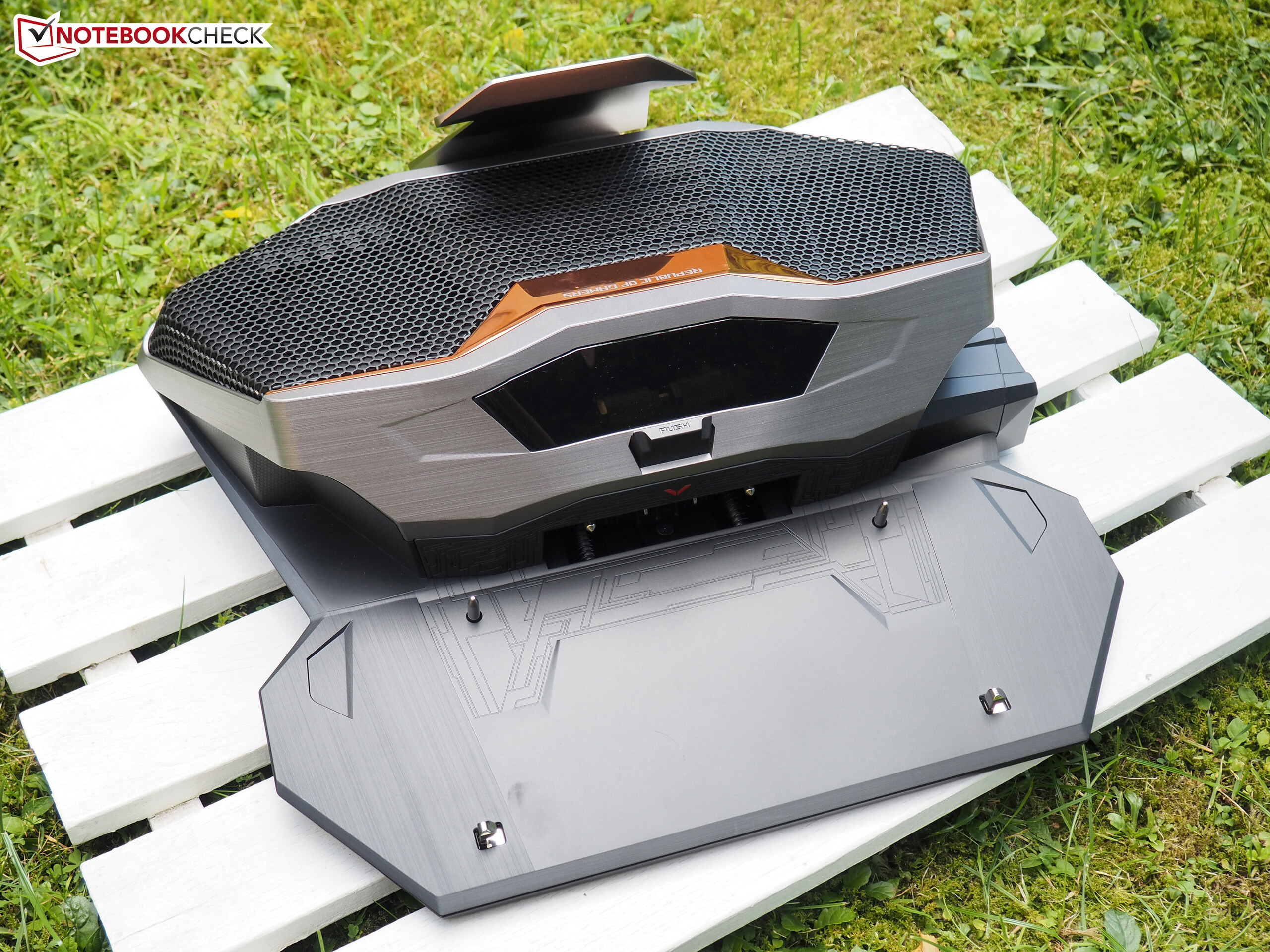

Back: connections for the water cooling
Back: connections for the water cooling

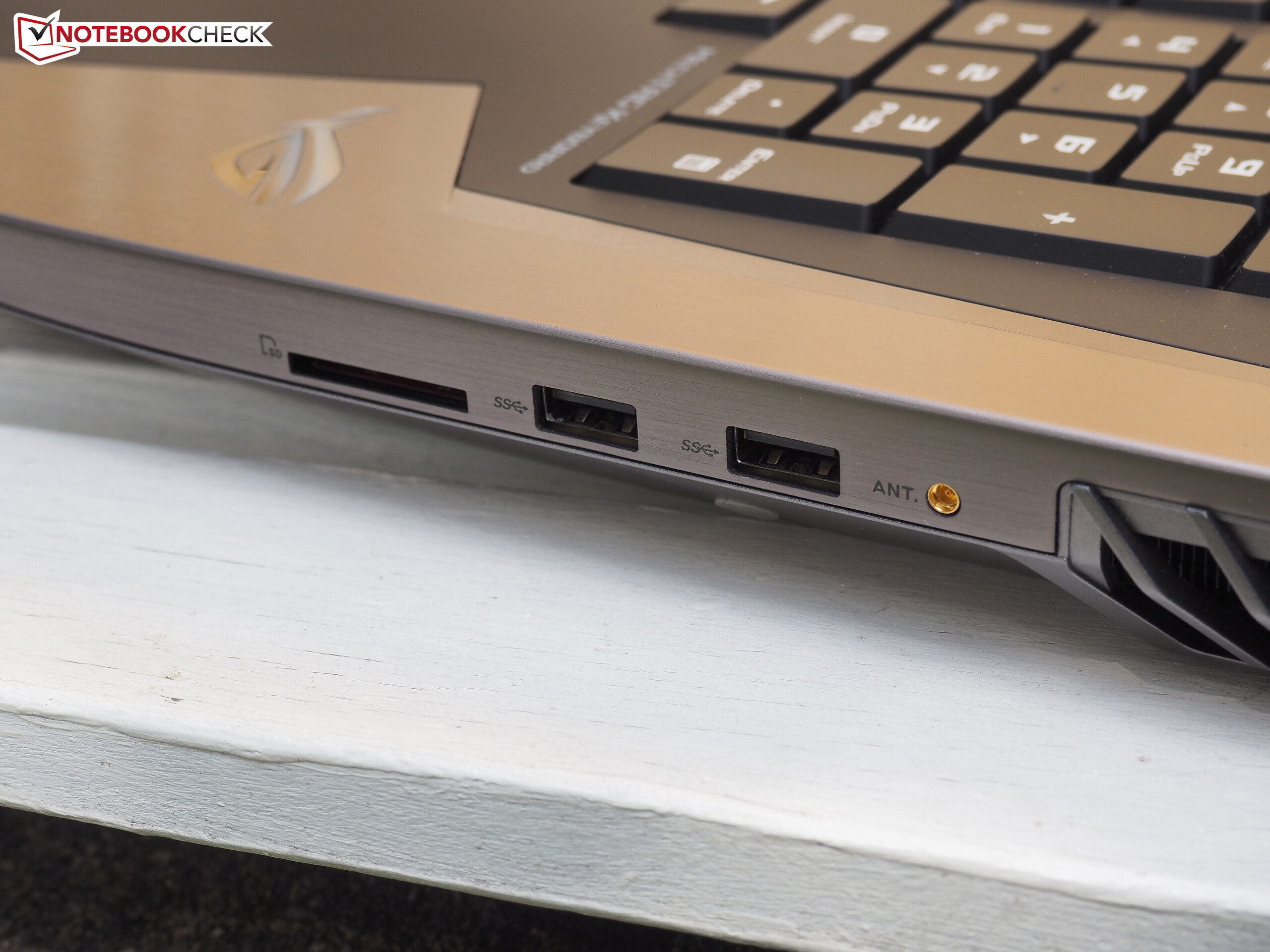

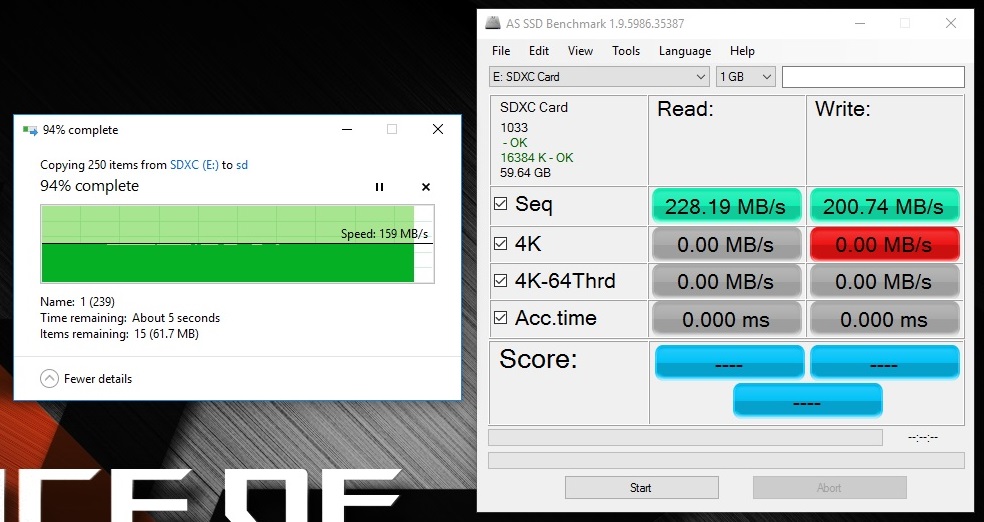

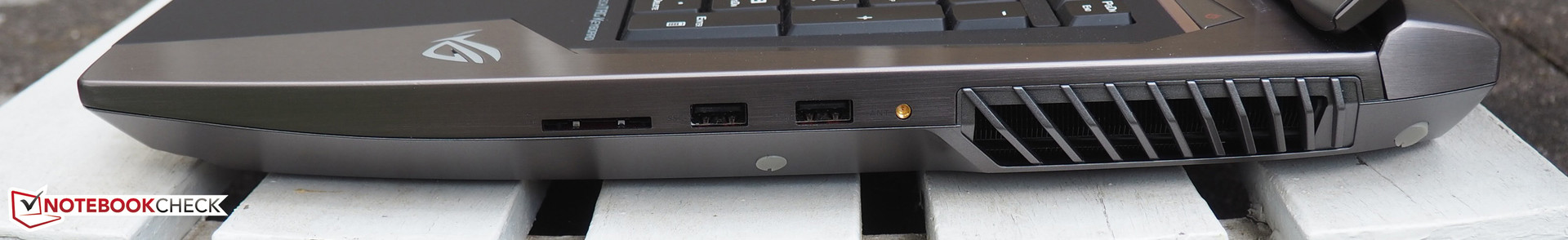

Right side: card reader, 2x USB 3.0, Wi-Fi antenna
Right side: card reader, 2x USB 3.0, Wi-Fi antenna
Cinebench R11.5 CPU Single 64Bit
2.08 Points
Cinebench R11.5 OpenGL 64Bit
85.93 fps
Cinebench R15 CPU Single 64Bit
185 Points
Cinebench R15 OpenGL 64Bit
133.78 fps
Help
Cinebench R15 - CPU Single 64Bit
Asus GX800 Prototype
Intel Core i7-6820HK
185 Points ∼85%
MSI GT80S 6QF
Intel Core i7-6820HK
174 Points ∼80% -6%
Asus GX700
Intel Core i7-6820HK
173 Points ∼79% -6%
Schenker XMG U726
Intel Core i7-6700
171 Points ∼78% -8%
Cinebench R11.5 - CPU Single 64Bit
Asus GX800 Prototype
Intel Core i7-6820HK
2.08 Points ∼85%
MSI GT80S 6QF
Intel Core i7-6820HK
1.98 Points ∼81% -5%
Asus GX700
Intel Core i7-6820HK
1.95 Points ∼80% -6%
Schenker XMG U726
Intel Core i7-6700
1.91 Points ∼78% -8%
PCMark 7 Score
8047 points
Help
PCMark 7 - Score
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK, 3x Samsung SM951 512 GB NVMe M.2 (RAID 0)
8047 Points ∼88%
Asus GX700
GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)
7933 Points ∼87% -1%
MSI GT80S 6QF
GeForce GTX 980 SLI (Laptop), 6820HK, 2x Samsung SM951 MZVPV256HDGL (RAID 0)
7386 Points ∼81% -8%
Schenker XMG U726
GeForce GTX 980 (Laptop), 6700, Samsung SM951 MZHPV512HDGL m.2 PCI-e
7093 Points ∼78% -12%

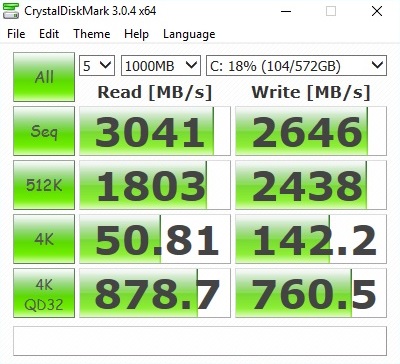

3x Samsung SM951 512 GB NVMe M.2 (RAID 0)
Sequential Read: 3041 MB/s
Sequential Write: 2646 MB/s
512K Read: 1803 MB/s
512K Write: 2438 MB/s
4K Read: 50.81 MB/s
4K Write: 142.2 MB/s
4K QD32 Read: 878.7 MB/s
4K QD32 Write: 760.5 MB/s
Asus GX800 Prototype
3x Samsung SM951 512 GB NVMe M.2 (RAID 0)
MSI GT80S 6QF
2x Samsung SM951 MZVPV256HDGL (RAID 0)
Asus GX700
2x Samsung SM951 MZVPV512HDGL (RAID 0)
Schenker XMG U726
Samsung SM951 MZHPV512HDGL m.2 PCI-e

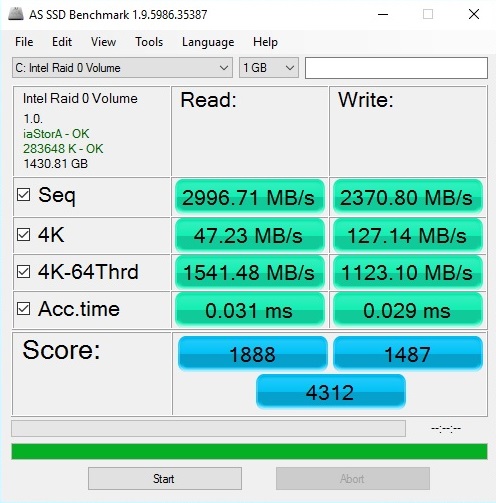

AS SSD
-9%
-4%
-32%
Score Total
4312
3336
-23%
3655
-15%
1930
-55%
4K Write
127.14
109.9
-14%
119.63
-6%
103.57
-19%
4K Read
47.23
44.96
-5%
46.43
-2%
40.45
-14%
Seq Write
2370.8
2408.14
2%
2524.75
6%
1500.24
-37%
Seq Read
2996.71
2891.62
-4%
2963.6
-1%
1943.45
-35%
3DMark 11 Performance
22627 points
3DMark Ice Storm Standard Score
197819 points
3DMark Cloud Gate Standard Score
35100 points
3DMark Fire Strike Score
19513 points
Help
3DMark
1920x1080 Fire Strike Graphics
Asus GX800 Prototype
NVIDIA GeForce GTX 980 SLI (Laptop)
27555 Points ∼68%
MSI GT80S 6QF
NVIDIA GeForce GTX 980 SLI (Laptop)
23351 Points ∼57% -15%
Asus GX700
NVIDIA GeForce GTX 980 (Laptop)
13382 Points ∼33% -51%
Schenker XMG U726
NVIDIA GeForce GTX 980 (Laptop)
13047 Points ∼32% -53%
1920x1080 Fire Strike Score
Asus GX800 Prototype
NVIDIA GeForce GTX 980 SLI (Laptop)
19513 Points ∼73%
MSI GT80S 6QF
NVIDIA GeForce GTX 980 SLI (Laptop)
17165 Points ∼64% -12%
Asus GX700
NVIDIA GeForce GTX 980 (Laptop)
11440 Points ∼43% -41%
Schenker XMG U726
NVIDIA GeForce GTX 980 (Laptop)
11096 Points ∼41% -43%
3DMark 11
1280x720 Performance GPU
Asus GX800 Prototype
NVIDIA GeForce GTX 980 SLI (Laptop)
36293 Points ∼71%
MSI GT80S 6QF
NVIDIA GeForce GTX 980 SLI (Laptop)
30045 Points ∼59% -17%
Asus GX700
NVIDIA GeForce GTX 980 (Laptop)
17864 Points ∼35% -51%
Schenker XMG U726
NVIDIA GeForce GTX 980 (Laptop)
17474 Points ∼34% -52%
1280x720 Performance
Asus GX800 Prototype
NVIDIA GeForce GTX 980 SLI (Laptop)
22627 Points ∼65%
MSI GT80S 6QF
NVIDIA GeForce GTX 980 SLI (Laptop)
20055 Points ∼57% -11%
Asus GX700
NVIDIA GeForce GTX 980 (Laptop)
15462 Points ∼44% -32%
Schenker XMG U726
NVIDIA GeForce GTX 980 (Laptop)
14925 Points ∼43% -34%
Unigine Heaven 4.0 - Extreme Preset DX11
Asus GX800 Prototype
NVIDIA GeForce GTX 980 SLI (Laptop)
149.5 fps ∼67%
MSI GT80S 6QF
NVIDIA GeForce GTX 980 SLI (Laptop)
129.5 fps ∼58% -13%
Schenker XMG U726
NVIDIA GeForce GTX 980 (Laptop)
78.7 fps ∼35% -47%
Asus GX700
NVIDIA GeForce GTX 980 (Laptop)
78.3 fps ∼35% -48%
Mirror's Edge Catalyst
3840x2160 High Preset AF:16x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
48.3 fps ∼100%
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
47 (min: 44, max: 50) fps ∼97% -3%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
31 fps ∼64% -36%
1920x1080 Ultra Preset AF:16x
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
121 (min: 108, max: 131) fps ∼100% +1%
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
119.3 fps ∼99%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
81.9 fps ∼68% -31%
Overwatch
3840x2160 High (Render Scale 100 %) AA:SM AF:4x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
143 fps ∼100%
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
104 (min: 88, max: 121) fps ∼73% -27%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
69.4 fps ∼49% -51%
1920x1080 Epic (Render Scale 100 %) AA:SM AF:16x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
297.4 fps ∼100%
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
196 (min: 164, max: 231) fps ∼66% -34%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
125.9 fps ∼42% -58%
Doom
3840x2160 High Preset AA:FX
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
70.3 fps ∼100%
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
56.5 fps ∼80% -20%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
41.4 fps ∼59% -41%
1920x1080 Ultra Preset AA:SM
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
160.3 fps ∼100%
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
137 (min: 112, max: 191) fps ∼85% -15%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
116 fps ∼72% -28%
Need for Speed 2016
3840x2160 High / On AA:FX
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
75.1 fps ∼100%
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
61 (min: 47, max: 75) fps ∼81% -19%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
40.5 fps ∼54% -46%
1920x1080 Ultra / On AA:T
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
104 (min: 64, max: 148) fps ∼100% +12%
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
93.1 fps ∼90%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
77.3 fps ∼74% -17%
Hitman 2016
3840x2160 High / On AA:FX AF:8x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
54.6 fps ∼100%
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
42 (min: 34, max: 53) fps ∼77% -23%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
28.8 fps ∼53% -47%
1920x1080 Ultra / On AA:SM AF:16x
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
78 (min: 61, max: 96) fps ∼100% +10%
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
70.6 fps ∼91%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
61.3 fps ∼79% -13%
The Division
3840x2160 High Preset AF:8x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
55.1 fps ∼100%
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
48.5 (min: 19, max: 65) fps ∼88% -12%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
33.3 fps ∼60% -40%
1920x1080 Ultra Preset AF:16x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
100.6 fps ∼100%
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
95 (min: 55, max: 125) fps ∼94% -6%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
64.6 fps ∼64% -36%
Far Cry Primal
3840x2160 High Preset AA:SM
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
56 fps ∼100%
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
49 (min: 46, max: 53) fps ∼88% -12%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
32 fps ∼57% -43%
1920x1080 Ultra Preset AA:SM
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
106 (min: 80, max: 125) fps ∼100% +25%
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
85 fps ∼80%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
68 fps ∼64% -20%
XCOM 2
3840x2160 High Preset AA:FX AF:8x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
39 fps ∼100%
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
30.4 (min: 27, max: 34) fps ∼78% -22%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
20.1 fps ∼52% -48%
1920x1080 Maximum Preset (8xMSAA instead of FXAA) AA:8xMS AF:16x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
59.9 fps ∼100%
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
48 (min: 43, max: 52) fps ∼80% -20%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
33.4 fps ∼56% -44%
Rise of the Tomb Raider
3840x2160 High Preset AA:FX AF:4x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
60.9 fps ∼100%
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
50 fps ∼82% -18%
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
47.8 (min: 43, max: 54) fps ∼78% -22%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
33.7 fps ∼55% -45%
1920x1080 Very High Preset AA:FX AF:16x
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
112 (min: 105, max: 124) fps ∼100% +19%
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
112 (min: 105) fps ∼100% +19%
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
112 fps ∼100% +19%
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
94.4 fps ∼84%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
77.1 fps ∼69% -18%
low med. high ultra4K
Rise of the Tomb Raider (2016) 107.39594.794.460.9fps
XCOM 2 (2016) 129.6109.510859.939fps
Far Cry Primal (2016) 9897868556fps
The Division (2016) 226189.9126.5100.655.1fps
Hitman 2016 (2016) 84.879.77270.654.6fps
Need for Speed 2016 (2016) 133.4122.4121.493.175.1fps
Doom (2016) 192.7189.8168.7160.370.3fps
Overwatch (2016) 299.9299.8299.8297.4143fps
Mirror's Edge Catalyst (2016) 197.4145.4124.4119.348.3fps
Power Consumption
Off / Standbydarklight 2.8 / 5.2 Watt
Idledarkmidlight 58 / 68 / 74 Watt
Load midlight 200 / 590 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
MSI GT80S 6QF
GeForce GTX 980 SLI (Laptop), 6820HK
Asus GX700
GeForce GTX 980 (Laptop), 6820HK
Schenker XMG U726
GeForce GTX 980 (Laptop), 6700
Power Consumption
22%
34%
36%
Idle Minimum *
58
44
24%
40
31%
36
38%
Idle Average *
68
53
22%
45
34%
45
34%
Idle Maximum *
74
62
16%
51
31%
53
28%
Load Average *
200
163
18%
149
25%
139
30%
Load Maximum *
590
411
30%
313
47%
306
48%

* ... smaller is better

Pros

+ 机械键盘支持丰富的背光功能
+ 可选的处理器和显卡超频
+ 最终产品将会搭配4K屏幕和G-Sync
+ 众多的接口(如Thunderbolt)
+ 三块NVMe固态硬盘,RAID 0设置
+ 出色的性能
+ 舒适的触控版
+ 64 GB DDR4内存
+ 大胆的概念
+ 美观的设计
+ 强大的工具软件

Cons

- 常见的双显卡问题(依赖驱动,微卡帧……)
- 使用水冷系统共需要两个电源适配器
- 高功耗
- 不易于维护
- 沉重的机身
- 便携性有限

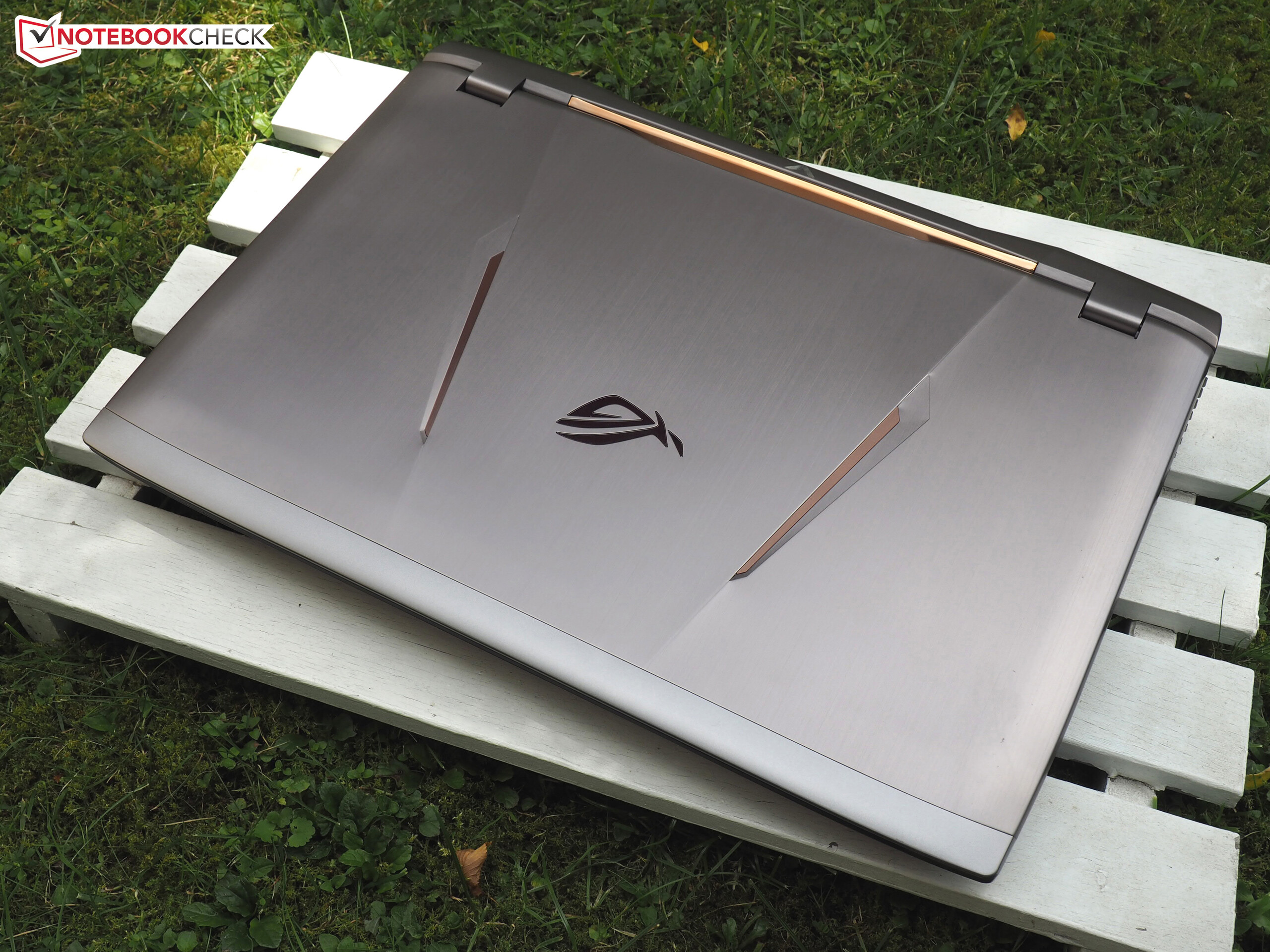

Asus GX800. Prototype courtesy of Asus Taiwan.
Asus GX800. Prototype courtesy of Asus Taiwan.

这台来自华硕的笔记本电脑中的外置水冷系统可能是近几年来最有创意的设计之一。GX700是一台独特的产品,而现在它的GX800也走上了舞台。

它最主要的亮点在于性能和功能。不仅是固态硬盘的数量和容量,同时还有显卡的数量。延续“二大于一”的理念,这台笔记本电脑现在搭配了两块来自Nvidia的高端显卡。得力于超频的帮助,它们可以在4K分辨率下为用户带来流畅的体验。

不过,它的SLI显卡系统大幅提高了机身重量和功耗。支持G-Sync和UHD屏幕、丰富的接口(USB 3.1 C型,Thunderbolt 3,HDMI 2.0等)也都是它的优势。

GX800是统一搭配双显卡的微星 GT80S(或更准确的说,它的后续机型)的直接竞争对手,搭配传统风冷系统的这台设备也有自己的优势和缺陷。

在我们拿到最终上市机型后肯定还会有一篇“真正”的评测文章发表。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里。

Pricecompare

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > 华硕 ROG GX800 笔记本电脑简短评测
Florian Glaser, 2016-07-20 (Update: 2016-07-23)
