东芝 Portege Z30t-B1320W10 笔记本电脑简短评测
Toshiba Portege Z30t-B1320W10

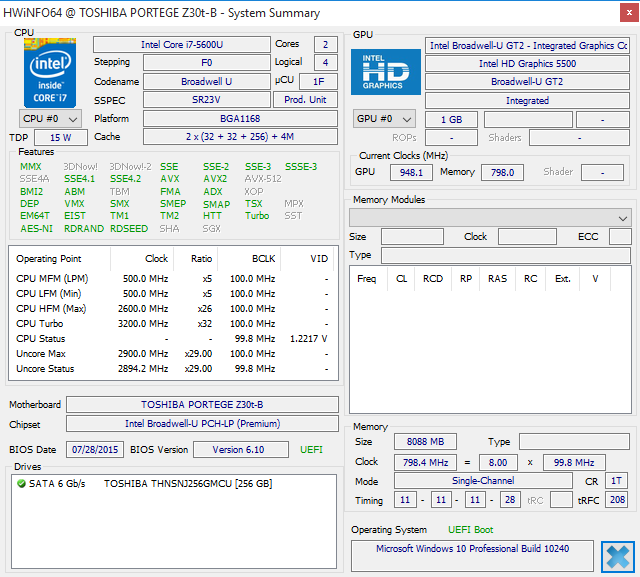

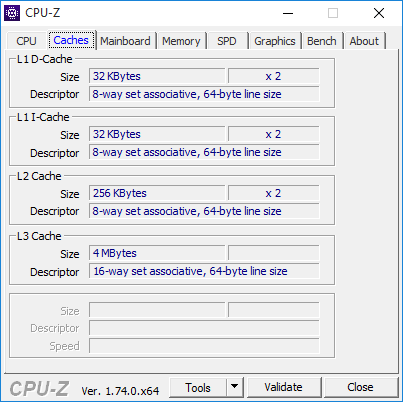

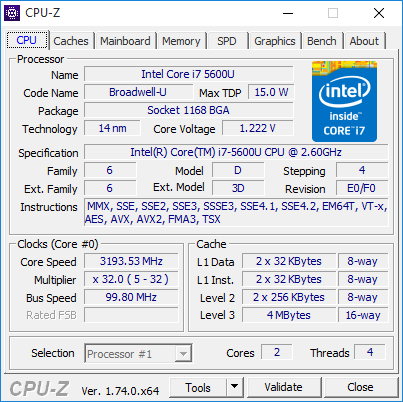

Processor
Intel Core i7-5600U 2 x 2.6 - 3.2 GHz, Broadwell

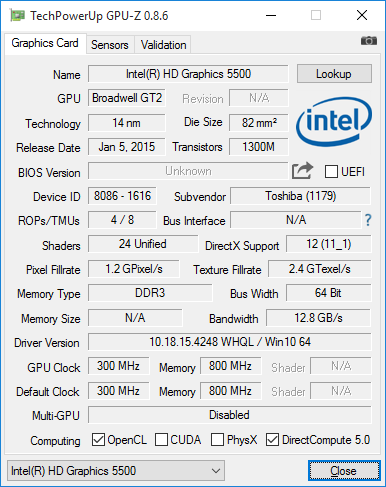

Graphics adapter
Intel HD Graphics 5500, Core: 950 MHz, 10.18.15.4248

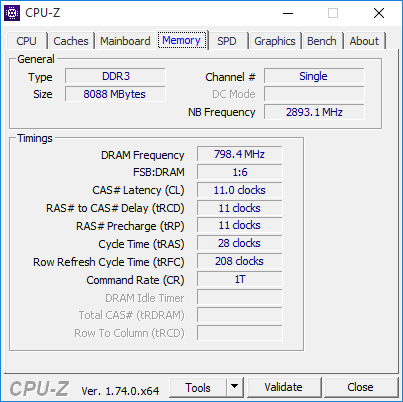

Memory
8 GB
, DDR3-1600 MHz
Display
13.30 inch 16:9, 1920 x 1080 pixel, 10点触控, TOS508F, IPS, 抗反光滤镜, glossy: no

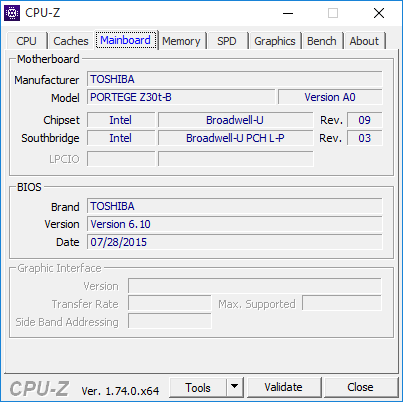

Mainboard
Intel Wildcat Point-LP
Storage
Toshiba THNSNJ256GMCU, 256 GB
, 256 GB
Weight
1.326 kg, Power Supply: 232 g
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||
TOS508F tested with X-Rite i1Basic Pro 2
Maximum: 296.1 cd/m² (Nits) Average: 284 cd/m²Brightness Distribution: 90 %
Center on Battery: 296.1 cd/m²
Contrast: 961:1 (Black: 0.308 cd/m²)
ΔE ColorChecker Calman: 3 | ∀{0.5-29.43 Ø4.79}
ΔE Greyscale Calman: 1.61 | ∀{0.09-98 Ø5}
96.57% sRGB (Argyll 1.6.3 3D)
62.37% AdobeRGB 1998 (Argyll 1.6.3 3D)
68.9% AdobeRGB 1998 (Argyll 3D)
96.8% sRGB (Argyll 3D)
67.1% Display P3 (Argyll 3D)
Gamma: 2.18
CCT: 6716 K
| Toshiba Portege Z30t-B1320W10 13.3", 1920x1080 | Lenovo ThinkPad X250-20CLS06D00 12.5", 1920x1080 | Lenovo ThinkPad T450s-20BWS03F00 14", 1920x1080 | HP Elitebook Revolve 810 G3 11.6", 1366x768 | Dell Latitude E7450 14", 1920x1080 | |
|---|---|---|---|---|---|
| Display | -33% | -9% | -30% | -3% | |
| Display P3 Coverage (%) | 67.1 | 44.14 -34% | 64.8 -3% | 46.85 -30% | 66.6 -1% |
| sRGB Coverage (%) | 96.8 | 65.8 -32% | 83.8 -13% | 69.1 -29% | 92.4 -5% |
| AdobeRGB 1998 Coverage (%) | 68.9 | 45.71 -34% | 61.2 -11% | 48.42 -30% | 67.7 -2% |
| Response Times | |||||
| Response Time Grey 50% / Grey 80% * (ms) | 59.2 ? | ||||
| Response Time Black / White * (ms) | 50.4 ? | ||||
| PWM Frequency (Hz) | 215.5 | ||||
| Screen | -22% | -20% | -32% | -18% | |
| Brightness middle (cd/m²) | 296.1 | 397 34% | 272 -8% | 322 9% | 280 -5% |
| Brightness (cd/m²) | 284 | 357 26% | 268 -6% | 312 10% | 257 -10% |
| Brightness Distribution (%) | 90 | 81 -10% | 91 1% | 87 -3% | 75 -17% |
| Black Level * (cd/m²) | 0.308 | 0.44 -43% | 0.245 20% | 0.32 -4% | 0.3 3% |
| Contrast (:1) | 961 | 902 -6% | 1110 16% | 1006 5% | 933 -3% |
| Colorchecker dE 2000 * | 3 | 4.2 -40% | 4.35 -45% | 5.19 -73% | 3.45 -15% |
| Greyscale dE 2000 * | 1.61 | 3.1 -93% | 3.7 -130% | 4.36 -171% | 3.35 -108% |
| Gamma | 2.18 101% | 2.6 85% | 2.68 82% | 2.26 97% | 2.37 93% |
| CCT | 6716 97% | 6246 104% | 6076 107% | 5985 109% | 6940 94% |
| Color Space (Percent of AdobeRGB 1998) (%) | 62.37 | 42 -33% | 54.7 -12% | 44.3 -29% | 60 -4% |
| Color Space (Percent of sRGB) (%) | 96.57 | 65.5 -32% | 83.5 -14% | 92 -5% | |
| Total Average (Program / Settings) | -28% /
-25% | -15% /
-17% | -31% /
-31% | -11% /
-14% |
* ... smaller is better
Display Response Times
ℹ

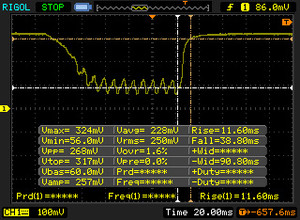

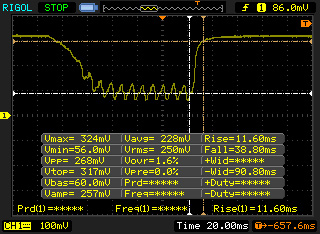

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 50.4 ms ... rise ↗ and fall ↘ combined | ↗ 11.6 ms rise |  |
| ↘ 38.8 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 99 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.3 ms). | ||

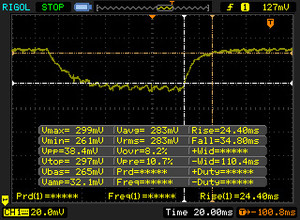

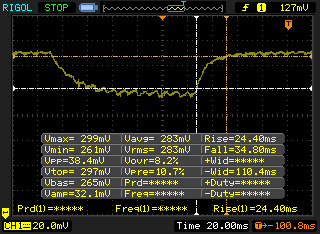

| ↔ Response Time 50% Grey to 80% Grey | ||
| 59.2 ms ... rise ↗ and fall ↘ combined | ↗ 24.4 ms rise |  |
| ↘ 34.8 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 95 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (31.7 ms). | ||
Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM detected | 215.5 Hz |  | |

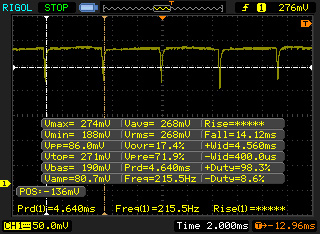

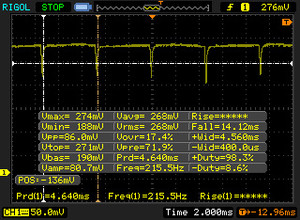

The display backlight flickers at 215.5 Hz (worst case, e.g., utilizing PWM) . The frequency of 215.5 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8170 (minimum: 5 - maximum: 343500) Hz was measured. | |||
| Cinebench R10 | |
| Rendering Single CPUs 64Bit (sort by value) | |
| Toshiba Portege Z30t-B1320W10 | |
| Lenovo ThinkPad X250-20CLS06D00 | |
| Lenovo ThinkPad T450s-20BWS03F00 | |
| Dell Latitude E7450 | |
| Rendering Multiple CPUs 64Bit (sort by value) | |
| Toshiba Portege Z30t-B1320W10 | |
| Lenovo ThinkPad X250-20CLS06D00 | |
| Lenovo ThinkPad T450s-20BWS03F00 | |
| Dell Latitude E7450 | |
| Cinebench R11.5 | |
| CPU Single 64Bit (sort by value) | |
| Toshiba Portege Z30t-B1320W10 | |
| Lenovo ThinkPad X250-20CLS06D00 | |
| Lenovo ThinkPad T450s-20BWS03F00 | |
| HP Elitebook Revolve 810 G3 | |
| Dell Latitude E7450 | |
| CPU Multi 64Bit (sort by value) | |
| Toshiba Portege Z30t-B1320W10 | |
| Lenovo ThinkPad X250-20CLS06D00 | |
| Lenovo ThinkPad T450s-20BWS03F00 | |
| HP Elitebook Revolve 810 G3 | |
| Dell Latitude E7450 | |
| Cinebench R15 | |
| CPU Single 64Bit (sort by value) | |
| Toshiba Portege Z30t-B1320W10 | |
| Lenovo ThinkPad X250-20CLS06D00 | |
| Lenovo ThinkPad T450s-20BWS03F00 | |
| HP Elitebook Revolve 810 G3 | |
| Dell Latitude E7450 | |
| CPU Multi 64Bit (sort by value) | |
| Toshiba Portege Z30t-B1320W10 | |
| Lenovo ThinkPad X250-20CLS06D00 | |
| Lenovo ThinkPad T450s-20BWS03F00 | |
| HP Elitebook Revolve 810 G3 | |
| Dell Latitude E7450 | |
| PCMark 7 - Score (sort by value) | |
| Toshiba Portege Z30t-B1320W10 | |
| Lenovo ThinkPad X250-20CLS06D00 | |
| Lenovo ThinkPad T450s-20BWS03F00 | |
| HP Elitebook Revolve 810 G3 | |
| Dell Latitude E7450 | |
| PCMark 8 | |
| Home Score Accelerated v2 (sort by value) | |
| Toshiba Portege Z30t-B1320W10 | |
| Lenovo ThinkPad X250-20CLS06D00 | |
| Lenovo ThinkPad T450s-20BWS03F00 | |
| HP Elitebook Revolve 810 G3 | |
| Dell Latitude E7450 | |
| Work Score Accelerated v2 (sort by value) | |
| Toshiba Portege Z30t-B1320W10 | |
| Lenovo ThinkPad X250-20CLS06D00 | |
| Lenovo ThinkPad T450s-20BWS03F00 | |
| HP Elitebook Revolve 810 G3 | |
| Dell Latitude E7450 | |
| Creative Score Accelerated v2 (sort by value) | |
| Toshiba Portege Z30t-B1320W10 | |
| Lenovo ThinkPad X250-20CLS06D00 | |
| Lenovo ThinkPad T450s-20BWS03F00 | |
| HP Elitebook Revolve 810 G3 | |
| Dell Latitude E7450 | |
| PCMark 7 Score | 4966 points | |
| PCMark 8 Home Score Accelerated v2 | 3062 points | |
| PCMark 8 Creative Score Accelerated v2 | 3716 points | |
| PCMark 8 Work Score Accelerated v2 | 4330 points | |
Help | ||
Toshiba THNSNJ256GMCU
Transfer Rate Minimum:
284 MB/s
Transfer Rate Maximum:
410.7 MB/s
Transfer Rate Average:
330.1 MB/s
Access Time:
0.1 ms
Burst Rate:
226.2 MB/s
CPU Usage:
2.7 %
| 3DMark 06 Standard Score | 6548 points | |
| 3DMark 11 Performance | 1220 points | |
| 3DMark Ice Storm Standard Score | 45426 points | |
| 3DMark Cloud Gate Standard Score | 5008 points | |
| 3DMark Fire Strike Score | 644 points | |
| 3DMark Fire Strike Extreme Score | 291 points | |
Help | ||
| 3DMark 11 - 1280x720 Performance (sort by value) | |
| Toshiba Portege Z30t-B1320W10 | |
| Lenovo ThinkPad X250-20CLS06D00 | |
| Lenovo ThinkPad T450s-20BWS03F00 | |
| HP Elitebook Revolve 810 G3 | |
| Dell Latitude E7450 | |
| 3DMark | |
| 1920x1080 Fire Strike Score (sort by value) | |
| Toshiba Portege Z30t-B1320W10 | |
| Lenovo ThinkPad X250-20CLS06D00 | |
| Lenovo ThinkPad T450s-20BWS03F00 | |
| HP Elitebook Revolve 810 G3 | |
| Dell Latitude E7450 | |
| 1280x720 Cloud Gate Standard Score (sort by value) | |
| Toshiba Portege Z30t-B1320W10 | |
| Lenovo ThinkPad X250-20CLS06D00 | |
| Lenovo ThinkPad T450s-20BWS03F00 | |
| HP Elitebook Revolve 810 G3 | |
| Dell Latitude E7450 | |
| 1280x720 Ice Storm Standard Score (sort by value) | |
| Toshiba Portege Z30t-B1320W10 | |
| Lenovo ThinkPad X250-20CLS06D00 | |
| Lenovo ThinkPad T450s-20BWS03F00 | |
| HP Elitebook Revolve 810 G3 | |
| Dell Latitude E7450 | |
| low | med. | high | ultra | |
|---|---|---|---|---|
| BioShock Infinite (2013) | 33.74 | 19.5 | 15.81 | 8.98 |
| Toshiba Portege Z30t-B1320W10 HD Graphics 5500, 5600U, Toshiba THNSNJ256GMCU | Lenovo ThinkPad X250-20CLS06D00 HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L | Lenovo ThinkPad T450s-20BWS03F00 HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L | HP Elitebook Revolve 810 G3 HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP | Dell Latitude E7450 HD Graphics 5500, 5300U, Samsung SSD PM851 mSATA 128 GB | |
|---|---|---|---|---|---|
| Noise | 6% | 6% | 4% | 2% | |
| Idle Minimum * (dB) | 30.2 | 29 4% | 29.1 4% | 29.1 4% | 29.1 4% |
| Idle Average * (dB) | 30.3 | 29 4% | 29.1 4% | 29.1 4% | 29.1 4% |
| Idle Maximum * (dB) | 32.2 | 30.3 6% | 29.1 10% | 29.1 10% | 30 7% |
| Load Average * (dB) | 35.6 | 33.4 6% | 34.3 4% | 35.6 -0% | 36.4 -2% |
| Load Maximum * (dB) | 37.6 | 33.7 10% | 34.8 7% | 37.2 1% | 37.8 -1% |
* ... smaller is better
Noise level
| Idle |
| 30.2 / 30.3 / 32.2 dB(A) |
| Load |
| 35.6 / 37.6 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  BK Precision 732A (15 cm distance) | ||
(+) The average temperature for the upper side under maximal load is 27 °C / 81 F, compared to the average of 30.8 °C / 87 F for the devices in the class Subnotebook.
(+) The maximum temperature on the upper side is 34.4 °C / 94 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.

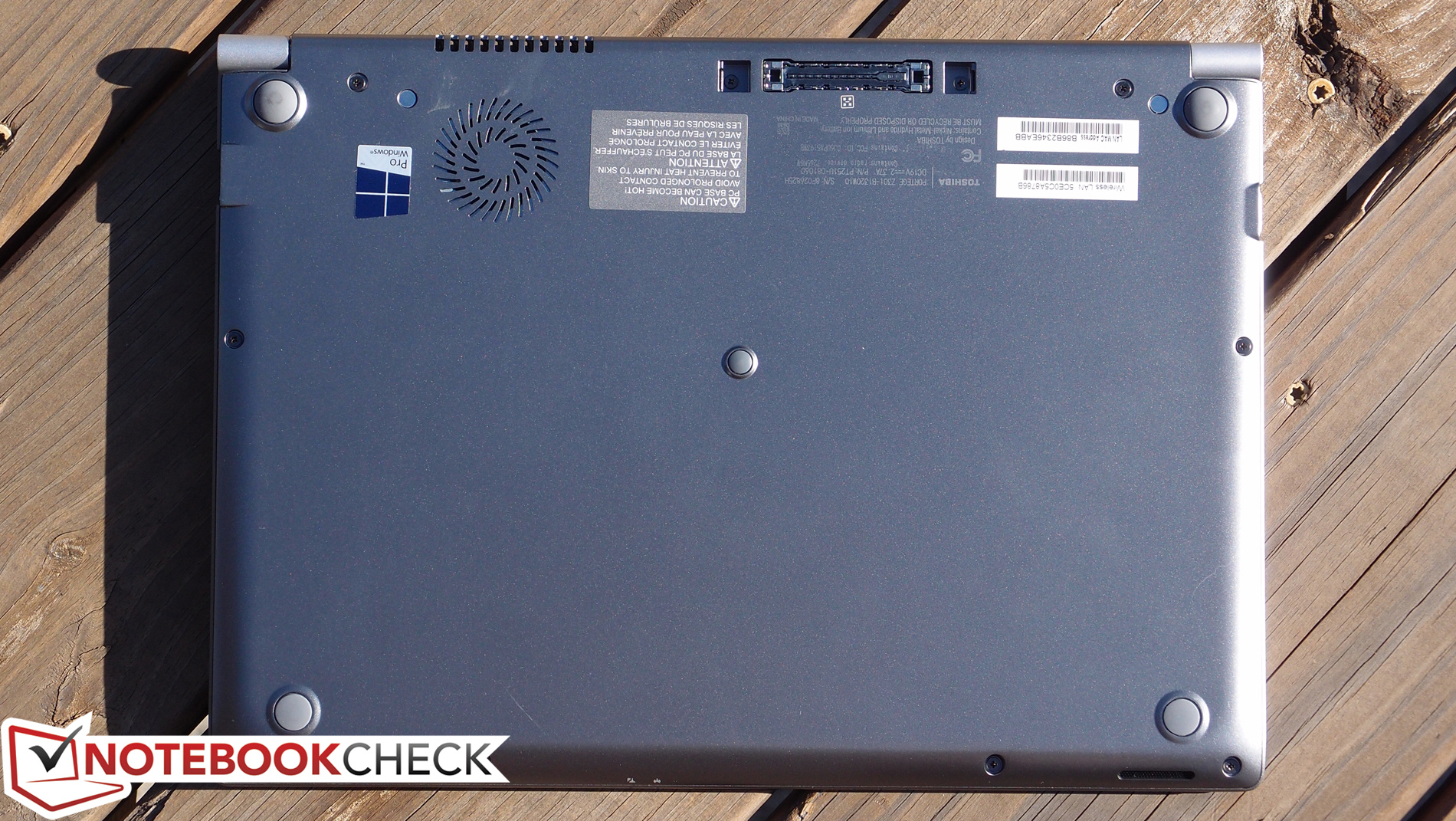

(+) The bottom heats up to a maximum of 31.8 °C / 89 F, compared to the average of 39.3 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 22.4 °C / 72 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 22.6 °C / 72.7 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 28.2 °C / 82.8 F (+5.6 °C / 10.1 F).
(+) The maximum temperature on the upper side is 34.4 °C / 94 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(+) The bottom heats up to a maximum of 31.8 °C / 89 F, compared to the average of 39.3 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 22.4 °C / 72 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 22.6 °C / 72.7 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 28.2 °C / 82.8 F (+5.6 °C / 10.1 F).
| Toshiba Portege Z30t-B1320W10 HD Graphics 5500, 5600U, Toshiba THNSNJ256GMCU | Lenovo ThinkPad X250-20CLS06D00 HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L | Lenovo ThinkPad T450s-20BWS03F00 HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L | HP Elitebook Revolve 810 G3 HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP | Dell Latitude E7450 HD Graphics 5500, 5300U, Samsung SSD PM851 mSATA 128 GB | Dell XPS 13-9350 HD Graphics 520, 6200U, Samsung PM951 NVMe MZ-VLV256D | |
|---|---|---|---|---|---|---|
| Battery runtime | -33% | -35% | -3% | -19% | -5% | |
| Reader / Idle (h) | 20.7 | 13 -37% | 12.9 -38% | 18.4 -11% | 11.9 -43% | 13 -37% |
| WiFi v1.3 (h) | 7.8 | 5 -36% | 4.6 -41% | 8.3 6% | 7 -10% | 7.5 -4% |
| Load (h) | 2 | 1.5 -25% | 1.5 -25% | 1.9 -5% | 1.9 -5% | 2.5 25% |
| H.264 (h) | 5.7 | 5.4 | 7.1 | 7.5 | ||
| WiFi (h) | 5.4 | 5.6 | 7.7 |
Pros
+ 轻盈的镁合金机身
+ 坚固的机身

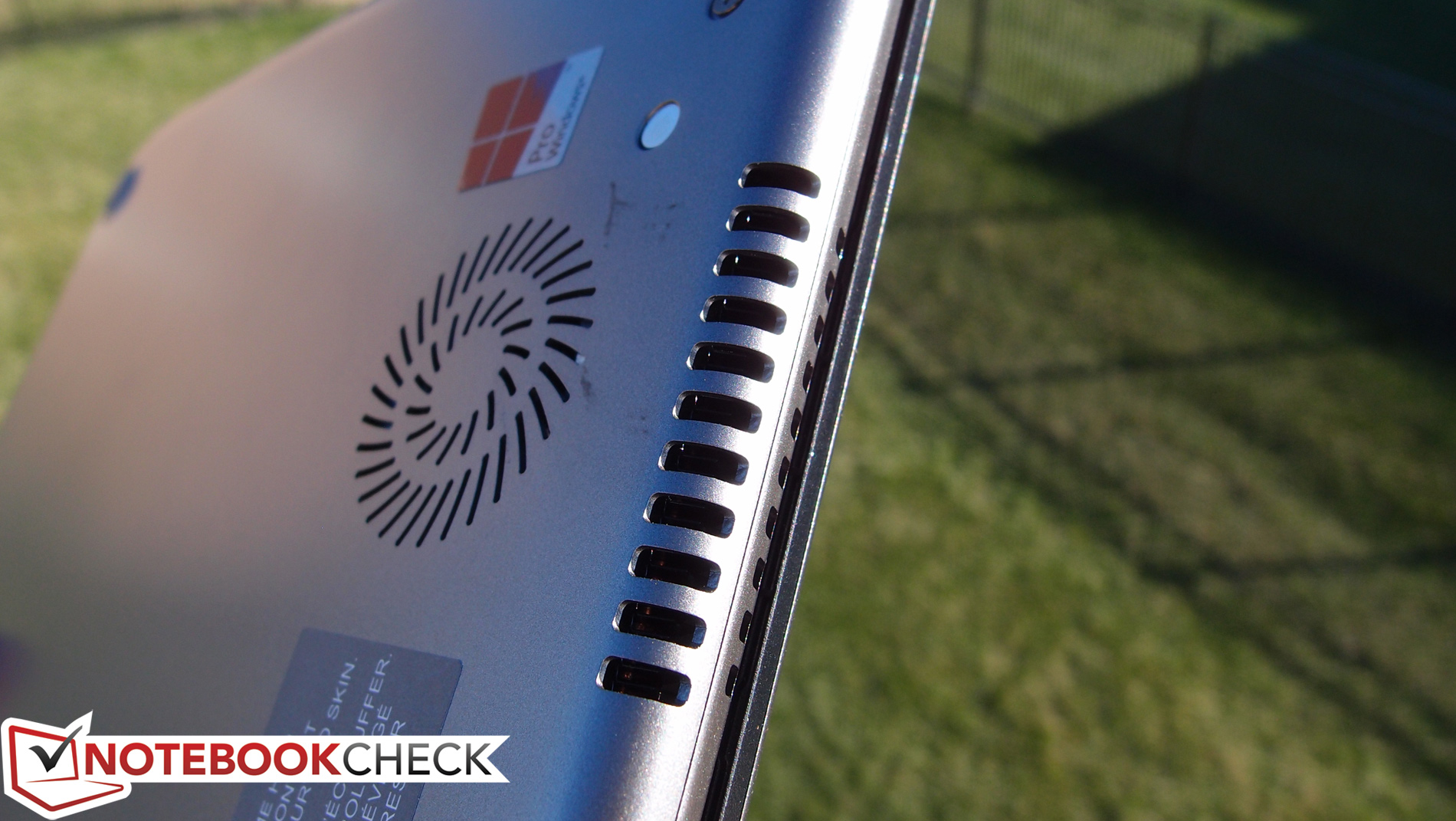

+ 优秀的散热控制
+ 长电池续航
+ 非常优秀的屏幕面板（色彩，对比度）
+ 优秀的输入设备
Cons
- 散射滤镜带来的粗糙显示质量
- 屏幕上盖薄弱
- 作为商务笔记本维护功能设计较差
- 扬声器较差
- 相比一些竞争对手售价较高
两年对信息产业来说就像是人的一生一样长了，而我们至少有这么长时间没有看到东芝对他们的高端超便携设备进行更新了。尽管机身有些过气，但Z30t-B1320的1.33千克重量仍然非常便携——同时它的镁合金机身和借口布局都非常优秀，我们需要考虑的只有内部硬件了。
由于升级到了Broadwell芯片组，它理所应当地成为了至今最优秀的Z30。它对于一般的性能测试都游刃有余，在电池续航、机身温度控制（合理的排风口设计和有效的散热效果）等方面也毫无问题。他的输入设备也依然时分优秀，屏幕也提供了出色的色彩还原，合理的分辨率和优秀的亮度／对比度。它当然也不是完美的。首先，这块触控屏幕——尽管有自身的优势——显示效果非常模糊，这是抗反光的散射滤镜（半磨砂效果）带来的副作用。它的机身尽管大部分都很坚固，但搭配的超薄屏幕上盖却特别脆弱。维护升级十分困难，因为它的螺丝隐藏在了橡胶垫脚下面——这对于一款高端商务设备来说让人十分难以理解。最后，它的扬声器弱于一些竞争对手，效果单薄低音很弱。
另外，Z30t的同类竞争产品也越来越多。戴尔Latitude 7000系列和联想ThinkPad系列在输入设备和机身坚固度方面仍然处于领先，更不用说它们更佳便于维护。惠普EliteBooks售价较高，但是也值得考虑。同时一些消费市场产品——尽管缺少以太网接口和拓展坞借口——仍然进入了商务世界，例如评分很高的XPS 13。Portege Z30t依然是一款有竞争力的产品，尽管设计有些过时但仍然非常值得参考。
注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。
