惠普 Omen Pro 15 工作站简短评测

Name: HP Omen Pro 15 M2T37AA-ABD
Brand: HP

移动办公室。 惠普Omen Pro是一款严谨而独特的高端工作站产品。尽管在设计和移动性上可以给人很好的第一印象，不过它的硬件配置略显陈旧。我们仍然对这样的组合是否成功进行了详尽的测试。

Tobias Winkler, ✓ Tanja Hinum (translated by Yuchen Wang), Published 07/19/2015 🇺🇸 🇩🇪 ...

Business Haswell Laptop / Notebook Touchscreen Windows Workstation

Test device courtesy of HP Deutschland

Download your licensed rating image as PNG / SVG

HP Omen Pro 15 M2T37AA-ABD (Omen Pro Series)

Processor

Intel Core i7-4870HQ 4 x 2.5 - 3.7 GHz, Haswell

Graphics adapter

NVIDIA Quadro K1100M - 2048 MB VRAM, Core: 705 MHz, Memory: 700 MHz, Forceware 347.52, Nvidia Optimus mit Intel Iris Pro 5200

Memory

15.9 GB

, 2 x 8 GB PC3-12800

Display

15.60 inch 16:9, 1920 x 1080 pixel, 多点触控, SDC5344, IPS LED, glossy: yes

Storage

Samsung SSD XP941 MZHPU512HCGL, 512 GB

Soundcard

Intel Lynx Point PCH - High Definition Audio Controller

Connections

4 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 DisplayPort, Audio Connections: 3.5毫米整合音频输入输出插槽, Card Reader: SD, SDHC, SDXC, UHS-I, Sensors: 光线传感器

Networking

Asix USB 2.0 Fast Ethernet Adapter (10/100MBit/s), Intel Dual Band Wireless-AC 7260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/)

Size

height x width x depth (in mm): 20 x 387 x 246

Battery

58 Wh Lithium-Polymer

Operating System

Microsoft Windows 8.1 Pro 64 Bit

Camera

Webcam: 惠普 TrueVision 全高清, 200万像素

Additional features

Keyboard: 孤岛式, Keyboard Light: yes, 高速以太网接口，通过USB转接器, 36 Months Warranty, 测试机未预装操作系统，我们结合惠普官网提供的驱动安装了Windows 8.1 Pro。

Weight

2.12 kg, Power Supply: 670 g

Price

3900 Euro

Links

HP homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

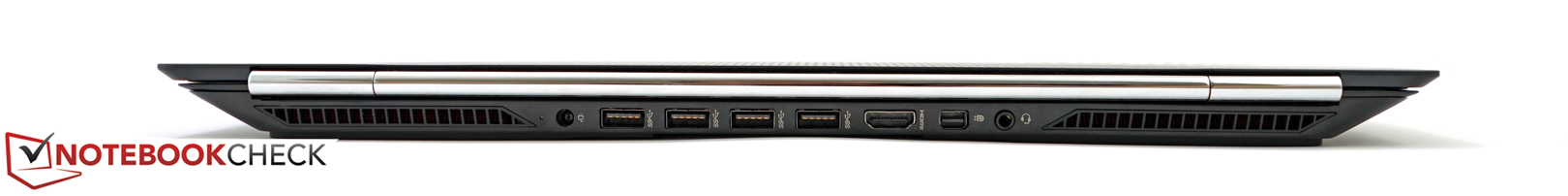

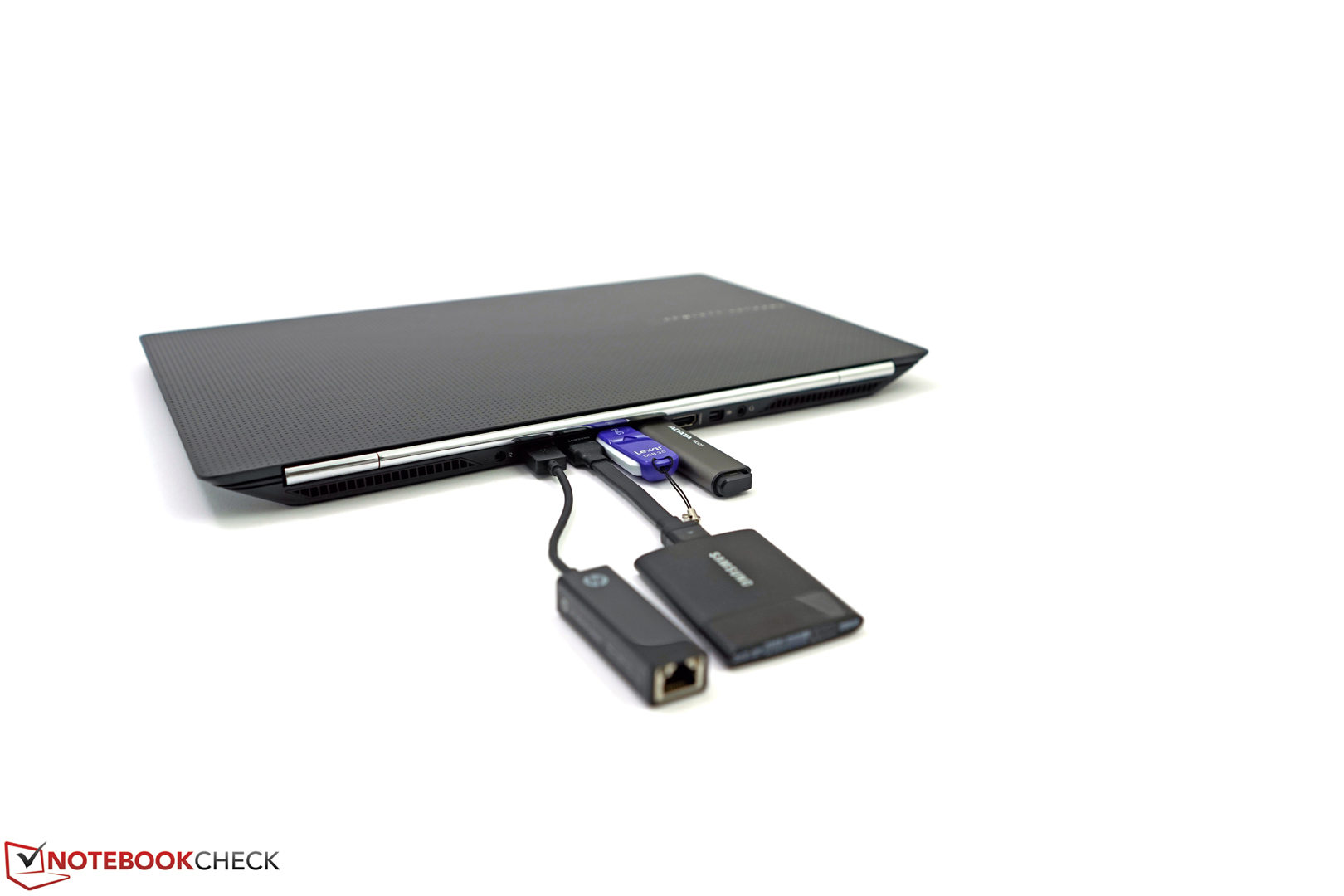

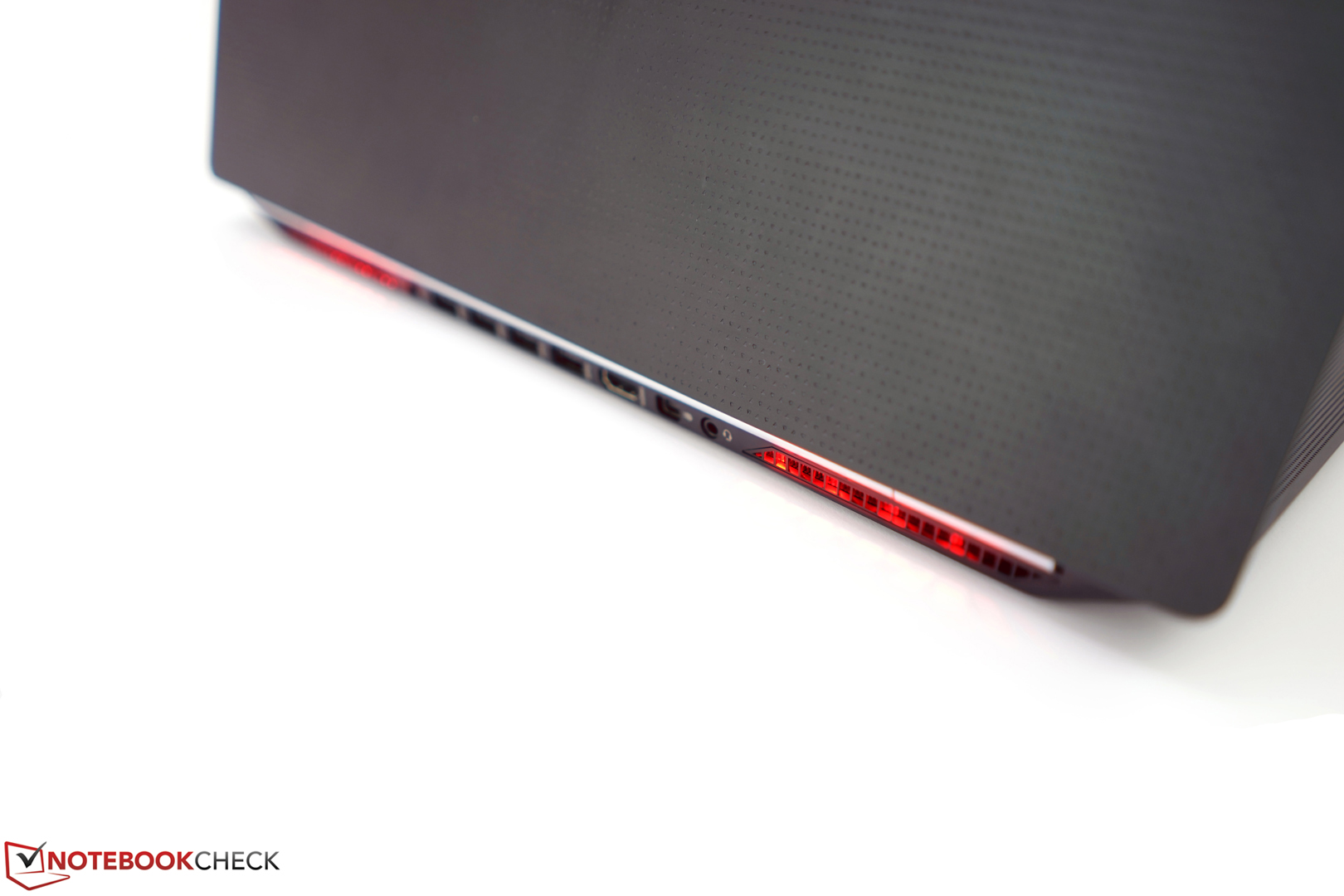

Rear: Power, 4 x USB 3.0, HDMI, Mini-DisplayPort, Audio


277 cd/m²	300 cd/m²	283 cd/m²
301 cd/m²	312 cd/m²	301 cd/m²
299 cd/m²	281 cd/m²	280 cd/m²

Distribution of brightness

SDC5344 tested with X-Rite i1Pro 2

Maximum: 312 cd/m² (Nits) Average: 292.7 cd/m²
Brightness Distribution: 89 %
Center on Battery: 314 cd/m²
Contrast: 678:1 (Black: 0.46 cd/m²)
ΔE Color 4.51 | 0.5-29.43 Ø5
ΔE Greyscale 6.55 | 0.57-98 Ø5.3
96% sRGB (Argyll 1.6.3 3D)
63% AdobeRGB 1998 (Argyll 1.6.3 3D)
69.9% AdobeRGB 1998 (Argyll 2.2.0 3D)
69.9% sRGB (Argyll 2.2.0 3D)
67.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.18

Download ICC File (X-Rite i1Pro 2)

Cinebench R11.5 CPU Single 64Bit

1.63 Points

Cinebench R11.5 CPU Multi 64Bit

6.91 Points

Cinebench R11.5 OpenGL 64Bit

44.7 fps

Cinebench R15 CPU Single 64Bit

145 Points

Cinebench R15 CPU Multi 64Bit

632 Points

Cinebench R15 OpenGL 64Bit

52.9 fps

Cinebench R15 Ref. Match 64Bit

99.6 %

Help

... in comparison

PCMark 7 Score		6427 points
PCMark 8 Home Score Accelerated v2		3815 points
PCMark 8 Creative Score Accelerated v2		4781 points
PCMark 8 Work Score Accelerated v2		4582 points
Help

... in comparison

HD Tune

AS SSD

Samsung SSD XP941 MZHPU512HCGL

Transfer Rate Minimum: 365.5 MB/s

Transfer Rate Maximum: 528 MB/s

Transfer Rate Average: 505 MB/s

Access Time: 0.1 ms

Burst Rate: 127 MB/s

CPU Usage: 2.9 %

SPECviewperf 12
1900x1060 Solidworks (sw-03) (sort by value)
HP Omen Pro 15 M2T37AA-ABD	34.09 fps
Dell Precision M2800	37.52 fps +10%
Lenovo ThinkPad W550s 20E2-000PGE	33.02 fps -3%
1900x1060 Siemens NX (snx-02) (sort by value)
HP Omen Pro 15 M2T37AA-ABD	15.15 fps
Dell Precision M2800	23.52 fps +55%
Lenovo ThinkPad W550s 20E2-000PGE	17.1 fps +13%
1900x1060 Showcase (showcase-01) (sort by value)
HP Omen Pro 15 M2T37AA-ABD	9.28 fps
Dell Precision M2800	12.75 fps +37%
Lenovo ThinkPad W550s 20E2-000PGE	6.32 fps -32%
1900x1060 Medical (medical-01) (sort by value)
HP Omen Pro 15 M2T37AA-ABD	6.29 fps
Dell Precision M2800	5.84 fps -7%
Lenovo ThinkPad W550s 20E2-000PGE	7.05 fps +12%
1900x1060 Maya (maya-04) (sort by value)
HP Omen Pro 15 M2T37AA-ABD	13.74 fps
Dell Precision M2800	22.75 fps +66%
Lenovo ThinkPad W550s 20E2-000PGE	12.03 fps -12%
1900x1060 Energy (energy-01) (sort by value)
HP Omen Pro 15 M2T37AA-ABD	0.39 fps
Dell Precision M2800	0.35 fps -10%
Lenovo ThinkPad W550s 20E2-000PGE	0.38 fps -3%
1900x1060 Creo (creo-01) (sort by value)
HP Omen Pro 15 M2T37AA-ABD	15.71 fps
Dell Precision M2800	18.8 fps +20%
Lenovo ThinkPad W550s 20E2-000PGE	16.28 fps +4%
1900x1060 Catia (catia-04) (sort by value)
HP Omen Pro 15 M2T37AA-ABD	16.48 fps
Dell Precision M2800	19.33 fps +17%
Lenovo ThinkPad W550s 20E2-000PGE	18.72 fps +14%

Legend

HP Omen Pro 15 M2T37AA-ABD Intel Core i7-4870HQ, NVIDIA Quadro K1100M, Samsung SSD XP941 MZHPU512HCGL

Asus UX501JW-DS71T Intel Core i7-4720HQ, NVIDIA GeForce GTX 960M, Samsung SSD SM951 512 GB MZHPV512HDGL

Dell Precision M2800 Intel Core i7-4810MQ, AMD FirePro W4170M, SK hynix SH920

Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M, Samsung SSD PM851 512 GB MZ7TE512HMHP

LuxMark v2.0 64Bit
Room GPUs-only (sort by value)
HP Omen Pro 15 M2T37AA-ABD	111 Samples/s
Dell Precision M2800	256 Samples/s +131%
SCHENKER S413	338 Samples/s +205%
Lenovo ThinkPad W550s 20E2-000PGE	253 Samples/s +128%
Sala GPUs-only (sort by value)
HP Omen Pro 15 M2T37AA-ABD	217 Samples/s
Dell Precision M2800	462 Samples/s +113%
SCHENKER S413	475 Samples/s +119%
Lenovo ThinkPad W550s 20E2-000PGE	508 Samples/s +134%

Legend

HP Omen Pro 15 M2T37AA-ABD Intel Core i7-4870HQ, NVIDIA Quadro K1100M, Samsung SSD XP941 MZHPU512HCGL

Dell Precision M2800 Intel Core i7-4810MQ, AMD FirePro W4170M, SK hynix SH920

SCHENKER S413 Intel Core i7-4750HQ, Intel Iris Pro Graphics 5200, Intel SSD 525 Series SSDMCEAC180B3

Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M, Samsung SSD PM851 512 GB MZ7TE512HMHP

3DMark 06 Standard Score		12449 points
3DMark Ice Storm Standard Score		73062 points
3DMark Cloud Gate Standard Score		8801 points
3DMark Fire Strike Score		1352 points
Help

... in comparison

3DMark
1280x720 Ice Storm Standard Graphics (sort by value)
HP Omen Pro 15 M2T37AA-ABD	89279 Points
HP Omen	169323 Points +90%
1280x720 Cloud Gate Standard Graphics (sort by value)
HP Omen Pro 15 M2T37AA-ABD	9665 Points
HP Omen	27470 Points +184%
1920x1080 Fire Strike Graphics (sort by value)
HP Omen Pro 15 M2T37AA-ABD	1396 Points
HP Omen	3955 Points +183%

Legend

HP Omen Pro 15 M2T37AA-ABD Intel Core i7-4870HQ, NVIDIA Quadro K1100M, Samsung SSD XP941 MZHPU512HCGL

HP Omen Intel Core i7-4710HQ, NVIDIA GeForce GTX 860M, SanDisk A110 SD6PP4M-256G-1006

	low	med.	high	ultra
Metro: Last Light (2013)	48	37	20	10
F1 2014 (2014)	119	101	55	35
Dirt Rally (2015)	171	41	23	12

Noise Level

Idle		28.7 / 28.7 / 28.7 dB(A)
Load		35.7 / 45.9 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: PCE-322A (15 cm distance)

Max. Load

Idle


40 °C	45.1 °C	42.7 °C
36.9 °C	42.1 °C	36.8 °C
34.2 °C	31.7 °C	33.5 °C

Maximum: 45.1 °C
Average: 38.1 °C


45.6 °C	47 °C	43.3 °C
37 °C	41.8 °C	37.8 °C
34.1 °C	36.3 °C	35 °C

Maximum: 47 °C
Average: 39.8 °C

Power Supply (max.) 57.9 °C | Room Temperature 20 °C | Fennel Firt 550 Pocket

(-) The average temperature for the upper side under maximal load is 38.1 °C / 101 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(-) The maximum temperature on the upper side is 45.1 °C / 113 F, compared to the average of 38.1 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 47 °C / 117 F, compared to the average of 41.3 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 31.1 °C / 88 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (34.2 °C / 93.6 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-6.4 °C / -11.6 F).

Power Consumption

Off / Standby	0.1 / 0.3 Watt
Idle	13.7 / 17.8 / 19.1 Watt
Load	83.7 / 106.6 Watt


Key: min: , med: , max: Voltcraft VC 870 ISO kalibriert Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Battery Runtime

Idle (without WLAN, min brightness)		4h 22min
WiFi Websurfing		3h 23min
Big Buck Bunny H.264 1080p		2h 49min
Load (maximum brightness)		0h 56min

Pros

+ 机身

+ 设计

+ 系统性能

+ 屏幕

+ 触控手势

+ 接口性能

+ 系统噪音

+ 重量

+ 质保

Cons

- 接口配备

- 缺少商务功能

- 可维护性

- 可升级空间

- 售价

惠普Omen是一款希望在高水平专业市场一鸣惊人的工作站产品，不过生产商为止付出的努力却难以支撑这样的野心。

它采用的是一种早已存在的来自于游戏笔记本市场的机身结构，在一些细节上进行了修改而希望在企业、自由职业者和高要求用户中也能取得成功。尽管它在屏幕、系统性能和散热噪音控制商做的都不错，不过潜在消费者应该了解到的是他们需要在常见商务功能上做出牺牲。

这包括接口配备，可扩展性，可维护性，特殊系统配件和可个性化配置选项。它的CAD性能和电池续航时间都表现平平。

更加特别的是显而易见的游戏特性，这从机身设计到键盘布局以及背光设计上都可见端倪。当然，这是个人喜好的问题，不同的人对此的反应可能会大相径庭。它高昂的零售价达到了2500欧元（约17212人民币；测试机配置售价3700欧元，约25474人民币），与相似配置产品相比之下显得不成比例。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

HP Omen Pro 15 M2T37AA-ABD - 2016-03-17 03/17/2016 v5^(old)
Tobias Winkler

Chassis

80 / 98 → 82%

Keyboard

90%

Pointing Device

83%

Connectivity

58 / 81 → 72%

Weight

62 / 10-66 → 93%

Battery

69%

Display

82%

Games Performance

84%

Application Performance

97%

Temperature

86 / 95 → 91%

Noise

90 / 90 → 100%

Audio

36%

Camera

40 / 85 → 46%

Average

72%

78%

Workstation - Weighted Average
