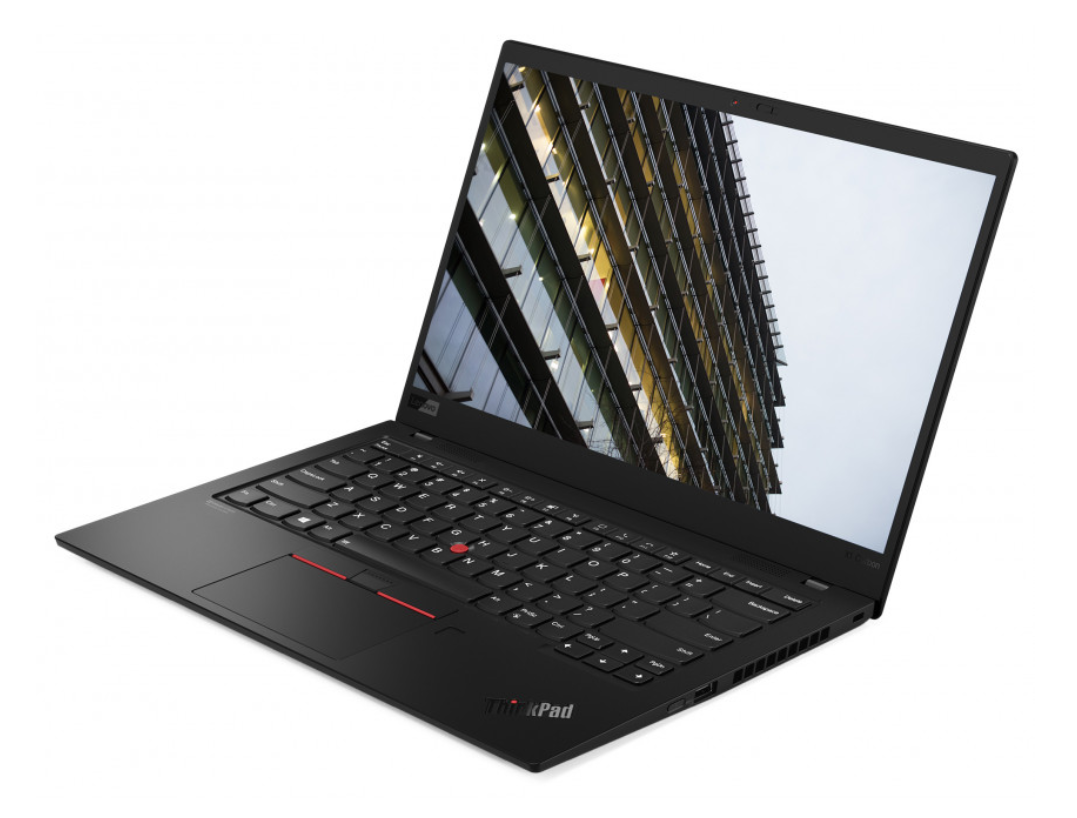

Lenovo ThinkPad X1 Carbon 2020-20UAS04T00

Specifications

Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00 (ThinkPad X1 Carbon 2020 Series)
Processor
Intel Core i7-10510U 4 x 1.8 - 4.9 GHz, Comet Lake-U
Graphics adapter
Intel UHD Graphics 620
Memory
16 GB
, LPDDR3双通道板载内存
Display
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, BOE NE140FHM-N61, IPS, glossy: no, 60 Hz
Mainboard
Intel Comet Lake-U PCH-LP Premium
Storage
Samsung SSD PM981a MZVLB512HBJQ, 512 GB
, 441 GB free
Soundcard
Intel Comet Lake PCH-LP - cAVS
Connections
2 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, 2 Thunderbolt, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 3.5mm耳机接口, 1 Fingerprint Reader, NFC
Networking
Intel Comet Lake PCH-LP - I219-V gBE (10/100/1000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.0
Size
height x width x depth (in mm): 14.9 x 323.5 x 217.1
Battery
51 Wh Lithium-Ion, 4 cells
Camera
Webcam: 720p HD
Primary Camera: 0.9 MPix
Additional features
Speakers: 立体声扬声器, Keyboard: Chiclet, Keyboard Light: yes, 65瓦充电器，RJ45网线接口, 36 Months Warranty
Weight
1.082 kg, Power Supply: 332 g
Price
1550 Euro
Links
Lenovo homepage



Pricecompare

Average Score: 88.6% - very good
Average of 2 scores (from 2 reviews)
price: - %, performance: 75%, features: 70%, display: 88% mobility: 81%, workmanship: 89%, ergonomy: 90%, emissions: 93%

Reviews for the Lenovo ThinkPad X1 Carbon 2020-20UAS04T00

90.2% 联想ThinkPad X1 Carbon 2020笔记本电脑评测：装备了新电源适配器的商务本 | Notebookcheck
联想展示了其商业旗舰产品ThinkPad X1 Carbon的第8代。 但是，这只是一个很小的更新，看起来只获得了新的Intel Comet Lake-U处理器。 AMD处理器尚未计划用于这一代高端商用笔记本电脑。
87% [Recenzja] Lenovo ThinkPad X1 Carbon 8 – legendarny ultrabook z potencjałem
Source: Android.com.pl Turkish PL→zh-CN
Single Review, online available, Very Long, Date: 02/14/2021
Rating: Total score: 87% performance: 80% display: 90% workmanship: 90%
Lenovo ThinkPad X1 Carbon - krótka recenzja laptopa dla profesjonalistów
Source: Komputerswiat Turkish PL→zh-CN Archive.org version
Single Review, online available, Medium, Date: 11/25/2020

Comment

Intel UHD Graphics 620:

集成显卡（GT2,24 EU），可以在一些Kaby-Lake-Refresh 中央处理器型号（15 W ULV系列）上找到。技术上与之前名为HD Graphics 620的Kaby-Lake的显卡相同。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i7-10510U:

基于Comet Lake的低功耗四核处理器（在技术上与Whiskey Lake相同，但仍采用14nm ++工艺生产）。拥有超线程（8个线程），CPU频率在1.8和4.9 GHz之间（全核最大为4.3 GHz）。集成内存控制器支持DDR4-2666，通过cTDP，性能可以由OEM调整（可能为10-25瓦，默认为15W）。

» Further information can be found in our Comparison of Mobile Processsors.


14.00":

大体上，这个屏幕尺寸常见于亚笔记本电脑，超极本和变形本中。对这三类产品来说这个尺寸都较大。亚笔记本中尺寸最大的机型是采用这个屏幕尺寸。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面，小屏幕的功耗会较低，而设备也会更轻盈小巧，售价更低。

» To find out how fine a display is, see our DPI List.


1.082 kg: 这是10到11寸大尺寸平板电脑，小型亚笔记本，超极本和变形本的常见重量。


» Further information can be found in our Notebook Purchase Guide.
