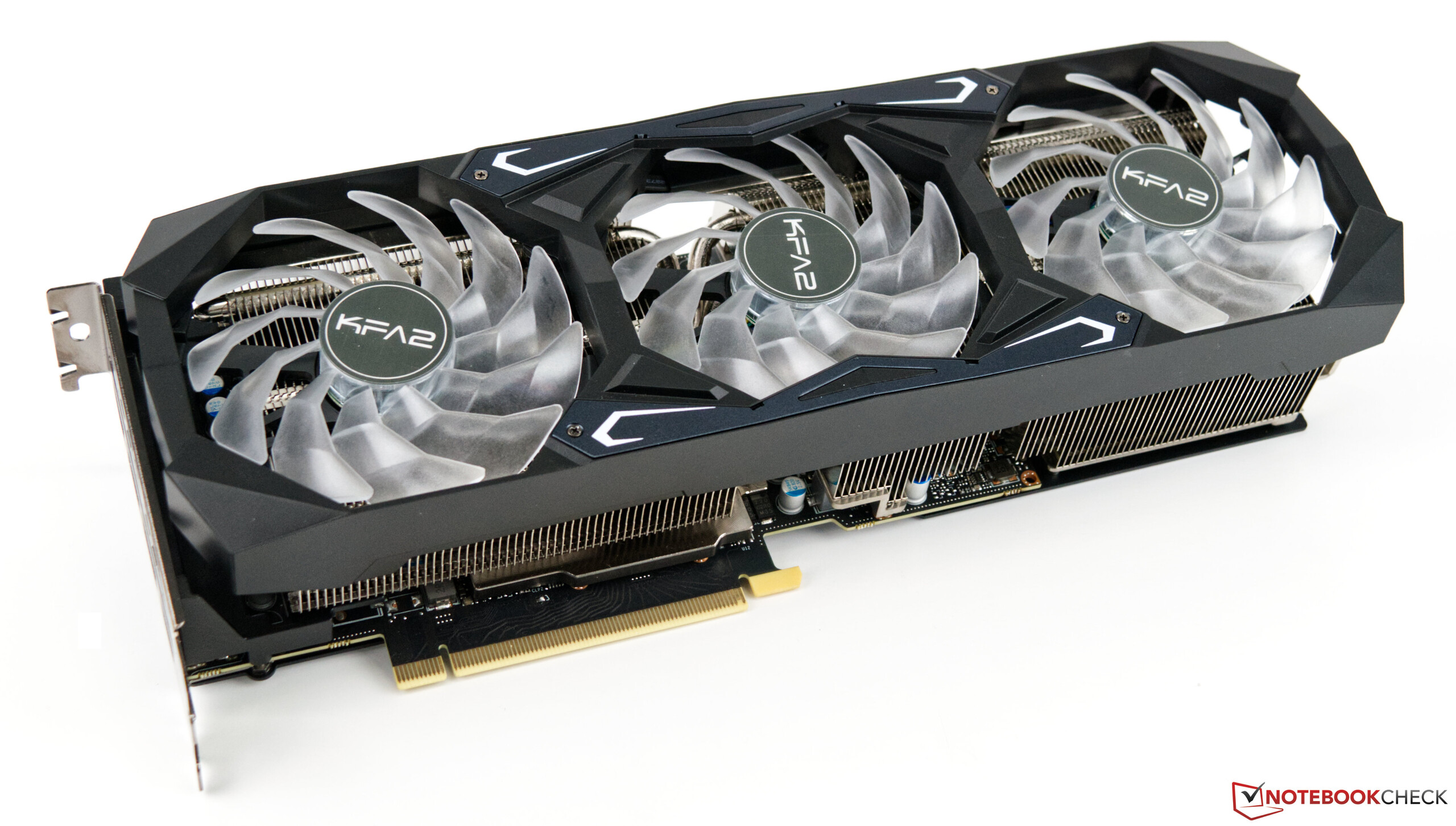

KFA2GeForce RTX 3080 SG 12GB桌面显卡评论。由于更多的VRAM和更多的着色器,一个更好的RTX 3080?

不仅仅是更多的VRAM! Nvidia的GeForce RTX 3080 12 GB是另一个高端显卡,应该是继承GeForce RTX 3080。它是Nvidia对更多VRAM的反复要求的回应,我们通过回顾KFA2制作的模型,仔细看看这个最新的RTX化身,现在拥有12GB的VRAM。
Desktop Gaming Geforce

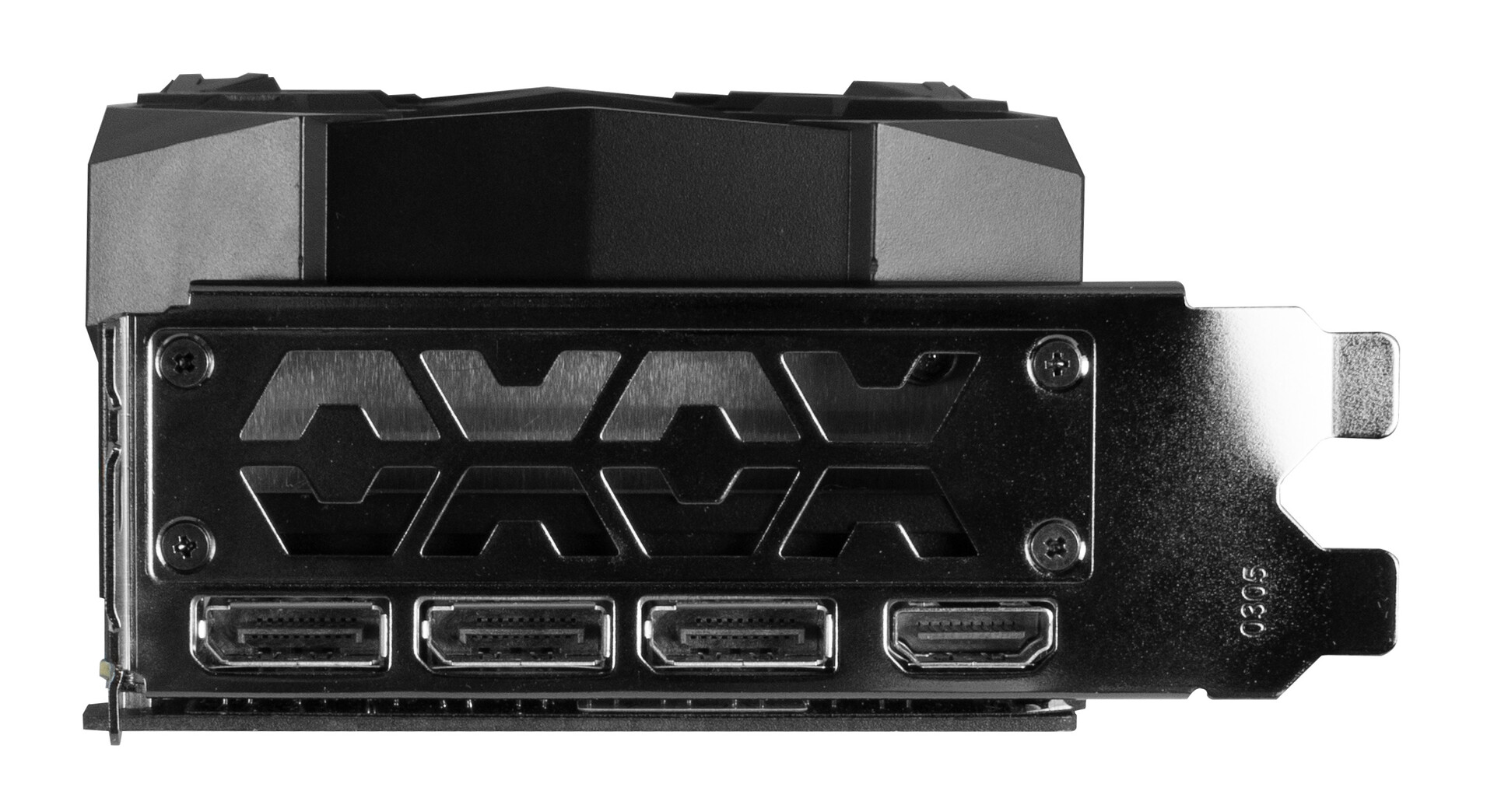

KFA2GeForce RTX 3080 SG12 GB外部端口(来源:KFA2)
KFA2GeForce RTX 3080 SG12 GB外部端口(来源:KFA2)

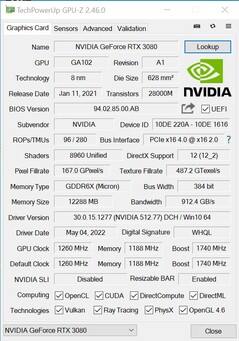

GPU-Z
GPU-Z

Nvidia的RTX 3000系列包含的显卡几乎涵盖了整个游戏光谱,从中端一直到高端。定期增加新的型号,例如,GeForce RTX 3080 12 GB。在RTX 3080于2020年9月首次发布后,许多人要求增加VRAM,因为最初的显卡只有10GB。虽然这对当时的大多数游戏来说完全没有问题,但许多玩家担心他们的GPU在未来尚未发布的游戏中的能力。

GeForce RTX 3080 12 GB是Nvidia对这些反复要求更多VRAM的回应,因为它比原卡多了2GB。它还具有更宽的内存总线接口,如果没有这个接口,它将不得不采用高达20GB的内存。这个模型经常出现在传言中,但还没有实现。

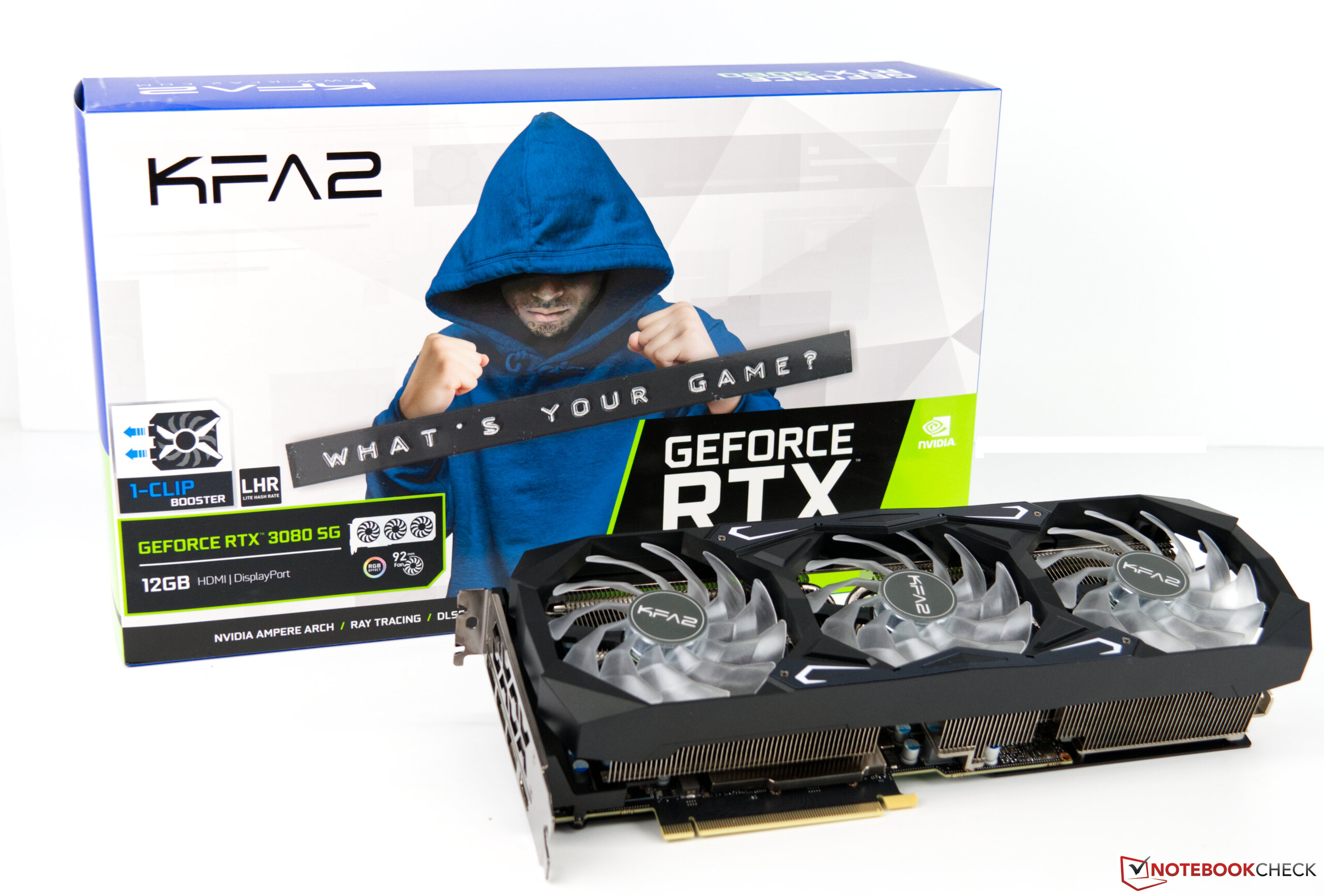

在这次审查中,我们收到了KFA2的GeForce RTX 3080 12 GB。这个特殊的模型是基于GA102芯片,共有8960个着色器,这应该会提高性能,并有助于缩小或至少缩小与NvidiaGeForce RTX 3080 Ti 的差距。此外,KFA2GeForce RTX 3080 SG 12 GB配备了一个相当大的冷却器,旨在可靠和快速地散去该卡的350 W热量。请记住,它的三槽设计占用了很多空间,可能不适合你的机箱。 花哨的RGB灯有助于照亮和突出它的三个92毫米风扇和印在卡上的 "你的游戏是什么 "口号。

该卡的价格在欧洲约为970欧元,在美国约为1200美元。考虑到目前的供应链问题,我们认为这是一个可以接受的高端显卡的价格。在过去几周,价格也略有下降,这是一个有希望的迹象。

我们基于AMD Ryzen 9 5900X的测试系统

该卡的测试系统是基于AMD目前的平台。它采用了华硕X570 ROG Crosshair VIII Hero WiFi主板,AMD Ryzen 9 5900X,以确保适当和充裕的CPU性能,Alphacool Eisbear 360 AiO冷却器,以及G.Skill提供的32GB内存。该系统将其视频信号输出到宏碁掠夺者XB321HK显示器,该显示器完全具备UHD功能。我们要感谢AMD为我们提供的这个测试平台。

AMD Ryzen 9 5900X
AMD Ryzen 9 5900X
华硕X570 ROG Crosshair VIII Hero WiFi
华硕X570 ROG Crosshair VIII Hero WiFi
G.Skill Trident Z Neo RGB DDR4-4000
G.Skill Trident Z Neo RGB DDR4-4000

以下系统用于运行以下基准测试。

  • Lian Li O11 Dynamic
  • AMD Ryzen 9 5900X
  • KFA2GeForce RTX 3080 SG 12GB (Nvidia 512.70)
  • 华硕X570 ROG Crosshair VIII Hero WiFi (BIOS 2402, Default Settings, XMP 1 for DDR4-4000)
  • 海瑟尔RM1000X 1000 W电源
  • G.Skill Trident Z Neo RGB DDR4-4000内存套件 2 x 16 GB
  • 海盗船MP600 2TB M.2 PCI-4.0-SSD
  • Crucial MX500 2TB (用于游戏)

最新的RTX-3000系列的图样

配置 RTX 3090 Ti RTX 3090 RTX 3080 Ti RTX 3080 (12G) RTX 3080 (10G) RTX 3070 Ti RTX 3070 RTX 3060 Ti RTX 3060 RTX 3050
芯片 GA102 GA102 GA102 GA102 GA102 GA104 GA104 GA104 GA106 GA106
FinFET工艺 8纳米 8纳米 8纳米 8纳米 8纳米 8纳米 8纳米 8纳米 8纳米 8纳米
CUDA核心 10,752 10,496 10,240 8,960 8,704 6,144 5,888 4,864 3,854 2,560
纹理单位 336 328 320 280 272 192 184 152 112 80
Tensor Cores 336 3. Gen. 328 3.Gen. 320 3.Gen. 280 3. Gen. 272 3.Gen. 192 3.Gen. 184 3. Gen. 152 3.Gen. 112 3.Gen. 80 3. Gen.
RT核心 84 82 80 70 68 48 46 38 28 20
GPU基础时钟 1,560 MHz 1,395 MHz 1,365 MHz 1,260 MHz 1,440 MHz 1,575 MHz 1,500 MHz 1,410 MHz 1,320 MHz 1,552 MHz
GPU提升时钟 1,860 MHz 1,695 MHz 1,665 MHz 1,710 MHz 1,710 MHz 1,770 MHz 1,750 MHz 1,665 MHz 1,777 MHz 1,777 MHz
内存总线 384位 384位 384位 384 320位 256位 256位 256位 192位 128位
内存带宽 1,008 GB/s 936 GB/s 912,4 GB/s 912,4GB/s 760 GB/s 608,3 GB/s 448 GB/s 448 GB/s 360 GB/s 224 GB/s
视频存储器 24 GB GDDR6X 24 GB GDDR6X 12 GB GDDR6X 12 GB GDDR6X 10 GB GDDR6X 8 GB GDDR6 8 GB GDDR6 8 GB GDDR6 12 GB GDDR6 8 GB GDDR6
功耗 450 W 350 W 350 W 350 W 320 W 290 W 220 W 200 W 170 W 130 W

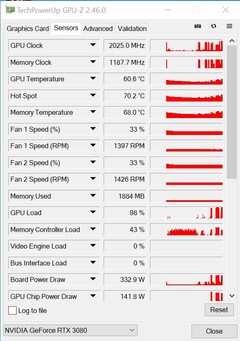

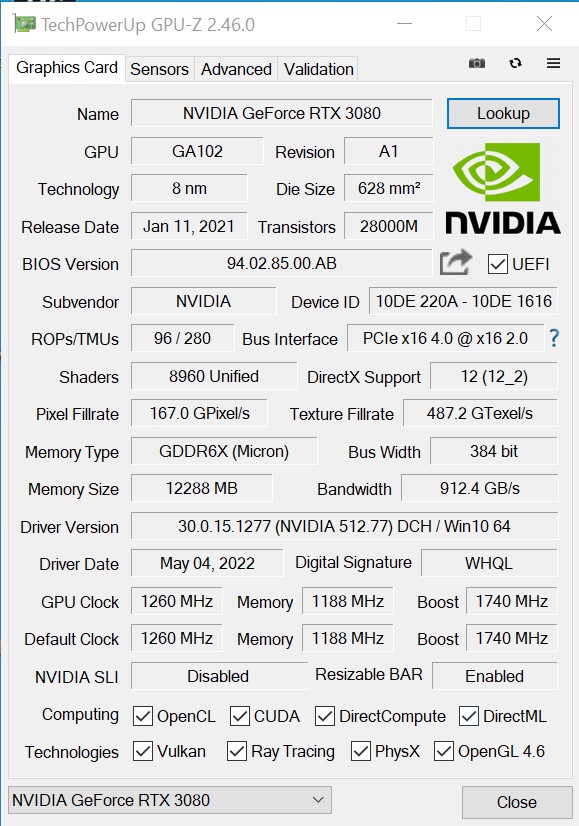

KFA2GeForce RTX 3080 SG 12 GB时钟速度

我们的KFA2GeForce RTX 3080 SG 12 GB评测单元的提升时钟速度仅略高于Nvidia的规格。然而,我们应该补充的是,在我们进行的几乎每一次测试中,指定的1,740兆赫的提升速度都被持续超越了。该模型支持高达9%的功率目标增长,导致总的最大功率消耗为380W。

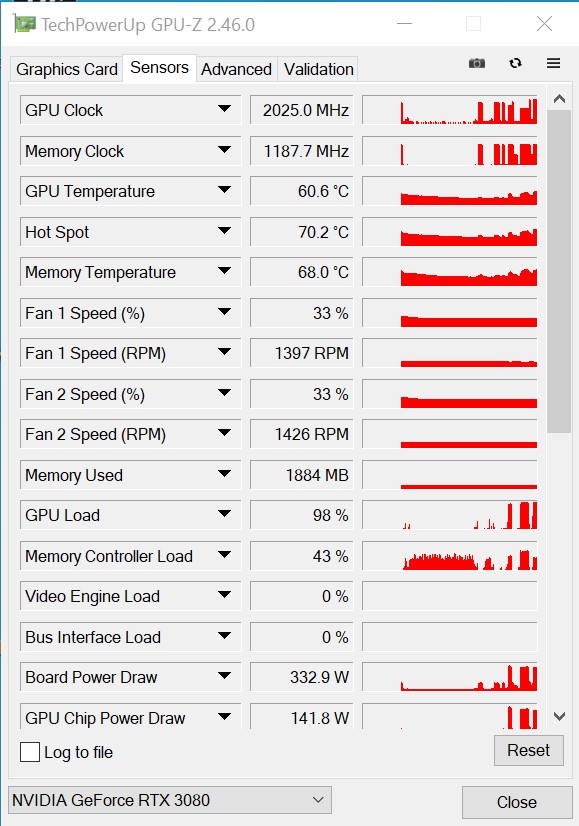

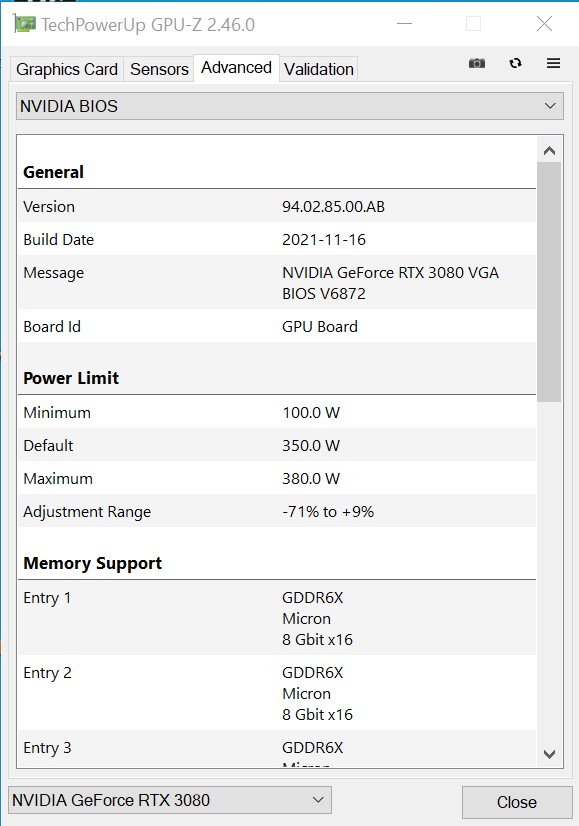

GPU-Z
GPU-Z
GPU-Z
GPU-Z
GPU-Z
GPU-Z

合成基准

在我们的合成基准中,我们发现KFA2GeForce RTX 3080 SG 12 GB就在我们认为的地方:在NVIDIA NVIDIA GeForce RTX 3080GeForce RTX 3080NVIDIA NVIDIA GeForce RTX 3090 GeForce RTX 3090 之间。请记住,这种特殊的性能增益是由该卡的额外着色器单元提供的,而不是由其额外的VRAM提供的。与其基于AMD的竞争对手相比,KFA2 RTX 3080 SG 12 GB的表现与AMD Radeon RX 6800 XT 的速度差不多。

Performance Rating - Percent
NVIDIA GeForce RTX 3090
95.5 pt
Radeon RX 6900 XT
92.7 pt
KFA2 GeForce RTX 3080 SG 12GB
92.5 pt
Radeon RX 6800 XT
86.9 pt
NVIDIA GeForce RTX 3080
84.6 pt
Radeon RX 6800
77.8 pt
NVIDIA GeForce RTX 3070
69.5 pt
Radeon RX 6700 XT
64.6 pt
Radeon RX 6600 XT
53.3 pt
NVIDIA GeForce RTX 3060
47.9 pt
3DMark
1920x1080 Fire Strike Graphics
Radeon RX 6900 XT
50587 Points +14%
Radeon RX 6800 XT
49735 Points +12%
KFA2 GeForce RTX 3080 SG 12GB
44533 Points
Radeon RX 6800
43786 Points -2%
NVIDIA GeForce RTX 3090
42688 Points -4%
NVIDIA GeForce RTX 3080
37604 Points -16%
Radeon RX 6700 XT
35136 Points -21%
NVIDIA GeForce RTX 3070
31020 Points -30%
Radeon RX 6600 XT
28342 Points -36%
NVIDIA GeForce RTX 3060
21847 Points -51%
Fire Strike Extreme Graphics
Radeon RX 6900 XT
26650 Points +21%
Radeon RX 6800 XT
25015 Points +13%
NVIDIA GeForce RTX 3090
23114 Points +5%
KFA2 GeForce RTX 3080 SG 12GB
22078 Points
Radeon RX 6800
21510 Points -3%
NVIDIA GeForce RTX 3080
20007 Points -9%
Radeon RX 6700 XT
17009 Points -23%
NVIDIA GeForce RTX 3070
15722 Points -29%
Radeon RX 6600 XT
13122 Points -41%
NVIDIA GeForce RTX 3060
10330 Points -53%
3840x2160 Fire Strike Ultra Graphics
Radeon RX 6900 XT
13370 Points +18%
Radeon RX 6800 XT
12626 Points +11%
NVIDIA GeForce RTX 3090
12371 Points +9%
KFA2 GeForce RTX 3080 SG 12GB
11340 Points
NVIDIA GeForce RTX 3080
10645 Points -6%
Radeon RX 6800
10547 Points -7%
Radeon RX 6700 XT
8325 Points -27%
NVIDIA GeForce RTX 3070
8227 Points -27%
Radeon RX 6600 XT
6515 Points -43%
NVIDIA GeForce RTX 3060
5037 Points -56%
2560x1440 Time Spy Graphics
NVIDIA GeForce RTX 3090
19571 Points +9%
Radeon RX 6900 XT
18210 Points +1%
KFA2 GeForce RTX 3080 SG 12GB
17956 Points
NVIDIA GeForce RTX 3080
17604 Points -2%
Radeon RX 6800 XT
17603 Points -2%
Radeon RX 6800
16033 Points -11%
NVIDIA GeForce RTX 3070
13111 Points -27%
Radeon RX 6700 XT
11473 Points -36%
Radeon RX 6600 XT
9565 Points -47%
NVIDIA GeForce RTX 3060
8559 Points -52%
3DMark 11
1280x720 Performance GPU
Radeon RX 6900 XT
59119 Points +4%
NVIDIA GeForce RTX 3090
56689 Points 0%
KFA2 GeForce RTX 3080 SG 12GB
56634 Points
Radeon RX 6800
52384 Points -8%
Radeon RX 6800 XT
52046 Points -8%
NVIDIA GeForce RTX 3080
50087 Points -12%
Radeon RX 6700 XT
43888 Points -23%
NVIDIA GeForce RTX 3070
43005 Points -24%
Radeon RX 6600 XT
39051 Points -31%
NVIDIA GeForce RTX 3060
28072 Points -50%
1280x720 Performance
Radeon RX 6900 XT
42418 Points +2%
KFA2 GeForce RTX 3080 SG 12GB
41410 Points
Radeon RX 6800 XT
38057 Points -8%
NVIDIA GeForce RTX 3090
37897 Points -8%
Radeon RX 6800
37402 Points -10%
NVIDIA GeForce RTX 3080
35399 Points -15%
Radeon RX 6700 XT
34078 Points -18%
NVIDIA GeForce RTX 3070
33248 Points -20%
Radeon RX 6600 XT
31304 Points -24%
NVIDIA GeForce RTX 3060
26986 Points -35%
Unigine Superposition
1280x720 720p Low
KFA2 GeForce RTX 3080 SG 12GB
38209 Points
Radeon RX 6900 XT
37023 Points -3%
Radeon RX 6800 XT
36452 Points -5%
NVIDIA GeForce RTX 3060
34973 Points -8%
Radeon RX 6700 XT
34713 Points -9%
NVIDIA GeForce RTX 3070
34602 Points -9%
NVIDIA GeForce RTX 3090
33329 Points -13%
Radeon RX 6600 XT
33152 Points -13%
Radeon RX 6800
32455 Points -15%
NVIDIA GeForce RTX 3080
32183 Points -16%
1920x1080 1080p High
NVIDIA GeForce RTX 3090
25953 Points +8%
Radeon RX 6900 XT
25029 Points +4%
KFA2 GeForce RTX 3080 SG 12GB
24051 Points
Radeon RX 6800 XT
22265 Points -7%
NVIDIA GeForce RTX 3080
21912 Points -9%
Radeon RX 6800
19506 Points -19%
NVIDIA GeForce RTX 3070
17244 Points -28%
Radeon RX 6700 XT
15832 Points -34%
Radeon RX 6600 XT
13069 Points -46%
NVIDIA GeForce RTX 3060
11222 Points -53%
1920x1080 1080p Extreme
NVIDIA GeForce RTX 3090
12694 Points +11%
KFA2 GeForce RTX 3080 SG 12GB
11424 Points
NVIDIA GeForce RTX 3080
10822 Points -5%
Radeon RX 6900 XT
10683 Points -6%
Radeon RX 6800 XT
10046 Points -12%
NVIDIA GeForce RTX 3070
8365 Points -27%
Radeon RX 6800
8224 Points -28%
Radeon RX 6700 XT
6804 Points -40%
Radeon RX 6600 XT
5674 Points -50%
NVIDIA GeForce RTX 3060
5036 Points -56%
3840x2160 4k Optimized
NVIDIA GeForce RTX 3090
16868 Points +13%
KFA2 GeForce RTX 3080 SG 12GB
14986 Points
Radeon RX 6900 XT
14955 Points 0%
NVIDIA GeForce RTX 3080
14243 Points -5%
Radeon RX 6800 XT
13471 Points -10%
Radeon RX 6800
11757 Points -22%
NVIDIA GeForce RTX 3070
10673 Points -29%
Radeon RX 6700 XT
9106 Points -39%
Radeon RX 6600 XT
7098 Points -53%
NVIDIA GeForce RTX 3060
6774 Points -55%
7680x4320 8k Optimized
NVIDIA GeForce RTX 3090
7521 Points +15%
KFA2 GeForce RTX 3080 SG 12GB
6548 Points
NVIDIA GeForce RTX 3080
6346 Points -3%
Radeon RX 6900 XT
5764 Points -12%
Radeon RX 6800 XT
5256 Points -20%
Radeon RX 6800
4709 Points -28%
NVIDIA GeForce RTX 3070
4639 Points -29%
Radeon RX 6700 XT
3586 Points -45%
NVIDIA GeForce RTX 3060
2830 Points -57%
Radeon RX 6600 XT
2778 Points -58%
Unigine Heaven 4.0
Extreme Preset OpenGL
NVIDIA GeForce RTX 3090
273.7 fps +9%
KFA2 GeForce RTX 3080 SG 12GB
251.4 fps
NVIDIA GeForce RTX 3080
243.2 fps -3%
Radeon RX 6900 XT
206.5 (8.2min - 453.7max) fps -18%
Radeon RX 6800 XT
204 fps -19%
NVIDIA GeForce RTX 3070
192.9 fps -23%
Radeon RX 6800
178.1 fps -29%
Radeon RX 6700 XT
149.6 fps -40%
Radeon RX 6600 XT
119.3 fps -53%
NVIDIA GeForce RTX 3060
117.7 fps -53%
Extreme Preset DX11
NVIDIA GeForce RTX 3090
283.5 fps +3%
KFA2 GeForce RTX 3080 SG 12GB
274.3 fps
Radeon RX 6900 XT
259.5 (49.3min - 537.2max) fps -5%
NVIDIA GeForce RTX 3080
252.5 fps -8%
Radeon RX 6800 XT
247.9 fps -10%
Radeon RX 6800
221.1 fps -19%
NVIDIA GeForce RTX 3070
203.2 fps -26%
Radeon RX 6700 XT
184.4 fps -33%
Radeon RX 6600 XT
153.2 fps -44%
NVIDIA GeForce RTX 3060
133.2 fps -51%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
KFA2 GeForce RTX 3080 SG 12GB
203.8 fps
Radeon RX 6900 XT
200.8 (53.4min - 359.1max) fps -1%
NVIDIA GeForce RTX 3090
196 fps -4%
Radeon RX 6800 XT
190.6 fps -6%
NVIDIA GeForce RTX 3080
181.8 fps -11%
Radeon RX 6800
179.7 fps -12%
NVIDIA GeForce RTX 3070
157 fps -23%
Radeon RX 6700 XT
149.8 fps -26%
Radeon RX 6600 XT
110.1 fps -46%
NVIDIA GeForce RTX 3060
106.7 fps -48%
1920x1080 Extreme HD Preset OpenGL AA:x8
NVIDIA GeForce RTX 3090
187.8 fps +1%
KFA2 GeForce RTX 3080 SG 12GB
186.1 fps
NVIDIA GeForce RTX 3080
172 fps -8%
Radeon RX 6900 XT
167.4 (56.7min - 375.7max) fps -10%
Radeon RX 6800 XT
158.2 fps -15%
NVIDIA GeForce RTX 3070
142.9 fps -23%
Radeon RX 6800
137.2 fps -26%
Radeon RX 6700 XT
112.6 fps -39%
NVIDIA GeForce RTX 3060
91.9 fps -51%
Radeon RX 6600 XT
83.5 fps -55%
SiSoft Sandra 2016
Image Processing
Radeon RX 6800 XT
6196 MPix/s +39%
Radeon RX 6800
4709 MPix/s +6%
KFA2 GeForce RTX 3080 SG 12GB
4460.23 MPix/s
NVIDIA GeForce RTX 3090
4437 MPix/s -1%
NVIDIA GeForce RTX 3080
3813 MPix/s -15%
Radeon RX 6700 XT
3730 MPix/s -16%
Radeon RX 6600 XT
2820 MPix/s -37%
NVIDIA GeForce RTX 3070
2567 MPix/s -42%
NVIDIA GeForce RTX 3060
1642 MPix/s -63%
GP Cryptography (Higher Security AES256+SHA2-512)
NVIDIA GeForce RTX 3090
200.4 GB/s +24%
NVIDIA GeForce RTX 3080
174 GB/s +8%
KFA2 GeForce RTX 3080 SG 12GB
161.59 GB/s
Radeon RX 6800 XT
160.8 GB/s 0%
NVIDIA GeForce RTX 3070
117.8 GB/s -27%
Radeon RX 6700 XT
100.6 GB/s -38%
NVIDIA GeForce RTX 3060
65.7 GB/s -59%
GP Financial Analysis (FP High/Double Precision)
Radeon RX 6800
410 KOPT/s +64%
Radeon RX 6800 XT
381.8 KOPT/s +52%
NVIDIA GeForce RTX 3090
254.4 KOPT/s +2%
KFA2 GeForce RTX 3080 SG 12GB
250.41 KOPT/s
Radeon RX 6700 XT
226.2 KOPT/s -10%
NVIDIA GeForce RTX 3080
220.9 KOPT/s -12%
Radeon RX 6600 XT
182.4 KOPT/s -27%
NVIDIA GeForce RTX 3070
146.5 KOPT/s -41%
NVIDIA GeForce RTX 3060
86.4 KOPT/s -65%
3DMark 05 Standard
62003 points
3DMark 06 Standard Score
48432 points
3DMark Vantage P Result
102294 points
3DMark 11 Performance
41410 points
3DMark Ice Storm Standard Score
224001 points
3DMark Cloud Gate Standard Score
74457 points
3DMark Fire Strike Score
35922 points
3DMark Fire Strike Extreme Score
21299 points
3DMark Time Spy Score
16961 points
Help

游戏基准

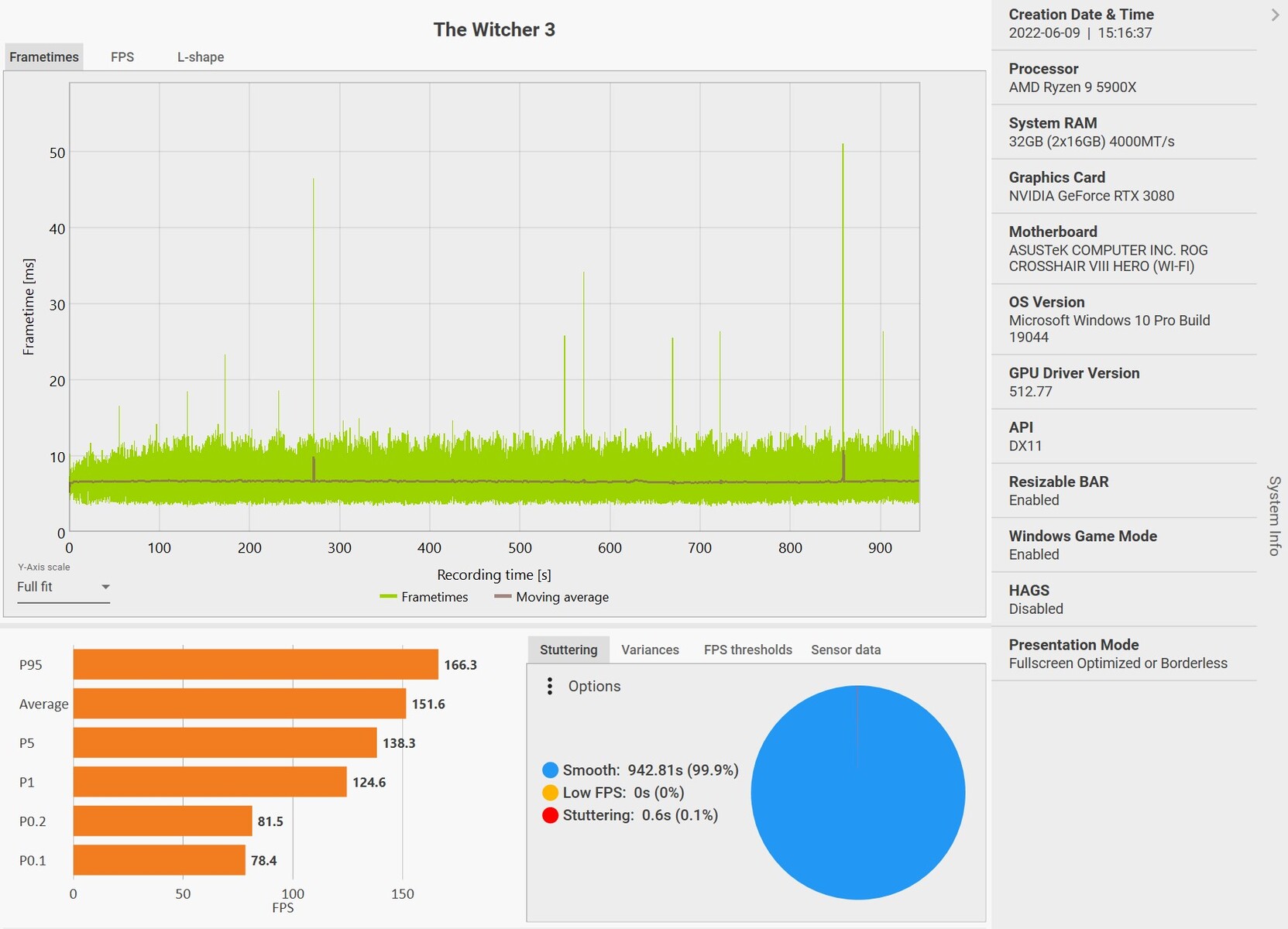

Witcher 3 帧时间(超)。
Witcher 3 帧时间(超)。

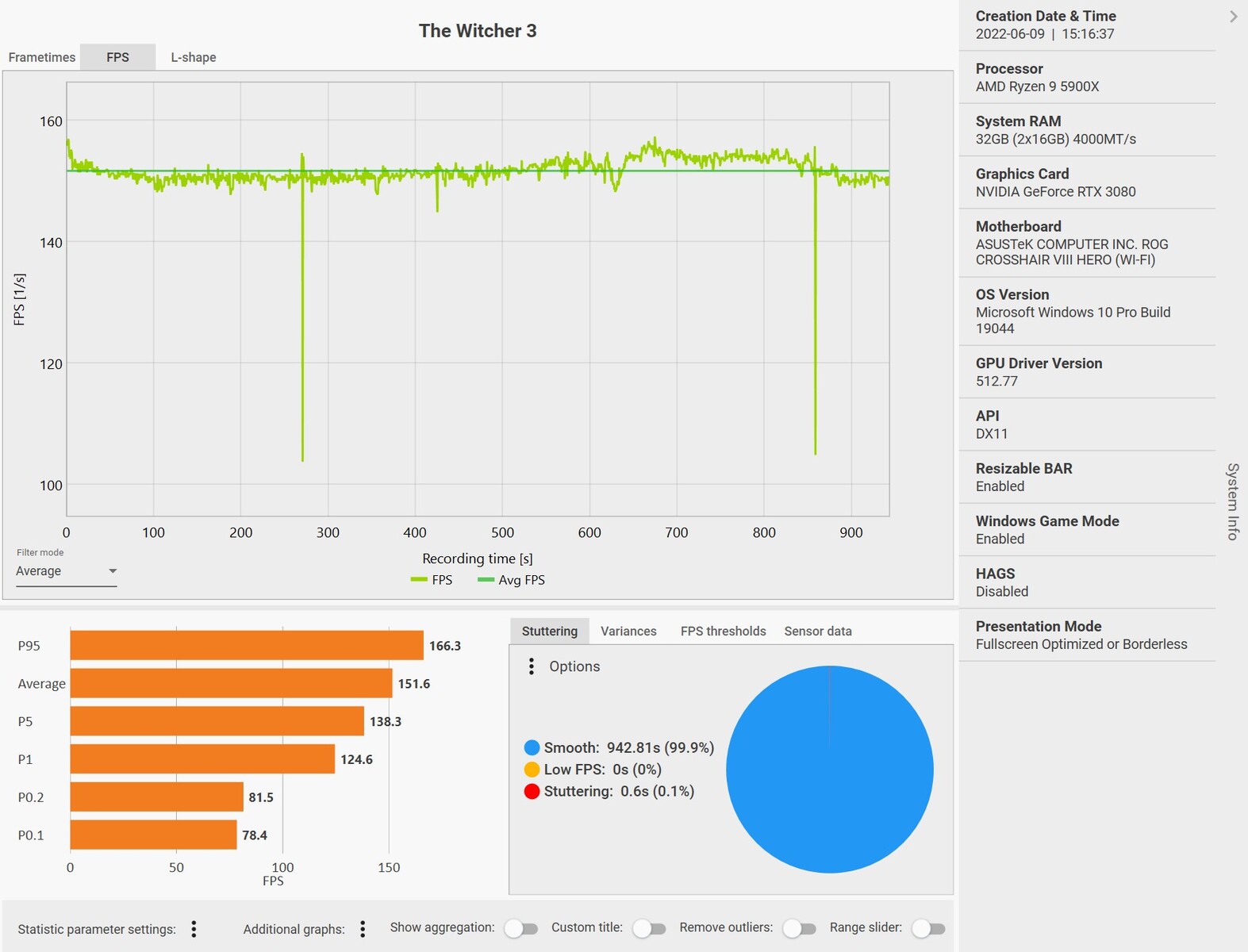

Witcher 3 帧率随着时间的推移(超)。
Witcher 3 帧率随着时间的推移(超)。

我们的游戏基准测试总体上完成得非常好,没有任何问题。所有基准测试的游戏都可以在2160p和最大细节下顺利享受,只有一些游戏未能达到平均60FPS的效果。与Nvidia GeForce RTX 3080相比,这个新的12GB显卡的性能要快10%到15%,这意味着KFA2 RTX 3080 SG 12GB不仅比AMD Radeon RX 6800 XT,而且几乎与AMD的Radeon RX 6900 XT

由于其非常高的性能,KFA2GeForce RTX 3080 SG 12 GB实际上是为高分辨率游戏的高细节而制造的。如果你只玩1080p的游戏,GeForce RTX 3080 12 GB可能不是你的正确选择。然而,如果你想让你的GPU持续使用很多年,这个顶级型号可能就是这样。RTX 3080肯定会从获得12GB的VRAM中受益匪浅,而且它从一开始就应该这样发布。然而,它的竞争对手提供了更多高达16GB的VRAM,而Nvidia自己的RTX 3090也有高达24GB的VRAM,价格高得吓人。然而,这并不一定会带来更高的性能,正如下面所见。虽然RTX 3090的性能确实比我们的RTX 3080 12 GB评测模型略快,但两者之间的差异并不能证明RTX 3090的价格更高。

12GB的VRAM是一个很好的折衷方案,而且远没有以前的型号那样具有限制性。事实上,它们是绰绰有余的,正如我们的TheWitcher 3 (1080p,Ultra)记录的帧率所示。虽然我们确实遇到了两个小的帧数下降,但它们一点也不夸张,更重要的是,一点也不明显。换句话说,它们对游戏体验没有明显的影响,基准测试以平均151FPS的成绩结束。

Performance Rating - Percent
MSI GeForce RTX 3090 Suprim X
98.8 pt
KFA2 GeForce RTX 3080 SG
93.9 pt
AMD Radeon RX 6900 XT -2!
92.1 pt
MSI GeForce RTX 3080 Gaming X Trio
86.8 pt
AMD Radeon RX 6800 XT
84.8 pt
AMD Radeon RX 6800
75.1 pt
MSI GeForce RTX 3070 Ventus 3X
66.4 pt
AMD Radeon RX 6700 XT
57 pt
Inno3D GeForce RTX 3060 Twin X2
49.7 pt
AMD Radeon RX 6600 XT
42.8 pt
GTA V - 3840x2160 High/On (Advanced Graphics Off) AA:FX AF:8x
KFA2 GeForce RTX 3080 SG
169.6 (14.8min, 125P1 - 411max) fps
MSI GeForce RTX 3090 Suprim X
164 (2.97min, 111P1 - 329max) fps -3%
MSI GeForce RTX 3080 Gaming X Trio
150 (12.6min, 100P1 - 343max) fps -12%
AMD Radeon RX 6800 XT
134 (15.5min, 55.6P1 - 252max) fps -21%
AMD Radeon RX 6800
119 (7.07min, 83.3P1 - 222max) fps -30%
MSI GeForce RTX 3070 Ventus 3X
117 (9.24min, 76.9P1 - 263max) fps -31%
AMD Radeon RX 6700 XT
96.5 (5.12min, 71.4P1 - 220max) fps -43%
Inno3D GeForce RTX 3060 Twin X2
82.8 (7.27min, 62.5P1 - 242max) fps -51%
AMD Radeon RX 6600 XT
63.8 (8.29min, 47.6P1 - 159max) fps -62%
The Witcher 3 - 3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off)
KFA2 GeForce RTX 3080 SG
131.8 (48.2min, 72.3P0.1, 107.3P1 - 454max) fps
MSI GeForce RTX 3090 Suprim X
128 (117min - 138max) fps -3%
AMD Radeon RX 6900 XT
122 (105min, 105P1 - 134max) fps -7%
MSI GeForce RTX 3080 Gaming X Trio
114 (106min - 122max) fps -14%
AMD Radeon RX 6800 XT
110 (97min - 117max) fps -17%
AMD Radeon RX 6800
96.8 (59.9min, 74.8P0.1, 84.2P1 - 212max) fps -27%
MSI GeForce RTX 3070 Ventus 3X
90.9 (84min - 101max) fps -31%
Inno3D GeForce RTX 3060 Twin X2
90.3 (38.2min, 59P0.1, 65.7P1 - 295max) fps -31%
AMD Radeon RX 6700 XT
63 fps -52%
AMD Radeon RX 6600 XT
53.9 (39.4min, 43.8P0.1, 47.9P1 - 97.2max) fps -59%
Far Cry 5 - 3840x2160 Ultra Preset AA:T
MSI GeForce RTX 3090 Suprim X
106 (84min - 123max) fps +4%
KFA2 GeForce RTX 3080 SG
102 (93min - 121max) fps
AMD Radeon RX 6800 XT
95 (72min - 124max) fps -7%
MSI GeForce RTX 3080 Gaming X Trio
93 (78min - 109max) fps -9%
AMD Radeon RX 6800
90 (77min - 109max) fps -12%
MSI GeForce RTX 3070 Ventus 3X
70 (63min - 84max) fps -31%
AMD Radeon RX 6700 XT
70 (59min - 91max) fps -31%
AMD Radeon RX 6600 XT
51 (44min - 65max) fps -50%
Inno3D GeForce RTX 3060 Twin X2
48 (43min - 59max) fps -53%
F1 2020 - 3840x2160 Ultra High Preset AA:T AF:16x
MSI GeForce RTX 3090 Suprim X
144 (123min - 166max) fps +16%
AMD Radeon RX 6900 XT
137 (109min - 165max) fps +10%
AMD Radeon RX 6900 XT
136 (110min - 161max) fps +9%
AMD Radeon RX 6800 XT
128 (106min - 152max) fps +3%
KFA2 GeForce RTX 3080 SG
124.6 (107min - 145max) fps
MSI GeForce RTX 3080 Gaming X Trio
114 (100min - 136max) fps -9%
AMD Radeon RX 6800
107 (86min - 128max) fps -14%
MSI GeForce RTX 3070 Ventus 3X
88.7 (76min - 101max) fps -29%
AMD Radeon RX 6700 XT
83 fps -33%
AMD Radeon RX 6600 XT
65.8 (53min - 80max) fps -47%
Inno3D GeForce RTX 3060 Twin X2
60 (51min - 71max) fps -52%
Shadow of the Tomb Raider - 3840x2160 Highest Preset AA:T
MSI GeForce RTX 3090 Suprim X
95.6 fps +16%
MSI GeForce RTX 3080 Gaming X Trio
87.9 fps +6%
AMD Radeon RX 6900 XT
86 fps +4%
AMD Radeon RX 6900 XT
84 fps +2%
KFA2 GeForce RTX 3080 SG
82.7 fps
AMD Radeon RX 6800 XT
79.6 fps -4%
AMD Radeon RX 6800
69.6 fps -16%
MSI GeForce RTX 3070 Ventus 3X
63.5 fps -23%
AMD Radeon RX 6700 XT
54 fps -35%
Inno3D GeForce RTX 3060 Twin X2
42.3 fps -49%
AMD Radeon RX 6600 XT
39.8 fps -52%
GTA V
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
KFA2 GeForce RTX 3080 SG
128.2 (11.2min, 83.3P1 - 222max) fps
AMD Radeon RX 6800 XT
121 (5.54min, 58.8P1 - 271max) fps -6%
AMD Radeon RX 6800
118 (6.63min, 58.8P1 - 205max) fps -8%
AMD Radeon RX 6700 XT
115 (7.08min, 55.6P1 - 210max) fps -10%
MSI GeForce RTX 3090 Suprim X
114 (6.72min, 71.4P1 - 223max) fps -11%
Inno3D GeForce RTX 3060 Twin X2
111 (4.48min, 76.9P1 - 235max) fps -13%
MSI GeForce RTX 3070 Ventus 3X
108 (4.47min, 71.4P1 - 218max) fps -16%
MSI GeForce RTX 3080 Gaming X Trio
104 (7.09min, 62.5P1 - 221max) fps -19%
AMD Radeon RX 6600 XT
94.1 (5.25min, 58.8P1 - 252max) fps -27%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
KFA2 GeForce RTX 3080 SG
182 (5.34min, 142.9P1 - 314max) fps
Inno3D GeForce RTX 3060 Twin X2
180 (2.37min, 125P1 - 393max) fps -1%
AMD Radeon RX 6800 XT
179 (3.18min, 66.7P1 - 513max) fps -2%
AMD Radeon RX 6700 XT
179 (3.35min, 83.3P1 - 423max) fps -2%
AMD Radeon RX 6800
177 (4.82min, 83.3P1 - 426max) fps -3%
AMD Radeon RX 6600 XT
176 (3.61min, 83.3P1 - 450max) fps -3%
MSI GeForce RTX 3090 Suprim X
175 (3min, 125P1 - 386max) fps -4%
MSI GeForce RTX 3070 Ventus 3X
170 (3.14min, 100P1 - 356max) fps -7%
MSI GeForce RTX 3080 Gaming X Trio
169 (3.6min, 90.9P1 - 375max) fps -7%
3840x2160 High/On (Advanced Graphics Off) AA:FX AF:8x
KFA2 GeForce RTX 3080 SG
169.6 (14.8min, 125P1 - 411max) fps
MSI GeForce RTX 3090 Suprim X
164 (2.97min, 111P1 - 329max) fps -3%
MSI GeForce RTX 3080 Gaming X Trio
150 (12.6min, 100P1 - 343max) fps -12%
AMD Radeon RX 6800 XT
134 (15.5min, 55.6P1 - 252max) fps -21%
AMD Radeon RX 6800
119 (7.07min, 83.3P1 - 222max) fps -30%
MSI GeForce RTX 3070 Ventus 3X
117 (9.24min, 76.9P1 - 263max) fps -31%
AMD Radeon RX 6700 XT
96.5 (5.12min, 71.4P1 - 220max) fps -43%
Inno3D GeForce RTX 3060 Twin X2
82.8 (7.27min, 62.5P1 - 242max) fps -51%
AMD Radeon RX 6600 XT
63.8 (8.29min, 47.6P1 - 159max) fps -62%
The Witcher 3
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
KFA2 GeForce RTX 3080 SG
165.1 (57.2min, 90.2P0.1, 124.4P1 - 369max) fps
AMD Radeon RX 6900 XT
163.6 (139min - 179max) fps -1%
MSI GeForce RTX 3090 Suprim X
160 (140min - 184max) fps -3%
AMD Radeon RX 6800 XT
160 (138min - 179max) fps -3%
AMD Radeon RX 6800
156 (15.9min, 87.6P0.1, 128P1 - 313max) fps -6%
MSI GeForce RTX 3080 Gaming X Trio
145 (123min - 154max) fps -12%
MSI GeForce RTX 3070 Ventus 3X
121 (112min - 134max) fps -27%
AMD Radeon RX 6700 XT
117 fps -29%
AMD Radeon RX 6600 XT
98.9 (59.2min, 69.1P0.1, 83.7P1 - 263max) fps -40%
Inno3D GeForce RTX 3060 Twin X2
63.3 (22.3min, 40.7P0.1, 51.3P1 - 358max) fps -62%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
AMD Radeon RX 6900 XT
323 (269min, 280.2P1 - 350max) fps +1%
KFA2 GeForce RTX 3080 SG
321 (39.5min, 134.4P0.1, 209P1 - 678max) fps
MSI GeForce RTX 3080 Gaming X Trio
320 (290min - 353max) fps 0%
AMD Radeon RX 6800 XT
294 (254min - 323max) fps -8%
MSI GeForce RTX 3090 Suprim X
292 (258min - 325max) fps -9%
AMD Radeon RX 6800
277 (64.9min, 157P0.1, 220P1 - 431max) fps -14%
Inno3D GeForce RTX 3060 Twin X2
179 (36.1min, 119P0.1, 148P1 - 590max) fps -44%
MSI GeForce RTX 3070 Ventus 3X
176 (161min - 189max) fps -45%
AMD Radeon RX 6600 XT
176 (21.5min, 122P0.1, 146P1 - 403max) fps -45%
AMD Radeon RX 6700 XT
174 fps -46%
3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off)
KFA2 GeForce RTX 3080 SG
131.8 (48.2min, 72.3P0.1, 107.3P1 - 454max) fps
MSI GeForce RTX 3090 Suprim X
128 (117min - 138max) fps -3%
AMD Radeon RX 6900 XT
122 (105min, 105P1 - 134max) fps -7%
MSI GeForce RTX 3080 Gaming X Trio
114 (106min - 122max) fps -14%
AMD Radeon RX 6800 XT
110 (97min - 117max) fps -17%
AMD Radeon RX 6800
96.8 (59.9min, 74.8P0.1, 84.2P1 - 212max) fps -27%
MSI GeForce RTX 3070 Ventus 3X
90.9 (84min - 101max) fps -31%
Inno3D GeForce RTX 3060 Twin X2
90.3 (38.2min, 59P0.1, 65.7P1 - 295max) fps -31%
AMD Radeon RX 6700 XT
63 fps -52%
AMD Radeon RX 6600 XT
53.9 (39.4min, 43.8P0.1, 47.9P1 - 97.2max) fps -59%
Far Cry 6
1920x1080 Ultra Graphics Quality + HD Textures AA:T
AMD Radeon RX 6800
116 (82min - 157max) fps +16%
AMD Radeon RX 6700 XT
102 (73min - 131max) fps +2%
KFA2 GeForce RTX 3080 SG
100.2 (81min - 133max) fps
AMD Radeon RX 6600 XT
99 fps -1%
Inno3D GeForce RTX 3060 Twin X2
88 (76min - 105max) fps -12%
1920x1080 High Graphics Quality AA:T
AMD Radeon RX 6800
126 (90min - 168max) fps +20%
AMD Radeon RX 6700 XT
112 (84min - 146max) fps +7%
AMD Radeon RX 6600 XT
108 fps +3%
KFA2 GeForce RTX 3080 SG
104.7 (88min - 140max) fps
Inno3D GeForce RTX 3060 Twin X2
101 (81min - 119max) fps -4%
3840x2160 Ultra Graphics Quality + HD Textures AA:T
AMD Radeon RX 6800
68.1 (59min - 75max) fps +19%
KFA2 GeForce RTX 3080 SG
57.2 (28min - 69max) fps
AMD Radeon RX 6700 XT
50 (38min - 56max) fps -13%
Inno3D GeForce RTX 3060 Twin X2
38 (25min - 42max) fps -34%
AMD Radeon RX 6600 XT
21 fps -63%
Far Cry 5
1920x1080 Ultra Preset AA:T
KFA2 GeForce RTX 3080 SG
151 (111min - 207max) fps
MSI GeForce RTX 3070 Ventus 3X
143 (108min - 192max) fps -5%
MSI GeForce RTX 3090 Suprim X
141 (106min - 194max) fps -7%
AMD Radeon RX 6700 XT
139 (104min - 189max) fps -8%
MSI GeForce RTX 3080 Gaming X Trio
135 (97min - 188max) fps -11%
AMD Radeon RX 6600 XT
133 (104min - 170max) fps -12%
Inno3D GeForce RTX 3060 Twin X2
132 (109min - 150max) fps -13%
AMD Radeon RX 6800 XT
130 (97min - 185max) fps -14%
AMD Radeon RX 6800
126 (96min - 170max) fps -17%
1920x1080 High Preset AA:T
KFA2 GeForce RTX 3080 SG
162 (126min - 224max) fps
MSI GeForce RTX 3070 Ventus 3X
154 (124min - 205max) fps -5%
MSI GeForce RTX 3090 Suprim X
153 (100min - 215max) fps -6%
AMD Radeon RX 6700 XT
149 (115min - 204max) fps -8%
MSI GeForce RTX 3080 Gaming X Trio
144 (112min - 205max) fps -11%
AMD Radeon RX 6600 XT
141 (114min - 178max) fps -13%
Inno3D GeForce RTX 3060 Twin X2
140 (119min - 161max) fps -14%
AMD Radeon RX 6800 XT
139 (109min - 197max) fps -14%
AMD Radeon RX 6800
134 (102min - 182max) fps -17%
3840x2160 Ultra Preset AA:T
MSI GeForce RTX 3090 Suprim X
106 (84min - 123max) fps +4%
KFA2 GeForce RTX 3080 SG
102 (93min - 121max) fps
AMD Radeon RX 6800 XT
95 (72min - 124max) fps -7%
MSI GeForce RTX 3080 Gaming X Trio
93 (78min - 109max) fps -9%
AMD Radeon RX 6800
90 (77min - 109max) fps -12%
MSI GeForce RTX 3070 Ventus 3X
70 (63min - 84max) fps -31%
AMD Radeon RX 6700 XT
70 (59min - 91max) fps -31%
AMD Radeon RX 6600 XT
51 (44min - 65max) fps -50%
Inno3D GeForce RTX 3060 Twin X2
48 (43min - 59max) fps -53%
Far Cry New Dawn
1920x1080 Ultra Preset
AMD Radeon RX 6900 XT
118 (81min - 192max) fps 0%
KFA2 GeForce RTX 3080 SG
118 (80min - 202max) fps
MSI GeForce RTX 3070 Ventus 3X
116 (77min - 187max) fps -2%
AMD Radeon RX 6700 XT
115 (78min - 195max) fps -3%
AMD Radeon RX 6800 XT
113 (78min - 186max) fps -4%
AMD Radeon RX 6600 XT
112 (77min - 181max) fps -5%
Inno3D GeForce RTX 3060 Twin X2
112 (83min - 146max) fps -5%
MSI GeForce RTX 3080 Gaming X Trio
108 (71min - 183max) fps -8%
AMD Radeon RX 6800
107 (71min - 179max) fps -9%
MSI GeForce RTX 3090 Suprim X
106 (69min - 171max) fps -10%
1920x1080 High Preset
KFA2 GeForce RTX 3080 SG
131 (98min - 200max) fps
MSI GeForce RTX 3070 Ventus 3X
130 (99min - 188max) fps -1%
AMD Radeon RX 6600 XT
127 (97min - 190max) fps -3%
AMD Radeon RX 6700 XT
126 (95min - 192max) fps -4%
Inno3D GeForce RTX 3060 Twin X2
126 (104min - 154max) fps -4%
AMD Radeon RX 6800 XT
124 (96min - 185max) fps -5%
AMD Radeon RX 6900 XT
123 (94min - 184max) fps -6%
MSI GeForce RTX 3080 Gaming X Trio
120 (90min - 181max) fps -8%
AMD Radeon RX 6800
118 (89min - 183max) fps -10%
MSI GeForce RTX 3090 Suprim X
117 (89min - 179max) fps -11%
3840x2160 Ultra Preset
AMD Radeon RX 6900 XT
101 (79min - 135max) fps +3%
KFA2 GeForce RTX 3080 SG
98 (79min - 122max) fps
MSI GeForce RTX 3090 Suprim X
96 (71min - 125max) fps -2%
AMD Radeon RX 6800 XT
94 (75min - 129max) fps -4%
MSI GeForce RTX 3080 Gaming X Trio
88 (71min - 110max) fps -10%
AMD Radeon RX 6800
86 (70min - 115max) fps -12%
MSI GeForce RTX 3070 Ventus 3X
72 (61min - 86max) fps -27%
AMD Radeon RX 6700 XT
70 (57min - 91max) fps -29%
AMD Radeon RX 6600 XT
53 (44min - 69max) fps -46%
Inno3D GeForce RTX 3060 Twin X2
50 (42min - 60max) fps -49%
Anno 1800
1920x1080 Ultra Graphics Quality (DX11)
AMD Radeon RX 6900 XT
87.1 (57.2min, 57.6P0.1, 68.1P1 - 115max) fps +69%
MSI GeForce RTX 3090 Suprim X
54.8 (41min - 85max) fps +6%
MSI GeForce RTX 3080 Gaming X Trio
54 (38min - 82max) fps +5%
MSI GeForce RTX 3070 Ventus 3X
52 (42min - 66max) fps +1%
KFA2 GeForce RTX 3080 SG
51.6 (21.1min, 23.8P0.1, 39.5P1 - 71.3max) fps
AMD Radeon RX 6800 XT
51.2 (45min - 66max) fps -1%
Inno3D GeForce RTX 3060 Twin X2
50.7 (20min, 22.7P0.1, 33.6P1 - 69.6max) fps -2%
AMD Radeon RX 6800
48.5 (18.2min, 22.5P0.1, 33.9P1 - 73max) fps -6%
AMD Radeon RX 6700 XT
45 fps -13%
AMD Radeon RX 6600 XT
41.4 (16.8min, 17.6P0.1, 35.9P1 - 49.1max) fps -20%
1920x1080 High Graphics Quality (DX11)
AMD Radeon RX 6900 XT
139 (73.6min, 89.7P0.1, 97.8P1 - 191max) fps +48%
MSI GeForce RTX 3090 Suprim X
105 (91min - 121max) fps +12%
Inno3D GeForce RTX 3060 Twin X2
105 (51.7min, 62.1P0.1, 83.6P1 - 136max) fps +12%
MSI GeForce RTX 3070 Ventus 3X
100 (85min - 121max) fps +6%
AMD Radeon RX 6800 XT
94.9 (84min - 110max) fps +1%
KFA2 GeForce RTX 3080 SG
94 (49.8min, 66.4P0.1, 76.6P1 - 121.3max) fps
MSI GeForce RTX 3080 Gaming X Trio
93.9 (85min - 115max) fps 0%
AMD Radeon RX 6800
90.2 (39.5min, 62.7P0.1, 70.5P1 - 137max) fps -4%
AMD Radeon RX 6600 XT
89.3 (52.8min, 59.9P0.1, 72P1 - 119max) fps -5%
AMD Radeon RX 6700 XT
87 fps -7%
3840x2160 Ultra Graphics Quality (DX11)
MSI GeForce RTX 3090 Suprim X
52.5 (42min - 63max) fps +10%
AMD Radeon RX 6900 XT
52 (27.3min, 27.5P0.1, 33.6P1 - 75.8max) fps +9%
KFA2 GeForce RTX 3080 SG
47.8 (21min, 24P0.1, 33.3P1 - 65.9max) fps
AMD Radeon RX 6800 XT
45.5 (42min - 49max) fps -5%
MSI GeForce RTX 3080 Gaming X Trio
43.2 (32min - 52max) fps -10%
AMD Radeon RX 6800
41.7 (31.6min, 32.7P0.1, 34P1 - 56.4max) fps -13%
MSI GeForce RTX 3070 Ventus 3X
35 (23min - 40max) fps -27%
AMD Radeon RX 6700 XT
29 fps -39%
Inno3D GeForce RTX 3060 Twin X2
22.8 (5.84min, 7.82P0.1, 14.2P1 - 66.4max) fps -52%
AMD Radeon RX 6600 XT
21.5 (18min, 18.4P0.1, 18.9P1 - 27.6max) fps -55%
Crysis Remastered
1920x1080 Very High Preset AA:SM
KFA2 GeForce RTX 3080 SG
162.3 (66.5min, 114P0.1, 137.7P1 - 220max) fps
MSI GeForce RTX 3090 Suprim X
102 (50.2min, 53.2P0.1, 66.9P1 - 213max) fps -37%
AMD Radeon RX 6800 XT
94.7 (36.3min, 43P0.1, 59.2P1 - 225max) fps -42%
AMD Radeon RX 6700 XT
88 fps -46%
AMD Radeon RX 6800
80.5 (36.5min, 53.3P0.1, 65.8P1 - 123max) fps -50%
MSI GeForce RTX 3070 Ventus 3X
75.8 (46.1min, 48.5P0.1, 54.2P1 - 148max) fps -53%
MSI GeForce RTX 3080 Gaming X Trio
62.1 (41.5min, 41.8P0.1, 44.5P1 - 113max) fps -62%
Inno3D GeForce RTX 3060 Twin X2
57.5 (32.2min, 42.4P0.1, 48.1P1 - 113max) fps -65%
AMD Radeon RX 6600 XT
50.7 (21.3min, 34.1P0.1, 42.8P1 - 121max) fps -69%
1920x1080 High Preset AA:SM
KFA2 GeForce RTX 3080 SG
176.6 (114.6min, 123.7P0.1, 141.1P1 - 260max) fps
AMD Radeon RX 6800 XT
152 (50.5min, 58.8P0.1, 85.4P1 - 282max) fps -14%
MSI GeForce RTX 3090 Suprim X
130 (41.5min, 60.8P0.1, 73.6P1 - 262max) fps -26%
AMD Radeon RX 6700 XT
112 fps -37%
AMD Radeon RX 6800
105 (33.4min, 39P0.1, 72.2P1 - 174max) fps -41%
MSI GeForce RTX 3080 Gaming X Trio
98.9 (41.2min, 48.7P0.1, 59P1 - 216max) fps -44%
MSI GeForce RTX 3070 Ventus 3X
97.7 (36.3min, 39.8P0.1, 53.2P1 - 192max) fps -45%
Inno3D GeForce RTX 3060 Twin X2
77.9 (42.6min, 50P0.1, 63.4P1 - 180max) fps -56%
AMD Radeon RX 6600 XT
67.5 (29.7min, 37.1P0.1, 53.5P1 - 163max) fps -62%
3840x2160 Very High Preset AA:SM
KFA2 GeForce RTX 3080 SG
72.7 (36.4min, 56.1P0.1, 61.1P1 - 100.7max) fps
MSI GeForce RTX 3090 Suprim X
64.9 (44.8min, 49.4P0.1, 54.6P1 - 96.2max) fps -11%
AMD Radeon RX 6800 XT
54.4 (34.7min, 38.5P0.1, 45.5P1 - 74.7max) fps -25%
MSI GeForce RTX 3080 Gaming X Trio
49.2 (36min, 36.9P0.1, 39P1 - 61.3max) fps -32%
MSI GeForce RTX 3070 Ventus 3X
38.9 (21.9min, 28P0.1, 31.1P1 - 58.6max) fps -46%
AMD Radeon RX 6700 XT
38 fps -48%
AMD Radeon RX 6800
30 (25.5min, 25.5P0.1, 27P1 - 35.4max) fps -59%
Inno3D GeForce RTX 3060 Twin X2
22.7 (17.4min, 18.1P0.1, 19.9P1 - 26.7max) fps -69%
AMD Radeon RX 6600 XT
15.6 (12min, 12P0.1, 13.6P1 - 19.6max) fps -79%
F1 2021
1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
KFA2 GeForce RTX 3080 SG
201 (169min, 155P1 - 216max) fps
AMD Radeon RX 6800
167 (131min, 125P1 - 188max) fps -17%
AMD Radeon RX 6700 XT
143 (119min, 120P1 - 162max) fps -29%
Inno3D GeForce RTX 3060 Twin X2
104 (88min, 88P1 - 117max) fps -48%
AMD Radeon RX 6600 XT
97 fps -52%
1920x1080 High Preset AA:T AF:16x
KFA2 GeForce RTX 3080 SG
379 (268min, 208P1 - 440max) fps
AMD Radeon RX 6800
357 (224min, 211P1 - 411max) fps -6%
AMD Radeon RX 6700 XT
323 (242min, 195P1 - 362max) fps -15%
AMD Radeon RX 6600 XT
229 fps -40%
Inno3D GeForce RTX 3060 Twin X2
212 (183min, 170P1 - 231max) fps -44%
3840x2160 Ultra High Preset + Raytracing AA:T AF:16x
KFA2 GeForce RTX 3080 SG
93.5 (82min, 82P1 - 105max) fps
AMD Radeon RX 6800
71.8 (61min, 61P1 - 82max) fps -23%
AMD Radeon RX 6700 XT
56.3 (48min, 48P1 - 65max) fps -40%
Inno3D GeForce RTX 3060 Twin X2
44 (38min, 38P1 - 50max) fps -53%
AMD Radeon RX 6600 XT
31 fps -67%
F1 2020
1920x1080 Ultra High Preset AA:T AF:16x
AMD Radeon RX 6900 XT
291 (222min - 355max) fps +11%
AMD Radeon RX 6900 XT
275 (213min - 338max) fps +5%
AMD Radeon RX 6800 XT
279 (211min - 345max) fps +6%
MSI GeForce RTX 3090 Suprim X
266 (218min - 321max) fps +1%
KFA2 GeForce RTX 3080 SG
263 (215min - 315max) fps
AMD Radeon RX 6800
222 (161min - 282max) fps -16%
AMD Radeon RX 6700 XT
190 fps -28%
MSI GeForce RTX 3070 Ventus 3X
181 (145min - 211max) fps -31%
MSI GeForce RTX 3080 Gaming X Trio
179 (153min - 213max) fps -32%
AMD Radeon RX 6600 XT
157 (115min - 193max) fps -40%
Inno3D GeForce RTX 3060 Twin X2
142 (114min - 171max) fps -46%
1920x1080 High Preset AA:T AF:16x
AMD Radeon RX 6900 XT
395 (324min - 460max) fps +17%
AMD Radeon RX 6800 XT
387 (285min - 448max) fps +14%
KFA2 GeForce RTX 3080 SG
339 (264min - 384max) fps
MSI GeForce RTX 3090 Suprim X
322 (262min - 365max) fps -5%
AMD Radeon RX 6800
314 (230min - 358max) fps -7%
AMD Radeon RX 6700 XT
276 fps -19%
MSI GeForce RTX 3070 Ventus 3X
252 (188min - 279max) fps -26%
MSI GeForce RTX 3080 Gaming X Trio
249 (198min - 283max) fps -27%
AMD Radeon RX 6600 XT
233 (188min - 269max) fps -31%
Inno3D GeForce RTX 3060 Twin X2
208 (181min - 235max) fps -39%
3840x2160 Ultra High Preset AA:T AF:16x
MSI GeForce RTX 3090 Suprim X
144 (123min - 166max) fps +16%
AMD Radeon RX 6900 XT
137 (109min - 165max) fps +10%
AMD Radeon RX 6900 XT
136 (110min - 161max) fps +9%
AMD Radeon RX 6800 XT
128 (106min - 152max) fps +3%
KFA2 GeForce RTX 3080 SG
124.6 (107min - 145max) fps
MSI GeForce RTX 3080 Gaming X Trio
114 (100min - 136max) fps -9%
AMD Radeon RX 6800
107 (86min - 128max) fps -14%
MSI GeForce RTX 3070 Ventus 3X
88.7 (76min - 101max) fps -29%
AMD Radeon RX 6700 XT
83 fps -33%
AMD Radeon RX 6600 XT
65.8 (53min - 80max) fps -47%
Inno3D GeForce RTX 3060 Twin X2
60 (51min - 71max) fps -52%
Mafia Definitive Edition
1920x1080 High Preset
KFA2 GeForce RTX 3080 SG
162.7 (71.7min, 80.5P0.1, 103.9P1 - 314max) fps
MSI GeForce RTX 3090 Suprim X
157 (64.1min, 76.8P0.1, 100P1 - 260max) fps -4%
MSI GeForce RTX 3080 Gaming X Trio
144 (59.7min, 73.4P0.1, 93.2P1 - 295max) fps -11%
AMD Radeon RX 6900 XT
138 (32.8min, 68.1P0.1, 90.2P1 - 334max) fps -15%
MSI GeForce RTX 3070 Ventus 3X
132 (57.5min, 71.1P0.1, 88.3P1 - 259max) fps -19%
AMD Radeon RX 6800
132 (34.8min, 55.7P0.1, 77.6P1 - 291max) fps -19%
AMD Radeon RX 6800 XT
121 (23.7min, 68P0.1, 83.3P1 - 223max) fps -26%
AMD Radeon RX 6700 XT
112 fps -31%
AMD Radeon RX 6600 XT
106 (33.7min, 59.1P0.1, 73P1 - 230max) fps -35%
Inno3D GeForce RTX 3060 Twin X2
103 (45.2min, 51.7P0.1, 68.7P1 - 247max) fps -37%
1920x1080 Medium Preset
KFA2 GeForce RTX 3080 SG
179.1 (65.1min, 90.3P0.1, 114.3P1 - 328max) fps
MSI GeForce RTX 3090 Suprim X
161 (55.2min, 75.7P0.1, 104P1 - 307max) fps -10%
MSI GeForce RTX 3080 Gaming X Trio
159 (60.2min, 70.6P0.1, 103P1 - 328max) fps -11%
AMD Radeon RX 6900 XT
142 (24.3min, 70.6P0.1, 93.2P1 - 330max) fps -21%
AMD Radeon RX 6800
142 (36min, 69.9P0.1, 88P1 - 309max) fps -21%
MSI GeForce RTX 3070 Ventus 3X
140 (54.9min, 70P0.1, 93.4P1 - 241max) fps -22%
AMD Radeon RX 6800 XT
139 (24.5min, 66.6P0.1, 90.7P1 - 298max) fps -22%
AMD Radeon RX 6700 XT
124 fps -31%
AMD Radeon RX 6600 XT
118 (27.9min, 68.1P0.1, 85.6P1 - 216max) fps -34%
Inno3D GeForce RTX 3060 Twin X2
113 (48.1min, 53.1P0.1, 82.7P1 - 218max) fps -37%
3840x2160 High Preset
MSI GeForce RTX 3090 Suprim X
89.1 (42.7min, 53.9P0.1, 62.7P1 - 175max) fps +13%
KFA2 GeForce RTX 3080 SG
79.2 (38.9min, 42.3P0.1, 62P1 - 175.6max) fps
MSI GeForce RTX 3080 Gaming X Trio
78.1 (44.8min, 50.5P0.1, 54.7P1 - 175max) fps -1%
AMD Radeon RX 6900 XT
67 (32.3min, 41.7P0.1, 44.7P1 - 211max) fps -15%
AMD Radeon RX 6800 XT
62.6 (28min, 37.6P0.1, 49.2P1 - 87.3max) fps -21%
AMD Radeon RX 6800
57.3 (31.4min, 33.3P0.1, 34.5P1 - 208max) fps -28%
MSI GeForce RTX 3070 Ventus 3X
55.2 (19.3min, 34.2P0.1, 45.2P1 - 133max) fps -30%
AMD Radeon RX 6700 XT
43 fps -46%
Inno3D GeForce RTX 3060 Twin X2
37 (26.9min, 28.4P0.1, 32P1 - 54.9max) fps -53%
AMD Radeon RX 6600 XT
34 (18.6min, 18.6P0.1, 19.4P1 - 169max) fps -57%
Watch Dogs Legion
1920x1080 Ultra Preset (DX12)
AMD Radeon RX 6900 XT
121 (67.26min, 95.56P1 - 184.97max) fps +27%
AMD Radeon RX 6900 XT
120 (81.32min, 93.02P1 - 209.32max) fps +26%
AMD Radeon RX 6800 XT
112 (75.12min, 87.97P1 - 181.69max) fps +18%
MSI GeForce RTX 3090 Suprim X
103 (30.26min, 75.96P1 - 155.81max) fps +8%
MSI GeForce RTX 3080 Gaming X Trio
99.3 (13.98min, 73.29P1 - 167.32max) fps +4%
KFA2 GeForce RTX 3080 SG
95.2 (35.72min, 69.11P1 - 145.12max) fps
AMD Radeon RX 6800
87.7 (36.62min, 64.1P1 - 145.7max) fps -8%
MSI GeForce RTX 3070 Ventus 3X
86 (37.65min, 66.32P1 - 130.48max) fps -10%
AMD Radeon RX 6700 XT
84.1 (60.29min, 67.02P1 - 118.49max) fps -12%
AMD Radeon RX 6600 XT
61 fps -36%
Inno3D GeForce RTX 3060 Twin X2
59.1 (17.01min, 48.27P1 - 100.5max) fps -38%
1920x1080 High Preset (DX12)
AMD Radeon RX 6900 XT
170 (101.03min, 125.43P1 - 261.76max) fps +58%
AMD Radeon RX 6800 XT
150 (79.26min, 110.06P1 - 227.35max) fps +39%
AMD Radeon RX 6700 XT
134 (76.1min, 102.89P1 - 200.63max) fps +24%
MSI GeForce RTX 3080 Gaming X Trio
113 (41.54min, 82.63P1 - 184.04max) fps +5%
MSI GeForce RTX 3070 Ventus 3X
112 (18.04min, 78.99P1 - 177.29max) fps +4%
MSI GeForce RTX 3090 Suprim X
111 (44.66min, 83.58P1 - 163.27max) fps +3%
KFA2 GeForce RTX 3080 SG
107.8 (32.37min, 79.28P1 - 161.72max) fps
AMD Radeon RX 6600 XT
104 fps -4%
AMD Radeon RX 6800
104 (55.63min, 73.69P1 - 162.54max) fps -4%
Inno3D GeForce RTX 3060 Twin X2
94.7 (56.34min, 74.21P1 - 138.68max) fps -12%
3840x2160 Ultra Preset (DX12)
MSI GeForce RTX 3090 Suprim X
60.3 (34.68min, 51.05P1 - 78.14max) fps +9%
KFA2 GeForce RTX 3080 SG
55.2 (34.2min, 46.23P1 - 81.17max) fps
AMD Radeon RX 6900 XT
53.6 (34.78min, 44.93P1 - 72.47max) fps -3%
AMD Radeon RX 6900 XT
53.5 (33.75min, 44.2P1 - 82.3max) fps -3%
MSI GeForce RTX 3080 Gaming X Trio
53.5 (33.98min, 42.85P1 - 79.6max) fps -3%
AMD Radeon RX 6800 XT
49.3 (32.85min, 41.54P1 - 76.12max) fps -11%
AMD Radeon RX 6800
44.5 (28.53min, 36.73P1 - 64.84max) fps -19%
MSI GeForce RTX 3070 Ventus 3X
39.2 (17.54min, 27.54P1 - 81.17max) fps -29%
AMD Radeon RX 6700 XT
35.3 (21.39min, 30.37P1 - 43.92max) fps -36%
Inno3D GeForce RTX 3060 Twin X2
26.8 (16.98min, 22.9P1 - 32.91max) fps -51%
AMD Radeon RX 6600 XT
24 fps -57%
Shadow of the Tomb Raider
1920x1080 Highest Preset AA:T
AMD Radeon RX 6900 XT
202 fps +3%
AMD Radeon RX 6900 XT
199 fps +1%
KFA2 GeForce RTX 3080 SG
196.1 fps
AMD Radeon RX 6800 XT
194 fps -1%
MSI GeForce RTX 3090 Suprim X
188 fps -4%
AMD Radeon RX 6800
182 fps -7%
MSI GeForce RTX 3080 Gaming X Trio
177 fps -10%
MSI GeForce RTX 3070 Ventus 3X
160 fps -18%
AMD Radeon RX 6700 XT
150 fps -24%
AMD Radeon RX 6600 XT
131 fps -33%
Inno3D GeForce RTX 3060 Twin X2
118 fps -40%
1920x1080 High Preset AA:SM
AMD Radeon RX 6900 XT
213 fps +3%
KFA2 GeForce RTX 3080 SG
207 fps
AMD Radeon RX 6800 XT
204 fps -1%
AMD Radeon RX 6800
196 fps -5%
MSI GeForce RTX 3080 Gaming X Trio
186 fps -10%
MSI GeForce RTX 3090 Suprim X
177 fps -14%
AMD Radeon RX 6700 XT
170 fps -18%
MSI GeForce RTX 3070 Ventus 3X
168 fps -19%
AMD Radeon RX 6600 XT
153 fps -26%
Inno3D GeForce RTX 3060 Twin X2
129 fps -38%
3840x2160 Highest Preset AA:T
MSI GeForce RTX 3090 Suprim X
95.6 fps +16%
MSI GeForce RTX 3080 Gaming X Trio
87.9 fps +6%
AMD Radeon RX 6900 XT
86 fps +4%
AMD Radeon RX 6900 XT
84 fps +2%
KFA2 GeForce RTX 3080 SG
82.7 fps
AMD Radeon RX 6800 XT
79.6 fps -4%
AMD Radeon RX 6800
69.6 fps -16%
MSI GeForce RTX 3070 Ventus 3X
63.5 fps -23%
AMD Radeon RX 6700 XT
54 fps -35%
Inno3D GeForce RTX 3060 Twin X2
42.3 fps -49%
AMD Radeon RX 6600 XT
39.8 fps -52%
low med. high ultraQHD4K
GTA V (2015) 186.9 186.1 182 128.2 129.5 169.6
The Witcher 3 (2015) 425 407 321 165.1 131.8
Dota 2 Reborn (2015) 211.4 186.6 175.8 160.95 156.4
Rise of the Tomb Raider (2016) 441 286 232 197.4 102.2
Final Fantasy XV Benchmark (2018) 223 196.5 156.2 125.5 76.7
X-Plane 11.11 (2018) 159.4 143.2 114.7 98.7
Far Cry 5 (2018) 194 171 162 151 147 102
Strange Brigade (2018) 545 422 356 314 236 141.5
Shadow of the Tomb Raider (2018) 236 209 207 196.1 146.7 82.7
Far Cry New Dawn (2019) 154 136 131 118 116 98
Metro Exodus (2019) 210 178 145 117.7 97.9 65.2
Anno 1800 (2019) 126.6 123.7 94 51.6 49.7 47.8
Control (2019) 240 220 166.8 112.1 57.9
Borderlands 3 (2019) 166.2 150 139.2 128.5 104 59.9
F1 2020 (2020) 412 351 339 263 206 124.6
Horizon Zero Dawn (2020) 216 200 175 155 132 80
Crysis Remastered (2020) 320 346 176.6 162.3 123.5 72.7
Mafia Definitive Edition (2020) 196.6 179.1 162.7 136 79.2
Watch Dogs Legion (2020) 123 118.1 107.8 95.2 83.5 55.2
Dirt 5 (2020) 303 227 194 154 125 83
Immortals Fenyx Rising (2020) 142 140 136 129 112 78
F1 2021 (2021) 509 463 379 201 157.3 93.5
New World (2021) 173.1 129.2 116.1 113.5 103.9 67.6
Far Cry 6 (2021) 150.4 113.4 104.7 100.2 92.2 57.2
Guardians of the Galaxy (2021) 139 148 147 143 141 100
Riders Republic (2021) 236 208 173 162 124 73
Forza Horizon 5 (2021) 257 171 159 106 94 71
Farming Simulator 22 (2021) 277 230 197 181.5 179.4 133.4
God of War (2022) 182.7 163 138.8 100.8 85.5 60.1
Rainbow Six Extraction (2022) 379 275 273 239 168 96
Dying Light 2 (2022) 157.8 132.9 116 86.5 50
Elden Ring (2022) 60 60 60 60 60 60
Ghostwire Tokyo (2022) 206 196.3 195.4 192.5 165.8 86.7
Tiny Tina's Wonderlands (2022) 276 237 183.7 152.7 112.6 63.9
Vampire Bloodhunt (2022) 408 300 294 277 214 115.8

计算性能

在我们的渲染测试中,KFA2GeForce RTX 3080 SG 12 GB在面对自己的内部竞争对手时表现非常好。它与更昂贵的Nvidia GeForce RTX 3090 相差无几,而后者在我们的性能排名中仅快7%。尽管如此,Nvidia GPU无法与AMD的RDNA2代GPU竞争,后者每次都能轻松胜过其竞争对手。请记住,你的个人工作负载将在很大程度上影响整体计算性能,因此,在选择通用GPU计算的GPU时,你应该看一下每个单独的测试。

Performance Rating - Percent
AMD Radeon RX 6900 XT, R9 5950X
90.9 pt
AMD Radeon RX 6800 XT, R9 5950X
83.9 pt
AMD Radeon RX 6800, R9 5900X
79.4 pt
MSI GeForce RTX 3090 Suprim X, R9 5900X
77.8 pt
KFA2 GeForce RTX 3080 SG, R9 5900X
72.9 pt
AMD Radeon RX 6700 XT, R9 5900X
69.6 pt
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
68.2 pt
AMD Radeon RX 6600 XT, R9 5900X
58.6 pt
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
56.9 pt
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
41.2 pt
ComputeMark v2.1
1024x600 Normal, QJuliaRayTrace
MSI GeForce RTX 3090 Suprim X, R9 5900X
17058 Points +9%
KFA2 GeForce RTX 3080 SG, R9 5900X
15594 Points
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
15508 Points -1%
AMD Radeon RX 6900 XT, R9 5950X
12255 Points -21%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
11510 Points -26%
AMD Radeon RX 6800 XT, R9 5950X
11304 Points -28%
AMD Radeon RX 6800, R9 5900X
9343 Points -40%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
7719 Points -51%
AMD Radeon RX 6700 XT, R9 5900X
7537 Points -52%
AMD Radeon RX 6600 XT, R9 5900X
6423 Points -59%
1024x600 Normal, Mandel Scalar
MSI GeForce RTX 3090 Suprim X, R9 5900X
11197 Points +15%
AMD Radeon RX 6900 XT, R9 5950X
10834 Points +12%
AMD Radeon RX 6800 XT, R9 5950X
10018 Points +3%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
9938 Points +2%
KFA2 GeForce RTX 3080 SG, R9 5900X
9698 Points
AMD Radeon RX 6800, R9 5900X
8520 Points -12%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
7042 Points -27%
AMD Radeon RX 6700 XT, R9 5900X
6430 Points -34%
AMD Radeon RX 6600 XT, R9 5900X
5413 Points -44%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
4218 Points -57%
1024x600 Normal, Mandel Vector
AMD Radeon RX 6900 XT, R9 5950X
8690 Points +4%
AMD Radeon RX 6800 XT, R9 5950X
8399 Points +1%
MSI GeForce RTX 3090 Suprim X, R9 5900X
8341 Points 0%
KFA2 GeForce RTX 3080 SG, R9 5900X
8326 Points
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
7540 Points -9%
AMD Radeon RX 6800, R9 5900X
7283 Points -13%
AMD Radeon RX 6700 XT, R9 5900X
5478 Points -34%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
5364 Points -36%
AMD Radeon RX 6600 XT, R9 5900X
4805 Points -42%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
4265 Points -49%
1024x600 Normal, Fluid 2DTexArr
MSI GeForce RTX 3090 Suprim X, R9 5900X
4560 Points +9%
KFA2 GeForce RTX 3080 SG, R9 5900X
4175 Points
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
4159 Points 0%
AMD Radeon RX 6800 XT, R9 5950X
3947 Points -5%
AMD Radeon RX 6900 XT, R9 5950X
3924 Points -6%
AMD Radeon RX 6800, R9 5900X
3144 Points -25%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
2666 Points -36%
AMD Radeon RX 6700 XT, R9 5900X
2430 Points -42%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
2007 Points -52%
AMD Radeon RX 6600 XT, R9 5900X
1627 Points -61%
1024x600 Normal, Fluid 3DTex
MSI GeForce RTX 3090 Suprim X, R9 5900X
5391 Points +10%
AMD Radeon RX 6800 XT, R9 5950X
5154 Points +5%
AMD Radeon RX 6900 XT, R9 5950X
5154 Points +5%
KFA2 GeForce RTX 3080 SG, R9 5900X
4900 Points
AMD Radeon RX 6800, R9 5900X
4674 Points -5%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
4450 Points -9%
AMD Radeon RX 6700 XT, R9 5900X
3317 Points -32%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
2749 Points -44%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
2067 Points -58%
AMD Radeon RX 6600 XT, R9 5900X
1705 Points -65%
1024x600 Normal, Score
MSI GeForce RTX 3090 Suprim X, R9 5900X
46547 Points +9%
KFA2 GeForce RTX 3080 SG, R9 5900X
42692 Points
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
41594 Points -3%
AMD Radeon RX 6900 XT, R9 5950X
40857 Points -4%
AMD Radeon RX 6800 XT, R9 5950X
38823 Points -9%
AMD Radeon RX 6800, R9 5900X
32965 Points -23%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
29330 Points -31%
AMD Radeon RX 6700 XT, R9 5900X
25193 Points -41%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
20577 Points -52%
AMD Radeon RX 6600 XT, R9 5900X
19973 Points -53%
LuxMark v2.0 64Bit
Room GPUs-only
KFA2 GeForce RTX 3080 SG, R9 5900X
5768 Samples/s
MSI GeForce RTX 3090 Suprim X, R9 5900X
5727 Samples/s -1%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
5198 Samples/s -10%
AMD Radeon RX 6900 XT, R9 5950X
5084 Samples/s -12%
AMD Radeon RX 6800 XT, R9 5950X
5057 Samples/s -12%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
4284 Samples/s -26%
AMD Radeon RX 6800, R9 5900X
3689 Samples/s -36%
AMD Radeon RX 6700 XT, R9 5900X
3291 Samples/s -43%
AMD Radeon RX 6600 XT, R9 5900X
2493 Samples/s -57%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
1679 Samples/s -71%
Sala GPUs-only
AMD Radeon RX 6900 XT, R9 5950X
31400 Samples/s +121%
AMD Radeon RX 6800 XT, R9 5950X
28023 Samples/s +97%
AMD Radeon RX 6800, R9 5900X
20840 Samples/s +47%
MSI GeForce RTX 3090 Suprim X, R9 5900X
14590 Samples/s +3%
AMD Radeon RX 6700 XT, R9 5900X
14554 Samples/s +2%
KFA2 GeForce RTX 3080 SG, R9 5900X
14204 Samples/s
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
12980 Samples/s -9%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
10096 Samples/s -29%
AMD Radeon RX 6600 XT, R9 5900X
7239 Samples/s -49%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
6807 Samples/s -52%
SPECviewperf 13
Solidworks (sw-04)
AMD Radeon RX 6900 XT, R9 5950X
214 fps +98%
AMD Radeon RX 6700 XT, R9 5900X
201 fps +86%
AMD Radeon RX 6800, R9 5900X
200 fps +85%
AMD Radeon RX 6800 XT, R9 5950X
193 fps +79%
AMD Radeon RX 6600 XT, R9 5900X
184 fps +70%
KFA2 GeForce RTX 3080 SG, R9 5900X
108 fps
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
97.4 fps -10%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
96.5 fps -11%
MSI GeForce RTX 3090 Suprim X, R9 5900X
95.3 fps -12%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
84.9 fps -21%
Siemens NX (snx-03)
AMD Radeon RX 6600 XT, R9 5900X
88.1 fps +235%
AMD Radeon RX 6700 XT, R9 5900X
87.8 fps +234%
AMD Radeon RX 6900 XT, R9 5950X
85.8 fps +226%
AMD Radeon RX 6800, R9 5900X
84.7 fps +222%
AMD Radeon RX 6800 XT, R9 5950X
81.4 fps +210%
MSI GeForce RTX 3090 Suprim X, R9 5900X
27.03 fps +3%
KFA2 GeForce RTX 3080 SG, R9 5900X
26.3 fps
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
24.26 fps -8%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
23.25 fps -12%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
16.2 fps -38%
Showcase (showcase-02)
MSI GeForce RTX 3090 Suprim X, R9 5900X
241 fps +6%
AMD Radeon RX 6900 XT, R9 5950X
241 fps +6%
AMD Radeon RX 6800 XT, R9 5950X
232 fps +2%
KFA2 GeForce RTX 3080 SG, R9 5900X
228 fps
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
204 fps -11%
AMD Radeon RX 6800, R9 5900X
194 fps -15%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
158 fps -31%
AMD Radeon RX 6700 XT, R9 5900X
150 fps -34%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
115 fps -50%
AMD Radeon RX 6600 XT, R9 5900X
111 fps -51%
Medical (medical-02)
AMD Radeon RX 6900 XT, R9 5950X
148 fps +45%
AMD Radeon RX 6800 XT, R9 5950X
130 fps +27%
AMD Radeon RX 6800, R9 5900X
113 fps +11%
MSI GeForce RTX 3090 Suprim X, R9 5900X
105 fps +3%
AMD Radeon RX 6700 XT, R9 5900X
104 fps +2%
KFA2 GeForce RTX 3080 SG, R9 5900X
102 fps
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
99 fps -3%
AMD Radeon RX 6600 XT, R9 5900X
89.6 fps -12%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
81.4 fps -20%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
55 fps -46%
Maya (maya-05)
MSI GeForce RTX 3090 Suprim X, R9 5900X
469 fps +2%
KFA2 GeForce RTX 3080 SG, R9 5900X
460 fps
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
440 fps -4%
AMD Radeon RX 6900 XT, R9 5950X
395 fps -14%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
363 fps -21%
AMD Radeon RX 6800, R9 5900X
356 fps -23%
AMD Radeon RX 6800 XT, R9 5950X
348 fps -24%
AMD Radeon RX 6700 XT, R9 5900X
325 fps -29%
AMD Radeon RX 6600 XT, R9 5900X
283 fps -38%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
261 fps -43%
Energy (energy-02)
AMD Radeon RX 6900 XT, R9 5950X
60.6 fps +61%
AMD Radeon RX 6800 XT, R9 5950X
58.4 fps +55%
AMD Radeon RX 6800, R9 5900X
49.7 fps +32%
MSI GeForce RTX 3090 Suprim X, R9 5900X
45.21 fps +20%
AMD Radeon RX 6700 XT, R9 5900X
40 fps +6%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
37.87 fps +1%
KFA2 GeForce RTX 3080 SG, R9 5900X
37.6 fps
AMD Radeon RX 6600 XT, R9 5900X
29.8 fps -21%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
28.83 fps -23%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
13.6 fps -64%
Creo (creo-02)
KFA2 GeForce RTX 3080 SG, R9 5900X
324 fps
MSI GeForce RTX 3090 Suprim X, R9 5900X
316 fps -2%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
295 fps -9%
AMD Radeon RX 6900 XT, R9 5950X
292 fps -10%
AMD Radeon RX 6800 XT, R9 5950X
276 fps -15%
AMD Radeon RX 6800, R9 5900X
269 fps -17%
AMD Radeon RX 6700 XT, R9 5900X
248 fps -23%
AMD Radeon RX 6600 XT, R9 5900X
242 fps -25%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
240 fps -26%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
181 fps -44%
Catia (catia-05)
AMD Radeon RX 6900 XT, R9 5950X
468 fps +127%
AMD Radeon RX 6800, R9 5900X
420 fps +104%
AMD Radeon RX 6800 XT, R9 5950X
412 fps +100%
AMD Radeon RX 6700 XT, R9 5900X
398 fps +93%
AMD Radeon RX 6600 XT, R9 5900X
353 fps +71%
MSI GeForce RTX 3090 Suprim X, R9 5900X
206 fps 0%
KFA2 GeForce RTX 3080 SG, R9 5900X
206 fps
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
190 fps -8%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
176 fps -15%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
109 fps -47%
3ds Max (3dsmax-06)
KFA2 GeForce RTX 3080 SG, R9 5900X
334 fps
AMD Radeon RX 6900 XT, R9 5950X
317 fps -5%
AMD Radeon RX 6800, R9 5900X
309 fps -7%
MSI GeForce RTX 3090 Suprim X, R9 5900X
298 fps -11%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
294 fps -12%
AMD Radeon RX 6800 XT, R9 5950X
284 fps -15%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
269 fps -19%
AMD Radeon RX 6700 XT, R9 5900X
265 fps -21%
AMD Radeon RX 6600 XT, R9 5900X
237 fps -29%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
215 fps -36%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
AMD Radeon RX 6900 XT, R9 5950X
167 fps +126%
AMD Radeon RX 6700 XT, R9 5900X
163 fps +121%
AMD Radeon RX 6800 XT, R9 5950X
150 fps +103%
AMD Radeon RX 6800, R9 5900X
149 fps +102%
AMD Radeon RX 6600 XT, R9 5900X
145 fps +96%
KFA2 GeForce RTX 3080 SG, R9 5900X
73.8 fps
MSI GeForce RTX 3090 Suprim X, R9 5900X
72.3 fps -2%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
69.9 fps -5%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
66 fps -11%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
56.1 fps -24%
1900x1060 Siemens NX (snx-02)
AMD Radeon RX 6700 XT, R9 5900X
49.6 fps +313%
AMD Radeon RX 6600 XT, R9 5900X
48.8 fps +307%
AMD Radeon RX 6900 XT, R9 5950X
47.7 fps +298%
AMD Radeon RX 6800, R9 5900X
46.2 fps +285%
AMD Radeon RX 6800 XT, R9 5950X
45.07 fps +276%
MSI GeForce RTX 3090 Suprim X, R9 5900X
14.91 fps +24%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
12.85 fps +7%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
12.82 fps +7%
KFA2 GeForce RTX 3080 SG, R9 5900X
12 fps
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
8.98 fps -25%
1900x1060 Showcase (showcase-01)
AMD Radeon RX 6900 XT, R9 5950X
241 fps +7%
MSI GeForce RTX 3090 Suprim X, R9 5900X
236 fps +4%
KFA2 GeForce RTX 3080 SG, R9 5900X
226 fps
AMD Radeon RX 6800 XT, R9 5950X
223 fps -1%
AMD Radeon RX 6800, R9 5900X
194 fps -14%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
180 fps -20%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
155 fps -31%
AMD Radeon RX 6700 XT, R9 5900X
150 fps -34%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
114 fps -50%
AMD Radeon RX 6600 XT, R9 5900X
111 fps -51%
1900x1060 Medical (medical-01)
AMD Radeon RX 6900 XT, R9 5950X
88.4 fps +119%
AMD Radeon RX 6800 XT, R9 5950X
77.3 fps +92%
AMD Radeon RX 6700 XT, R9 5900X
66.3 fps +65%
AMD Radeon RX 6800, R9 5900X
58.1 fps +44%
AMD Radeon RX 6600 XT, R9 5900X
54.9 fps +36%
MSI GeForce RTX 3090 Suprim X, R9 5900X
42.91 fps +6%
KFA2 GeForce RTX 3080 SG, R9 5900X
40.3 fps
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
38.26 fps -5%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
36.93 fps -8%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
36.5 fps -9%
1900x1060 Maya (maya-04)
MSI GeForce RTX 3090 Suprim X, R9 5900X
184 fps +32%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
173 fps +24%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
166 fps +19%
AMD Radeon RX 6900 XT, R9 5950X
151 fps +9%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
146 fps +5%
AMD Radeon RX 6700 XT, R9 5900X
145 fps +4%
KFA2 GeForce RTX 3080 SG, R9 5900X
139 fps
AMD Radeon RX 6600 XT, R9 5900X
124 fps -11%
AMD Radeon RX 6800, R9 5900X
124 fps -11%
AMD Radeon RX 6800 XT, R9 5950X
118 fps -15%
1900x1060 Energy (energy-01)
AMD Radeon RX 6900 XT, R9 5950X
30.8 fps +79%
AMD Radeon RX 6800 XT, R9 5950X
28.39 fps +65%
AMD Radeon RX 6800, R9 5900X
23.9 fps +39%
MSI GeForce RTX 3090 Suprim X, R9 5900X
20.41 fps +19%
AMD Radeon RX 6700 XT, R9 5900X
18.8 fps +9%
KFA2 GeForce RTX 3080 SG, R9 5900X
17.2 fps
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
16.35 fps -5%
AMD Radeon RX 6600 XT, R9 5900X
14.7 fps -15%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
12.42 fps -28%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
9.89 fps -42%
1900x1060 Creo (creo-01)
AMD Radeon RX 6900 XT, R9 5950X
127 fps +71%
AMD Radeon RX 6700 XT, R9 5900X
120 fps +61%
AMD Radeon RX 6800, R9 5900X
120 fps +61%
AMD Radeon RX 6800 XT, R9 5950X
119 fps +60%
AMD Radeon RX 6600 XT, R9 5900X
111 fps +49%
MSI GeForce RTX 3090 Suprim X, R9 5900X
75.4 fps +1%
KFA2 GeForce RTX 3080 SG, R9 5900X
74.4 fps
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
65.6 fps -12%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
59.8 fps -20%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
52.4 fps -30%
1900x1060 Catia (catia-04)
AMD Radeon RX 6900 XT, R9 5950X
292 fps +269%
AMD Radeon RX 6700 XT, R9 5900X
259 fps +227%
AMD Radeon RX 6800, R9 5900X
242 fps +206%
AMD Radeon RX 6800 XT, R9 5950X
238 fps +201%
AMD Radeon RX 6600 XT, R9 5900X
218 fps +176%
MSI GeForce RTX 3090 Suprim X, R9 5900X
134 fps +69%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
116 fps +47%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
112 fps +42%
KFA2 GeForce RTX 3080 SG, R9 5900X
79.1 fps
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
73.9 fps -7%
1900x1060 3ds Max (3dsmax-05)
KFA2 GeForce RTX 3080 SG, R9 5900X
334 fps
MSI GeForce RTX 3090 Suprim X, R9 5900X
322 fps -4%
AMD Radeon RX 6900 XT, R9 5950X
318 fps -5%
AMD Radeon RX 6800, R9 5900X
283 fps -15%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
276 fps -17%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
265 fps -21%
AMD Radeon RX 6700 XT, R9 5900X
253 fps -24%
AMD Radeon RX 6600 XT, R9 5900X
236 fps -29%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
217 fps -35%
AMD Radeon RX 6800 XT, R9 5950X
167 fps -50%
SPECviewperf 2020
3840x2160 Solidworks (solidworks-05)
MSI GeForce RTX 3090 Suprim X, R9 5900X
180 fps +3%
KFA2 GeForce RTX 3080 SG, R9 5900X
175 fps
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
158 fps -10%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
124 fps -29%
AMD Radeon RX 6900 XT, R9 5950X
112 fps -36%
AMD Radeon RX 6800 XT, R9 5950X
108 fps -38%
AMD Radeon RX 6800, R9 5900X
97.5 fps -44%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
81.6 fps -53%
AMD Radeon RX 6700 XT, R9 5900X
80.2 fps -54%
AMD Radeon RX 6600 XT, R9 5900X
58.7 fps -66%
3840x2160 Siemens NX (snx-04)
AMD Radeon RX 6900 XT, R9 5950X
85 fps +290%
AMD Radeon RX 6700 XT, R9 5900X
85 fps +290%
AMD Radeon RX 6800 XT, R9 5950X
81.7 fps +275%
AMD Radeon RX 6600 XT, R9 5900X
81 fps +272%
AMD Radeon RX 6800, R9 5900X
81 fps +272%
MSI GeForce RTX 3090 Suprim X, R9 5900X
22.6 fps +4%
KFA2 GeForce RTX 3080 SG, R9 5900X
21.8 fps
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
19.8 fps -9%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
19.15 fps -12%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
12.5 fps -43%
3840x2160 Medical (medical-03)
AMD Radeon RX 6900 XT, R9 5950X
30.4 fps +62%
AMD Radeon RX 6800 XT, R9 5950X
27.84 fps +48%
AMD Radeon RX 6800, R9 5900X
24.1 fps +28%
MSI GeForce RTX 3090 Suprim X, R9 5900X
21.19 fps +13%
AMD Radeon RX 6700 XT, R9 5900X
18.8 fps 0%
KFA2 GeForce RTX 3080 SG, R9 5900X
18.8 fps
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
18.47 fps -2%
AMD Radeon RX 6600 XT, R9 5900X
15.9 fps -15%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
13.74 fps -27%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
8.57 fps -54%
3840x2160 Maya (maya-06)
MSI GeForce RTX 3090 Suprim X, R9 5900X
330 fps +5%
KFA2 GeForce RTX 3080 SG, R9 5900X
314 fps
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
293 fps -7%
AMD Radeon RX 6900 XT, R9 5950X
266 fps -15%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
249 fps -21%
AMD Radeon RX 6800, R9 5900X
233 fps -26%
AMD Radeon RX 6800 XT, R9 5950X
224 fps -29%
AMD Radeon RX 6700 XT, R9 5900X
193 fps -39%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
162 fps -48%
AMD Radeon RX 6600 XT, R9 5900X
138 fps -56%
3840x2160 Energy (energy-03)
AMD Radeon RX 6800, R9 5900X
84.1 fps +126%
MSI GeForce RTX 3090 Suprim X, R9 5900X
61.1 fps +64%
AMD Radeon RX 6800 XT, R9 5950X
60.8 fps +63%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
51.7 fps +39%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
37.99 fps +2%
KFA2 GeForce RTX 3080 SG, R9 5900X
37.2 fps
AMD Radeon RX 6900 XT, R9 5950X
32.6 fps -12%
AMD Radeon RX 6700 XT, R9 5900X
25.7 fps -31%
AMD Radeon RX 6600 XT, R9 5900X
21.2 fps -43%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
15.2 fps -59%
3840x2160 Creo (creo-03)
KFA2 GeForce RTX 3080 SG, R9 5900X
90 fps
MSI GeForce RTX 3090 Suprim X, R9 5900X
85.1 fps -5%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
78.1 fps -13%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
77.6 fps -14%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
67.7 fps -25%
AMD Radeon RX 6800, R9 5900X
66.5 fps -26%
AMD Radeon RX 6900 XT, R9 5950X
65.4 fps -27%
AMD Radeon RX 6800 XT, R9 5950X
65 fps -28%
AMD Radeon RX 6700 XT, R9 5900X
61.1 fps -32%
AMD Radeon RX 6600 XT, R9 5900X
59.6 fps -34%
3840x2160 CATIA (catia-06)
MSI GeForce RTX 3090 Suprim X, R9 5900X
56.6 fps +5%
KFA2 GeForce RTX 3080 SG, R9 5900X
53.7 fps
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
50 fps -7%
AMD Radeon RX 6800, R9 5900X
45.3 fps -16%
AMD Radeon RX 6900 XT, R9 5950X
44.6 fps -17%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
43.15 fps -20%
AMD Radeon RX 6800 XT, R9 5950X
42.4 fps -21%
AMD Radeon RX 6700 XT, R9 5900X
39 fps -27%
AMD Radeon RX 6600 XT, R9 5900X
32.1 fps -40%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
28.6 fps -47%
3840x2160 3ds Max (3dsmax-07)
MSI GeForce RTX 3090 Suprim X, R9 5900X
135 fps +5%
KFA2 GeForce RTX 3080 SG, R9 5900X
128 fps
AMD Radeon RX 6900 XT, R9 5950X
121 fps -5%
AMD Radeon RX 6800 XT, R9 5950X
114 fps -11%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X
100 fps -22%
AMD Radeon RX 6800, R9 5900X
95.5 fps -25%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X
84 fps -34%
AMD Radeon RX 6700 XT, R9 5900X
82.2 fps -36%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X
65.7 fps -49%
AMD Radeon RX 6600 XT, R9 5900X
53.6 fps -58%

KFA2GeForce RTX 3080 SG 12 GB 排放量

KFA2GeForce RTX 3080 SG 12GB压力测试
KFA2GeForce RTX 3080 SG 12GB压力测试
KFA2GeForce RTX 3080 SG 12GB压力测试

排放物总体上是一个混合袋。一方面,KFA2的冷却器做得很好,能够可靠而安静地保持GeForce RTX 3080 GPU的冷却。事实上,我们在封闭的机箱内几乎听不到风扇的声音。在1920转/分钟的转速下,它的三个92毫米的风扇设法通过冷却鳍片移动足够的空气,使GA102芯片保持在75℃,在负载下的VRAM保持在略高的86℃。另一方面,该显卡在负载下的功耗是巨大的。它的峰值是高达350W,这与NvidiaGeForce RTX 3090 FE微星GeForce RTX 3090 Suprim X设法打败它,需要更高的420瓦。在游戏时,我们记录的平均功耗为518瓦。

请注意,KFA2包括一个额外的可选的80毫米风扇,它可以安装在卡的顶部,为沿卡后部的热管提供额外的冷却。如果你选择安装这个风扇,你需要确保GPU和RAM插槽之间的适当间距。我们的特定测试系统与这种设置不兼容,因此我们无法安装可选的风扇。

整个系统的功率消耗(空闲时)
整个系统的功率消耗(空闲时)
整个系统的耗电量(FurMark PT 100 %)。
整个系统的耗电量(FurMark PT 100 %)。
整个系统的耗电量(TheWitcher 3 Ultra)
整个系统的耗电量(TheWitcher 3 Ultra)
压力测试FurMark(PT 100 %)。
压力测试FurMark(PT 100 %)。
Power Consumption / The Witcher 3 ultra (external Monitor)
MSI GeForce RTX 3090 Suprim X
NVIDIA GeForce RTX 3090, R9 5900X, Intel Optane 905P 480GB 2.5 (Idle: 105.9 W)
597 (577min - 618max) Watt * -15%
KFA2 GeForce RTX 3080 SG
NVIDIA GeForce RTX 3080 12 GB, R9 5900X, Corsair MP600
518 (509min, 510P1 - 539max) Watt *
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5 (Idle: 99.5 W)
505 (389min - 543max) Watt * +3%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X, Intel Optane 905P 480GB 2.5 (Idle: 103 W)
498.3 (487min - 523max) Watt * +4%
AMD Radeon RX 6900 XT
Radeon RX 6900 XT, R9 5950X (Idle: 99.15 W)
488.3 (459.99min - 512.79max) Watt * +6%
AMD Radeon RX 6800
Radeon RX 6800, R9 5900X, Corsair MP600 (Idle: 81.4 W)
383 (372min, 376P1 - 389max) Watt * +26%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600 (Idle: 77.1 W)
369 (355min - 377max) Watt * +29%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5 (Idle: 91.46 W)
316.5 (309min - 329max) Watt * +39%
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600 (Idle: 72 W)
307.5 (300min - 328max) Watt * +41%
AMD Radeon RX 6600 XT
Radeon RX 6600 XT, R9 5900X, Corsair MP600 (Idle: 52 W)
299 (291min, 295P1 - 331max) Watt * +42%
Power Consumption / FurMark 1.19 GPU Stress Test (external Monitor)
MSI GeForce RTX 3090 Suprim X
NVIDIA GeForce RTX 3090, R9 5900X, Intel Optane 905P 480GB 2.5 (Idle: 105.9 W)
551 (521min - 582max) Watt * -13%
MSI GeForce RTX 3080 Gaming X Trio
NVIDIA GeForce RTX 3080, R9 5900X, Intel Optane 905P 480GB 2.5 (Idle: 103 W)
492 (485min - 514max) Watt * -1%
KFA2 GeForce RTX 3080 SG
NVIDIA GeForce RTX 3080 12 GB, R9 5900X, Corsair MP600
487 (475min, 477P1 - 501max) Watt *
AMD Radeon RX 6900 XT
Radeon RX 6900 XT, R9 5950X (Idle: 99.15 W)
456.8 (378.13min - 484.67max) Watt * +6%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5 (Idle: 99.5 W)
447.9 (413min - 484max) Watt * +8%
AMD Radeon RX 6800
Radeon RX 6800, R9 5900X, Corsair MP600 (Idle: 81.4 W)
363 (337min, 347P1 - 379max) Watt * +25%
MSI GeForce RTX 3070 Ventus 3X
NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5 (Idle: 91.46 W)
336.6 (330min - 365max) Watt * +31%
AMD Radeon RX 6700 XT
Radeon RX 6700 XT, R9 5900X, Corsair MP600 (Idle: 77.1 W)
335.2 (317min - 376max) Watt * +31%
Inno3D GeForce RTX 3060 Twin X2
NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600 (Idle: 72 W)
302.1 (297min - 322max) Watt * +38%
AMD Radeon RX 6600 XT
Radeon RX 6600 XT, R9 5900X, Corsair MP600 (Idle: 52 W)
281 (257min, 274P1 - 319max) Watt * +42%

* ... smaller is better

Power Consumption
Idledarkmidlight 77 / 88 / 106 Watt
Load midlight 486 / 501 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Power Consumption (computer without display)
