HP EliteBook 845 G9回顾。35瓦的AMD胜过联想和戴尔

第六代AMD Ryzen发挥了顶级水平。 通过EliteBook的安全版,惠普正在迎合富裕的客户群,他们正在寻找一款不折不扣的强大和移动的笔记本电脑。此外,这款14英寸笔记本电脑还通过Sure View、Fingerprint和Wolf Pro软件等功能满足了高安全要求。
AMD Ultrabook Windows Security Business

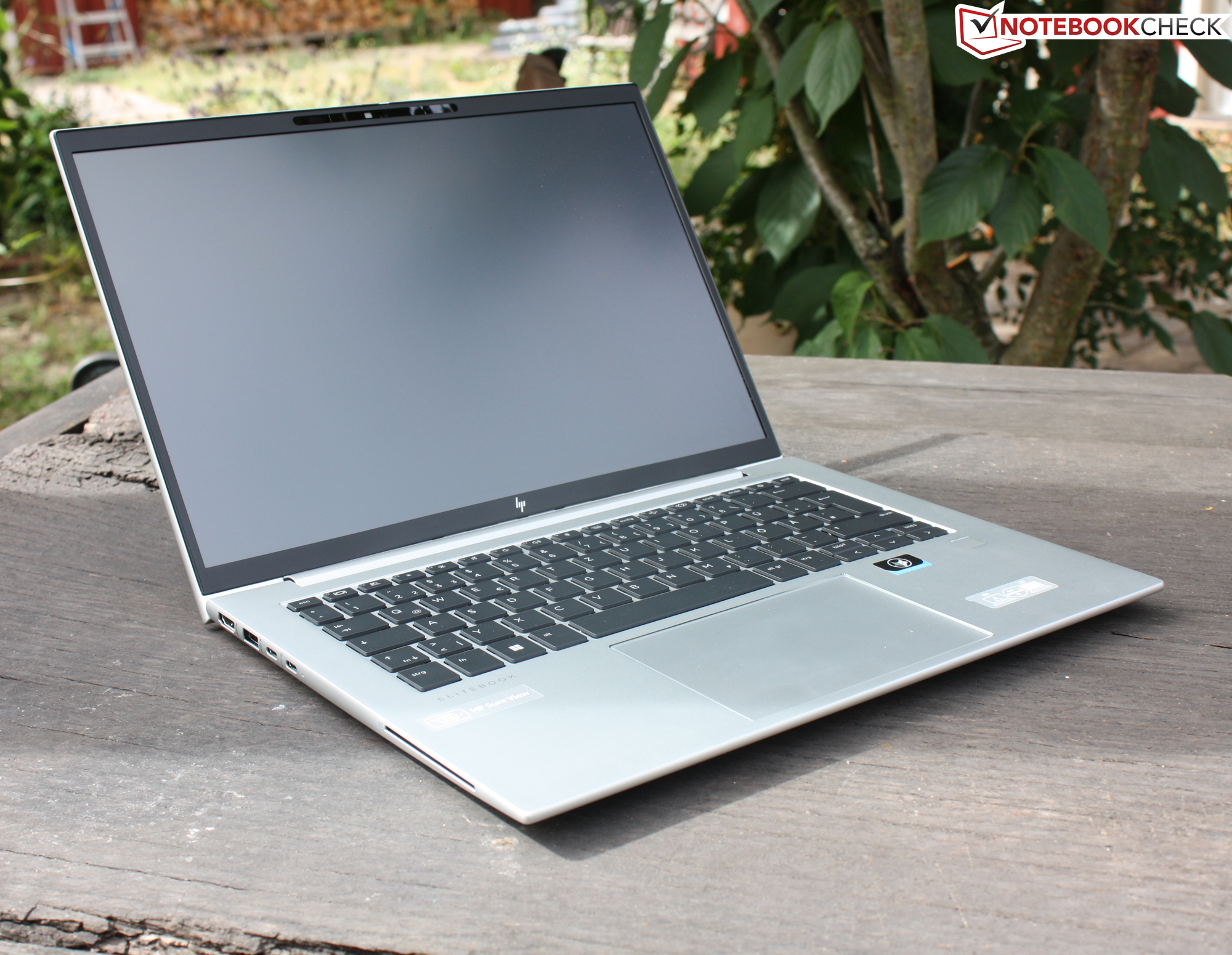

配备Ryzen 9 PRO 6950HS的HP EliteBook 845 G9--高性能伴随着众多的安全功能
配备Ryzen 9 PRO 6950HS的HP EliteBook 845 G9--高性能伴随着众多的安全功能

昔日AMD芯片只安装在不超过中端产品的笔记本电脑上的日子已经一去不复返了。现在,全新的Ryzen 6000代已经赶上并超越了英特尔的处理器。六年前不可想象的事情在今天成为现实。AMD在高端商务类的2.5K笔记本电脑中。

但这并不是相关笔记本电脑的主要优势,也不是它的独特卖点。相反,正是对硬件和软件安全的关注,使845 G9如此特别。除了众所周知的SureView、网络摄像头快门和智能卡等功能外,该笔记本电脑还提供了很多软件,负责硬件和账户安全方面的故障安全。

高端市场的其他竞争者的定位也很广泛。联想的ThinkPad X1和戴尔的Latitudes--都属于高端系列--试图以类似的功能来争取买家的青睐。联想的 ThinkPad X1 Carbon以LTE选项和Thunderbolt领先。

HP EliteBook 845 G9 6F6H6EA (EliteBook 845 G9 Series)
Processor
AMD Ryzen 9 PRO 6950HS 8 x 3.3 - 4.9 GHz, 50 W PL2 / Short Burst, 40 W PL1 / Sustained, Rembrandt-HS (Zen 3+)
Graphics adapter
AMD Radeon 680M - 32 GB VRAM, Memory: 3200 MHz
Memory
32 GB
, Dual Channel, 32 GB in Slot, 1 Slot empty
Display
14.00 inch 16:10, 1920 x 1200 pixel, InfoVision X140NV4J, IPS, glossy: no, 60 Hz
Mainboard
AMD Promontory/Bixby FCH
Storage
WDC PC SN810 1TB, 1024 GB
, 780 GB free
Soundcard
AMD Zen - Audio Processor - HD Audio Controller
Connections
2 USB 3.0 / 3.1 Gen1, 2 USB 4.0 40 Gbps, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensington Lock, 1 SmartCard, 1 Fingerprint Reader
Networking
Qualcomm Fast Connect 6900 Wi-Fi 6E Dual Band Simultaneous (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.3, LTE
Size
height x width x depth (in mm): 19.3 x 315.6 x 224
Battery
51 Wh
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 2560 x 1440
Primary Camera: 5 MPix
Additional features
Speakers: Stereo, Keyboard: Chiclet, HP Premium, Keyboard Light: yes, 65 Watt PSU, HP Maxim Pro Security Edition (1 Jahr), Connection Optimizer; Hotkey Support; Support Assistant; Easy Clean; Power Manager; myHP; Privacy Settings; Benachrichtigungen; QuickDrop; Quick Touch; PC Hardware Diagnostics, 36 Months Warranty
Weight
1.466 kg, Power Supply: 306 g
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



潜在的竞争对手比较

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
88.6 %
07/2022
HP EliteBook 845 G9 6F6H6EA
R9 PRO 6950HS, Radeon 680M
1.5 kg19.3 mm14.00"1920x1200
90.2 %
06/2022
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
i5-1250P, Iris Xe G7 80EUs
1.2 kg15.36 mm14.00"1920x1200
90.1 %
03/2022
Lenovo ThinkPad T14s G2 20XGS01100
R7 PRO 5850U, Vega 8
1.3 kg16.14 mm14.00"1920x1080
90.1 %
04/2022
Dell Latitude 7420 JW6MH
i5-1145G7, Iris Xe G7 80EUs
1.3 kg17.3 mm14.00"1920x1080
89.4 %
08/2021
Lenovo ThinkPad T14s G2 20WM003TGE
i7-1165G7, Iris Xe G7 96EUs
1.3 kg16.14 mm14.00"1920x1080
89.8 %
08/2021
HP EliteBook 840 Aero G8 3E4Q6AA
i7-1185G7, Iris Xe G7 96EUs
1.2 kg17.9 mm14.00"1920x1080
88.5 %
03/2022
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
i5-1140G7, Iris Xe G7 80EUs
1.2 kg11.5 mm13.50"2256x1504

外壳:惠普公司的实体笔记本

EliteBook装在一个抗扭的铝制箱子里,其结构像一个盒子,底部用底板密封。后者在刚性方面并没有发挥重要作用,因为带有圆角的 "盒子 "本身就很稳定。

这同样适用于显示屏,它只能在有限的范围内被扭曲。背面的压力几乎不会造成任何凹痕,面板上也不会出现条纹。单铰链使机盖保持足够的张力,但不会太僵硬,以至于无法用一只手打开。单指打开是可能的。打开时,屏幕的底部会滑到机箱下面,并将其抬起,但只能在130至180度的打开角度之间。

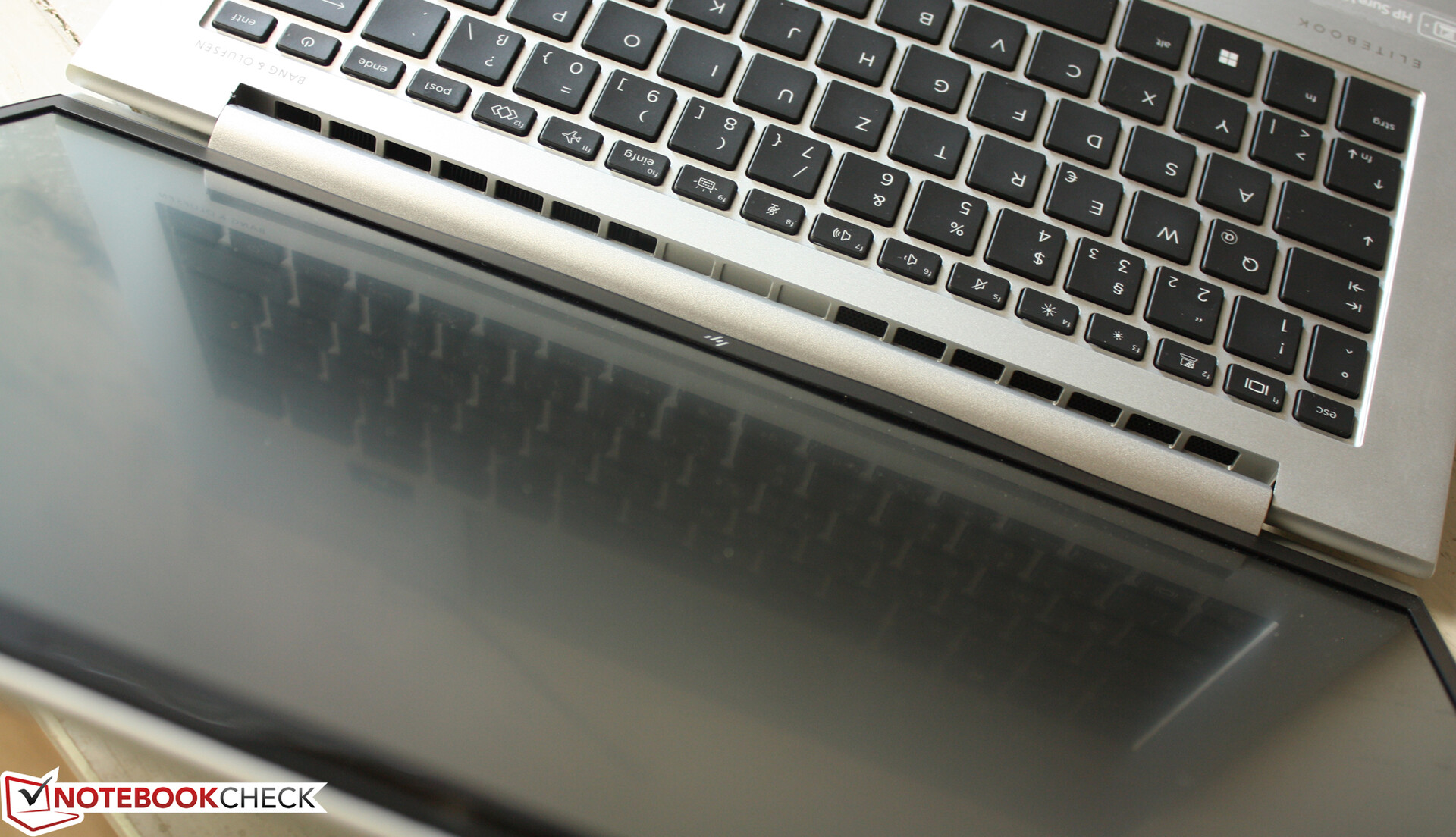

在夏天的高温下,一个小的缺陷就会暴露出来:显示屏的下边框是用胶水粘起来的,即使在冷却后也会凸起并保持这种状态。

一个框架构成了稳定的底座,它被一个底板封住了。
一个框架构成了稳定的底座,它被一个底板封住了。
细节方面的缺陷。胶合的展示架松动了。
细节方面的缺陷。胶合的展示架松动了。
这种情况不应该发生在这个价格范围内。
这种情况不应该发生在这个价格范围内。
惠普EliteBook 845 G9--里面装了很多东西
惠普EliteBook 845 G9:里面装了很多东西

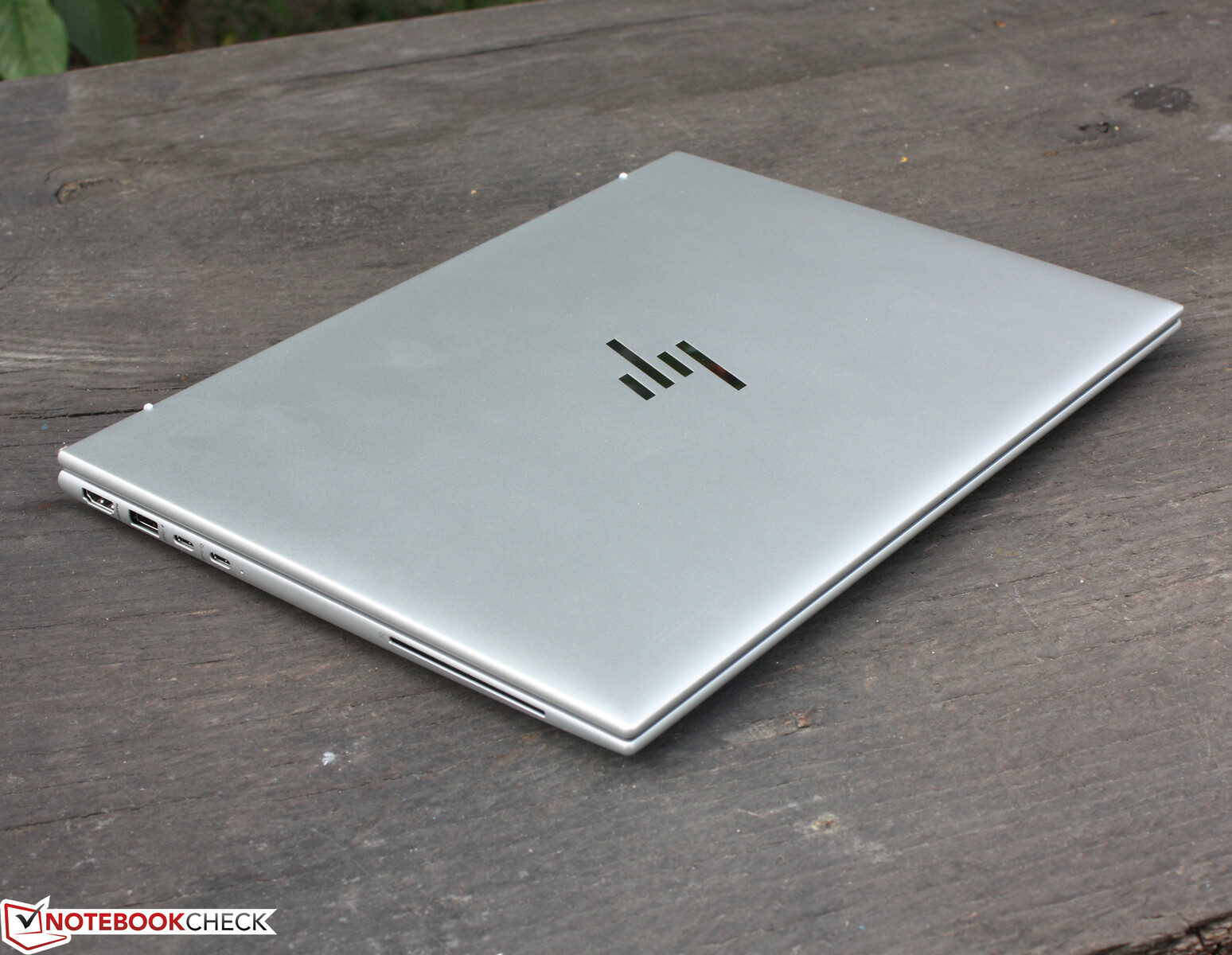

惠普EliteBook 845 G9--坚固,但不轻巧

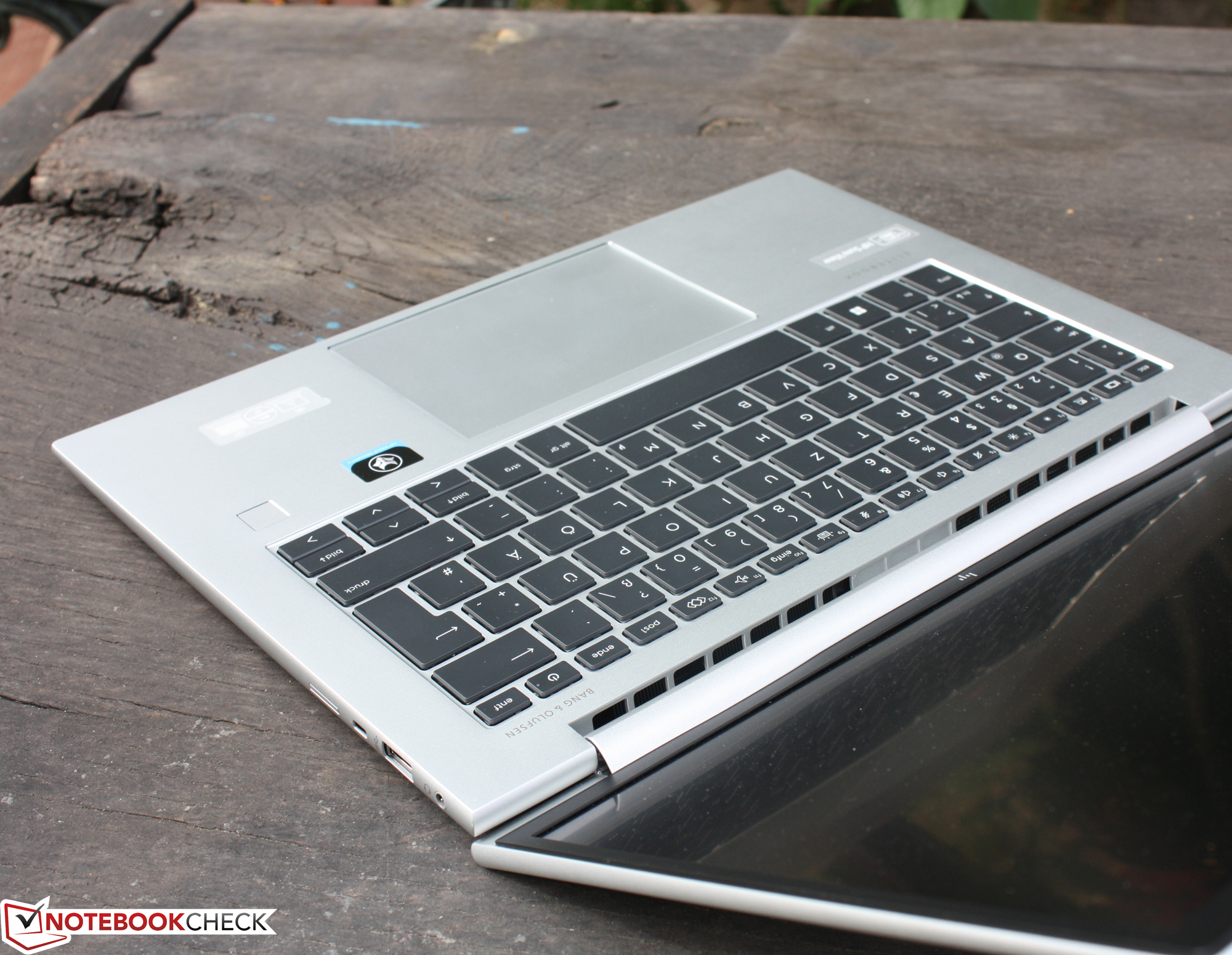

HP EliteBook 845 G9--多产作家的输入设备

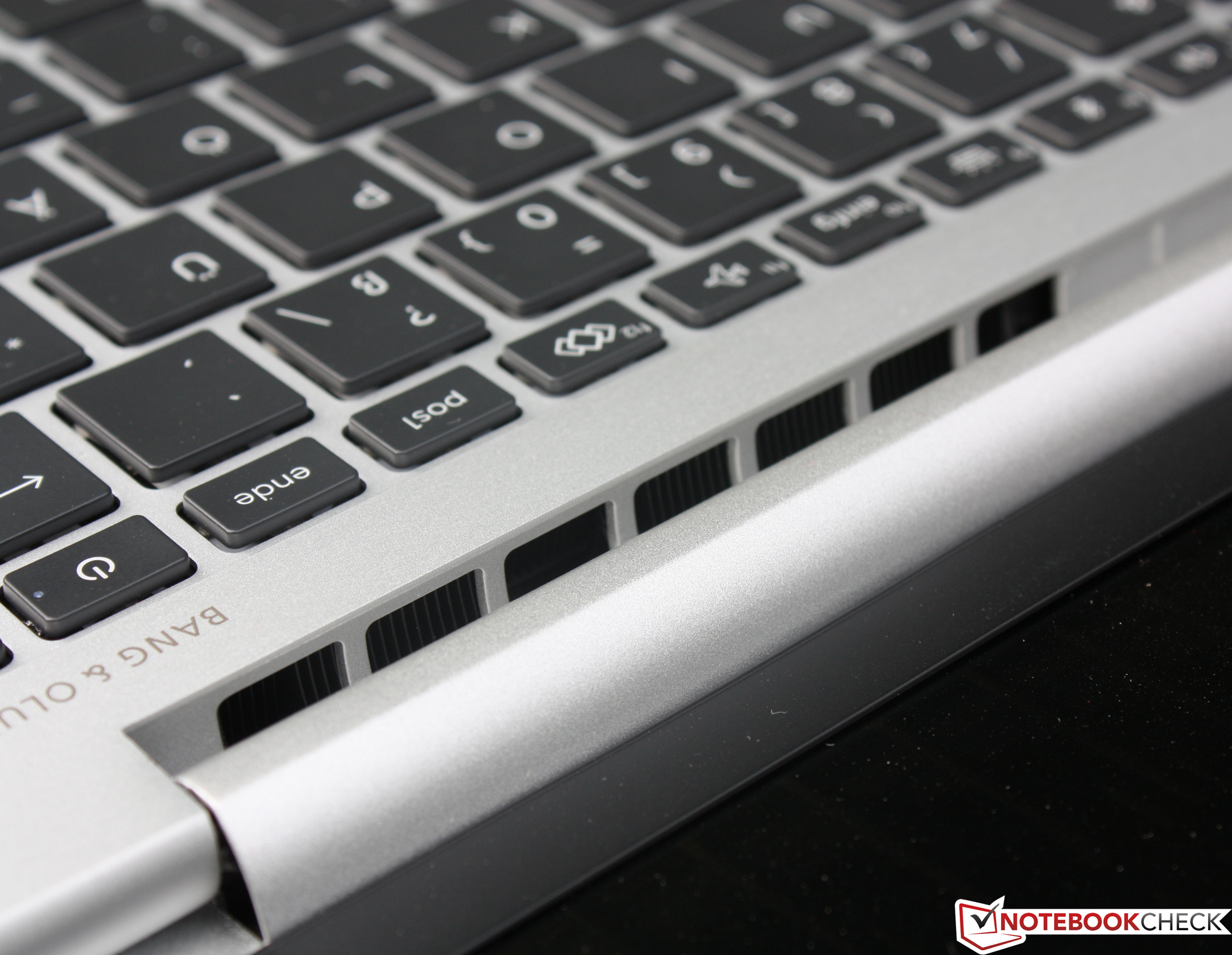

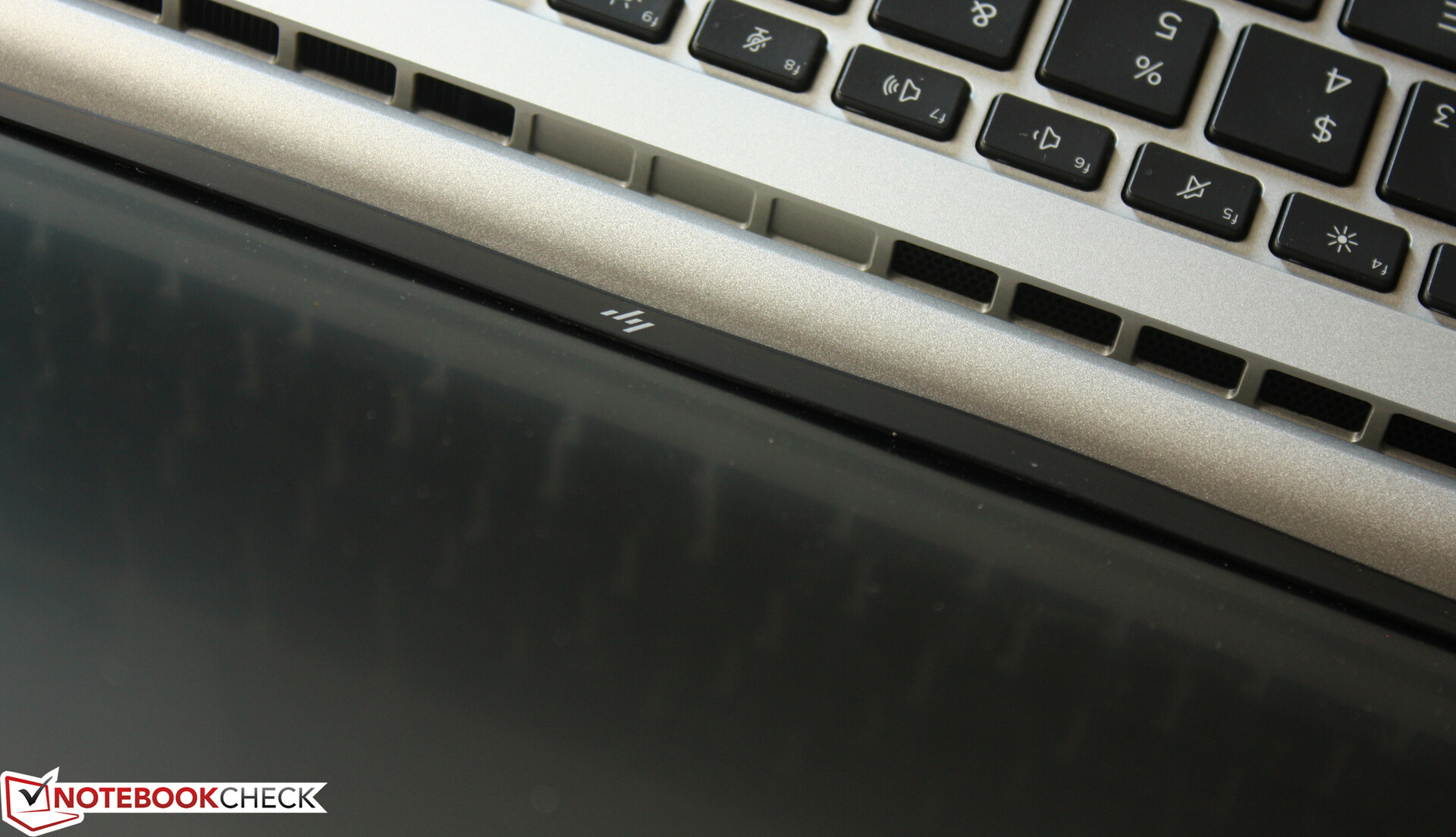

HP EliteBook 845 G9 - 通风口

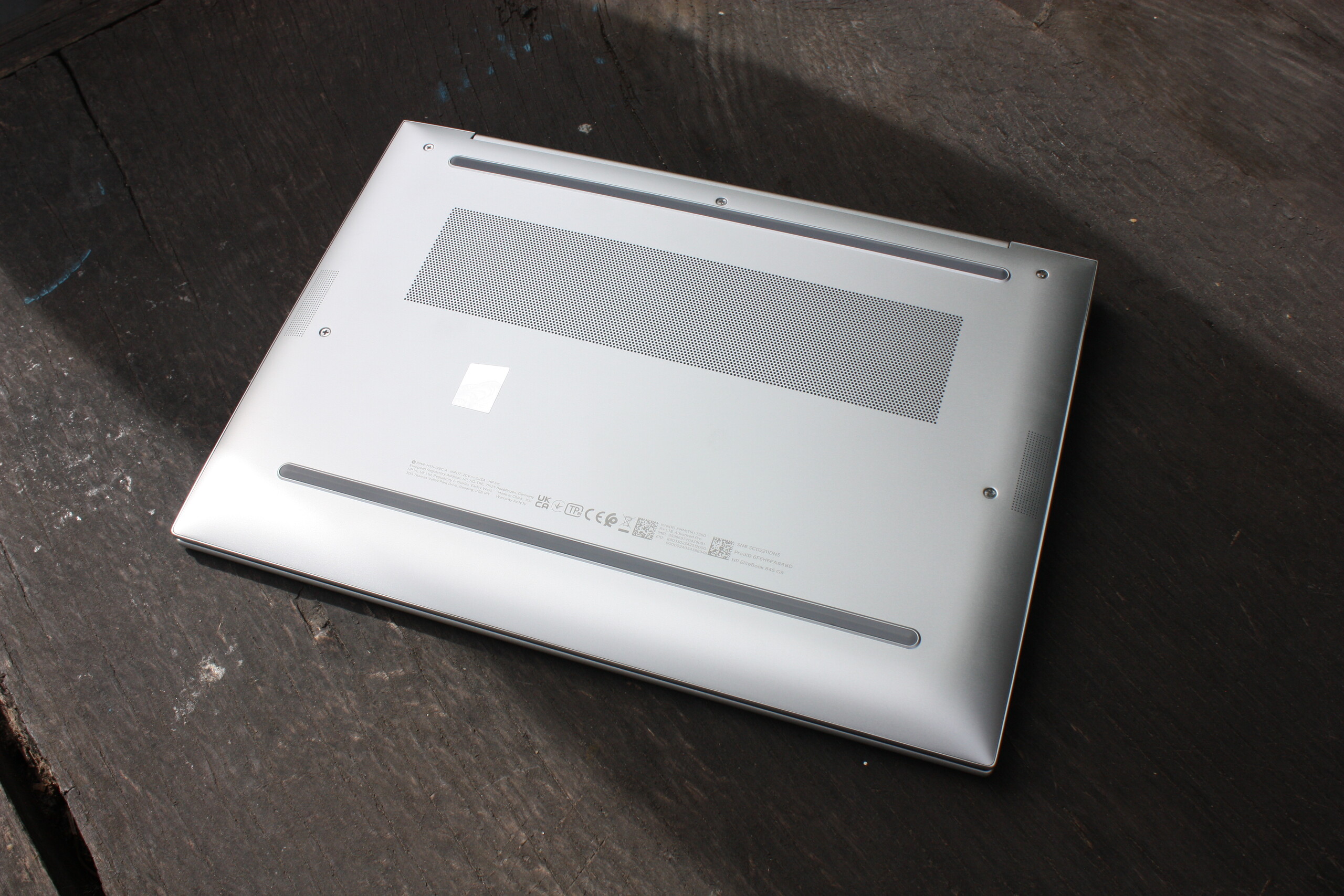

HP EliteBook 845 G9 - 底部

在Elitebook的开发过程中,重量似乎没有得到任何关注;铝制机箱的重量为1.46公斤。竞争对手的设备要轻得多,特别是Elitebook Aero。 X1 Carbon和X1 Titanium Yoga,它们以1.2公斤的重量创造了轻量级记录。

尺寸比较

327.5 mm 224 mm 16.14 mm 1.3 kg327.5 mm 224 mm 16.14 mm 1.3 kg323.6 mm 214.7 mm 17.9 mm 1.2 kg321 mm 209 mm 17.3 mm 1.3 kg315.6 mm 224 mm 19.3 mm 1.5 kg315.6 mm 222.5 mm 15.36 mm 1.2 kg297.5 mm 232.7 mm 11.5 mm 1.2 kg297 mm 210 mm 1 mm 5.7 g

设备。笔记本电脑在安全方面发挥了作用

制造商利用了大范围的连接:有两个Type-A USB端口,以及一个HDMI。快速的Type-C端口已经被一侧的电源占据;它们都接受DisplayPort显示器。我们不明白为什么没有足够的空间放置SD卡读卡器。

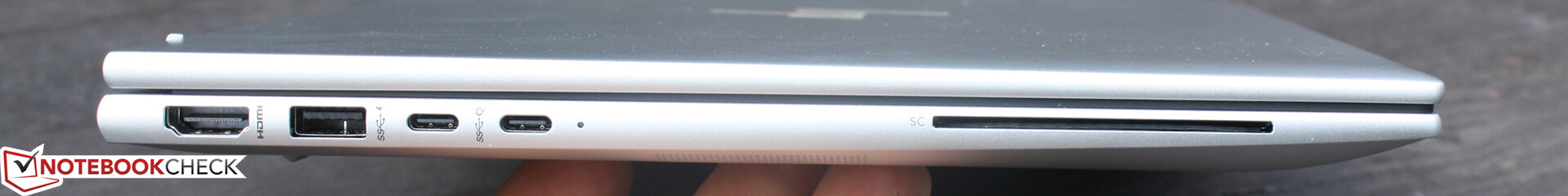

左边:HDMI 2.0,带充电功能的USB Type-A 5 Gbit/s,带电源传输的2个USB4 Type-C 40 Gbit/s,DisplayPort 1.4
左边:HDMI 2.0,带充电功能的USB Type-A 5 Gbit/s,带电源传输的2个USB4 Type-C 40 Gbit/s,DisplayPort 1.4

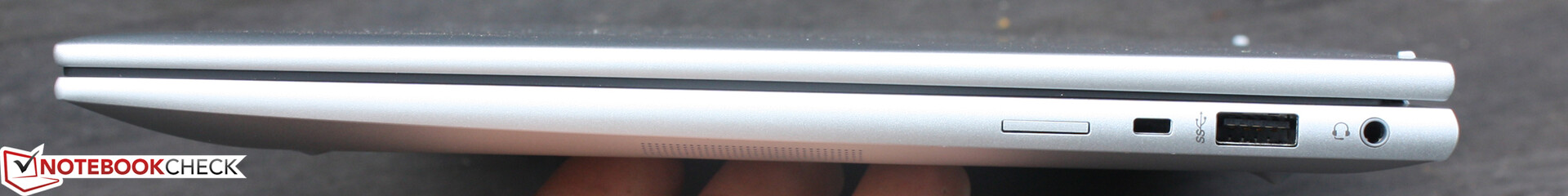

右边。用于高通5G调制解调器的SimCard插槽,电缆锁,USB Type-A 5 Gbit/s,耳机/麦克风组合插孔
右边。用于高通5G调制解调器的SimCard插槽,电缆锁,USB Type-A 5 Gbit/s,耳机/麦克风组合插孔

沟通

除了高通WiFi 6E芯片外,还安装了一个Fibocom LTE调制解调器(没有5G),以及右侧的SimCard插槽。这两个芯片都可以更换。WiFi模块在发送和接收时都能提供高传输速率。

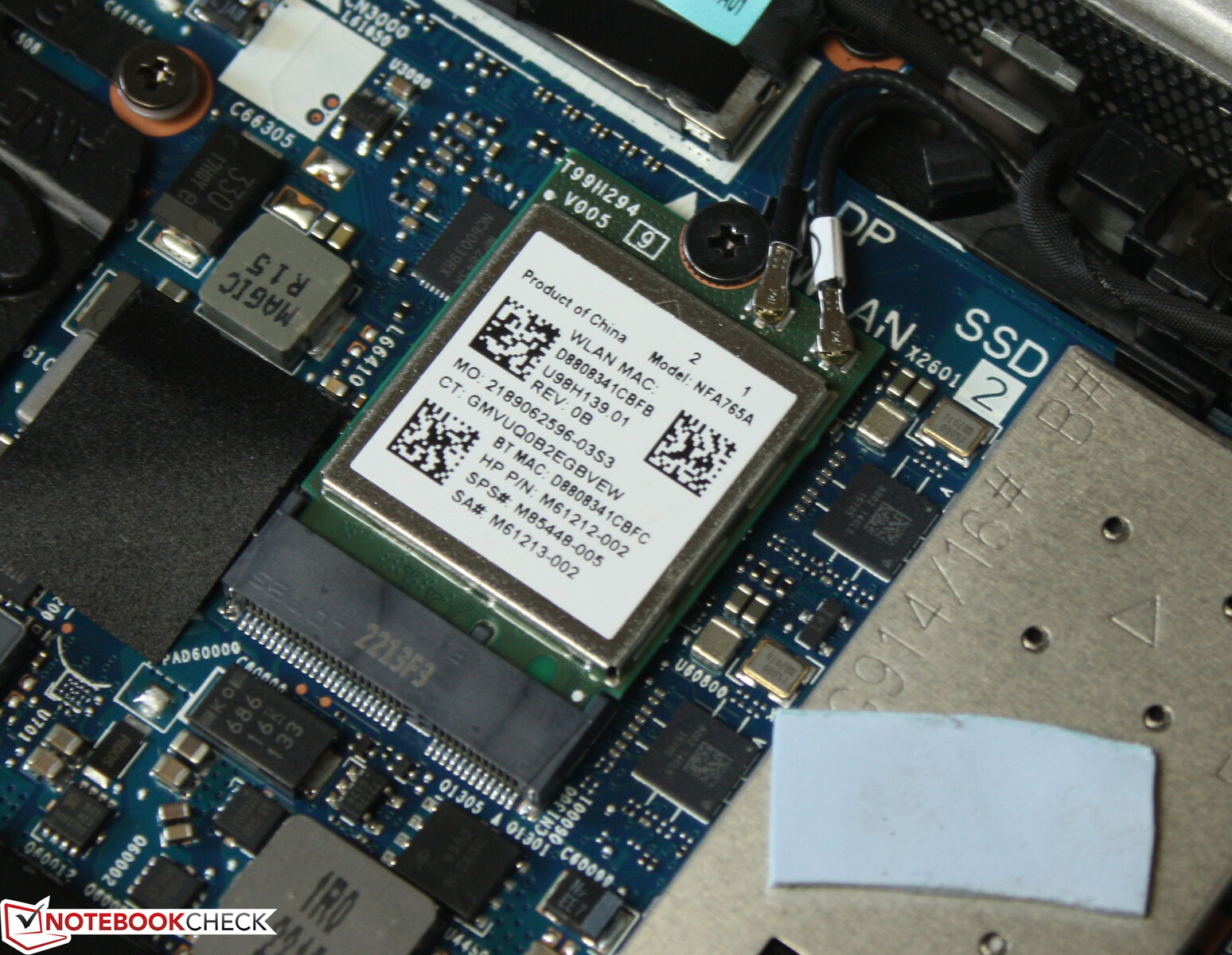

高通公司NFA765别名FastConnect 6900 Wi-Fi 6E mit Bluetooth 5.3
高通公司NFA765别名FastConnect 6900 Wi-Fi 6E mit Bluetooth 5.3

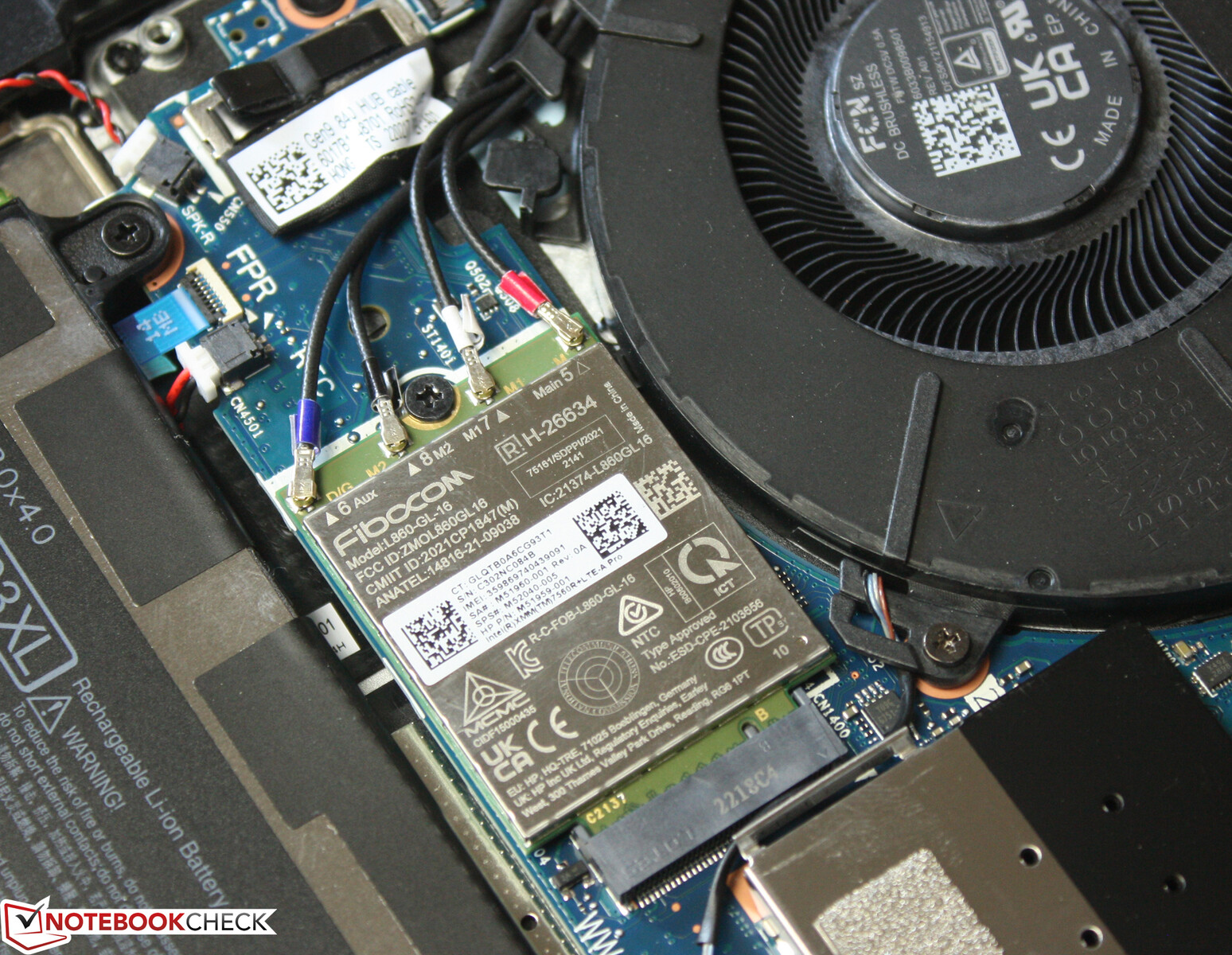

4G LTE调制解调器Fibocom L860-GL-16 mit vier Antennen
4G LTE调制解调器Fibocom L860-GL-16 mit vier Antennen
Networking
iperf3 transmit AX12
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Wi-Fi 6E AX210
1598 (1496min - 1654max) MBit/s
Dell Latitude 7420 JW6MH
Intel Wi-Fi 6 AX201
1332 (756min - 1486max) MBit/s
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Wi-Fi 6 AX201
1138 (909min - 1199max) MBit/s
Average of class Subnotebook
  (606 - 1339, n=3, last 2 years)
1056 MBit/s
Lenovo ThinkPad T14s G2 20XGS01100
RealTek Semiconductor RTL8852AE
831 (711min - 899max) MBit/s
iperf3 receive AX12
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Wi-Fi 6E AX210
1716 (1632min - 1754max) MBit/s
Dell Latitude 7420 JW6MH
Intel Wi-Fi 6 AX201
1690 (1668min - 1708max) MBit/s
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Wi-Fi 6 AX201
1297 (1214min - 1355max) MBit/s
Average of class Subnotebook
  (623 - 1690, n=3, last 2 years)
1258 MBit/s
Lenovo ThinkPad T14s G2 20XGS01100
RealTek Semiconductor RTL8852AE
877 (846min - 899max) MBit/s
iperf3 receive AXE11000 6GHz
Average Qualcomm Fast Connect 6900 Wi-Fi 6E Dual Band Simultaneous
  (1662 - 1762, n=2)
1712 MBit/s +3%
HP EliteBook 845 G9 6F6H6EA
Qualcomm Fast Connect 6900 Wi-Fi 6E Dual Band Simultaneous
1662 (1357min - 1776max) MBit/s
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Wi-Fi 6E AX211
1574 (1210min - 1693max) MBit/s -5%
Average of class Subnotebook
  (951 - 1771, n=29, last 2 years)
1527 MBit/s -8%
iperf3 transmit AXE11000 6GHz
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Wi-Fi 6E AX211
1611 (1450min - 1645max) MBit/s +17%
Average Qualcomm Fast Connect 6900 Wi-Fi 6E Dual Band Simultaneous
  (1375 - 1750, n=2)
1563 MBit/s +14%
HP EliteBook 845 G9 6F6H6EA
Qualcomm Fast Connect 6900 Wi-Fi 6E Dual Band Simultaneous
1375 (748min - 1658max) MBit/s
Average of class Subnotebook
  (642 - 1735, n=29, last 2 years)
1299 MBit/s -6%
0501001502002503003504004505005506006507007508008509009501000105011001150120012501300135014001450150015501600165017001750Tooltip
HP EliteBook 845 G9 6F6H6EA Qualcomm Fast Connect 6900 Wi-Fi 6E Dual Band Simultaneous; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1351 (748-1658)
HP EliteBook 845 G9 6F6H6EA Qualcomm Fast Connect 6900 Wi-Fi 6E Dual Band Simultaneous; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1661 (1357-1776)
Lenovo ThinkPad T14s G2 20XGS01100 RealTek Semiconductor RTL8852AE; iperf3 receive AX12; iperf 3.1.3: Ø876 (846-899)
Lenovo ThinkPad T14s G2 20XGS01100 RealTek Semiconductor RTL8852AE; iperf3 transmit AX12; iperf 3.1.3: Ø831 (711-899)

网络摄像头

惠普真的提高了摄像头的标准。直到现在,标准笔记本电脑中还没有出现500万像素的网络摄像头。一个用于通过人脸识别登录Windows Hello的红外摄像头再次被包括在内,尽管它在网络摄像头旁边不再那么明显。

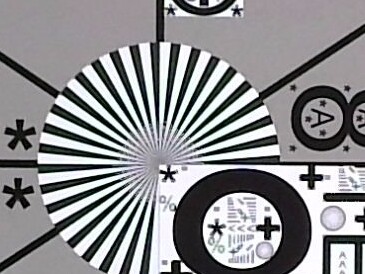

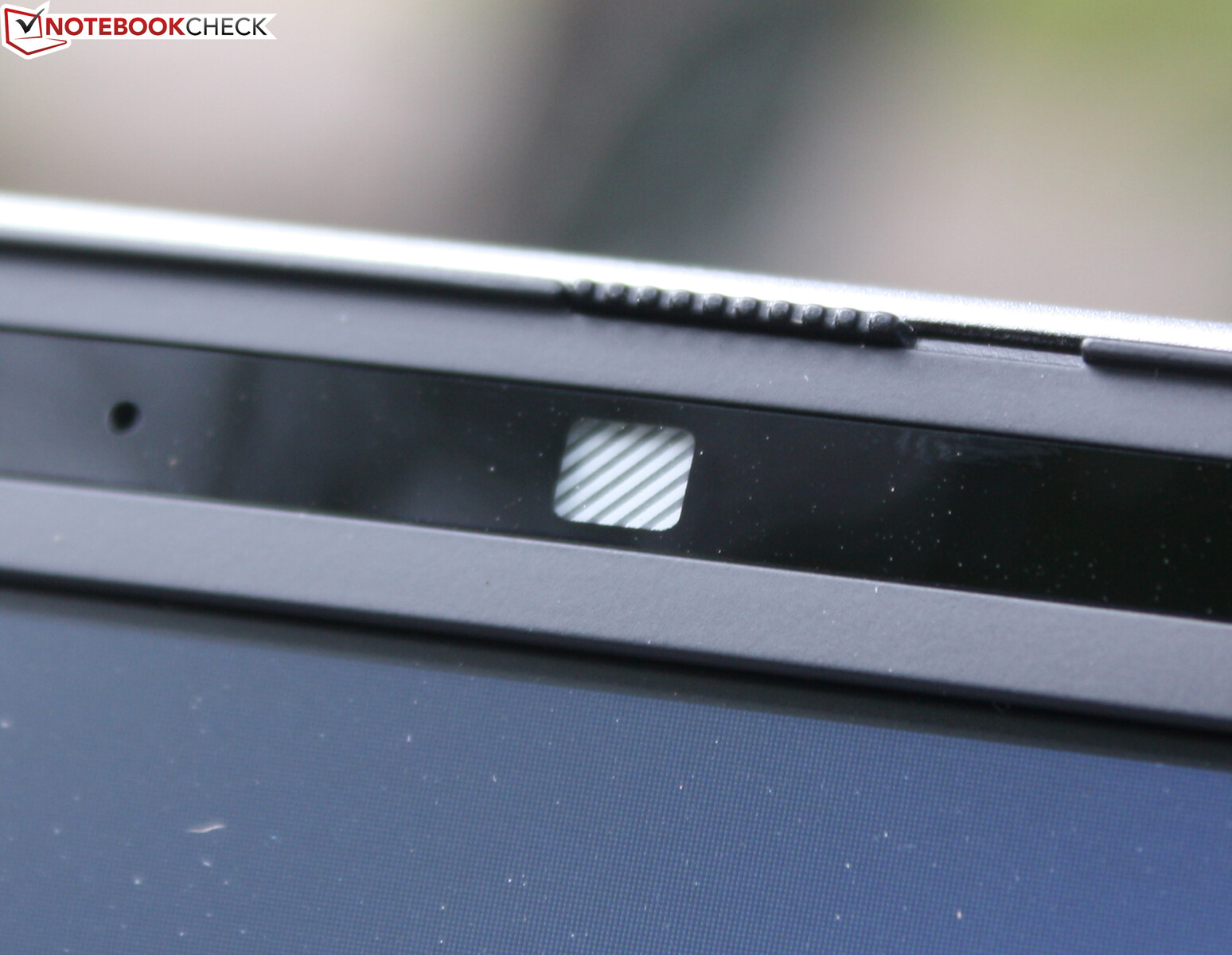

巨型网络摄像头。2560x1440像素的手动快门下...
巨型网络摄像头。2560x1440像素的手动快门下...

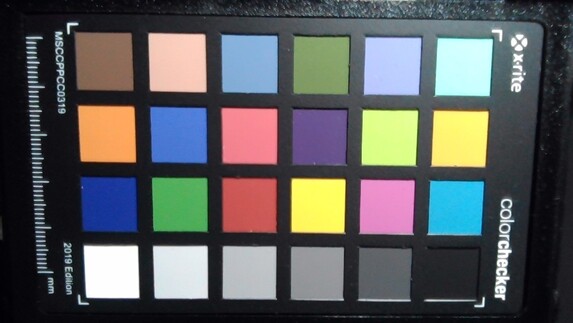

...具有良好的焦点和逼真的色彩。点击查看原图
...具有良好的焦点和逼真的色彩。点击查看原图
ColorChecker
17 ∆E
16.5 ∆E
20.2 ∆E
20.9 ∆E
19.4 ∆E
17.8 ∆E
12.3 ∆E
23.8 ∆E
15.2 ∆E
15.6 ∆E
16.5 ∆E
17.6 ∆E
17.3 ∆E
20.8 ∆E
20.4 ∆E
14.4 ∆E
18.2 ∆E
25.2 ∆E
2.3 ∆E
11.8 ∆E
19.7 ∆E
18.2 ∆E
18.7 ∆E
11.4 ∆E
ColorChecker HP EliteBook 845 G9 6F6H6EA: 17.13 ∆E min: 2.33 - max: 25.15 ∆E
ColorChecker
8.7 ∆E
14 ∆E
18 ∆E
19.8 ∆E
22.3 ∆E
20.1 ∆E
11.2 ∆E
14 ∆E
15.9 ∆E
9 ∆E
16 ∆E
23.6 ∆E
3.5 ∆E
8.2 ∆E
11.8 ∆E
13.2 ∆E
17.5 ∆E
19.3 ∆E
2.3 ∆E
7.9 ∆E
9.4 ∆E
10.6 ∆E
5.3 ∆E
5.5 ∆E
ColorChecker Lenovo ThinkPad T14s G2 20XGS01100: 12.79 ∆E min: 2.33 - max: 23.64 ∆E
ColorChecker
18.1 ∆E
10.5 ∆E
17.6 ∆E
26.8 ∆E
15.3 ∆E
15.6 ∆E
11.1 ∆E
9.5 ∆E
8.6 ∆E
12.7 ∆E
15.5 ∆E
13.1 ∆E
2.2 ∆E
15.2 ∆E
8.7 ∆E
7.1 ∆E
7.9 ∆E
15.4 ∆E
3.9 ∆E
3.3 ∆E
7.5 ∆E
9.8 ∆E
8.2 ∆E
1.2 ∆E
ColorChecker Lenovo ThinkPad X1 Carbon G10 21CC001RGE: 11.03 ∆E min: 1.21 - max: 26.81 ∆E

安全问题

惠普集成了许多安全和管理解决方案。基于软件的解决方案包括惠普Maxim Pro安全版(1年)、连接优化器、热键支持、支持助手、轻松清洁、电源管理器、myHP、隐私设置、QuickDrop、快速触摸 PC硬件诊断。这样一来,惠普Maxim Pro安全版 就可以防止恶意软件,并面向中小企业。管理软件包并不小,而且远远超出了对制造商更新的集中检索。

指纹识别器和红外摄像头(人脸登录)是这里明显的安全功能,也是多因素认证的必要条件。支持助手捆绑了硬件管理和安全方面的软件设置,是出现问题时的第一个联络点。网络故障排除也是在这里进行的。许多这些功能也可以在Windows的板载工具中找到,但惠普的本地解决方案可以很好地完成它们的工作。

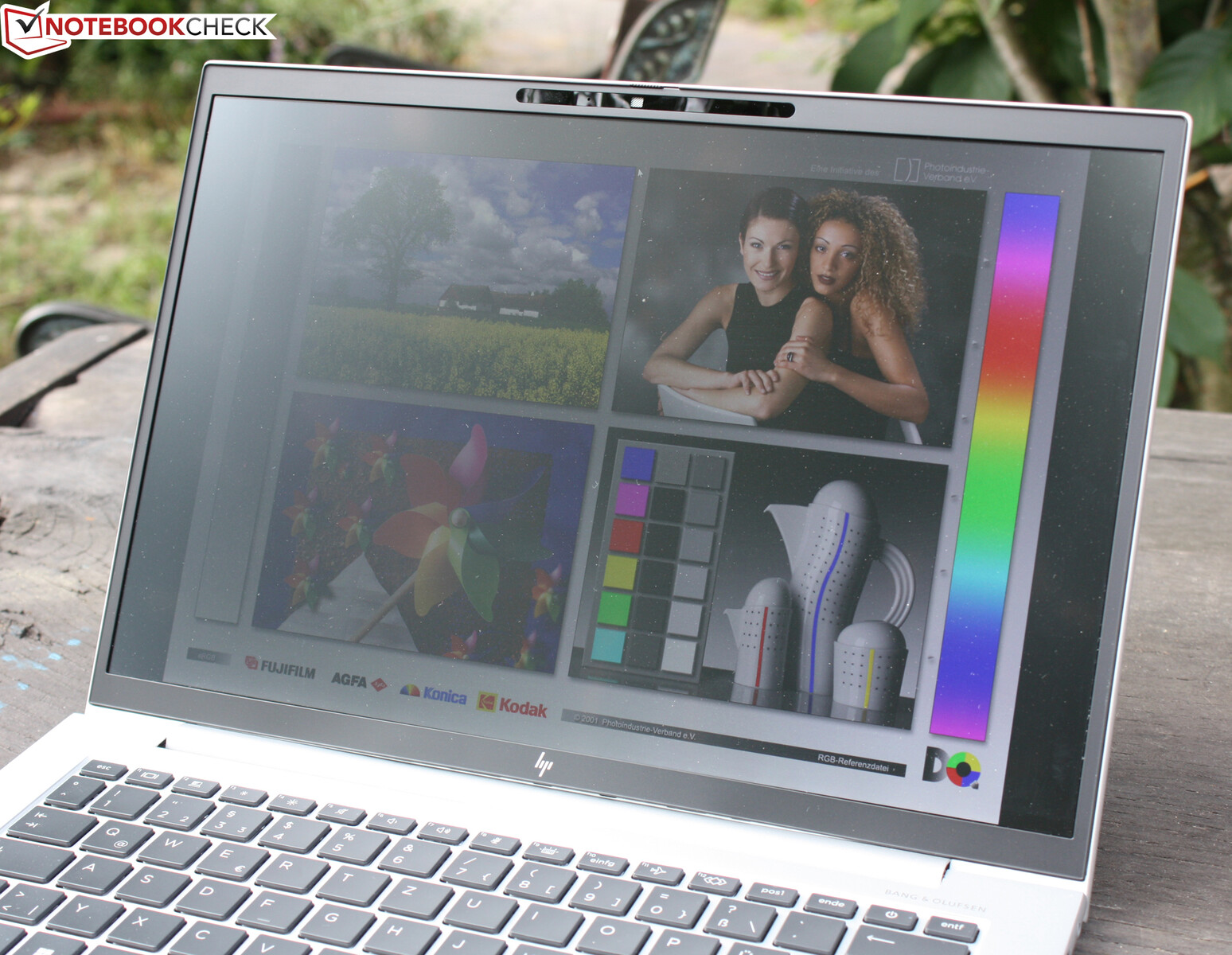

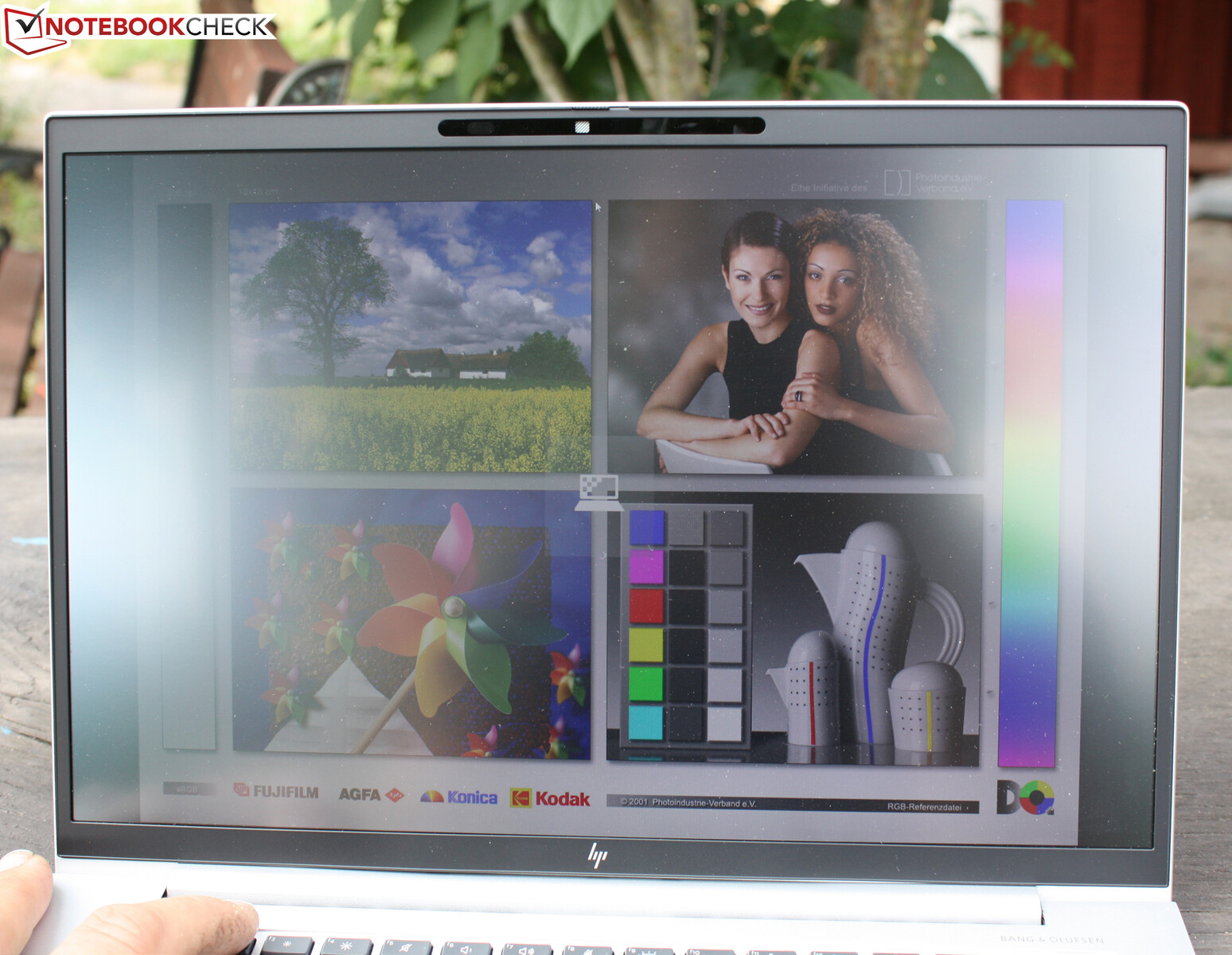

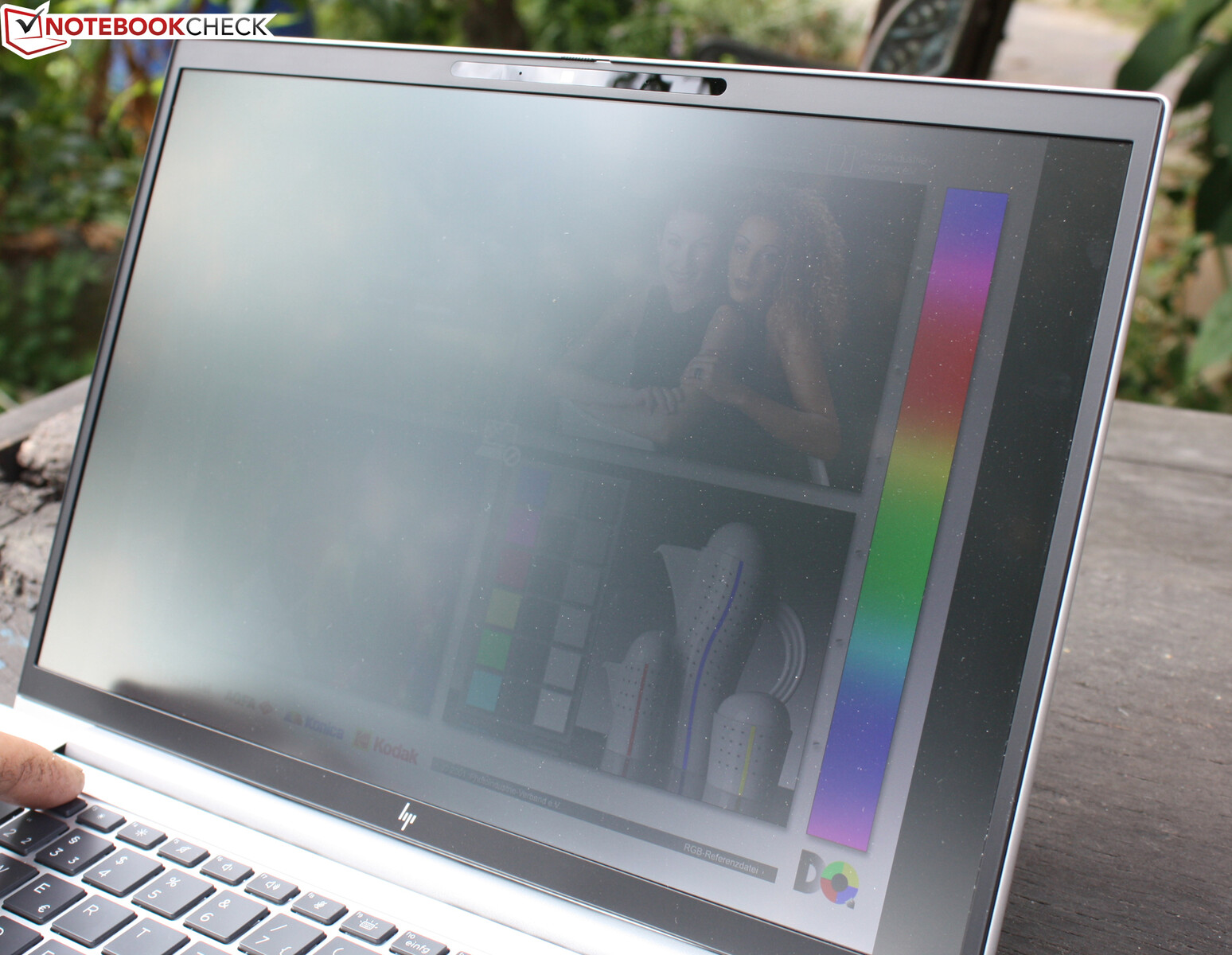

惠普SureView开机:正面视野很好,但侧面已经渐渐消失了。
惠普SureView开机:正面视野很好,但侧面已经渐渐消失了。
SureView On: 可以从侧面观看
SureView On: 可以从侧面观看

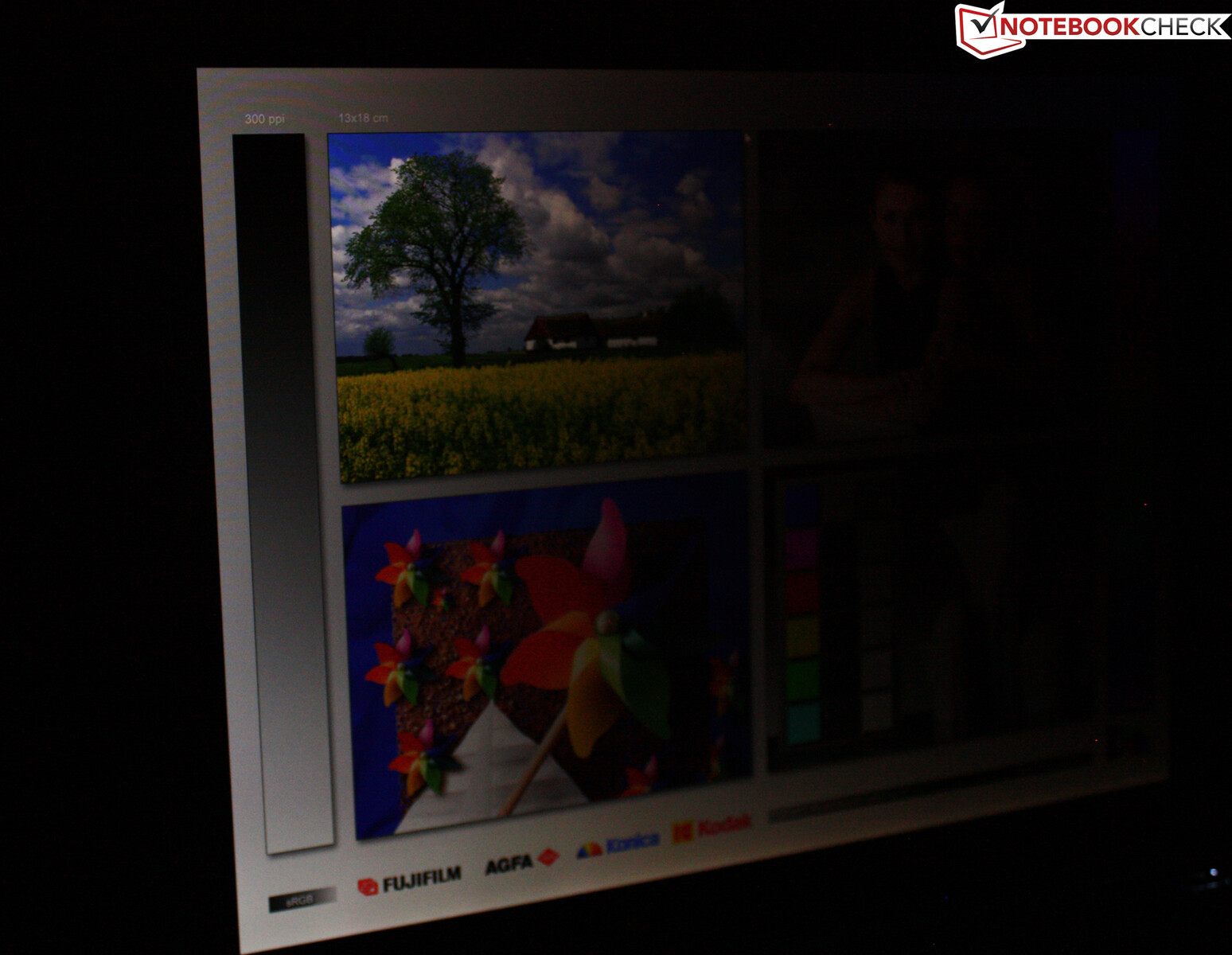

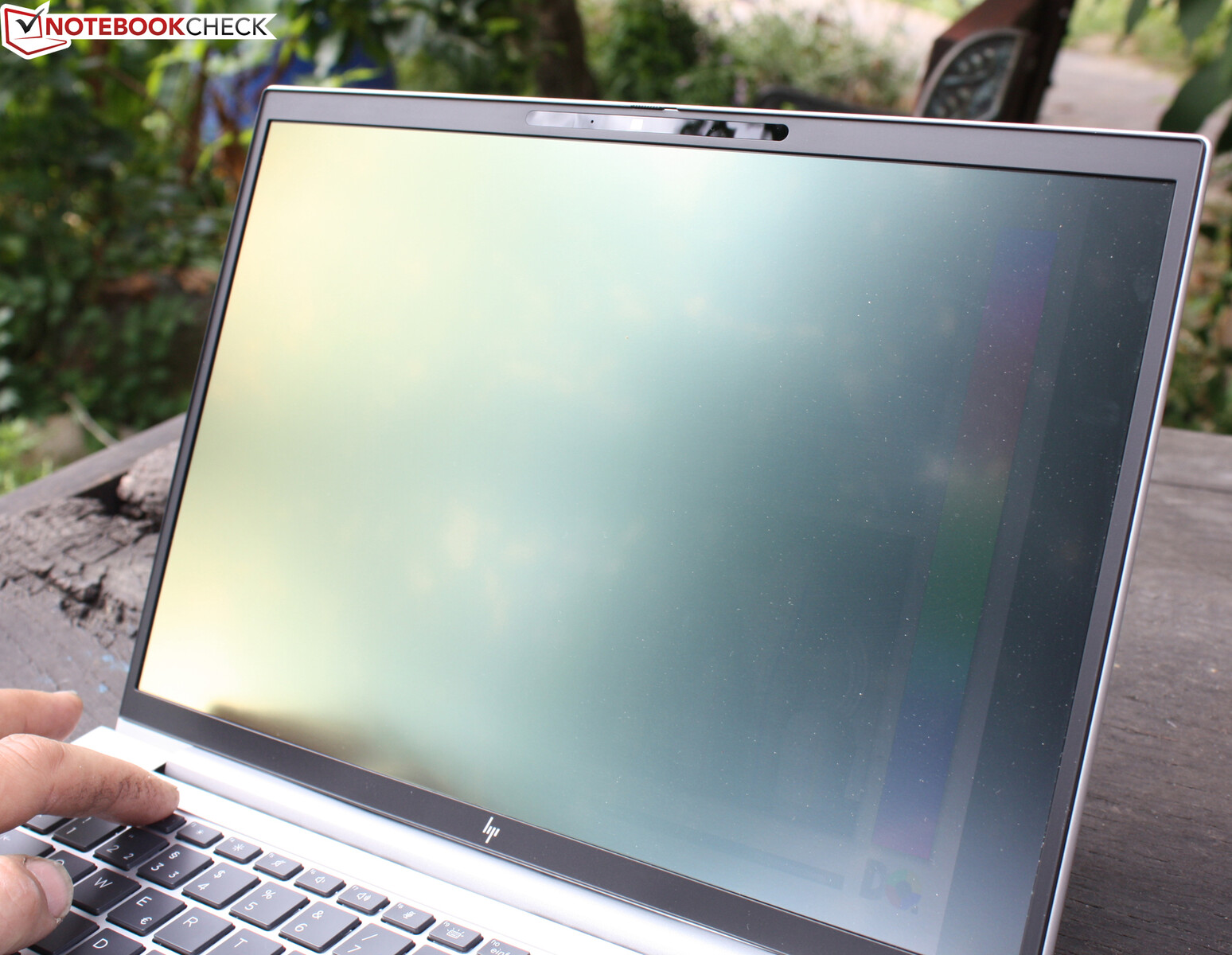

开启SureView:不再能从侧面查看
开启SureView:不再能从侧面查看

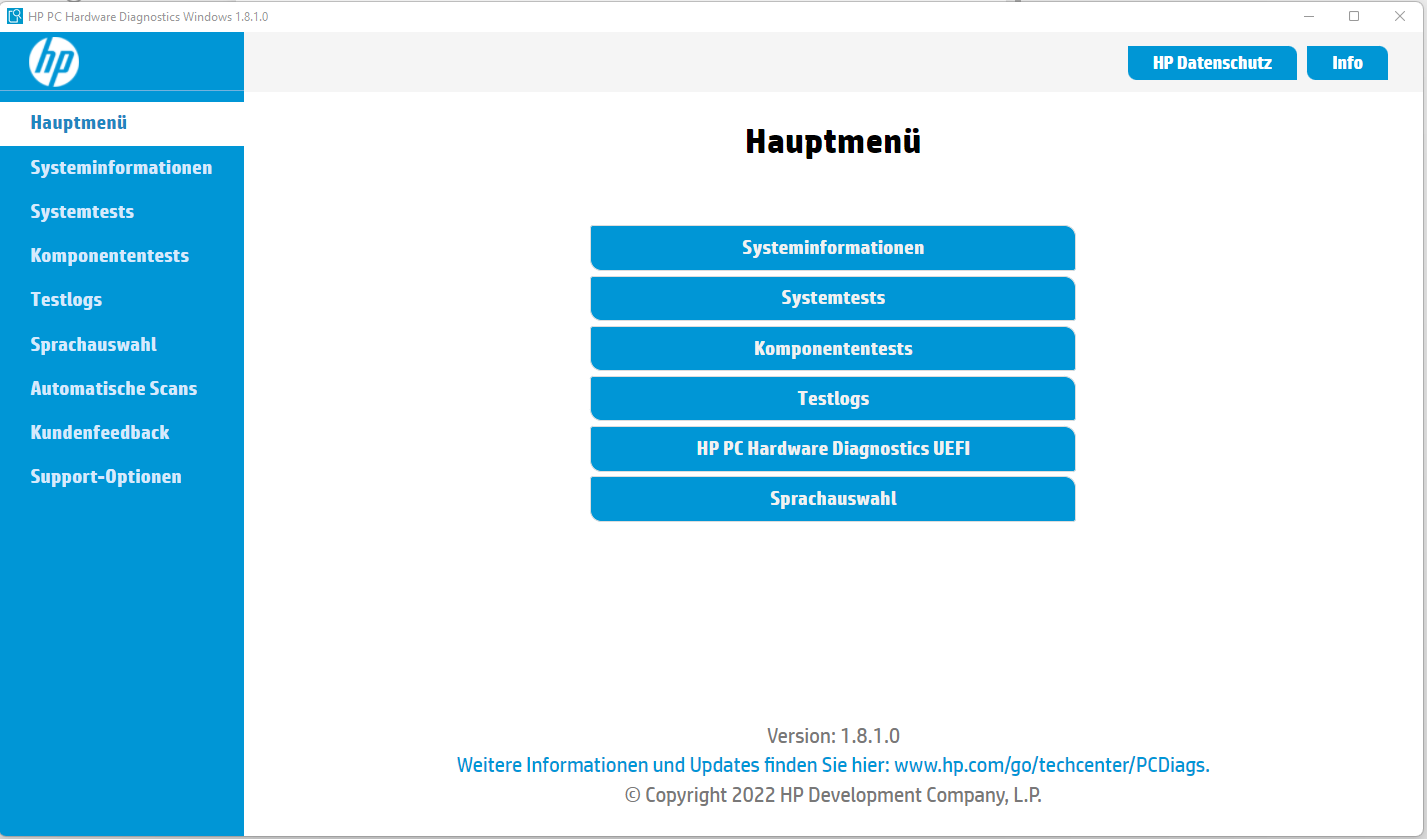

惠普支持助手:多种颜色的硬件检查
惠普支持助手:多种颜色的硬件检查

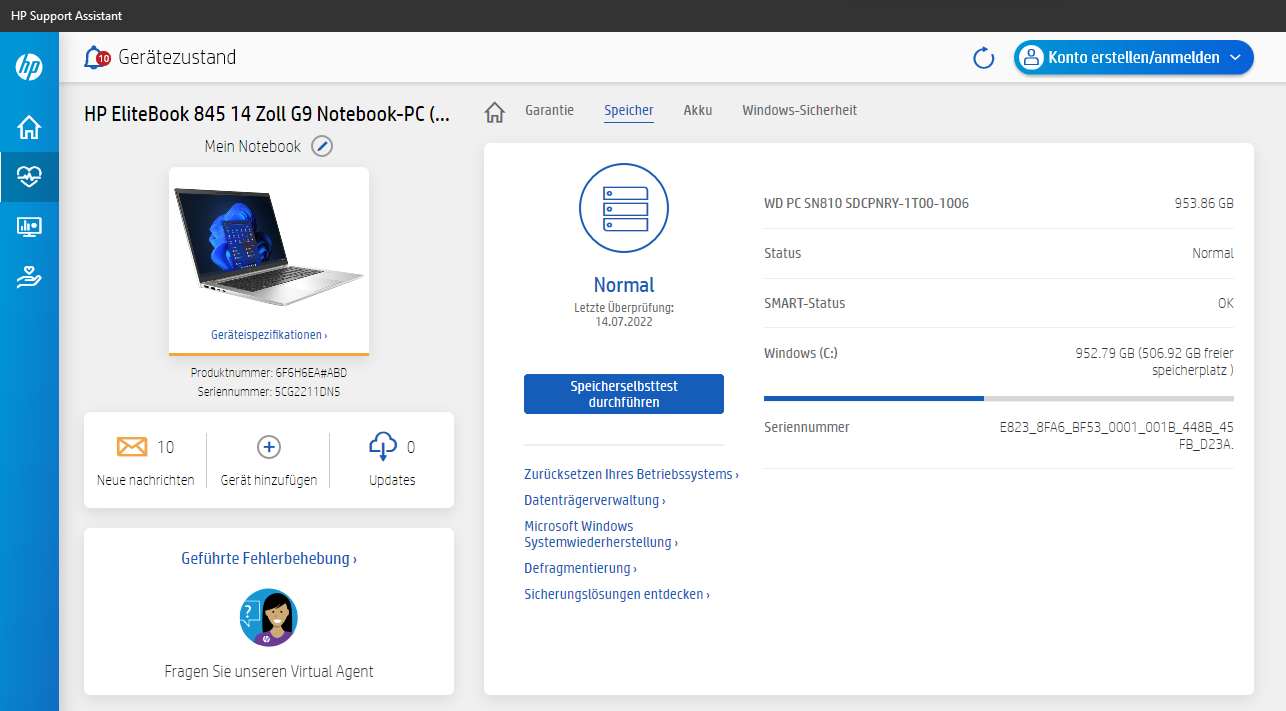

惠普支持助理:设备健康
惠普支持助理:设备健康

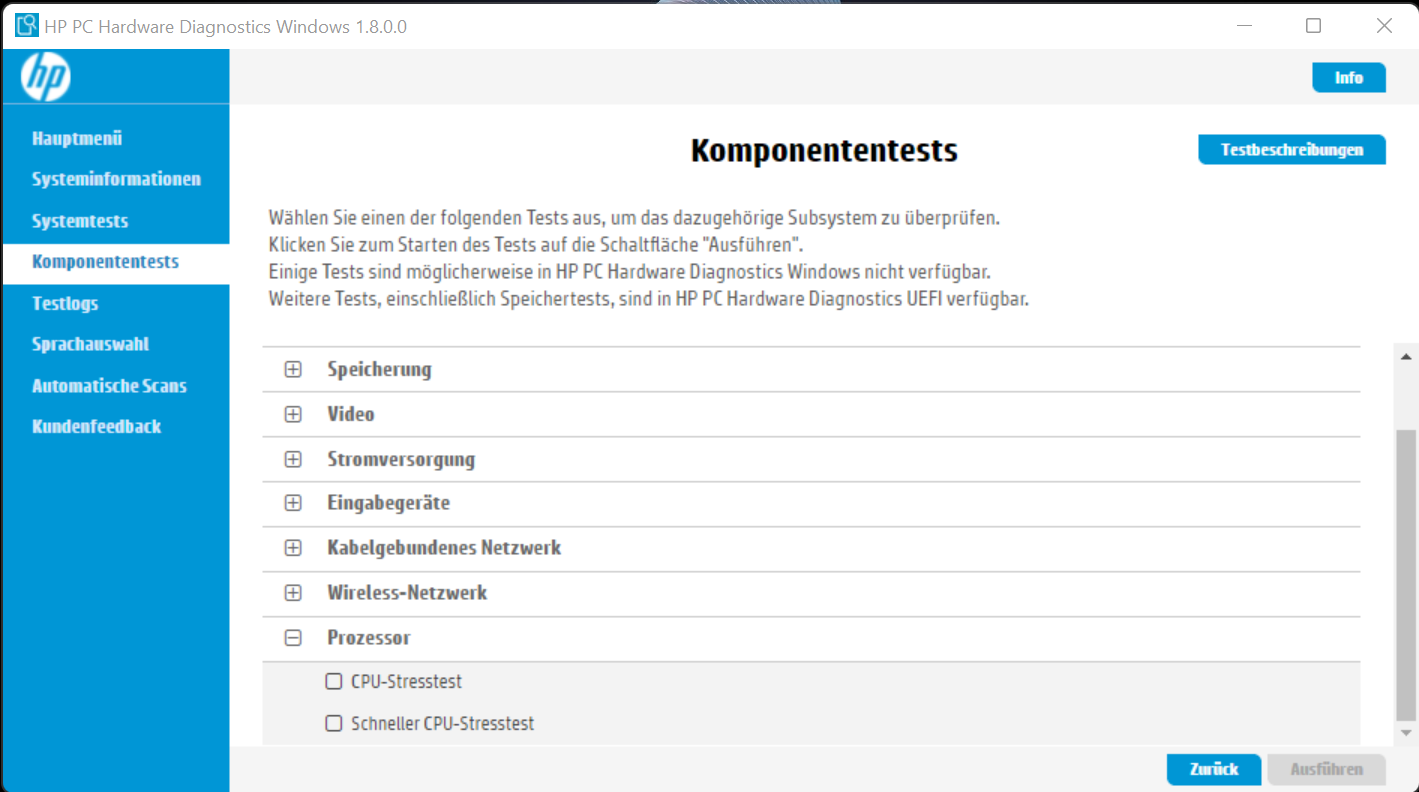

HP Support Assistant: Ein Test for jede Komponente - bei Fehlern die Ursache finden
HP Support Assistant: Ein Test for jede Komponente - bei Fehlern die Ursache finden

辅料

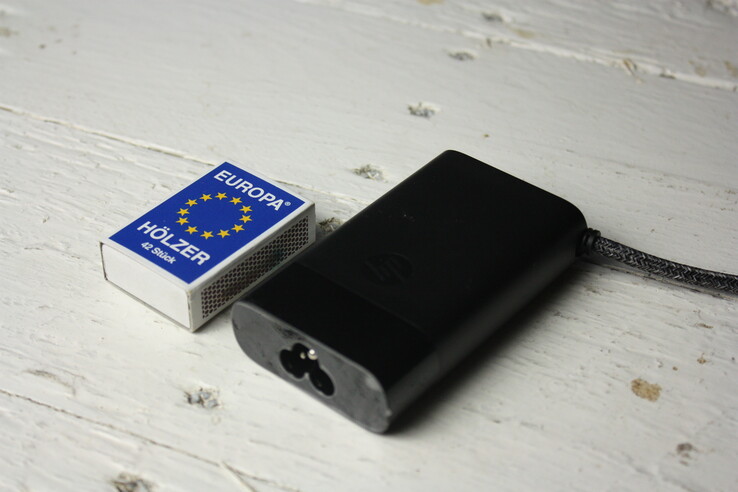

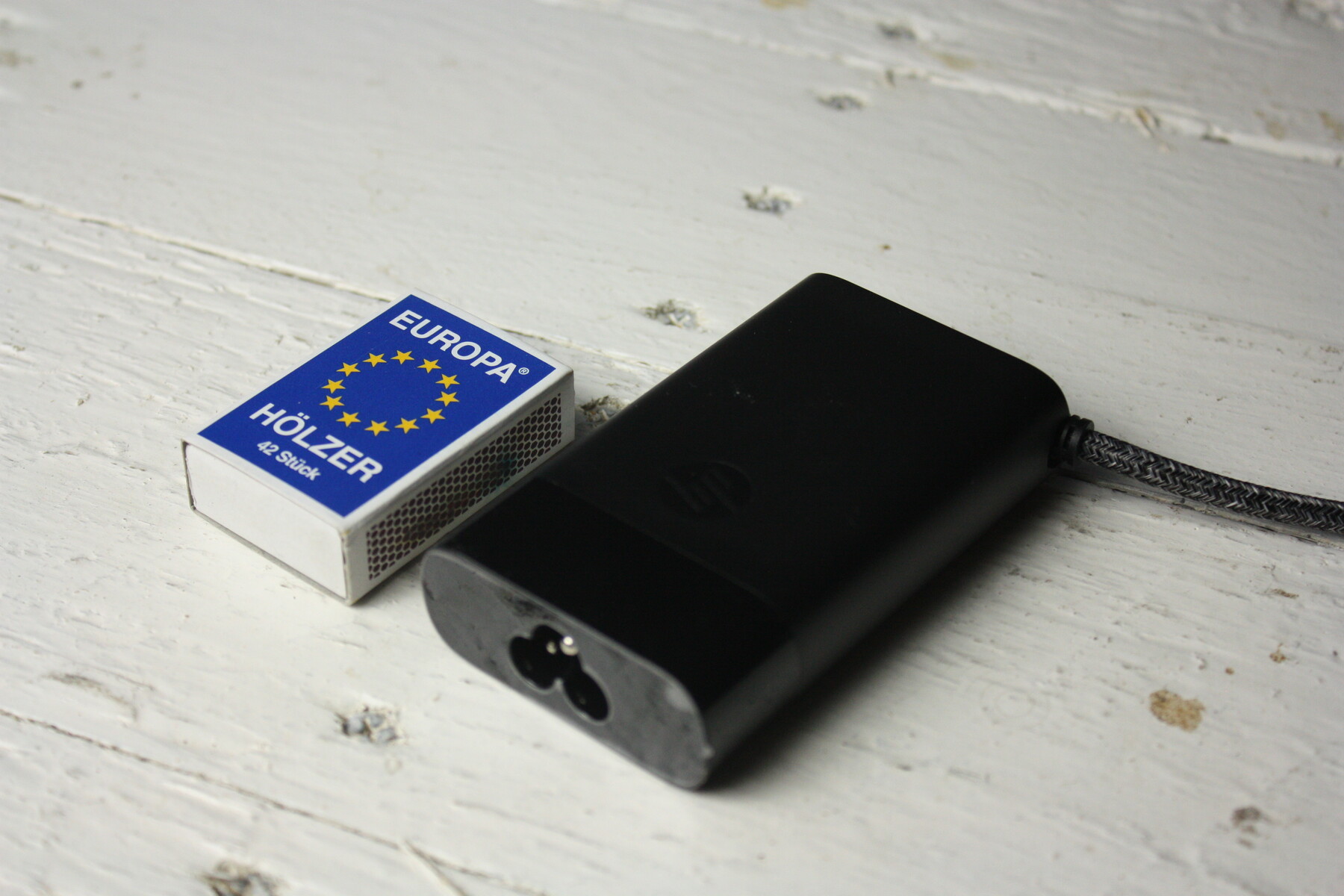

除了仅重302克的微型65瓦电源适配器外,交货范围内不包括其他附件。

维护

Elitebook很容易维护和升级:制造商没有使用Torx螺丝,也没有将螺丝隐藏在橡胶脚或条下。螺丝松动后不会从底板上掉下来,而且底板可以在没有特殊工具或夹子断裂的情况下被拆除。

另一个积极的观点是。内存没有被焊接,就像联想 ThinkPad T14s.有两个插座,其中一个被32GB SO-DIMM占用。还有一个插座用于WWAN(M.2 2260),一个用于WiFi模块(M.2 2240),以及一个SSD(M.2 2280)。电池是可更换的,没有胶水。

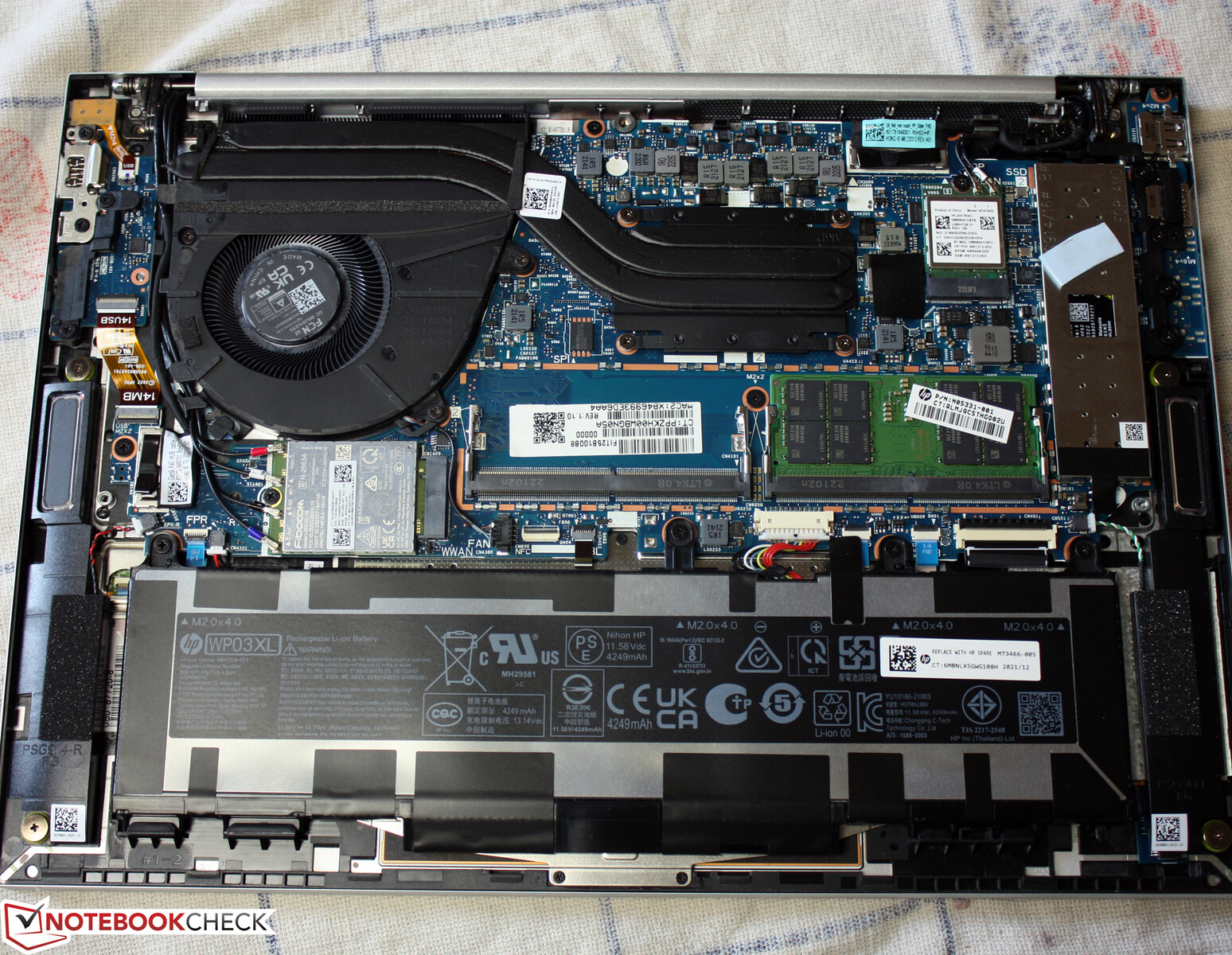

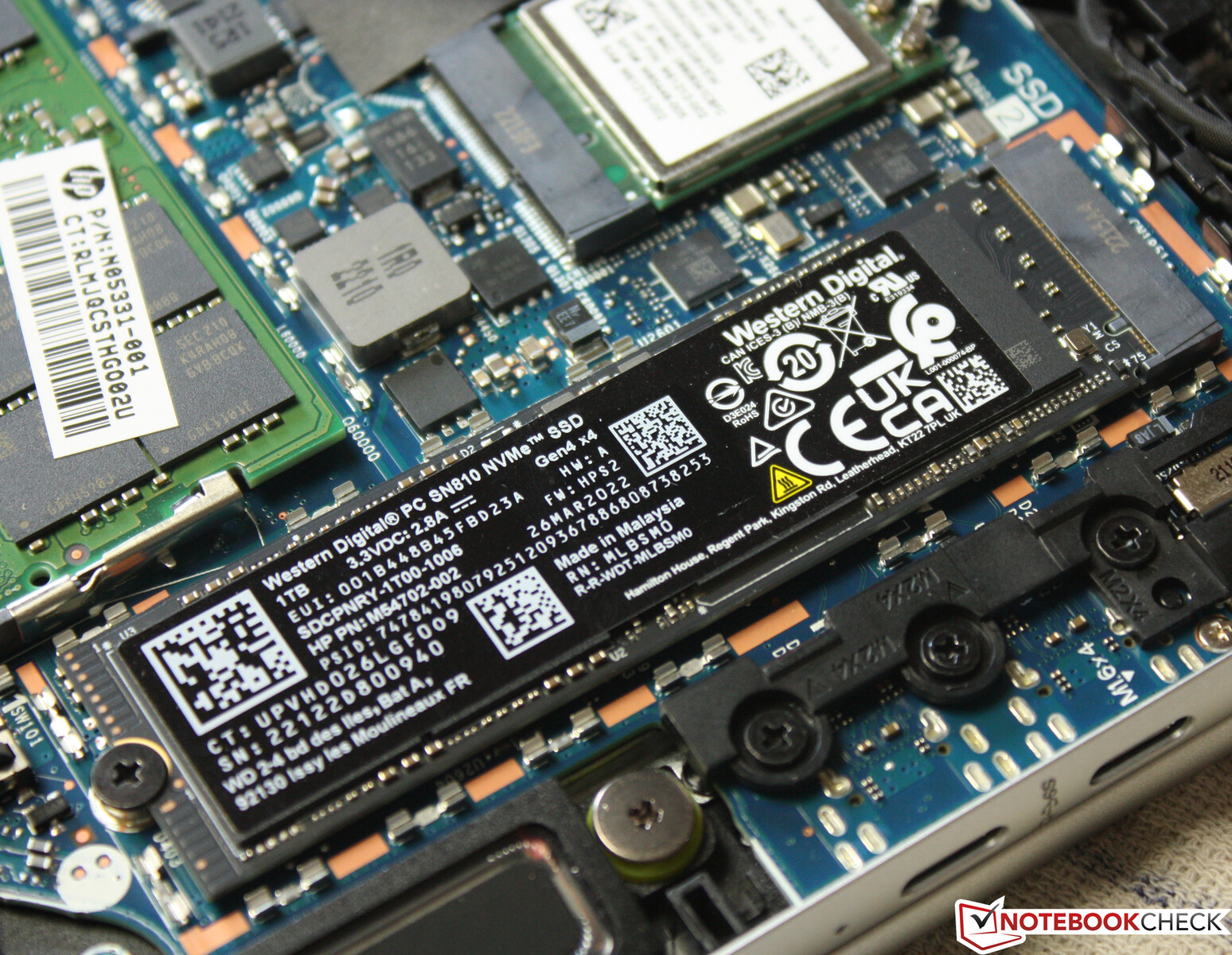

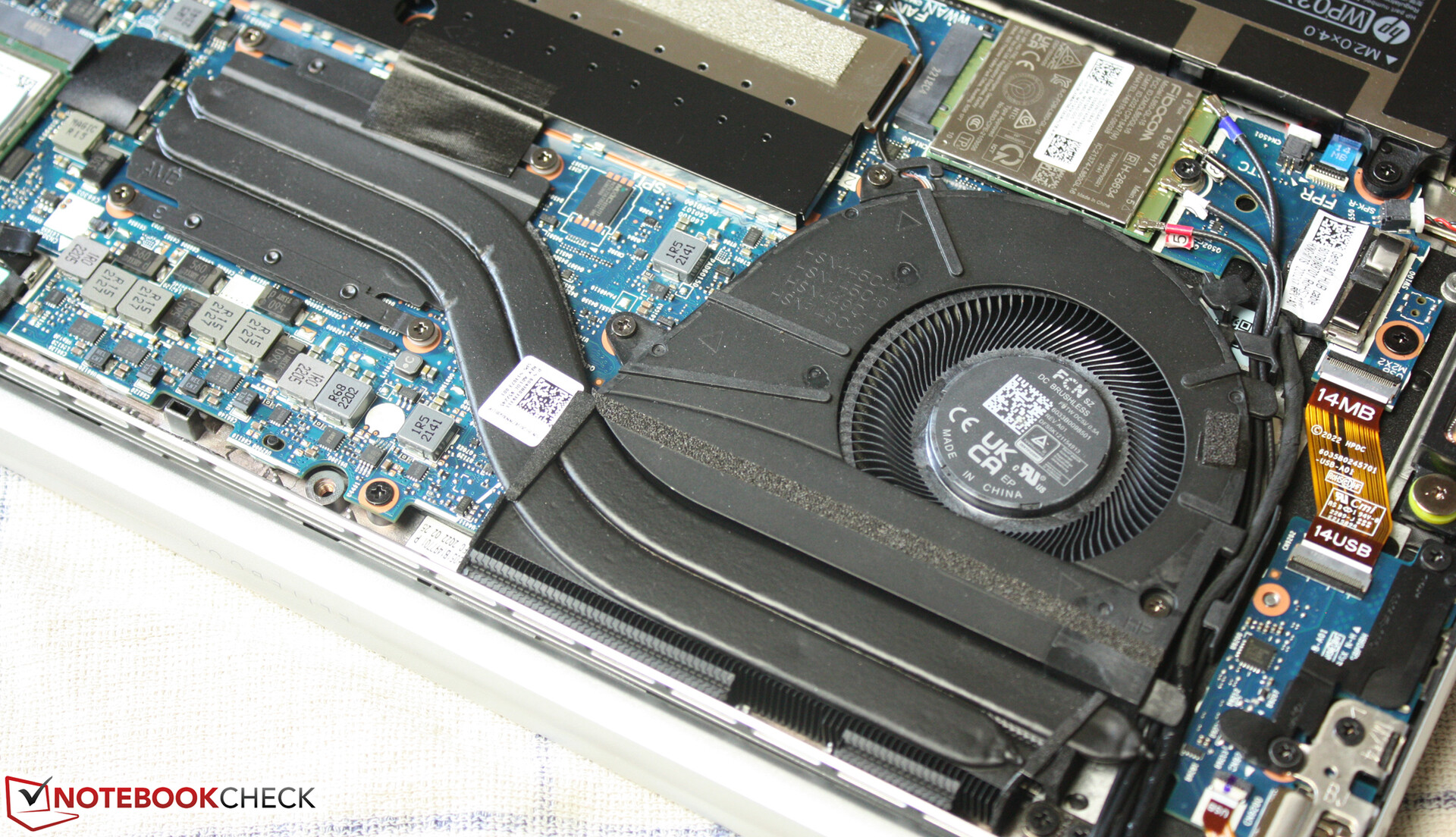

除APU外,所有基本部件都插上了电源。
除APU外,所有基本部件都插上了电源。

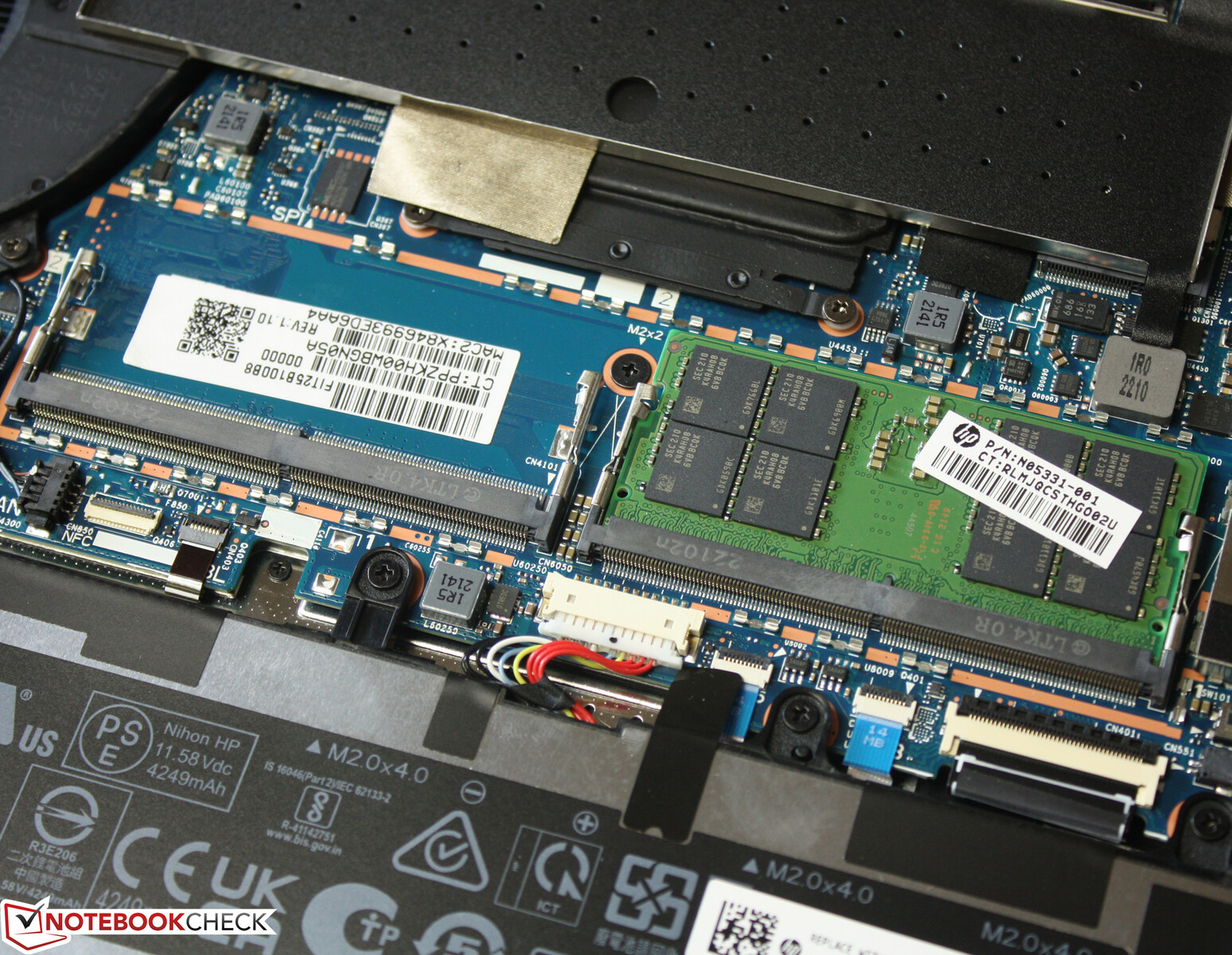

近距离观察:有两个RAM插口,32GB插上了,64GB也可以。
近距离观察:有两个RAM插口,32GB插上了,64GB也可以。

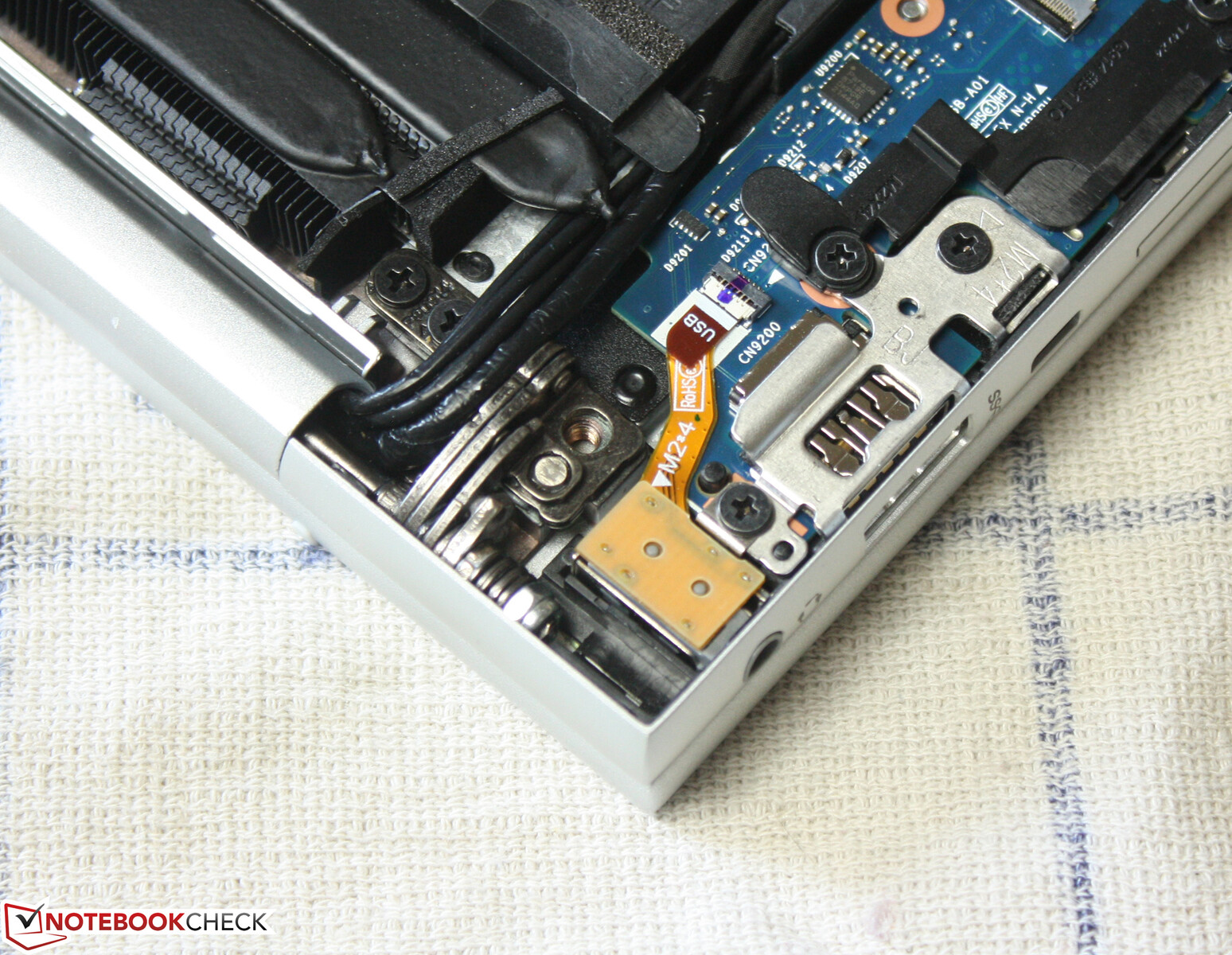

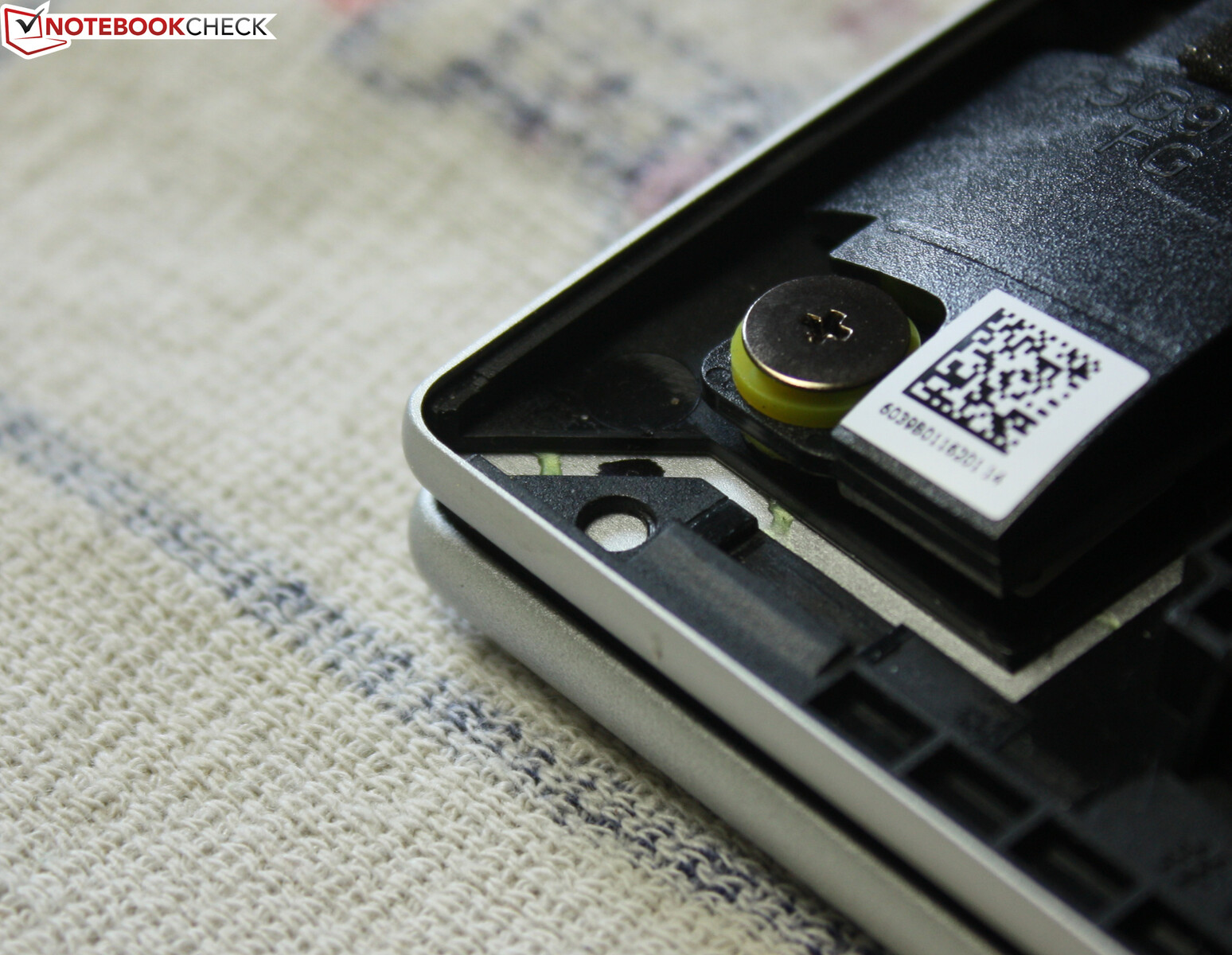

近距离观察。转角处的接头
近距离观察。转角处的接头

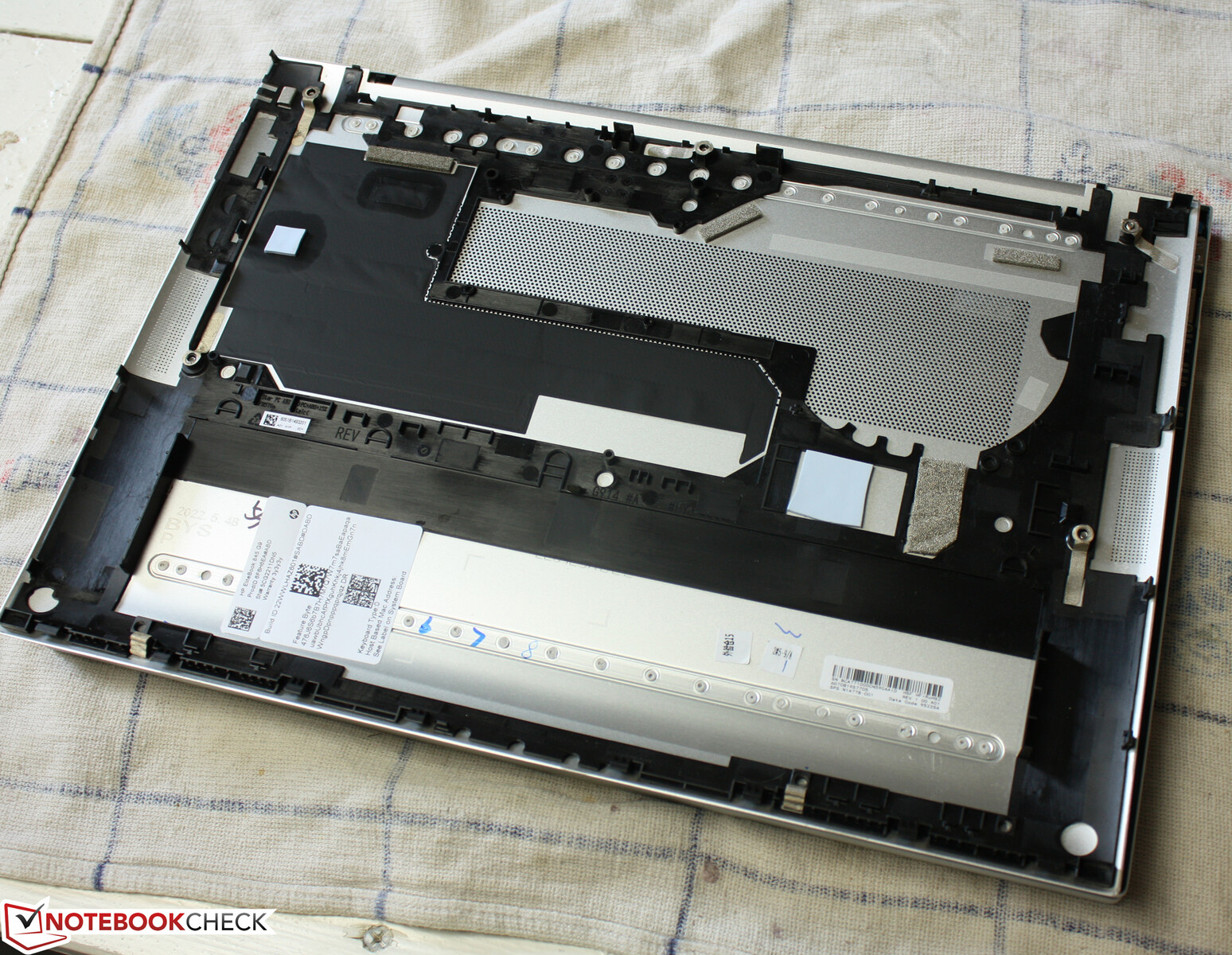

松开螺丝后,可以牢牢地握住盖子,将其拆开。
松开螺丝后,可以牢牢地握住盖子,将其拆开。

担保

惠普提供为期3年的零件、人工和现场维修保修(3-3-3),零件和人工的服务时间为下一个工作日。

输入设备。有强烈反馈的笔记本电脑键盘

首先:惠普已经取消了TrackPoint和专用键,这不会让传统主义者满意。惠普这样做,是在走戴尔和联想在其商务笔记本上所走的老路。从长远来看,Trackpoint可能会消亡。

键盘

该键盘是最适合经常打字的人的键盘之一。键盘提供了一个坚定的行程,在任何阶段都不会摇晃。整个键盘面板,包括掌托,都有一个坚实的基础。按笔记本电脑的标准,键程适中,并伴有一个清晰的压力点。在我们眼里,清晰的反馈和用力的敲击使键盘很强大。键盘有一个微妙的锥形弧度,间距为3.5毫米。

布局并不构成任何挑战。上一页/下一页键被挤到了狭窄的方向键上方,这并不理想,但总比完全没有好。为了保持底盘的稳定,制造商省略了最右边的一排按键和数字键盘。删除键紧挨着电源开/关的位置并不那么方便。另一方面,后者必须按一整秒,所以如果你误按了它而不是Del

,就不会有错误的条目出现。

惠普还利用了通常的功能键,如音量、按键背光和飞行模式。特殊功能是用于保护眼睛的SureView键和F12的自由编程键。与Alt、Ctrl和Fn相结合,可以存储一些网站、程序或文件。

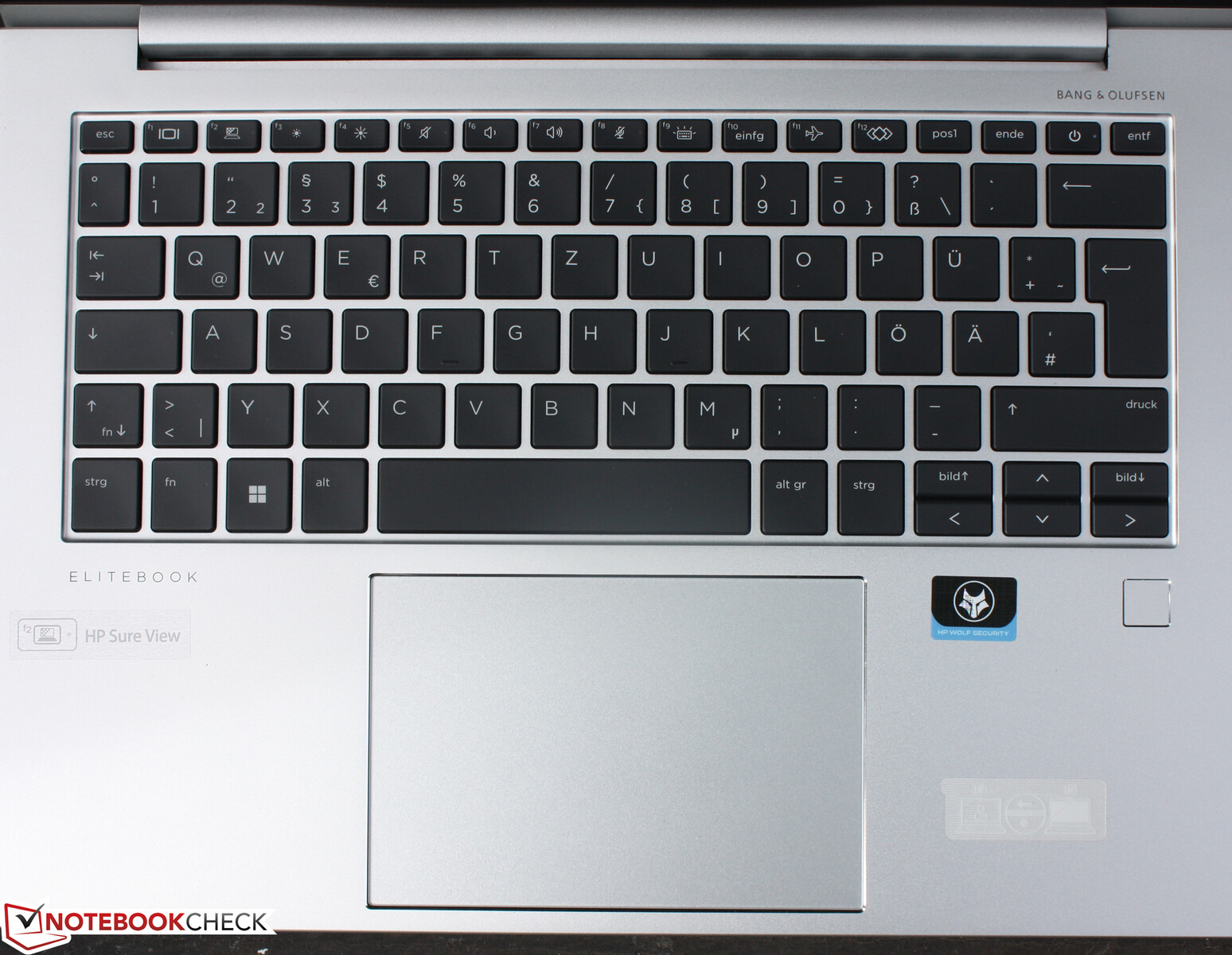

Elitebook的键盘
Elitebook的键盘

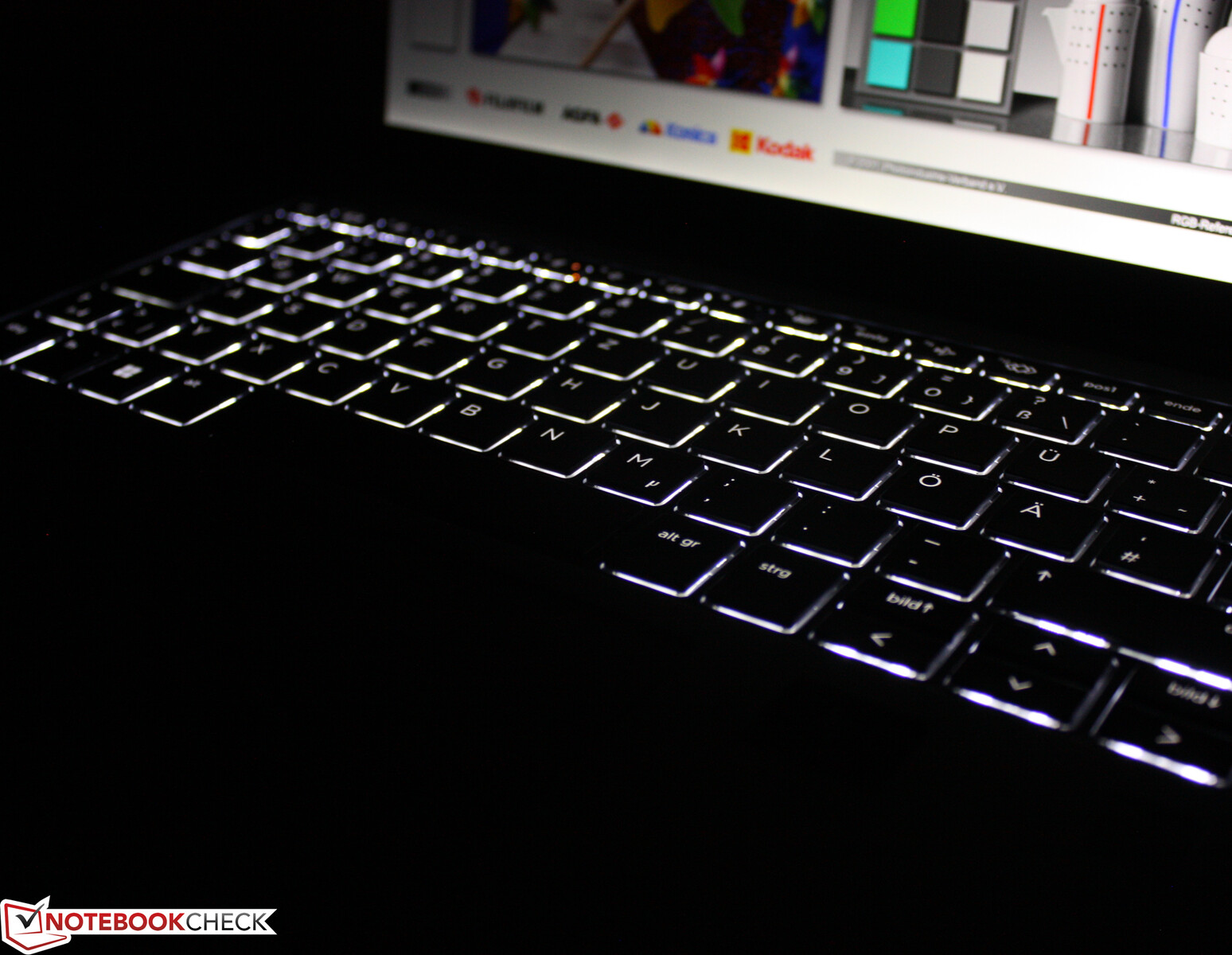

两段式背光灯
两段式背光灯
当过滤器被激活时,SureView按钮会亮起。
当过滤器被激活时,SureView按钮会亮起。

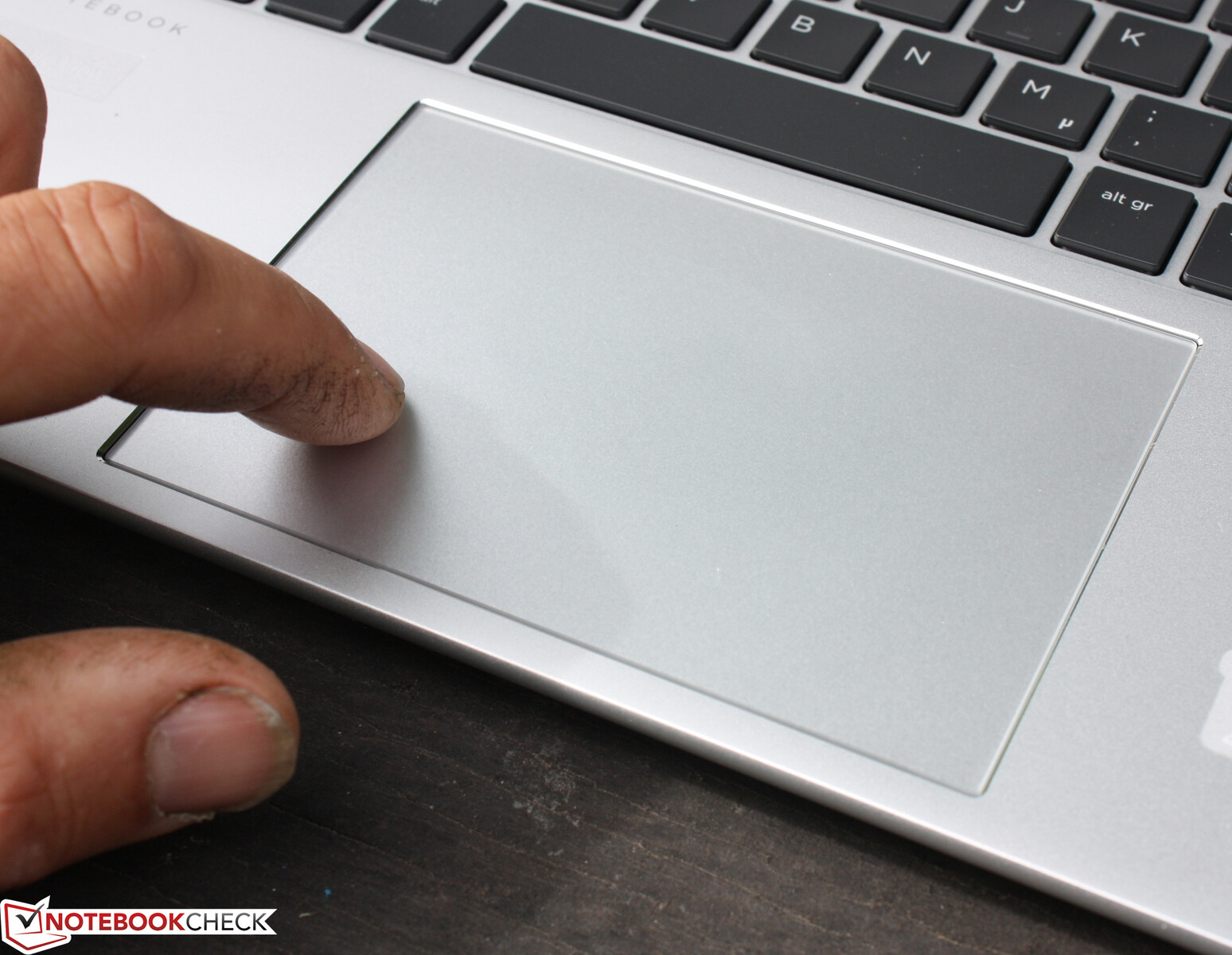

触摸板

大的ClickPad提供了一个坚实但有阻尼的行程,几乎听不到的消音和短的行程。表面很光滑,但并不感觉滑溜,因为摩擦力会随着压力的增加而增加。不幸的是,没有Fn键来快速关闭ClickPad。这对打字没有负面影响,因为垫子只识别出一个休息的手掌,因此不接受任何输入。此外,它位于按键下方的中心位置,这就是为什么手只有在特殊情况下才会放在上面。

大型点击板。 14.直径3厘米
大型点击板。 14.直径3厘米

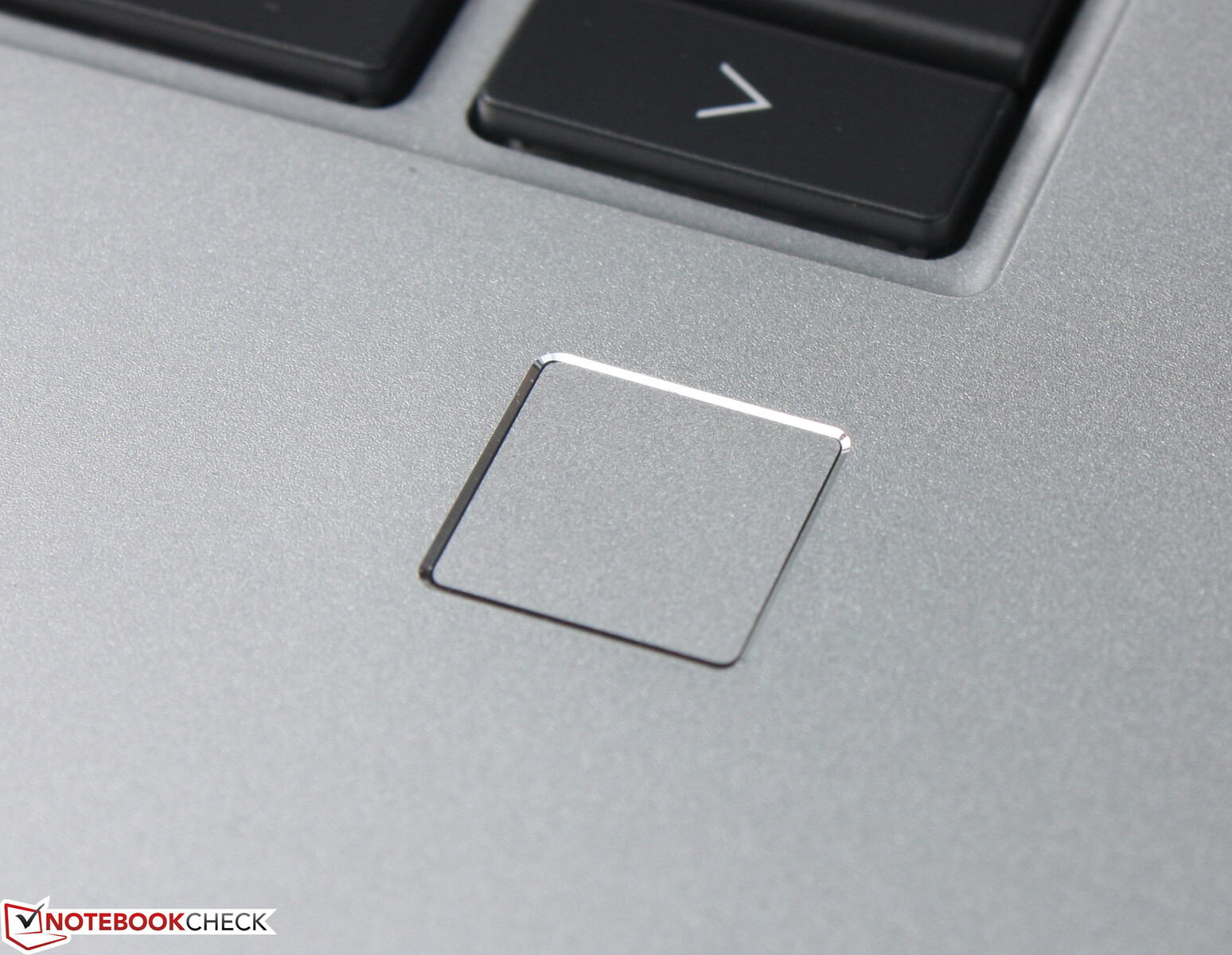

远离垫子 - 指纹识别器
远离垫子 - 指纹识别器

显示。SureView,缺点多于优点?

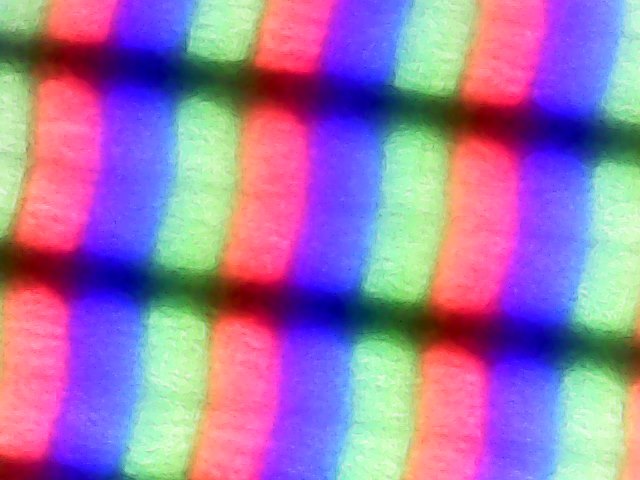

Subpixel InfoVision面板
Subpixel InfoVision面板

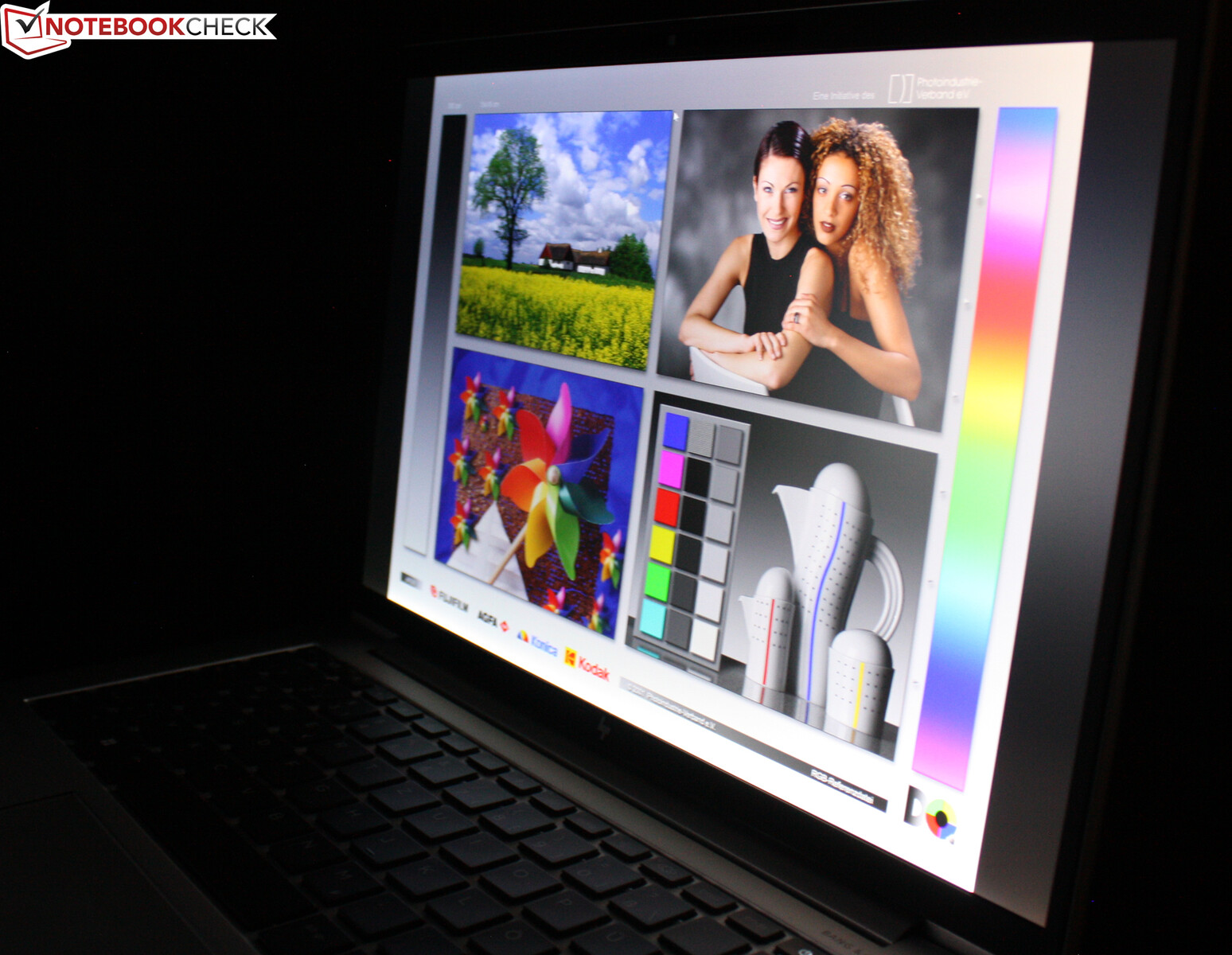

惠普SureView的限制在一个按钮的触摸...
惠普SureView的限制在一个按钮的触摸...

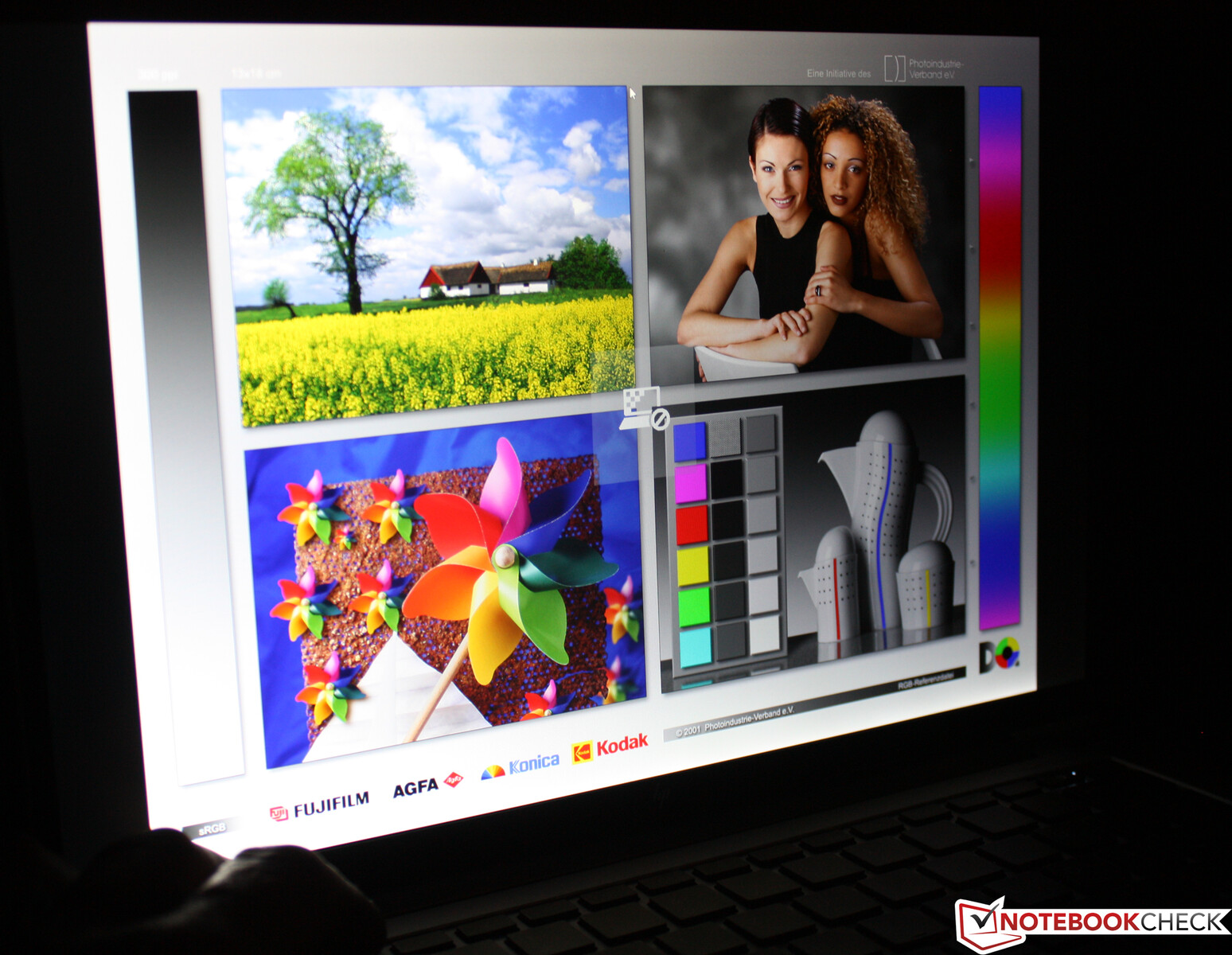

... 横向观察角度。
... 横向观察角度。

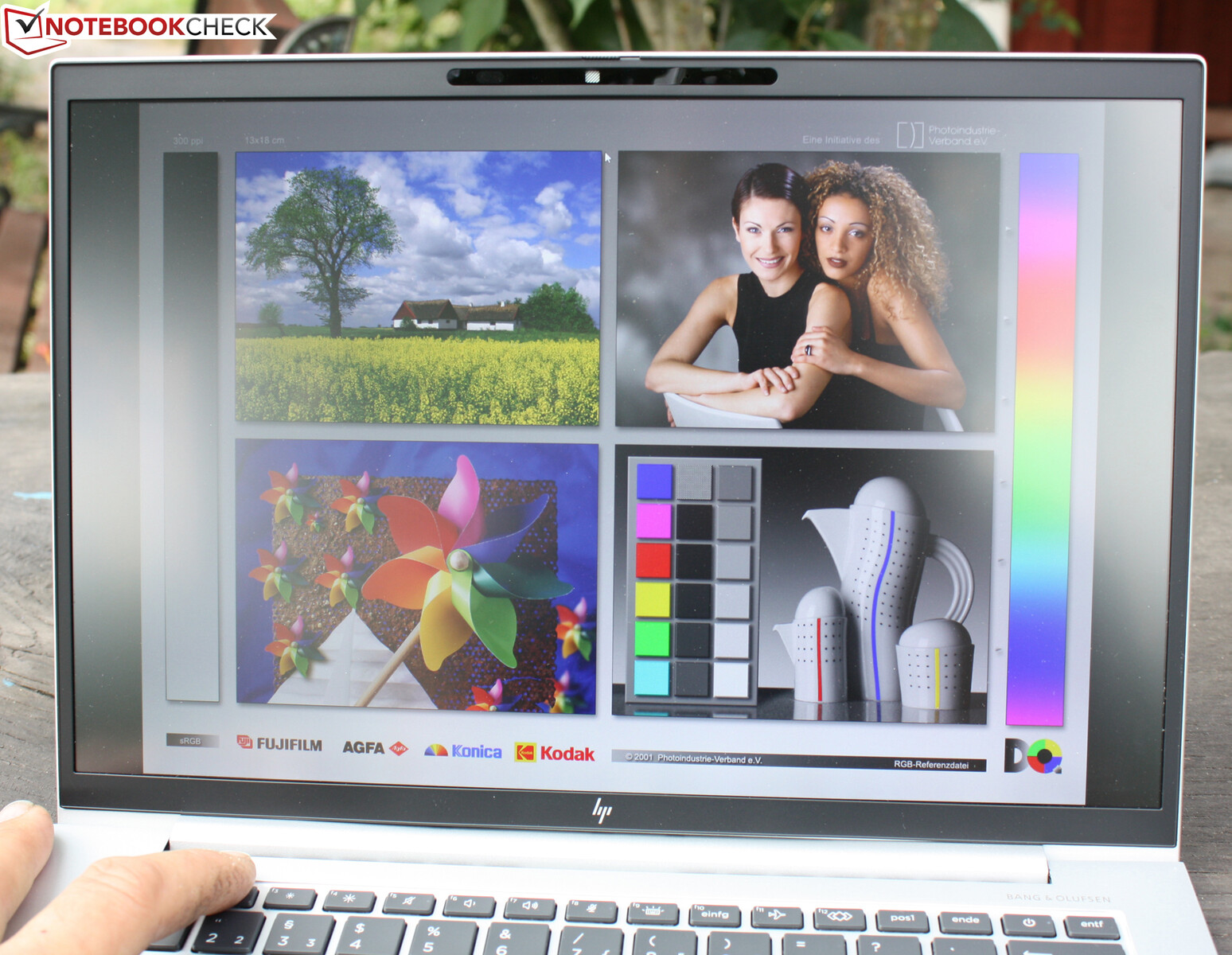

14英寸(35.6厘米对角线)防眩光FHD显示屏(1920 x 1080像素)是该领域最亮的面板,平均亮度为744 cd/m²。惠普指定采用400尼特的IPS面板,100% sRGB,我们也可以确认。由于亮度高,分布不均匀,这在屏幕底部的黑暗环境中是很明显的。另一方面,在日光或办公室照明下,这些都看不出来。

我们的评测设备有一个带有集成隐私过滤器的SureView面板。与以前的SureView面板一样,有一些特殊功能。SureView只在较低的亮度范围内工作良好,因此在明亮的环境中很难使用,因为即使是坐在前面的用户,那时的视野也是有限的。在我们的测量中,SureView是不活跃的。

858
cd/m²
634
cd/m²
762
cd/m²
851
cd/m²
678
cd/m²
883
cd/m²
609
cd/m²
684
cd/m²
744
cd/m²
Distribution of brightness
InfoVision X140NV4J tested with X-Rite i1Pro 2
Maximum: 883 cd/m² (Nits) Average: 744.8 cd/m² Minimum: 97 cd/m²
Brightness Distribution: 69 %
Center on Battery: 900 cd/m²
Contrast: 2055:1 (Black: 0.33 cd/m²)

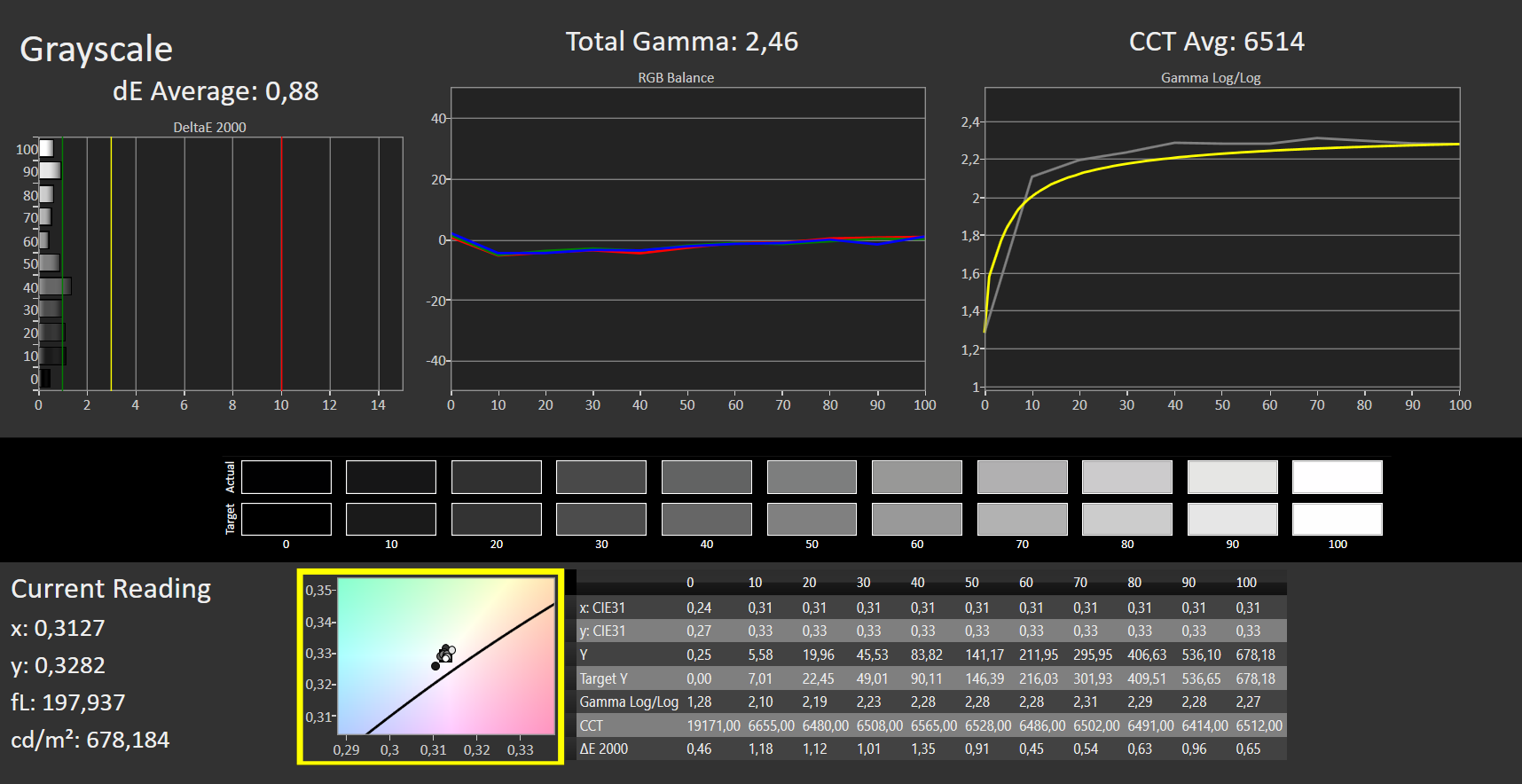

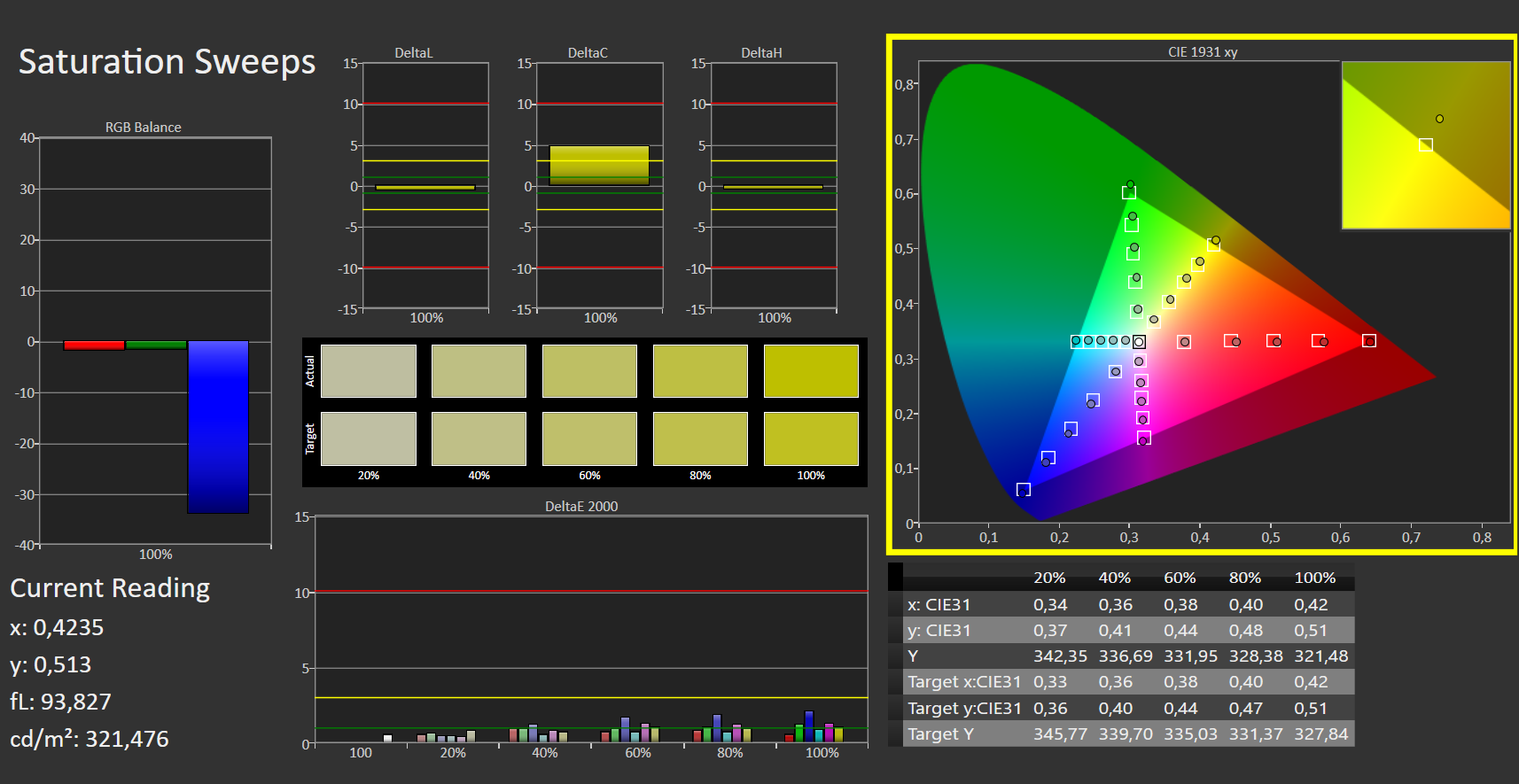

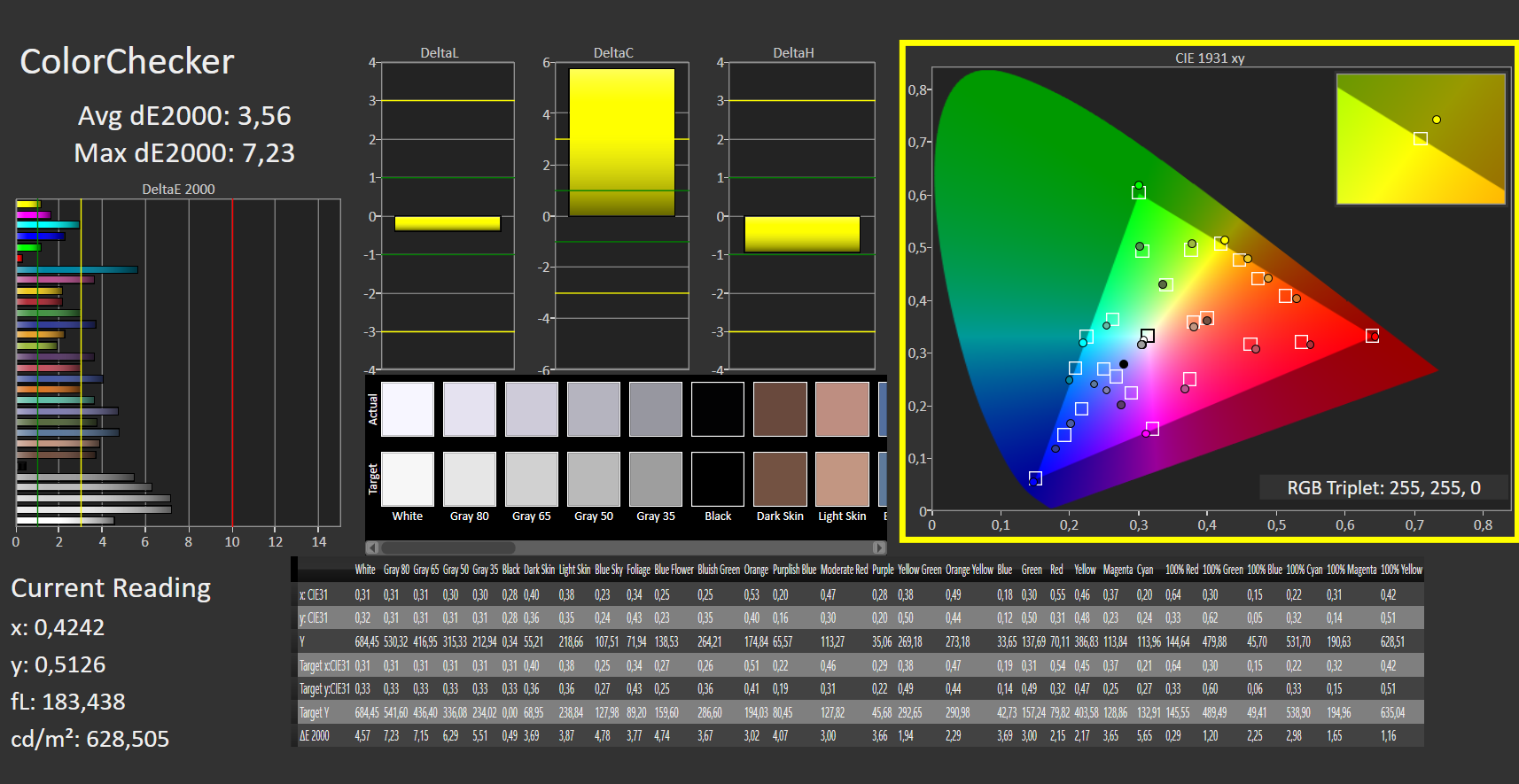

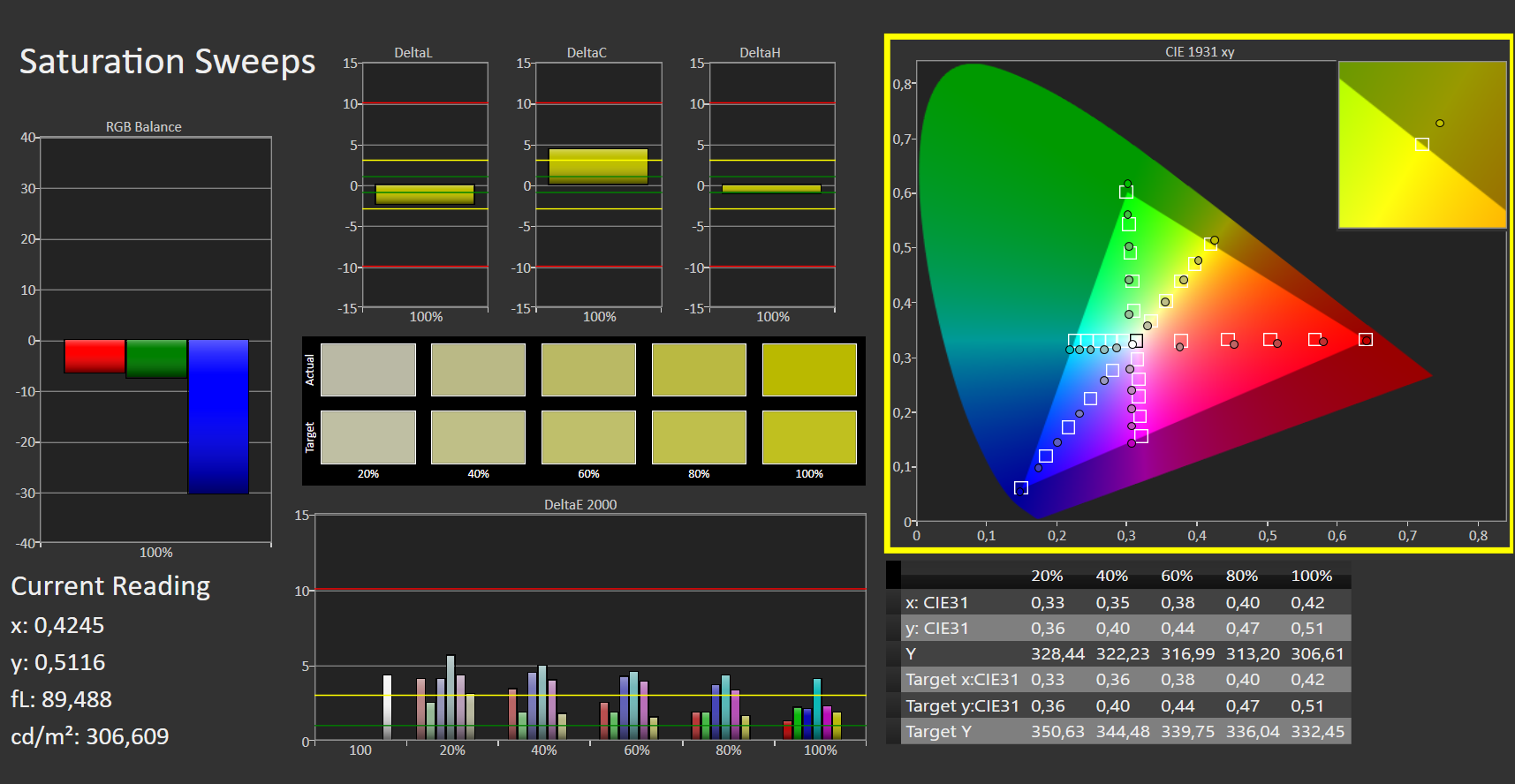

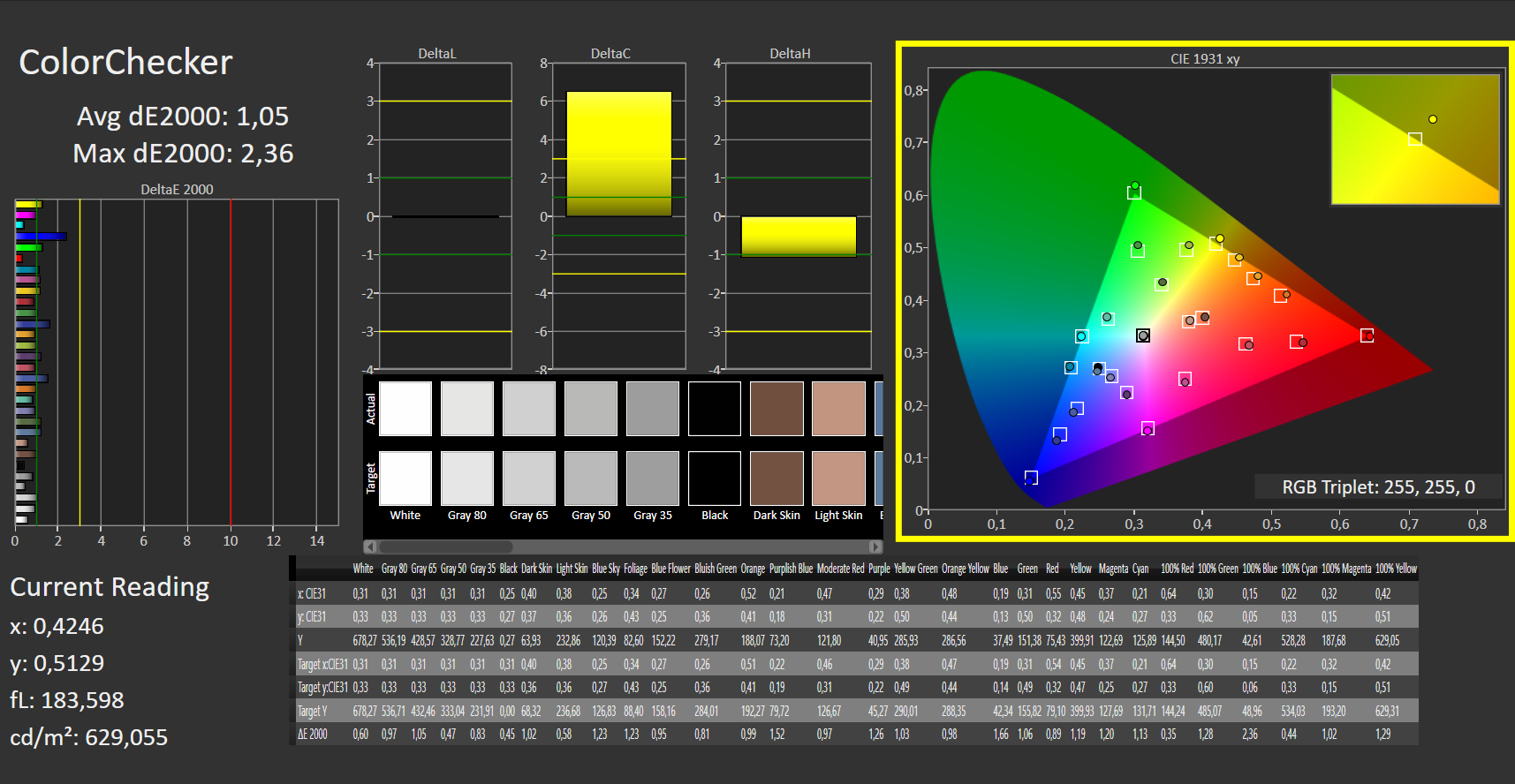

ΔE Color 3.56 | 0.5-29.43 Ø5, calibrated: 1.05

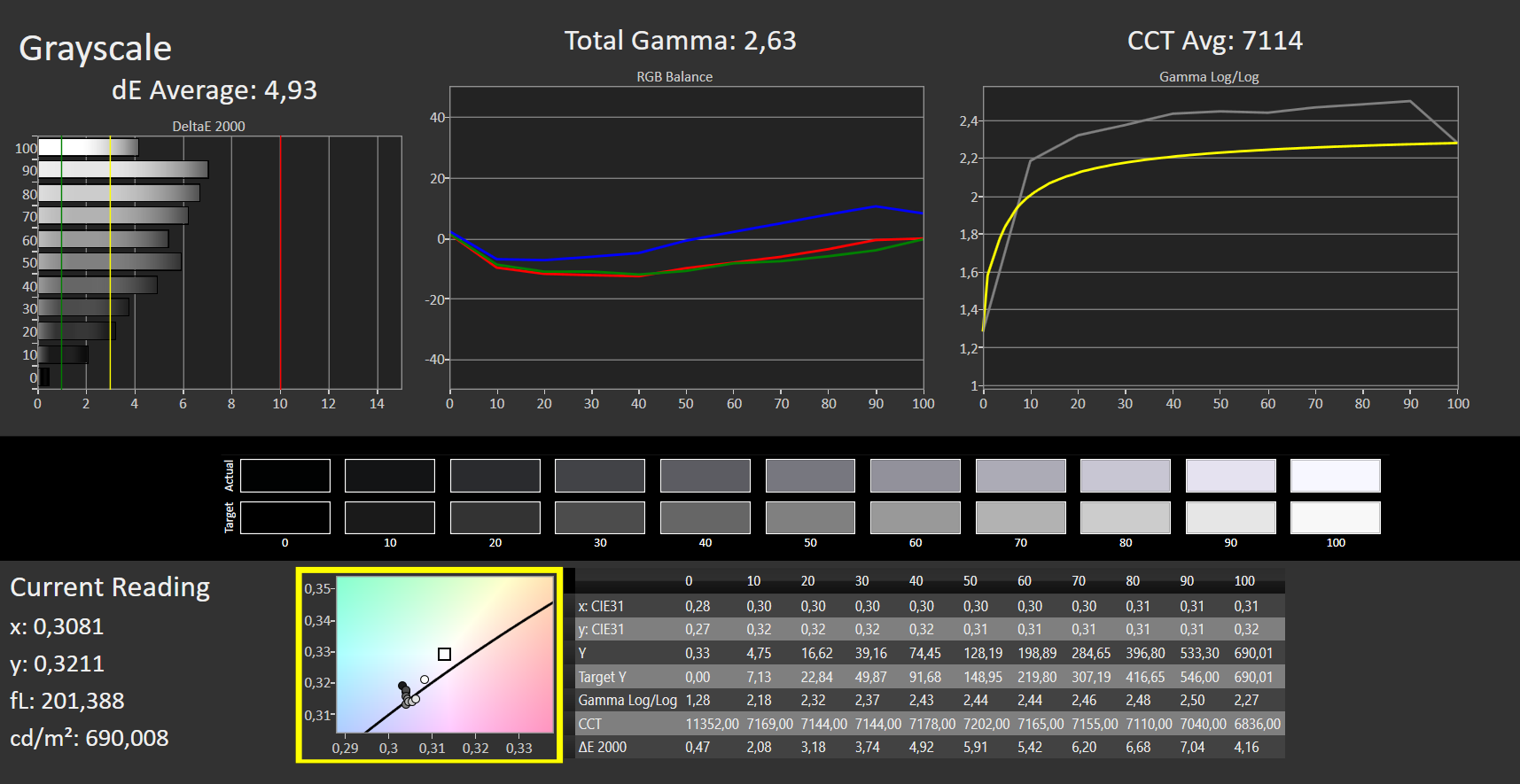

ΔE Greyscale 4.93 | 0.57-98 Ø5.3
70% AdobeRGB 1998 (Argyll 2.2.0 3D)
99% sRGB (Argyll 2.2.0 3D)
69% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.63
HP EliteBook 845 G9 6F6H6EA
InfoVision X140NV4J, IPS, 1920x1200, 14.00
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
B140UAN02.1, IPS LED, 1920x1200, 14.00
Lenovo ThinkPad T14s G2 20XGS01100
NE140FHM-N61, IPS LED, 1920x1080, 14.00
Dell Latitude 7420 JW6MH
Chi Mei CMN1416 CHF07 140HCG, IPS, 1920x1080, 14.00
Lenovo ThinkPad T14s G2 20WM003TGE
NE140FHM-N61, IPS LED, 1920x1080, 14.00
HP EliteBook 840 Aero G8 3E4Q6AA
AU Optronics AUO068B, IPS, 1920x1080, 14.00
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
LPM135M467, IPS LED, 2256x1504, 13.50
Display
6%
-3%
-0%
-4%
-1%
-2%
Display P3 Coverage
69
74.6
8%
69.7
1%
68
-1%
68.1
-1%
68
-1%
66.8
-3%
sRGB Coverage
99
98.6
0%
91.8
-7%
99
0%
91.7
-7%
97.6
-1%
98
-1%
AdobeRGB 1998 Coverage
70
76.5
9%
67.2
-4%
70
0%
67.1
-4%
69.3
-1%
68.6
-2%

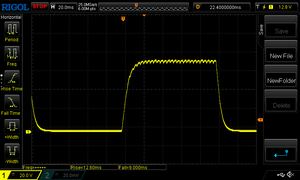

Response Times
-31%
-169%
-51%
-91%
-46%
-108%

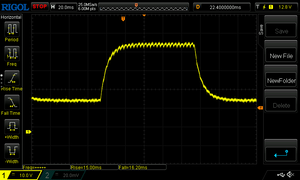

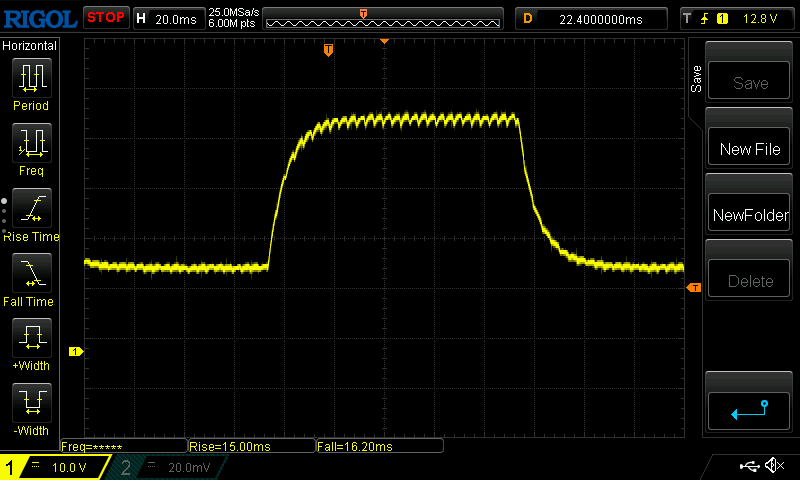

Response Time Grey 50% / Grey 80% *
31 ?(15, 16)
45.5 ?(20, 25.5)
-47%
84 ?(42, 42)
-171%
55 ?(24, 31)
-77%
68 ?(33, 35)
-119%
48 ?(23.6, 24.4)
-55%
64 ?(34, 30)
-106%

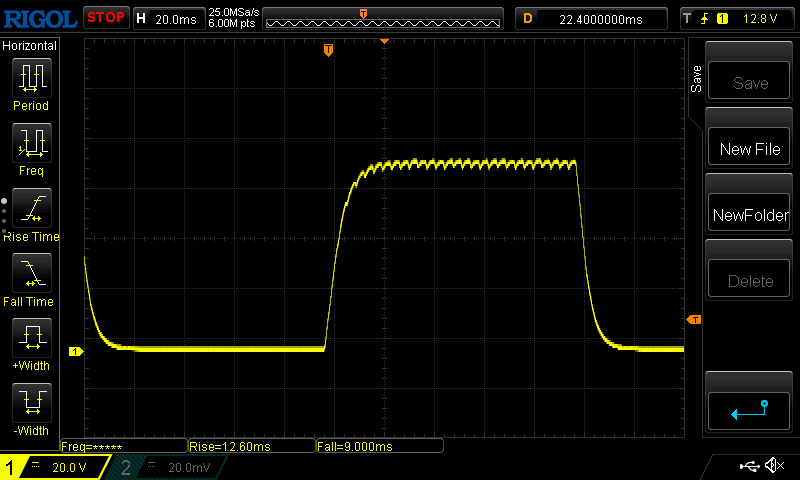

Response Time Black / White *
21 ?(12, 9)
24 ?(12, 12)
-14%
56 ?(26, 30)
-167%
26 ?(11, 15)
-24%
34 ?(17, 17)
-62%
28.8 ?(14, 14.8)
-37%
44 ?(22, 22)
-110%

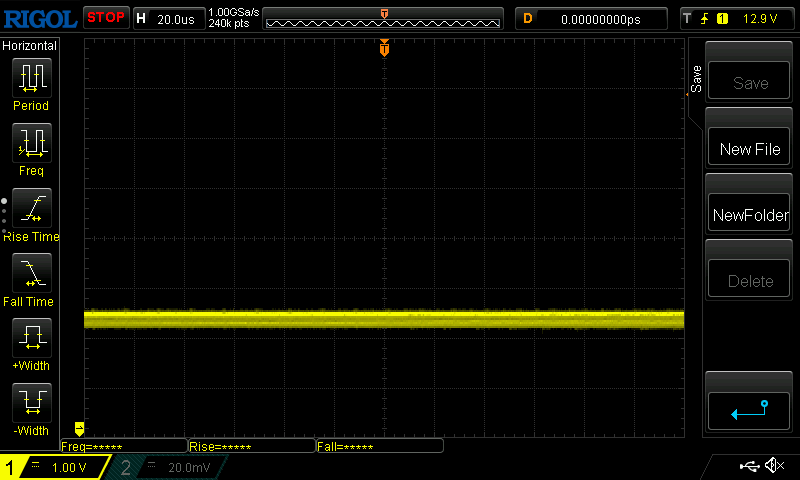

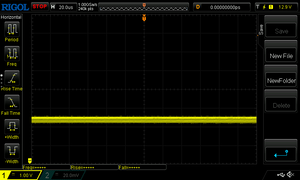

PWM Frequency
53050 ?(100)
2451 ?(50)
22730 ?(50)
Screen
-7%
-40%
15%
-27%
-13%
12%
Brightness middle
678
372
-45%
397
-41%
408
-40%
422.9
-38%
466.4
-31%
465
-31%
Brightness
745
362
-51%
386
-48%
378
-49%
397
-47%
426
-43%
451
-39%
Brightness Distribution
69
94
36%
88
28%
86
25%
91
32%
84
22%
92
33%
Black Level *
0.33
0.18
45%
0.28
15%
0.22
33%
0.32
3%
0.32
3%
0.28
15%
Contrast
2055
2067
1%
1418
-31%
1855
-10%
1322
-36%
1458
-29%
1661
-19%
Colorchecker dE 2000 *
3.56
3.4
4%
5.8
-63%
1.54
57%
4.8
-35%
2.84
20%
2
44%
Colorchecker dE 2000 max. *
7.23
6.7
7%
12.6
-74%
2.72
62%
8.7
-20%
4.73
35%
4.7
35%
Colorchecker dE 2000 calibrated *
1.05
1.8
-71%
1.9
-81%
1.08
-3%
1.9
-81%
2.27
-116%
0.7
33%
Greyscale dE 2000 *
4.93
4.3
13%
8.3
-68%
1.95
60%
6.1
-24%
3.7
25%
2.9
41%
Gamma
2.63 84%
2.13 103%
2.07 106%
2.33 94%
2.23 99%
2.13 103%
2.09 105%
CCT
7114 91%
6158 106%
6867 95%
6806 96%
7635 85%
6886 94%
6181 105%
Total Average (Program / Settings)
-11% / -8%
-71% / -51%
-12% / 2%
-41% / -31%
-20% / -15%
-33% / -8%

* ... smaller is better

面板的主观图像印象并不好,因为即使在停用SureView功能的情况下,视角也是有限的,即使是对中央甜区的微小偏离(包括垂直和水平方向)也会导致明显可感知的亮度或对比度损失。此外,明亮的区域看起来有颗粒感。没有检测到PWM。

在出厂前,我们的显示器有一个明显的蓝色色调(灰度),DeltaE几乎为5。色彩在3.5时显得好一点。用光电分光计进行校准很有帮助;我们把灰度的DeltaE降低到0.9,把色彩的DeltaE降低到1.0。这使得该面板在编辑图像方面几乎完美。较小的sRGB色彩空间被完全重现。

卡尔曼灰度
卡尔曼灰度
卡尔曼灰度标定
卡尔曼灰度标定
卡尔曼饱和度
卡尔曼饱和度
卡尔曼饱和度校准
卡尔曼饱和度校准
卡尔曼颜色检查器
卡尔曼颜色检查器
卡尔曼颜色检查器已校准
卡尔曼颜色检查器已校准

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
21 ms ... rise ↗ and fall ↘ combined↗ 12 ms rise
↘ 9 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 40 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (21.6 ms).
       Response Time 50% Grey to 80% Grey
31 ms ... rise ↗ and fall ↘ combined↗ 15 ms rise
↘ 16 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 35 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (33.9 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18071 (minimum: 5 - maximum: 3846000) Hz was measured.

即使在明亮的环境中,由于高亮度,哑光屏幕也很容易看清,只要屏幕不直接在阳光下。然而,用户越是偏离直接的正面位置,总是会出现阴影,即使没有主动的SureView。

尽管有高达850cd/m²的巨大亮度,但可读性并不总是令人信服的。
尽管有高达850cd/m²的巨大亮度,但可读性并不总是令人信服的。
通常情况下,图像会消失在一个暗淡的阴影后面,正如在这里可以看到的那样。
通常情况下,图像会消失在一个暗淡的阴影后面,正如在这里可以看到的那样。

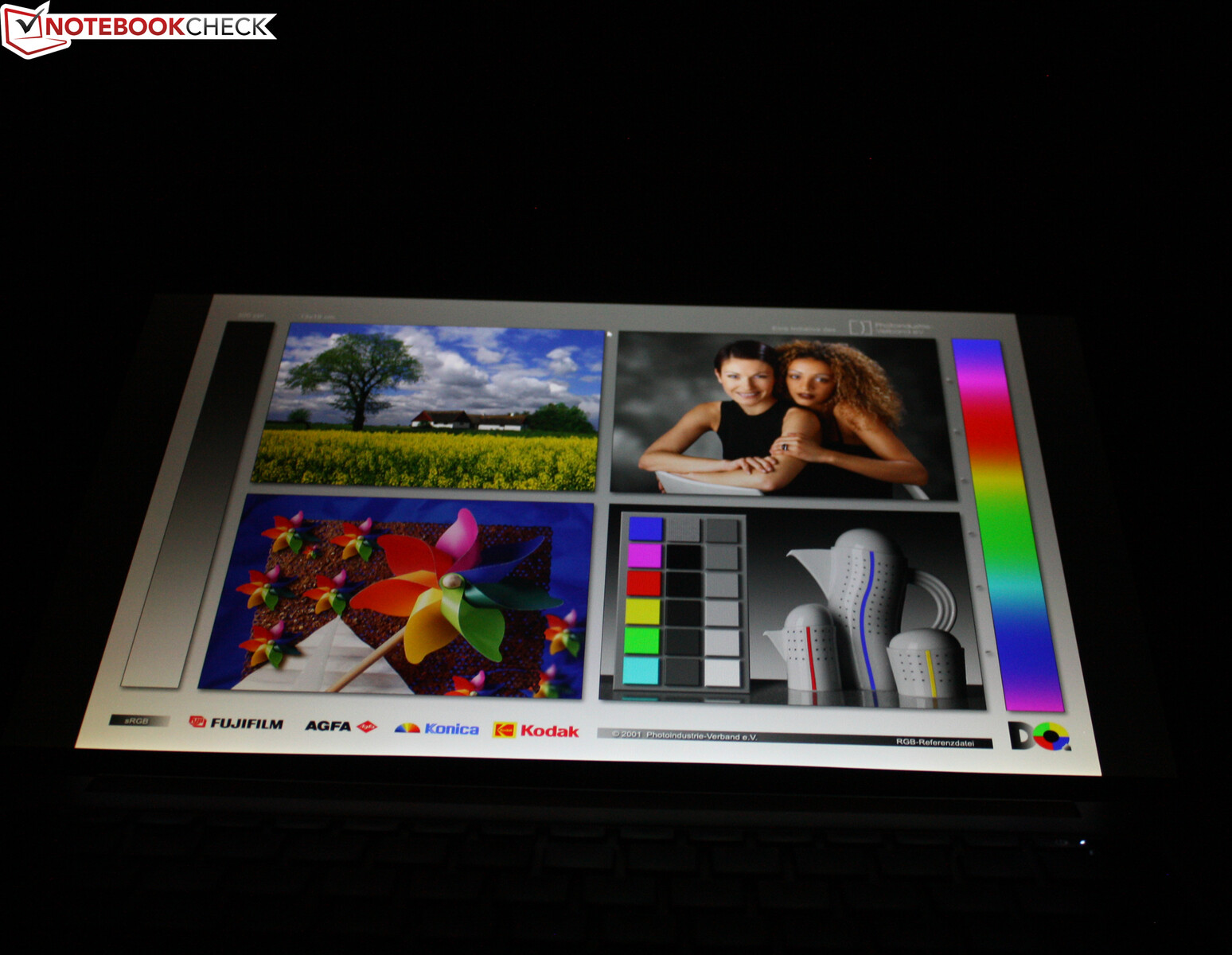

即使没有激活SureView,其视角稳定性一般也比其他IPS显示器差。如果你激活SureView,视角会进一步受到限制,坐在你旁边的人就无法再看到屏幕内容。因此,它能按预期工作,但由于严重的限制,我们建议使用普通的FHD面板。如果有疑问,你可以使用外部隐私过滤器(箔),如果证明太分散注意力,也可以将其放在一边。

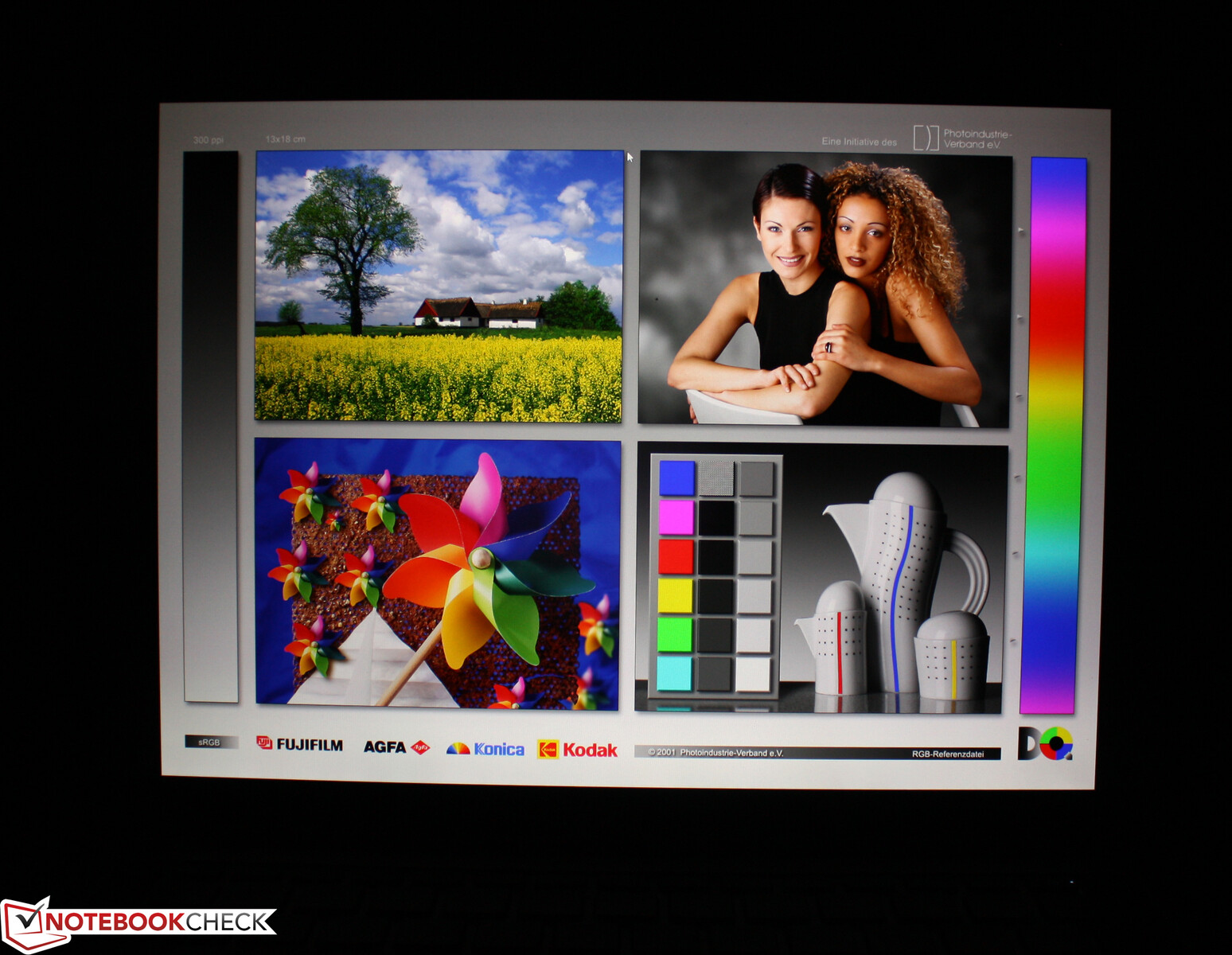

Blickwinkel InfoVision X140NV4J R0, SureView Off
Blickwinkel InfoVision X140NV4J R0, SureView Off
Blickwinkel InfoVision X140NV4J R0, SureView Off
Blickwinkel InfoVision X140NV4J R0, SureView Off
Blickwinkel InfoVision X140NV4J R0, SureView Off
Blickwinkel InfoVision X140NV4J R0, SureView Off

性能。惠普的商务笔记本胜过戴尔和联想

单个风扇必须单独照顾到废热。这导致了热量,但没有导致瓶颈。
单个风扇必须单独照顾到废热。这导致了热量,但没有导致瓶颈。

以35瓦的功率,AMD Ryzen 9 PRO 6950HS实际上是一款适用于大型笔记本电脑的芯片;它包含八个Zen 3+内核(八核CPU),时钟频率高达4.9 GHz(涡轮增压)。由于超线程的存在,这甚至可以变成16个线程。惠普已将该SoC集成到一个只有一个风扇的14英寸小机身中,外加32GB内存和来自西部数据的TB级SSD。冷却系统可以处理吗?

Ryzen 9 Pro是EliteBook的最大配置;较小的配置从Ryzen 5 PRO 6650U、8GB内存和256GB固态硬盘开始,购买价格也便宜很多。

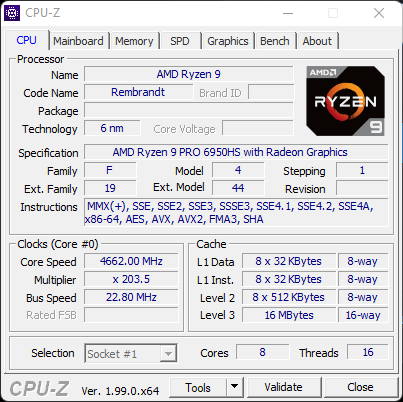

CPU-Z CPU
CPU-Z CPU

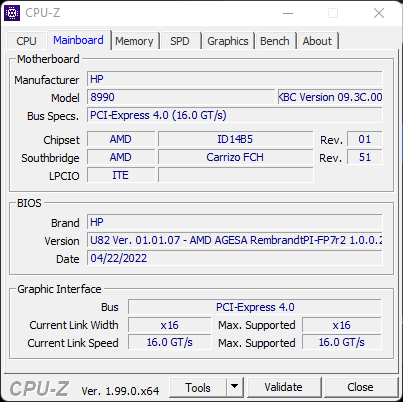

CPU-Z 主板
CPU-Z 主板

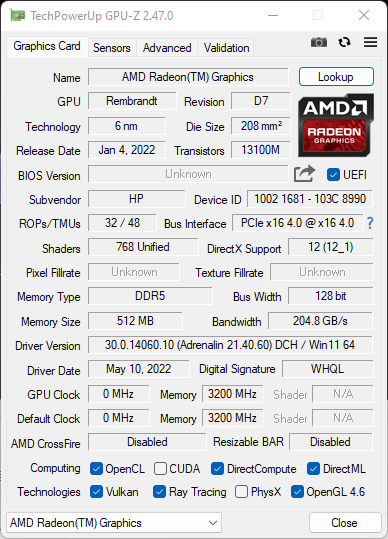

GPU-Z
GPU-Z

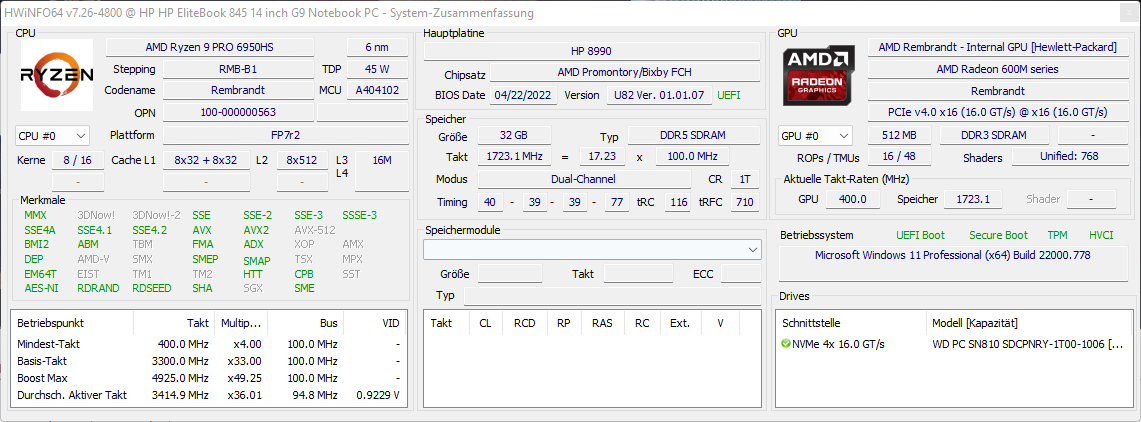

HWinfo摘要
HWinfo摘要

测试条件

我们在性能模式下进行了测试,没有采取节电措施。惠普软件没有提供自己的性能模式配置文件。这就只剩下Radeon软件了,它对显示器和GPU更负责。我们把图形配置文件放在标准模式,并停用了AMD Vari Bright。

处理器

淘宝网 睿狮9 PRO 6950HS在所有核心上,非常短暂地以50瓦和3.85GHz的速度运行。然而,几秒钟后,时钟下降到3.6 GHz,并永久保持在那里。在这里,处理器的处理功率恒定为41瓦。单核无法完全耗尽时钟速度或功率消耗。在8分钟的Prime95 CPU压力测试中出现了非常类似的情况:短暂的50瓦,然后下降到41瓦,以保持92度的温度。我们在8分钟后停止了Prime95的测试,观察到在时钟略微增加的情况下,功耗不变。总而言之,EliteBook的负载能力很强,这一点也被R15 Multi Loop所证实。除了英特尔之外,所有的竞争对手都远远超过了它。

CPU的基准测试也非常好:Ryzen 9 PRO 6950HS的 Ryzen 9 PRO 6950HS处处领先,第11代酷睿i7的多核性能比其高出50%,单核性能比其高出10%。如果你正在寻找计算能力,你不会在这个APU上出错。

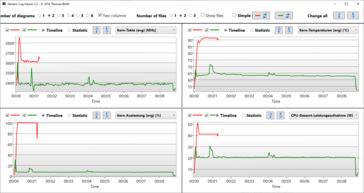

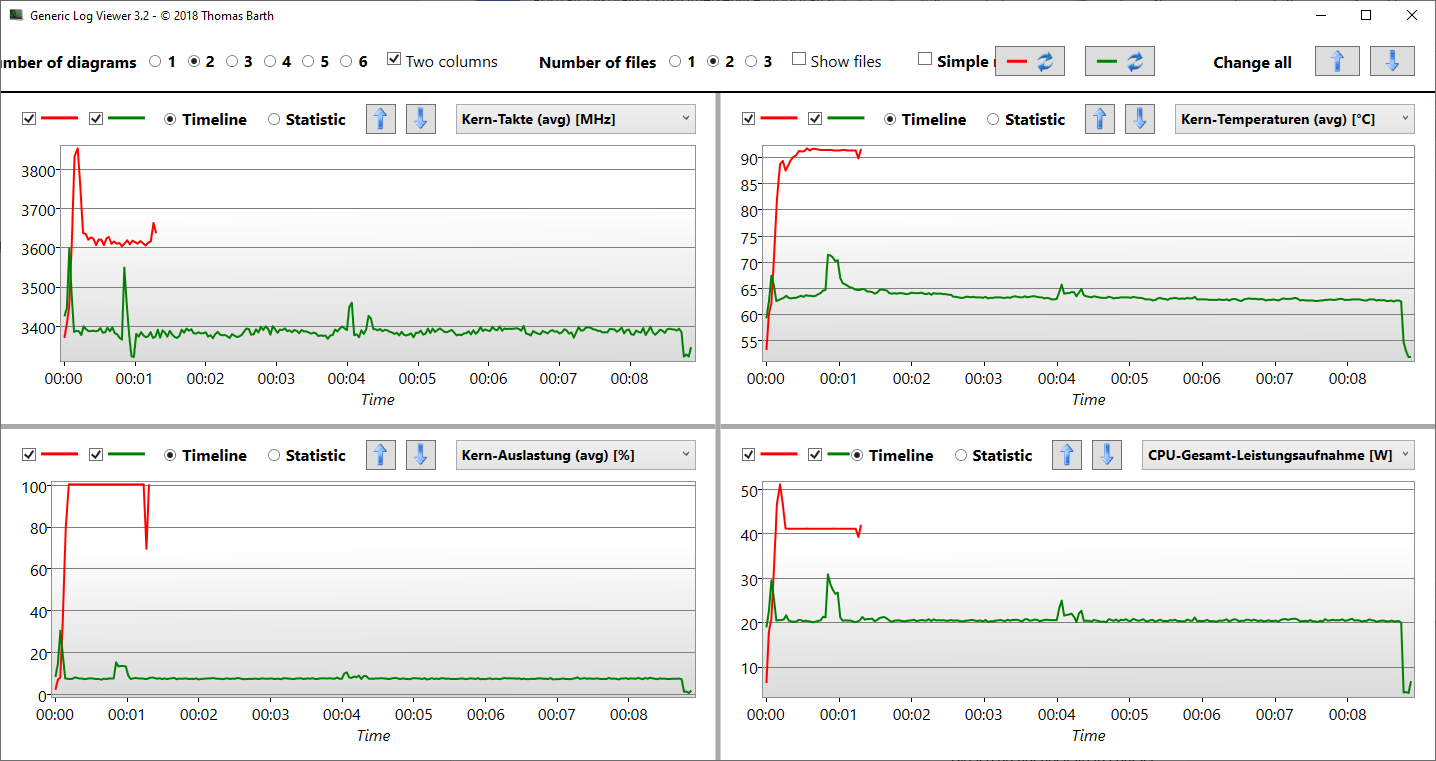

Logviewer Cinebench R23:红色=多核,绿色=单核/50瓦的短暂接触
Logviewer Cinebench R23:红色=多核,绿色=单核/50瓦的短暂接触

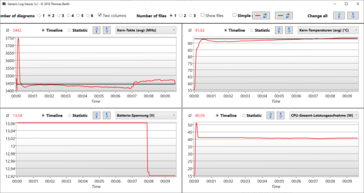

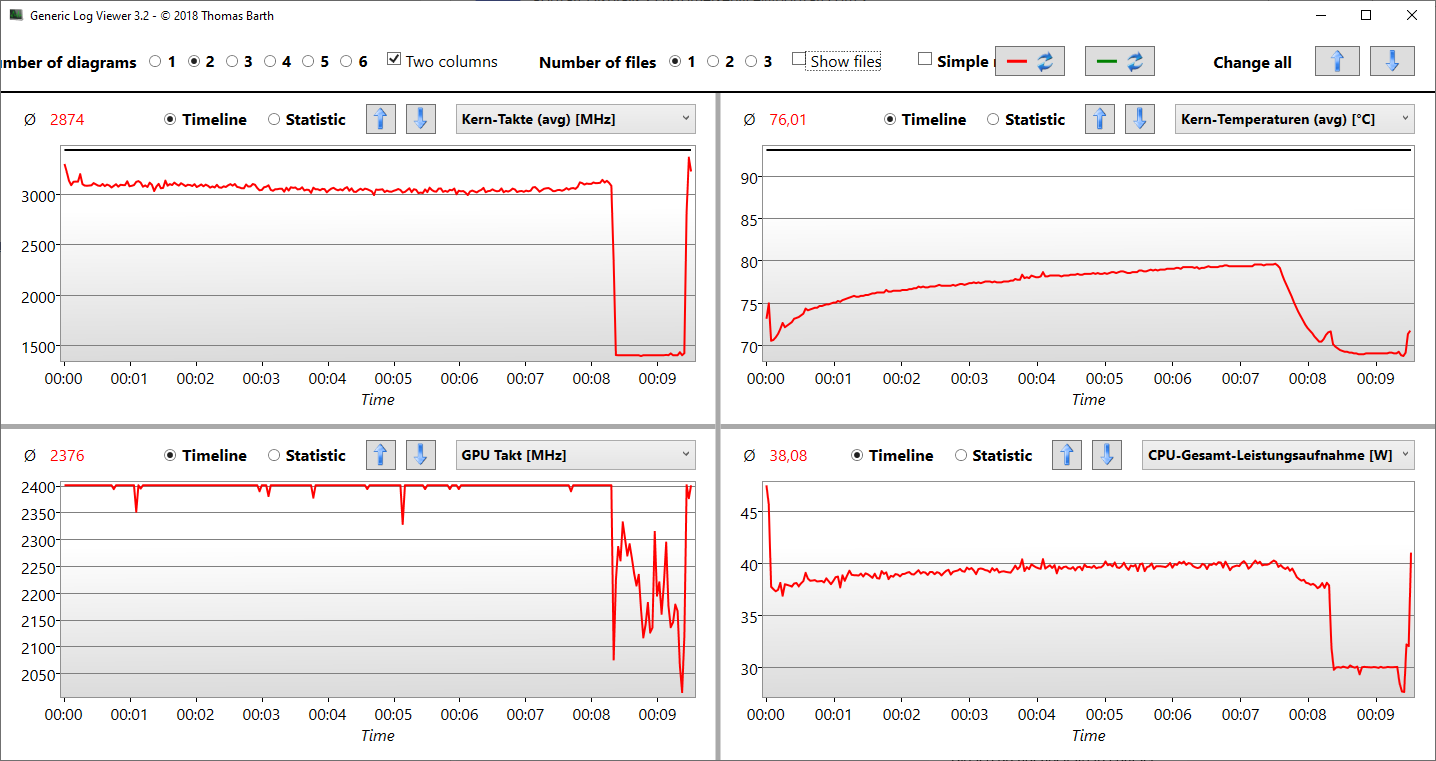

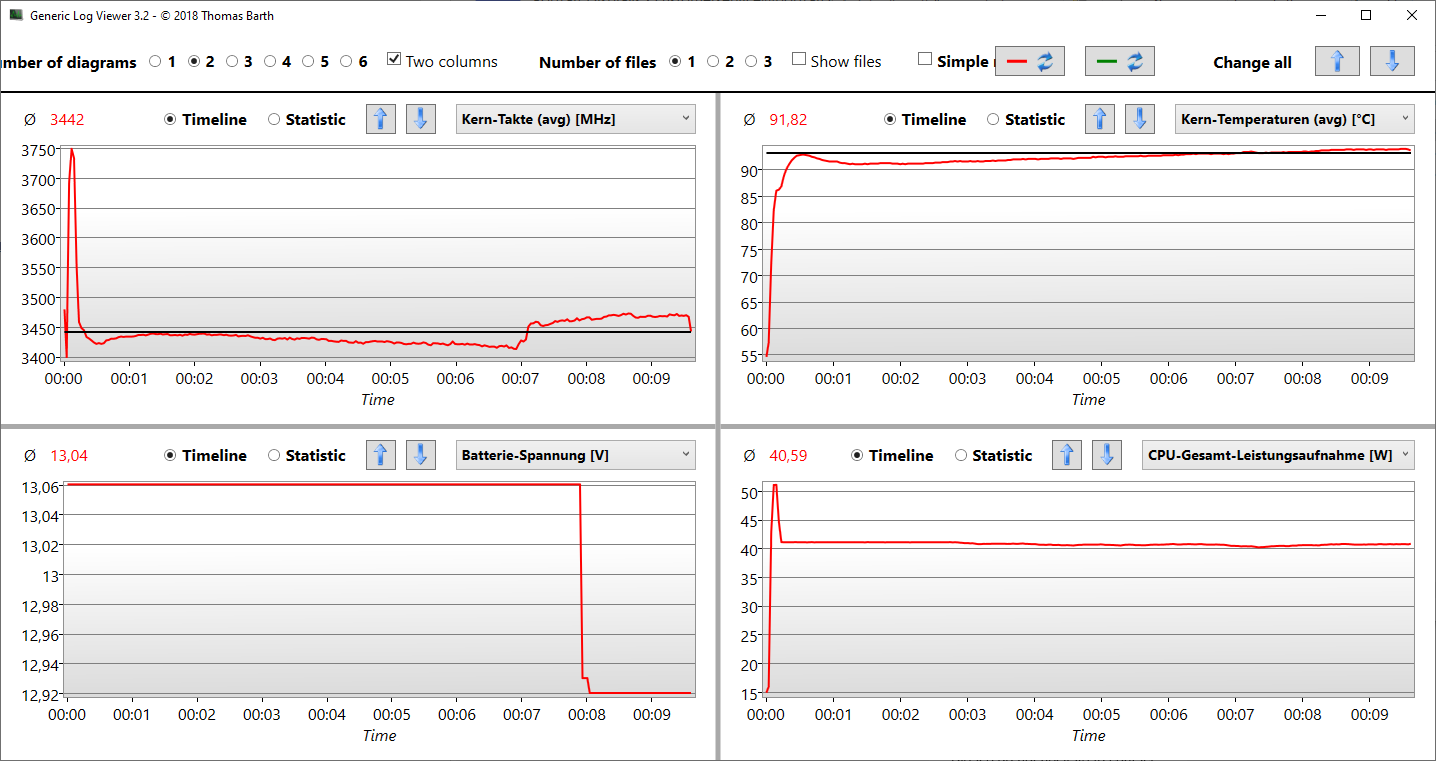

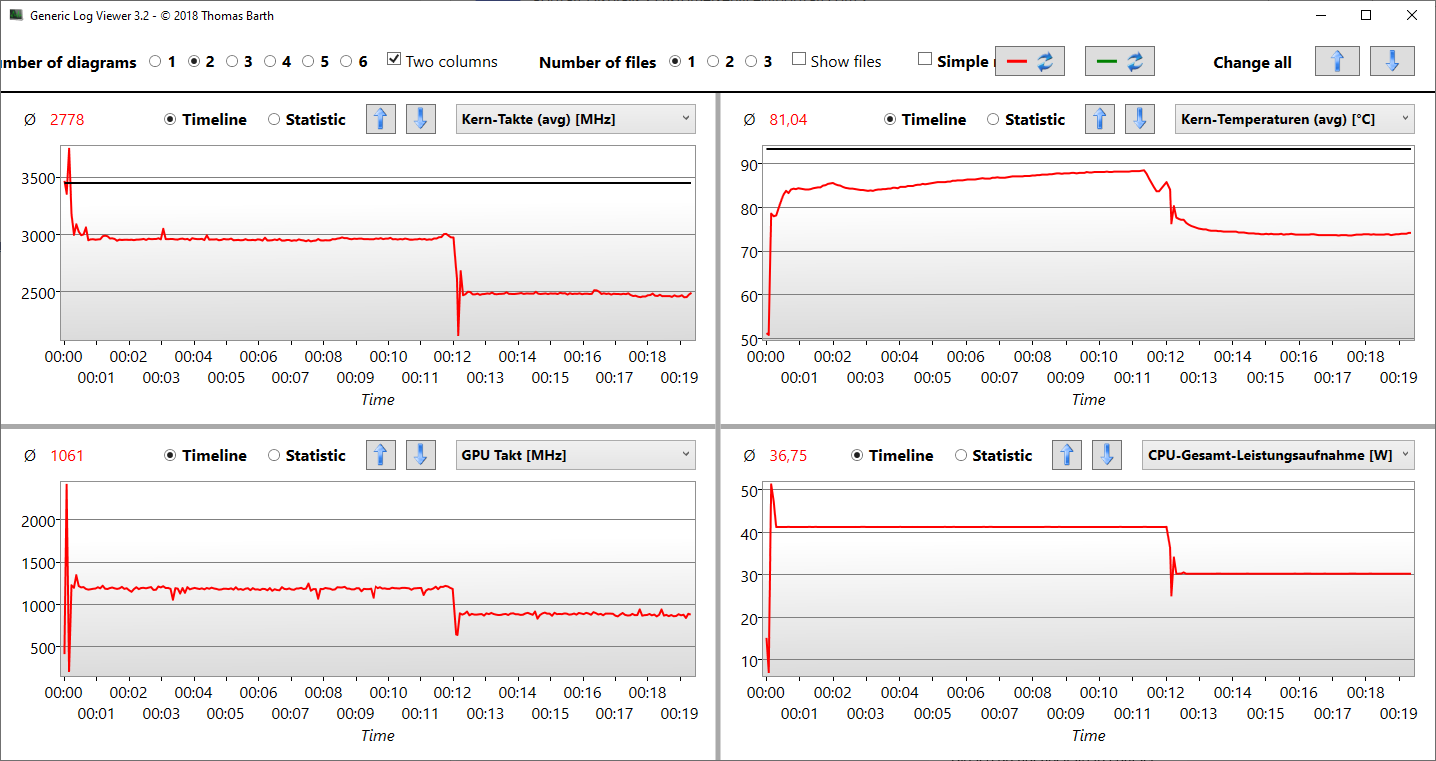

Logviewer Prime95的CPU压力:在使用电池8分钟后,耗电量保持不变
Logviewer Prime95的CPU压力:在使用电池8分钟后,耗电量保持不变

Cinebench R15 Multi Sustained Load

01002003004005006007008009001000110012001300140015001600170018001900Tooltip
HP EliteBook 845 G9 6F6H6EA AMD Ryzen 9 PRO 6950HS: Ø1893 (1872.75-1912.59)
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P: Ø1080 (680.55-1527.77)
Lenovo ThinkPad T14s G2 20XGS01100 AMD Ryzen 7 PRO 5850U: Ø1458 (1453.17-1466.65)
Dell Latitude 7420 JW6MH Intel Core i5-1145G7: Ø663 (583.12-791.56)
Lenovo ThinkPad T14s G2 20WM003TGE Intel Core i7-1165G7: Ø811 (721.84-1004.57)
HP EliteBook 840 Aero G8 3E4Q6AA Intel Core i7-1185G7: Ø718 (665.15-755.62)
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7: Ø472 (411.56-629.91)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
83.8 pt
Average AMD Ryzen 9 PRO 6950HS

83.8 pt
Average of class Subnotebook

81.9 pt
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
75.4 pt
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
64 pt
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
59.9 pt
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
54 pt
HP EliteBook 840 Aero G8 3E4Q6AA -2!
Intel Core i7-1185G7
53.6 pt
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
42 pt
Cinebench R23 / Multi Core
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
11515 (11150.7min - 11515.3max) Points
Average AMD Ryzen 9 PRO 6950HS

11515 Points 0%
Average of class Subnotebook
  (2485 - 16201, n=71, last 2 years)
10131 Points -12%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
8716 (8655.84min - 8715.53max) Points -24%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
7282 Points -37%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
4823 Points -58%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
4769 Points -59%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
4744 (3563.96min - 4744max) Points -59%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
2611 Points -77%
Cinebench R23 / Single Core
Average of class Subnotebook
  (598 - 1934, n=71, last 2 years)
1615 Points +7%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
1521 Points 0%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
1514 Points
Average AMD Ryzen 9 PRO 6950HS

1514 Points 0%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
1449 Points -4%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
1431 Points -5%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
1388 Points -8%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
1306 Points -14%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
1246 Points -18%
Cinebench R20 / CPU (Multi Core)
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
4577 Points
Average AMD Ryzen 9 PRO 6950HS

4577 Points 0%
Average of class Subnotebook
  (810 - 6314, n=67, last 2 years)
3899 Points -15%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
3417 Points -25%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
2334 Points -49%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
1846 Points -60%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
1823 Points -60%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
1693 Points -63%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
1126 Points -75%
Cinebench R20 / CPU (Single Core)
Average of class Subnotebook
  (216 - 738, n=67, last 2 years)
606 Points +3%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
591 Points
Average AMD Ryzen 9 PRO 6950HS

591 Points 0%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
558 Points -6%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
536 Points -9%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
531 Points -10%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
525 Points -11%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
506 Points -14%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
438 Points -26%
Cinebench R15 / CPU Multi 64Bit
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
1913 (1872.75min - 1912.59max) Points
Average AMD Ryzen 9 PRO 6950HS

1913 Points 0%
Average of class Subnotebook
  (514 - 2581, n=73, last 2 years)
1728 Points -10%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
1528 (680.55min - 1527.77max) Points -20%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
1467 (1453.17min - 1466.65max) Points -23%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
1005 (721.84min - 1004.57max) Points -47%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
792 (583.12min - 791.56max) Points -59%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
756 (665.15min - 755.62max) Points -60%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
630 (411.56min - 629.91max) Points -67%
Cinebench R15 / CPU Single 64Bit
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
239 Points
Average AMD Ryzen 9 PRO 6950HS

239 Points 0%
Average of class Subnotebook
  (91.8 - 280, n=65, last 2 years)
235 Points -2%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
227 Points -5%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
224 Points -6%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
209 Points -13%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
203 Points -15%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
201 Points -16%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
179 Points -25%
Blender / v2.79 BMW27 CPU
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
993 Seconds * -276%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
681 Seconds * -158%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
641 Seconds * -143%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
577 Seconds * -119%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
511 Seconds * -94%
Average of class Subnotebook
  (201 - 1600, n=69, last 2 years)
390 Seconds * -48%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
345 Seconds * -31%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
264 Seconds *
Average AMD Ryzen 9 PRO 6950HS

264 Seconds * -0%
7-Zip 18.03 / 7z b 4
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
49474 MIPS
Average AMD Ryzen 9 PRO 6950HS

49474 MIPS 0%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
44266 MIPS -11%
Average of class Subnotebook
  (16223 - 67444, n=60, last 2 years)
43704 MIPS -12%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
25087 MIPS -49%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
24625 MIPS -50%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
21683 MIPS -56%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
20565 MIPS -58%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
15167 MIPS -69%
7-Zip 18.03 / 7z b 4 -mmt1
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
5516 MIPS
Average AMD Ryzen 9 PRO 6950HS

5516 MIPS 0%
Average of class Subnotebook
  (2197 - 6403, n=61, last 2 years)
5299 MIPS -4%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
5237 MIPS -5%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
5231 MIPS -5%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
5173 MIPS -6%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
4751 MIPS -14%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
4201 MIPS -24%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
3532 MIPS -36%
Geekbench 5.5 / Multi-Core
Average of class Subnotebook
  (4213 - 12580, n=69, last 2 years)
8865 Points +16%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
7672 Points 0%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
7664 Points
Average AMD Ryzen 9 PRO 6950HS

7664 Points 0%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
6889 Points -10%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
5460 Points -29%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
5055 Points -34%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
3921 Points -49%
Geekbench 5.5 / Single-Core
Average of class Subnotebook
  (672 - 2350, n=69, last 2 years)
1683 Points +9%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
1622 Points +5%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
1549 Points
Average AMD Ryzen 9 PRO 6950HS

1549 Points 0%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
1441 Points -7%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
1436 Points -7%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
1430 Points -8%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
1353 Points -13%
HWBOT x265 Benchmark v2.2 / 4k Preset
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
12.8 fps
Average AMD Ryzen 9 PRO 6950HS

12.8 fps 0%
Average of class Subnotebook
  (1.5 - 19.4, n=59, last 2 years)
11.8 fps -8%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
11.3 fps -12%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
7.13 fps -44%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
6.77 fps -47%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
6.21 fps -51%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
5.46 fps -57%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
3.82 fps -70%
LibreOffice / 20 Documents To PDF
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
66.2 s *
Average AMD Ryzen 9 PRO 6950HS

66.2 s * -0%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
53.8 s * +19%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
53.5 s * +19%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
53.4 s * +19%
Average of class Subnotebook
  (40.1 - 120.5, n=60, last 2 years)
53.2 s * +20%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
51.3 s * +23%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
49.1 s * +26%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
43.4 s * +34%
R Benchmark 2.5 / Overall mean
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
0.729 sec * -43%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
0.627 sec * -23%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P
0.597 sec * -17%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7
0.59 sec * -15%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
0.583 sec * -14%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
0.536 sec * -5%
Average of class Subnotebook
  (0.4397 - 1.236, n=60, last 2 years)
0.525 sec * -3%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS
0.511 sec *
Average AMD Ryzen 9 PRO 6950HS

0.511 sec * -0%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit
6266
Cinebench R10 Rendering Multiple CPUs 32Bit
36583
Cinebench R10 Shading 32Bit
13431
Cinebench R10 Rendering Single CPUs 64Bit
11968 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
66188 Points
Cinebench R10 Shading 64Bit
13723 Points
Cinebench R11.5 CPU Single 32Bit
2.42 Points
Cinebench R11.5 CPU Multi 32Bit
19.46 Points
Cinebench R11.5 OpenGL 32Bit
64.73 fps
Cinebench R11.5 CPU Single 64Bit
2.82 Points
Cinebench R11.5 CPU Multi 64Bit
22.13 Points
Cinebench R11.5 OpenGL 64Bit
59.85 fps
Cinebench R15 CPU Multi 64Bit
1913 Points
Cinebench R15 OpenGL 64Bit
75.9 fps
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 CPU Single 64Bit
239 Points
Help
Performance Rating
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
91.7 pt
Average AMD Ryzen 9 PRO 6950HS

91.7 pt
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
76.7 pt
Average of class Subnotebook

72.4 pt
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
56.4 pt
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
53.7 pt
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
48.1 pt
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Iris Xe G7 80EUs
46.4 pt
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
41.1 pt
AIDA64 / FP32 Ray-Trace
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
14040 KRay/s
Average AMD Ryzen 9 PRO 6950HS

14040 KRay/s 0%
Average of class Subnotebook
  (343 - 25961, n=60, last 2 years)
9976 KRay/s -29%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
9963 KRay/s -29%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
7285 KRay/s -48%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
6854 KRay/s -51%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
6158 KRay/s -56%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
4324 KRay/s -69%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Iris Xe G7 80EUs
4195 KRay/s -70%
AIDA64 / FPU Julia
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
88935 Points
Average AMD Ryzen 9 PRO 6950HS

88935 Points 0%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
64861 Points -27%
Average of class Subnotebook
  (11867 - 111109, n=60, last 2 years)
51830 Points -42%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
30136 Points -66%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
28393 Points -68%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
25544 Points -71%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
22541 Points -75%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Iris Xe G7 80EUs
20481 Points -77%
AIDA64 / CPU SHA3
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
3000 MB/s
Average AMD Ryzen 9 PRO 6950HS

3000 MB/s 0%
Average of class Subnotebook
  (453 - 4646, n=60, last 2 years)
2344 MB/s -22%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
2259 MB/s -25%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
2041 MB/s -32%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
1931 MB/s -36%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
1724 MB/s -43%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
1540 MB/s -49%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Iris Xe G7 80EUs
1395 MB/s -53%
AIDA64 / CPU Queen
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
97802 Points
Average AMD Ryzen 9 PRO 6950HS

97802 Points 0%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
83425 Points -15%
Average of class Subnotebook
  (15447 - 115300, n=60, last 2 years)
78811 Points -19%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Iris Xe G7 80EUs
72801 Points -26%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
52445 Points -46%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
50053 Points -49%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
48647 Points -50%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
37316 Points -62%
AIDA64 / FPU SinJulia
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
12369 Points
Average AMD Ryzen 9 PRO 6950HS

12369 Points 0%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
9974 Points -19%
Average of class Subnotebook
  (1223 - 14944, n=60, last 2 years)
7573 Points -39%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Iris Xe G7 80EUs
4875 Points -61%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
4788 Points -61%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
4648 Points -62%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
4255 Points -66%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
3110 Points -75%
AIDA64 / FPU Mandel
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
48895 Points
Average AMD Ryzen 9 PRO 6950HS

48895 Points 0%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
35619 Points -27%
Average of class Subnotebook
  (6379 - 59053, n=60, last 2 years)
27272 Points -44%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
18197 Points -63%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
17210 Points -65%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
16249 Points -67%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
12447 Points -75%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Iris Xe G7 80EUs
11458 Points -77%
AIDA64 / CPU AES
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
91726 MB/s +56%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
70463 MB/s +20%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
63071 MB/s +7%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
62377 MB/s +6%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
58851 MB/s
Average AMD Ryzen 9 PRO 6950HS

58851 MB/s 0%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
54364 MB/s -8%
Average of class Subnotebook
  (638 - 161430, n=60, last 2 years)
53930 MB/s -8%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Iris Xe G7 80EUs
31008 MB/s -47%
AIDA64 / CPU ZLib
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
753 MB/s
Average AMD Ryzen 9 PRO 6950HS

753 MB/s 0%
Average of class Subnotebook
  (270 - 1123, n=60, last 2 years)
656 MB/s -13%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
580 MB/s -23%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Iris Xe G7 80EUs
515 MB/s -32%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
382 MB/s -49%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
366 MB/s -51%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
315 MB/s -58%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
235 MB/s -69%
AIDA64 / FP64 Ray-Trace
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
7053 KRay/s
Average AMD Ryzen 9 PRO 6950HS

7053 KRay/s 0%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
5479 KRay/s -22%
Average of class Subnotebook
  (204 - 14018, n=60, last 2 years)
5205 KRay/s -26%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
3929 KRay/s -44%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
3694 KRay/s -48%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
3339 KRay/s -53%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Iris Xe G7 80EUs
2358 KRay/s -67%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
2287 KRay/s -68%
AIDA64 / CPU PhotoWorxx
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
35895 MPixel/s +89%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Iris Xe G7 96EUs
35804 MPixel/s +89%
Average of class Subnotebook
  (7622 - 53954, n=60, last 2 years)
35591 MPixel/s +87%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
32979 MPixel/s +74%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Iris Xe G7 80EUs
32881 MPixel/s +73%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
26159 MPixel/s +38%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
19340 MPixel/s +2%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
18989 MPixel/s
Average AMD Ryzen 9 PRO 6950HS

18989 MPixel/s 0%

系统性能

然而,EliteBook并不能称得上是终极系统性能的冠军,因为联想ThinkPad T14s G2仍然处于领先地位,也是AMD版本。但由于分数相近,所以几乎是平局。在分项评分中,我们的惠普在数字内容创作方面是最好的,而且是远远超过。在Crossmark基准测试中,联想 ThinkPad X1 Carbon G10是领先的,而 ThinkPad T14s G2处于同一水平。

PCMark 10 / Score
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
5933 Points +1%
HP EliteBook 845 G9 6F6H6EA
Radeon 680M, R9 PRO 6950HS, WDC PC SN810 1TB
5896 Points
Average AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M

5896 Points 0%
Average of class Subnotebook
  (4384 - 7428, n=58, last 2 years)
5848 Points -1%
Lenovo ThinkPad T14s G2 20WM003TGE
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
5214 Points -12%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ
5064 Points -14%
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
4959 Points -16%
HP EliteBook 840 Aero G8 3E4Q6AA
Iris Xe G7 96EUs, i7-1185G7, SK Hynix PC711 512GB HFS512GDE9X073N
4879 Points -17%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Iris Xe G7 80EUs, i5-1140G7, Lenovo UMIS RPJTJ256MEE1OWX
4471 Points -24%
PCMark 10 / Essentials
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
10331 Points +11%
Lenovo ThinkPad T14s G2 20WM003TGE
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
10244 Points +10%
Average of class Subnotebook
  (8890 - 11168, n=58, last 2 years)
10213 Points +10%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ
10128 Points +9%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Iris Xe G7 80EUs, i5-1140G7, Lenovo UMIS RPJTJ256MEE1OWX
9832 Points +6%
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
9789 Points +5%
HP EliteBook 840 Aero G8 3E4Q6AA
Iris Xe G7 96EUs, i7-1185G7, SK Hynix PC711 512GB HFS512GDE9X073N
9397 Points +1%
HP EliteBook 845 G9 6F6H6EA
Radeon 680M, R9 PRO 6950HS, WDC PC SN810 1TB
9311 Points
Average AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M

9311 Points 0%
PCMark 10 / Productivity
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
9237 Points +13%
HP EliteBook 845 G9 6F6H6EA
Radeon 680M, R9 PRO 6950HS, WDC PC SN810 1TB
8187 Points
Average AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M

8187 Points 0%
Average of class Subnotebook
  (6213 - 10279, n=58, last 2 years)
7852 Points -4%
Lenovo ThinkPad T14s G2 20WM003TGE
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
6900 Points -16%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ
6653 Points -19%
HP EliteBook 840 Aero G8 3E4Q6AA
Iris Xe G7 96EUs, i7-1185G7, SK Hynix PC711 512GB HFS512GDE9X073N
6606 Points -19%
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
6585 Points -20%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Iris Xe G7 80EUs, i5-1140G7, Lenovo UMIS RPJTJ256MEE1OWX
6135 Points -25%
PCMark 10 / Digital Content Creation
HP EliteBook 845 G9 6F6H6EA
Radeon 680M, R9 PRO 6950HS, WDC PC SN810 1TB
7298 Points
Average AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M

7298 Points 0%
Average of class Subnotebook
  (4093 - 9749, n=58, last 2 years)
6847 Points -6%
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
5938 Points -19%
Lenovo ThinkPad T14s G2 20WM003TGE
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
5445 Points -25%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ
5231 Points -28%
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
5135 Points -30%
HP EliteBook 840 Aero G8 3E4Q6AA
Iris Xe G7 96EUs, i7-1185G7, SK Hynix PC711 512GB HFS512GDE9X073N
5077 Points -30%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Iris Xe G7 80EUs, i5-1140G7, Lenovo UMIS RPJTJ256MEE1OWX
4021 Points -45%
CrossMark / Overall
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ
1554 Points +16%
Average of class Subnotebook
  (718 - 1876, n=63, last 2 years)
1540 Points +14%
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1345 Points 0%
HP EliteBook 845 G9 6F6H6EA
Radeon 680M, R9 PRO 6950HS, WDC PC SN810 1TB
1345 Points
Average AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M

1345 Points 0%
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
1290 Points -4%
CrossMark / Productivity
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ
1500 Points +8%
Average of class Subnotebook
  (685 - 1829, n=63, last 2 years)
1498 Points +8%
HP EliteBook 845 G9 6F6H6EA
Radeon 680M, R9 PRO 6950HS, WDC PC SN810 1TB
1389 Points
Average AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M

1389 Points 0%
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1357 Points -2%
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
1316 Points -5%
CrossMark / Creativity
Average of class Subnotebook
  (776 - 2210, n=63, last 2 years)
1673 Points +22%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ
1663 Points +21%
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1423 Points +3%
HP EliteBook 845 G9 6F6H6EA
Radeon 680M, R9 PRO 6950HS, WDC PC SN810 1TB
1376 Points
Average AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M

1376 Points 0%
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
1292 Points -6%
CrossMark / Responsiveness
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ
1409 Points +23%
Average of class Subnotebook
  (652 - 1899, n=63, last 2 years)
1321 Points +16%
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
1209 Points +6%
HP EliteBook 845 G9 6F6H6EA
Radeon 680M, R9 PRO 6950HS, WDC PC SN810 1TB
1142 Points
Average AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M

1142 Points 0%
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1102 Points -4%
PCMark 10 Score
5896 points
Help
AIDA64 / Memory Copy
Average of class Subnotebook
  (22781 - 95353, n=60, last 2 years)
60876 MB/s +95%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
31160 MB/s
Average AMD Ryzen 9 PRO 6950HS

31160 MB/s 0%
AIDA64 / Memory Read
Average of class Subnotebook
  (23831 - 86433, n=60, last 2 years)
57109 MB/s +64%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
34753 MB/s
Average AMD Ryzen 9 PRO 6950HS

34753 MB/s 0%
AIDA64 / Memory Write
Average of class Subnotebook
  (23474 - 93382, n=60, last 2 years)
64142 MB/s +94%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
33060 MB/s
Average AMD Ryzen 9 PRO 6950HS

33060 MB/s 0%
AIDA64 / Memory Latency
Average of class Subnotebook
  (18.8 - 172, n=55, last 2 years)
103.8 ns * -4%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, Radeon 680M
99.7 ns *
Average AMD Ryzen 9 PRO 6950HS

99.7 ns * -0%

* ... smaller is better

DPC延时

在我们的标准化延迟测试中(互联网浏览、YouTube 4K播放、CPU负载),该评测设备显示出延迟增加的问题。因此,在目前的BIOS版本下,它不适合实时音频应用,但这可能通过未来的更新而改变。在视频播放过程中,我们观察到66个丢帧的数量很多。

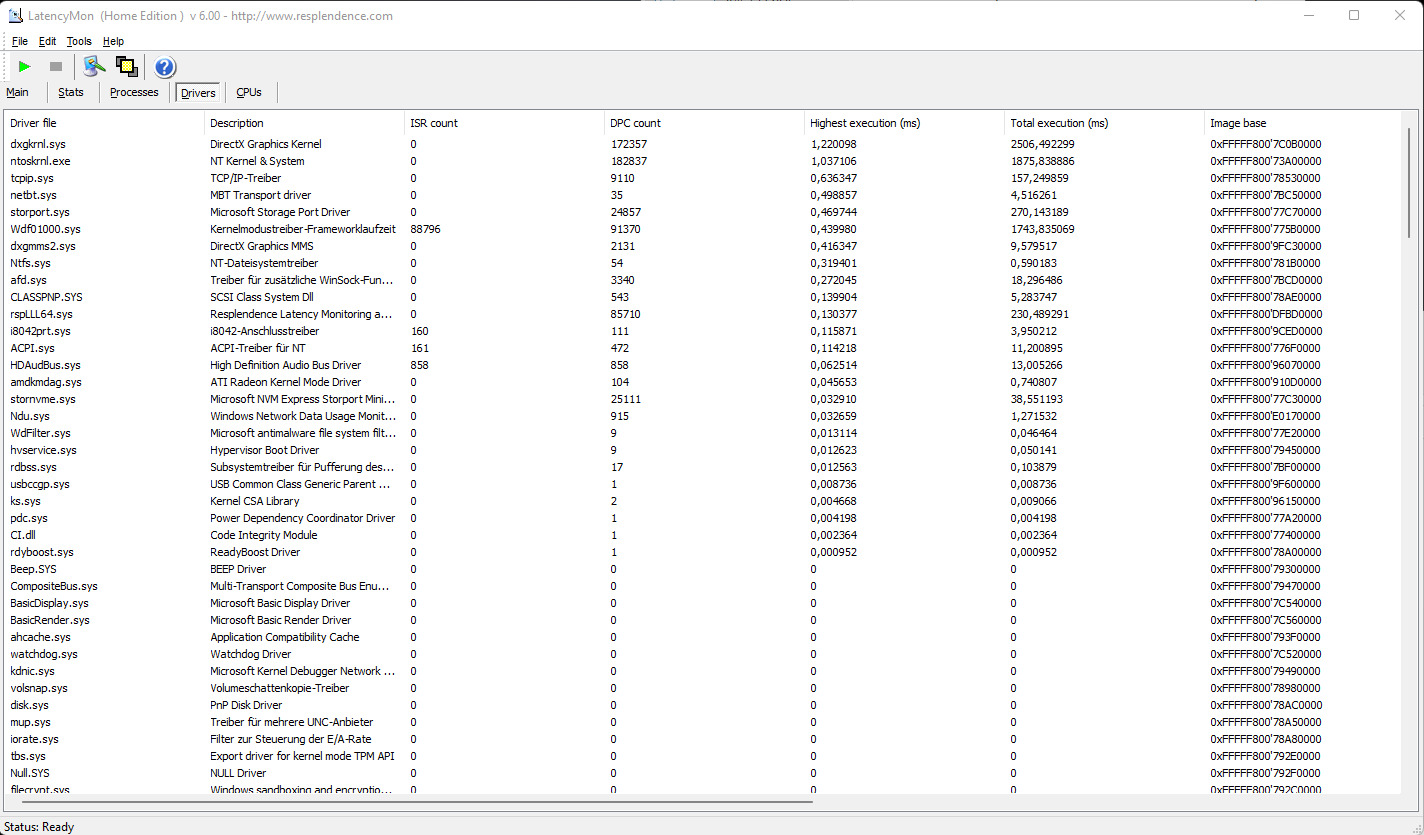

DPC延时检查器。驱动程序
DPC延时检查器。驱动程序

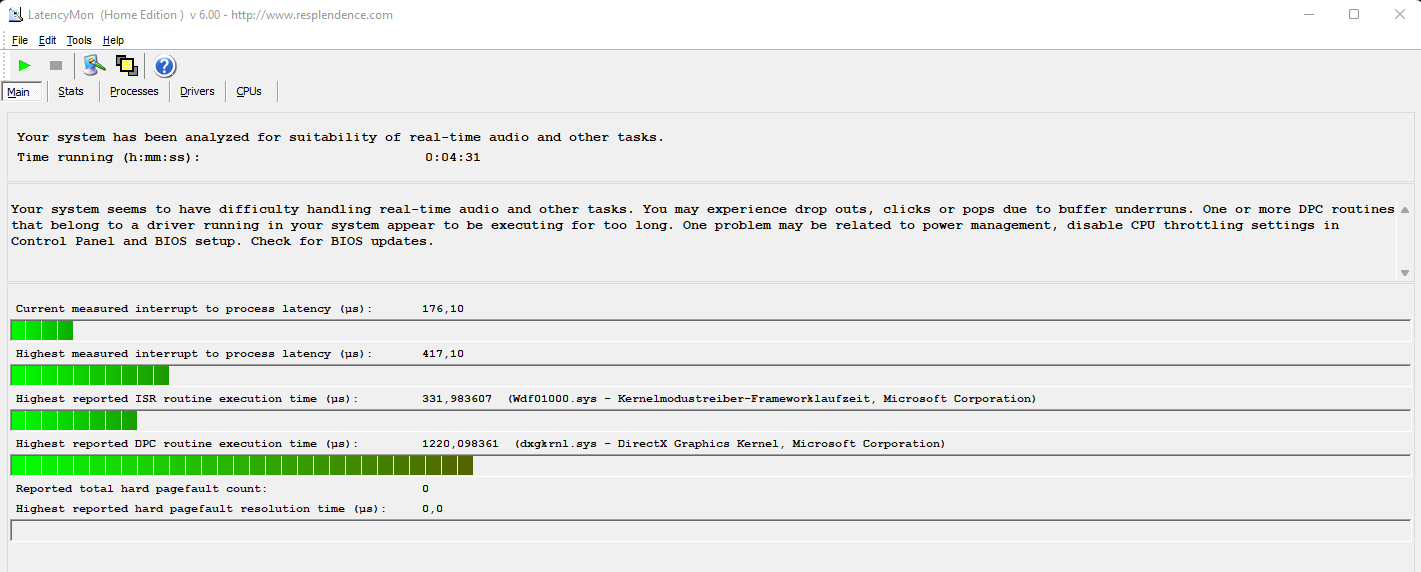

DPC延迟检查器:确定适度的延迟
DPC延迟检查器:确定适度的延迟

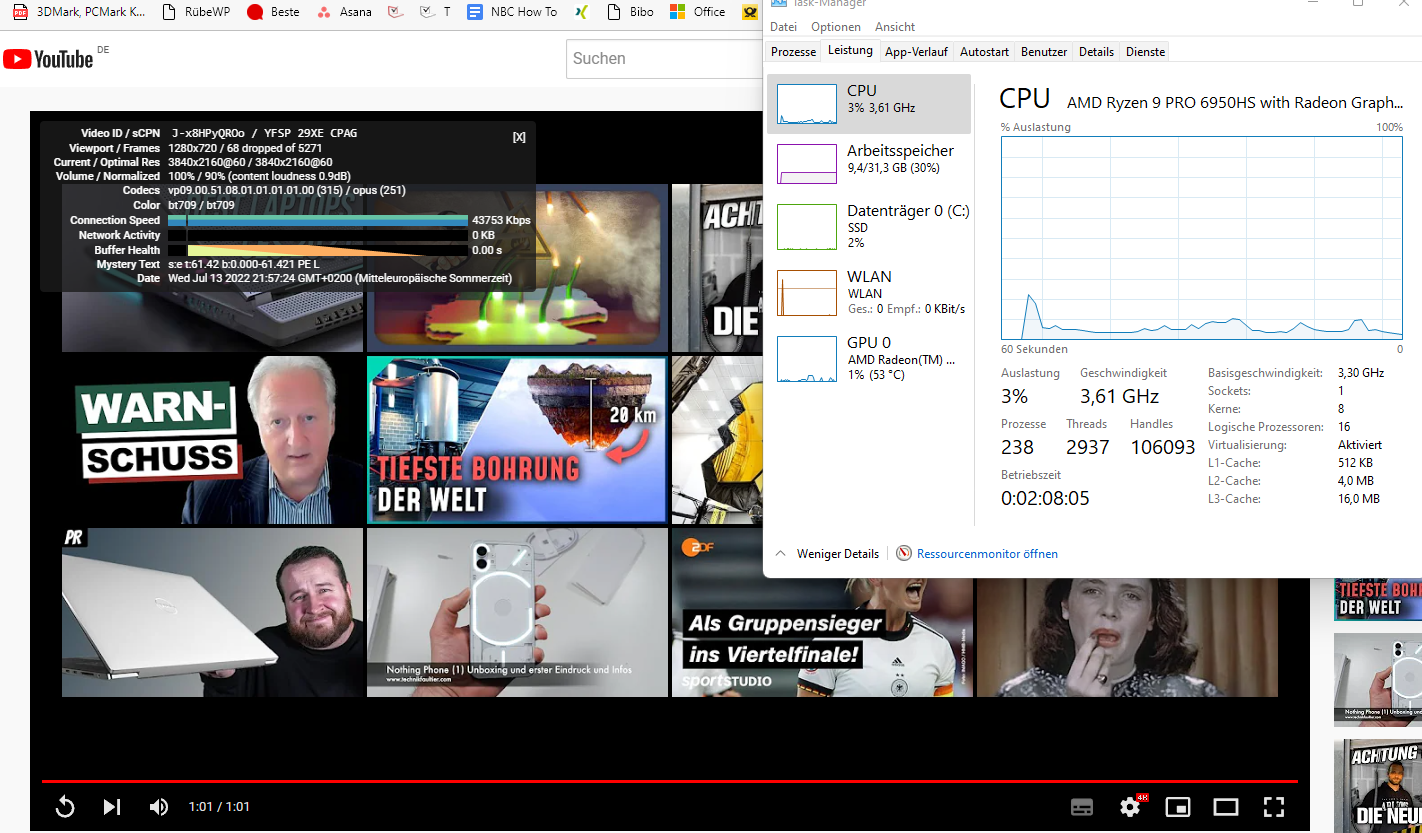

DPC延迟检查器:Youtube 4K - 66个丢帧
DPC延迟检查器:Youtube 4K - 66个丢帧
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
HP EliteBook 840 Aero G8 3E4Q6AA
Iris Xe G7 96EUs, i7-1185G7, SK Hynix PC711 512GB HFS512GDE9X073N
3846 μs * -215%
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
3558 μs * -192%
Lenovo ThinkPad T14s G2 20WM003TGE
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
3164 μs * -159%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ
1749.7 μs * -43%
HP EliteBook 845 G9 6F6H6EA
Radeon 680M, R9 PRO 6950HS, WDC PC SN810 1TB
1220 μs *
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
1045 μs * +14%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Iris Xe G7 80EUs, i5-1140G7, Lenovo UMIS RPJTJ256MEE1OWX
816 μs * +33%

* ... smaller is better

存储设备

西部数据NVMe SN810 1 Terrabyte
西部数据NVMe SN810 1 Terrabyte

EliteBook使用了西部数据的PC SN810 1TB,这是一款M.2插座的2280 SSD。它提供了一个良好的结果,但不是一个伟大的结果。三星的PM9A1在个别测试和整体上似乎仍然工作得更快。西部数据在连续性能方面有所下降,但一些三星型号也显示出这种行为,如三星PM9A1在 X1 Carbon.

1TB的存储容量(启动后约780GB的空闲)对于大多数用户来说应该是足够了。这里有更多的SSD基准测试。

WDC PC SN810 1TB
Sequential Read: 3823MB/s
Sequential Write: 2378MB/s
4K Read: 53MB/s
4K Write: 139MB/s
4K-64 Read: 917MB/s
4K-64 Write: 2097MB/s
Access Time Read: 0.074ms
Access Time Write: 0.026ms
Copy ISO: 3085MB/s
Copy Program: 329MB/s
Copy Game: 954MB/s
Score Read: 1353Points
Score Write: 2475Points
Score Total: 4459Points
Drive Performance Rating - Percent
Average WDC PC SN810 1TB

82.8 pt
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Samsung PM9A1 MZVL2512HCJQ
81.9 pt
HP EliteBook 845 G9 6F6H6EA
WDC PC SN810 1TB
67.3 pt
Average of class Subnotebook

64.9 pt
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
61.8 pt
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
55.5 pt
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
52.1 pt
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
51.5 pt
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
47.7 pt
DiskSpd
seq read
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Samsung PM9A1 MZVL2512HCJQ
4277 (4190.32min - 4277.35max) MB/s +26%
Average WDC PC SN810 1TB
  (3265 - 4206, n=11)
3686 MB/s +9%
HP EliteBook 845 G9 6F6H6EA
WDC PC SN810 1TB
3391 (3051.13min - 3390.68max) MB/s
Average of class Subnotebook
  (452 - 4501, n=61, last 2 years)
2847 MB/s -16%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
2479 (2396.63min - 2479.12max) MB/s -27%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
2376 (2353.33min - 2376.14max) MB/s -30%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
2253 (2249.1min - 2253.29max) MB/s -34%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
2026 (2004.88min - 2026.41max) MB/s -40%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
1849 (1839.72min - 1848.93max) MB/s -45%
seq write
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Samsung PM9A1 MZVL2512HCJQ
3968 (3782.62min - 3967.6max) MB/s +17%
Average WDC PC SN810 1TB
  (2767 - 5015, n=11)
3741 MB/s +10%
HP EliteBook 845 G9 6F6H6EA
WDC PC SN810 1TB
3403 (3306.47min - 3402.84max) MB/s
Average of class Subnotebook
  (153.3 - 5344, n=62, last 2 years)
2745 MB/s -19%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
2031 (1975.34min - 2031.43max) MB/s -40%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
1896 (1865.84min - 1896.04max) MB/s -44%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1892 (1745.95min - 1892.46max) MB/s -44%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
1791 (1770.42min - 1790.56max) MB/s -47%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
1286 (852.26min - 1285.5max) MB/s -62%
seq q8 t1 read
Average WDC PC SN810 1TB
  (6674 - 6984, n=11)
6889 MB/s 0%
HP EliteBook 845 G9 6F6H6EA
WDC PC SN810 1TB
6878 (6719.69min - 6878.45max) MB/s
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Samsung PM9A1 MZVL2512HCJQ
6588 (6084.89min - 6588.24max) MB/s -4%
Average of class Subnotebook
  (558 - 7134, n=60, last 2 years)
4945 MB/s -28%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
3555 (3196.9min - 3555.3max) MB/s -48%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
3550 (3228.19min - 3550.3max) MB/s -48%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
3547 (3319.03min - 3546.53max) MB/s -48%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
3159 (2470.03min - 3158.91max) MB/s -54%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
2135 (2000.05min - 2134.62max) MB/s -69%
seq q8 t1 write
Average WDC PC SN810 1TB
  (4454 - 5412, n=11)
5113 MB/s 0%
HP EliteBook 845 G9 6F6H6EA
WDC PC SN810 1TB
5097 (4682.59min - 5097max) MB/s
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Samsung PM9A1 MZVL2512HCJQ
4805 (3760.61min - 4804.99max) MB/s -6%
Average of class Subnotebook
  (60 - 6751, n=61, last 2 years)
3722 MB/s -27%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
3173 (3168.8min - 3172.99max) MB/s -38%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
2965 (2948.99min - 2964.74max) MB/s -42%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
2519 (2396.21min - 2519.09max) MB/s -51%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
2374 (2063.66min - 2374.32max) MB/s -53%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
892 (620.13min - 891.92max) MB/s -82%
4k q1 t1 read
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Samsung PM9A1 MZVL2512HCJQ
71.2 (66.5min - 71.24max) MB/s +36%
Average WDC PC SN810 1TB
  (52.4 - 88, n=11)
70.5 MB/s +35%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
65.1 (64.9min - 65.13max) MB/s +24%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
64 (63.55min - 63.98max) MB/s +22%
Average of class Subnotebook
  (12.6 - 141.9, n=61, last 2 years)
63.2 MB/s +21%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
62.7 (61.88min - 62.68max) MB/s +20%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
61 (60.92min - 60.96max) MB/s +16%
HP EliteBook 845 G9 6F6H6EA
WDC PC SN810 1TB
52.4 (51.33min - 52.35max) MB/s
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
48.4 (47.37min - 48.36max) MB/s -8%
4k q1 t1 write
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
250 (246.91min - 249.91max) MB/s +97%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Samsung PM9A1 MZVL2512HCJQ
213 (183.45min - 213.01max) MB/s +68%
Average WDC PC SN810 1TB
  (85 - 305, n=11)
169.7 MB/s +34%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
162 (155.31min - 161.61max) MB/s +28%
Average of class Subnotebook
  (22.5 - 360, n=61, last 2 years)
155.9 MB/s +23%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
151 (149.49min - 151.07max) MB/s +19%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
145 (144.68min - 145.41max) MB/s +14%
HP EliteBook 845 G9 6F6H6EA
WDC PC SN810 1TB
126.8 (125.06min - 126.77max) MB/s
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
124 (120.61min - 123.62max) MB/s -2%
4k q32 t16 read
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Samsung PM9A1 MZVL2512HCJQ
3241 (1679.39min - 3240.76max) MB/s +211%
Average of class Subnotebook
  (283 - 4286, n=61, last 2 years)
1233 MB/s +18%
Average WDC PC SN810 1TB
  (417 - 2605, n=11)
1207 MB/s +16%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
1140 (1124.23min - 1139.51max) MB/s +9%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
1134 (809.9min - 1133.58max) MB/s +9%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1132 (1018.62min - 1131.5max) MB/s +9%
HP EliteBook 845 G9 6F6H6EA
WDC PC SN810 1TB
1042 (982.95min - 1042.32max) MB/s
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
648 (644.66min - 648.41max) MB/s -38%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
486 (485.16min - 486.03max) MB/s -53%
4k q32 t16 write
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Samsung PM9A1 MZVL2512HCJQ
1750 (1179.86min - 1749.65max) MB/s +330%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
1000 (886.78min - 1000.24max) MB/s +146%
Average of class Subnotebook
  (157 - 4189, n=61, last 2 years)
895 MB/s +120%
Average WDC PC SN810 1TB
  (162.3 - 2780, n=11)
672 MB/s +65%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
528 (521.07min - 527.77max) MB/s +30%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
528 (438.7min - 528.12max) MB/s +30%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
425 (413.55min - 425.3max) MB/s +4%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
418 (407.41min - 417.91max) MB/s +3%
HP EliteBook 845 G9 6F6H6EA
WDC PC SN810 1TB
407 (392.45min - 407.12max) MB/s
AS SSD
Score Total
Average WDC PC SN810 1TB
  (4112 - 8556, n=11)
5624 Points +26%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Samsung PM9A1 MZVL2512HCJQ
4991 Points +12%
HP EliteBook 845 G9 6F6H6EA
WDC PC SN810 1TB
4459 Points
Average of class Subnotebook
  (707 - 8892, n=59, last 2 years)
4434 Points -1%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
4336 Points -3%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
3934 Points -12%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
3662 Points -18%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
2980 Points -33%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
2081 Points -53%
Score Read
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Samsung PM9A1 MZVL2512HCJQ
2162 Points +60%
Average WDC PC SN810 1TB
  (1211 - 3482, n=11)
1863 Points +38%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
1491 Points +10%
Average of class Subnotebook
  (253 - 3307, n=59, last 2 years)
1476 Points +9%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
1418 Points +5%
HP EliteBook 845 G9 6F6H6EA
WDC PC SN810 1TB
1353 Points
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1326 Points -2%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
1260 Points -7%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
740 Points -45%
Score Write
Average WDC PC SN810 1TB
  (2416 - 3325, n=11)
2904 Points +17%
HP EliteBook 845 G9 6F6H6EA
WDC PC SN810 1TB
2475 Points
Average of class Subnotebook
  (327 - 3972, n=59, last 2 years)
2263 Points -9%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
2146 Points -13%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
1841 Points -26%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Samsung PM9A1 MZVL2512HCJQ
1826 Points -26%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1719 Points -31%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
1124 Points -55%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
975 Points -61%
Seq Read
Average WDC PC SN810 1TB
  (3823 - 5639, n=11)
5143 MB/s +35%
HP EliteBook 845 G9 6F6H6EA
WDC PC SN810 1TB
3823 MB/s
Average of class Subnotebook
  (508 - 5546, n=59, last 2 years)
3783 MB/s -1%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Samsung PM9A1 MZVL2512HCJQ
3577.18 MB/s -6%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
2857 MB/s -25%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
2825 MB/s -26%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
2806 MB/s -27%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
2674 MB/s -30%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
1887 MB/s -51%
Seq Write
Average WDC PC SN810 1TB
  (2229 - 4795, n=11)
3003 MB/s +26%
HP EliteBook 845 G9 6F6H6EA
WDC PC SN810 1TB
2378 MB/s
Average of class Subnotebook
  (386 - 4961, n=59, last 2 years)
2331 MB/s -2%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
1569 MB/s -34%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Samsung PM9A1 MZVL2512HCJQ
1503.79 MB/s -37%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1391 MB/s -42%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
1311 MB/s -45%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
1288 MB/s -46%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
1198 MB/s -50%
4K Read
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
68.4 MB/s +29%
Average WDC PC SN810 1TB
  (53 - 81.9, n=11)
67.6 MB/s +28%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
62.1 MB/s +17%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
61.2 MB/s +15%
Average of class Subnotebook
  (14.8 - 96.2, n=59, last 2 years)
59.9 MB/s +13%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
58.5 MB/s +10%
HP EliteBook 845 G9 6F6H6EA
WDC PC SN810 1TB
53 MB/s
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Samsung PM9A1 MZVL2512HCJQ
52.64 MB/s -1%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
49 MB/s -8%
4K Write
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
215.6 MB/s +55%
Average WDC PC SN810 1TB
  (139 - 303, n=11)
212 MB/s +53%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
190.6 MB/s +37%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
183.7 MB/s +32%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Samsung PM9A1 MZVL2512HCJQ
182.62 MB/s +31%
Average of class Subnotebook
  (65.5 - 256, n=59, last 2 years)
172.8 MB/s +24%
HP EliteBook 845 G9 6F6H6EA
WDC PC SN810 1TB
139 MB/s
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
131 MB/s -6%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
125 MB/s -10%
4K-64 Read
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Samsung PM9A1 MZVL2512HCJQ
1751.37 MB/s +91%
Average WDC PC SN810 1TB
  (624 - 2855, n=11)
1281 MB/s +40%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
1147 MB/s +25%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
1074 MB/s +17%
Average of class Subnotebook
  (187.3 - 2682, n=59, last 2 years)
1038 MB/s +13%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
996 MB/s +9%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
924 MB/s +1%
HP EliteBook 845 G9 6F6H6EA
WDC PC SN810 1TB
917 MB/s
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
489.4 MB/s -47%
4K-64 Write
Average WDC PC SN810 1TB
  (2017 - 2749, n=11)
2391 MB/s +14%
HP EliteBook 845 G9 6F6H6EA
WDC PC SN810 1TB
2097 MB/s
Average of class Subnotebook
  (223 - 3410, n=59, last 2 years)
1854 MB/s -12%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
1827 MB/s -13%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
1554 MB/s -26%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Samsung PM9A1 MZVL2512HCJQ
1492.76 MB/s -29%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1455 MB/s -31%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
809 MB/s -61%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
639 MB/s -70%
Access Time Read
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
0.075 ms * -1%
HP EliteBook 845 G9 6F6H6EA
WDC PC SN810 1TB
0.074 ms *
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Samsung PM9A1 MZVL2512HCJQ
0.065 ms * +12%
Average of class Subnotebook
  (0.021 - 0.257, n=59, last 2 years)
0.06125 ms * +17%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
0.06 ms * +19%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
0.06 ms * +19%
Average WDC PC SN810 1TB
  (0.023 - 0.078, n=11)
0.05673 ms * +23%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
0.055 ms * +26%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
0.036 ms * +51%
Access Time Write
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
0.086 ms * -231%
Average of class Subnotebook
  (0.016 - 0.523, n=59, last 2 years)
0.07439 ms * -186%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
0.031 ms * -19%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
0.031 ms * -19%
Average WDC PC SN810 1TB
  (0.012 - 0.074, n=11)
0.02655 ms * -2%
HP EliteBook 845 G9 6F6H6EA
WDC PC SN810 1TB
0.026 ms *
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Samsung PM9A1 MZVL2512HCJQ
0.023 ms * +12%
Lenovo ThinkPad T14s G2 20WM003TGE
Samsung PM981a MZVLB1T0HBLR
0.019 ms * +27%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
0.019 ms * +27%

* ... smaller is better

Sustained Performance Read: DiskSpd Read Loop, Queue Depth 8

035070010501400175021002450280031503500385042004550490052505600595063006650Tooltip
HP EliteBook 845 G9 6F6H6EA WDC PC SN810 1TB: Ø6306 (2144.66-6958.98)
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Samsung PM9A1 MZVL2512HCJQ: Ø5641 (3281.35-6744.37)
Lenovo ThinkPad T14s G2 20XGS01100 Lenovo UMIS AM630 RPETJ1T24MGE2QDQ: Ø3154 (2610.53-3175.15)
Dell Latitude 7420 JW6MH SK Hynix BC711 HFM512GD3HX015N: Ø3531 (3303.22-3545.69)
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Lenovo UMIS RPJTJ256MEE1OWX: Ø1889 (1670.19-1913.6)

图形卡

芯片 AMD Radeon 680M是一款用于笔记本电脑的iGPU。它提供所有12个单元(768个着色器),并使用当前的RDNA 2架构(如RX 6000M系列)。时钟速度取决于CPU型号;在这里我们观察到2.4 GHz。iGPU使用共享主内存。680M是第一款在硬件上支持光线追踪的iGPU,这对于目前的游戏来说用处不大,因为它太慢了。该 Radeon 680M在合成基准测试中表现相当好,但也不得不向英特尔的Iris Xe Graphics G7 96EUs认输,甚至在次级评分中输了10-30%。真正的游戏对此有什么看法?

3DMark Performance Rating - Percent
Average AMD Radeon 680M

100 pt
Average of class Subnotebook

83.5 pt
Lenovo ThinkPad T14s G2 20WM003TGE -1!
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
71.2 pt
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
68.7 pt
HP EliteBook 845 G9 6F6H6EA
AMD Radeon 680M, AMD Ryzen 9 PRO 6950HS
63.6 pt
Dell Latitude 7420 JW6MH
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7
62.8 pt
Lenovo ThinkPad T14s G2 20XGS01100
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 PRO 5850U
61 pt
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1250P
56.3 pt
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE -1!
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1140G7
46.1 pt
3DMark 11 - 1280x720 Performance GPU
Average AMD Radeon 680M
  (6858 - 11605, n=32)
9979 Points +39%
Average of class Subnotebook
  (2979 - 16904, n=57, last 2 years)
8185 Points +14%
HP EliteBook 845 G9 6F6H6EA
AMD Radeon 680M, AMD Ryzen 9 PRO 6950HS
7179 Points
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
6715 Points -6%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
6663 Points -7%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 PRO 5850U
6084 Points -15%
Dell Latitude 7420 JW6MH
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7
5737 Points -20%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1250P
5475 Points -24%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1140G7
4265 Points -41%
3DMark
1280x720 Cloud Gate Standard Graphics
Average AMD Radeon 680M
  (24634 - 50120, n=25)
40724 Points +55%
Average of class Subnotebook
  (13768 - 65911, n=42, last 2 years)
29375 Points +12%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 PRO 5850U
28661 Points +9%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
26596 Points +1%
HP EliteBook 845 G9 6F6H6EA
AMD Radeon 680M, AMD Ryzen 9 PRO 6950HS
26269 Points
Dell Latitude 7420 JW6MH
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7
25745 Points -2%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1250P
22859 Points -13%
1920x1080 Fire Strike Graphics
Average AMD Radeon 680M
  (3791 - 7593, n=33)
6660 Points +76%
Average of class Subnotebook
  (2837 - 12349, n=62, last 2 years)
5959 Points +57%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
5116 Points +35%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
4995 Points +32%
Dell Latitude 7420 JW6MH
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7
4584 Points +21%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1250P
4318 Points +14%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 PRO 5850U
3967 Points +5%
HP EliteBook 845 G9 6F6H6EA
AMD Radeon 680M, AMD Ryzen 9 PRO 6950HS
3791 Points
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1140G7
3258 Points -14%
2560x1440 Time Spy Graphics
Average AMD Radeon 680M
  (1359 - 2607, n=33)
2221 Points +63%
Average of class Subnotebook
  (811 - 4773, n=61, last 2 years)
2007 Points +48%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1557 Points +15%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
1493 Points +10%
Dell Latitude 7420 JW6MH
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7
1367 Points +1%
HP EliteBook 845 G9 6F6H6EA
AMD Radeon 680M, AMD Ryzen 9 PRO 6950HS
1359 Points
Lenovo ThinkPad T14s G2 20XGS01100
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 PRO 5850U
1182 Points -13%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1250P
1098 Points -19%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1140G7
1039 Points -24%
3DMark 11 Performance
7042 points
3DMark Cloud Gate Standard Score
22529 points
3DMark Fire Strike Score
3531 points
3DMark Time Spy Score
1546 points
Help

游戏性能

Witcher 3,Radeon再次落后于英特尔的Iris Xe Graphics G7 96EUs,以及在Strange Brigade Final Fantasy。目前的《鬼线东京》由于帧率太差,根本无法播放。

The Witcher 3
1366x768 Medium Graphics & Postprocessing
Average AMD Radeon 680M
  (44.5 - 85.1, n=22)
69.3 fps +56%
Average of class Subnotebook
  (29 - 264, n=47, last 2 years)
63.5 fps +43%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
59.2 (50min) fps +33%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
52.7 (50min) fps +18%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Intel Iris Xe Graphics G7 80EUs
45 (38min) fps +1%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M
44.5 fps
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
44.4 (37min) fps 0%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs
37.5 fps -16%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs
32.1 (27min) fps -28%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Average AMD Radeon 680M
  (22.3 - 48, n=31)
37.3 fps +67%
Average of class Subnotebook
  (11.2 - 92, n=59, last 2 years)
34.8 fps +56%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
30.9 (25min) fps +39%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
27.7 (25min) fps +24%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Intel Iris Xe Graphics G7 80EUs
22.3 (17min) fps 0%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M
22.3 fps
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
21 (17min) fps -6%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs
18.3 (15min) fps -18%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs
16.5 fps -26%
Far Cry 5
1920x1080 Low Preset AA:T
Average AMD Radeon 680M
  (24 - 51, n=14)
40.2 fps +68%
Average of class Subnotebook
  (24 - 37, n=4, last 2 years)
31.8 fps +33%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M
24 (21min) fps
1920x1080 Medium Preset AA:T
Average AMD Radeon 680M
  (21 - 45, n=24)
36.2 fps +72%
Average of class Subnotebook
  (12 - 87, n=39, last 2 years)
35.8 fps +70%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
25 (20min) fps +19%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M
21 (19min) fps
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs
20 (18min) fps -5%
Ghostwire Tokyo
1920x1080 Medium Settings
Average AMD Radeon 680M
  (18.8 - 41, n=2)
29.9 fps +59%
Average of class Subnotebook
  (16.6 - 32.2, n=4, last 2 years)
21.7 fps +15%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M
18.8 fps
1920x1080 High Settings
Average AMD Radeon 680M
  (20 - 40.6, n=2)
30.3 fps +52%
Average of class Subnotebook
  (20 - 31.5, n=2, last 2 years)
25.8 fps +29%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M
20 fps
Strange Brigade
1920x1080 medium AA:medium AF:4
Average AMD Radeon 680M
  (30 - 63, n=31)
53.6 fps +72%
Average of class Subnotebook
  (29.4 - 126.9, n=58, last 2 years)
47.8 fps +54%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
37.1 (12.2min, 19.6P1) fps +19%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
34.6 (28min, 30.6P1) fps +11%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
33.9 (12.2min, 19.4P1) fps +9%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M
31.1 (26min, 27.1P1) fps
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs
30.6 (9.9min, 16.7P1) fps -2%
1920x1080 high AA:high AF:8
Average AMD Radeon 680M
  (25.3 - 53.1, n=31)
44.3 fps +68%
Average of class Subnotebook
  (19.4 - 100.8, n=58, last 2 years)
38.8 fps +47%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
30 (7.7min, 11.4P1) fps +14%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
29.3 (21min, 23.5P1) fps +11%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
28.3 (6.6min, 12.3P1) fps +7%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M
26.4 (19.4min, 20.4P1) fps
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs
24.7 (7.7min, 9.95P1) fps -6%
Final Fantasy XV Benchmark
1280x720 Lite Quality
Average AMD Radeon 680M
  (34.4 - 74.7, n=31)
59.1 fps +72%
Average of class Subnotebook
  (18.9 - 130.6, n=57, last 2 years)
51.1 fps +49%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
46 fps +34%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
37.1 fps +8%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M
34.4 fps
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Intel Iris Xe Graphics G7 80EUs
30.9 fps -10%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs
30.5 fps -11%
1920x1080 Standard Quality
Average AMD Radeon 680M
  (18.3 - 36.9, n=32)
30.6 fps +67%
Average of class Subnotebook
  (10.8 - 71, n=57, last 2 years)
27.6 fps +51%
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
24.1 fps +32%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
20.9 fps +14%
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M
18.3 fps
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs
17.6 fps -4%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Intel Iris Xe Graphics G7 80EUs
13.5 fps -26%
GTA V
1366x768 Normal/Off AF:4x
Average AMD Radeon 680M
  (60.7 - 143.9, n=25)
119.1 fps
Average of class Subnotebook
  (31 - 172.6, n=54, last 2 years)
103.4 fps
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs
84 fps
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
74.3 (8.91min, 43.5P1) fps
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
61.9 (10.4min, 35.7P1) fps
1920x1080 Normal/Off AF:4x
Average AMD Radeon 680M
  (54.9 - 117.3, n=20)
101.8 fps
Average of class Subnotebook
  (35.9 - 156, n=28, last 2 years)
88.4 fps
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
66.5 (12.8min, 43.5P1) fps
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
50.8 (11.9min, 31.3P1) fps

然而,我们并没有跳过这个机会来进行 Witcher 3稳定性测试。这是在全高清的超级设置下循环进行的。FPS没有下降,这是一个稳定、抗压的iGPU的好迹象。

日志查看器。 Witcher 3 超强,8分钟后开始使用电池
日志查看器。 Witcher 3 超强,8分钟后开始使用电池

Witcher 3 FPS Chart

0123456789101112131415Tooltip
HP EliteBook 845 G9 6F6H6EA R9 PRO 6950HS, Radeon 680M: Ø13.4 (11-14)
Lenovo ThinkPad X1 Carbon G10 21CC001RGE i5-1250P, Iris Xe G7 80EUs: Ø8.42 (4-12)
Lenovo ThinkPad T14s G2 20XGS01100 R7 PRO 5850U, Vega 8: Ø14 (13-16)
Lenovo ThinkPad T14s G2 20WM003TGE i7-1165G7, Iris Xe G7 96EUs: Ø14 (11-15)
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE i5-1140G7, Iris Xe G7 80EUs: Ø9.83 (8-11)
low med. high ultra4K
GTA V (2015) 53 20
The Witcher 3 (2015) 44.5 22.3 14.6
Dota 2 Reborn (2015) 110.2 82.5 54.9 47.4 9.8
Final Fantasy XV Benchmark (2018) 34.4 18.3 12.9
X-Plane 11.11 (2018) 40.1 32.4 28.9
Far Cry 5 (2018) 37 21 18
Strange Brigade (2018) 78.2 31.1 26.4 22.6
Ghostwire Tokyo (2022) 18.8 20 18.6

排放物。Windows电脑有时会出现噪音

系统噪音

EliteBook在噪音排放方面是一个典范。闲置时,无论选择哪种Windows能源模式,风扇都会持续关闭。在负载情况下,它的转速很高,达到38或44 dB(A)。对于这样一台小型笔记本来说,这是很响亮的,但这只发生在持续负载的阶段。在简短的复制任务、流媒体或下载过程中,风扇根本不动,如果动了,它又迅速而巧妙地关闭。除此之外,没有发现任何电子噪音或线圈啸叫。

Noise Level

Idle
25.5 / 25.5 / 25.5 dB(A)
Load
38.1 / 44 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 25.5 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2027.328.526.323.527.32528.531.527.528.928.53128.732.532.830.428.74021.825.726.823.321.8502829.430.431.9286321.728.830.422.421.7801623.818.3161610015.219.52014.915.212514.920.923.815.314.916015.922.32215.415.920014.922.220.614.414.92501323.120.613.71331514.226.622.214.714.240012.824.721.116.112.850012.625.521.516.512.663011.926.822.91211.980011.930.42611.311.9100012.831.827.611.512.8125012.430.92611.712.4160012.731.526.212.212.7200012.433.127.912.312.4250012.734.129.212.712.7315012.932.126.613.412.9400013.432.225.413.813.4500013.732.524.613.513.763001432.624.114.214800014.934.6261514.91000015.633.625.415.815.61250013.526.719.513.613.51600012.716.613.813.212.7SPL25.344.138.125.525.3N0.74.62.80.70.7median 13median 30.4median 24.1median 13.7median 13Delta0.74.631.30.726.719.120.821.816.820.219.915.919.922.322.523.116.816.118.117.31618.115.214.416.417.412.519.517.915.519.516.111.517.716.11018.418.213.721.8199.82320.69.323.921.68.924.625.19.728.4239.726.4229.326.5229.326.120.39.825.118.110.122.915.911.119.916.811.620.416.811.420.217.311.320.917.611.421.91511.618.612.511.614.512.411.613.111.611.111.731.622.835.51.50.42.2median 17.6median 11.1median 20.92.31.22.932.125.429.127.322.525.420.81919.625.621.523.521.920.819.122.818.923.428.817.3282124.422.927.424.228.727.626.523.826.623.723.725.223.22222.322.221.320.420.722.416.115.320.117.713.820.117.411.820.319.915.923.119.711.324.117.710.221.817.910.122.518.811.123.5181124.217.611.223.616.211.319.912.511.61712.111.612.51211.51211.811.411.711.410.910.930.226.8341.40.81.9median 17.9median 11.6median 22343.528.931.731.228.528.930.337.335.233.630.332.943.84036.832.926.635.233.526.626.633.537.23730.133.523.526.828.125.223.519.427.622.418.219.416.623.420.717.516.618.320.121.318.118.31521.221.217.8151519.619.414.91513.620.519.813.913.612.121.421.412.812.112.424.42512.312.41223.424.111.71211.926.626.811.511.911.729.228.911.811.712.132.23212.112.112.431.731.811.912.412.735.435.712.612.71334.934.812.71313.533.233.113.313.513.734.834.813.413.714.534.634.513.814.514.534.634.514.214.514.632.632.414.414.620.530.830.614.220.515.62524.914.315.616.319.719.513.916.317.115.515.513.117.126.544.944.925.426.50.84.64.60.70.8median 13.7median 26.6median 26.8median 13.4median 13.71.66.26.11.31.629.319.920.724.828.119.919.226.321.517.817.720.82420.719.626.519.917.81720.119.917.817.220.422.315.916.319.318.521.716.917.717.315.116.118.824.119.618.720.819.418.111.618.820.917.416.421.222.91815.223.623.917.514.724.622.513.611.622.424.514.312.224.727.713.910.627.425.415.61125.422.714.31022.624.312.410.423.823.911.511.123.923.511.711.523.823.311.511.523.323.312.112.223.123.612.812.823.223.513.213.623.117.412.412.616.815.412.412.414.113.912.513.11312.516.415.311.835.725.524.235.52.30.70.62.3median 23.3median 13.9median 12.4median 23.12.92.61.92.837.130.434.13633.126.624.228.32727.422.32423.923.422.722.720.120.318.722.425.321.119.218.324.823.718.817.919.42522.119.220.520.720.820.718.218.617.718.517.816.715.518.51717.215.414.216.516.915.715.415.716.716.115.615.114.814.316.81615.51414.417.215.915.413.813.317.216.115.213.213.216.816.414.912.112.317.215.8141211.717.1161511.511.217.518.21711.511.218.617.916.211.211.320.317.715.711.611.520.215.916.111.611.318.715.513.711.511.721.114.213.412.11216.11312.612.611.913.912.612.912.312.112.412.312.312.11212.112.81312.51211.914.816.414.312.913.512.612.612.411.71127.926.924.224.129.90.90.80.60.51.1median 15.9median 15.2median 12.4median 12median 171.71.31.31.32.524.644.525.238.921.434.934.229.930.126.827.221.32127.133.524.223.529.819.527.819.826.920.226.519.927.619.126.214.523.312.726.510.926.615.229.910.429.29.329.89.526.810.42810.627.410.828.910.828.610.929.211.127.611.124.911.118.611.116.225.740.10.73.6median 11.1median 27.43.62hearing rangehide median Fan NoiseHP EliteBook 845 G9 6F6H6EALenovo ThinkPad X1 Carbon G10 21CC001RGELenovo ThinkPad T14s G2 20XGS01100Dell Latitude 7420 JW6MHLenovo ThinkPad T14s G2 20WM003TGEHP EliteBook 840 Aero G8 3E4Q6AALenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
HP EliteBook 845 G9 6F6H6EA
Radeon 680M, R9 PRO 6950HS, WDC PC SN810 1TB
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
Lenovo ThinkPad T14s G2 20WM003TGE
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
HP EliteBook 840 Aero G8 3E4Q6AA
Iris Xe G7 96EUs, i7-1185G7, SK Hynix PC711 512GB HFS512GDE9X073N
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Iris Xe G7 80EUs, i5-1140G7, Lenovo UMIS RPJTJ256MEE1OWX
Noise
13%
4%
-3%
7%
14%
1%
off / environment *
25.5
22.81
11%
26.81
-5%
25.3
1%
24.81
3%
24.1
5%
25.61
-0%
Idle Minimum *
25.5
22.81
11%
26.81
-5%
25.3
1%
24.81
3%
24.2
5%
25.61
-0%
Idle Average *
25.5
22.81
11%
26.81
-5%
25.3
1%
24.81
3%
24.2
5%
25.61
-0%
Idle Maximum *
25.5
22.81
11%
26.81
-5%
25.3
1%
24.81
3%
24.2
5%
25.61
-0%
Load Average *
38.1
31.59
17%
30.16
21%
44.9
-18%
35.14
8%
26.9
29%
40.14
-5%
Load Maximum *
44
35.47
19%
33.98
23%
44.9
-2%
35.14
20%
29.9
32%
40.14
9%
Witcher 3 ultra *
35.59
27.9

* ... smaller is better

温度

那么废热呢?单风扇--尤其是它经常静止不动--能保持机箱的温度吗?它在空转时可以,因为APU产生的废热很少,所以顶部和底部的平均温度保持在30度以下。在轻度负载和压力测试过程中,EliteBook变得不那么温热了。正如之前在 "性能 "部分所显示的,APU只能将功率从50瓦调节到41瓦,然后单个风扇必须将这41瓦推到机箱外。它只是艰难地做到了这一点;我们在某些地方测量了49和57度(顶部/底部)。键盘上方的条状区域几乎感觉很热。我们还在小型电源适配器上登记了56度。

关于Elitebook的好处是。你可以同时拥有一个表面凉爽的低声安静的设备和一个计算怪物。只有在后者的情况下,你必须接受短期的噪音和热表面。因此,将Elitebook长期放在腿上进行高性能的使用是不可能的。

Max. Load
 42.9 °C49.4 °C39.7 °C
 45.3 °C42 °C33.9 °C
 33.7 °C32.1 °C32.4 °C
Maximum: 49.4 °C
Average: 39 °C
45.2 °C48 °C42.2 °C
33.3 °C44.8 °C42.3 °C
33.4 °C37.4 °C35.7 °C
Maximum: 48 °C
Average: 40.3 °C
Power Supply (max.)  56.2 °C | Room Temperature 23.4 °C | FIRT 550-Pocket
(-) The average temperature for the upper side under maximal load is 39 °C / 102 F, compared to the average of 30.7 °C / 87 F for the devices in the class Subnotebook.
(-) The maximum temperature on the upper side is 49.4 °C / 121 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(-) The bottom heats up to a maximum of 48 °C / 118 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 27.7 °C / 82 F, compared to the device average of 30.7 °C / 87 F.
(-) Playing The Witcher 3, the average temperature for the upper side is 39 °C / 102 F, compared to the device average of 30.7 °C / 87 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (35.2 °C / 95.4 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-6.9 °C / -12.5 F).
余热闲置 - 以上
余热闲置 - 以上
余热闲置 - 下
余热闲置 - 下
废热应力测试 - 以上
废热应力测试 - 以上
废热应力测试--如下
废热应力测试--如下
废热Witcher 3 超 - 下
废热Witcher 3 超 - 下
废热Witcher 3 Ultra - above
废热Witcher 3 Ultra - above
HP EliteBook 845 G9 6F6H6EA
AMD Ryzen 9 PRO 6950HS, AMD Radeon 680M
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
Intel Core i5-1250P, Intel Iris Xe Graphics G7 80EUs
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs
Lenovo ThinkPad T14s G2 20WM003TGE
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs
Heat
3%
13%
17%
8%
-0%
10%
Maximum Upper Side *
49.4
45
9%
44.2
11%
37.1
25%
47.5
4%
39.2
21%
46.3
6%
Maximum Bottom *
48
44
8%
38.9
19%
38.7
19%
43.4
10%
51.2
-7%
43.3
10%
Idle Upper Side *
30.8
31.2
-1%
27.7
10%
27.3
11%
28.4
8%
33
-7%
26.8
13%
Idle Bottom *
31.4
33.2
-6%
28.3
10%
28.1
11%
28.3
10%
34
-8%
28.3
10%

* ... smaller is better

压力测试

在压力测试中,功耗定格在68瓦,由处理器和显卡共同承担。在这种负载下,APU显示出与Cinebench测试中CPU负载下完全相同的行为:短暂达到50瓦,然后下降到41瓦的永久状态。

然而,有一个区别。如果EliteBook使用电池供电,由于压力测试(Furmark)中同时存在GPU负载,CPU时钟会降至2.5GHz(CPU功耗为30而不是40瓦)。在Cinebench测试中,在电池供电情况下,时钟速率没有下降。在压力测试后,没有直接出现性能下降的情况。

日志查看器。应力Prime95和Furmark,在电池使用12分钟之后
日志查看器。应力Prime95和Furmark,在电池使用12分钟之后

发言人

EliteBook的扬声器
EliteBook的扬声器

现在,两个立体声扬声器的声音充满了桌面,不再像前代产品那样明显。对我们的耳朵来说,声音已经有些恶化了。中音和高音仍然很干净,但它们的音量更薄,没有充满整个房间。相机旁边的双阵列麦克风提供了几乎无噪音的语音记录,即使是在离笔记本电脑1-2米的距离。因此,没有什么能阻挡可理解的视频会议的方式。

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs202623.5262525.228.925.23130.930.430.94028.123.328.15029.731.929.76321.322.421.3802016201002514.92512533.915.333.916041.515.441.520040.914.440.92504613.74631556.314.756.340065.616.165.650063.916.563.963063.41263.480061.411.361.4100062.411.562.4125062.211.762.2160068.512.268.5200070.212.370.225006512.765315067.813.467.8400065.613.865.6500065.913.565.9630064.814.264.8800069.51569.51000072.515.872.51250064.313.664.31600054.913.254.9SPL78.925.578.9N44.50.744.5median 63.9median 13.7median 63.9Delta6.91.36.919.124.916.822.515.918.322.521.816.119.91616.114.419.512.533.515.543.711.546.41054.613.764.79.868.59.365.78.966.99.764.99.766.19.364.99.363.39.862.210.165.511.162.611.662.111.458.811.356.911.46011.659.311.657.211.656.311.150.822.875.10.438median 11.1median 62.11.25.9hearing rangehide median Pink NoiseHP EliteBook 845 G9 6F6H6EALenovo ThinkPad X1 Carbon G10 21CC001RGE
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
HP EliteBook 845 G9 6F6H6EA audio analysis

(±) | speaker loudness is average but good (78.9 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 23.4% lower than median
(±) | linearity of bass is average (12.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.4% away from median
(+) | highs are linear (5.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18% difference to median)
Compared to same class
» 46% of all tested devices in this class were better, 8% similar, 46% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 32% of all tested devices were better, 8% similar, 60% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Lenovo ThinkPad X1 Carbon G10 21CC001RGE audio analysis

(±) | speaker loudness is average but good (75.09 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.2% lower than median
(-) | bass is not linear (16% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.8% away from median
(+) | mids are linear (3.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.7% away from median
(+) | highs are linear (4.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (13.7% difference to median)
Compared to same class
» 5% of all tested devices in this class were better, 3% similar, 92% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 12% of all tested devices were better, 3% similar, 85% worse
» The best had a delta of 4%, average was 25%, worst was 134%

能源管理。在SureView下运行时间更短

消耗功率

65瓦的侏儒。电源很小--而且温度很高,几乎达到60度!
65瓦的侏儒。电源很小--而且温度很高,几乎达到60度!

明亮的面板对电源插座产生了影响。在全亮度下,空闲时的消耗量是所有竞争对手的两倍多。在高负荷情况下,消耗量很快就达到了60多瓦,在压力测试中为68瓦。相应的65瓦的电源适配器可能被过度消耗了,这反映在近60度的强烈温度上。

Power Consumption
Off / Standbydarklight 0.22 / 0.4 Watt
Idledarkmidlight 6.4 / 12.4 / 18 Watt
Load midlight 63 / 68 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
HP EliteBook 845 G9 6F6H6EA
R9 PRO 6950HS, Radeon 680M, WDC PC SN810 1TB, IPS, 1920x1200, 14.00
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
i5-1250P, Iris Xe G7 80EUs, Samsung PM9A1 MZVL2512HCJQ, IPS LED, 1920x1200, 14.00
Lenovo ThinkPad T14s G2 20XGS01100
R7 PRO 5850U, Vega 8, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ, IPS LED, 1920x1080, 14.00
Dell Latitude 7420 JW6MH
i5-1145G7, Iris Xe G7 80EUs, SK Hynix BC711 HFM512GD3HX015N, IPS, 1920x1080, 14.00
Lenovo ThinkPad T14s G2 20WM003TGE
i7-1165G7, Iris Xe G7 96EUs, Samsung PM981a MZVLB1T0HBLR, IPS LED, 1920x1080, 14.00
HP EliteBook 840 Aero G8 3E4Q6AA
i7-1185G7, Iris Xe G7 96EUs, SK Hynix PC711 512GB HFS512GDE9X073N, IPS, 1920x1080, 14.00
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
i5-1140G7, Iris Xe G7 80EUs, Lenovo UMIS RPJTJ256MEE1OWX, IPS LED, 2256x1504, 13.50
Average AMD Radeon 680M

Average of class Subnotebook

Power Consumption
47%
49%
44%
45%
42%
47%
16%
25%
Idle Minimum *
6.4
2.9
55%
3.16
51%
2.7
58%
2.2
66%
3.2
50%
3.75
41%
6.75 ?(2.2 - 10.8, n=30)
-5%
4.91 ?(1.77 - 11.8, n=64, last 2 years)
23%
Idle Average *
12.4
4.9
60%
5.6
55%
6
52%
5.5
56%
5.4
56%
7.75
37%
8.75 ?(4.4 - 12.8, n=30)
29%
8.38 ?(4.6 - 17.4, n=64, last 2 years)
32%
Idle Maximum *
18
6
67%
7.13
60%
7.6
58%
6.1
66%
6.9
62%
8.69
52%
10.3 ?(5.1 - 18.6, n=30)
43%
10.4 ?(5.1 - 22.4, n=64, last 2 years)
42%
Load Average *
63
29.3
53%
30.86
51%
37
41%
41.3
34%
38.9
38%
33.12
47%
52.8 ?(20 - 77.7, n=30)
16%
46.1 ?(19.1 - 83.3, n=63, last 2 years)
27%
Witcher 3 ultra *
63.6
36.6
42%
37
42%
33.2
48%
34.5
46%
37
42%
28.7
55%
Load Maximum *
68
63.3
7%
46.55
32%
65
4%
67.3
1%
66.5
2%
35.19
48%
69.4 ?(48 - 103.2, n=30)
-2%
66.6 ?(24.2 - 121.2, n=64, last 2 years)
2%

* ... smaller is better

Power Consumption Witcher 3 / Stress test

05101520253035404550556065Tooltip
HP EliteBook 845 G9 6F6H6EA R9 PRO 6950HS, Radeon 680M; Witcher 3 ultra: Ø63.6 (61-67.9)
Lenovo ThinkPad T14s G2 20XGS01100 R7 PRO 5850U, Vega 8; Witcher 3 ultra: Ø37 (36.1-38)
HP EliteBook 845 G9 6F6H6EA R9 PRO 6950HS, Radeon 680M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø68 (67.7-68.5)
Lenovo ThinkPad T14s G2 20XGS01100 R7 PRO 5850U, Vega 8; 1280x720 Prime95 28.10 and Furmark 1.25: Ø36.7 (35.1-46.6)

Power consumption with an external monitor

05101520253035404550556065Tooltip
HP EliteBook 845 G9 6F6H6EA R9 PRO 6950HS, Radeon 680M; Prime95 V2810 Stress (external Monitor): Ø62.2 (40.2-68)
Lenovo ThinkPad T14s G2 20XGS01100 R7 PRO 5850U, Vega 8; Prime95 V2810 Stress (external Monitor): Ø35.7 (34.6-45.5)
HP EliteBook 845 G9 6F6H6EA R9 PRO 6950HS, Radeon 680M; Cinebench R15 Multi (external Monitor): Ø64.7 (49.2-68)
Lenovo ThinkPad T14s G2 20XGS01100 R7 PRO 5850U, Vega 8; Cinebench R15 Multi (external Monitor): Ø34.3 (32.5-41.9)
HP EliteBook 845 G9 6F6H6EA R9 PRO 6950HS, Radeon 680M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø63.3 (47.4-66.5)
Lenovo ThinkPad T14s G2 20XGS01100 R7 PRO 5850U, Vega 8; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø35.3 (33.8-40.8)
HP EliteBook 845 G9 6F6H6EA R9 PRO 6950HS, Radeon 680M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø59.2 (56.2-61.6)
Lenovo ThinkPad T14s G2 20XGS01100 R7 PRO 5850U, Vega 8; 1920x1080 The Witcher 3 ultra (external Monitor): Ø34.2 (33.6-34.9)
HP EliteBook 845 G9 6F6H6EA R9 PRO 6950HS, Radeon 680M; Idle 1min (external Monitor): Ø5.1 (3.37-9.19)

电池寿命

高耗电量反映在电池寿命上。相比之下,51瓦特并不完全充足,但在WiFi测试中足够使用9:20小时。一个体面的结果,但不是一流的。在测试中,亮度被调整为150cd/m²,减少了八个级别。在设备打开的情况下,电池正好需要两个小时的时间来充电。

负载下的短暂运行时间,即全亮度下的Battery Eater Classic,只有79分钟,再次证明了Elitebook对性能的关注。正如之前在 "性能 "部分所显示的,CPU在使用电池电源时并不降速,只消耗40瓦特。这与其他型号没有如此高的启动功耗水平是不同的。例如,Ryzen 7 Pro 5850U最初只消耗30瓦,然后稳定在22瓦的水平。

那些需要更长的电池运行时间的人肯定应该选择低功率1080p显示屏,EliteBook 845 G9就有这种功能。

Battery Runtime
WiFi Websurfing
9h 20min
Load (maximum brightness)
1h 19min
HP EliteBook 845 G9 6F6H6EA
R9 PRO 6950HS, Radeon 680M, 51 Wh
Lenovo ThinkPad X1 Carbon G10 21CC001RGE
i5-1250P, Iris Xe G7 80EUs, 57 Wh
Lenovo ThinkPad T14s G2 20XGS01100
R7 PRO 5850U, Vega 8, 57 Wh
Dell Latitude 7420 JW6MH
i5-1145G7, Iris Xe G7 80EUs, 63 Wh
Lenovo ThinkPad T14s G2 20WM003TGE
i7-1165G7, Iris Xe G7 96EUs, 57 Wh
HP EliteBook 840 Aero G8 3E4Q6AA
i7-1185G7, Iris Xe G7 96EUs, 53 Wh
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
i5-1140G7, Iris Xe G7 80EUs, 44.5 Wh
Average of class Subnotebook

Battery Runtime
45%
43%
74%
6%
57%
29%
WiFi v1.3
560
610
9%
877
57%
848
51%
580
4%
685
22%
626 ?(303 - 1144, n=66, last 2 years)
12%
Load
79
142
80%
101
28%
155
96%
85
8%
151
91%
114.5 ?(61 - 197, n=49, last 2 years)
45%
H.264
654
891
874
786 ?(426 - 1153, n=31, last 2 years)
Reader / Idle
1411
1487
1268 ?(581 - 2550, n=11, last 2 years)

Pros

+ 坚固、高质量的外壳
+ 非常高的CPU性能
+ 可更换的内存,M.2 SSD,WLAN
+ 舒适的键盘按键
+ 支持nano-SIM 4G LTE
+ 全sRGB覆盖
+ USB-C充电

Cons

- 负载下CPU温度高
- 省略了专用的鼠标按键和TrackPoint
- 没有Thunderbolt连接
- 负载下声音大
- 没有MicroSD读卡器
- 重量相对较高
- 运行时间适中

评语。惠普商务笔记本电脑的性能非常好

配备Ryzen 9 PRO 6950HS的HP EliteBook 845 G9
配备Ryzen 9 PRO 6950HS的HP EliteBook 845 G9

配备Ryzen 9 PRO 6950HS、32GB内存和1TB固态硬盘的高端版惠普EliteBook 845 G9的功率很大,但仍然足够安静和冷却,可以在对噪音敏感的环境中运行。然而,安静、凉爽并同时从APU中吸取大量的40瓦,这是不可能的。这台14英寸的机器只有一个单风扇解决方案,而且它只是设法让一个几乎没有节流的Ryzen 9保持正常。由于其短期和长期的性能,6950HS(35瓦)超过了来自Ryzen 5000U世界的同事,而且他们已经比目前的英特尔移动处理器更快。

但性能在EliteBook中只是次要的,制造商已经把安全性放在了首位。为此,安装了很多软件,旨在为中小型企业提供最大的数据和硬件保护,而不费吹灰之力。简而言之,我们不能说惠普在这方面是否最终成功。另一方面,我们看到在硬件和管理工具方面有很多选择,可以将Elitebook整合到不同的安全概念中,如智能卡或Windows Hello Face-Log In。

做工是一流的。在我们看来,惠普已经比上一代产品做了改进。组件的维护和更换既可能又容易,鉴于现在有许多板载芯片,这不再是一个必然的结果。由于有了500万像素的网络摄像头,制造商终于把我们从无休止的糟糕的720p网络摄像头的悲痛中解放出来。与良好的麦克风相结合,这为视频会议提供了一个强大的解决方案。

惠普EliteBook 845 G9拥有强大的功能,500万像素的网络摄像头和许多安全功能,在商务联盟中发挥着顶级的作用。

虽然惠普EliteBook 845 G9不是14英寸竞争对手中最轻的型号,但它仍然可以跟上戴尔和联想的商务巨无霸,尽管耗电量增加,但仍有9小时的良好运行时间。特别是由于带有LTE调制解调器的移动性是重中之重。

必须严格看待具有高亮度的SureView面板。内置的隐私保护基本上是有效的,但它的缺点是可视角度较差,电池寿命较短。400尼特的低功耗FHD面板可能是这里更好的选择。

联想ThinkPad X1 Carbon G10 ,重量更轻,运行时间更长,还有Thunderbolt端口,是我想到的第一个选择,尽管它的计算能力明显不足。联想的ThinkPad T14s G2 在这里处于更好的位置,但在AMD基础上没有Thunderbolt。低功耗的FHD显示屏和14小时的电池寿命(在WiFi测试中)弥补了这一点。

价格和可用性。

在写这篇文章的时候(16.07.2022),惠普EliteBook 845 G9(Ryzen 9 PRO 6950HS,32GB内存和1TB SSD)的供应似乎在全球范围内是零星的。例如,我们发现,该配置可通过惠普的网站UK美国,起价分别为1,901.84英镑和2,195.00美元。

因此,建议读者通过惠普主页、亚马逊或其他官方分销商定期检查,如果适用。

HP EliteBook 845 G9 6F6H6EA - 07/19/2022 v7
Sebastian Jentsch

Chassis
88 / 98 → 89%
Keyboard
96%
Pointing Device
89%
Connectivity
64 / 75 → 85%
Weight
69 / 20-75 → 90%
Battery
87%
Display
85%
Games Performance
61 / 78 → 78%
Application Performance
96 / 85 → 100%
Temperature
82%
Noise
92%
Audio
76 / 91 → 83%
Camera
41 / 85 → 48%
Average
79%
89%
Subnotebook - Weighted Average

Pricecompare

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > HP EliteBook 845 G9回顾。35瓦的AMD胜过联想和戴尔
Sebastian Jentsch, 2022-07-17 (Update: 2022-07-17)
