华硕 GL552VW Xotic PC版笔记本电脑简短评测

Name: Asus GL552VW-DH74
Brand: Asus

主流更新。 实惠型的ROG GL系列现在得到了Skylake，DDR4，USB-C型接口和其他为它加速的改进。我们将会相近测试这台支持显卡超频的Xotic PC机型。

Allen Ngo (translated by Yuchen Wang), Published 04/09/2016 🇺🇸 🇩🇪 ...

Gaming Geforce Skylake Windows

Test device courtesy of Xotic PC

Download your licensed rating image as PNG / SVG

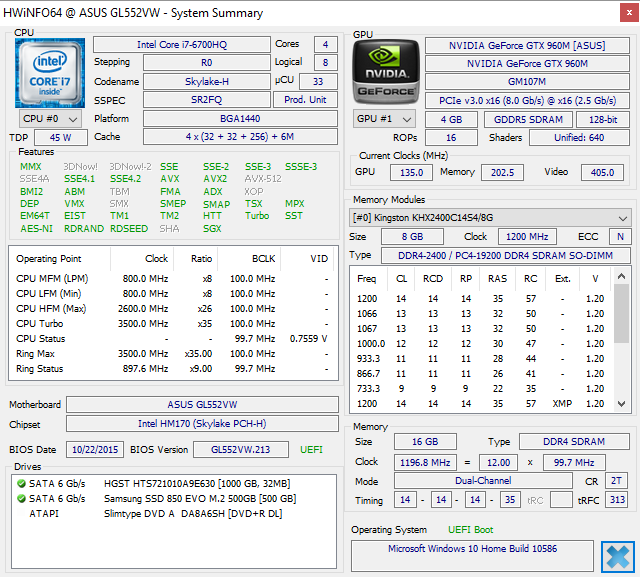

Asus GL552VW-DH74 (GL552 Series)

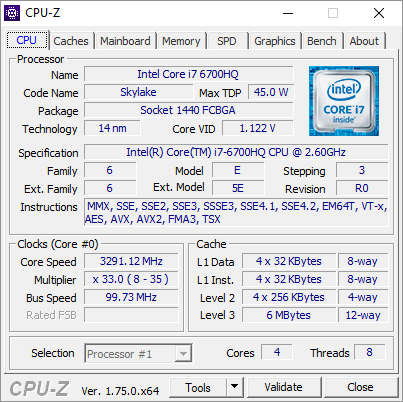

Processor

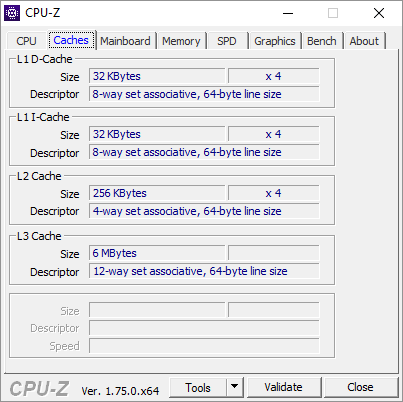

Intel Core i7-6700HQ 4 x 2.6 - 3.5 GHz, Skylake

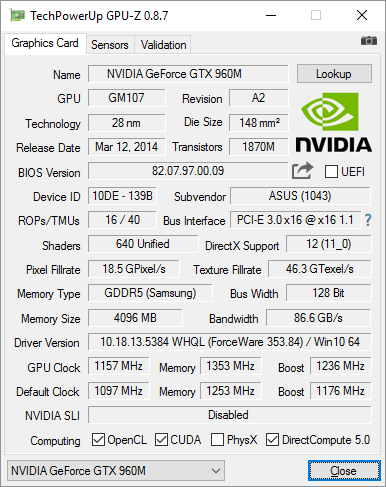

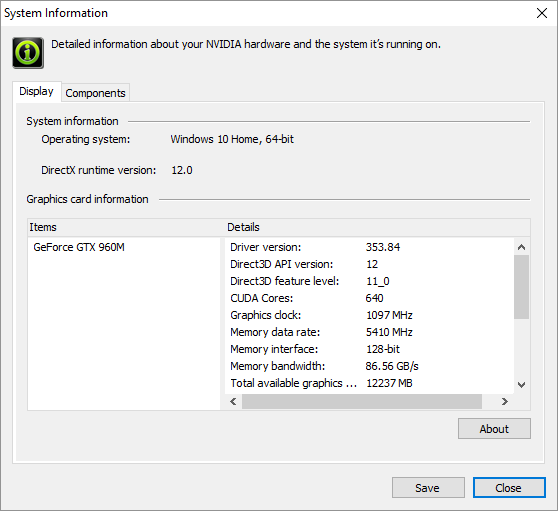

Graphics adapter

NVIDIA GeForce GTX 960M - 4 GB VRAM, Core: 1097 MHz, Memory: 5410 MHz, 353.84, Optimus

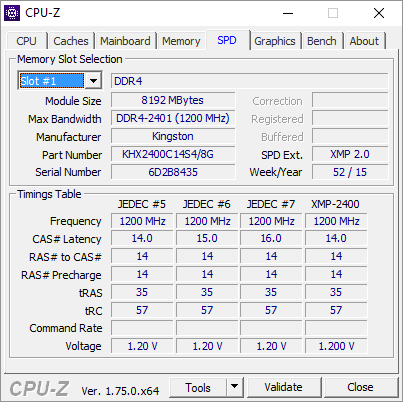

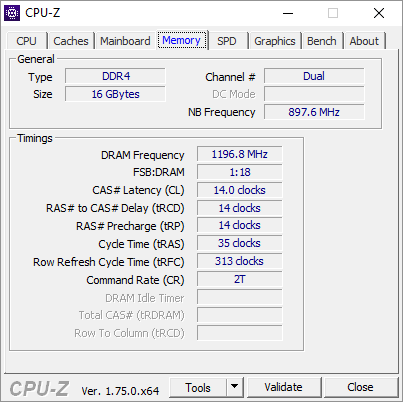

Memory

16 GB

, 1196.5 MHz, 14-14-14-35, 双通道, DDR4

Display

15.60 inch 16:9, 1920 x 1080 pixel, IPS, Name: LG Philips LP156WF6-SPB5, ID: LGD046F, glossy: no

Mainboard

Intel HM170 (Skylake PCH-H)

Storage

Samsung SSD 850 EVO M.2 500GB, 500 GB

, 第二硬盘: HGST HTS721010A9E630

Soundcard

Intel Skylake PCH-H High Definition Audio Controller

Connections

1 USB 2.0, 3 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Kensington Lock, Audio Connections: 3.5毫米耳机接口，3.5毫米麦克风接口, Card Reader: 三合一读卡器

Networking

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Killer Wireless-n/a/ac 1535 Wireless Network Adapter (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0

Optical drive

SlimtypeDVD A DA8A6SH

Size

height x width x depth (in mm): 33 x 383.5 x 256.5

Battery

48 Wh, 3200 mAh Lithium-Ion, 4 芯

Operating System

Microsoft Windows 10 Home 64 Bit

Camera

Webcam: 高清摄像头
Primary Camera: 1.2 MPix

Additional features

Speakers: 立体声, Keyboard: 孤岛式, Keyboard Light: yes, 扎线带，用户指南，质保卡，屏幕布, MSI Afterburner, 12 Months Warranty

Weight

2.595 kg, Power Supply: 544 g

Price

1300 USD

Links

Asus homepage
Asus notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Asus GL552VW-DH74 Lenovo Ideapad Y700 15ISK 80NW Asus N552VX-FY103T MSI GE62-6QD16H11 Acer Aspire V3-575G-5093 Lenovo Ideapad 500-15ACZ Asus ZenBook Pro UX501VW-DS71T Toshiba Satellite P50-C-188 DIN A4 ❌

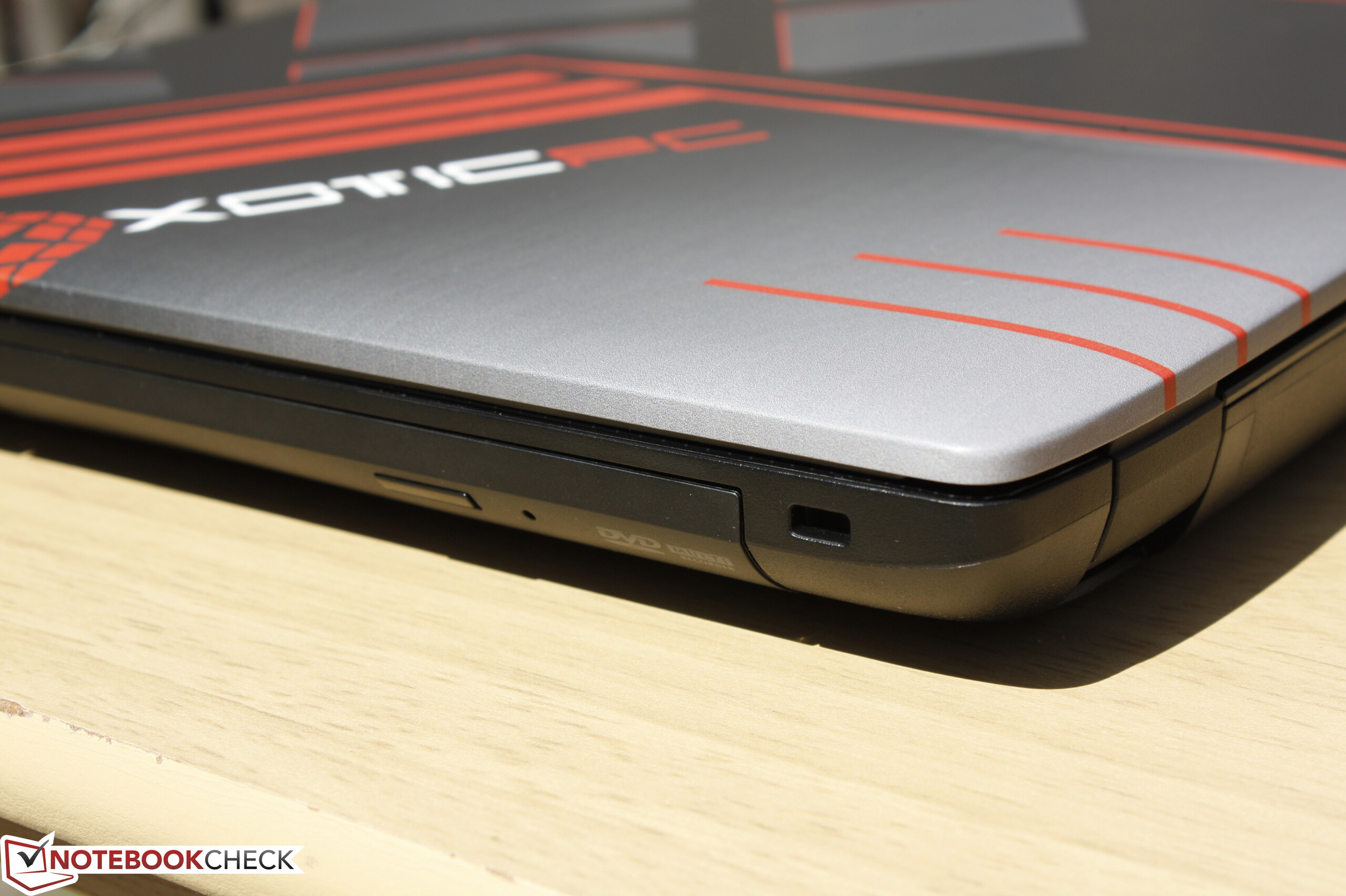

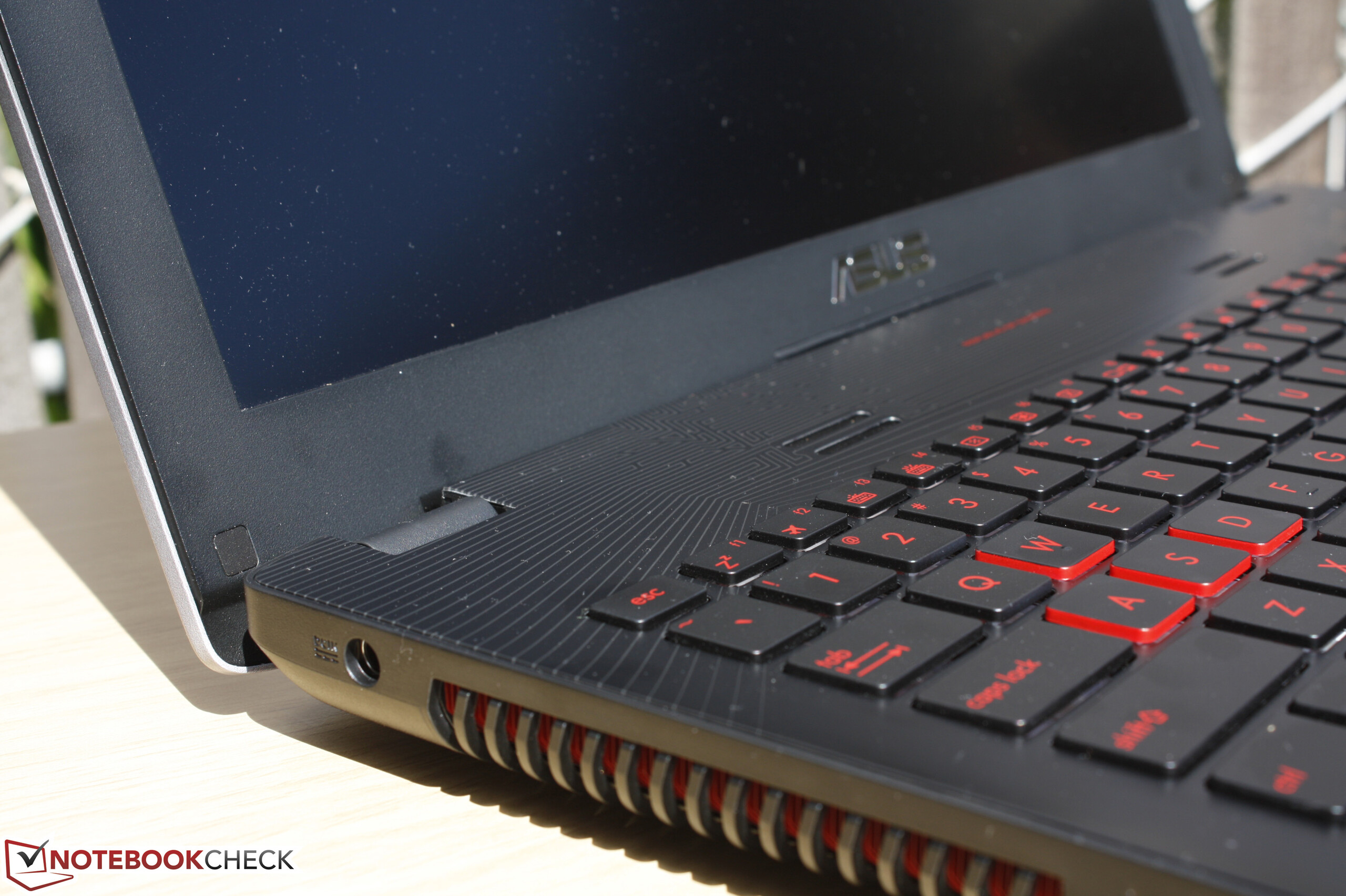

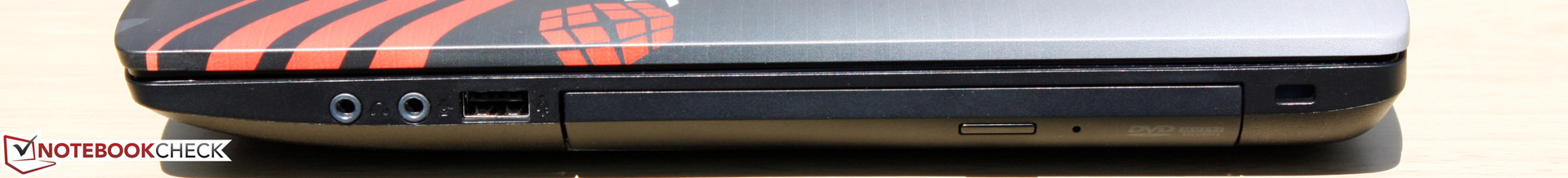

Right: 3.5 mm earphones, 3.5 mm microphone, USB 2.0, Optical drive, Kensington Lock

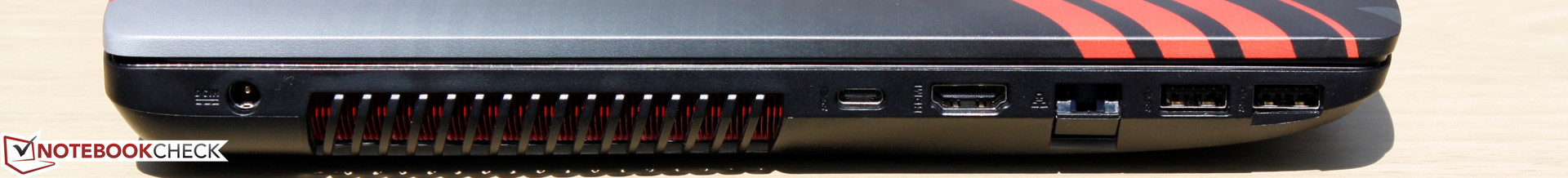

Left: AC adapter, USB 3.1 Type-C Gen. 1, HDMI-out, Gigabit Ethernet, 2x USB 3.0


300.5 cd/m²	299.2 cd/m²	314.1 cd/m²
308.6 cd/m²	333 cd/m²	320.1 cd/m²
290.5 cd/m²	316.8 cd/m²	295.4 cd/m²

Distribution of brightness

tested with X-Rite i1Pro Basic 2

Maximum: 333 cd/m² (Nits) Average: 308.7 cd/m² Minimum: 18.4 cd/m²
Brightness Distribution: 87 %
Center on Battery: 333 cd/m²
Contrast: 835:1 (Black: 0.399 cd/m²)
ΔE Color 4.46 | 0.5-29.43 Ø5
ΔE Greyscale 3.33 | 0.57-98 Ø5.3
81.2% sRGB (Argyll 1.6.3 3D)
53.3% AdobeRGB 1998 (Argyll 1.6.3 3D)
59.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
81.5% sRGB (Argyll 2.2.0 3D)
63.2% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.3

Download ICC File (X-Rite i1Pro Basic 2)

	Asus GL552VW-DH74 15.60, 1920x1080	Asus N552VX-FY103T 15.60, 1920x1080	Acer Aspire V3-575G-5093 15.60, 1920x1080	Lenovo Ideapad 500-15ACZ 15.60, 1920x1080	Asus ZenBook Pro UX501VW-DS71T 15.60, 3840x2160
Display		7%		-32%	7%
Display P3 Coverage	63.2	67.9 7%		39.82 -37%	64.3 2%
sRGB Coverage	81.5	87.7 8%		59.7 -27%	89.9 10%
AdobeRGB 1998 Coverage	59.6	64 7%		41.16 -31%	65.4 10%
Response Times		13%	16%	16%	10%
Response Time Grey 50% / Grey 80% *	48.8 ?(14.8, 34)	42 ?(18, 24) 14%	44 ?(22, 22) 10%	43 ?(21, 22) 12%	43.2 ?(18, 25.2) 11%
Response Time Black / White *	29.6 ?(5.2, 24.4)	26 ?(5, 21) 12%	23 ?(7, 16) 22%	24 ?(8, 16) 19%	27.2 ?(7.6, 19.6) 8%
PWM Frequency			1042 ?(90)
Screen		-1%	-50%	-69%	-19%
Brightness middle	333	336 1%	251 -25%	238 -29%	252.9 -24%
Brightness	309	304 -2%	239 -23%	221 -28%	250 -19%
Brightness Distribution	87	85 -2%	87 0%	84 -3%	89 2%
Black Level *	0.399	0.34 15%	0.42 -5%	0.49 -23%	0.5 -25%
Contrast	835	988 18%	598 -28%	486 -42%	506 -39%
Colorchecker dE 2000 *	4.46	5.26 -18%	9.68 -117%	11.19 -151%	5.22 -17%
Colorchecker dE 2000 max. *	9.41	10.49 -11%	14.83 -58%	19.6 -108%	8.33 11%
Greyscale dE 2000 *	3.33	4.26 -28%	11.13 -234%	11.53 -246%	6.74 -102%
Gamma	2.3 ^96%	2.35 ^94%	2.46 ^89%	2.41 ^91%	2.45 ^90%
CCT	6340 ^103%	6758 ^96%	12149 ^54%	13057 ^50%	6026 ^108%
Color Space (Percent of AdobeRGB 1998)	53.3	57 7%	74 39%	38 -29%	58.4 10%
Color Space (Percent of sRGB)	81.2	88 8%		60 -26%	89.7 10%
Total Average (Program / Settings)		6% / 2%	-17% / -38%	-28% / -50%	-1% / -10%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

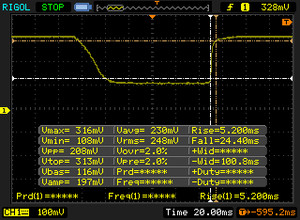

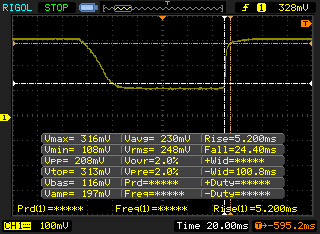

↔ Response Time Black to White
29.6 ms ... rise ↗ and fall ↘ combined	↗ 5.2 ms rise
29.6 ms ... rise ↗ and fall ↘ combined	↘ 24.4 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 76 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21.5 ms).

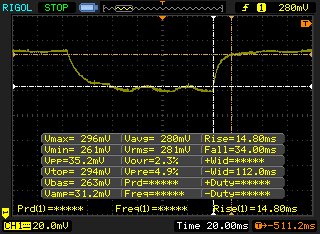

↔ Response Time 50% Grey to 80% Grey
48.8 ms ... rise ↗ and fall ↘ combined	↗ 14.8 ms rise
48.8 ms ... rise ↗ and fall ↘ combined	↘ 34 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 82 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (33.7 ms).

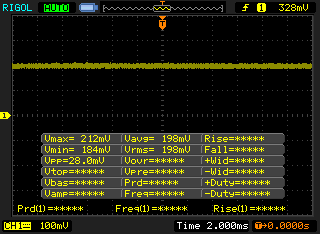

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17924 (minimum: 5 - maximum: 3846000) Hz was measured.

Cinebench R15 | Cinebench R11.5 | Cinebench R10 | wPrime 2.10 | Super Pi Mod 1.5 XS 32M

Cinebench R15
CPU Single 64Bit (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	144 Points
Eurocom Sky DLX7 GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e	177 Points +23%
Asus GX700 GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)	173 Points +20%
MSI GE62 2QC-468XPL GeForce GTX 960M, 5700HQ, Samsung SSD PM851 256 GB MZNTE256HMHP	144 Points 0%
Lenovo IdeaPad Y50 GeForce GTX 860M, 4700HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	125 Points -13%
CPU Multi 64Bit (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	684 Points
Eurocom Sky DLX7 GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e	878 Points +28%
Asus GX700 GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)	875 Points +28%
MSI GE62 2QC-468XPL GeForce GTX 960M, 5700HQ, Samsung SSD PM851 256 GB MZNTE256HMHP	719 Points +5%
Lenovo IdeaPad Y50 GeForce GTX 860M, 4700HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	490 Points -28%

Cinebench R11.5
CPU Single 64Bit (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	1.64 Points
Eurocom Sky DLX7 GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e	1.97 Points +20%
Asus GX700 GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)	1.95 Points +19%
MSI GE62 2QC-468XPL GeForce GTX 960M, 5700HQ, Samsung SSD PM851 256 GB MZNTE256HMHP	1.68 Points +2%
Lenovo IdeaPad Y50 GeForce GTX 860M, 4700HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	1.46 Points -11%
CPU Multi 64Bit (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	7.52 Points
Eurocom Sky DLX7 GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e	9.7 Points +29%
Asus GX700 GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)	9.55 Points +27%
MSI GE62 2QC-468XPL GeForce GTX 960M, 5700HQ, Samsung SSD PM851 256 GB MZNTE256HMHP	7.96 Points +6%
Lenovo IdeaPad Y50 GeForce GTX 860M, 4700HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	5.29 Points -30%

Cinebench R10
Rendering Single 32Bit (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	5488 Points
Eurocom Sky DLX7 GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e	6604 Points +20%
Asus GX700 GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)	6541 Points +19%
MSI GE62 2QC-468XPL GeForce GTX 960M, 5700HQ, Samsung SSD PM851 256 GB MZNTE256HMHP	5567 Points +1%
Lenovo IdeaPad Y50 GeForce GTX 860M, 4700HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	4999 Points -9%
Rendering Multiple CPUs 32Bit (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	20141 Points
Eurocom Sky DLX7 GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e	26040 Points +29%
Asus GX700 GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)	25765 Points +28%
MSI GE62 2QC-468XPL GeForce GTX 960M, 5700HQ, Samsung SSD PM851 256 GB MZNTE256HMHP	21681 Points +8%
Lenovo IdeaPad Y50 GeForce GTX 860M, 4700HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	14329 Points -29%

wPrime 2.10 - 1024m (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	230.6 s *
Eurocom Sky DLX7 GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e	178 s * +23%
MSI GE62 2QC-468XPL GeForce GTX 960M, 5700HQ, Samsung SSD PM851 256 GB MZNTE256HMHP	206.3 s * +11%
Lenovo IdeaPad Y50 GeForce GTX 860M, 4700HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	323 s * -40%

Super Pi Mod 1.5 XS 32M - 32M (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	575 s *
Eurocom Sky DLX7 GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e	463.8 s * +19%
MSI GE62 2QC-468XPL GeForce GTX 960M, 5700HQ, Samsung SSD PM851 256 GB MZNTE256HMHP	574 s * -0%
Lenovo IdeaPad Y50 GeForce GTX 860M, 4700HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	569 s * +1%

* ... smaller is better

Cinebench R10 Shading 32Bit

6692

Cinebench R10 Rendering Multiple CPUs 32Bit

20141

Cinebench R10 Rendering Single 32Bit

5488

Cinebench R11.5 OpenGL 64Bit

15.09 fps

Cinebench R11.5 CPU Multi 64Bit

7.52 Points

Cinebench R11.5 CPU Single 64Bit

1.64 Points

Cinebench R15 Ref. Match 64Bit

99.6 %

Cinebench R15 OpenGL 64Bit

18.7 fps

Cinebench R15 CPU Multi 64Bit

684 Points

Cinebench R15 CPU Single 64Bit

144 Points

Help

... in comparison

PCMark 8
Home Score Accelerated v2 (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	3855 Points
Asus G501VW-FY081T GeForce GTX 960M, 6700HQ, Samsung CM871 MZNLF128HCHP	3495 Points -9%
Asus N552VX-FY103T GeForce GTX 950M, 6700HQ, Toshiba MQ02ABD100H	3452 Points -10%
Asus ZenBook Pro UX501VW-DS71T GeForce GTX 960M, 6700HQ, Samsung SM951 MZVPV512HDGL m.2 PCI-e	3077 Points -20%
Lenovo Ideapad 500-15ACZ Radeon R6 M340DX, A10-8700P, Seagate Momentus SpinPoint M8 ST1000LM024	2485 Points -36%
Work Score Accelerated v2 (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	4916 Points
Asus G501VW-FY081T GeForce GTX 960M, 6700HQ, Samsung CM871 MZNLF128HCHP	4599 Points -6%
Asus N552VX-FY103T GeForce GTX 950M, 6700HQ, Toshiba MQ02ABD100H	4503 Points -8%
Asus ZenBook Pro UX501VW-DS71T GeForce GTX 960M, 6700HQ, Samsung SM951 MZVPV512HDGL m.2 PCI-e	3867 Points -21%
Lenovo Ideapad 500-15ACZ Radeon R6 M340DX, A10-8700P, Seagate Momentus SpinPoint M8 ST1000LM024	3290 Points -33%
Creative Score Accelerated v2 (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	4843 Points
Asus G501VW-FY081T GeForce GTX 960M, 6700HQ, Samsung CM871 MZNLF128HCHP	4445 Points -8%
Asus ZenBook Pro UX501VW-DS71T GeForce GTX 960M, 6700HQ, Samsung SM951 MZVPV512HDGL m.2 PCI-e	4357 Points -10%
Lenovo Ideapad 500-15ACZ Radeon R6 M340DX, A10-8700P, Seagate Momentus SpinPoint M8 ST1000LM024	2991 Points -38%

PCMark 8 Home Score Accelerated v2		3855 points
PCMark 8 Creative Score Accelerated v2		4843 points
PCMark 8 Work Score Accelerated v2		4916 points
Help

	Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	Asus GL552JX-CN154H GeForce GTX 950M, 4720HQ, Micron M600 MTFDDAV128MBF	Lenovo Ideapad Y700 15ISK 80NW GeForce GTX 960M, 6700HQ, Samsung MZNLN128HCGR-000L2	MSI GE62-6QD16H11 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 250 GB	Asus ZenBook Pro UX501VW-DS71T GeForce GTX 960M, 6700HQ, Samsung SM951 MZVPV512HDGL m.2 PCI-e	Dell XPS 15 9550 i7 FHD GeForce GTX 960M, 6700HQ, Samsung PM951 NVMe 512 GB
AS SSD		-10%	-23%	-29%	116%	91%
Copy Game MB/s	372.8		302 -19%	353.9 -5%	684 83%	805 116%
Copy Program MB/s	260.1		159.1 -39%	197.1 -24%	452 74%	325.3 25%
Copy ISO MB/s	401.6		295.6 -26%	391.6 -2%	1206 200%	1127 181%
Score Total	1058	1018 -4%	883 -17%	870 -18%	2588 145%	2410 128%
Score Write	418	386 -8%	251 -40%	268 -36%	619 48%	675 61%
Score Read	417	416 0%	421 1%	397 -5%	1312 215%	1180 183%
Access Time Write *	0.039	0.049 -26%	0.039 -0%	0.041 -5%	0.034 13%	0.035 10%
Access Time Read *	0.054	0.079 -46%	0.094 -74%	0.168 -211%	0.037 31%	0.038 30%
4K-64 Write	285.9	257.3 -10%	142.3 -50%	153.3 -46%	361.7 27%	513 79%
4K-64 Read	333.5	334.7 0%	337.5 1%	327.6 -2%	1075 222%	990 197%
4K Write	86	91.1 6%	94 9%	72.9 -15%	107.8 25%	105.4 23%
4K Read	33.31	29.5 -11%	34.29 3%	21.05 -37%	43.59 31%	31.86 -4%
Seq Write	463.5	378.7 -18%	151 -67%	449.1 -3%	1498 223%	570 23%
Seq Read	499.2	518 4%	492 -1%	500 0%	1944 289%	1579 216%

* ... smaller is better

HD Tune

CrystalDiskMark 3.0

AS SSD

Samsung SSD 850 EVO M.2 500GB

Transfer Rate Minimum: 302 MB/s

Transfer Rate Maximum: 338.7 MB/s

Transfer Rate Average: 322.2 MB/s

Access Time: 0 ms

Burst Rate: 149 MB/s

CPU Usage: 3.4 %

3DMark 11 | 3DMark

3DMark 11
1280x720 Performance (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	6110 Points
DogHouse Systems Mobius SS GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB	12364 Points +102%
Gigabyte P55W v5 GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe	8932 Points +46%
Acer Aspire V15 Nitro BE VN7-592G-79DV GeForce GTX 960M, 6700HQ, Lite-On CV1-8B512 M.2 512 GB	5635 Points -8%
Asus N752VX-GC131T GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256	4596 Points -25%
1280x720 Performance GPU (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	5779 Points
DogHouse Systems Mobius SS GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB	12967 Points +124%
Gigabyte P55W v5 GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe	9910 Points +71%
Acer Aspire V15 Nitro BE VN7-592G-79DV GeForce GTX 960M, 6700HQ, Lite-On CV1-8B512 M.2 512 GB	5304 Points -8%
Asus N752VX-GC131T GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256	4457 Points -23%

3DMark
1920x1080 Fire Strike Score (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	4299 Points
DogHouse Systems Mobius SS GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB	8793 Points +105%
Gigabyte P55W v5 GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe	6565 Points +53%
Acer Aspire V15 Nitro BE VN7-592G-79DV GeForce GTX 960M, 6700HQ, Lite-On CV1-8B512 M.2 512 GB	4008 Points -7%
Asus N752VX-GC131T GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256	2866 Points -33%
1280x720 Cloud Gate Standard Score (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	17983 Points
DogHouse Systems Mobius SS GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB	27362 Points +52%
Gigabyte P55W v5 GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe	20087 Points +12%
Acer Aspire V15 Nitro BE VN7-592G-79DV GeForce GTX 960M, 6700HQ, Lite-On CV1-8B512 M.2 512 GB	16358 Points -9%
Asus N752VX-GC131T GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256	14469 Points -20%
1920x1080 Fire Strike Combined (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	1791 Points
DogHouse Systems Mobius SS GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB	3748 Points +109%
Gigabyte P55W v5 GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe	2774 Points +55%
Acer Aspire V15 Nitro BE VN7-592G-79DV GeForce GTX 960M, 6700HQ, Lite-On CV1-8B512 M.2 512 GB	1662 Points -7%
Asus N752VX-GC131T GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256	1033 Points -42%
1920x1080 Fire Strike Physics (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	9814 Points
DogHouse Systems Mobius SS GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB	12752 Points +30%
Gigabyte P55W v5 GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe	9628 Points -2%
Acer Aspire V15 Nitro BE VN7-592G-79DV GeForce GTX 960M, 6700HQ, Lite-On CV1-8B512 M.2 512 GB	9690 Points -1%
Asus N752VX-GC131T GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256	9499 Points -3%
1920x1080 Fire Strike Graphics (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	4645 Points
DogHouse Systems Mobius SS GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB	9963 Points +114%
Gigabyte P55W v5 GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe	7450 Points +60%
Acer Aspire V15 Nitro BE VN7-592G-79DV GeForce GTX 960M, 6700HQ, Lite-On CV1-8B512 M.2 512 GB	4314 Points -7%
Asus N752VX-GC131T GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256	3174 Points -32%
1280x720 Cloud Gate Standard Graphics (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	31747 Points
DogHouse Systems Mobius SS GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB	62938 Points +98%
Gigabyte P55W v5 GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe	48597 Points +53%
Acer Aspire V15 Nitro BE VN7-592G-79DV GeForce GTX 960M, 6700HQ, Lite-On CV1-8B512 M.2 512 GB	27075 Points -15%
Asus N752VX-GC131T GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256	21500 Points -32%
1280x720 Cloud Gate Standard Physics (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	7144 Points
DogHouse Systems Mobius SS GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB	9187 Points +29%
Gigabyte P55W v5 GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe	6579 Points -8%
Acer Aspire V15 Nitro BE VN7-592G-79DV GeForce GTX 960M, 6700HQ, Lite-On CV1-8B512 M.2 512 GB	6858 Points -4%
Asus N752VX-GC131T GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256	6747 Points -6%

3DMark 11 Performance		6110 points
3DMark Ice Storm Standard Score		84816 points
3DMark Cloud Gate Standard Score		17983 points
3DMark Fire Strike Score		4299 points
3DMark Fire Strike Extreme Score		2156 points
Help

... in comparison

Rise of the Tomb Raider | BioShock Infinite | Metro: Last Light | Thief | Batman: Arkham Knight

Rise of the Tomb Raider
1920x1080 High Preset AA:FX AF:4x (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	30.3 fps
DogHouse Systems Mobius SS GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB	60.4 fps +99%
Gigabyte P55W v5 GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe	44.6 fps +47%
Dell XPS 15 9550 i7 FHD GeForce GTX 960M, 6700HQ, Samsung PM951 NVMe 512 GB	23.8 fps -21%
Asus N752VX-GC131T GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256	20.19 (18^min - 23^max) fps -33%
1920x1080 Very High Preset AA:FX AF:16x (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	25.2 fps
DogHouse Systems Mobius SS GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB	51.6 fps +105%
Gigabyte P55W v5 GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe	37.1 fps +47%
Dell XPS 15 9550 i7 FHD GeForce GTX 960M, 6700HQ, Samsung PM951 NVMe 512 GB	21.2 fps -16%
Asus N752VX-GC131T GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256	16.32 (14^min - 19^max) fps -35%

BioShock Infinite
1366x768 High Preset (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	126.9 fps
DogHouse Systems Mobius SS GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB	205.5 fps +62%
Gigabyte P55W v5 GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe	133.1 fps +5%
Dell XPS 15 9550 i7 FHD GeForce GTX 960M, 6700HQ, Samsung PM951 NVMe 512 GB	106.9 fps -16%
Asus N752VX-GC131T GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256	59.4 fps -53%
1920x1080 Ultra Preset, DX11 (DDOF) (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	49.5 fps
DogHouse Systems Mobius SS GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB	92.4 fps +87%
Gigabyte P55W v5 GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe	69.7 fps +41%
Dell XPS 15 9550 i7 FHD GeForce GTX 960M, 6700HQ, Samsung PM951 NVMe 512 GB	44.1 fps -11%
Asus N752VX-GC131T GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256	27.29 fps -45%

Metro: Last Light
1366x768 High (DX11) AF:16x (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	62.6 fps
DogHouse Systems Mobius SS GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB	125.8 fps +101%
Dell XPS 15 9550 i7 FHD GeForce GTX 960M, 6700HQ, Samsung PM951 NVMe 512 GB	55.7 fps -11%
1920x1080 Very High (DX11) AF:16x (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	34 fps
DogHouse Systems Mobius SS GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB	70.6 fps +108%
Dell XPS 15 9550 i7 FHD GeForce GTX 960M, 6700HQ, Samsung PM951 NVMe 512 GB	30.9 fps -9%

Thief
1366x768 High Preset AA:FXAA & Low SS AF:4x (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	58.6 fps
DogHouse Systems Mobius SS GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB	114.7 fps +96%
Dell XPS 15 9550 i7 FHD GeForce GTX 960M, 6700HQ, Samsung PM951 NVMe 512 GB	51.2 fps -13%
Asus N752VX-GC131T GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256	41 (31.4^min - 51.6^max) fps -30%
1920x1080 Very High Preset AA:FXAA & High SS AF:8x (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	30 fps
DogHouse Systems Mobius SS GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB	65.4 fps +118%
Dell XPS 15 9550 i7 FHD GeForce GTX 960M, 6700HQ, Samsung PM951 NVMe 512 GB	26.6 fps -11%
Asus N752VX-GC131T GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256	20.5 (16.7^min - 28^max) fps -32%

Batman: Arkham Knight
1920x1080 High / On (Interactive Smoke & Paper Debris Off) AA:SM AF:8x (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	36 fps
DogHouse Systems Mobius SS GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB	76 fps +111%
Gigabyte P55W v5 GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe	57 fps +58%
Dell XPS 15 9550 i7 FHD GeForce GTX 960M, 6700HQ, Samsung PM951 NVMe 512 GB	39 fps +8%
Asus N752VX-GC131T GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256	24 (19^min - 35^max) fps -33%
1920x1080 High / On AA:SM AF:16x (sort by value)
Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	25 fps
DogHouse Systems Mobius SS GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB	52 fps +108%
Gigabyte P55W v5 GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe	36 fps +44%
Dell XPS 15 9550 i7 FHD GeForce GTX 960M, 6700HQ, Samsung PM951 NVMe 512 GB	19 fps -24%
Asus N752VX-GC131T GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256	24 (17^min - 35^max) fps -4%

	low	med.	high	ultra
BioShock Infinite (2013)		138.3	126.9	49.5
Metro: Last Light (2013)		109.1	62.6	34
Thief (2014)		69.4	58.6	30
Batman: Arkham Knight (2015)		64	36	25
Rise of the Tomb Raider (2016)		55.3	30.3	25.2

	Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	Asus GL552JX-CN154H GeForce GTX 950M, 4720HQ, Micron M600 MTFDDAV128MBF	Asus N552VX-FY103T GeForce GTX 950M, 6700HQ, Toshiba MQ02ABD100H	Acer Aspire V3-575G-5093 GeForce 940M, 6200U, Toshiba MQ01ABD100	Lenovo Ideapad 500-15ACZ Radeon R6 M340DX, A10-8700P, Seagate Momentus SpinPoint M8 ST1000LM024	Asus ZenBook Pro UX501VW-DS71T GeForce GTX 960M, 6700HQ, Samsung SM951 MZVPV512HDGL m.2 PCI-e
Noise		5%	-1%	-4%	0%	4%
off / environment *	29.7		31.3 -5%	31.3 -5%	31.3 -5%
Idle Minimum *	33.2	30 10%	33.1 -0%	33.5 -1%	33.1 -0%	28.9 13%
Idle Average *	33.2	30 10%	33.2 -0%	34.8 -5%	33.3 -0%	28.9 13%
Idle Maximum *	33.3	31.3 6%	33.2 -0%	34.8 -5%	33.5 -1%	30.2 9%
Load Average *	36.6	36.9 -1%	37.7 -3%	41.4 -13%	38.9 -6%	41.8 -14%
Load Maximum *	44	44.7 -2%	43.4 1%	42 5%	38.9 12%	43.9 -0%

* ... smaller is better

Noise Level

Idle		33.2 / 33.2 / 33.3 dB(A)
DVD		37 / dB(A)
Load		36.6 / 44 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: BK Precision 732A (15 cm distance) environment noise: 29.7 dB(A)

Max. Load

Idle


44.4 °C	44.2 °C	26.2 °C
45.6 °C	37.8 °C	27.2 °C
31.2 °C	31.6 °C	28.6 °C

Maximum: 45.6 °C
Average: 35.2 °C


24.6 °C	34.8 °C	41.6 °C
26.4 °C	33 °C	45.2 °C
29.4 °C	29.6 °C	25.6 °C

Maximum: 45.2 °C
Average: 32.2 °C

Power Supply (max.) 47 °C | Room Temperature 20 °C | Fluke 62 Mini IR Thermometer

(±) The average temperature for the upper side under maximal load is 35.2 °C / 95 F, compared to the average of 33.8 °C / 93 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 45.6 °C / 114 F, compared to the average of 40.4 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 45.2 °C / 113 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 28.4 °C / 83 F, compared to the device average of 33.8 °C / 93 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (33.2 °C / 91.8 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-4.3 °C / -7.8 F).

	Asus GL552VW-DH74 GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB	Asus GL552JX-CN154H GeForce GTX 950M, 4720HQ, Micron M600 MTFDDAV128MBF	Asus N552VX-FY103T GeForce GTX 950M, 6700HQ, Toshiba MQ02ABD100H	Acer Aspire V3-575G-5093 GeForce 940M, 6200U, Toshiba MQ01ABD100	Lenovo Ideapad 500-15ACZ Radeon R6 M340DX, A10-8700P, Seagate Momentus SpinPoint M8 ST1000LM024	Asus Zenbook Pro UX501JW-FI218H GeForce GTX 960M, 4720HQ, SanDisk SD7SN3Q128G1002
Power Consumption		35%	34%	56%	54%	13%
Idle Minimum *	15.9	6.2 61%	7 56%	6.2 61%	6.8 57%	15.6 2%
Idle Average *	20.3	10.3 49%	10.9 46%	9.5 53%	10.5 48%	20.5 -1%
Idle Maximum *	27.9	12.2 56%	12.9 54%	11 61%	11 61%	21.2 24%
Load Average *	79.4	77 3%	72 9%	36 55%	41.6 48%	75.8 5%
Load Maximum *	114.2	105 8%	109 5%	58 49%	51 55%	72.9 36%

* ... smaller is better

Power Consumption

Off / Standby	0.875 / 1.32 Watt
Idle	15.9 / 20.3 / 27.9 Watt
Load	79.4 / 114.2 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Asus GL552VW-DH74 48 Wh	Asus GL552JX-CN154H 48 Wh	Asus N552VX-FY103T 44 Wh	Acer Aspire V3-575G-5093 37 Wh	Lenovo Ideapad 500-15ACZ 32 Wh	Asus ZenBook Pro UX501VW-DS71T 96 Wh
Battery Runtime		50%	70%	99%	40%	185%
Reader / Idle	182	223 23%	357 96%	426 134%	365 101%	689 279%
WiFi v1.3	127	221 74%	268 111%	237 87%	183 44%	379 198%
Load	66	100 52%	68 3%	116 76%	49 -26%	117 77%
WiFi				237

Battery Runtime

Idle (without WLAN, min brightness)		3h 02min
WiFi Websurfing		2h 07min
Load (maximum brightness)		1h 06min

Pros

+ 高品质磨砂IPS屏幕；准确的灰阶和色彩

+ 出厂已超频的显卡；出色的游戏性能

+ 优秀的负载下加速性能

+ 两个硬盘槽（M.2和2.5寸SATA3）

+ 易于维护更新的硬盘槽和内存槽设计

+ 明亮的屏幕背光和出色的对比度

+ USB 3.1第一代C型接口

+ 可更换电池

+ 无屏幕闪烁

Cons

- 大部分内部组件不易于维护

- 高功耗；电池续航短

- 无原生Thunderbolt 3支持

- 有一定程度的屏幕漏光问题

- 机身易于沾染指纹

- 系统风扇不会停转

- 不支持NVMe固态硬盘

- 笨重

- 扬声器效果较差

In review: Asus GL552VW-DH74. Test model provided by Xotic PC.

我们的测试和结论基于笔记本电脑的出厂状态。由于Xotic PC机型在出厂时就已经超频，可以直接使用，我们的散热、风扇噪音、性能和电池续航测试的结果可能会和普通版GL552VW有所不同。实际上，Xotic PC GL552VW的显卡性能明显高于其他使用标准版GTX 960M的机型，不过风扇噪音、功耗和电池续航也相对受到了影响。这些缺点大概不会对准备将笔记本电脑作为桌面游戏设备使用的用户造成太大问题。

如果用户更喜欢紧凑轻盈的机身，则可以放弃华硕GL552，考虑微星GE62。这台微星笔记本电脑也更容易维护，外观更前卫，但是散热系统较弱，负载下的机身温度将会更高。

GL552VW的最大问题是重量和尺寸。如果用户准备将它一直放在桌面当作游戏本使用的话，这台华硕设备提供了出色的1080p IPS屏幕，优秀的超频空间和坚固的机身。它缩水的功能性相比售价更高的华硕G752或微星GT72S十分明显。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Asus GL552VW-DH74 - 2016-04-18 04/18/2016 v5.1^(old)
Allen Ngo

Chassis

76 / 98 → 78%

Keyboard

82%

Pointing Device

85%

Connectivity

50 / 81 → 62%

Weight

59 / 10-66 → 88%

Battery

64%

Display

85%

Games Performance

84%

Application Performance

90%

Temperature

88 / 95 → 93%

Noise

80 / 90 → 89%

Audio

64%

Average

76%

80%

Gaming - Weighted Average

Pricecompare

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5190 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 华硕 GL552VW Xotic PC版笔记本电脑简短评测

Allen Ngo, 2016-04- 9 (Update: 2020-06- 8)

华硕 GL552VW Xotic PC版 笔记本电脑简短评测

Display Response Times

Screen Flickering / PWM (Pulse-Width Modulation)

Pros

Cons

Pricecompare

华硕 GL552VW Xotic PC版笔记本电脑简短评测
