联想 E31-80 (6200U, 高清) 笔记本电脑简短评测

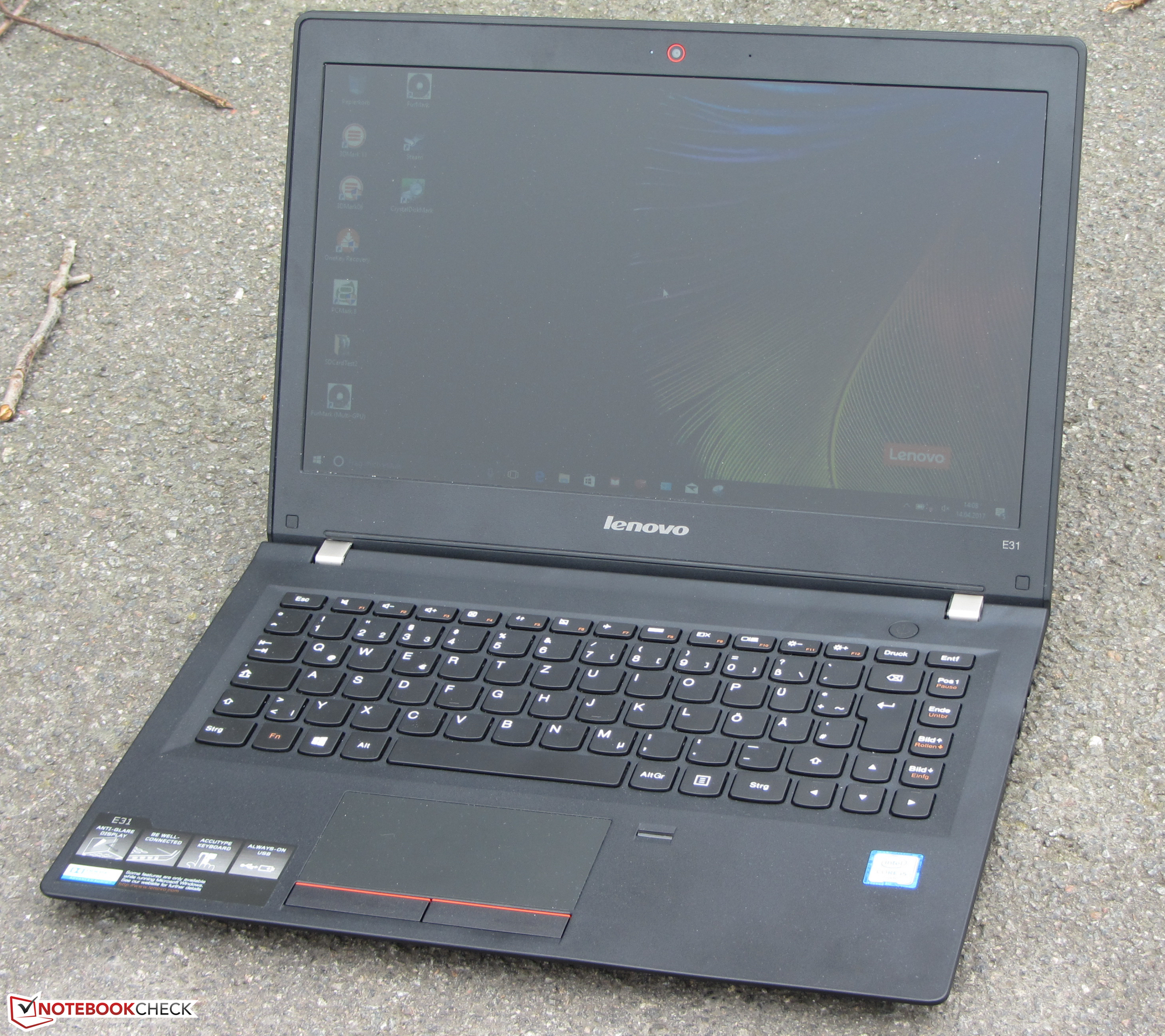

Lenovo E31-80 80MX0107GE (E31 Series)
Processor
Intel Core i5-6200U 2 x 2.3 - 2.8 GHz, Skylake
Graphics adapter
Intel HD Graphics 520, Core: 950 MHz, 单通道, 21.20.16.4550
Memory
8 GB
, DDR3-1600, 单通道, 一个内存槽（已占用）
Display
13.30 inch 16:9, 1366 x 768 pixel 118 PPI, AU Optronics B133XTN01.6, TN LED, glossy: no
Mainboard
Intel Skylake-U Premium PCH
Storage
Samsung MZYTY256HDHP, 256 GB
Weight
1.59 kg, Power Supply: 292 g
Price
599 Euro
Links
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
Connectivity
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| HP ProBook 430 G4-Y8B47EA | |
| Asus X302UV-FN016T | |
| Lenovo E31-80 80MX0107GE | |
| Acer Aspire ES1-332-P91H | |
| Medion Akoya S3409-MD60234 | |
| Lenovo E31-70 80KX015RGE | |
| maximum AS SSD Seq Read Test (1GB) | |
| HP ProBook 430 G4-Y8B47EA | |
| Asus X302UV-FN016T | |
| Acer Aspire ES1-332-P91H | |
| Lenovo E31-70 80KX015RGE | |
| Lenovo E31-80 80MX0107GE | |
| Medion Akoya S3409-MD60234 | |
| Networking | |
| iperf3 transmit AX12 | |
| Lenovo E31-80 80MX0107GE | |
| iperf3 receive AX12 | |
| Lenovo E31-80 80MX0107GE | |
| iperf Client (transmit) TCP 1 m | |
| Medion Akoya S3409-MD60234 (jseb) | |
| Acer Aspire ES1-332-P91H (jseb) | |
| HP ProBook 430 G4-Y8B47EA | |
| iperf Server (receive) TCP 1 m | |
| Medion Akoya S3409-MD60234 (jseb) | |
| HP ProBook 430 G4-Y8B47EA | |
| Acer Aspire ES1-332-P91H (jseb) | |
| |||||||||||||||||||||||||
AU Optronics B133XTN01.6 tested with X-Rite i1Pro 2
Maximum: 234 cd/m² (Nits) Average: 222.4 cd/m² Minimum: 1.2 cd/m²Brightness Distribution: 87 %
Center on Battery: 234 cd/m²
Contrast: 433:1 (Black: 0.54 cd/m²)
ΔE ColorChecker Calman: 12.09 | ∀{0.5-29.43 Ø4.79}
ΔE Greyscale Calman: 13 | ∀{0.09-98 Ø5}
56% sRGB (Argyll 1.6.3 3D)
36% AdobeRGB 1998 (Argyll 1.6.3 3D)
38.58% AdobeRGB 1998 (Argyll 3D)
56.2% sRGB (Argyll 3D)
37.35% Display P3 (Argyll 3D)
Gamma: 2.78
CCT: 15562 K
| Lenovo E31-80 80MX0107GE TN LED, 1366x768, 13.3" | Lenovo E31-70 80KX015RGE TN, 1366x768, 13.3" | Acer Aspire ES1-332-P91H TN LED, 1366x768, 13.3" | Asus X302UV-FN016T TN LED, 1366x768, 13.3" | Medion Akoya S3409-MD60234 IPS, 3200x1800, 13.3" | HP ProBook 430 G4-Y8B47EA IPS, 1920x1080, 13.3" | |
|---|---|---|---|---|---|---|
| Display | 32% | 20% | 30% | 64% | 3% | |
| Display P3 Coverage (%) | 37.35 | 49.25 32% | 44.72 20% | 48.37 30% | 64.6 73% | 38.55 3% |
| sRGB Coverage (%) | 56.2 | 73.5 31% | 67.3 20% | 72.6 29% | 87.3 55% | 57.8 3% |
| AdobeRGB 1998 Coverage (%) | 38.58 | 50.9 32% | 46.2 20% | 49.98 30% | 63.8 65% | 39.85 3% |
| Response Times | 11% | -2% | 9% | 14% | 1% | |
| Response Time Grey 50% / Grey 80% * (ms) | 44 ? | 44.4 ? -1% | 39 ? 11% | 42 ? 5% | 34 ? 23% | 42.4 ? 4% |
| Response Time Black / White * (ms) | 26 ? | 20.4 ? 22% | 30 ? -15% | 23 ? 12% | 25 ? 4% | 26.4 ? -2% |
| PWM Frequency (Hz) | 200 ? | 1000 ? | 50 ? | |||
| Screen | 7% | 3% | 25% | 35% | 32% | |
| Brightness middle (cd/m²) | 234 | 206 -12% | 255 9% | 218 -7% | 295 26% | 253 8% |
| Brightness (cd/m²) | 222 | 200 -10% | 232 5% | 210 -5% | 283 27% | 249 12% |
| Brightness Distribution (%) | 87 | 84 -3% | 82 -6% | 88 1% | 88 1% | 92 6% |
| Black Level * (cd/m²) | 0.54 | 0.6 -11% | 0.52 4% | 0.5 7% | 0.65 -20% | 0.32 41% |
| Contrast (:1) | 433 | 343 -21% | 490 13% | 436 1% | 454 5% | 791 83% |
| Colorchecker dE 2000 * | 12.09 | 9.2 24% | 13.12 -9% | 3.89 68% | 4 67% | 5.28 56% |
| Colorchecker dE 2000 max. * | 20.25 | 14.8 27% | 22.98 -13% | 7.11 65% | 7.26 64% | 13.66 33% |
| Greyscale dE 2000 * | 13 | 10.94 16% | 15.01 -15% | 4.9 62% | 3.38 74% | 3.8 71% |
| Gamma | 2.78 79% | 2.76 80% | 2.41 91% | 2.41 91% | 2.38 92% | 2.3 96% |
| CCT | 15562 42% | 13282 49% | 24382 27% | 7860 83% | 6520 100% | 6646 98% |
| Color Space (Percent of AdobeRGB 1998) (%) | 36 | 46.92 30% | 43 19% | 46 28% | 57 58% | 36.7 2% |
| Color Space (Percent of sRGB) (%) | 56 | 73.36 31% | 68 21% | 73 30% | 85 52% | 57.6 3% |
| Total Average (Program / Settings) | 17% /
12% | 7% /
6% | 21% /
24% | 38% /
38% | 12% /
22% |
* ... smaller is better
Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM not detected | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8163 (minimum: 5 - maximum: 343500) Hz was measured. | ||
Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 26 ms ... rise ↗ and fall ↘ combined | ↗ 20 ms rise |  |
| ↘ 6 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 61 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.3 ms). | ||

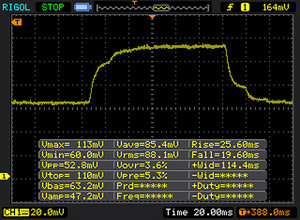

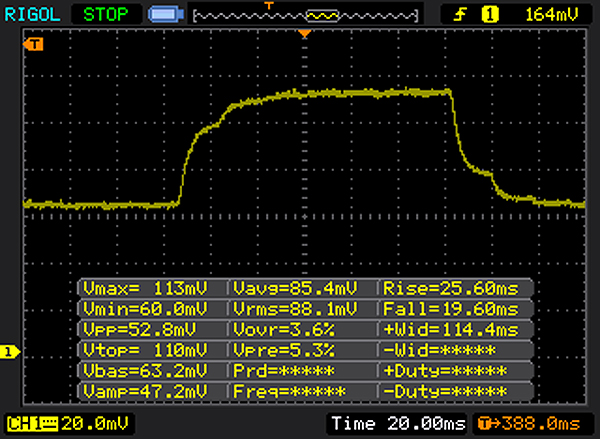

| ↔ Response Time 50% Grey to 80% Grey | ||
| 44 ms ... rise ↗ and fall ↘ combined | ↗ 25 ms rise |  |
| ↘ 19 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 72 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (31.7 ms). | ||
Cinebench R15 CPU Multi 64 Bit
| Cinebench R15 | |
| CPU Single 64Bit | |
| Medion Akoya S3409-MD60234 | |
| HP ProBook 430 G4-Y8B47EA | |
| Lenovo E31-80 80MX0107GE | |
| Asus X302UV-FN016T | |
| Lenovo E31-70 80KX015RGE | |
| Acer Aspire ES1-332-P91H | |
| CPU Multi 64Bit | |
| Medion Akoya S3409-MD60234 | |
| HP ProBook 430 G4-Y8B47EA | |
| Asus X302UV-FN016T | |
| Lenovo E31-80 80MX0107GE | |
| Lenovo E31-70 80KX015RGE | |
| Acer Aspire ES1-332-P91H | |
| Cinebench R10 | |
| Rendering Multiple CPUs 32Bit | |
| Medion Akoya S3409-MD60234 | |
| Asus X302UV-FN016T | |
| Lenovo E31-80 80MX0107GE | |
| Lenovo E31-70 80KX015RGE | |
| Acer Aspire ES1-332-P91H | |
| Rendering Single 32Bit | |
| Medion Akoya S3409-MD60234 | |
| Asus X302UV-FN016T | |
| Lenovo E31-80 80MX0107GE | |
| Lenovo E31-70 80KX015RGE | |
| Acer Aspire ES1-332-P91H | |
| Geekbench 3 | |
| 32 Bit Single-Core Score | |
| Medion Akoya S3409-MD60234 | |
| Asus X302UV-FN016T | |
| Lenovo E31-80 80MX0107GE | |
| Acer Aspire ES1-332-P91H | |
| 32 Bit Multi-Core Score | |
| Medion Akoya S3409-MD60234 | |
| Asus X302UV-FN016T | |
| Lenovo E31-80 80MX0107GE | |
| Acer Aspire ES1-332-P91H | |
| Geekbench 4.0 | |
| 64 Bit Single-Core Score | |
| Medion Akoya S3409-MD60234 | |
| Lenovo E31-80 80MX0107GE | |
| Acer Aspire ES1-332-P91H | |
| 64 Bit Multi-Core Score | |
| Medion Akoya S3409-MD60234 | |
| Lenovo E31-80 80MX0107GE | |
| Acer Aspire ES1-332-P91H | |
| Geekbench 4.4 | |
| 64 Bit Single-Core Score | |
| Lenovo E31-80 80MX0107GE | |
| 64 Bit Multi-Core Score | |
| Lenovo E31-80 80MX0107GE | |
| JetStream 1.1 - Total Score | |
| Medion Akoya S3409-MD60234 | |
| HP ProBook 430 G4-Y8B47EA | |
| Asus X302UV-FN016T | |
| Lenovo E31-80 80MX0107GE | |
| Lenovo E31-70 80KX015RGE | |
| Acer Aspire ES1-332-P91H | |
| PCMark 8 Home Score Accelerated v2 | 3393 points | |
Help | ||
| PCMark 8 - Home Score Accelerated v2 | |
| HP ProBook 430 G4-Y8B47EA | |
| Asus X302UV-FN016T | |
| Lenovo E31-80 80MX0107GE | |
| Medion Akoya S3409-MD60234 | |
| Lenovo E31-70 80KX015RGE | |
| Acer Aspire ES1-332-P91H | |
Samsung MZYTY256HDHP
Sequential Read:
522 MB/s
Sequential Write:
457.4 MB/s
512K Read:
398.1 MB/s
512K Write:
303.6 MB/s
4K Read:
35.05 MB/s
4K Write:
88 MB/s
4K QD32 Read:
299.7 MB/s
4K QD32 Write:
229.8 MB/s
| Lenovo E31-80 80MX0107GE Samsung MZYTY256HDHP | Lenovo E31-70 80KX015RGE Seagate ST500LM000 Solid State Hybrid Drive | Acer Aspire ES1-332-P91H WDC Slim WD10SPCX-21KHST0 | Asus X302UV-FN016T Hynix HFS128G3MND | Medion Akoya S3409-MD60234 Phison S10C-512G | HP ProBook 430 G4-Y8B47EA SanDisk SD8SNAT256G1002 | |
|---|---|---|---|---|---|---|
| CrystalDiskMark 3.0 | -89% | -91% | -36% | 8% | -18% | |
| Read Seq (MB/s) | 522 | 116.4 -78% | 105.1 -80% | 428.2 -18% | 522 0% | 505 -3% |
| Write Seq (MB/s) | 457.4 | 120.7 -74% | 103.1 -77% | 178.6 -61% | 384.4 -16% | 328.9 -28% |
| Read 512 (MB/s) | 398.1 | 37.01 -91% | 33.89 -91% | 282.6 -29% | 412 3% | 313.6 -21% |
| Write 512 (MB/s) | 303.6 | 73.1 -76% | 49.7 -84% | 179.1 -41% | 395.5 30% | 301 -1% |
| Read 4k (MB/s) | 35.05 | 0.507 -99% | 0.386 -99% | 6.559 -81% | 34.07 -3% | 21.69 -38% |
| Write 4k (MB/s) | 88 | 4.156 -95% | 1.095 -99% | 71.2 -19% | 100.9 15% | 80.4 -9% |
| Read 4k QD32 (MB/s) | 299.7 | 0.967 -100% | 0.91 -100% | 253 -16% | 316.3 6% | 132.2 -56% |
| Write 4k QD32 (MB/s) | 229.8 | 0.652 -100% | 1.149 -99% | 174 -24% | 286.4 25% | 258.8 13% |
| 3DMark 11 Performance | 1348 points | |
Help | ||
| 3DMark 11 - 1280x720 Performance GPU | |
| Asus X302UV-FN016T | |
| Medion Akoya S3409-MD60234 | |
| HP ProBook 430 G4-Y8B47EA | |
| Lenovo E31-80 80MX0107GE | |
| Lenovo E31-70 80KX015RGE | |
| Acer Aspire ES1-332-P91H | |
| low | med. | high | ultra | |
|---|---|---|---|---|
| BioShock Infinite (2013) | 35.4 | 21.1 | 17.2 |
Noise level
| Idle |
| 31.8 / 31.8 / 31.8 dB(A) |
| Load |
| 35.7 / 34.2 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Audix TM1, Arta (15 cm distance) environment noise: 30.2 dB(A) | ||
(+) The average temperature for the upper side under maximal load is 30.8 °C / 87 F, compared to the average of 30.8 °C / 87 F for the devices in the class Subnotebook.
(±) The maximum temperature on the upper side is 40.2 °C / 104 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 45 °C / 113 F, compared to the average of 39.3 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 25.4 °C / 78 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26 °C / 78.8 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 28.2 °C / 82.8 F (+2.2 °C / 4 F).
(±) The maximum temperature on the upper side is 40.2 °C / 104 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 45 °C / 113 F, compared to the average of 39.3 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 25.4 °C / 78 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26 °C / 78.8 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 28.2 °C / 82.8 F (+2.2 °C / 4 F).
Lenovo E31-80 80MX0107GE audio analysis
(-) | not very loud speakers (71 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12.1% lower than median
(±) | linearity of bass is average (7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.2% away from median
(+) | mids are linear (3.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.1% away from median
(+) | highs are linear (5.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (13.4% difference to median)
Compared to same class
» 22% of all tested devices in this class were better, 6% similar, 73% worse
» The best had a delta of 5%, average was 18%, worst was 53%
Compared to all devices tested
» 13% of all tested devices were better, 4% similar, 83% worse
» The best had a delta of 4%, average was 24%, worst was 134%
Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis
(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 7% of all tested devices in this class were better, 2% similar, 91% worse
» The best had a delta of 5%, average was 18%, worst was 53%
Compared to all devices tested
» 4% of all tested devices were better, 1% similar, 94% worse
» The best had a delta of 4%, average was 24%, worst was 134%
Power Consumption
| Off / Standby | 0.47 / 0.48 Watt |
| Idle | 5.6 / 6.8 / 7.5 Watt |
| Load |
26.9 / 26.4 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Battery Runtime - WiFi Websurfing | |
| HP ProBook 430 G4-Y8B47EA | |
| Lenovo E31-80 80MX0107GE | |
| Asus X302UV-FN016T | |
| Acer Aspire ES1-332-P91H | |
| Medion Akoya S3409-MD60234 | |
| Lenovo E31-70 80KX015RGE | |
Pros
+ 雾面屏幕
+ 高速固态硬盘
+ 运行安静
+ 电池续航优秀
Cons
- 昏暗、对比度低、视角窄的屏幕
- 仅一年质保
- 不支持USB-C
联想为E31-80搭配了一颗Skylake架构酷睿i5处理器。它为办公和上网浏览提供了绰绰有余的性能。相比Broadwell架构的E31-70系列机型，Skylake机型的性能仅仅略高。它的处理器对电池续航的影响反而更大。
Skylake架构处理器明显改进了这台设备的电池续航时间。

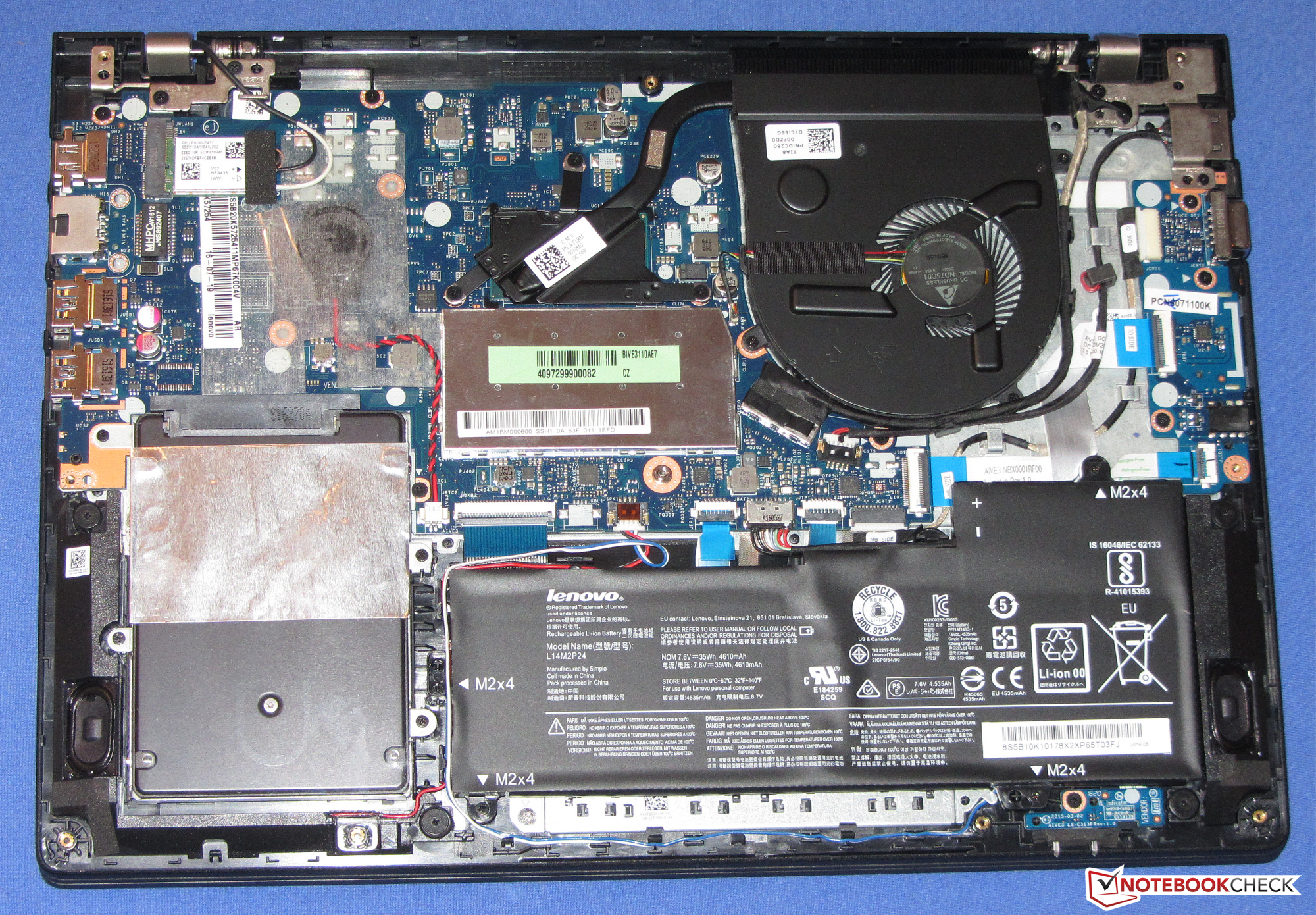

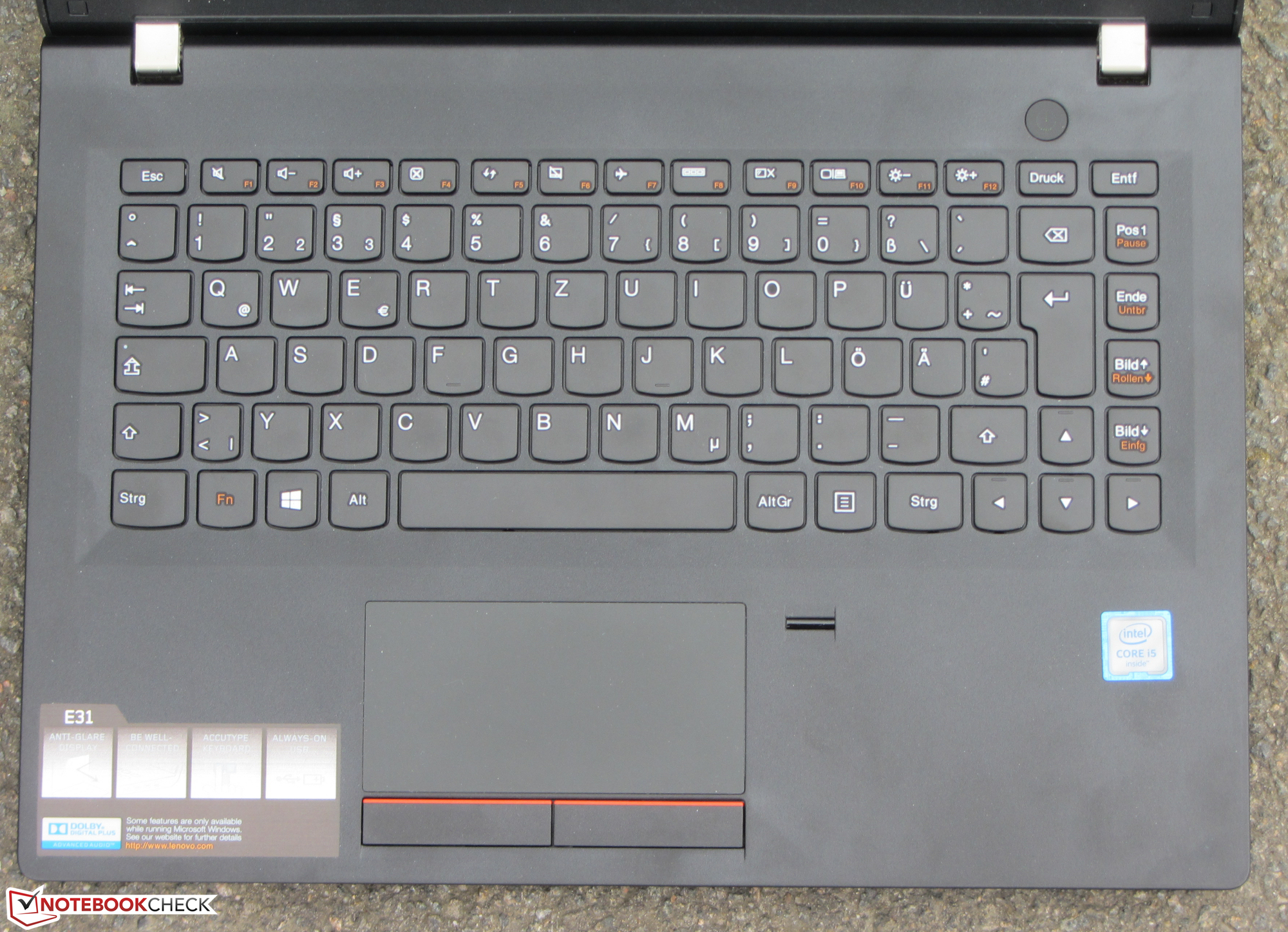

这台笔记本电脑在运行中可以保持安静，且不会过热。一块固态硬盘保证了迅捷的系统响应。用户也可以打开机身自行升级更换固态硬盘。它搭配的键盘质量优秀，可以适合长时间文字输入用途。
和很多笔记本电脑一样，E31-80的最大弱点在于屏幕品质。联想为它搭配的是一块低亮度、低对比度、可视角度很窄的屏幕。它的屏幕明显无法得到任何称赞。同时这台设备仅仅一年的质保期也让我们略感不满。对于一款今年的新机型我们期待至少有两年的质保。同时，它也没有提供USB-C接口。
注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。
Lenovo E31-80 80MX0107GE
- 04/19/2017 v6 (old)
Sascha Mölck
Subnotebook - Weighted Average
Price comparison
