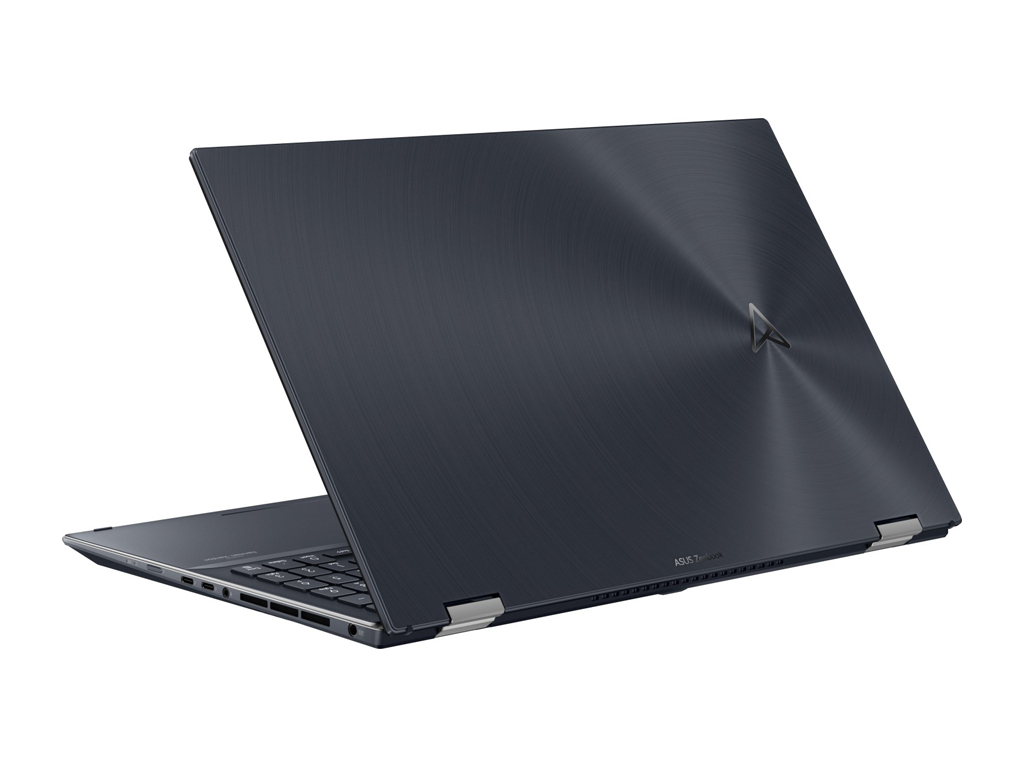

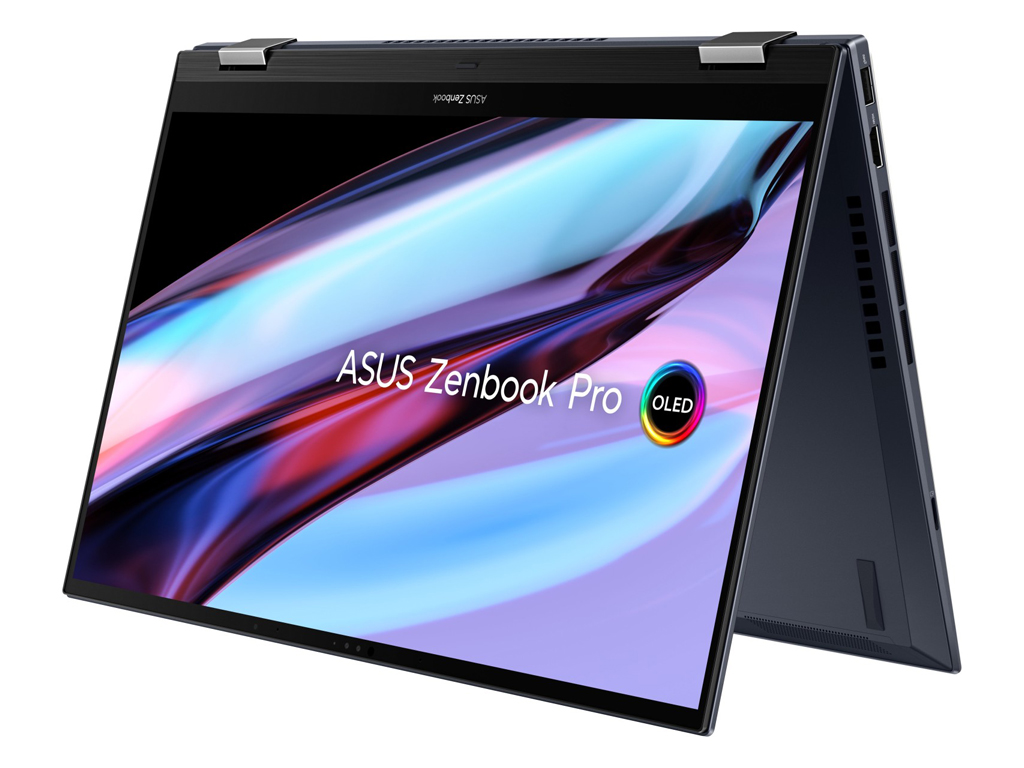

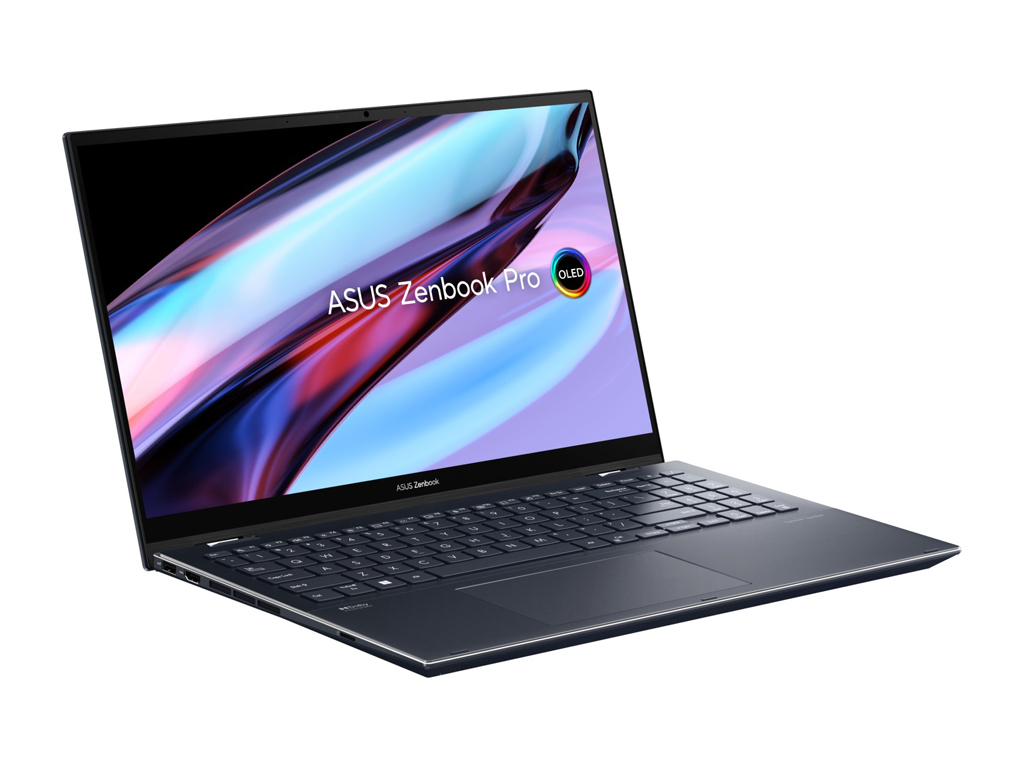

Asus ZenBook Pro 15 Flip UP6502ZD, i7-12700H

Specifications

Asus ZenBook Pro 15 Flip UP6502ZD, i7-12700H
Asus ZenBook Pro 15 Flip UP6502ZD, i7-12700H (Zenbook Pro 15 Series)
Processor
Intel Core i7-12700H 14 x 1.7 - 4.7 GHz, Alder Lake-H
Graphics adapter
Intel Arc A370M - 4 GB VRAM, GDDR6
Memory
16 GB
, DDR5-4800
Display
15.60 inch 16:9, 2880 x 1620 pixel 212 PPI, Capacitive, native pen support, OLED, glossy: yes, HDR, 120 Hz
Storage
1TB SSD
Connections
1 USB 3.0 / 3.1 Gen1, 2 Thunderbolt, 1 HDMI, Audio Connections: 3.5mm, Card Reader: microSD
Networking
802.11 a/b/g/n/ac/ax (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.0
Size
height x width x depth (in mm): 18.9 x 355.2 x 229
Battery
96 Wh Lithium-Ion, 6-cell
Operating System
Microsoft Windows 11 Home
Camera
Webcam: HD 720p IR
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes
Weight
1.8 kg



Pricecompare

Average Score: 50% - poor
Average of 2 scores (from 5 reviews)

Reviews for the Asus ZenBook Pro 15 Flip UP6502ZD, i7-12700H

[REVIEW] ASUS Zenbook Pro 15 Flip OLED (UP6502) - THE device for serious users
Source: Laptop Media English
Single Review, online available, Medium, Date: 07/16/2023
ASUS Zenbook Pro 15 Flip OLED (UP6502) review – a diligent product for serious users
Source: Laptop Media English EN→zh-CN
The Zenbook Pro 15 Flip OLED (UP6502) runs really quickly, considering its form factor. We see almost no implications derived from the small volume inside its chassis. The main reason for that, by the way, is the ErgoLift mechanism, and the quite large cooling capacity. Speaking of which, the Intel Arc A370M GPU is no match for the dual-heat pipe cooling solution. However, it is no match for the RTX 3050 too, especially in games. Whether it’s because of the suboptimal driver support, or this is just how much the hardware can do, we don’t know. What we know, is that ASUS Zenbook Pro 15 Flip OLED (UP6502)’s display has a high resolution, comfortable viewing angles, and blazingly quick pixel response times. They are paired with a 120Hz refresh rate, which results in an incredibly smooth viewing experience. Its full sRGB and DCI-P3 coverage mean that you are going to look at a super attractive image. Moreover, its color accuracy is good-enough for professional work. One thing that is not so great, however, is the presence of PWM. Again, “MyASUS” takes care of that with its “Flicker-Free Dimming” function. In addition to that, you get a long battery life. The 96Wh battery will get you through more than 12 hours of Web browsing, or about 11 hours of video playback on a single charge. Furthermore, you can choose from three performance presets, which do have an impact on performance, noise, and battery longevity. Naturally, noise is directly attached to comfort. This notebook is indeed, really comfortable. Its keyboard is clicky, and has long key travel, while the touchpad is super smooth and accurate. While the device comes with two Thunderbolt 4 connectors, an HDMI 2.1 port, a USB Type-A 3.2 (Gen. 2) port, and a MicroSD card reader, its HDMI port is the 18Gbps unit, which ties it with the standard HDMI 2.0. Not in last place, there is the soldered memory problem. Well, it works as intended, but it can’t be upgraded. On the bright side, you can find one M.2 PCIe x4 slot for storage. We are also happy with the build quality of the product, its IR face recognition scanner, and of course – the stylus work. Ultimately, the Zenbook Pro 15 Flip OLED (UP6502) has its downsides, but it was really exciting using it, and we are confident that it will satisfy its target user base.
Single Review, online available, Very Long, Date: 02/07/2023
How to open ASUS Zenbook Pro 15 Flip OLED (UP6502) - disassembly and upgrade options
Source: Laptop Media English
Support, online available, Very Short, Date: 02/07/2023
60% ASUS ZenBook Pro 15 Flip OLED UP6502ZD-M8007W Review
Source: Tweakers Dutch NL→zh-CN
Single Review, online available, Very Short, Date: 02/06/2023
Rating: Total score: 60%
40% ASUS ZenBook Pro 15 Flip OLED UP6502ZD-M8007W Review
Source: Tweakers Dutch NL→zh-CN
User Review, online available, Very Short, Date: 01/22/2023
Rating: Total score: 40%

Comment

Intel A370M: Intel Arc A370M 是基于 Xe HPG 微架构的专用移动入门级显卡。它提供 8 个内核(128 个 ALU)、8 个光线追踪单元和 1550 MHz 的基本内核。TGP 额定功率在 35 至 50 瓦之间。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i7-12700H:

一个基于Alder-Lake的移动处理器,有6个性能核心和8个高效核心。性能核心提供超线程,允许20个线程进行处理。该处理器的工作频率为1.7至4.7 GHz,支持vPro。

» Further information can be found in our Comparison of Mobile Processsors.


15.60": 15到16寸是笔记本电脑的标准尺寸,产品型号最为丰富。» To find out how fine a display is, see our DPI List.


1.8 kg: 大部分12到16寸的亚笔记本电脑,超极本和轻盈标准笔记本电脑的重量在这个水平上。


» Further information can be found in our Notebook Purchase Guide.
