惠普 Z1 G2 AIO 工作站简短评测

Name: HP Z1 G2 G1X47EA
Brand: HP

紧凑的工作空间。 惠普的这台一体机工作站在产品线中已经有一段时间了。尽管机身紧凑，Z1的设计应与传统的桌面工作站在性能、可维护性和灵活性上都属于同一水平。我们测试了惠普Z1 G2可以满足哪些期待。

Tobias Winkler, ✓ Tanja Hinum (translated by Yuchen Wang), Published 12/30/2015 🇺🇸 🇩🇪 ...

Business Desktop Haswell Workstation Windows

Test device courtesy of HP Deutschland

Download your licensed rating image as PNG / SVG

HP Z1 G2 G1X47EA

Processor

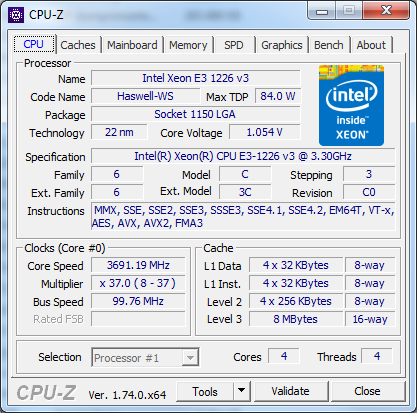

Intel Xeon E3-1226 v3 4 x 3.3 - 3.7 GHz, Haswell

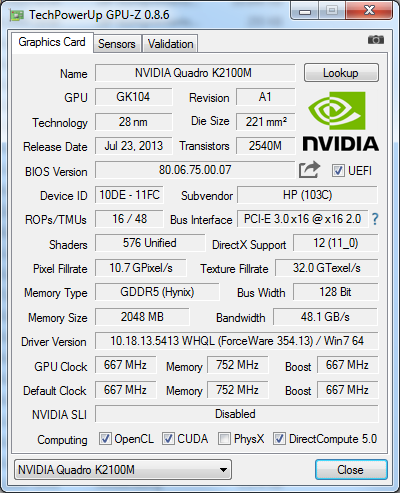

Graphics adapter

NVIDIA Quadro K2100M - 2048 MB VRAM, Core: 667 MHz, Memory: 752 MHz, Forceware 354.13 Win7/ 64

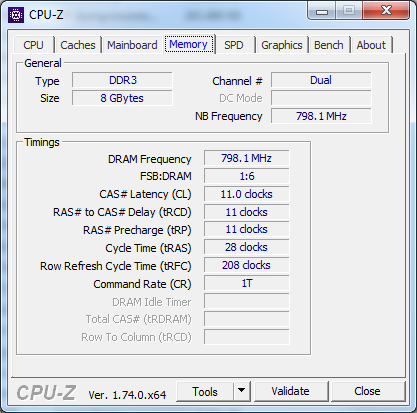

Memory

8 GB

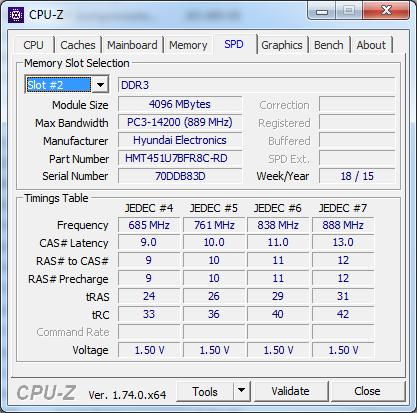

, 2x 4 GB PC3-14200 ECC, 两个空闲插槽, Hynix HMT451U7BFR8C-RD

Display

27.00 inch 16:9, 2560 x 1440 pixel, HWP192F, IPS LED, glossy: no

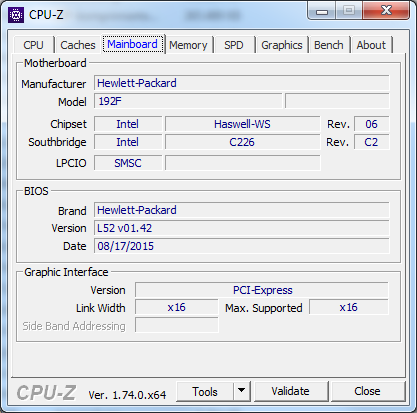

Mainboard

Intel Haswell WS

Storage

Micron M600 MTFDDAT256MBF mSATA, 256 GB

, 约 15 GB 系统恢复分区

Soundcard

Intel IDT High Definition Audio Controller

Connections

4 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 HDMI, Audio Connections: 音频输入输出, SPDIF, Card Reader: SD, SDXC, SDHC, MXM, 2x mSATA, 低音炮, 部件模块, 两块2.5寸硬盘或一块3.5寸硬盘

Networking

Intel I217-LM Gigabit Network Connection (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0

Optical drive

HP DVDRAM GTB0N

Size

height x width x depth (in mm): 528.3 x 660.4 x 419.1

Operating System

Microsoft Windows 7 Professional 64 Bit

Camera

Webcam: 1080p

Additional features

Speakers: 两个立体声扬声器 (4瓦), DTS Studio Sound, Keyboard: 桌面式键盘，包括数字键盘区, Keyboard Light: no, 鼠标, 36 Months Warranty

Weight

21.3 kg

Price

3700 Euro

Links

HP homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

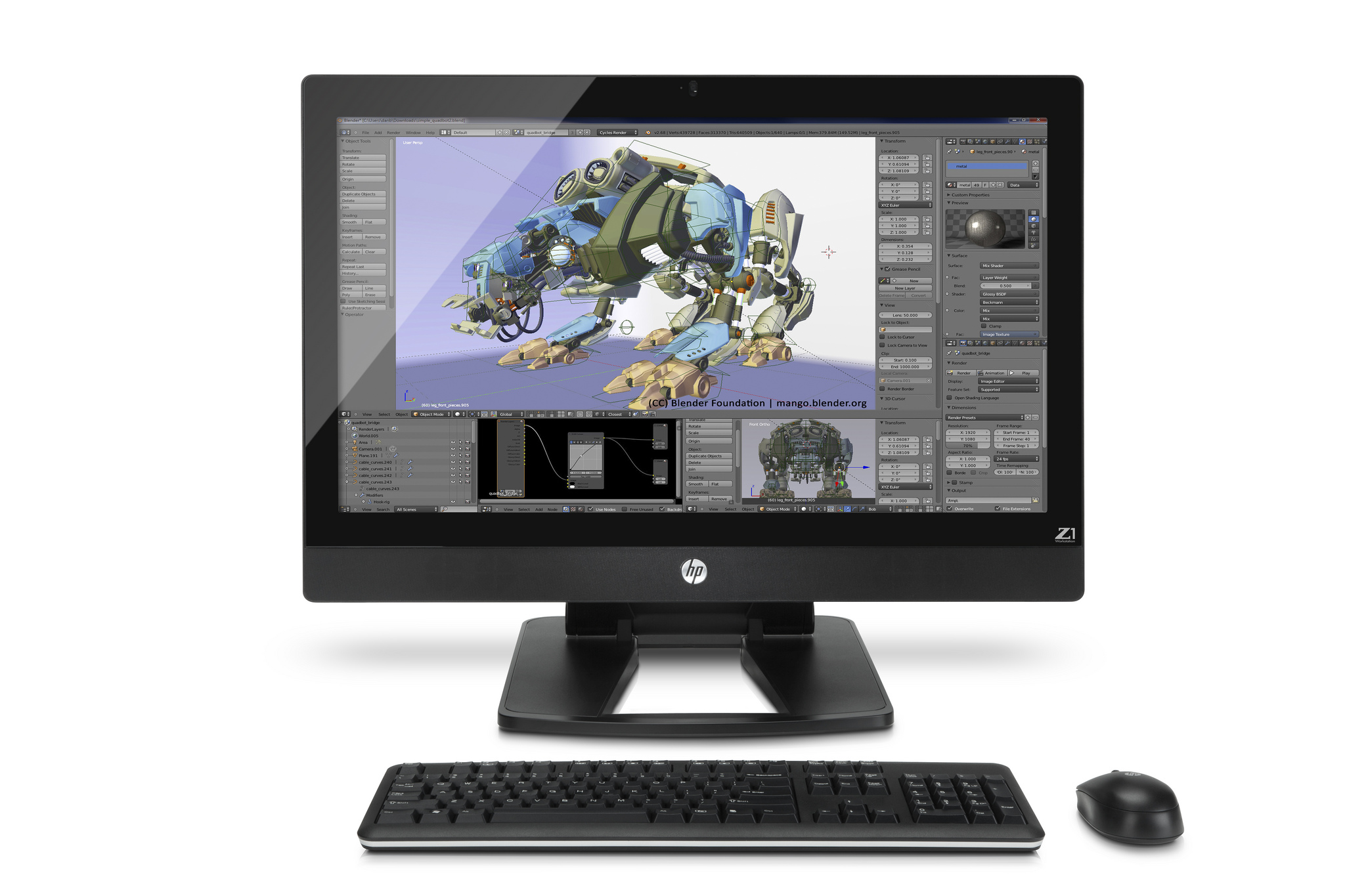

Picture HP: HP Z1 all-in-one workstation in a 27-inch size

Picture HP: The Z1 workstation is optionally available with touchscreen

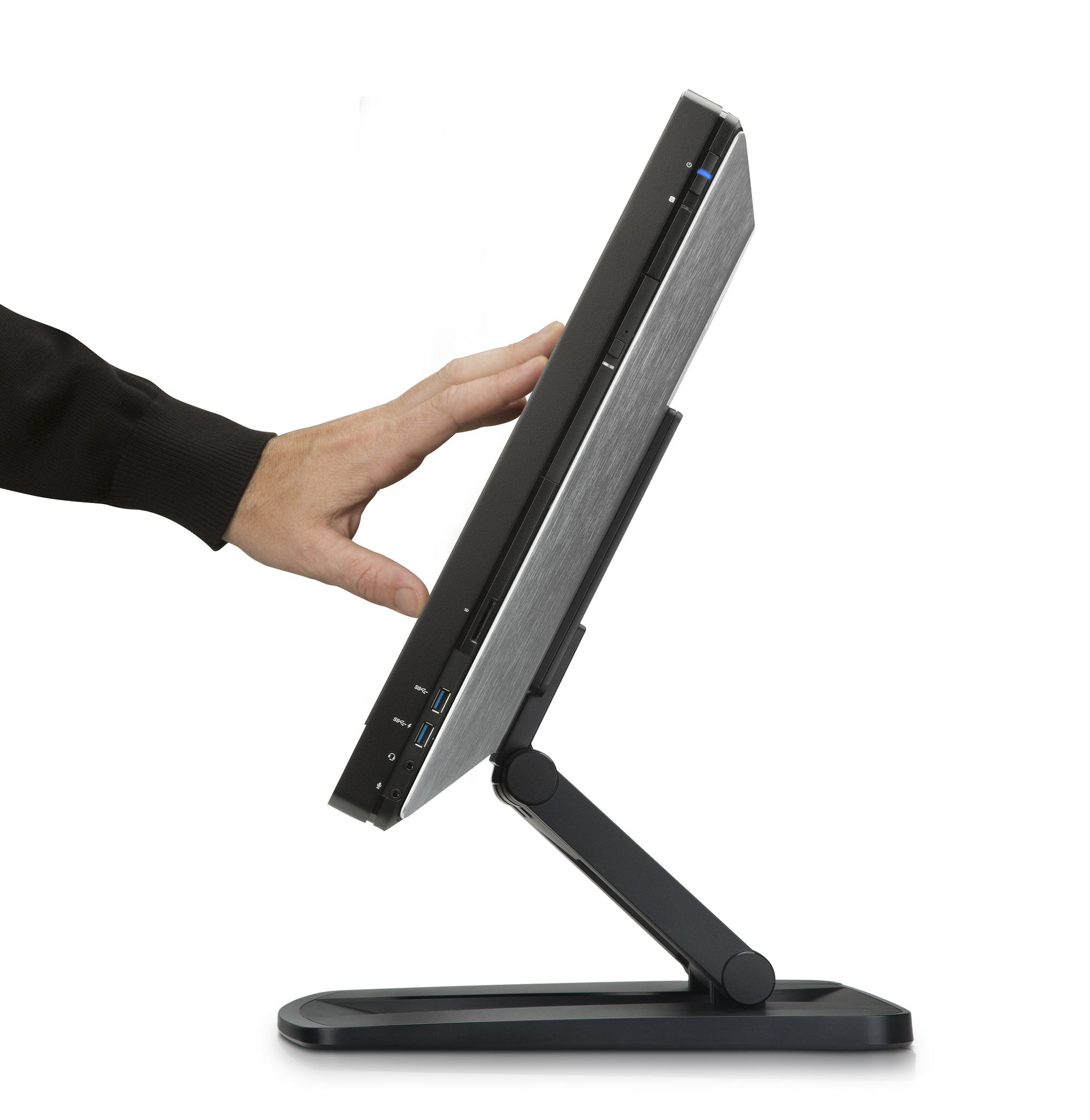

The screen can be tilted in multiple ways

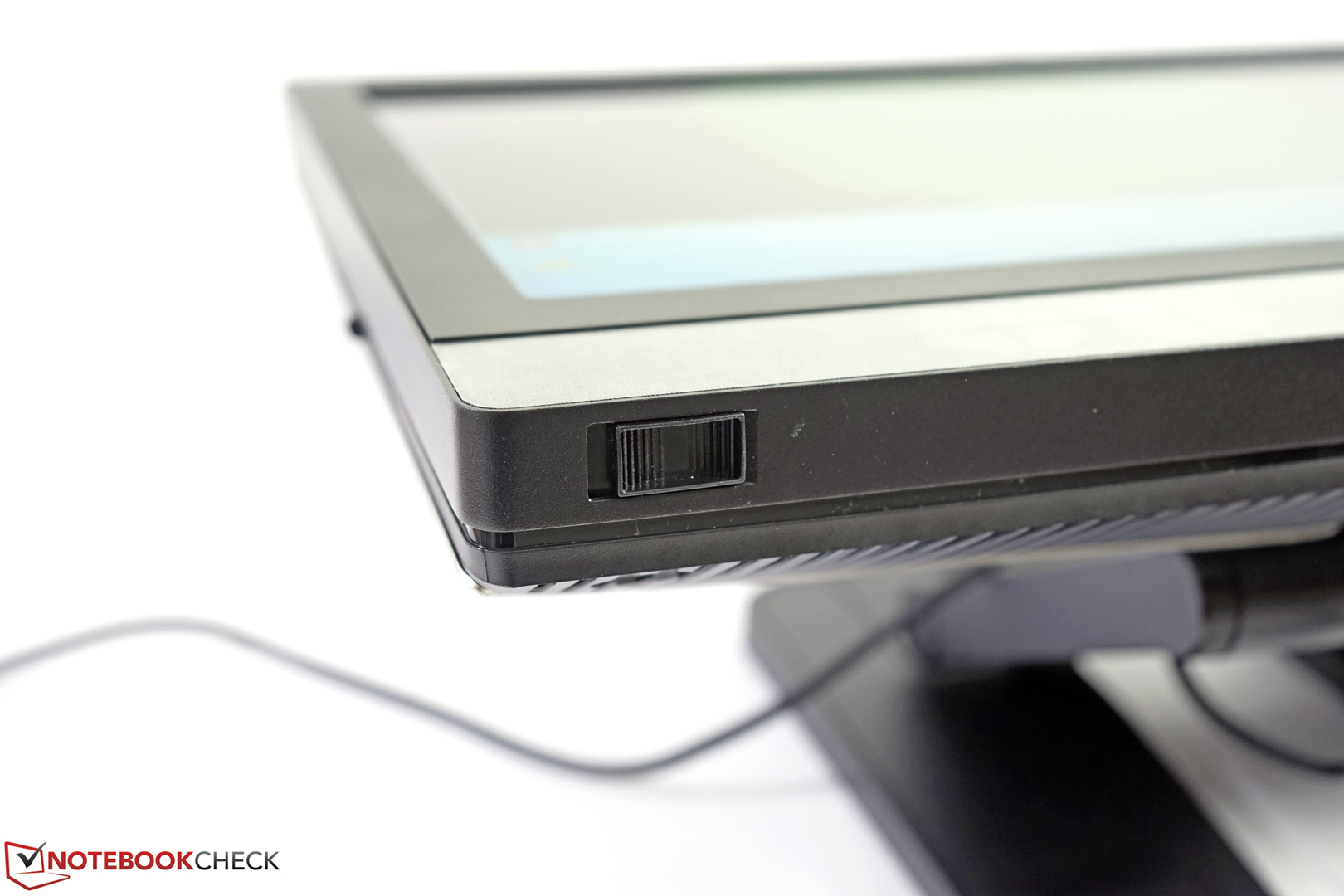

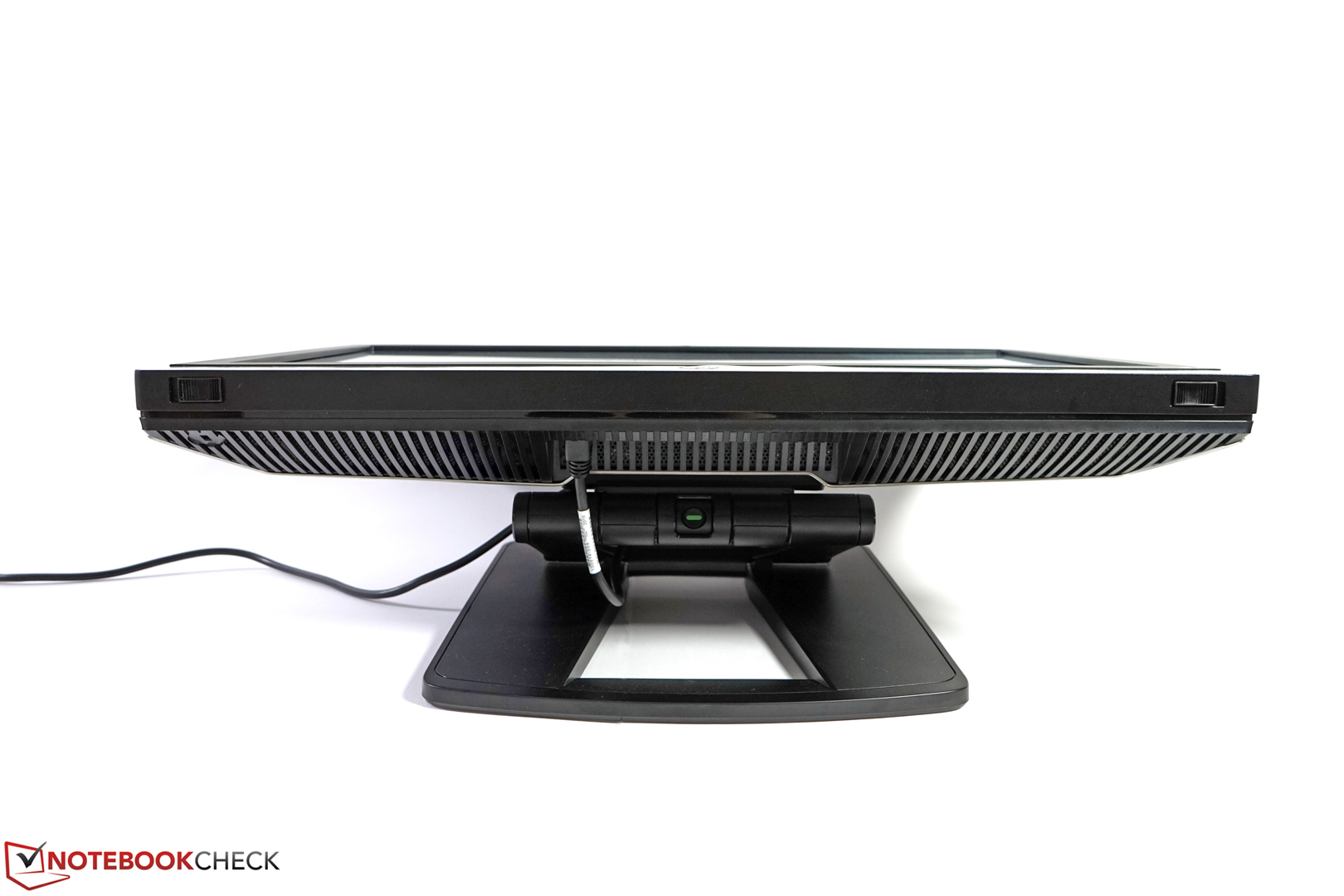

The casing can be opened via two unlocking slides

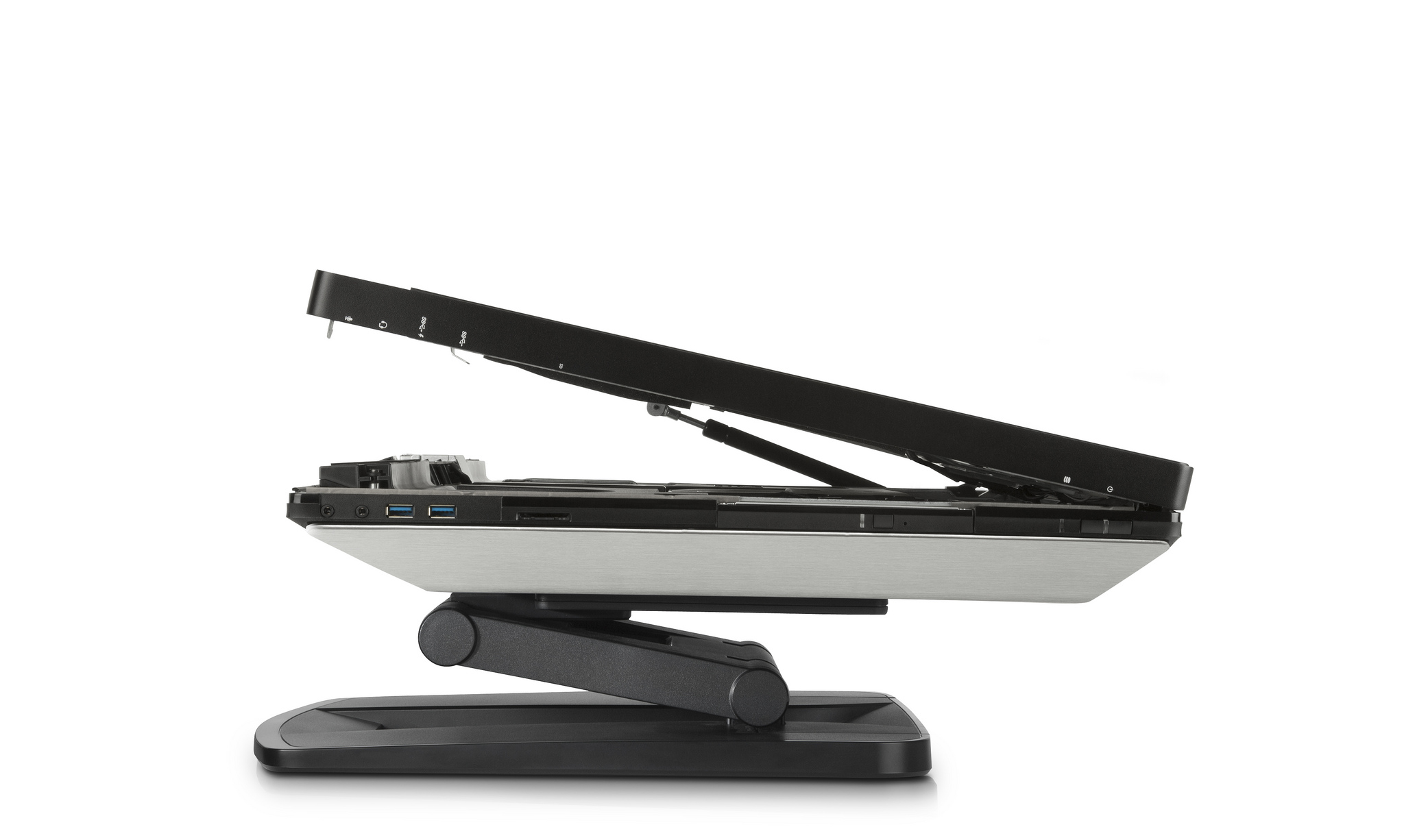

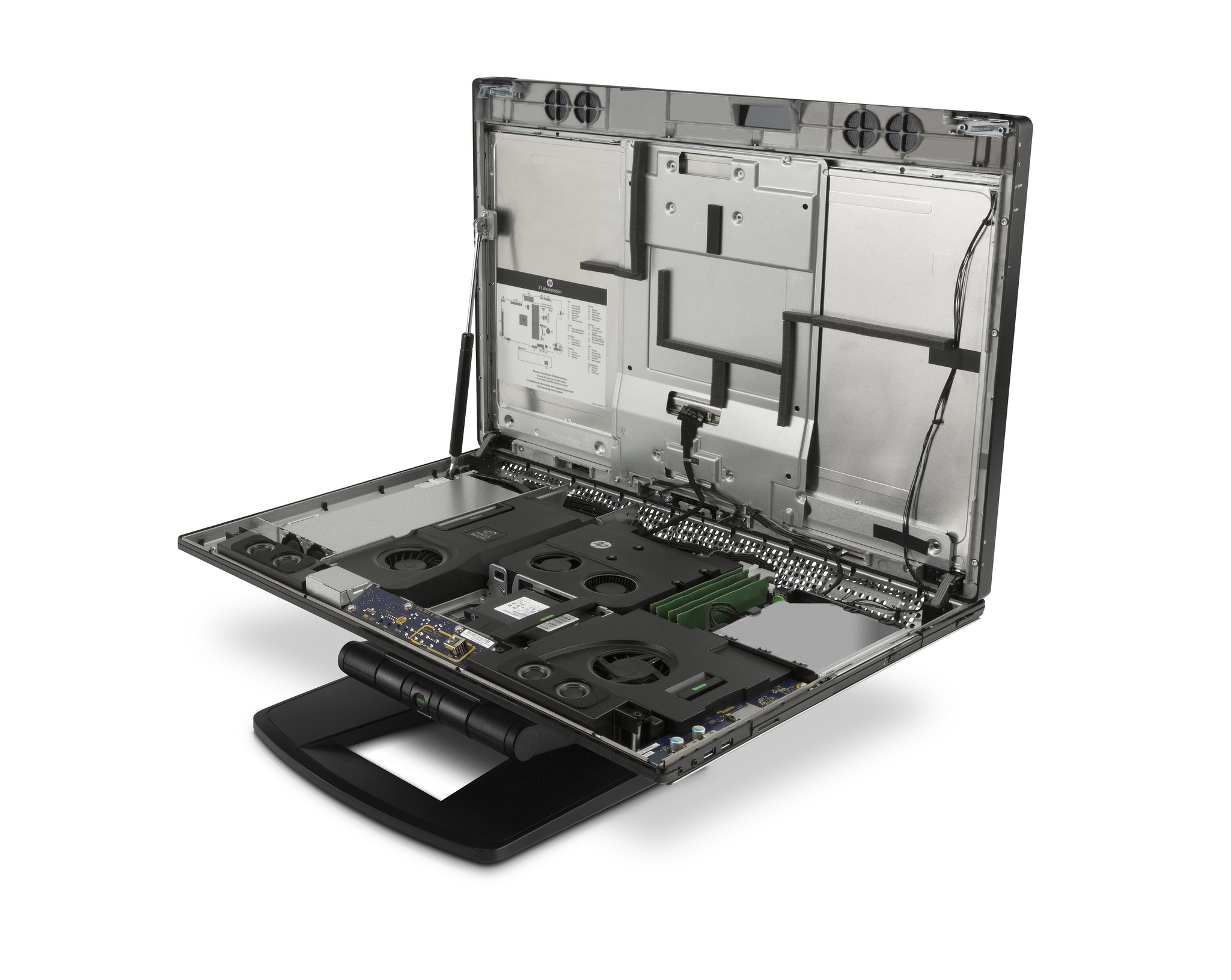

Picture HP: That enables easy access on the components

Picture HP: A lot is integrated in modular design, making it easy to upgrade or replace components


351 cd/m²	371 cd/m²	361 cd/m²
340 cd/m²	365 cd/m²	345 cd/m²
393 cd/m²	388 cd/m²	387 cd/m²

Distribution of brightness

HWP192F tested with X-Rite i1Pro 2

Maximum: 393 cd/m² (Nits) Average: 366.8 cd/m²
Brightness Distribution: 87 %
Contrast: 913:1 (Black: 0.4 cd/m²)
ΔE Color 4.68 | 0.5-29.43 Ø5
ΔE Greyscale 6.6 | 0.57-98 Ø5.3
99.69% sRGB (Argyll 1.6.3 3D)
66.26% AdobeRGB 1998 (Argyll 1.6.3 3D)
74.4% AdobeRGB 1998 (Argyll 2.2.0 3D)
99.7% sRGB (Argyll 2.2.0 3D)
76.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.34

Download ICC File (X-Rite i1Pro 2)

Cinebench R10 Shading 32Bit

6848

Cinebench R10 Rendering Single CPUs 64Bit

7066 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

24495 Points

Cinebench R10 Shading 64Bit

6820 Points

Cinebench R10 Rendering Single 32Bit

5335

Cinebench R10 Rendering Multiple CPUs 32Bit

18972

Cinebench R15 OpenGL 64Bit

68.3 fps

Cinebench R15 Ref. Match 64Bit

98 %

Cinebench R15 CPU Multi 64Bit

534 Points

Cinebench R15 CPU Single 64Bit

145 Points

Help

... in comparison

PCMark 7 Score		4808 points
PCMark 8 Home Score Accelerated v2		3396 points
PCMark 8 Creative Score Accelerated v2		3014 points
PCMark 8 Work Score Accelerated v2		4379 points
Help

... in comparison

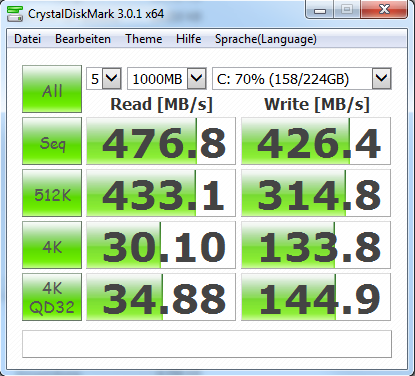

CrystalDiskMark 3.0

Micron M600 MTFDDAT256MBF mSATA

Sequential Read: 476 MB/s

Sequential Write: 426 MB/s

512K Read: 433 MB/s

512K Write: 314 MB/s

4K Read: 30.1 MB/s

4K Write: 133.8 MB/s

4K QD32 Read: 34.9 MB/s

4K QD32 Write: 144.9 MB/s

SPECviewperf 11
1920x1080 Siemens NX (sort by value)
HP Z1 G2 G1X47EA	31 fps
Lenovo ThinkPad W541 20EF000SGE	30.87 fps 0%
HP ZBook 15 G2	26.63 fps -14%
MSI WT72-2OL32SR311BW	45 fps +45%
1920x1080 Tcvis (sort by value)
HP Z1 G2 G1X47EA	35 fps
Lenovo ThinkPad W541 20EF000SGE	34.34 fps -2%
HP ZBook 15 G2	21.43 fps -39%
MSI WT72-2OL32SR311BW	50 fps +43%
1920x1080 SolidWorks (sort by value)
HP Z1 G2 G1X47EA	46 fps
Lenovo ThinkPad W541 20EF000SGE	41.64 fps -9%
HP ZBook 15 G2	56.1 fps +22%
MSI WT72-2OL32SR311BW	54 fps +17%
1920x1080 Pro/ENGINEER (sort by value)
HP Z1 G2 G1X47EA	18 fps
Lenovo ThinkPad W541 20EF000SGE	15.96 fps -11%
HP ZBook 15 G2	10.64 fps -41%
MSI WT72-2OL32SR311BW	24 fps +33%
1920x1080 Maya (sort by value)
HP Z1 G2 G1X47EA	53 fps
Lenovo ThinkPad W541 20EF000SGE	52 fps -2%
HP ZBook 15 G2	60.3 fps +14%
MSI WT72-2OL32SR311BW	58 fps +9%
1920x1080 Lightwave (sort by value)
HP Z1 G2 G1X47EA	51 fps
Lenovo ThinkPad W541 20EF000SGE	47.6 fps -7%
HP ZBook 15 G2	75.8 fps +49%
MSI WT72-2OL32SR311BW	53 fps +4%
1920x1080 Ensight (sort by value)
HP Z1 G2 G1X47EA	28 fps
Lenovo ThinkPad W541 20EF000SGE	24.64 fps -12%
HP ZBook 15 G2	25.07 fps -10%
MSI WT72-2OL32SR311BW	52 fps +86%
1920x1080 Catia (sort by value)
HP Z1 G2 G1X47EA	43 fps
Lenovo ThinkPad W541 20EF000SGE	39.12 fps -9%
HP ZBook 15 G2	35.61 fps -17%
MSI WT72-2OL32SR311BW	57 fps +33%

Legend

HP Z1 G2 G1X47EA Intel Xeon E3-1226 v3, NVIDIA Quadro K2100M, Micron M600 MTFDDAT256MBF mSATA

Lenovo ThinkPad W541 20EF000SGE Intel Core i7-4910MQ, NVIDIA Quadro K2100M, Samsung SSD PM851 512 GB MZ7TE512HMHP

HP ZBook 15 G2 Intel Core i7-4910MQ, AMD FirePro M5100, SanDisk A110 SD6PP4M-256G-1006

MSI WT72-2OL32SR311BW Intel Core i7-4980HQ, NVIDIA Quadro K4100M, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)

SPECviewperf 12
1900x1060 Solidworks (sw-03) (sort by value)
HP Z1 G2 G1X47EA	34 fps
Lenovo ThinkPad W541 20EF000SGE	22.41 fps -34%
HP ZBook 15 G2	39.72 fps +17%
MSI WT72-2OL32SR311BW	83 fps +144%
1900x1060 Siemens NX (snx-02) (sort by value)
HP Z1 G2 G1X47EA	20.5 fps
Lenovo ThinkPad W541 20EF000SGE	21.35 fps +4%
HP ZBook 15 G2	29.69 fps +45%
MSI WT72-2OL32SR311BW	45 fps +120%
1900x1060 Showcase (showcase-01) (sort by value)
HP Z1 G2 G1X47EA	10.7 fps
Lenovo ThinkPad W541 20EF000SGE	11.23 fps +5%
HP ZBook 15 G2	16.36 fps +53%
MSI WT72-2OL32SR311BW	23 fps +115%
1900x1060 Medical (medical-01) (sort by value)
HP Z1 G2 G1X47EA	6 fps
Lenovo ThinkPad W541 20EF000SGE	2.16 fps -64%
HP ZBook 15 G2	7.82 fps +30%
MSI WT72-2OL32SR311BW	14 fps +133%
1900x1060 Maya (maya-04) (sort by value)
HP Z1 G2 G1X47EA	18.5 fps
Lenovo ThinkPad W541 20EF000SGE	15.82 fps -14%
HP ZBook 15 G2	24.92 fps +35%
MSI WT72-2OL32SR311BW	39 fps +111%
1900x1060 Energy (energy-01) (sort by value)
HP Z1 G2 G1X47EA	0.34 fps
Lenovo ThinkPad W541 20EF000SGE	0.17 fps -50%
HP ZBook 15 G2	0.44 fps +29%
MSI WT72-2OL32SR311BW	2.12 fps +524%
1900x1060 Creo (creo-01) (sort by value)
HP Z1 G2 G1X47EA	20 fps
Lenovo ThinkPad W541 20EF000SGE	19.14 fps -4%
HP ZBook 15 G2	19.64 fps -2%
MSI WT72-2OL32SR311BW	38 fps +90%
1900x1060 Catia (catia-04) (sort by value)
HP Z1 G2 G1X47EA	20.5 fps
Lenovo ThinkPad W541 20EF000SGE	19.6 fps -4%
HP ZBook 15 G2	23.62 fps +15%
MSI WT72-2OL32SR311BW	48 fps +134%

Legend

HP Z1 G2 G1X47EA Intel Xeon E3-1226 v3, NVIDIA Quadro K2100M, Micron M600 MTFDDAT256MBF mSATA

Lenovo ThinkPad W541 20EF000SGE Intel Core i7-4910MQ, NVIDIA Quadro K2100M, Samsung SSD PM851 512 GB MZ7TE512HMHP

HP ZBook 15 G2 Intel Core i7-4910MQ, AMD FirePro M5100, SanDisk A110 SD6PP4M-256G-1006

MSI WT72-2OL32SR311BW Intel Core i7-4980HQ, NVIDIA Quadro K4100M, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)

LuxMark v2.0 64Bit
Room GPUs-only (sort by value)
HP Z1 G2 G1X47EA	74 Samples/s
MSI WT72-2OL32SR311BW	325 Samples/s +339%
HP ZBook 15 G2	375 Samples/s +407%
Sala GPUs-only (sort by value)
HP Z1 G2 G1X47EA	158 Samples/s
MSI WT72-2OL32SR311BW	648 Samples/s +310%
HP ZBook 15 G2	675 Samples/s +327%

Legend

HP Z1 G2 G1X47EA Intel Xeon E3-1226 v3, NVIDIA Quadro K2100M, Micron M600 MTFDDAT256MBF mSATA

MSI WT72-2OL32SR311BW Intel Core i7-4980HQ, NVIDIA Quadro K4100M, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)

HP ZBook 15 G2 Intel Core i7-4910MQ, AMD FirePro M5100, SanDisk A110 SD6PP4M-256G-1006

3DMark Ice Storm Standard Score		80055 points
3DMark Cloud Gate Standard Score		9273 points
3DMark Fire Strike Score		1738 points
Help

	low	med.	high	ultra
GRID: Autosport (2014)	268	102	40	21
Middle-earth: Shadow of Mordor (2014)	67	34	17	16
Dirt Rally (2015)	225	60	25
The Witcher 3 (2015)	26	18	9
Anno 2205 (2015)	54	33	14

Noise Level

Idle		32.4 / 32.4 / 32.4 dB(A)
Load		33.7 / 33.7 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Audix TM1 Arta (15 cm distance)

Max. Load

Idle


28 °C	27 °C	26 °C
26 °C	26 °C	26 °C
25 °C	25 °C	25 °C

Maximum: 28 °C
Average: 26 °C


29.5 °C	31.4 °C	28.7 °C
27 °C	26 °C	28 °C
25 °C	26 °C	26 °C

Maximum: 31.4 °C
Average: 27.5 °C

Room Temperature 20 °C | Fennel FIRT 550-Pocket

(+) The average temperature for the upper side under maximal load is 26 °C / 79 F, compared to the average of 29.7 °C / 85 F for the devices in the class Desktop.
(+) The maximum temperature on the upper side is 28 °C / 82 F, compared to the average of 34.4 °C / 94 F, ranging from 25 to 47 °C for the class Desktop.
(+) The bottom heats up to a maximum of 31.4 °C / 89 F, compared to the average of 34 °C / 93 F
(+) In idle usage, the average temperature for the upper side is 27.3 °C / 81 F, compared to the device average of 29.7 °C / 85 F.

Power Consumption

Off / Standby	0.9 / 1.85 Watt
Idle	36.8 / 65.3 / 67 Watt
Load	114 / 142 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Pros

+ 机身稳定性

+ 工艺

+ 可维护性和升级空间

+ 高速读卡器和USB 3.0接口

+ 音频接口的类型和数量

+ 屏幕品质

+ 系统性能

+ CAD性能

+ 负载下的系统噪音

+ 36个月保修

Cons

- 笨重

- 待机噪音

- 屏幕设定

- 后部接口易用性

- DisplayPort 1.1不支持4K分辨率

- 售价

惠普的一体机Z1 G2工作站将紧凑的电脑设计与外观设计以及高性能相结合，帮助工作区域变得更加整洁。得力于模块化的设计以及实用的机身设计，用户不需要在升级维护空间上做出任何牺牲。

它的性能与所采用的配置成正比，也可以通过加价定制获得额外的提升。不过用户无法在显示器方面作出任何改变。除了可选的触控功能之外，屏幕的其它参数都保持不变，如分辨率和相对有限的设置。但是作为回报，它提供了非常优秀的表现，可以很好地满足专业用户的需要。

我们不太喜欢它接口位于后部所带来的不便，DisplayPort 1.1缺少对4K的支持，以及在待机时相对较高的噪音。

当然，最终是选择这台一体式的设备，台式工作站还是笔记本电脑还需要根据个人的需要，硬件性能需求以及预算。在3800欧元（约27031人民币）的价位上，惠普的Z1 G2工作站显然不能算是便宜。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

HP Z1 G2 G1X47EA - 2015-12-16 12/16/2015 v4^(old)
Tobias Winkler

Chassis

93 / 98 → 95%

Keyboard

90%

Pointing Device

85%

Connectivity

90 / 81 → 100%

Weight

Battery

Display

88%

Games Performance

82%

Application Performance

89%

Temperature

94%

Noise

90%

Audio

77%

Camera

60 / 85 → 71%

Average

85%

88%
