联想ThinkCentre M90n-1 Nano IoT台式机评测:性能打了折扣,但很安静

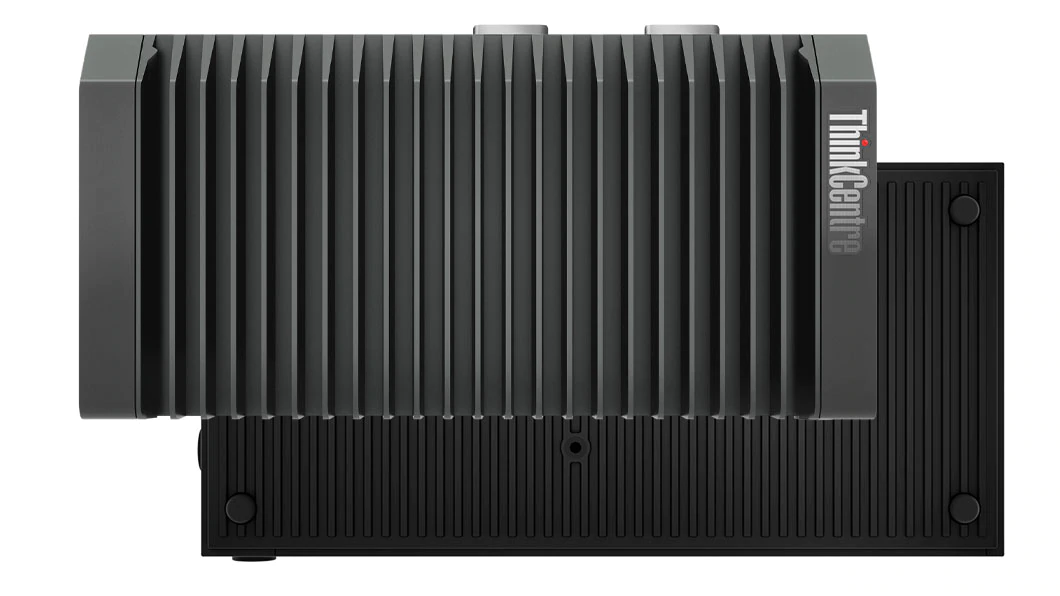

散热用鳍片。 ThinkCentre M90n Nano IoT是联想最新的迷你PC的无风扇版本。 虽然结构坚固且设备完全静音,但性能仍有待提高,特别是考虑到高昂的价格时。
Sam Medley, 👁 Allen Ngo (translated by Zewei Shen), 🇺🇸 🇩🇪 ...
Chinese Tech Desktop Mini PC Whiskey Lake Windows
Lenovo ThinkCentre M90n-1 Nano IoT
Processor
Intel Core i3-8145U 2 x 2.1 - 3.9 GHz, Whiskey Lake-U
Graphics adapter
Intel UHD Graphics 620 - 1024 MB, Core: 1196 MHz, Integrated, Intel UHD Graphics 620 25.20.100.6617
Memory
4096 MB
, DDR4-2666
Mainboard
Intel Cannon Lake-U PCH-LP Premium
Storage
Samsung SSD PM981a MZVLB256HBHQ, 256 GB
Soundcard
Intel Cannon Lake-LP - cAVS
Connections
5 USB 3.1 Gen2, 1 DisplayPort, 1 Kensington Lock, 2 Serial Port, Audio Connections: Combo headphone/mic
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000/2500/5000MBit/s), Intel Wireless-AC 9560 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 5.0
Size
height x width x depth (in mm): 22 x 179 x 88
Operating System
Microsoft Windows 10 Pro 64 Bit
Additional features
12 Months Warranty, ruggedized
Weight
720 g, Power Supply: 374 g
Price
584美元 USD
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
02/2020
Lenovo ThinkCentre M90n-1 Nano IoT
i3-8145U, UHD Graphics 620
720 g22 mmx
Lenovo ThinkCentre M90n-1 Nano
i5-8265U, UHD Graphics 620
499 g22 mm0.00"x
Zotac ZBOX-CI660 Nano
i5-8550U, UHD Graphics 620
1.1 kg68 mmx
Intel NUC8i7BEH Asura NVMe SSD
i7-8559U, Iris Plus Graphics 655
683 g51 mmx
Intel NUC8i3CYSM
i3-8121U, Radeon RX 540
660 g52 mmx

Connectivity

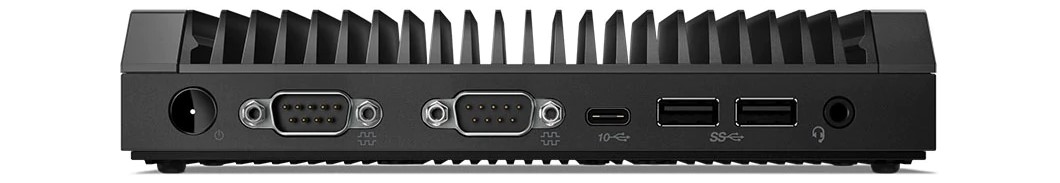

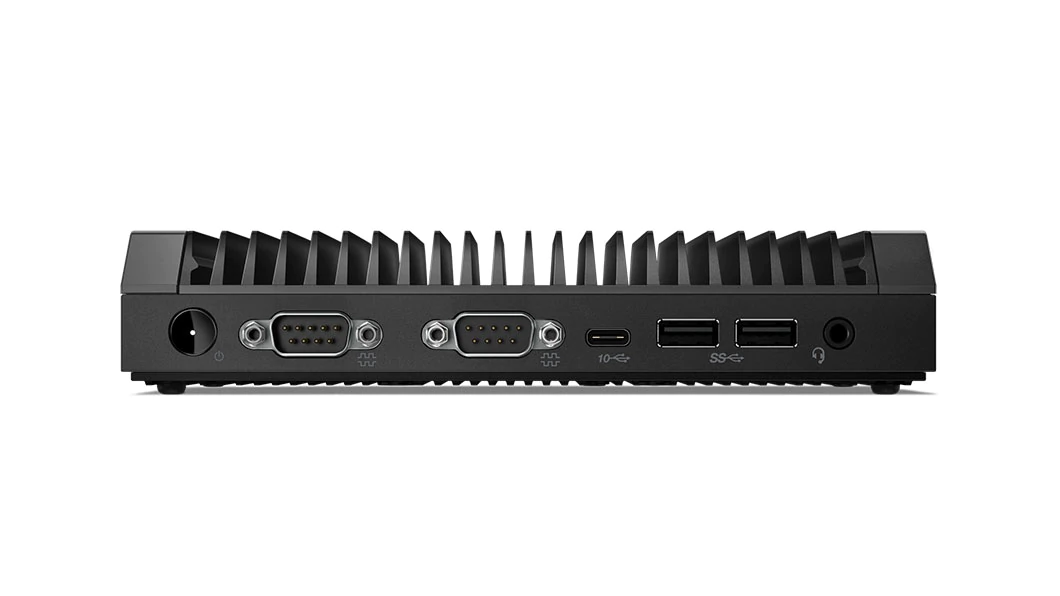

Front: power button, 2x serial, USB 3.1 Gen 2 Type-C, 2x USB 3.1 Gen 2 Type-A, mic/headphone jack
Front: power button, 2x serial, USB 3.1 Gen 2 Type-C, 2x USB 3.1 Gen 2 Type-A, mic/headphone jack

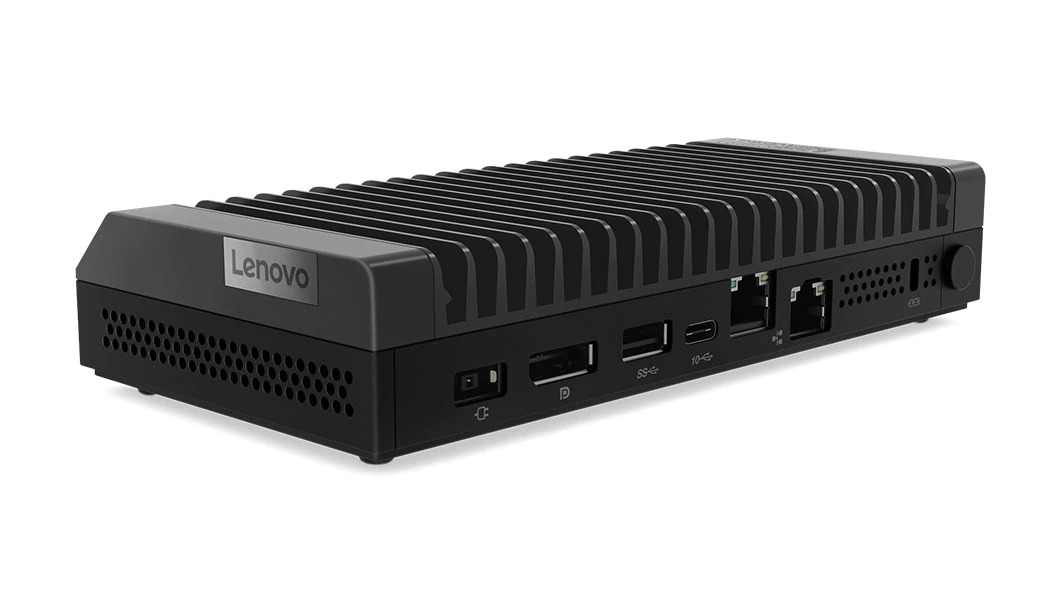

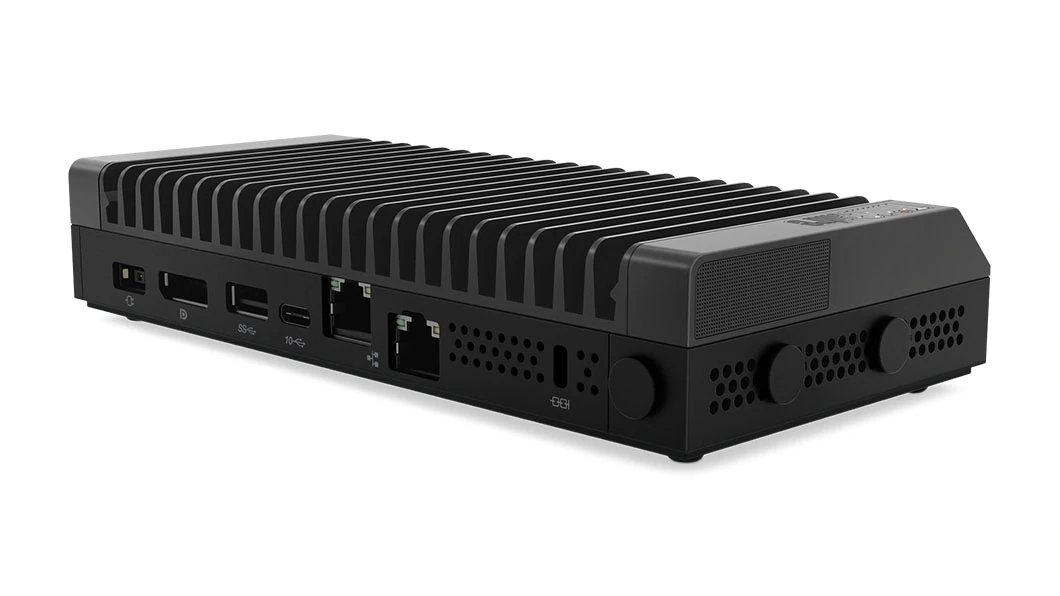

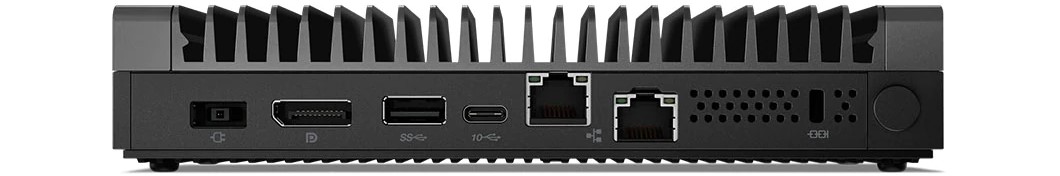

Rear: DC in, DisplayPoty, USB 3.1 Gen 2 Type-A, USB 3.1 Gen 2 Type-C (w/ display support and power in), 2x Ethernet, Kensington lock
Rear: DC in, DisplayPoty, USB 3.1 Gen 2 Type-A, USB 3.1 Gen 2 Type-C (w/ display support and power in), 2x Ethernet, Kensington lock
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo ThinkCentre M90n-1 Nano
Intel Wireless-AC 9560
643 MBit/s ∼100% +8%
Lenovo ThinkCentre M90n-1 Nano IoT
Intel Wireless-AC 9560
598 MBit/s ∼93%
Zotac ZBOX-CI660 Nano
Intel Dual Band Wireless-AC 3165
301 MBit/s ∼47% -50%
iperf3 Client (transmit) TCP 1 m 4M x10
Lenovo ThinkCentre M90n-1 Nano
Intel Wireless-AC 9560
604 MBit/s ∼100% +14%
Lenovo ThinkCentre M90n-1 Nano IoT
Intel Wireless-AC 9560
531 MBit/s ∼88%
Zotac ZBOX-CI660 Nano
Intel Dual Band Wireless-AC 3165
218 MBit/s ∼36% -59%
04080120160200240280320360400440480520560600640680294.84282.53287.46287.46178.68170.2162.74163.35203.07203.95199.41201.75200.08201.7198.67201.23197.58196.67198.19193.55190.57193.67192.89196.18195.77199.04197.33198.18192.91196.04523.79509.14509.47491.14513.65511.88513513.94515.56513.68511.86513.39515.17515.63515.6513.7511.32514.38514.89514.6515.13514.78515.9514.99514.09514.34514.35514.82515.78514.87702.3656.74658.87657.24661.14661.32655.72641.91617.76603.2595.49584.48579.45575.56570.29567.13563.39563.52557.26555.09553.88551.98552.57552.33554555.45552.58556.05542.62544543.07540.56540.21543.18543.3540.1539.53539.87539.54537.49538.96540.56539.08539.53540.21537.26539.99539.88541.35538.96311.01306.08305.51309.28304.79313.03313.69313.69314.07317.23316.78318.83318.16317.77318.1318.64317.15318.01318.45317.34317.15317.54319.2318.29317.58317.81318.29316.48318.09318.73317.38317.79317.77318.44317.73315.72315.64317.25317.61319.39350.09312.88312.38313.19313.95308.77312.15313.64313.84313.46312.84314.14312.31311.85312.42312.76312.53313.95313.84314.8313.76313.8315.11313.45312.99269.14303.21312.08312.53312.57313.45314.53312.95313.88314.03313.3314.07314.53314.38311.36225.92227.41226.64226.05227226.07227.11226.64226.73226.71224.21226.42226.5228.14226.25227.36227.18226.69225.71225.14225.4227.33226.92227.09227.02226.32227.56226.29226.92226.87225.1226.52225.98226.14227.82226.42225.8226.85227.3226.68Tooltip
Lenovo ThinkCentre M90n-1 Nano IoT Intel Core i3-8145U, Intel Core i3-8145U: Ø206 (162.74-294.84)
Lenovo ThinkCentre M90n-1 Nano Intel Core i5-8265U, Intel Core i5-8265U: Ø513 (491.14-523.79)
Zotac ZBOX-CI660 Nano Intel Core i7-8550U, Intel Core i7-8550U: Ø571 (537.26-702.3)
Intel NUC8i3CYSM Intel Core i3-8121U, Intel Core i3-8121U: Ø316 (304.79-319.39)
Dell Latitude 3400 Intel Core i3-8145U, Intel Core i3-8145U: Ø313 (269.14-350.09)
Acer Swift 3 SF314-54-P2RK Intel Pentium Gold 4417U, Intel Pentium Gold 4417U: Ø227 (224.21-228.14)
Cinebench R15
CPU Single 64Bit
Average of class Desktop
  (71.1 - 256, n=24, last 2 years)
161 Points ∼59% +16%
Zotac ZBOX-CI660 Nano
Intel Core i7-8550U
156 Points ∼57% +12%
Dell Latitude 3400
Intel Core i3-8145U
154 Points ∼57% +11%
Lenovo ThinkCentre M90n-1 Nano
Intel Core i5-8265U
148 Points ∼54% +6%
Average Intel Core i3-8145U
  (139 - 154, n=4)
148 Points ∼54% +6%
Lenovo ThinkCentre M90n-1 Nano IoT
Intel Core i3-8145U
139 Points ∼51%
Intel NUC8i3CYSM
Intel Core i3-8121U
133 Points ∼49% -4%
Acer Swift 3 SF314-54-P2RK
Intel Pentium Gold 4417U
89 Points ∼33% -36%
CPU Multi 64Bit
Average of class Desktop
  (221 - 2397, n=25, last 2 years)
787 Points ∼18% +123%
Zotac ZBOX-CI660 Nano
Intel Core i7-8550U
702 Points ∼16% +99%
Lenovo ThinkCentre M90n-1 Nano
Intel Core i5-8265U
524 Points ∼12% +48%
Lenovo ThinkCentre M90n-1 Nano IoT
Intel Core i3-8145U
353 Points ∼8%
Dell Latitude 3400
Intel Core i3-8145U
350 Points ∼8% -1%
Average Intel Core i3-8145U
  (318 - 361, n=4)
346 Points ∼8% -2%
Intel NUC8i3CYSM
Intel Core i3-8121U
317.56 (304.79min - 319.39max) Points ∼7% -10%
Acer Swift 3 SF314-54-P2RK
Intel Pentium Gold 4417U
228 Points ∼5% -35%
Cinebench R15 CPU Single 64Bit
139 Points
Cinebench R15 CPU Multi 64Bit
353 Points
Cinebench R15 OpenGL 64Bit
38.02 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Help
PCMark 10
Digital Content Creation
Average of class Desktop
  (1110 - 11987, n=21, last 2 years)
3962 Points ∼26% +125%
Zotac ZBOX-CI660 Nano
UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G
2939 Points ∼19% +67%
Lenovo ThinkCentre M90n-1 Nano
UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ
2917 Points ∼19% +66%
Intel NUC8i3CYSM
Radeon RX 540, i3-8121U, Seagate ST1000VT001
2902 Points ∼19% +65%
Average Intel Core i3-8145U, Intel UHD Graphics 620
  (1762 - 2433, n=3)
2196 Points ∼14% +25%
Lenovo ThinkCentre M90n-1 Nano IoT
UHD Graphics 620, i3-8145U, Samsung SSD PM981a MZVLB256HBHQ
1762 Points ∼11%
Productivity
Zotac ZBOX-CI660 Nano
UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G
6481 Points ∼58% +14%
Lenovo ThinkCentre M90n-1 Nano
UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ
6337 Points ∼57% +11%
Average of class Desktop
  (2948 - 8818, n=21, last 2 years)
6065 Points ∼54% +7%
Lenovo ThinkCentre M90n-1 Nano IoT
UHD Graphics 620, i3-8145U, Samsung SSD PM981a MZVLB256HBHQ
5689 Points ∼51%
Average Intel Core i3-8145U, Intel UHD Graphics 620
  (5274 - 6096, n=3)
5686 Points ∼51% 0%
Intel NUC8i3CYSM
Radeon RX 540, i3-8121U, Seagate ST1000VT001
5302 Points ∼47% -7%
Essentials
Lenovo ThinkCentre M90n-1 Nano
UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ
8551 Points ∼74% +12%
Average of class Desktop
  (4837 - 10598, n=21, last 2 years)
8125 Points ∼71% +7%
Zotac ZBOX-CI660 Nano
UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G
8051 Points ∼70% +6%
Lenovo ThinkCentre M90n-1 Nano IoT
UHD Graphics 620, i3-8145U, Samsung SSD PM981a MZVLB256HBHQ
7625 Points ∼66%
Average Intel Core i3-8145U, Intel UHD Graphics 620
  (6911 - 7625, n=3)
7240 Points ∼63% -5%
Intel NUC8i3CYSM
Radeon RX 540, i3-8121U, Seagate ST1000VT001
5576 Points ∼48% -27%
Score
Average of class Desktop
  (1803 - 7329, n=21, last 2 years)
4068 Points ∼46% +34%
Lenovo ThinkCentre M90n-1 Nano
UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ
3876 Points ∼44% +27%
Zotac ZBOX-CI660 Nano
UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G
3837 Points ∼44% +26%
Average Intel Core i3-8145U, Intel UHD Graphics 620
  (3042 - 3399, n=3)
3207 Points ∼37% +5%
Intel NUC8i3CYSM
Radeon RX 540, i3-8121U, Seagate ST1000VT001
3161 Points ∼36% +4%
Lenovo ThinkCentre M90n-1 Nano IoT
UHD Graphics 620, i3-8145U, Samsung SSD PM981a MZVLB256HBHQ
3042 Points ∼35%
Lenovo ThinkCentre M90n-1 Nano IoT
Samsung SSD PM981a MZVLB256HBHQ
Lenovo ThinkCentre M90n-1 Nano
Samsung SSD PM981 MZVLB512HAJQ
Intel NUC8i7BEH Asura NVMe SSD
Asura Genesis Xtreme NVMe M.2 SSD 1 TB
Average Samsung SSD PM981a MZVLB256HBHQ

Average of class Desktop

AS SSD
48%
108%
48%
-56%
Score Total
1853
2716
47%
4454
140%
2666 (1822 - 3862, n=14)
44%
2010 (142 - 6725, n=21, last 2 years)
8%
Score Write
665
1305
96%
2193
230%
1215 (648 - 2214, n=14)
83%
839 (52 - 2676, n=21, last 2 years)
26%
Score Read
782
942
20%
1502
92%
975 (733 - 1212, n=14)
25%
778 (51 - 2660, n=21, last 2 years)
-1%
Access Time Write *
0.047
0.032
32%
0.083
-77%
0.0498 (0.025 - 0.104, n=14)
-6%
0.2095 (0.025 - 0.623, n=21, last 2 years)
-346%
Access Time Read *
0.06
0.039
35%
0.031
48%
0.0641 (0.046 - 0.089, n=14)
-7%
0.272 (0.031 - 3.63, n=21, last 2 years)
-353%
4K-64 Write
499.12
1073.77
115%
1828.9
266%
932 (282 - 1970, n=14)
87%
660 (20 - 2206, n=21, last 2 years)
32%
4K-64 Read
642.98
726.4
13%
1221.61
90%
695 (508 - 947, n=14)
8%
622 (14.7 - 2283, n=21, last 2 years)
-3%
4K Write
78.04
116.47
49%
173.28
122%
126 (78 - 188, n=14)
61%
80.4 (21.6 - 173, n=21, last 2 years)
3%
4K Read
40.25
48.46
20%
51.94
29%
50.3 (40.3 - 60.3, n=14)
25%
33.2 (9.18 - 51.9, n=21, last 2 years)
-18%
Seq Write
877.58
1150.28
31%
1908.19
117%
1564 (813 - 2187, n=14)
78%
985 (107 - 3937, n=21, last 2 years)
12%
Seq Read
992.04
1668.47
68%
2288.13
131%
2296 (992 - 2980, n=14)
131%
1228 (263 - 3257, n=21, last 2 years)
24%

* ... smaller is better

3DMark
1920x1080 Fire Strike Graphics
Average of class Desktop
  (433 - 50587, n=26, last 2 years)
11490 Points ∼100% +1231%
Intel NUC8i3CYSM
AMD Radeon RX 540, Intel Core i3-8121U
3242 Points ∼28% +276%
Lenovo ThinkCentre M90n-1 Nano
Intel UHD Graphics 620, Intel Core i5-8265U
1183 Points ∼10% +37%
Average Intel UHD Graphics 620
  (557 - 1444, n=205)
1154 Points ∼10% +34%
Lenovo ThinkCentre M90n-1 Nano IoT
Intel UHD Graphics 620, Intel Core i3-8145U
863 Points ∼8%
1280x720 Cloud Gate Standard Graphics
Average of class Desktop
  (3366 - 182888, n=21, last 2 years)
29263 Points ∼100% +320%
Intel NUC8i3CYSM
AMD Radeon RX 540, Intel Core i3-8121U
18704 Points ∼64% +168%
Lenovo ThinkCentre M90n-1 Nano
Intel UHD Graphics 620, Intel Core i5-8265U
9590 Points ∼33% +38%
Average Intel UHD Graphics 620
  (6910 - 11437, n=217)
9240 Points ∼32% +33%
Lenovo ThinkCentre M90n-1 Nano IoT
Intel UHD Graphics 620, Intel Core i3-8145U
6971 Points ∼24%
3DMark Cloud Gate Standard Score
6043 points
3DMark Fire Strike Score
811 points
Help
low med. high ultra
BioShock Infinite (2013) 26 19 16 5 fps
Power Consumption
Off / Standbydarklight 0.53 / 1.7 Watt
Idledarkmidlight 3.3 / 3.7 / 3.8 Watt
Load midlight 25.4 / 38.8 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Pros

+ 无噪音
+ I / O丰富,尤其是对于IT专业人员来说
+ 紧凑的尺寸
+ 坚固的质量

Cons

- 负载下的降频
- 机箱在负载下发热严重
- 价格昂贵
联想ThinkCentre M90n-1 Nano IoT台式机评测. Review unit provided by Lenovo.
联想ThinkCentre M90n-1 Nano IoT台式机评测. Review unit provided by Lenovo.

联想ThinkCentre M90n Nano IoT是一款有趣的设备。它当然不是要成为消费类台式机。那些有兴趣购买家用或商务用途的Lenovo mini PC的人应该考虑非IoT版本的ThinkCentre M90n Nano。一些买家还可以考虑英特尔提供的各种NUC。

物联网是针对大规模企业部署而设计的,其中必须要求无声操作,紧凑的占地面积和低功耗。在这些领域,Nano IoT取得了成功。该设备体积小,功耗低,为企业用户选择了许多端口,并且完全安静。

顾名思义,Nano IoT最好用作“物联网”设备。在正常使用情况下,Nano IoT发热严重。该设备运行温度高,易降频。

在特定的情况下,需要计算机进行简短的交易计算(例如在销售点或作为服务器阵列的一部分),Nano IoT是有意义的。否则,Nano IoT不值得其相对较高的要价。消费者绝对应该将目光投向其他地方。
