惠普 Pavilion 14t-ab000 (K9E07AV) 笔记本电脑简短评测

传统&实惠。 惠普的14寸Pavilion 14t是一款低价传统笔记本电脑。它不错的性能被较弱的屏幕和一般的电池续航时间拖了后腿。
Broadwell Laptop / Notebook Windows
HP Pavilion 14t-ab000 K9E07AV
Processor
Intel Core i3-5010U 2 x 2.1 GHz, Broadwell
Graphics adapter
Intel HD Graphics 5500, Core: 900 MHz
Memory
6 GB
, 双通道
Display
14.00 inch 16:9, 1366 x 768 pixel, 非触控, Samsung SDC4E42, TN, glossy: yes
Mainboard
Intel Broadwell-U PCH-LP (Premium)
Storage
HGST Travelstar 5K1000 HTS541075A9E680, 750 GB
, 5400 rpm
Soundcard
Intel Broadwell PCH-LP - High Definition Audio Controller
Connections
1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Kensington Lock, Audio Connections: 整合音频插口, Card Reader: SD 多格式读卡器
Networking
Realtek RTL8101 (10/100MBit/s), Realtek RTL8188E Wireless LAN 802.11n PCI-E NIC (b/g/n = Wi-Fi 4/), Bluetooth 4.0
Optical drive
hp DVDRW GUB0N
Size
height x width x depth (in mm): 24.9 x 345.4 x 242.6

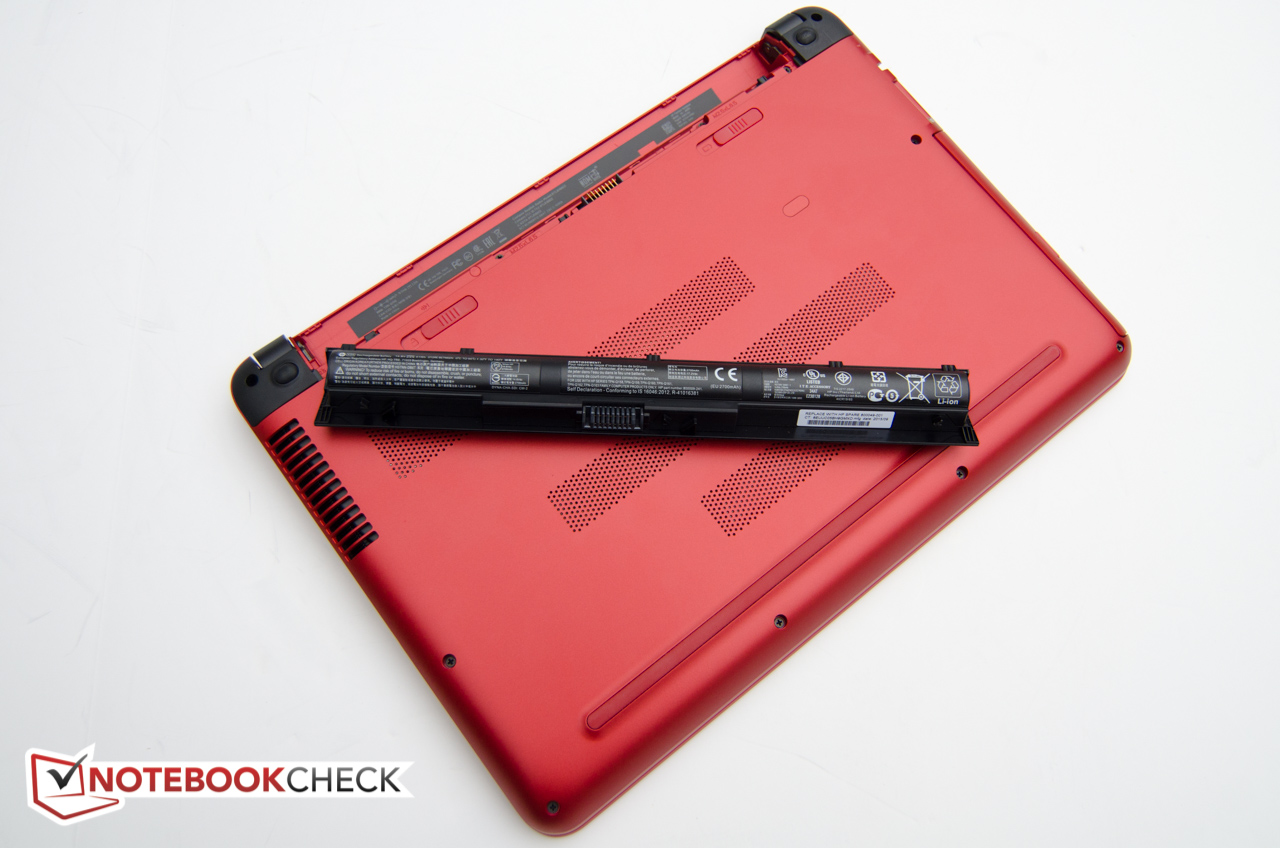

Battery
41 Wh Lithium-Ion, 2700 mAh
Operating System
Microsoft Windows 8.1 64 Bit
Camera
Webcam: TrueVision HD (130万像素)
Additional features
Speakers: B&O Play (2 扬声器), Keyboard: 孤岛式, Keyboard Light: no, 12 Months Warranty
Weight
1.93 kg, Power Supply: 258 g
Price
419 Euro
Links
HP homepage
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



❌
344 mm 245 mm 27 mm 1.9 kg345.4 mm 242.6 mm 24.9 mm 1.9 kg343 mm 245 mm 26 mm 2 kg339 mm 239 mm 24 mm 1.8 kg297 mm 210 mm 1 mm 5.7 g
220.1
cd/m²		217.6
cd/m²		220.6
cd/m²
220.7
cd/m²		238.4
cd/m²		219.7
cd/m²
206
cd/m²		217.3
cd/m²		205.7
cd/m²
Distribution of brightness
Samsung SDC4E42 tested with X-Rite i1Pro 2 // Gossen Mavo-Monitor
Maximum: 238.4 cd/m² (Nits) Average: 218.5 cd/m²
Brightness Distribution: 86 %
Center on Battery: 193.2 cd/m²
Contrast: 232:1 (Black: 1.029 cd/m²)
ΔE ColorChecker Calman: 12.21 | ∀{0.5-29.43 Ø4.79}
ΔE Greyscale Calman: 13.44 | ∀{0.09-98 Ø5}
56.26% sRGB (Argyll 1.6.3 3D)
38.62% AdobeRGB 1998 (Argyll 1.6.3 3D)
38.62% AdobeRGB 1998 (Argyll 3D)
56.3% sRGB (Argyll 3D)
37.38% Display P3 (Argyll 3D)
Gamma: 2.11
CCT: 20097 K
HP Pavilion 14t-ab000 K9E07AVAcer Aspire ES1-420-377FAcer Aspire E5-473G-59QTLenovo ThinkPad E450 20DDS01E00Dell Latitude E7450
Display
13%
1%
8%
72%
Display P3 Coverage (%)
37.38
42.31
13%
37.82
1%
40.37
8%
66.6
78%
sRGB Coverage (%)
56.3
63.6
13%
56.9
1%
60.8
8%
92.4
64%
AdobeRGB 1998 Coverage (%)
38.62
43.71
13%
39.07
1%
41.71
8%
67.7
75%
Screen
34%
19%
14%
73%
Brightness middle (cd/m²)
238.4
233
-2%
238
0%
218
-9%
280
17%
Brightness (cd/m²)
218
225
3%
228
5%
211
-3%
257
18%
Brightness Distribution (%)
86
87
1%
90
5%
76
-12%
75
-13%
Black Level * (cd/m²)
1.029
0.4
61%
0.54
48%
0.53
48%
0.3
71%
Contrast (:1)
232
583
151%
441
90%
411
77%
933
302%
Colorchecker dE 2000 *
12.21
10.53
14%
10.64
13%
11.16
9%
3.45
72%
Greyscale dE 2000 *
13.44
11.91
11%
11.74
13%
12.58
6%
3.35
75%
Gamma
2.11 104%
2.42 91%
2.34 94%
2.37 93%
CCT
20097 32%
13043 50%
14940 44%
6940 94%
Color Space (Percent of AdobeRGB 1998) (%)
38.62
36
-7%
39
1%
60
55%
Color Space (Percent of sRGB) (%)
56.26
57
1%
61
8%
92
64%
Total Average (Program / Settings)
24% / 28%
10% / 14%
11% / 12%
73% / 73%

* ... smaller is better

Cinebench R10 Shading 64Bit
5556 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
7576 Points
Cinebench R10 Rendering Single CPUs 64Bit
4196 Points
Cinebench R11.5 OpenGL 64Bit
22.56 fps
Cinebench R11.5 CPU Multi 64Bit
2.4 Points
Cinebench R11.5 CPU Single 64Bit
0.92 Points
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
26.85 fps
Cinebench R15 CPU Multi 64Bit
219 Points
Cinebench R15 CPU Single 64Bit
87 Points
Help
HP Pavilion 14t-ab000 K9E07AV
HD Graphics 5500, 5010U, HGST Travelstar 5K1000 HTS541075A9E680		Acer Aspire ES1-420-377F
Radeon HD 8240, E1-2500, Western Digital Scorpio Blue WD5000LPVT		Acer Aspire E5-473G-59QT
GeForce 940M, 5200U, Seagate ST500LM000 Solid State Hybrid Drive		Lenovo ThinkPad E450 20DDS01E00
Radeon R7 M260, 5200U, Samsung CM871 MZ7LF192HCGS
PCMark 7
-30%
1%
143%
Score (Points)
2755
1313
-52%
2780
1%
4797
74%
System Storage (Points)
1627
1505
-7%
5062
211%
PCMark 8
15%
18%
Home Score Accelerated v2 (Points)
2823
3167
12%
3299
17%
Creative Score Accelerated v2 (Points)
3119
Work Score Accelerated v2 (Points)
3514
4151
18%
4186
19%
Storage Score (Points)
2102
Total Average (Program / Settings)
-30% / -30%
8% / 10%
81% / 80%
PCMark 7 Score
2755 points
PCMark 8 Home Score Accelerated v2
2823 points
PCMark 8 Creative Score Accelerated v2
3119 points
PCMark 8 Work Score Accelerated v2
3514 points
Help
lowmed.highultra
Anno 2070 (2011) 65.7 33.2 19.8
3DMark 11 Performance
1270 points
3DMark Ice Storm Standard Score
50026 points
3DMark Cloud Gate Standard Score
4833 points
3DMark Fire Strike Score
705 points
Help

Noise level

Idle
31.6 / 31.4 / 31.8 dB(A)
HDD
33 dB(A)
DVD
37.7 / 38.6 dB(A)
Load
33.3 / 34.6 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft sl-300 (15 cm distance)
Max. Load
 26.6 °C33.4 °C27.8 °C
 26.8 °C30.8 °C27.4 °C
 25.8 °C29.8 °C28.4 °C
Maximum: 33.4 °C
Average: 28.5 °C
29.6 °C32.6 °C26.6 °C
30.6 °C30.4 °C26.4 °C
28.2 °C27.2 °C25.8 °C
Maximum: 32.6 °C
Average: 28.6 °C
Power Supply (max.)  40 °C | Room Temperature 23 °C | Raytek Raynger ST
(+) The average temperature for the upper side under maximal load is 28.5 °C / 83 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(+) The maximum temperature on the upper side is 33.4 °C / 92 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(+) The bottom heats up to a maximum of 32.6 °C / 91 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 26.4 °C / 80 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.8 °C / 85.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.7 °C / 83.7 F (-1.1 °C / -1.9 F).
Battery Runtime
Idle (without WLAN, min brightness)
10h 49min
WiFi Websurfing
3h 53min
DVD
4h 28min
Load (maximum brightness)
1h 59min
Warning: No power consumption data found

Pros

+ 相对价位优秀的性能
+ 多彩的设计
+ 搭配光驱
+ 低价
+ 不会过热或吵人

Cons

- 电池续航有待提高
- 硬盘较慢
- TN屏幕色彩准确度低
- 音响效果差
In review: HP Pavilion 14t-ab000 (K9E07AV).
In review: HP Pavilion 14t-ab000 (K9E07AV).

考虑到售价，惠普Pavilion 14t在一些方面做得十分不错：它的机身相对坚固，美观且在品质和人体工程学设计上都不逊色。它的处理器性能高于其它生产商搭配AMD，赛扬或奔腾处理器的型号，14t在负载下也可以保持清凉安静。它的屏幕不是很明亮，特别是在使用电池时更加明显；1366x768的分辨率也有些过时，因为这只能算11.6寸屏幕的分辨率水平。它的色彩准确率是最近我们见过最差的——甚至相比其它低价产品也落于下风。我们也对于它传统硬盘的性能不太满意。一块复合硬盘（可选配置）应该作为标准配置，我们也很愿意看到搭配固态硬盘的型号。接近70秒的开机时间在现在已经让人很难接受了。最后，它4小时的电池续航时间也很难让人接受——这显然无法满足学生或其他用户一个工作日的需要。

惠普14t的入门机型提供了不错的性价比。这台14寸笔记本电脑需要更好的屏幕和固态硬盘的选项——特别是对于较高配置的型号。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

HP Pavilion 14t-ab000 K9E07AV - 11/01/2015 v4 (old)
Bernhard Pechlaner

Chassis
66 / 98 → 67%
Keyboard
65%
Pointing Device
78%
Connectivity
61 / 81 → 75%
Weight
64 / 20-67 → 94%
Battery
85%
Display
68%
Games Performance
67 / 85 → 79%
Application Performance
71 / 92 → 77%
Temperature
93%
Noise
91 / 95 → 96%
Audio
59%
Camera
66 / 85 → 78%
Average
72%
75%
Multimedia - Weighted Average
