惠普 Pavilion 13-a000ng x360 变形本简短评测

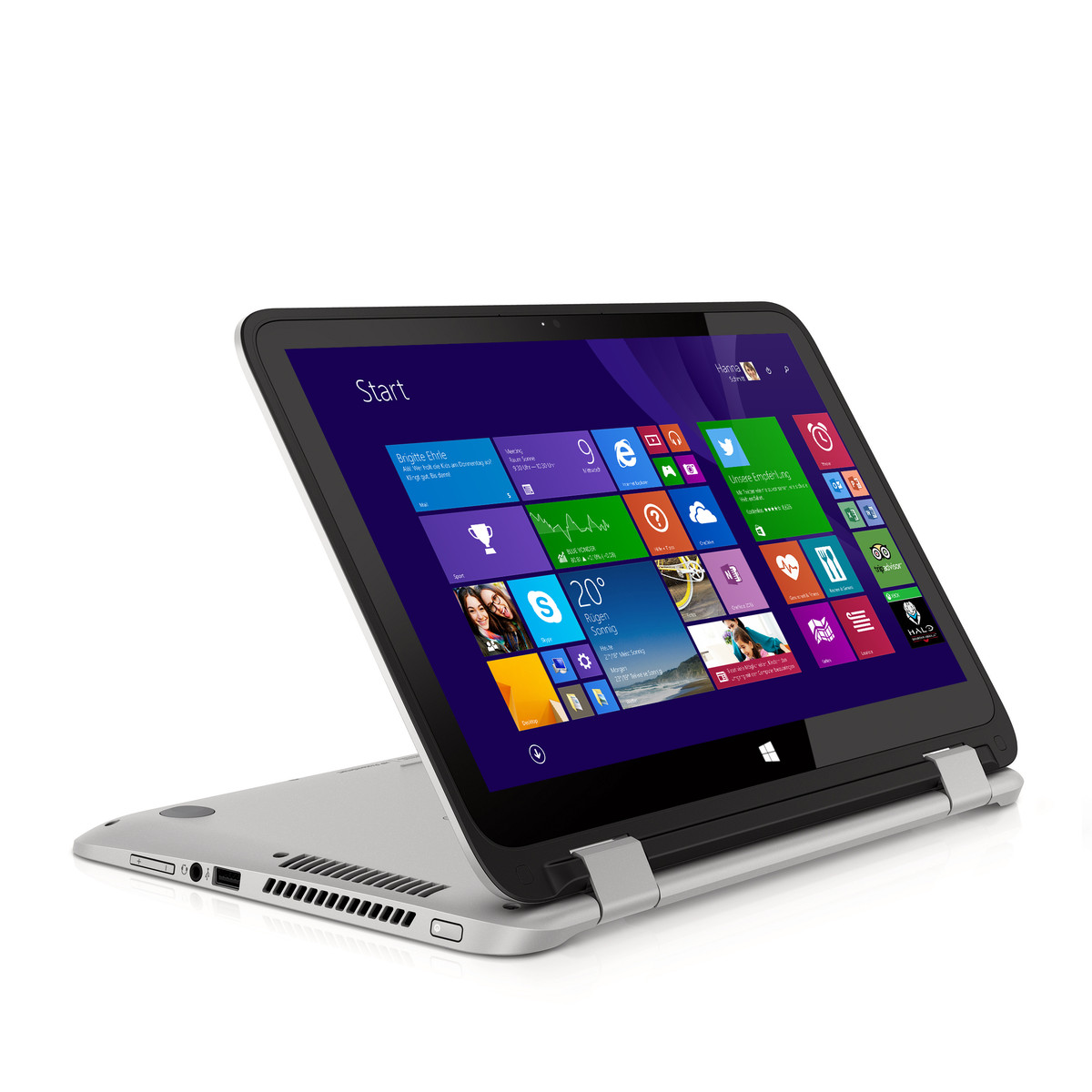

惠普转个圈! 惠普现在走上了联想在2012年起由Yoga开拓的道路。凭借巧妙设计的转轴,这款新的Pavilion可以在四个不同的模式下使用。不过,我们很快发现它在这之间的转换并不是特别流畅。
Windows Touchscreen Tablet Laptop / Notebook Haswell Convertible / 2-in-1
160
cd/m²
155
cd/m²
163
cd/m²
157
cd/m²
168
cd/m²
157
cd/m²
151
cd/m²
149
cd/m²
147
cd/m²
Distribution of brightness
AU Optronics B133XW03 tested with X-Rite i1Pro 2
Maximum: 168 cd/m² (Nits) Average: 156.3 cd/m²
Brightness Distribution: 88 %
Center on Battery: 168 cd/m²
Contrast: 431:1 (Black: 0.39 cd/m²)
ΔE Color 9.65 | 0.5-29.43 Ø5
ΔE Greyscale 10.03 | 0.57-98 Ø5.3
Gamma: 2.09
HP Pavilion 13-a000ng x360
HD Graphics 4400, 4030U, Seagate ST500LM000 Solid State Hybrid Drive
Lenovo Yoga 2 13
HD Graphics 4400, 4010U, WD Blue UltraSlim WD5000MPCK-22AWHT0
Toshiba Satellite W30Dt-A-100
Radeon HD 8180, A4-1200, WD Blue UltraSlim WD5000MPCK-22AWHT0
Lenovo Yoga 2 Pro
HD Graphics 4400, 4200U, Samsung SSD PM841 MZMTD128HAFV mSATA
Display
Display P3 Coverage
65.5
39.12
42.03
sRGB Coverage
96.2
57.9
63.3
AdobeRGB 1998 Coverage
67.7
40.13
43.42
Screen
43%
15%
45%
Brightness middle
168
269
60%
309
84%
371.5
121%
Brightness
156
249
60%
308
97%
340
118%
Brightness Distribution
88
86
-2%
90
2%
87
-1%
Black Level *
0.39
0.4
-3%
1.06
-172%
0.749
-92%
Contrast
431
673
56%
292
-32%
496
15%
Colorchecker dE 2000 *
9.65
2.95
69%
4.76
51%
3.14
67%
Greyscale dE 2000 *
10.03
4.19
58%
2.83
72%
1.24
88%
Gamma
2.09 105%
2.5 88%
2.33 94%
2.44 90%
CCT
11308 57%
6771 96%
6993 93%
6461 101%
Color Space (Percent of AdobeRGB 1998)
62.1
36.7
40.49
Total Average (Program / Settings)
43% / 43%
15% / 15%
45% / 45%

* ... smaller is better

Cinebench R15
CPU Single 64Bit (sort by value)
HP Pavilion 13-a000ng x360
i3-4030U
75 Points
Lenovo Yoga 2 13
i3-4010U
59 Points -21%
Medion Akoya E6239T
N3510
33 Points -56%
Toshiba Satellite W30Dt-A-100
A4-1200
20 Points -73%
CPU Multi 64Bit (sort by value)
HP Pavilion 13-a000ng x360
i3-4030U
192 Points
Lenovo Yoga 2 13
i3-4010U
170 Points -11%
Medion Akoya E6239T
N3510
123 Points -36%
Toshiba Satellite W30Dt-A-100
A4-1200
33 Points -83%
Cinebench R11.5
CPU Single 64Bit (sort by value)
HP Pavilion 13-a000ng x360
i3-4030U
0.86 Points
Lenovo Yoga 2 13
i3-4010U
0.73 Points -15%
Medion Akoya E6239T
N3510
0.38 Points -56%
Toshiba Satellite W30Dt-A-100
A4-1200
0.24 Points -72%
CPU Multi 64Bit (sort by value)
HP Pavilion 13-a000ng x360
i3-4030U
2.07 Points
Lenovo Yoga 2 13
i3-4010U
1.83 Points -12%
Medion Akoya E6239T
N3510
1.47 Points -29%
Toshiba Satellite W30Dt-A-100
A4-1200
0.45 Points -78%
Cinebench R10 Rendering Single CPUs 64Bit
3696 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
7977 Points
Cinebench R11.5 CPU Single 64Bit
0.86 Points
Cinebench R11.5 CPU Multi 64Bit
2.07 Points
Cinebench R11.5 OpenGL 64Bit
14.41 fps
Cinebench R15 CPU Single 64Bit
75 Points
Cinebench R15 CPU Multi 64Bit
192 Points
Cinebench R15 OpenGL 64Bit
19.59 fps
Cinebench R15 Ref. Match 64Bit
98 %
Help
PCMark 7 Score
3349 points
PCMark 8 Home Score Accelerated v2
2179 points
PCMark 8 Creative Score Accelerated v2
2224 points
PCMark 8 Work Score Accelerated v2
3115 points
Help
PCMark 7 - Score (sort by value)
HP Pavilion 13-a000ng x360
i3-4030U
3349 Points
Lenovo Yoga 2 13
i3-4010U
2180 Points -35%
Medion Akoya E6239T
N3510
1678 Points -50%
Toshiba Satellite W30Dt-A-100
A4-1200
1011 Points -70%
Seagate ST500LM000 Solid State Hybrid Drive
Transfer Rate Minimum: 46 MB/s
Transfer Rate Maximum: 112.2 MB/s
Transfer Rate Average: 85.8 MB/s
Access Time: 17.6 ms
Burst Rate: 149.7 MB/s
CPU Usage: 11.4 %
3DMark 11 Performance
812 points
3DMark Ice Storm Standard Score
32613 points
3DMark Cloud Gate Standard Score
3711 points
Help
3DMark - 1280x720 Cloud Gate Standard Score (sort by value)
HP Pavilion 13-a000ng x360
HD Graphics 4400
3711 Points
Lenovo Yoga 2 13
HD Graphics 4400
3597 Points -3%
Medion Akoya E6239T
HD Graphics (Bay Trail)
1395 Points -62%
Toshiba Satellite W30Dt-A-100
Radeon HD 8180
1024 Points -72%
low med. high ultra
Tomb Raider (2013) 37.4 19.8 11.3
BioShock Infinite (2013) 30.1 16.8 13.3
Thief (2014) 12.4 7.8 6.2

Noise Level

Idle
33.5 / 33.7 / 33.7 dB(A)
Load
38.7 / 43.6 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft sl- 320 (15 cm distance)
 24.9 °C25.7 °C25.4 °C
 24.7 °C25.2 °C25.6 °C
 25.3 °C24.5 °C26.2 °C
Maximum: 26.2 °C
Average: 25.3 °C
26.5 °C25.8 °C25.8 °C
27.4 °C25.5 °C25.1 °C
26.9 °C25.6 °C25.2 °C
Maximum: 27.4 °C
Average: 26 °C
Power Supply (max.)  29.8 °C | Room Temperature 23.6 °C | Voltcraft IR-360
(+) The average temperature for the upper side under maximal load is 29.7 °C / 85 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 34.1 °C / 93 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(+) The bottom heats up to a maximum of 35.5 °C / 96 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25.3 °C / 78 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.2 °C / 84.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-1.1 °C / -2 F).
Power Consumption
Off / Standbydarklight 0 / 0.2 Watt
Idledarkmidlight 4 / 5.9 / 6.1 Watt
Load midlight 26.1 / 29.7 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Battery Runtime
Idle (without WLAN, min brightness)
7h 10min
WiFi Surfing
5h 45min
Load (maximum brightness)
1h 40min
Battery Runtime - WiFi (sort by value)
HP Pavilion 13-a000ng x360
i3-4030U; 43.5 Wh-Akku
345 min
Lenovo Yoga 2 13
i3-4010U; 50 Wh-Akku
302 min
Toshiba Satellite W30Dt-A-100
A4-1200; 42 Wh-Akku
430 min

现在,生产商都希望能在快速发展的工业界中另辟蹊径。在上世纪末这通常代表提高处理器的时钟频率,而在前几年增加处理器核心数量和提供系统能效成了一个新的趋势。今天,一台“笔记本”需要比传统的笔记本电脑多出些什么才能在高端商务设备、超便携设备或平板设备的激烈竞争中夺得先机。

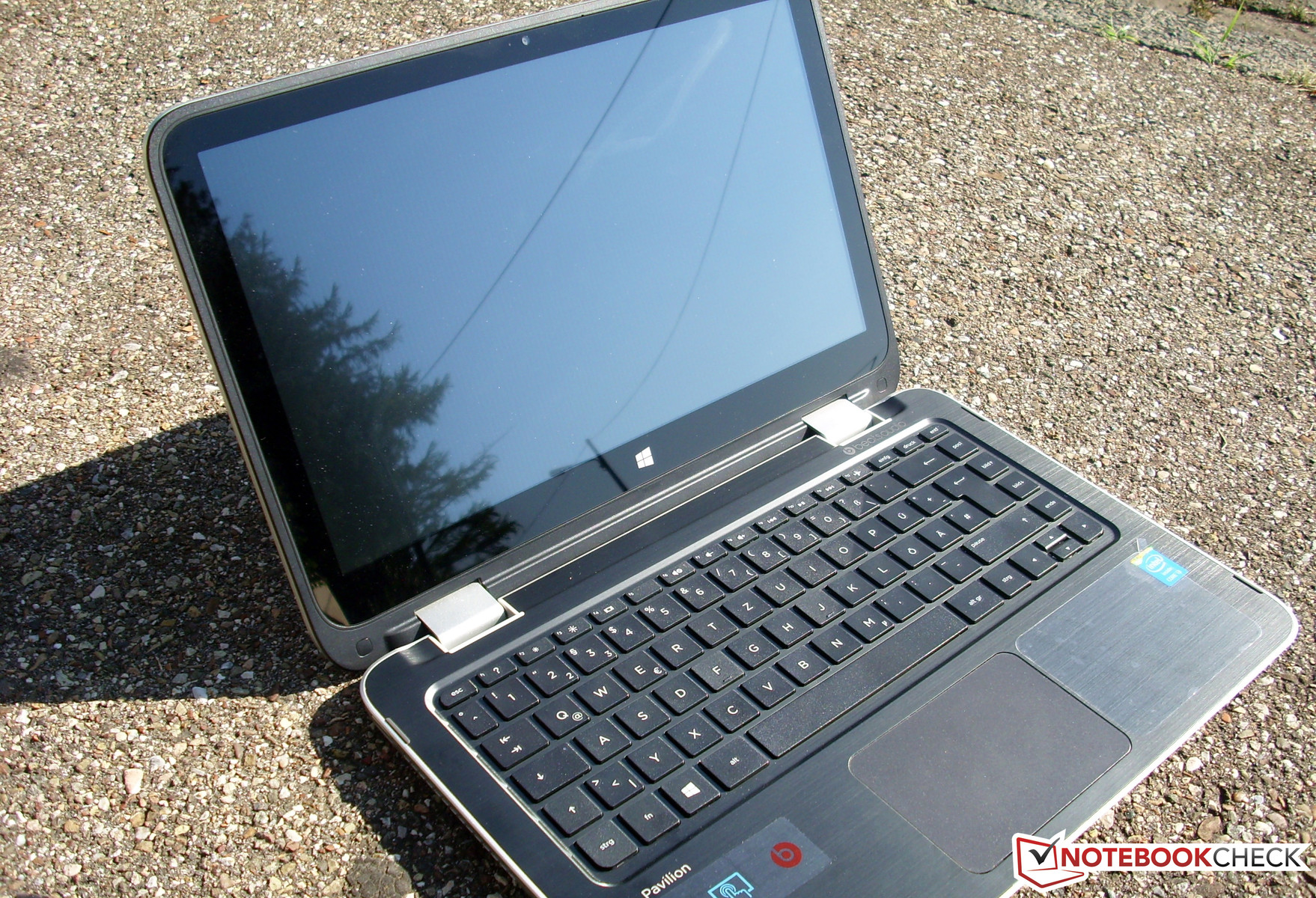

惠普现在打算紧跟联想Yoga 系列与改进后的Yoga 2 13 在中端市场中的成功脚步。遗憾的是,它们的这个努力由于一些小缺陷而算不上成功。它屏幕非常有限的可视角度范围让它作为平板使用几乎变得不可能。而镜面屏幕的反光十分影响办公和桌面使用,而偶尔可以看到的屏幕网格又给这一问题火上浇油;另外屏幕不高的亮度,模糊的显示效果也十分让人失望。尽管其他的部件,如处理器,都十分优秀;它实际达到的可用性很难满足惠普所宣称的程度,从而减低了它的性价比。

打算购买这款笔记本主要作为传统笔记本来使用的用户,而并非特别需要触控功能和旋转屏幕的话,可能会对这款惠普的变形本很满意。不过,用户需要接受它屏幕质量的缺陷。需要在各个模式下的实用性的用户可能需要考虑多投入100欧元(约781人民币)购买联想Yoga 2 13,主要由于它的较高屏幕质量可以满足各个模式下的使用需求。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

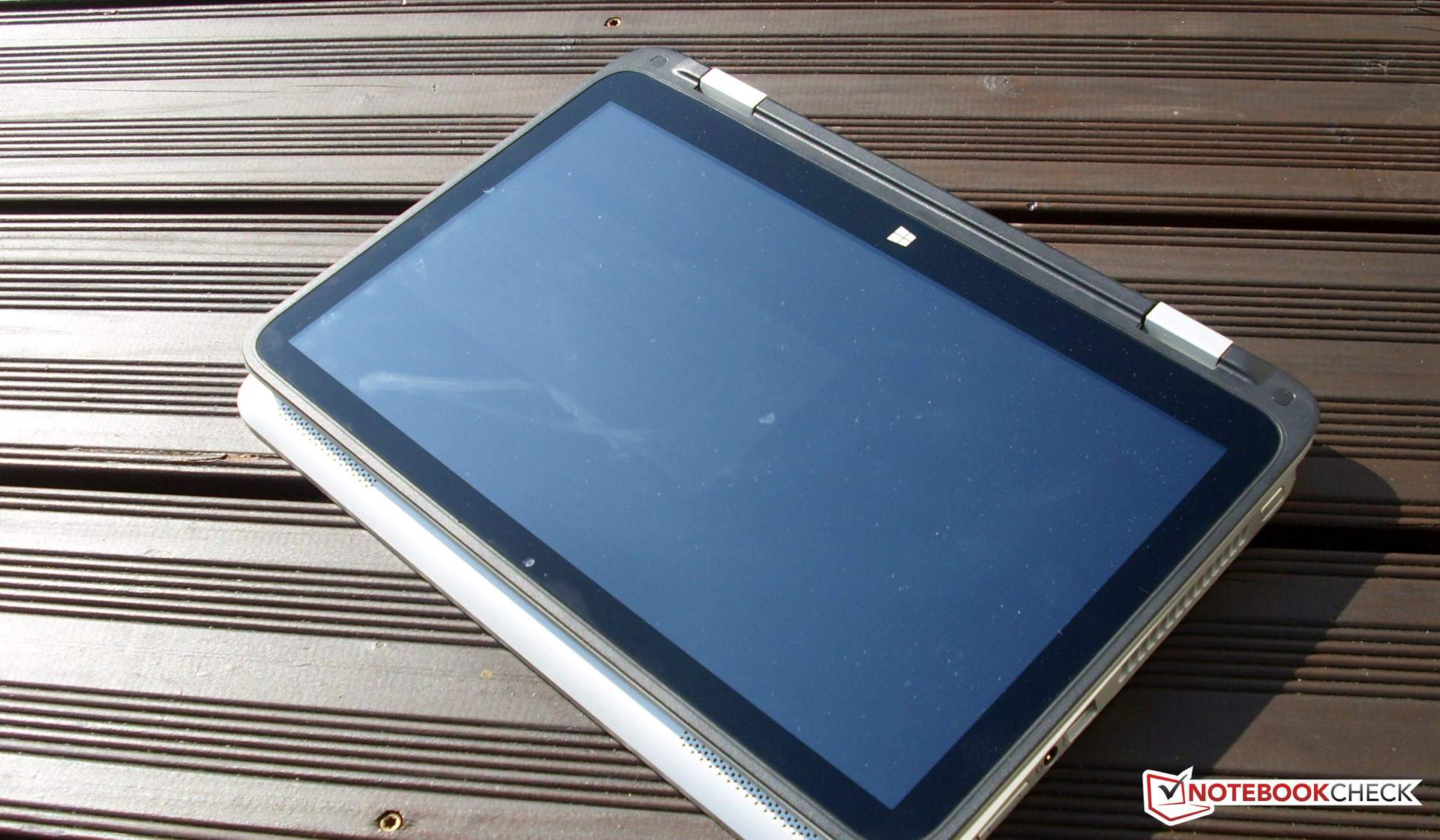

平板模式
平板模式

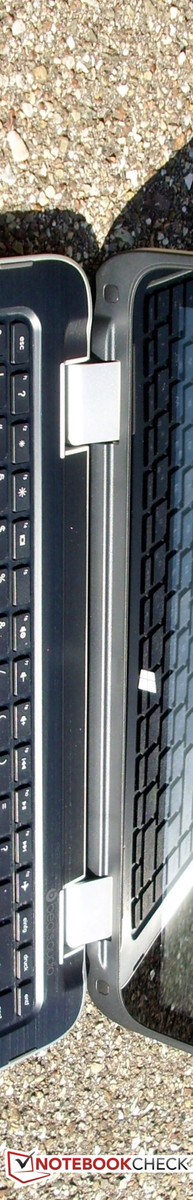

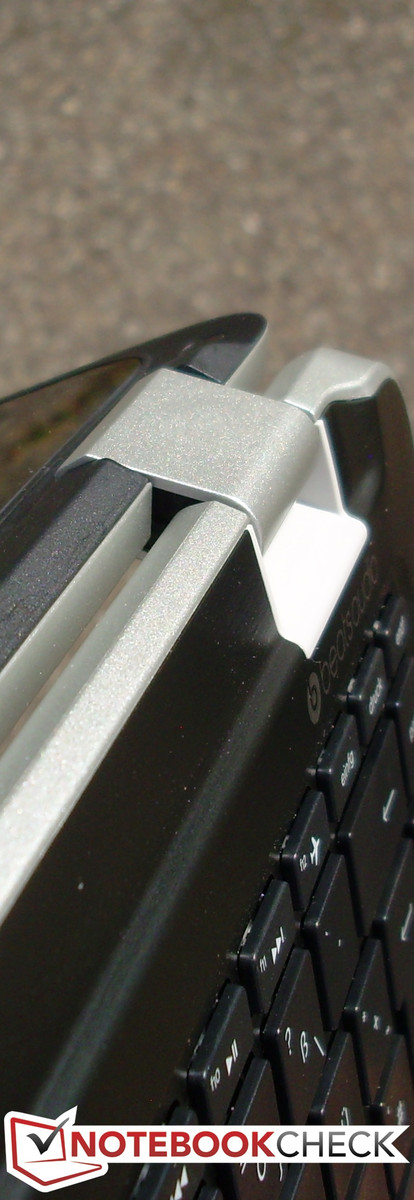

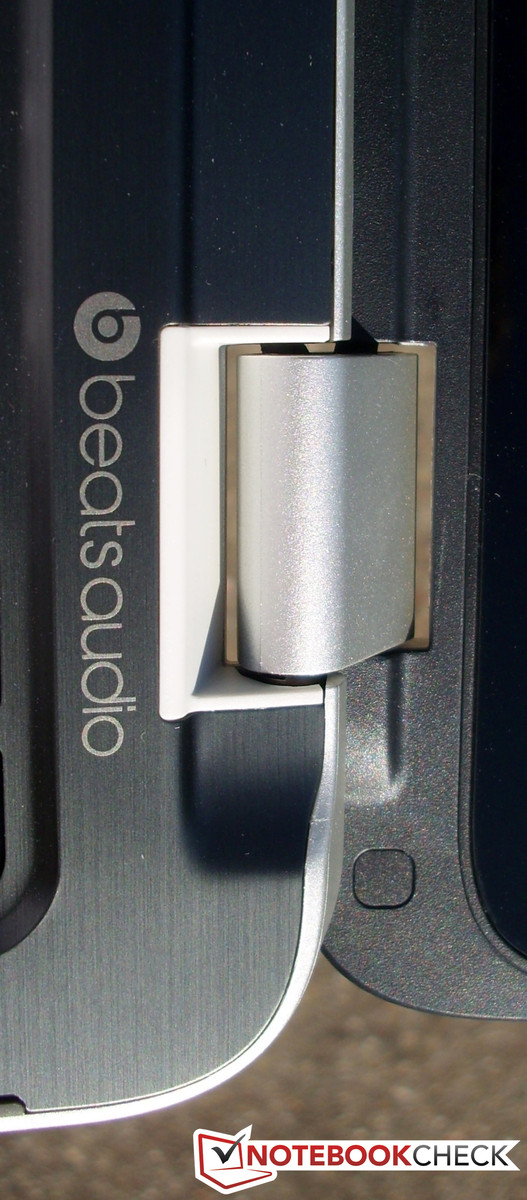

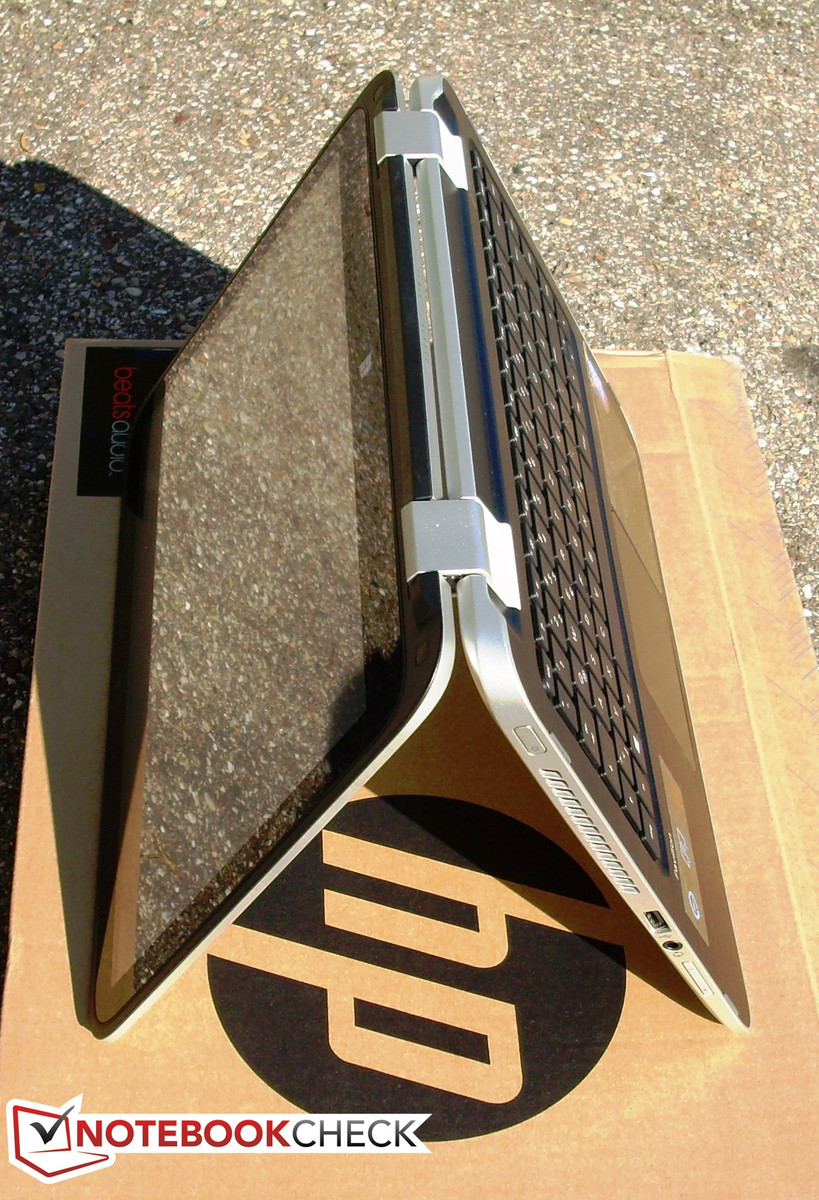

巧妙的转轴设计
巧妙的转轴设计

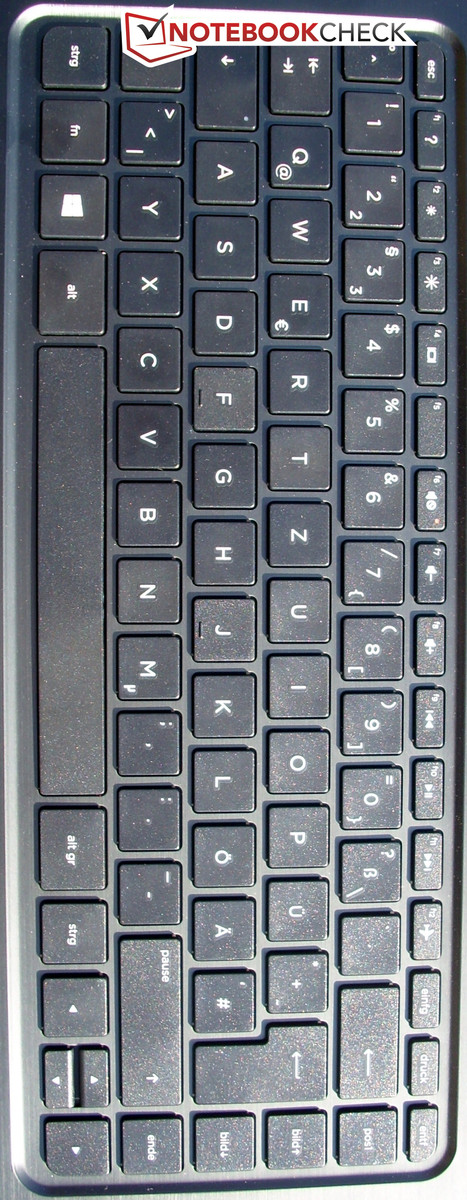

大尺寸键盘
大尺寸键盘

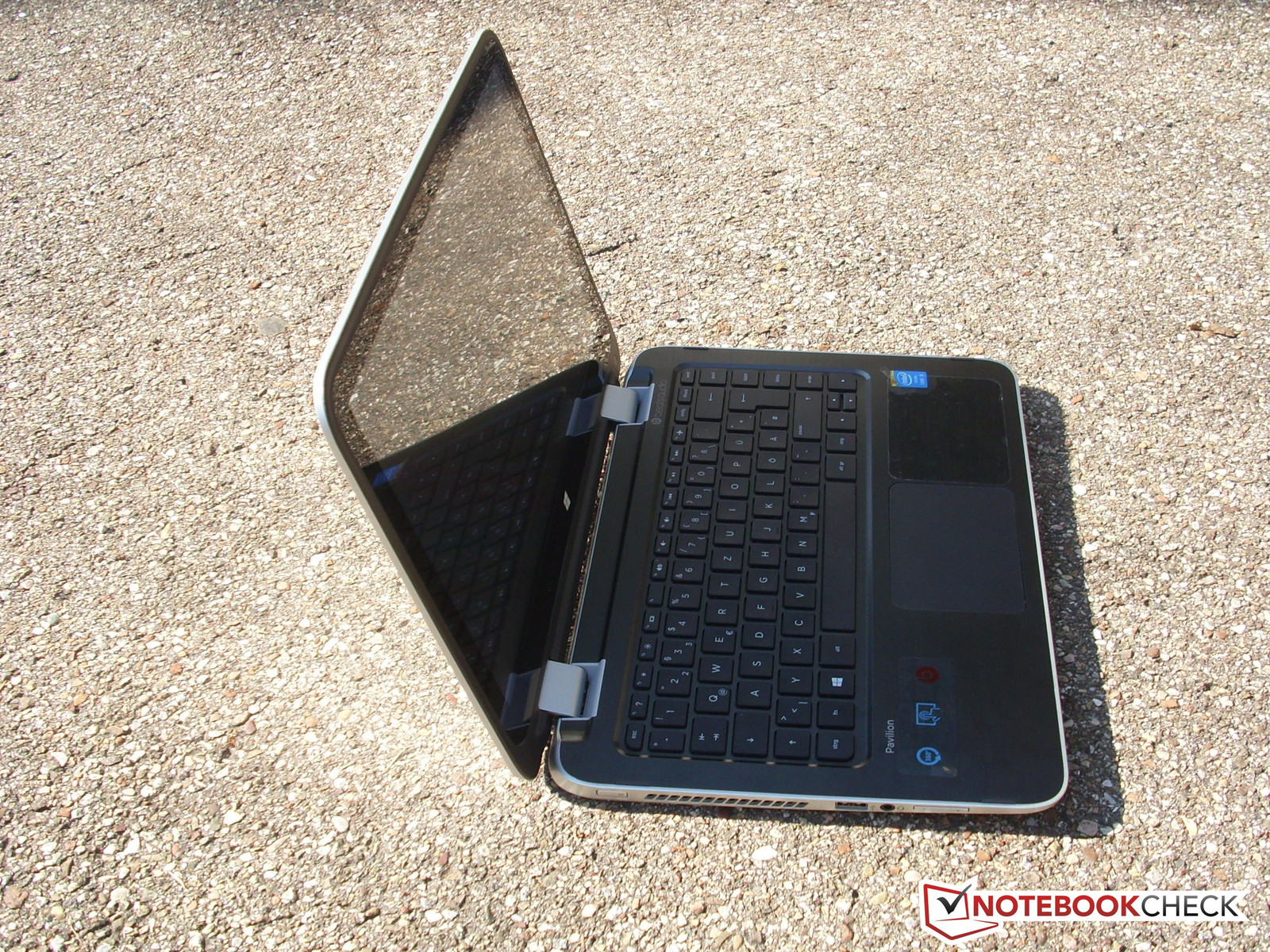

右侧
右侧
左侧
左侧
前视图
前视图
功能键
功能键

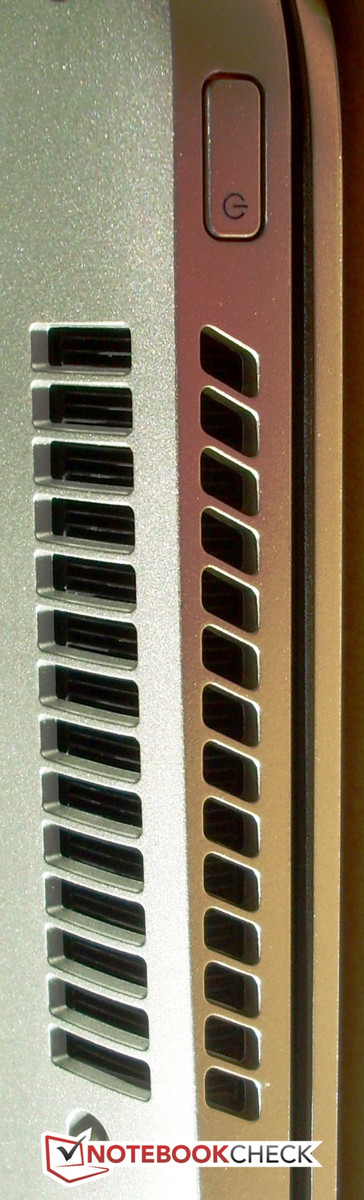

电源键和排风口
电源键和排风口

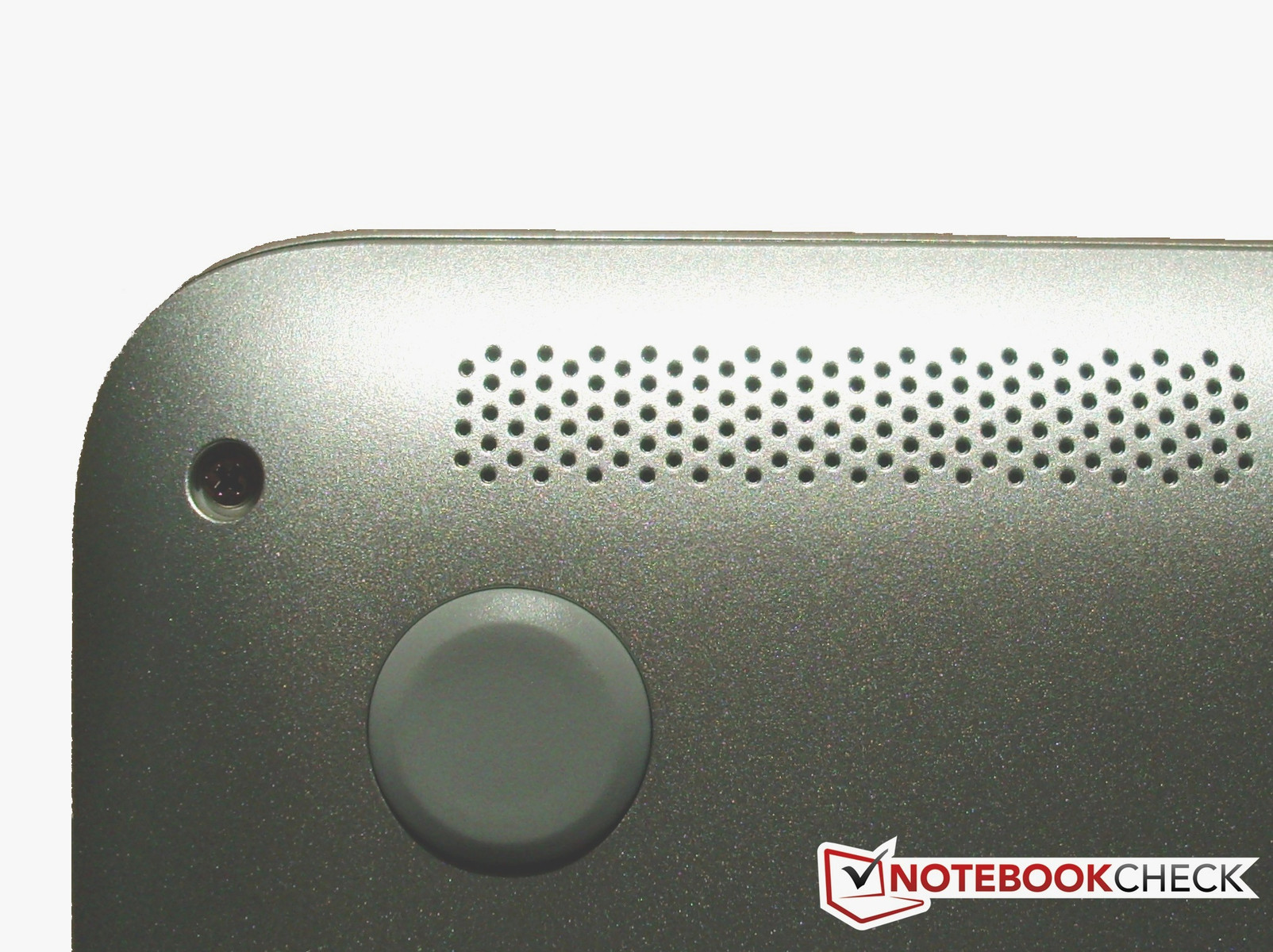

Beats Audio 认证扬声器
Beats Audio 认证扬声器

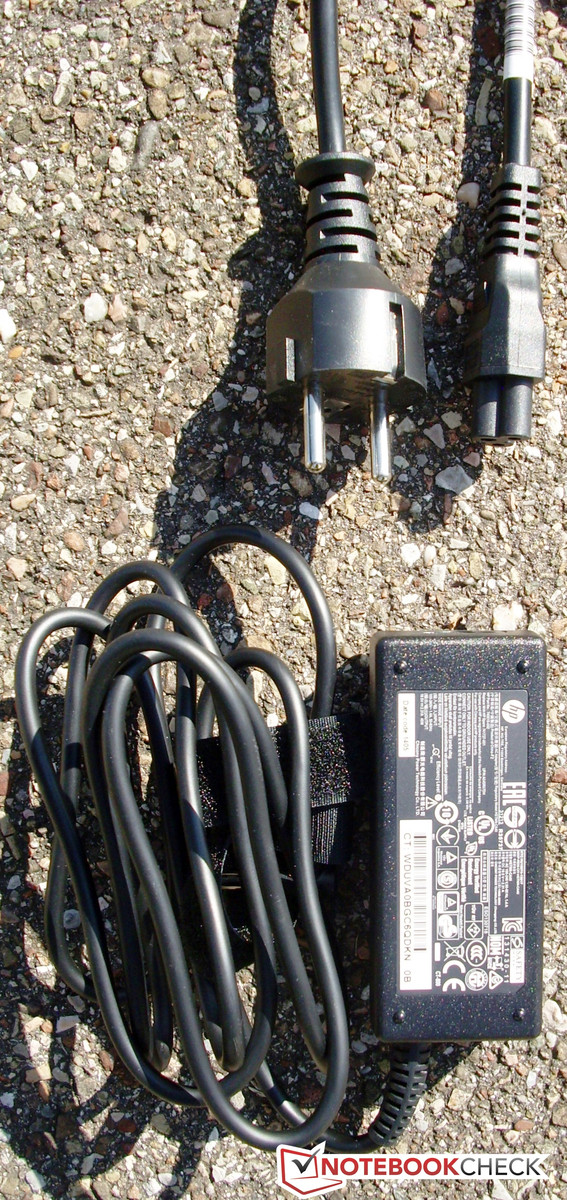

电源适配器
电源适配器
Please share our article, every link counts!

Specifications

HP Pavilion 13-a000ng x360 (Pavilion 13-an Series)
Processor
Intel Core i3-4030U 2 x 1.9 GHz, Haswell
Graphics adapter
Intel HD Graphics 4400
Memory
8 GB
, 1 个 DDR3L 1600 MHz 内存插槽
Display
13.30 inch 16:9, 1366 x 768 pixel, 10点触控,电容型, AU Optronics B133XW03, TN, glossy: yes
Mainboard
Intel Lynx Point-LP
Storage
Seagate ST500LM000 Solid State Hybrid Drive, 500 GB
, 5400 rpm
Soundcard
Realtek ALC282 @ Intel Lynx Point PCH - High Definition Audio Controller
Connections
1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Kensington Lock, Audio Connections: 1 个 整合耳机接口, Card Reader: SD, SDHC, Sensors: 位置传感器, 亮度传感器, RJ-45 以太网接口
Networking
Realtek RTL8139/810x Fast Ethernet Adapter (10/100MBit/s), Atheros AR9565 (a/b/g/n = Wi-Fi 4/), Bluetooth 4.0
Size
height x width x depth (in mm): 23 x 334 x 228
Battery
44 Wh Lithium-Polymer
Operating System
Microsoft Windows 8.1 64 Bit
Camera
Webcam: HP TrueVision 高清摄像头 720p
Additional features
Speakers: 立体声, Keyboard: 孤岛式, Keyboard Light: no, 12 Months Warranty
Weight
1.76 kg, Power Supply: 310 g
Price
589 Euro



Similar devices from a different Manufacturer

Devices from a different Manufacturer and/or with a different CPU

戴尔 Inspiron 13 7347 变形本简短评测
HD Graphics 4400, Core i5 4210U
联想 Yoga 2 13 变形本简短评测
HD Graphics 4400, Core i3 4010U

Devices with the same GPU

联想 Horizon 2s-F0AT0003US 一体机简短评测
HD Graphics 4400, Core i5 4210U, 19.50", 2.478 kg
东芝 Satellite Radius P50W-BST2N01 变形本简短评测
HD Graphics 4400, Core i5 4210U, 15.60", 2.168 kg

Pros

+实惠而快速的处理器
+笔记本、平板、全能型电脑
+多用途设计
+时尚的外观


Cons

-屏幕的可视角度十分有限
-未采用固态硬盘
-对于平板来说过沉

HP Pavilion 13-a000ng x360 - 09/28/2014 v4(old)
Melvin Pudellek

Chassis
71 / 98 → 72%
Keyboard
75%
Pointing Device
72%
Connectivity
62 / 80 → 78%
Weight
66 / 35-78 → 72%
Battery
85%
Display
63%
Games Performance
55 / 68 → 81%
Application Performance
64 / 87 → 74%
Temperature
93%
Noise
79%
Audio
70 / 91 → 77%
Camera
63 / 85 → 74%
Average
71%
