华硕 N550JK-CN109H 笔记本电脑简短评测

Name: Asus N550JK-CN109H
Brand: Asus

沉稳。 具备强大图形处理能力的笔记本电脑并不多见。更何况，其中只有极少一部分会配备磨砂IPS屏幕，高质量带低音炮的音响系统，和高质量的铝合金机身。这款华硕笔记本是否具备领军多媒体型设备的潜质呢？

Sebastian Jentsch, ✓ Stefanie Voigt (translated by Yuchen Wang), Published 06/13/2014 🇺🇸 🇩🇪 ...

Windows Laptop / Notebook Haswell


270 cd/m²	288 cd/m²	274 cd/m²
243 cd/m²	284 cd/m²	284 cd/m²
230 cd/m²	243 cd/m²	261 cd/m²

Distribution of brightness

IPS tested with X-Rite i1Pro 2

Maximum: 288 cd/m² (Nits) Average: 264.1 cd/m²
Brightness Distribution: 80 %
Center on Battery: 284 cd/m²
Contrast: 732:1 (Black: 0.388 cd/m²)
ΔE ColorChecker Calman: 5.24 | ∀{0.5-29.43 Ø4.79}
ΔE Greyscale Calman: 7.7 | ∀{0.09-98 Ø5}
47% AdobeRGB 1998 (Argyll 1.6.3 3D)
53.2% AdobeRGB 1998 (Argyll 3D)
71.8% sRGB (Argyll 3D)
55.1% Display P3 (Argyll 3D)
Gamma: 2.63
CCT: 6119 K

Download ICC File (X-Rite i1Pro 2)

	Asus N550JK-CN109H GeForce GTX 850M, 4200H, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB	Samsung 870Z5G GeForce GT 750M, 4700HQ, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB	Dell Inspiron 15-7537 GeForce GT 750M, 4500U, Samsung SSD SM841 256GB MZ7PD256HAFV
Display		24%	10%
Display P3 Coverage (%)	55.1	65.1 18%	61.7 12%
sRGB Coverage (%)	71.8	92.5 29%	78.9 10%
AdobeRGB 1998 Coverage (%)	53.2	66.7 25%	57.3 8%
Screen		22%	12%
Brightness middle (cd/m²)	284	294 4%	271 -5%
Brightness (cd/m²)	264	289 9%	267 1%
Brightness Distribution (%)	80	84 5%	84 5%
Black Level * (cd/m²)	0.388	0.3 23%	0.25 36%
Contrast (:1)	732	980 34%	1084 48%
Colorchecker dE 2000 *	5.24	3.7 29%	6.22 -19%
Greyscale dE 2000 *	7.7	4.75 38%	6.72 13%
Gamma	2.63 ^84%	2.46 ^89%	2.47 ^89%
CCT	6119 ^106%	6508 ^100%	5736 ^113%
Color Space (Percent of AdobeRGB 1998) (%)	47	61 30%	55 17%
Total Average (Program / Settings)		23% / 22%	11% / 11%

* ... smaller is better

	Asus N550JK-CN109H GeForce GTX 850M, 4200H, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB	Asus N550JV-CN201H GeForce GT 750M, 4700HQ, HGST Travelstar 5K1000 HTS541010A9E680	Samsung 870Z5G GeForce GT 750M, 4700HQ, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB	Dell Inspiron 15-7537 GeForce GT 750M, 4500U, Samsung SSD SM841 256GB MZ7PD256HAFV
Cinebench R15			27%	-26%
CPU Single 64Bit (Points)	130		134 3%	105 -19%
CPU Multi 64Bit (Points)	321		627 95%	195 -39%
OpenGL 64Bit (fps)	74.1		61.1 -18%	59.7 -19%
Cinebench R11.5		33%	29%	-25%
CPU Single 64Bit (Points)	1.47	1.52 3%	1.5 2%	1.09 -26%
CPU Multi 64Bit (Points)	3.55	6.68 88%	6.57 85%	2.12 -40%
OpenGL 64Bit (fps)	48.86	53.1 9%	49.32 1%	43.95 -10%
Total Average (Program / Settings)		33% / 33%	28% / 28%	-26% / -26%

Cinebench R10 Rendering Single CPUs 64Bit

6646 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

13739 Points

Cinebench R10 Shading 64Bit

6289 Points

Cinebench R10 Rendering Single 32Bit

6665

Cinebench R10 Rendering Multiple CPUs 32Bit

10810

Cinebench R10 Shading 32Bit

4852

Cinebench R11.5 OpenGL 64Bit

48.86 fps

Cinebench R11.5 CPU Multi 64Bit

3.55 Points

Cinebench R11.5 CPU Single 64Bit

1.47 Points

Cinebench R15 Ref. Match 64Bit

99.6 %

Cinebench R15 OpenGL 64Bit

74.1 fps

Cinebench R15 CPU Multi 64Bit

321 Points

Cinebench R15 CPU Single 64Bit

130 Points

Help

... in comparison

	Asus N550JK-CN109H GeForce GTX 850M, 4200H, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB	Dell Inspiron 15-7537 GeForce GT 750M, 4500U, Samsung SSD SM841 256GB MZ7PD256HAFV	Acer Aspire V7-582PG-74508G52tkk GeForce GT 750M, 4500U, Toshiba MQ01ABF050	Acer Aspire R7-571G-53338G75ass GeForce GT 750M, 3337U, WDC Scorpio Blue WD7500BPVX-22JC3T0	Samsung 870Z5G GeForce GT 750M, 4700HQ, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
PCMark 7		107%	51%		-4%
Score (Points)	2882	5454 89%	4255 48%		2764 -4% 2764 -4%
System Storage (Points)	1536	5596 264%	3654 138%
Computation (Points)	14339	19928 39%	15985 11%
Creativity (Points)	5562	10431 88%	7313 31%
Productivity (Points)	1732	2652 53%	2235 29%
PCMark 8
Storage Score (Points)	1959	4989 155%	2788 42%	2047 4% 2047 4%
Total Average (Program / Settings)		131% / 115%	47% / 50%	4% / 4%	-4% / -4%

PCMark Vantage Result		7185 points
PCMark 7 Score		2882 points
PCMark 8 Home Score Accelerated v2		3072 points
PCMark 8 Creative Score Accelerated v2		4190 points
PCMark 8 Work Score Accelerated v2		3769 points
Help

... in comparison

	Asus N550JK-CN109H GeForce GTX 850M, 4200H, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB	Dell Inspiron 15-7537 GeForce GT 750M, 4500U, Samsung SSD SM841 256GB MZ7PD256HAFV	Samsung 870Z5G GeForce GT 750M, 4700HQ, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB	Acer Aspire V7-582PG-74508G52tkk GeForce GT 750M, 4500U, Toshiba MQ01ABF050
CrystalDiskMark 3.0		6583%	31%	17%
Read Seq (MB/s)	87.3	536 514%	92.4 6%	104.4 20%
Write Seq (MB/s)	83.5	505 505%	74.4 -11%	98.3 18%
Read 4k (MB/s)	0.326	37.7 11464%	0.389 19%	0.34 4%
Write 4k (MB/s)	0.641	89.4 13847%	1.336 108%	0.808 26%

HD Tune

CrystalDiskMark 3.0

Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB

Transfer Rate Minimum: 41.1 MB/s

Transfer Rate Maximum: 106.3 MB/s

Transfer Rate Average: 79.9 MB/s

Access Time: 17.7 ms

Burst Rate: 268.3 MB/s

CPU Usage: 3.4 %

	Asus N550JK-CN109H GeForce GTX 850M, 4200H, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB	MSI GE70-2PCi785 GeForce GTX 850M, 4700HQ, Western Digital Scorpio Blue WD5000LPVX	Samsung 870Z5G GeForce GT 750M, 4700HQ, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB	Dell Inspiron 15-7537 GeForce GT 750M, 4500U, Samsung SSD SM841 256GB MZ7PD256HAFV	Acer Aspire V7-582PG-74508G52tkk GeForce GT 750M, 4500U, Toshiba MQ01ABF050
3DMark		42%	-30%	-32%	-41%
1920x1080 Fire Strike Score (Points)	2697	3404 26%	1450 -46%	1756 -35%	1377 -49%
1920x1080 Fire Strike Graphics (Points)	3085	3596 17%	1509 -51%	1877 -39%	1483 -52%
1920x1080 Fire Strike Physics (Points)	4872	8817 81%	8580 76%	3394 -30%	4056 -17%
1920x1080 Fire Strike Combined (Points)	1033	1468 42%	2.66 -100%	797 -23%	545 -47%

3DMark 06 Standard Score		18575 points
3DMark 11 Performance		4289 points
3DMark Ice Storm Standard Score		77250 points
3DMark Cloud Gate Standard Score		9862 points
3DMark Fire Strike Score		2697 points
Help

... in comparison

Company of Heroes 2 - 1366x768 High AA:Medium (sort by value)
Asus N550JK-CN109H	29.7 fps
Samsung 870Z5G	14.4 fps -52%
Acer Aspire V7-582PG-74508G52tkk	14.5 fps -51%

Total War: Rome II - 1366x768 High Preset (sort by value)
Asus N550JK-CN109H	85 fps
Dell Inspiron 15-7537	49.5 fps -42%

Legend

Asus N550JK-CN109H Intel Core i5-4200H, NVIDIA GeForce GTX 850M, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB

Dell Inspiron 15-7537 Intel Core i7-4500U, NVIDIA GeForce GT 750M, Samsung SSD SM841 256GB MZ7PD256HAFV

Samsung 870Z5G Intel Core i7-4700HQ, NVIDIA GeForce GT 750M, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB

Acer Aspire V7-582PG-74508G52tkk Intel Core i7-4500U, NVIDIA GeForce GT 750M, Toshiba MQ01ABF050

MSI GE70-2PCi785 Intel Core i7-4700HQ, NVIDIA GeForce GTX 850M, Western Digital Scorpio Blue WD5000LPVX

	med.	high	ultra
World of Warcraft (2005)		86.9	45.3
Resident Evil 5 (2009)		95	79.5
Battlefield: Bad Company 2 (2010)		117.2	50.2
Total War: Shogun 2 (2011)	76.4		36.5
Dirt 3 (2011)		100.1	48.9
Deus Ex Human Revolution (2011)		130.2	61.2
Battlefield 3 (2011)	77.2	63.9	22
The Elder Scrolls V: Skyrim (2011)		66.2	36.4
Alan Wake (2012)	53.1		27.3
Dirt Showdown (2012)		61.9	39
Max Payne 3 (2012)		52.8	39
Ghost Recon: Future Soldier (2012)	36.6		22.7
Counter-Strike: GO (2012)			98.9
Dishonored (2012)		109.2	66.1
Medal of Honor: Warfighter (2012)	85.8	73.3	24.9
Call of Duty: Black Ops 2 (2012)		84.3	54.2
Assassin´s Creed III (2012)		49.4	21.4
Dead Space 3 (2013)		112.9	67.7
SimCity (2013)	87	56.3	28
StarCraft II: Heart of the Swarm (2013)	85.1	68.9	35.7
Company of Heroes 2 (2013)	37.58	29.7	12.68
Splinter Cell: Blacklist (2013)	75.9	42.9	17.2
The Bureau: XCOM Declassified (2013)	70.9	45.3	34.3
Total War: Rome II (2013)	104.6	85	19.2
Fifa 14 (2013)			142
Batman: Arkham Origins (2013)		57	29
Need for Speed: Rivals (2013)	30	30	30
Thief (2014)	36.2	33.7	18.3

	Asus N550JK-CN109H GeForce GTX 850M, 4200H, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB	Dell Inspiron 15-7537 GeForce GT 750M, 4500U, Samsung SSD SM841 256GB MZ7PD256HAFV	Samsung 870Z5G GeForce GT 750M, 4700HQ, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB	Acer Aspire V7-582PG-74508G52tkk GeForce GT 750M, 4500U, Toshiba MQ01ABF050
Noise		10%	8%	5%
Idle Minimum * (dB)	33.8	29.5 13%	30.9 9%	30.4 10%
Idle Average * (dB)	33.8	30.6 9%	30.9 9%	32.7 3%
Idle Maximum * (dB)	33.9	32.4 4%	31 9%	33 3%
Load Average * (dB)	41.9	32.4 23%	40.4 4%	39.4 6%
Load Maximum * (dB)	43.6	42.5 3%	40.6 7%	41.7 4%

* ... smaller is better

Noise level

Idle		33.8 / 33.8 / 33.9 dB(A)
HDD		33.8 dB(A)
DVD		37.7 / dB(A)
Load		41.9 / 43.6 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Voltcraft sl-320 (15 cm distance)

Max. Load

Idle


42.8 °C	48.5 °C	32.5 °C
34.3 °C	45.1 °C	30 °C
29.3 °C	28.8 °C	29 °C

Maximum: 48.5 °C
Average: 35.6 °C


29.3 °C	46.3 °C	44 °C
27.4 °C	32.7 °C	32.6 °C
26.7 °C	29.5 °C	29.7 °C

Maximum: 46.3 °C
Average: 33.1 °C

Power Supply (max.) 50.7 °C | Room Temperature 24 °C | Voltcraft IR-360

(±) The average temperature for the upper side under maximal load is 35.6 °C / 96 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(-) The maximum temperature on the upper side is 48.5 °C / 119 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(-) The bottom heats up to a maximum of 46.3 °C / 115 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 26.8 °C / 80 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.3 °C / 84.7 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.7 °C / 83.7 F (-0.6 °C / -1 F).

	Asus N550JK-CN109H GeForce GTX 850M, 4200H, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB	Dell Inspiron 15-7537 GeForce GT 750M, 4500U, Samsung SSD SM841 256GB MZ7PD256HAFV	Samsung 870Z5G GeForce GT 750M, 4700HQ, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB	Asus N550JV-CN201H GeForce GT 750M, 4700HQ, HGST Travelstar 5K1000 HTS541010A9E680
Power Consumption		50%	41%	33%
Idle Minimum * (Watt)	17.6	5.4 69%	6.5 63%	8.9 49%
Idle Average * (Watt)	21.1	9.9 53%	10 53%	11.9 44%
Idle Maximum * (Watt)	24	9.9 59%	10.2 57%	12.1 50%
Load Average * (Watt)	83.5	59.6 29%	75.4 10%	93 -11%
Load Maximum * (Watt)	108.7	66.1 39%	83.8 23%	75.4 31%

* ... smaller is better

Power Consumption

Off / Standby	0.1 / 0.4 Watt
Idle	17.6 / 21.1 / 24 Watt
Load	83.5 / 108.7 Watt


Key: min: , med: , max: Voltcraft VC 960

Battery runtime
Reader / Idle (sort by value)
Asus N550JK-CN109H	5.1 h
Acer Aspire V7-582PG-74508G52tkk	5.7 h
Asus N550JV-CN201H	7.3 h
Dell Inspiron 15-7537	12.1 h
Samsung 870Z5G	14.5 h
WiFi (sort by value)
Asus N550JK-CN109H	3.7 h
Acer Aspire V7-582PG-74508G52tkk	4 h
Asus N550JV-CN201H	4.2 h
Dell Inspiron 15-7537	6.5 h
Samsung 870Z5G	6.8 h
Load (sort by value)
Asus N550JK-CN109H	1 h
Acer Aspire V7-582PG-74508G52tkk	2.6 h
Asus N550JV-CN201H	1.1 h
Dell Inspiron 15-7537	1.1 h
Samsung 870Z5G	1.8 h

Battery Runtime

Idle (without WLAN, min brightness)		5h 05min
WiFi Surfing		3h 40min
DVD		3h 32min
Load (maximum brightness)		1h 01min

Asus N550JK-CN109H: The throttling issue of the N550JV-CN201H precursor is a thing of the past.

华硕制作了这款很吸引人的多媒体游戏笔记本电脑——N550JK-CN109H。非常有趣的是它配备了全新的GeForce GTX 850M显卡，在游戏中相对华硕N550JV中上一代的GT750M能够提供35%-50%的额外帧数。这两款笔记本的定价相当（1000欧元，约1364美元），但是后者配备了更强劲的四核Core i7处理器。

时尚的铝合金外壳加上两个导热管和两个风扇的设计，使得它除非使用电池，可以有效地散热而不会自动降频。CPU和显卡都在桌面模式下提供了持续高效的表现。尽管设计高雅的外壳仍然有一个容易弯曲的上盖，但是铝合金的掌托，外置低音炮的出色音响效果，磨砂的IPS屏幕，和坚固的机身很好的弥补了这一点缺憾。

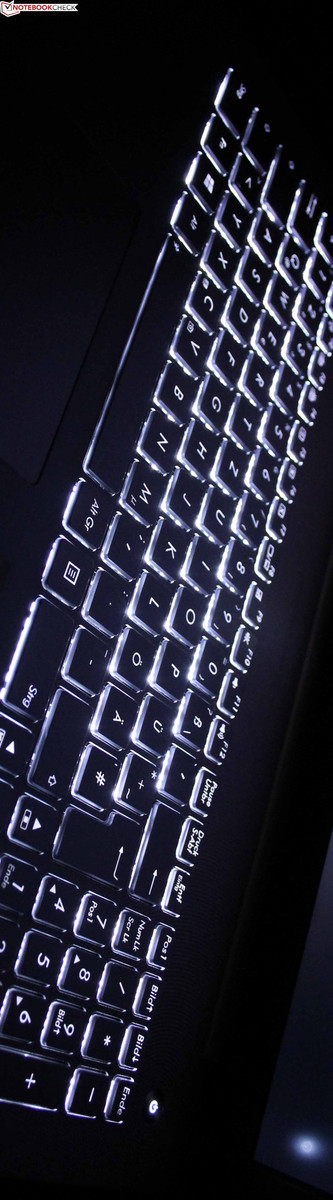

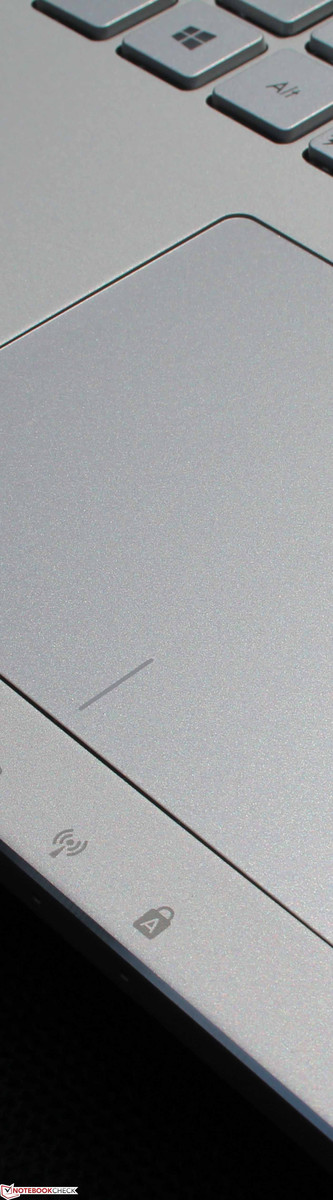

我们很快的习惯了它的键盘，但是触控板则没有。触控板的点击键程过短，让点击变得异常困难，我们被迫放弃了使用它的点击功能。触控板缺少对手势的支持同样让我们感觉很不方便，驱动中的设置除了两指滚动页面的功能外并没有提供其他任何有用的选项。抛开这个缺点不谈，N550JK的另一个严重问题是它过高的待机能耗。

需要强大性能，且能够长时间续航的时尚笔记本的用户应该考虑三星的870Z5G。除了一颗47瓦的处理器，它也提供了很好的全高清IPS屏幕。

戴尔的Inspiron15-7537也提供了不错的续航时间，同时有一个不错的屏幕。需要高性能笔记本的极客们，或许不满足于它的超低电压CPU。不过作为补偿，一个快速的固态硬盘可以弥补实际使用中的一些性能缺陷。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里

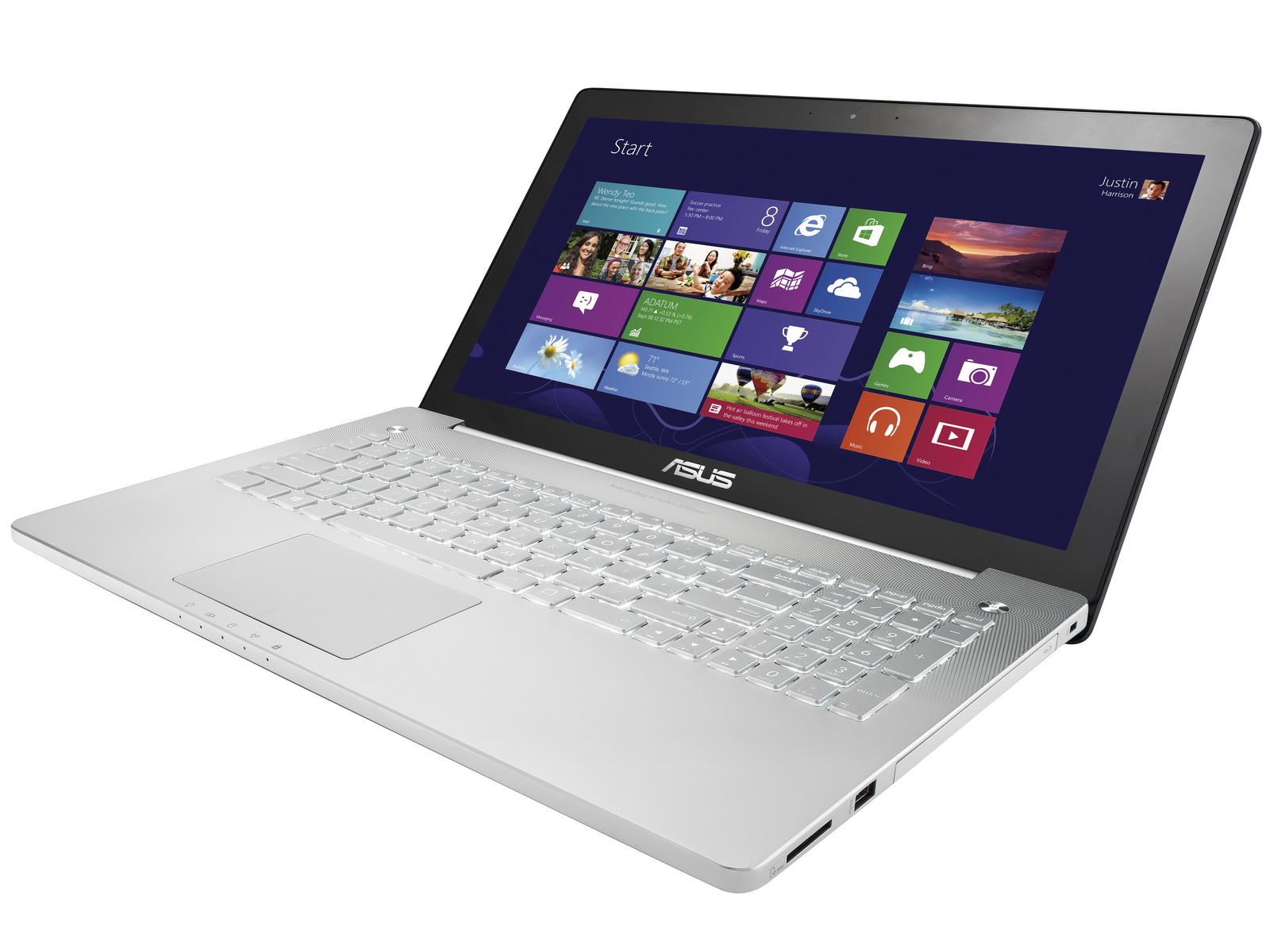

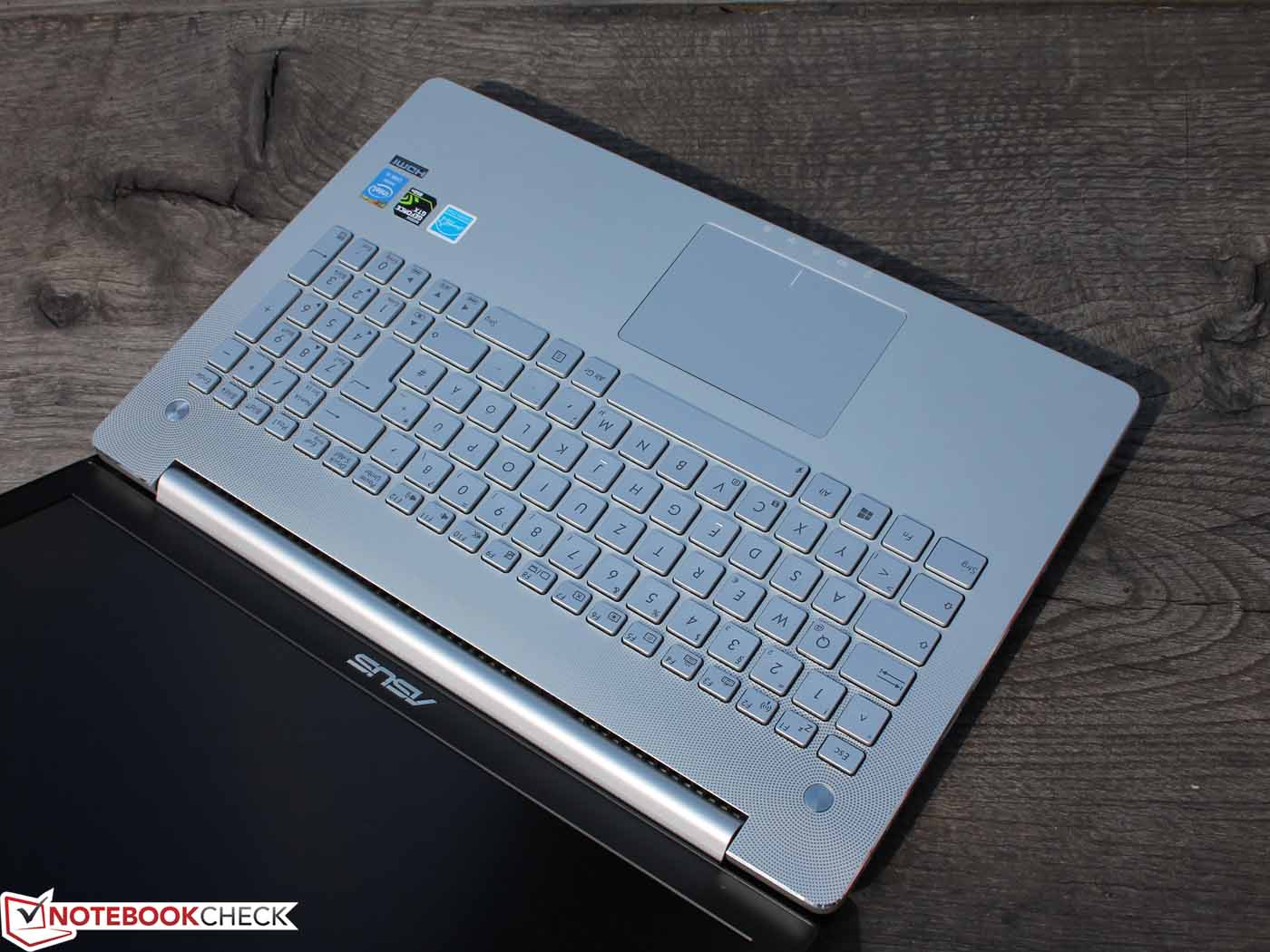

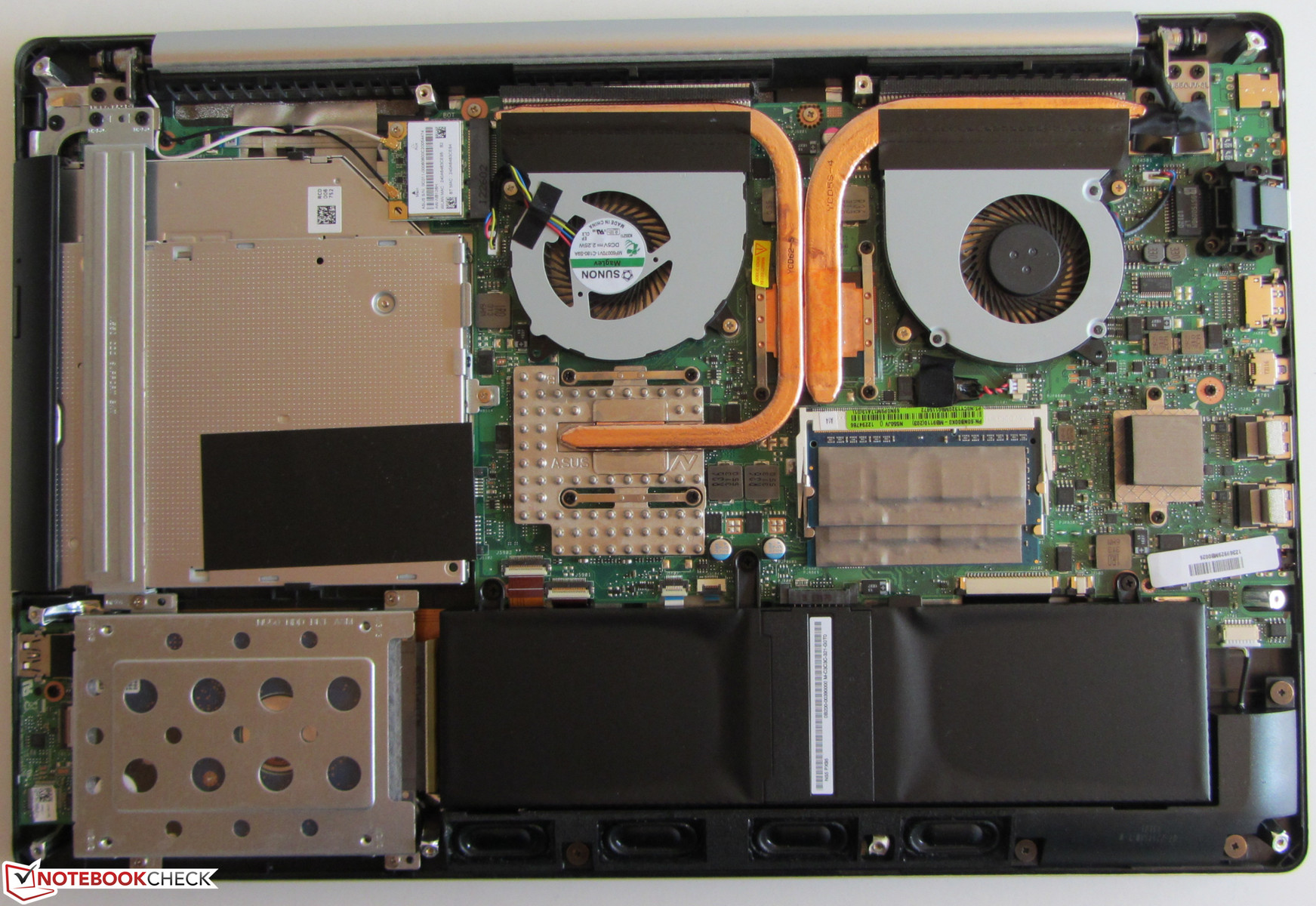

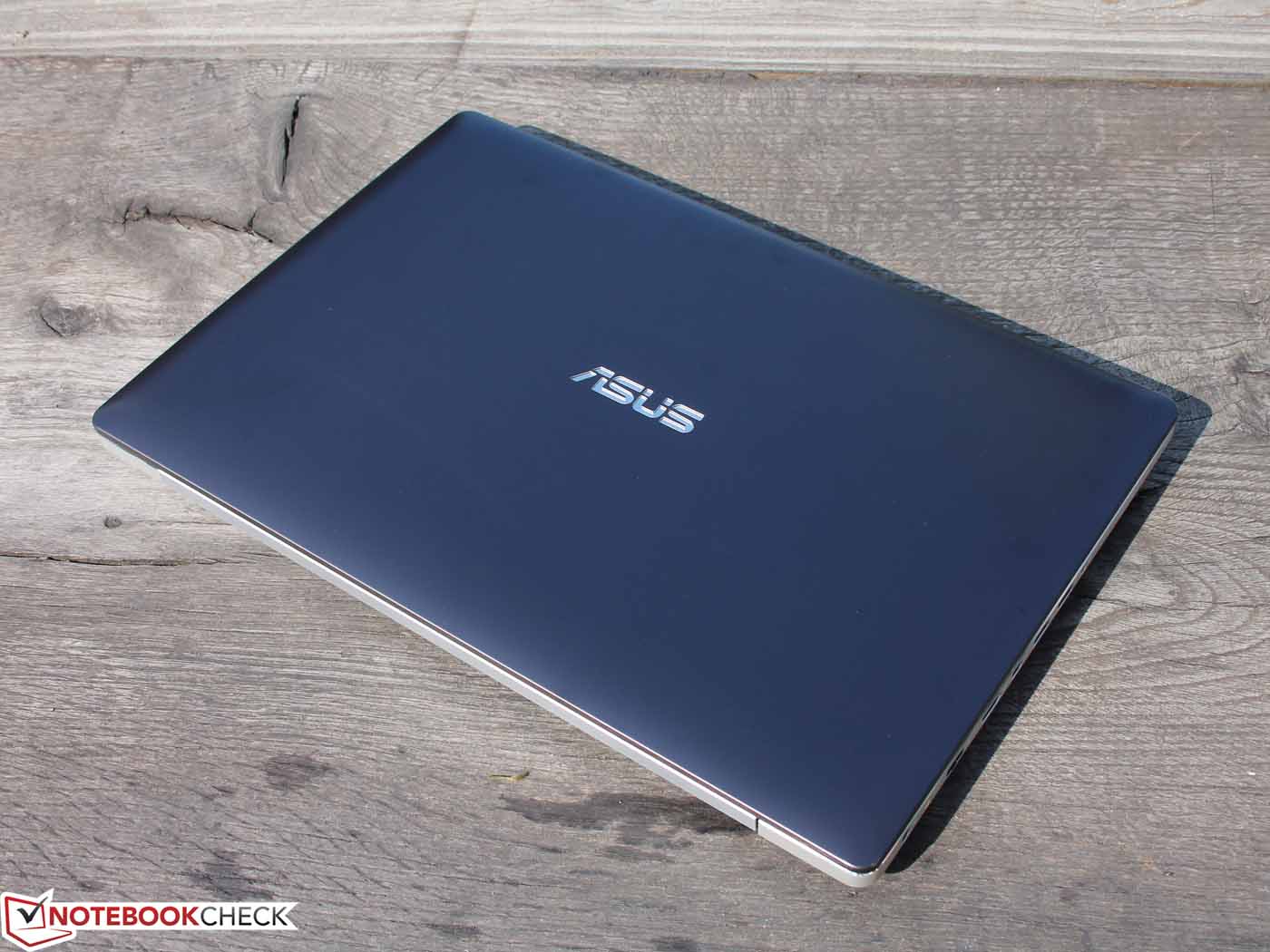

华硕的 N550JK-CN109H 与 N550JV-CN201H (GT 750M) 外观相同。

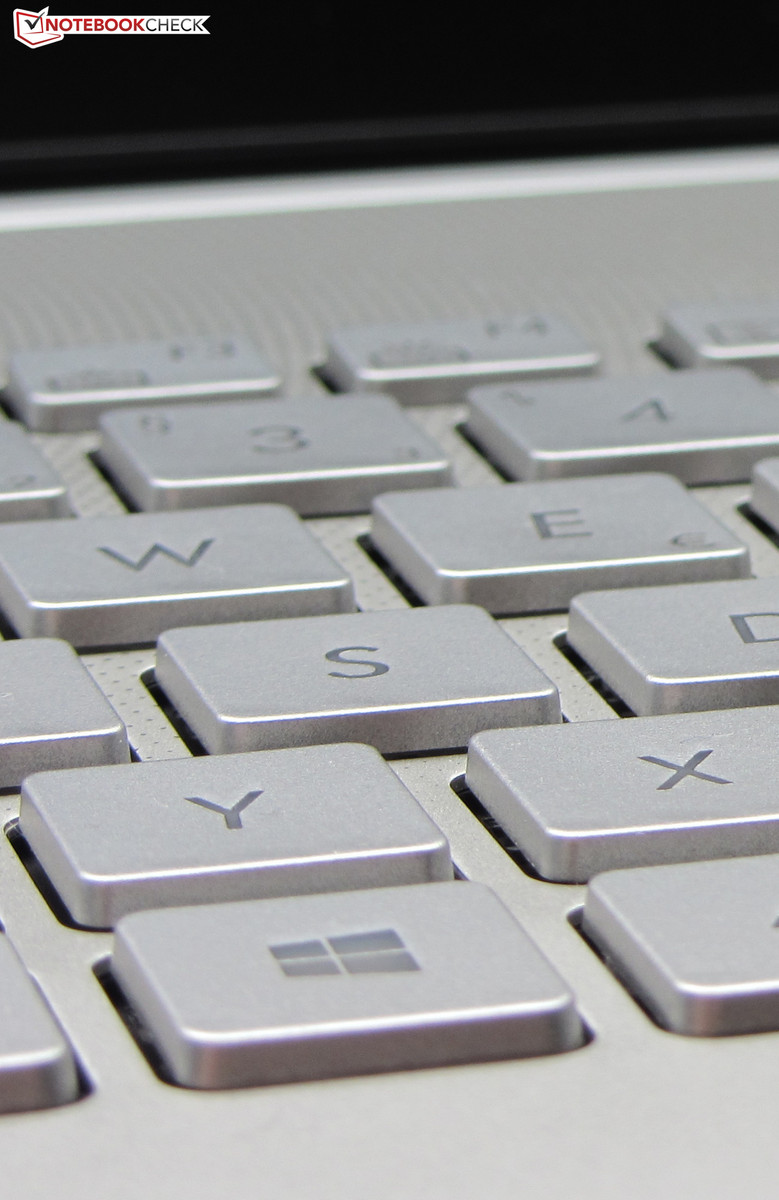

更换键盘本应是很简单的(本图为: N550JV-CN201H GT 750M).

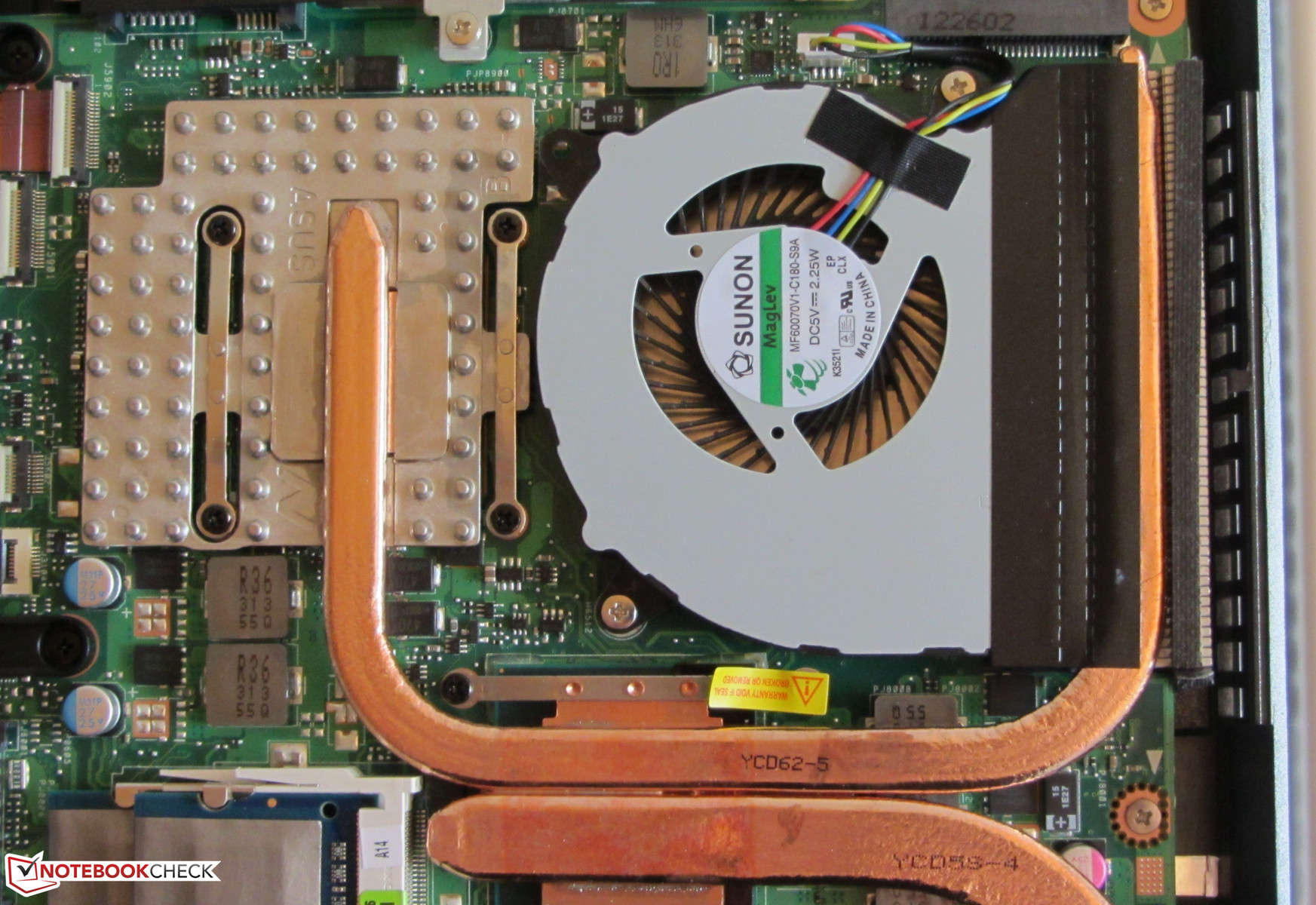

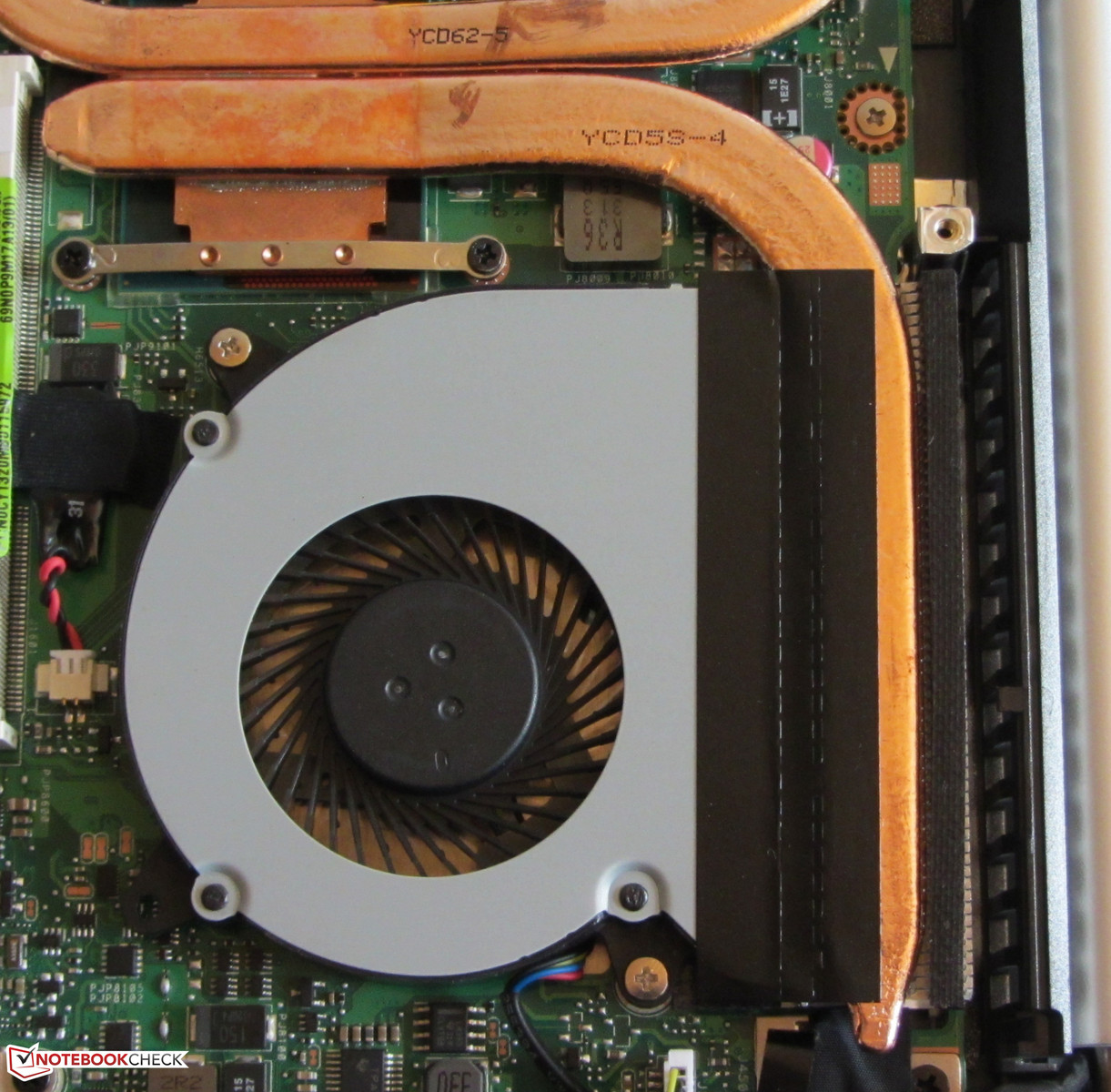

...它配备了两个风扇(本图为: N550JV-CN201H GT 750M).

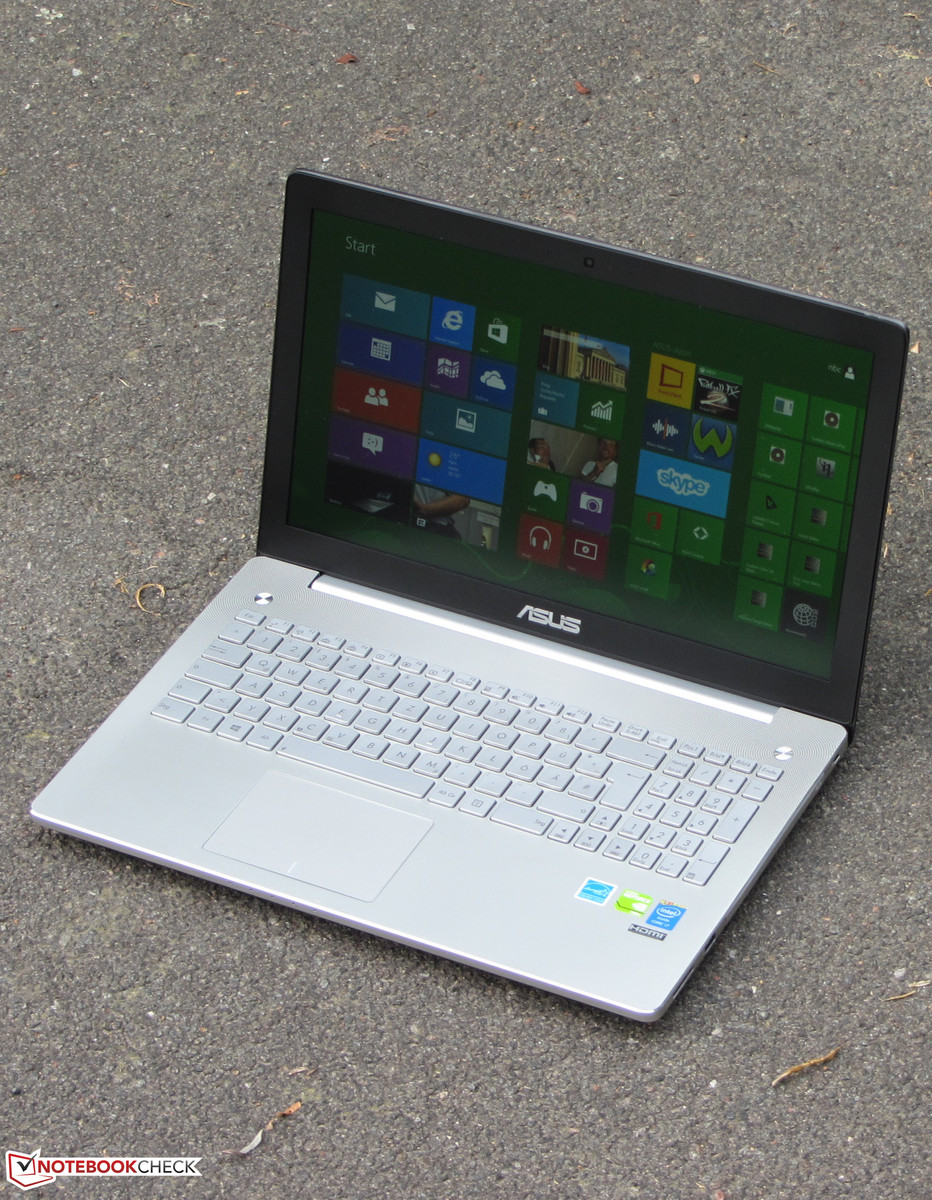

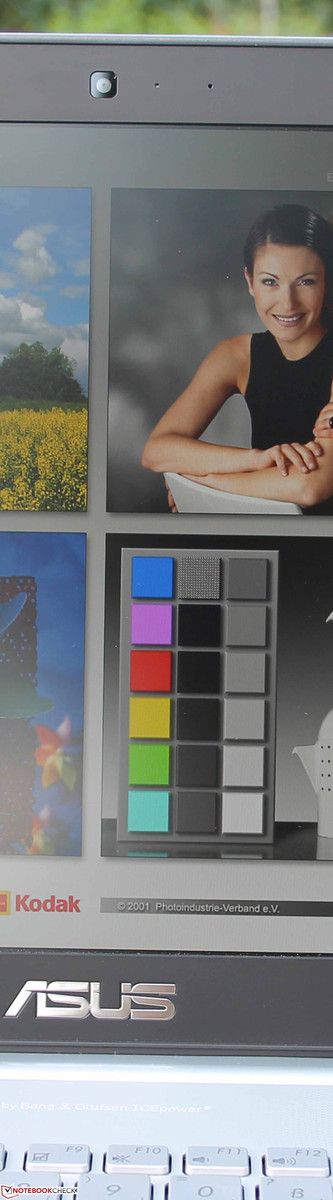

华硕N550JV 在室外(本图为: N550JV-CN201H GT 750M).

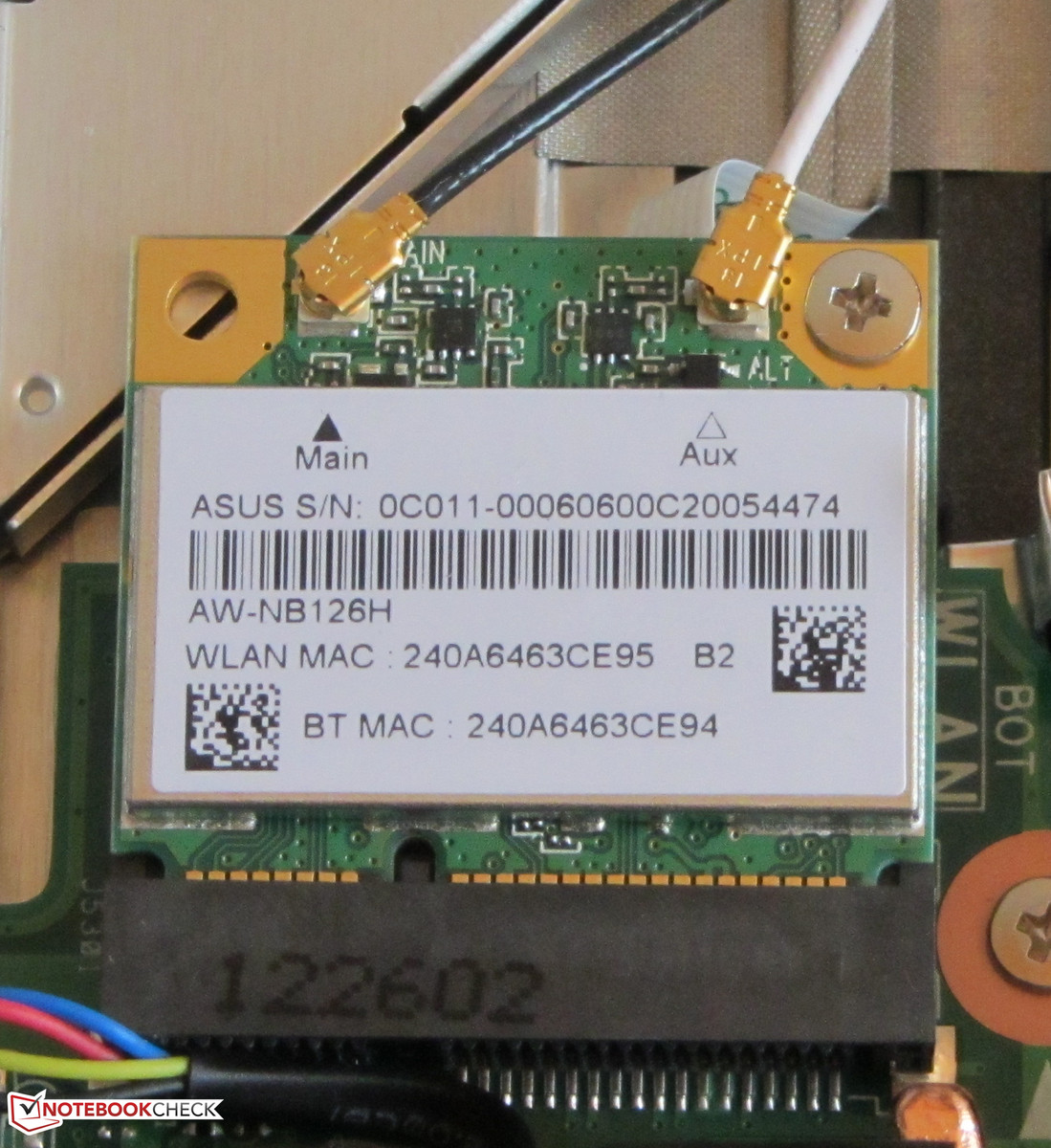

优势：包含两个Wi-Fi天线(本图为: N550JV-CN201H GT 750M).

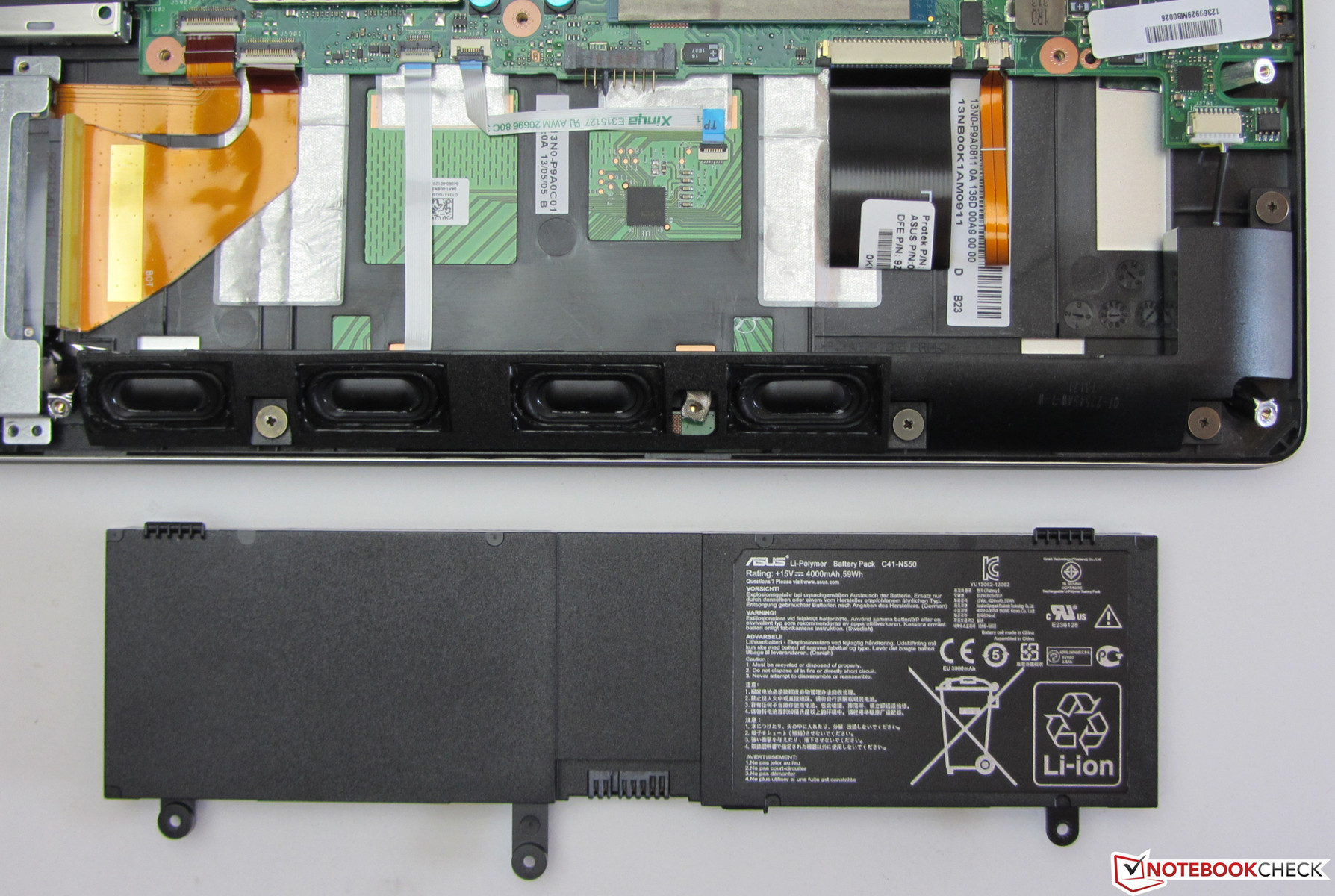

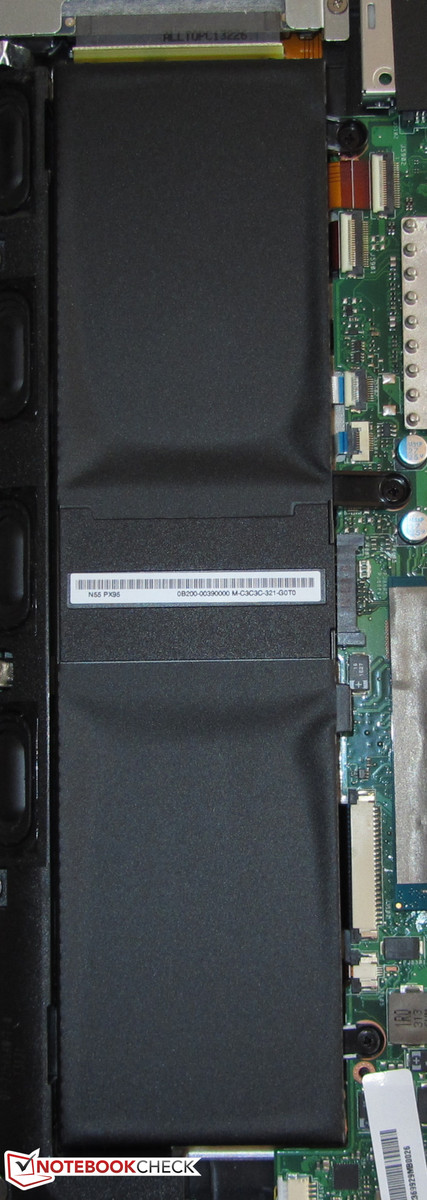

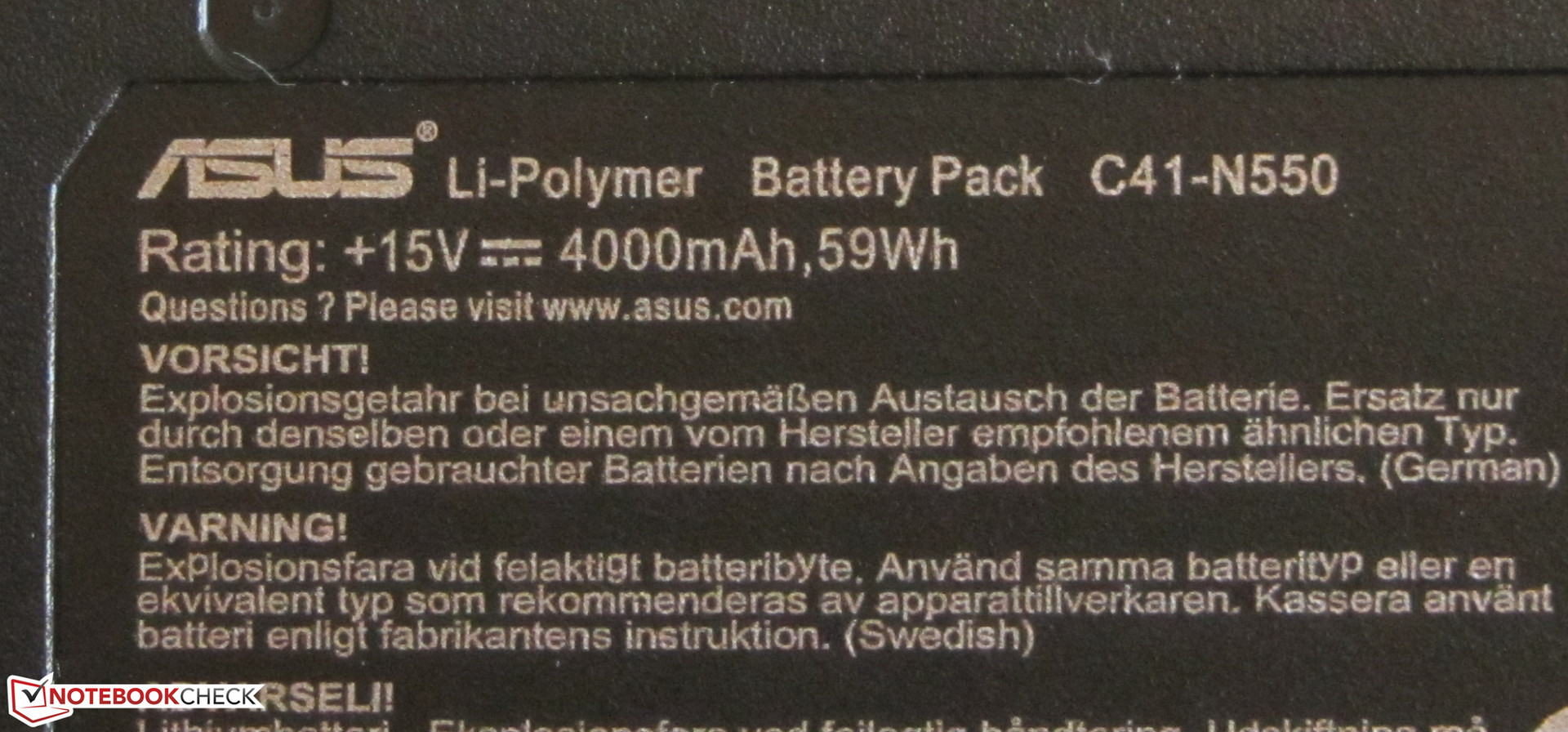

电池容量为 59 瓦时 (本图为: N550JV-CN201H GT 750M).

Please share our article, every link counts!

Download your licensed rating image as PNG / SVG

Specifications

Asus N550JK-CN109H (N550 Series)

Processor

Intel Core i5-4200H 2 x 2.8 - 3.4 GHz, Haswell

Graphics adapter

NVIDIA GeForce GTX 850M - 2048 MB VRAM, Core: 1150 MHz, RAM: 1000 MHz, IGP HD Graphics 4600, ForceWare 332.35, Optimus

Memory

8 GB

, PC3-12800 现代单通道 1 x 8192 MB

Display

15.60 inch 16:9, 1920 x 1080 pixel, IPS, LG 屏幕 LP156WF4-SPB1, glossy: no

Mainboard

Intel HM86 (Lynx Point)

Storage

Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB, 1000 GB

, 5400 rpm, 875 GB free

Soundcard

Intel Lynx Point PCH - High Definition Audio Controller

Connections

3 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5毫米整合耳机接口，低音炮输出接口, Card Reader: SD, MMC, Sensors: 环境光传感器

Networking

Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Intel Dual Band Wireless-N 7260 (a/b/g/n = Wi-Fi 4/), Bluetooth 4.0

Optical drive

Matshita BD-MLT UJ242AS

Size

height x width x depth (in mm): 27 x 383 x 255

Battery

59 Wh Lithium-Polymer, 15 V, 4000 毫安时

Operating System

Microsoft Windows 8.1 64 Bit

Camera

Webcam: HD 1280x720

Additional features

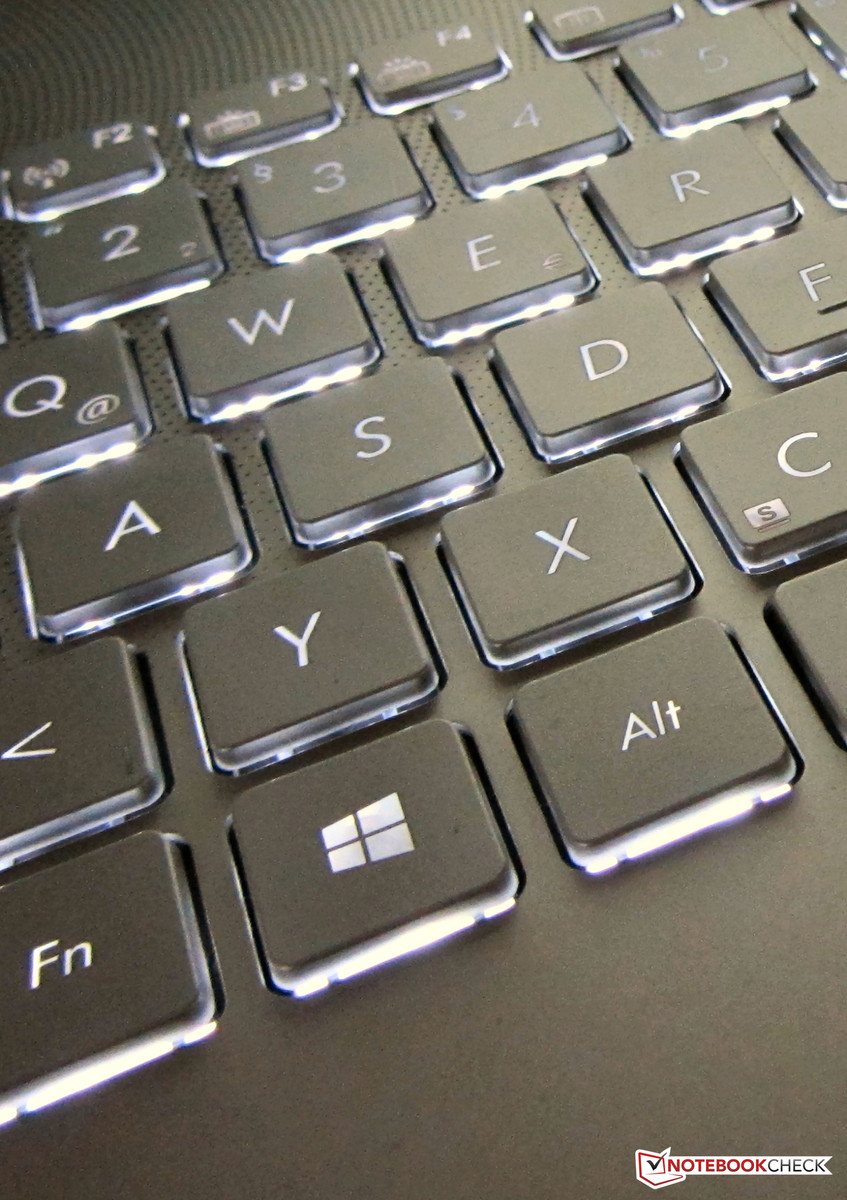

Speakers: 四个内置扬声器, 外置低音炮, ICE Power, Keyboard: 孤岛式，带数字键盘, Keyboard Light: yes, 低音炮, AsusDVD, Cyberlink MediaEspresso 6.5, Cyberlink PowerDirector, McAfee LiveSafe - Internet Security (30天试用版), 微软Office 365 (试用版), Windows Essential 2012, 24 Months Warranty

Weight

2.389 kg, Power Supply: 577 g

Price

999 Euro

Links

Asus homepage
Asus notebook section

Similar devices with the Same Specs

华硕 N551JK-CN166H 笔记本电脑简短评测
GeForce GTX 850M

Devices from a different Manufacturer and/or with a different CPU

华硕 Zenbook NX500JK-DR018H 超极本简短评测
GeForce GTX 850M, Core i7 4712HQ

惠普 Envy 15-k010ng 笔记本简短评测
GeForce GTX 850M, Core i7 4510U

Devices with the same GPU

华硕N751JK-T4144H 笔记本电脑简短评测
GeForce GTX 850M, Core i7 4710HQ, 17.30", 3.4 kg

惠普 Envy 17-k104ng 笔记本电脑简短评测
GeForce GTX 850M, Core i7 4510U, 17.30", 2.954 kg

华硕 N750JK-T4042H 笔记本电脑简短评测
GeForce GTX 850M, Core i7 4700HQ, 17.30", 3.11 kg

Devices with Same Screen Size and/or Weight

4K OLED 被 120 Hz 2.8K OLED 取代 - 华硕 ProArt P16 配 RTX 5070 笔记本电脑评测
GeForce RTX 5070 Laptop, Strix Halo/Point (Zen 5/5c, Ryzen AI 300) Ryzen AI 9 HX 370, 16.00", 1.823 kg

Pros

+ 磨砂IPS屏幕，全高清，高反差度

+ 高游戏性能

+ 高硬盘存储空间

+ 设计美观

+ 背光键盘

+ 高质量音响

+ Mini-DisplayPort接口

Cons

- 触控板按键过硬

- 使用电池时的低游戏性能

- 过高的待机能耗

Asus N550JK-CN109H - 05/27/2014 v4 ^(old)
Sebastian Jentsch

Chassis

78 / 98 → 80%

Keyboard

79%

Pointing Device

53%

Connectivity

76 / 81 → 94%

Weight

60 / 20-67 → 85%

Battery

78%

Display

84%

Games Performance

90 / 85 → 100%

Application Performance

78 / 92 → 85%

Temperature

79%

Noise

77 / 95 → 81%

Audio

88%

Camera

48 / 85 → 56%

Average

74%

81%

Multimedia - Weighted Average

> Notebookcheck中文版（NBC中国） > 评测 > 华硕 N550JK-CN109H 笔记本电脑简短评测

Sebastian Jentsch, 2014-06-13 (Update: 2014-09-19)

Specifications

More articles related to this device

Pros

Cons
