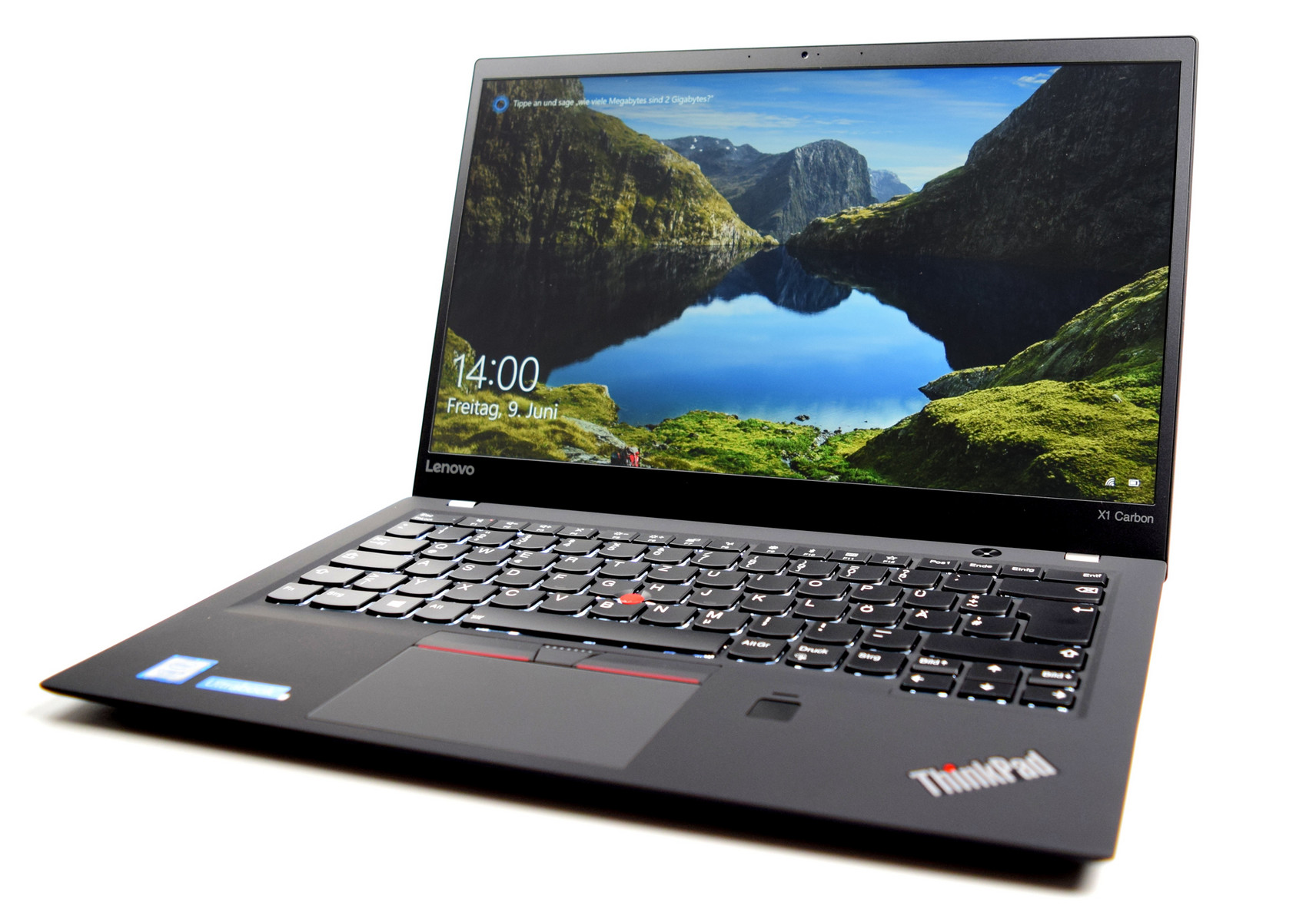

Lenovo ThinkPad X1 Carbon 2017-20HR0021GE

Specifications

Lenovo ThinkPad X1 Carbon 2017-20HR0021GE
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE (ThinkPad X1 Carbon 2017 Series)
Processor
Intel Core i5-7200U 2 x 2.5 - 3.1 GHz, Kaby Lake
Graphics adapter
Memory
8 GB
, LPDDR3-1866, 双通道, 板载
Display
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, B140HAN03_1, IPS, glossy: no
Mainboard
Intel Kaby Lake-U Premium PCH
Storage
Toshiba THNSF5256GPUK, 256 GB
, M.2 NVMe , 214 GB free
Soundcard
Intel Kaby Lake-U/Y PCH - High Definition Audio
Connections
2 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, 2 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 3.5毫米音频接口, Card Reader: MicroSD (UHS-II), 1 Fingerprint Reader
Networking
Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Size
height x width x depth (in mm): 15.95 x 323.5 x 217.1
Battery
57 Wh Lithium-Polymer, 3 芯, Battery runtime (according to manufacturer): 15.5 h
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p 高清
Additional features
Speakers: 立体声 2x2 瓦, Keyboard: 孤岛式, Keyboard Light: yes, 65瓦USB-C电源适配器,HDMI到VGA转接器,以太网(RJ45)转接器, 36 Months Warranty
Weight
1.124 kg, Power Supply: 346 g
Price
1669 EUR



Pricecompare

Average Score: 90.9% - very good
Average of 1 scores (from 1 reviews)
price: - %, performance: 72%, features: 68%, display: 89% mobility: 82%, workmanship: 92%, ergonomy: 93%, emissions: 90%

Reviews for the Lenovo ThinkPad X1 Carbon 2017-20HR0021GE

90.9% 联想 ThinkPad X1 Carbon 2017 (Core i5, 全高清) 笔记本电脑简短评测 | Notebookcheck
轻盈商务伴侣! 我们最近正在全面测试ThinkPad X1 Carbon。本文的主角是一款基于英特尔酷睿i5的中端机型,我们将会通过测试对比它能否相比搭配英特尔酷睿i7的机型有所优势。
Обзор ноутбука Lenovo ThinkPad X1 Carbon: компактный бизнес-инструмент
Source: Zoom RU→zh-CN Archive.org version
Single Review, online available, Long, Date: 11/05/2017

Comment

Intel HD Graphics 620:

集成显卡(GT2, 24 EUs)可以在一些Kaby-Lake-Refresh处理器构架(15 W ULV 系列)中找到。而在技术上,与前代 Kaby-Lake集成显卡相同,我们称它为HD Graphics 620.



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i5-7200U: » Further information can be found in our Comparison of Mobile Processsors.


14.00":

大体上,这个屏幕尺寸常见于亚笔记本电脑,超极本和变形本中。对这三类产品来说这个尺寸都较大。亚笔记本中尺寸最大的机型是采用这个屏幕尺寸。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面,小屏幕的功耗会较低,而设备也会更轻盈小巧,售价更低。

» To find out how fine a display is, see our DPI List.


1.124 kg: 这是10到11寸大尺寸平板电脑,小型亚笔记本,超极本和变形本的常见重量。


» Further information can be found in our Notebook Purchase Guide.



Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 资料库 > Lenovo ThinkPad X1 Carbon 2017-20HR0021GE
Stefan Hinum (Update: 2017-12-17)
