三星 Galaxy J5 (2016) 智能手机简短评测

Name: Samsung Galaxy J5 2016
Brand: Samsung

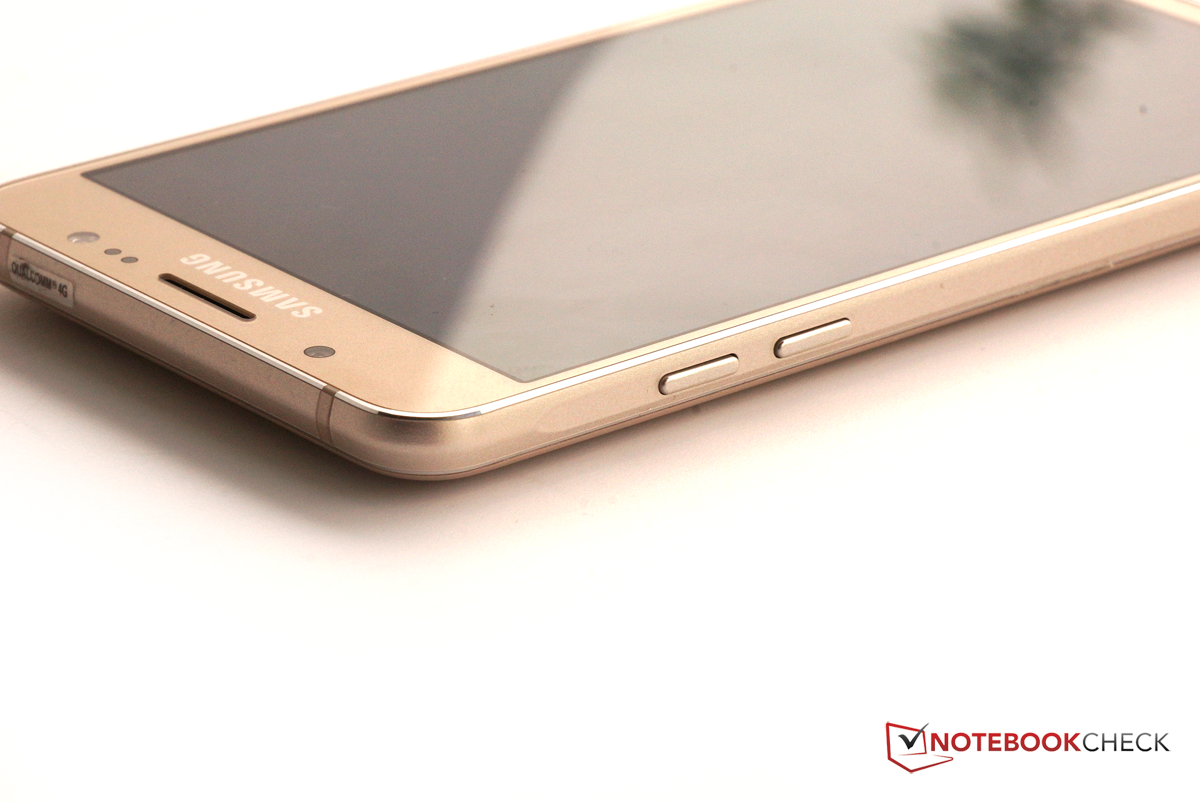

金属弹头。 曾经是塑料，现在是金属：新一代的Galaxy J5给我们更好的质感。不过，它的内在几乎毫无改变。这是否可以算作一次成功的更新呢？

Florian Wimmer, ✓ Tanja Hinum (translated by Yuchen Wang), Published 05/19/2016 🇺🇸 🇩🇪 ...

Android ARM Smartphone Touchscreen

Test device courtesy of Samsung Deutschland

Download your licensed rating image as PNG / SVG

Samsung Galaxy J5 2016 (Galaxy J5 Series)

Processor

Qualcomm Snapdragon 410 MSM8916 4 x 1.4 GHz, Cortex-A53

Graphics adapter

Qualcomm Adreno 306

Memory

2048 MB

Display

5.20 inch 16:9, 1280 x 720 pixel 282 PPI, 电容式, AMOLED, glossy: yes

Storage

16 GB eMMC Flash, 16 GB

, 12.3 GB free

Connections

1 USB 2.0, Audio Connections: 3.5毫米耳机接口, Card Reader: micro-SD 最大支持 128GB, NFC, Sensors: 运动传感器，加速传感器，位置传感器, USB OTG

Networking

802.11 b/g/n (b/g/n = Wi-Fi 4/), Bluetooth 4.1, GSM (850/900/1800/1900), UMTS (850/900/1800/2100), LTE (1,3,5,7,8,20); 最高速度: 150 MBit/s (下载), 50 MBit/s (上传); 0.45 W/kg (头部), 1.17 W/kg (身体), LTE, GPS

Size

height x width x depth (in mm): 8.1 x 145.8 x 72.3

Battery

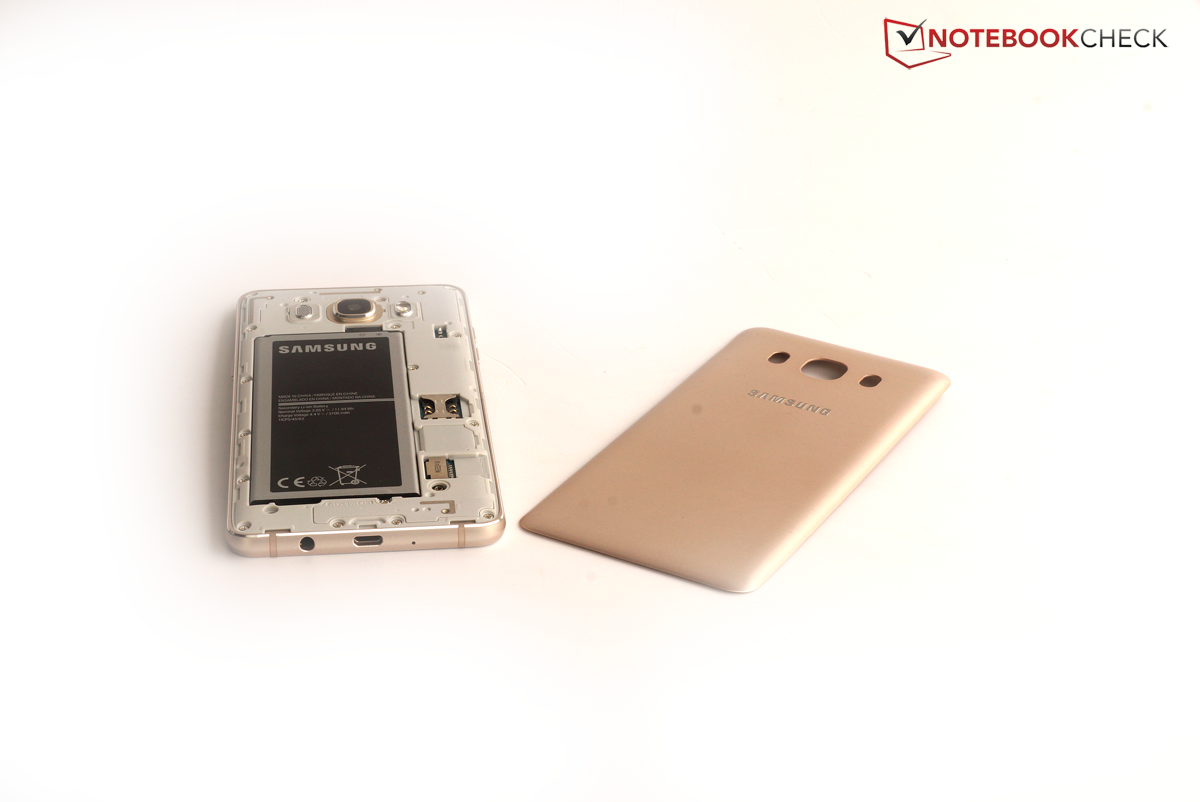

11.94 Wh, 3100 mAh Lithium-Ion, removeable

Operating System

Android 6.0 Marshmallow

Camera

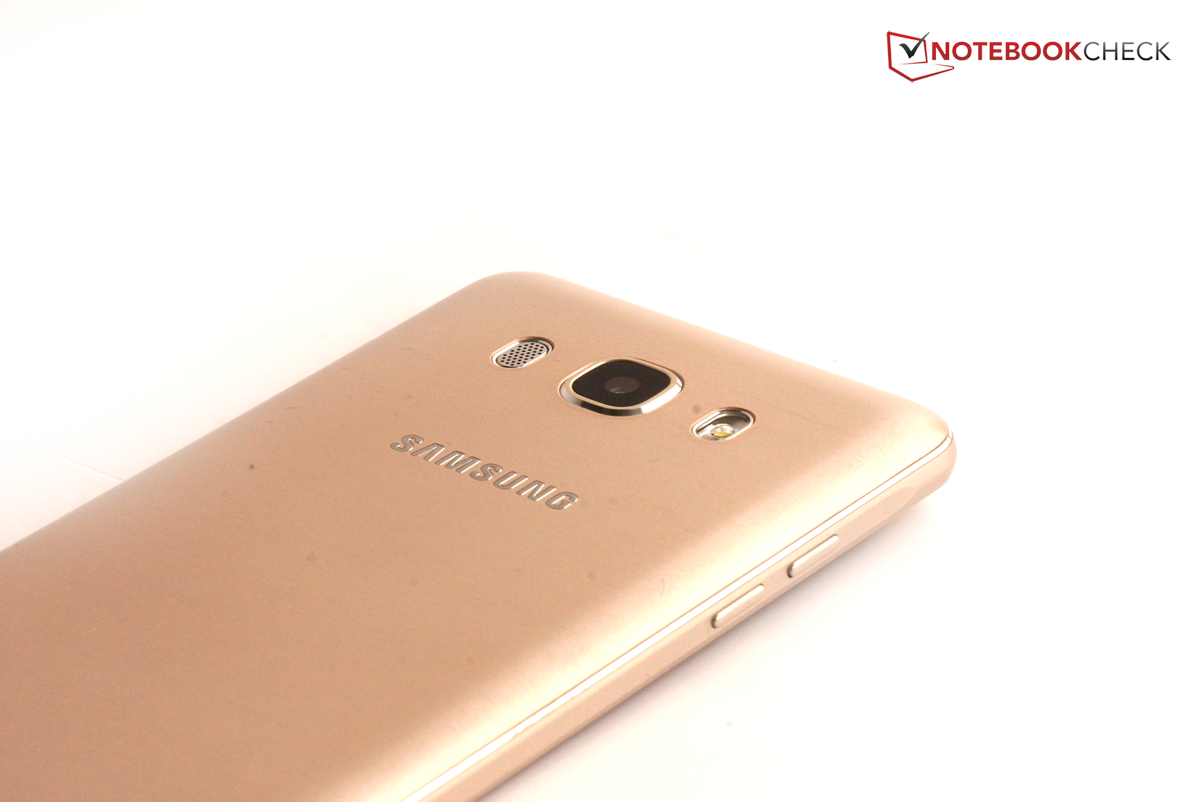

Primary Camera: 13 MPix f/1.9, 自动对焦, LED闪光灯, 视频拍摄 @1080p/30FPS
Secondary Camera: 5 MPix f/1.9, LED闪光灯

Additional features

Speakers: 后置扬声器, Keyboard: 触控, 电源适配器，USB数据线，耳机, S-Planner, Microsoft Office, 24 Months Warranty, fanless

Weight

159 g, Power Supply: 48 g

Price

279 Euro

Links

Samsung notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Image Comparison

Choose a scene and navigate within the first image. One click changes the position on touchscreens. One click on the zoomed-in image opens the original in a new window. The first image shows the scaled photograph of the test device.

Scene 1 Scene 2 Scene 3

click to load images

Samsung Galaxy J5 (2016)

Huawei P9

HTC 10

Canon EOS 70D

click to load images

Samsung Galaxy J5 (2016)

Huawei P9

HTC 10

Canon EOS 70D

click to load images

Samsung Galaxy J5 (2016)

Huawei P9

HTC 10

Canon EOS 70D


293 cd/m²	289 cd/m²	286 cd/m²
299 cd/m²	289 cd/m²	288 cd/m²
299 cd/m²	289 cd/m²	289 cd/m²

Distribution of brightness

tested with X-Rite i1Pro 2

Maximum: 299 cd/m² (Nits) Average: 291.2 cd/m² Minimum: 4.01 cd/m²
Brightness Distribution: 96 %
Center on Battery: 289 cd/m²
Contrast: ∞:1 (Black: 0 cd/m²)
ΔE Color 4.7 | 0.5-29.43 Ø5
ΔE Greyscale 3 | 0.57-98 Ø5.3
Gamma: 2.03

	Samsung Galaxy J5 2016 Adreno 306, 410 MSM8916, 16 GB eMMC Flash	Samsung Galaxy A5 2016 Mali-T720 MP2, 7580 Octa, 16 GB eMMC Flash	LG K10 Adreno 306, 410 MSM8916, 16 GB eMMC Flash	Acer Liquid Z630S Mali-T720 MP4, MT6753, 32 GB eMMC Flash	Honor 5X Adreno 405, 616 MSM8939v2, 16 GB eMMC Flash	Samsung Galaxy J5 Adreno 306, 410 MSM8916, 8 GB eMMC Flash
Screen		35%	-51%	-13%	10%	-1%
Brightness middle	289	378 31%	370 28%	350 21%	535 85%	349 21%
Brightness	291	380 31%	355 22%	345 19%	521 79%	353 21%
Brightness Distribution	96	91 -5%	92 -4%	84 -12%	85 -11%	93 -3%
Black Level *			0.28	0.27	0.43
Colorchecker dE 2000 *	4.7	1.95 59%	6.7 -43%	4.7 -0%	4.88 -4%	5.22 -11%
Colorchecker dE 2000 max. *	7.3	3.09 58%	17.8 -144%	8.5 -16%	8.66 -19%
Greyscale dE 2000 *	3	1.86 38%	7.9 -163%	5.6 -87%	5.2 -73%	3.96 -32%
Gamma	2.03 ^108%	2.13 ^103%	2.21 ^100%	1.84 ^120%	2.26 ^97%	2.08 ^106%
CCT	6291 ^103%	6376 ^102%	9072 ^72%	6795 ^96%	7766 ^84%	7308 ^89%
Contrast			1321	1296	1244

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

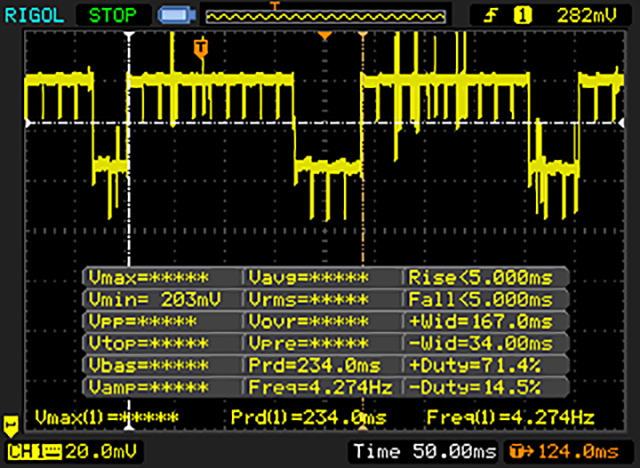

↔ Response Time Black to White
10 ms ... rise ↗ and fall ↘ combined	↗ 5 ms rise
10 ms ... rise ↗ and fall ↘ combined	↘ 5 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 22 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21.5 ms).

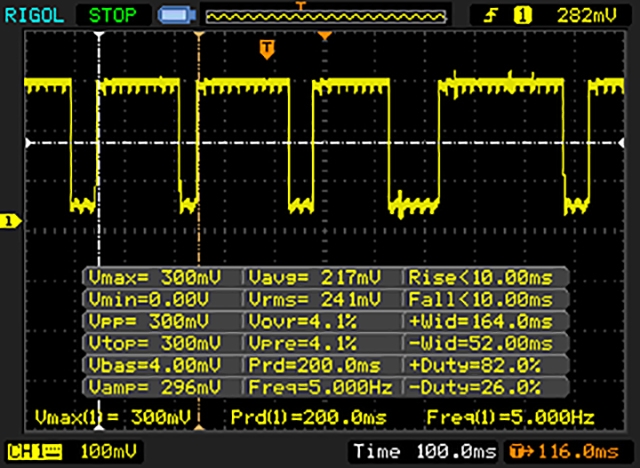

↔ Response Time 50% Grey to 80% Grey
20 ms ... rise ↗ and fall ↘ combined	↗ 10 ms rise
20 ms ... rise ↗ and fall ↘ combined	↘ 10 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 27 % of all devices are better. This means that the measured response time is better than the average of all tested devices (33.7 ms).

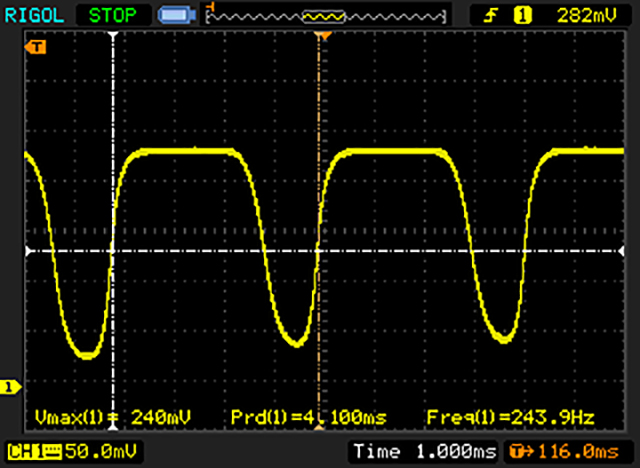

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

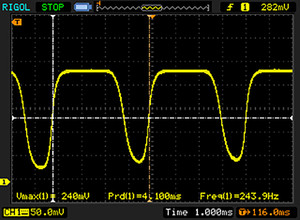

Screen flickering / PWM detected

243.9 Hz

The display backlight flickers at 243.9 Hz (worst case, e.g., utilizing PWM) .

The frequency of 243.9 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17909 (minimum: 5 - maximum: 3846000) Hz was measured.

AnTuTu v6 - Total Score (sort by value)
Samsung Galaxy J5 2016	27232 Points
LG K10	27383 Points +1%
Samsung Galaxy A5 2016	41676 Points +53%
Acer Liquid Z630S	35585 Points +31%
Honor 5X	37152 Points +36%

Geekbench 3
64 Bit Single-Core Score (sort by value)
Samsung Galaxy J5 2016	473 Points
LG K10	476 Points +1%
Honor 5X	698 Points +48%
Samsung Galaxy J5	464 Points -2%
64 Bit Multi-Core Score (sort by value)
Samsung Galaxy J5 2016	1425 Points
LG K10	1448 Points +2%
Honor 5X	3047 Points +114%
Samsung Galaxy J5	1403 Points -2%

3DMark
1280x720 offscreen Ice Storm Unlimited Score (sort by value)
Samsung Galaxy J5 2016	4400 Points
LG K10	4339 Points -1%
Samsung Galaxy A5 2016	7903 Points +80%
Acer Liquid Z630S	6868 Points +56%
Honor 5X	7852 Points +78%
Samsung Galaxy J5	4345 Points -1%
1280x720 offscreen Ice Storm Unlimited Graphics Score (sort by value)
Samsung Galaxy J5 2016	3838 Points
LG K10	3774 Points -2%
Samsung Galaxy A5 2016	7542 Points +97%
Acer Liquid Z630S	6250 Points +63%
Honor 5X	7764 Points +102%
Samsung Galaxy J5	3782 Points -1%
1280x720 offscreen Ice Storm Unlimited Physics (sort by value)
Samsung Galaxy J5 2016	9022 Points
LG K10	9106 Points +1%
Samsung Galaxy A5 2016	9495 Points +5%
Acer Liquid Z630S	10508 Points +16%
Honor 5X	8174 Points -9%
Samsung Galaxy J5	9079 Points +1%
2560x1440 Sling Shot OpenGL ES 3.0 (sort by value)
Samsung Galaxy J5 2016	53 Points
LG K10	52 Points -2%
Samsung Galaxy A5 2016	336 Points +534%
Acer Liquid Z630S	278 Points +425%
Honor 5X	129 Points +143%
Samsung Galaxy J5	53 Points 0%
2560x1440 Sling Shot OpenGL ES 3.0 Graphics (sort by value)
Samsung Galaxy J5 2016	42 Points
LG K10	41 Points -2%
Samsung Galaxy A5 2016	275 Points +555%
Acer Liquid Z630S	229 Points +445%
Honor 5X	103 Points +145%
Samsung Galaxy J5	42 Points 0%
2560x1440 Sling Shot OpenGL ES 3.0 Physics (sort by value)
Samsung Galaxy J5 2016	709 Points
LG K10	730 Points +3%
Samsung Galaxy A5 2016	1479 Points +109%
Acer Liquid Z630S	1113 Points +57%
Honor 5X	1089 Points +54%
Samsung Galaxy J5	734 Points +4%

GFXBench (DX / GLBenchmark) 2.7
T-Rex Onscreen (sort by value)
Samsung Galaxy J5 2016	9.7 fps
LG K10	9.7 fps 0%
Samsung Galaxy A5 2016	14 fps +44%
Acer Liquid Z630S	21 fps +116%
Honor 5X	14 fps +44%
1920x1080 T-Rex Offscreen (sort by value)
Samsung Galaxy J5 2016	5.2 fps
LG K10	5.2 fps 0%
Samsung Galaxy A5 2016	14 fps +169%
Acer Liquid Z630S	12 fps +131%
Honor 5X	14 fps +169%

GFXBench 3.0
on screen Manhattan Onscreen OGL (sort by value)
Samsung Galaxy J5 2016	3.8 fps
LG K10	4.1 fps +8%
Samsung Galaxy A5 2016	3.8 fps 0%
Acer Liquid Z630S	9 fps +137%
Honor 5X	5.9 fps +55%
Samsung Galaxy J5	3.8 fps 0%
1920x1080 1080p Manhattan Offscreen (sort by value)
Samsung Galaxy J5 2016	1.8 fps
LG K10	1.8 fps 0%
Samsung Galaxy A5 2016	3.8 fps +111%
Acer Liquid Z630S	4.2 fps +133%
Honor 5X	5.4 fps +200%
Samsung Galaxy J5	1.8 fps 0%

PCMark for Android - Work performance score (sort by value)
Samsung Galaxy J5 2016	4126 Points
LG K10	3999 Points -3%
Samsung Galaxy A5 2016	4008 Points -3%
Acer Liquid Z630S	3814 Points -8%
Honor 5X	3794 Points -8%
Samsung Galaxy J5	3966 Points -4%

BaseMark OS II
Overall (sort by value)
Samsung Galaxy J5 2016	585 Points
LG K10	536 Points -8%
Samsung Galaxy A5 2016	810 Points +38%
Acer Liquid Z630S	691 Points +18%
Honor 5X	297 Points -49%
Samsung Galaxy J5	534 Points -9%
System (sort by value)
Samsung Galaxy J5 2016	1060 Points
LG K10	1050 Points -1%
Samsung Galaxy A5 2016	2153 Points +103%
Acer Liquid Z630S	1614 Points +52%
Honor 5X	1378 Points +30%
Samsung Galaxy J5	1058 Points 0%
Memory (sort by value)
Samsung Galaxy J5 2016	643 Points
LG K10	453 Points -30%
Samsung Galaxy A5 2016	554 Points -14%
Acer Liquid Z630S	540 Points -16%
Honor 5X	787 Points +22%
Samsung Galaxy J5	399 Points -38%
Graphics (sort by value)
Samsung Galaxy J5 2016	312 Points
LG K10	310 Points -1%
Samsung Galaxy A5 2016	488 Points +56%
Acer Liquid Z630S	416 Points +33%
Honor 5X	763 Points +145%
Samsung Galaxy J5	314 Points +1%
Web (sort by value)
Samsung Galaxy J5 2016	551 Points
LG K10	562 Points +2%
Samsung Galaxy A5 2016	741 Points +34%
Acer Liquid Z630S	627 Points +14%
Honor 5X	9 Points -98%
Samsung Galaxy J5	615 Points +12%

Legend

Samsung Galaxy J5 2016 Qualcomm Snapdragon 410 MSM8916, Qualcomm Adreno 306, 16 GB eMMC Flash

LG K10 Qualcomm Snapdragon 410 MSM8916, Qualcomm Adreno 306, 16 GB eMMC Flash

Samsung Galaxy A5 2016 Samsung Exynos 7580 Octa, ARM Mali-T720 MP2, 16 GB eMMC Flash

Acer Liquid Z630S Mediatek MT6753, ARM Mali-T720 MP4, 32 GB eMMC Flash

Honor 5X Qualcomm Snapdragon 616 MSM8939v2, Qualcomm Adreno 405, 16 GB eMMC Flash

Samsung Galaxy J5 Qualcomm Snapdragon 410 MSM8916, Qualcomm Adreno 306, 8 GB eMMC Flash

Octane V2 | Mozilla Kraken 1.1 | WebXPRT 2015 | JetStream 1.1

Octane V2 - Total Score (sort by value)
Samsung Galaxy J5 2016	2730 Points
LG K10	2838 Points +4%
Samsung Galaxy A5 2016	3611 Points +32%
Acer Liquid Z630S	2855 Points +5%
Honor 5X	3595 Points +32%
Samsung Galaxy J5	3038 Points +11%

Mozilla Kraken 1.1 - Total (sort by value)
Samsung Galaxy J5 2016	13046 ms *
LG K10	16638 ms * -28%
Samsung Galaxy A5 2016	11887 ms * +9%
Acer Liquid Z630S	12876 ms * +1%
Honor 5X	12510 ms * +4%
Samsung Galaxy J5	14074 ms * -8%

WebXPRT 2015 - Overall (sort by value)
Samsung Galaxy J5 2016	47 Points
LG K10	47 Points 0%
Samsung Galaxy A5 2016	64 Points +36%
Honor 5X	65 Points +38%
Samsung Galaxy J5	52 Points +11%

JetStream 1.1 - Total Score (sort by value)
Samsung Galaxy J5 2016	16.8 Points
LG K10	17.48 Points +4%
Samsung Galaxy A5 2016	22 Points +31%
Acer Liquid Z630S	19.03 Points +13%
Honor 5X	21.92 Points +30%
Samsung Galaxy J5	18.42 Points +10%

* ... smaller is better

AndroBench 3-5
Sequential Read 256KB (sort by value)
Samsung Galaxy J5 2016	147 MB/s
LG K10	131 MB/s -11%
Samsung Galaxy A5 2016	209.4 MB/s +42%
Acer Liquid Z630S	249 MB/s +69%
Honor 5X	144 MB/s -2%
Samsung Galaxy J5	145.5 MB/s -1%
Sequential Write 256KB (sort by value)
Samsung Galaxy J5 2016	72 MB/s
LG K10	78 MB/s +8%
Samsung Galaxy A5 2016	60.4 MB/s -16%
Acer Liquid Z630S	67.7 MB/s -6%
Honor 5X	78 MB/s +8%
Samsung Galaxy J5	39.4 MB/s -45%
Random Read 4KB (sort by value)
Samsung Galaxy J5 2016	21 MB/s
LG K10	9.2 MB/s -56%
Samsung Galaxy A5 2016	22.9 MB/s +9%
Acer Liquid Z630S	28.43 MB/s +35%
Honor 5X	17 MB/s -19%
Samsung Galaxy J5	19.25 MB/s -8%
Random Write 4KB (sort by value)
Samsung Galaxy J5 2016	11.6 MB/s
LG K10	7.5 MB/s -35%
Samsung Galaxy A5 2016	11.2 MB/s -3%
Acer Liquid Z630S	5.82 MB/s -50%
Honor 5X	10 MB/s -14%
Samsung Galaxy J5	7.2 MB/s -38%
Sequential Read 256KB SDCard (sort by value)
Samsung Galaxy J5 2016	79.8 MB/s
LG K10	75.5 MB/s -5%
Sequential Write 256KB SDCard (sort by value)
Samsung Galaxy J5 2016	46.61 MB/s
LG K10	45 MB/s -3%

Asphalt 8: Airborne
	Settings	Value
	high	16 fps

Dead Trigger 2
	Settings	Value
	high	30 fps

Max. Load

Idle


34.3 °C	34 °C	33.7 °C
36.4 °C	36.1 °C	34.4 °C
36.9 °C	37 °C	34.7 °C

Maximum: 37 °C
Average: 35.3 °C


34.9 °C	34.6 °C	34.6 °C
35.5 °C	36.7 °C	37.9 °C
36 °C	38.2 °C	38.5 °C

Maximum: 38.5 °C
Average: 36.3 °C

Power Supply (max.) 32.4 °C | Room Temperature 21.6 °C | Voltcraft IR-260

(±) The average temperature for the upper side under maximal load is 35.3 °C / 96 F, compared to the average of 32.7 °C / 91 F for the devices in the class Smartphone.
(+) The maximum temperature on the upper side is 37 °C / 99 F, compared to the average of 35 °C / 95 F, ranging from 21.9 to 56 °C for the class Smartphone.
(+) The bottom heats up to a maximum of 38.5 °C / 101 F, compared to the average of 33.8 °C / 93 F
(+) In idle usage, the average temperature for the upper side is 30.2 °C / 86 F, compared to the device average of 32.7 °C / 91 F.

Power Consumption

Off / Standby	0 / 0.12 Watt
Idle	0.61 / 1.41 / 1.51 Watt
Load	2.56 / 3.1 Watt


Key: min: , med: , max: Gossen Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Battery Runtime

Idle (without WLAN, min brightness)		26h 39min
WiFi Websurfing		10h 43min
Big Buck Bunny H.264 1080p		10h 58min
Load (maximum brightness)		6h 42min

	Samsung Galaxy J5 2016 Adreno 306, 410 MSM8916, 16 GB eMMC Flash	Acer Liquid Z630S Mali-T720 MP4, MT6753, 32 GB eMMC Flash	Honor 5X Adreno 405, 616 MSM8939v2, 16 GB eMMC Flash	Samsung Galaxy A5 2016 Mali-T720 MP2, 7580 Octa, 16 GB eMMC Flash	LG K10 Adreno 306, 410 MSM8916, 16 GB eMMC Flash	Samsung Galaxy J5 Adreno 306, 410 MSM8916, 8 GB eMMC Flash
Battery Runtime		6%	-27%	16%	-28%	-14%
Reader / Idle	1599		1053 -34%	2323 45%	1123 -30%	1292 -19%
H.264	658		602 -9%	672 2%	603 -8%	657 0%
WiFi v1.3	643	681 6%	643 0%	626 -3%	453 -30%	495 -23%
Load	402		144 -64%	483 20%	231 -43%	350 -13%

Pros

+ 高对比度AMOLED屏幕

+ 金属边框

+ 最新操作系统

+ 不错的信号接收

+ 前置LED闪光灯

+ 相对快速的闪存

+ 低功耗

+ 非常优秀的电池续航

Cons

- 相对沉重

- 无线网络速度较慢

- 通话品质较差

- 相机拍摄效果暗淡，有时比较模糊

- 一般的音响效果

- 无环境光传感器

- 高频率闪烁

如果你问，三星Galaxy J5的更新是否成功？那么答案很简单：是的。

它的金属机身带来了更好的质感，也相比前作过时的设计显得更加现代。它的前置相机也得到了升级，搭配LED闪光灯，同时工作内存和存储空间也得到了提升。它也搭配了更快的处理器和更大的屏幕。AMOLED屏幕面板和可更换电池等传统也得到了延续。另外，它的电池续航现在也长了很多。

三星的Galaxy J5 (2016）并不完美，但它是一台非常优秀的中低端产品。归功于长电池续航，AMOLED面板和最新操作系统，正在寻找实惠的新机型的用户可以考虑一下这台设备。

最后我们也有几点不满：它的无线网络传输速度相比较低，机身较为沉重，同时通话质量也很难让人满意。它的扬声器不算出色，同时相机拍摄效果较暗，也不够锐利。

可以它的接受这些不足的用户可能会对三星Galaxy J5 (2016)十分满意。它可能也值得拥有前代机型的用户升级选购。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Samsung Galaxy J5 2016 - 2016-05-11 05/11/2016 v5.1^(old)
Florian Wimmer

Chassis

90%

Keyboard

66 / 75 → 88%

Pointing Device

91%

Connectivity

38 / 60 → 64%

Weight

92%

Battery

93%

Display

85%

Games Performance

5 / 63 → 8%

Application Performance

33 / 70 → 47%

Temperature

91%

Noise

100%

Audio

48 / 91 → 52%

Camera

67%

Average

69%

82%

Smartphone - Weighted Average

Pricecompare

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 三星 Galaxy J5 (2016) 智能手机简短评测

Florian Wimmer, 2016-05-19 (Update: 2016-05-21)
