Dynabook Portégé X30W-J-10K笔记本电脑评测--一个具有端口多样性的轻量级产品

它几乎不可能更有活力和特别。 Dynabook推出Portégé X30W,这是一款配备英特尔第11代处理器、两个Thunderbolt 4端口和哑光触摸显示屏的超轻敞篷车。在我们的评论中了解Portégé还有哪些功能,以及特殊保修是怎么回事。
Patrick Schüdzig, 👁 Andreas Osthoff (translated by DeepL / Ninh Duy), 🇺🇸 🇩🇪 ...
Convertible / 2-in-1 Laptop / Notebook Thunderbolt Tiger Lake Touchscreen

通过Dynabook Portégé X30-W-J-10K,东芝的继任者向市场发送了一个极其有趣的设备。以下特点特别吸引我们的眼球:重量不到一公斤的镁合金外壳和一个哑光的13.3英寸全高清触摸屏。此外,该设备提供了一个英特尔Core i7 1165G7与16GB DDR-4内存和1TB NVMe SSD作为存储解决方案。Dynabook还为Portégé提供了许多端口和特殊的保修。

可能的竞争对手是富士通LifeBook U9311X i7 LTE。,以及 戴尔Latitude 9420 2合1还有HP Elite Dragonfly Max.本评论将显示Dynabook Portégé是否能与这些对手竞争,以及2299欧元(约合2666美元)的价格是否合理。

, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Dynabook Portégé X30W-J-10K (Portégé X30 Series)
Processor
Intel Core i7-1165G7 4 x 2.8 GHz @ 4.7 GHz, 60 W PL2 / Short Burst, 28 W PL1 / Sustained, Tiger Lake UP3
Graphics adapter
Intel Iris Xe Graphics G7 96EUs, Core: 1300 MHz, Memory: 2000 MHz
Memory
16384 MB
, LPDDR4x-4266, Dual-Channel, Onboard
Display
13.30 inch 16:9, 1920 x 1080 pixel 166 PPI, 10-point capacitive, native pen support, LQ133M1JW47, IPS, glossy: no, 60 Hz
Mainboard
Intel Tiger Lake-UP3 PCH-LP
Storage
Samsung PM981a MZVLB1T0HBLR, 1024 GB
, 900 GB free
Soundcard
Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)
Connections
1 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, 0 USB 3.2 Gen 2x2 20Gbps, 2 USB 4.0 40 Gbps, 2 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 1 Kensington Lock, Audio Connections: 3,5 mm, Card Reader: MicroSD, 1 Fingerprint Reader, Brightness Sensor
Networking
Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.1
Size
height x width x depth (in mm): 17.9 x 304 x 197.4
Battery
53 Wh Lithium-Ion, Battery runtime (according to manufacturer): 13 h
Charging
fast charging / Quickcharge
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p
Primary Camera: 0.9 MPix
Secondary Camera: 8 MPix 1080p Video 30 fps
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, Dynabook Settings, 12 Months Warranty
Weight

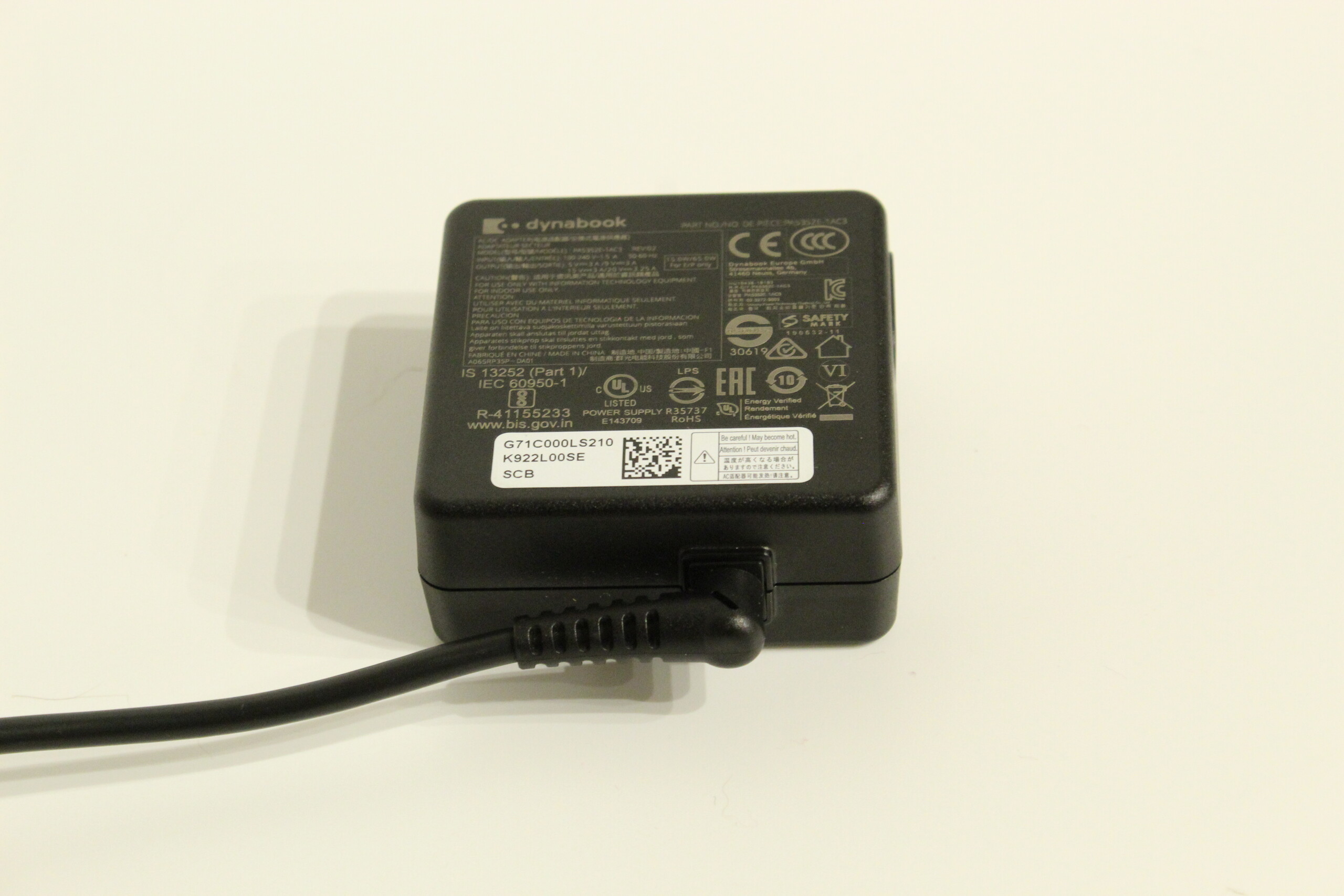

962 g, Power Supply: 371 g
Price
2579 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible competitors in comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
87.2 %
11/2021
Dynabook Portégé X30W-J-10K
i7-1165G7, Iris Xe G7 96EUs
962 g17.9 mm13.30"1920x1080
85.6 %
09/2021
Fujitsu LifeBook U9311X i7 LTE
i7-1185G7, Iris Xe G7 96EUs
1 kg17 mm13.30"1920x1080
89 %
09/2021
Dell Latitude 9420 2-in-1
i7-1185G7, Iris Xe G7 96EUs
1.5 kg13.91 mm14.00"2560x1600
90.8 %
06/2021
HP Elite Dragonfly Max
i7-1185G7, Iris Xe G7 96EUs
1.2 kg16 mm13.30"1920x1080

外壳和功能 - 带有Thunderbolt 4的高质量笔记本电脑

镁合金外壳以其极低的重量和极高的制造质量而表现出色。Portégé也给人留下了非常坚固的印象。它可以很好地握在手中,因此是理想的日常伴侣。端口的位置在这里实现得非常好。它们被巧妙地放置在设备中心的侧面,以确保打字时的舒适性,即使所有端口都被占用。

与竞争对手相比,我们的测试设备在WLAN性能方面处于领先地位,因此能够令人信服。Dynabook在这里安装了两个网络摄像头,其质量是足够的。其中一个像往常一样位于显示屏内,并可以通过手动快门关闭。第二个网络摄像头放在键盘底座上,在平板电脑模式下可以用30帧/秒的全高清和800万像素记录周围环境。只有微型SD读卡器的性能低于平均水平。

Size comparison

309 mm 215 mm 17 mm 1 kg310.59 mm 215.18 mm 13.91 mm 1.5 kg304 mm 197.4 mm 17.9 mm 962 g304.3 mm 197.6 mm 16 mm 1.2 kg

连接设备

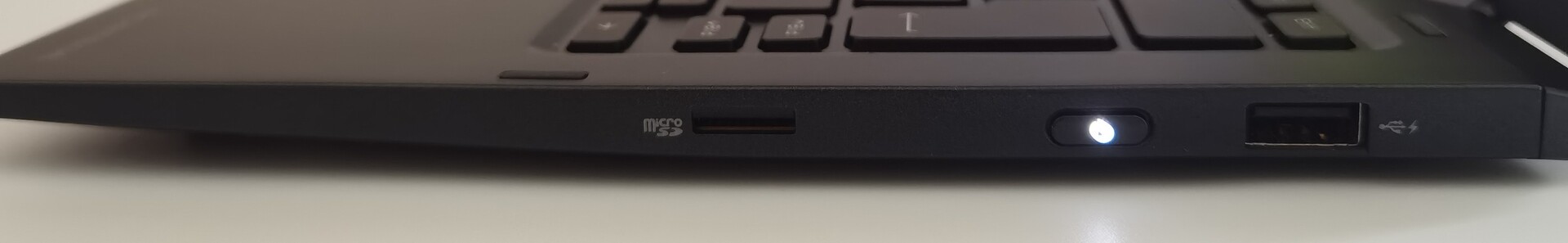

左边:MicroSD读卡器,电源按钮,1个USB-A 3.2 Gen1
左边:MicroSD读卡器,电源按钮,1个USB-A 3.2 Gen1

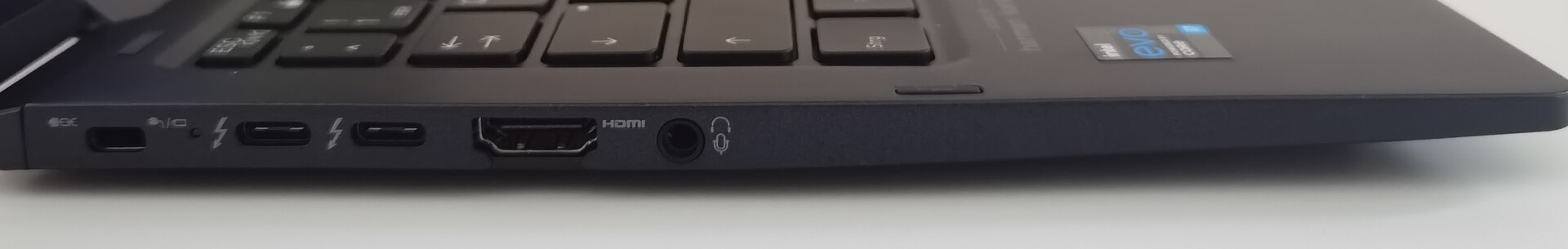

右边。Kensington锁的插槽,2个Thunderbolt 4 (USB-C),HDMI,3.5毫米插孔端口
右边。Kensington锁的插槽,2个Thunderbolt 4 (USB-C),HDMI,3.5毫米插孔端口
SD Card Reader
average JPG Copy Test (av. of 3 runs)
Dell Latitude 9420 2-in-1
  (AV PRO microSD 128 GB V60)
151.7 MB/s ∼100% +104%
Fujitsu LifeBook U9311X i7 LTE
  (AV Pro V60)
149 MB/s ∼98% +101%
Average of class Convertible
  (10 - 201, n=64, last 2 years)
78.1 MB/s ∼51% +5%
Dynabook Portégé X30W-J-10K
  (AV Pro V60)
74.2 MB/s ∼49%
MSI Summit E13 Flip Evo A11MT
  (AV PRO microSD 128 GB V60)
72.3 MB/s ∼48% -3%
maximum AS SSD Seq Read Test (1GB)
Dell Latitude 9420 2-in-1
  (AV PRO microSD 128 GB V60)
172.8 MB/s ∼100% +110%
Fujitsu LifeBook U9311X i7 LTE
  (AV Pro V60)
172.8 MB/s ∼100% +110%
Average of class Convertible
  (25 - 224, n=57, last 2 years)
93.8 MB/s ∼54% +14%
MSI Summit E13 Flip Evo A11MT
  (AV PRO microSD 128 GB V60)
84.8 MB/s ∼49% +3%
Dynabook Portégé X30W-J-10K
  (AV Pro V60)
82.2 MB/s ∼48%
Networking
iperf3 Client (transmit) TCP 1 m 4M x10
Dynabook Portégé X30W-J-10K
Intel Wi-Fi 6 AX201
1468 (737min - 1511max) MBit/s ∼100%
Fujitsu LifeBook U9311X i7 LTE
Intel Wi-Fi 6 AX201
1450 (1258min - 1519max) MBit/s ∼99% -1%
HP Elite Dragonfly Max
Intel Wi-Fi 6 AX201
1263 (990min - 1412max) MBit/s ∼86% -14%
Average Intel Wi-Fi 6 AX201
  (49.8 - 1775, n=289)
1155 MBit/s ∼79% -21%
Dell Latitude 9420 2-in-1
Intel Wi-Fi 6E AX210
925 (741min - 986max) MBit/s ∼63% -37%
iperf3 Client (receive) TCP 1 m 4M x10
Fujitsu LifeBook U9311X i7 LTE
Intel Wi-Fi 6 AX201
1555 (1374min - 1656max) MBit/s ∼100% +1%
Dynabook Portégé X30W-J-10K
Intel Wi-Fi 6 AX201
1534 (1455min - 1597max) MBit/s ∼99%
HP Elite Dragonfly Max
Intel Wi-Fi 6 AX201
1272 (1206min - 1323max) MBit/s ∼82% -17%
Average Intel Wi-Fi 6 AX201
  (136 - 1743, n=289)
1254 MBit/s ∼81% -18%
Dell Latitude 9420 2-in-1
Intel Wi-Fi 6E AX210
1164 (965min - 1251max) MBit/s ∼75% -24%
05010015020025030035040045050055060065070075080085090095010001050110011501200125013001350140014501500155015671535152815761597155515831595156714961551155914791549151115031579151215181492152915161455149514741498154915051567155915671535152815761597155515831595156714961551155914791549151115031579151215181492152915161455149514741498154915051567155973714931447146314001465146515041446146614981461148514851493145414881450146114881468145714251480146414391511146114461494Tooltip
; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø1533 (1455-1597)
; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø1443 (737-1511)
ColorChecker
6.8 ∆E
7.5 ∆E
8.1 ∆E
7 ∆E
9.7 ∆E
6.8 ∆E
5.3 ∆E
8.4 ∆E
11.3 ∆E
5.5 ∆E
6.4 ∆E
6.2 ∆E
3.2 ∆E
5 ∆E
9.1 ∆E
3.9 ∆E
7.6 ∆E
11.2 ∆E
6.2 ∆E
5.5 ∆E
5.4 ∆E
6.4 ∆E
5.1 ∆E
6.5 ∆E
ColorChecker Dynabook Portégé X30W-J-10K: 6.84 ∆E min: 3.19 - max: 11.34 ∆E

担保

Dynabook为买方提供了特殊的保修服务,并依靠对自己的制造质量的高度信任。Portégé有一年的退款保证。如果设备在一年内出现故障,而没有软件、用户或环境的影响,Dynabook将免费维修设备,并在此基础上退还购买价格。然而,这取决于用户在购买设备后30天内进行注册。关于这一点的更多信息可以在Dynabook上找到。.

输入设备 - 可扩展的静音键盘

键盘的键程不是特别长,但考虑到设备的高度较低,这是可以接受的。键盘的反压力还可以。这种布局对用户来说似乎有点束手束脚,但随着时间的推移你会习惯的。键盘照明有三个级别,可以通过FN+Y轻松调整。作为一个额外的功能,Dynabook增加了一个带有四个额外提示的主动输入笔。用户可以通过一个附带的环来连接它,这个环必须粘在机箱上。

ClickPad不是特别大,只有10 x 5.5厘米(约3.9 x 2.2英寸),但由于其结构,已经被最大化了。指纹传感器位于触摸板的左上角。滑动性能很好,内置按键的反馈也很明显。

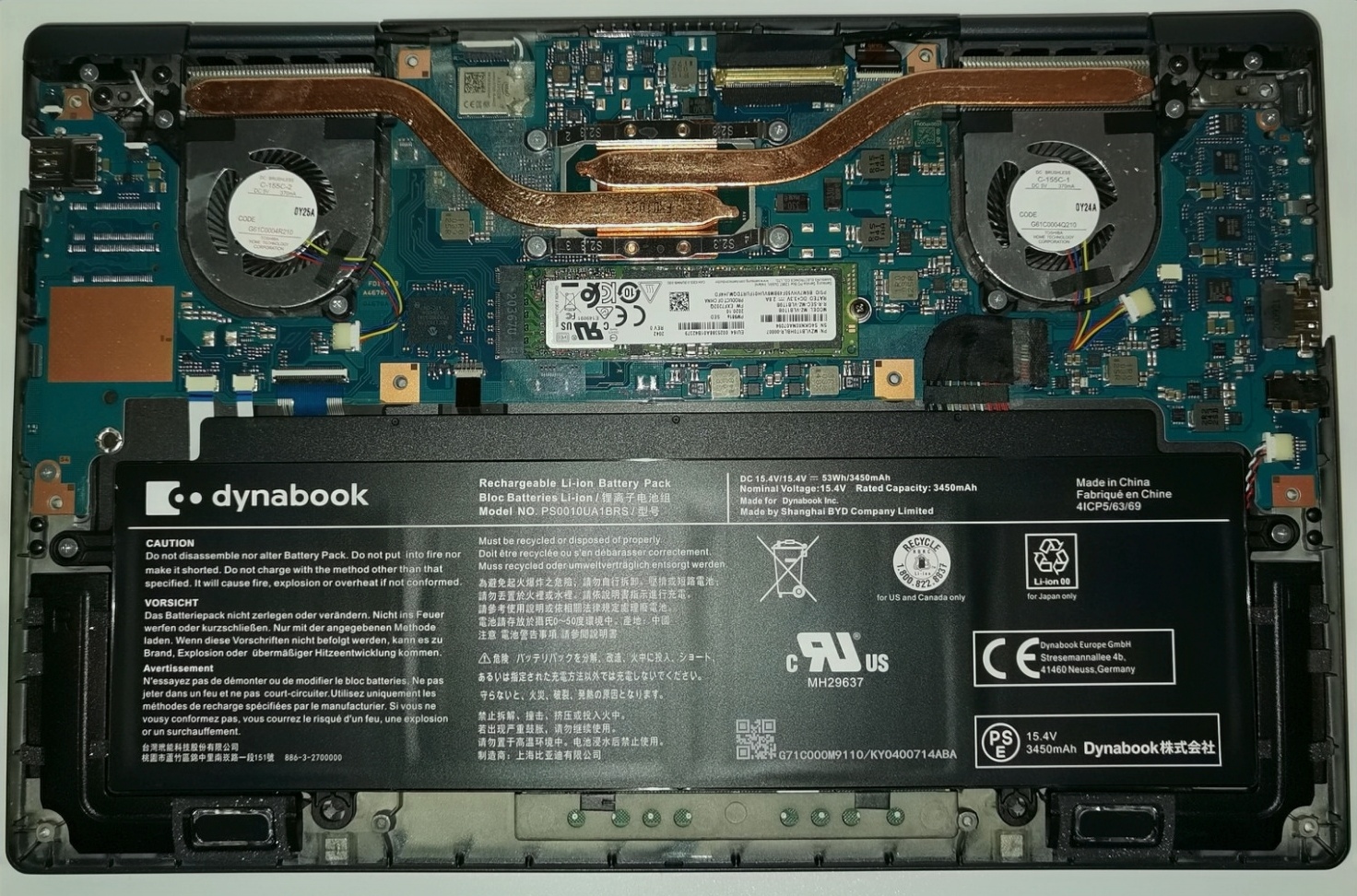

要进入Portégé的内部,必须从底板上拆下12颗螺丝。只有SSD和风扇可以直接接触。不幸的是,没有额外的插槽来放置另一块固态硬盘。

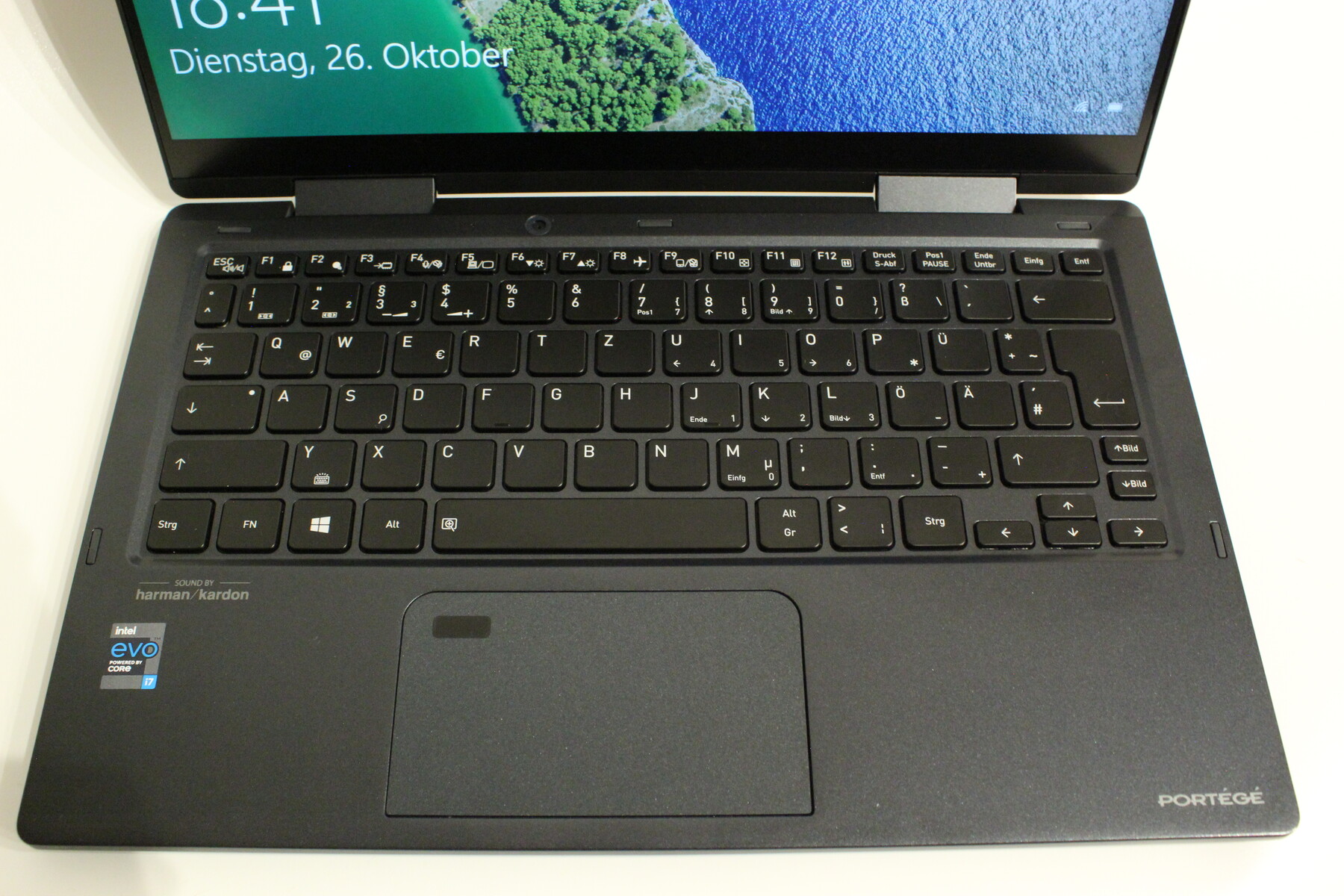

键盘
键盘

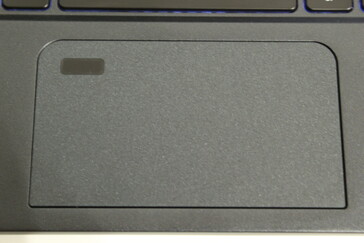

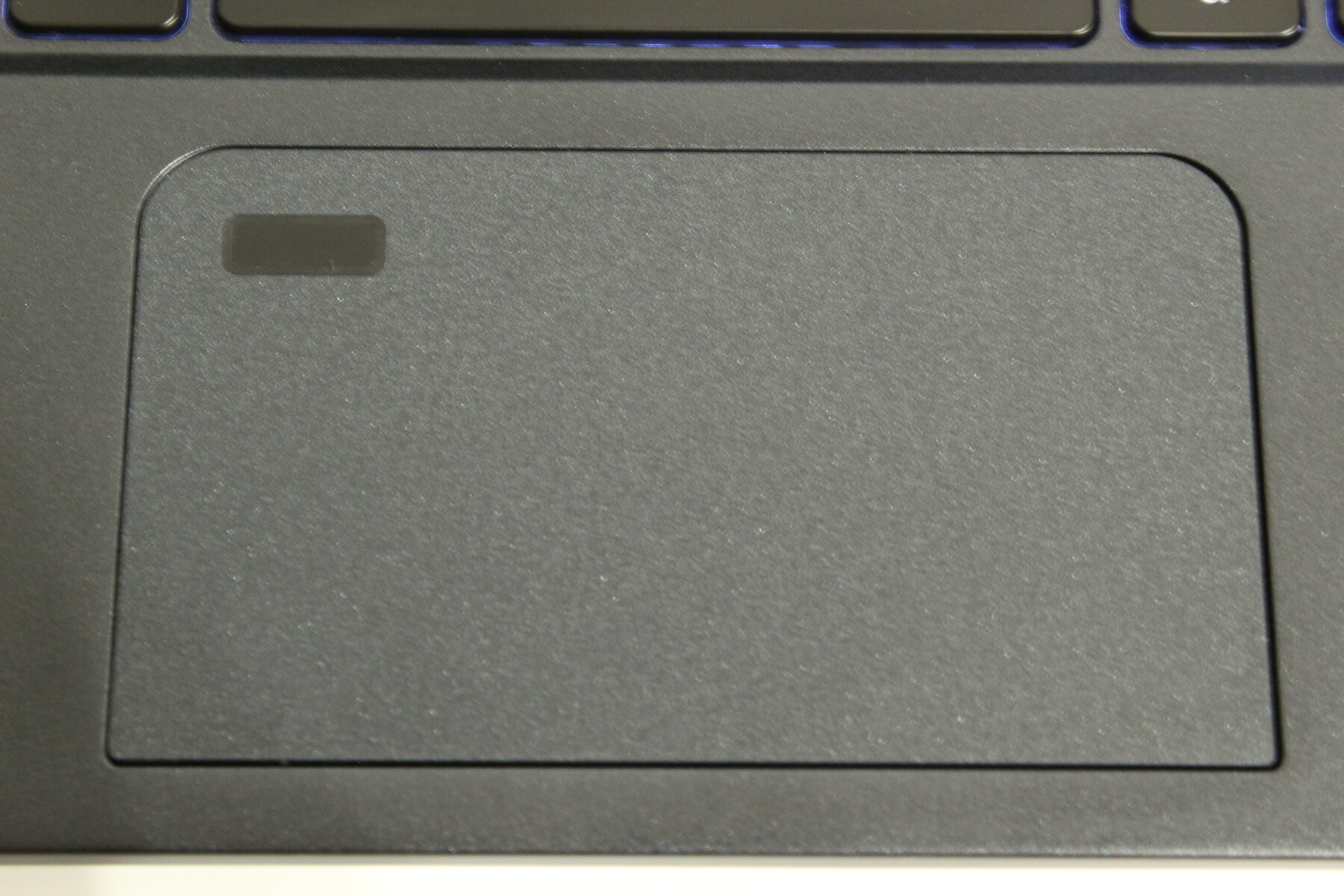

带有指纹传感器的触摸板
带有指纹传感器的触摸板

显示屏 - 哑光13英寸,无PWM

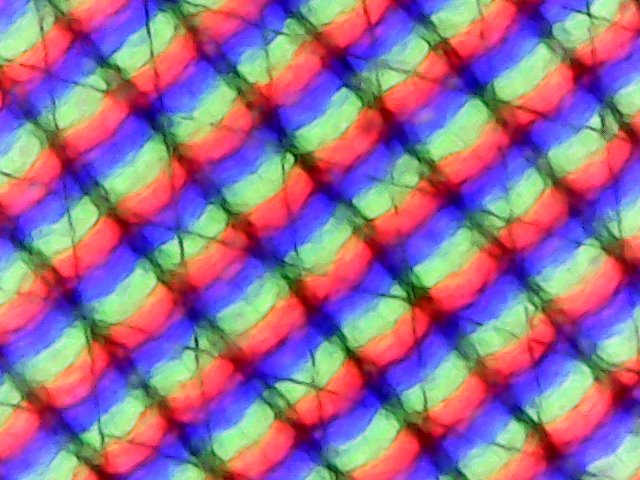

子像素排列
子像素排列

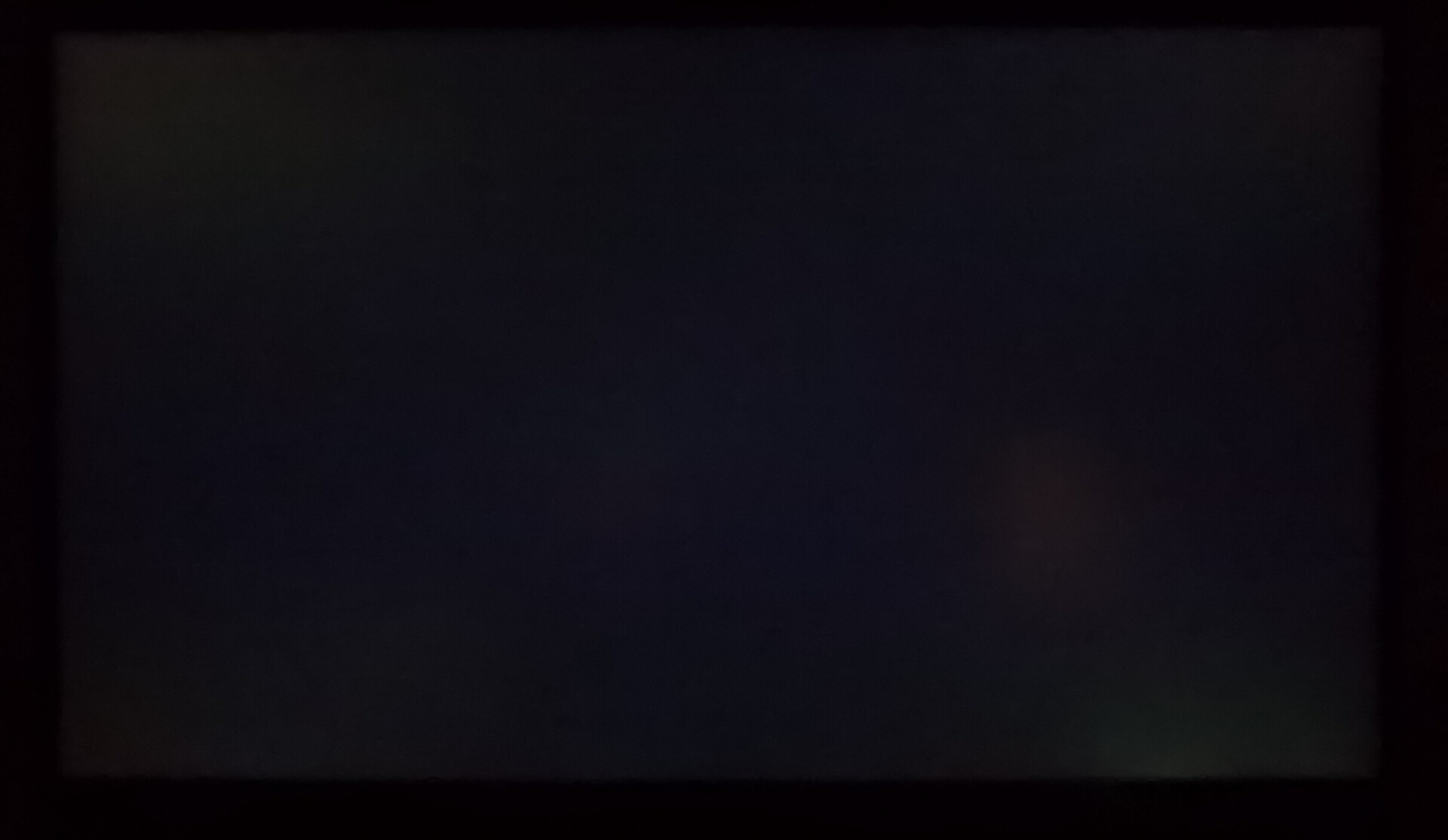

几乎没有任何背光灯渗漏
几乎没有任何背光灯渗漏

哑光的13.3英寸IPS触摸显示屏以全高清分辨率提供良好的对比度和黑值,在这方面领先于竞争对手。sRGB色彩空间覆盖率为98%,因此该设备在显示校准后也适用于编辑图片和视频。工厂校准对日常应用来说是足够的。

90%的照度是好的,亮度也是坚实的390 cd/m²。与其价格相符的是,该面板的视角也很稳定,即使在斜视的情况下,颜色和对比度也不会颠倒。结合哑光显示屏,我们的设备在户外使用时的低反射视角也能令人信服与竞争对手相比,Portégé有一个良好的整体包装。只有HP Elite Dragonfly Max 的显示屏亮度几乎是其两倍

396
cd/m²
381
cd/m²
383
cd/m²
385
cd/m²
420
cd/m²
377
cd/m²
393
cd/m²
379
cd/m²
392
cd/m²
Distribution of brightness
LQ133M1JW47
X-Rite i1Pro 2
Maximum: 420 cd/m² (Nits) Average: 389.6 cd/m² Minimum: 21 cd/m²
Brightness Distribution: 90 %
Center on Battery: 422 cd/m²
Contrast: 1826:1 (Black: 0.23 cd/m²)
ΔE Color 1.7 | 0.59-29.43 Ø5.5, calibrated: 0.8
ΔE Greyscale 3 | 0.64-98 Ø5.7
72.9% AdobeRGB 1998 (Argyll 2.2.0 3D)
98.6% sRGB (Argyll 2.2.0 3D)
69.3% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.19
Dynabook Portégé X30W-J-10K
LQ133M1JW47, IPS, 1920x1080, 13.30
Fujitsu LifeBook U9311X i7 LTE
LQ133M1JW48, IPS, 1920x1080, 13.30
Dell Latitude 9420 2-in-1
AU Optronics B140QAN, IPS, 2560x1600, 14.00
HP Elite Dragonfly Max
InfoVision X133NVFL R0, IPS, 1920x1080, 13.30
Display
-3%
9%
Display P3 Coverage
69.3
67.3
-3%
80.7
16%
sRGB Coverage
98.6
98.4
0%
100
1%
AdobeRGB 1998 Coverage
72.9
68.8
-6%
79.7
9%
Response Times
-2%
11%
20%
Response Time Grey 50% / Grey 80% *
63.6 ?(30.8, 32.8)
61.2 ?(32, 29.2)
4%
54 ?(24, 30)
15%
44.8 ?(20.4, 24.4)
30%
Response Time Black / White *
35.2 ?(14.8, 20.4)
37.6 ?(18.8, 18.8)
-7%
32.8 ?(16.4, 16.4)
7%
32 ?(18.8, 13.2)
9%
PWM Frequency
211.9 ?(30)
Screen
-27%
-35%
6%
Brightness middle
420
348
-17%
483.6
15%
777.5
85%
Brightness
390
350
-10%
465
19%
727
86%
Brightness Distribution
90
92
2%
92
2%
75
-17%
Black Level *
0.23
0.31
-35%
0.32
-39%
0.44
-91%
Contrast
1826
1123
-38%
1511
-17%
1767
-3%
Colorchecker dE 2000 *
1.7
2.8
-65%
3.69
-117%
1.62
5%
Colorchecker dE 2000 max. *
5.5
6.8
-24%
5.97
-9%
5.26
4%
Colorchecker dE 2000 calibrated *
0.8
0.8
-0%
2.05
-156%
1.32
-65%
Greyscale dE 2000 *
3
4.8
-60%
3.5
-17%
1.6
47%
Gamma
2.19 100%
2.2 100%
2.04 108%
2.2 100%
CCT
6406 101%
6978 93%
6158 106%
6538 99%
Color Space (Percent of AdobeRGB 1998)
72.3
Color Space (Percent of sRGB)
94.8
Total Average (Program / Settings)
-11% / -19%
-5% / -19%
13% / 8%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

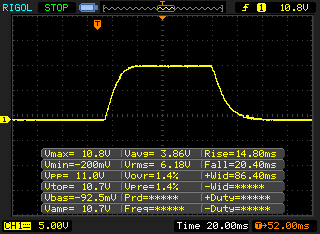

       Response Time Black to White
35.2 ms ... rise ↗ and fall ↘ combined↗ 14.8 ms rise
↘ 20.4 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 91 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (23.8 ms).

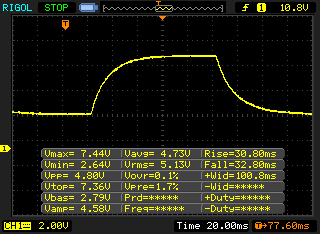

       Response Time 50% Grey to 80% Grey
63.6 ms ... rise ↗ and fall ↘ combined↗ 30.8 ms rise
↘ 32.8 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 636 (maximum) ms. » 97 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (37.6 ms).

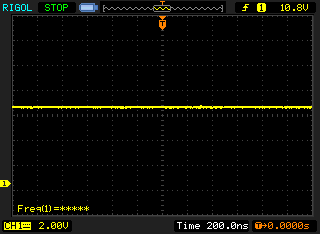

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 52 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 21061 (minimum: 5 - maximum: 3846000) Hz was measured.

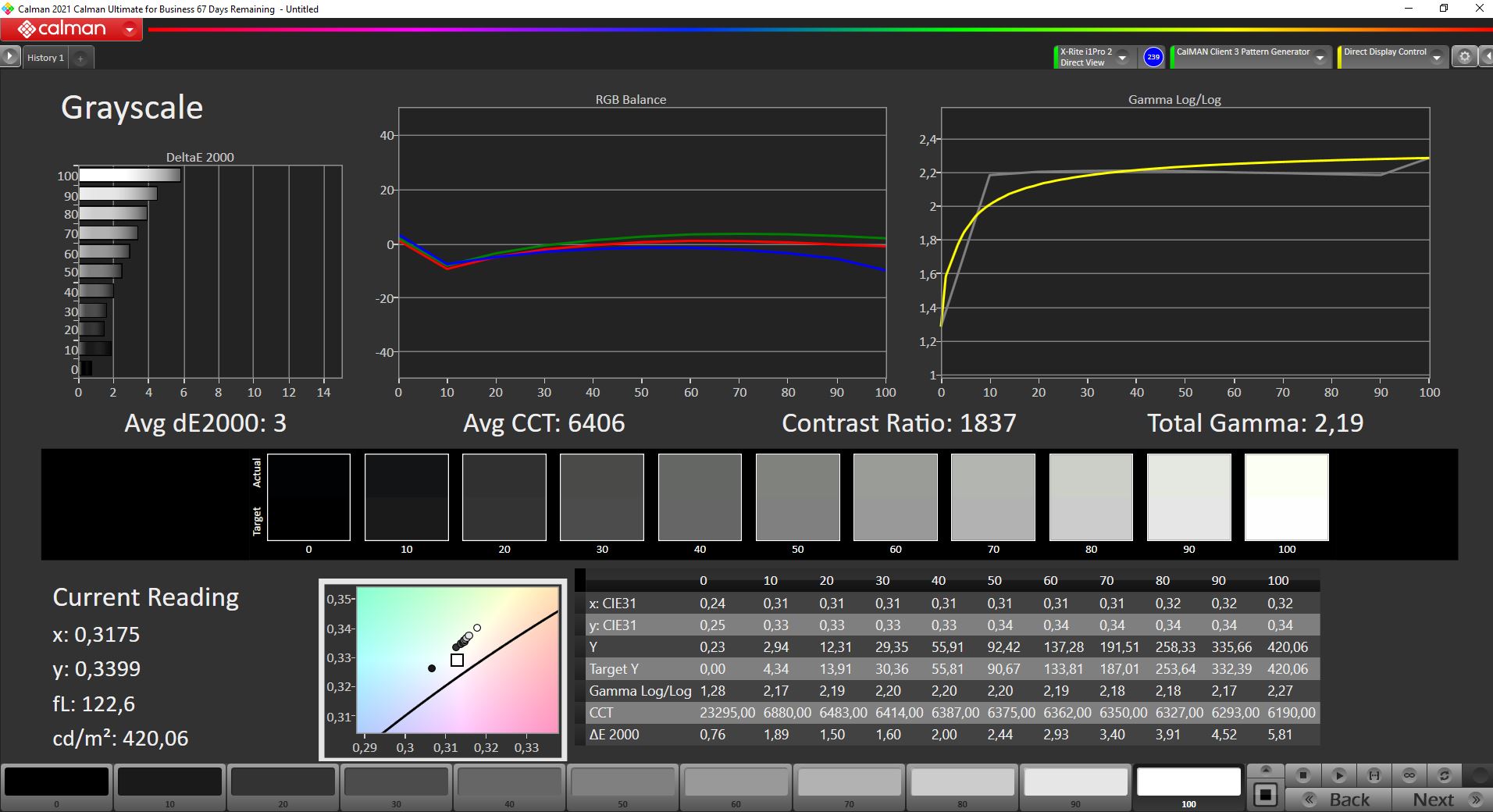

CalMAN灰度
CalMAN灰度
CalMAN饱和度
CalMAN饱和度

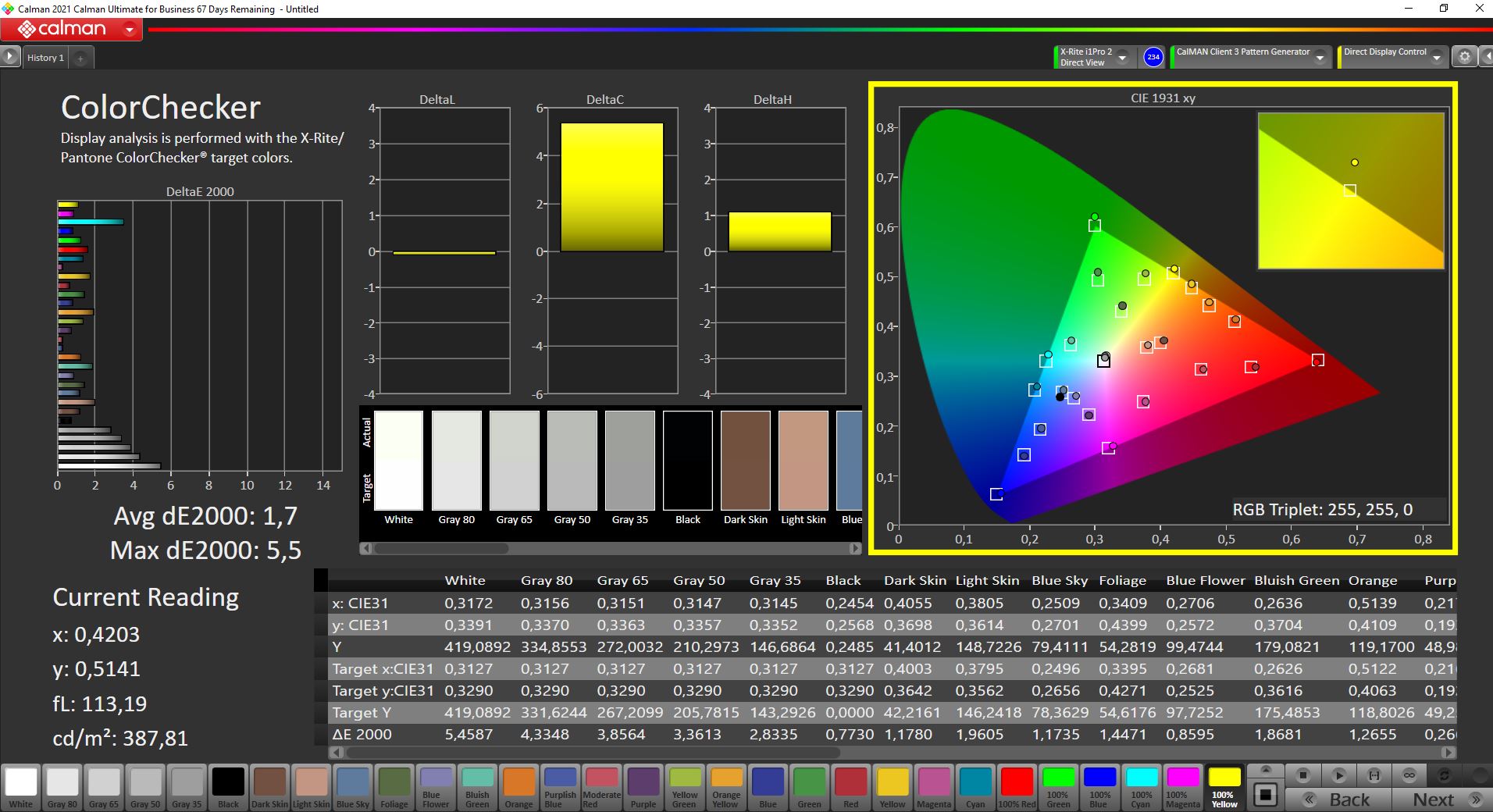

CalMAN ColorChecker
CalMAN ColorChecker

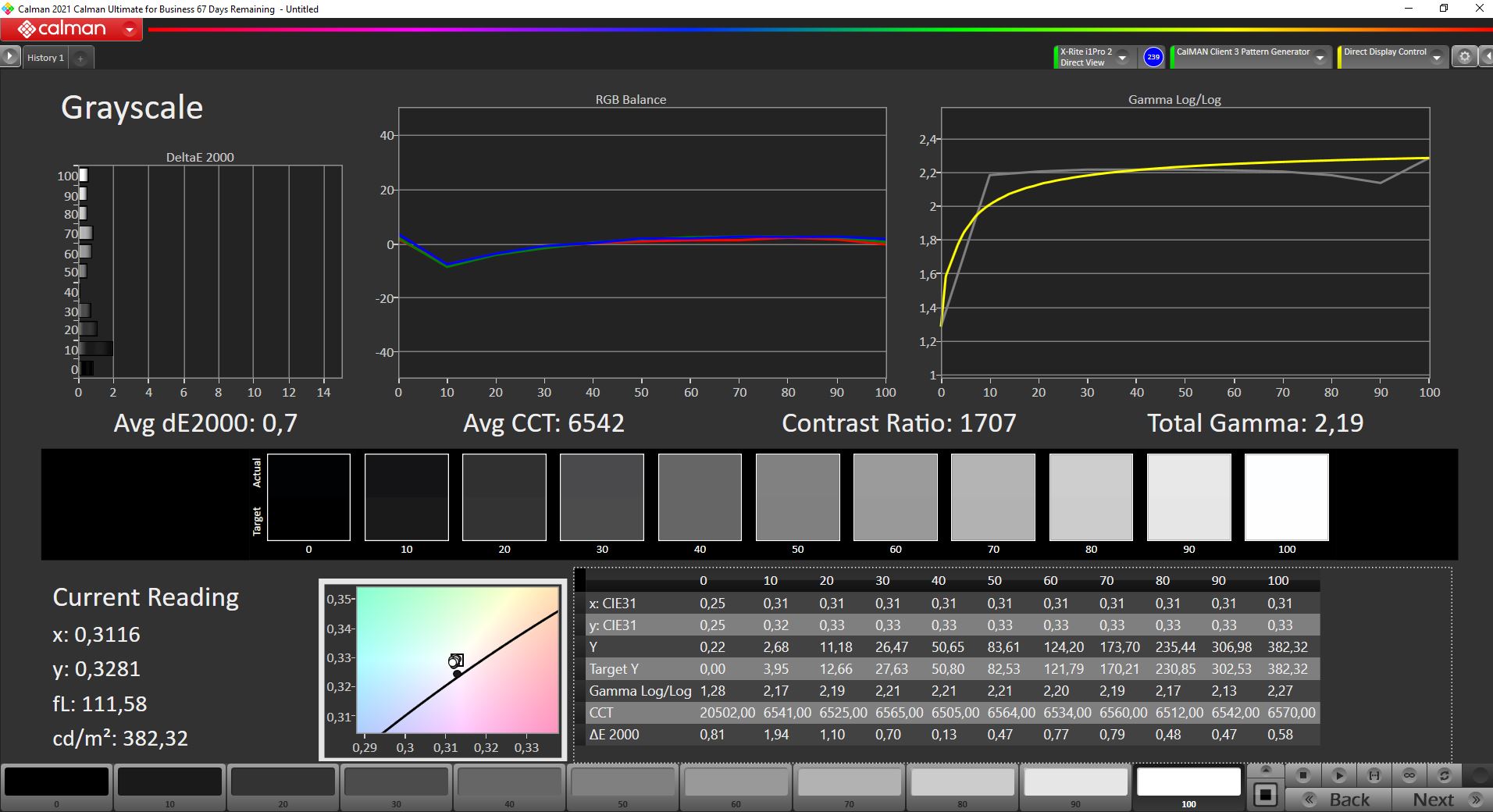

CalMAN 灰度标定
CalMAN 灰度标定

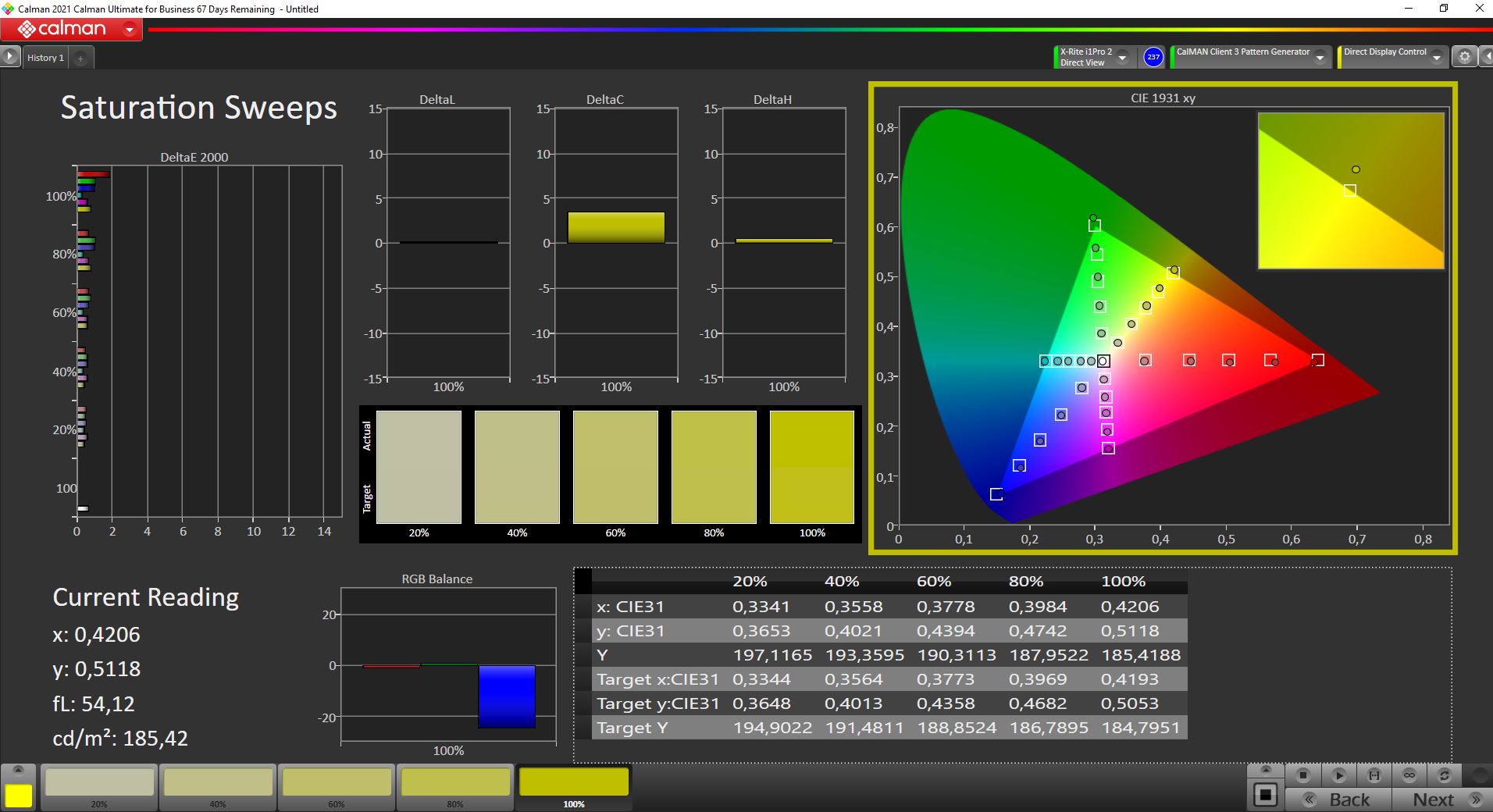

CalMAN 饱和度已校准
CalMAN 饱和度已校准
CalMAN ColorChecker已校准
CalMAN ColorChecker已校准

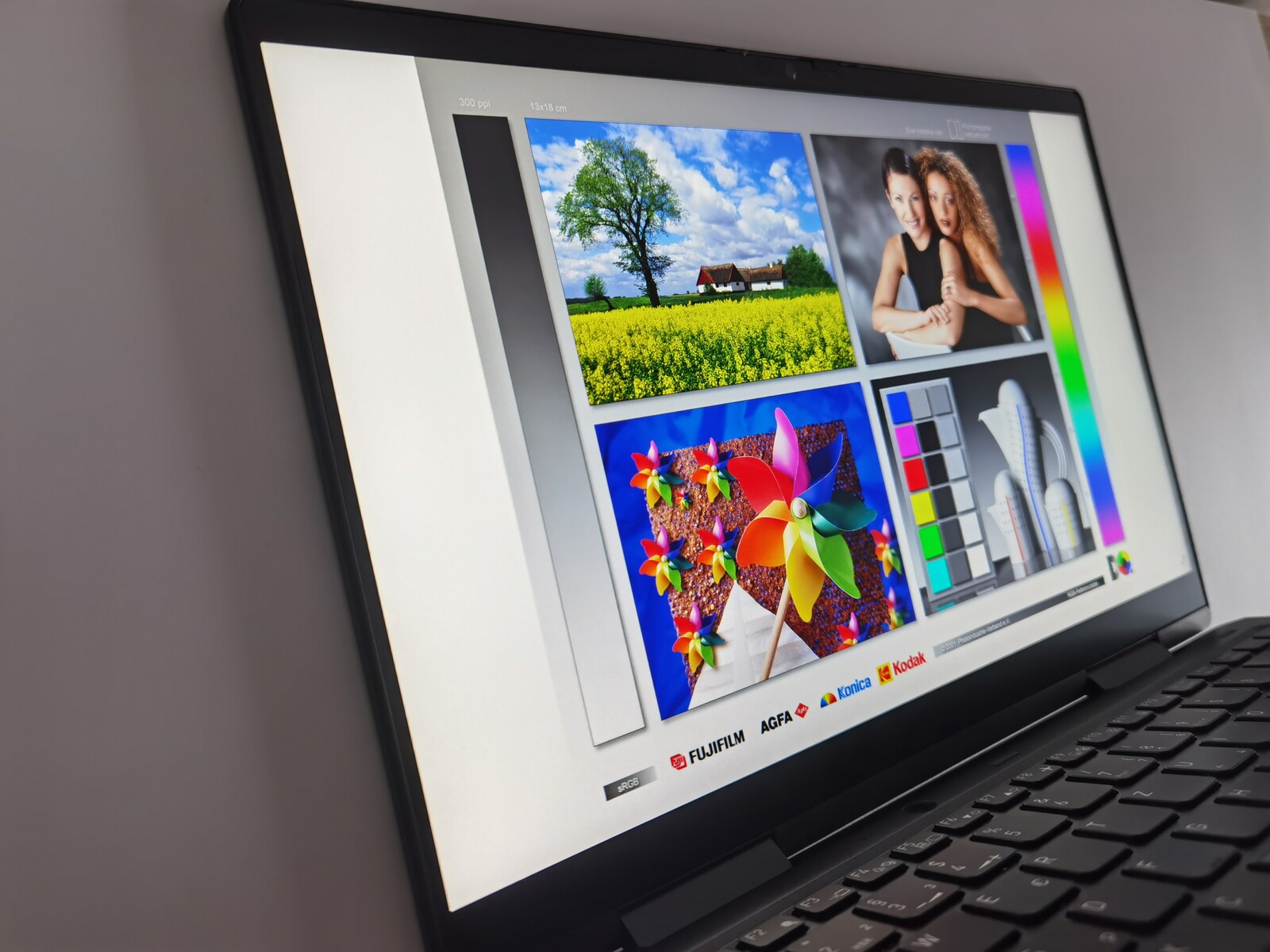

视角稳定
视角稳定

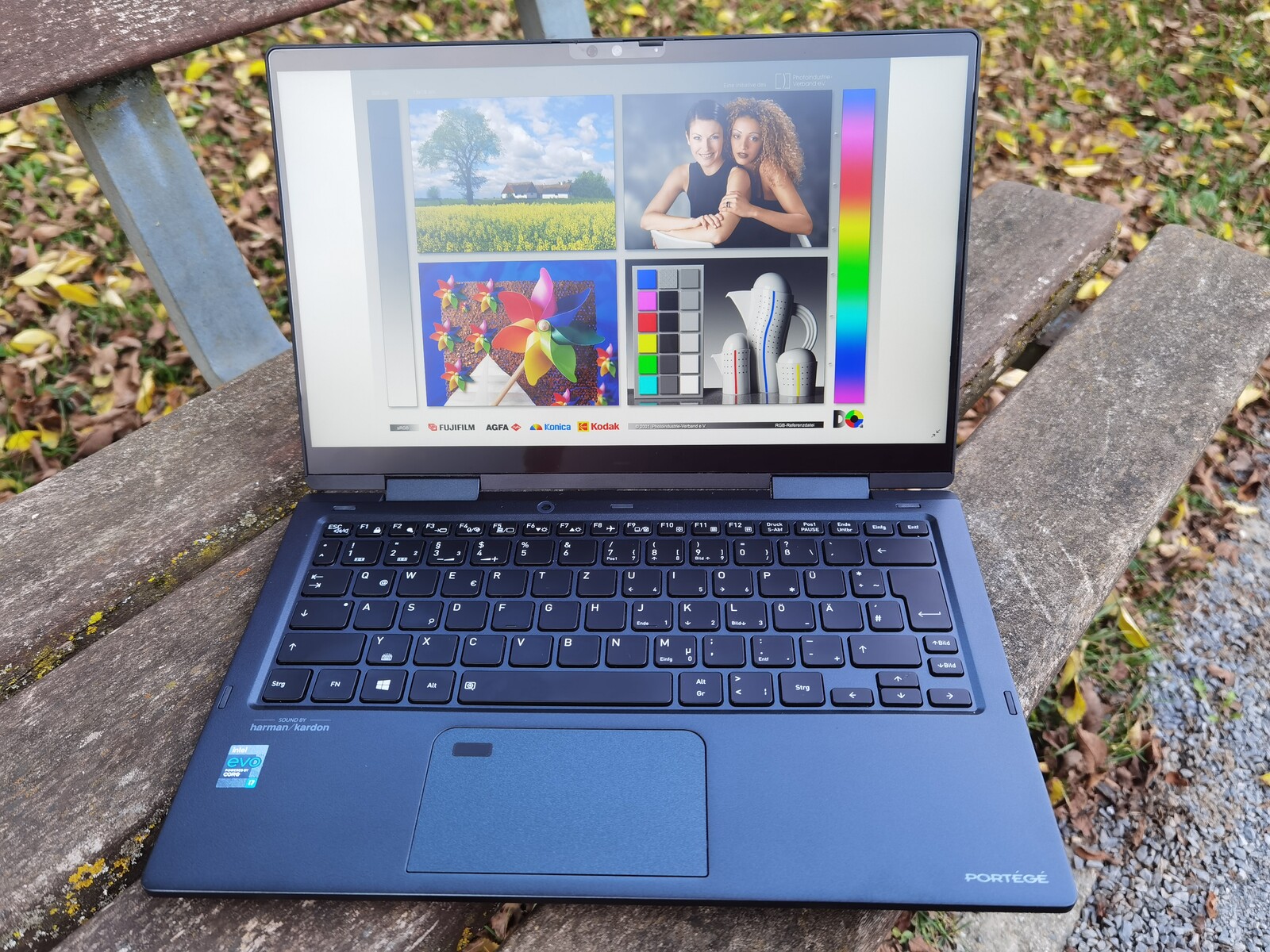

户外使用时的低反射视力
户外使用时的低反射视力

性能、排放和电池寿命

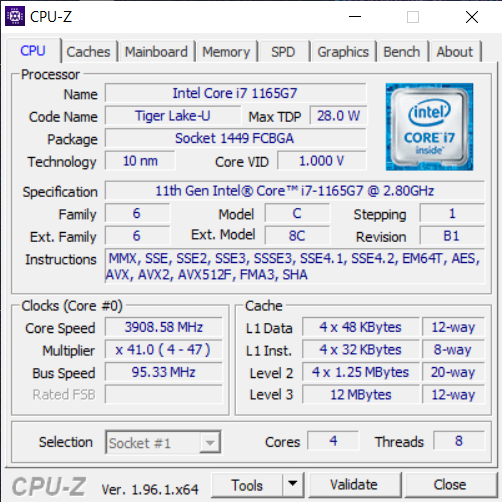

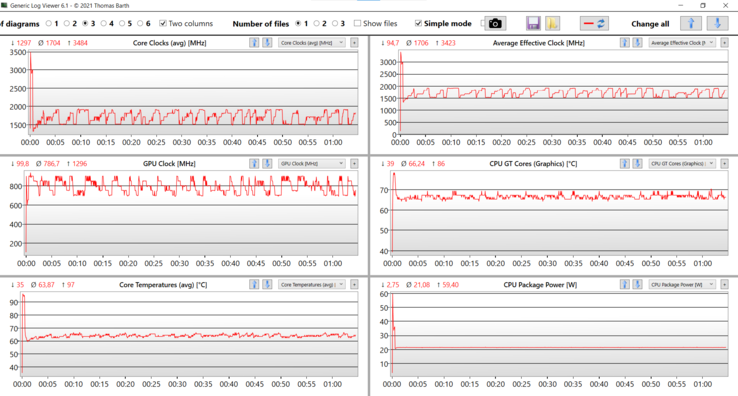

制造商使用英特尔酷睿i7 1165G7的处理器它提供了一个非常好的性能。在高性能情况下,在我们的CineBench R15多重耐力测试中,即使在较长时间内,性能也几乎保持稳定。该处理器可以在短时间内使用41瓦,但几秒钟后这一数值下降到28瓦。由于集成了Intel Iris XE图形,Portégé也适合于一些游戏。.与使用相同显卡的竞争设备相比,这里的性能相当低于平均水平。在电池模式下,永久可用的CPU功率从28W减少到20W。另一方面,图形性能在电池供电时保持稳定。

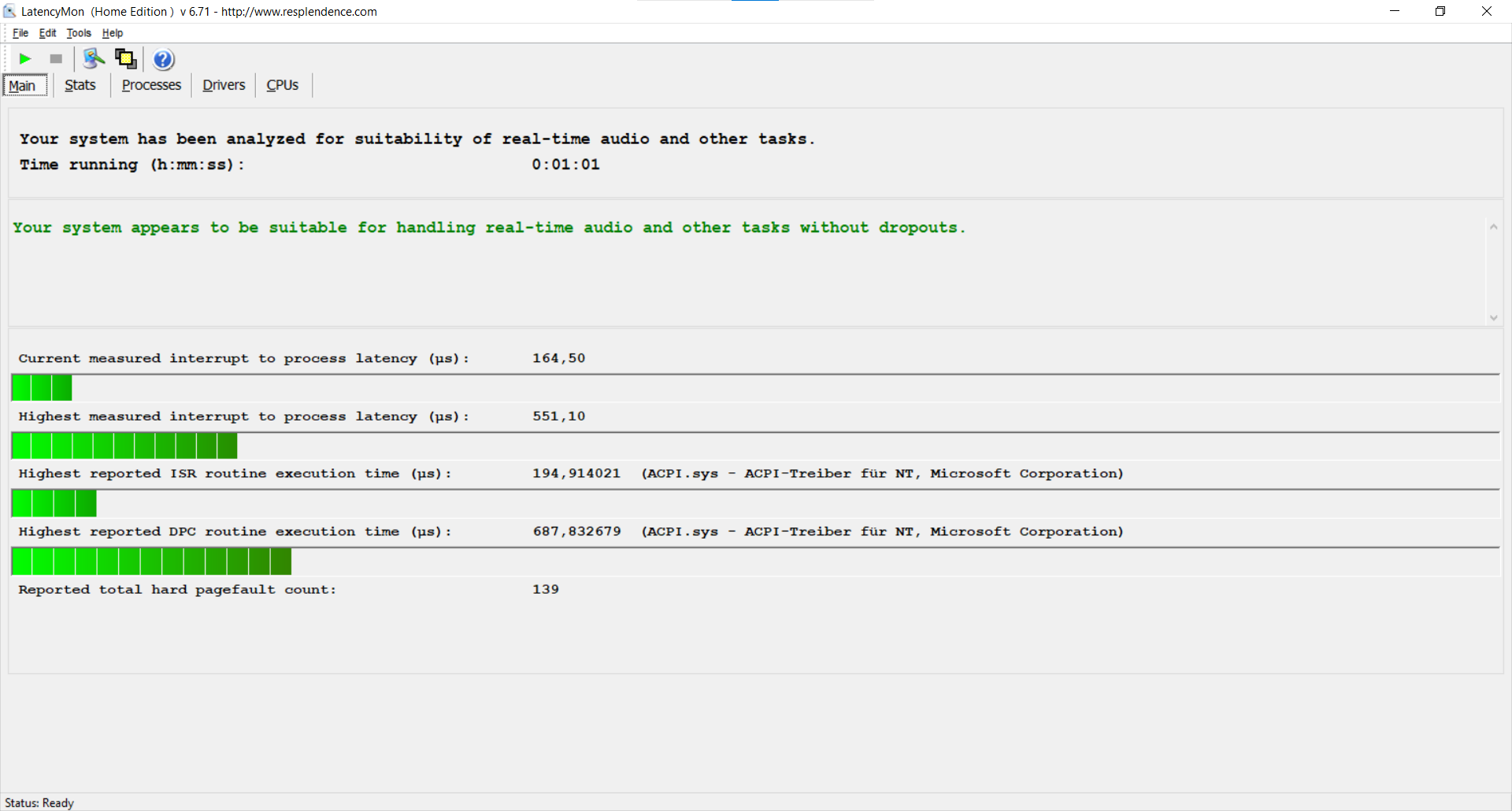

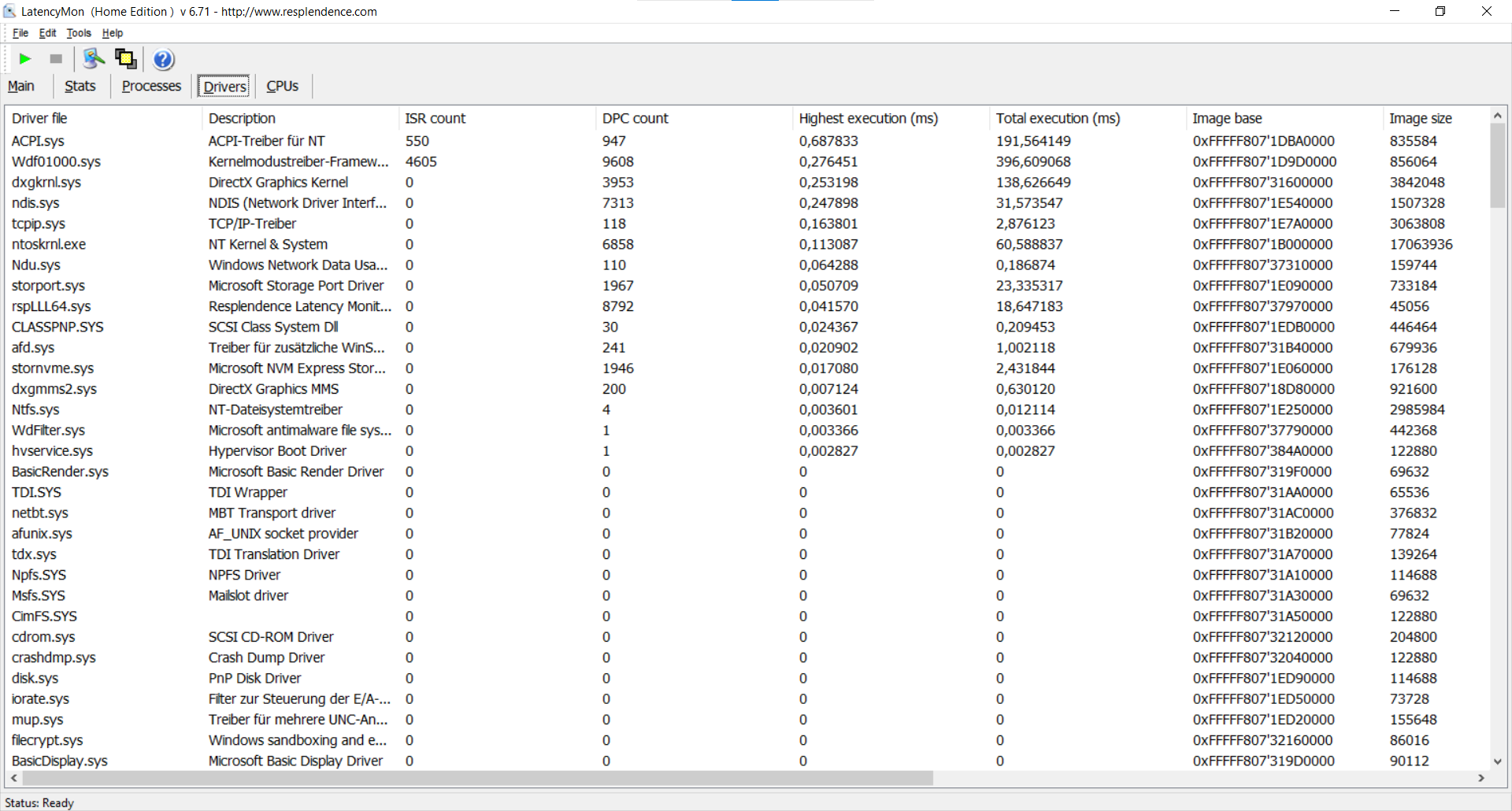

结合快速的PCIe-SSD(3.0 x 4),系统的整体性能非常好,所有的输入都能无延迟地实现。在我们的标准化延迟测试中,测试设备也没有显示出任何突出的问题。

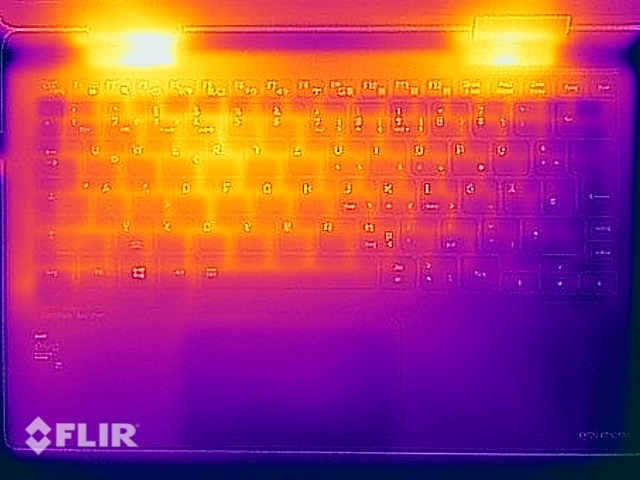

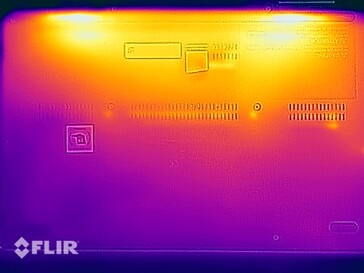

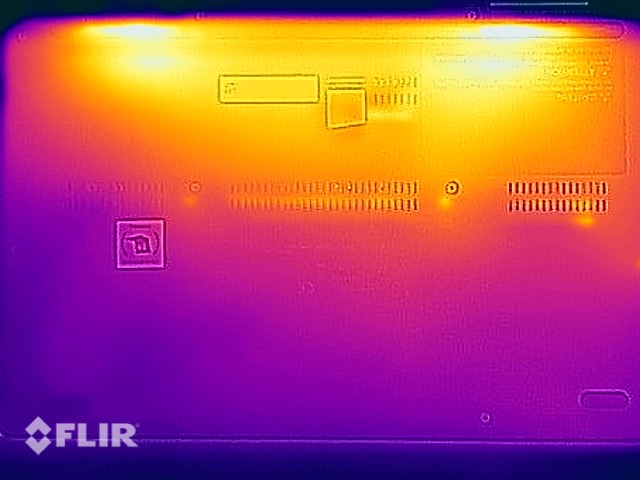

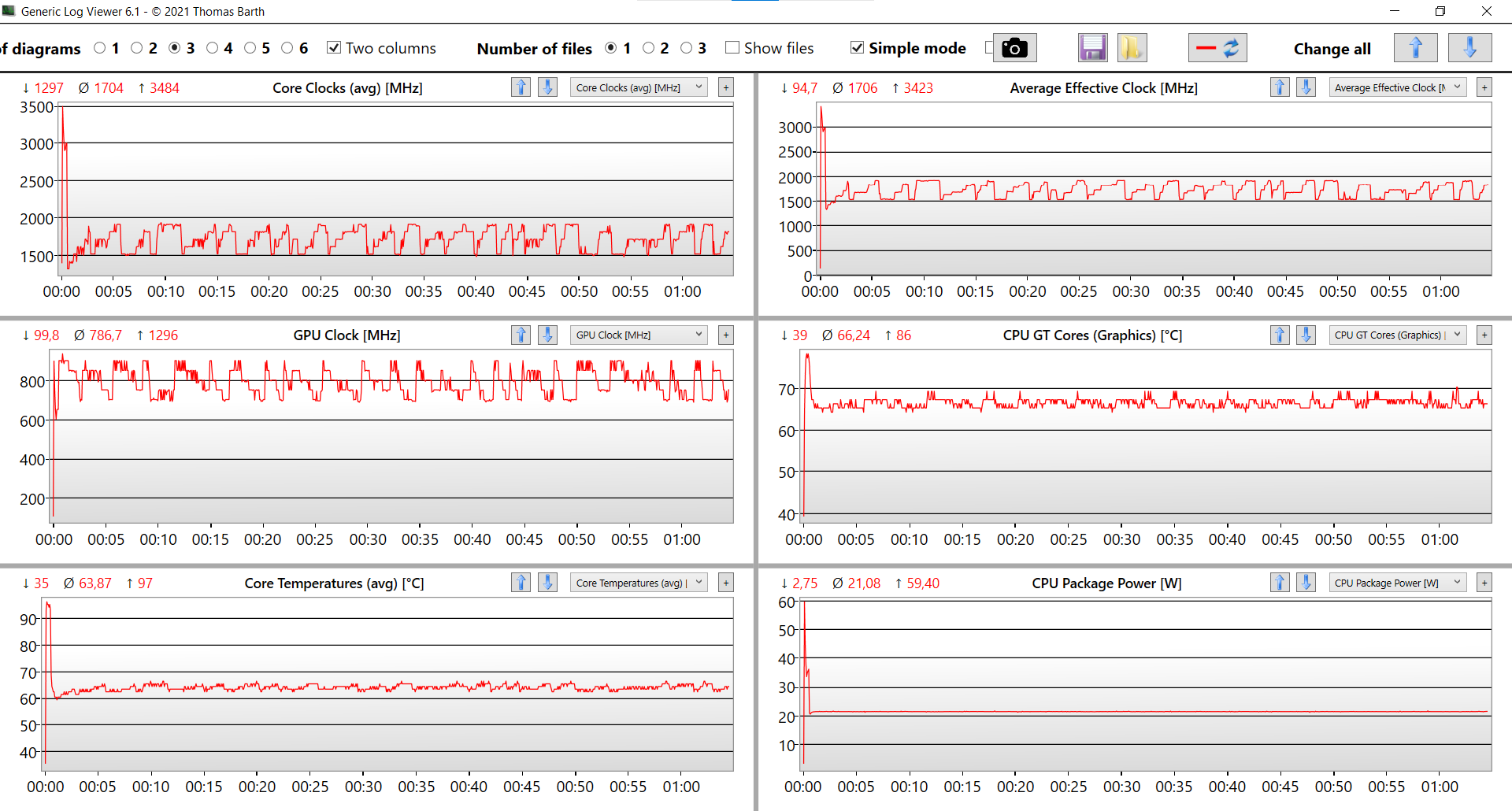

在高要求的任务中,风扇显示出相当明显的脉动行为,并且上下跳动。Dynabook Portégé只在上边缘和底部有明显的温度。另一方面,该设备在日常工作中保持相当安静和凉爽。废热被巧妙地散布在键盘后面的铰链之间,因此,即使在平板电脑模式下也能产生良好的气流。为了在正常和平板电脑模式下获得足够的新鲜空气,机脚被做得更厚一些,这样可以从下面或侧面吸入足够的空气。我们注意到在操作过程中会有轻微的电子噪音,这主要是在空闲模式下可以感觉到的。

在实际的WLAN测试中,电池运行时间非常好。在150cd/m²的情况下,它可以持续近11个小时,在全亮度下可以持续近8个小时。该设备在一个多小时内就能瞬间充电。如果你从其他测试设备中得出结论,只有 戴尔Latitude 9420由于更大的电池,它的续航能力更强一些。

Cinebench R15 Multi Endurance test

050100150200250300350400450500550600650700750800850900781.1761.72760.14724.95755.79760.25762.63759.07759.5758.37761.47757.17758.52755.84754.57757.91757.6762.04760.67758.84759.49753.42754.65759.04758.77816.61733.73733.82721.96655.99656.39656.05651.67655.87656.86656.99656.91660.32657.27659.05656.19656.6656.37654.75656.93655.29654.95657.09653.22657.64921.96903.4800.08913.72907.59847.21854.57910.17838.06848.9908.22836.14846.65907.26858.87822.71912.74869.94820.26911.76875.01807.41914.06889.6793.89916.02851.88787.54909.19875.62803.34910.48873.8798.13904.69878798.64907.26889.3789.97911.45887.43794.38915.37867.6803.86915.04867.28810.73905579.03592.14538.65617.22565.65586.82594.73545.02596.6523.26608.55538.67605.81558.94565.55600.5525.92607.41573.44561.31590.55535.53615.66545.53594.47555.31595.13570.45584.19584.23531.72612.21539.34586.11579.85543.51610.82521.83585.81559.57533.74583.71535.67592.6509.64592.84544.54568.36559508.72Tooltip
Dynabook Portégé X30W-J-10K Intel Core i7-1165G7: Ø758 (724.95-781.1)
Fujitsu LifeBook U9311X i7 LTE Intel Core i7-1185G7: Ø672 (651.67-816.61)
Dell Latitude 9420 2-in-1 Intel Core i7-1185G7: Ø866 (787.54-921.96)
HP Elite Dragonfly Max Intel Core i7-1185G7: Ø569 (508.72-617.22)


Cinebench R23: CPU (Multi Core) | CPU (Single Core)
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender 2.79: BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.3: 64 Bit Multi-Core Score | 64 Bit Single-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R23 / CPU (Multi Core)
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7
5990 (5531.07min - 5990.39max) Points ∼100% +17%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
5504 (5281.5min - 5504.22max) Points ∼92% +7%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
5262 Points ∼88% +3%
Average Intel Core i7-1165G7
  (3773 - 6862, n=54)
5140 Points ∼86% 0%
Dynabook Portégé X30W-J-10K
Intel Core i7-1165G7
5121 (4999.15min - 5121.33max) Points ∼85%
Average of class Convertible
  (709 - 12629, n=51, last 2 years)
4826 Points ∼81% -6%
HP Elite Dragonfly Max
Intel Core i7-1185G7
3861 (3696.44min - 3861max) Points ∼64% -25%
Fujitsu LifeBook U9311X i7 LTE
Intel Core i7-1185G7
3610 Points ∼60% -30%
Cinebench R23 / CPU (Single Core)
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7
1486 Points ∼100% +2%
Dynabook Portégé X30W-J-10K
Intel Core i7-1165G7
1458 Points ∼98%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
1457 Points ∼98% 0%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
1444 Points ∼97% -1%
Average Intel Core i7-1165G7
  (1263 - 1539, n=49)
1430 Points ∼96% -2%
HP Elite Dragonfly Max
Intel Core i7-1185G7
1401 Points ∼94% -4%
Fujitsu LifeBook U9311X i7 LTE
Intel Core i7-1185G7
1251 Points ∼84% -14%
Average of class Convertible
  (382 - 1529, n=50, last 2 years)
1241 Points ∼84% -15%
Cinebench R20 / CPU (Multi Core)
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7
2317 Points ∼100% +20%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
2101 Points ∼91% +9%
Average Intel Core i7-1165G7
  (1285 - 2657, n=71)
1974 Points ∼85% +3%
Dynabook Portégé X30W-J-10K
Intel Core i7-1165G7
1924 Points ∼83%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
1830 Points ∼79% -5%
Average of class Convertible
  (316 - 4953, n=88, last 2 years)
1670 Points ∼72% -13%
HP Elite Dragonfly Max
Intel Core i7-1185G7
1451 Points ∼63% -25%
Fujitsu LifeBook U9311X i7 LTE
Intel Core i7-1185G7
1425 Points ∼62% -26%
Cinebench R20 / CPU (Single Core)
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7
573 Points ∼100% +1%
Dynabook Portégé X30W-J-10K
Intel Core i7-1165G7
569 Points ∼99%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
557 Points ∼97% -2%
Average Intel Core i7-1165G7
  (471 - 589, n=71)
553 Points ∼97% -3%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
551 Points ∼96% -3%
HP Elite Dragonfly Max
Intel Core i7-1185G7
543 Points ∼95% -5%
Fujitsu LifeBook U9311X i7 LTE
Intel Core i7-1185G7
489 Points ∼85% -14%
Average of class Convertible
  (152 - 604, n=88, last 2 years)
448 Points ∼78% -21%
Cinebench R15 / CPU Multi 64Bit
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7
922 (787.54min - 921.96max) Points ∼100% +18%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
866 (694.34min - 866.49max) Points ∼94% +11%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
852 (828.74min - 851.79max) Points ∼92% +9%
Average Intel Core i7-1165G7
  (599 - 1027, n=74)
852 Points ∼92% +9%
Fujitsu LifeBook U9311X i7 LTE
Intel Core i7-1185G7
816.7 Points ∼89% +5%
Dynabook Portégé X30W-J-10K
Intel Core i7-1165G7
781 (724.95min - 781.1max) Points ∼85%
Average of class Convertible
  (144 - 2083, n=95, last 2 years)
728 Points ∼79% -7%
HP Elite Dragonfly Max
Intel Core i7-1185G7
617 (508.72min - 617.22max) Points ∼67% -21%
Cinebench R15 / CPU Single 64Bit
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7
224 Points ∼100% +4%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
217 Points ∼97% +1%
Dynabook Portégé X30W-J-10K
Intel Core i7-1165G7
215 Points ∼96%
Average Intel Core i7-1165G7
  (158 - 230, n=66)
215 Points ∼96% 0%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
214 Points ∼96% 0%
Fujitsu LifeBook U9311X i7 LTE
Intel Core i7-1185G7
210.7 Points ∼94% -2%
Average of class Convertible
  (66.3 - 243, n=91, last 2 years)
175 Points ∼78% -19%
HP Elite Dragonfly Max
Intel Core i7-1185G7
168 Points ∼75% -22%
Blender 2.79 / BMW27 CPU
Average of class Convertible
  (246 - 4249, n=80, last 2 years)
936 Seconds * ∼100% -55%
HP Elite Dragonfly Max
Intel Core i7-1185G7
738 Seconds * ∼79% -22%
Fujitsu LifeBook U9311X i7 LTE
Intel Core i7-1185G7
699 Seconds * ∼75% -16%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
638 Seconds * ∼68% -6%
Average Intel Core i7-1165G7
  (468 - 958, n=70)
610 Seconds * ∼65% -1%
Dynabook Portégé X30W-J-10K
Intel Core i7-1165G7
603 Seconds * ∼64%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
554 Seconds * ∼59% +8%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7
524 Seconds * ∼56% +13%
7-Zip 18.03 / 7z b 4
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7
26910 MIPS ∼100% +24%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
25319 MIPS ∼94% +16%
Average Intel Core i7-1165G7
  (15556 - 27405, n=70)
23027 MIPS ∼86% +6%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
21828 MIPS ∼81% 0%
Dynabook Portégé X30W-J-10K
Intel Core i7-1165G7
21751 MIPS ∼81%
Average of class Convertible
  (4498 - 57319, n=82, last 2 years)
20774 MIPS ∼77% -4%
Fujitsu LifeBook U9311X i7 LTE
Intel Core i7-1185G7
19937 MIPS ∼74% -8%
HP Elite Dragonfly Max
Intel Core i7-1185G7
19688 MIPS ∼73% -9%
7-Zip 18.03 / 7z b 4 -mmt1
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7
5295 MIPS ∼100% +5%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
5208 MIPS ∼98% +4%
Average Intel Core i7-1165G7
  (4625 - 5507, n=70)
5206 MIPS ∼98% +4%
HP Elite Dragonfly Max
Intel Core i7-1185G7
5100 MIPS ∼96% +1%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
5091 MIPS ∼96% +1%
Dynabook Portégé X30W-J-10K
Intel Core i7-1165G7
5027 MIPS ∼95%
Fujitsu LifeBook U9311X i7 LTE
Intel Core i7-1185G7
4894 MIPS ∼92% -3%
Average of class Convertible
  (2125 - 5623, n=81, last 2 years)
4405 MIPS ∼83% -12%
Geekbench 5.3 / 64 Bit Multi-Core Score
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
5583 Points ∼100% +2%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
5543 Points ∼99% +1%
Dynabook Portégé X30W-J-10K
Intel Core i7-1165G7
5488 Points ∼98%
HP Elite Dragonfly Max
Intel Core i7-1185G7
5258 Points ∼94% -4%
Average Intel Core i7-1165G7
  (3872 - 5926, n=66)
5231 Points ∼94% -5%
Fujitsu LifeBook U9311X i7 LTE
Intel Core i7-1185G7
5209 Points ∼93% -5%
Average of class Convertible
  (707 - 8620, n=81, last 2 years)
4272 Points ∼77% -22%
Geekbench 5.3 / 64 Bit Single-Core Score
Average Intel Core i7-1165G7
  (1302 - 1595, n=66)
1528 Points ∼100% +1%
HP Elite Dragonfly Max
Intel Core i7-1185G7
1520 Points ∼99% 0%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
1517 Points ∼99% 0%
Dynabook Portégé X30W-J-10K
Intel Core i7-1165G7
1517 Points ∼99%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
1498 Points ∼98% -1%
Fujitsu LifeBook U9311X i7 LTE
Intel Core i7-1185G7
1463 Points ∼96% -4%
Average of class Convertible
  (263 - 1566, n=81, last 2 years)
1203 Points ∼79% -21%
HWBOT x265 Benchmark v2.2 / 4k Preset
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7
7.54 fps ∼100% +20%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
7.06 fps ∼94% +12%
Average Intel Core i7-1165G7
  (1.39 - 8.47, n=70)
6.37 fps ∼84% +1%
Dynabook Portégé X30W-J-10K
Intel Core i7-1165G7
6.28 fps ∼83%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
5.77 fps ∼77% -8%
Fujitsu LifeBook U9311X i7 LTE
Intel Core i7-1185G7
5.39 fps ∼71% -14%
Average of class Convertible
  (0.74 - 15.2, n=79, last 2 years)
5.36 fps ∼71% -15%
HP Elite Dragonfly Max
Intel Core i7-1185G7
5.12 fps ∼68% -18%
LibreOffice / 20 Documents To PDF
Average of class Convertible
  (40.7 - 175, n=76, last 2 years)
66.5 s * ∼100% -32%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
52.6 s * ∼79% -5%
Fujitsu LifeBook U9311X i7 LTE
Intel Core i7-1185G7
51 s * ∼77% -1%
Dynabook Portégé X30W-J-10K
Intel Core i7-1165G7
50.3 s * ∼76%
Average Intel Core i7-1165G7
  (21.5 - 88.1, n=68)
48.7 s * ∼73% +3%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7
47.4 s * ∼71% +6%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
46.5 s * ∼70% +8%
HP Elite Dragonfly Max
Intel Core i7-1185G7
45.9 s * ∼69% +9%
R Benchmark 2.5 / Overall mean
Average of class Convertible
  (0.504 - 2.12, n=77, last 2 years)
0.736 sec * ∼100% -23%
Fujitsu LifeBook U9311X i7 LTE
Intel Core i7-1185G7
0.605 sec * ∼82% -1%
HP Elite Dragonfly Max
Intel Core i7-1185G7
0.599 sec * ∼81% -0%
Dynabook Portégé X30W-J-10K
Intel Core i7-1165G7
0.598 sec * ∼81%
Average Intel Core i7-1165G7
  (0.552 - 1.002, n=70)
0.591 sec * ∼80% +1%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
0.587 sec * ∼80% +2%
MSI Summit E13 Flip Evo A11MT
Intel Core i7-1185G7
0.587 sec * ∼80% +2%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7
0.564 sec * ∼77% +6%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
781 Points
Cinebench R15 OpenGL 64Bit
106 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
215 Points
Help
PCMark 10 / Score
Dell Latitude 9420 2-in-1
Iris Xe G7 96EUs, i7-1185G7, WDC PC SN530 SDBPNPZ-512G
5272 Points ∼100% +5%
Dynabook Portégé X30W-J-10K
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
5019 Points ∼95%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (4531 - 5454, n=45)
4961 Points ∼94% -1%
HP Elite Dragonfly Max
Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG60ZNV512G
4932 Points ∼94% -2%
Fujitsu LifeBook U9311X i7 LTE
Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG6AZNV1T02
4899 Points ∼93% -2%
Average of class Convertible
  (1429 - 5971, n=86, last 2 years)
4311 Points ∼82% -14%
PCMark 10 / Essentials
HP Elite Dragonfly Max
Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG60ZNV512G
10664 Points ∼100% +8%
Dell Latitude 9420 2-in-1
Iris Xe G7 96EUs, i7-1185G7, WDC PC SN530 SDBPNPZ-512G
10386 Points ∼97% +5%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (8997 - 11505, n=45)
10036 Points ∼94% +2%
Fujitsu LifeBook U9311X i7 LTE
Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG6AZNV1T02
9954 Points ∼93% +1%
Dynabook Portégé X30W-J-10K
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
9874 Points ∼93%
Average of class Convertible
  (3602 - 11505, n=86, last 2 years)
8868 Points ∼83% -10%
PCMark 10 / Productivity
Dell Latitude 9420 2-in-1
Iris Xe G7 96EUs, i7-1185G7, WDC PC SN530 SDBPNPZ-512G
6909 Points ∼100% +5%
HP Elite Dragonfly Max
Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG60ZNV512G
6904 Points ∼100% +5%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (5570 - 7136, n=45)
6714 Points ∼97% +2%
Fujitsu LifeBook U9311X i7 LTE
Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG6AZNV1T02
6610 Points ∼96% 0%
Dynabook Portégé X30W-J-10K
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
6603 Points ∼96%
Average of class Convertible
  (2411 - 8653, n=86, last 2 years)
6393 Points ∼93% -3%
PCMark 10 / Digital Content Creation
Dell Latitude 9420 2-in-1
Iris Xe G7 96EUs, i7-1185G7, WDC PC SN530 SDBPNPZ-512G
5542 Points ∼100% +5%
Dynabook Portégé X30W-J-10K
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
5261 Points ∼95%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (4083 - 5550, n=45)
4930 Points ∼89% -6%
Fujitsu LifeBook U9311X i7 LTE
Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG6AZNV1T02
4852 Points ∼88% -8%
HP Elite Dragonfly Max
Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG60ZNV512G
4424 Points ∼80% -16%
Average of class Convertible
  (886 - 6844, n=86, last 2 years)
3910 Points ∼71% -26%
PCMark 10 Score
5019 points
Help

DPC延迟


DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
HP Elite Dragonfly Max
Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG60ZNV512G
3248.9 μs * ∼100% -490%
Fujitsu LifeBook U9311X i7 LTE
Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG6AZNV1T02
770.2 μs * ∼24% -40%
Dynabook Portégé X30W-J-10K
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
551 μs * ∼17%
Dell Latitude 9420 2-in-1
Iris Xe G7 96EUs, i7-1185G7, WDC PC SN530 SDBPNPZ-512G
501.8 μs * ∼15% +9%

* ... smaller is better

Dynabook Portégé X30W-J-10K
Samsung PM981a MZVLB1T0HBLR
Fujitsu LifeBook U9311X i7 LTE
Toshiba XG6 KXG6AZNV1T02
Dell Latitude 9420 2-in-1
WDC PC SN530 SDBPNPZ-512G
HP Elite Dragonfly Max
Toshiba XG6 KXG60ZNV512G
Average Samsung PM981a MZVLB1T0HBLR

Average of class Convertible

CrystalDiskMark 5.2 / 6
4%
14%
-3%
19%
-4%
Write 4K
104
114.84
10%
190
83%
98.97
-5%
140 ?(76.2 - 229, n=36)
35%
132 ?(12.9 - 311, n=85, last 2 years)
27%
Read 4K
44
49.53
13%
48.1
9%
52.28
19%
49.9 ?(34.3 - 75.5, n=36)
13%
51.9 ?(5.32 - 191, n=85, last 2 years)
18%
Write Seq
1833
1832.79
0%
1700
-7%
1765
-4%
2036 ?(776 - 2975, n=35)
11%
1372 ?(121 - 4195, n=81, last 2 years)
-25%
Read Seq
2220
2259.68
2%
1594
-28%
2065
-7%
2013 ?(973 - 2639, n=35)
-9%
1565 ?(256 - 3234, n=81, last 2 years)
-30%
Write 4K Q32T1
298
323.45
9%
517
73%
291.7
-2%
461 ?(268 - 656, n=36)
55%
384 ?(15.2 - 803, n=85, last 2 years)
29%
Read 4K Q32T1
326
340.5
4%
477.8
47%
314
-4%
499 ?(289 - 730, n=36)
53%
395 ?(17.9 - 849, n=85, last 2 years)
21%
Write Seq Q32T1
3024
3047.7
1%
1841
-39%
2549
-16%
2903 ?(788 - 3033, n=36)
-4%
1720 ?(109 - 4931, n=85, last 2 years)
-43%
Read Seq Q32T1
3546
3281.8
-7%
2472
-30%
3282
-7%
3479 ?(2853 - 3568, n=36)
-2%
2505 ?(180 - 7103, n=85, last 2 years)
-29%
AS SSD
-7%
-54%
-22%
23%
-56%
Seq Read
2673
2622
-2%
2102.36
-21%
2700.28
1%
2537 ?(1938 - 3066, n=36)
-5%
1921 ?(242 - 4878, n=87, last 2 years)
-28%
Seq Write
1338
1322
-1%
1155.34
-14%
1483.07
11%
2071 ?(1248 - 2837, n=36)
55%
1105 ?(121 - 3660, n=87, last 2 years)
-17%
4K Read
47.85
48.36
1%
45.63
-5%
48.73
2%
53.1 ?(44.3 - 68.4, n=36)
11%
46.3 ?(5.47 - 85.1, n=87, last 2 years)
-3%
4K Write
124
121.14
-2%
238.9
93%
126.39
2%
131 ?(87.4 - 208, n=36)
6%
127 ?(12.4 - 239, n=87, last 2 years)
2%
4K-64 Read
762
765.16
0%
752.05
-1%
818.97
7%
1463 ?(762 - 2093, n=36)
92%
776 ?(13.2 - 2827, n=87, last 2 years)
2%
4K-64 Write
1678
1342.5
-20%
396.09
-76%
1252.25
-25%
1801 ?(1074 - 2152, n=36)
7%
814 ?(10.2 - 2349, n=87, last 2 years)
-51%
Access Time Read *
0.066
0.074
-12%
0.062
6%
0.066
-0%
0.0494 ?(0.032 - 0.087, n=35)
25%
0.1051 ?(0.023 - 0.794, n=87, last 2 years)
-59%
Access Time Write *
0.029
0.033
-14%
0.167
-476%
0.093
-221%
0.0426 ?(0.017 - 0.128, n=36)
-47%
0.1385 ?(0.017 - 1.105, n=87, last 2 years)
-378%
Score Read
1078
1076
0%
1008
-6%
1138
6%
1770 ?(1078 - 2449, n=36)
64%
1014 ?(51 - 3400, n=87, last 2 years)
-6%
Score Write
1937
1596
-18%
751
-61%
1527
-21%
2139 ?(1471 - 2527, n=36)
10%
1051 ?(35 - 2938, n=87, last 2 years)
-46%
Score Total
3511
3169
-10%
2238
-36%
3197
-9%
4797 ?(3309 - 6095, n=36)
37%
2555 ?(117 - 8020, n=87, last 2 years)
-27%
Copy ISO MB/s
1629.1
1587.7
1927.48
2098 ?(901 - 2932, n=23)
1453 ?(56.5 - 11031, n=71, last 2 years)
Copy Program MB/s
855.35
1037.79
573.04
500 ?(119 - 803, n=23)
476 ?(27.6 - 1181, n=71, last 2 years)
Copy Game MB/s
1548.97
1006.07
1144.79
1132 ?(372 - 1830, n=23)
879 ?(37.6 - 2260, n=71, last 2 years)
Total Average (Program / Settings)
-2% / -2%
-20% / -26%
-13% / -14%
21% / 21%
-30% / -34%

* ... smaller is better

Samsung PM981a MZVLB1T0HBLR
CDM 5/6 Read Seq Q32T1: 3546 MB/s
CDM 5/6 Write Seq Q32T1: 3024 MB/s
CDM 5/6 Read 4K Q32T1: 326 MB/s
CDM 5/6 Write 4K Q32T1: 298 MB/s
CDM 5 Read Seq: 2220 MB/s
CDM 5 Write Seq: 1833 MB/s
CDM 5/6 Read 4K: 44 MB/s
CDM 5/6 Write 4K: 104 MB/s

Continuous reading: DiskSpd Read Loop, Queue Depth 8

0Tooltip

图形卡


3DMark 11 - 1280x720 Performance GPU
Fujitsu LifeBook U9311X i7 LTE
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
7045 Points ∼100% +7%
Dell Latitude 9420 2-in-1
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
6987 Points ∼99% +6%
Dynabook Portégé X30W-J-10K
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
6614 Points ∼94%
Average Intel Iris Xe Graphics G7 96EUs
  (2942 - 7115, n=73)
6366 Points ∼90% -4%
HP Elite Dragonfly Max
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
4841 Points ∼69% -27%
Average of class Convertible
  (429 - 17421, n=90, last 2 years)
4447 Points ∼63% -33%
3DMark - 1920x1080 Fire Strike Graphics
Dell Latitude 9420 2-in-1
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
5740 Points ∼100% +8%
Fujitsu LifeBook U9311X i7 LTE
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
5332 Points ∼93% +1%
Dynabook Portégé X30W-J-10K
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
5298 Points ∼92%
Average Intel Iris Xe Graphics G7 96EUs
  (3073 - 5909, n=79)
4909 Points ∼86% -7%
HP Elite Dragonfly Max
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
3625 Points ∼63% -32%
Average of class Convertible
  (348 - 13158, n=87, last 2 years)
3301 Points ∼58% -38%
3DMark 06 Standard Score
25888 points
3DMark 11 Performance
6676 points
3DMark Fire Strike Score
4814 points
3DMark Time Spy Score
1724 points
Help

Witcher 3 FPS-Diagram

0123456789101112131415141413141314131413141313141314131413141314131314131314131413141313141314131314141313141314131413141314141314131414131314131314131413131413141313141313131413131413141313141313141313131413131414131413131314131313141314131413141314131314131314131314131313141313131314131413131313141313141313141314131314131313131413131314131313141313141313131313141313131413131413131313141313131314131313141313131314131413131413131413131314131313141313131313141313131413131413131313131413131313131413131413141313131413131313131413131313141313131313131413131313131314131313131314131313131313131314131314131413131313131313131314131313131313141313131413131313141313141314131313131413131313131413131313141314131313131313131314131313131313141313131313131313131313131313141313131413131313141313131313131313131313131314131313131313131313131314131312131412131314131313131313131313131313131313121313131313131313131313131313131313131313131313131213131313131313131313131313131313131213131313131313131213131313131313131313131313131314131313131213131313131313121313131313131313131213131314121313131313131213131313131313131312131313131312131313131313131314131213131313121313131312131313131312131313131312141313121312131313121313131312131313131213131313131313131213131312131312131313121313131213131312131312131312131313121313131213131313131213131313131313131313121313131313121313131312131313131213131313121313131213131313131313131313131213131313131312131313131312131313131313131312131313131312131313131213131313131213131313131312131313131313131313121313141313131313131313131213131313131313131313131313131312131313131313131313131312131313131313131313131313131312131313131313131313131313131313131313131313131313131313131313131313121313131313141313131313131313131314131313141313131313131314131313131313131314131313131313131313131214131313131314121314121413131313131313141313131314131314131313141313131313141313131413131313131314131313131413131314131314131313131413141413131313131413131314131314131314131314131314131313141313141313141313141413141314131313141313141313131413141313141313131413131413131413131314131314131314131314131314131314131314131313141314131413131413131413141314131413141314131414131313141313141313131413131413141313141313141313141313141413141313141313141314131414131413141313141314131413131413131413141314131314131314131314131314131314141413141314131413131413131413141314131314131413131413141314131413141414131413141314131314141314131414141313141313141314131413141314131314131413141314131413131413141413141414131413131414131413141314131413141314131413141314131413141314131413141314131413141314141314131413141413141314131414131414131414131414131413141314141314131414131413141314141314141414141314141314141414141314131414131414131414131414131413141413141413141413141413141414141314141414141413141414131413141413141413141414131414141314141314141314141414131414141414141414141413141414141413141414141314141314141414131414131414141314141414141414141414141414141414141314141414131414141414141413141414141414131414141414141414141514141314141414141414131414141414141414141414141414141314141414141414141414141415141414141513141414141414141414141414141413141414141414141414141414141414141414141414141414141514141415141414141414141314141414141414141414141414141414141414141314141414141414141414141314141414141514141414141414141413141414141513141414141414141414141414141414141414141414131414141414141414141413141414141414141414141413141414141414141414141314141414141414141414141414141314141414141414141413141414141414141414141413141414141414141414141314141414141414141414131514141415141414141414141414131414141414141413141414141413Tooltip
i7-1165G7, Iris Xe G7 96EUs Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR: Ø13.4 (12-15)
low med. high ultraQHD
GTA V (2015) 84.1 75.8 22.4 9.77 fps
The Witcher 3 (2015) 85 53.6 31 13.4 fps
Dota 2 Reborn (2015) 81.6 69.6 54.7 52.2 fps
Final Fantasy XV Benchmark (2018) 32.5 18.1 12.6 10.1 fps
X-Plane 11.11 (2018) 25.2 29.6 25.2 fps
Strange Brigade (2018) 86.1 37.7 29.9 24.2 fps
F1 2020 (2020) 59.6 30.6 26.2 15.4 fps

Noise Level

Idle
25 / 25 / 25 dB(A)
Load
31.2 / 43.1 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 25 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs203939.838.436.6253336.53629.73130.231.330.824.84031.330.432.532.15031.13128.727.86326.32927.525802725.625.127.8100232422.825.112522.121.8212116020.119.917.520.620021.821.118.422.525023.821.218.124.531523.42017.124.54002519.41425.950024.118.912.626.663025.320.113.727.180026.320.812.327.5100027.120.812.728.5125027.320.311.828.5160030.721.712.132.7200030.120.711.832.8250030.520.61232.8315032.518.212.134.5400029.916.512.433.1500029.216.312.532.3630025.514.512.828.480002313.512.826.81000019.113.312.923.31250015.413.212.818.41600015.914.914.614.6SPL40.831.22543.1N3.41.40.64.1median 25median 20median 12.8median 26.8Delta32.11.83.7hearing rangehide median Fan NoiseDynabook Portégé X30W-J-10K

温度


压力测试
压力测试
Max. Load
 37.7 °C37.2 °C32.1 °C
 33.2 °C35.5 °C29.9 °C
 27 °C26.2 °C25 °C
Maximum: 37.7 °C
Average: 31.5 °C
39.1 °C38.2 °C39.3 °C
29.2 °C32.2 °C31.6 °C
24.5 °C25.8 °C26.5 °C
Maximum: 39.3 °C
Average: 31.8 °C
Power Supply (max.)  36.9 °C | Room Temperature 21.3 °C | Fluke t3000FC (calibrated), Voltcraft IR-900
(+) The average temperature for the upper side under maximal load is 31.5 °C / 89 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 37.7 °C / 100 F, compared to the average of 35.3 °C / 96 F, ranging from 21.8 to 55.7 °C for the class Convertible.
(+) The bottom heats up to a maximum of 39.3 °C / 103 F, compared to the average of 36.6 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.4 °C / 76 F, compared to the device average of 30.3 °C / 87 F.
(+) Playing The Witcher 3, the average temperature for the upper side is 31.2 °C / 88 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27 °C / 80.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.5 °C / 83.3 F (+1.5 °C / 2.7 F).
表面温度应力测试(顶面
表面温度应力测试(顶面
表面温度应力测试(底面
表面温度应力测试(底面

演讲者

扬声器的中音和高音在同类标准中还可以。Dynabook应该只在低音上下功夫

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2038.440.62536383130.832.44032.535.45028.731.46327.5318025.12910022.831.51252136.116017.545.620018.459.125018.163.731517.164.94001466.650012.667.163013.767.980012.370.9100012.769.9125011.864.6160012.163.4200011.868.525001270.9315012.168.8400012.465.8500012.568.4630012.866.7800012.868.31000012.969.21250012.869.11600014.671.1SPL2580.3N0.650.8median 12.8median 67.1Delta1.85.430.529.430.931.726.529.225.128.525.929.819.724.217.121.716.820.815.924.614.131.113.439.414.245.512.249.610.85510.859.310.761.510.868.610.866.410.169.410.766.61168.611.165.611.667.211.768.31265.112.358.512.257.412.252.812.148.611.654.123.578.10.539.4median 11.7median 58.51.210.6hearing rangehide median Pink NoiseDynabook Portégé X30W-J-10KFujitsu LifeBook U9311X i7 LTE
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Dynabook Portégé X30W-J-10K audio analysis

(±) | speaker loudness is average but good (80.3 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17% lower than median
(±) | linearity of bass is average (11% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.9% away from median
(+) | mids are linear (4.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.7% away from median
(+) | highs are linear (3.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.8% difference to median)
Compared to same class
» 3% of all tested devices in this class were better, 3% similar, 94% worse
» The best had a delta of 6%, average was 21%, worst was 53%
Compared to all devices tested
» 5% of all tested devices were better, 2% similar, 94% worse
» The best had a delta of 3%, average was 20%, worst was 65%

Fujitsu LifeBook U9311X i7 LTE audio analysis

(±) | speaker loudness is average but good (78.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 23.4% lower than median
(±) | linearity of bass is average (10.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.8% higher than median
(±) | linearity of mids is average (7.7% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.6% higher than median
(+) | highs are linear (6.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (23% difference to median)
Compared to same class
» 69% of all tested devices in this class were better, 5% similar, 26% worse
» The best had a delta of 6%, average was 21%, worst was 53%
Compared to all devices tested
» 67% of all tested devices were better, 7% similar, 26% worse
» The best had a delta of 3%, average was 20%, worst was 65%

能源消耗


Power Consumption
Off / Standbydarklight 0.4 / 1.1 Watt
Idledarkmidlight 3.1 / 5.6 / 6.4 Watt
Load midlight 42.8 / 69 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Energy consumption Witcher 3 / Stress test

0510152025303540455055606533.134.937.536.235.634.934.935.135.23535.135.13742.834.934.935353536.835.435.136.835.134.935.535.335.135.237.736.935.835.33536.33536.934.335.13535.234.834.934.934.934.935.135.335.24242.137.435.13536.235.235.13534.936.535.134.935.13534.93534.936.435.234.635.135.134.734.834.934.735.134.935.235.334.835.134.734.936.236.434.834.83536.53534.83534.83534.735.135.235.235.13534.934.936.336.135.635.134.841.343.739.735.635.13536.834.83534.234.934.936.736.735.235.234.835.334.934.934.934.83634.734.934.734.835.135.334.934.834.634.834.93534.63534.734.934.934.935.134.234.934.935.234.935.23535.434.83534.934.934.634.834.734.334.934.942.342.240.335.234.934.734.934.934.934.835.235.23535.334.635.234.834.63534.834.934.934.934.83534.734.733.134.937.536.235.634.934.935.135.23535.135.13742.834.934.935353536.835.435.136.835.134.935.535.335.135.237.736.935.835.33536.33536.934.335.13535.234.834.934.934.934.935.135.335.24242.137.435.13536.235.235.13534.936.535.134.935.13534.93534.936.435.234.635.135.134.734.834.934.735.134.935.235.334.835.134.734.936.236.434.834.83536.53534.83534.83534.735.135.235.235.13534.934.936.336.135.635.134.841.343.739.735.635.13536.834.83534.234.934.936.736.735.235.234.835.334.934.934.934.83634.734.934.734.835.135.334.934.834.634.834.93534.63534.734.934.934.935.134.234.934.935.234.935.23535.434.83534.934.934.634.834.734.334.934.942.342.240.335.234.934.734.934.934.934.835.235.23535.334.635.234.834.63534.834.934.934.934.83534.734.768.768.56968.76866.764.860.96159.15657.857.157.758.15858.358.658.858.659.156.357.156.655.955.956.143.832.933.133.633.633.733.93434.134.134.234.334.434.433.434.734.83534.934.837.537.337.437.237.237.238.537.437.337.537.437.337.337.337.637.237.437.337.437.337.337.437.837.637.537.537.437.237.437.437.437.137.3373737.13736.936.936.9373736.936.836.937.136.937.136.936.937.137.136.836.83738.336.93736.836.937.136.937.23836.936.9373737.13736.936.937.13736.93737.136.937.437.136.93736.9373738.436.937.138.53737.137.83738.939.438.637.837.537.137.23737.138.837.136.93738.43836.9373736.937.137.93737.236.936.937.136.836.93737.137.136.83736.137.137.137.137.137.537.937.138.137.937.436.937Tooltip
; Witcher 3 ultra: Ø35.5 (33.1-43.7)
; 1280x720 Prime95 28.10 and Furmark 1.25: Ø40.3 (32.9-69)

电池寿命


Battery Runtime - WiFi Websurfing 1.3
Dell Latitude 9420 2-in-1
i7-1185G7, Iris Xe G7 96EUs, 60 Wh
699 min ∼100% +6%
HP Elite Dragonfly Max
i7-1185G7, Iris Xe G7 96EUs, 56 Wh
659 min ∼94% 0%
Dynabook Portégé X30W-J-10K
i7-1165G7, Iris Xe G7 96EUs, 53 Wh
658 min ∼94%
Average of class Convertible
  (248 - 1141, n=95, last 2 years)
573 min ∼82% -13%
Fujitsu LifeBook U9311X i7 LTE
i7-1185G7, Iris Xe G7 96EUs, 50 Wh
492 min ∼70% -25%
Battery Runtime
WiFi Surfing
10h 58min
Battery Runtime The Witcher 3 ultra
1h 17min
NBC WiFi Websurfing Battery Test 1.3 (Edge 94)
10h 58min
NBC WiFi Websurfing Battery Test 1.3 max Brightness (Edge 94)
7h 52min
Load (maximum brightness)
1h 17min

Pros

+ 极轻的镁合金外壳
+ 箱子做工扎实
+ 充足的系统性能
+ 低负载下的良好电池寿命
+ 非常快的充电时间
+ 带有平板电脑功能的亚光触摸显示屏
+ 2个Thunderbolt 4

Cons

- 风扇可能会很响
- 价格高
- 内存不能扩展

结论 - 有能力的商业转换,有改进的潜力

在审查中。Dynabook Portégé X30-W-J-10K。测试设备由德国Dynabook公司提供
在审查中。Dynabook Portégé X30-W-J-10K。测试设备由德国Dynabook公司提供

Dynabook Portégé X30W-J-10K的轻质镁合金外壳不能只以其重量来说服人。手感和做工对于这个价格来说是非常好的。我们还喜欢哑光触摸屏,它的对比度和黑色水平令人信服。该设备的外部尺寸为一张DIN A4纸,但仍有良好的连接性。通过两个雷电4接口之一的USB-C接口,该设备可以在一个多小时内完全充电。制造商还在键盘底座上安装了第二个网络摄像头,这扩大了应用的可能性。

英特尔第11代处理器、1TB固态硬盘和16GB工作内存,使我们的评测样品能够以高系统性能而令人信服,然而,在高要求的任务中,这可能会使电池迅速陷入困境。在低负载情况下,电池是非常耐用的。制造商的特别保修为购买提供了额外的动力。

Dynabook Portégé X30W-J-10K成为理想的日常伴侣,其良好的系统性能和运行时间令人信服。

弱点是风扇,它在负载下会变得很响,但没有高频率的表现。输入设备很好,但仍有改进的余地。我们希望Dynabook能有更长的键程和更大的点击板。不幸的是,第二个M.2插槽也没有在机箱中找到。

如果你把它与竞争对手相比,你会得到一个超轻的设备,有足够的系统性能和长的电池寿命。哑光触摸屏和一定数量的连接性使其外形更加完美。如果你不介意多一点重量,你应该看看更昂贵的戴尔Latitude 9420 2合1.笔记本 富士通的LifeBook U9311X与Dynabook最为相似,也是将非常轻的外壳与许多端口结合起来,而 HP EliteBook Dragonfly Max主要提供更高的外壳质量以及更好的键盘。

价格和可用性

配备英特尔酷睿i5 1135G7、8GB内存和256GB固态硬盘的Dynabook Portégé X30W-J-10K在OfficePartner上的售价约为1,200欧元(约合1,391美元)。.配备英特尔酷睿i7 1165G7、16GB工作内存和512GB固态硬盘的变体在OfficePartner上的售价为1,800欧元(约合2,086元)。.如果你需要更多的存储空间,你可以从TSComputer购买我们的测试配置。购买,价格为2200欧元(约合人民币2550元)。

Dynabook Portégé X30W-J-10K - 10/27/2021 v7
Patrick Schüdzig

Chassis
82 / 98 → 83%
Keyboard
75%
Pointing Device
83%
Connectivity
64 / 75 → 85%
Weight
76 / 20-75 → 100%
Battery
89%
Display
91%
Games Performance
69 / 78 → 88%
Application Performance
91 / 85 → 100%
Temperature
93%
Noise
94%
Audio
81 / 91 → 89%
Camera
38 / 85 → 44%
Average
79%
87%
Convertible - Weighted Average

Pricecompare

Ninh Duy
Editor of the original article: Ninh Duy - Editorial Assistant - 207612 articles published on Notebookcheck since 2008
contact me via: Facebook
Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > Dynabook Portégé X30W-J-10K笔记本电脑评测--一个具有端口多样性的轻量级产品
Patrick Schüdzig, 2021-11-10 (Update: 2021-11-10)
