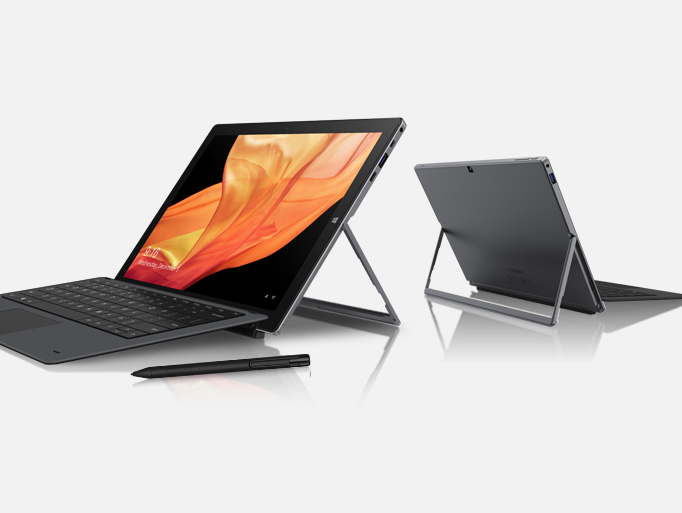

Chuwi UBook Pro

Specifications

Chuwi UBook Pro
Chuwi UBook Pro (UBook Series)
Processor
Intel Core m3-8100Y 2 x 1.1 - 3.4 GHz, Amber Lake-Y
Graphics adapter
Intel UHD Graphics 615, LPDDR3, 25.20.100.6519
Memory
8 GB
, 933 MHz, 12-15-15-34, Single-Channel
Display
12.30 inch 3:2, 1920 x 1280 pixel 188 PPI, 10-point capacitive, BOE TV123WAM-ND0, IPS, BOE0768, glossy: yes, detachable screen
Mainboard
Intel Kaby Lake-Y + iHDCP 2.2 Premium PCH
Storage
Netac SSD 256GB, 256 GB
Soundcard
Intel Kaby Lake-U/Y PCH - High Definition Audio
Connections
3 USB 3.0 / 3.1 Gen1, 1 HDMI, Audio Connections: 3.5 mm combo, Card Reader: MicroSD, Sensors: Gyroscope
Networking
Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Size
height x width x depth (in mm): 9 x 292.2 x 207.9
Battery
38 Wh Lithium-Polymer
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Primary Camera: 5 MPix
Secondary Camera: 2 MPix
Additional features
Speakers: Stereo, Keyboard Light: no, Keyboard attachment, Active stylus, 12 Months Warranty, fanless
Weight
780 g, Power Supply: 165 g
Price
500 USD



Pricecompare

Average Score: 70.03% - average
Average of 3 scores (from 3 reviews)
price: - %, performance: 42%, features: 42%, display: 82% mobility: 72%, workmanship: 71%, ergonomy: 61%, emissions: 96%

Reviews for the Chuwi UBook Pro

70.1% Chuwi UBook Pro Tablet Review: The Microsoft Surface Pro Clone | Notebookcheck
The UBook Pro offers high-end looks with low-end performance for a mid-range price. If you can get past the slow Core m3 processor, then you'll find the super-bright 12.3-inch display and three USB ports quite useful when compared to the dimmer and pricier Surface Pro.
80% Chuwi Ubook Pro 2-in-1 convertible laptop review
Source: Techradar English EN→zh-CN Archive.org version
The Chuwi Ubook Pro is a compelling alternative to the far more expensive Microsoft Surface Pro 7. It doesn’t offer all of the features of the latter but at half the price with a keyboard and a stylus, it has a lot going for it.
Single Review, online available, Very Long, Date: 12/04/2019
Rating: Total score: 80%
Recensione Chuwi Ubook Pro
Source: Notebook Italia Italian IT→zh-CN Archive.org version
Single Review, online available, Very Long, Date: 02/06/2020
60% Chuwi Ubook Pro : un clone de Surface entre Go et Pro avec un écran de 12"
Source: CNet France French FR→zh-CN Archive.org version
Single Review, online available, Long, Date: 01/17/2020
Rating: Total score: 60%

Comment

Intel UHD Graphics 615:



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


m3-8100Y:

基于Amber Lake架构的平板电脑和无风扇笔记本电脑的极高效ULV-SoC(片上系统),基本上是Kaby Lake芯片,采用改进的14nm +工艺(非14nm ++)生产,具有更高的时钟速度和5瓦TDP 。包括两个频率为1.1-3.4 GHz,具有超线程支持的CPU内核以及一个图形适配器。

» Further information can be found in our Comparison of Mobile Processsors.


12.30":

这个屏幕尺寸对于平板来说略大,而对亚笔记本来说稍小。一些变形本采用了这个尺寸的屏幕。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面,小屏幕的功耗会较低,而设备也会更轻盈小巧,售价更低。

» To find out how fine a display is, see our DPI List.


0.78 kg: 大体上,大尺寸平板电脑或变形本的重量介于这个水平之间。


» Further information can be found in our Notebook Purchase Guide.
