Apple iMac Retina 5K 27-inch M390 (Late 2015) Retina 评测

Name: Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Brand: Apple

5K第二代。 Apple为全新的iMac Retina 5K更换了新的Skylake架构处理器，以及来自AMD的全新显卡和全新输入设备。精致的工艺和强劲的性能让它足以征服用户，不过它也并不完美。

Klaus Hinum, Nino Ricchizzi, ✓ Stefanie Voigt (translated by Yuchen Wang), Published 12/20/2015 🇺🇸 🇩🇪 ...

Apple Desktop Skylake AMD

Test device courtesy of edustore.at

Download your licensed rating image as PNG / SVG

Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A

Processor

Intel Core i5-6500 4 x 3.2 - 3.6 GHz, Skylake

Graphics adapter

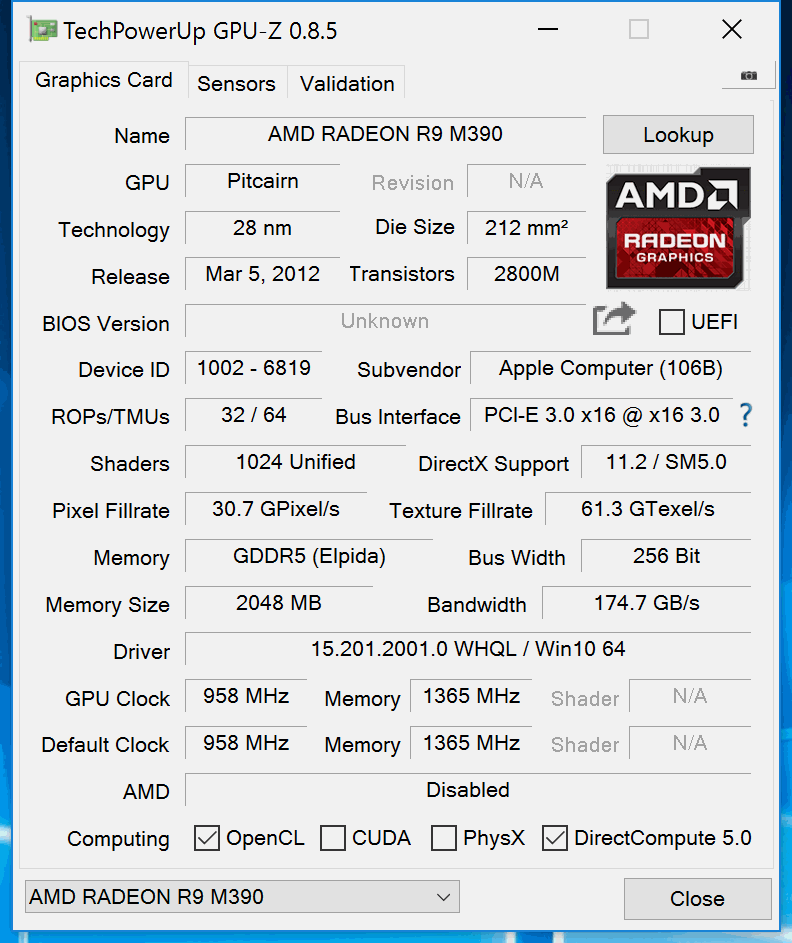

AMD Radeon R9 M390 - 2048 MB VRAM, Core: 958 MHz, Memory: 1365 MHz, GDDR5

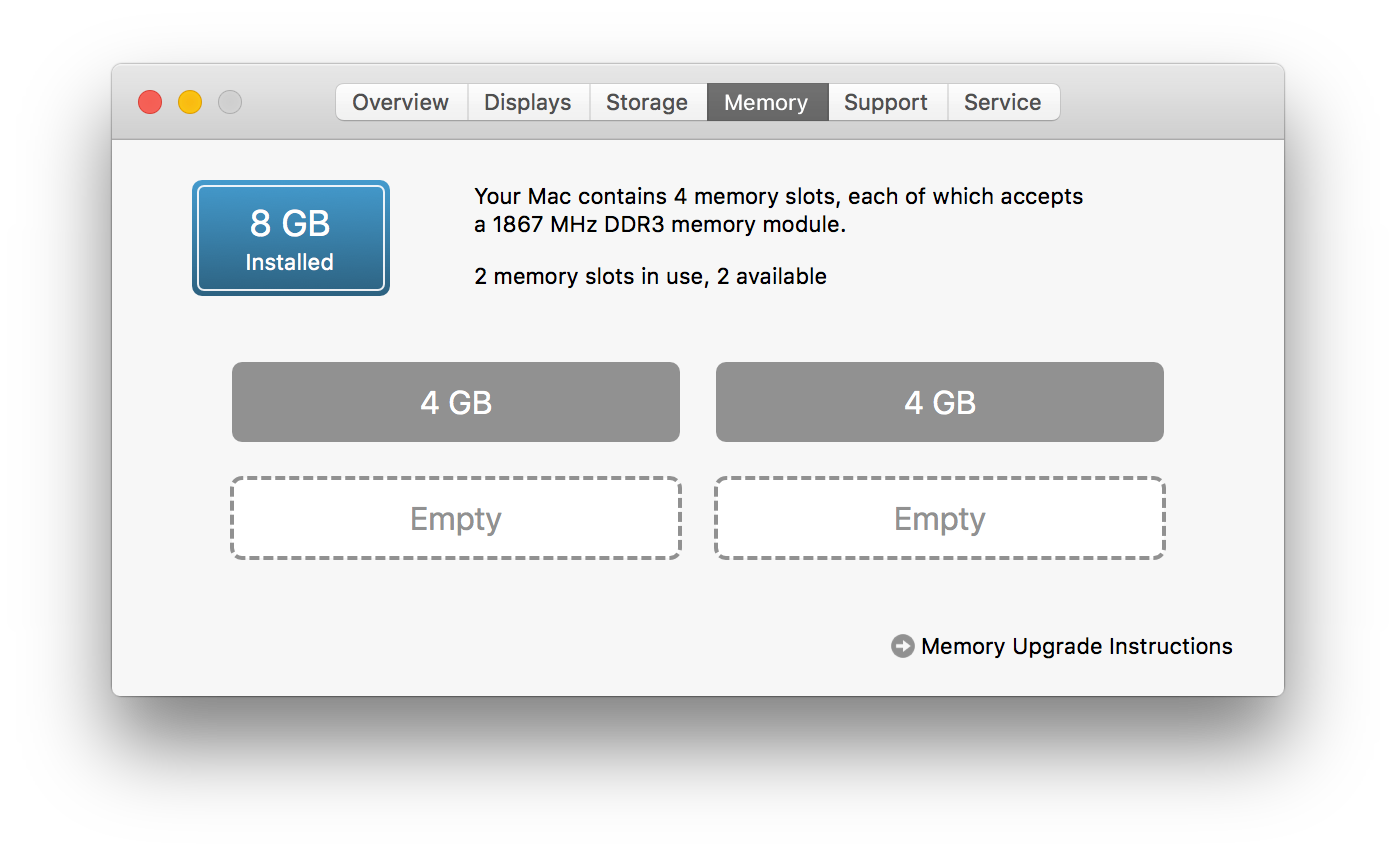

Memory

8 GB

, DDR3-1867

Display

27.00 inch 16:10, 5120 x 2880 pixel, glossy: yes

Mainboard

Intel Sunrise Point Z170

Storage

Apple Fusion Drive 1TB (24 GB SSD + 1 TB HDD), 1024 GB

Soundcard

Cirrus Logic CS4206B

Connections

4 USB 3.0 / 3.1 Gen1, 2 Thunderbolt, 2 DisplayPort, 1 Kensington Lock, Audio Connections: Headset, Card Reader: SD, Sensors: 亮度传感器

Networking

Broadcom NetXtreme Gigabit Ethernet (10/100/1000MBit/s), Broadcom 802.11ac (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0

Operating System

Apple OS X 10.11 El Capitan

Camera

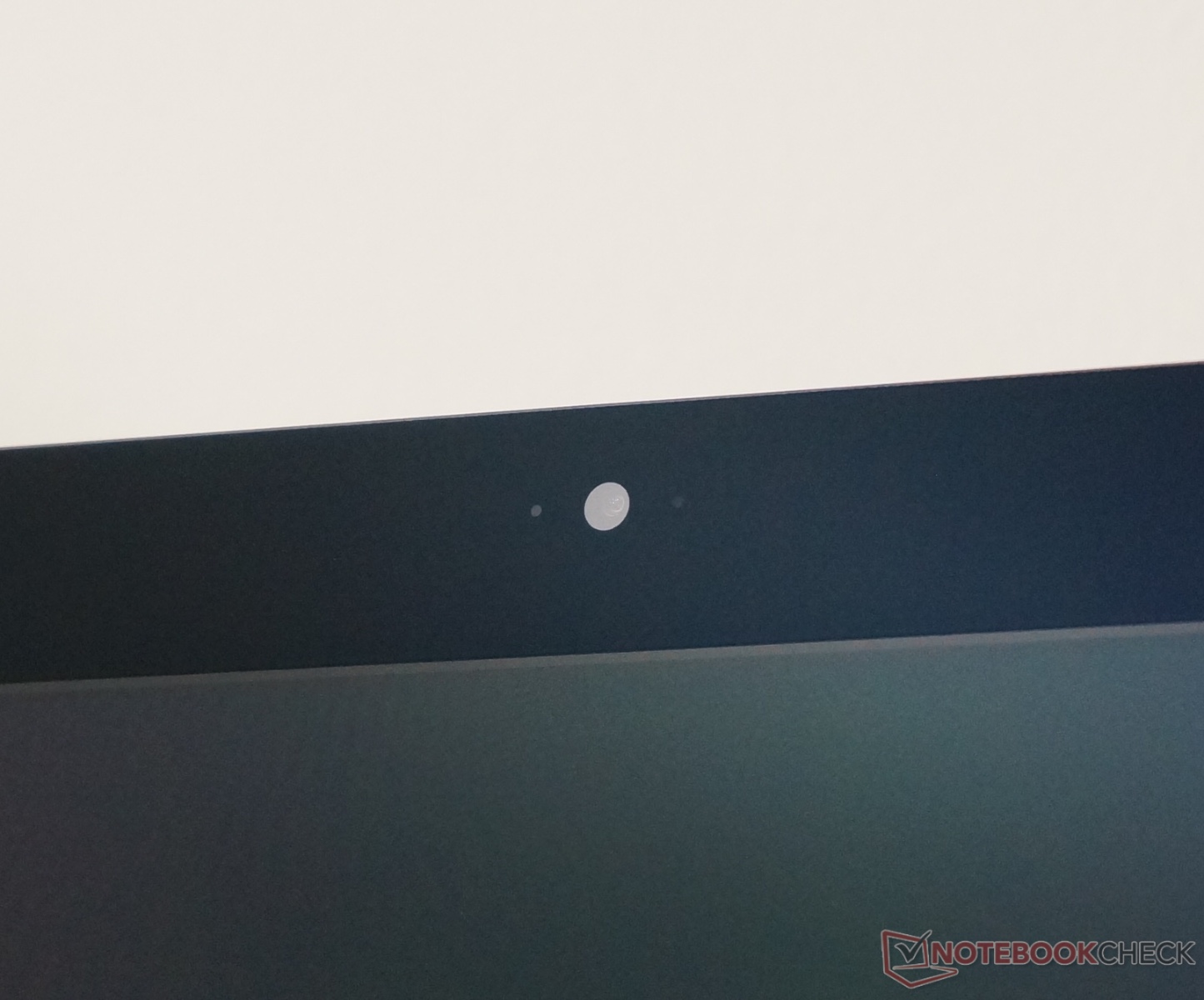

Webcam: 720p FaceTime HD

Additional features

Speakers: 立体声扬声器, Keyboard: 孤岛式, Keyboard Light: no, 12 Months Warranty

Weight

9.54 kg

Price

2299 Euro

Links

Apple homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

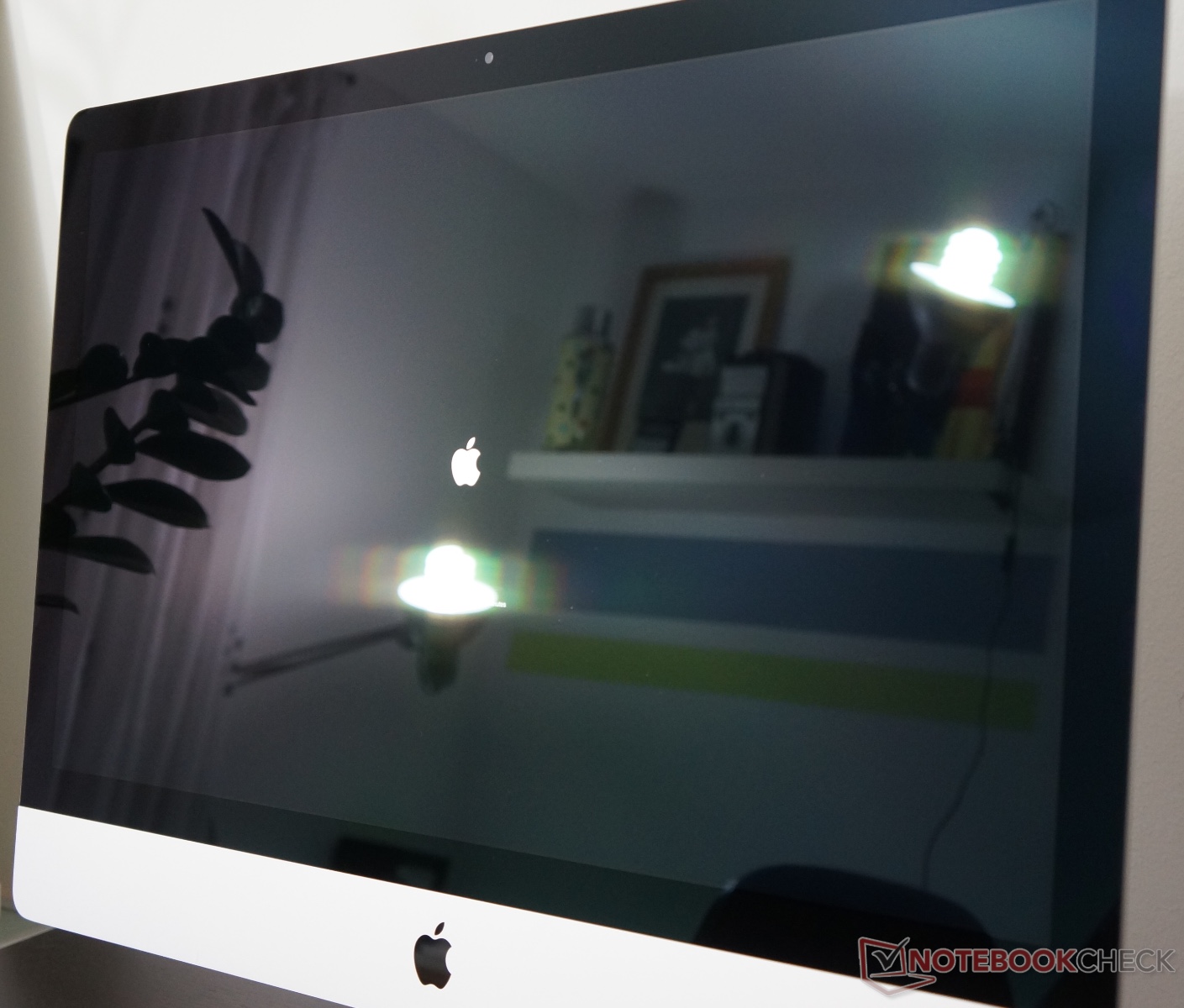

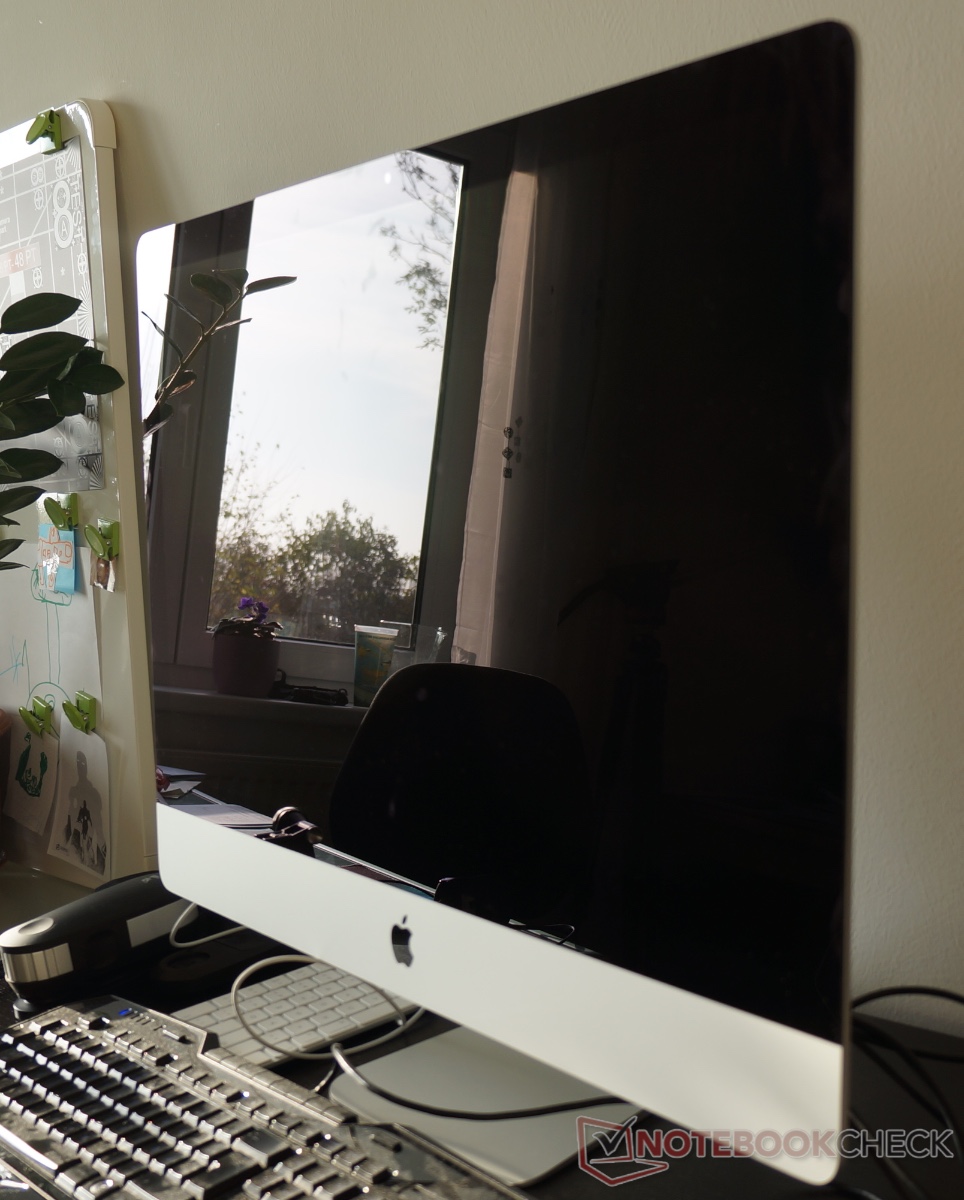

There is enough space on the big 5K screen.

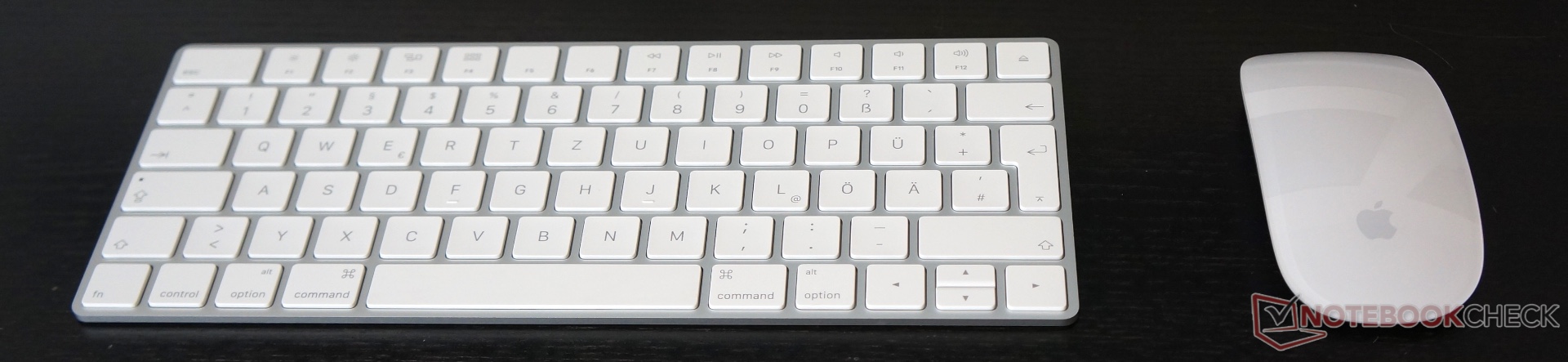

Besides the new charging feature, the two input devices are pretty convincing (when you use OS X).

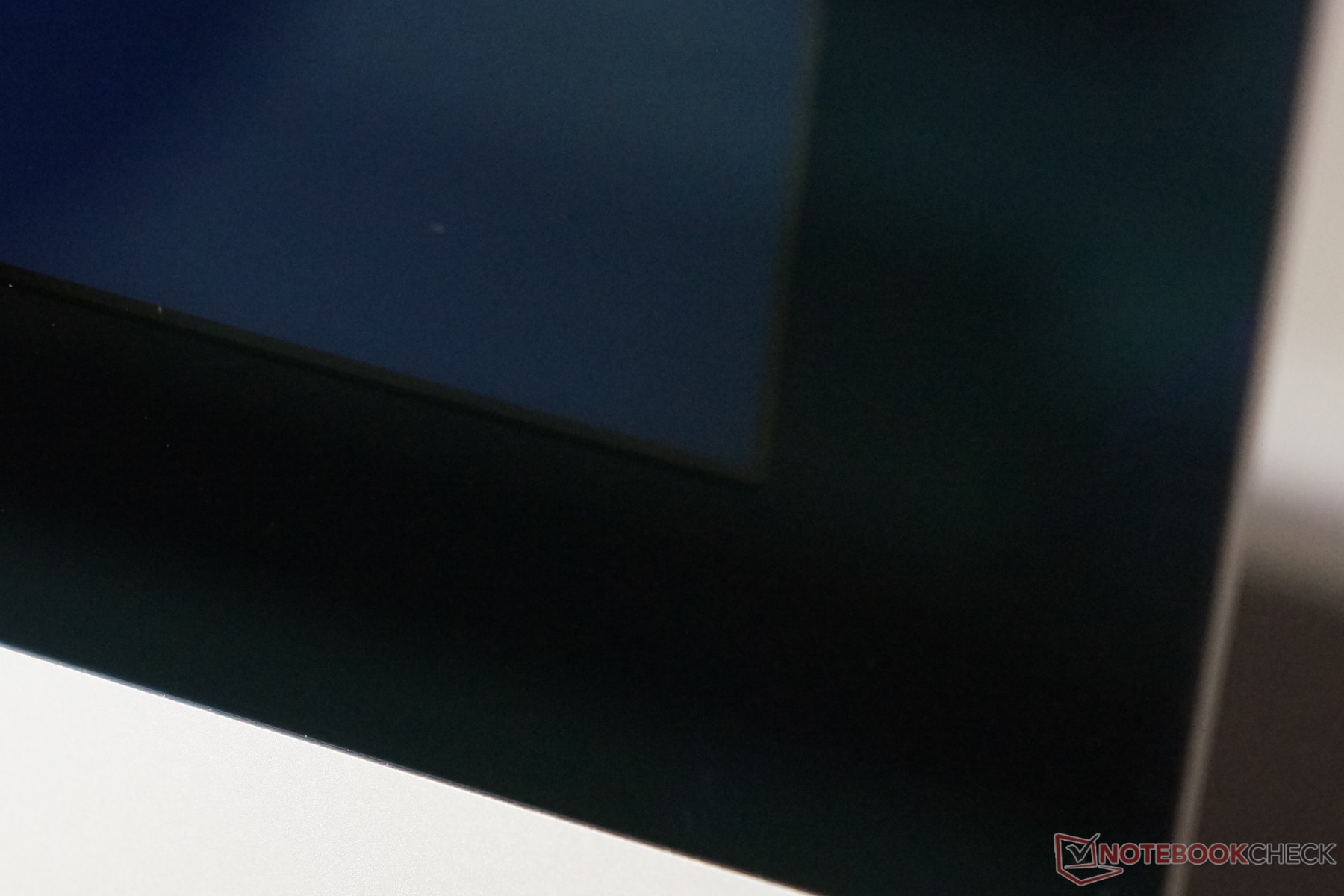

small distance between display panel ...


419 cd/m²	419 cd/m²	422 cd/m²
434 cd/m²	429 cd/m²	432 cd/m²
418 cd/m²	428 cd/m²	412 cd/m²

Distribution of brightness

tested with X-Rite i1Pro 2 // Gossen Mavo-Monitor

Maximum: 434 cd/m² (Nits) Average: 423.7 cd/m²
Brightness Distribution: 95 %
Contrast: 740:1 (Black: 0.58 cd/m²)
ΔE Color 2.8 | 0.5-29.43 Ø5
ΔE Greyscale 1.97 | 0.57-98 Ø5.3
99.97% sRGB (Argyll 1.6.3 3D)
79% AdobeRGB 1998 (Argyll 1.6.3 3D)
88.2% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
99.3% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.13

Download ICC File (X-Rite i1Pro 2)

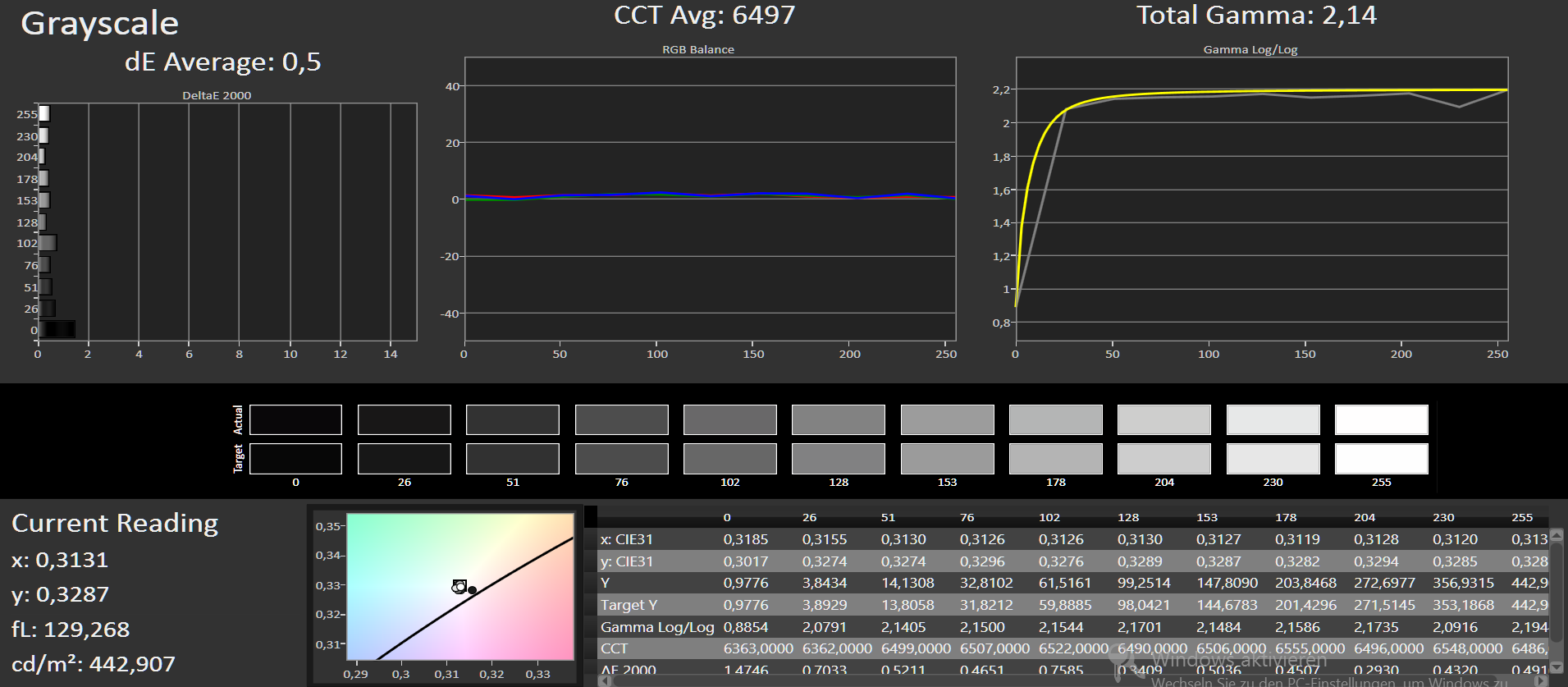

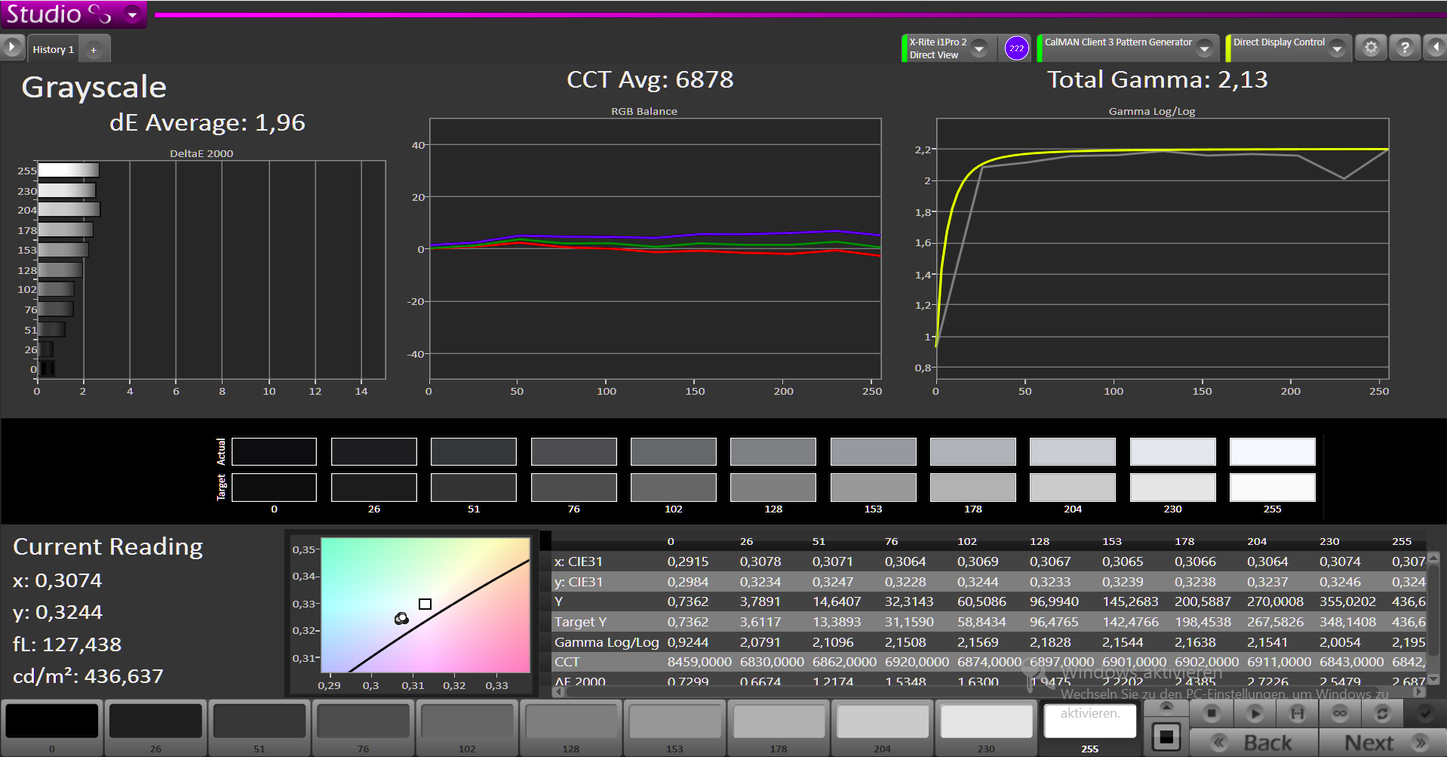

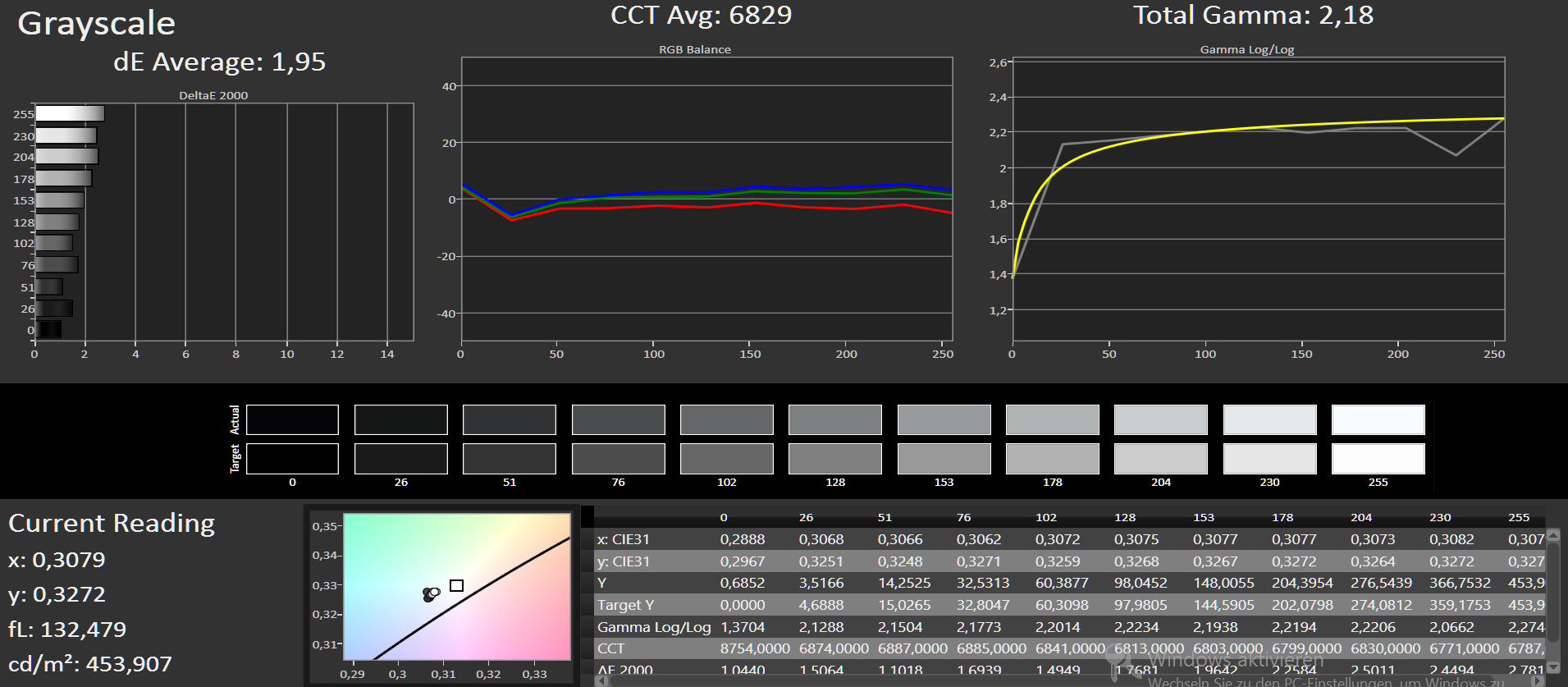

Grayscale: frontal measurement with a distance of 9 cm

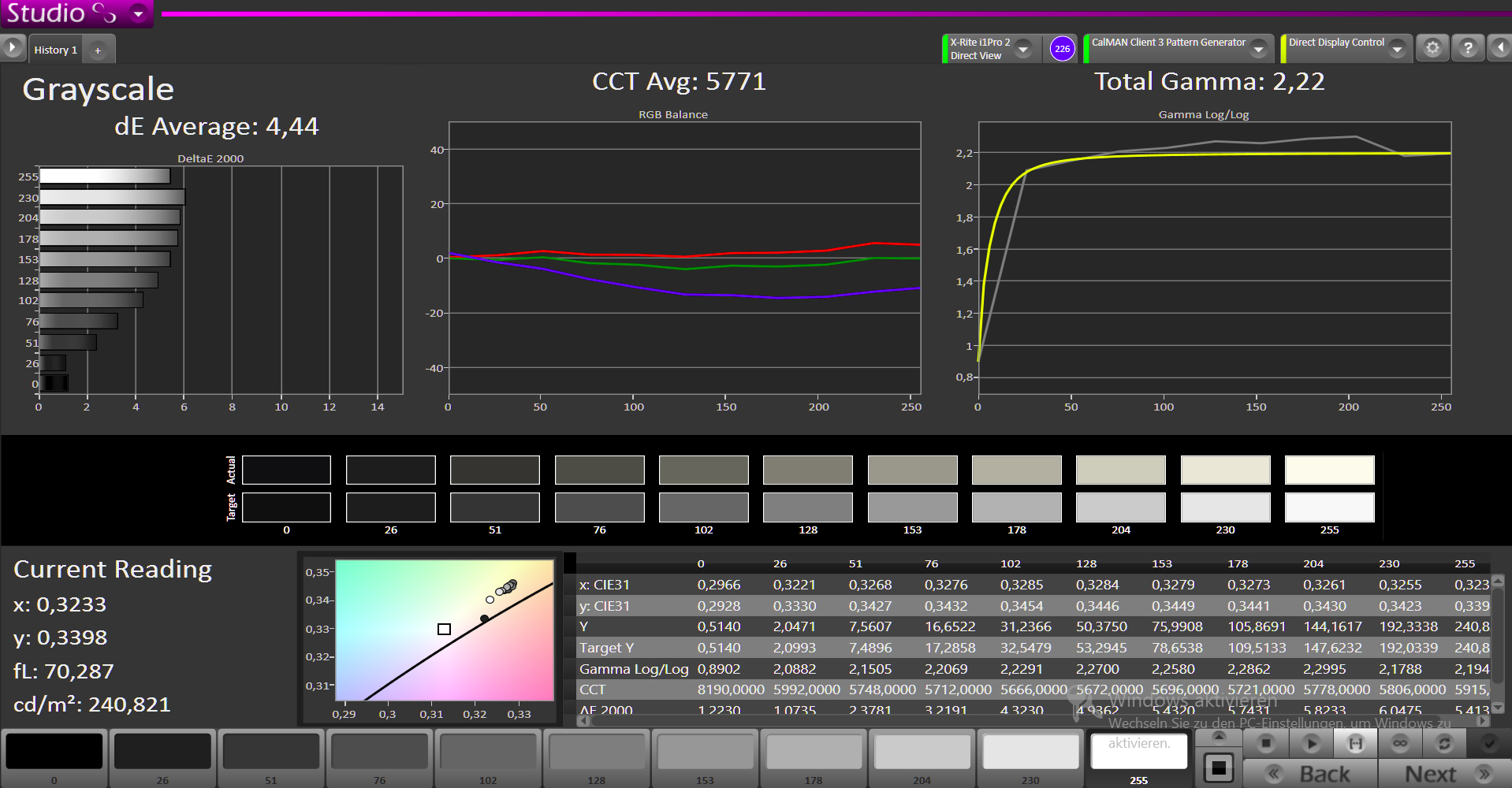

Grayscale: frontal measurement with a distance of 9 cm at an angle of 45 degrees

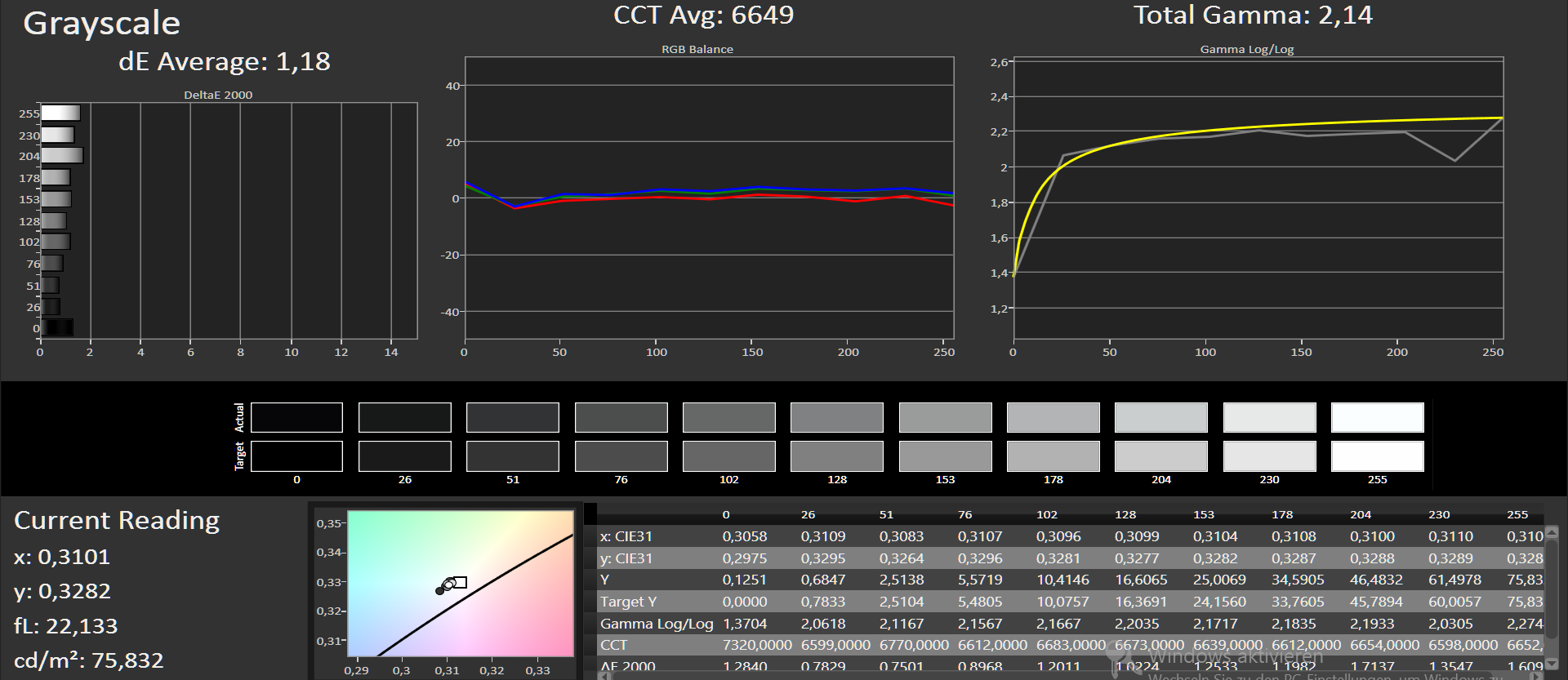

Grayscale: pre-calibration with automatic brightness control

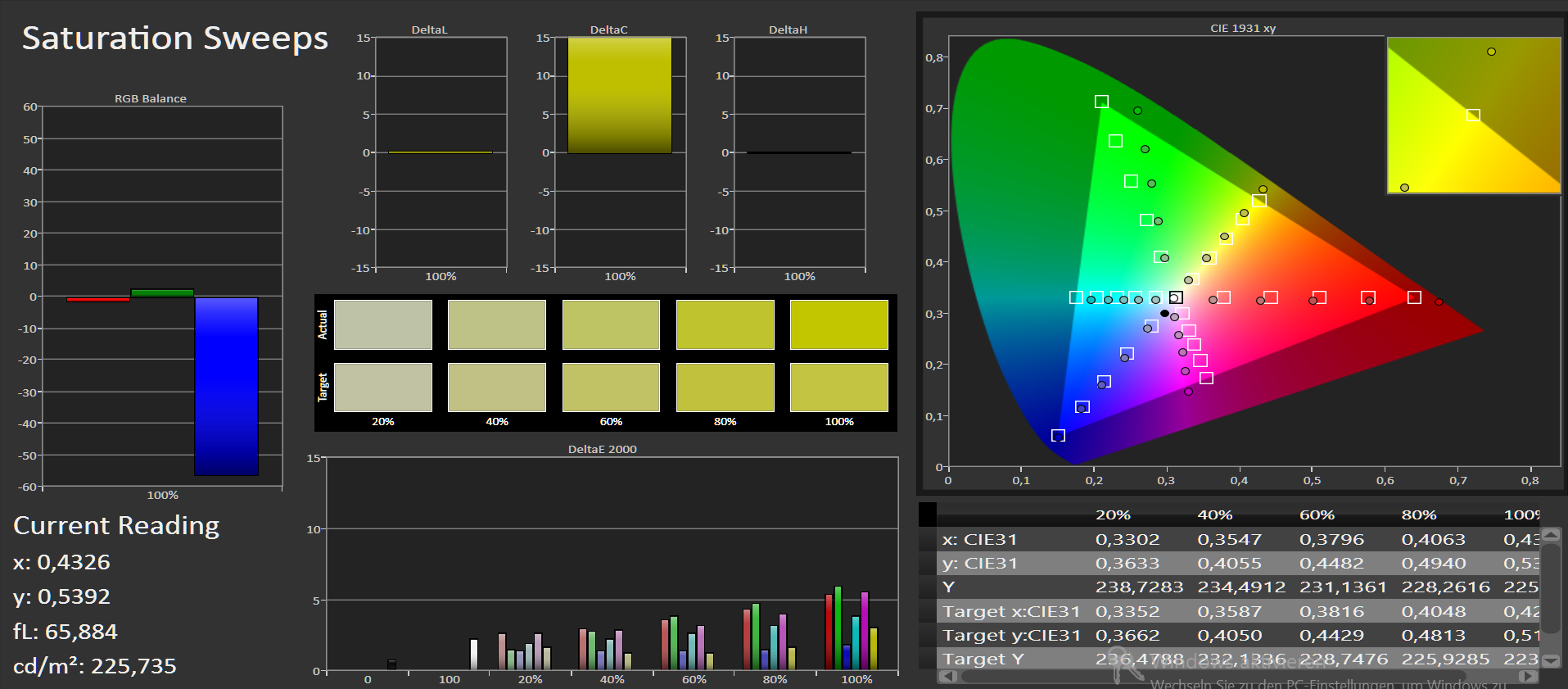

Saturation Sweeps: vs. the AdobeRGB color space and the system's AdobeRGB profile

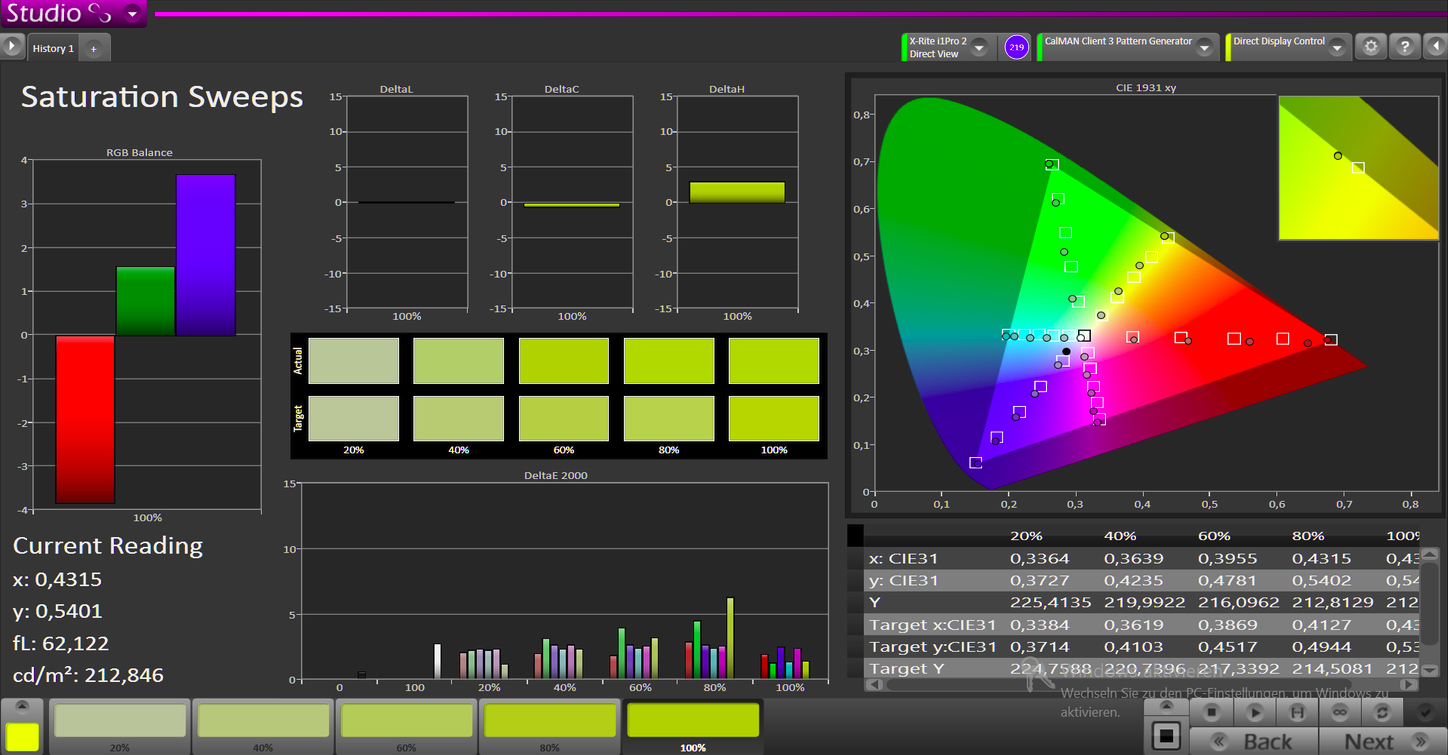

Saturation Sweeps: with a distance of 9 cm

Saturation Sweeps: frontal measurement with a distance of 15 cm at an angle of 45 degrees - from below

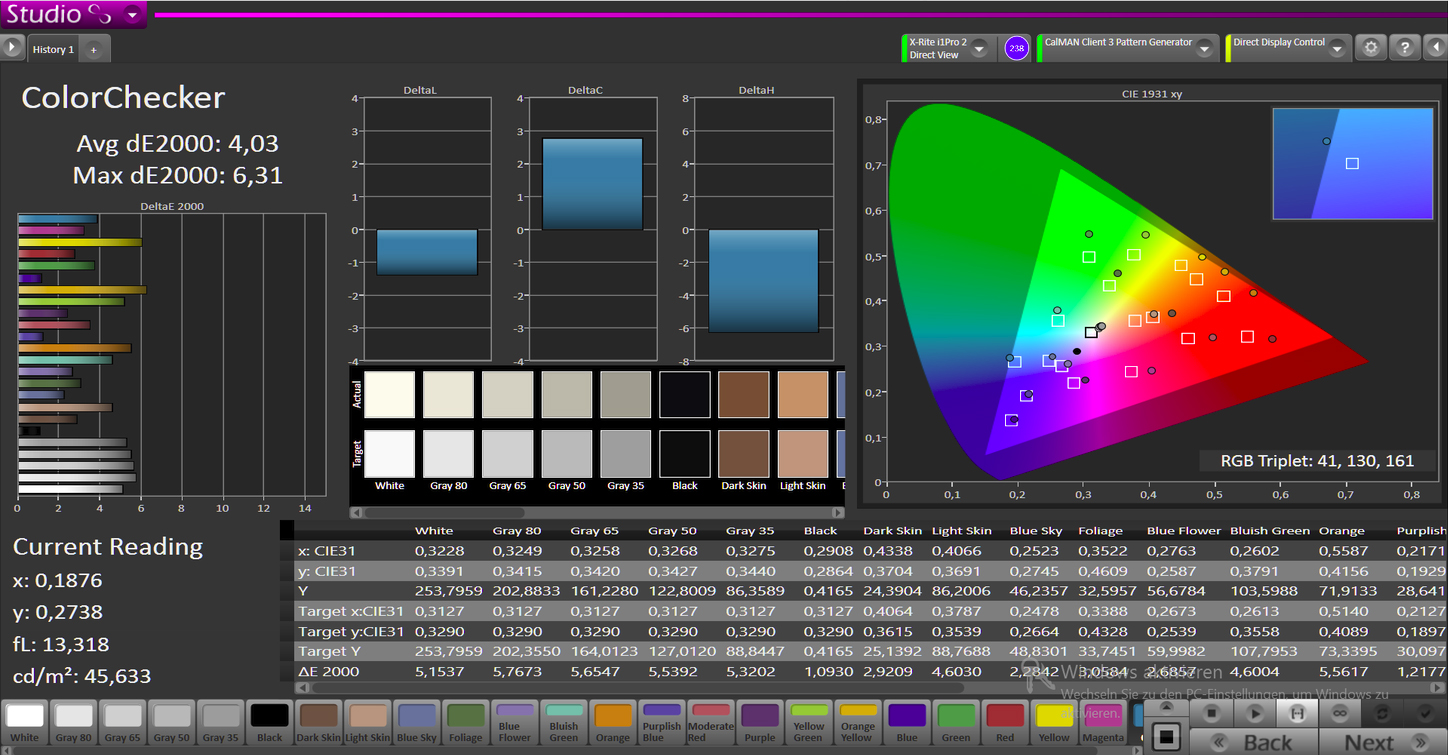

ColorChecker: vs. the sRGB color space and the system's sRGB profile

ColorChecker: At an angle of 45 degrees - from below

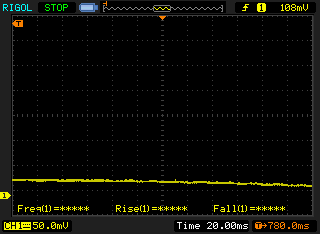

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17903 (minimum: 5 - maximum: 3846000) Hz was measured.

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

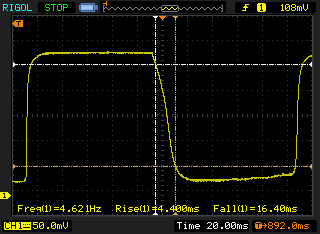

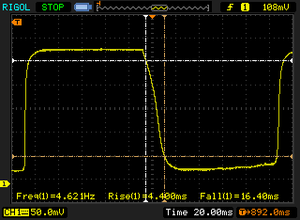

↔ Response Time Black to White
20.8 ms ... rise ↗ and fall ↘ combined	↗ 4.4 ms rise
20.8 ms ... rise ↗ and fall ↘ combined	↘ 16.4 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 40 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (21.5 ms).

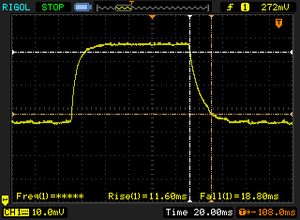

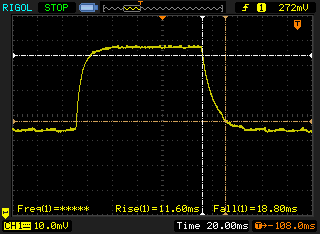

↔ Response Time 50% Grey to 80% Grey
30.4 ms ... rise ↗ and fall ↘ combined	↗ 11.6 ms rise
30.4 ms ... rise ↗ and fall ↘ combined	↘ 18.8 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 35 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (33.7 ms).

Cinebench R15 CPU Single 64Bit

151 Points

Cinebench R15 CPU Multi 64Bit

548 Points

Cinebench R15 OpenGL 64Bit

91.2 fps

Cinebench R15 Ref. Match 64Bit

99.5 %

Help

... in comparison

PCMark 8
Home Score Accelerated v2 (sort by value)
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X Radeon R9 M295X, 4790K, Apple SSD SM0128F	4746 Points
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	3568 Points
Creative Score Accelerated v2 (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	4828 Points
Work Score Accelerated v2 (sort by value)
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X Radeon R9 M295X, 4790K, Apple SSD SM0128F	4918 Points
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	3887 Points

CrystalDiskMark 3.0

Apple Fusion Drive 1TB (24 GB SSD + 1 TB HDD)

Sequential Read: 152 MB/s

Sequential Write: 139 MB/s

512K Read: 38 MB/s

512K Write: 61 MB/s

4K Read: 0.41 MB/s

4K Write: 0.8 MB/s

4K QD32 Read: 0.9 MB/s

4K QD32 Write: 0.75 MB/s

Unigine Valley 1.0 - 1920x1080 Extreme HD Preset OpenGL AA:x8 (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390	22.2 fps
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X Radeon R9 M295X	28.6 fps +29%
Apple iMac 27 2015 M395X Radeon R9 M395X	28 fps +26%
Apple iMac 27 2015 M395 Radeon R9 M395	27.3 fps +23%
Apple iMac 27 5K 2014 M290X i5-4690 Radeon R9 M290X	25.5 fps +15%
Apple MacBook Pro Retina 13 inch 2013-10 Iris Graphics 5100	5.8 fps -74%

3DMark 11 - 1280x720 Performance (sort by value)
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X Radeon R9 M295X	9516 Points
SCHENKER XMG C405 GeForce GTX 965M	7291 Points
Medion Erazer X7615-MD99293 GeForce GTX 965M	7099 Points
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390	6838 Points
Acer Aspire V Nitro Black Edition VN7-792G-74Q4 GeForce GTX 960M	5709 Points
SCHENKER XMG A706 GeForce GTX 960M	5602 Points

Alien: Isolation - 1920x1080 Ultra, On, Shadow Map 2048, HDAO AA:2x SM AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	56 fps
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X Radeon R9 M295X, 4790K	67 fps
SCHENKER XMG A505 GeForce GTX 960M, 4720HQ	46.6 fps
SCHENKER XMG P705 GeForce GTX 965M, 4720HQ	54.8 fps
Medion Erazer X7615-MD99293 GeForce GTX 965M, 4720HQ	55.2 fps

Crysis 3 - 1920x1080 Very High Preset AA:2xSM AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	22.7 (19^min - 30^max) fps
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X Radeon R9 M295X, 4790K	33.9 fps
SCHENKER XMG A505 GeForce GTX 960M, 4720HQ	20.6 fps
SCHENKER XMG P705 GeForce GTX 965M, 4720HQ	23.9 fps

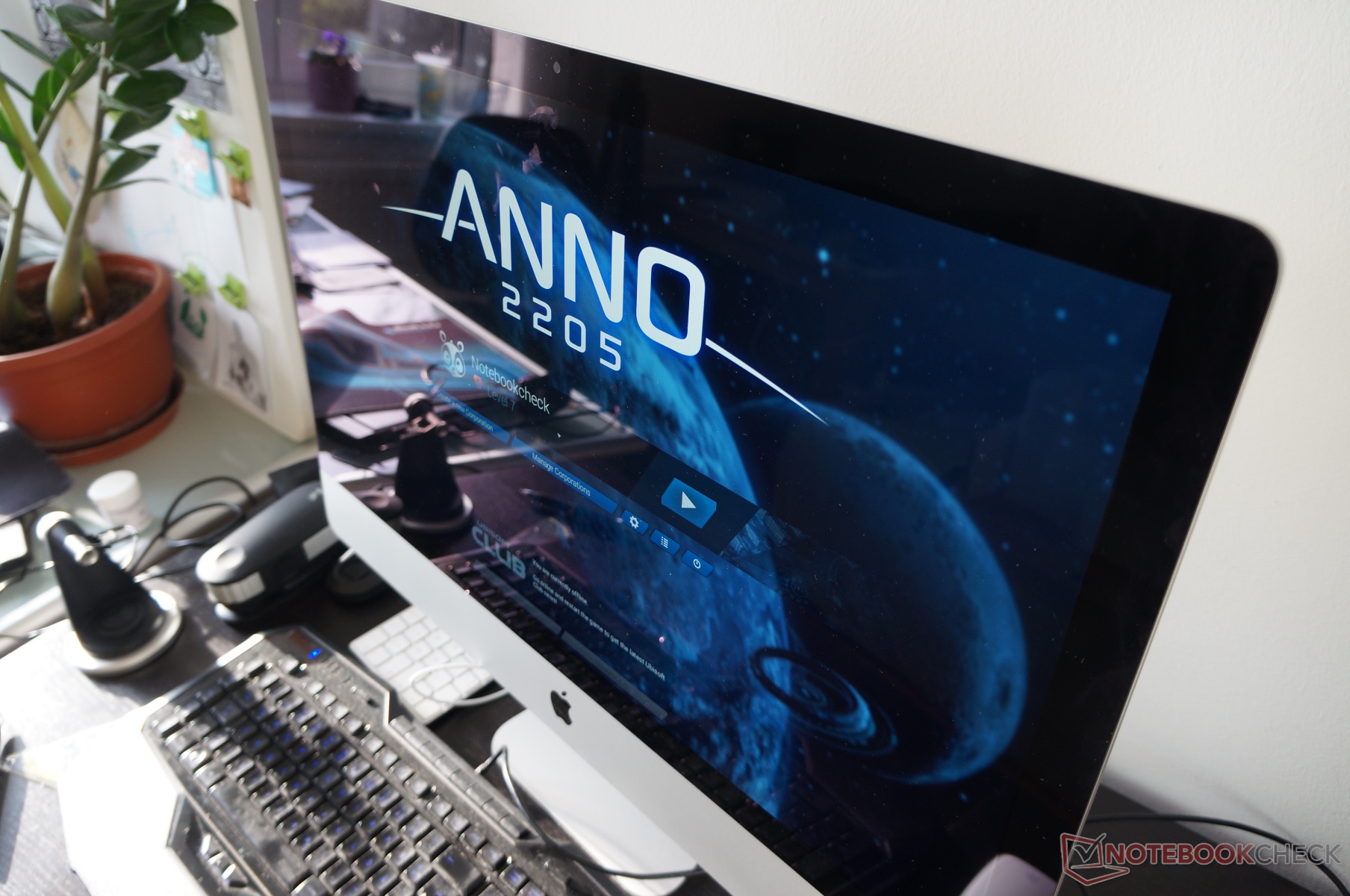

Anno 2205 - 1920x1080 High Preset AA:4x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	31.5 (28^min - 34^max) fps
Dell Inspiron 15 7559 GeForce GTX 960M, 6700HQ	24.6 fps
Schenker XMG A505 GeForce GTX 960M, 4720HQ	26.1 (23^min) fps

Metro: Last Light
1920x1080 Very High (DX11) AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	33.8 (9^min - 72^max) fps
SCHENKER XMG A505 GeForce GTX 960M, 4720HQ	31.9 fps
Eurocom Shark 4 GeForce GTX 960M, 4720HQ	32.3 fps
SCHENKER XMG P705 GeForce GTX 965M, 4720HQ	38.7 fps
1366x768 High (DX11) AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	67 (10^min - 126^max) fps
SCHENKER XMG A505 GeForce GTX 960M, 4720HQ	59.9 fps
Eurocom Shark 4 GeForce GTX 960M, 4720HQ	59.5 fps
SCHENKER XMG P705 GeForce GTX 965M, 4720HQ	74.4 fps

The Witcher 3
3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off) (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	11.5 (10^min - 13^max) fps
Schenker XMG A505 GeForce GTX 960M, 4720HQ	9.7 (7^min) fps
1920x1080 Ultra Graphics & Postprocessing (HBAO+) (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	17.8 (14^min - 22^max) fps
Nexoc G515 II GeForce GTX 960M, 6700HQ	14.4 fps
Schenker XMG A505 GeForce GTX 960M, 4720HQ	13.7 (11^min) fps
Medion Erazer X7615-MD99293 GeForce GTX 965M, 4720HQ	16.8 fps
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	31.1 (26^min - 36^max) fps
Nexoc G515 II GeForce GTX 960M, 6700HQ	26.6 fps
Schenker XMG A505 GeForce GTX 960M, 4720HQ	27.1 (21^min) fps
Medion Erazer X7615-MD99293 GeForce GTX 965M, 4720HQ	29.2 fps

Call of Duty: Black Ops 3
3840x2160 High / On AA:FX (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	13.4 (10^min - 17^max) fps
Dell Inspiron 15 7559 GeForce GTX 960M, 6700HQ	10.4 fps
Schenker XMG A505 GeForce GTX 960M, 4720HQ	10.4 (5^min) fps
1920x1080 Extra / On AA:T2x SM (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	29.5 (18^min - 43^max) fps
Dell Inspiron 15 7559 GeForce GTX 960M, 6700HQ	31.5 fps
Schenker XMG A505 GeForce GTX 960M, 4720HQ	29.3 (23^min) fps
1920x1080 High / On AA:FX (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	40.5 (30^min - 50^max) fps
Dell Inspiron 15 7559 GeForce GTX 960M, 6700HQ	36.2 fps
Schenker XMG A505 GeForce GTX 960M, 4720HQ	34 (24^min) fps

World of Warships
3840 x 2160 Very High Preset AA:High FX AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	24.1 (15^min - 36^max) fps
1920x1080 Very High Preset AA:High FX AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	74 (55^min - 100^max) fps
SCHENKER XMG A706 GeForce GTX 960M, 6700HQ	69 fps
1920x1080 High Preset AF:8x (sort by value)
SCHENKER XMG A706 GeForce GTX 960M, 6700HQ	98.1 fps

Dragon Age: Inquisition
1920x1080 Ultra Graphics Quality AA:2x MS (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	27.1 (22.2^min) fps
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X Radeon R9 M295X, 4790K	35.2 fps
SCHENKER XMG A505 GeForce GTX 960M, 4720HQ	22.5 fps
Nexoc G515 II GeForce GTX 960M, 6700HQ	22.3 fps
SCHENKER XMG P705 GeForce GTX 965M, 4720HQ	27.1 fps
Medion Erazer X7615-MD99293 GeForce GTX 965M, 4720HQ	26.9 fps
1920x1080 High Graphics Quality (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	39.4 (28.5^min) fps
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X Radeon R9 M295X, 4790K	51 fps
SCHENKER XMG A505 GeForce GTX 960M, 4720HQ	33.5 fps
Nexoc G515 II GeForce GTX 960M, 6700HQ	33.4 fps
SCHENKER XMG P705 GeForce GTX 965M, 4720HQ	39.2 fps
Medion Erazer X7615-MD99293 GeForce GTX 965M, 4720HQ	38.7 fps
1366x768 Medium Graphics Quality (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	71.5 (35.5^min) fps
SCHENKER XMG A505 GeForce GTX 960M, 4720HQ	59.9 fps
Nexoc G515 II GeForce GTX 960M, 6700HQ	93.7 fps
SCHENKER XMG P705 GeForce GTX 965M, 4720HQ	71.7 fps
Medion Erazer X7615-MD99293 GeForce GTX 965M, 4720HQ	70.9 fps

Fallout 4
3840x2160 High Preset AA:T AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	13.8 (10^min - 17^max) fps
Dell Inspiron 15 7559 GeForce GTX 960M, 6700HQ	10 fps
Schenker XMG A505 GeForce GTX 960M, 4720HQ	10.1 (8^min) fps
1920x1080 Ultra Preset AA:T AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	30.3 (24^min - 38^max) fps
Dell Inspiron 15 7559 GeForce GTX 960M, 6700HQ	24.7 fps
Schenker XMG A505 GeForce GTX 960M, 4720HQ	25.3 (20^min) fps
1920x1080 High Preset AA:T AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	38.5 (30^min - 47^max) fps
Dell Inspiron 15 7559 GeForce GTX 960M, 6700HQ	31.9 fps
Schenker XMG A505 GeForce GTX 960M, 4720HQ	31.4 (26^min) fps

FIFA 16
3840x2160 High Preset AA:2x MS (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	54 (51^min - 58^max) fps
Schenker XMG A505 GeForce GTX 960M, 4720HQ	44.5 (42^min) fps
1920x1080 High Preset AA:4x MS (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	111 fps
Schenker XMG A505 GeForce GTX 960M, 4720HQ	108.1 (95^min) fps
1366x768 High Preset AA:2x MS (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	190 (164^min - 208^max) fps
Schenker XMG A505 GeForce GTX 960M, 4720HQ	161.8 (148^min) fps

Metal Gear Solid V
3840x2160 High / On (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	21.6 (19^min - 25^max) fps
Schenker XMG A505 GeForce GTX 960M, 4720HQ	15.5 (13^min) fps
1920x1080 Extra High / On (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	39.6 (35^min - 43^max) fps
SCHENKER XMG A706 GeForce GTX 960M, 6700HQ	37.6 fps
Eurocom Shark 4 GeForce GTX 960M, 4720HQ	38.1 fps
Schenker XMG A505 GeForce GTX 960M, 4720HQ	36.4 (34^min) fps
1920x1080 High / On (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	60 (59^min - 60^max) fps
SCHENKER XMG A706 GeForce GTX 960M, 6700HQ	56.3 fps
Eurocom Shark 4 GeForce GTX 960M, 4720HQ	58.4 fps
Schenker XMG A505 GeForce GTX 960M, 4720HQ	54.2 (53^min) fps

Star Wars Battlefront
3840x2160 High Preset AA:FX (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	14.9 (12^min - 18^max) fps
Dell Inspiron 15 7559 GeForce GTX 960M, 6700HQ	11.8 fps
Schenker XMG A505 GeForce GTX 960M, 4720HQ	11.6 (9^min) fps
1920x1080 Ultra Preset AA:FX (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	45.4 (37^min - 54^max) fps
Dell Inspiron 15 7559 GeForce GTX 960M, 6700HQ	34.4 fps
Schenker XMG A505 GeForce GTX 960M, 4720HQ	34.4 (28^min) fps
1920x1080 High Preset AA:FX (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500	54 (45^min - 62^max) fps
Dell Inspiron 15 7559 GeForce GTX 960M, 6700HQ	41.1 fps
Schenker XMG A505 GeForce GTX 960M, 4720HQ	40.9 (33^min) fps

	low	med.	high	ultra	4K
Crysis 3 (2013)			62	22.7
Tomb Raider (2013)		195	150	64
BioShock Infinite (2013)	213	147	130	49.5
Metro: Last Light (2013)	100	91	67	33.8
Battlefield 4 (2013)	168	121	91	37.6	19.5
X-Plane 10.25 (2013)	84	52.5	24.7	19.8
Thief (2014)	93	72	63	30.9
Sims 4 (2014)				82
Middle-earth: Shadow of Mordor (2014)	154	92	53	39
Alien: Isolation (2014)				56
Dragon Age: Inquisition (2014)	80.5	71.5	39.4	27.1
Battlefield Hardline (2015)	161	138	56	36.8
GTA V (2015)			54.2	12.8
The Witcher 3 (2015)	82		31.1	17.8	11.5
Metal Gear Solid V (2015)	60	60	60	39.6	21.6
Mad Max (2015)		111	57	48.8	17.6
World of Warships (2015)				74	24.1
FIFA 16 (2015)	233		190	111	54
Anno 2205 (2015)	103		31.5	12	12
Call of Duty: Black Ops 3 (2015)	123	82	40.5	29.5	13.4
Fallout 4 (2015)			38.5	30.3	13.8
Star Wars Battlefront (2015)	161	107	54	45.4	14.9
Assassin's Creed Syndicate (2015)	52	41.2	29.2

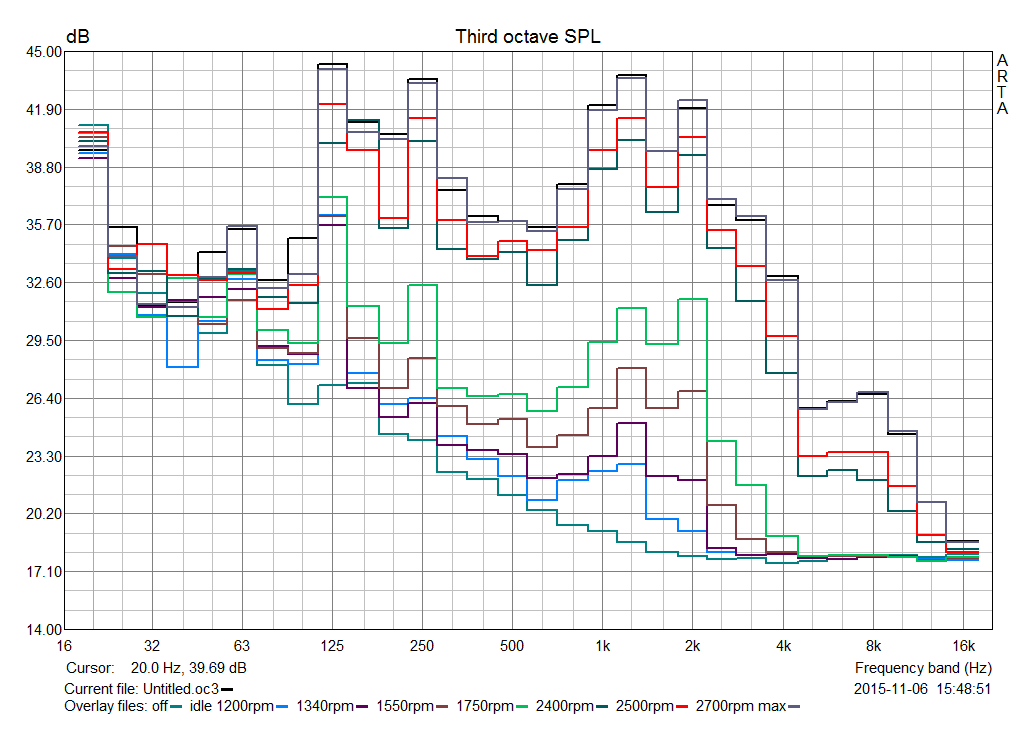

Frequency diagram of the system noise. You can already see the integrated HDD while idling (blue curve). The cooling system is audible when the fan hits 1340 rpm, but is still restrained.

Noise Level

Idle		32.5 / 32.5 / 32.5 dB(A)
HDD		32.5 dB(A)
Load		39 / 48.2 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Arta / Audix TM1 (15 cm distance) environment noise: 30 dB(A)

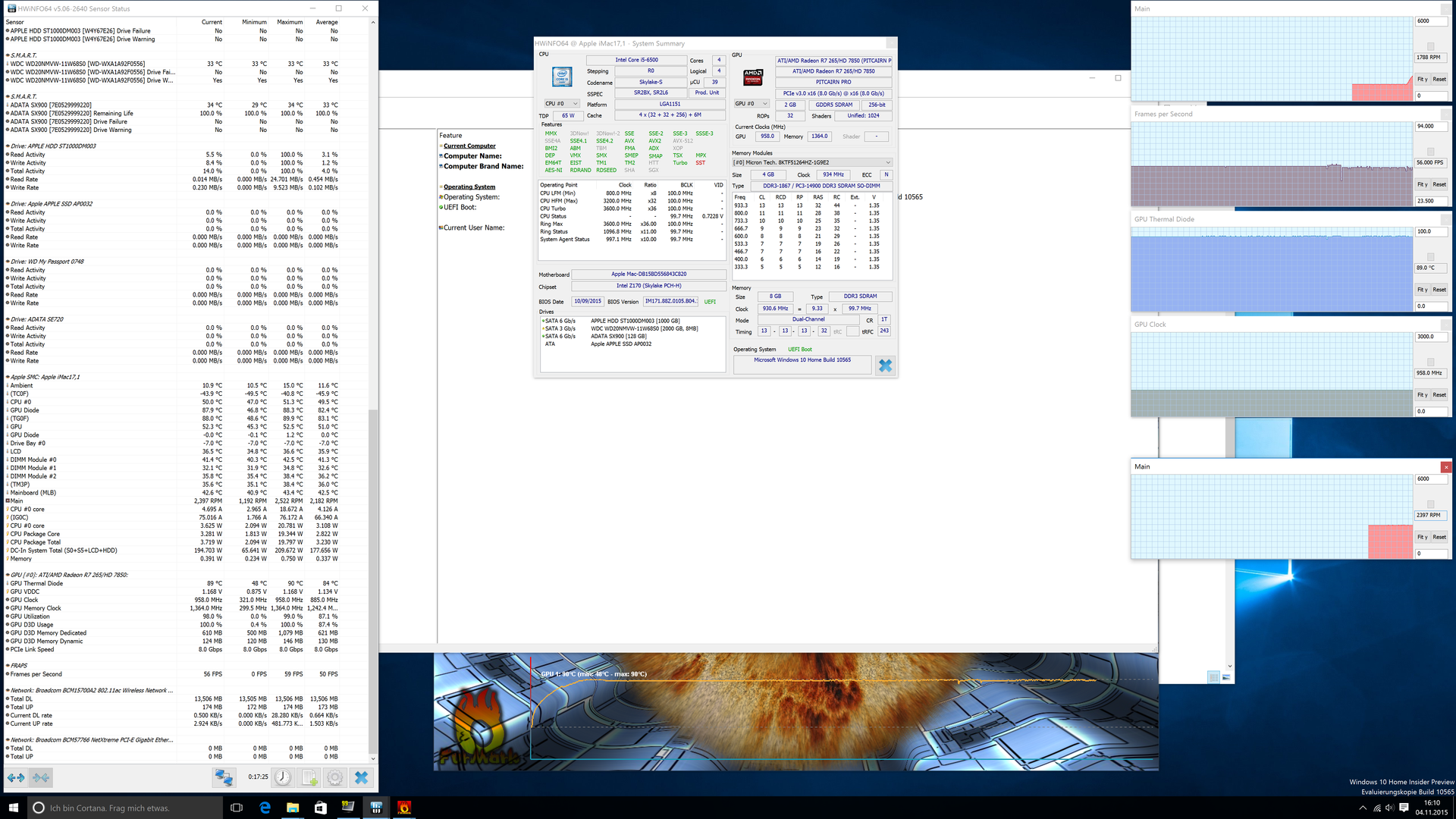

... the maximum performance of the graphics card.

Max. Load

Idle


30 °C	33 °C	33 °C
30 °C	32 °C	33 °C
27 °C	33 °C	31 °C

Maximum: 33 °C
Average: 31.3 °C


31 °C	32 °C	29 °C
33 °C	38 °C	31 °C
34 °C	39 °C	32 °C

Maximum: 39 °C
Average: 33.2 °C

Room Temperature 21 °C | Fluke 62 Mini

(+) The average temperature for the upper side under maximal load is 31.3 °C / 88 F, compared to the average of 29.7 °C / 85 F for the devices in the class Desktop.
(+) The maximum temperature on the upper side is 33 °C / 91 F, compared to the average of 34.4 °C / 94 F, ranging from 25 to 47 °C for the class Desktop.
(+) The bottom heats up to a maximum of 39 °C / 102 F, compared to the average of 34 °C / 93 F
(+) In idle usage, the average temperature for the upper side is 26.9 °C / 80 F, compared to the device average of 29.7 °C / 85 F.

Power Consumption

Off / Standby	0.044 / 0.05 Watt
Idle	29.5 / 59.2 / 68 Watt
Load	126 / 231 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Pros

+ 设计

+ 纤薄机身

+ 工艺和材料品质

+ Mac OS X系统性能

+ 高分辨率5K屏幕

+ 可充电输入设备

Cons

- 可维护性

- 接口易用性

- 不支持USB-C

- 不支持Thunderbolt 3

- FusionDrive的固态硬盘容量小

- Magic Mouse 2的充电方式

In review: Apple iMac retina 5K. Test model courtesy of edustore.

Apple的Retina 5 K再一次给我们带来了非常好的整体印象。生产商推出了一款搭配高品质机身和优雅外观的设备。它的全新输入设备也终于采用了可充电电池。不过，最吸引人的还是超高分辨率的屏幕。我们在它绚丽的色彩和宽阔的色域前几近哑口无言。

在机身之中，它混合了台式和笔记本电脑硬件，这保证了不错的系统性能。遗憾的是，Apple将Fusion Drive的固态硬盘容量从128 GB降低到了24 GB。它的处理器性能十分不错，而显卡也足够应付最新游戏，不过对这款较老芯片的利用率让人略微失望。如果你打算用iMac来玩游戏的话，那么就不如选择售价更低且更快的设备。

在发热量和噪音控制的方面它表现中规中矩。在通常任务中它的风扇经常处于静止状态。

如果已经有了上一代的5K Retina iMac，那么并没有什么升级的必要。它们的处理器和显卡性能十分接近，而较广的色域覆盖也只对很少一部分用户有意义。

Apple的iMac 5K Retina是一款优秀的产品，不过售价较高。

入门级版本的2100欧元（约14886人民币），如果选择较高配置的话很容易就会超过4000欧元（约28355人民币）。我们的测试机售价2299欧元（约16297人民币）；学生可以享受2150.60欧元的优惠价（约15245人民币）。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A - 2015-11-28 11/28/2015 v4^(old)
Klaus Hinum, Nino Ricchizzi

Chassis

92 / 98 → 94%

Keyboard

79%

Pointing Device

92%

Connectivity

77 / 81 → 95%

Weight

Battery

Display

89%

Games Performance

89%

Application Performance

93%

Temperature

92%

Noise

85%

Audio

90%

Camera

63 / 85 → 74%

Average

86%

89%

Desktop - Weighted Average

Pricecompare

Editor of the original article: Andreas Osthoff - Managing Editor Business Laptops - 1619 articles published on Notebookcheck since 2013

contact me via: LinkedIn

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > Apple iMac Retina 5K 27-inch M390 (Late 2015) Retina 评测

Klaus Hinum, Nino Ricchizzi, 2015-12-20 (Update: 2015-12-30)
