戴尔 Venue 10 Pro 5055 变形本简短评测

粗犷路线。 戴尔Venue 10 Pro是一台Windows 8平板电脑，可能上市时间有些太晚了，但坚固的机身和丰富的配件为它增加了不少吸引力。旅行办公用户，教师和信息工业用户可以考虑这款产品。
Convertible / 2-in-1 Tablet Windows Touchscreen
Dell Venue 10 Pro 5055 (Venue Series)
Processor
Intel Atom Z3735F 4 x 1.3 - 1.8 GHz, Bay Trail-T
Graphics adapter
Intel HD Graphics (Bay Trail), Core: 620 MHz, Intel Valleyview SoC, 10.18.10.3993
Memory
2048 MB
, eMMC
Display
10.10 inch 16:10, 1920 x 1200 pixel, 10点触控，手写笔, AU Optronics AU017D8, IPS, glossy: yes
Storage
Hynix HCG8E 64 GB, 64 GB
, 28 GB free
Soundcard
Intel SST Audio Device
Connections
2 USB 2.0, 1 HDMI, Audio Connections: Headset, Sensors: 加速传感器，陀螺仪，电子指南针，环境光传感器
Networking
Broadcom 802.11a/b/g/n (a/b/g/n = Wi-Fi 4/), Bluetooth 4.0
Size
height x width x depth (in mm): 9.9 x 262.6 x 175.8
Battery
32 Wh Lithium-Polymer
Operating System
Windows 8.1 (32 Bit) + Bing
Camera
Webcam: 120万像素前置，500万像素后置
Additional features
Speakers: 立体声, 同时测试的还有 - 戴尔键盘底座和平板保护套。
Weight
656 g
Price
359 Euro
Links
Dell homepage
Dell notebook section
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Dell Venue 10 Pro reversed screen
Dell Venue 10 Pro reversed screen
Dell Venue 10 Pro Tablet
Dell Venue 10 Pro Tablet

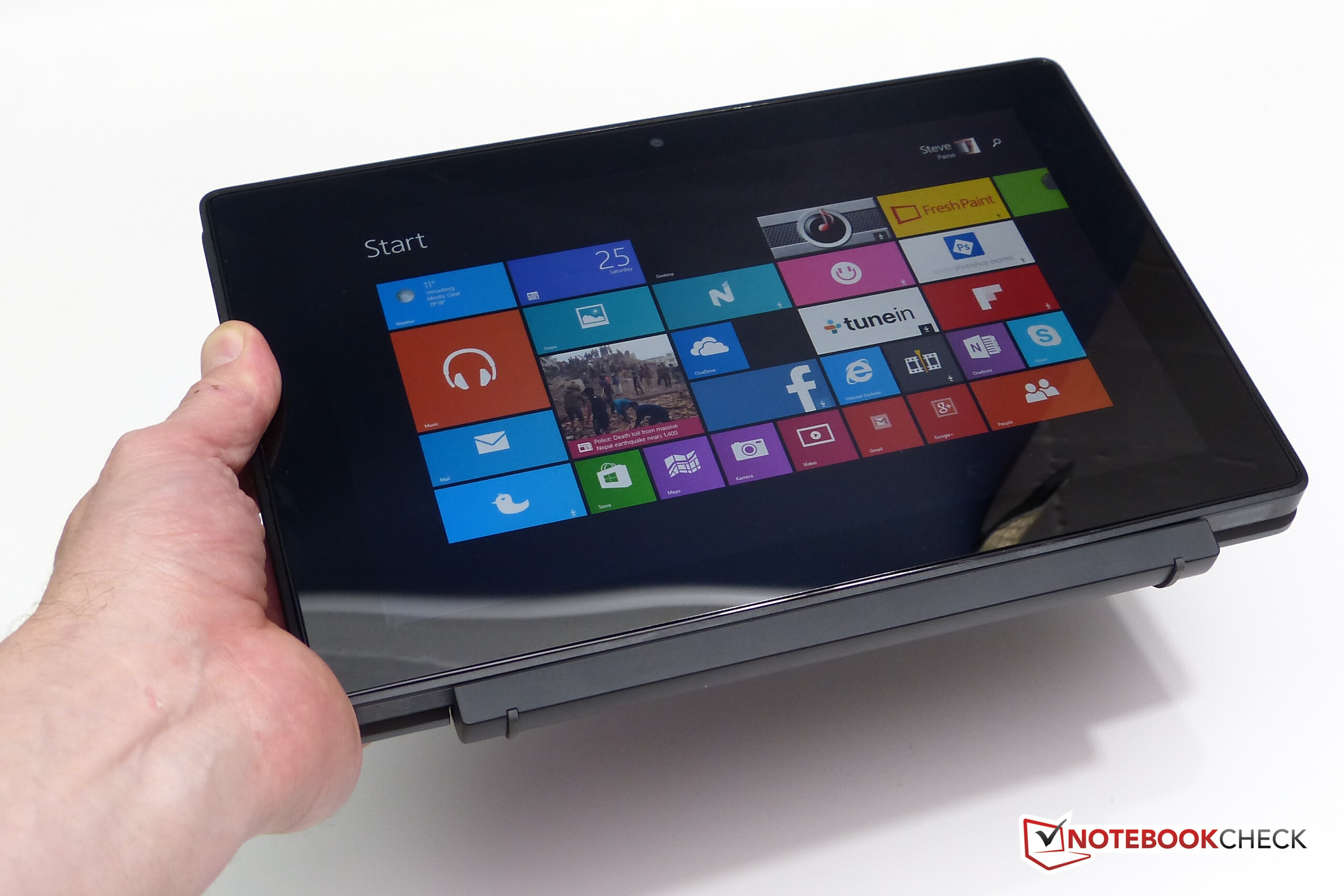

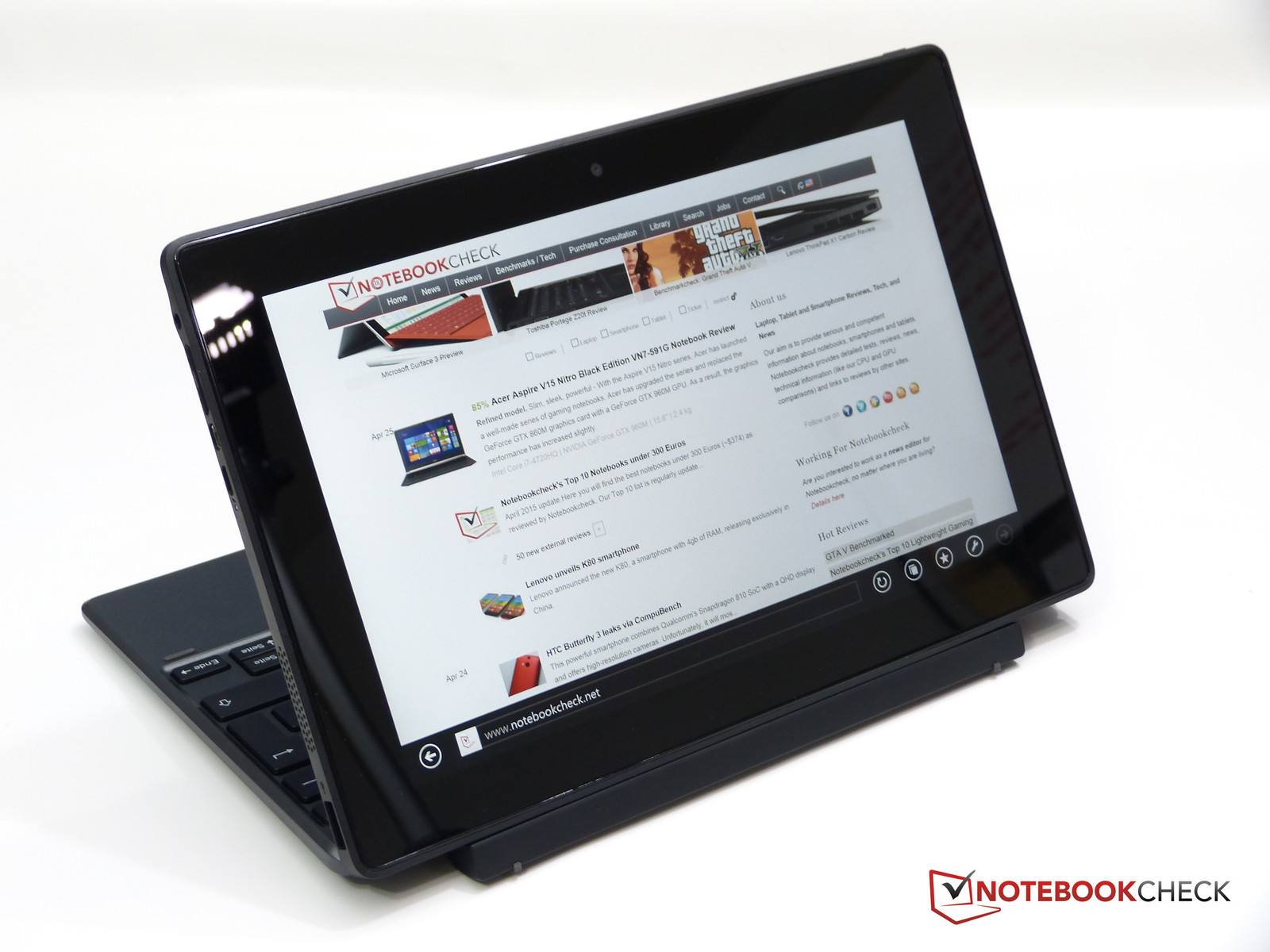

Dell Venue 10 Pro reversed screen

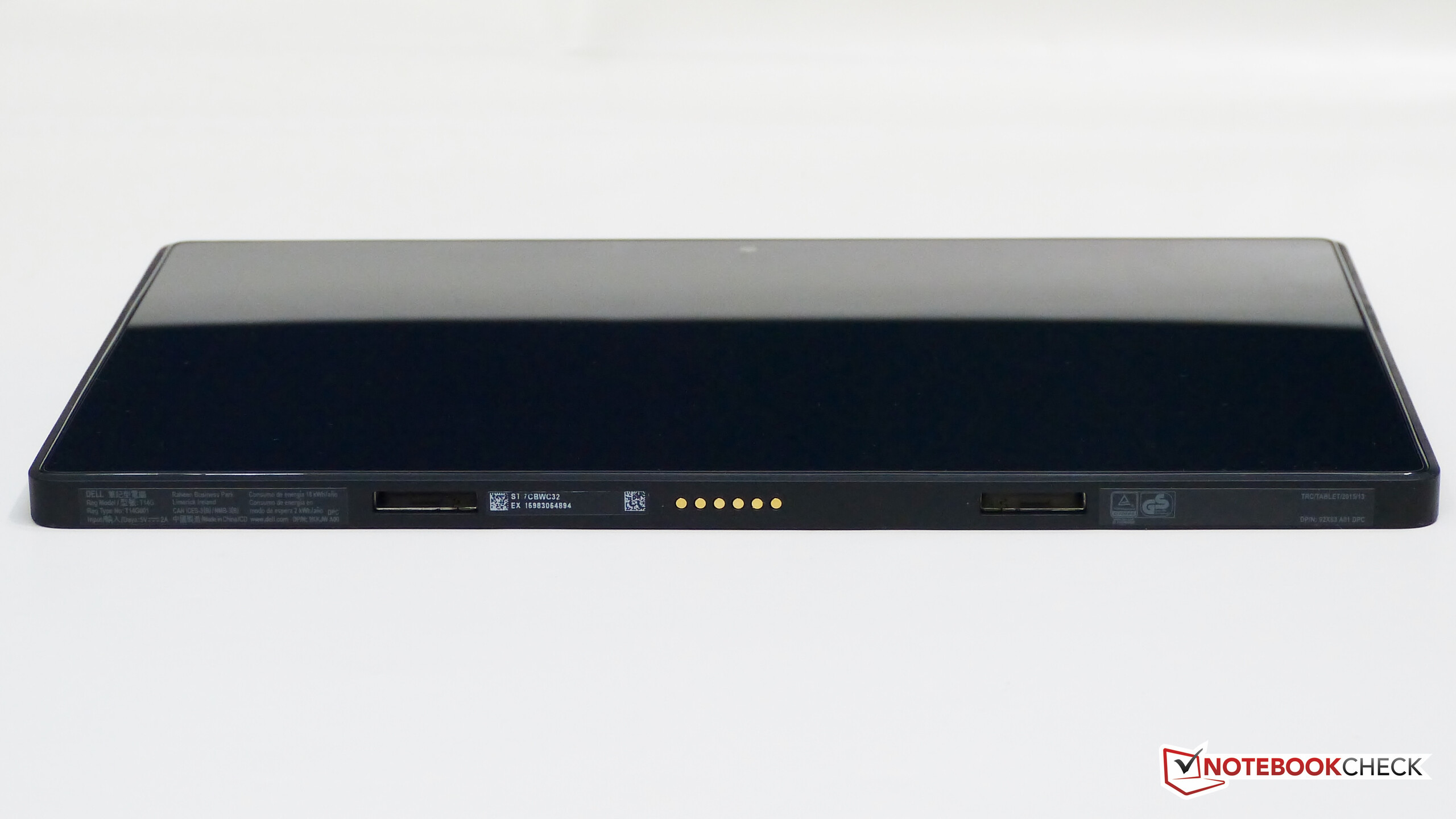

Tablet docking connector

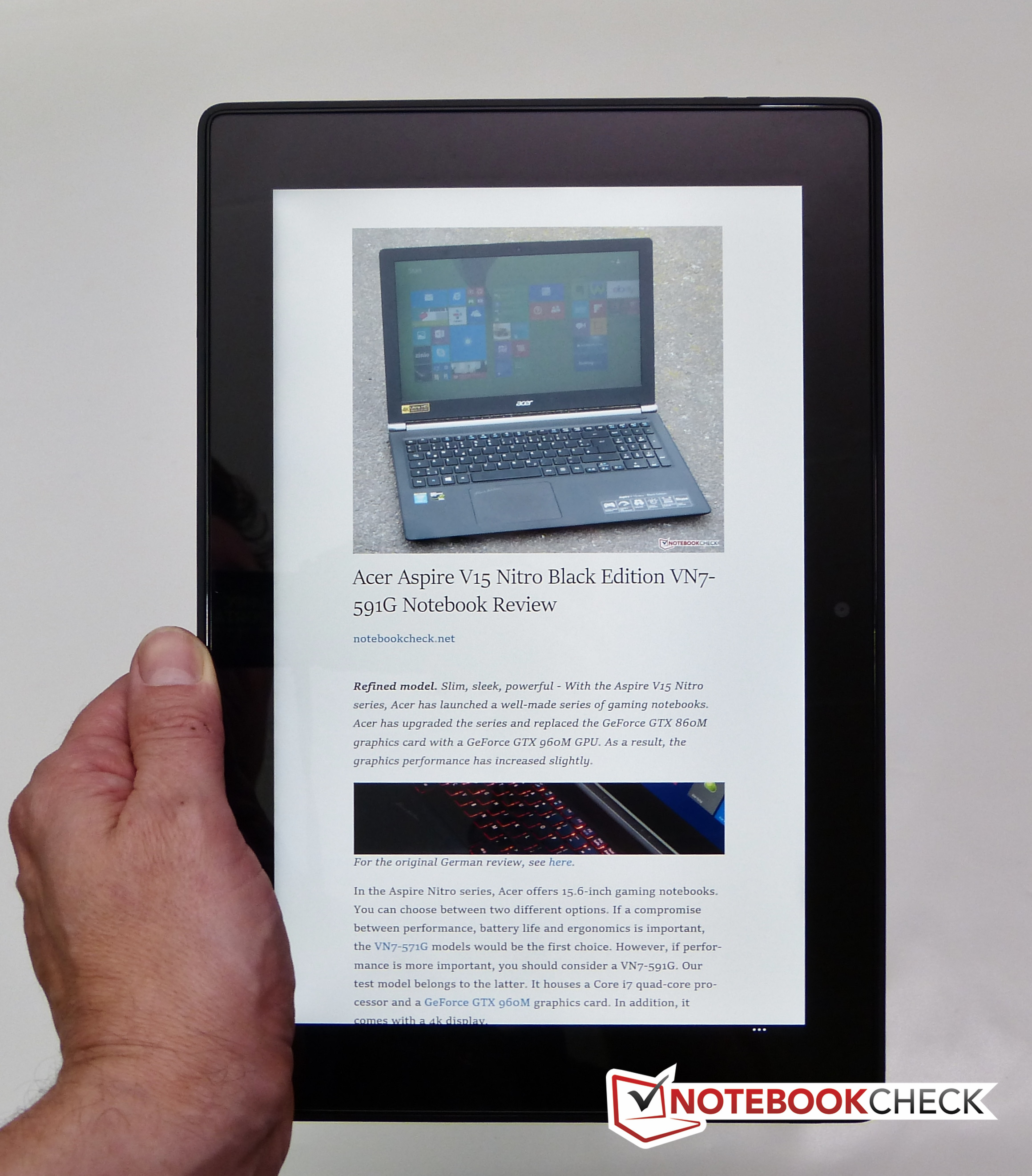

Tablet in portrait mode as reader

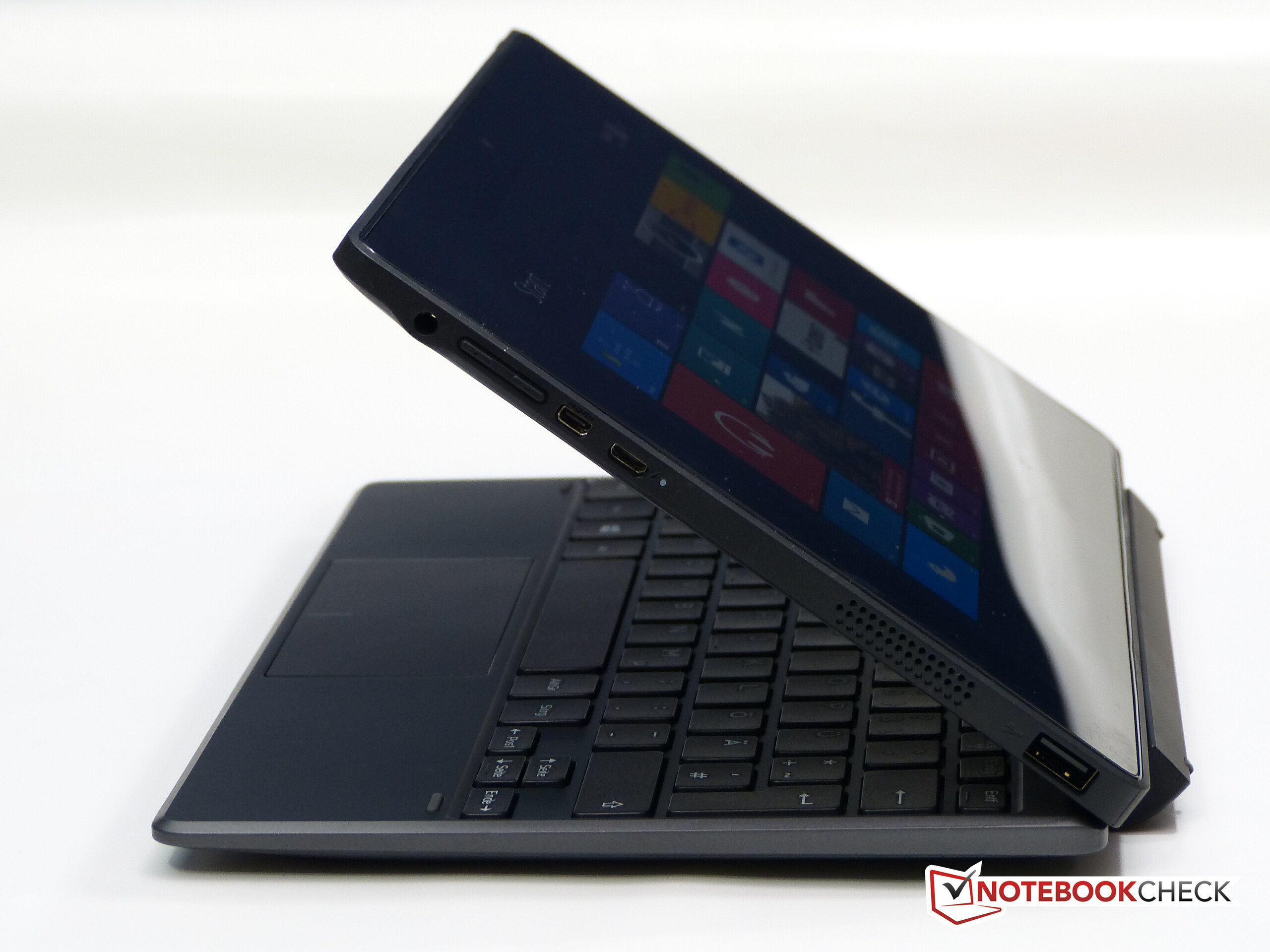

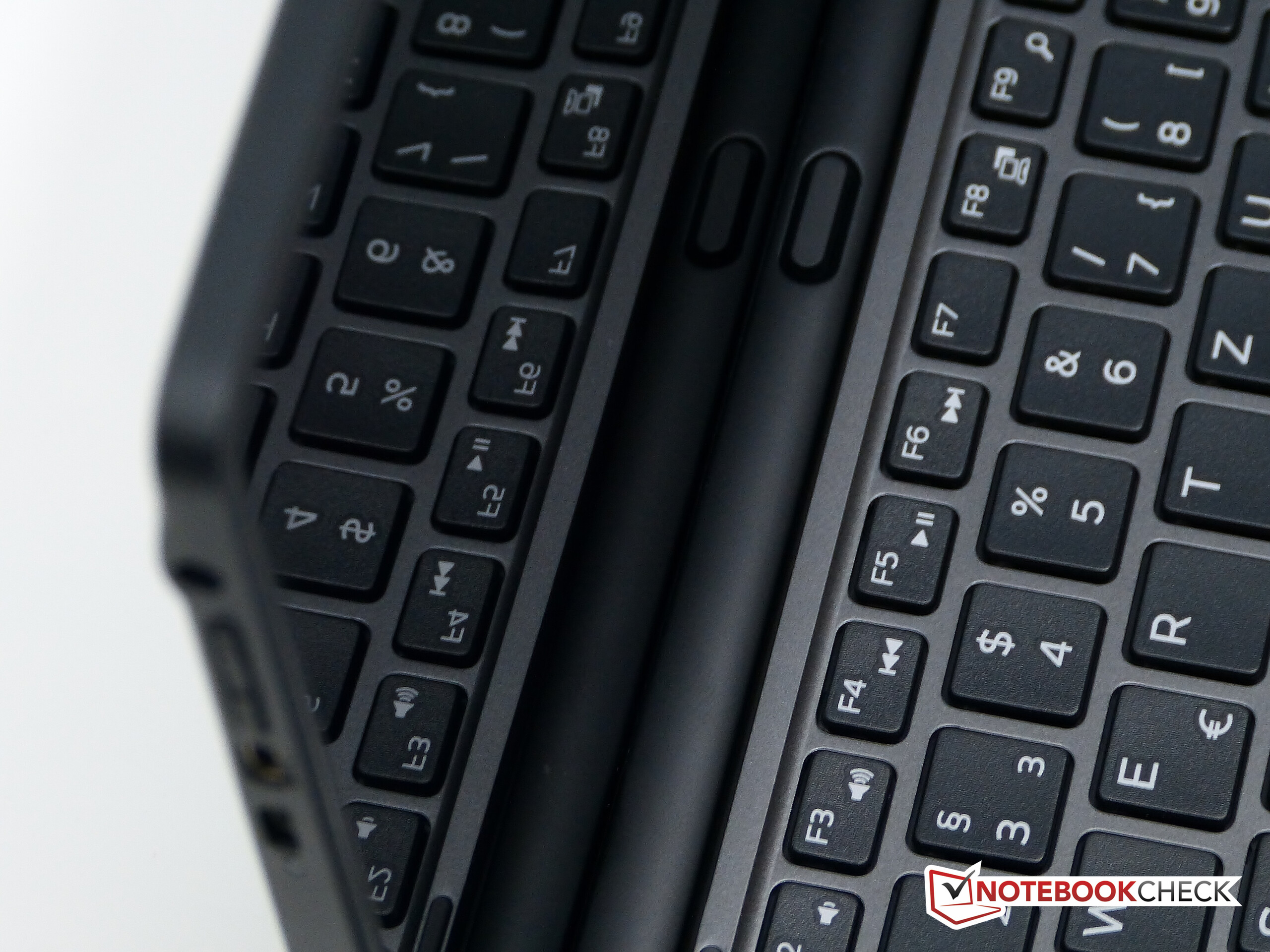

Tablet with keyboard closed

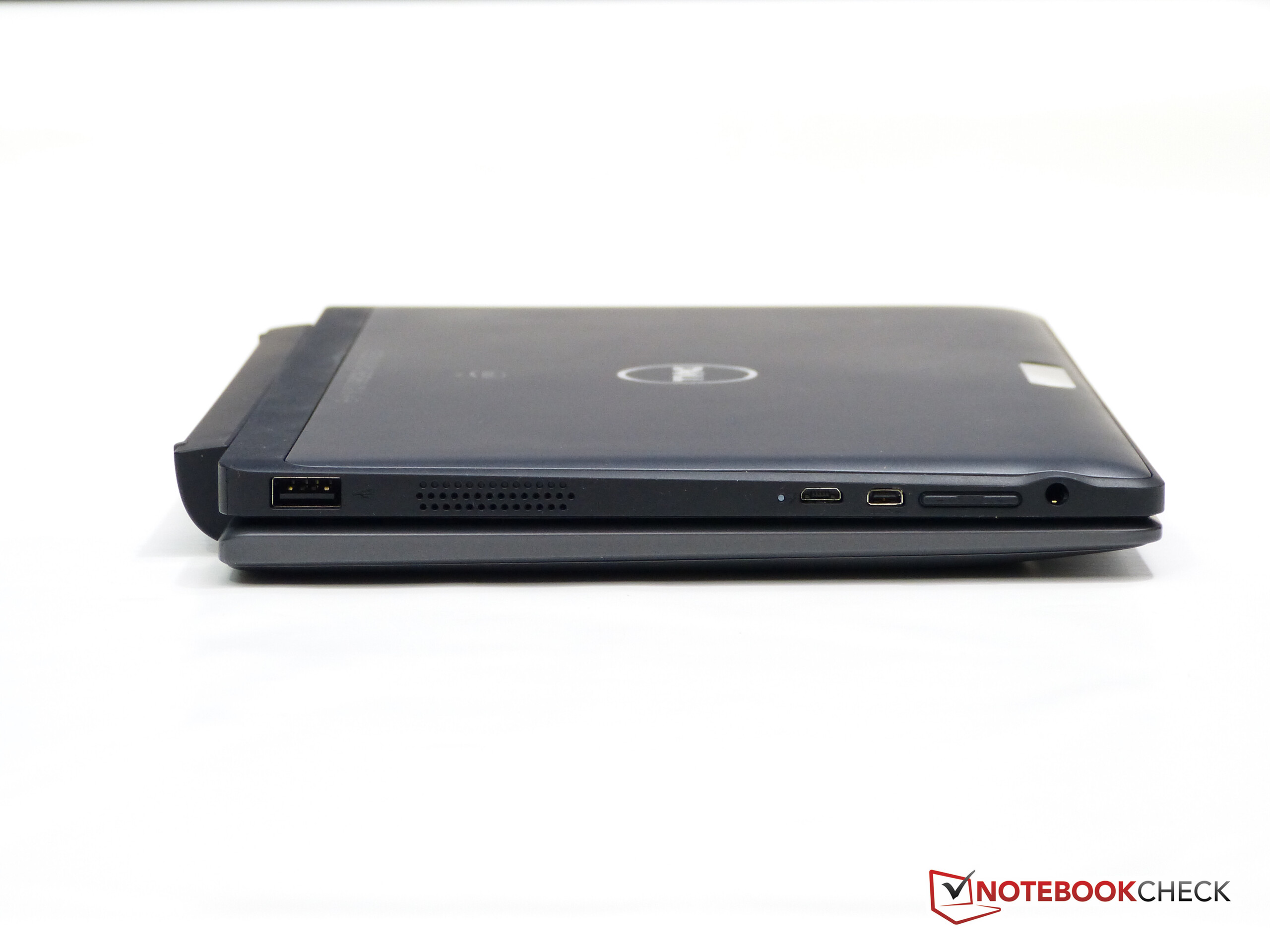

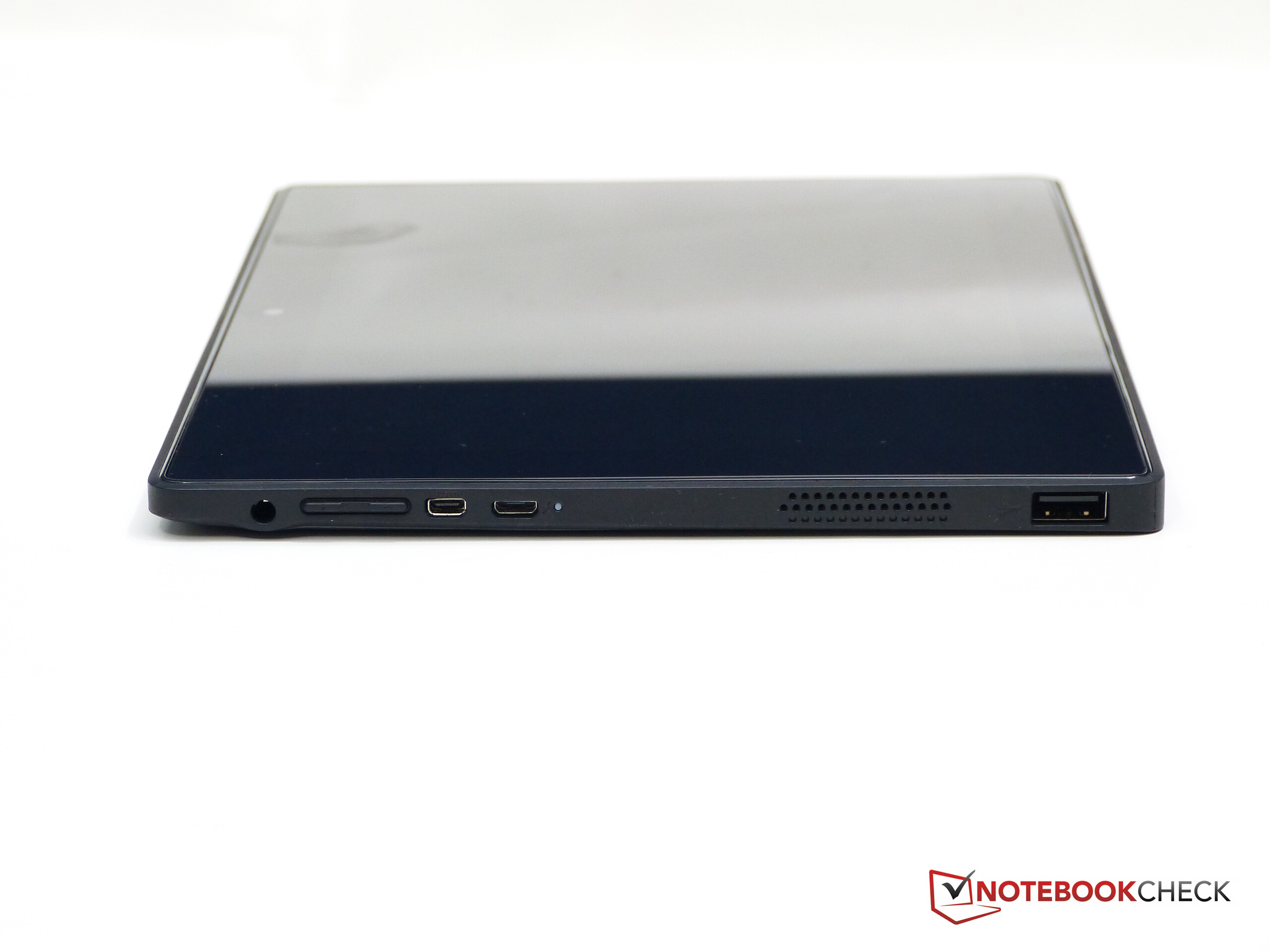

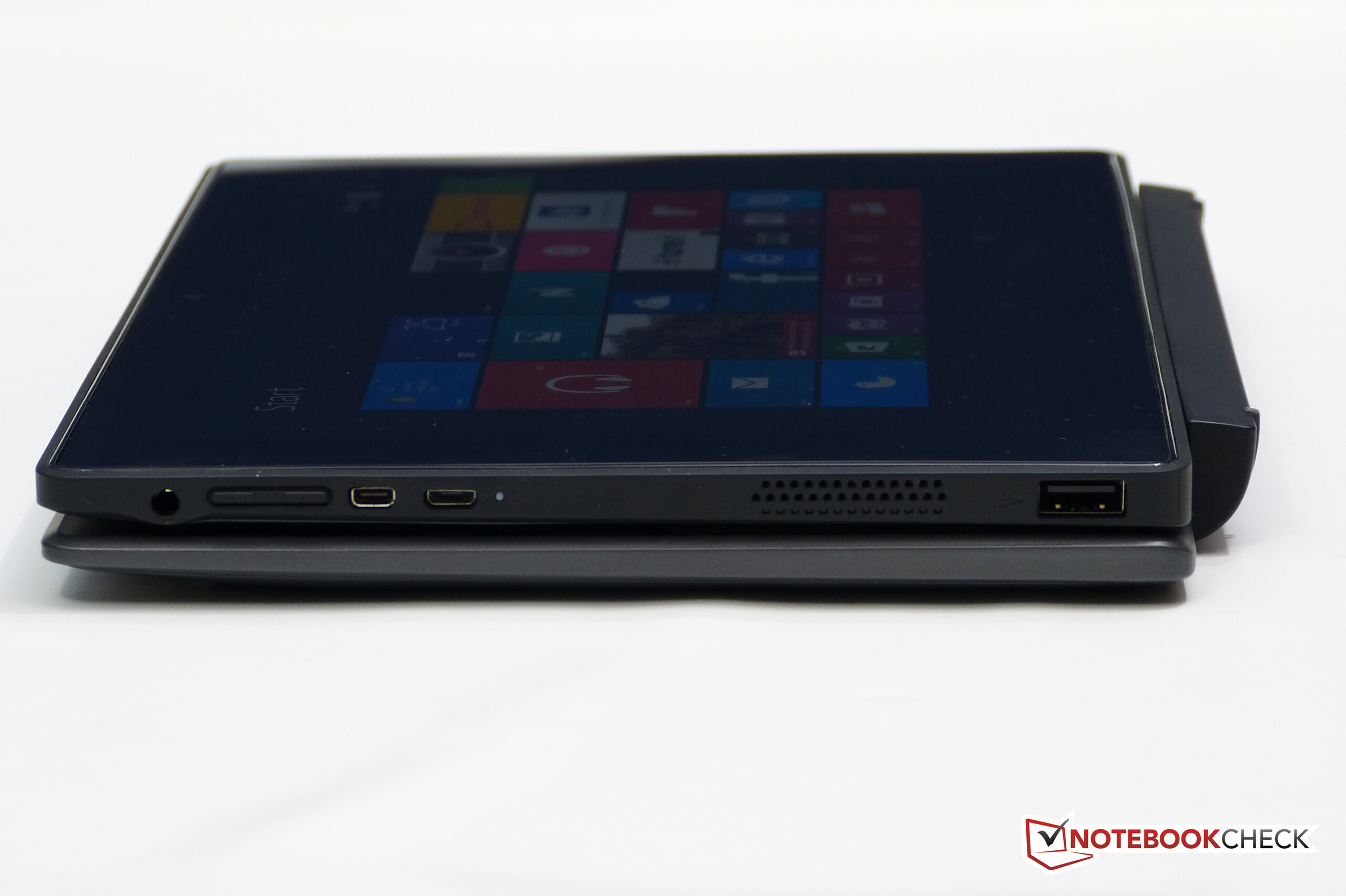

Tablet side

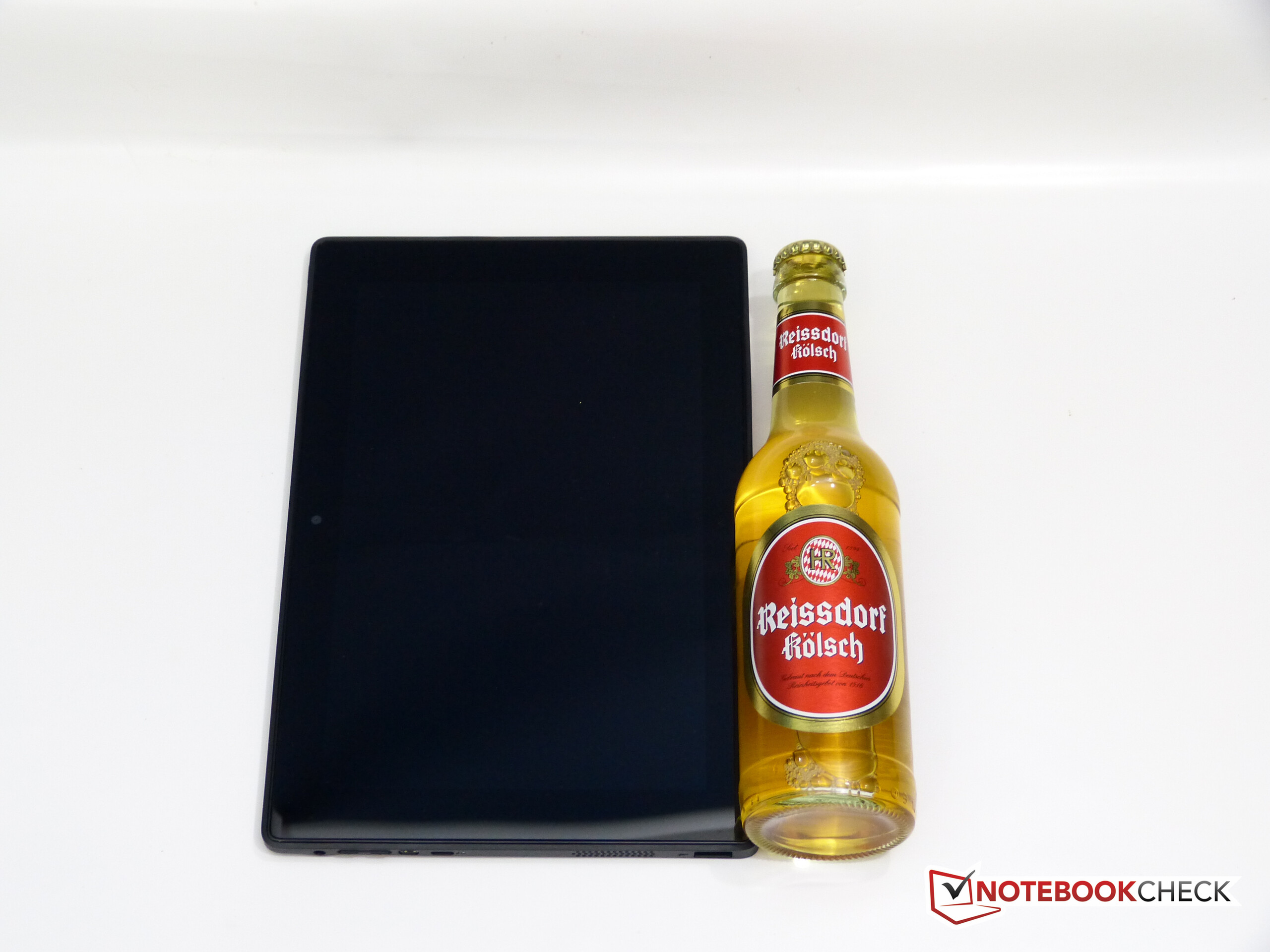

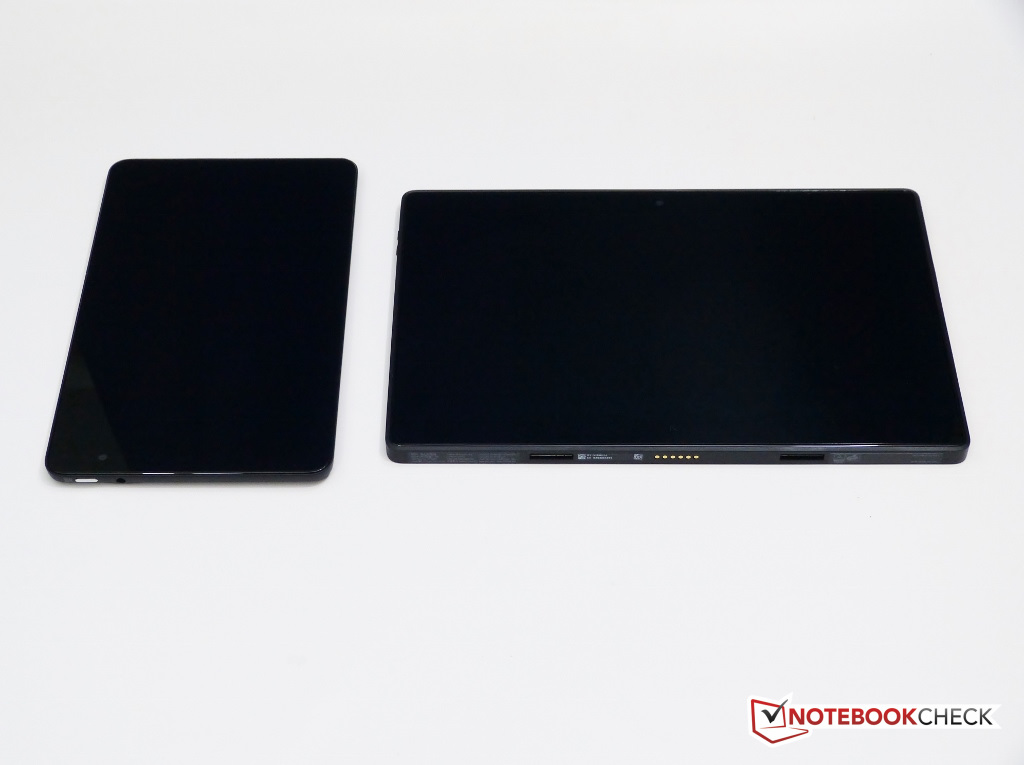

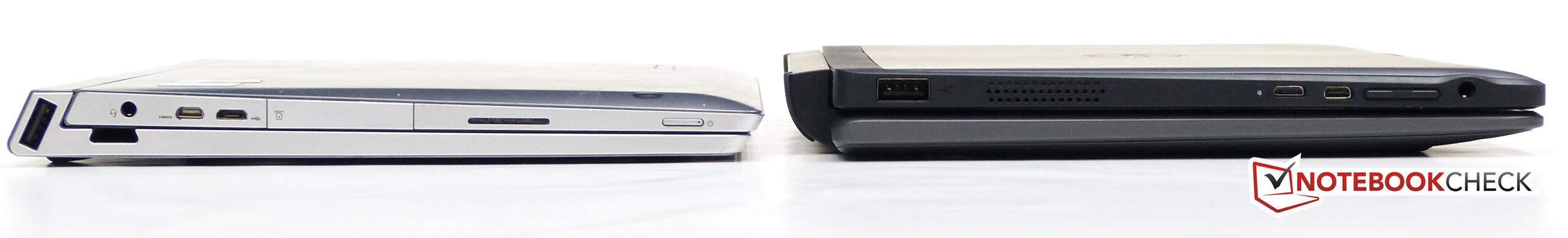

Tablet size comparison
...with Dell Venue 8 Pro
Keyboard accessory
Tablet rear
Keyboard

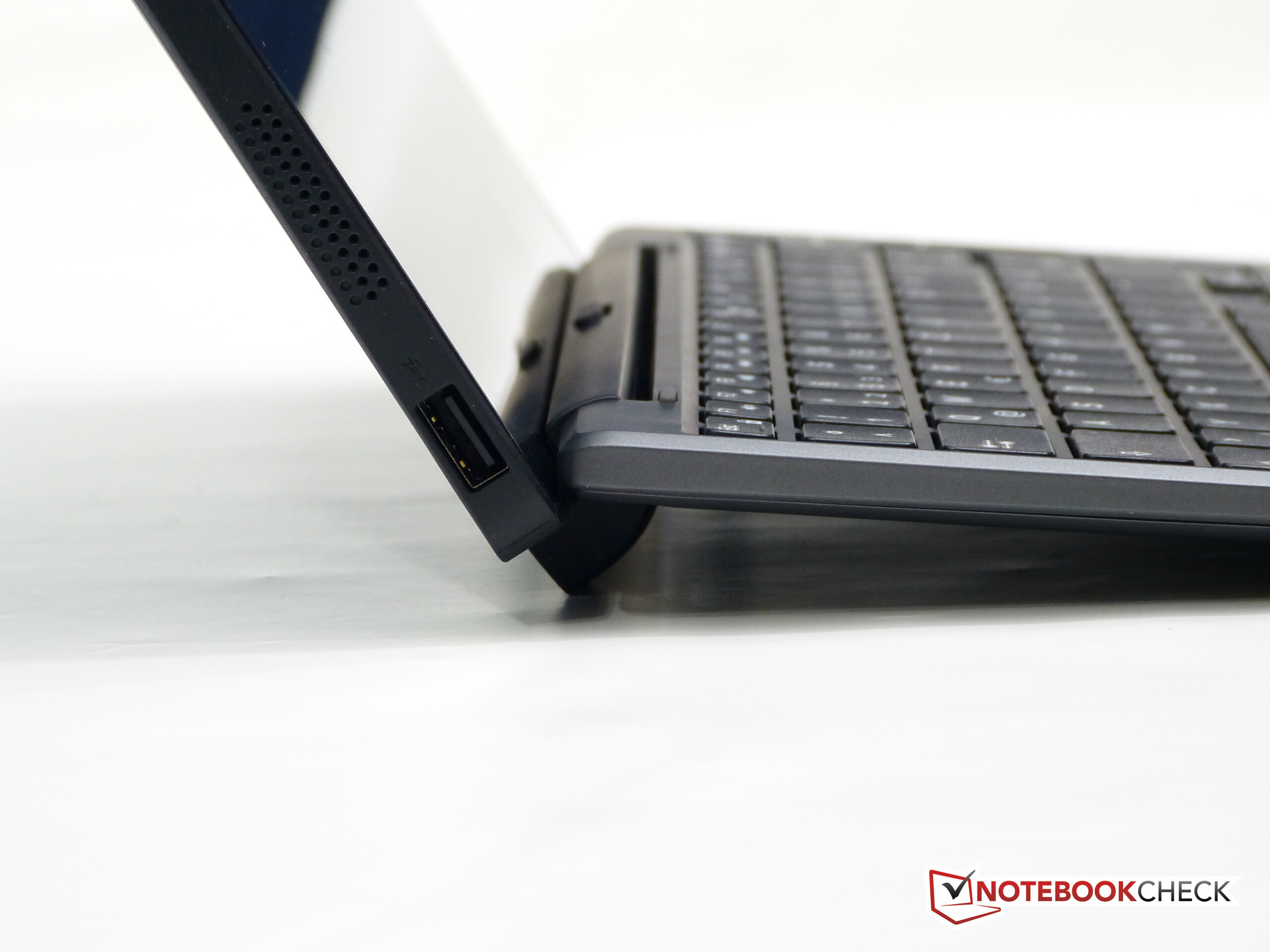

Hinge

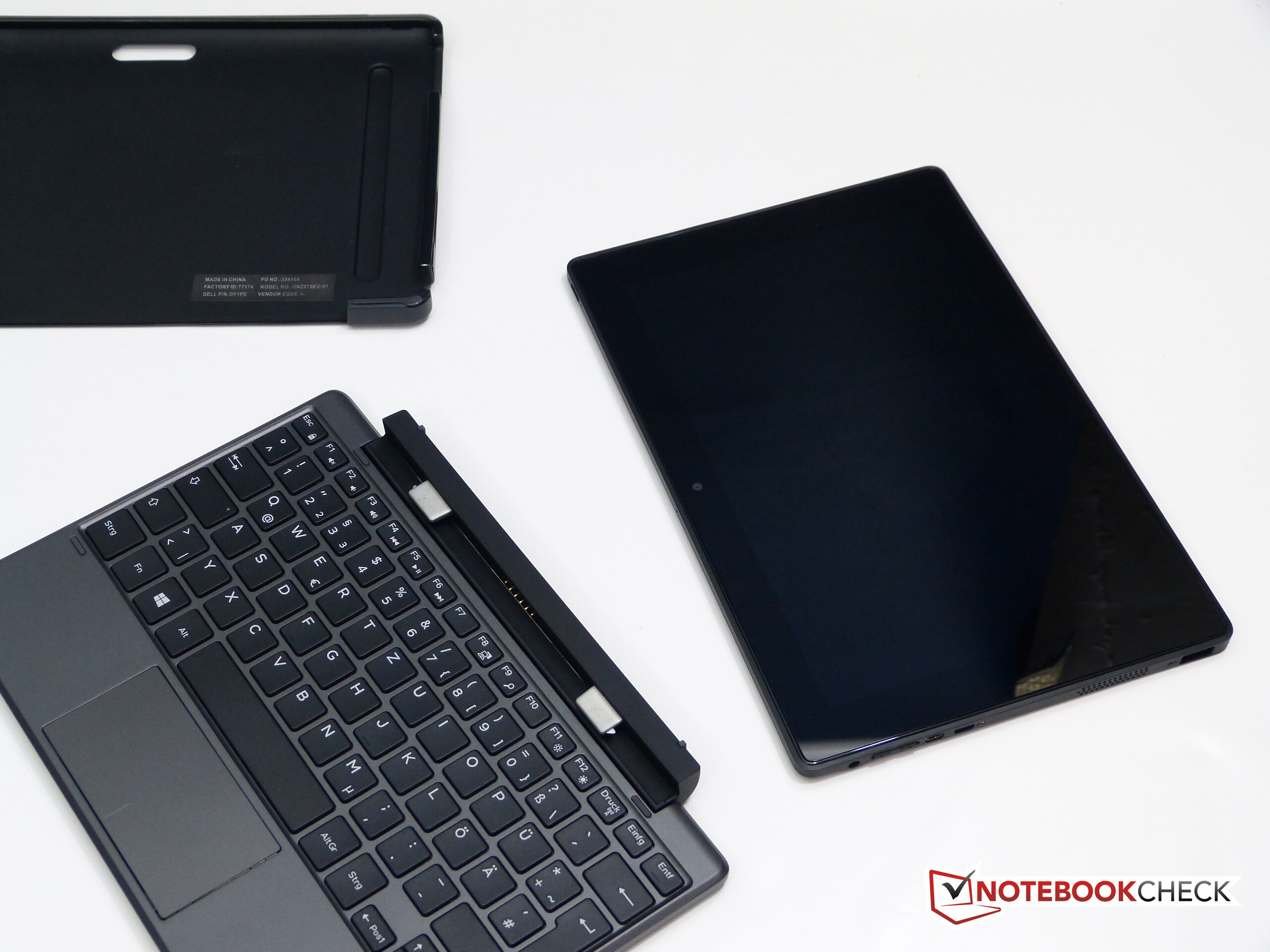

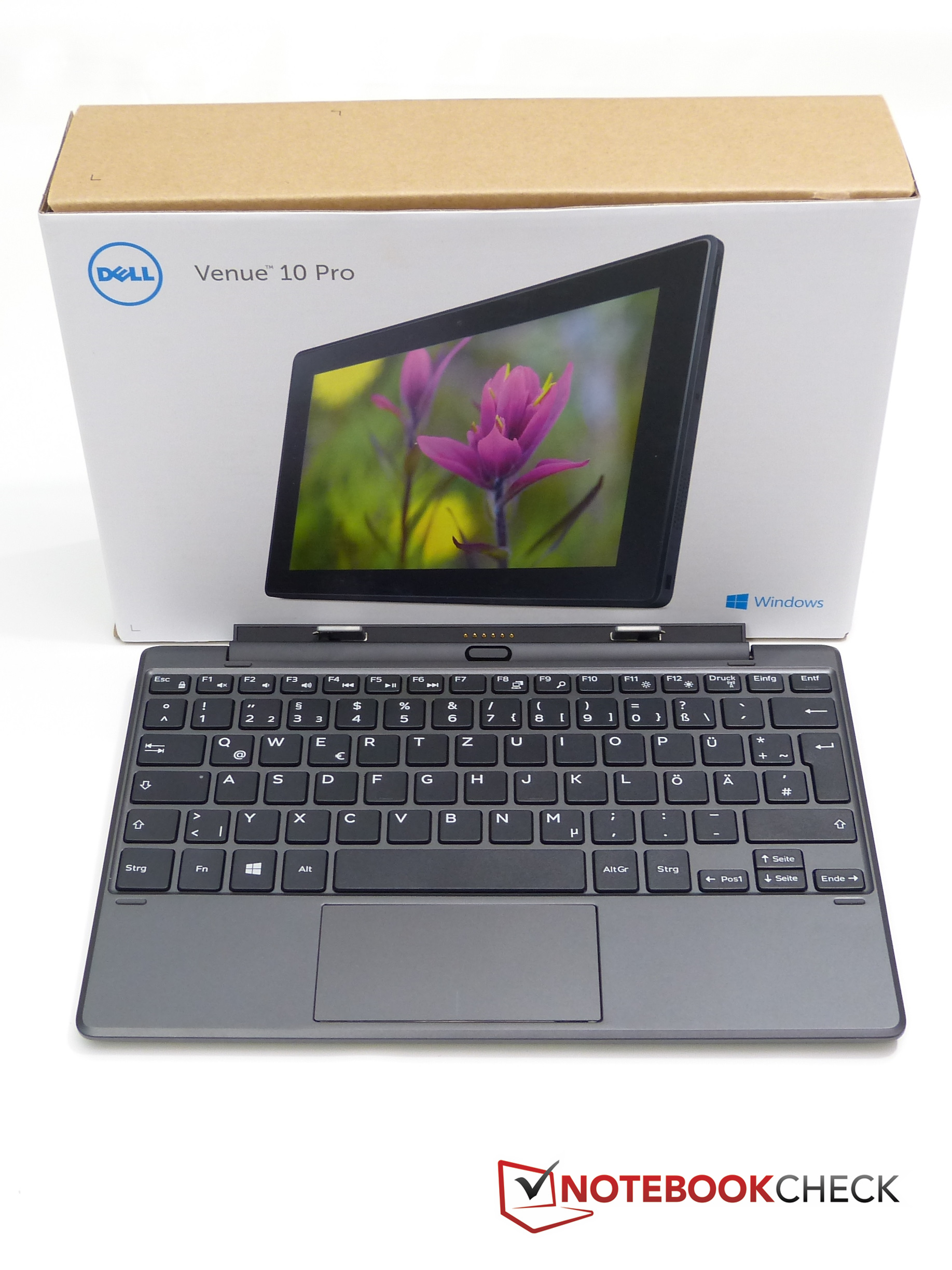

Review components

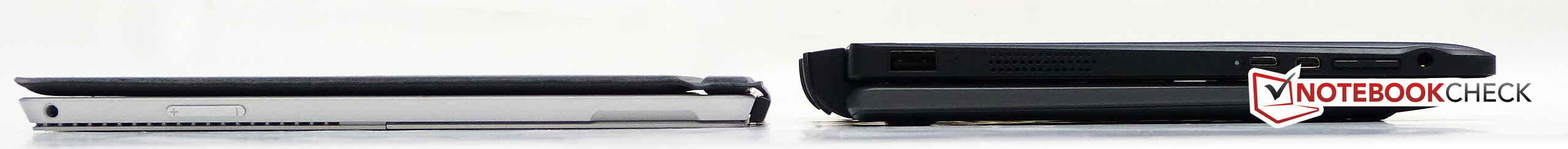

Venue Pro 10 and Surface Pro 3
Dell Venue Pro 10 and Lenovo Miix 2 10

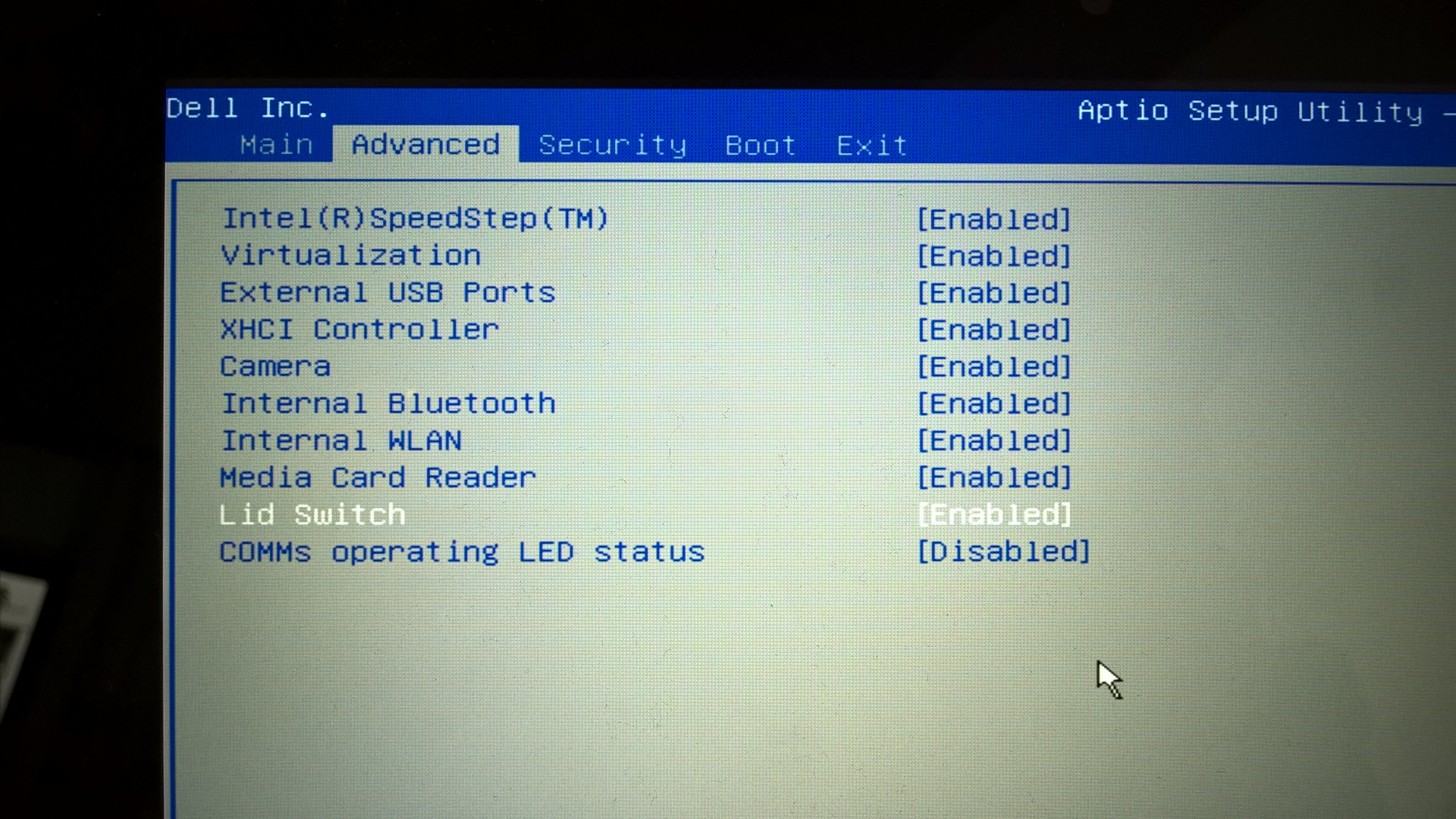

BIOS options on the Dell Venue 10 Pro
BIOS options on the Dell Venue 10 Pro

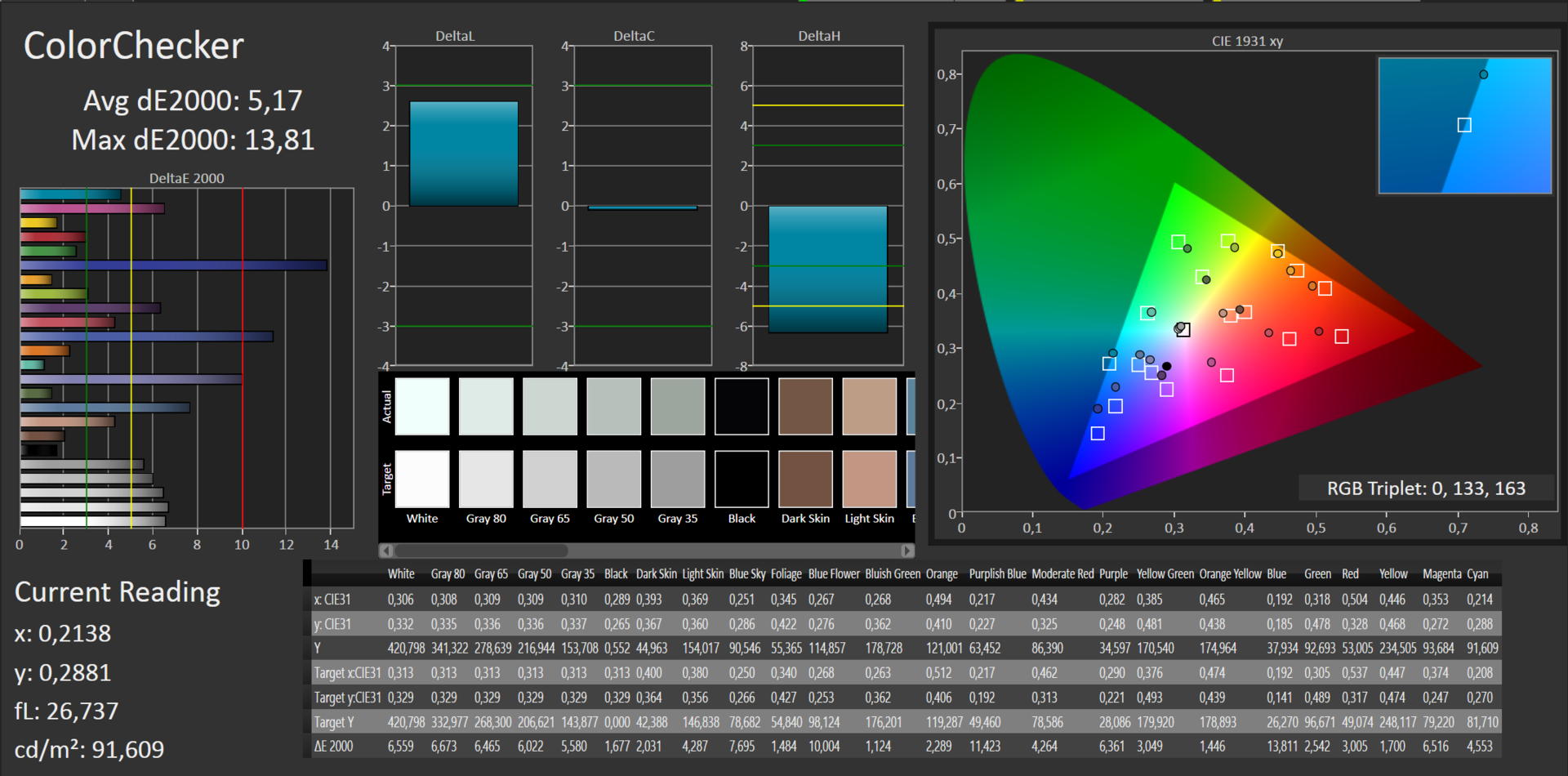

Calman Color
Calman Color

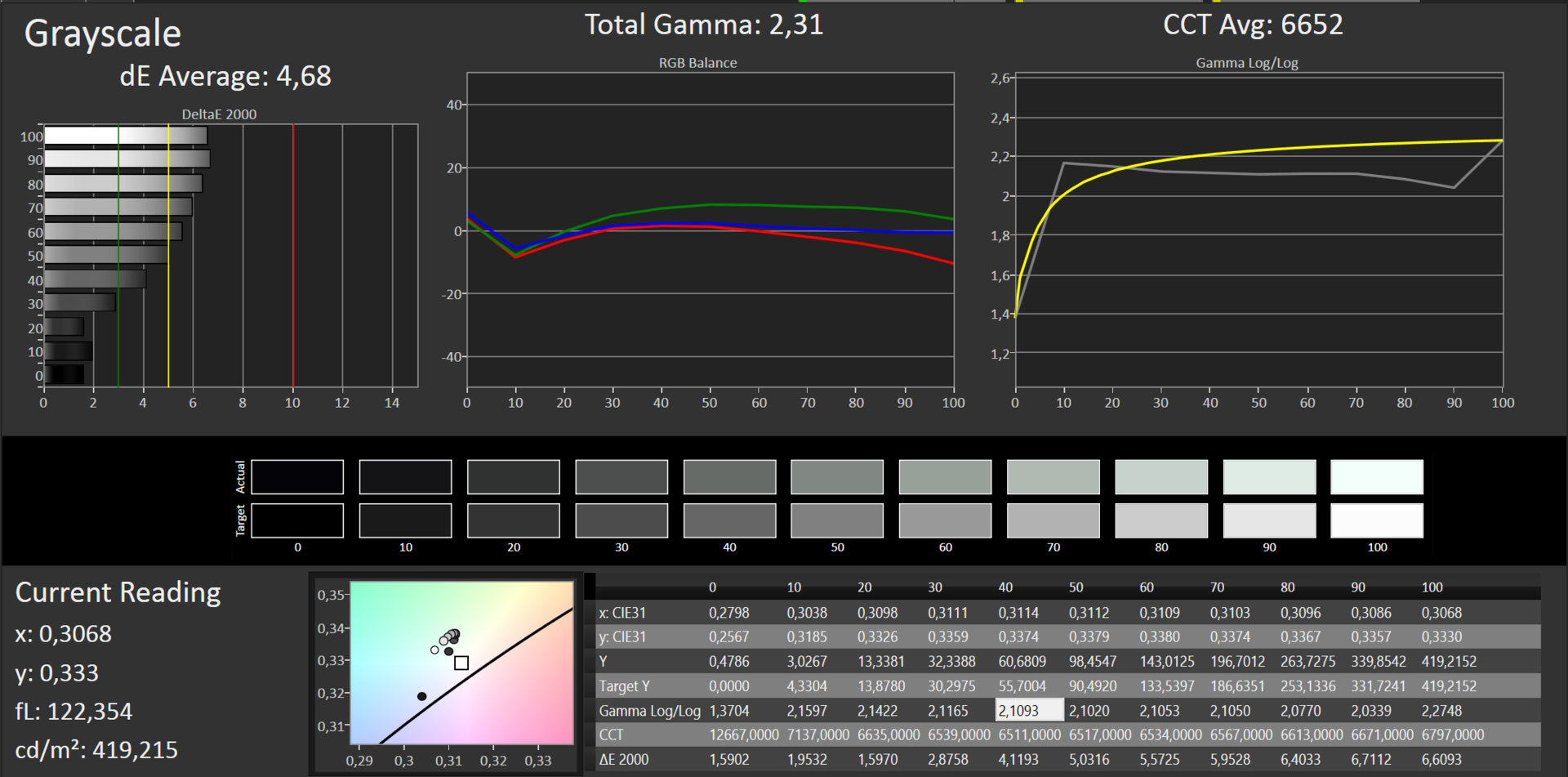

Calman Greyscale
Calman Greyscale

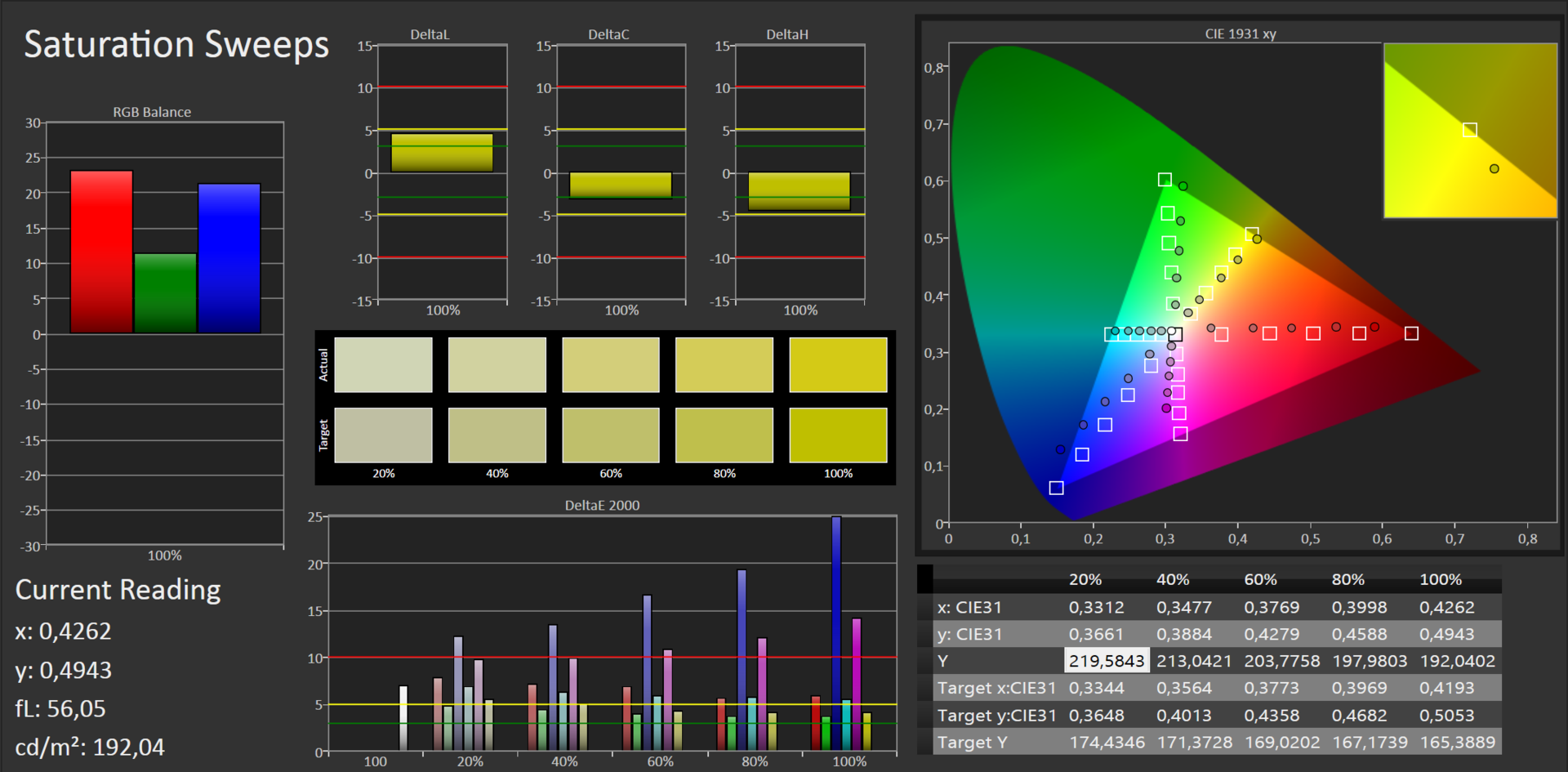

Calman Saturation
Calman Saturation
415
cd/m²		425
cd/m²		417
cd/m²
421
cd/m²		436
cd/m²		422
cd/m²
415
cd/m²		402
cd/m²		407
cd/m²
Distribution of brightness
AU Optronics AU017D8 tested with X-Rite i1Pro 2
Maximum: 436 cd/m² (Nits) Average: 417.8 cd/m²
Brightness Distribution: 92 %
Center on Battery: 436 cd/m²
Contrast: 752:1 (Black: 0.58 cd/m²)
ΔE Color 5.17 | 0.5-29.43 Ø5
ΔE Greyscale 4.68 | 0.57-98 Ø5.3
Gamma: 2.31

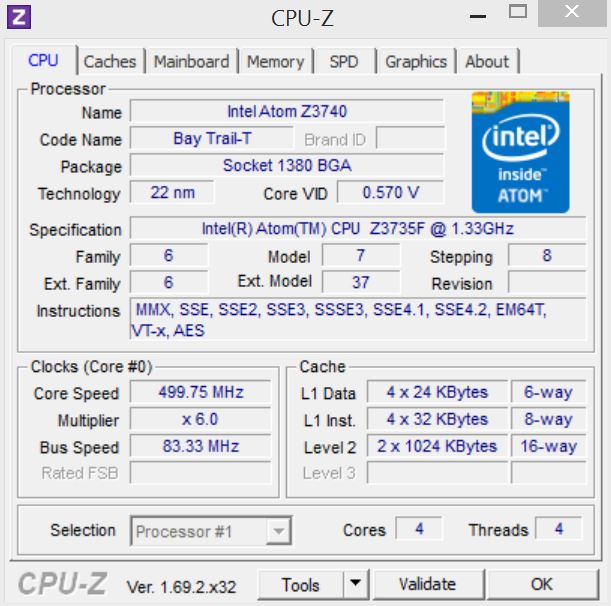

CPUZ CPU Information
CPUZ CPU Information

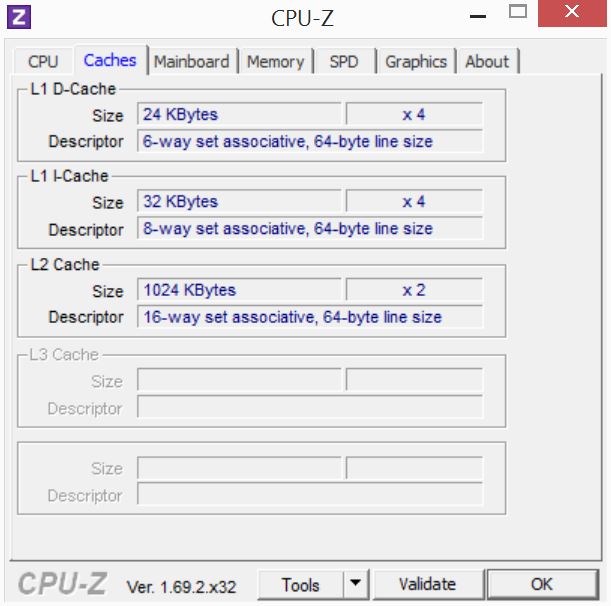

CPUZ CPU cache information
CPUZ CPU cache information

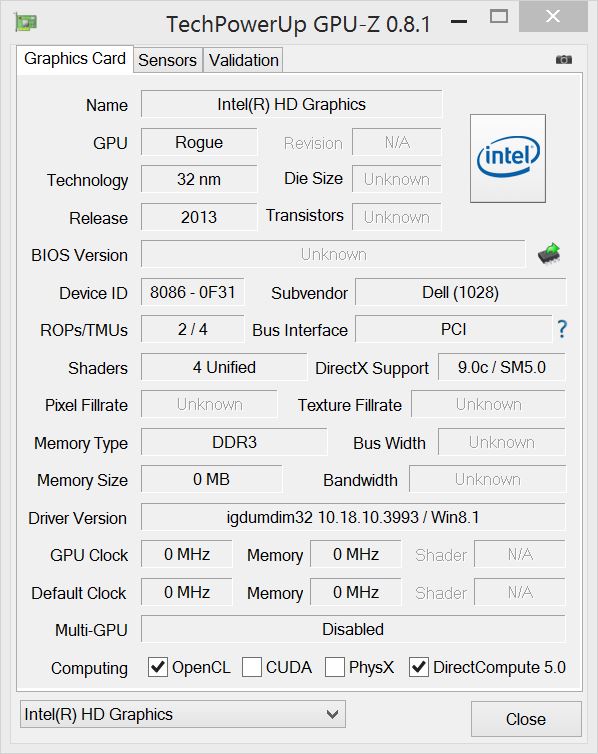

GPUZ GPU information
GPUZ GPU information

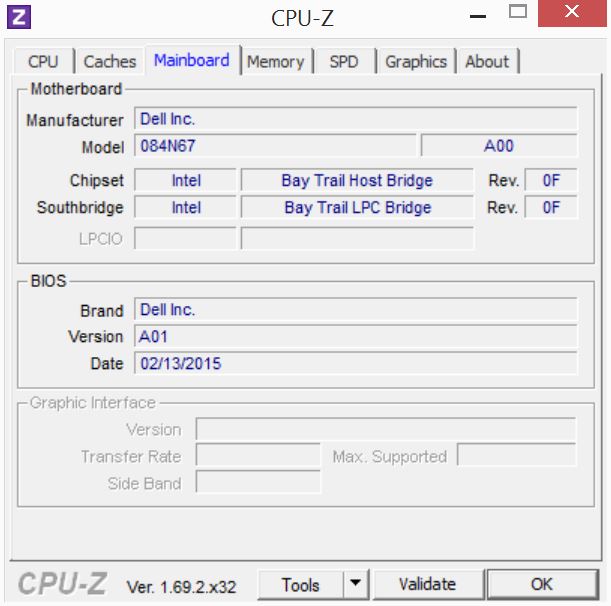

CPUZ mainboard information
CPUZ mainboard information

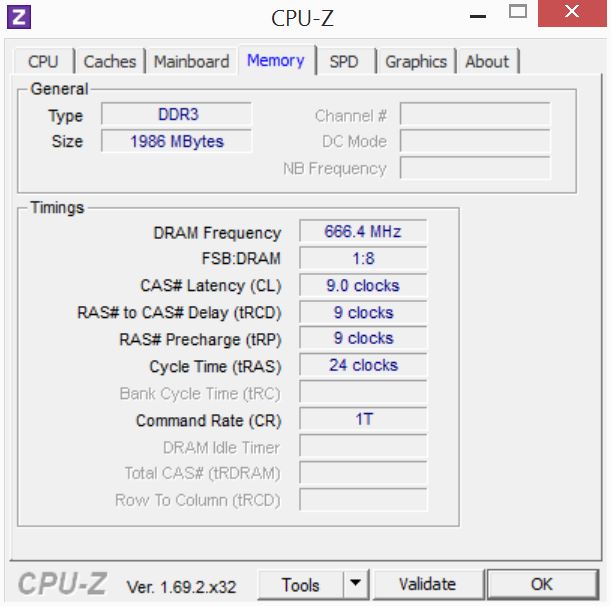

CPUZ memory
CPUZ memory
Cinebench R10 Rendering Single 32Bit
949
Cinebench R10 Rendering Multiple CPUs 32Bit
2926
Cinebench R10 Shading 32Bit
1826
Help
Cinebench R10 - Rendering Multiple CPUs 32Bit (sort by value)
Dell Venue 10 Pro 5055
2926 Points
Lenovo Miix 2 10
3226 Points +10%
Lenovo ThinkPad 10
3324 Points +14%
Trekstor SurfTab Wintron 10.1
2934 Points 0%
Asus Transformer Book T100TAL-DK021P
2514 Points -14%
Acer Aspire Switch 10 SW5-012-13DP
2424 Points -17%
Microsoft Surface 3
4356 Points +49%
Asus Transformer Book T300FA-FE001H
4966 Points +70%
Microsoft Surface Pro 3
7067 Points +142%
PCMark 7 Score
2351 points
PCMark 8 Home Score Accelerated v2
858 points
PCMark 8 Creative Score Accelerated v2
766 points
PCMark 8 Work Score Accelerated v2
1044 points
Help
PCMark 8 - Work Score Accelerated v2 (sort by value)
Dell Venue 10 Pro 5055
1044 Points
Asus Transformer Book T100TAL-DK021P
1144 Points +10%
Trekstor SurfTab Wintron 10.1
1187 Points +14%
CrystalDiskMark 3.0
Write 4k (sort by value)
Dell Venue 10 Pro 5055
9.182 MB/s
Lenovo ThinkPad 10
3.888 MB/s -58%
Asus Transformer Book T100TAL-DK021P
4.187 MB/s -54%
Trekstor SurfTab Wintron 10.1
4.297 MB/s -53%
Acer Aspire Switch 10 SW5-012-13DP
5.603 MB/s -39%
Acer Aspire ES1-111-C56A
5.533 MB/s -40%
Read Seq (sort by value)
Dell Venue 10 Pro 5055
165.7 MB/s
Lenovo ThinkPad 10
124.5 MB/s -25%
Asus Transformer Book T100TAL-DK021P
95.7 MB/s -42%
Trekstor SurfTab Wintron 10.1
102.1 MB/s -38%
Acer Aspire Switch 10 SW5-012-13DP
169.3 MB/s +2%
Acer Aspire ES1-111-C56A
157.9 MB/s -5%
3DMark 11 Performance
203 points
Help
low med. high ultra
World of Warcraft (2005) 33 23 12 7
Max. Load
 33.6 °C43.6 °C31.1 °C
 28 °C28.5 °C27.2 °C
 31.2 °C37.7 °C37.5 °C
Maximum: 43.6 °C
Average: 33.2 °C
29.7 °C47.6 °C41 °C
29.5 °C32.1 °C30.8 °C
32.2 °C30.7 °C29.6 °C
Maximum: 47.6 °C
Average: 33.7 °C
Power Supply (max.)  47.7 °C | Room Temperature 21.7 °C | Voltcraft IR-360
(±) The average temperature for the upper side under maximal load is 33.2 °C / 92 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 43.6 °C / 110 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(-) The bottom heats up to a maximum of 47.6 °C / 118 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 31.6 °C / 89 F, compared to the device average of 30.2 °C / 86 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 38 °C / 100.4 F.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-9.9 °C / -17.8 F).
Power Consumption
Off / Standbydarklight 0 / 0.2 Watt
Idledarkmidlight 2.8 / 5.4 / 5.5 Watt
Load midlight 10.9 / 11.1 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Battery Runtime
Idle (without WLAN, min brightness)
11h 15min
WiFi Surfing
4h 10min
Load (maximum brightness)
2h 30min

Pros

+ 坚固的机身
+ 明亮的屏幕
+ 丰富的配件（键盘，保护套）
+ 安全功能
+ 适合工业领域使用

Cons

- 在2015年它的性能相比较差
- 无时尚设计感
- 作为二合一产品较重
In review: Dell Venue 10. Test model provided by Dell
In review: Dell Venue 10. Test model provided by Dell

搭配键盘的戴尔 Venue 10 Pro 5055是一款做工精良的便携Windows 8.1二合一PC，不过它的推出时间正逢Intel Atom系列处理器更新换代之际，用户对老版的Baytrail-T架构可能会有些失望。戴尔选择不采用可以支持64位操作系统和提供更高性能的高端Z3795处理器，让它可能难以与微软Surface 3相抗衡。正是因此，微软Surface 3的性能更加全面。

它的键盘相对尺寸来说十分优秀，而平板也相对更加坚固耐用而飞轻薄便携。考虑到可选的手写笔，硬盘加密和BIOS安全选项，以及出色的屏幕亮度，它应该可以成为一款非常适合移动办公以及工业生产环境的设备。MicroUSB接口充电（例如在车中）也回是一个优势，尽管充电速度不快。它的硬件十分适合学生的需要，不过在处理器和显卡性能方面的欠缺让它难以完美应对所有的应用。

对于大部分用户来说Venue 10 Pro的键盘所提供的使用体验可能会优于Surface 3。

我们很难将它与Surface 3直接对比，不过我们的测试结果显示它的性能较低，而机身重量较高。对于大部分用户来说Venue 10 Pro的键盘所提供的使用体验可能会优于Surface 3。它在键盘实用性上也可以超过联想Miix 2 10，尽管这款2013年上市的产品提供了同样的处理性能。这再一次说明Baytrail-T已经接近生命周期，戴尔需要尽快为它提供Xtom X5或Atom X7的更新。如果能够得到处理器升级，戴尔Venue 10 Pro将会在办公二合一设备中成为非常有竞争力的一款产品。而在这之前，戴尔Venue 10 Pro 5055可能更适合作为特别用途设备而非一般消费者。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Dell Venue 10 Pro 5055 - 05/13/2015 v4(old)
Steve Chippy Paine

Chassis
71 / 98 → 72%
Keyboard
58%
Pointing Device
72%
Connectivity
43 / 80 → 54%
Weight
81 / 35-78 → 100%
Battery
87%
Display
80%
Games Performance
20 / 68 → 29%
Application Performance
45 / 87 → 52%
Temperature
83%
Noise
100%
Audio
59 / 91 → 65%
Camera
54 / 85 → 64%
Average
66%
76%
Convertible - Weighted Average
