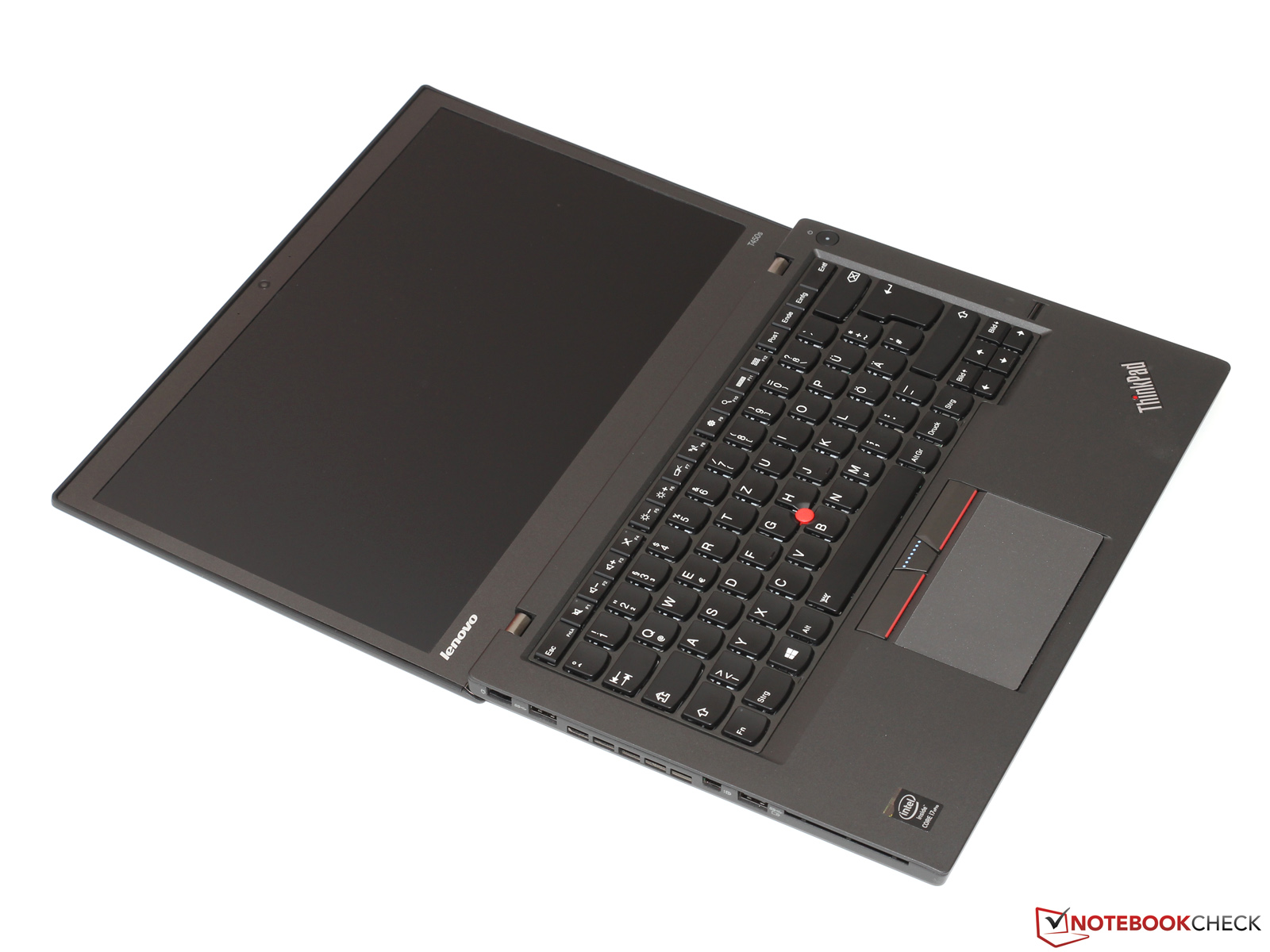

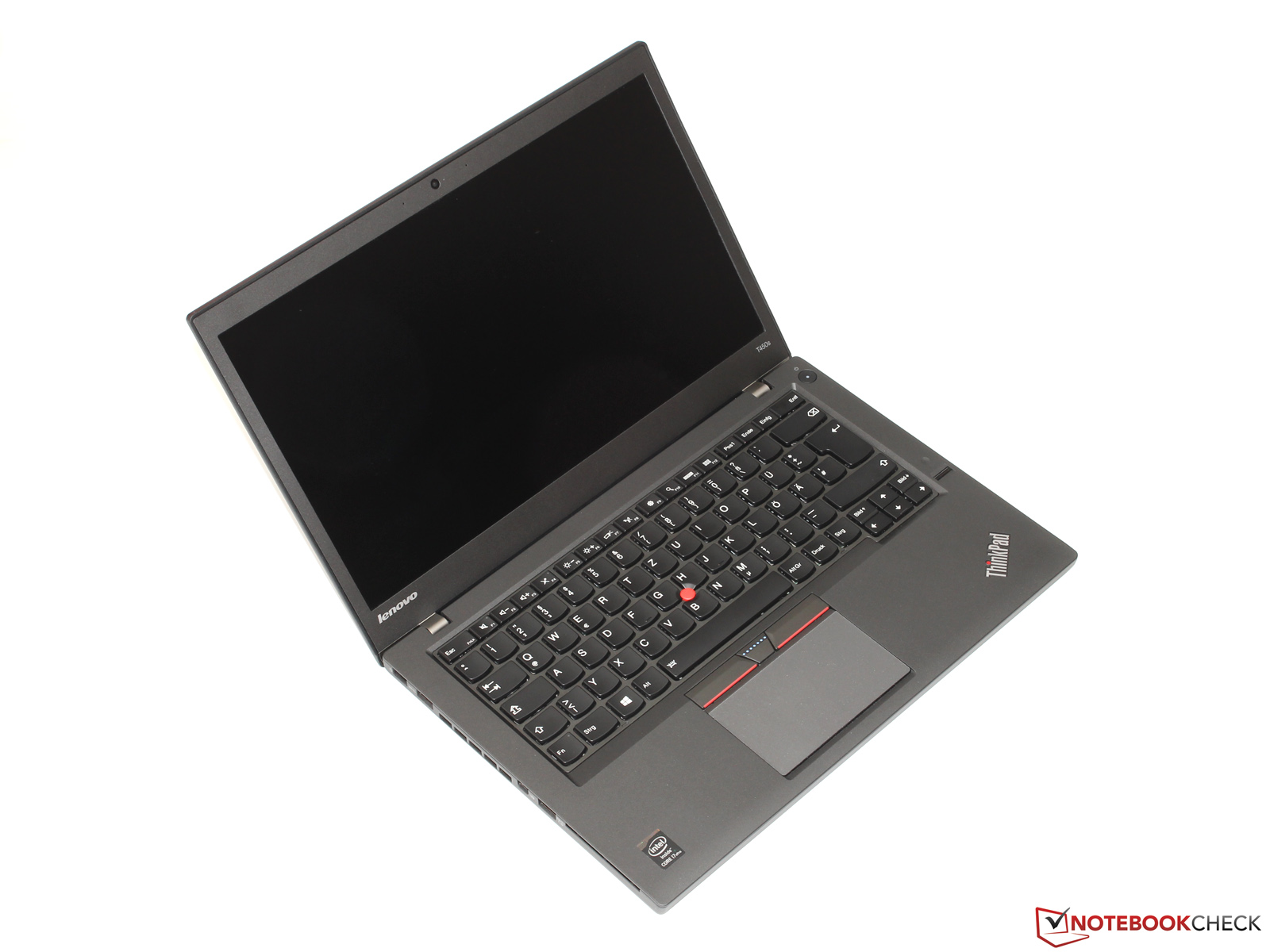

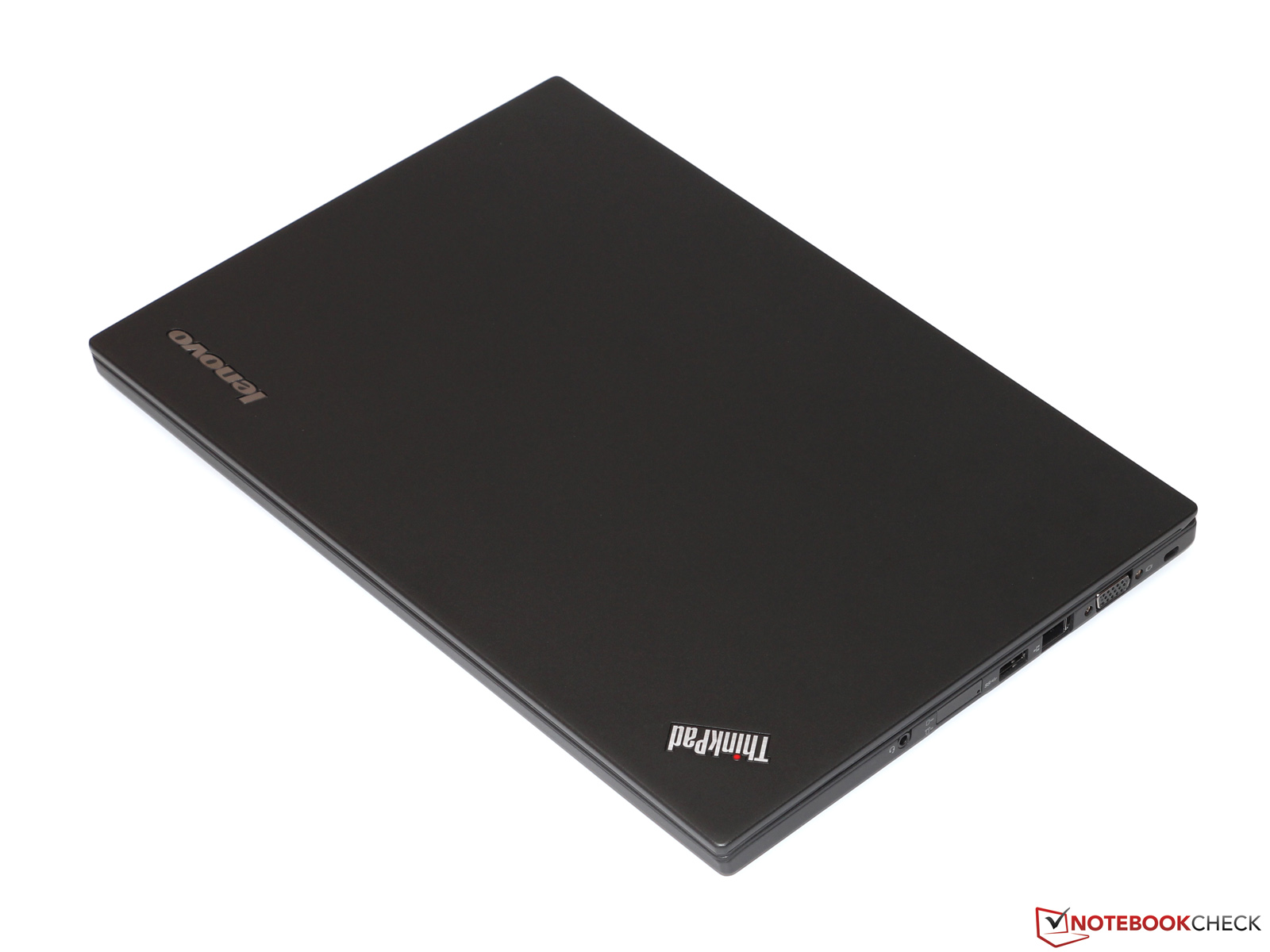

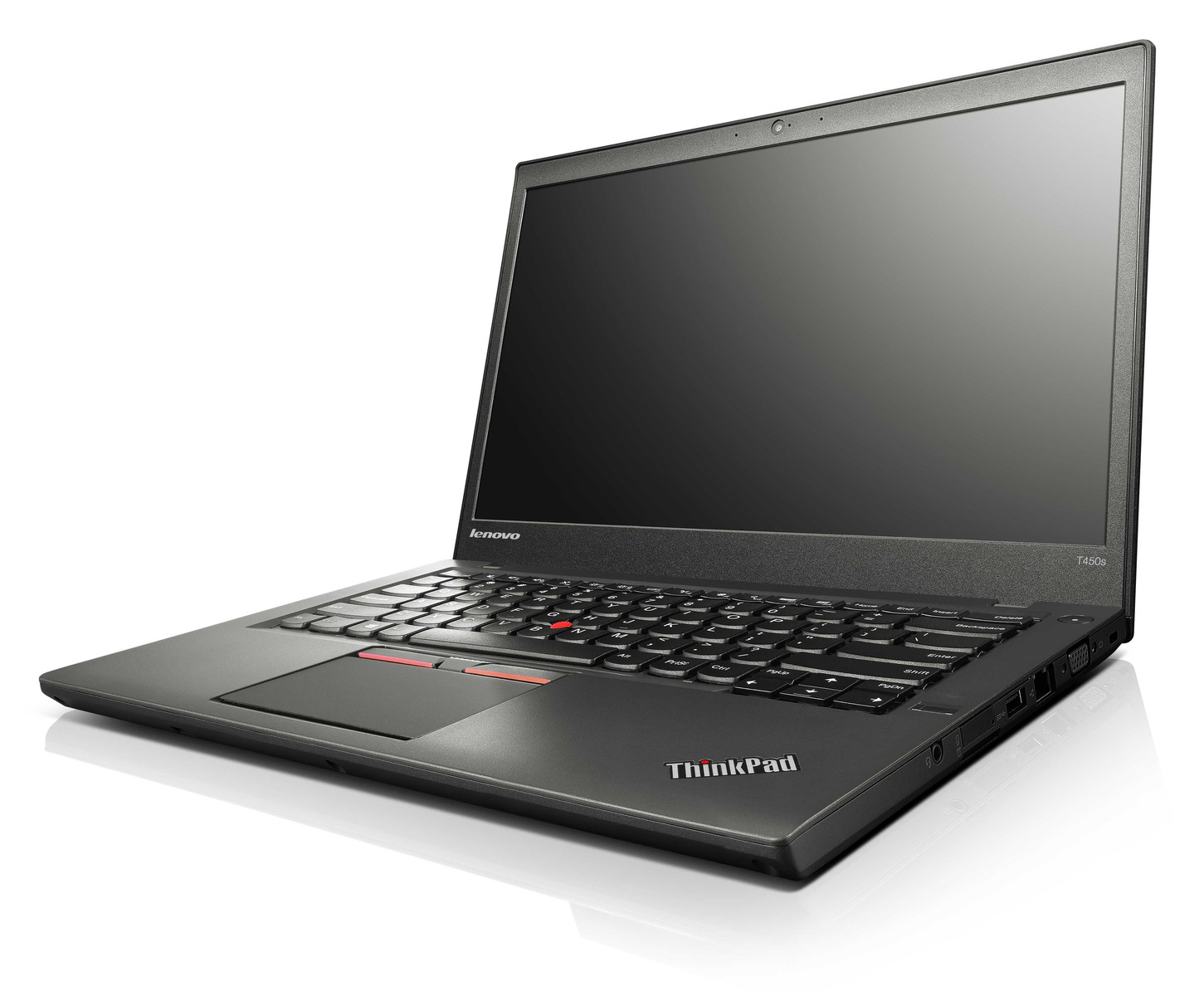

联想 ThinkPad T450s 超极本简短评测

Name: Lenovo ThinkPad T450s-20BWS1UT00
Brand: Lenovo

游戏开始！ 搭配一块Nvidia GeForce 940M显卡，ThinkPad T450s可以运行3D应用程序和游戏——而需要增加的预算却不多。由于96Wh的电池容量，它可能会达到破纪录的电池续航时间。

Till Schönborn, ✓ Stefanie Voigt (translated by Yuchen Wang), Published 05/22/2015 🇺🇸 🇩🇪 ...

Broadwell Business Laptop / Notebook Ultrabook Windows

Test device courtesy of campuspoint.de

Download your licensed rating image as PNG / SVG

Lenovo ThinkPad T450s-20BWS1UT00 (ThinkPad T450s Series)

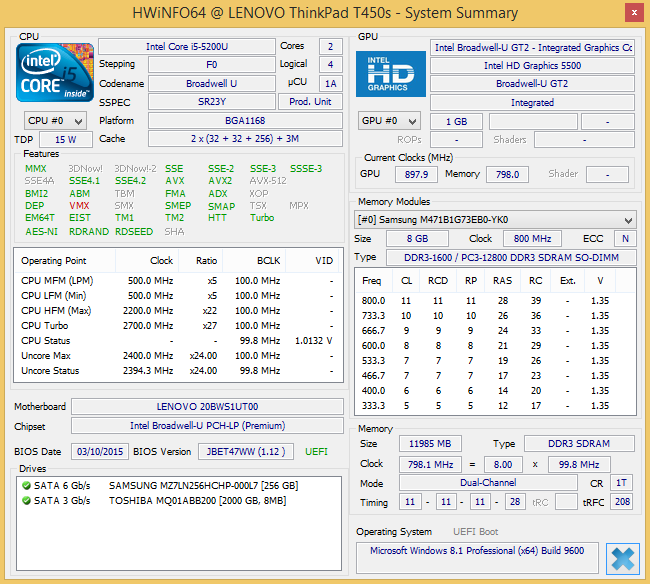

Processor

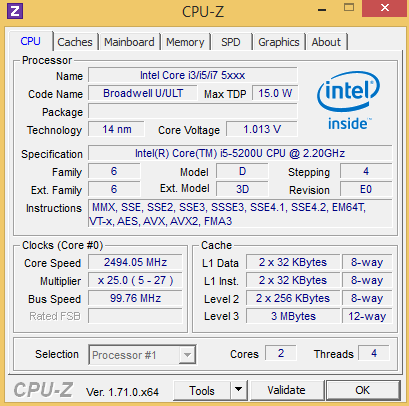

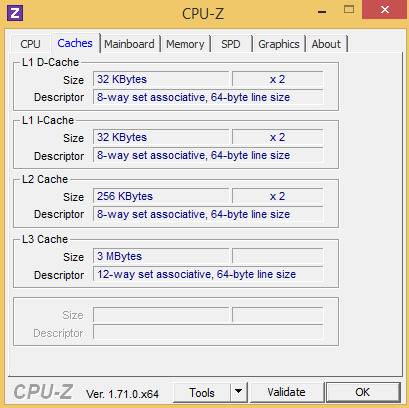

Intel Core i5-5200U 2 x 2.2 - 2.7 GHz, Broadwell

Graphics adapter

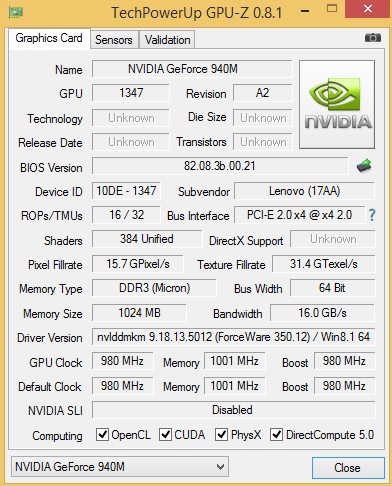

NVIDIA GeForce 940M - 1024 MB VRAM, Core: 980 MHz, Memory: 1000 MHz, DDR3 内存, ForceWare 350.12, Optimus

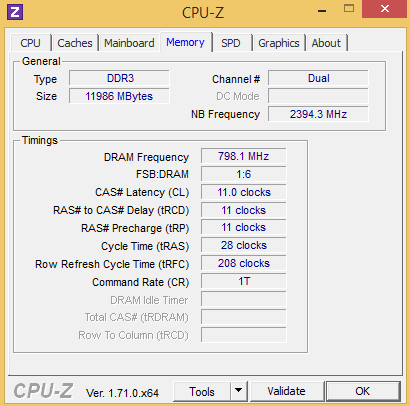

Memory

12 GB

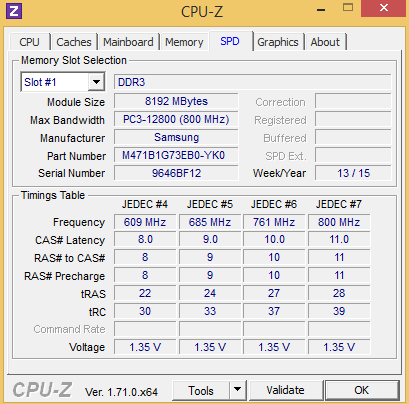

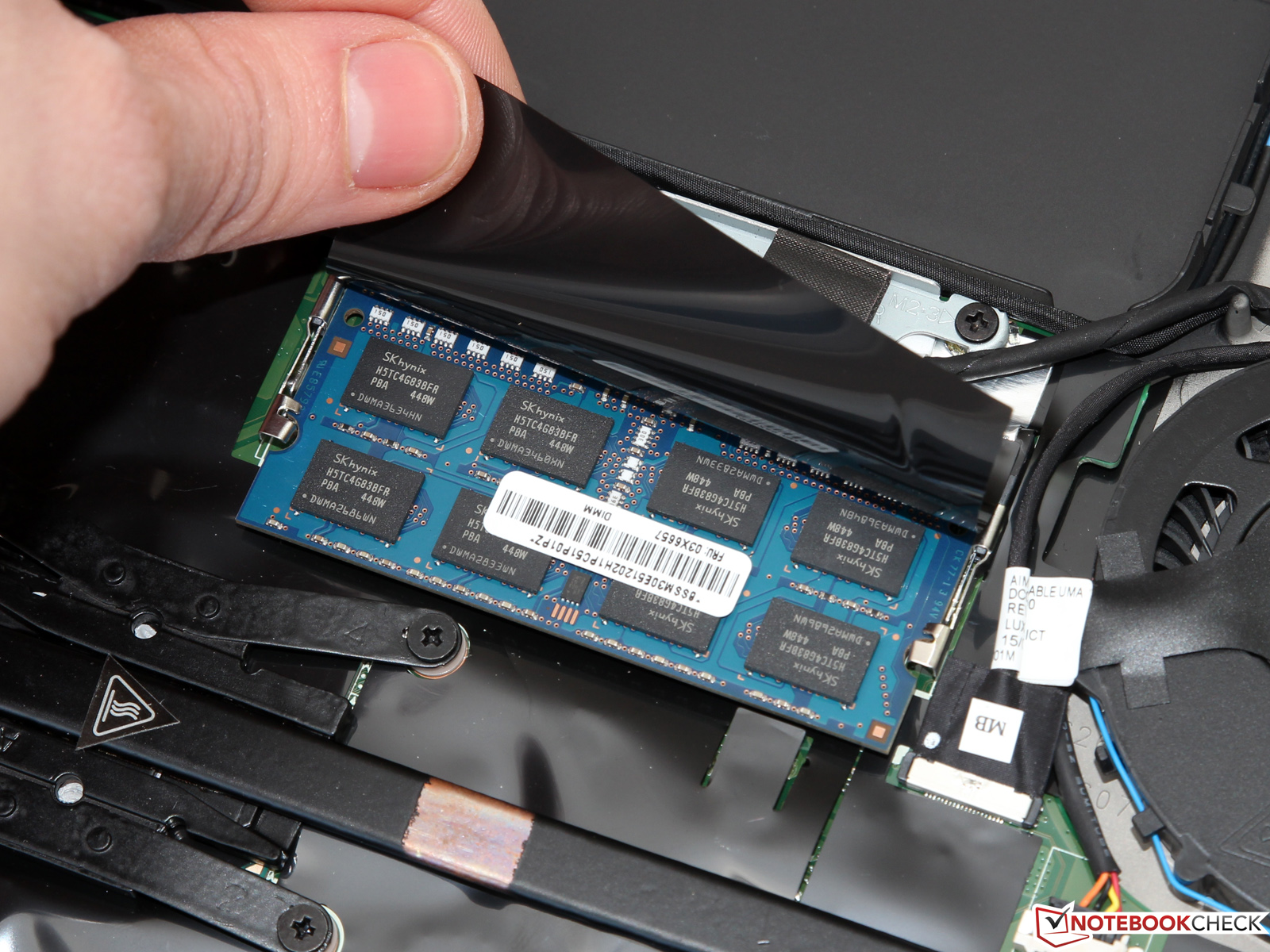

, 8 GB DDR3L-1600 + 4 GB 板载，一个内存槽，已占用

Display

14.00 inch 16:9, 1920 x 1080 pixel, LP140WF3-SPD1, IPS 屏幕, LED背光, glossy: no

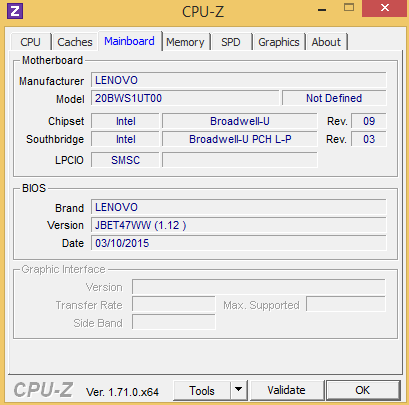

Mainboard

Intel Broadwell-U PCH-LP (Premium)

Storage

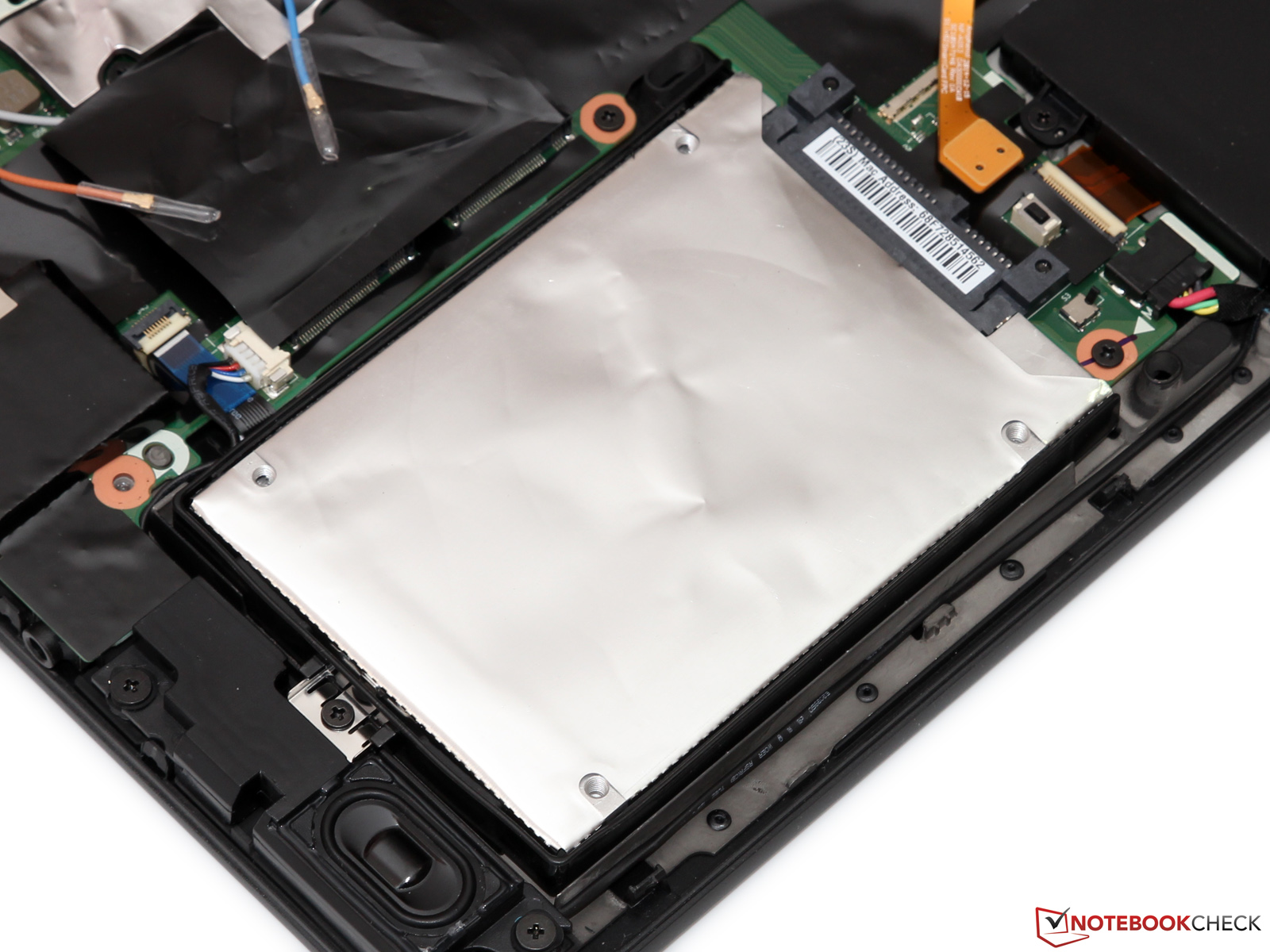

Samsung SSD PM871 MZ7LN256HCHP, 256 GB

, 2.5寸硬盘, 205 GB free

Soundcard

Intel Broadwell PCH-LP - High Definition Audio Controller

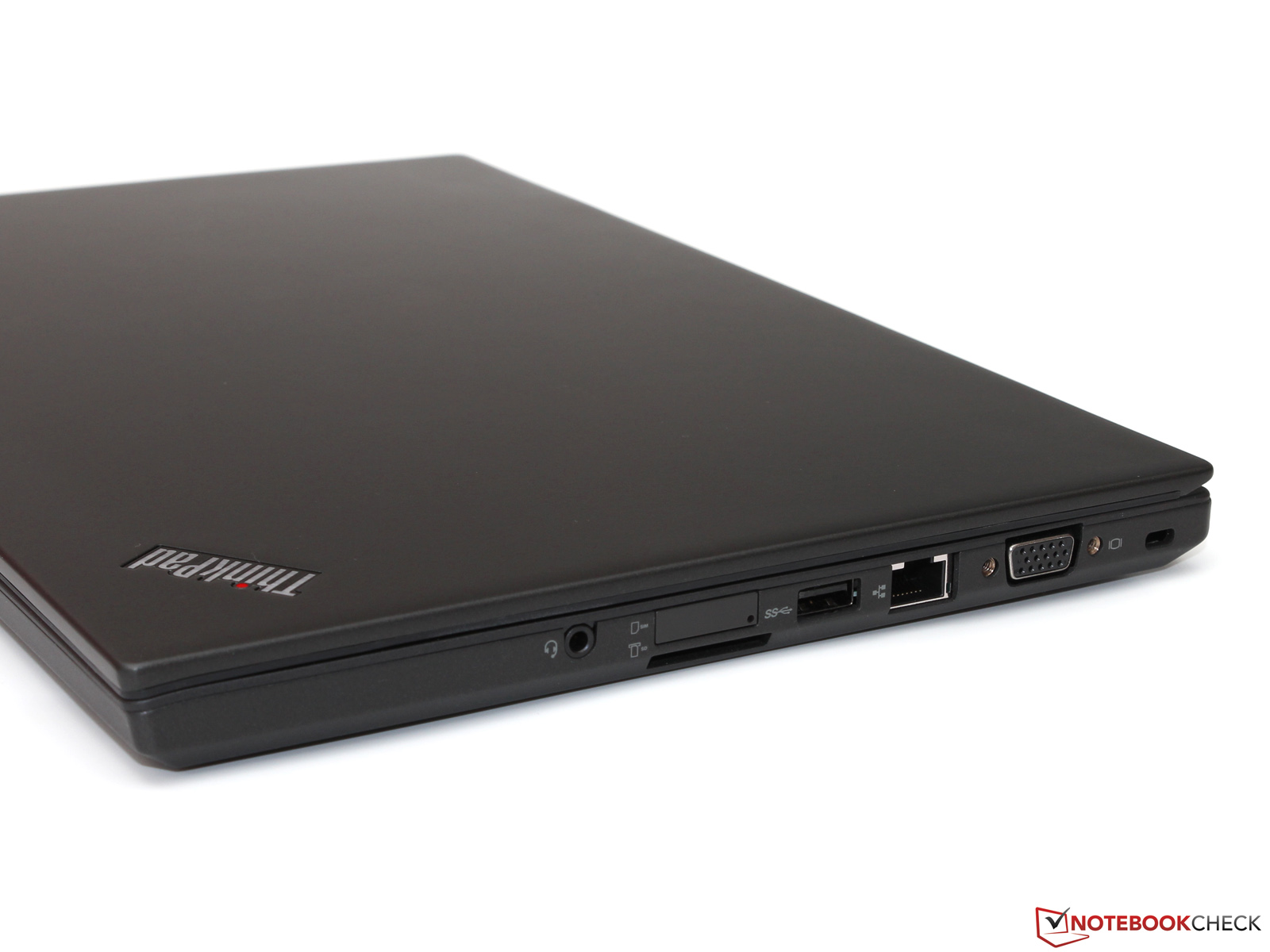

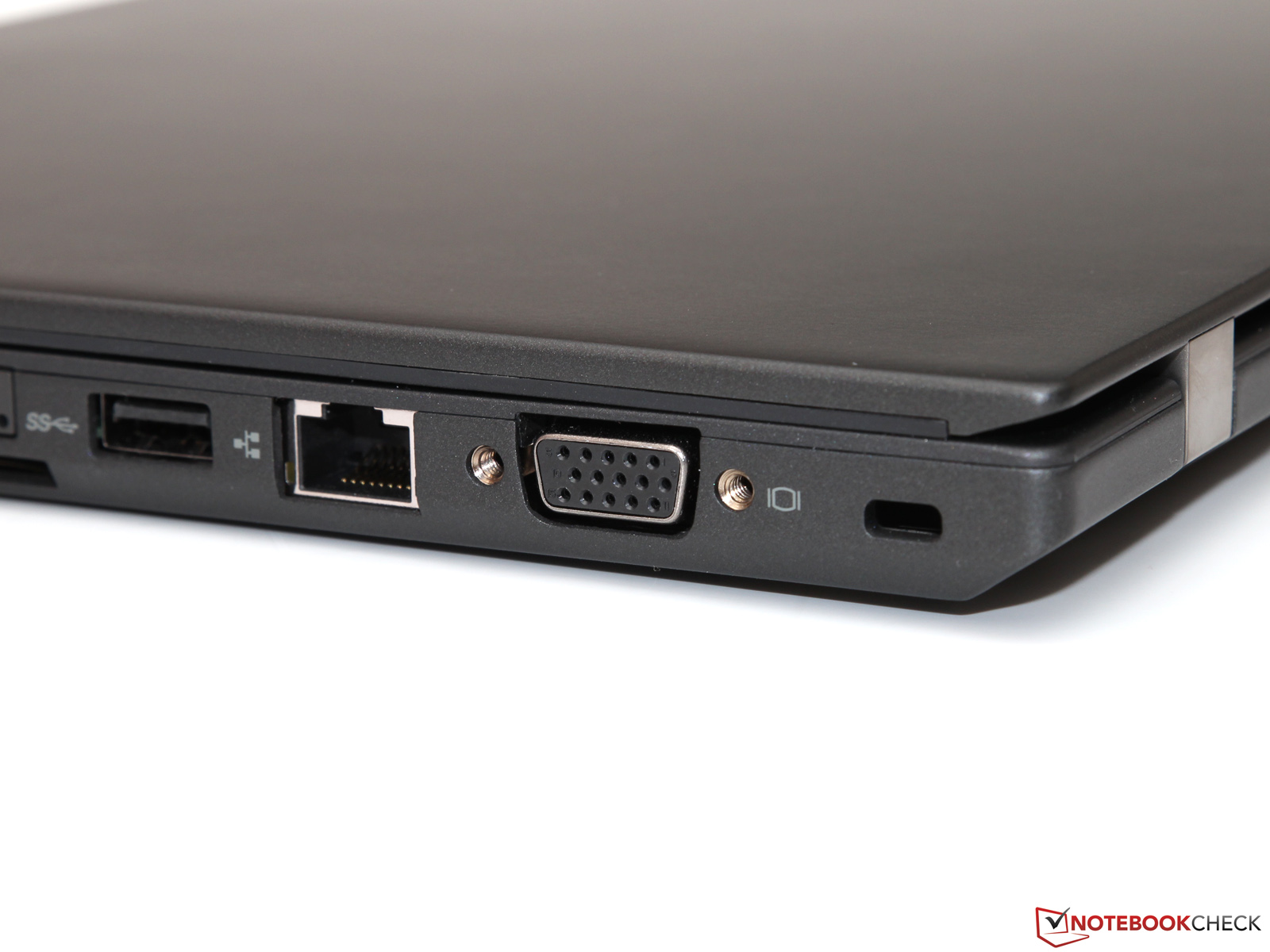

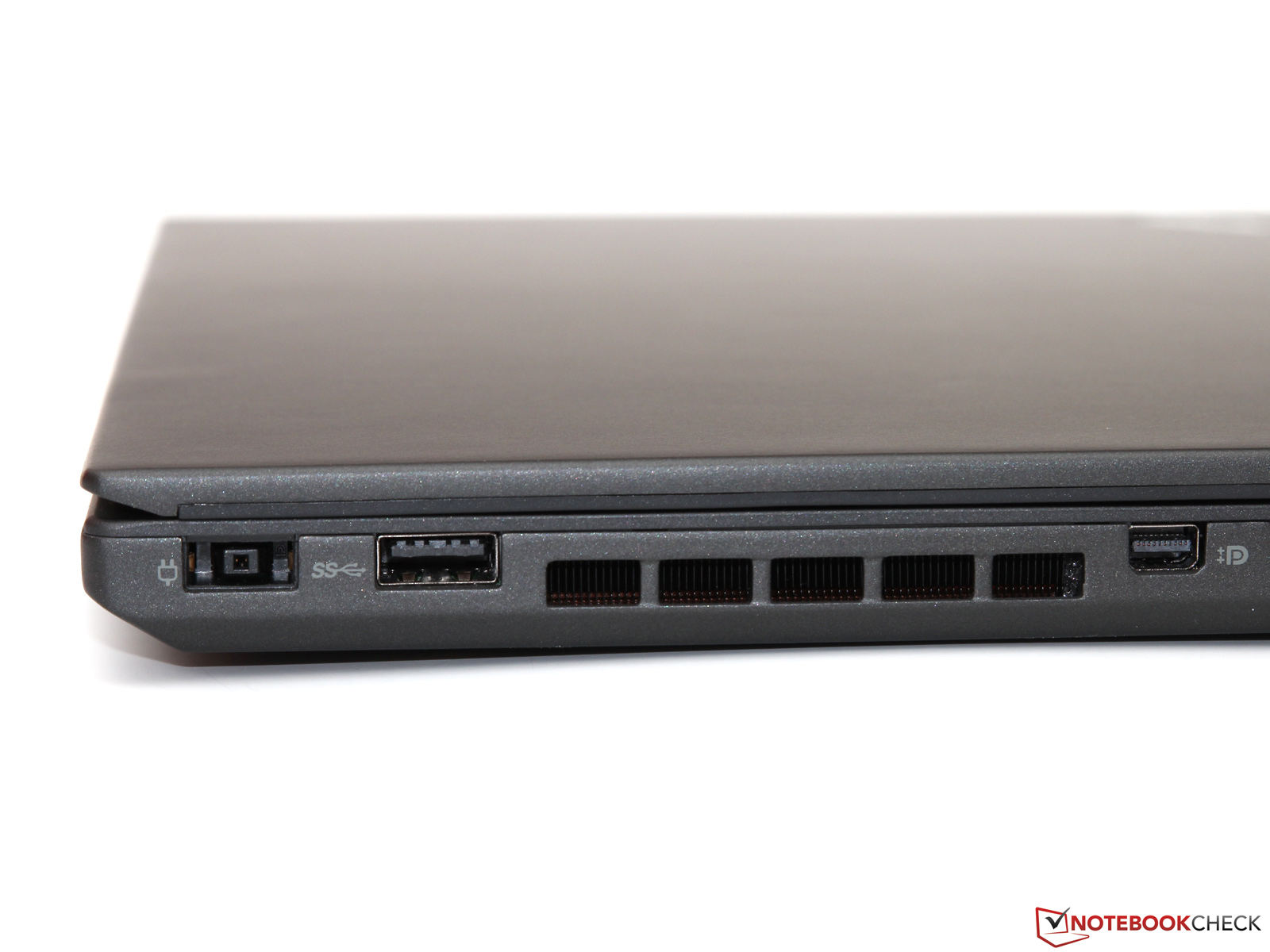

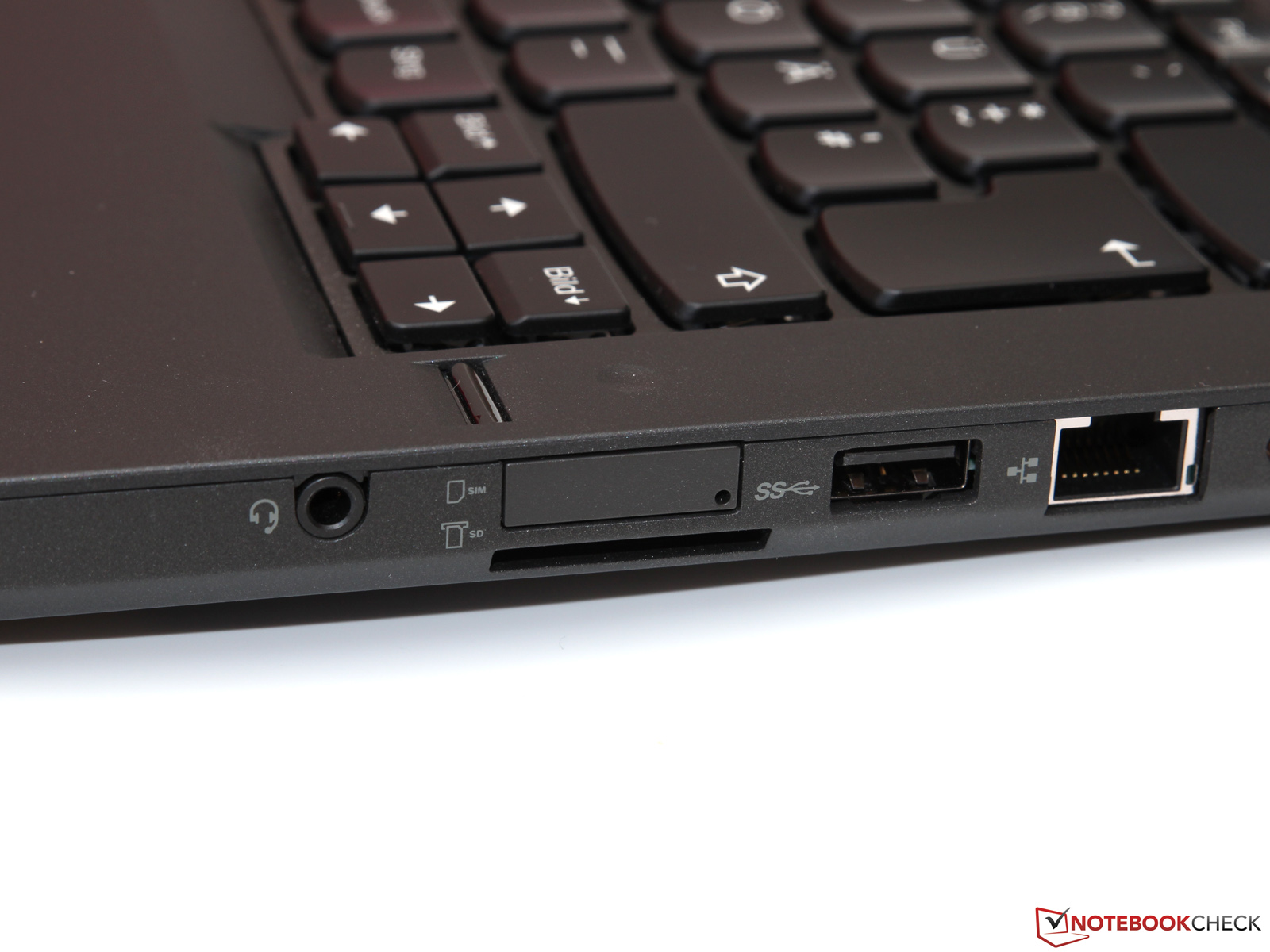

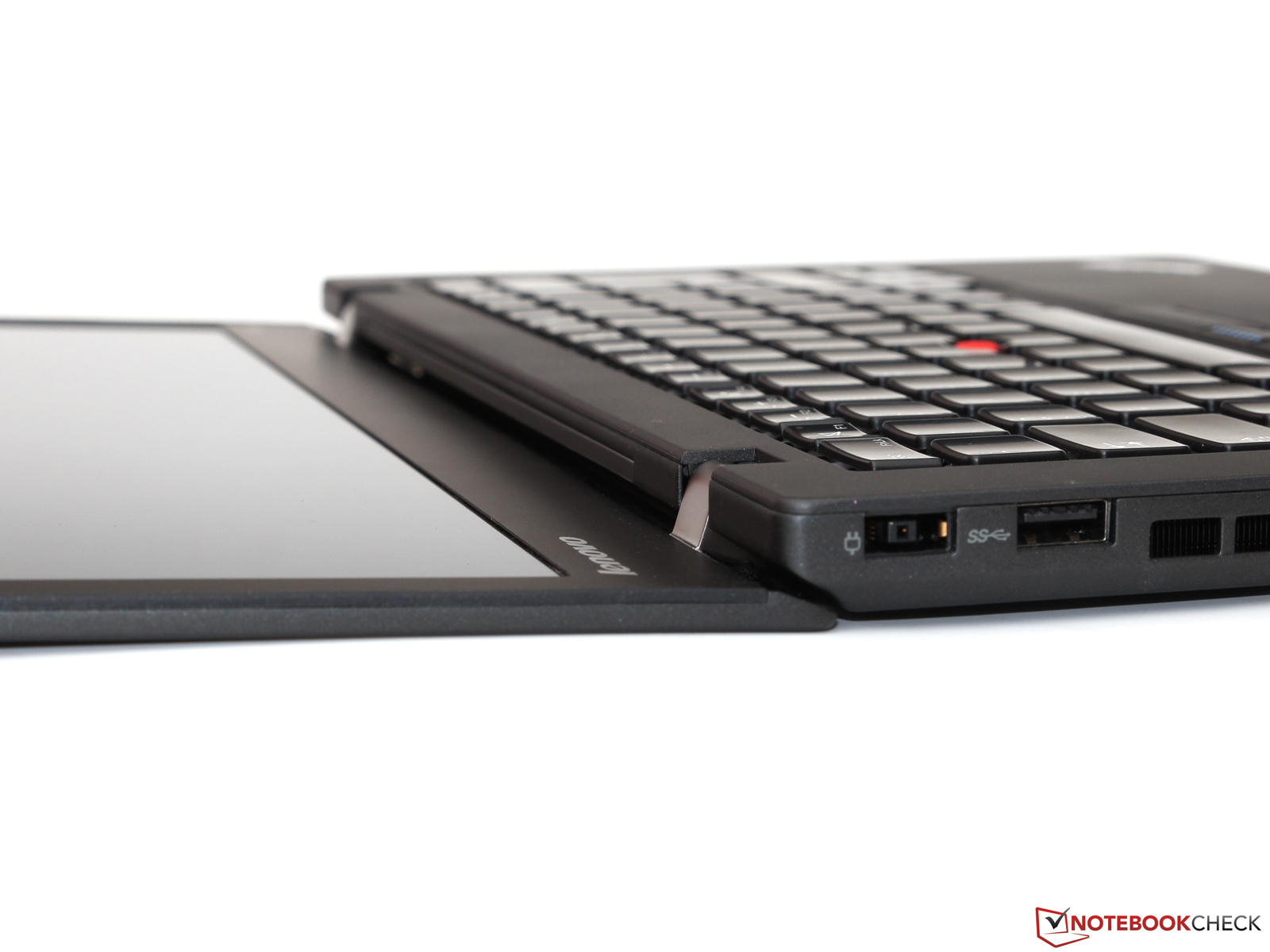

Connections

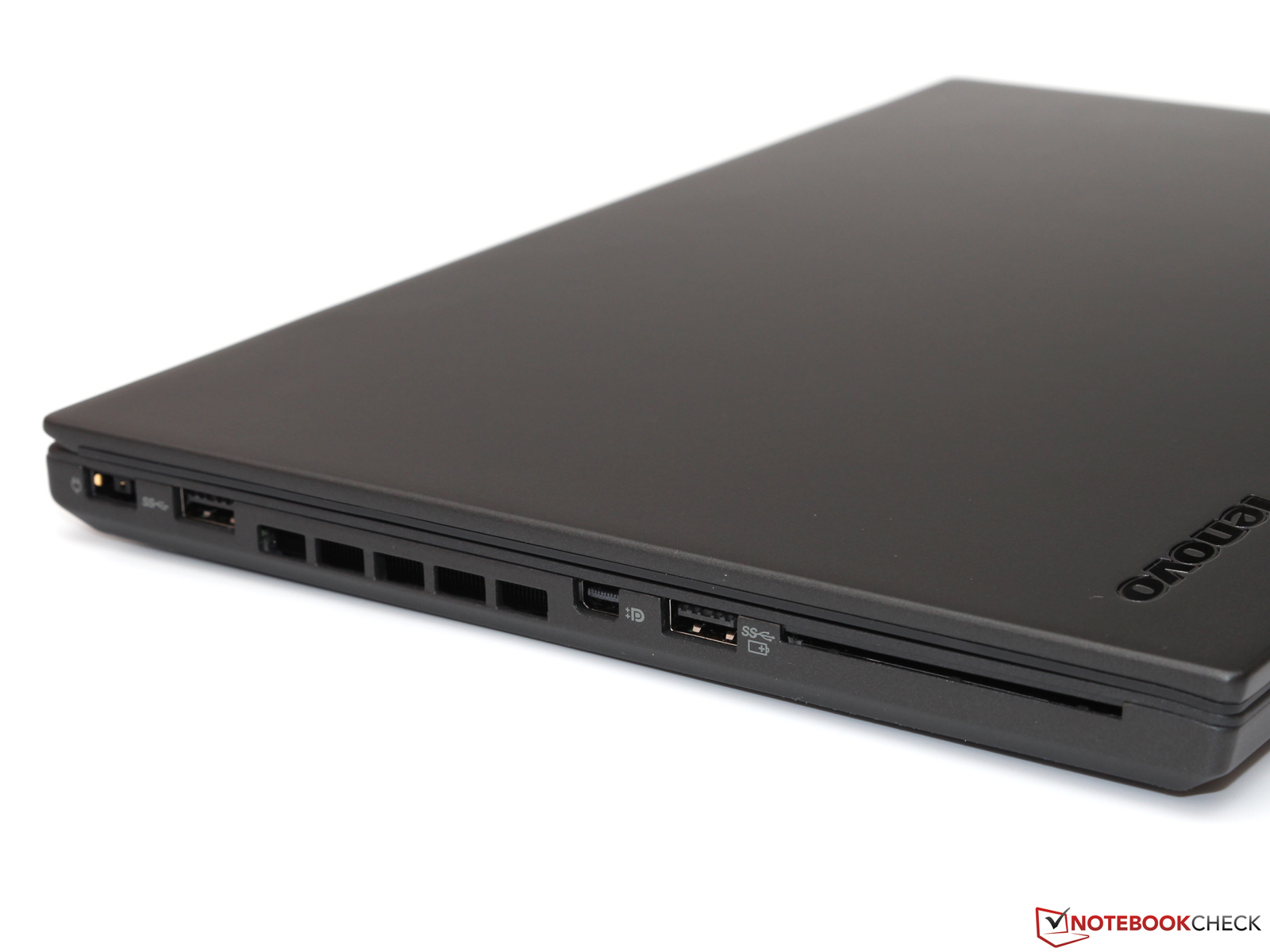

3 USB 3.0 / 3.1 Gen1, 1 VGA, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 3.5毫米整合耳机接口, Card Reader: 四合一 (MMC, SD, SDHC, SDXC), 1 Fingerprint Reader, Brightness Sensor

Networking

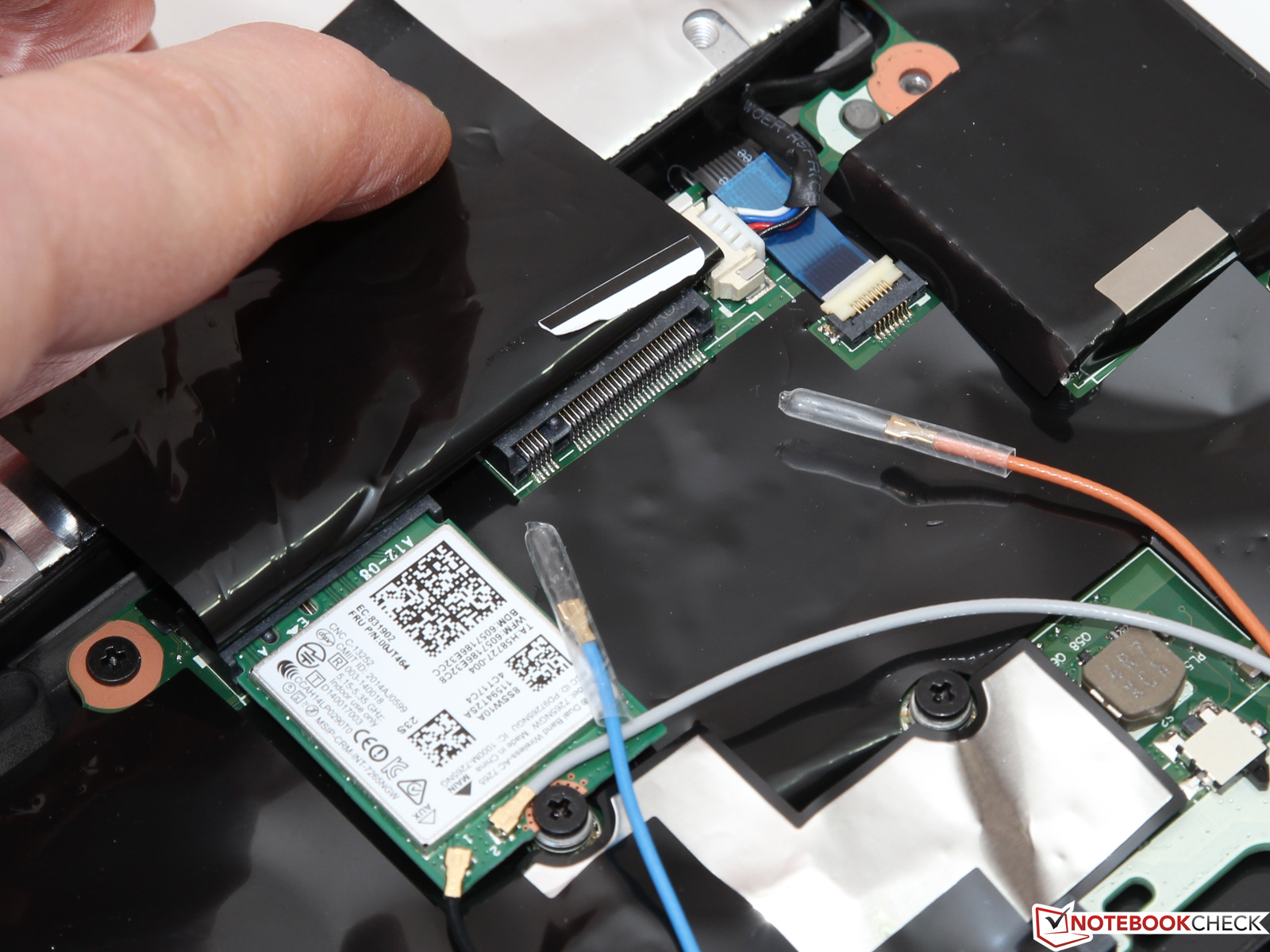

Intel Ethernet Connection I218-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7265 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0

Size

height x width x depth (in mm): 34 x 331 x 226

Battery

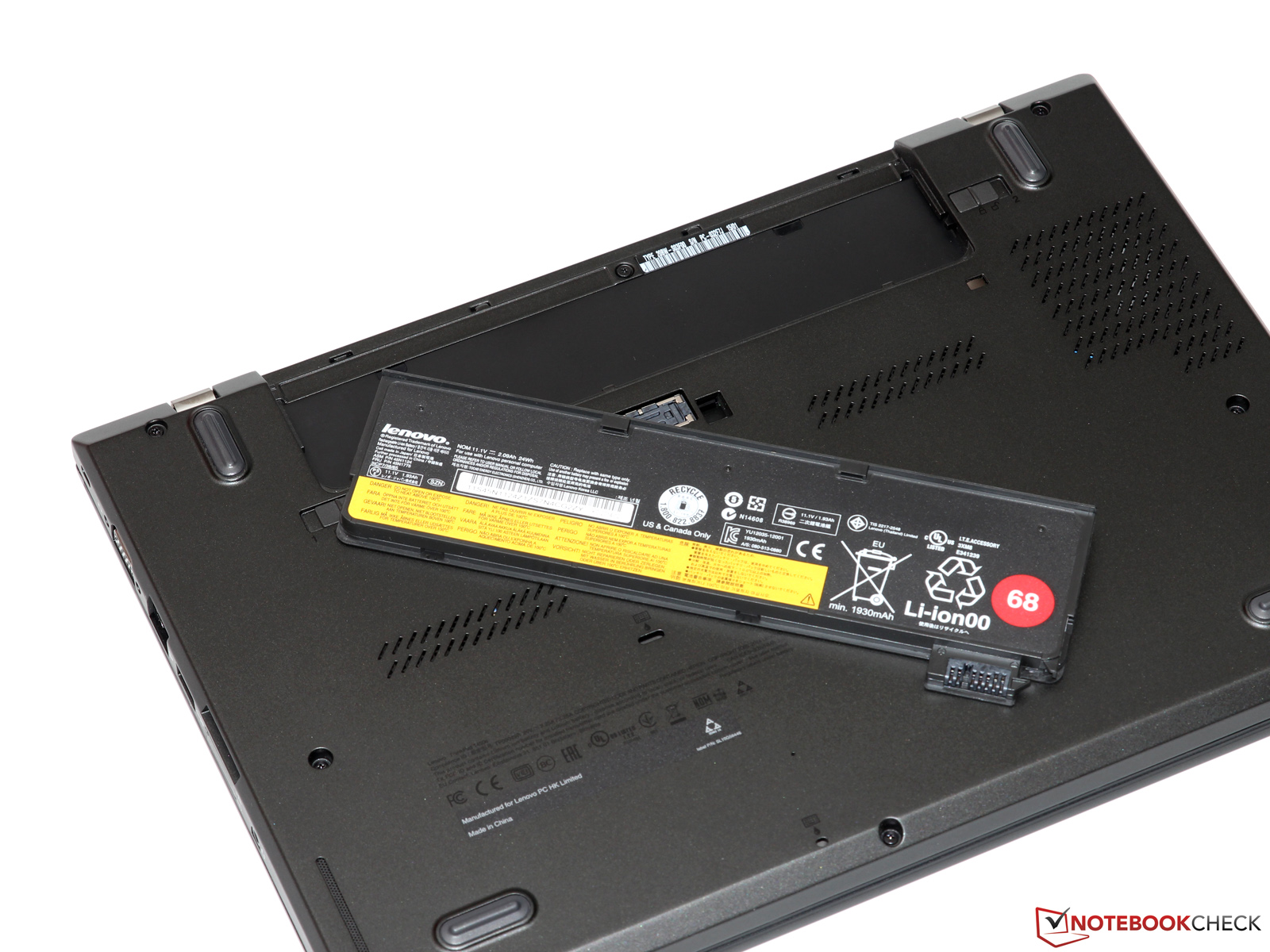

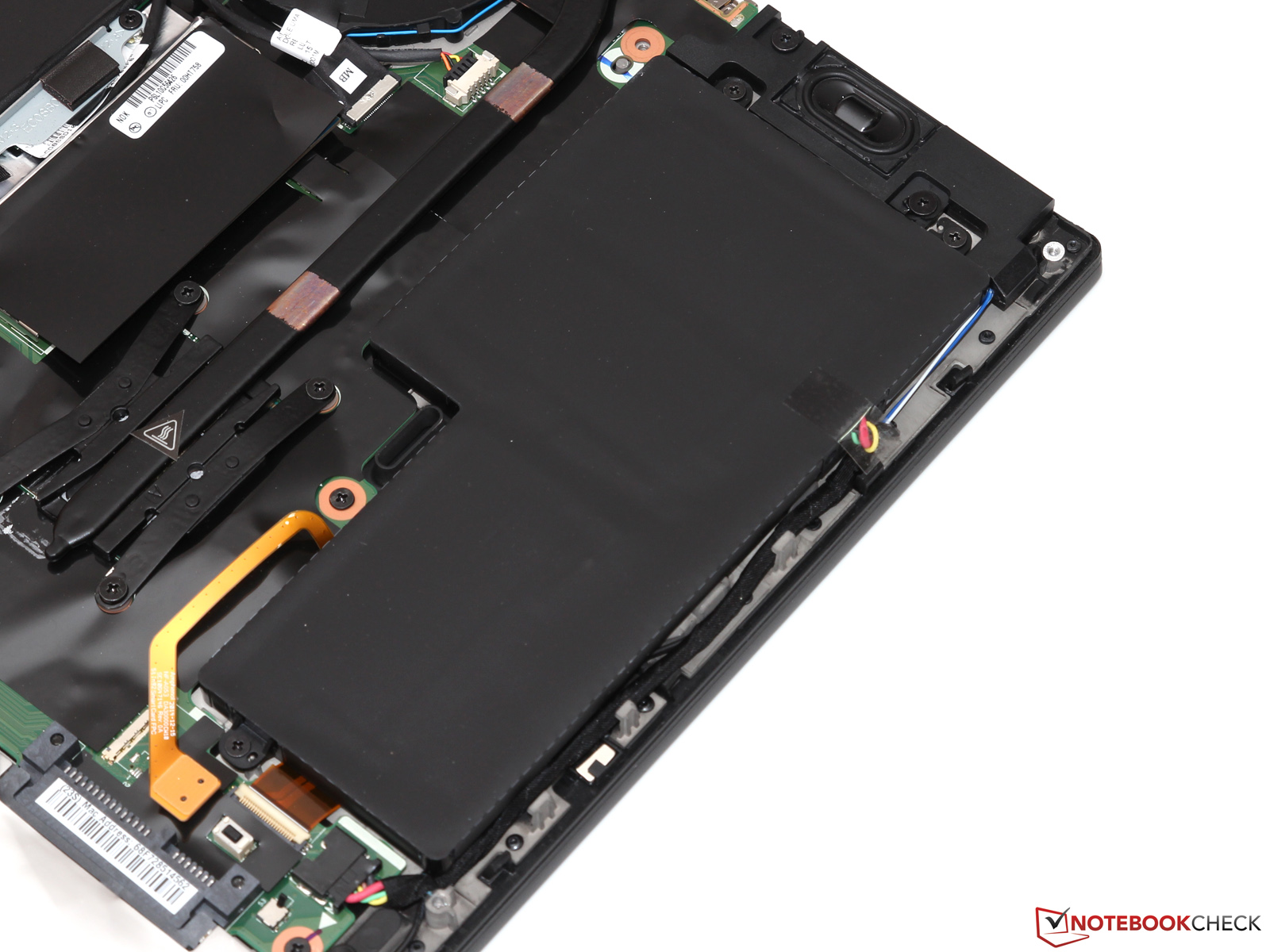

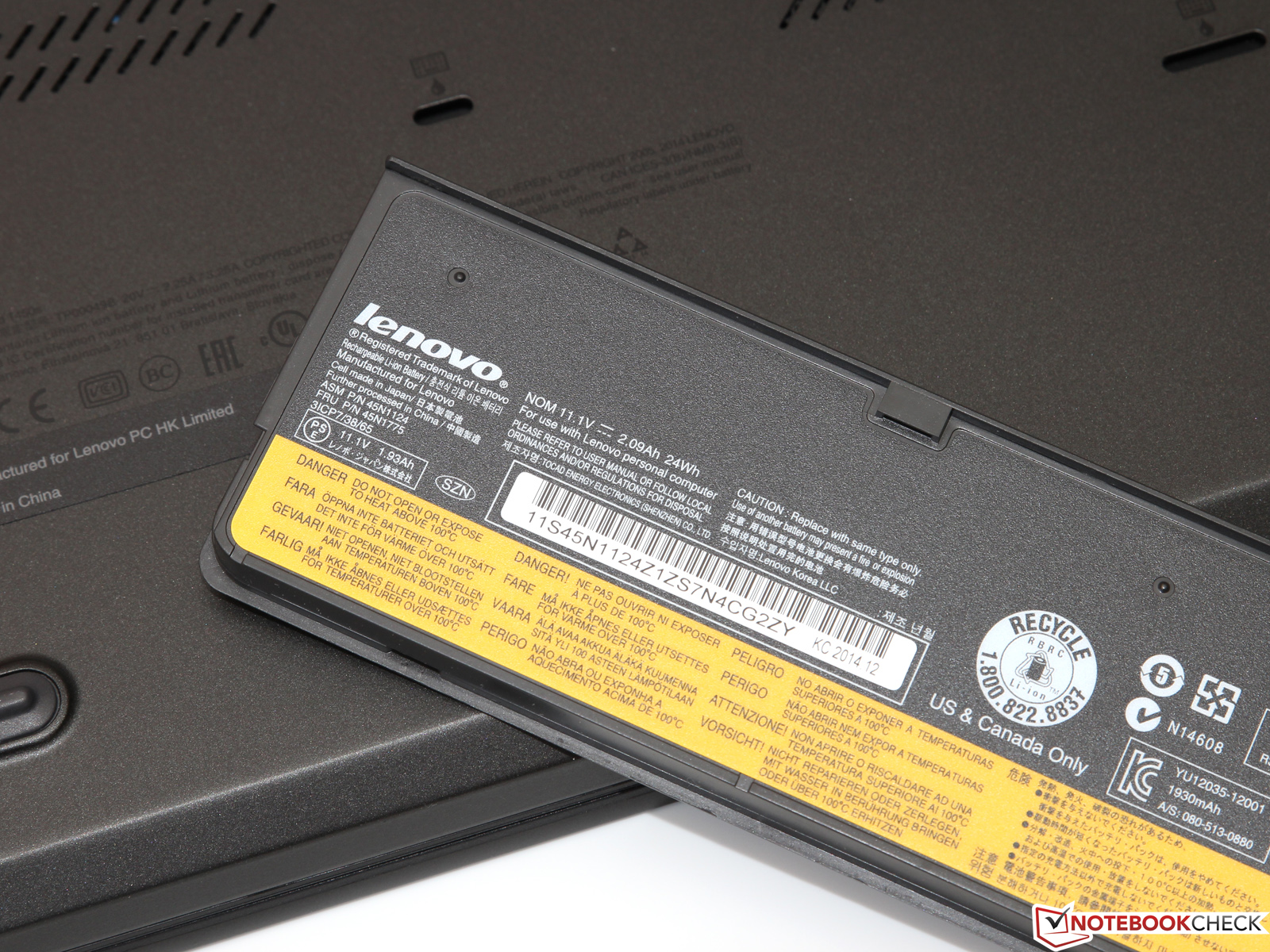

96 Wh Lithium-Polymer, 24 Wh 内置+ 72 Wh 可更换

Operating System

Microsoft Windows 8.1 Pro 64 Bit

Camera

Webcam: 90万像素
Primary Camera: 0.9 MPix

Additional features

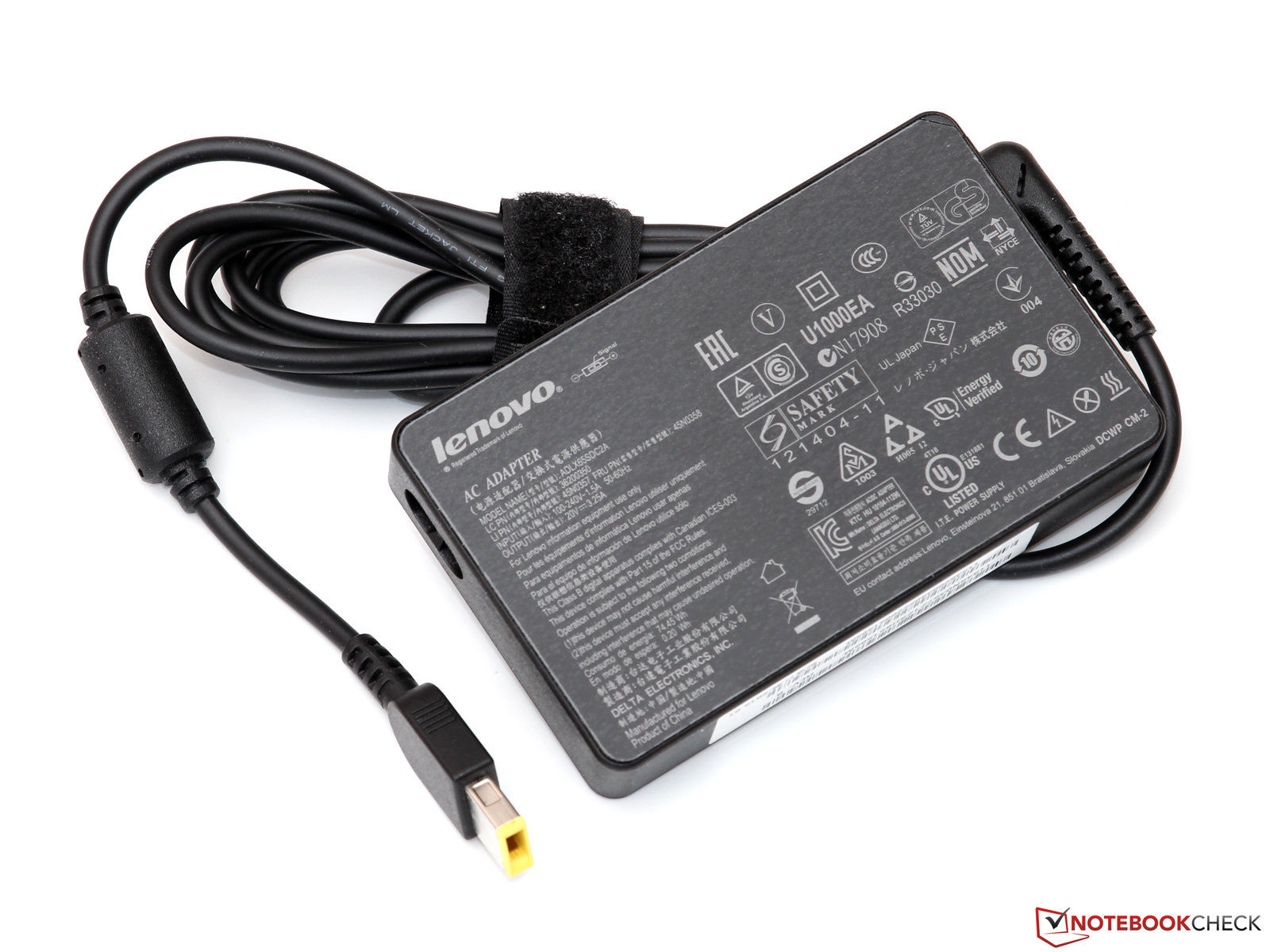

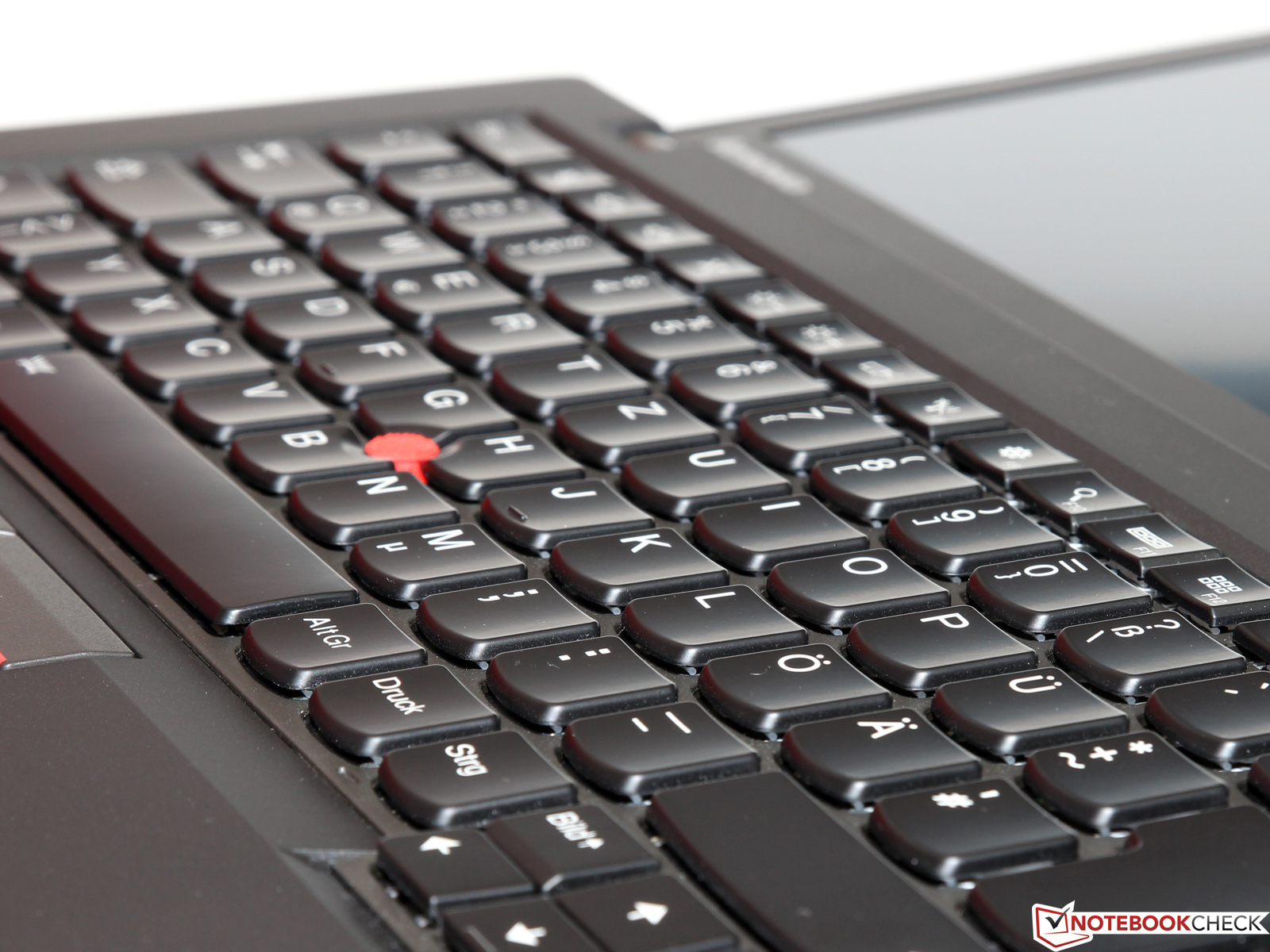

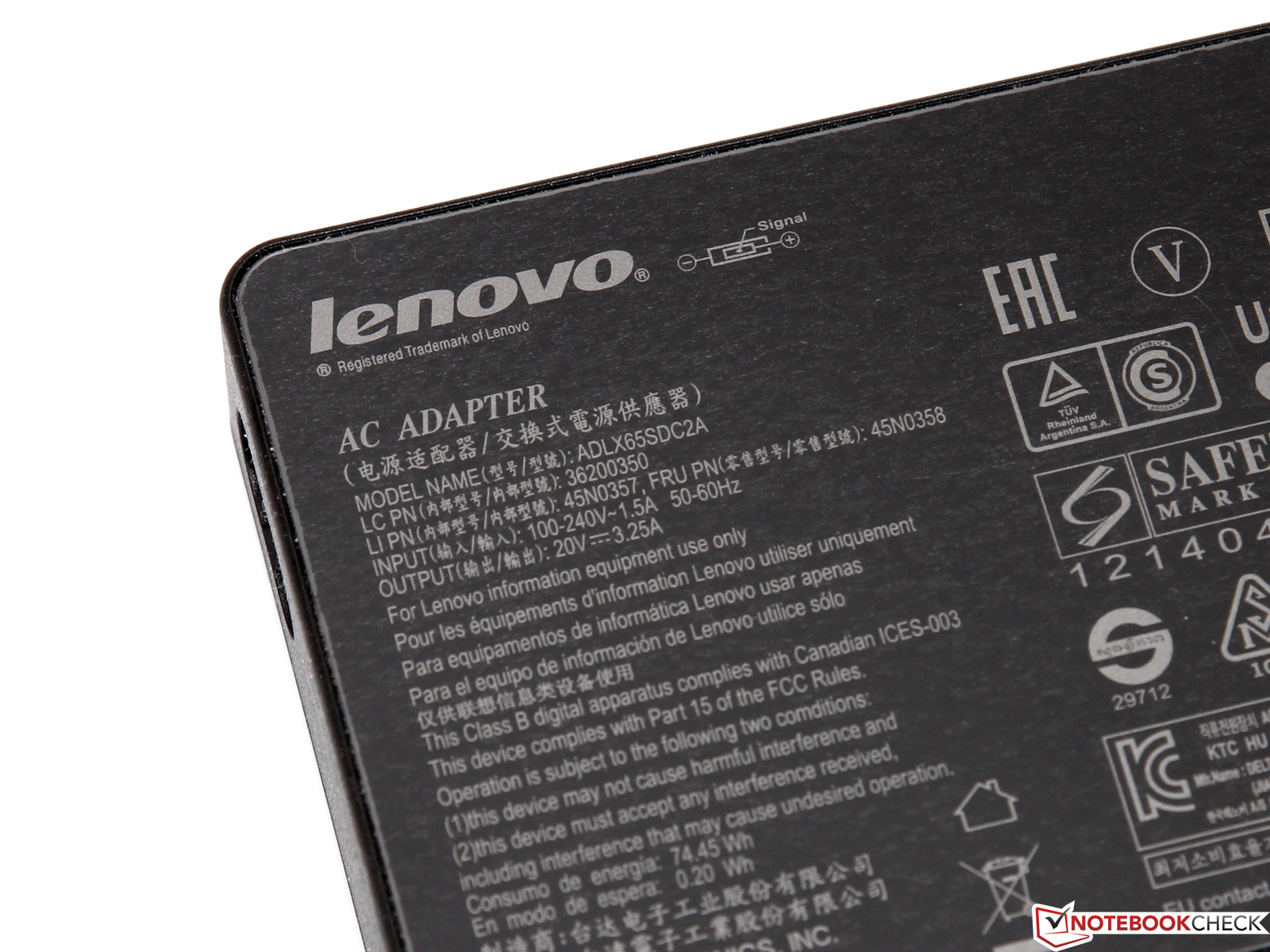

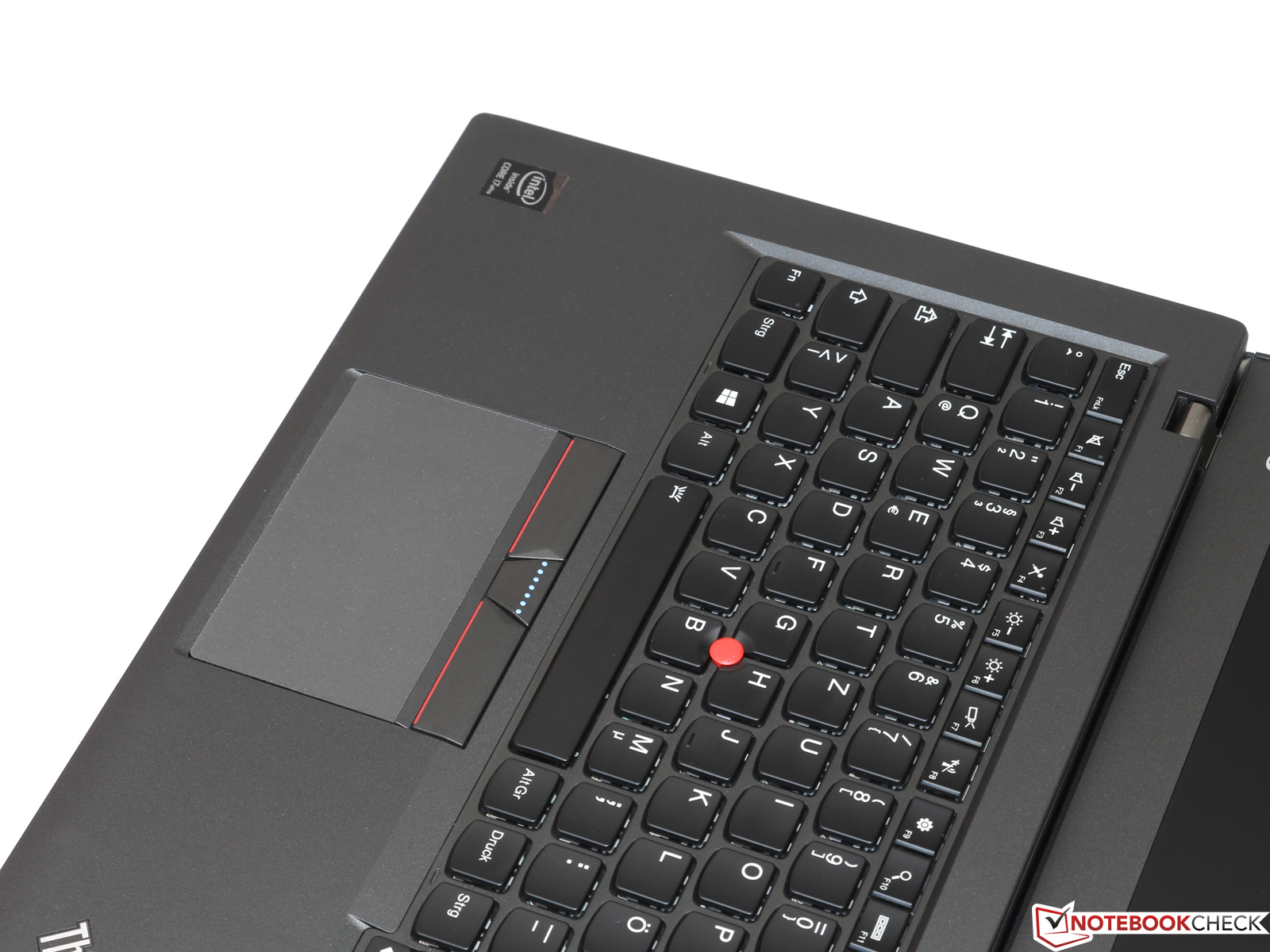

Speakers: 立体声 (2x 2 W), Keyboard: 孤岛式, 65 W 电源适配器, 36 Months Warranty

Weight

1.78 kg, Power Supply: 235 g

Price

1350 Euro

Links

Lenovo homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications


283 cd/m²	288 cd/m²	282 cd/m²
282 cd/m²	288 cd/m²	281 cd/m²
278 cd/m²	272 cd/m²	275 cd/m²

Distribution of brightness

LP140WF3-SPD1 tested with X-Rite i1Pro 2

Maximum: 288 cd/m² (Nits) Average: 281 cd/m²
Brightness Distribution: 94 %
Center on Battery: 288 cd/m²
Contrast: 1007:1 (Black: 0.286 cd/m²)
ΔE Color 4.35 | 0.5-29.43 Ø5
ΔE Greyscale 3.7 | 0.57-98 Ø5.3
54.7% AdobeRGB 1998 (Argyll 1.6.3 3D)
61.2% AdobeRGB 1998 (Argyll 2.2.0 3D)
83.8% sRGB (Argyll 2.2.0 3D)
64.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.68

Download ICC File (X-Rite i1Pro 2)

Cinebench R11.5 | Cinebench R15 | X264 HD Benchmark 4.0 | TrueCrypt

Cinebench R11.5
CPU Single 64Bit (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U	1.28 Points
Lenovo ThinkPad T450s Intel Core i7-5600U	1.51 Points +18%
Dell Latitude E7450 Intel Core i5-5300U	1.35 Points +5%
HP EliteBook 840 G2 Intel Core i5-5200U	1.26 Points -2%
Toshiba Tecra Z40t Intel Core i5-4310U	1.28 Points 0%
Lenovo Thinkpad T440s Intel Core i7-4600U	1.42 Points +11%
CPU Multi 64Bit (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U	2.77 Points
Lenovo ThinkPad T450s Intel Core i7-5600U	3.31 Points +19%
Dell Latitude E7450 Intel Core i5-5300U	3.07 Points +11%
HP EliteBook 840 G2 Intel Core i5-5200U	2.81 Points +1%
Toshiba Tecra Z40t Intel Core i5-4310U	2.9 Points +5%
Lenovo Thinkpad T440s Intel Core i7-4600U	2.75 Points -1%

Cinebench R15
CPU Single 64Bit (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U	111 Points
Lenovo ThinkPad T450s Intel Core i7-5600U	130 Points +17%
Dell Latitude E7450 Intel Core i5-5300U	117 Points +5%
HP EliteBook 840 G2 Intel Core i5-5200U	109 Points -2%
Lenovo Thinkpad T440s Intel Core i7-4600U	119 Points +7%
CPU Multi 64Bit (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U	255 Points
Lenovo ThinkPad T450s Intel Core i7-5600U	302 Points +18%
Dell Latitude E7450 Intel Core i5-5300U	280 Points +10%
HP EliteBook 840 G2 Intel Core i5-5200U	259 Points +2%
Lenovo Thinkpad T440s Intel Core i7-4600U	235 Points -8%

X264 HD Benchmark 4.0
Pass 1 (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U	86.6 fps
Lenovo ThinkPad T450s Intel Core i7-5600U	102.4 fps +18%
Dell Latitude E7450 Intel Core i5-5300U	92.1 fps +6%
Toshiba Tecra Z40t Intel Core i5-4310U	86.8 fps 0%
Pass 2 (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U	16.19 fps
Lenovo ThinkPad T450s Intel Core i7-5600U	18.72 fps +16%
Dell Latitude E7450 Intel Core i5-5300U	17.51 fps +8%
Toshiba Tecra Z40t Intel Core i5-4310U	16.9 fps +4%

TrueCrypt
AES Mean 100MB (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U	1.5 GB/s
Lenovo ThinkPad T450s Intel Core i7-5600U	1.9 GB/s +27%
Dell Latitude E7450 Intel Core i5-5300U	1.6 GB/s +7%
Toshiba Tecra Z40t Intel Core i5-4310U	1.6 GB/s +7%
Twofish Mean 100MB (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U	0.242 GB/s
Lenovo ThinkPad T450s Intel Core i7-5600U	0.303 GB/s +25%
Dell Latitude E7450 Intel Core i5-5300U	0.263 GB/s +9%
Toshiba Tecra Z40t Intel Core i5-4310U	0.247 GB/s +2%
Serpent Mean 100MB (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U	0.14 GB/s
Lenovo ThinkPad T450s Intel Core i7-5600U	0.175 GB/s +25%
Dell Latitude E7450 Intel Core i5-5300U	0.153 GB/s +9%
Toshiba Tecra Z40t Intel Core i5-4310U	0.143 GB/s +2%

Cinebench R10 Shading 64Bit

5583 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

11244 Points

Cinebench R10 Rendering Single CPUs 64Bit

5424 Points

Cinebench R10 Shading 32Bit

5487

Cinebench R10 Rendering Multiple CPUs 32Bit

8625

Cinebench R10 Rendering Single 32Bit

4155

Cinebench R11.5 CPU Single 64Bit

1.28 Points

Cinebench R11.5 OpenGL 64Bit

22.83 fps

Cinebench R11.5 CPU Multi 64Bit

2.77 Points

Cinebench R15 OpenGL 64Bit

30.98 fps

Cinebench R15 CPU Multi 64Bit

255 Points

Cinebench R15 CPU Single 64Bit

111 Points

Cinebench R15 Ref. Match 64Bit

98 %

Help

... in comparison

	Lenovo ThinkPad T450s Samsung SSD PM871 MZ7LN256HCHP	Lenovo ThinkPad T450s Intel SSD Pro 2500 Series SSDSC2BF360A5L	HP EliteBook 840 G2 Samsung SSD PM851 256 GB MZ7TE256HMHP	Dell Latitude E7450 Samsung SSD PM851 mSATA 128 GB
AS SSD		-40%	-5%	-26%
Seq Read	503	489.6 -3%	506 1%	467.2 -7%
Seq Write	285.2	264.5 -7%	247.3 -13%	116.8 -59%
4K Read	33.27	22.19 -33%	27.37 -18%	26.57 -20%
4K Write	84.6	14.61 -83%	107.1 27%	91.9 9%
4K-64 Read	380	210.1 -45%	371.1 -2%	313.2 -18%
4K-64 Write	272.3	83.5 -69%	208.7 -23%	106.3 -61%

HD Tune

CrystalDiskMark 3.0

AS SSD

Samsung SSD PM871 MZ7LN256HCHP

Transfer Rate Minimum: 420.2 MB/s

Transfer Rate Maximum: 436.4 MB/s

Transfer Rate Average: 430.7 MB/s

Access Time: 0.1 ms

Burst Rate: 202 MB/s

CPU Usage: 2.2 %

PCMark 7 | PCMark 8

PCMark 7 - Score (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U, Samsung SSD PM871 MZ7LN256HCHP	4995 Points
Lenovo ThinkPad T450s Intel Core i7-5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L	4797 Points -4%
Dell Latitude E7450 Intel Core i5-5300U, Samsung SSD PM851 mSATA 128 GB	4650 Points -7%
HP EliteBook 840 G2 Intel Core i5-5200U, Samsung SSD PM851 256 GB MZ7TE256HMHP	4139 Points -17%
Toshiba Tecra Z40t Intel Core i5-4310U, Hitachi Travelstar Z7K500 HTS725050A7E630	2686 Points -46%
Lenovo Thinkpad T440s Intel Core i7-4600U, Samsung SSD 840 250GB MZ7TD2560/0L9	5022 Points +1%

PCMark 8
Home Score Accelerated v2 (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U, Samsung SSD PM871 MZ7LN256HCHP	3128 Points
Lenovo ThinkPad T450s Intel Core i7-5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L	3270 Points +5%
Dell Latitude E7450 Intel Core i5-5300U, Samsung SSD PM851 mSATA 128 GB	2932 Points -6%
HP EliteBook 840 G2 Intel Core i5-5200U, Samsung SSD PM851 256 GB MZ7TE256HMHP	2936 Points -6%
Creative Score Accelerated v2 (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U, Samsung SSD PM871 MZ7LN256HCHP	3945 Points
Lenovo ThinkPad T450s Intel Core i7-5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L	3613 Points -8%
Dell Latitude E7450 Intel Core i5-5300U, Samsung SSD PM851 mSATA 128 GB	3459 Points -12%
HP EliteBook 840 G2 Intel Core i5-5200U, Samsung SSD PM851 256 GB MZ7TE256HMHP	3139 Points -20%
Work Score Accelerated v2 (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U, Samsung SSD PM871 MZ7LN256HCHP	4097 Points
Lenovo ThinkPad T450s Intel Core i7-5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L	4394 Points +7%
Dell Latitude E7450 Intel Core i5-5300U, Samsung SSD PM851 mSATA 128 GB	4002 Points -2%
HP EliteBook 840 G2 Intel Core i5-5200U, Samsung SSD PM851 256 GB MZ7TE256HMHP	4044 Points -1%
Storage Score (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U, Samsung SSD PM871 MZ7LN256HCHP	4971 Points
Lenovo ThinkPad T450s Intel Core i7-5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L	4857 Points -2%
Dell Latitude E7450 Intel Core i5-5300U, Samsung SSD PM851 mSATA 128 GB	4894 Points -2%

PCMark 7 Score		4995 points
PCMark 8 Home Score Accelerated v2		3128 points
PCMark 8 Creative Score Accelerated v2		3945 points
PCMark 8 Work Score Accelerated v2		4097 points
Help

... in comparison

3DMark 11 | 3DMark | SPECviewperf 12

3DMark 11
1280x720 Performance (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U, NVIDIA GeForce 940M	2380 Points
Lenovo ThinkPad T450s Intel Core i7-5600U, Intel HD Graphics 5500	1251 Points -47%
Lenovo ThinkPad T440s Intel Core i7-4600U, NVIDIA GeForce GT 730M	1647 Points -31%
HP EliteBook 840 G2 Intel Core i5-5200U, Intel HD Graphics 5500	940 Points -61%
HP EliteBook 850 G2 Intel Core i7-5500U, AMD Radeon R7 M260X	2114 Points -11%
1280x720 Performance GPU (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U, NVIDIA GeForce 940M	2313 Points
Lenovo ThinkPad T450s Intel Core i7-5600U, Intel HD Graphics 5500	1117 Points -52%
Lenovo ThinkPad T440s Intel Core i7-4600U, NVIDIA GeForce GT 730M	1513 Points -35%
HP EliteBook 840 G2 Intel Core i5-5200U, Intel HD Graphics 5500	856 Points -63%
HP EliteBook 850 G2 Intel Core i7-5500U, AMD Radeon R7 M260X	1903 Points -18%

3DMark
1280x720 Ice Storm Standard Score (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U, NVIDIA GeForce 940M	42339 Points
Lenovo ThinkPad T450s Intel Core i7-5600U, Intel HD Graphics 5500	55793 Points +32%
Lenovo ThinkPad T440s Intel Core i7-4600U, NVIDIA GeForce GT 730M	41007 Points -3%
HP EliteBook 840 G2 Intel Core i5-5200U, Intel HD Graphics 5500	37502 Points -11%
HP EliteBook 850 G2 Intel Core i7-5500U, AMD Radeon R7 M260X	35203 Points -17%
1280x720 Cloud Gate Standard Score (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U, NVIDIA GeForce 940M	6134 Points
Lenovo ThinkPad T450s Intel Core i7-5600U, Intel HD Graphics 5500	5782 Points -6%
Lenovo ThinkPad T440s Intel Core i7-4600U, NVIDIA GeForce GT 730M	5627 Points -8%
HP EliteBook 840 G2 Intel Core i5-5200U, Intel HD Graphics 5500	4342 Points -29%
HP EliteBook 850 G2 Intel Core i7-5500U, AMD Radeon R7 M260X	6619 Points +8%
1920x1080 Fire Strike Score (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U, NVIDIA GeForce 940M	1426 Points
Lenovo ThinkPad T450s Intel Core i7-5600U, Intel HD Graphics 5500	753 Points -47%
Lenovo ThinkPad T440s Intel Core i7-4600U, NVIDIA GeForce GT 730M	986 Points -31%
HP EliteBook 840 G2 Intel Core i5-5200U, Intel HD Graphics 5500	548 Points -62%
HP EliteBook 850 G2 Intel Core i7-5500U, AMD Radeon R7 M260X	1336 Points -6%

SPECviewperf 12
1900x1060 Catia (catia-04) (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U, NVIDIA GeForce 940M	9.71 fps
Lenovo ThinkPad T450s Intel Core i7-5600U, Intel HD Graphics 5500	9.69 fps 0%
HP EliteBook 850 G2 Intel Core i7-5500U, AMD Radeon R7 M260X	17.92 fps +85%
1900x1060 Creo (creo-01) (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U, NVIDIA GeForce 940M	6.68 fps
Lenovo ThinkPad T450s Intel Core i7-5600U, Intel HD Graphics 5500	8.99 fps +35%
HP EliteBook 850 G2 Intel Core i7-5500U, AMD Radeon R7 M260X	14.52 fps +117%
1900x1060 Energy (energy-01) (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U, NVIDIA GeForce 940M	0.08 fps
Lenovo ThinkPad T450s Intel Core i7-5600U, Intel HD Graphics 5500	0.06 fps -25%
HP EliteBook 850 G2 Intel Core i7-5500U, AMD Radeon R7 M260X	0.06 fps -25%
1900x1060 Maya (maya-04) (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U, NVIDIA GeForce 940M	2.09 fps
HP EliteBook 850 G2 Intel Core i7-5500U, AMD Radeon R7 M260X	8.34 fps +299%
1900x1060 Medical (medical-01) (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U, NVIDIA GeForce 940M	5.72 fps
Lenovo ThinkPad T450s Intel Core i7-5600U, Intel HD Graphics 5500	1.02 fps -82%
HP EliteBook 850 G2 Intel Core i7-5500U, AMD Radeon R7 M260X	4.37 fps -24%
1900x1060 Showcase (showcase-01) (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U, NVIDIA GeForce 940M	6.05 fps
Lenovo ThinkPad T450s Intel Core i7-5600U, Intel HD Graphics 5500	4.79 fps -21%
HP EliteBook 850 G2 Intel Core i7-5500U, AMD Radeon R7 M260X	4.76 fps -21%
1900x1060 Siemens NX (snx-02) (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U, NVIDIA GeForce 940M	1.81 fps
Lenovo ThinkPad T450s Intel Core i7-5600U, Intel HD Graphics 5500	2.47 fps +36%
HP EliteBook 850 G2 Intel Core i7-5500U, AMD Radeon R7 M260X	5.79 fps +220%
1900x1060 Solidworks (sw-03) (sort by value)
Lenovo ThinkPad T450s Intel Core i5-5200U, NVIDIA GeForce 940M	14.65 fps
Lenovo ThinkPad T450s Intel Core i7-5600U, Intel HD Graphics 5500	15.6 fps +6%
HP EliteBook 850 G2 Intel Core i7-5500U, AMD Radeon R7 M260X	26.87 fps +83%

3DMark 06 Standard Score		11874 points
3DMark Vantage P Result		7406 points
3DMark 11 Performance		2380 points
3DMark Ice Storm Standard Score		42339 points
3DMark Cloud Gate Standard Score		6134 points
3DMark Fire Strike Score		1426 points
3DMark Fire Strike Extreme Score		365 points
Help

... in comparison

Tomb Raider
1024x768 Low Preset (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	130.8 fps
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	61.8 fps -53%
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	108.5 fps -17%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	45 fps -66%
1366x768 Normal Preset AA:FX AF:4x (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	66.1 fps
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	30.4 fps -54%
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	51.6 fps -22%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	22.9 fps -65%
1366x768 High Preset AA:FX AF:8x (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	36.4 fps
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	19.3 fps -47%
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	35.1 fps -4%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	14.5 fps -60%
1920x1080 Ultra Preset AA:FX AF:16x (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	17.5 fps
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	9.9 fps -43%
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	15.8 fps -10%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	7.3 fps -58%

Diablo III
1024x768 Low / off (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	155.4 fps
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	101.9 fps -34%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	52.8 fps -66%
1366x768 Medium / low (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	106.2 fps
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	68 fps -36%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	34.8 fps -67%
1366x768 High AA:on (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	89.1 fps
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	57.5 fps -35%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	27.8 fps -69%
1920x1080 High AA:on (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	53.8 fps
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	37.5 fps -30%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	16.9 fps -69%

Counter-Strike: GO
1024x768 (Very) Low (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	168.1 fps
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	71 fps -58%
1366x768 Medium (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	141.1 fps
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	51.3 fps -64%
1366x768 High AA:2x MS AF:4x (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	112.6 fps
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	36.2 fps -68%
1920x1080 (Very) High, FXAA AA:4x MS AF:8x (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	68.1 fps
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	19.7 fps -71%

Crysis 3
1024x768 Low Preset (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	39.1 fps
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	44.1 fps +13%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	15.7 fps -60%
1366x768 Medium Preset AF:16x (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	25.4 fps
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	27.5 fps +8%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	10.5 fps -59%
1366x768 High Preset AA:FX AF:16x (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	18.1 fps
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	17.4 fps -4%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	7.2 fps -60%
1920x1080 Very High Preset AA:2xSM AF:16x (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	7 fps
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	6.8 fps -3%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	2.8 fps -60%

Metro: Last Light
1024x768 Low (DX10) AF:4x (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	46.4 fps
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	19.7 fps -58%
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	44.3 fps -5%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	15.6 fps -66%
1366x768 Medium (DX10) AF:4x (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	36.4 fps
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	17.5 fps -52%
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	28.9 fps -21%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	11.8 fps -68%
1366x768 High (DX11) AF:16x (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	22.5 fps
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	12.2 fps -46%
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	15.5 fps -31%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	9 fps -60%
1920x1080 Very High (DX11) AF:16x (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	11.3 fps
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	6 fps -47%
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	6.9 fps -39%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	4.5 fps -60%

Dota 2
1024x768 Low / Off, Render Quality: 40 % (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	85.5 fps
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	74 fps -13%
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	91.3 fps +7%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	54.4 fps -36%
1366x768 Medium / On, Render Quality: 70 % (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	70.1 fps
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	42 fps -40%
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	70.9 fps +1%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	31.9 fps -54%
1920x1080 High / On, Render Quality: 100 % (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	36.2 fps
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	21.9 fps -40%
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	31.4 fps -13%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	14.4 fps -60%

Sims 4
1024x768 Low Preset (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	161.1 fps
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	157.6 fps -2%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	129.4 fps -20%
1366x768 Medium Preset (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	66.2 fps
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	51.9 fps -22%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	31.7 fps -52%
1920x1080 High Preset (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	35.7 fps
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	26.1 fps -27%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	15.8 fps -56%
1920x1080 Ultra Preset (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	28.8 fps
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	22.8 fps -21%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	10.2 fps -65%

Fifa 15
1280x720 Low Preset (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	95.3 fps
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	34.6 fps -64%
1366x768 High Preset AA:2x MS (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	70.1 fps
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	55.3 fps -21%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	26.6 fps -62%
1920x1080 High Preset AA:4x MS (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	47 fps
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	29.4 fps -37%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	15.5 fps -67%

Alien: Isolation
1024x768 (Very) Low, Off, Shadow Map 512 AF:1x (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	61.3 fps
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	55.8 fps -9%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	26.6 fps -57%
1366x768 Medium, On (AA & SSAO Off), Shadow Map 1024 AF:4x (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	46.1 fps
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	37 fps -20%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	18.3 fps -60%
1920x1080 High, On, Shadow Map 1536, Standard SSAO AA:FX AF:8x (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	23.2 fps
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	20.2 fps -13%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	9.8 fps -58%
1920x1080 Ultra, On, Shadow Map 2048, HDAO AA:2x SM AF:16x (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	17.4 fps
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	15.7 fps -10%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	8 fps -54%

F1 2014
1024x768 Ultra Low Preset (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	107 fps
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	54 fps -50%
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	70 fps -35%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	42 fps -61%
1366x768 Medium Preset (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	78 fps
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	33 fps -58%
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	49 fps -37%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	28 fps -64%
1920x1080 High Preset (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	49 fps
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	23 fps -53%
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	31 fps -37%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	18 fps -63%
1920x1080 Ultra Preset AA:4x MS (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	28 fps
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	13 fps -54%
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	23 fps -18%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	12 fps -57%

Civilization: Beyond Earth
1024x768 Minimum Preset (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	63.7 fps
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	40.8 fps -36%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	34.3 fps -46%
1366x768 Medium Preset (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	28 fps
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	18.2 fps -35%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	16.3 fps -42%
1920x1080 High Preset (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	18.9 fps
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	12.8 fps -32%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	9.4 fps -50%
1920x1080 Ultra Preset AA:4x MS (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	15.4 fps
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	11.2 fps -27%
Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500	8 fps -48%

Call of Duty: Advanced Warfare
1024x768 Low / Off (Shader Preload On) (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	60.1 fps
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	48.5 fps -19%
1366x768 Normal / On (Cache Shadow Maps Off) (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	29.4 fps
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	28.8 fps -2%
1920x1080 High / On (Cache Shadow Maps Off) AA:FX (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	17.9 fps
HP EliteBook 850 G2 J8R68EA Intel Core i7-5500U, AMD Radeon R7 M260X	15.5 fps -13%

GTA V
1024x768 Lowest Settings possible (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	61.3 fps
1366x768 Normal/Off AF:4x (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	54.6 fps
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x (sort by value)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	14.3 fps

	low	med.	high	ultra
Diablo III (2012)	155.4	106.2	89.1	53.8
Counter-Strike: GO (2012)	168.1	141.1	112.6	68.1
Crysis 3 (2013)	39.1	25.4	18.1	7
Tomb Raider (2013)	130.8	66.1	36.4	17.5
Metro: Last Light (2013)	46.4	36.4	22.5	11.3
Dota 2 (2013)	85.5	70.1		36.2
Sims 4 (2014)	161.1	66.2	35.7	28.8
Fifa 15 (2014)	95.3		70.1	47
Alien: Isolation (2014)	61.3	46.1	23.2	17.4
F1 2014 (2014)	107	78	49	28
Civilization: Beyond Earth (2014)	63.7	28	18.9	15.4
Call of Duty: Advanced Warfare (2014)	60.1	29.4	17.9
GTA V (2015)	61.3	54.6	14.3

	Lenovo ThinkPad T450s Intel Core i5-5200U, NVIDIA GeForce 940M	Lenovo ThinkPad T450s Intel Core i7-5600U, Intel HD Graphics 5500	HP EliteBook 840 G2 Intel Core i5-5200U, Intel HD Graphics 5500	Dell Latitude E7450 Intel Core i5-5300U, Intel HD Graphics 5500
Noise		-1%	1%	-5%
Idle Minimum *	29.1	29.1 -0%	29.1 -0%	29.1 -0%
Idle Average *	29.1	29.1 -0%	29.1 -0%	29.1 -0%
Idle Maximum *	29.1	29.1 -0%	29.1 -0%	30 -3%
Load Average *	33.1	34.3 -4%	32.2 3%	36.4 -10%
Load Maximum *	34.3	34.8 -1%	34.2 -0%	37.8 -10%

* ... smaller is better

Noise Level

Idle		29.1 / 29.1 / 29.1 dB(A)
Load		33.1 / 34.3 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Voltcraft SL-451 (15 cm distance)

Max. Load

Idle


28.6 °C	29 °C	28.5 °C
29 °C	28.7 °C	28.8 °C
28.8 °C	28.7 °C	28.4 °C

Maximum: 29 °C
Average: 28.7 °C


28.7 °C	30.9 °C	29.1 °C
29.1 °C	30.4 °C	30.3 °C
29 °C	29.6 °C	29.7 °C

Maximum: 30.9 °C
Average: 29.6 °C

Power Supply (max.) 31.5 °C | Room Temperature 23 °C | Fluke 62 Max

(-) The average temperature for the upper side under maximal load is 39.1 °C / 102 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(-) The maximum temperature on the upper side is 49.6 °C / 121 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 51.9 °C / 125 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 28.7 °C / 84 F, compared to the device average of 29.5 °C / 85 F.
(-) The palmrests and touchpad can get very hot to the touch with a maximum of 41.4 °C / 106.5 F.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-13.7 °C / -24.6 F).

Power Consumption

Off / Standby	0 / 0.1 Watt
Idle	3.1 / 8.6 / 9.6 Watt
Load	35.6 / 49.4 Watt


Key: min: , med: , max: Extech Power Analyzer 380803 Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Lenovo ThinkPad T450s-20BWS1UT00 96 Wh	Lenovo ThinkPad T450s-20BWS03F00 48 Wh	Dell Latitude E7450 54 Wh	HP EliteBook 840 G2 50 Wh	Lenovo Thinkpad T440s 20AQ0069GE 96 Wh
Battery Runtime		-60%	-48%	-49%	-11%
Reader / Idle	1857	774 -58%	714 -62%	961 -48%	1695 -9%
H.264	757	322 -57%	452 -40%	324 -57%	670 -11%
WiFi v1.3	648	276 -57%	422 -35%	422 -35%
Load	259	88 -66%	115 -56%	112 -57%	225 -13%
WiFi		336	459		750

Battery Runtime

Idle (without WLAN, min brightness)		30h 57min
WiFi Websurfing		10h 48min
Big Buck Bunny H.264 1080p		12h 37min
Load (maximum brightness)		4h 19min

Pros

+ 轻盈坚固的机身

+ 出色的键盘

+ 可视角度稳定的IPS屏幕

+ 不错的应用程序和图形性能

+ 低噪音

+ 可以支持LTE模组

+ 丰富的安全功能

+ 超长电池续航（72Wh电池）

+ 3年质保

Cons

- 仅一个内存槽

- 不便于使用的点击式触控板

- 突出机身之外的第二块电池

Lenovo ThinkPad T450s. Test model provided by Campuspoint.de

Core i5处理器，GeForce显卡，固态硬盘，加上IPS屏幕是我们心目中的ThinkPad T450s完美配置。

大多数用户可能会对更贵的Core i7-5600U的20％更强性能感兴趣——需要最强劲处理器性能的用户，可以考虑选择T440p。GeForce 940M显卡可以让ThinkPad的3D性能翻倍，而不需要太高的价码，或忍受太高的机身温度。

同时我们认为可选的72Wh电池非常值得考虑。12小时的实际电池续航时间足以平衡电池带来的额外重量和厚度，特别是短时间外出时可以使用内置的24Wh电池。另外一方面，我们认为选购48Wh的电池意义不大；厚度相同，也没有轻很多，且相比72Wh电池只便宜20欧元（约136人民币）。

我们在其他文章中已经详尽测试过这台笔记本电脑的优势和劣势了——所提到的很多内容对于其他配置型号也适用。学生，教师可以享受教育机型的折扣；而一些特别配置功能，如GeForce显卡，只有在这类机型中可以选择。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Lenovo ThinkPad T450s-20BWS1UT00 - 2016-02-25 02/25/2016 v5^(old)
Till Schönborn

Chassis

93 / 98 → 95%

Keyboard

94%

Pointing Device

85%

Connectivity

61 / 80 → 77%

Weight

66 / 20-67 → 98%

Battery

94%

Display

89%

Games Performance

64 / 68 → 95%

Application Performance

78 / 92 → 85%

Temperature

83%

Noise

95%

Audio

56%

Camera

53 / 85 → 62%

Average

78%

89%

Office - Weighted Average

Read about the changes in the new rating version 5

Pricecompare

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 联想 ThinkPad T450s 超极本简短评测

Till Schönborn, 2015-05-22 (Update: 2015-05-24)
