华硕 Zenbook UX32LA-R3025H 超级本简短评测

薄·铝。 华硕推出了新的一款Zenbook系列笔记本电脑,专为注重质量和便携性的用户而设计。一颗节能的Haswell处理器和集成显卡,搭配了高容量电池,和超薄的铝合金机身——这是否足以刷新电池续航时间的纪录呢?
Haswell Laptop / Notebook Ultrabook Windows
251
cd/m²
235
cd/m²
244
cd/m²
248
cd/m²
253
cd/m²
252
cd/m²
228
cd/m²
237
cd/m²
241
cd/m²
Distribution of brightness
IVO M133NWN1 R1 tested with X-Rite i1Pro 2
Maximum: 253 cd/m² (Nits) Average: 243.2 cd/m²
Brightness Distribution: 90 %
Center on Battery: 253 cd/m²
Contrast: 496:1 (Black: 0.51 cd/m²)
ΔE Color 6.33 | 0.5-29.43 Ø5
ΔE Greyscale 6.63 | 0.57-98 Ø5.3
44% AdobeRGB 1998 (Argyll 1.6.3 3D)
47.34% AdobeRGB 1998 (Argyll 2.2.0 3D)
68.5% sRGB (Argyll 2.2.0 3D)
45.78% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.17
Asus Zenbook UX32LA-R3025H
Asus Zenbook UX32LN-R4053H
Lenovo IdeaPad U330p
Sony Vaio Pro 13 SVP-1321C5ER
MacBook Air 13 MD761D/B
Display
38%
28%
Display P3 Coverage
45.78
66.7
46%
64
40%
sRGB Coverage
68.5
88.8
30%
77.2
13%
AdobeRGB 1998 Coverage
47.34
64.8
37%
62.5
32%
Screen
38%
-31%
33%
38%
Brightness middle
253
355
40%
265
5%
353
40%
280
11%
Brightness
243
358
47%
238
-2%
354
46%
263
8%
Brightness Distribution
90
92
2%
79
-12%
84
-7%
84
-7%
Black Level *
0.51
0.326
36%
1.02
-100%
0.52
-2%
0.32
37%
Contrast
496
1089
120%
260
-48%
679
37%
875
76%
Colorchecker dE 2000 *
6.33
5.07
20%
3.35
47%
1.91
70%
Greyscale dE 2000 *
6.63
6.09
8%
2.76
58%
2
70%
Gamma
2.17 101%
2.48 89%
2.4 92%
2.26 97%
CCT
6641 98%
5692 114%
6101 107%
6724 97%
Color Space (Percent of AdobeRGB 1998)
44
58
32%
65
48%
Total Average (Program / Settings)
38% / 38%
-31% / -31%
31% / 32%
38% / 38%

* ... smaller is better

Cinebench R11.5 CPU Single 64Bit
1.09 Points
Cinebench R11.5 CPU Multi 64Bit
2.51 Points
Cinebench R11.5 OpenGL 64Bit
22.8 fps
Cinebench R15 CPU Single 64Bit
100 Points
Cinebench R15 CPU Multi 64Bit
228 Points
Cinebench R15 OpenGL 64Bit
26.08 fps
Cinebench R15 Ref. Match 64Bit
98 %
Help
Cinebench R11.5
CPU Single 64Bit (sort by value)
Asus UX32LA-R3025H
HD Graphics 4400, 4200U, SanDisk SD6SB1M128G1002
1.09 Points
HP Spectre 13-h205eg x2
HD Graphics 4200, 4202Y, Samsung SSD PM841 MZMTD128HAFV mSATA
0.88 Points -19%
Asus UX32LN
GeForce 840M, 4200U, Kingston SVP200S37A256G
1.1 Points +1%
Lenovo IdeaPad U330p
HD Graphics 4400, 4200U, Seagate ST500LM000 Solid State Hybrid Drive
1.16 Points +6%
Apple MacBook Air 13 MD761D/B 2014-06
HD Graphics 5000, 4260U, Apple SSD SD0256F
1.2 Points +10%
Sony Vaio Pro 13 SVP-1321C5ER
HD Graphics 4400, 4500U, Toshiba HG5d THNSNH512GDNT
1.33 Points +22%
Lenovo G510-59416358
HD Graphics 4600, 4200M, Seagate Momentus Thin ST500LT012-1DG142
1.25 Points +15%
CPU Multi 64Bit (sort by value)
Asus UX32LA-R3025H
HD Graphics 4400, 4200U, SanDisk SD6SB1M128G1002
2.51 Points
HP Spectre 13-h205eg x2
HD Graphics 4200, 4202Y, Samsung SSD PM841 MZMTD128HAFV mSATA
1.85 Points -26%
Asus UX32LN
GeForce 840M, 4200U, Kingston SVP200S37A256G
2.47 Points -2%
Lenovo IdeaPad U330p
HD Graphics 4400, 4200U, Seagate ST500LM000 Solid State Hybrid Drive
2.46 Points -2%
Apple MacBook Air 13 MD761D/B 2014-06
HD Graphics 5000, 4260U, Apple SSD SD0256F
2.63 Points +5%
Sony Vaio Pro 13 SVP-1321C5ER
HD Graphics 4400, 4500U, Toshiba HG5d THNSNH512GDNT
2.32 Points -8%
Lenovo G510-59416358
HD Graphics 4600, 4200M, Seagate Momentus Thin ST500LT012-1DG142
3.25 Points +29%
PCMark 7 Score
4654 points
PCMark 8 Home Score Accelerated v2
2583 points
PCMark 8 Creative Score Accelerated v2
2522 points
PCMark 8 Work Score Accelerated v2
3618 points
Help
PCMark 7 - Score (sort by value)
Asus UX32LA-R3025H
HD Graphics 4400, 4200U, SanDisk SD6SB1M128G1002
4654 Points
Asus UX32LN
GeForce 840M, 4200U, Kingston SVP200S37A256G
4811 Points +3%
Lenovo IdeaPad U330p
HD Graphics 4400, 4200U, Seagate ST500LM000 Solid State Hybrid Drive
3529 Points -24%
Lenovo IdeaPad U330p
HD Graphics 4400, 4200U, Seagate ST500LM000 Solid State Hybrid Drive
3529 Points -24%
Sony Vaio Pro 13 SVP-1321C5ER
HD Graphics 4400, 4500U, Toshiba HG5d THNSNH512GDNT
4740 Points +2%
Apple MacBook Air 13 MD761D/B 2014-06
HD Graphics 5000, 4260U, Apple SSD SD0256F
5012 Points +8%
SanDisk SD6SB1M128G1002
Sequential Read: 509 MB/s
Sequential Write: 305.8 MB/s
512K Read: 279.4 MB/s
512K Write: 291.6 MB/s
4K Read: 31.31 MB/s
4K Write: 87.7 MB/s
4K QD32 Read: 341.6 MB/s
4K QD32 Write: 196 MB/s
3DMark 11 Performance
952 points
3DMark Ice Storm Standard Score
42413 points
3DMark Cloud Gate Standard Score
4346 points
3DMark Fire Strike Score
622 points
Help
Asus Zenbook UX32LA-R3025H
Intel Core i5-4200U; Intel HD Graphics 4400
Asus Zenbook UX32LN-R4053H
Intel Core i5-4200U; NVIDIA GeForce 840M
3DMark 11
1280x720 Performance GPU
850
2308
172%
3DMark
1280x720 Cloud Gate Standard Graphics
5671
7985
41%
Metro: Last Light
1366x768 High (DX11) AF:16x
9.9
21.3
115%
Tomb Raider
1366x768 High Preset AA:FX AF:8x
14.5
30
107%
Total Average (Program / Settings)
109% / 109%
low med. high ultra
Tomb Raider (2013) 53.6 23.3 14.5
BioShock Infinite (2013) 35.8 17.9 14.76
Metro: Last Light (2013) 19.9 13.6 9.9
GRID 2 (2013) 54.5 26.54 17.53

Noise Level

Idle
29.2 / 29.2 / 31.2 dB(A)
Load
33.4 / 33.4 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft sl-451 (15 cm distance)
 28.5 °C32.1 °C29.4 °C
 28 °C29.9 °C29.1 °C
 27.9 °C28.2 °C28.6 °C
Maximum: 32.1 °C
Average: 29.1 °C
31 °C30.8 °C30.1 °C
28.2 °C29.7 °C29.4 °C
28.5 °C29.1 °C29.1 °C
Maximum: 31 °C
Average: 29.5 °C
Power Supply (max.)  44.2 °C | Room Temperature 23.8 °C | Fluke 62 Max
(+) The average temperature for the upper side under maximal load is 31.5 °C / 89 F, compared to the average of 30.7 °C / 87 F for the devices in the class Subnotebook.
(+) The maximum temperature on the upper side is 38.7 °C / 102 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(+) The bottom heats up to a maximum of 36.5 °C / 98 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 29.1 °C / 84 F, compared to the device average of 30.7 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.7 °C / 85.5 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-1.4 °C / -2.6 F).
Power Consumption
Off / Standbydarklight 0 / 0.1 Watt
Idledarkmidlight 3.3 / 6.4 / 8.2 Watt
Load midlight 30.7 / 39.2 Watt
 color bar
Key: min: dark, med: mid, max: light        Extech Power Analyzer 380803
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Battery Runtime
Idle (without WLAN, min brightness)
14h 30min
WiFi Surfing
10h 40min
Big Buck Bunny H.264 1080p
10h 15min
Load (maximum brightness)
2h 11min

需要电池耐用、质量上乘、且性能处于中上水平的超级本的消费者会对这款笔记本感到非常满意。一体化的铝合金机身不论是外观还是质感都让人爱不释手。50Wh的大容量电池和速度很快且实惠的Intel处理器固态硬盘的组合,无论是在户外还是旅行中,都能提供足够的性能保障。

我们建议希望用笔记本玩游戏的消费者考虑它搭配Nvidia独立显卡的版本。其他的日常应用,Intel的HD Graphics 4400集成显卡则完全可以胜任。对于不需要运行游戏的用户,这款测试机则是非常好的一个选择。不过屏幕的亮度显得有些暗,我们也更希望它可以有全高清的分辨率。不论如何,在它在800欧元(约1087美元)上下的价格范围内并没有其他这样高质量的笔记本可以它竞争。总体来说,华硕UX32LA-R3025H是一个接近完美的便携笔记本

希望投入较多预算购买具有高质量金属机身和优秀配置的笔记本的消费者当然可以考虑这款产品,或者是相对便宜100欧元(约136美元)的联想IdeaPad U330p。不过后者并没有配备高速的固态硬盘。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

铝合金的上盖
铝合金的上盖

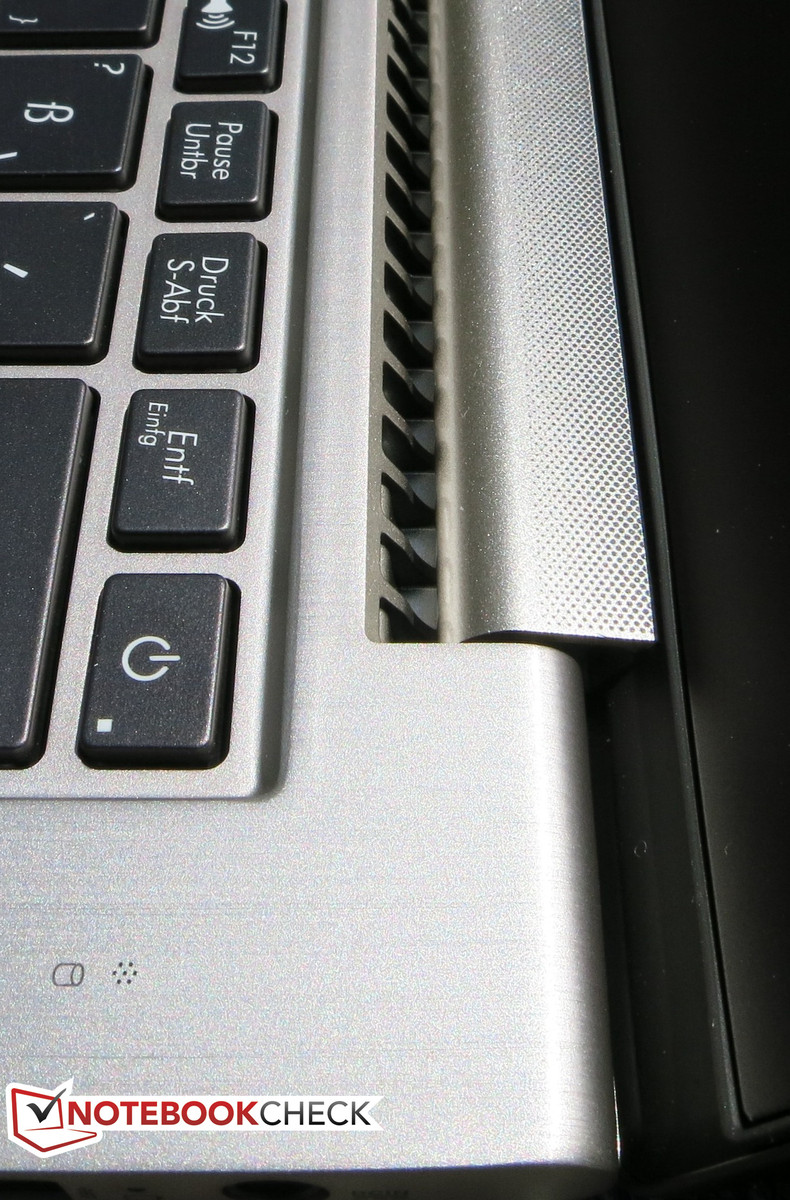

超长的合叶铰链
超长的合叶铰链

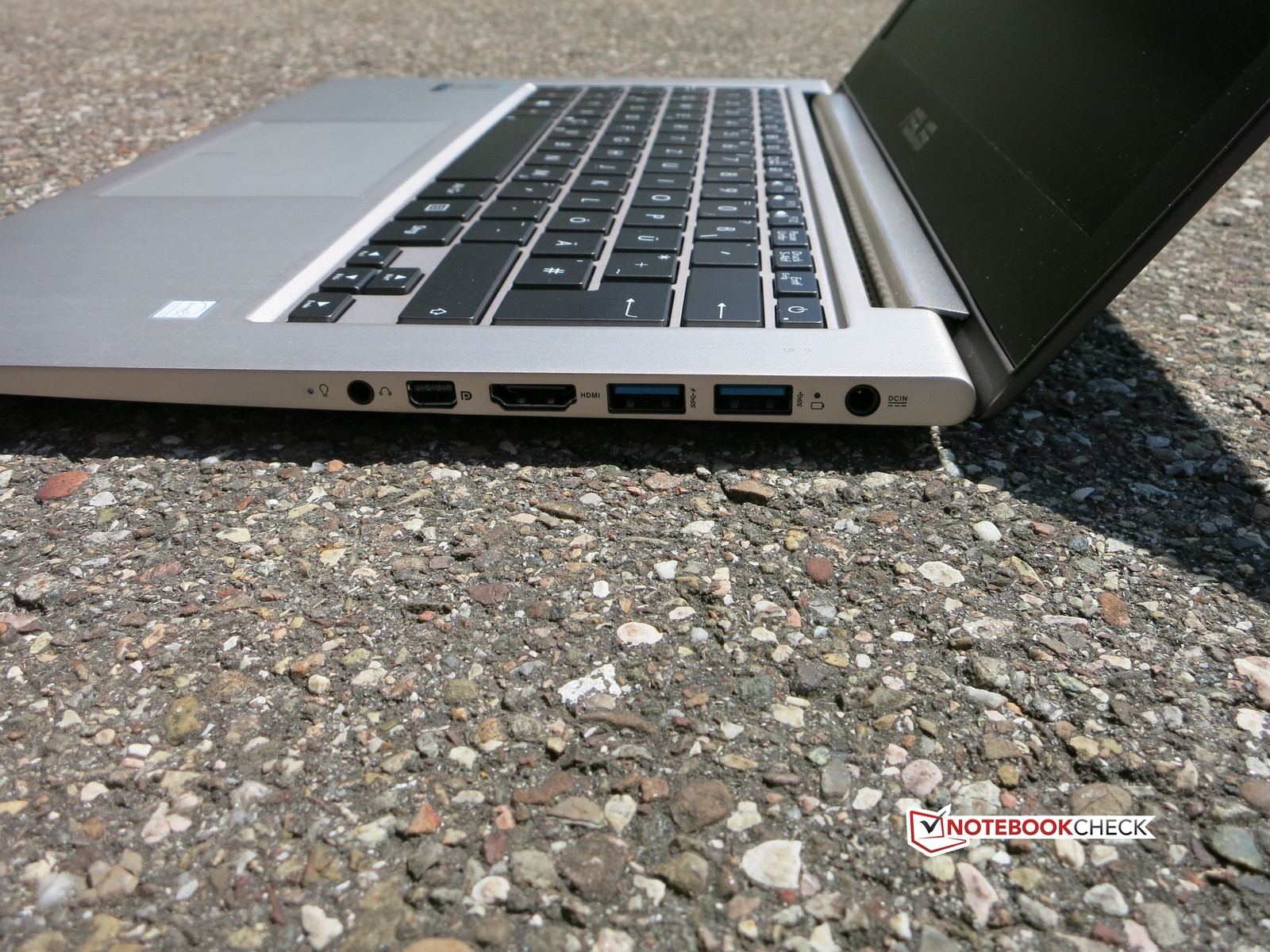

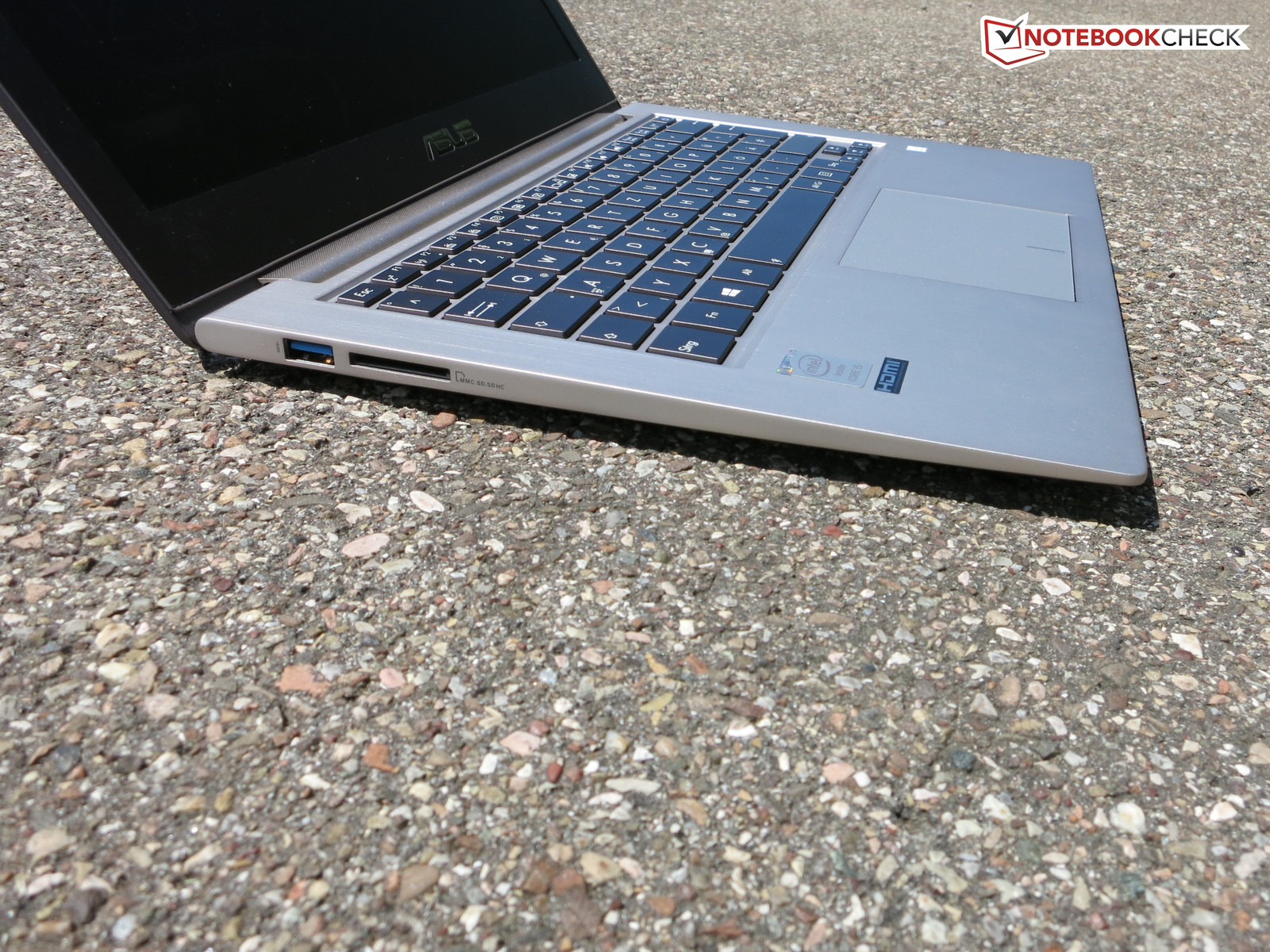

超薄的设计
超薄的设计

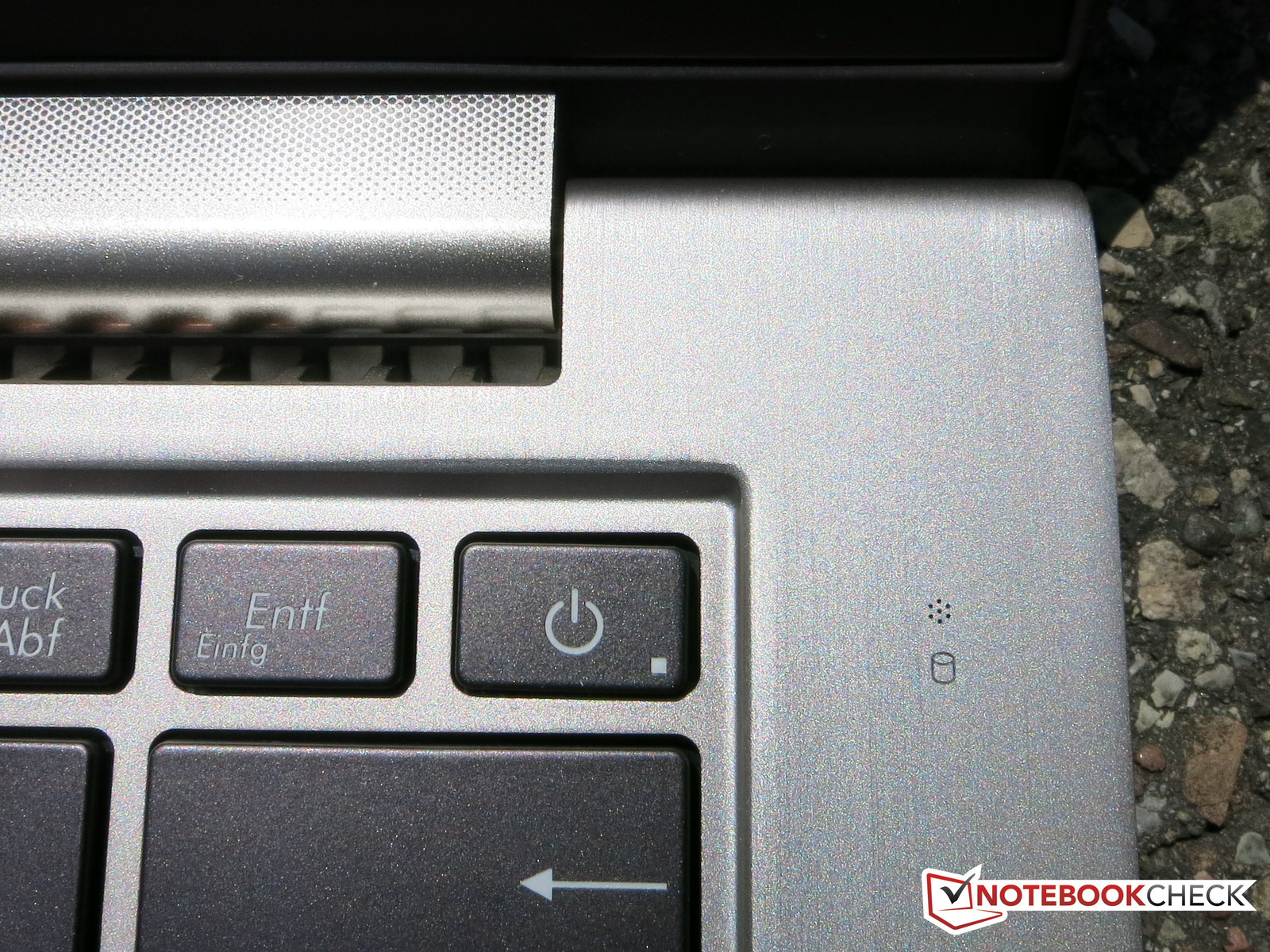

集成在键盘内的按键
集成在键盘内的按键

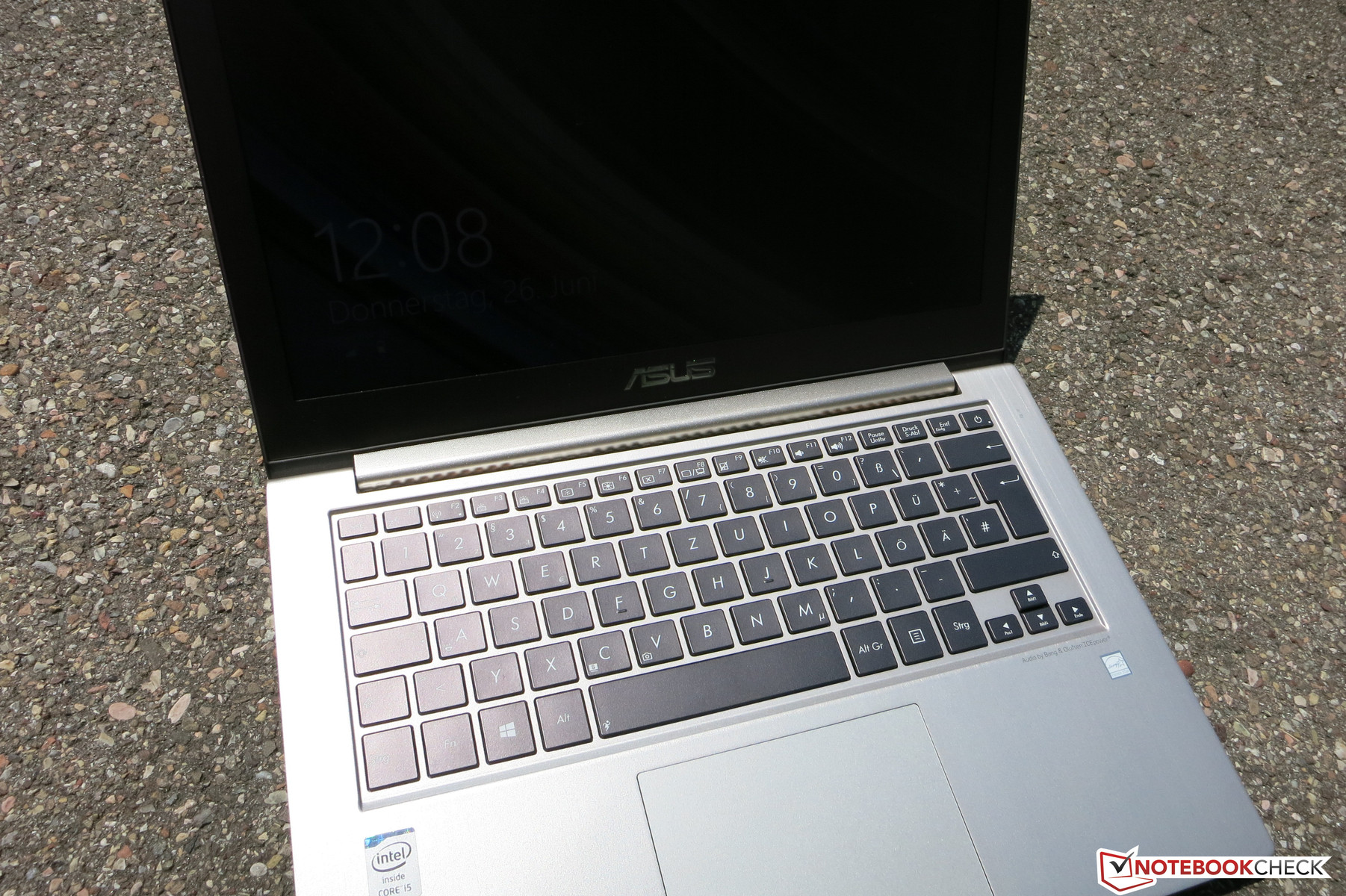

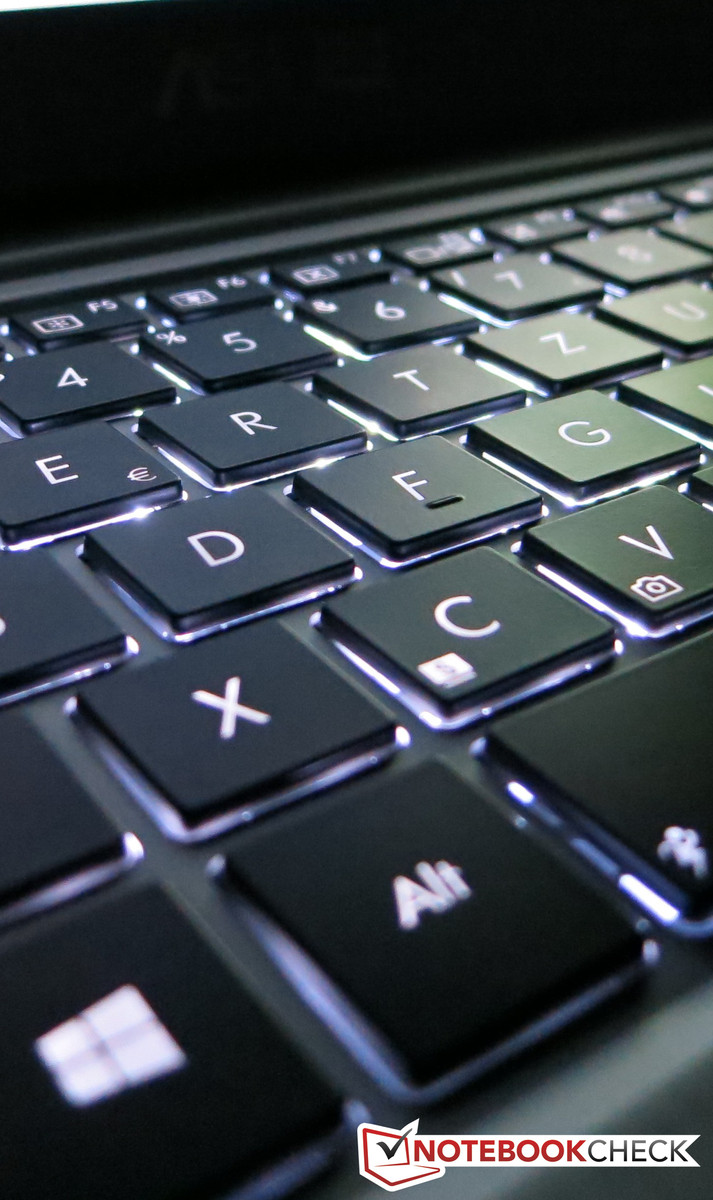

低调的键盘背光
低调的键盘背光

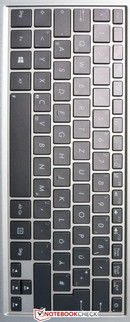

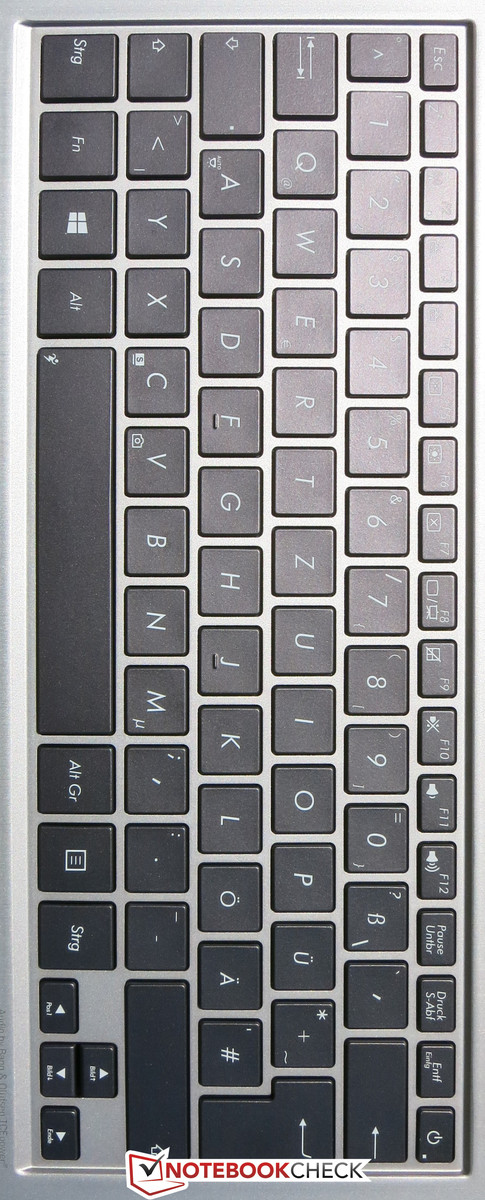

表现可以接受的键盘
表现可以接受的键盘
超薄设计
超薄设计
超薄设计
超薄设计

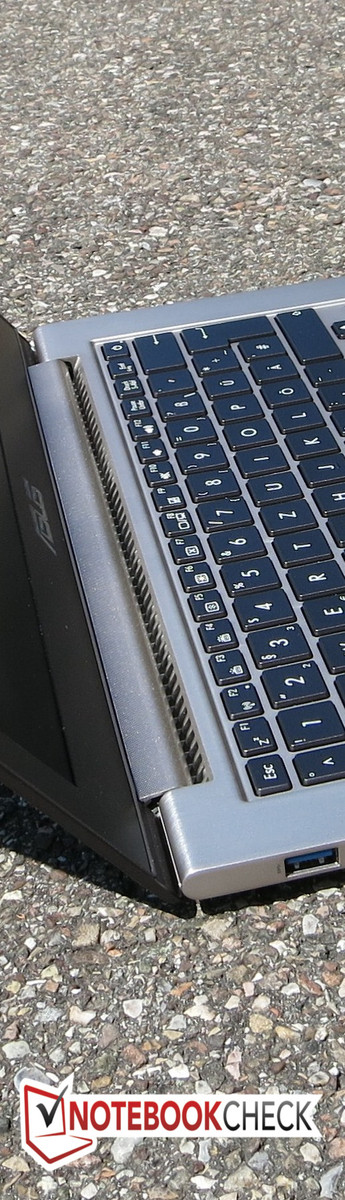

后置排风口
后置排风口

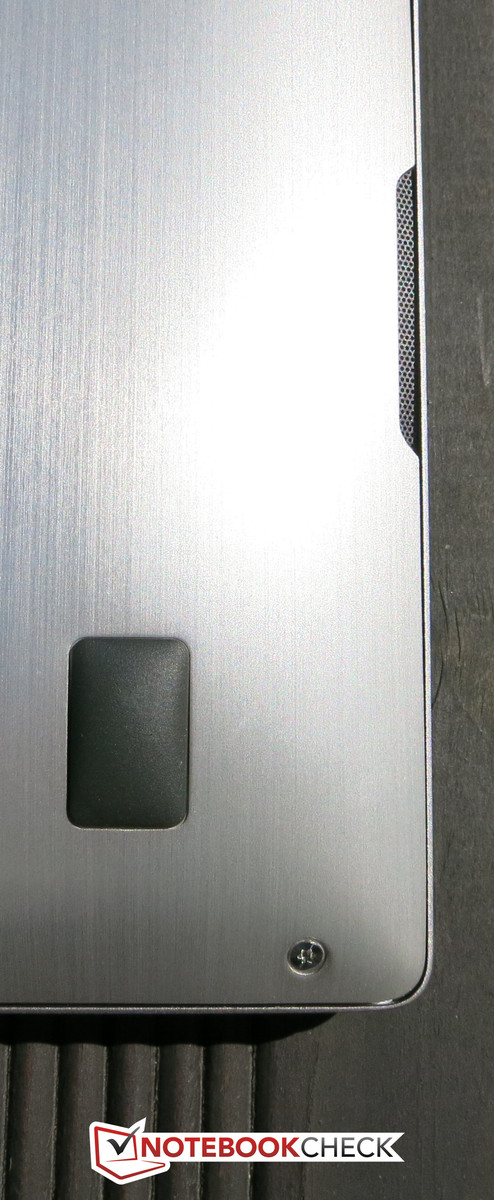

机身侧面的扬声器
机身侧面的扬声器

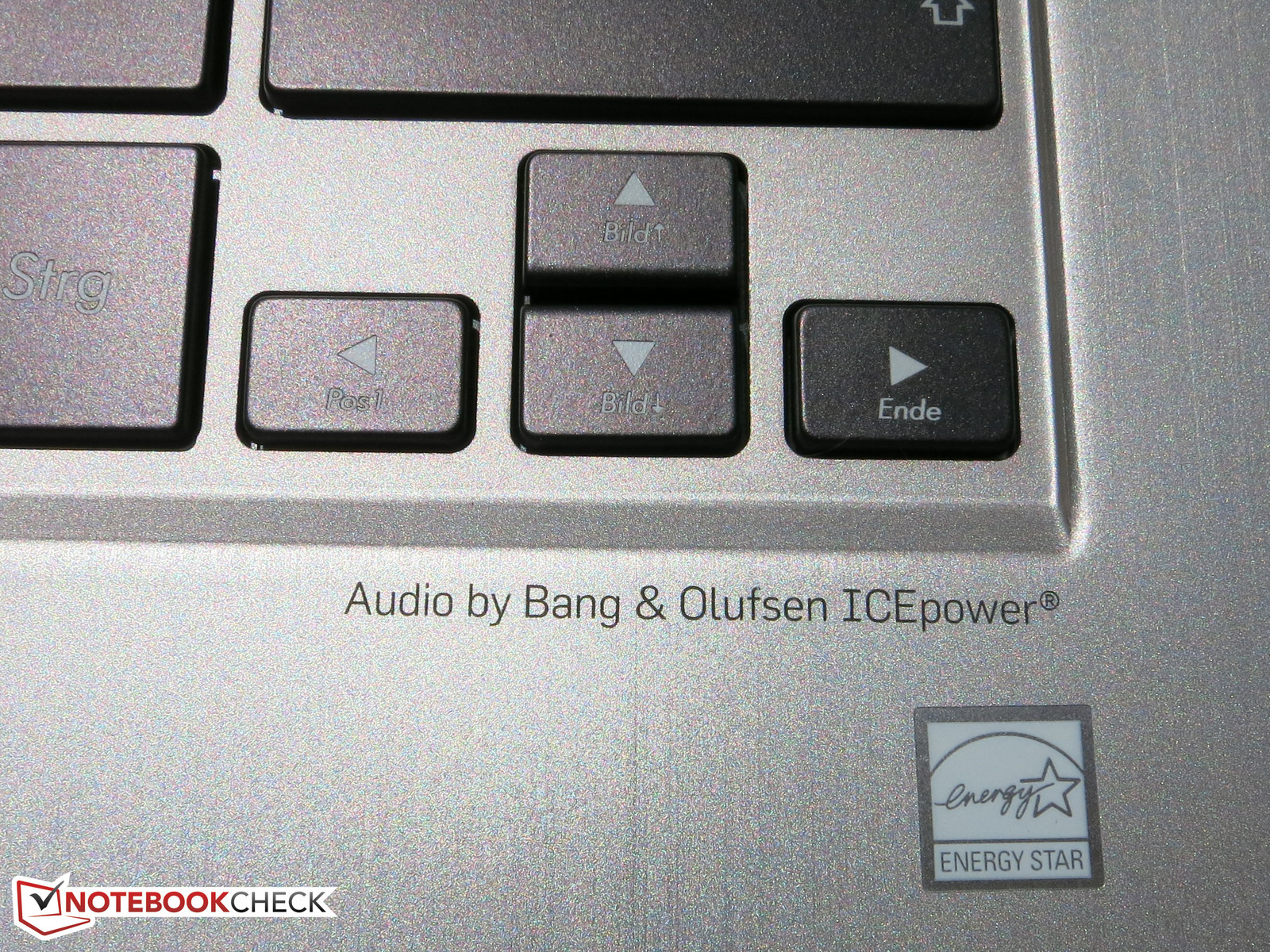

Bang & Olufsen 认证的音响系统
Bang & Olufsen 认证的音响系统

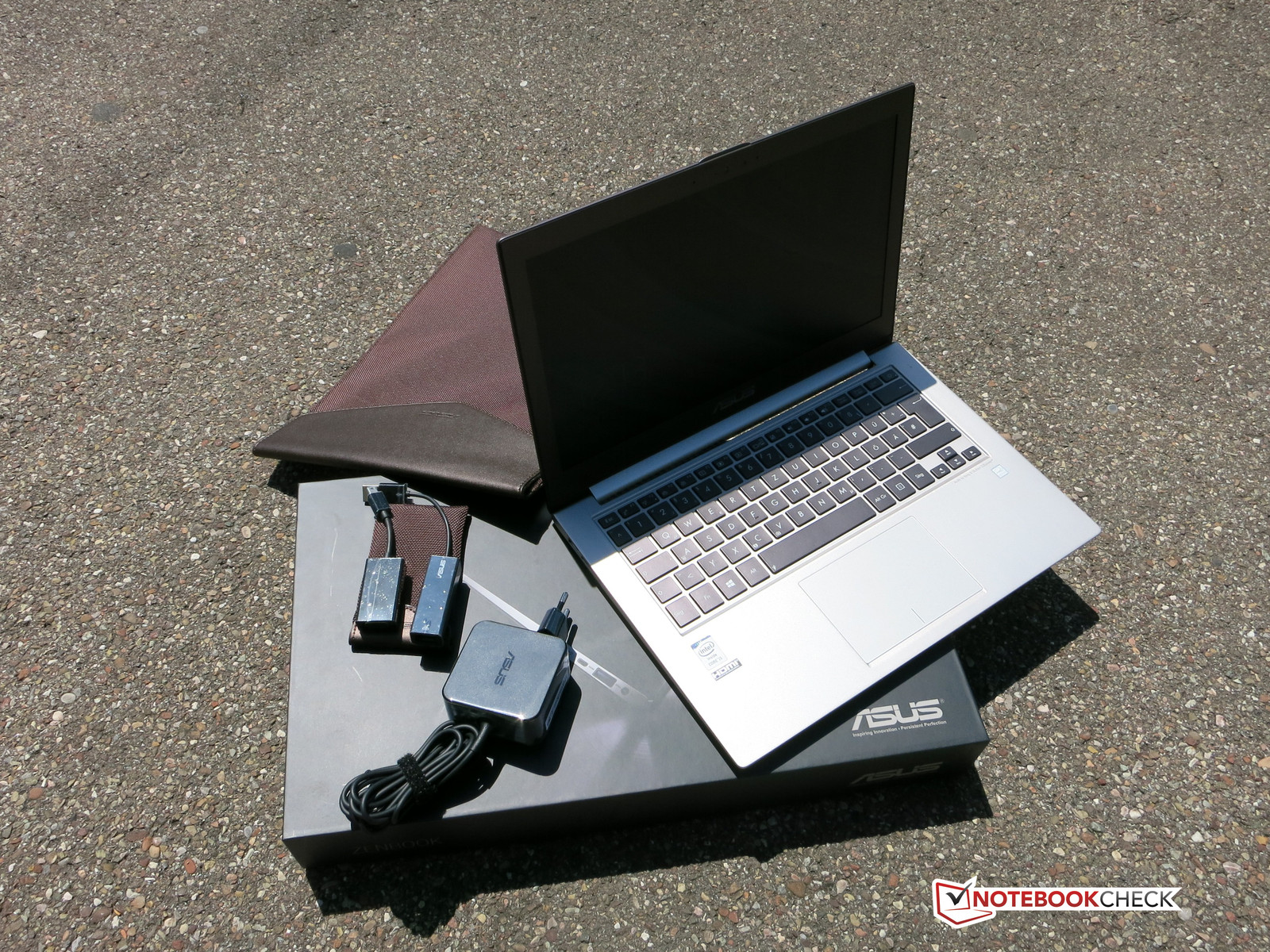

配件
配件

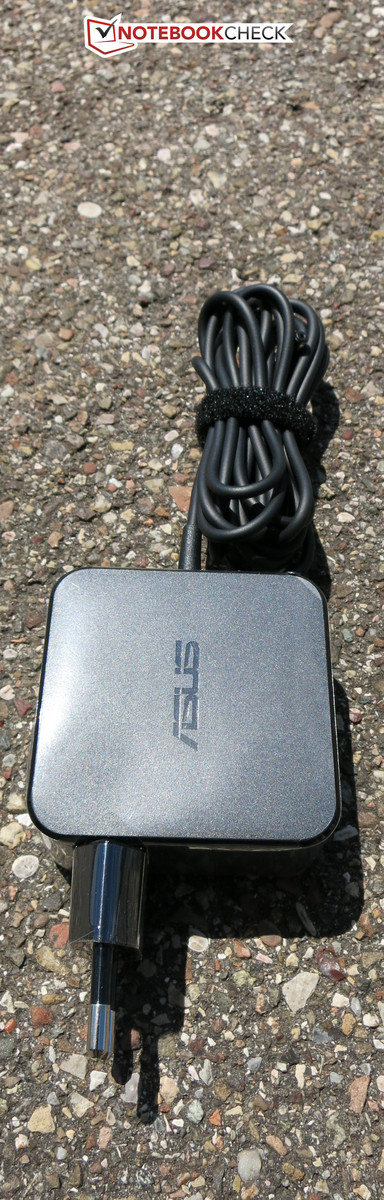

便携的电源适配器
便携的电源适配器

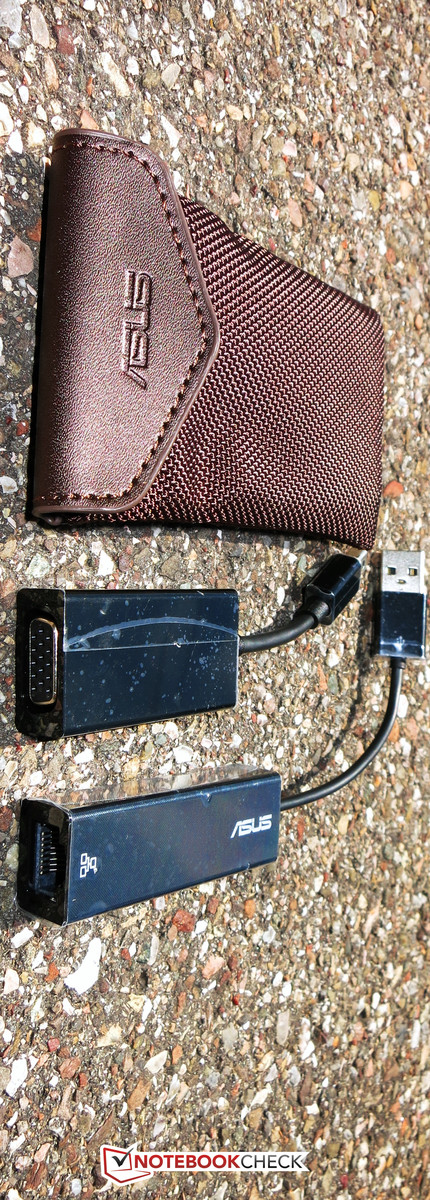

自带的转接套装
自带的转接套装

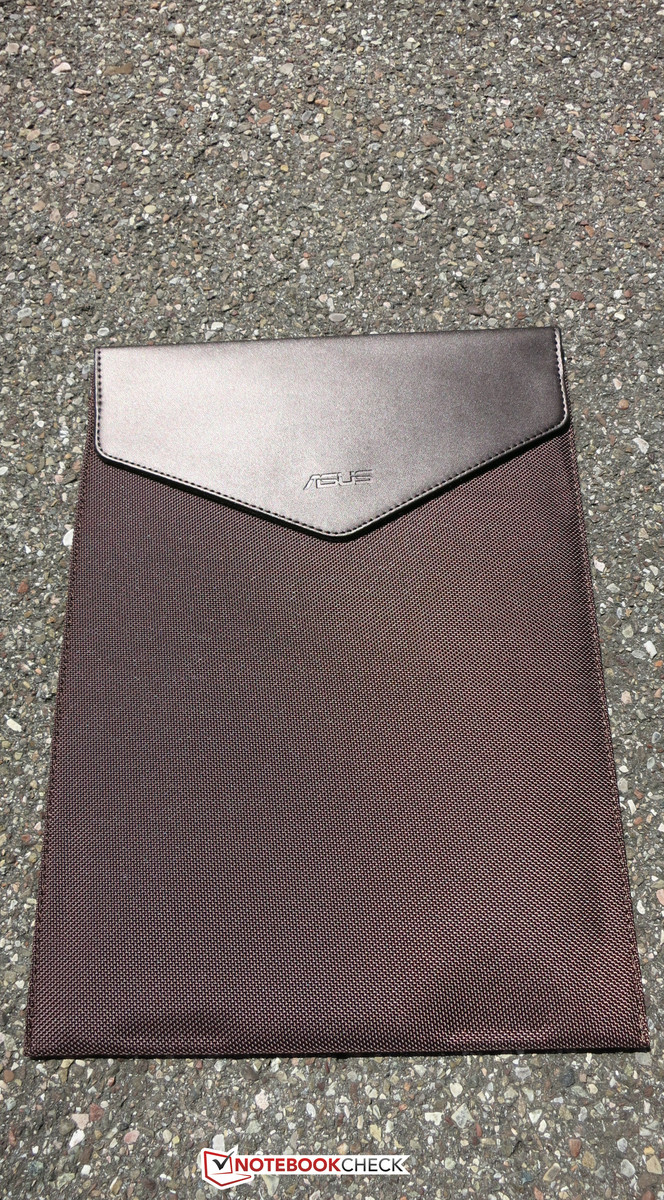

附赠的保护套
附赠的保护套

Please share our article, every link counts!

Specifications

Zenbook UX32LA-R3025H (UX32LA Series)
Processor
Intel Core i5-4200U 2 x 1.6 - 2.6 GHz, Haswell
Graphics adapter
Intel HD Graphics 4400, Core: 1000 MHz
Memory
8 GB
, 4096 MB 集成
Display
13.30 inch 16:9, 1366 x 768 pixel, IVO M133NWN1 R1, IPS LED, glossy: no
Mainboard
Intel Lynx Point-LP
Storage
SanDisk SD6SB1M128G1002, 128 GB
Soundcard
Conexant SmartAudio HD
Connections
3 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 DisplayPort, Audio Connections: 1x 3.5 毫米整合, Card Reader: SD 读卡器, Sensors: 环境光传感器
Networking
Intel Dual Band Wireless-AC 7260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth BT 4.0
Size
height x width x depth (in mm): 18 x 325 x 223
Battery
50 Wh Lithium-Polymer, 3 芯
Operating System
Microsoft Windows 8.1 64 Bit
Camera
Webcam: 720p
Additional features
Speakers: Bang & Olufsen ICEpower, Keyboard Light: yes, 10/100 Mbps 以太网接口和VGA接口, 24 Months Warranty
Weight
1.45 kg, Power Supply: 180 g



Similar devices from a different Manufacturer

Devices from a different Manufacturer and/or with a different CPU

Devices with the same GPU

戴尔 Latitude 12 E5250 笔记本电脑简短评测
HD Graphics 4400, Core i5 4310U, 12.50", 1.67 kg
华硕 ASUSPRO Advanced BU201LA-DT036G 超极本简短评测
HD Graphics 4400, Core i5 4210U, 12.50", 1.357 kg

Devices with Same Screen Size and/or Weight

Pros

+搭配固态硬盘,系统响应迅速
+高质量做工
+高雅坚固的铝合金机身
+不错的可扩展维护性
+长电池续航时间


Cons

-无集成的以太网或VGA接口(需要转换器)
-电源键在"Delete"键旁边
-无触摸屏
-略暗的屏幕

Asus UX32LA-R3025H - 06/27/2014 v4(old)
Melvin Pudellek

Chassis
90 /  98 → 92%
Keyboard
83%
Pointing Device
86%
Connectivity
73 / 80 → 91%
Weight
70 / 35-78 → 81%
Battery
90%
Display
80%
Games Performance
69 / 68 → 100%
Application Performance
75 / 87 → 86%
Temperature
91 / 91 → 100%
Noise
94%
Audio
79 / 91 → 87%
Camera
47 / 85 → 55%
Average
79%
85%
Subnotebook - Weighted Average
