Magyar联想 Yoga Book Android YB1-X90F 变形本简短评测
| Networking | |
| iperf Server (receive) TCP 1 m | |
| Asus TransformerBook T302CA-FL010T | |
| Lenovo Yoga Book Android YB1-X90F | |
| Lenovo Yoga 510-15IKB 80VC000XGE (jseb) | |
| iperf Client (transmit) TCP 1 m | |
| Asus TransformerBook T302CA-FL010T | |
| Lenovo Yoga Book Android YB1-X90F | |
| Lenovo Yoga 510-15IKB 80VC000XGE (jseb) | |
| |||||||||||||||||||||||||
Brightness Distribution: 86 %
Center on Battery: 449 cd/m²
Contrast: 1403:1 (Black: 0.32 cd/m²)
ΔE Color 4.7 | 0.5-29.43 Ø5
ΔE Greyscale 4.5 | 0.57-98 Ø5.3
94.3% sRGB (Calman 2D)
Gamma: 2.22
| Lenovo Yoga Book Android YB1-X90F IPS, 1920x1080, 10.10 | Google Pixel C LTPS, 2560x1800, 10.20 | Apple iPad Pro 9.7 IPS, 2048x1536, 9.70 | Sony Xperia Z4 Tablet Triluminos display with X-Reality, 2560x1600, 10.10 | Lenovo Yoga Book 2016 Windows 64GB LTE IPS , 1920x1080, 10.10 | |
|---|---|---|---|---|---|
| Screen | -12% | 23% | -41% | -1% | |
| Brightness middle | 449 | 487 8% | 523 16% | 471 5% | 382 -15% |
| Brightness | 421 | 510 21% | 500 19% | 457 9% | 363 -14% |
| Brightness Distribution | 86 | 91 6% | 93 8% | 92 7% | 83 -3% |
| Black Level * | 0.32 | 0.39 -22% | 0.52 -63% | 0.46 -44% | 0.37 -16% |
| Contrast | 1403 | 1249 -11% | 1006 -28% | 1024 -27% | 1032 -26% |
| Colorchecker dE 2000 * | 4.7 | 5.24 -11% | 1.1 77% | 8.69 -85% | 3.61 23% |
| Colorchecker dE 2000 max. * | 11.1 | 1.9 83% | 7.92 29% | ||
| Greyscale dE 2000 * | 4.5 | 7.95 -77% | 1.4 69% | 11.24 -150% | 3.77 16% |
| Gamma | 2.22 99% | 2.16 102% | 2.11 104% | 2.17 101% | 2.43 91% |
| CCT | 7122 91% | 6565 99% | 6662 98% | 9508 68% | 6760 96% |
| Color Space (Percent of AdobeRGB 1998) | 62.97 | ||||
| Color Space (Percent of sRGB) | 99.55 | 99 |
* ... smaller is better
Display Response Times

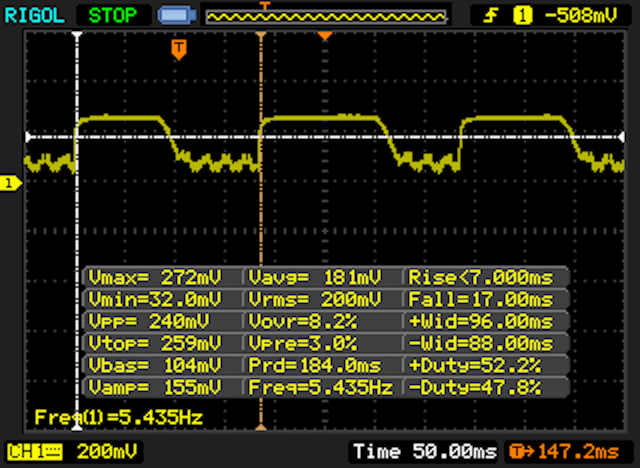

| ↔ Response Time Black to White | ||
|---|---|---|
| 24 ms ... rise ↗ and fall ↘ combined | ↗ 7 ms rise |  |
| ↘ 17 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 48 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21.5 ms). | ||

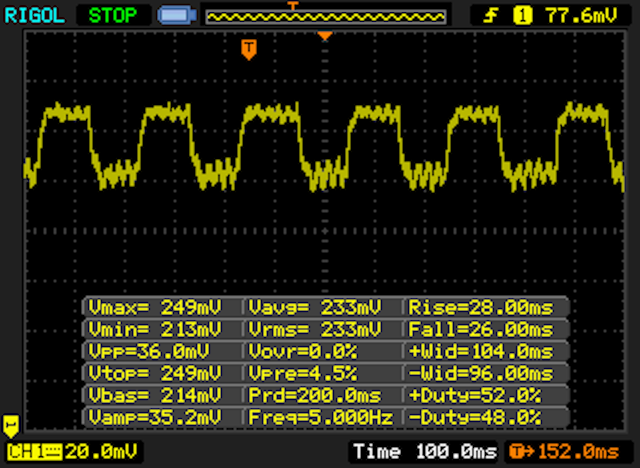

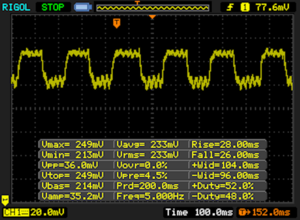

| ↔ Response Time 50% Grey to 80% Grey | ||
| 54 ms ... rise ↗ and fall ↘ combined | ↗ 28 ms rise |  |
| ↘ 26 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 89 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (33.7 ms). | ||

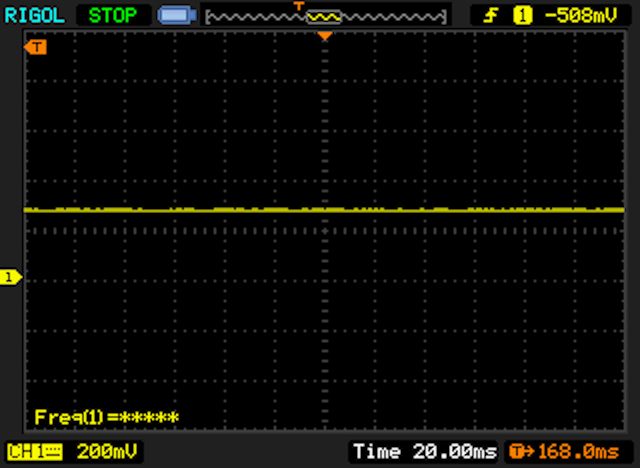

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17915 (minimum: 5 - maximum: 3846000) Hz was measured. | |||
| AnTuTu v6 - Total Score | |
| Apple iPad Pro 9.7 | |
| Google Pixel C | |
| Lenovo Yoga Book Android YB1-X90F | |
| 3DMark | |
| 1280x720 offscreen Ice Storm Unlimited Score | |
| Google Pixel C | |
| Apple iPad Pro 9.7 | |
| Sony Xperia Z4 Tablet | |
| Lenovo Yoga Book Android YB1-X90F | |
| 1280x720 offscreen Ice Storm Unlimited Graphics Score | |
| Google Pixel C | |
| Apple iPad Pro 9.7 | |
| Sony Xperia Z4 Tablet | |
| Lenovo Yoga Book Android YB1-X90F | |
| 1280x720 offscreen Ice Storm Unlimited Physics | |
| Google Pixel C | |
| Apple iPad Pro 9.7 | |
| Lenovo Yoga Book Android YB1-X90F | |
| Sony Xperia Z4 Tablet | |
| 2560x1440 Sling Shot OpenGL ES 3.0 | |
| Apple iPad Pro 9.7 | |
| Google Pixel C | |
| Sony Xperia Z4 Tablet | |
| Lenovo Yoga Book Android YB1-X90F | |
| 2560x1440 Sling Shot OpenGL ES 3.0 Graphics | |
| Apple iPad Pro 9.7 | |
| Google Pixel C | |
| Lenovo Yoga Book Android YB1-X90F | |
| 2560x1440 Sling Shot OpenGL ES 3.0 Physics | |
| Apple iPad Pro 9.7 | |
| Lenovo Yoga Book Android YB1-X90F | |
| Google Pixel C | |
| GFXBench (DX / GLBenchmark) 2.7 | |
| T-Rex Onscreen | |
| Apple iPad Pro 9.7 | |
| Google Pixel C | |
| Sony Xperia Z4 Tablet | |
| Lenovo Yoga Book Android YB1-X90F | |
| 1920x1080 T-Rex Offscreen | |
| Apple iPad Pro 9.7 | |
| Google Pixel C | |
| Sony Xperia Z4 Tablet | |
| Lenovo Yoga Book Android YB1-X90F | |
| GFXBench 3.0 | |
| on screen Manhattan Onscreen OGL | |
| Apple iPad Pro 9.7 | |
| Google Pixel C | |
| Sony Xperia Z4 Tablet | |
| Lenovo Yoga Book Android YB1-X90F | |
| 1920x1080 1080p Manhattan Offscreen | |
| Apple iPad Pro 9.7 | |
| Google Pixel C | |
| Sony Xperia Z4 Tablet | |
| Lenovo Yoga Book Android YB1-X90F | |
| GFXBench 3.1 | |
| on screen Manhattan ES 3.1 Onscreen | |
| Apple iPad Pro 9.7 | |
| Google Pixel C | |
| Sony Xperia Z4 Tablet | |
| Lenovo Yoga Book Android YB1-X90F | |
| 1920x1080 Manhattan ES 3.1 Offscreen | |
| Apple iPad Pro 9.7 | |
| Google Pixel C | |
| Sony Xperia Z4 Tablet | |
| Lenovo Yoga Book Android YB1-X90F | |
| PCMark for Android - Work performance score | |
| Google Pixel C | |
| Lenovo Yoga Book Android YB1-X90F | |
| Sony Xperia Z4 Tablet | |
| Geekbench 4.0 | |
| 64 Bit Single-Core Score | |
| Lenovo Yoga Book Android YB1-X90F | |
| 64 Bit Multi-Core Score | |
| Lenovo Yoga Book Android YB1-X90F | |
| Compute RenderScript Score | |
| Lenovo Yoga Book Android YB1-X90F | |
| JetStream 1.1 - Total Score | |
| Apple iPad Pro 9.7 | |
| Google Pixel C | |
| Lenovo Yoga Book Android YB1-X90F | |
| Octane V2 - Total Score | |
| Apple iPad Pro 9.7 | |
| Lenovo Yoga Book Android YB1-X90F | |
| Sony Xperia Z4 Tablet | |
| Google Pixel C | |
| Mozilla Kraken 1.1 - Total | |
| Google Pixel C | |
| Lenovo Yoga Book Android YB1-X90F | |
| Sony Xperia Z4 Tablet | |
| Apple iPad Pro 9.7 | |
| WebXPRT 2015 - Overall | |
| Apple iPad Pro 9.7 | |
| Google Pixel C | |
| Lenovo Yoga Book Android YB1-X90F | |
| Sony Xperia Z4 Tablet | |
* ... smaller is better
| AndroBench 3-5 | |
| Sequential Read 256KB | |
| Sony Xperia Z4 Tablet | |
| Google Pixel C | |
| Lenovo Yoga Book Android YB1-X90F | |
| Sequential Write 256KB | |
| Google Pixel C | |
| Sony Xperia Z4 Tablet | |
| Lenovo Yoga Book Android YB1-X90F | |
| Random Read 4KB | |
| Lenovo Yoga Book Android YB1-X90F | |
| Sony Xperia Z4 Tablet | |
| Google Pixel C | |
| Random Write 4KB | |
| Sony Xperia Z4 Tablet | |
| Lenovo Yoga Book Android YB1-X90F | |
| Google Pixel C | |
| Sequential Read 256KB SDCard | |
| Lenovo Yoga Book Android YB1-X90F | |
| Sequential Write 256KB SDCard | |
| Lenovo Yoga Book Android YB1-X90F | |
| Asphalt 8: Airborne | |||
| Settings | Value | ||
| high | 30 fps | ||
| very low | 30 fps | ||
| Dead Trigger 2 | |||
| Settings | Value | ||
| high | 30 fps | ||

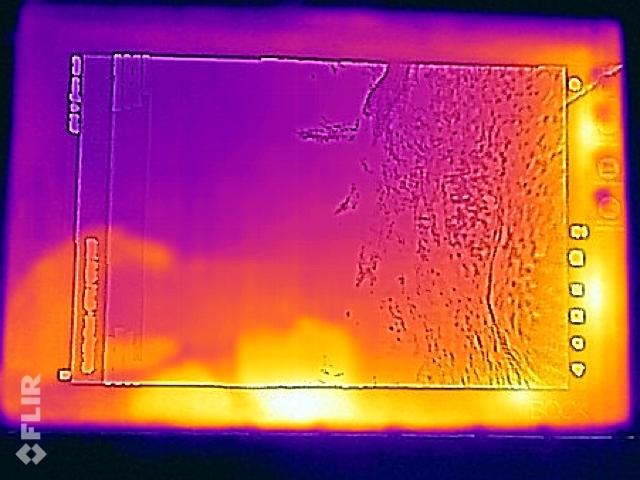

(+) The maximum temperature on the upper side is 29.2 °C / 85 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.

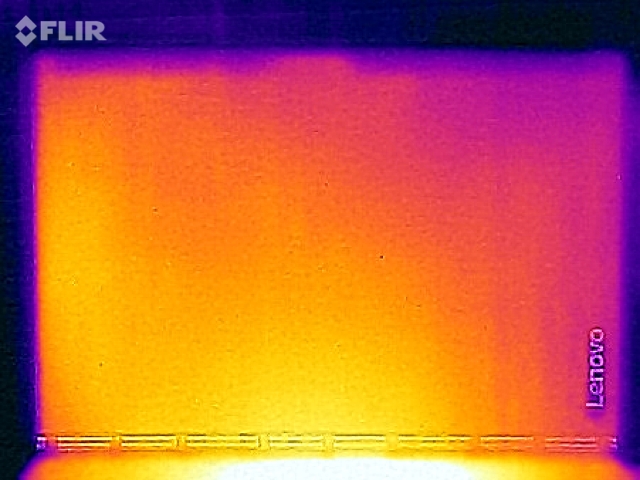

(+) The bottom heats up to a maximum of 31.3 °C / 88 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.3 °C / 79 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.2 °C / 84.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-1.1 °C / -2 F).
Lenovo Yoga Book Android YB1-X90F audio analysis
(±) | speaker loudness is average but good (79.3 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19.6% lower than median
(±) | linearity of bass is average (10.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.5% higher than median
(±) | linearity of mids is average (8.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.8% away from median
(+) | highs are linear (6.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.8% difference to median)
Compared to same class
» 50% of all tested devices in this class were better, 11% similar, 39% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 51% of all tested devices were better, 8% similar, 41% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Google Pixel C audio analysis
(+) | speakers can play relatively loud (92.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 29.9% lower than median
(±) | linearity of bass is average (7.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.8% away from median
(±) | linearity of mids is average (7% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 7.5% higher than median
(±) | linearity of highs is average (8.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (24.2% difference to median)
Compared to same class
» 69% of all tested devices in this class were better, 7% similar, 24% worse
» The best had a delta of 7%, average was 23%, worst was 129%
Compared to all devices tested
» 69% of all tested devices were better, 7% similar, 25% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Apple iPad Pro 9.7 audio analysis
(+) | speakers can play relatively loud (90.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 23.2% lower than median
(±) | linearity of bass is average (8.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.7% away from median
(+) | mids are linear (4.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.6% away from median
(+) | highs are linear (4.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.8% difference to median)
Compared to same class
» 32% of all tested devices in this class were better, 4% similar, 64% worse
» The best had a delta of 7%, average was 23%, worst was 129%
Compared to all devices tested
» 24% of all tested devices were better, 7% similar, 69% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Lenovo Yoga Book 2016 Windows 64GB LTE audio analysis
(-) | not very loud speakers (67 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 22.9% lower than median
(±) | linearity of bass is average (7.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.3% away from median
(±) | linearity of mids is average (12.2% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5% higher than median
(±) | linearity of highs is average (11.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (27.9% difference to median)
Compared to same class
» 83% of all tested devices in this class were better, 3% similar, 15% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 82% of all tested devices were better, 3% similar, 15% worse
» The best had a delta of 4%, average was 25%, worst was 134%
| Off / Standby |   0.12 / 0.12 Watt |
| Idle |  2.19 / 4.3 / 4.37 Watt |
| Load |
8.62 / 11.26 Watt |

| |
| Lenovo Yoga Book Android YB1-X90F 8500 mAh | Google Pixel C mAh | Apple iPad Pro 9.7 7306 mAh | Sony Xperia Z4 Tablet mAh | Lenovo Yoga Book 2016 Windows 64GB LTE 8500 mAh | |
|---|---|---|---|---|---|
| Power Consumption | -4% | -26% | -13% | ||
| Idle Minimum * | 2.19 | 1.82 17% | 1.71 22% | 2 9% | |
| Idle Average * | 4.3 | 4.26 1% | 7.55 -76% | 4.6 -7% | |
| Idle Maximum * | 4.37 | 4.33 1% | 7.62 -74% | 5.7 -30% | |
| Load Average * | 8.62 | 9.82 -14% | 8.39 3% | 11.5 -33% | |
| Load Maximum * | 11.26 | 13.99 -24% | 12.08 -7% | 11.5 -2% |
* ... smaller is better
| Lenovo Yoga Book Android YB1-X90F 8500 mAh | Google Pixel C mAh | Apple iPad Pro 9.7 7306 mAh | Sony Xperia Z4 Tablet mAh | Lenovo Yoga Book 2016 Windows 64GB LTE 8500 mAh | |
|---|---|---|---|---|---|
| Battery Runtime | 12% | 2% | -8% | -30% | |
| Reader / Idle | 1985 | 2090 5% | 1850 -7% | 2135 8% | 1153 -42% |
| H.264 | 702 | 740 5% | 708 1% | 705 0% | |
| WiFi v1.3 | 602 | 638 6% | 779 29% | 525 -13% | 498 -17% |
| Load | 222 | 294 32% | 186 -16% | 166 -25% |
Pros
Cons
Yoga Book在我们心中占据了一个十分独特的位置，它运行安卓的型号也表现十分不错。实际上，在一些方面甚至超过了Windows机型。这台设备的设计十分特别，看到“表带”式屏幕转轴也让我们十分兴奋。背光的Halo键盘看上去十分美观，同时也很适合实际日常使用，不过我们不建议在日光下使用，可能在强光下还是传统机械键盘比较适合。

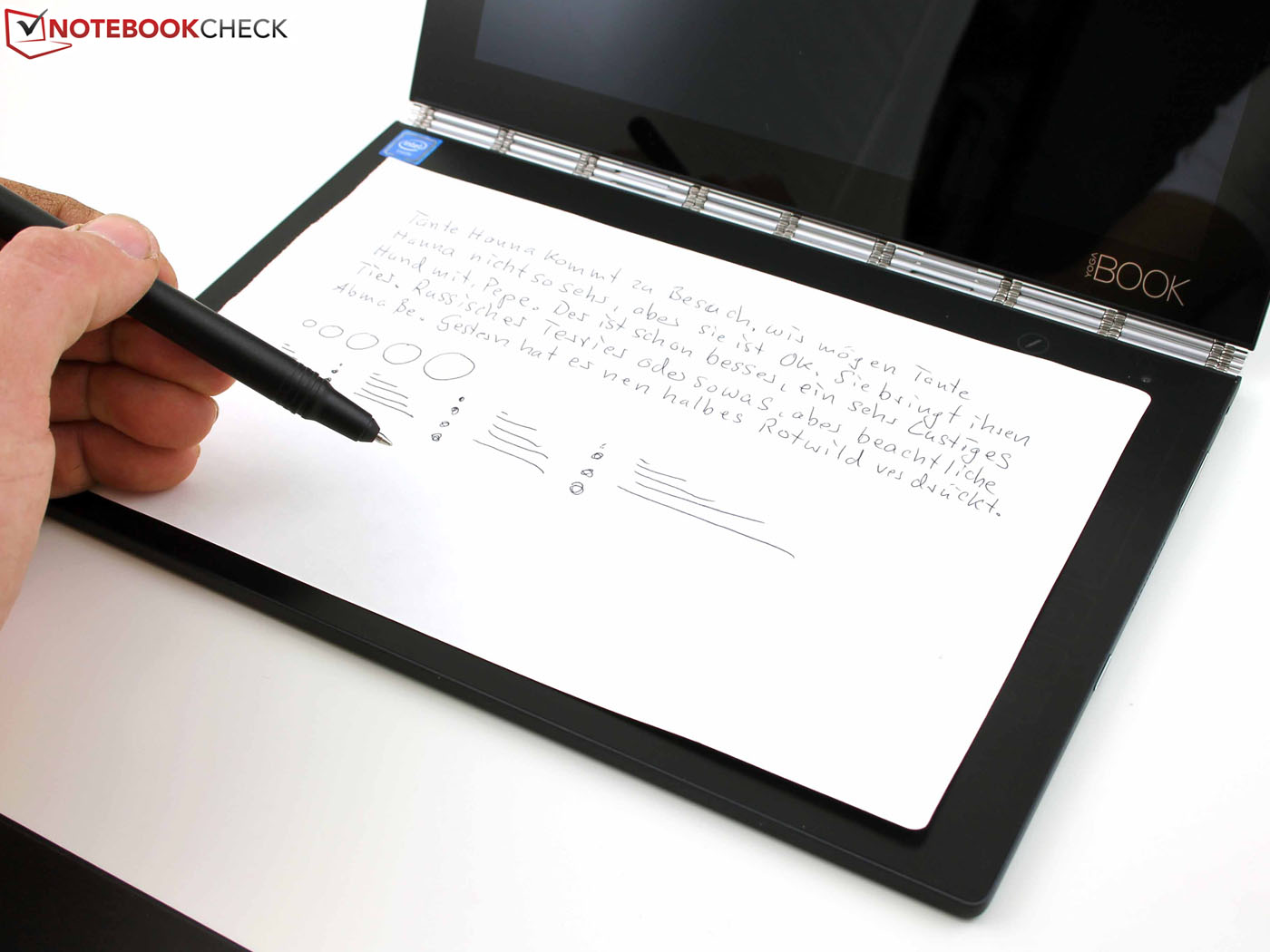

Yoga Book在电子笔记方面非常出色。它对于需要在移动中记录很多笔记或同时需要触控屏幕和绘图板的用户十分适合。iPad Pro 9.7无法满足这些需要。但是偶尔这台设备也需要一些时间识别输入内容或执行任务。感兴趣的专业用户应该在购买前花一些时间试用（特别是绘图板的实际使用感受）。
它的性能和屏幕表现都十分不错，但不算出色。它们可以满足日常使用的需要。它的屏幕在色彩准确度上表现不足，可能无法达到专业用户的标准。另一方面，让人欣慰的是它在运行中几乎不会变热，可以保持最高性能运转。而优秀的扬声器、坚固的机身和非常灵活的输入方式都让联想 Yoga Book Android可以满足各种不同情况的需要。
兼具实用性、功能性和灵活性，同时没有缺陷：Yoga Book Android无疑是一台特别的设备，但它可以为工作带来很多乐趣。
如果你不需要Windows 10的话，那么我们建议参考一下这个安卓机型，它在一些方面胜过了Windows机型：电池续航和屏幕表现。

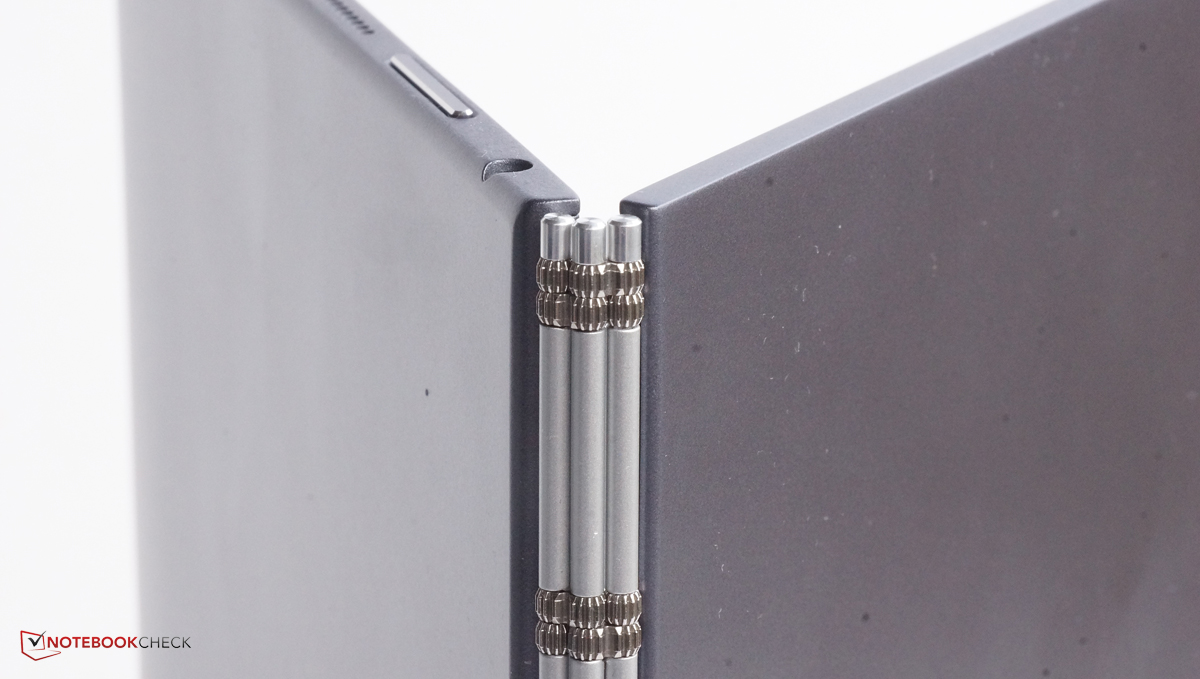

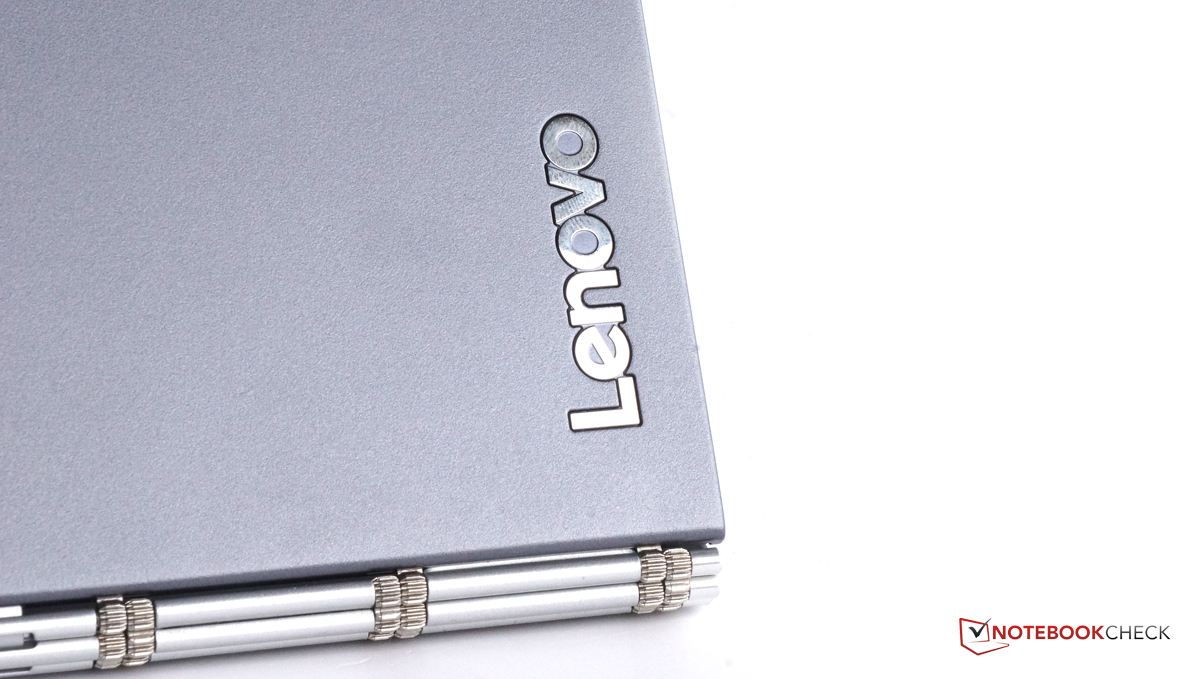

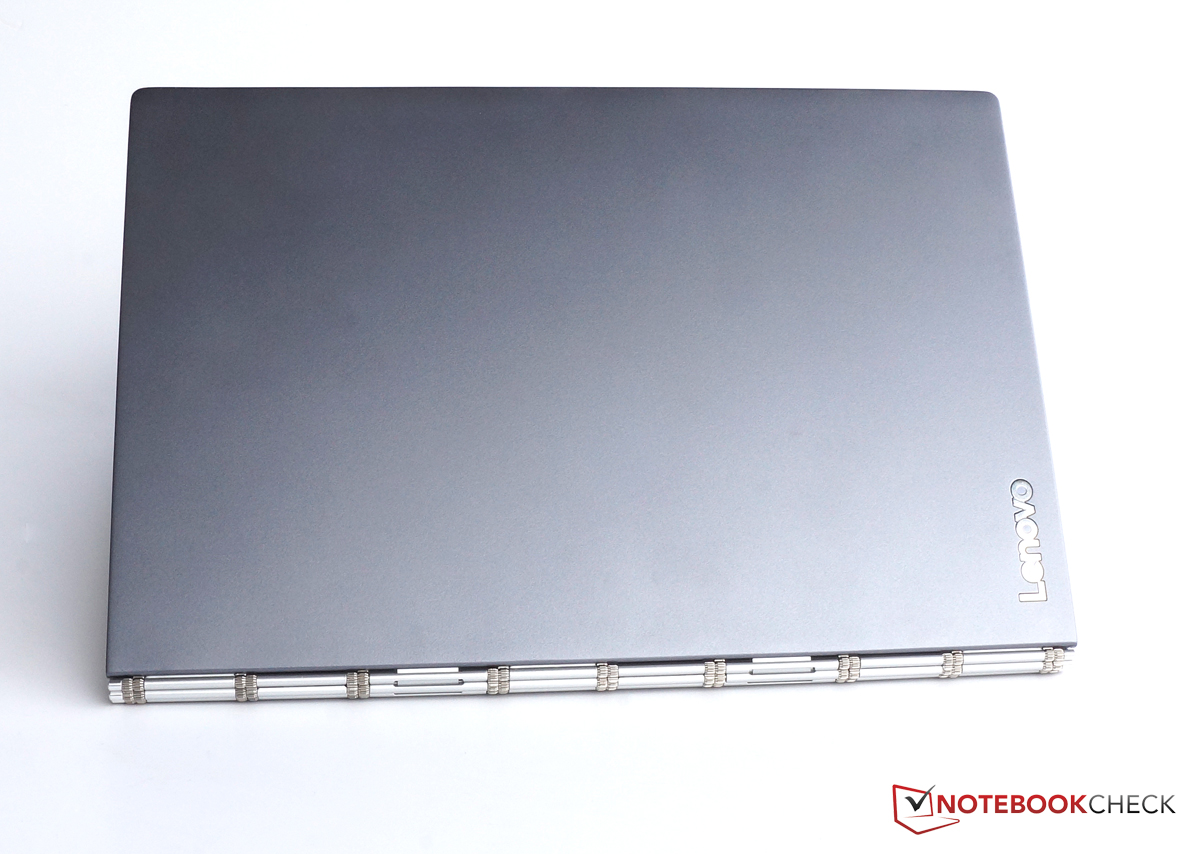

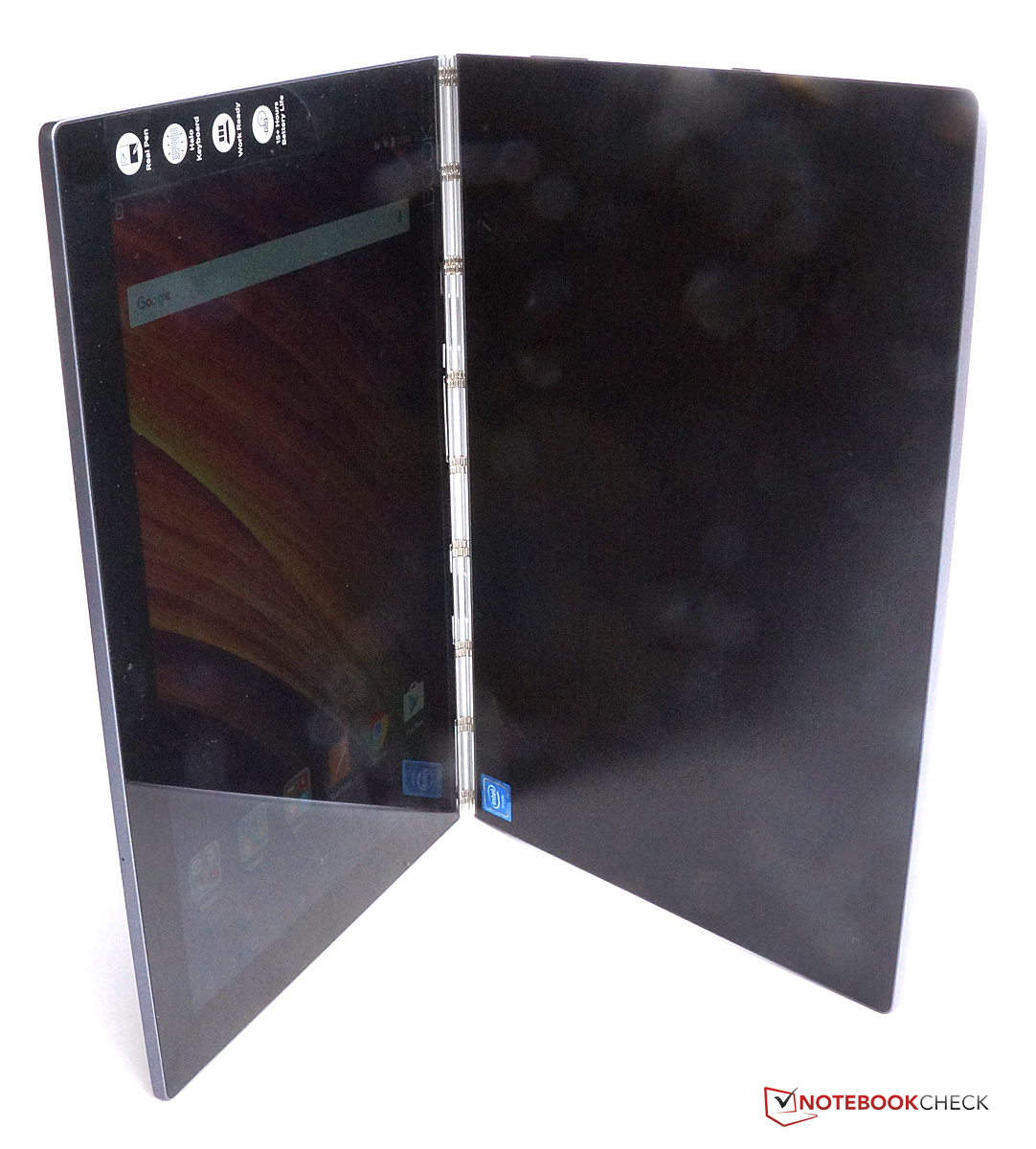

整体上，联想的这台独特工具十分适合需要便携绘图板的平面设计师。Yoga Book在设计和外观上也十分引人注目，特别是雅致的机身和独特的屏幕转轴。这台设备提供了众多功能而没有明显弱点。我们十分建议对这类设备感兴趣的用户考虑一下这台Yoga Book Android。
注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。
Lenovo Yoga Book Android YB1-X90F
-
11/09/2016 v5.1(old)
Florian Wimmer
