联想 ThinkPad T560 (Core i5, SSHD) 超极本简短评测

Name: Lenovo ThinkPad T560-20FH001FGE
Brand: Lenovo

更高，更快，更强？ 联想的最新ThinkPad T560的IPS屏幕提供了宽广可视角度范围，Skylake平台带来的更强性能以及更长电池续航都让我们十分满意。不过，这台15寸设备的其它改变很小——它还能在同类产品中保持领先地位吗？

Till Schönborn (translated by Yuchen Wang), Published 03/06/2016 🇺🇸 🇩🇪 ...

Business Laptop / Notebook Skylake Ultrabook Windows

Test device courtesy of notebooksandmore.de

Download your licensed rating image as PNG / SVG

Lenovo ThinkPad T560-20FH001FGE (ThinkPad T560 Series)

Processor

Intel Core i5-6200U 2 x 2.3 - 2.8 GHz, Skylake

Graphics adapter

Intel HD Graphics 520, Core: 1000 MHz, Memory: 800 MHz, 20.19.15.4352

Memory

4 GB

, 1x 4 GB DDR3L-1600, 2个内存槽中的1个已占用

Display

15.60 inch 16:9, 1920 x 1080 pixel, LTN156HL09901, IPS 面板, LED 背光, glossy: no

Mainboard

Intel Skylake-U Premium PCH

Storage

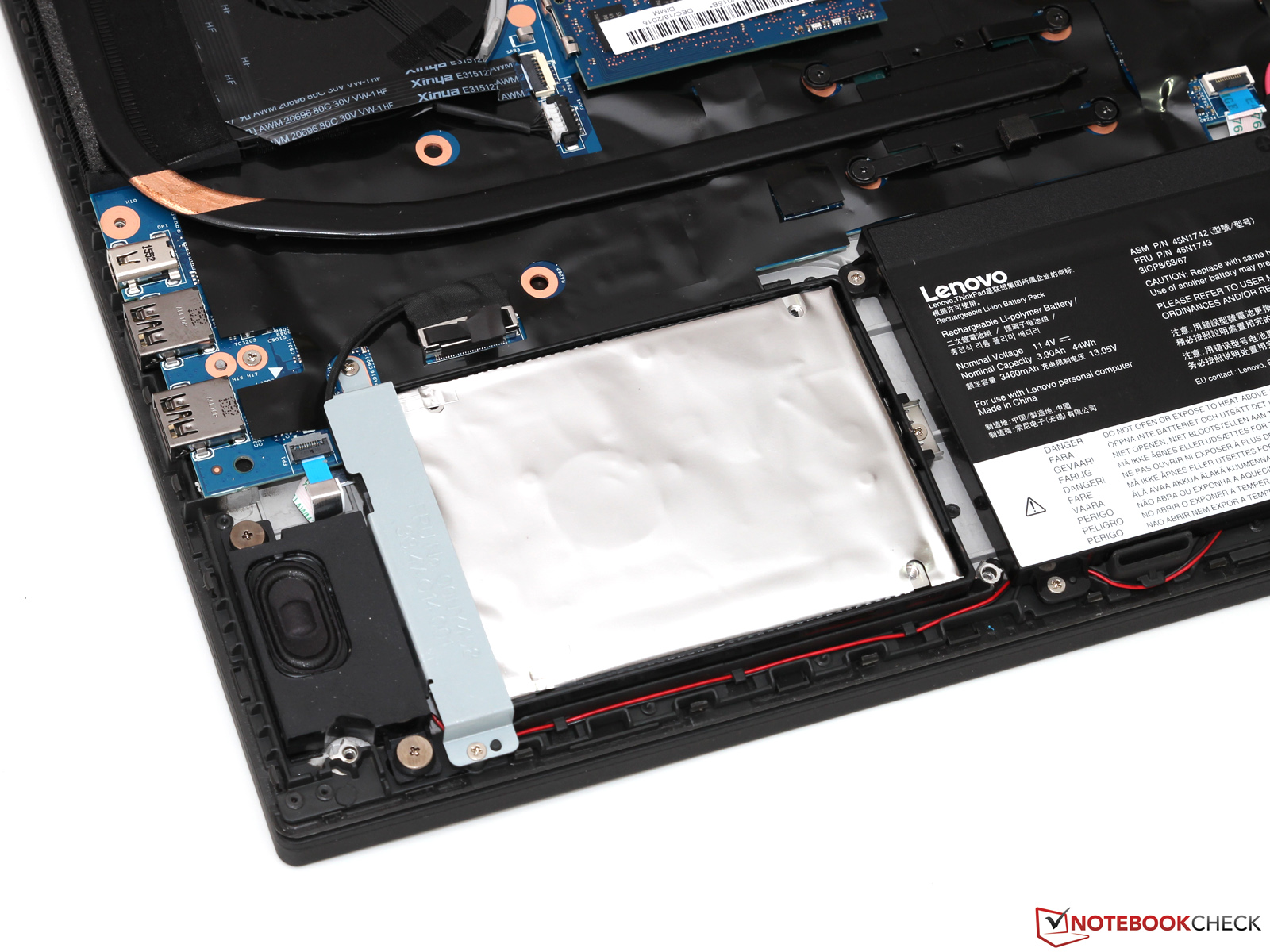

Seagate ST500LM000 Solid State Hybrid Drive, 500 GB

, 5400 rpm, 8 GB 固态硬盘缓存

Soundcard

Intel Skylake-U/Y PCH - High Definition Audio

Connections

3 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 3.5毫米耳机插口, Card Reader: SD, 1 SmartCard, 1 Fingerprint Reader

Networking

Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Size

height x width x depth (in mm): 22.4 x 380 x 252

Battery

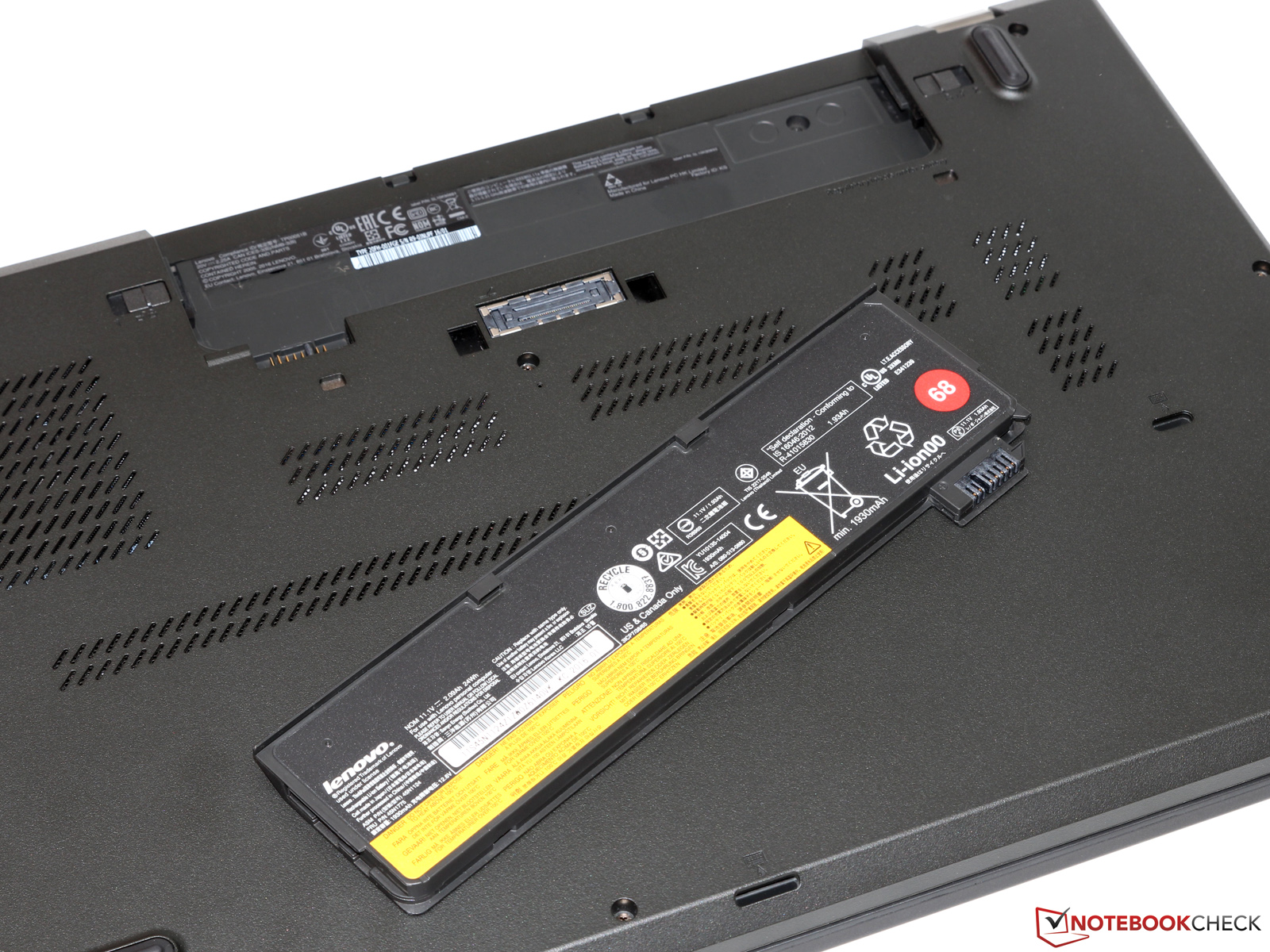

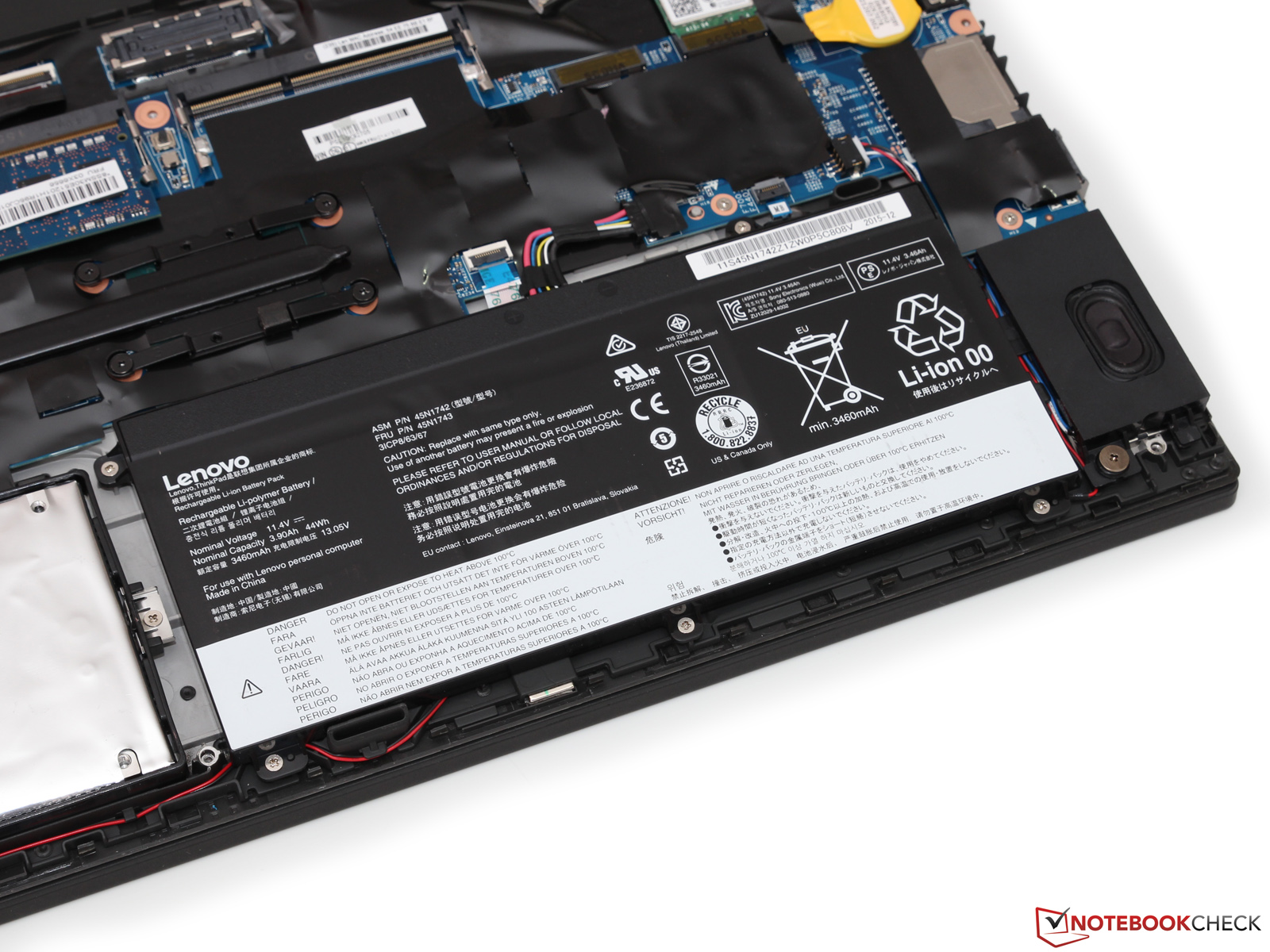

67 Wh Lithium-Ion, 44 Wh 内置 + 23 Wh 外置

Operating System

Microsoft Windows 10 Pro 64 Bit

Camera

Webcam: 720p

Additional features

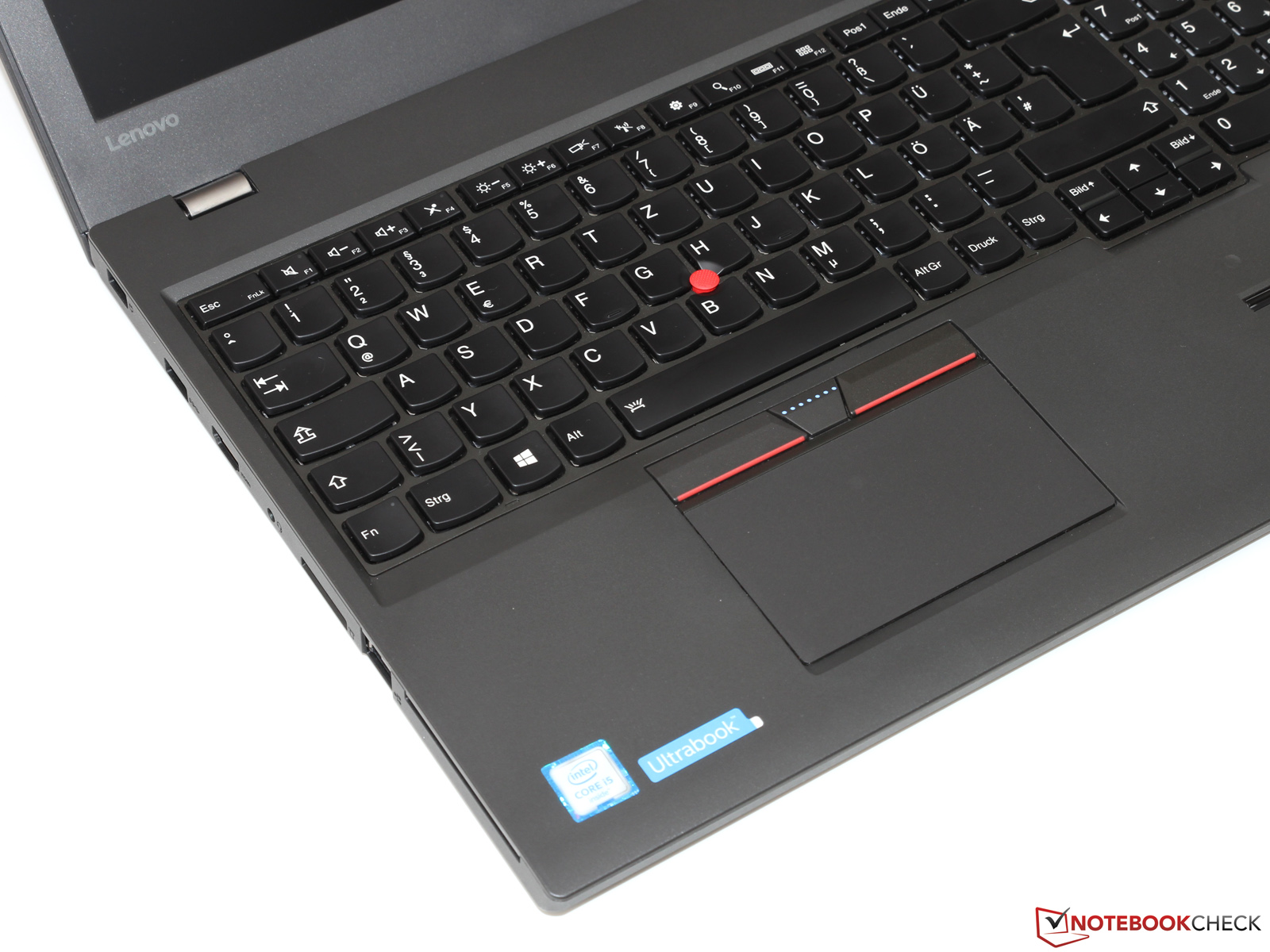

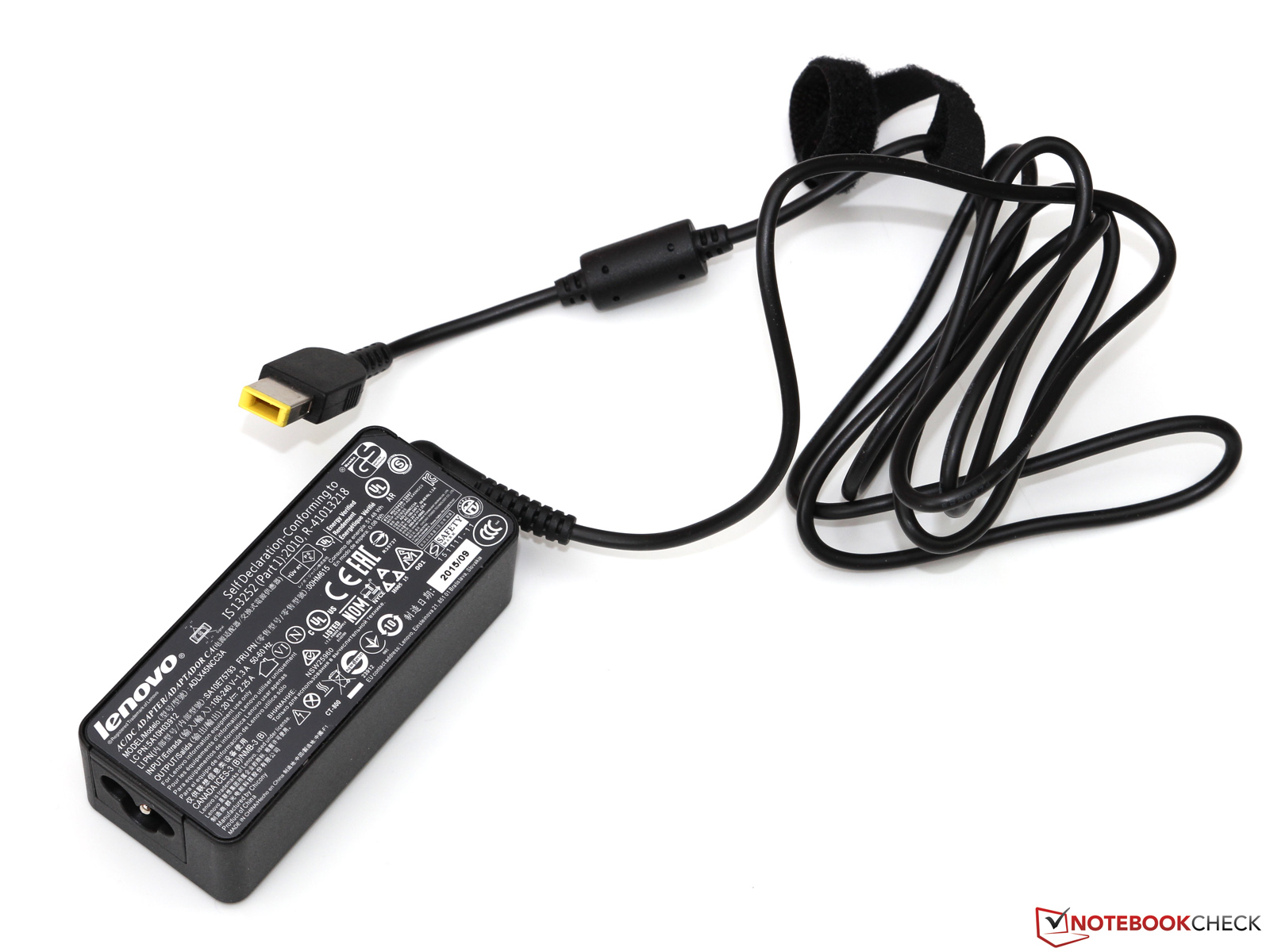

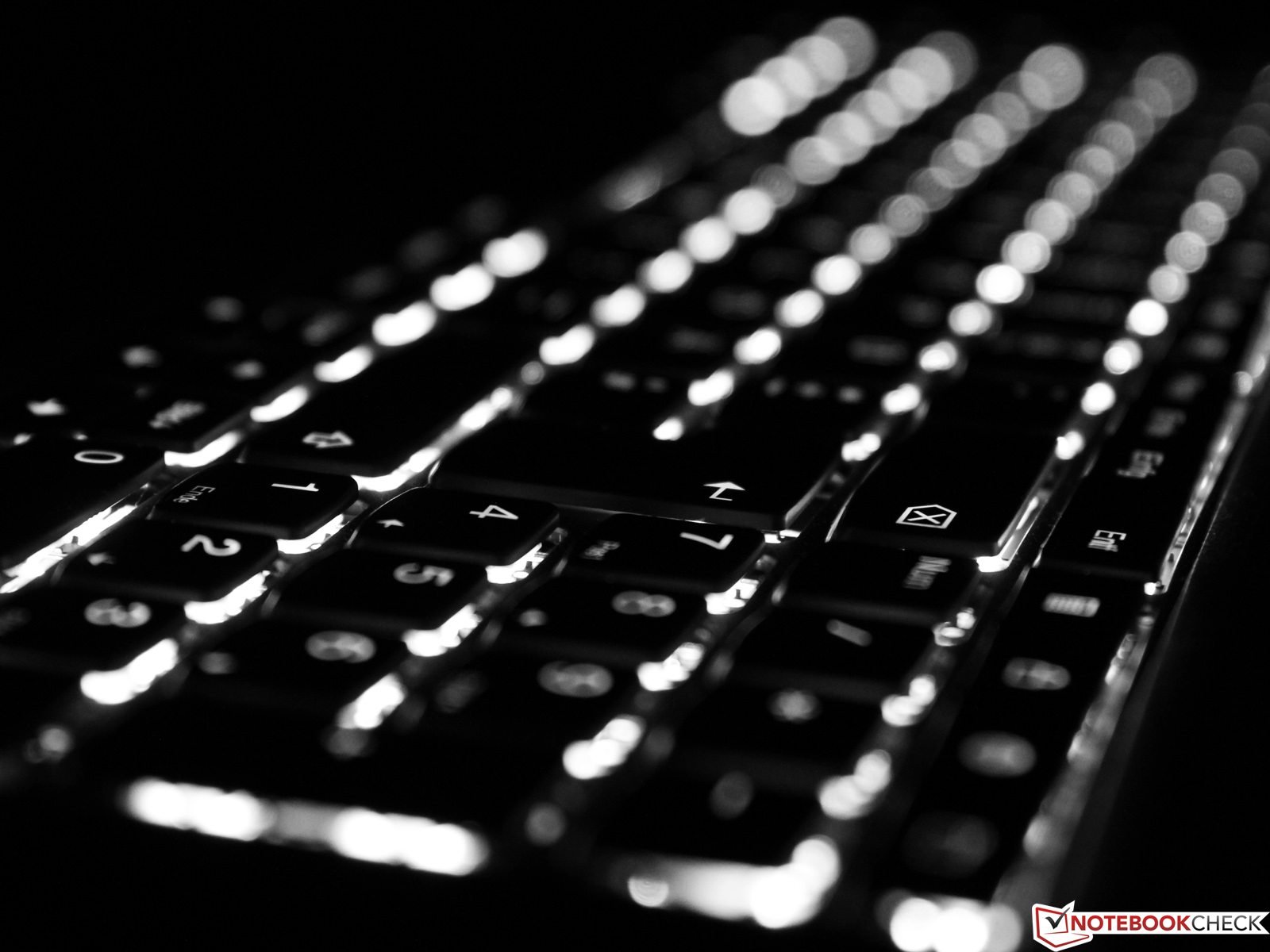

Speakers: 立体声, Keyboard: 孤岛式, Keyboard Light: yes, 45瓦电源适配器, 36 Months Warranty

Weight

2.256 kg, Power Supply: 185 g

Price

1400 Euro

Links

Lenovo homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

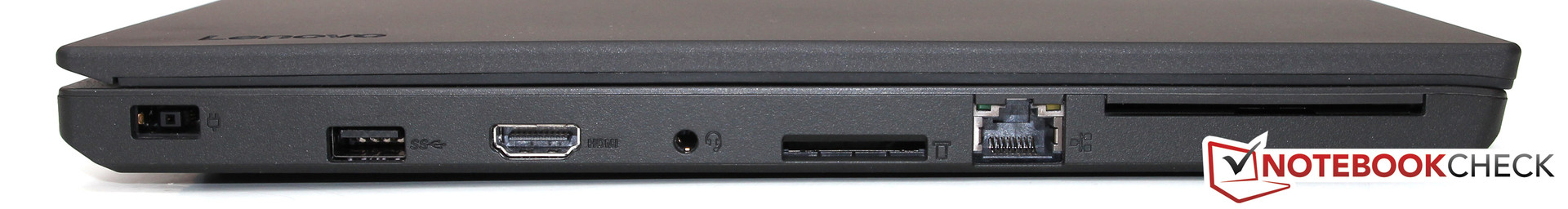

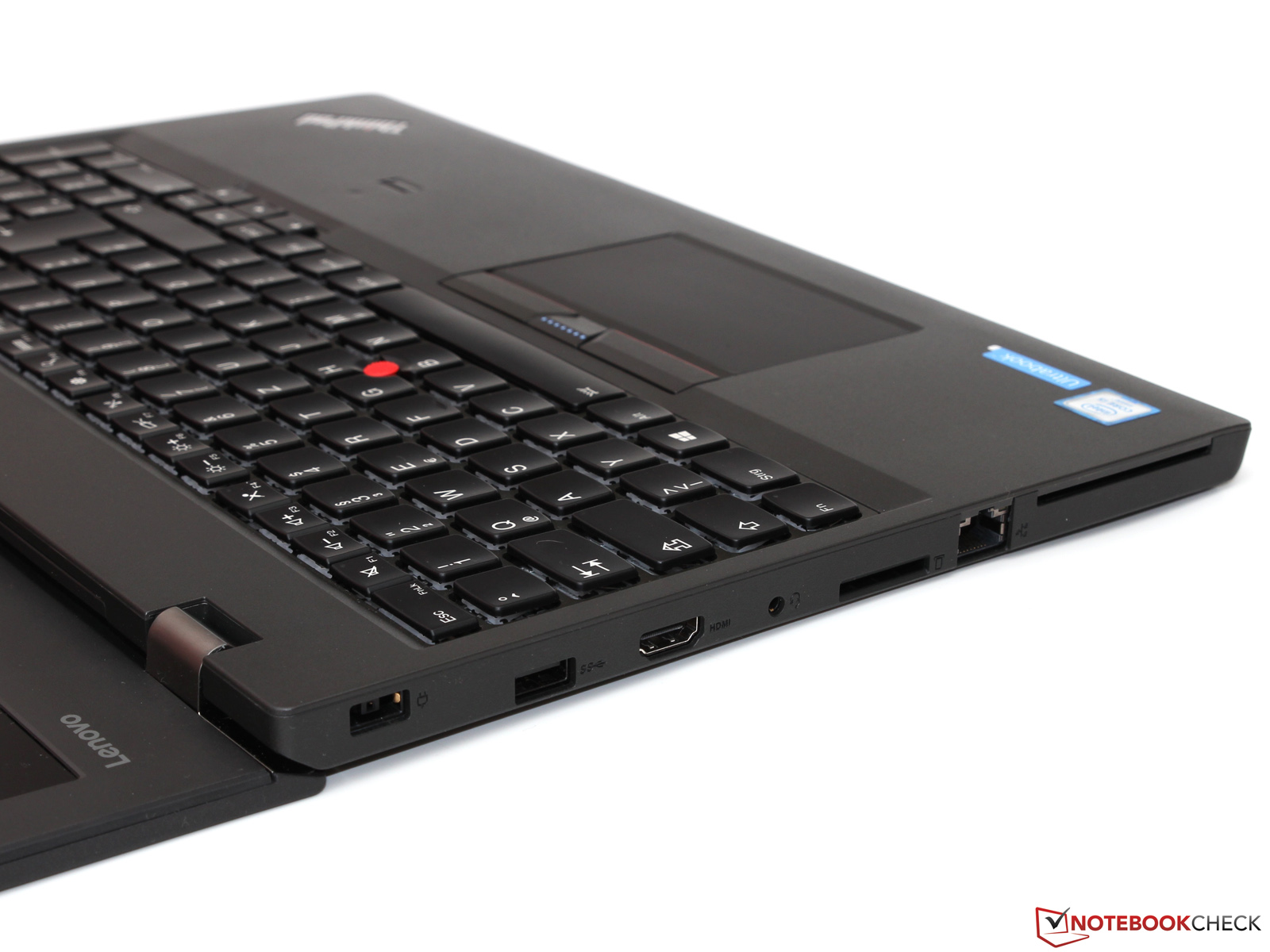

left side: power, USB 3.0, HDMI, headset port, card reader, Gbit-LAN, SmartCard reader

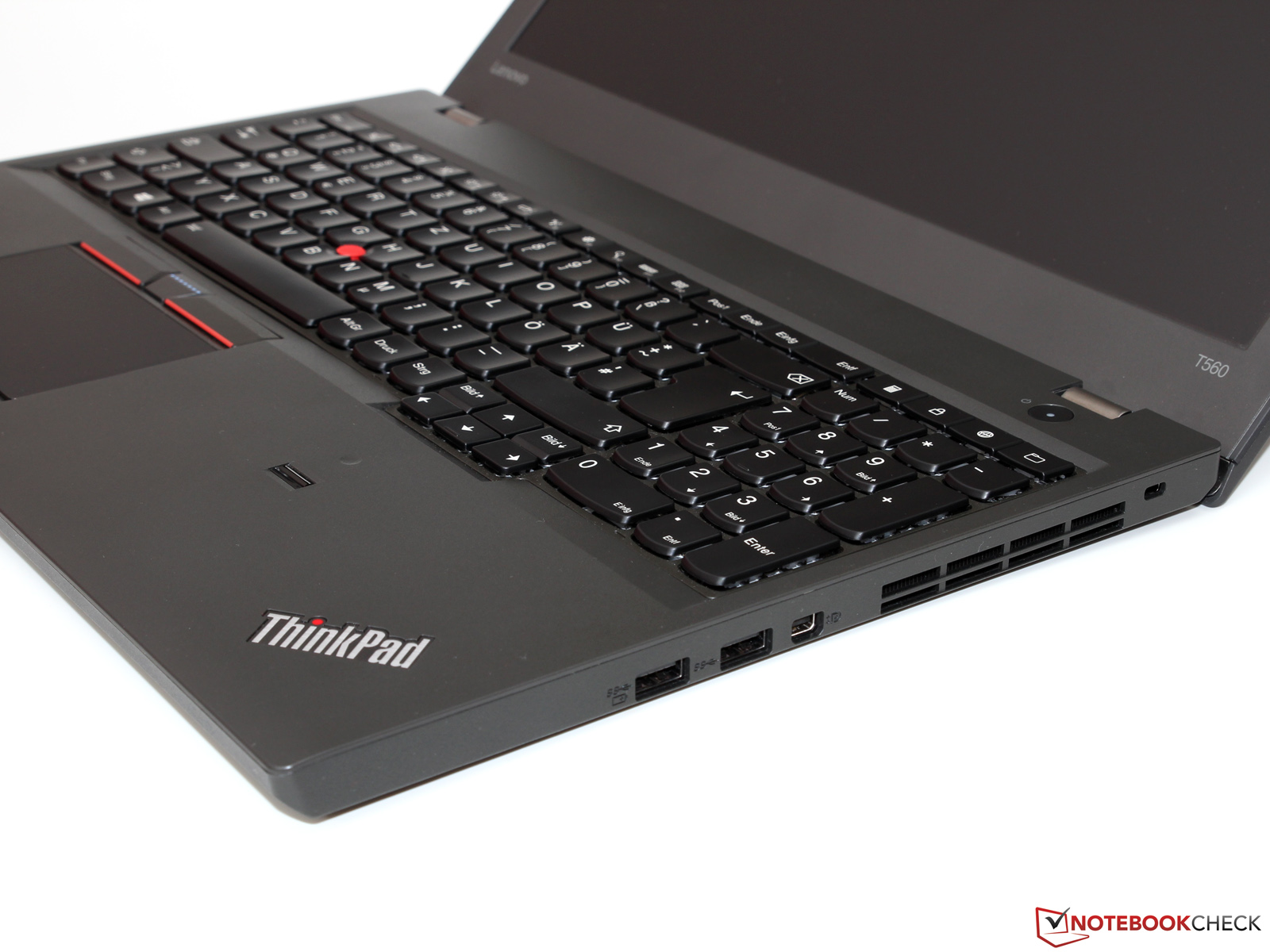

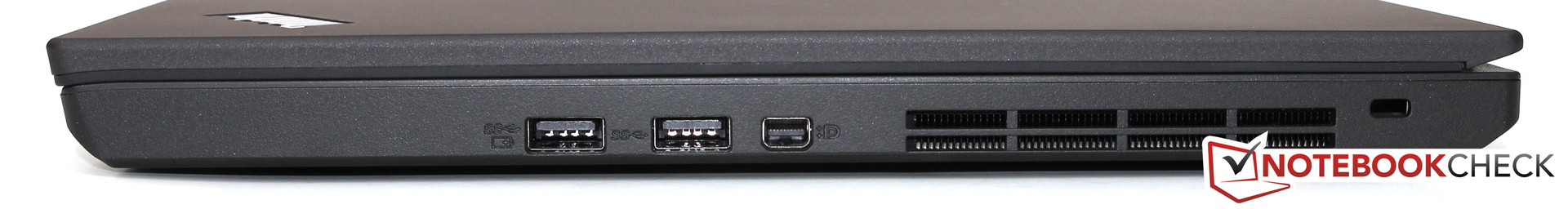

right side: 2x USB 3.0, Mini-DisplayPort, fan exhaust, Kensington Lock

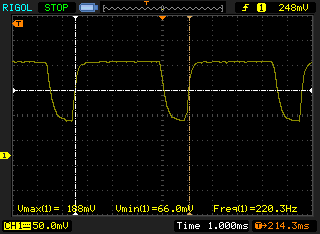

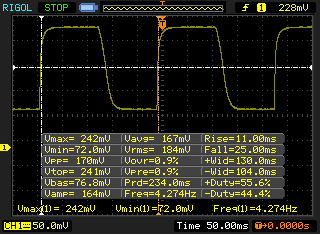

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

220 Hz

≤ 50 % brightness setting

The display backlight flickers at 220 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 50 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 220 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17924 (minimum: 5 - maximum: 3846000) Hz was measured.


224 cd/m²	218 cd/m²	207 cd/m²
224 cd/m²	243 cd/m²	212 cd/m²
229 cd/m²	214 cd/m²	205 cd/m²

Distribution of brightness

LTN156HL09901 tested with X-Rite i1Pro 2

Maximum: 243 cd/m² (Nits) Average: 219.6 cd/m² Minimum: 3 cd/m²
Brightness Distribution: 84 %
Center on Battery: 241 cd/m²
Contrast: 900:1 (Black: 0.27 cd/m²)
ΔE Color 7.49 | 0.5-29.43 Ø5
ΔE Greyscale 7.5 | 0.57-98 Ø5.3
60.9% sRGB (Argyll 1.6.3 3D)
38.9% AdobeRGB 1998 (Argyll 1.6.3 3D)
42.36% AdobeRGB 1998 (Argyll 2.2.0 3D)
61.3% sRGB (Argyll 2.2.0 3D)
40.96% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.35

Download ICC File (X-Rite i1Pro 2)

	Lenovo ThinkPad T560-20FH001FGE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive	Lenovo ThinkPad T550 HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZ7TE256HMHP	Lenovo ThinkPad T540p-20BE005YGE GeForce GT 730M, 4700MQ, Samsung SSD 840 250GB MZ7TD256HAFV	Lenovo ThinkPad P50 Quadro M2000M, 6820HQ, Samsung SSD PM871 MZNLN256HCHP
Screen		-32%	3%	9%
Brightness middle	243	297 22%	333 37%	263 8%
Brightness	220	287 30%	310 41%	236 7%
Brightness Distribution	84	83 -1%	82 -2%	78 -7%
Black Level *	0.27	0.9 -233%	0.62 -130%	0.34 -26%
Contrast	900	330 -63%	537 -40%	774 -14%
Colorchecker dE 2000 *	7.49	8.74 -17%	4.67 38%	2.35 69%
Colorchecker dE 2000 max. *	15.13
Greyscale dE 2000 *	7.5	9.31 -24%	5.66 25%	3.33 56%
Gamma	2.35 ^94%	2.42 ^91%	2.46 ^89%	2.38 ^92%
CCT	6115 ^106%	10649 ^61%	5966 ^109%	6917 ^94%
Color Space (Percent of AdobeRGB 1998)	38.9	50.8 31%	61 57%	37 -5%
Color Space (Percent of sRGB)	60.9			58 -5%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

↔ Response Time Black to White
36 ms ... rise ↗ and fall ↘ combined	↗ 11 ms rise
36 ms ... rise ↗ and fall ↘ combined	↘ 25 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 93 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21.5 ms).

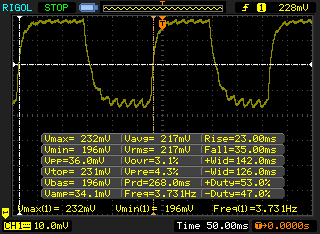

↔ Response Time 50% Grey to 80% Grey
58 ms ... rise ↗ and fall ↘ combined	↗ 23 ms rise
58 ms ... rise ↗ and fall ↘ combined	↘ 35 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 93 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (33.7 ms).

Cinebench R15 | Cinebench R11.5 | X264 HD Benchmark 4.0

Cinebench R15
CPU Single 64Bit
Lenovo ThinkPad T550 Intel Core i7-5600U	131 Points +16%
Microsoft Surface Book Core i7 Intel Core i7-6600U	129 Points +14%
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	124 Points +10%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	123 Points +9%
HP ProBook 440 G3 PL Intel Core i5-6200U	116 Points +3%
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	113 Points
Fujitsu LifeBook A555G PL Intel Core i5-5200U	107 Points -5%
CPU Multi 64Bit
Microsoft Surface Book Core i7 Intel Core i7-6600U	335 Points +16%
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	319 Points +10%
HP ProBook 440 G3 PL Intel Core i5-6200U	290 Points 0%
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	290 Points
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	282 Points -3%
Lenovo ThinkPad T550 Intel Core i7-5600U	279 Points -4%
Fujitsu LifeBook A555G PL Intel Core i5-5200U	261 Points -10%

Cinebench R11.5
CPU Single 64Bit
Microsoft Surface Book Core i7 Intel Core i7-6600U	1.49 Points +16%
Lenovo ThinkPad T550 Intel Core i7-5600U	1.48 Points +15%
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	1.45 Points +12%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	1.42 Points +10%
HP ProBook 440 G3 PL Intel Core i5-6200U	1.33 Points +3%
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	1.29 Points
Fujitsu LifeBook A555G PL Intel Core i5-5200U	1.26 Points -2%
CPU Multi 64Bit
Microsoft Surface Book Core i7 Intel Core i7-6600U	3.73 Points +15%
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	3.55 Points +10%
HP ProBook 440 G3 PL Intel Core i5-6200U	3.25 Points +1%
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	3.23 Points
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	3.13 Points -3%
Lenovo ThinkPad T550 Intel Core i7-5600U	3.07 Points -5%
Fujitsu LifeBook A555G PL Intel Core i5-5200U	2.84 Points -12%

X264 HD Benchmark 4.0
Pass 1
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	107.6 fps +10%
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	98 fps
HP ProBook 440 G3 PL Intel Core i5-6200U	95 fps -3%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	89.6 fps -9%
Fujitsu LifeBook A555G PL Intel Core i5-5200U	84 fps -14%
Pass 2
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	20.95 fps +10%
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	19.04 fps
HP ProBook 440 G3 PL Intel Core i5-6200U	19 fps 0%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	17.31 fps -9%
Fujitsu LifeBook A555G PL Intel Core i5-5200U	16 fps -16%

Cinebench R10 Shading 32Bit

6773

Cinebench R10 Rendering Multiple CPUs 32Bit

9862

Cinebench R10 Rendering Single 32Bit

4304

Cinebench R10 Shading 64Bit

5639 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

12462 Points

Cinebench R10 Rendering Single CPUs 64Bit

5267 Points

Cinebench R11.5 CPU Single 64Bit

1.29 Points

Cinebench R11.5 OpenGL 64Bit

23.13 fps

Cinebench R11.5 CPU Multi 64Bit

3.23 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

31.33 fps

Cinebench R15 CPU Single 64Bit

113 Points

Cinebench R15 CPU Multi 64Bit

290 Points

Help

... in comparison

	Lenovo ThinkPad T560-20FH001FGE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive	HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	Lenovo ThinkPad T550 HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZ7TE256HMHP	HP EliteBook 850 G2 J7B56EA HD Graphics 5500, 5300U, Samsung SSD 850 EVO 250GB
CrystalDiskMark 3.0		-7%	11072%	15072%
Read Seq	108.6	122.8 13%	528 386%	523 382%
Write Seq	113.2	123.5 9%	241.1 113%	462.9 309%
Read 512	33.82	33.14 -2%	454.6 1244%	472.1 1296%
Write 512	60.8	56.5 -7%	239.8 294%	380.7 526%
Read 4k	0.36	0.341 -5%	36.61 10069%	50.9 14039%
Write 4k	5.223	0.721 -86%	124 2274%	129.6 2381%
Read 4k QD32	0.807	0.897 11%	296.1 36591%	389.9 48215%
Write 4k QD32	0.64	0.727 14%	241.3 37603%	342.6 53431%

HD Tune

CrystalDiskMark 3.0

Seagate ST500LM000 Solid State Hybrid Drive

Transfer Rate Minimum: 15.5 MB/s

Transfer Rate Maximum: 105 MB/s

Transfer Rate Average: 85.5 MB/s

Access Time: 18.5 ms

Burst Rate: 57.2 MB/s

CPU Usage: 5.2 %

PCMark 7 | PCMark 8

PCMark 7 - Score
HP EliteBook 850 G2 J8R68EA Radeon R7 M260X, 5500U, Samsung SSD PM851 256 GB MZ7TE256HMHP	4905 Points +36%
Lenovo ThinkPad T550 HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZ7TE256HMHP	4518 Points +25%
Lenovo ThinkPad T560-20FH001FGE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive	3609 Points
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	3075 Points -15%

PCMark 8
Home Score Accelerated v2
HP EliteBook 850 G2 J8R68EA Radeon R7 M260X, 5500U, Samsung SSD PM851 256 GB MZ7TE256HMHP	3726 Points +27%
Lenovo ThinkPad T550 HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZ7TE256HMHP	2988 Points +2%
Lenovo ThinkPad T560-20FH001FGE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive	2928 Points
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	2910 Points -1%
Creative Score Accelerated v2
HP EliteBook 850 G2 J8R68EA Radeon R7 M260X, 5500U, Samsung SSD PM851 256 GB MZ7TE256HMHP	3826 Points +8%
Lenovo ThinkPad T560-20FH001FGE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive	3546 Points
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	3460 Points -2%
Lenovo ThinkPad T550 HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZ7TE256HMHP	3261 Points -8%
Work Score Accelerated v2
HP EliteBook 850 G2 J8R68EA Radeon R7 M260X, 5500U, Samsung SSD PM851 256 GB MZ7TE256HMHP	4491 Points +10%
Lenovo ThinkPad T550 HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZ7TE256HMHP	4193 Points +2%
Lenovo ThinkPad T560-20FH001FGE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive	4091 Points
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	3901 Points -5%

PCMark 7 Score		3609 points
PCMark 8 Home Score Accelerated v2		2928 points
PCMark 8 Creative Score Accelerated v2		3546 points
PCMark 8 Work Score Accelerated v2		4091 points
Help

... in comparison

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance
HP EliteBook 745 G3 Radeon R7 (Carrizo), Pro A12-8800B	1852 Points +52%
Dell Inspiron 15-5558 GeForce 920M, 5200U, Toshiba MQ01ABD100	1793 Points +47%
HP EliteBook 745 G3 Radeon R7 (Carrizo), Pro A12-8800B, Samsung SSD PM851 256 GB MZNTE256HMHP	1527 Points +25%
HP ProBook 430 G3 P5T00ES HD Graphics 520, 6200U, Hitachi Travelstar Z7K500 HTS725050A7E630	1477 Points +21%
HP ProBook 430 G3 P5T00ES HD Graphics 520, 6200U, Hitachi Travelstar Z7K500 HTS725050A7E630	1222 Points 0%
Lenovo ThinkPad T560-20FH001FGE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive	1219 Points
Lenovo ThinkPad T550 HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZ7TE256HMHP	992 Points -19%

3DMark - 1920x1080 Fire Strike Graphics
Dell Inspiron 15-5558 GeForce 920M, 5200U, Toshiba MQ01ABD100	1157 Points +96%
HP EliteBook 745 G3 Radeon R7 (Carrizo), Pro A12-8800B	1153 Points +95%
HP ProBook 430 G3 P5T00ES HD Graphics 520, 6200U, Hitachi Travelstar Z7K500 HTS725050A7E630	861 Points +46%
HP EliteBook 745 G3 Radeon R7 (Carrizo), Pro A12-8800B, Samsung SSD PM851 256 GB MZNTE256HMHP	782 Points +32%
HP ProBook 430 G3 P5T00ES HD Graphics 520, 6200U, Hitachi Travelstar Z7K500 HTS725050A7E630	620 Points +5%
Lenovo ThinkPad T560-20FH001FGE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive	591 Points

3DMark 06 Standard Score		6358 points
3DMark Vantage P Result		4381 points
3DMark 11 Performance		1219 points
3DMark Ice Storm Standard Score		35672 points
3DMark Cloud Gate Standard Score		4304 points
3DMark Fire Strike Score		552 points
Help

... in comparison

	low	med.	high	ultra
Sims 4 (2014)	140.4	33	15.1
Dirt Rally (2015)	65.3	18.5	12.5
FIFA 16 (2015)	25

Noise Level

Idle		30.8 / 30.8 / 30.8 dB(A)
HDD		31 dB(A)
Load		33.1 / 34.4 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: ECM8000 + Voltcraft SL-451 (15 cm distance) environment noise: 29 dB(A)

Max. Load

Idle


26.4 °C	30 °C	33.3 °C
27 °C	31.2 °C	32.3 °C
25.7 °C	27.8 °C	29.5 °C

Maximum: 33.3 °C
Average: 29.2 °C


33 °C	29 °C	28.3 °C
40.1 °C	39 °C	28.4 °C
30.9 °C	28.9 °C	26.1 °C

Maximum: 40.1 °C
Average: 31.5 °C

Power Supply (max.) 38 °C | Room Temperature 19.4 °C | Fluke 62 Max

(+) The average temperature for the upper side under maximal load is 29.2 °C / 85 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 33.3 °C / 92 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 40.1 °C / 104 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.1 °C / 79 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.5 °C / 85.1 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-1.8 °C / -3.2 F).

Power Consumption

Off / Standby	0.2 / 0.36 Watt
Idle	4.3 / 7.3 / 7.8 Watt
Load	26.3 / 32 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

In review: Lenovo ThinkPad T560. Test model courtesy of Notebooksandmore.

无趣的更新还是开发上的突破？我们需要坦诚的是：除了新的Skylake平台，T560的改变只有一些小细节，不过考虑到前代产品的出色表现这并不是太大的问题。

这台ThinkPad的优势依然包括了坚固的机身，出色的输入设备——特别是出色的键盘——以及超低噪音和发热量。后者要归功于联想只为这个15寸机身搭配了节能的超低电压处理器的决定。基于英特尔的最新Skylake架构，这台测试机中的酷睿5-6200U能够为复杂软件和多任务处理提供充足的动力。整个系统都非常节能，保证了11个小时的实际使用续航时间。

遗憾的事，联想没有为这台T5x0系列的新机型搭配USB 3.1或者C型接口，以及Thunderbolt 3。全新的IPS屏幕并不是完胜前代机型的TN屏幕：它的对比度和可视角度稳定性明显有了提高，不过色彩和最高亮度却反而退步。不过至少还有可选的3K屏幕面板可以解决这些问题，不过它的价码较高。

整体上，联想再次为我们带来了一款完善的出色设备ThinkPad T560，它可以成为竞争对手如惠普EliteBook 850 G3的参照系。

当然，由于价位较高，你需要在购买前谨慎考虑——正在淡出市场的T550与之差别不大，对价格敏感用户可以考虑。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Pros

+ 坚固实用的机身设计

+ 精确的屏幕转轴

+ 出色的键盘

+ 高速无线网，可选LTE模组

+ IPS屏幕提供了宽广的可视角度范围

+ 优秀的应用程序性能

+ 低噪音和低发热

+ 完备的安全功能

+ 优异的电池续航

+ 三年质保

Cons

- 无维护底盖

- 不支持USB 3.1或C型接口

- 低亮度

- 高售价

Lenovo ThinkPad T560-20FH001FGE - 2016-02-23 02/23/2016 v5^(old)
Till Schönborn

Chassis

90 / 98 → 92%

Keyboard

94%

Pointing Device

87%

Connectivity

66 / 80 → 83%

Weight

61 / 20-67 → 87%

Battery

93%

Display

82%

Games Performance

56 / 68 → 82%

Application Performance

71 / 92 → 77%

Temperature

93%

Noise

93%

Audio

69%

Camera

53 / 85 → 62%

Average

78%

88%

Office - Weighted Average

Read about the changes in the new rating version 5

Pricecompare

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 联想 ThinkPad T560 (Core i5, SSHD) 超极本简短评测

Till Schönborn, 2016-03- 6 (Update: 2016-03- 6)
