微软 Surface Pro 3 平板电脑简短评测

Surface重塑。 微软的最新Surface相比以前更薄,更轻,更性感,也更全面了。世界这次是终于遇到了笔记本电脑的替代品了吗?
Windows Ultrabook Touchscreen Convertible / 2-in-1 Tablet
292 mm 201 mm 9 mm 810 g275 mm 173 mm 14 mm 915 g240 mm 169.5 mm 7.5 mm 464 g297 mm 210 mm 1 mm 5.7 g
338.6
cd/m²
336.5
cd/m²
323.5
cd/m²
335.4
cd/m²
355.3
cd/m²
331.2
cd/m²
338.6
cd/m²
341.8
cd/m²
340.8
cd/m²
Distribution of brightness
SEC3542 tested with X-Rite i1Basic Pro 2
Maximum: 355.3 cd/m² (Nits) Average: 338 cd/m²
Brightness Distribution: 91 %
Center on Battery: 355.3 cd/m²
Contrast: 1077:1 (Black: 0.33 cd/m²)
ΔE Color 4.72 | 0.5-29.43 Ø5
ΔE Greyscale 6.53 | 0.57-98 Ø5.3
59.37% AdobeRGB 1998 (Argyll 1.6.3 3D)
65.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
88.8% sRGB (Argyll 2.2.0 3D)
63.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.17
Cinebench R10 Shading 32Bit
4469
Cinebench R10 Rendering Multiple CPUs 32Bit
7067
Cinebench R10 Rendering Single 32Bit
3675
Cinebench R10 Shading 64Bit
7154 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
10262 Points
Cinebench R10 Rendering Single CPUs 64Bit
5619 Points
Cinebench R11.5 OpenGL 64Bit
19.48 fps
Cinebench R11.5 CPU Multi 64Bit
2.77 Points
Cinebench R11.5 CPU Single 64Bit
1.12 Points
Help
PCMark Vantage Result
14221 points
PCMark 7 Score
5066 points
Help
Hynix HFS128G3MNM
Transfer Rate Minimum: 307.7 MB/s
Transfer Rate Maximum: 388 MB/s
Transfer Rate Average: 331 MB/s
Access Time: 0.1 ms
Burst Rate: 51.4 MB/s
CPU Usage: 5.1 %
3DMark 03 Standard
11474 points
3DMark 05 Standard
8651 points
3DMark 06 Standard Score
5640 points
3DMark Vantage P Result
2566 points
3DMark 11 Performance
877 points
3DMark Ice Storm Standard Score
29229 points
3DMark Cloud Gate Standard Score
4146 points
3DMark Fire Strike Score
483 points
Help
low med. high ultra
StarCraft 2 (2010) 138 27 18 12
Diablo III (2012) 41 24 20 14
BioShock Infinite (2013) 38.73 19.46 16.07 4.34

Noise Level

Idle
30.1 / 30.2 / 30.4 dB(A)
Load
31.9 / 44.4 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   BK Precision 732A (15 cm distance)
Max. Load
 36.6 °C42.4 °C45.2 °C
 36.2 °C39.2 °C43.4 °C
 37.6 °C39.2 °C42.4 °C
Maximum: 45.2 °C
Average: 40.2 °C
46.4 °C42.2 °C38.4 °C
45.8 °C41.8 °C37.2 °C
42.8 °C40.8 °C37.4 °C
Maximum: 46.4 °C
Average: 41.4 °C
Power Supply (max.)  50 °C | Room Temperature 27 °C | Raytek Raynger ST
(-) The average temperature for the upper side under maximal load is 40.2 °C / 104 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(-) The maximum temperature on the upper side is 45.2 °C / 113 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(-) The bottom heats up to a maximum of 46.4 °C / 116 F, compared to the average of 36.7 °C / 98 F
(±) In idle usage, the average temperature for the upper side is 33.8 °C / 93 F, compared to the device average of 30.2 °C / 86 F.
(-) The palmrests and touchpad can get very hot to the touch with a maximum of 42.4 °C / 108.3 F.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-14.3 °C / -25.7 F).
Battery Runtime
Idle (without WLAN, min brightness)
18h 16min
WiFi Surfing
8h 24min
Load (maximum brightness)
2h 04min
Battery Runtime - WiFi (sort by value)
Microsoft Surface Pro 3
504 min
Microsoft Surface Pro 2
387 min
Microsoft Surface Pro
285 min
Apple MacBook Air 13 MD761D/B 2014-06
515 min
Apple iPad Air 1 2013
553 min
Lenovo ThinkPad 10
562 min
Dell Venue 11 Pro 5130
550 min
Dell XPS 12-9Q33
527 min

Legend


Microsoft Surface Pro 3 Intel Core i5-4300U, Intel HD Graphics 4400, Hynix HFS128G3MNM

Microsoft Surface Pro 2 Intel Core i5-4200U, Intel HD Graphics 4400, Hynix HFS128G3MNM

Microsoft Surface Pro Intel Core i5-3317U, Intel HD Graphics 4000, Micron RealSSD C400 MTFDDAT064M

Apple MacBook Air 13 MD761D/B 2014-06 Intel Core i5-4260U, Intel HD Graphics 5000, Apple SSD SD0256F

Apple iPad Air 1 2013 Apple A7, PowerVR G6430, 16 GB eMMC Flash

Lenovo ThinkPad 10 Intel Atom Z3795, Intel HD Graphics (Bay Trail), SanDisk SEM64G

Dell Venue 11 Pro 5130 Intel Atom Z3770, Intel HD Graphics (Bay Trail), Samsung MCG8GC

Dell XPS 12-9Q33 Intel Core i5-4200U, Intel HD Graphics 4400,

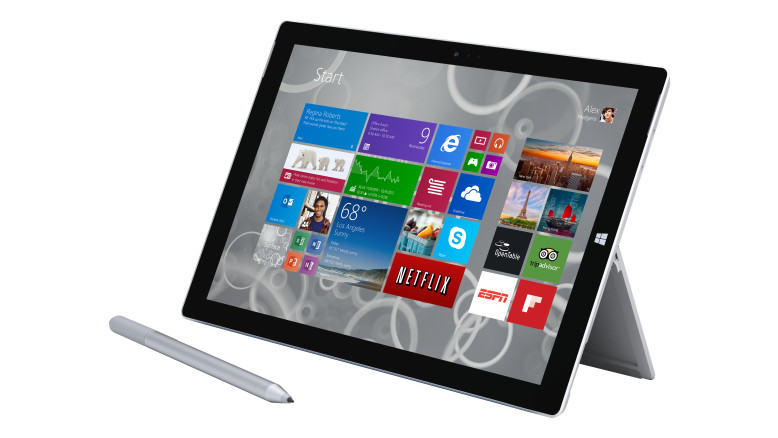

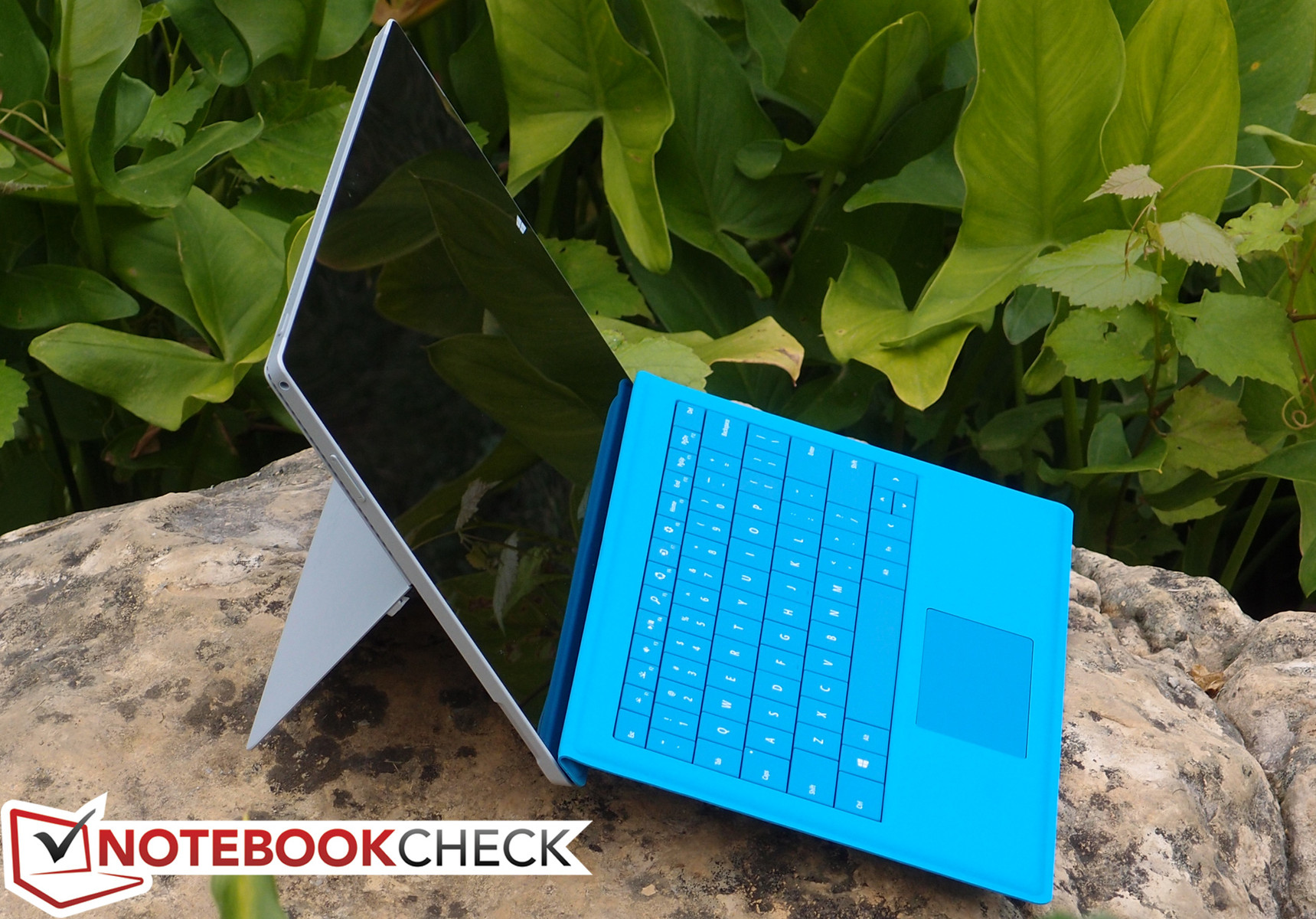

The Microsoft Surface Pro 3
The Microsoft Surface Pro 3

在他们的第三次尝试中,微软终于在便携性,易用性和性能之间找到了一个平衡,注入到了他们现在最全面的平板电脑之中,实际上它也是市场上唯一一款这样的产品。微软Surface Pro 3在很多方面表现优秀,让人感觉无可挑剔。它是我们测试过的最优秀最吸引人的设备之一,作为一款运行完整的Windows 8.1 64位操作系统的超便携设备,它还提供了优秀的电池续航时间——在我们的网页浏览测试中相比Surface Pro 2有了30%的提升。

而且,它还提供了一块更大的3:2比例屏幕更好用的手写笔改进的支架设计,新的支架可以使用于几乎所有实用的角度下,和减少了35%的厚度。把它称作当代工程学的杰作也不算过分。

但它替代传统笔记本电脑的任务可以说具有里程碑式的意义。尽管它是一个成功的产品,不过超薄的机身和对于这个尺寸机身的过高TDP(因此需要主动散热)给它带来了很大的挑战——这使得它在持续负载下的性能受到了很大的限制。而且缺少实体键盘的设计让微软的工程师们需要在改进Type Cover的易用性(如在腿上使用时)上付出更大的努力,才可能替代已经非常成熟的现有笔记本电脑概念。

作为一个更接近于平板电脑的多模式设备,它是一个巨大的成功。不过作为一台笔记本电脑或者单独的平板电脑,它仍然有很多不足。它的处理器和显卡的性能很难和稍大的超级本相比(如华硕Zenbook UX32LN-R4029H或惠普EliteBook Folio 1040 G1),且它的键盘实用性相比仍显不足。它同样缺少丰富的接口,而且更不易于修理、维护或升级

同时,相较于最新的平板产品,它更沉更大,也无法提供足够长的电池续航时间。它在中低负载下就会变得很热,且不说它并称不上安静。简单的说,它由于设计自身理念而产生的难以避免两难境地让用户必须接受它所能够提供的表现和其中的妥协。

它最后一个重要问题是它的价格。Surface Pro 3的最低配置版本包括Type Cover后也达到了930美元。我们的测试机售价1130美元——这远高于高端平板电脑如iPad Air(建议零售价799美元),与其他优秀的变形本产品接近,如戴尔XPS 12-9Q33(建议零售价1199美元)。

这款平板电脑可以作为你笔记本电脑的替代吗?或许可以,不过Surface Pro 3可能更适合于作为一款平板电脑来替代你的平板电脑。在一些使用环境下,它完全可以称作是“平板杀手”。它立足于有些奇怪的平板和笔记本之间的位置——这可能是艺术家,销售人员,教师,或任何需要高便携性和独特设计而愿意在其他方面作出妥协的用户。但是对于其他人来说,我们认为笔记本电脑仍然没有失去它们的立足之地。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

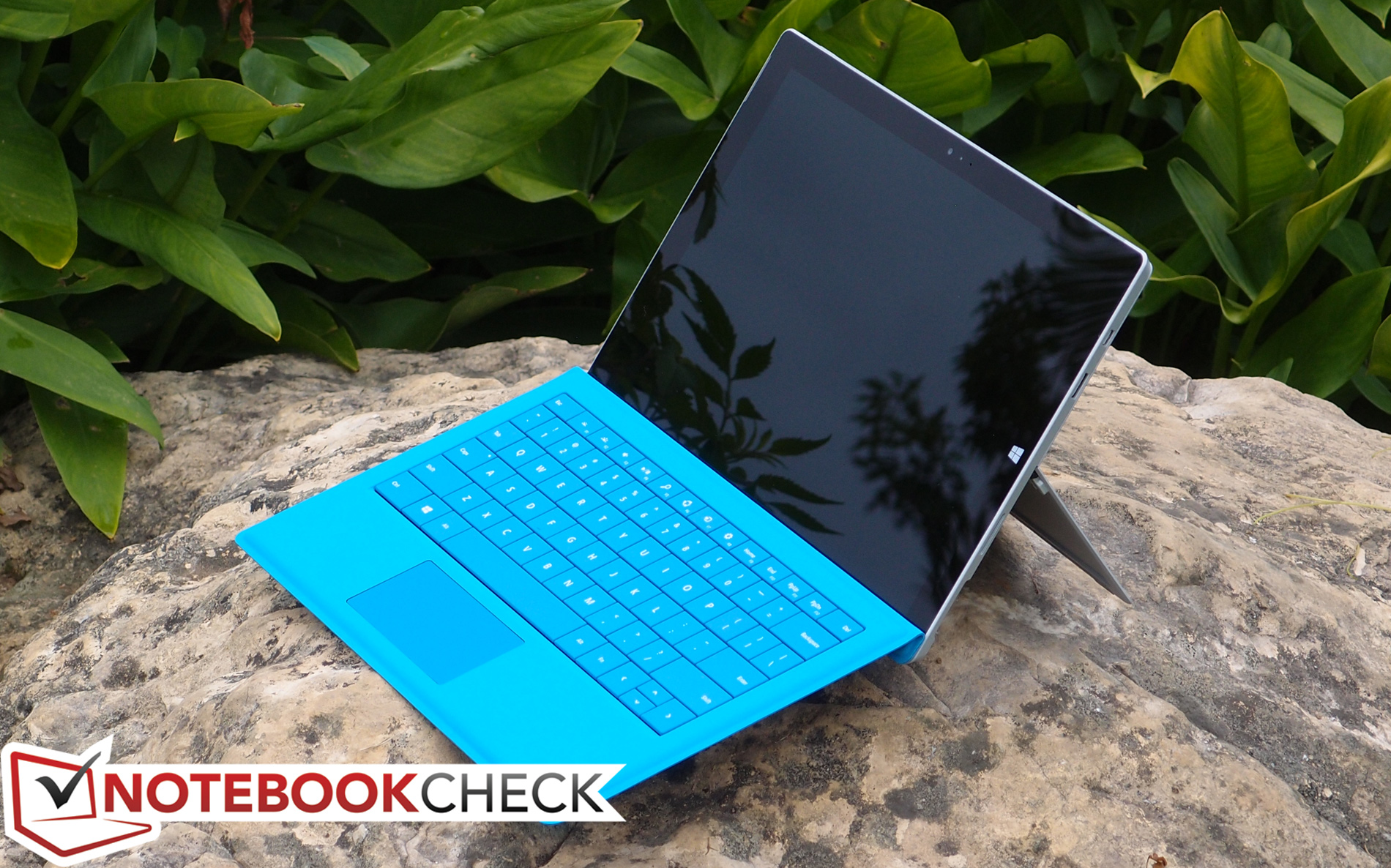

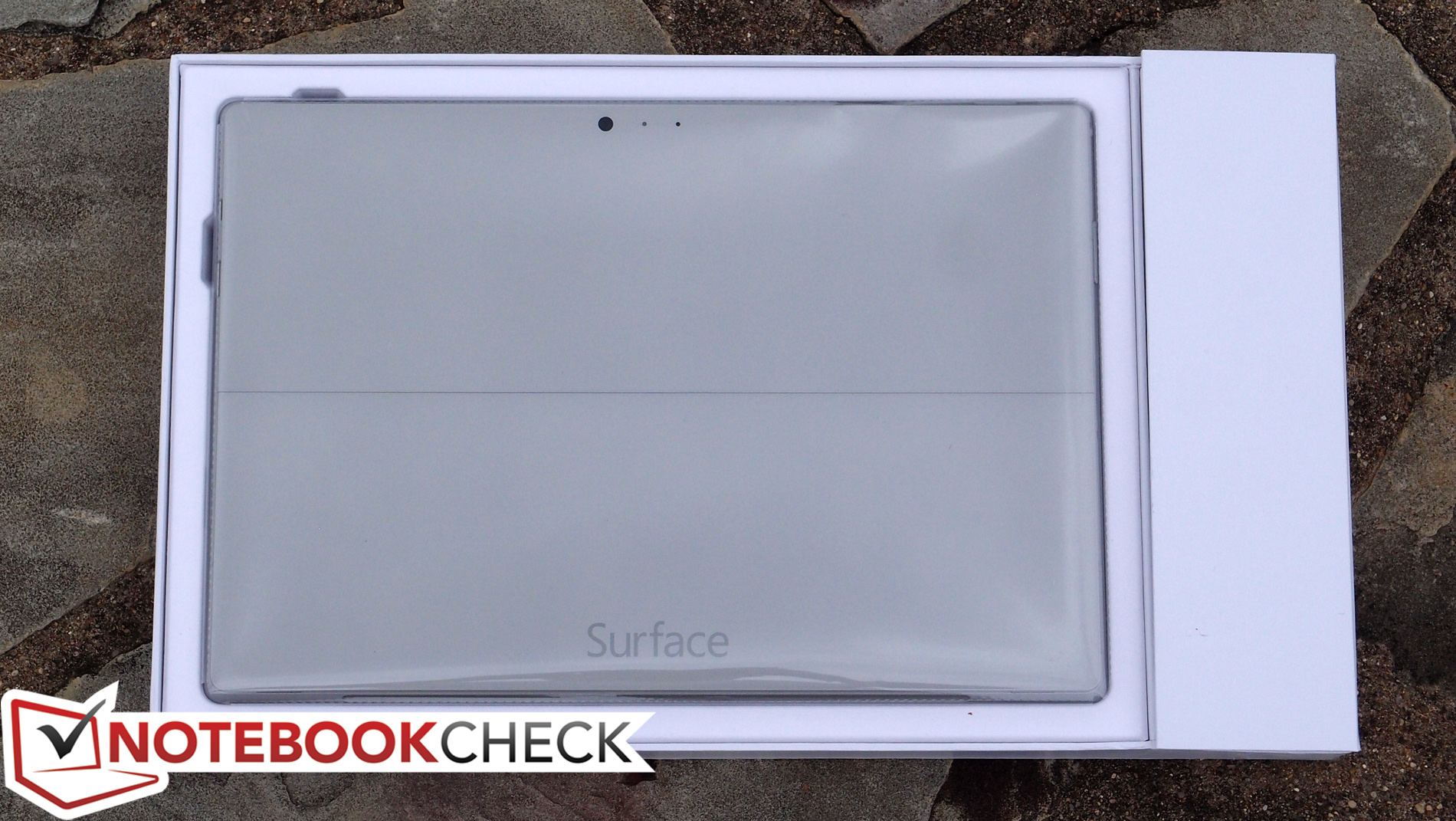

看起来我们会很享受这款产品...
看起来我们会很享受这款产品...
...这就开始了。
...这就开始了。

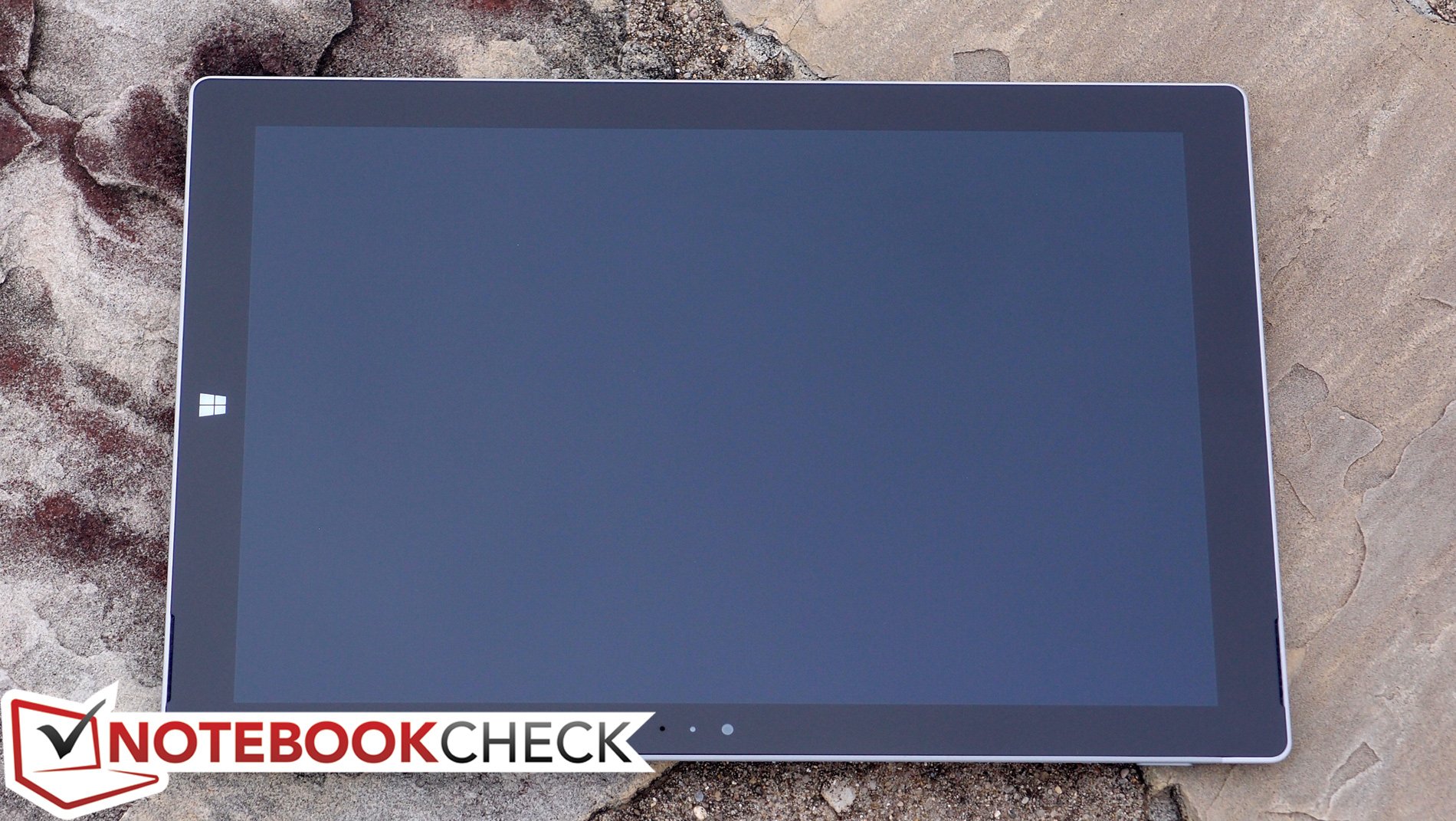

我们评测过的设计最好的产品之一。
我们评测过的设计最好的产品之一。

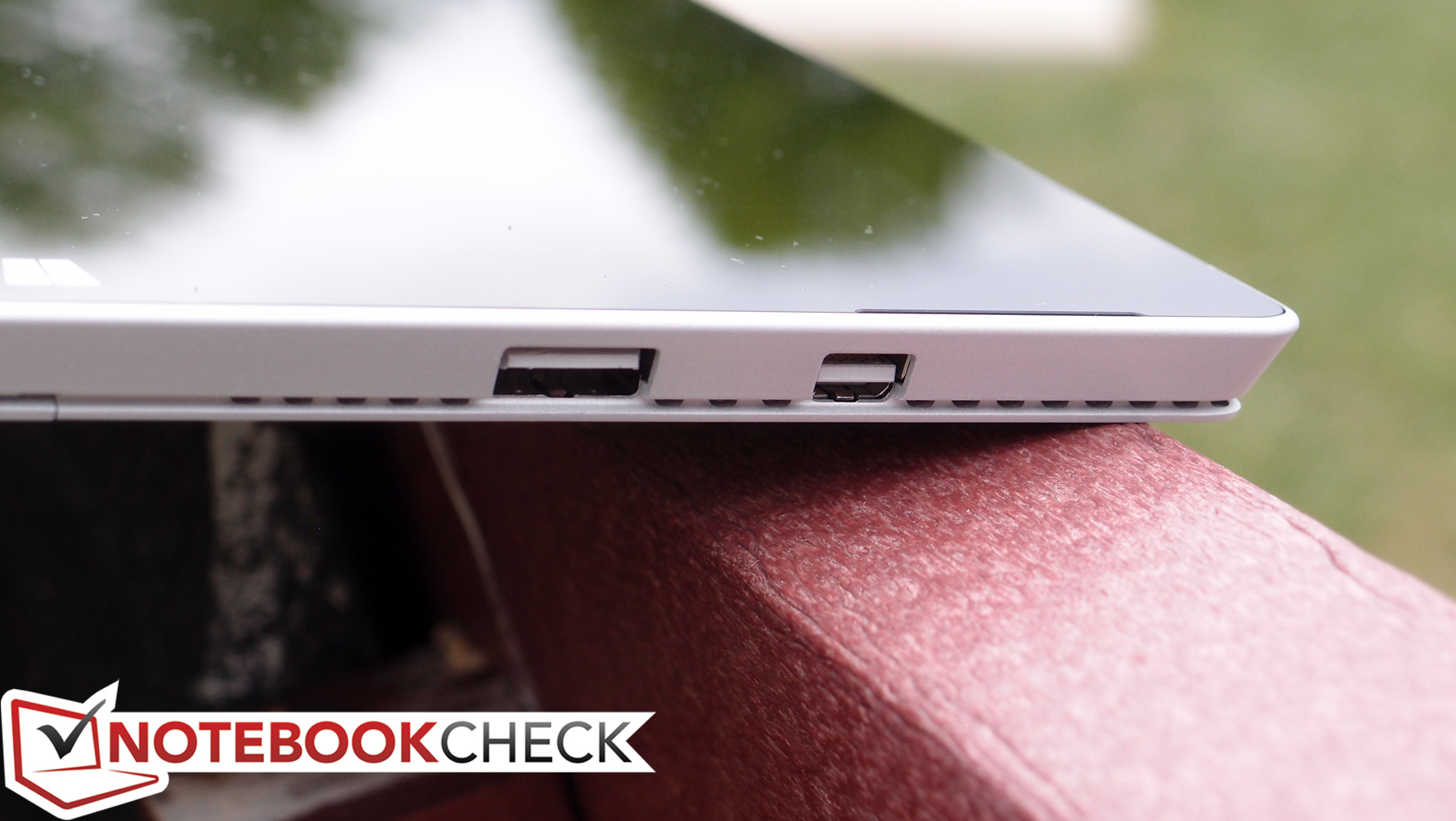

它的拓展坞接口没有改变。
它的拓展坞接口没有改变。

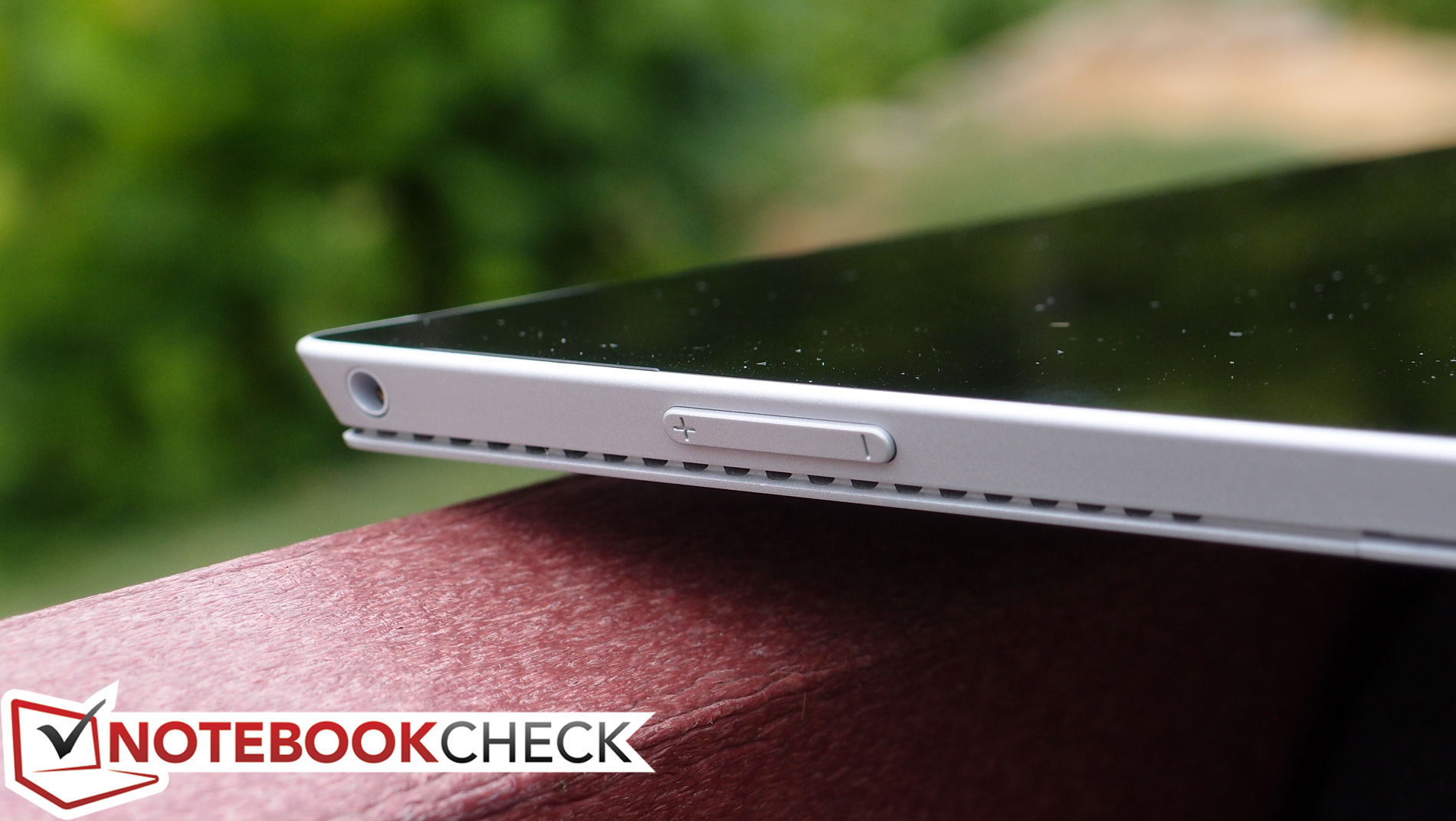

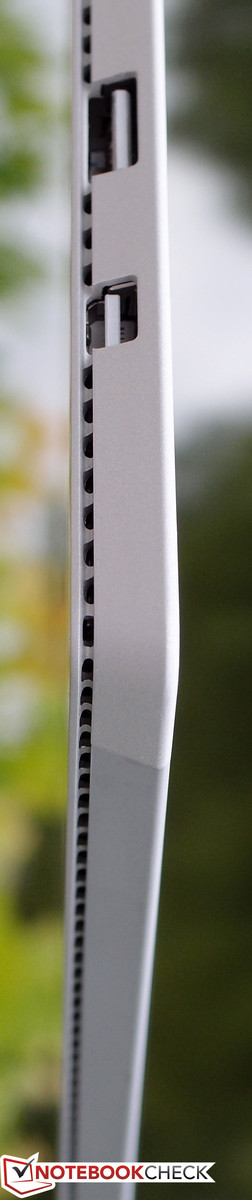

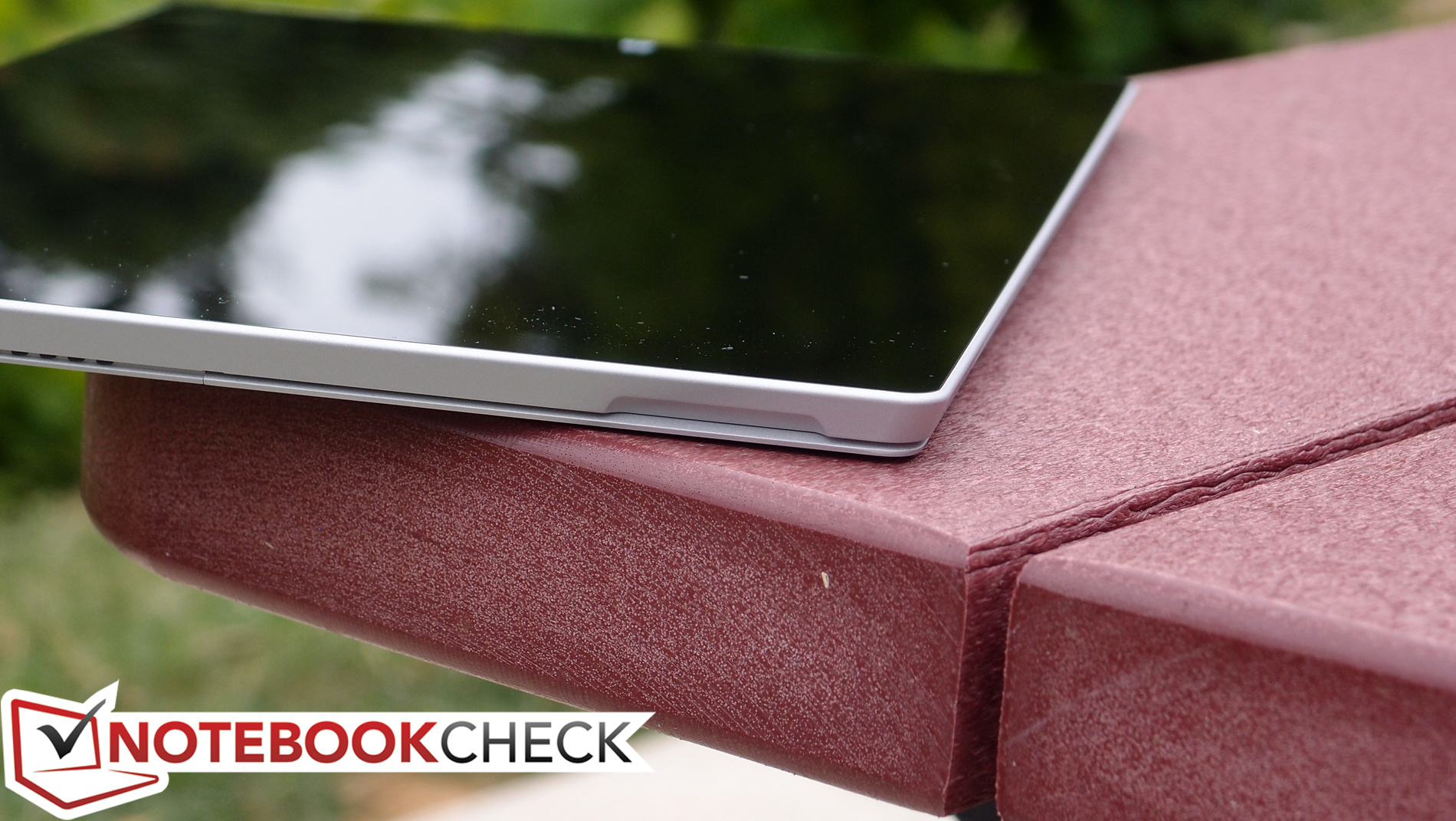

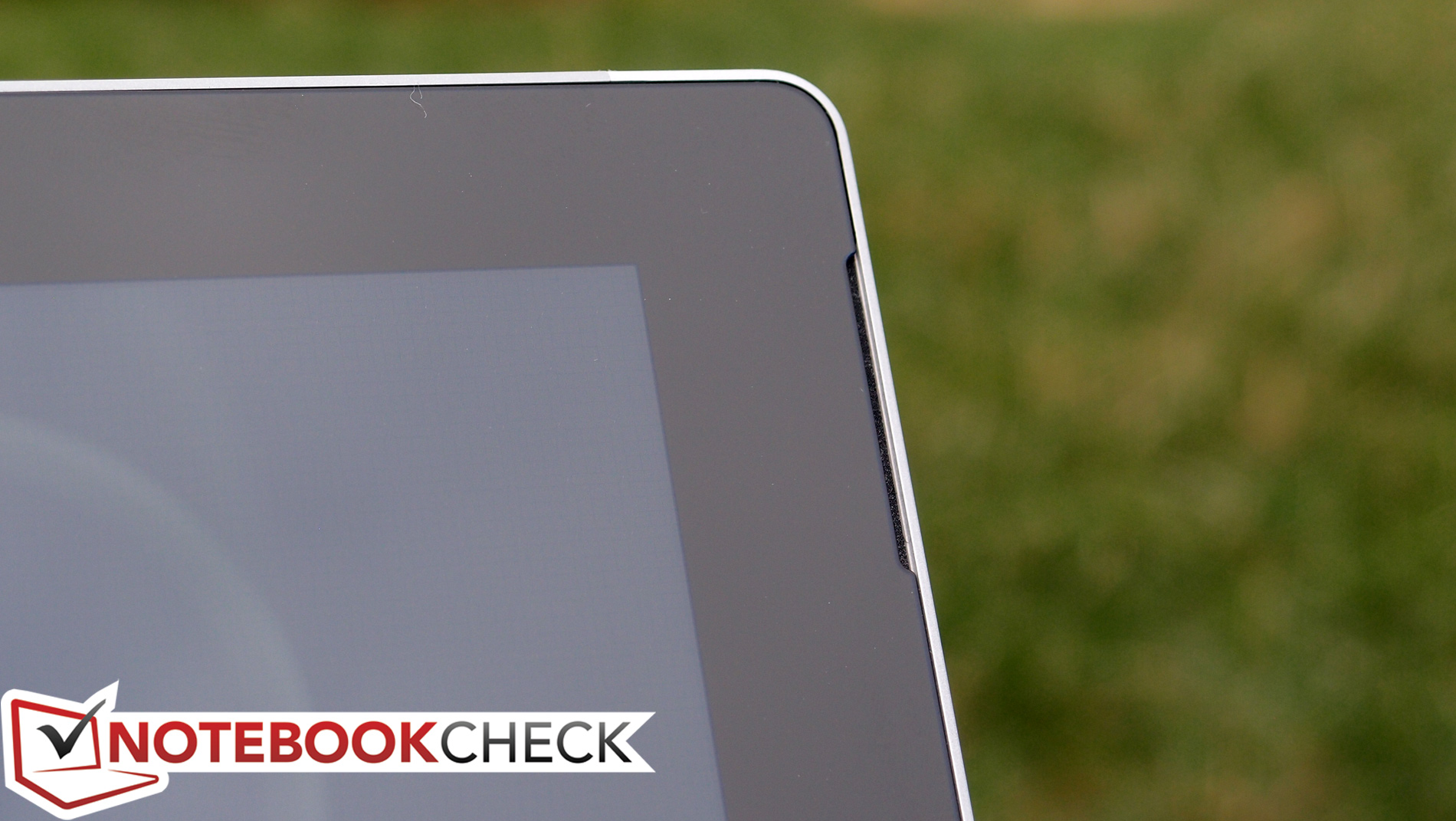

简洁的边缘...
简洁的边缘...

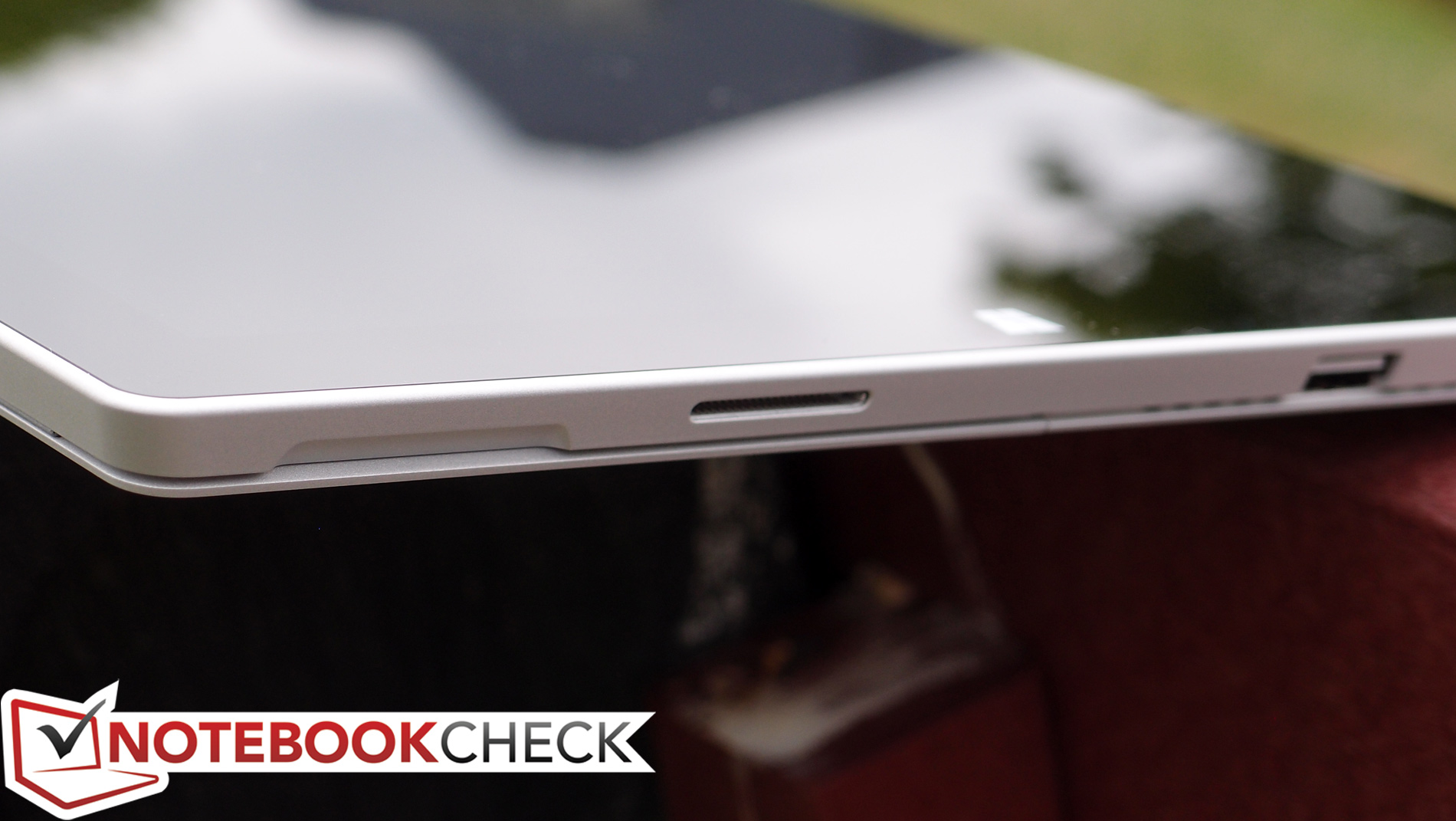

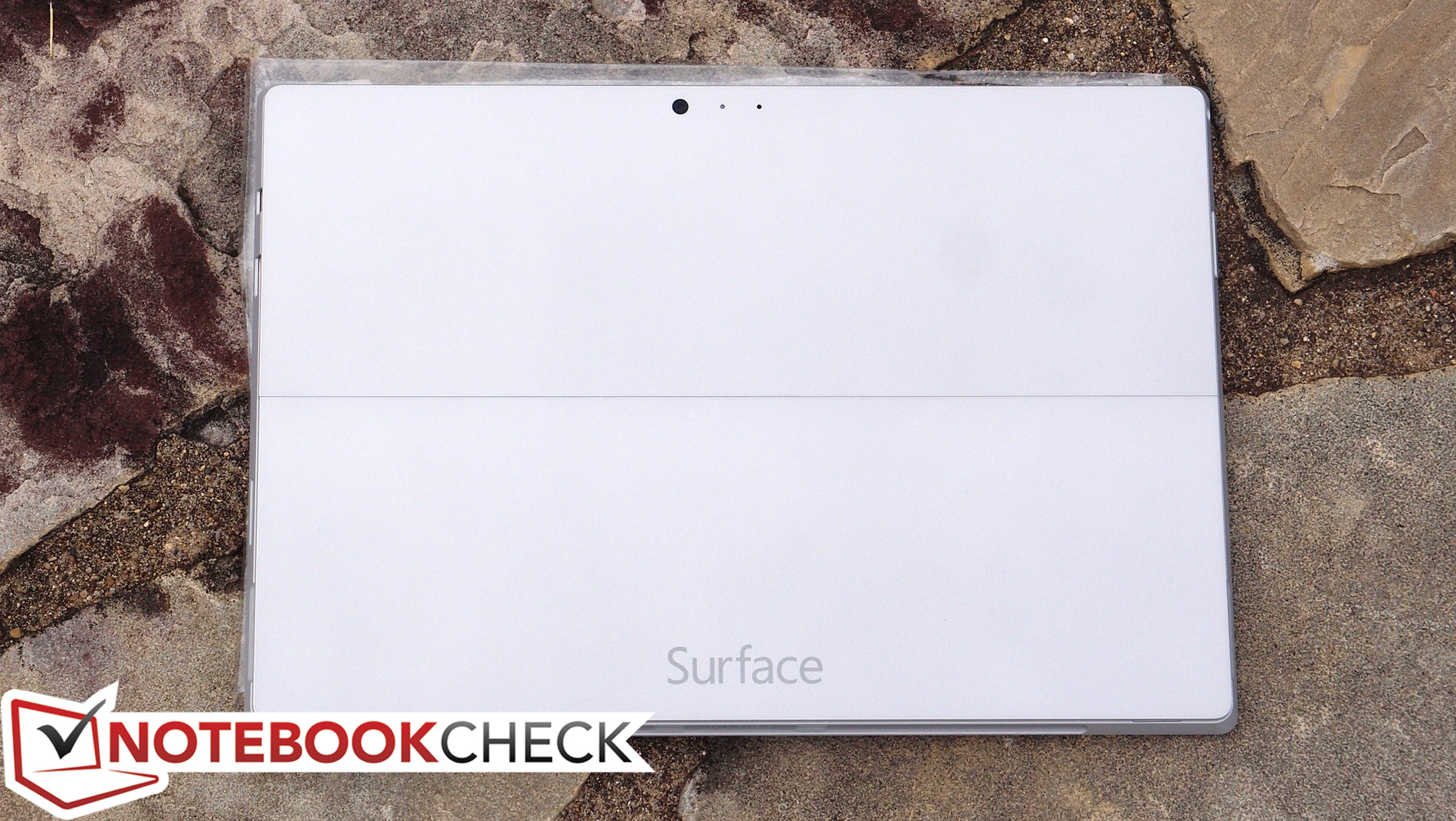

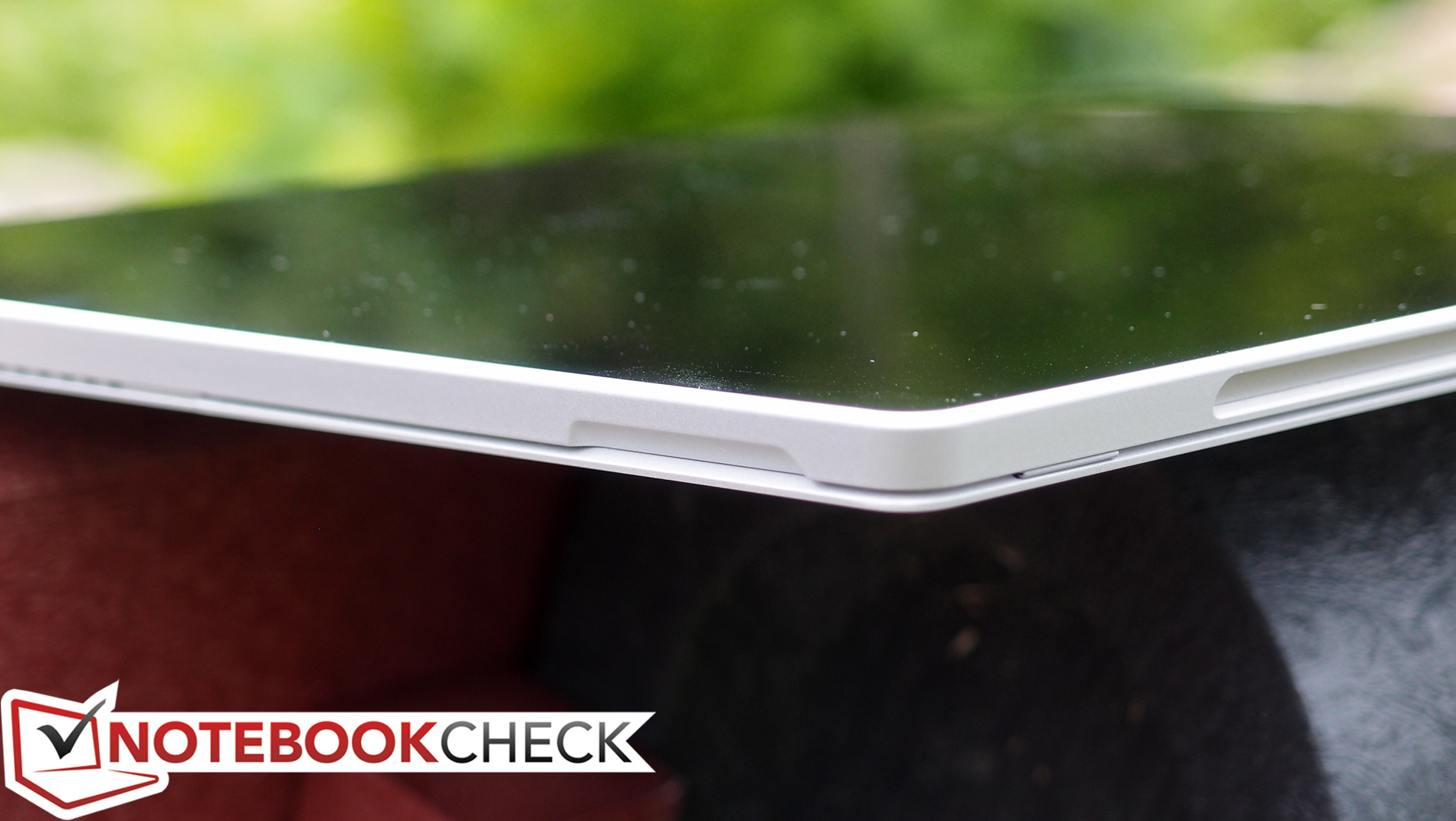

...和平滑的设计。
...和平滑的设计。

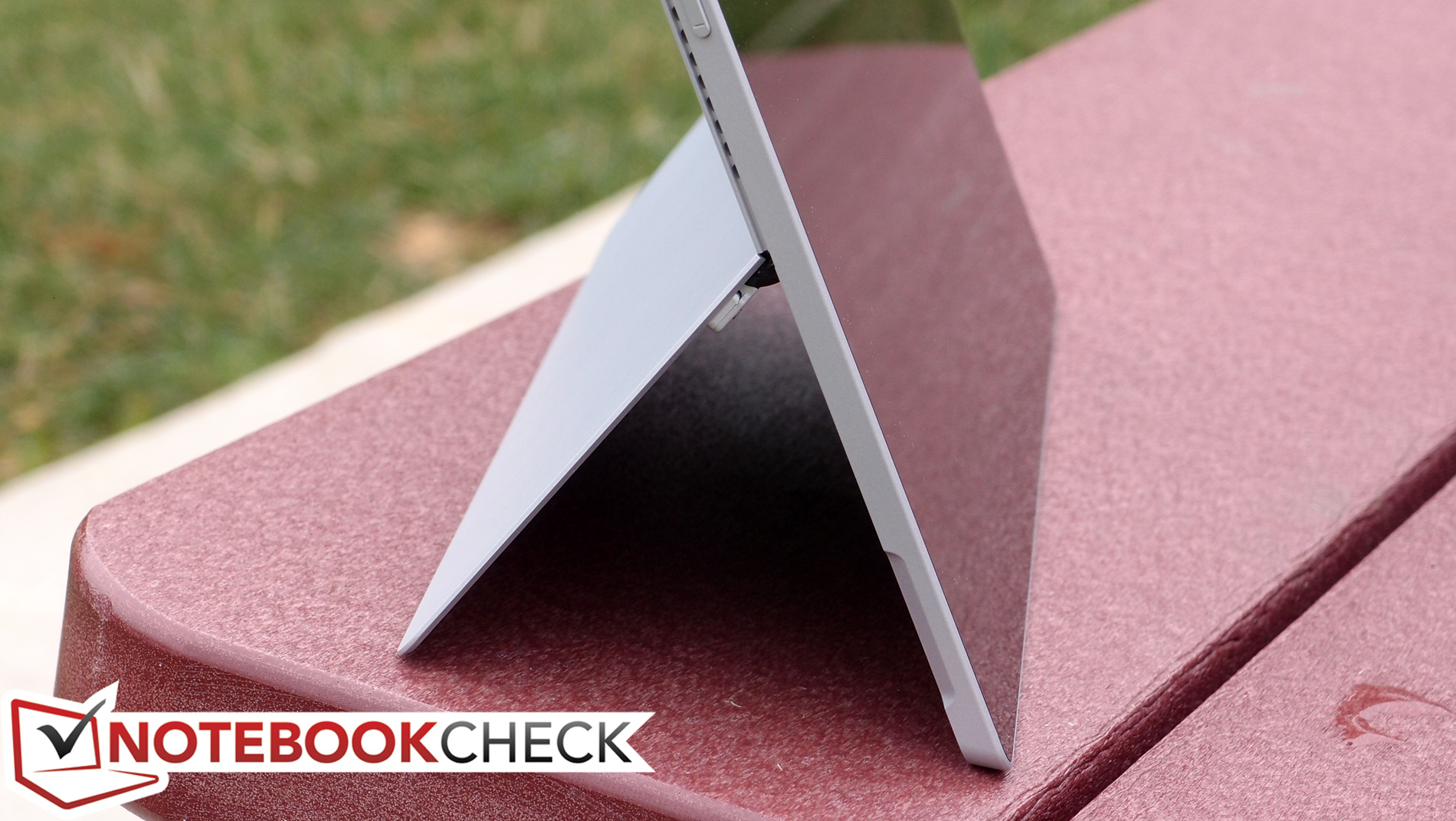

支架立于身后
支架立于身后

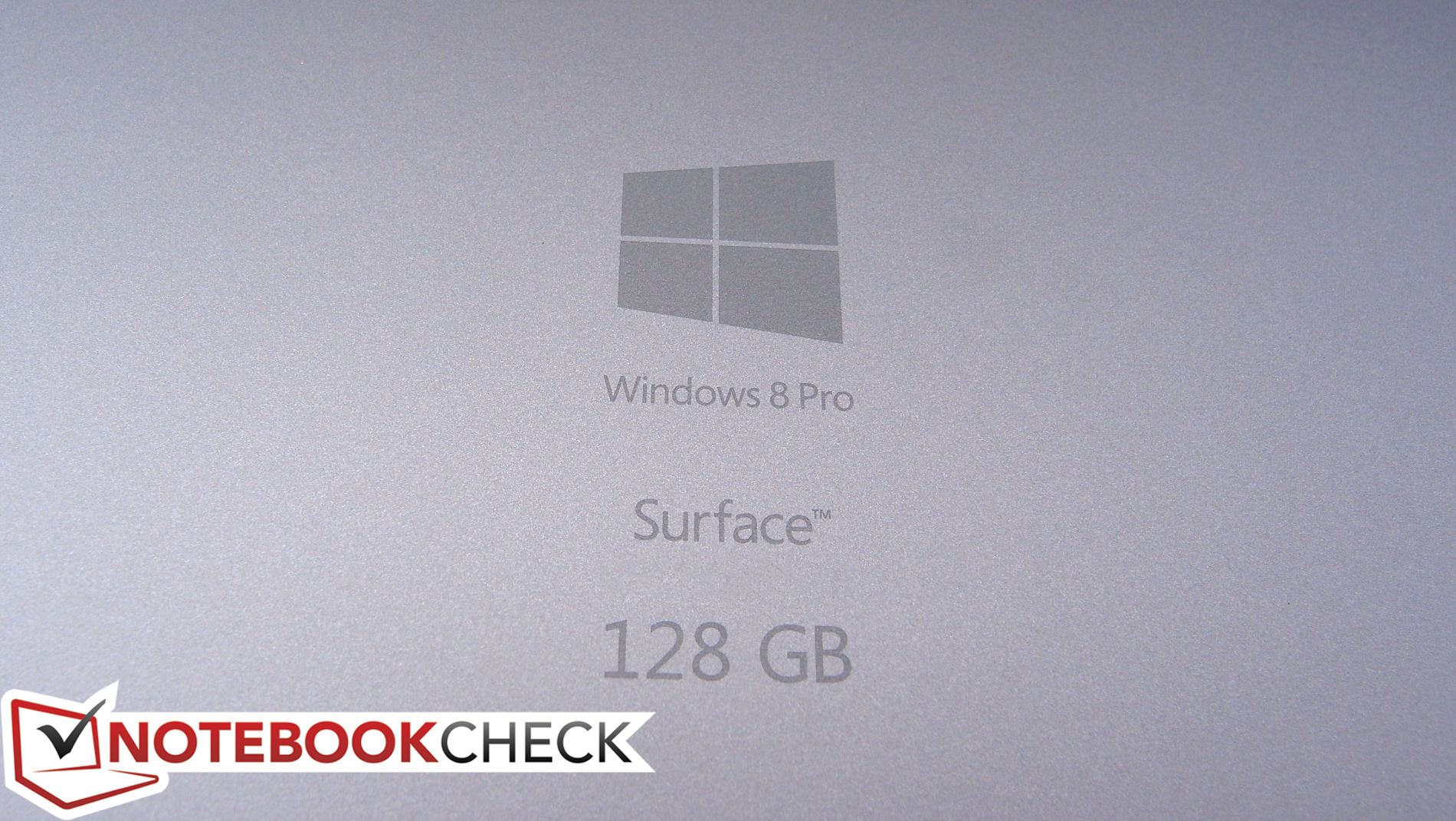

这里没有土气的贴纸标签
这里没有土气的贴纸标签

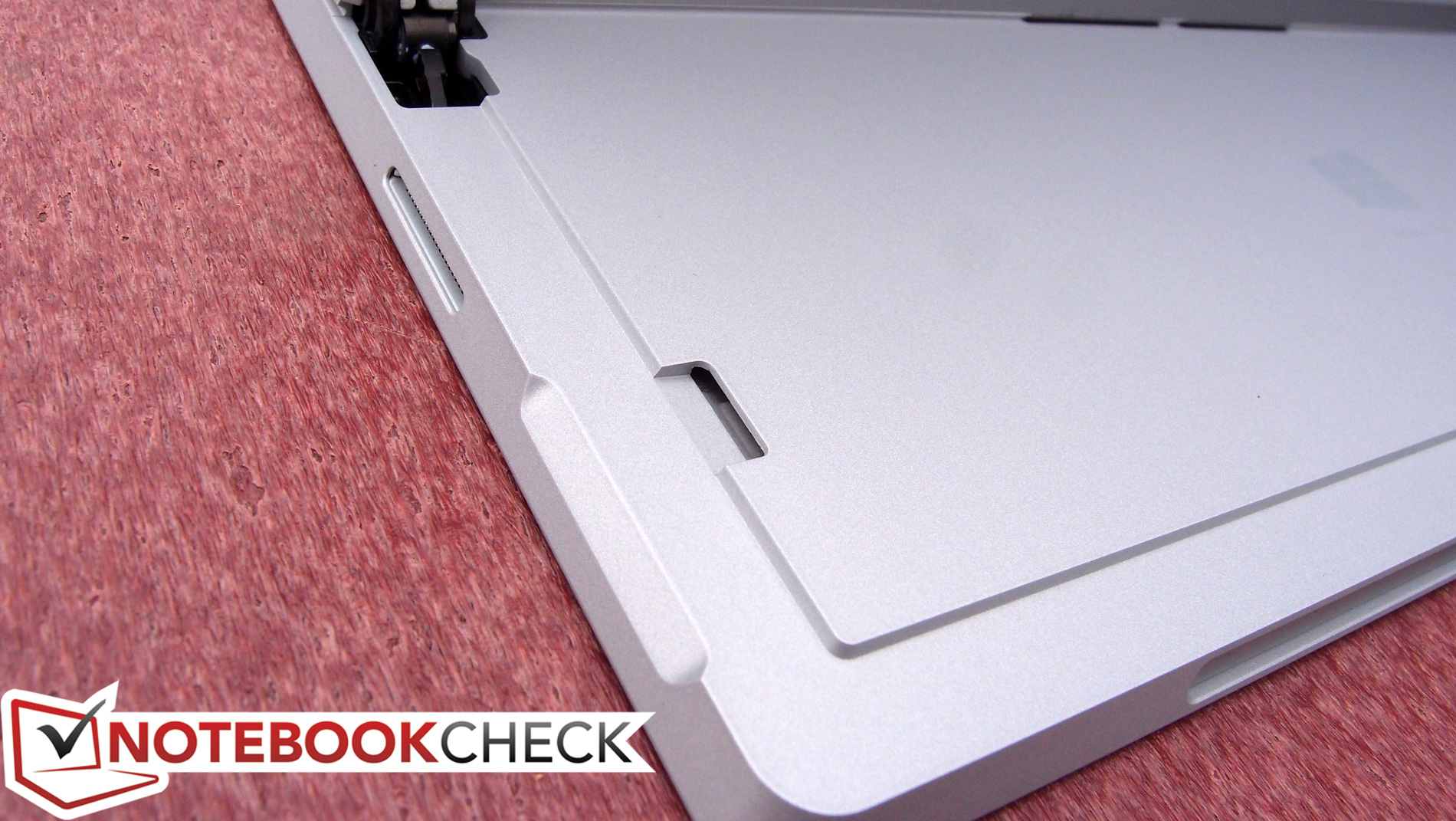

在支架下面有什么呢?
在支架下面有什么呢?

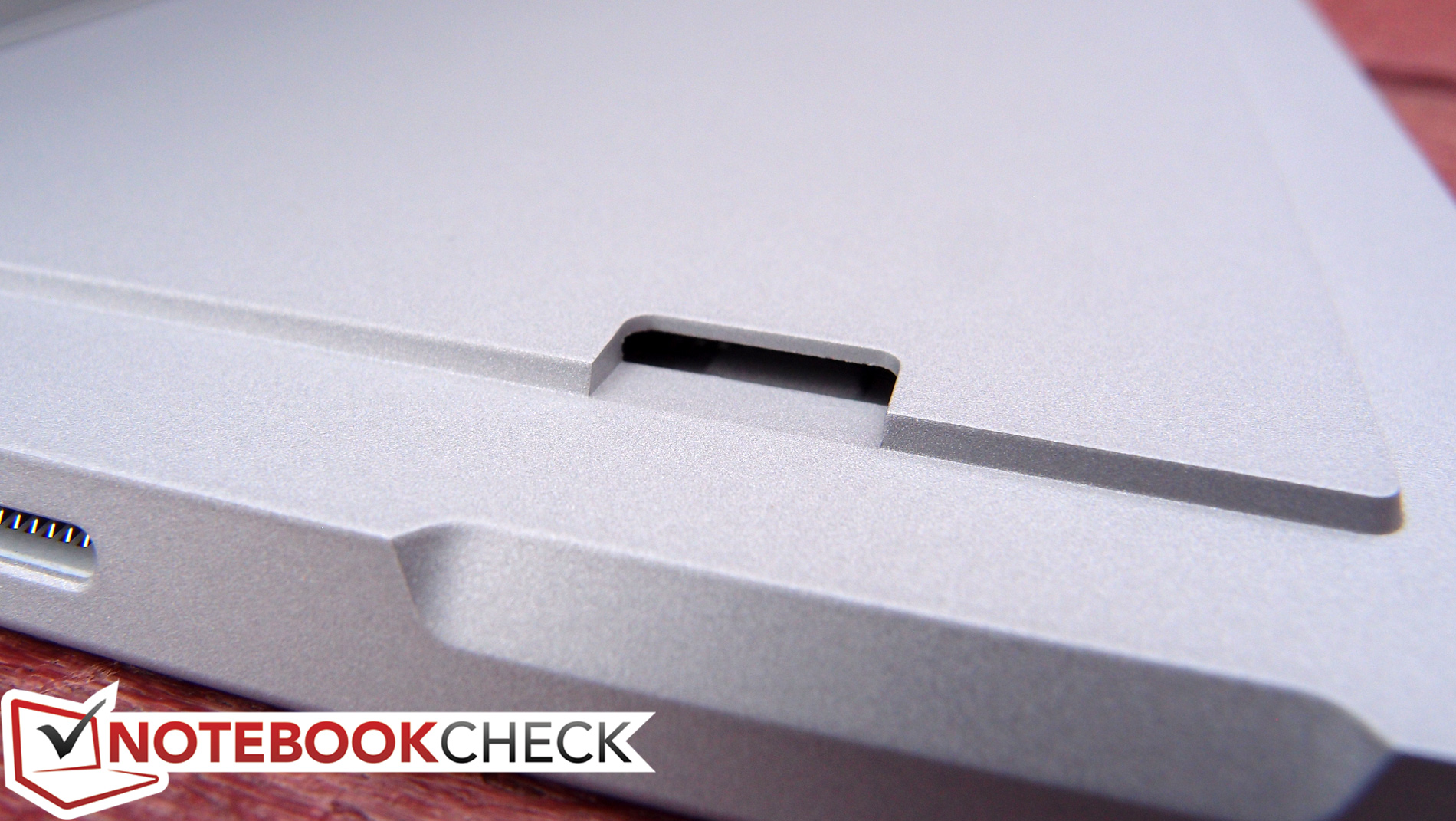

一个Micro SDXC卡槽!
一个Micro SDXC卡槽!

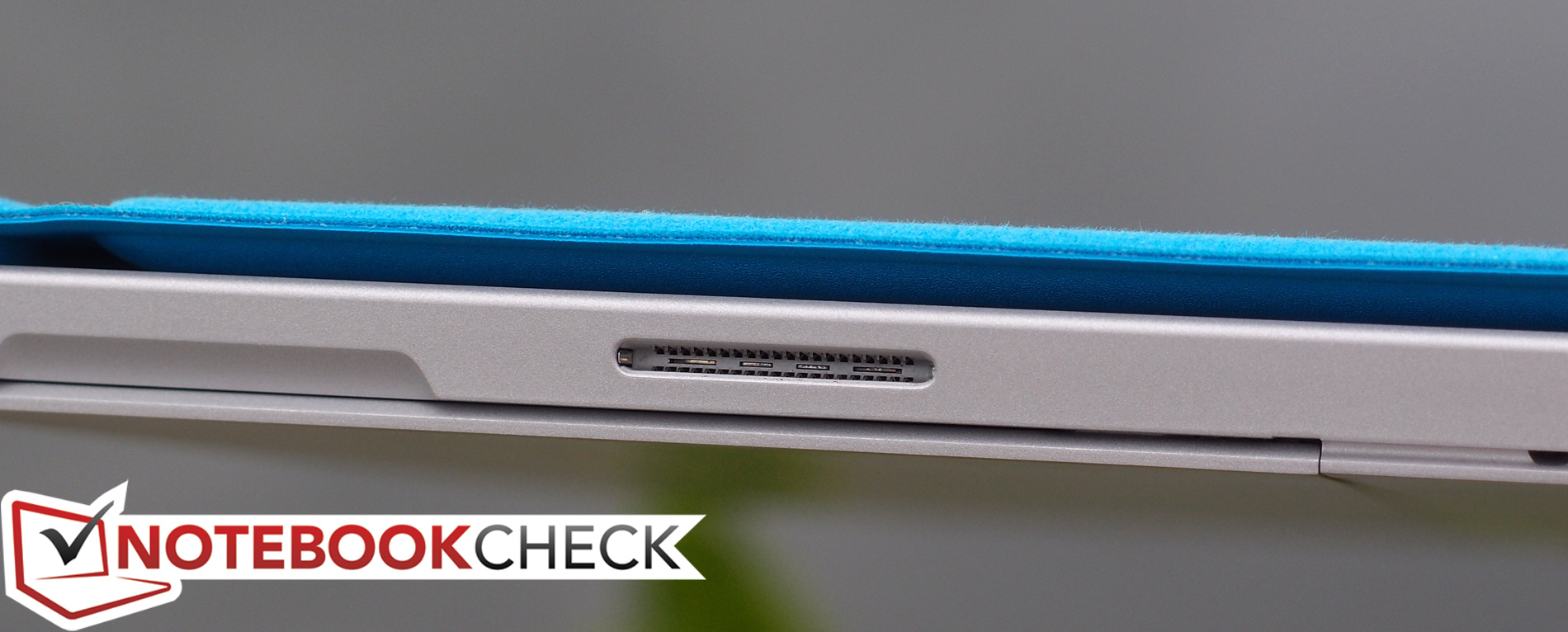

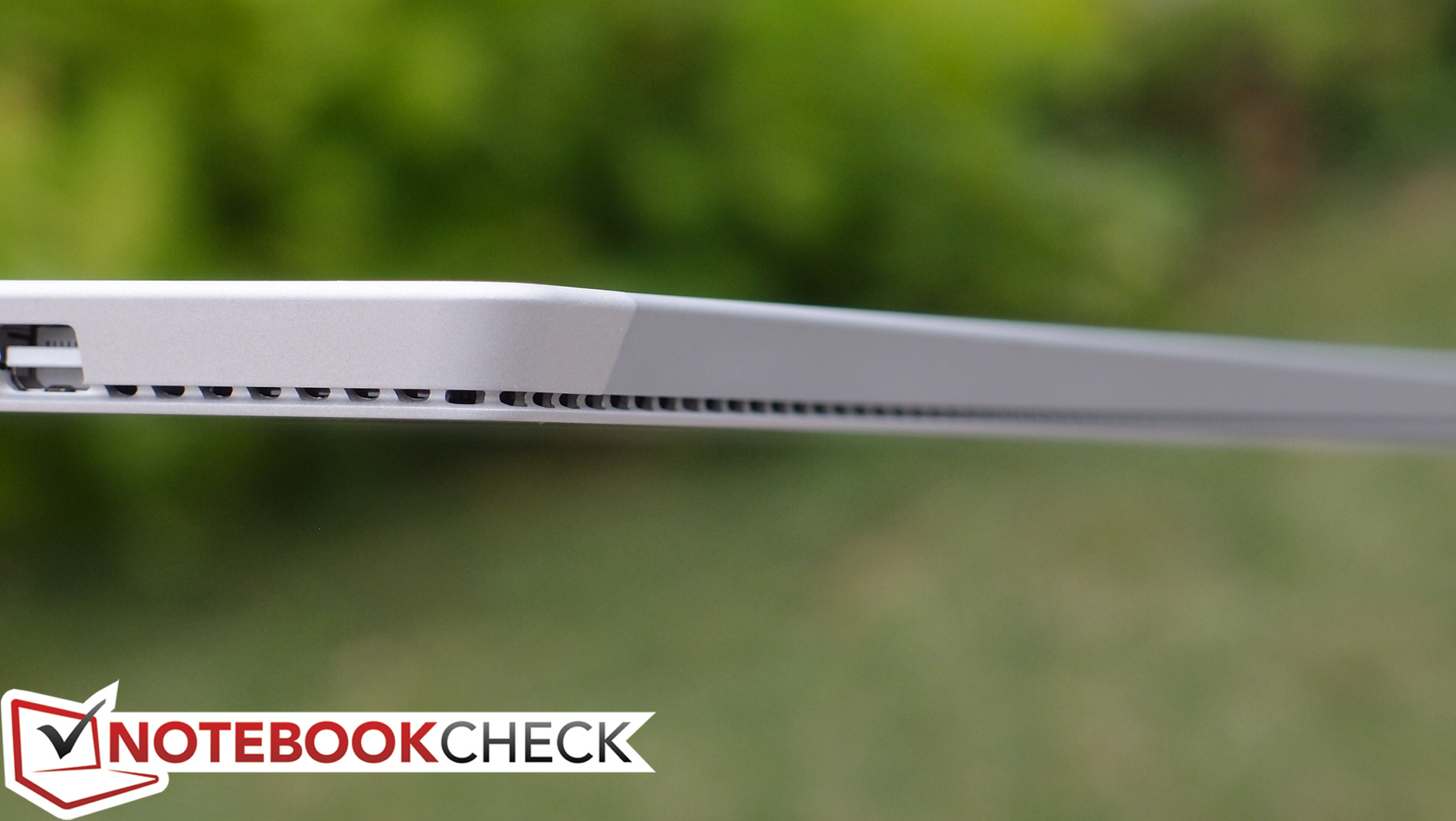

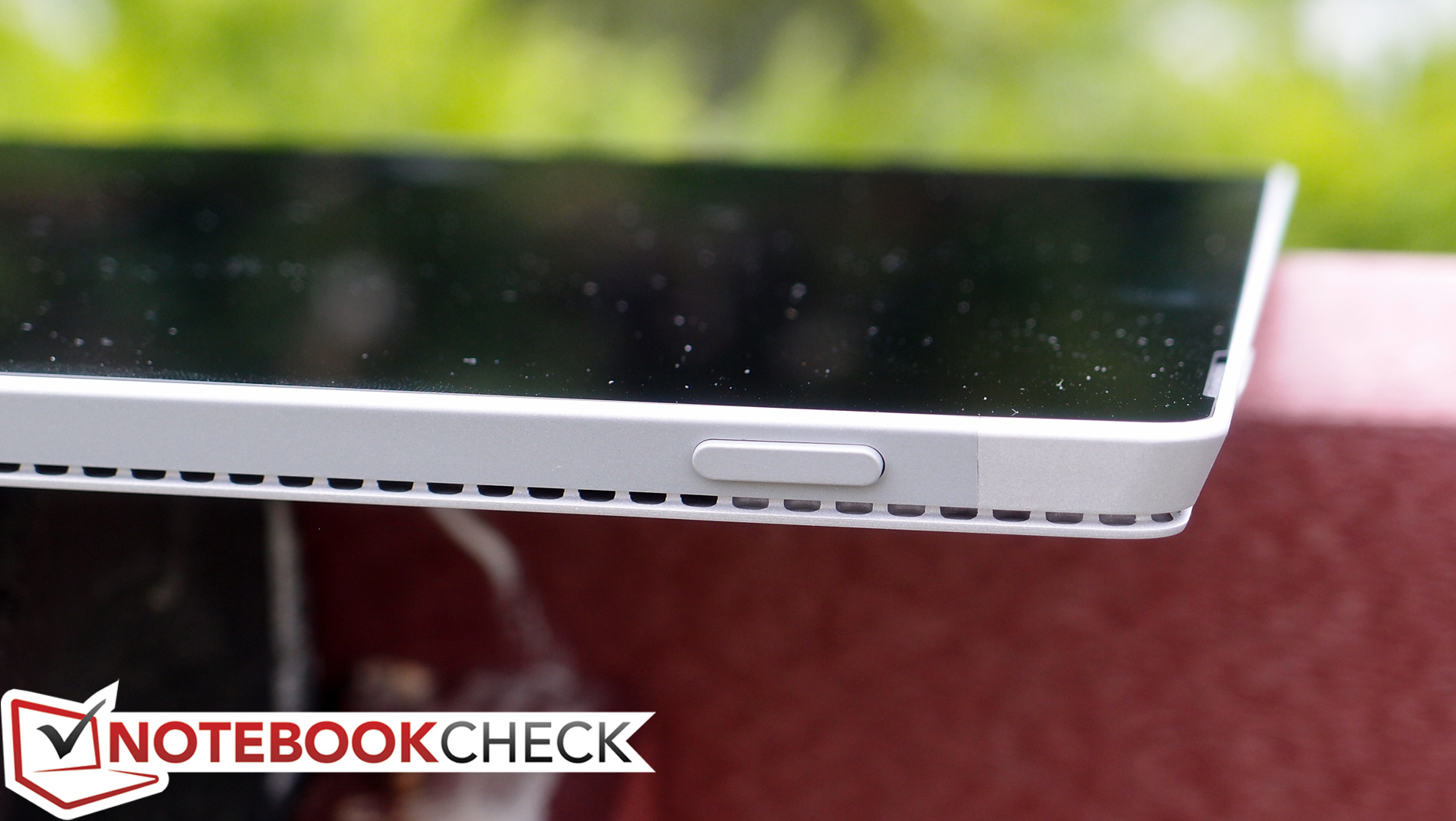

它采用了主动散热,不过散热通道的设计很时尚。
它采用了主动散热,不过散热通道的设计很时尚。

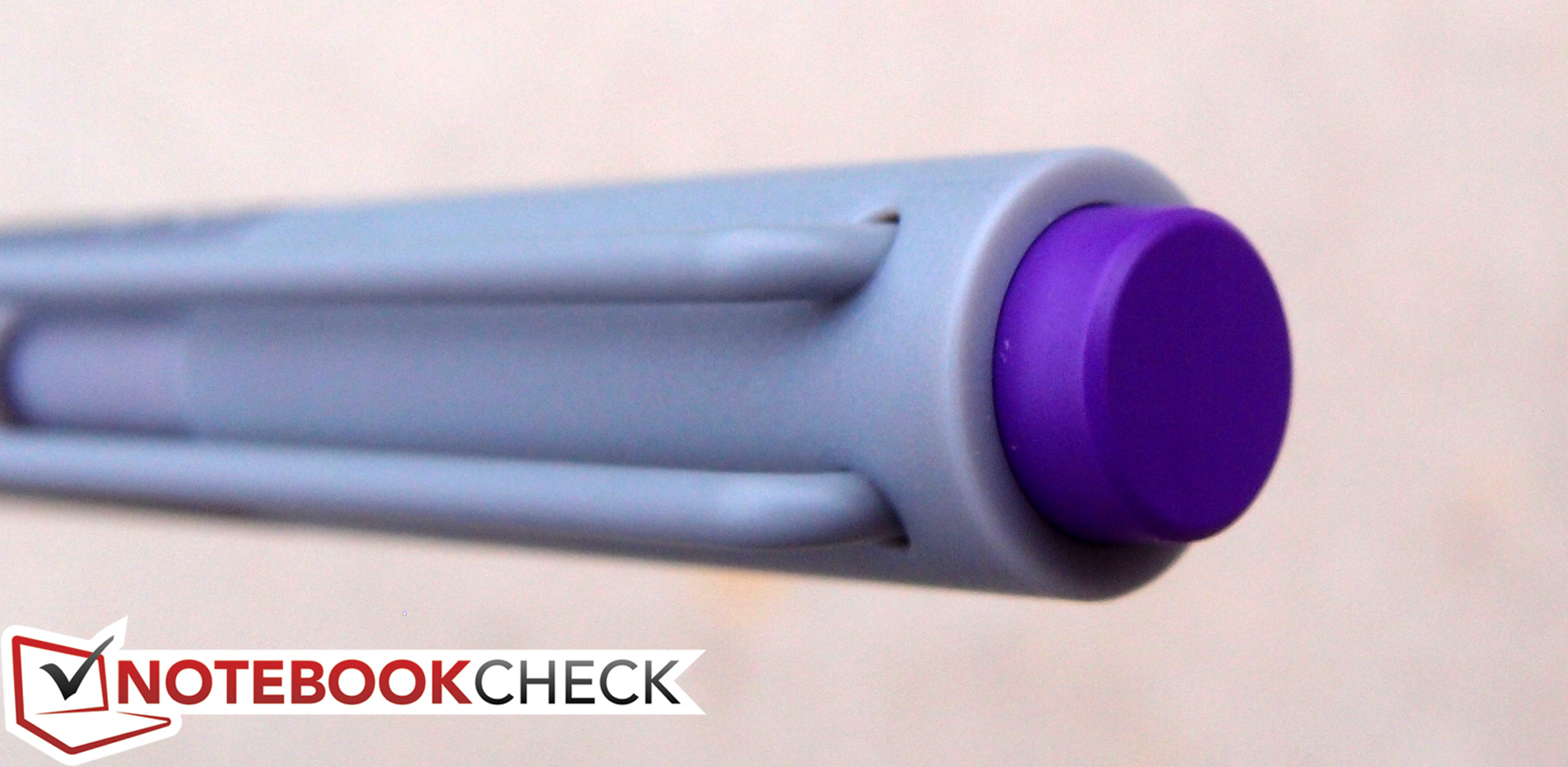

新Surface Pen顶端有一个按键。
新Surface Pen顶端有一个按键。

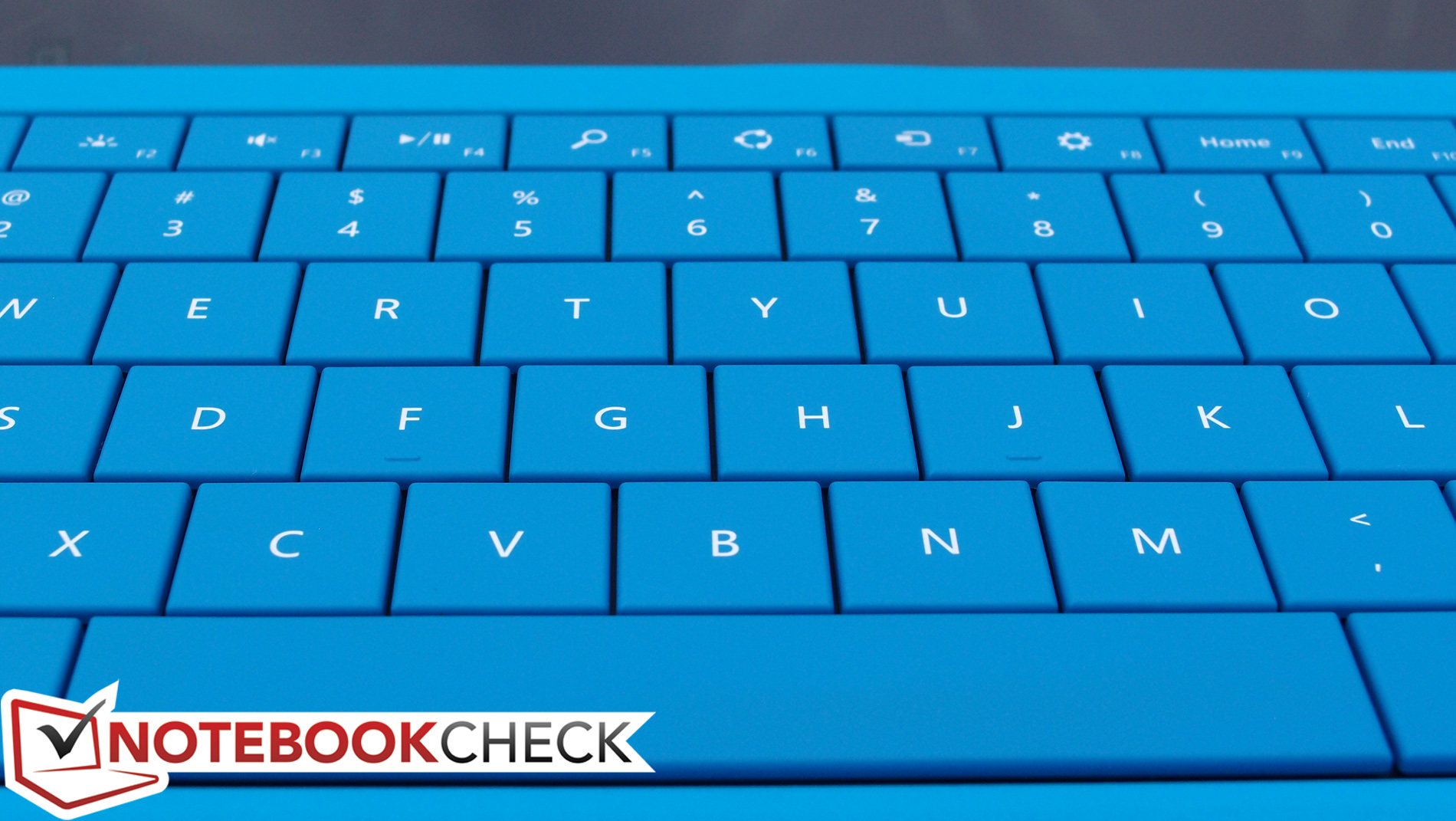

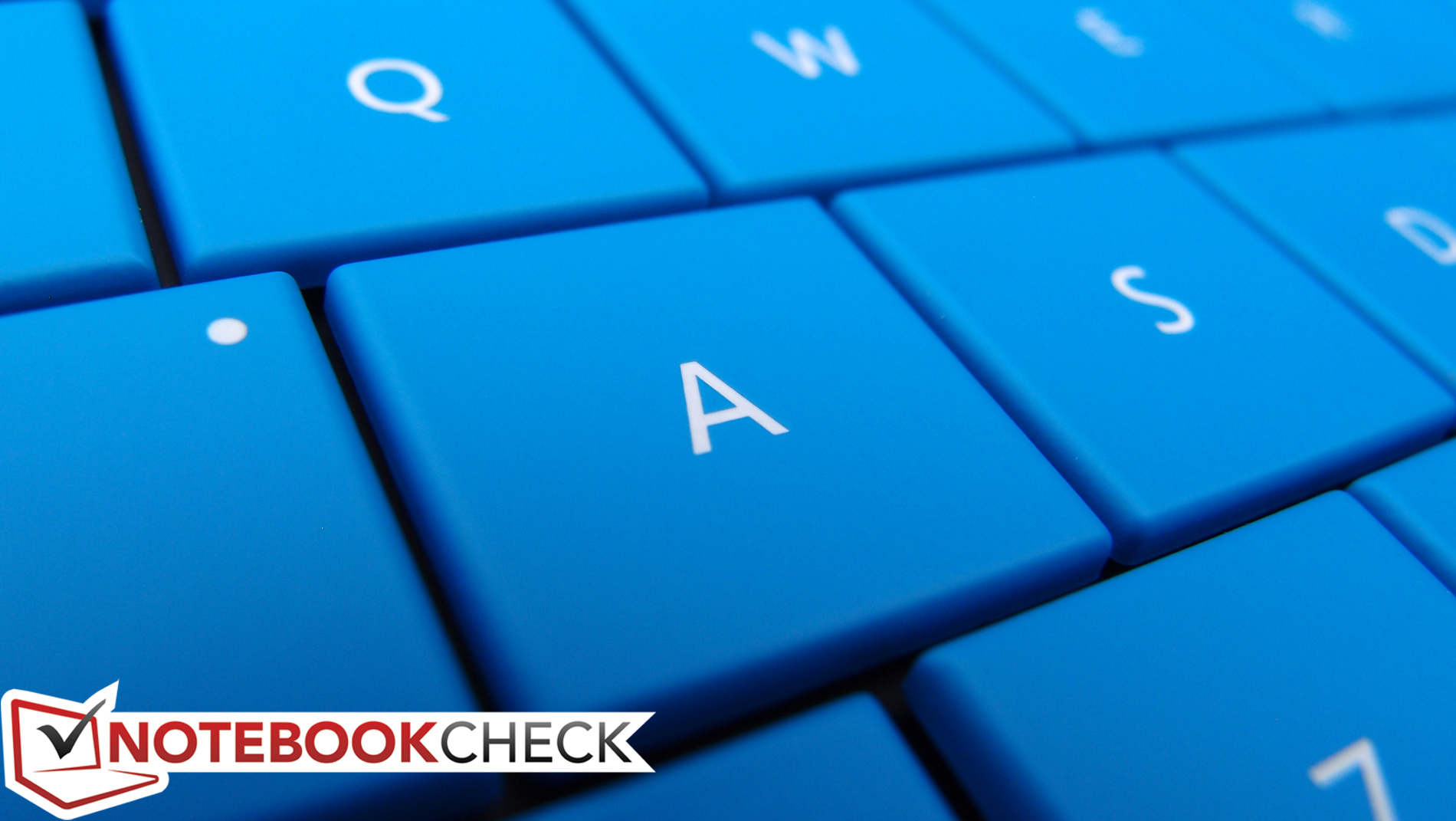

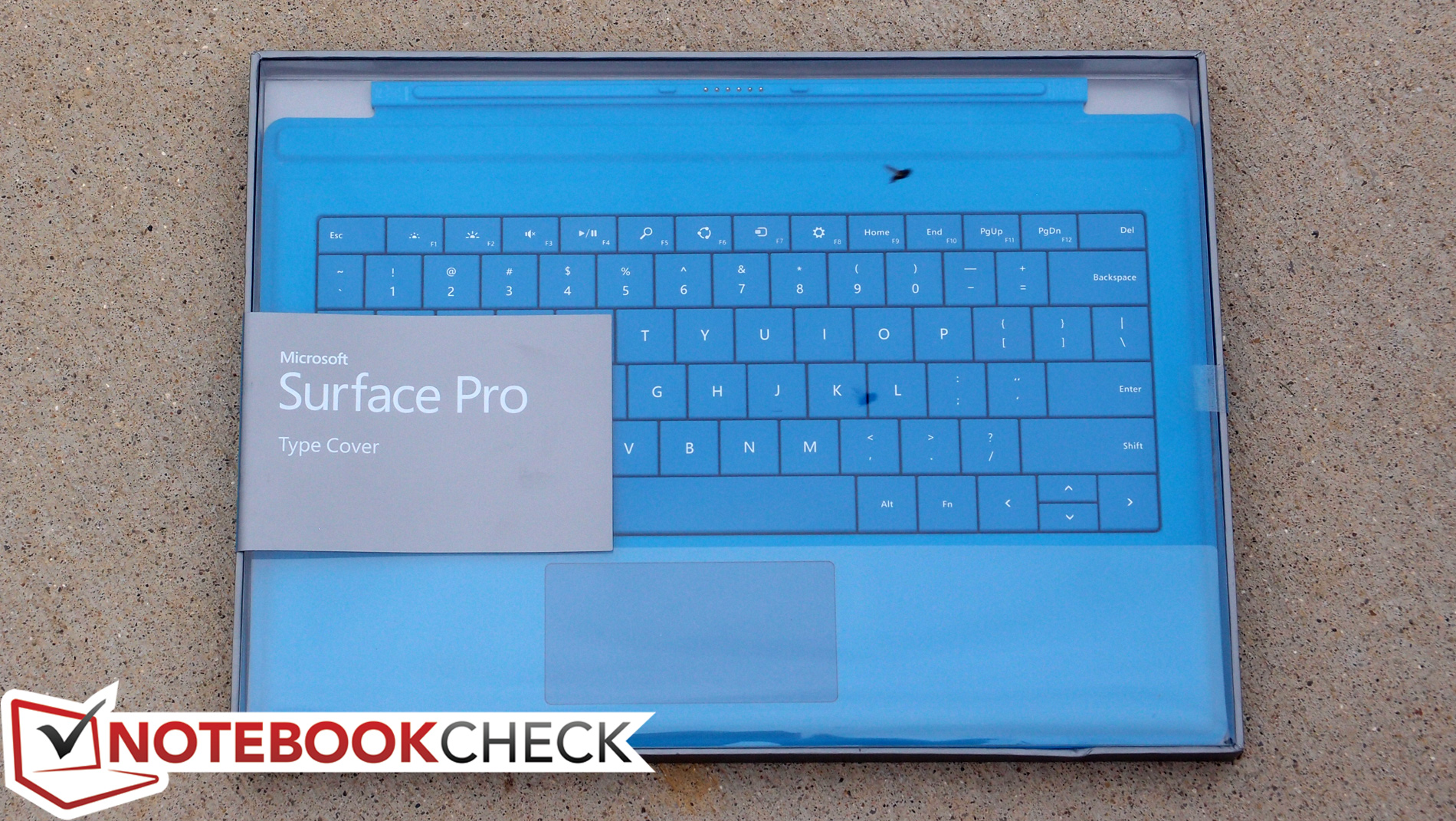

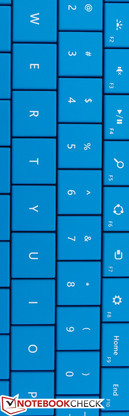

新的 Type Cover 键盘...
新的 Type Cover 键盘...

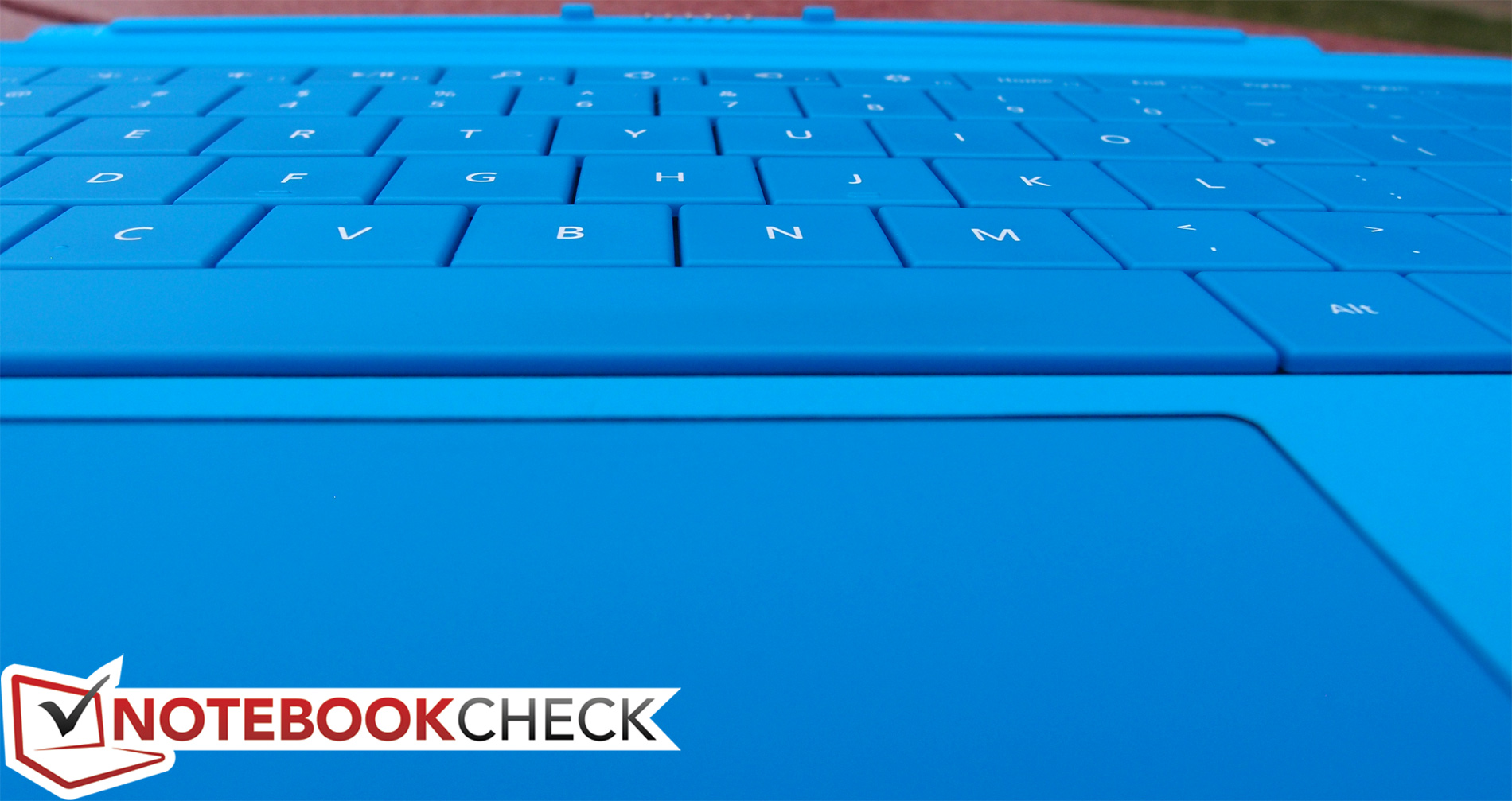

...在苗条的同时...
...在苗条的同时...
...舒适且...
...舒适且...

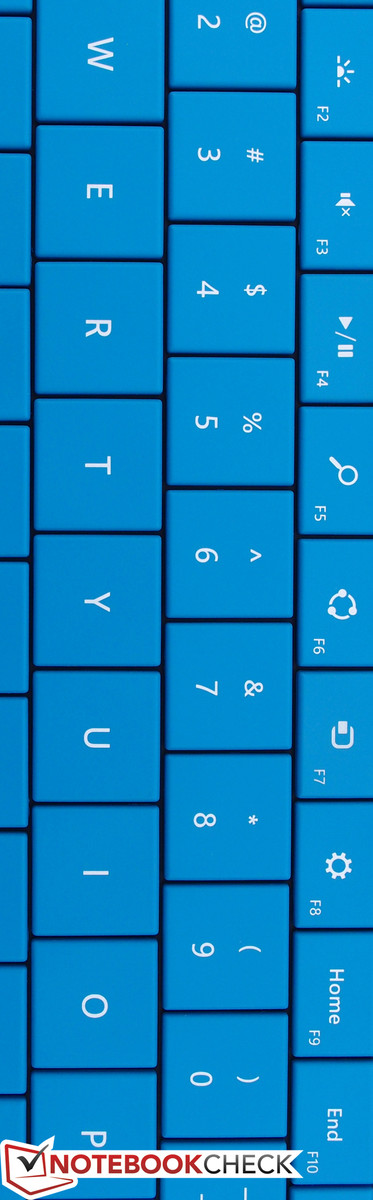

...仍然提供了同样的键盘布局。
...仍然提供了同样的键盘布局。

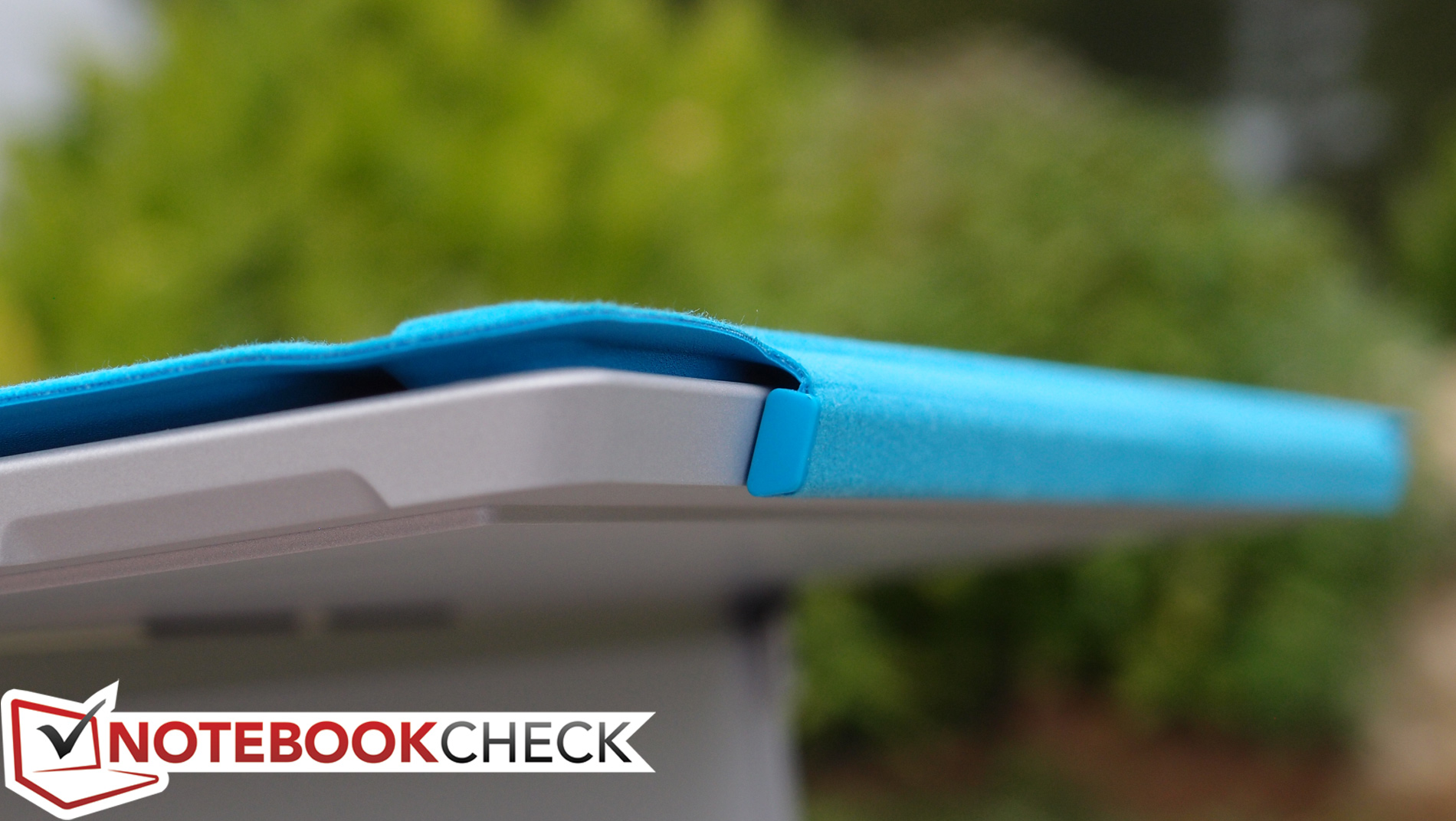

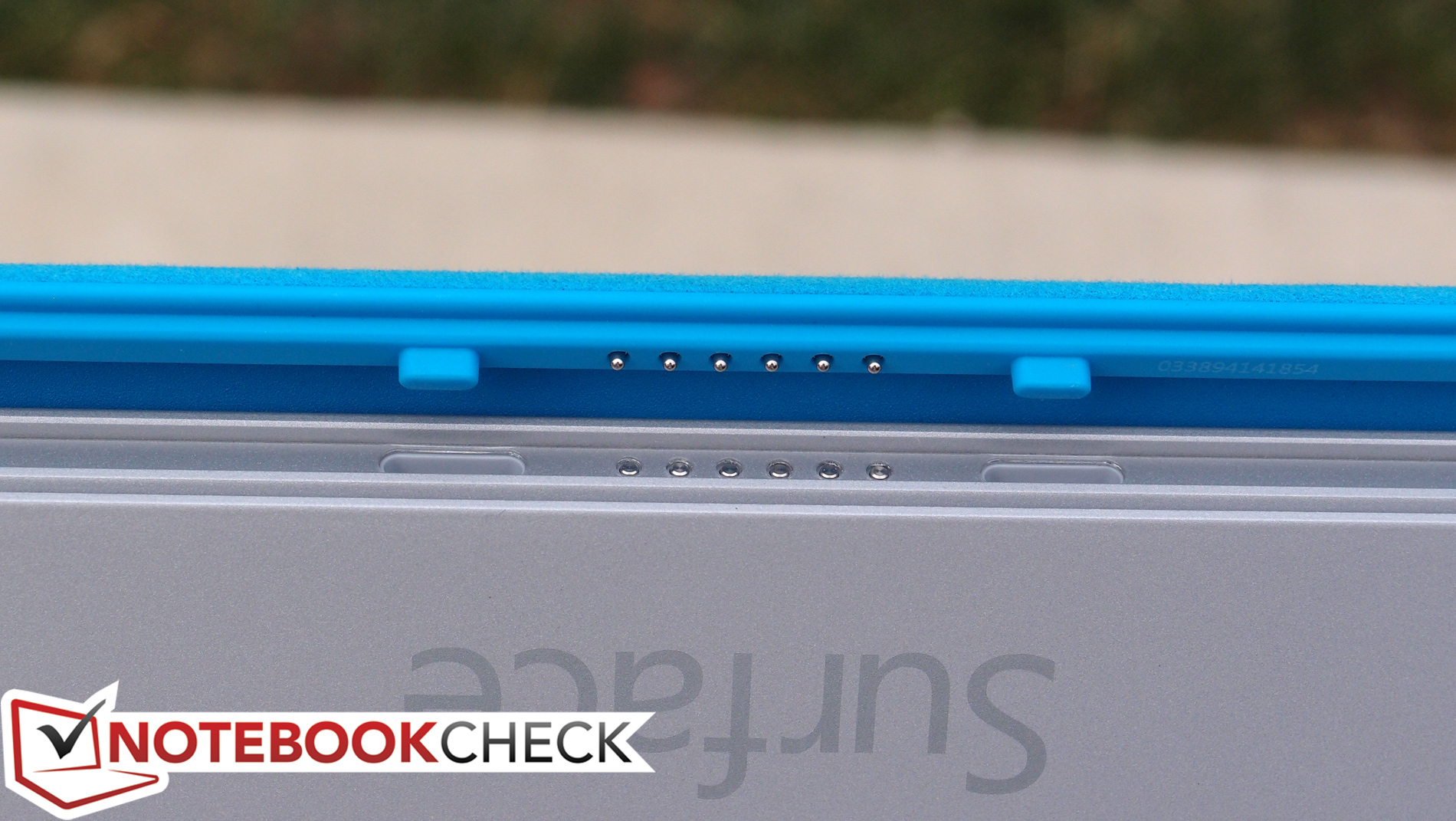

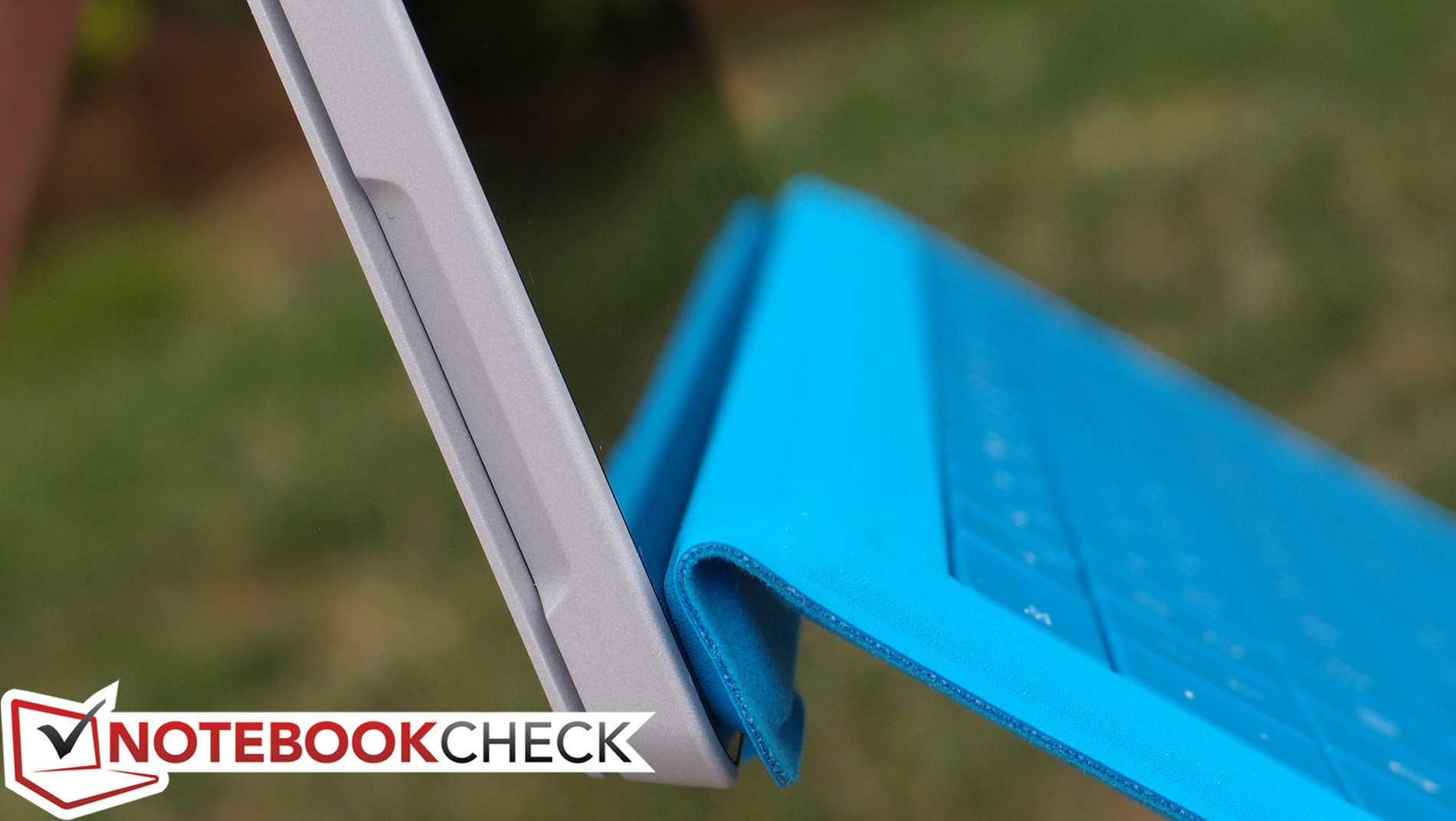

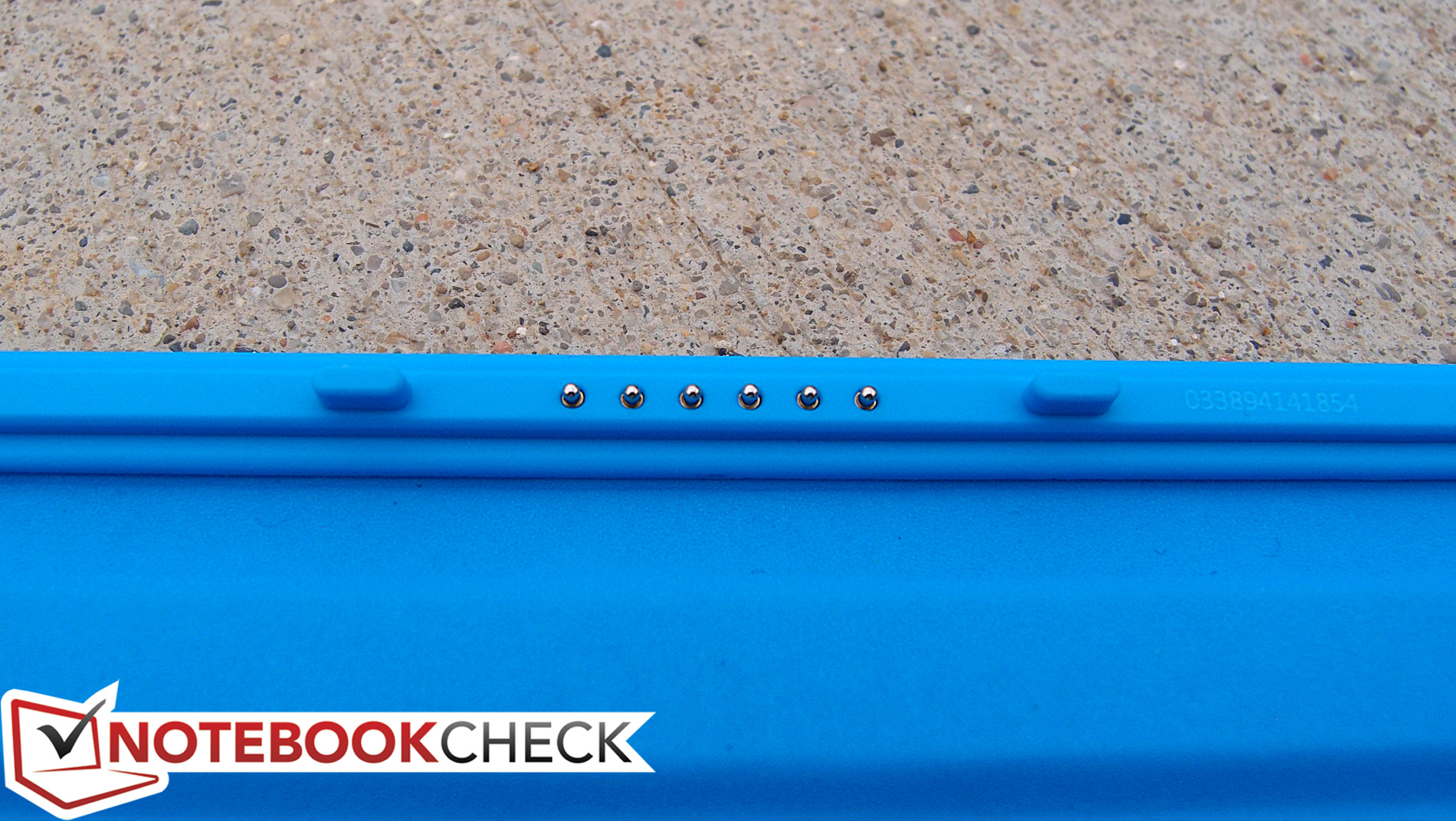

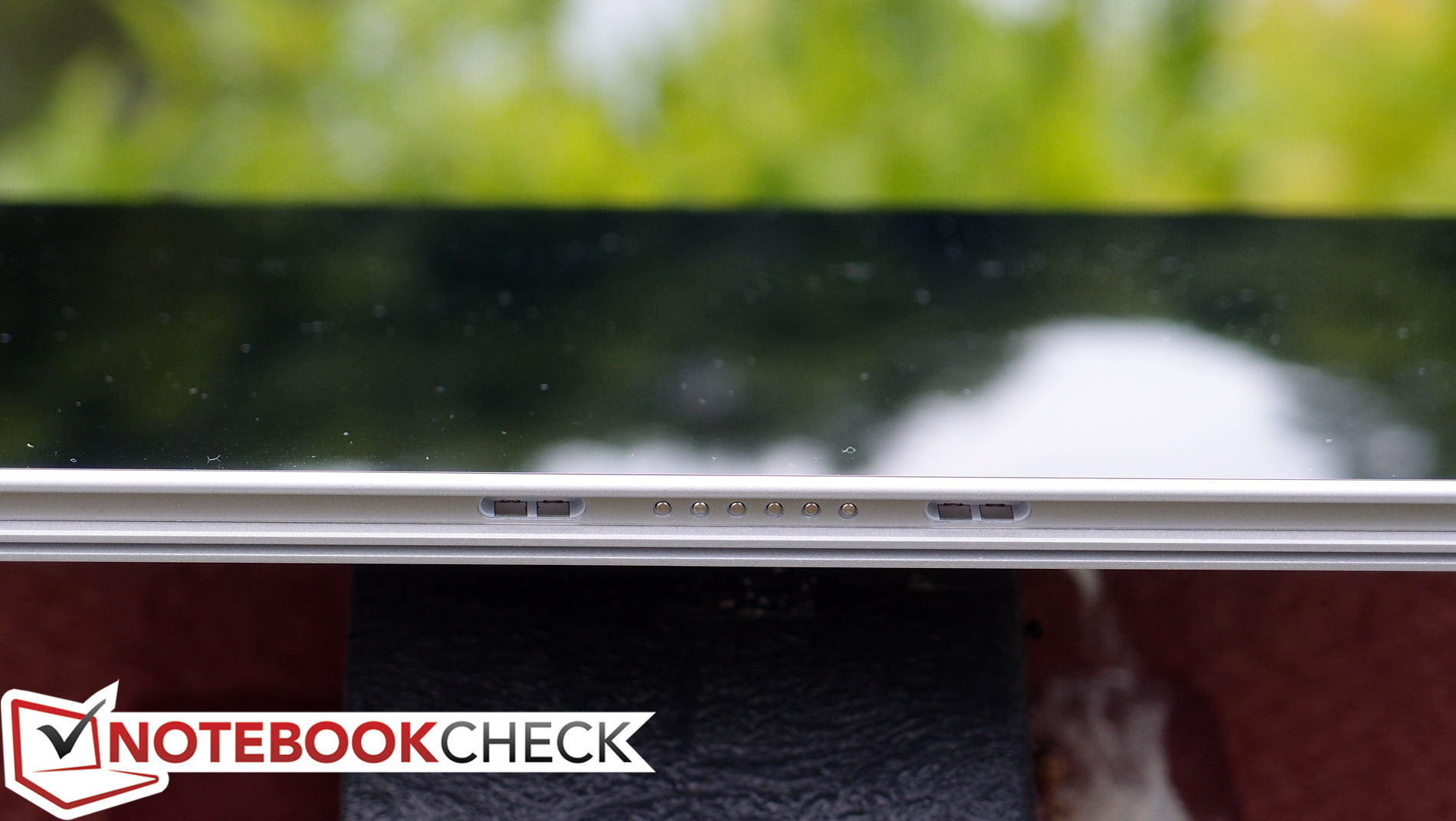

键盘接口...
键盘接口...
...通过磁铁...
...通过磁铁...
...与平板紧密结合。
...与平板紧密结合。

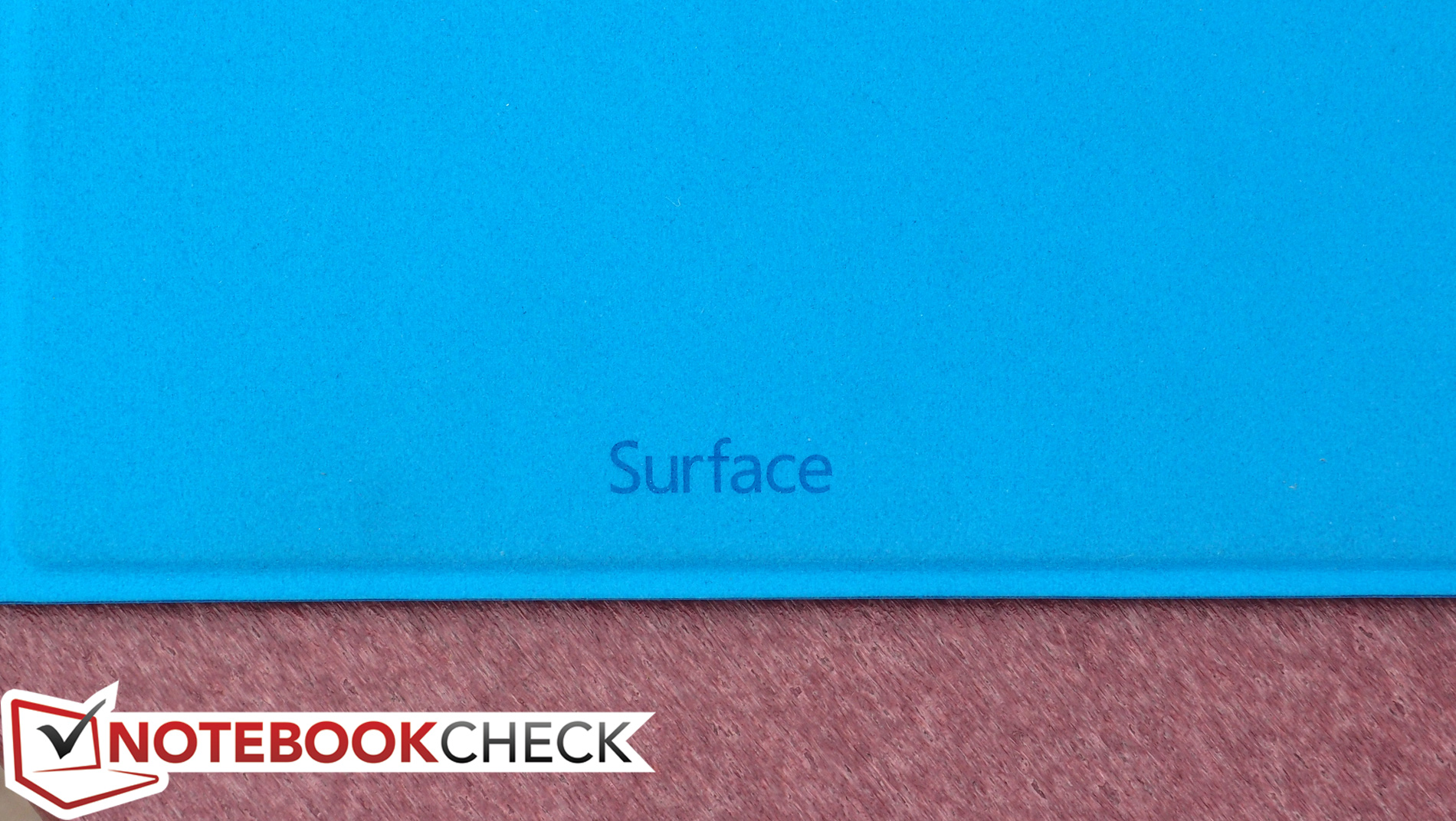

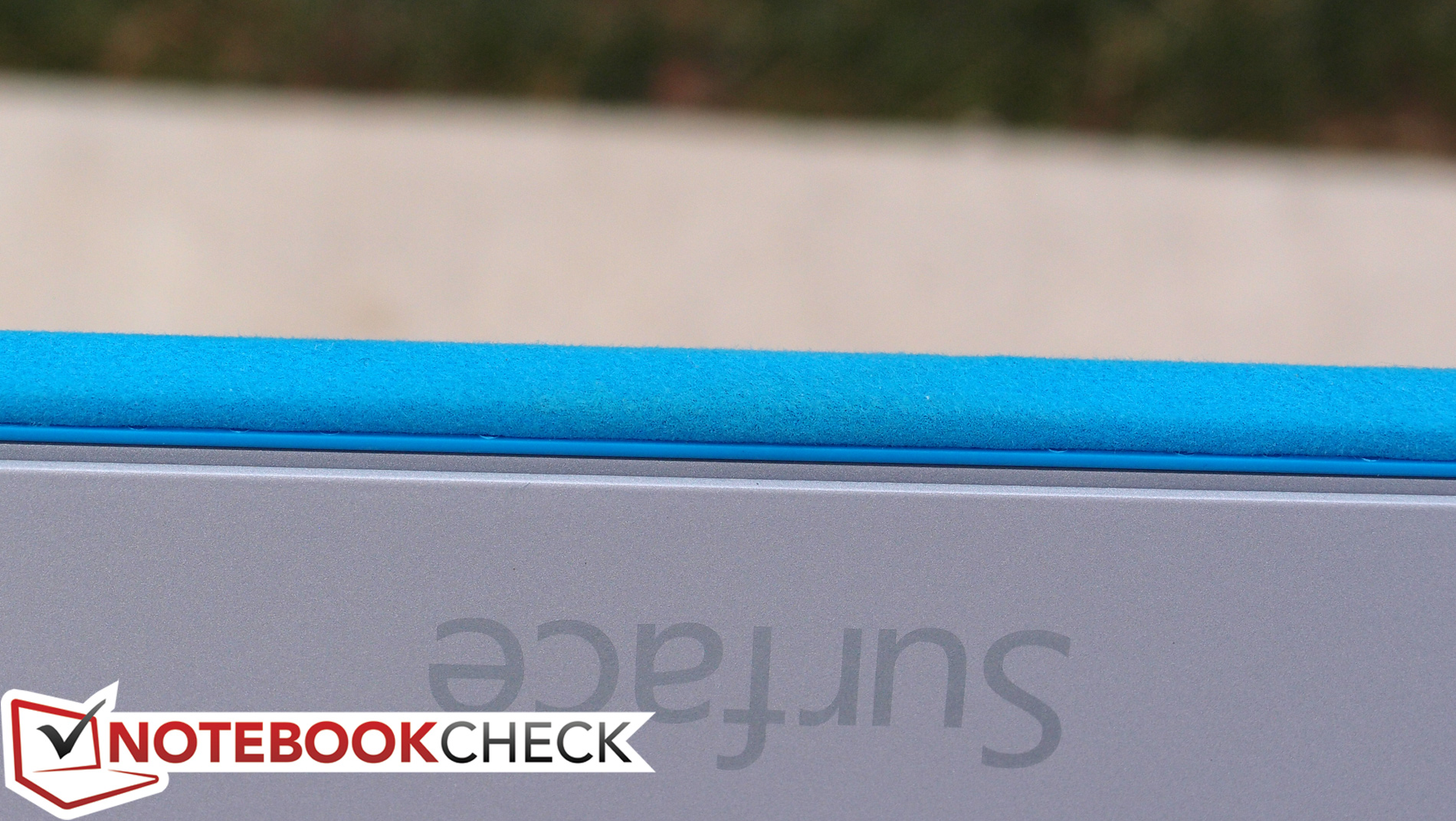

新的磁性键盘盖...
新的磁性键盘盖...

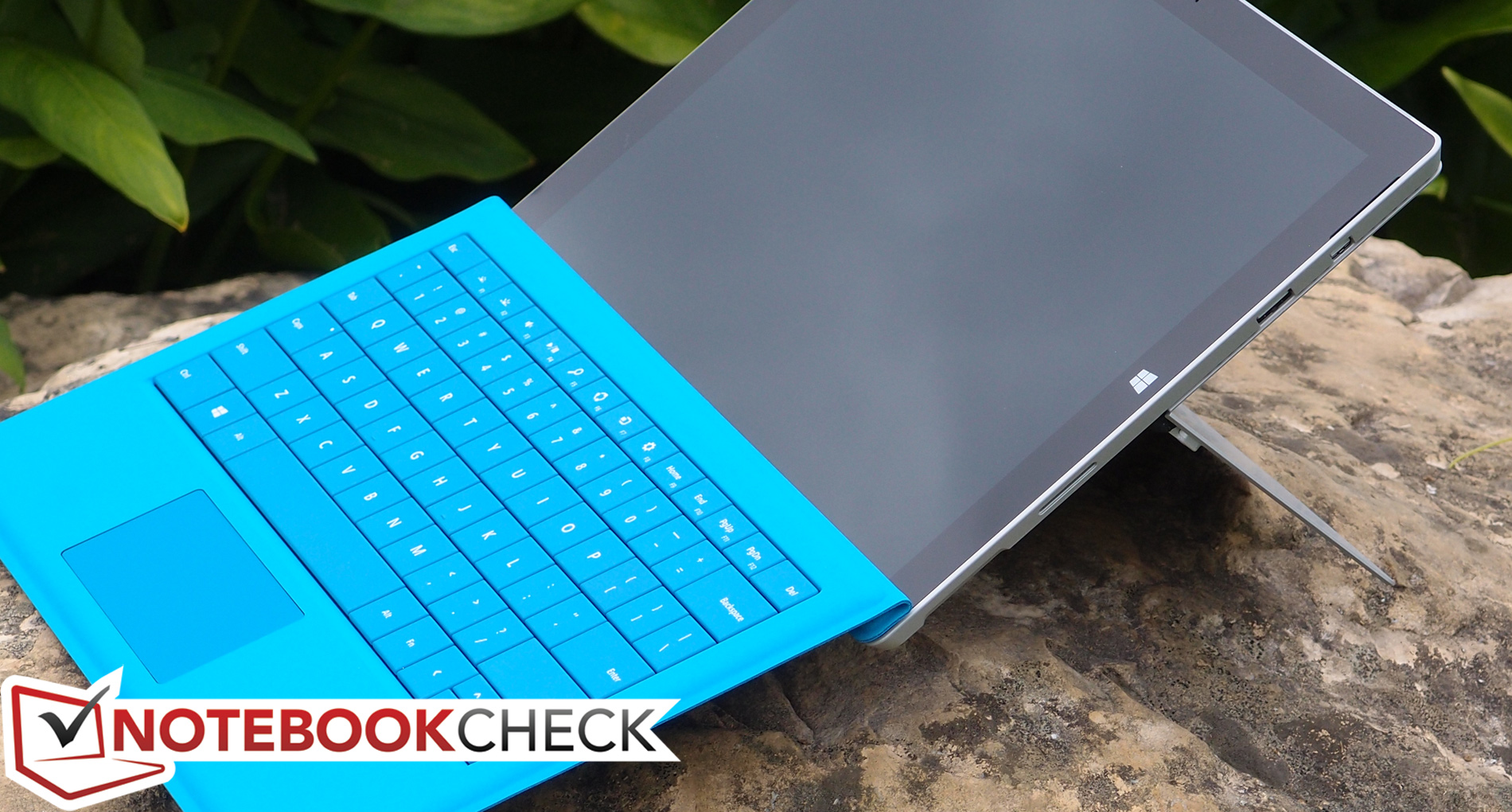

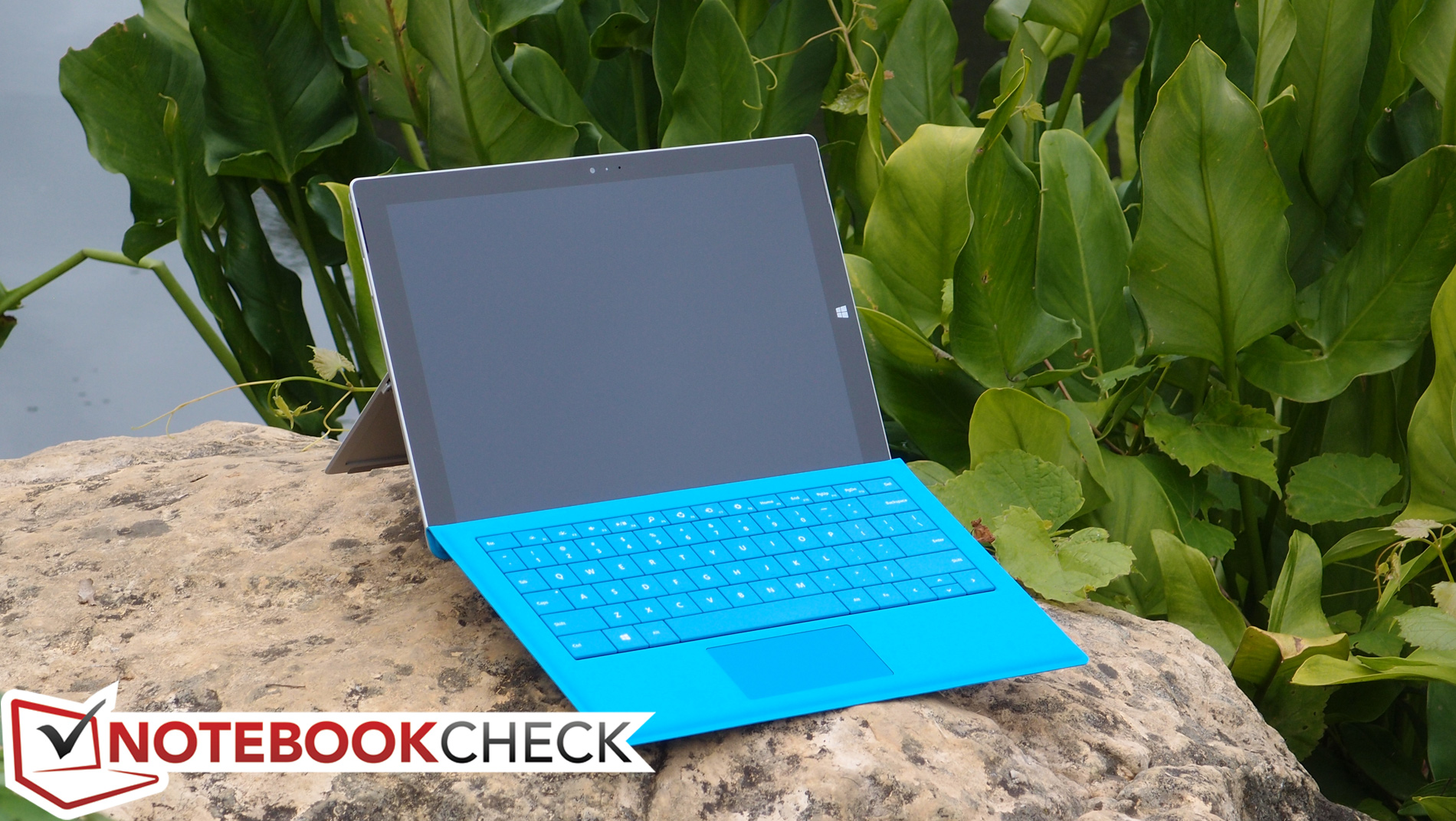

...可以放平打字...
...可以放平打字...

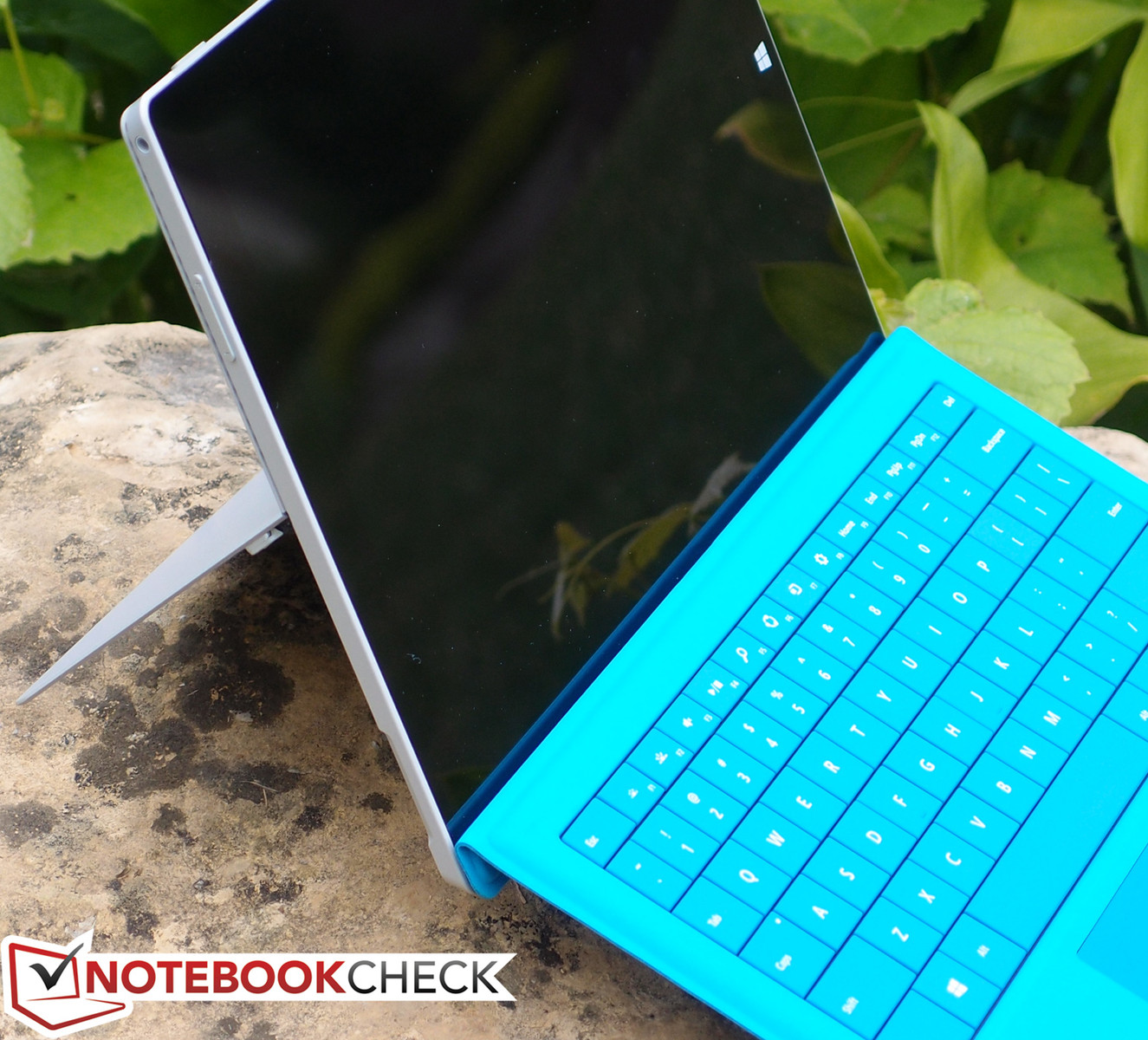

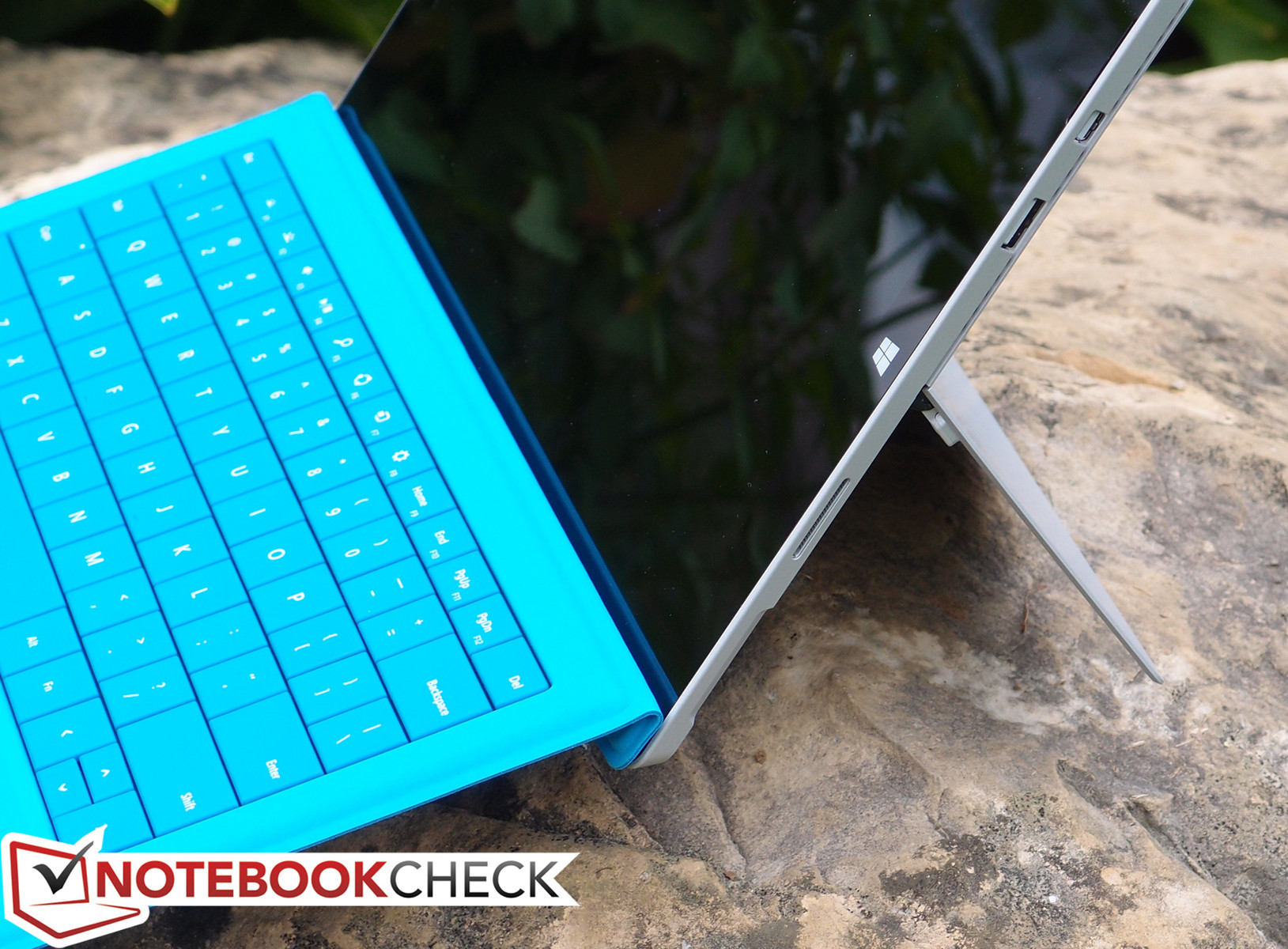

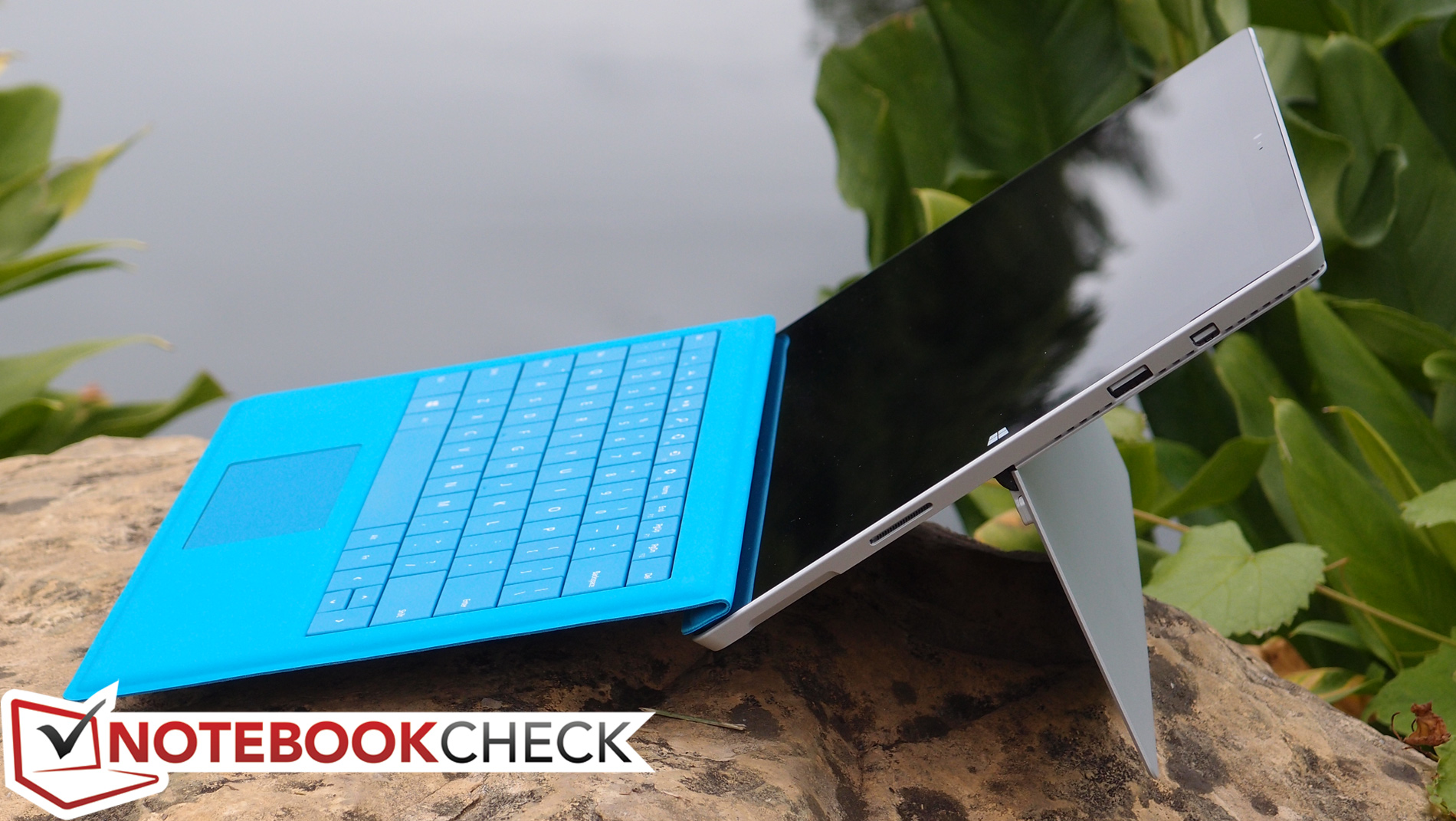

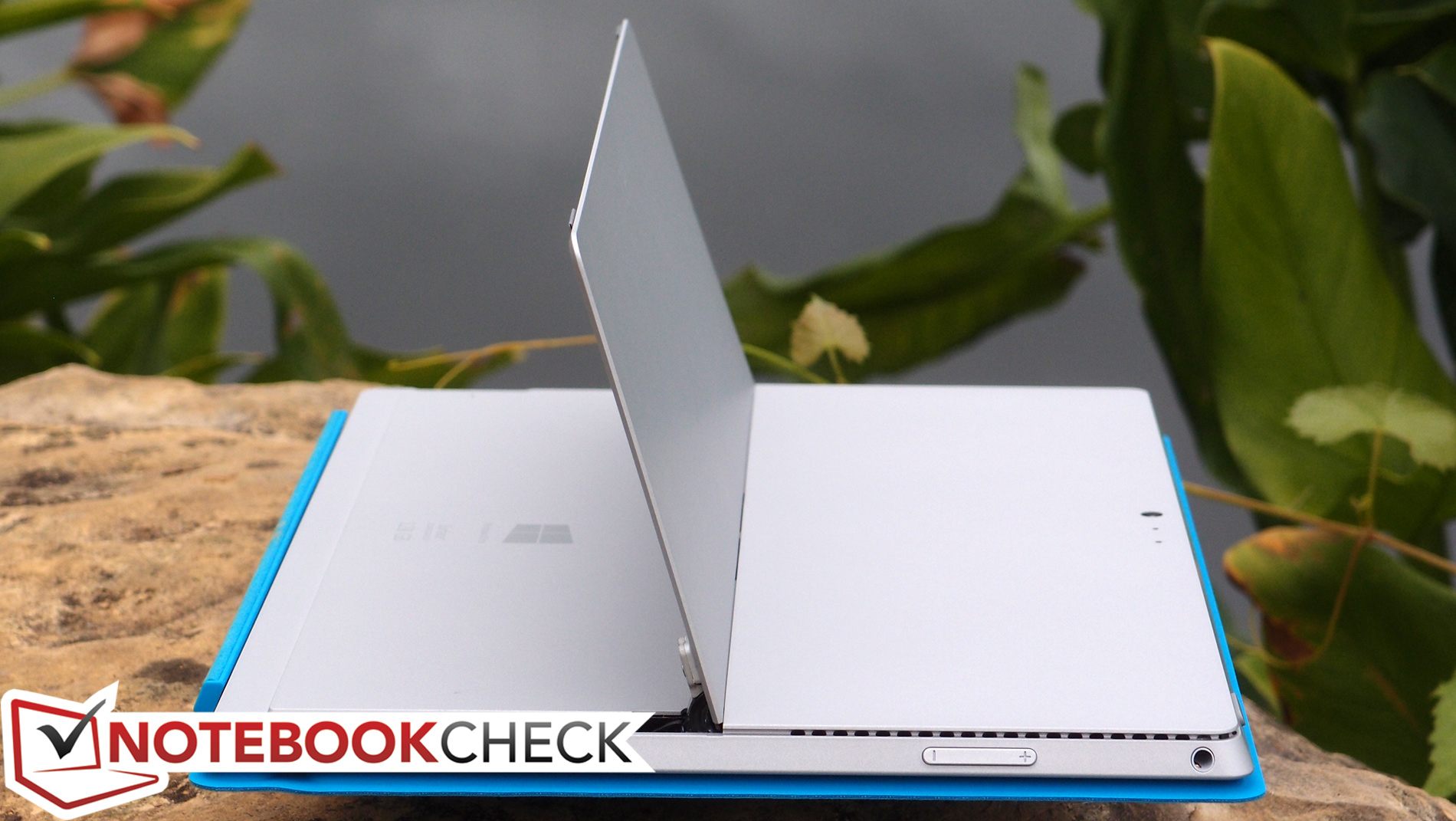

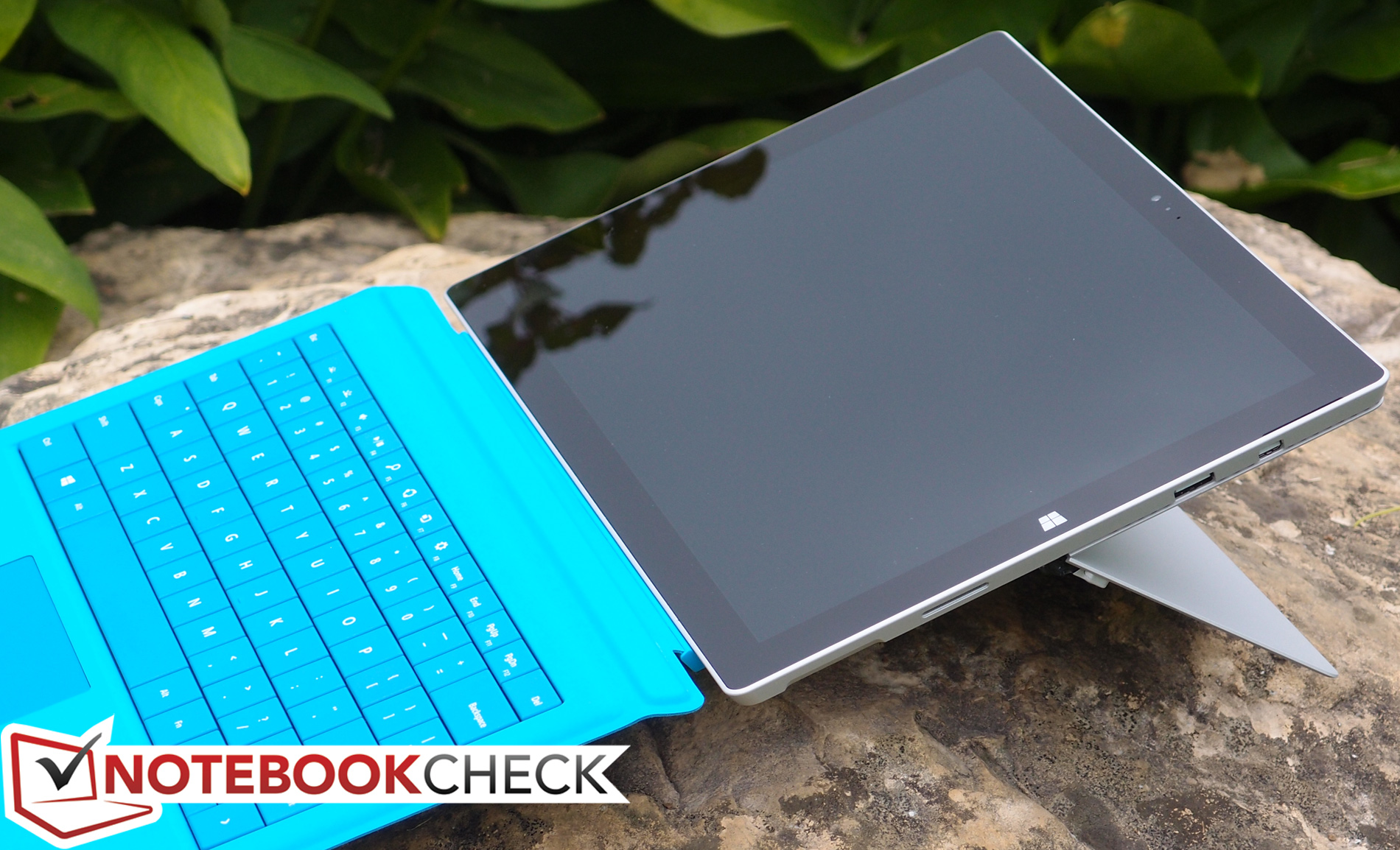

...或者用于有倾斜的角度。
...或者用于有倾斜的角度。

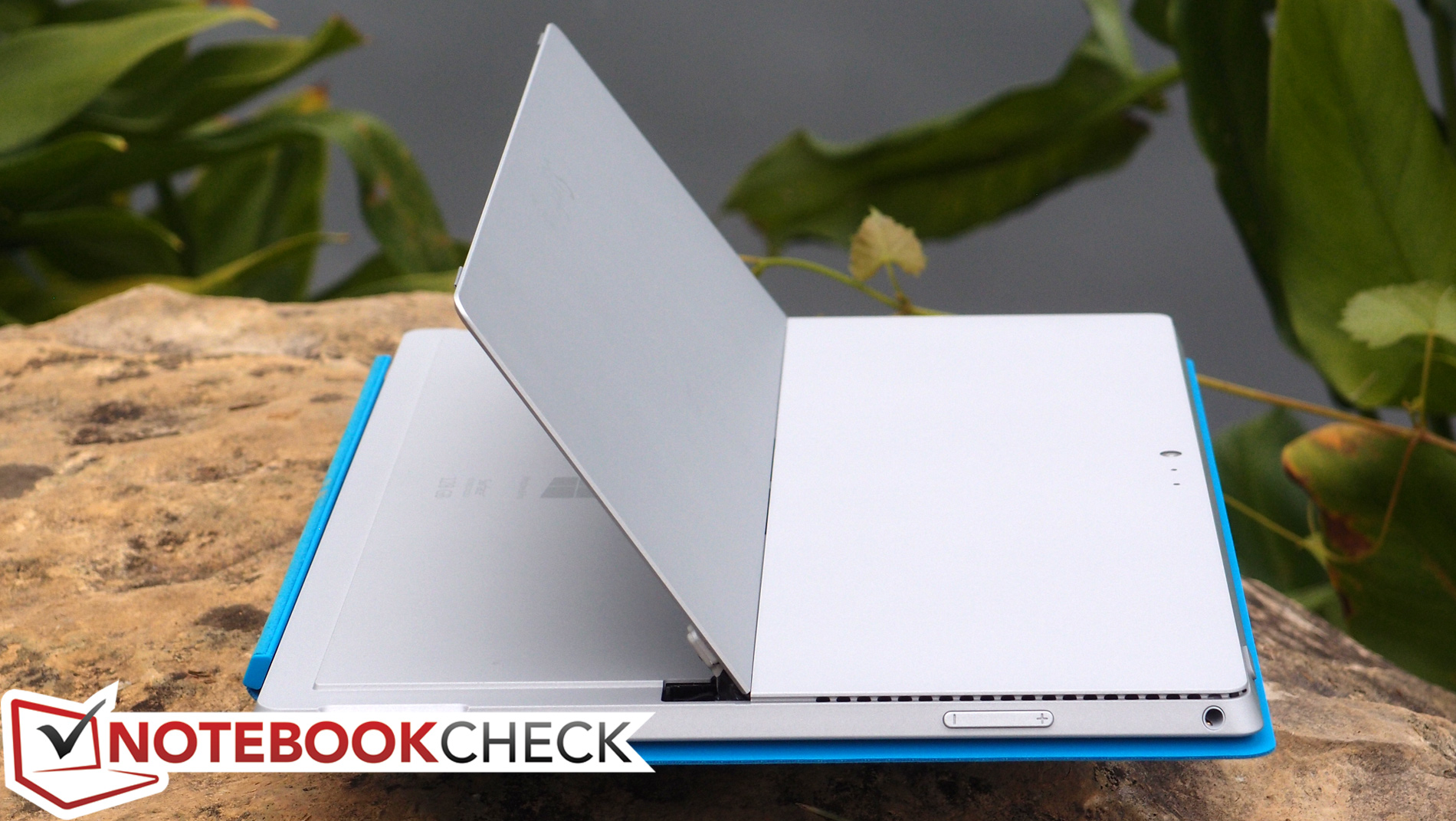

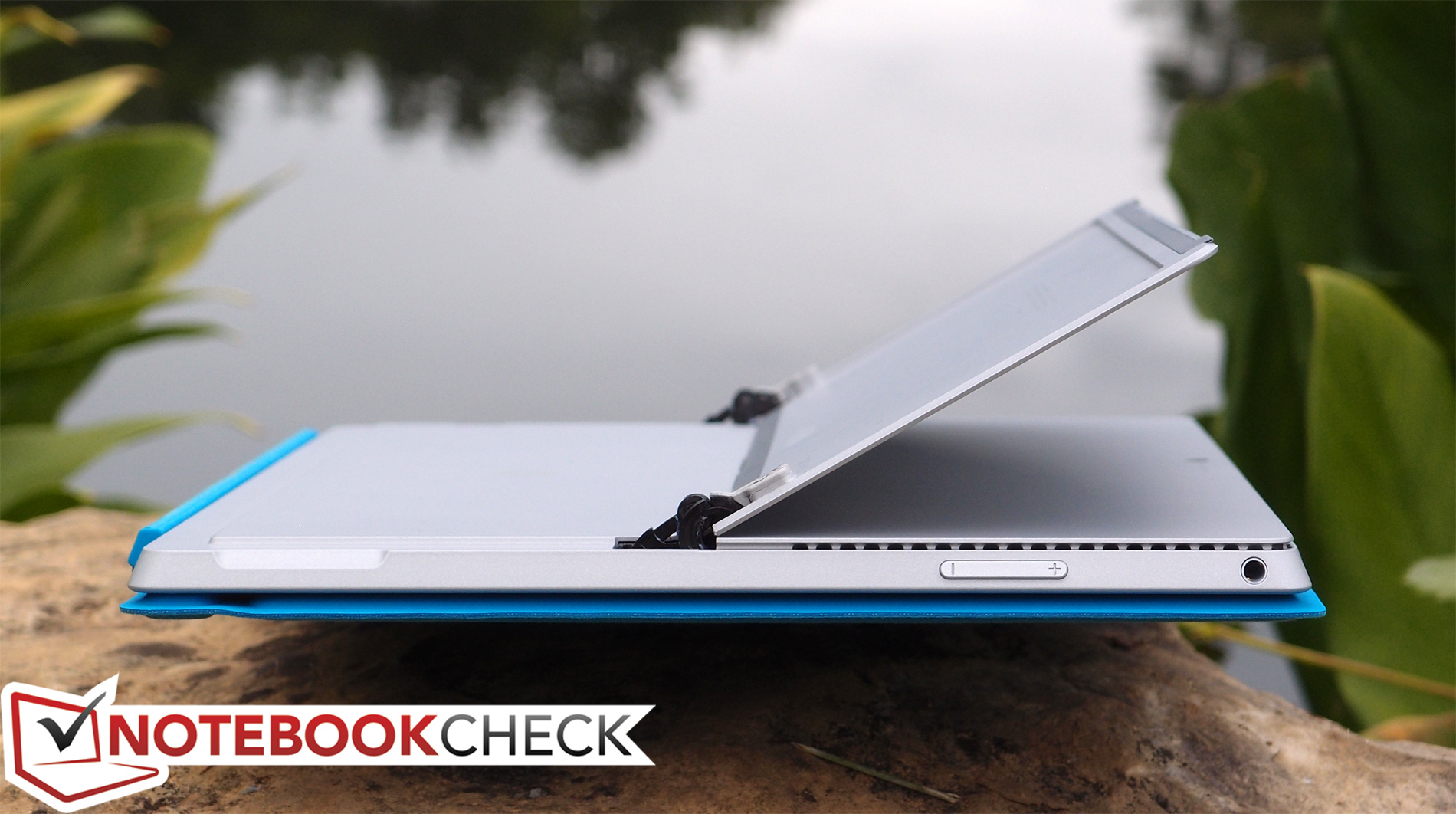

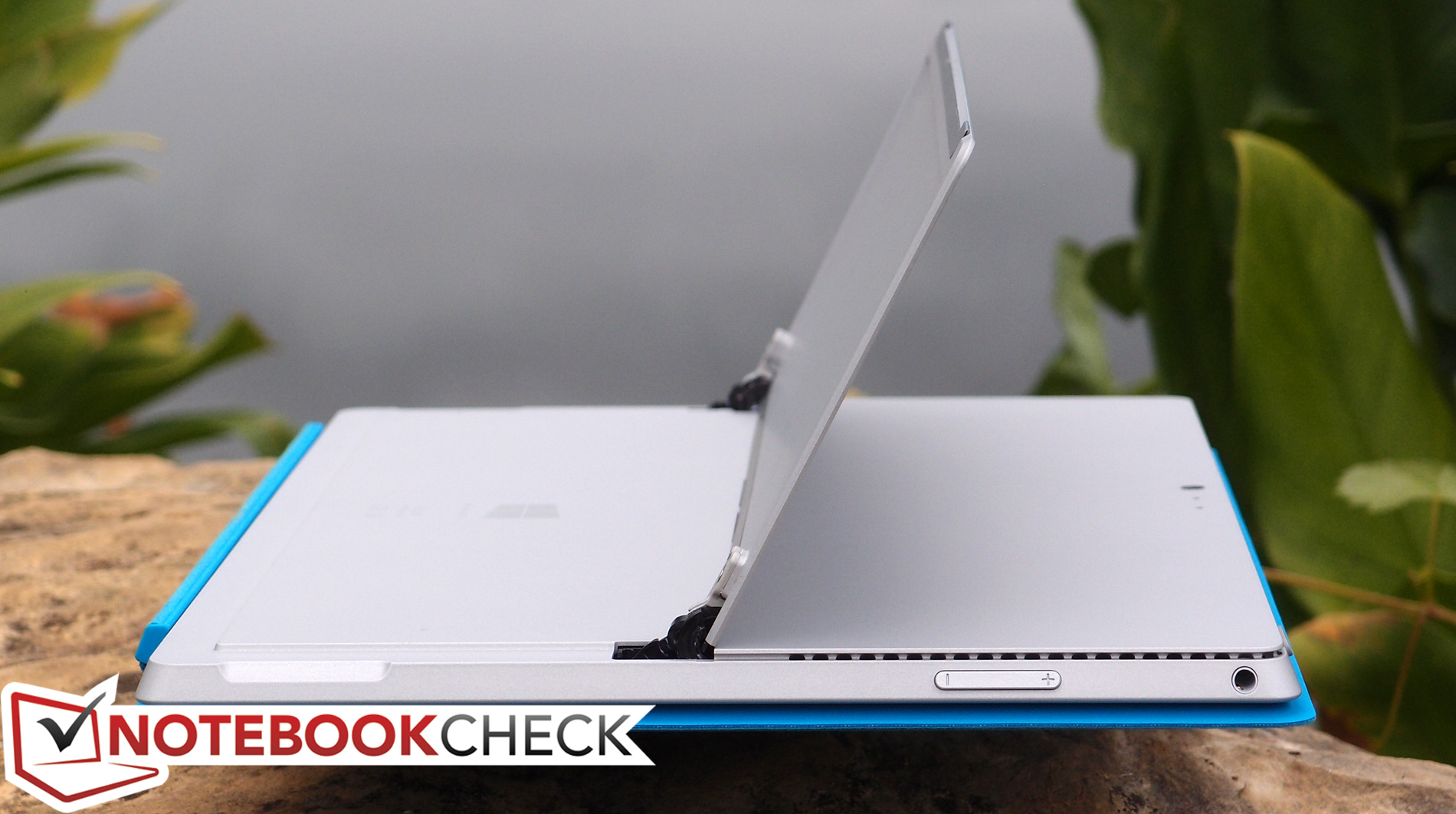

新的支架...
新的支架...
...可以使用于...
...可以使用于...
...几乎所有角度...
...几乎所有角度...
...在35度到145度之间。
...在35度到145度之间。

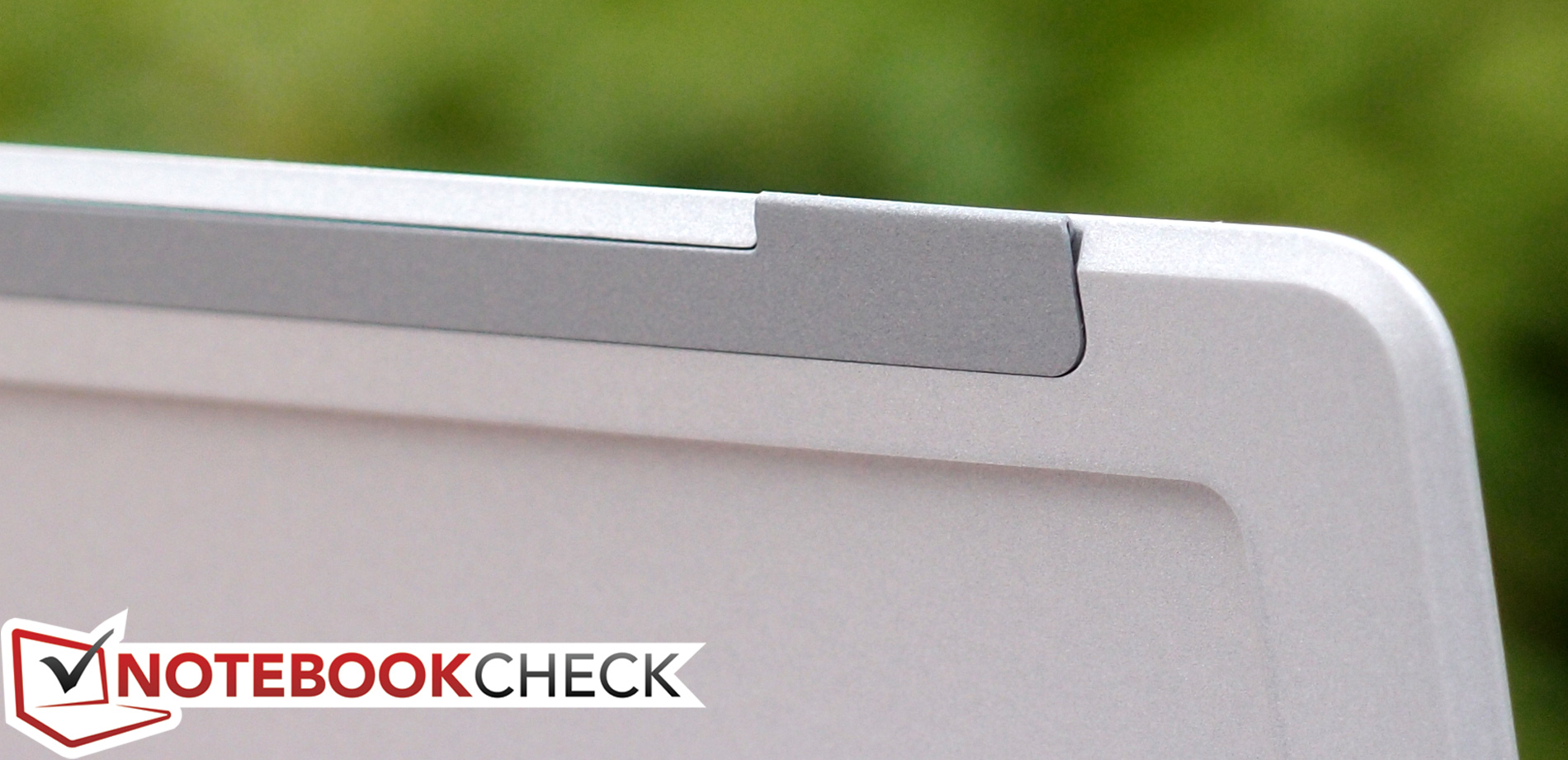

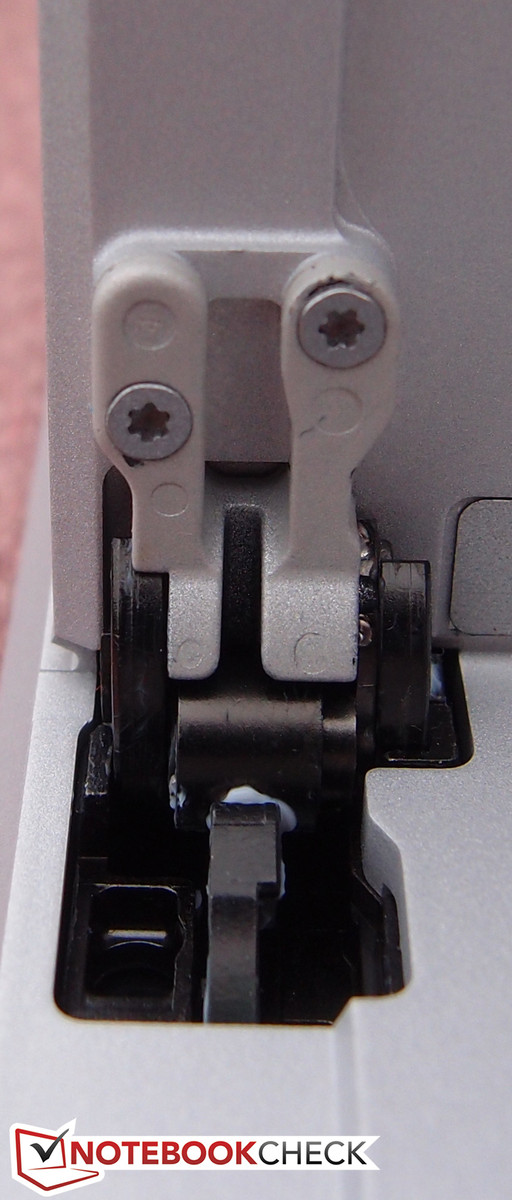

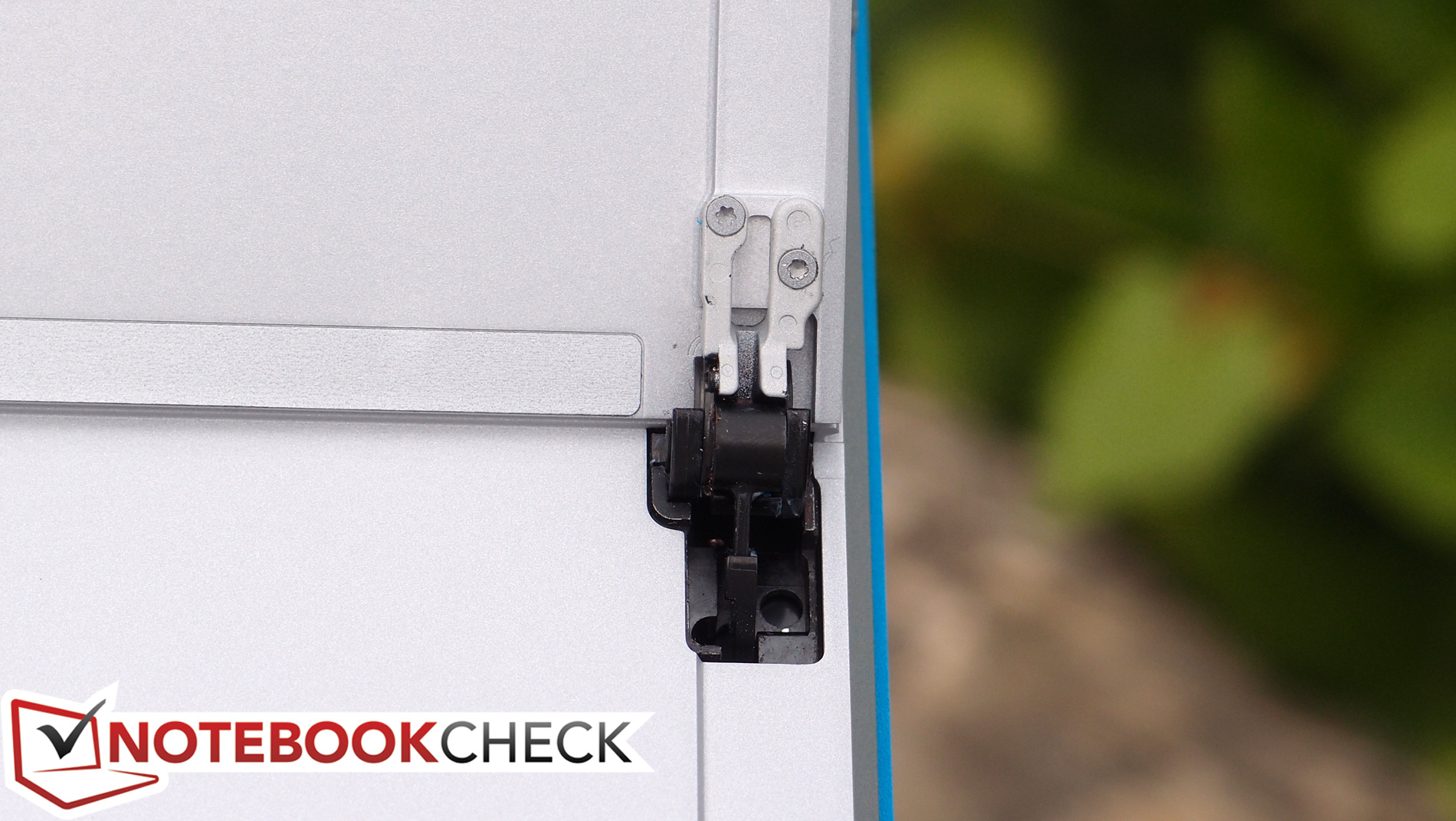

这些转轴的设计值得称赞。
这些转轴的设计值得称赞。

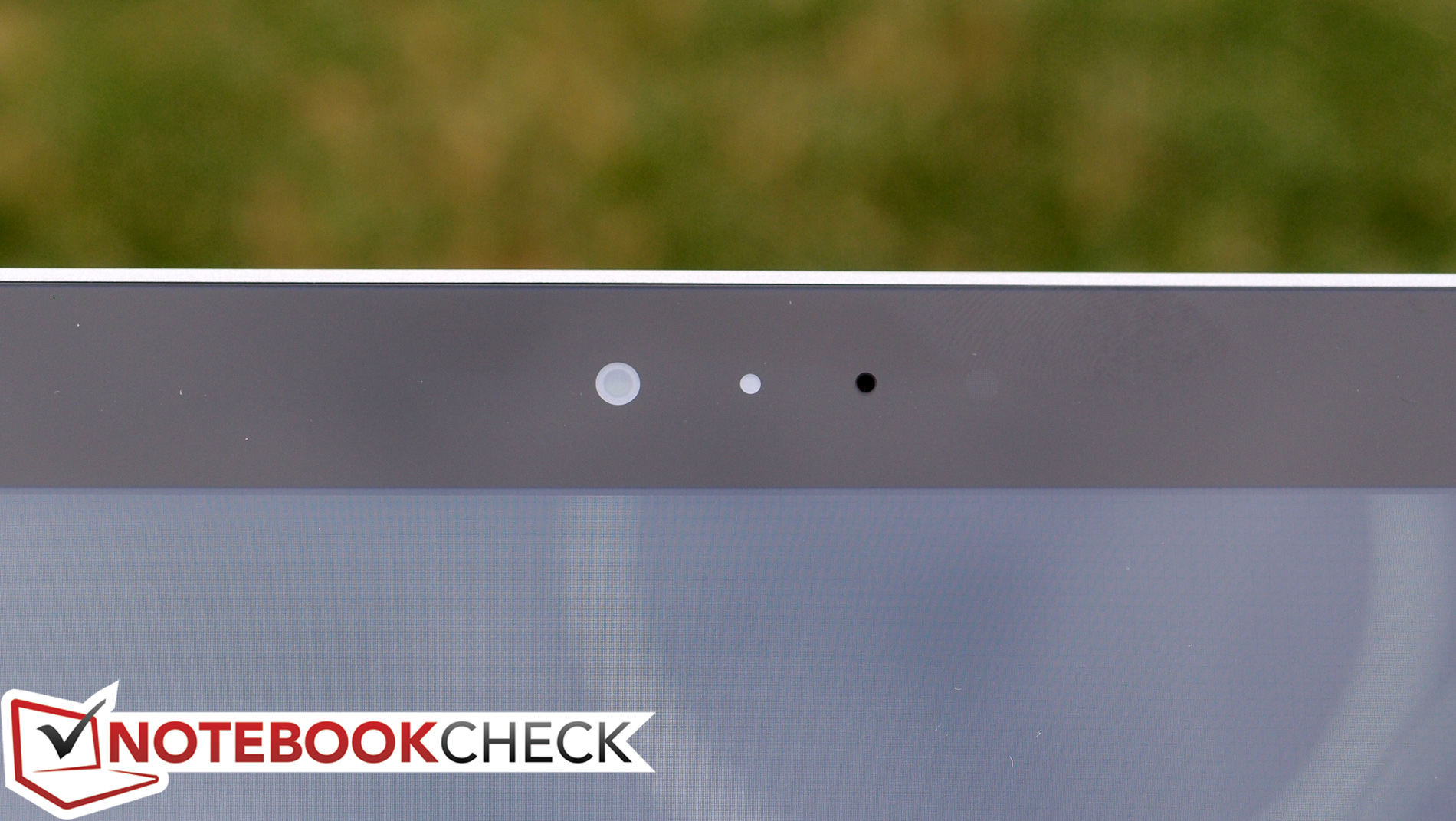

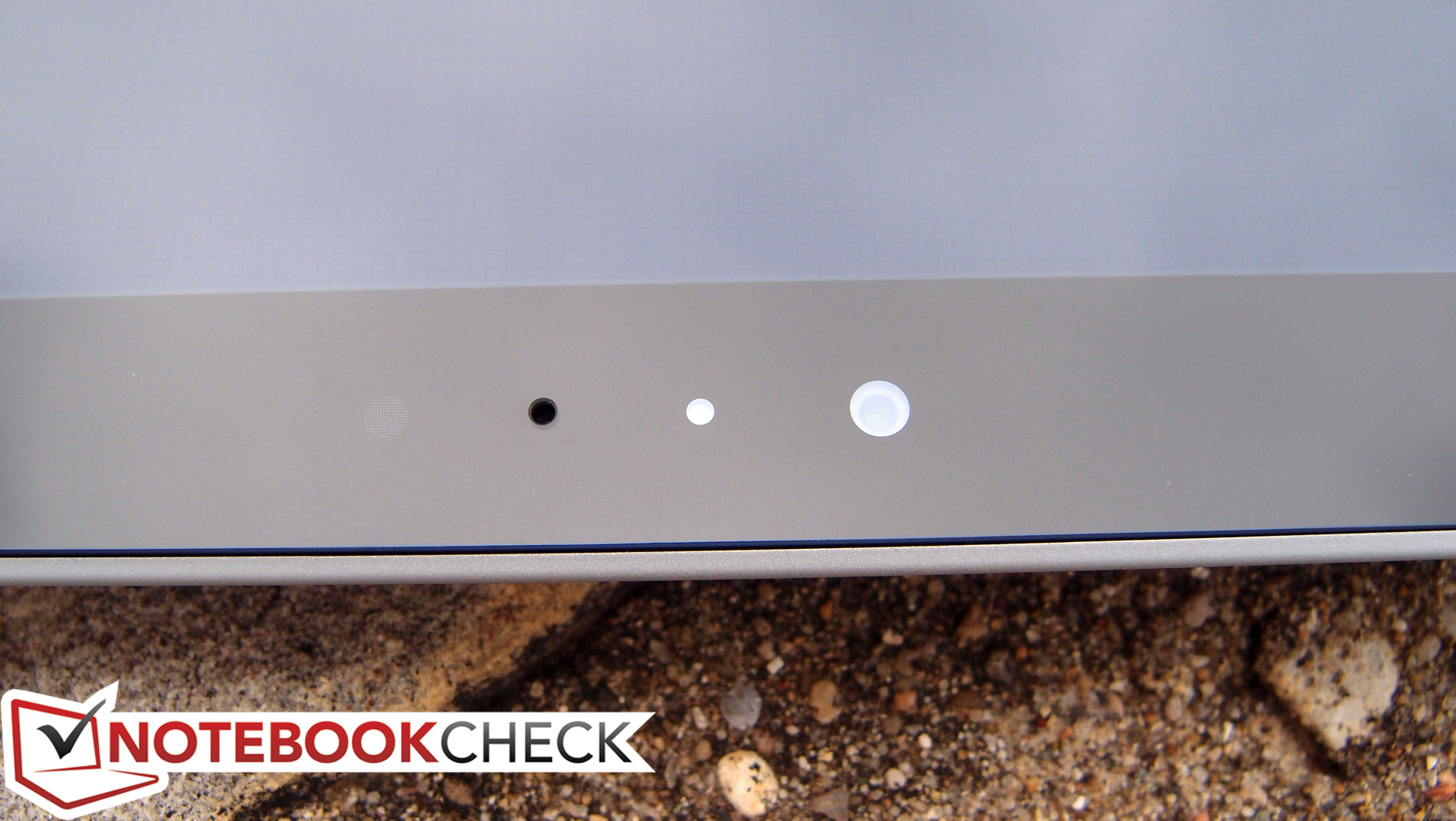

500万像素的前置和后置相机
500万像素的前置和后置相机

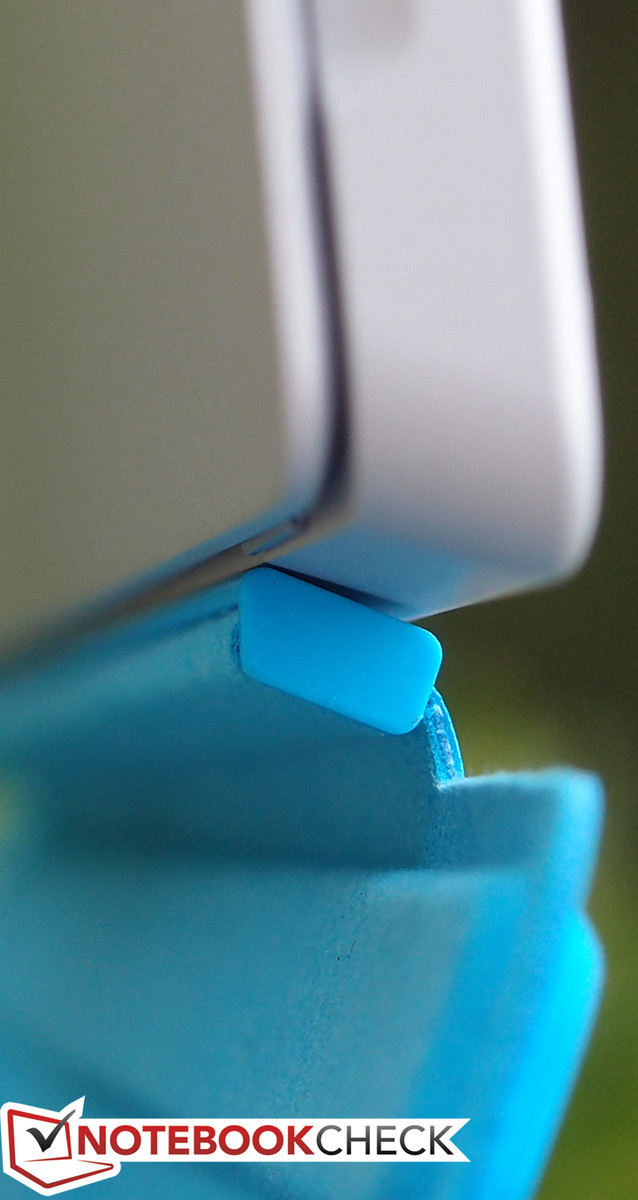

这个小垫脚提供了更好的稳定性
这个小垫脚提供了更好的稳定性

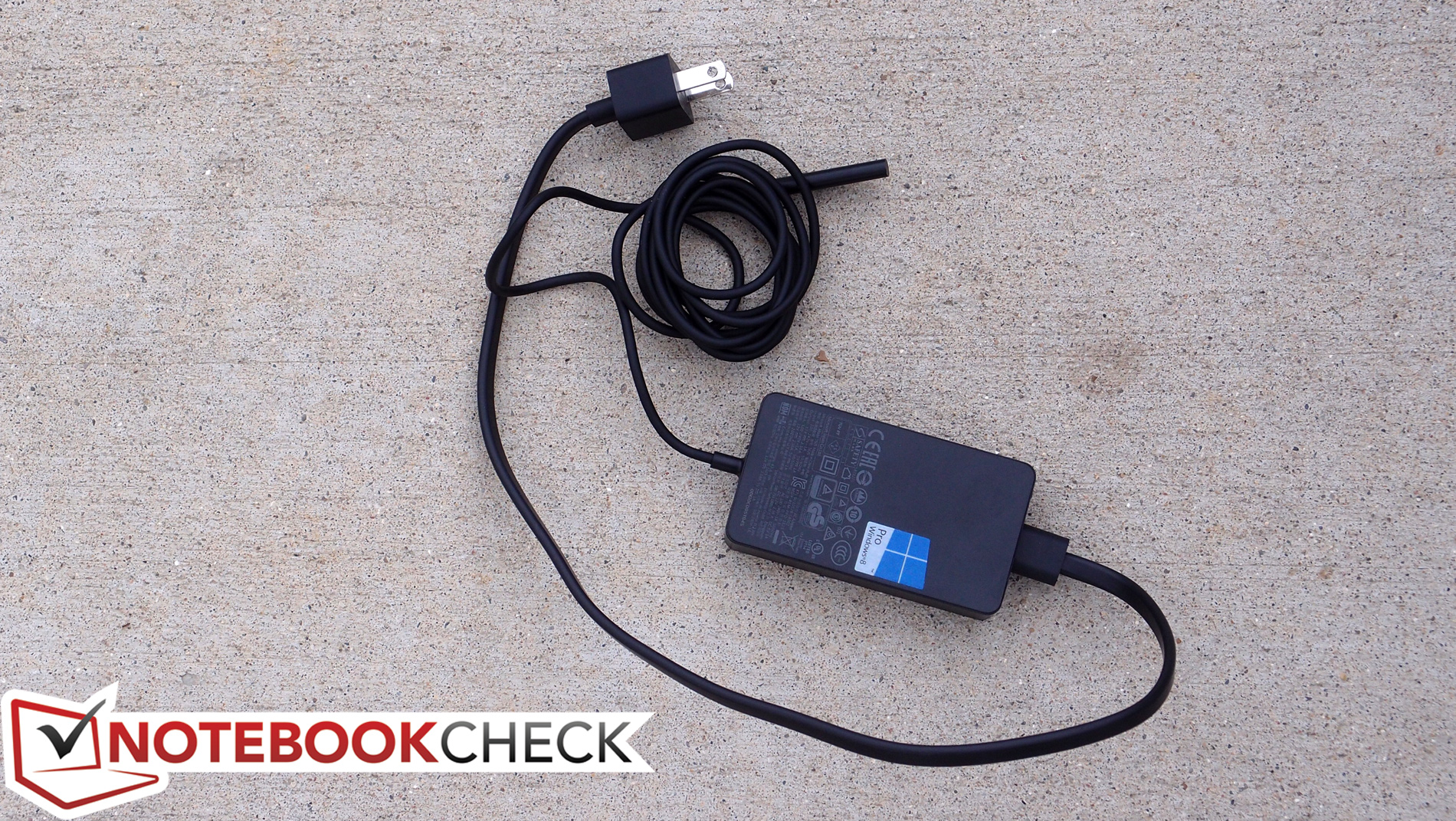

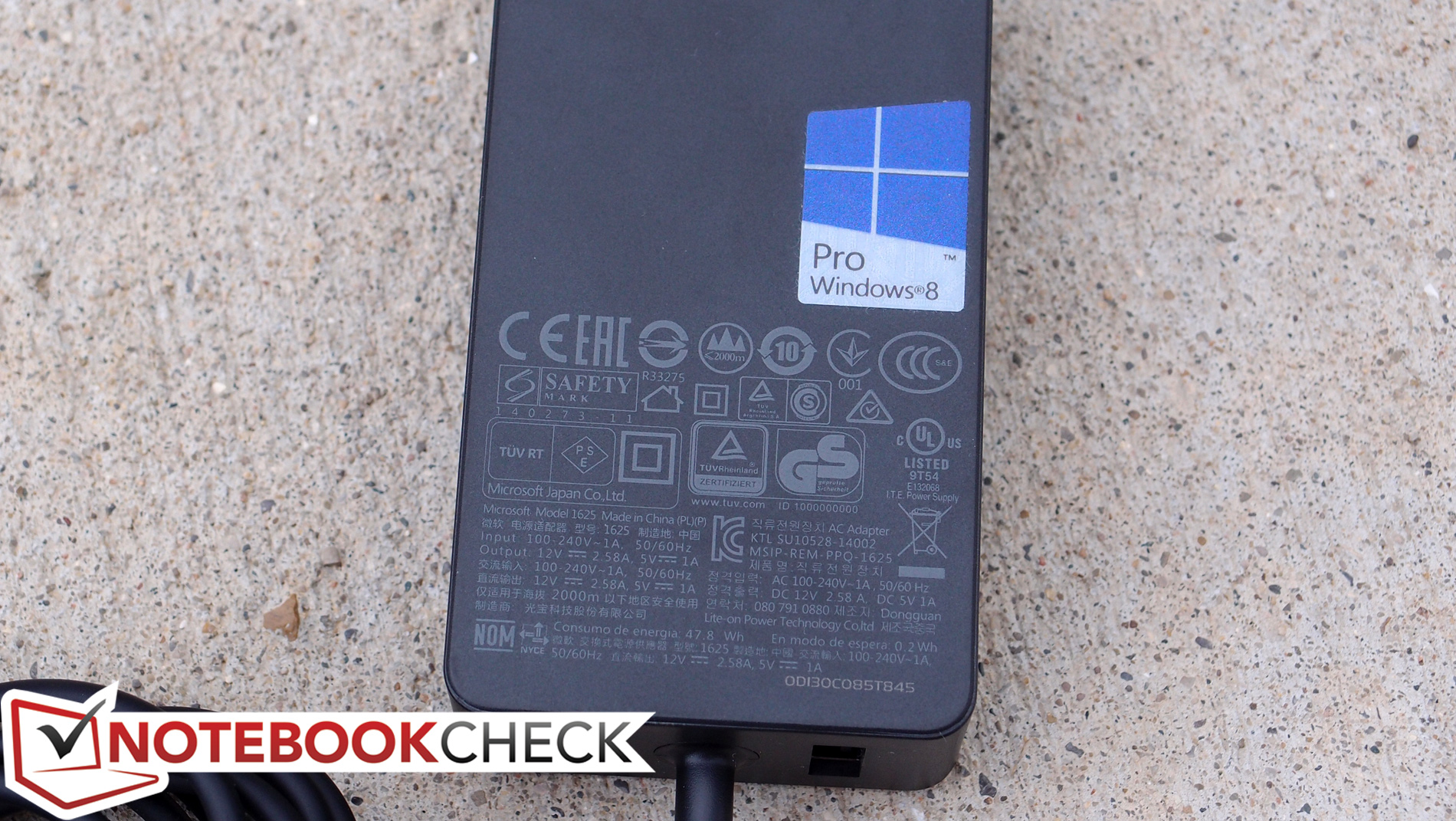

36W的电源适配器
36W的电源适配器

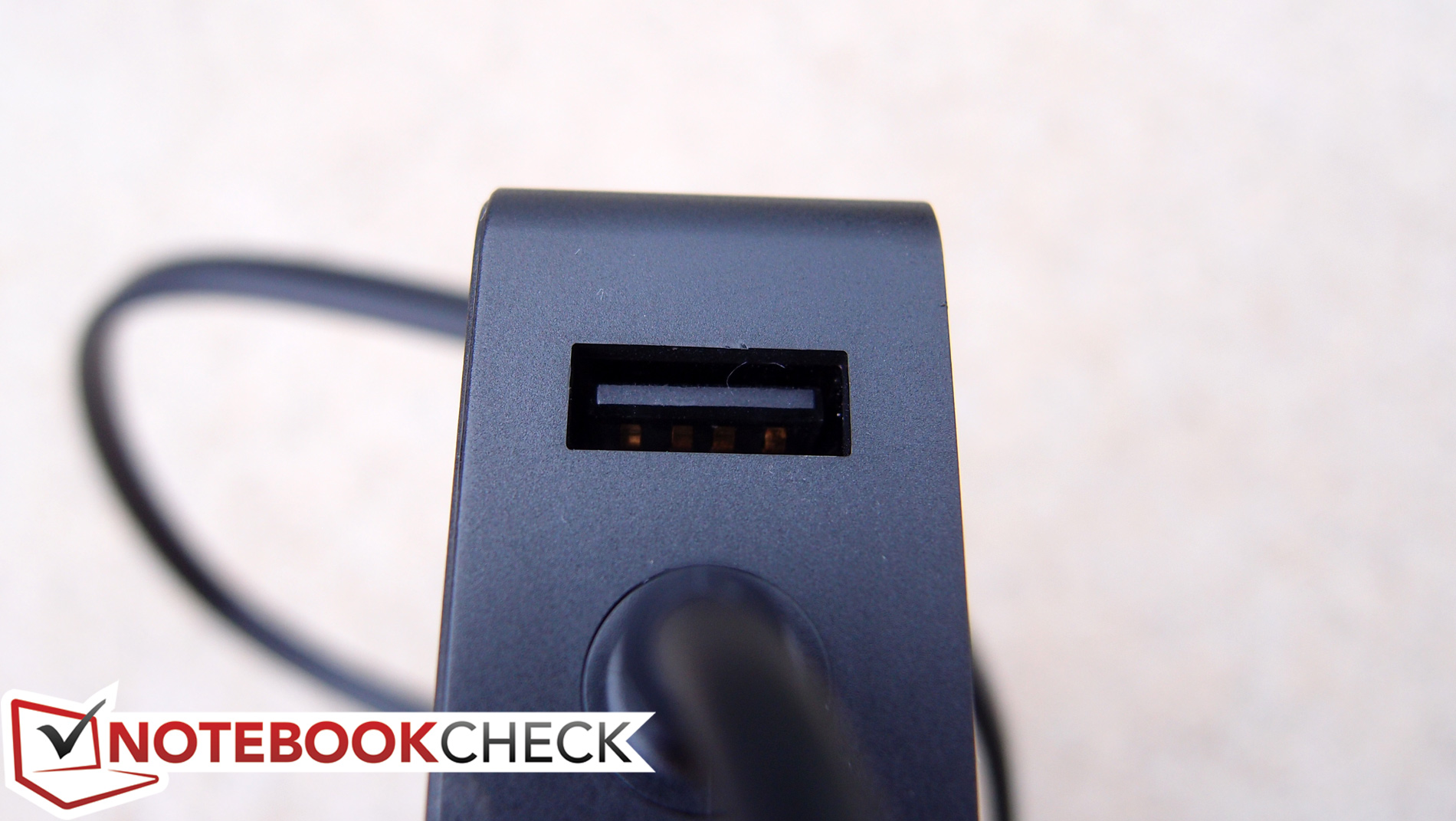

我们很喜欢它的集成USB充电接口
我们很喜欢它的集成USB充电接口
独特的充电接口设计...
独特的充电接口设计...

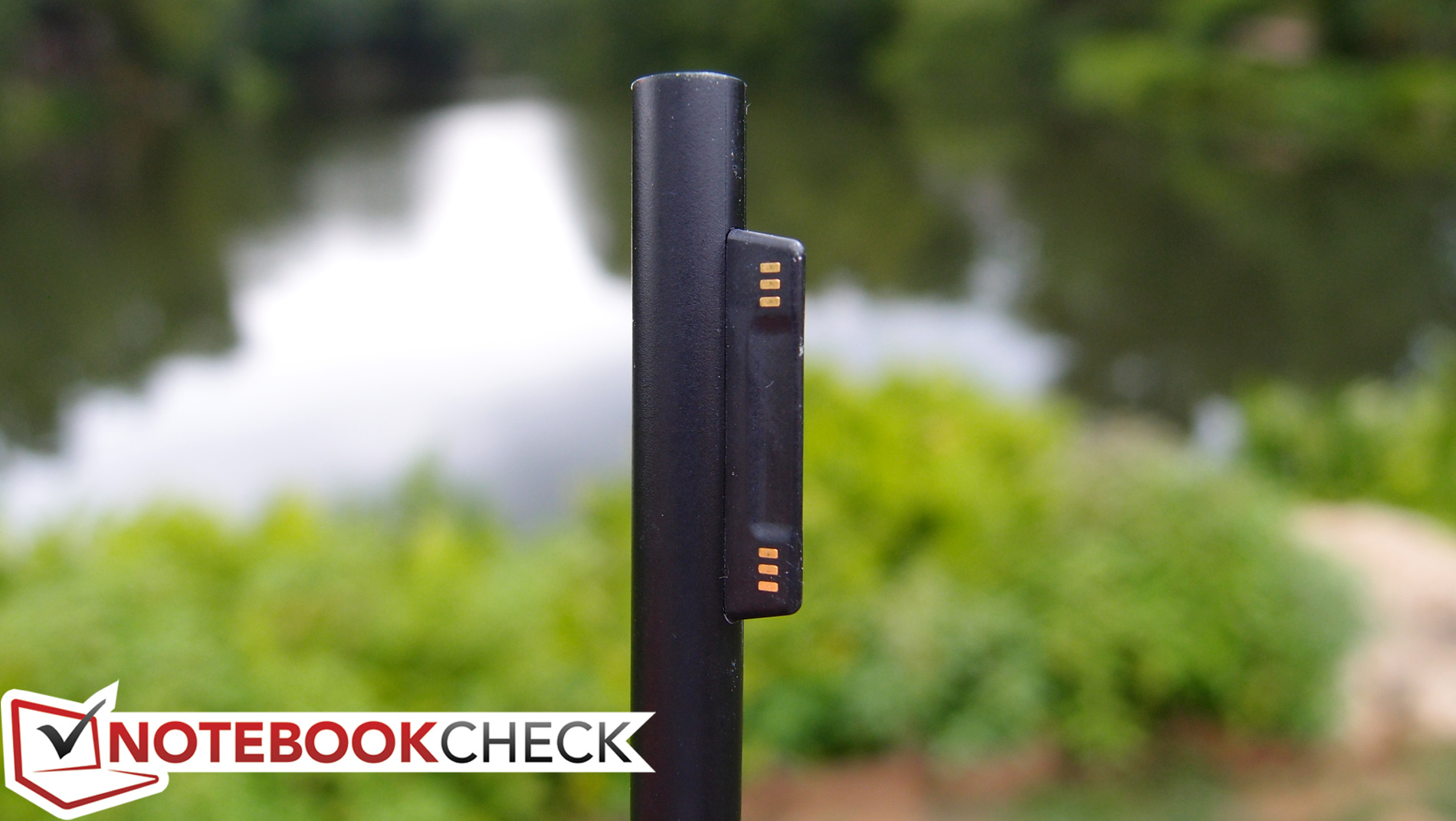

...和电源线上的公头。
...和电源线上的公头。



Please share our article, every link counts!

Specifications

Microsoft Surface Pro 3 (Surface Series)
Processor
Intel Core i5-4300U 2 x 1.9 - 2.9 GHz, Haswell
Graphics adapter
Intel HD Graphics 4400, Core: 1100 MHz, 10.18.10.3496
Memory
4 GB
, LPDDR3
Display
12.00 inch 3:2, 2160 x 1440 pixel, 10点触控, SEC3542, IPS, glossy: yes
Mainboard
Intel Lynx Point-LP
Storage
Hynix HFS128G3MNM, 128 GB
, mSATA SSD
Soundcard
Intel Lynx Point-LP - High Definition Audio Controller
Connections
1 USB 3.0 / 3.1 Gen1, 1 DisplayPort, 1 Docking Station Port, Audio Connections: 3.5毫米整合耳机接口, Card Reader: microSD卡槽, Sensors: 加速传感器, 陀螺仪, 指南针, 环境光传感器, Infineon SLB 9665 TT2.0 TPM, SIM卡槽 (位于支架下)
Networking
Marvell AVASTAR Wireless-AC Network Controller (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0 LE
Size
height x width x depth (in mm): 9 x 292 x 201
Battery
42 Wh, 锂离子
Operating System
Microsoft Windows 8.1 64 Bit
Camera
Webcam: 500万像素前置 + 500万像素后置相机;立体声麦克风
Additional features
Speakers: 2.0, Keyboard: Im Deckel integriert, Keyboard Light: yes, Surface Pen, Surface Pro Type Cover (不包括) , 12 Months Warranty
Weight
810 g, Power Supply: 204 g
Price
1000 Euro



Devices with the same GPU

华硕 Q302LA 变形本简短评测
HD Graphics 4400, Core i3 4030U, 13.30", 1.814 kg
联想 Horizon 2s-F0AT0003US 一体机简短评测
HD Graphics 4400, Core i5 4210U, 19.50", 2.478 kg
东芝 Satellite Radius P50W-BST2N01 变形本简短评测
HD Graphics 4400, Core i5 4210U, 15.60", 2.168 kg
联想 Horizon 2e-F0AS0014US AIO 一体机简短评测
HD Graphics 4400, Core i3 4030U, 21.50", 4.581 kg
戴尔 Inspiron 13 7347 变形本简短评测
HD Graphics 4400, Core i5 4210U, 13.30", 1.65 kg
惠普 Pavilion 13-a000ng x360 变形本简短评测
HD Graphics 4400, Core i3 4030U, 13.30", 1.76 kg
东芝 Satellite Click 2 Pro P30W-B-104 变形本简短评测
HD Graphics 4400, Core i5 4210U, 13.30", 1.982 kg

Pros

+无可挑剔的做工质量
+相比Surface Pro 2更轻薄
+改进了的Type Cover,增加了磁铁
+高分辨率的3:2屏幕
+优秀的亮度和色彩重现
+搭配了Intel Core处理器
+超长电池续航
+触控流畅
+新的Surface Pen比以前更易用
+新的支架可以打开至几乎所有角度
+搭载完整的Windows 8.1 Pro 64位操作系统


Cons

-性能被负载下的散热能力所限制
-在中负载下温度很高
-放在腿上使用还算舒适
-无法自行更换配件与升级
-更适合于替代平板电脑而非笔记本电脑
-作为平板价格很高,特别是Type Cover仍需要单独购买

Microsoft Surface Pro 3 - 07/24/2014 v4(old)
Steve Schardein

Chassis
88 / 98 → 90%
Keyboard
73%
Pointing Device
86%
Connectivity
60 / 80 → 75%
Weight
78 / 35-78 → 100%
Battery
89%
Display
83%
Games Performance
62 / 68 → 91%
Application Performance
84 / 87 → 97%
Temperature
81%
Noise
89%
Audio
75 / 91 → 82%
Camera
67 / 85 → 79%
Average
78%
86%
Convertible - Weighted Average
