惠普 Spectre x2 12-a001ng 变形本简短评测

小而优。 m3版本的Spectre x2 12在899欧元(约6640人民币)的价位上提供了LTE模组。这台设备能否提供优秀的性能,还是会像m7版本一样会有降频问题呢?
Windows Skylake Convertible / 2-in-1
HP Spectre x2 12-a001ng (Spectre x2 Series)
Processor
Intel Core m3-6Y30 2 x 0.9 - 2.2 GHz, Skylake
Graphics adapter
Intel HD Graphics 515, Core: 950 MHz
Memory
4 GB
, DDR3L 双通道
Display
12.00 inch 3:2, 1920 x 1280 pixel 192 PPI, 10点触控, LGD04A5, IPS, WUXGA-UWVA-BrightView, glossy: yes, detachable screen
Mainboard
Intel Skylake-Y Premium PCH
Storage
Liteon L8H-256V2G, 256 GB
, M.2 SSD
Soundcard
Intel Skylake-U/Y PCH - High Definition Audio
Connections
2 USB 3.0 / 3.1 Gen1, Audio Connections: Line + Mic, Card Reader: microSD
Networking
Intel Wireless-AC 7265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0, LTE, GPS
Size
height x width x depth (in mm): 13.1 x 303 x 209
Battery
43 Wh Lithium-Ion
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 360万像素 2560x1440
Primary Camera: 8 MPix Intel RealSense 3D R200
Secondary Camera: 5 MPix
Additional features
Speakers: 4x: 立体声,平板内; 立体声,底座中; Bang & Olufsen, Keyboard: 孤岛式, Keyboard Light: yes, KeyboardDock (背光键盘, 触控版), 45瓦电源适配器, 24 Months Warranty, fanless
Weight
1.229 kg, Power Supply: 328 g
Price
1250 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Photos of the HP Spectre x2 12-a003ng (Core m7-6Y75) without LTE modem and SIM card slot.

Size Comparison

303 mm 209 mm 13.1 mm 1.2 kg293 mm 224 mm 14.5 mm 1.1 kg291 mm 201 mm 11 mm 1.3 kg292 mm 202 mm 8.5 mm 1.1 kg278.8 mm 194.1 mm 6.9 mm 1.2 kg297 mm 210 mm 1 mm 5.7 g
Networking
iperf Server (receive) TCP 1 m
Huawei MateBook m5-6Y54
Broadcom BCM4356 802.11ac 2x2:2 (876 Mbps)
534 MBit/s +22%
HP Spectre x2 12-a001ng
Intel Wireless-AC 7265
439 MBit/s
iperf Client (transmit) TCP 1 m
Huawei MateBook m5-6Y54
Broadcom BCM4356 802.11ac 2x2:2 (876 Mbps)
453 MBit/s +40%
HP Spectre x2 12-a001ng
Intel Wireless-AC 7265
323 MBit/s
Cinebench R15
CPU Single 64Bit
Acer Aspire Switch Alpha 12 SA5-271-56HM
Intel Core i5-6200U
114 Points +84%
Huawei MateBook m5-6Y54
Intel Core m5-6Y54
107 Points +73%
Lenovo IdeaPad Miix 700
Intel Core m5-6Y54
99 Points +60%
Microsoft Surface Pro 4, Core m3
Intel Core m3-6Y30
88 Points +42%
HP Spectre x2 12-a003ng K3D42EA
Intel Core m7-6Y75
80 Points +29%
HP Spectre x2 12-a001ng
Intel Core m3-6Y30
62 Points
CPU Multi 64Bit
Acer Aspire Switch Alpha 12 SA5-271-56HM
Intel Core i5-6200U
289 Points +68%
Huawei MateBook m5-6Y54
Intel Core m5-6Y54
232 Points +35%
Microsoft Surface Pro 4, Core m3
Intel Core m3-6Y30
206 Points +20%
Lenovo IdeaPad Miix 700
Intel Core m5-6Y54
200 Points +16%
HP Spectre x2 12-a003ng K3D42EA
Intel Core m7-6Y75
177 Points +3%
HP Spectre x2 12-a001ng
Intel Core m3-6Y30
172 Points
Cinebench R15 CPU Single 64Bit
62 Points
Cinebench R15 CPU Multi 64Bit
172 Points
Cinebench R15 OpenGL 64Bit
28.92 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Help
PCMark 8 - Home Score Accelerated v2
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
3281 Points +55%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
2733 Points +29%
Huawei MateBook m5-6Y54
HD Graphics 515, 6Y54, SanDisk SD8SN8U256G1027
2717 Points +28%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
2426 Points +15%
HP Spectre x2 12-a001ng
HD Graphics 515, 6Y30, Liteon L8H-256V2G
2116 Points
PCMark 8 Home Score Accelerated v2
2116 points
Help
HP Spectre x2 12-a001ng
Liteon L8H-256V2G
HP Spectre x2 12-a003ng K3D42EA
Sandisk X300 SD7SN6S-256G-1006
Acer Aspire Switch Alpha 12 SA5-271-56HM
Kingston RBU-SNS8152S3256GG2
Lenovo IdeaPad Miix 700
Samsung MZNLN128HCGR-000L2
Microsoft Surface Pro 4, Core m3
Samsung MZFLV128 NVMe
Huawei MateBook m5-6Y54
SanDisk SD8SN8U256G1027
CrystalDiskMark 3.0
-9%
4%
12%
-5%
18%
Read Seq
517
410.1
-21%
518
0%
497.9
-4%
663
28%
512
-1%
Write Seq
270.1
316
17%
199.9
-26%
153.5
-43%
158.2
-41%
462.1
71%
Read 512
369.2
260.8
-29%
374.9
2%
401.2
9%
313.1
-15%
376
2%
Write 512
264.6
241.6
-9%
201
-24%
154.5
-42%
158.2
-40%
295.2
12%
Read 4k
23.48
27.4
17%
29.3
25%
36.2
54%
30.14
28%
31.83
36%
Write 4k
57.4
53.5
-7%
76.8
34%
95.5
66%
68
18%
64.5
12%
Read 4k QD32
223.4
196
-12%
272
22%
389.5
74%
243.7
9%
269.6
21%
Write 4k QD32
195.8
147.8
-25%
197.1
1%
154
-21%
149.2
-24%
178.2
-9%
Liteon L8H-256V2G
Sequential Read: 517 MB/s
Sequential Write: 270.1 MB/s
512K Read: 369.2 MB/s
512K Write: 264.6 MB/s
4K Read: 23.48 MB/s
4K Write: 57.4 MB/s
4K QD32 Read: 223.4 MB/s
4K QD32 Write: 195.8 MB/s

Temperature

Max. Load
 36.6 °C42.4 °C38.1 °C
 34.4 °C36.9 °C34.6 °C
 36.3 °C37 °C37.3 °C
Maximum: 42.4 °C
Average: 37.1 °C
38.4 °C43 °C39.7 °C
37 °C38.7 °C38 °C
35.1 °C36.3 °C34.9 °C
Maximum: 43 °C
Average: 37.9 °C
Power Supply (max.)  54.1 °C | Room Temperature 22.6 °C | FIRT 550-Pocket
(±) The average temperature for the upper side under maximal load is 37.1 °C / 99 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 42.4 °C / 108 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 43 °C / 109 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 29.8 °C / 86 F, compared to the device average of 30.2 °C / 86 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 37.3 °C / 99.1 F.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-9.2 °C / -16.5 F).

Speakers

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2032.234.22531.730.13131.832.84031.431.85030.433.86326.827.68026.827.910026.126.61252627.21602527.120024.324.825022.725.13152232.940021.34150020.653.763019.65580019.156.1100018.862.2125018.660.1160018.864.2200018.360.2250018.664.5315018.666.4400018.767.2500018.864.7630018.967.2800019.166.7100001961.91250018.856.21600018.756.6SPL31.276.1N1.634.3median 19median 56.6Delta1.312.731.331.733.430.429.528.926.227.234.531.237.939.536.646.749.358.665.465.259.863.261.764.464.862.763.767.274.668.855.446.97868.73921.8median 59.8median 45.311.223.4hearing rangehide median Pink NoiseHP Spectre x2 12-a001ngAcer Aspire Switch Alpha 12 SA5-271-56HM

Power Usage

HP Spectre x2 12-a001ng
6Y30, HD Graphics 515, 43 Wh
HP Spectre x2 12-a003ng K3D42EA
6Y75, HD Graphics 515, 42 Wh
Acer Aspire Switch Alpha 12 SA5-271-56HM
6200U, HD Graphics 520, 37 Wh
Lenovo IdeaPad Miix 700
6Y54, HD Graphics 515, 41 Wh
Microsoft Surface Pro 4, Core m3
6Y30, HD Graphics 515, 38 Wh
Huawei MateBook m5-6Y54
6Y54, HD Graphics 515, 33 Wh
Power Consumption
13%
-19%
-3%
-8%
Idle Minimum *
6
4.5
25%
7.3
-22%
4
33%
7.4
-23%
Idle Average *
8
7.7
4%
10
-25%
8.6
-8%
11.6
-45%
Idle Maximum *
10.6
8.3
22%
10.15
4%
9.3
12%
11.6
-9%
Load Average *
21.5
19.8
8%
25.2
-17%
18.6
13%
16.8
22%
Load Maximum *
22
20.6
6%
29.3
-33%
36.3
-65%
19.1
13%

* ... smaller is better

Power Consumption
Off / Standbydarklight 0.26 / 1.5 Watt
Idledarkmidlight 6 / 8 / 10.6 Watt
Load midlight 21.5 / 22 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Battery Runtime
Reader / Idle (sort by value)
HP Spectre x2 12-a001ng
6Y30, HD Graphics 515, 43 Wh
681 min
HP Spectre x2 12-a003ng K3D42EA
6Y75, HD Graphics 515, 42 Wh
954 min
Acer Aspire Switch Alpha 12 SA5-271-56HM
6200U, HD Graphics 520, 37 Wh
640 min
Lenovo IdeaPad Miix 700
6Y54, HD Graphics 515, 41 Wh
861 min
Microsoft Surface Pro 4, Core m3
6Y30, HD Graphics 515, 38 Wh
791 min
Huawei MateBook m5-6Y54
6Y54, HD Graphics 515, 33 Wh
478 min
WiFi v1.3 (sort by value)
HP Spectre x2 12-a001ng
6Y30, HD Graphics 515, 43 Wh
364 min
HP Spectre x2 12-a003ng K3D42EA
6Y75, HD Graphics 515, 42 Wh
361 min
Acer Aspire Switch Alpha 12 SA5-271-56HM
6200U, HD Graphics 520, 37 Wh
321 min
Lenovo IdeaPad Miix 700
6Y54, HD Graphics 515, 41 Wh
440 min
Microsoft Surface Pro 4, Core m3
6Y30, HD Graphics 515, 38 Wh
488 min
Huawei MateBook m5-6Y54
6Y54, HD Graphics 515, 33 Wh
263 min
Battery Runtime
Idle (without WLAN, min brightness)
11h 21min
WiFi Websurfing
6h 04min
Load (maximum brightness)
2h 41min

Pros

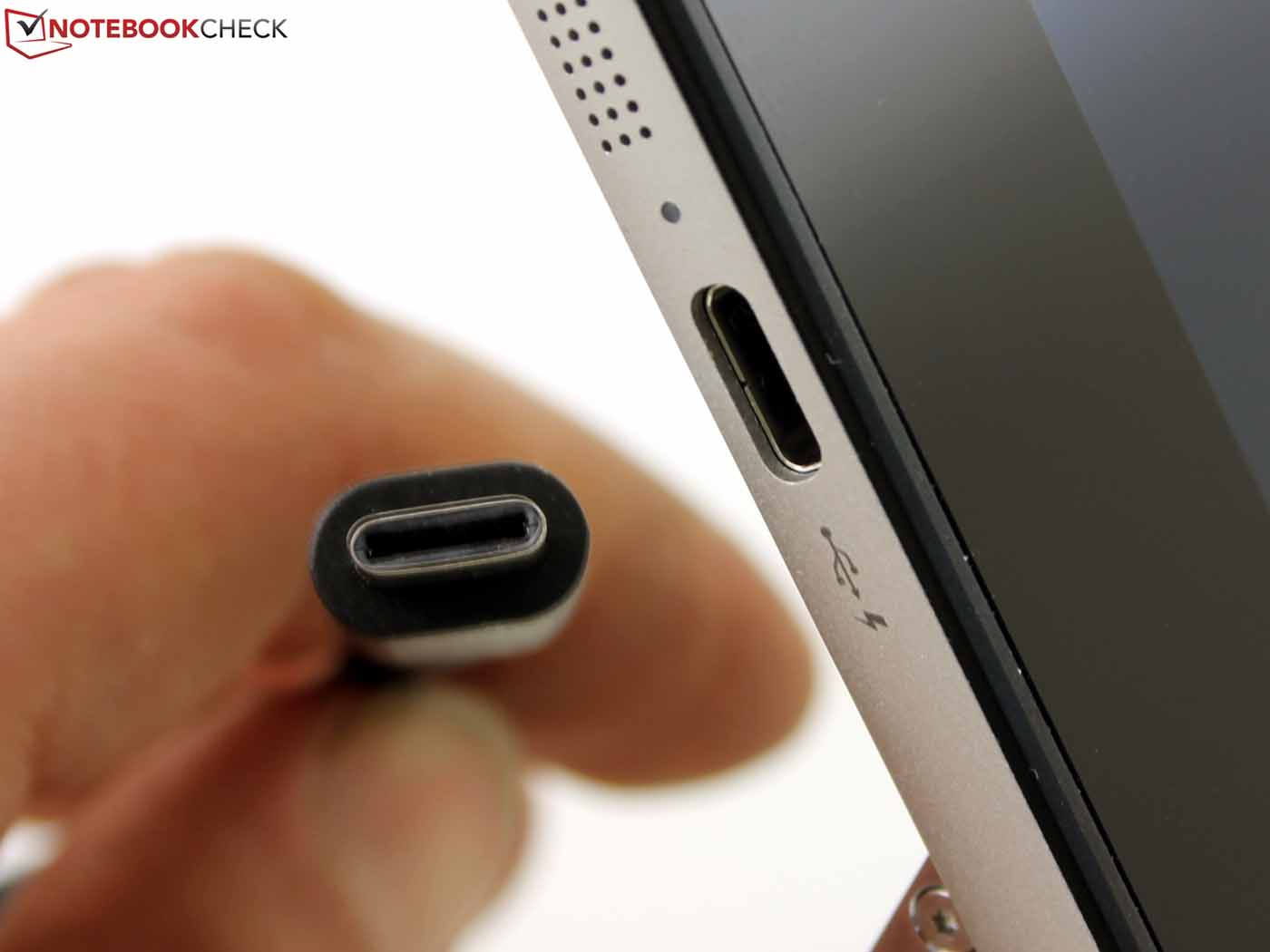

+ 通过USB-C供电
+ 坚固实用的键盘底座
+ 优秀的输入设备品质
+ 背光键盘搭配扬声器
+ 明亮的IPS触控屏幕
+ 后置real-sense相机
+ 优秀的图片品质
+ 可靠的麦克风
+ 可调整支架
+ 安静

Cons

- 无工艺缺陷
- 处理器表现比我们预想略低
- 尽管搭配了酷睿m3但性能较弱
In review: HP Spectre x2 12-a001ng. Test model provided by HP Deutschland.
In review: HP Spectre x2 12-a001ng. Test model provided by HP Deutschland.

搭配m7处理器的姊妹机型的最大问题在m3机型上也可以找到:在我们的实际测试中它的续航时间只有6个小时。幸运的是,我们的测试机搭配了LTE模组,它为用户带来了很多额外选择。

m3机型的性能比我们预期略低,比如Surface Pro 4搭载的相同处理器性能就稍高一筹。Spectre x2 12的m3和m7机型是同类变形本机型中性能最弱的两款(系统性能和处理器运算)。在一对一比较中,这两个机型十分接近,也各有优势:m7机型在单核测试中遥遥领先,而m3机型的LiteOn固态硬盘提供了更高的速度。

惠普Spectre x2 12-a001ng (P0T72EA)表现让人出乎意料:在一些卖家处它的售价只有899欧元(约6633人民币)。在这个价位上,它显然是个不错的选择,十分值得推荐。不过在1000欧元(约7378人民币)的价位上,它可能会有些不够诱人。

另一方面,许多同类机型售价1250-1300欧元(约9258人民币到9628人民币)。在定价800欧元(约5925人民币)的Acer Aspire Switch 12 Alpha(水冷,酷睿i5 6200U和3K屏幕)上市后它应该会有所折扣。

Alpha和我们的测试机面向相同的用户群体,需要性能和便携兼顾,可以适应日常和商务用途。

这类产品的市场十分引人侧目,请参见我们的变形本Top 10排行。联想IdeaPad Miix 700Surface Pro 4和华为MateBook(正在测试中)都可以作为备选机型。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里。

HP Spectre x2 12-a001ng - 07/20/2016 v5.1(old)
Sebastian Jentsch

Chassis
86 / 98 → 87%
Keyboard
90%
Pointing Device
92%
Connectivity
41 / 80 → 52%
Weight
72 / 35-78 → 86%
Battery
88%
Display
84%
Games Performance
0 / 68 → 0%
Application Performance
62 / 87 → 71%
Temperature
88%
Noise
100%
Audio
63 / 91 → 69%
Camera
83 / 85 → 98%
Average
79%
87%
Convertible - Weighted Average

Pricecompare

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > 惠普 Spectre x2 12-a001ng 变形本简短评测
Sebastian Jentsch, 2016-08- 4 (Update: 2016-08-11)
