三星 Galaxy Tab E (9.6-inch, WiFi) T560N 平板电脑简短评测

Name: Samsung Galaxy Tab E (9.6, Wi-Fi)
Brand: Samsung

欢迎。 三星的Galaxy Tab E邀请消费者游览平板电脑的世界。这台全新的低价入门级平板给我们留下了好印象，不过缺少性能让它没能得到更好的分数。

Nino Ricchizzi, ✓ Stefanie Voigt (translated by Yuchen Wang), Published 01/30/2016 🇺🇸 🇩🇪 ...

Tablet Android Touchscreen ARM

Test device courtesy of notebooksbilliger.de

Download your licensed rating image as PNG / SVG

Galaxy Tab E (Galaxy Tab E Series)

Processor

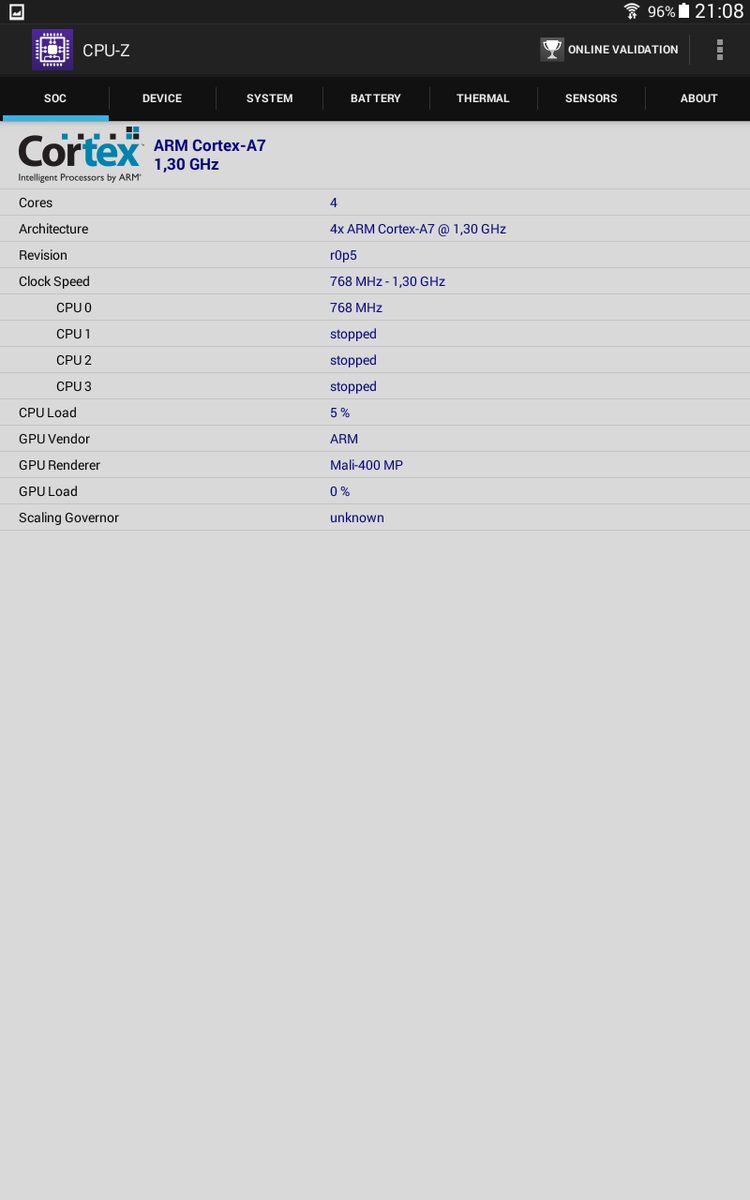

Spreadtrum SC8830 4 x 1.2 GHz, Cortex-A7

Graphics adapter

ARM Mali-400 MP

Memory

1536 MB

Display

9.60 inch 16:10, 1280 x 800 pixel, 电容式触控屏幕（5点触控）, IPS, glossy: yes

Storage

8 GB eMMC Flash, 8 GB

, 5 GB free

Connections

1 USB 2.0, Audio Connections: 整合音频接口, Card Reader: microSD, Sensors: 加速传感器

Networking

802.11 b/g/n (b/g/n = Wi-Fi 4/), Bluetooth 4.0, GPS

Size

height x width x depth (in mm): 8.9 x 242 x 150

Battery

5000 mAh Lithium-Ion, Battery runtime (according to manufacturer): 8 h

Operating System

Android 4.4 KitKat

Camera

Primary Camera: 5 MPix CMOS，自动对焦，高清视频拍摄 @ 30 fps

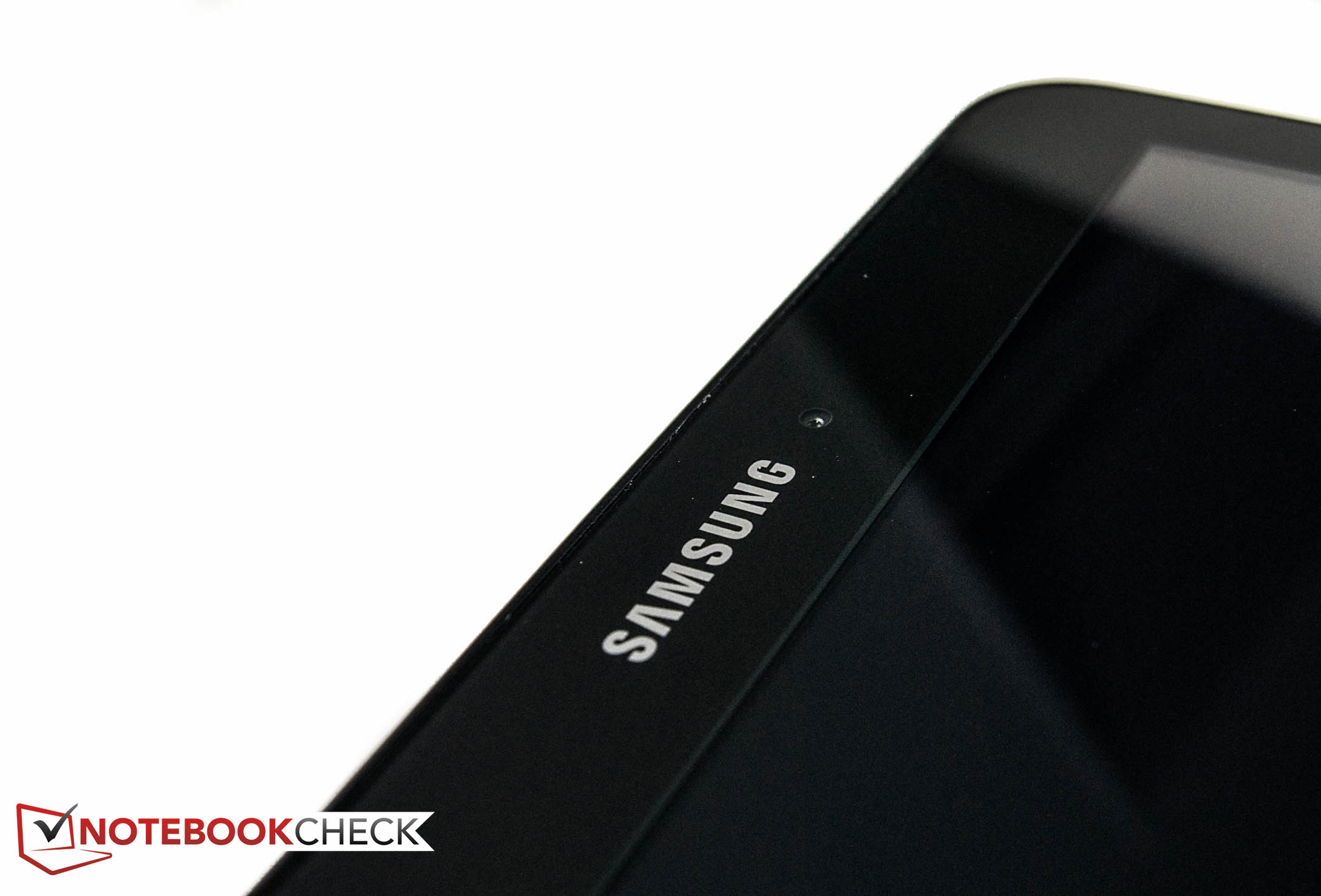

Secondary Camera: 2 MPix CMOS，定焦

Additional features

Speakers: 单声道扬声器, Keyboard: 触控, 24 Months Warranty, fanless

Weight

488 g, Power Supply: 56 g

Price

180 Euro

Links

Samsung notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

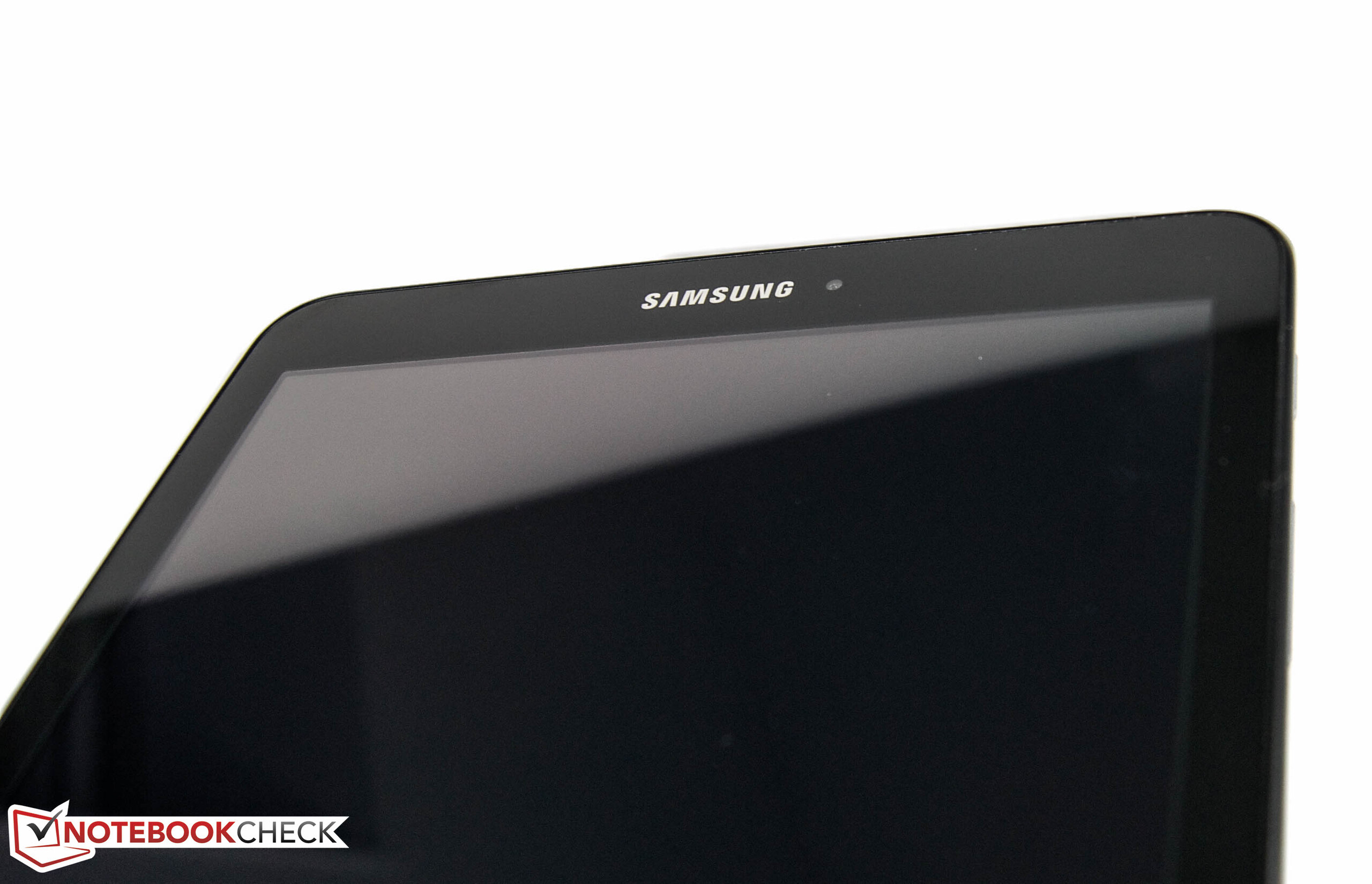

... is not something Samsung seems to want.

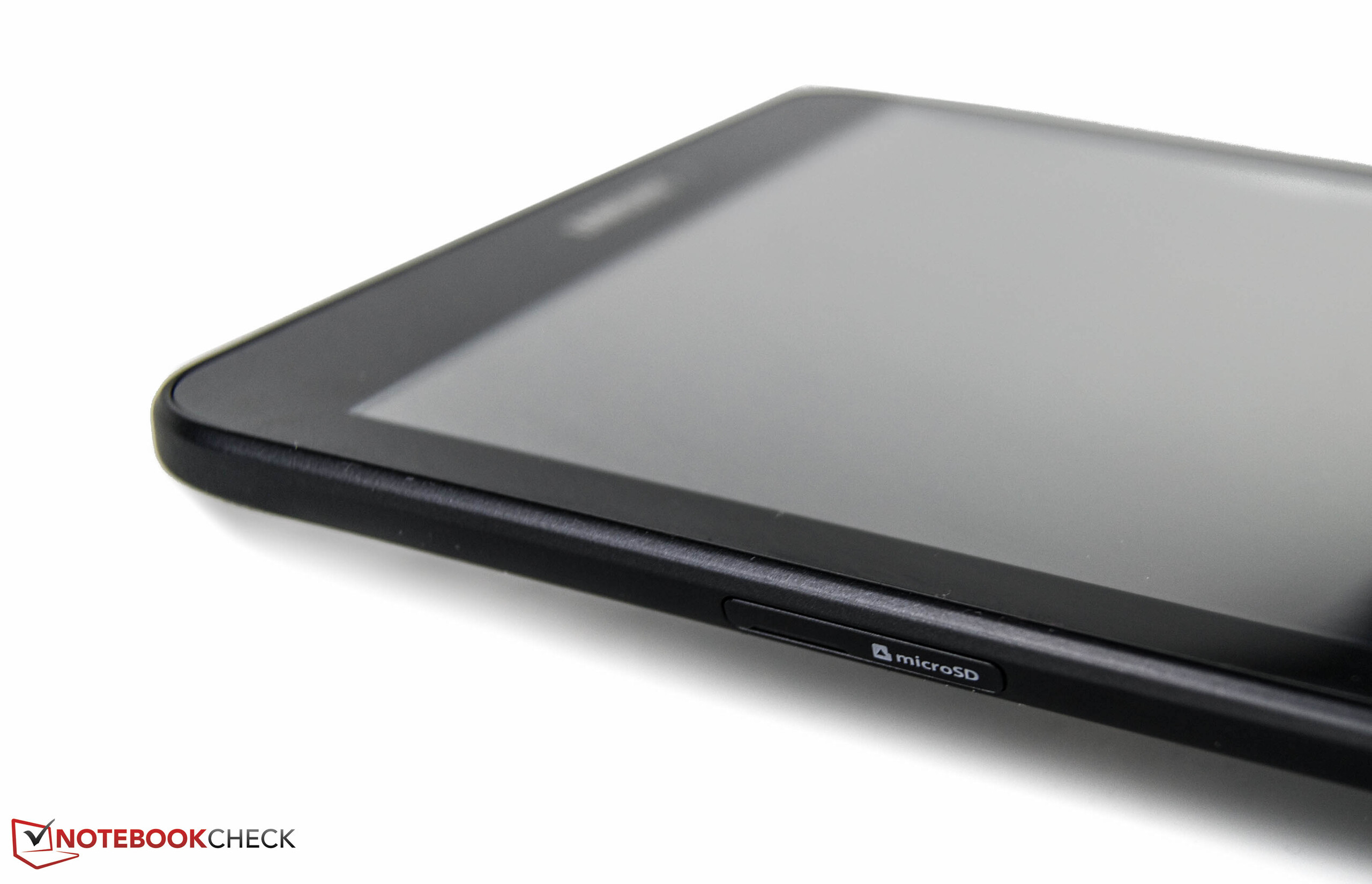

8 GB isn't a lot - but at least an expansion is possible.

A USB port is located on the upper edge.

HP Pavilion 10-k000ng x2 Medion Lifetab S10345 Acer Iconia Tab 10 A3-A20 (NT.L5DEE.003) Lenovo Yoga Tablet 2 1050F Lenovo TAB2 A10-70 Samsung Galaxy Tab E (9.6, Wi-Fi) Samsung Galaxy Tab S2 9.7 LTE DIN A5 ❌

Image Comparison

Choose a scene and navigate within the first image. One click changes the position on touchscreens. One click on the zoomed-in image opens the original in a new window. The first image shows the scaled photograph of the test device.

Scene 1 Scene 2 Scene 3

click to load images

click to load images

click to load images

	Samsung Galaxy Tab E (9.6, Wi-Fi) Mali-400 MP, SC8830, 8 GB eMMC Flash	Lenovo TAB2 A10-70 Mali-T760 MP2, MT8165, 16 GB eMMC Flash	Acer Iconia Tab 10 A3-A20 (NT.L5DEE.003) Mali-450 MP4, MT8127, 16 GB SSD	Medion Lifetab S10345 HD Graphics (Bay Trail), Z3735F, 32 GB SSD
Screen		22%	-9%	-17%
Brightness middle	457	352.9 -23%	356 -22%	294 -36%
Brightness	453	335 -26%	339 -25%	281 -38%
Brightness Distribution	87	88 1%	90 3%	88 1%
Black Level *	0.49	0.191 61%	0.42 14%	0.5 -2%
Contrast	933	1848 98%	848 -9%	588 -37%
Colorchecker dE 2000 *	5.75	4.31 25%	6.51 -13%	5.78 -1%
Greyscale dE 2000 *	5.33	4.36 18%	5.92 -11%	5.61 -5%
Gamma	2.61 ^84%	2.33 ^94%	2.21 ^100%	2.67 ^82%
CCT	6820 ^95%	7045 ^92%	6736 ^96%	7439 ^87%

* ... smaller is better


478 cd/m²	440 cd/m²	459 cd/m²
493 cd/m²	457 cd/m²	433 cd/m²
456 cd/m²	429 cd/m²	429 cd/m²

Distribution of brightness

tested with X-Rite i1Pro 2

Maximum: 493 cd/m² (Nits) Average: 452.7 cd/m²
Brightness Distribution: 87 %
Center on Battery: 457 cd/m²
Contrast: 933:1 (Black: 0.49 cd/m²)
ΔE Color 5.75 | 0.5-29.43 Ø5
ΔE Greyscale 5.33 | 0.57-98 Ø5.3
Gamma: 2.61

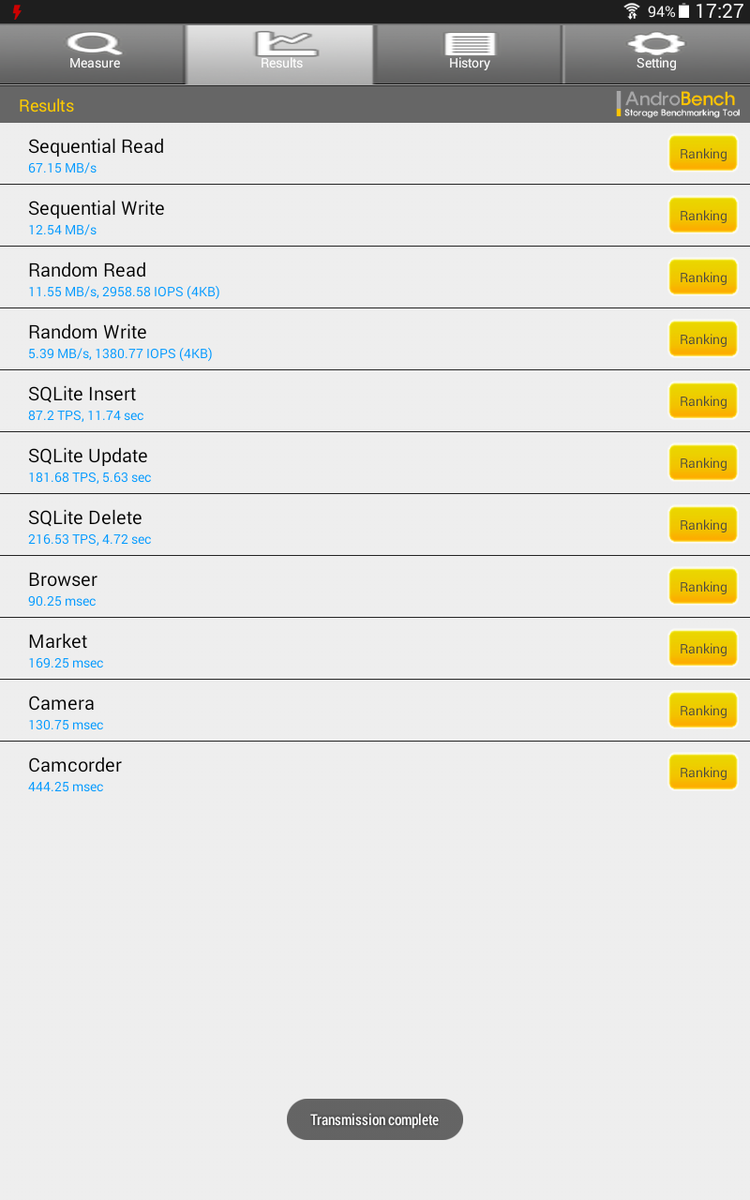

Transfer speed of the integrated flash storage

Geekbench 3 | 3DMark | PCMark for Android | Smartbench 2012 | BaseMark OS II

Geekbench 3
32 Bit Single-Core Score (sort by value)
Samsung Galaxy Tab E (9.6, Wi-Fi)	346 Points
Lenovo TAB2 A10-70	686 Points +98%
HP Pavilion 10-k000ng x2	729 Points +111%
Lenovo Yoga Tablet 2 1050F	764 Points +121%
Acer Iconia Tab 10 A3-A20 (NT.L5DEE.003)	361 Points +4%
Medion Lifetab S10345	801 Points +132%
Medion Lifetab S10334	516 Points +49%
LG Bello II	361 Points +4%
32 Bit Multi-Core Score (sort by value)
Samsung Galaxy Tab E (9.6, Wi-Fi)	1091 Points
Lenovo TAB2 A10-70	2031 Points +86%
HP Pavilion 10-k000ng x2	1941 Points +78%
Lenovo Yoga Tablet 2 1050F	2426 Points +122%
Acer Iconia Tab 10 A3-A20 (NT.L5DEE.003)	1179 Points +8%
Medion Lifetab S10345	2018 Points +85%
Medion Lifetab S10334	1493 Points +37%
LG Bello II	891 Points -18%

3DMark - 1280x720 Ice Storm Standard Score (sort by value)
Samsung Galaxy Tab E (9.6, Wi-Fi)	3323 Points
Lenovo TAB2 A10-70	10061 Points +203%
HP Pavilion 10-k000ng x2	14467 Points +335%
Acer Iconia Tab 10 A3-A20 (NT.L5DEE.003)	5030 Points +51%
Medion Lifetab S10345	9497 Points +186%
Medion Lifetab S10334	2773 Points -17%
LG Bello II	2880 Points -13%
Doogee Nova Y100X	2849 Points -14%

PCMark for Android - Work performance score (sort by value)
Samsung Galaxy Tab E (9.6, Wi-Fi)	2361 Points
Lenovo TAB2 A10-70	4226 Points +79%
Doogee Nova Y100X	2786 Points +18%

Smartbench 2012
Productivity Index (sort by value)
Samsung Galaxy Tab E (9.6, Wi-Fi)	4156 points
Lenovo TAB2 A10-70	7277 points +75%
Lenovo Yoga Tablet 2 1050F	9045 points +118%
Acer Iconia Tab 10 A3-A20 (NT.L5DEE.003)	4601 points +11%
Medion Lifetab S10345	8035 points +93%
LG Bello II	2913 points -30%
Doogee Nova Y100X	3769 points -9%
Gaming Index (sort by value)
Samsung Galaxy Tab E (9.6, Wi-Fi)	1932 points
Lenovo TAB2 A10-70	3843 points +99%
Lenovo Yoga Tablet 2 1050F	2781 points +44%
Acer Iconia Tab 10 A3-A20 (NT.L5DEE.003)	3047 points +58%
Medion Lifetab S10345	3166 points +64%
LG Bello II	3170 points +64%
Doogee Nova Y100X	2252 points +17%

BaseMark OS II - Overall (sort by value)
Samsung Galaxy Tab E (9.6, Wi-Fi)	354 Points
Lenovo TAB2 A10-70	929 Points +162%
LG Bello II	437 Points +23%
Doogee Nova Y100X	374 Points +6%

Legend

Samsung Galaxy Tab E (9.6, Wi-Fi) Spreadtrum SC8830, ARM Mali-400 MP, 8 GB eMMC Flash

Lenovo TAB2 A10-70 Mediatek MT8165, ARM Mali-T760 MP2, 16 GB eMMC Flash

HP Pavilion 10-k000ng x2 Intel Atom Z3736F, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash

Lenovo Yoga Tablet 2 1050F Intel Atom Z3745, Intel HD Graphics (Bay Trail), 16 GB eMMC Flash

Acer Iconia Tab 10 A3-A20 (NT.L5DEE.003) Mediatek MT8127, ARM Mali-450 MP4, 16 GB SSD

Medion Lifetab S10345 Intel Atom Z3735F, Intel HD Graphics (Bay Trail), 32 GB SSD

Medion Lifetab S10334 Rockchip RK3188, ARM Mali-400 MP4, 16 GB eMMC Flash

LG Bello II Mediatek MT6582, ARM Mali-400 MP2, 8 GB eMMC Flash

Doogee Nova Y100X Mediatek MT6582, ARM Mali-400 MP, 8 GB eMMC Flash

Max. Load

Idle


28.8 °C	27.5 °C	32.6 °C
33.5 °C	28.5 °C	34.1 °C
32.8 °C	27.7 °C	32.6 °C

Maximum: 34.1 °C
Average: 30.9 °C


30.6 °C	28.6 °C	29.6 °C
32.4 °C	29.2 °C	34.7 °C
31.7 °C	29.6 °C	33.4 °C

Maximum: 34.7 °C
Average: 31.1 °C

Power Supply (max.) 38.4 °C | Room Temperature 21.5 °C | Voltcraft IR-350

(+) The average temperature for the upper side under maximal load is 30.9 °C / 88 F, compared to the average of 30 °C / 86 F for the devices in the class Tablet.
(+) The maximum temperature on the upper side is 34.1 °C / 93 F, compared to the average of 33.8 °C / 93 F, ranging from 20.7 to 53.2 °C for the class Tablet.
(+) The bottom heats up to a maximum of 34.7 °C / 94 F, compared to the average of 33.3 °C / 92 F
(+) In idle usage, the average temperature for the upper side is 29.2 °C / 85 F, compared to the device average of 30 °C / 86 F.

	Samsung Galaxy Tab E (9.6, Wi-Fi) Mali-400 MP, SC8830, 8 GB eMMC Flash	Acer Iconia Tab 10 A3-A20 (NT.L5DEE.003) Mali-450 MP4, MT8127, 16 GB SSD	Medion Lifetab S10345 HD Graphics (Bay Trail), Z3735F, 32 GB SSD	Lenovo Yoga Tablet 2 1050F HD Graphics (Bay Trail), Z3745, 16 GB eMMC Flash
Power Consumption		-31%	39%	-16%
Idle Minimum *	1.1	2.1 -91%	0.8 27%	1.5 -36%
Idle Average *	3.9	4.7 -21%	1.1 72%	3.7 5%
Idle Maximum *	4.1	4.9 -20%	1.4 66%	4.1 -0%
Load Average *	5.2	6.2 -19%	4.5 13%	6.7 -29%
Load Maximum *	6.2	6.4 -3%	5.3 15%	7.5 -21%

* ... smaller is better

Power Consumption

Off / Standby	0 / 0.1 Watt
Idle	1.1 / 3.9 / 4.1 Watt
Load	5.2 / 6.2 Watt


Key: min: , med: , max: Voltcraft VC 940 Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Battery Runtime - WiFi Websurfing (sort by value)
Samsung Galaxy Tab E (9.6, Wi-Fi) Mali-400 MP, SC8830, 8 GB eMMC Flash	518 min
Lenovo TAB2 A10-70 Mali-T760 MP2, MT8165, 16 GB eMMC Flash	515 min -1%

	Samsung Galaxy Tab E (9.6, Wi-Fi) Mali-400 MP, SC8830, 8 GB eMMC Flash	Medion Lifetab S10345 HD Graphics (Bay Trail), Z3735F, 32 GB SSD	Acer Iconia Tab 10 A3-A20 (NT.L5DEE.003) Mali-450 MP4, MT8127, 16 GB SSD	Lenovo Yoga Tablet 2 8 HD Graphics (Bay Trail), Z3745, 32 GB eMMC Flash	HP Pavilion 10-k000ng x2 HD Graphics (Bay Trail), Z3736F, 32 GB eMMC Flash
Battery Runtime		5%	4%	-2%	-10%
Reader / Idle	850	892 5%	768 -10%	829 -2%	755 -11%
Load	264	278 5%	308 17%		244 -8%

Battery Runtime

Idle (without WLAN, min brightness)		14h 10min
WiFi Websurfing		8h 38min
Big Buck Bunny H.264 1080p		8h 22min
Load (maximum brightness)		4h 24min

Pros

+ 实惠

+ 机身品质优秀

+ 扬声器音量大

+ 不会变烫

Cons

- 全塑料设计

- 只有一个USB接口

- 性能没有竞争力

- 仅8 GB存储空间

In review: Samsung Galaxy Tab E. Test courtesy of notebooksbilliger.de

三星的Galaxy Tab E是一款设计优秀的入门级平板设备。这台测试设备十分全面，提供了常见的通信模组以及两个相机。它的机身制作工艺细腻，尺寸合理。IPS的屏幕非常明亮，比同类设备的常见屏幕更好。它的主要弱点在于性能：它的硬件较弱，在我们刚开始运行测试软件时就已经开始降频了。不过只是需要上网浏览以及偶尔玩玩游戏的用户应该不会察觉到。我们也很满意它的较低机身温度和扬声器。

三星Tab E是一款十分全面的平板电脑——售价180欧元（约1282人民币）——给我们留下了十分正面的印象。

Galaxy Tab E并无法完全统治低价设备，不过是十分值得推荐的选择。我们同时建议用户参考联想Tab 2和Yoga 2。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。
