三星 Galaxy J3 (2016) Duos 智能手机简短评测

Name: Samsung Galaxy J3 2016
Brand: Samsung

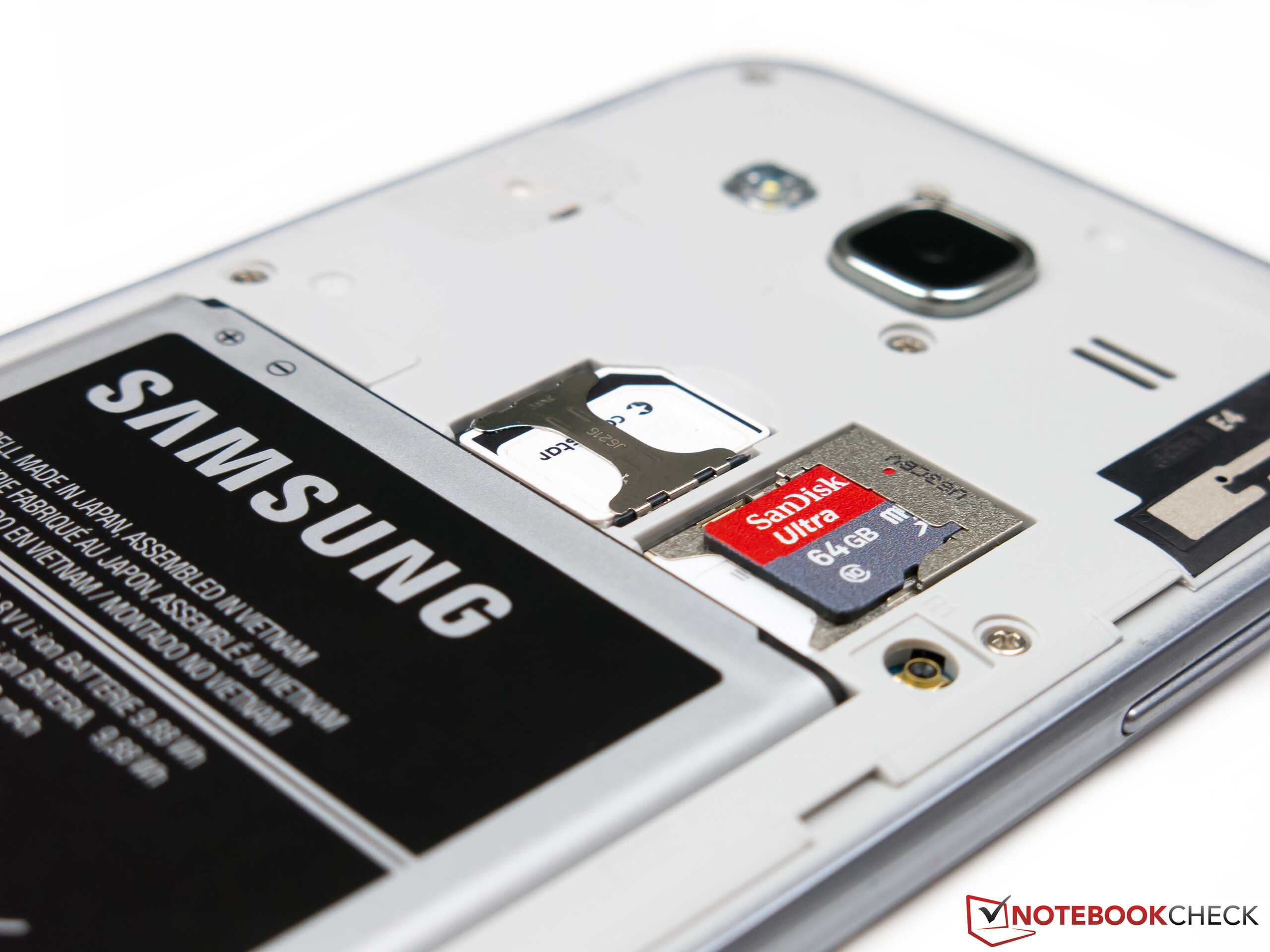

动态Duos？ 三星为我们带来了一款价位实惠的5寸智能手机Galaxy J3。它仍然具备一些传统的优秀特质，例如内置的micro-SD插槽和可更换的电池。不过这可以帮助它在越来越激烈的入门市场取得领先吗？

Andreas Kilian, ✓ Tanja Hinum (translated by Yuchen Wang), Published 06/30/2016 🇺🇸 🇩🇪 ...

Android ARM Smartphone Touchscreen

Test device courtesy of notebooksbilliger.de

Download your licensed rating image as PNG / SVG

Samsung Galaxy J3 2016 (Galaxy J7 Series)

Processor

Spreadtrum SC9830A 4 x 1.5 GHz, Cortex-A7

Graphics adapter

ARM Mali-400 MP2

Memory

1536 MB

Display

5.00 inch 16:9, 1280 x 720 pixel 294 PPI, 电容式触控屏幕, Super AMOLED, glossy: yes

Storage

8 GB eMMC Flash, 8 GB

, 4.35 GB free

Connections

1 USB 2.0, Audio Connections: 3.5毫米耳机接口, Card Reader: micro-SD 最大支持 128 GB, Sensors: 加速传感器，近距传感器，陀螺仪, WiFi Direct, MirrorLink, USB-OTG, 2x Micro-SIM

Networking

Broadcom 802.11ac (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0, GSM 四频 (850/900/1800/1900 MHz), 3G 四频 (850/900/1900/2100), LTE (B1/B3/B5/B7/B8/B20), 身体辐射值: 0.425 W/Kg, 头部辐射值: 0.477 W/Kg, Dual SIM, LTE, GPS

Size

height x width x depth (in mm): 7.9 x 142.3 x 71

Battery

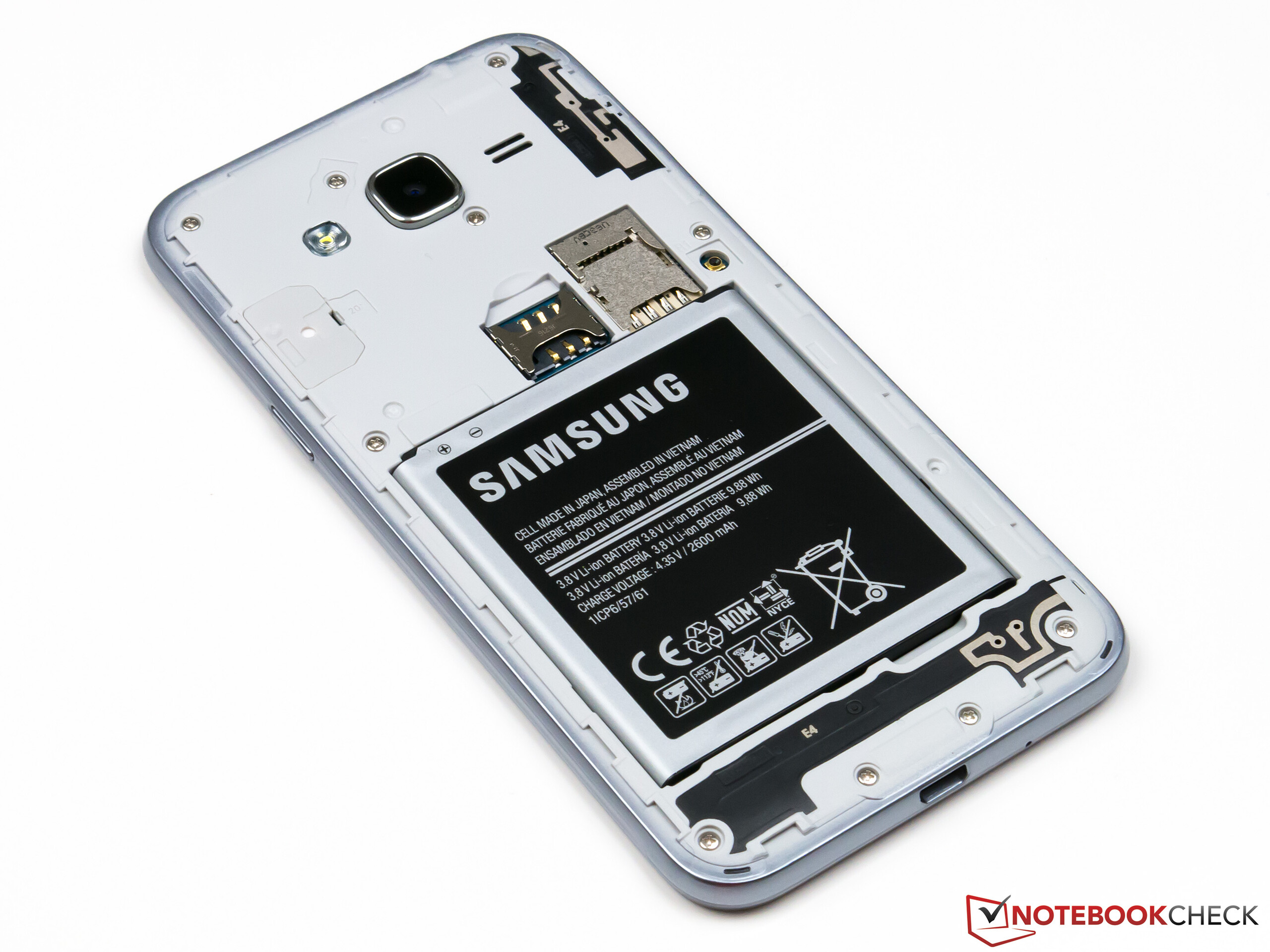

9.88 Wh, 2600 mAh Lithium-Ion, removeable, Talk time 3G (according to manufacturer): 13 h

Operating System

Android 5.1 Lollipop

Camera

Primary Camera: 8 MPix (自动对焦 f/2.2, 720p 视频拍摄 @30 FPS)
Secondary Camera: 5 MPix (定焦 f/2.2, 720p 视频拍摄 @ 30 FPS)

Additional features

Speakers: 后置单声道扬声器, Keyboard: 触控, 电源适配器，USB数据线，入耳式耳机, Microsoft Office, Galaxy Apps, MyGalaxy, Smart Manager, 24 Months Warranty, fanless

Weight

138 g, Power Supply: 46 g

Price

189 EUR

Links

Samsung notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Samsung Galaxy J3 (2016) - turning point

Image Comparison

Choose a scene and navigate within the first image. One click changes the position on touchscreens. One click on the zoomed-in image opens the original in a new window. The first image shows the scaled photograph of the test device.

Scene 1 Scene 2 Scene 3

click to load images

Samsung Galaxy J3 (2016)

Huawei P9

iPhone 6S Plus

Canon EOS 70D (Referenz)

click to load images

Samsung Galaxy J3 (2016)

Huawei P9

iPhone 6S Plus

Canon EOS 70D (Referenz)

click to load images

Samsung Galaxy J3 (2016)

Huawei P9

iPhone 6S Plus

Canon EOS 70D (Referenz)


305 cd/m²	297 cd/m²	296 cd/m²
306 cd/m²	295 cd/m²	296 cd/m²
304 cd/m²	294 cd/m²	296 cd/m²

Distribution of brightness

tested with X-Rite i1Pro 2

Maximum: 306 cd/m² (Nits) Average: 298.8 cd/m² Minimum: 4.1 cd/m²
Brightness Distribution: 96 %
Center on Battery: 295 cd/m²
Contrast: ∞:1 (Black: 0 cd/m²)
ΔE Color 5.8 | 0.5-29.43 Ø5
ΔE Greyscale 4.8 | 0.57-98 Ø5.3
Gamma: 1.84

	Samsung Galaxy J3 2016 Super AMOLED, 1280x720, 5.00	Samsung Galaxy J5 Super AMOLED, 1280x720, 5.00	Huawei P8 lite IPS, 1280x720, 5.00	ZTE Blade V6 IPS, 1280x720, 5.00	Coolpad Porto S IPS, 1280x720, 5.00	Microsoft Lumia 650 OLED, 1280x720, 5.00
Screen
Brightness middle	295	349 18%	365 24%	336 14%	407 38%	349 18%
Brightness	299	353 18%	353 18%	315 5%	403 35%	353 18%
Brightness Distribution	96	93 -3%	93 -3%	81 -16%	92 -4%	92 -4%
Black Level *			0.42	0.39	0.5
Colorchecker dE 2000 *	5.8	5.22 10%	5.2 10%	8.29 -43%	7.9 -36%	2.6 55%
Colorchecker dE 2000 max. *	8.6				18.2 -112%	8.2 5%
Greyscale dE 2000 *	4.8	3.96 17%	5.85 -22%	8.57 -79%	8.9 -85%	1.8 62%
Gamma	1.84 ^120%	2.08 ^106%	2.17 ^101%	1.96 ^112%	2.46 ^89%	2.06 ^107%
CCT	6252 ^104%	7308 ^89%	7252 ^90%	8172 ^80%	8332 ^78%	6542 ^99%
Contrast			869	862	814
Color Space (Percent of AdobeRGB 1998)			70.86
Color Space (Percent of sRGB)			91.25	89.7

* ... smaller is better

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

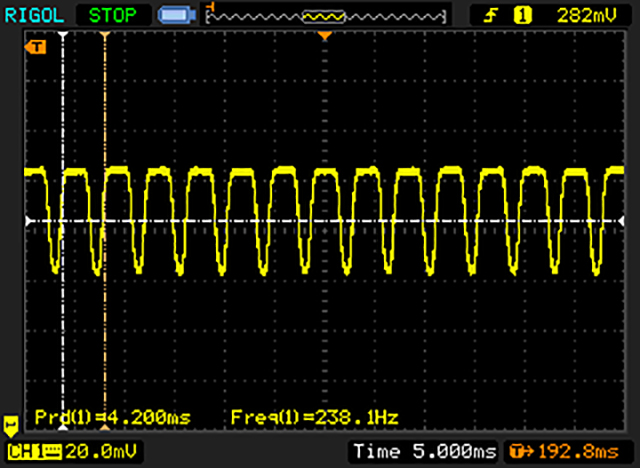

Screen flickering / PWM detected

238.1 Hz

The display backlight flickers at 238.1 Hz (worst case, e.g., utilizing PWM) .

The frequency of 238.1 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17900 (minimum: 5 - maximum: 3846000) Hz was measured.

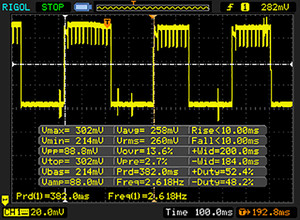

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

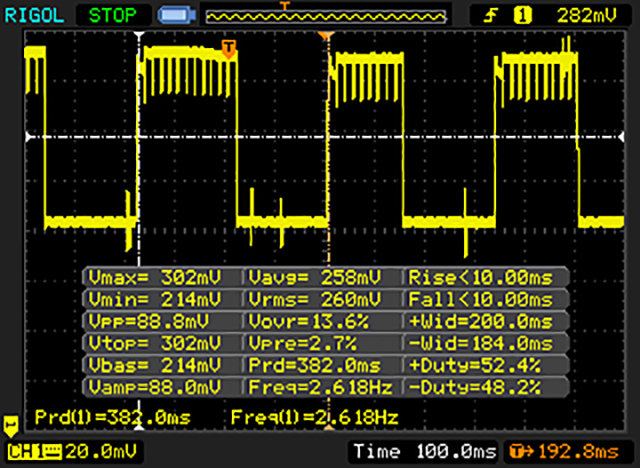

↔ Response Time Black to White
20 ms ... rise ↗ and fall ↘ combined	↗ 10 ms rise
20 ms ... rise ↗ and fall ↘ combined	↘ 10 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 37 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (21.5 ms).

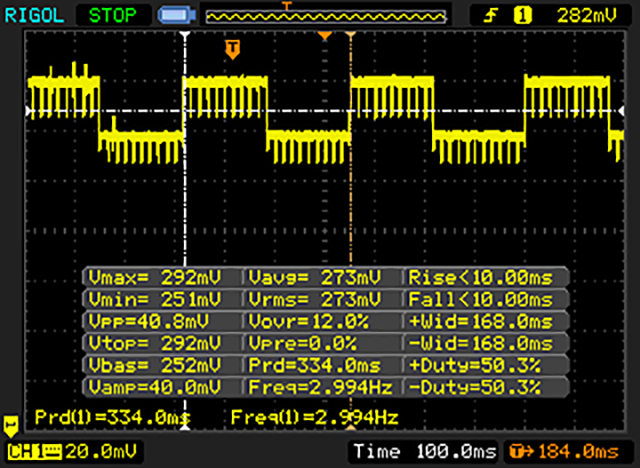

↔ Response Time 50% Grey to 80% Grey
20 ms ... rise ↗ and fall ↘ combined	↗ 10 ms rise
20 ms ... rise ↗ and fall ↘ combined	↘ 10 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 27 % of all devices are better. This means that the measured response time is better than the average of all tested devices (33.7 ms).

PCMark for Android - Work performance score (sort by value)
Samsung Galaxy J3 2016	3350 Points
Samsung Galaxy J5	3966 Points +18%
Huawei P8 lite	3717 Points +11%
Coolpad Porto S	2893 Points -14%

AnTuTu v6 - Total Score (sort by value)
Samsung Galaxy J3 2016	24748 Points
Coolpad Porto S	25415 Points +3%
Microsoft Lumia 650	31844 Points +29%

Geekbench 3
32 Bit Multi-Core Score (sort by value)
Samsung Galaxy J3 2016	1280 Points
ZTE Blade V6	1807 Points +41%
Coolpad Porto S	1343 Points +5%
32 Bit Single-Core Score (sort by value)
Samsung Galaxy J3 2016	405 Points
ZTE Blade V6	626 Points +55%
Coolpad Porto S	470 Points +16%

BaseMark OS II
Web (sort by value)
Samsung Galaxy J3 2016	569 Points
Samsung Galaxy J5	615 Points +8%
Huawei P8 lite	616 Points +8%
ZTE Blade V6	699 Points +23%
Coolpad Porto S	599 Points +5%
Microsoft Lumia 650	546 Points -4%
Graphics (sort by value)
Samsung Galaxy J3 2016	158 Points
Samsung Galaxy J5	314 Points +99%
Huawei P8 lite	303 Points +92%
ZTE Blade V6	287 Points +82%
Coolpad Porto S	173 Points +9%
Microsoft Lumia 650	207 Points +31%
System (sort by value)
Samsung Galaxy J3 2016	1134 Points
Samsung Galaxy J5	1058 Points -7%
Huawei P8 lite	1467 Points +29%
ZTE Blade V6	1200 Points +6%
Coolpad Porto S	905 Points -20%
Microsoft Lumia 650	552 Points -51%
Overall (sort by value)
Samsung Galaxy J3 2016	423 Points
Samsung Galaxy J5	534 Points +26%
Huawei P8 lite	687 Points +62%
ZTE Blade V6	687 Points +62%
Coolpad Porto S	458 Points +8%
Microsoft Lumia 650	435 Points +3%

GFXBench (DX / GLBenchmark) 2.7
T-Rex Onscreen (sort by value)
Samsung Galaxy J3 2016	7.6 fps
Huawei P8 lite	15.3 fps +101%
ZTE Blade V6	15 fps +97%
Coolpad Porto S	4.8 fps -37%
Microsoft Lumia 650	5.67 fps -25%
1920x1080 T-Rex Offscreen (sort by value)
Samsung Galaxy J3 2016	4.6 fps
Huawei P8 lite	9.9 fps +115%
ZTE Blade V6	8.5 fps +85%
Coolpad Porto S	8.6 fps +87%
Microsoft Lumia 650	3.25 fps -29%

3DMark
1280x720 offscreen Ice Storm Unlimited Score (sort by value)
Samsung Galaxy J3 2016	3535 Points
Samsung Galaxy J5	4345 Points +23%
Huawei P8 lite	5629 Points +59%
ZTE Blade V6	5013 Points +42%
Coolpad Porto S	3028 Points -14%
1280x720 offscreen Ice Storm Unlimited Graphics Score (sort by value)
Samsung Galaxy J3 2016	3037 Points
Samsung Galaxy J5	3782 Points +25%
Huawei P8 lite	5167 Points +70%
ZTE Blade V6	4415 Points +45%
Coolpad Porto S	2590 Points -15%
1280x720 offscreen Ice Storm Unlimited Physics (sort by value)
Samsung Galaxy J3 2016	8322 Points
Samsung Galaxy J5	9079 Points +9%
Huawei P8 lite	8206 Points -1%
ZTE Blade V6	9542 Points +15%
Coolpad Porto S	7413 Points -11%
1280x720 Ice Storm Standard Score (sort by value)
Samsung Galaxy J3 2016	3938 Points
Samsung Galaxy J5	5227 Points +33%
Huawei P8 lite	6010 Points +53%
ZTE Blade V6	6116 Points +55%
1280x720 Ice Storm Standard Graphics (sort by value)
Samsung Galaxy J3 2016	3453 Points
Samsung Galaxy J5	4692 Points +36%
Huawei P8 lite	5732 Points +66%
ZTE Blade V6	5677 Points +64%
1280x720 Ice Storm Standard Physics (sort by value)
Samsung Galaxy J3 2016	7751 Points
Samsung Galaxy J5	8697 Points +12%
Huawei P8 lite	7238 Points -7%
ZTE Blade V6	8390 Points +8%

Legend

Samsung Galaxy J3 2016 Spreadtrum SC9830A, ARM Mali-400 MP2, 8 GB eMMC Flash

Samsung Galaxy J5 Qualcomm Snapdragon 410 MSM8916, Qualcomm Adreno 306, 8 GB eMMC Flash

Huawei P8 lite HiSilicon Kirin 620, ARM Mali-450 MP4, 16 GB eMMC Flash

ZTE Blade V6 Mediatek MT6735, ARM Mali-T720 MP2, 16 GB eMMC Flash

Coolpad Porto S Mediatek MT6735, ARM Mali-T720, 8 GB eMMC Flash

Microsoft Lumia 650 Qualcomm Snapdragon 212 APQ8009, Qualcomm Adreno 304, 16 GB eMMC Flash

JetStream 1.1 | Mozilla Kraken 1.1 | Octane V2 | WebXPRT 2015

JetStream 1.1 - Total Score (sort by value)
Samsung Galaxy J3 2016	16.2 Points
Samsung Galaxy J5	18.42 Points +14%
Coolpad Porto S	14.17 Points -13%

Mozilla Kraken 1.1 - Total (sort by value)
Samsung Galaxy J3 2016	13702 ms *
Samsung Galaxy J5	14074 ms * -3%
Huawei P8 lite	15866 ms * -16%
ZTE Blade V6	25141 ms * -83%
Coolpad Porto S	32901 ms * -140%
Microsoft Lumia 650	18237 ms * -33%

Octane V2 - Total Score (sort by value)
Samsung Galaxy J3 2016	2842 Points
Samsung Galaxy J5	3038 Points +7%
Huawei P8 lite	2483 Points -13%
ZTE Blade V6	2978 Points +5%
Coolpad Porto S	2088 Points -27%
Microsoft Lumia 650	2574 Points -9%

WebXPRT 2015 - Overall (sort by value)
Samsung Galaxy J3 2016	39 Points
Samsung Galaxy J5	52 Points +33%
Huawei P8 lite	47 Points +21%
Microsoft Lumia 650	52 Points +33%

* ... smaller is better

AndroBench 3-5 | BaseMark OS II

AndroBench 3-5
Random Write 4KB (sort by value)
Samsung Galaxy J3 2016	9.43 MB/s
Samsung Galaxy J5	7.2 MB/s -24%
Huawei P8 lite	8.32 MB/s -12%
ZTE Blade V6	3.66 MB/s -61%
Coolpad Porto S	13.95 MB/s +48%
Random Read 4KB (sort by value)
Samsung Galaxy J3 2016	16.82 MB/s
Samsung Galaxy J5	19.25 MB/s +14%
Huawei P8 lite	18.46 MB/s +10%
ZTE Blade V6	27.08 MB/s +61%
Coolpad Porto S	22.52 MB/s +34%
Sequential Write 256KB (sort by value)
Samsung Galaxy J3 2016	41.4 MB/s
Samsung Galaxy J5	39.4 MB/s -5%
Huawei P8 lite	52.8 MB/s +28%
ZTE Blade V6	37.37 MB/s -10%
Coolpad Porto S	39.99 MB/s -3%
Sequential Read 256KB (sort by value)
Samsung Galaxy J3 2016	64.4 MB/s
Samsung Galaxy J5	145.5 MB/s +126%
Huawei P8 lite	139.5 MB/s +117%
ZTE Blade V6	269.3 MB/s +318%
Coolpad Porto S	168.2 MB/s +161%

BaseMark OS II - Memory (sort by value)
Samsung Galaxy J3 2016	315 Points
Samsung Galaxy J5	399 Points +27%
Huawei P8 lite	816 Points +159%
ZTE Blade V6	922 Points +193%
Coolpad Porto S	467 Points +48%
Microsoft Lumia 650	575 Points +83%

Real Racing 3
	Settings	Value
	high	22 fps
	low	54 fps

Asphalt 8: Airborne
	Settings	Value
	high	15 fps
	very low	27 fps

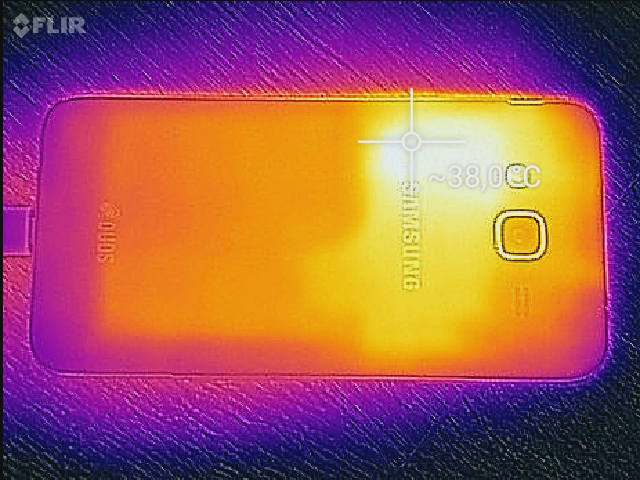

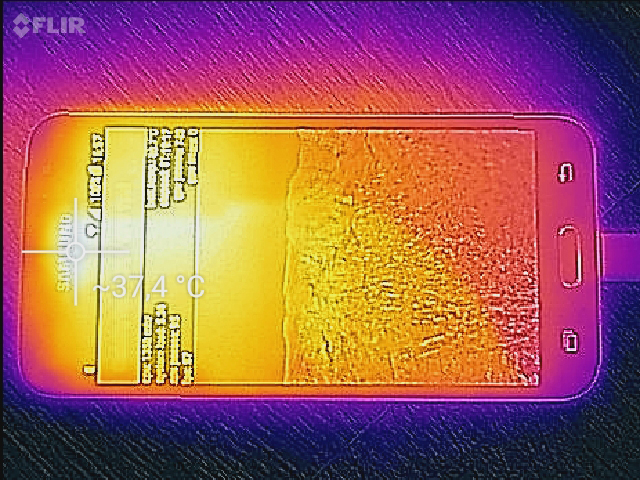

Max. Load

Idle


33.9 °C	33.7 °C	32.5 °C
33.8 °C	33.6 °C	32.5 °C
33.1 °C	33.4 °C	32.2 °C

Maximum: 33.9 °C
Average: 33.2 °C


31 °C	32.9 °C	35 °C
31.3 °C	32.6 °C	34.1 °C
29.1 °C	32.9 °C	32.8 °C

Maximum: 35 °C
Average: 32.4 °C

Power Supply (max.) 31.2 °C | Room Temperature 21.9 °C | Voltcraft IR-260

(±) The average temperature for the upper side under maximal load is 33.2 °C / 92 F, compared to the average of 32.7 °C / 91 F for the devices in the class Smartphone.
(+) The maximum temperature on the upper side is 33.9 °C / 93 F, compared to the average of 35 °C / 95 F, ranging from 21.9 to 56 °C for the class Smartphone.
(+) The bottom heats up to a maximum of 35 °C / 95 F, compared to the average of 33.8 °C / 93 F
(±) In idle usage, the average temperature for the upper side is 33.1 °C / 92 F, compared to the device average of 32.7 °C / 91 F.

Power Consumption

Off / Standby	0.03 / 0.39 Watt
Idle	0.96 / 1.14 / 1.23 Watt
Load	2.45 / 2.92 Watt


Key: min: , med: , max: Gossen Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Samsung Galaxy J3 2016 2.600 mAh	Samsung Galaxy J5 2.600 mAh	Huawei P8 lite 2.200 mAh	ZTE Blade V6 2.200 mAh	Coolpad Porto S 2.000 mAh	Microsoft Lumia 650 2.000 mAh
Power Consumption		-70%	-83%	-59%	-54%	-14%
Idle Minimum *	0.96	1.5 -56%	1.4 -46%	1.2 -25%	1.16 -21%	0.7 27%
Idle Average *	1.14	2.2 -93%	2.3 -102%	1.8 -58%	2.21 -94%	1.1 4%
Idle Maximum *	1.23	2.4 -95%	2.5 -103%	2.1 -71%	2.24 -82%	1.18 4%
Load Average *	2.45	3.5 -43%	3.9 -59%	4.1 -67%	3.34 -36%	4.04 -65%
Load Maximum *	2.92	4.8 -64%	6 -105%	5.1 -75%	3.95 -35%	4.07 -39%

* ... smaller is better

Battery Runtime

Idle (without WLAN, min brightness)		20h 12min
WiFi Websurfing (Chrome 50)		8h 22min
Big Buck Bunny H.264 1080p		9h 50min
Load (maximum brightness)		7h 13min

	Samsung Galaxy J3 2016 2.600 mAh	Samsung Galaxy J5 2.600 mAh	Huawei P8 lite 2.200 mAh	ZTE Blade V6 2.200 mAh	Coolpad Porto S 2.000 mAh	Microsoft Lumia 650 2.000 mAh
Battery Runtime		-1%	-41%	-32%	0%	-30%
Reader / Idle	1212	1292 7%	715 -41%			910 -25%
H.264	590	657 11%	369 -37%	424 -28%		510 -14%
WiFi v1.3	502	495 -1%	351 -30%	400 -20%	504 0%	345 -31%
Load	433	350 -19%	194 -55%	230 -47%		213 -51%

Pros

+ 高品质机身

+ micro-SD接口

+ 支持App2SD和USB OTG

+ 双卡双待和micro-SD插槽

+ 不错的屏幕

+ 准确的触控屏幕

+ 长续航

+ 可更换电池

+ 支持LTE

Cons

- 无光线传感器

- 无通知指示灯

- 主相机品质一般

- 仅支持安卓5.1.1

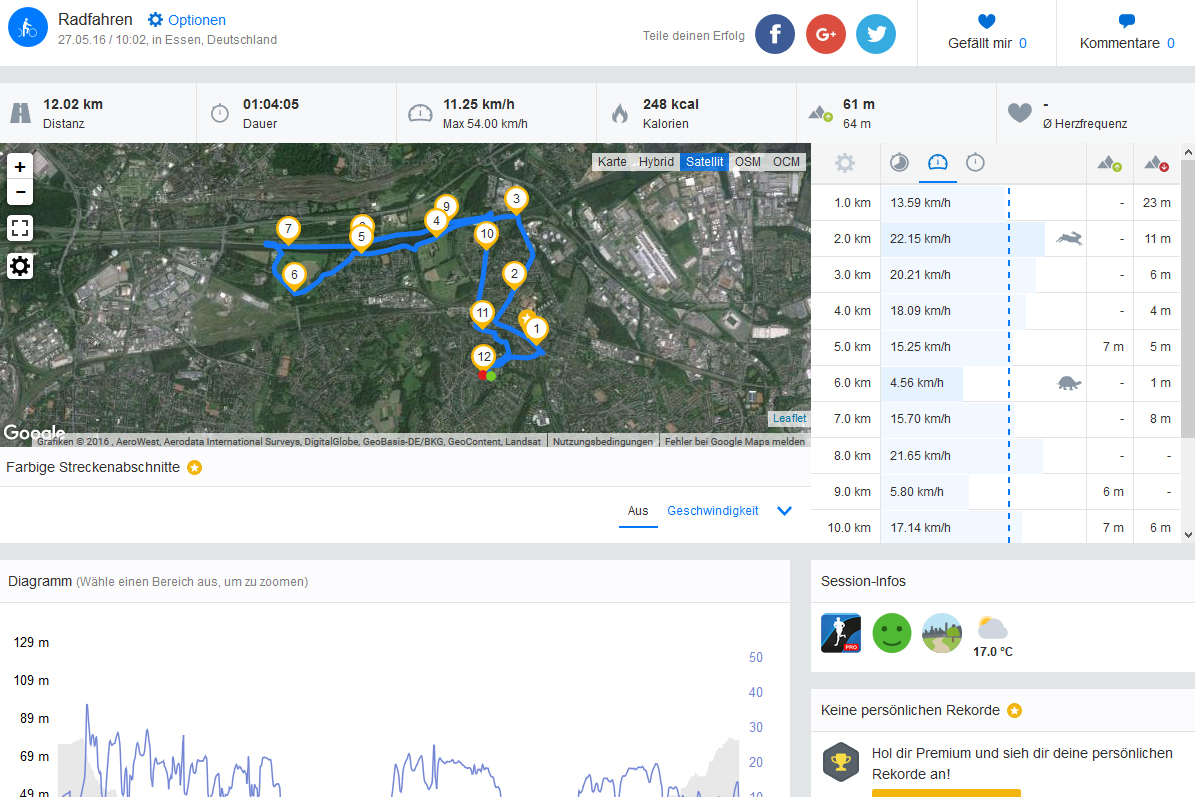

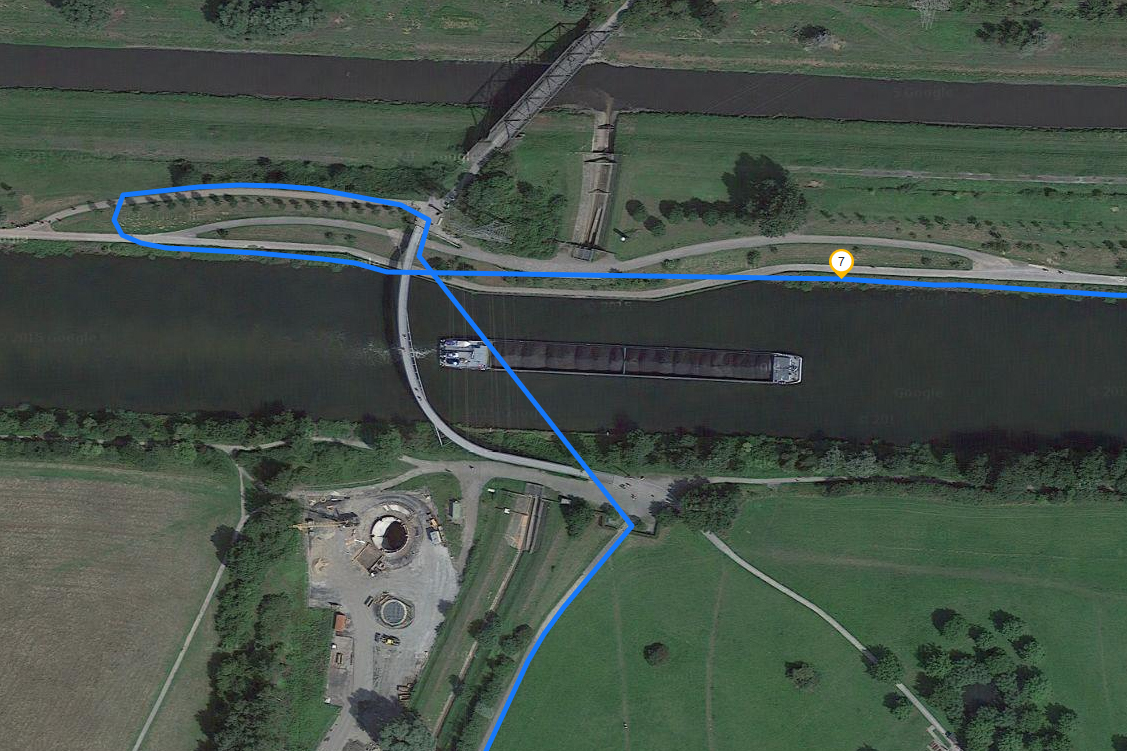

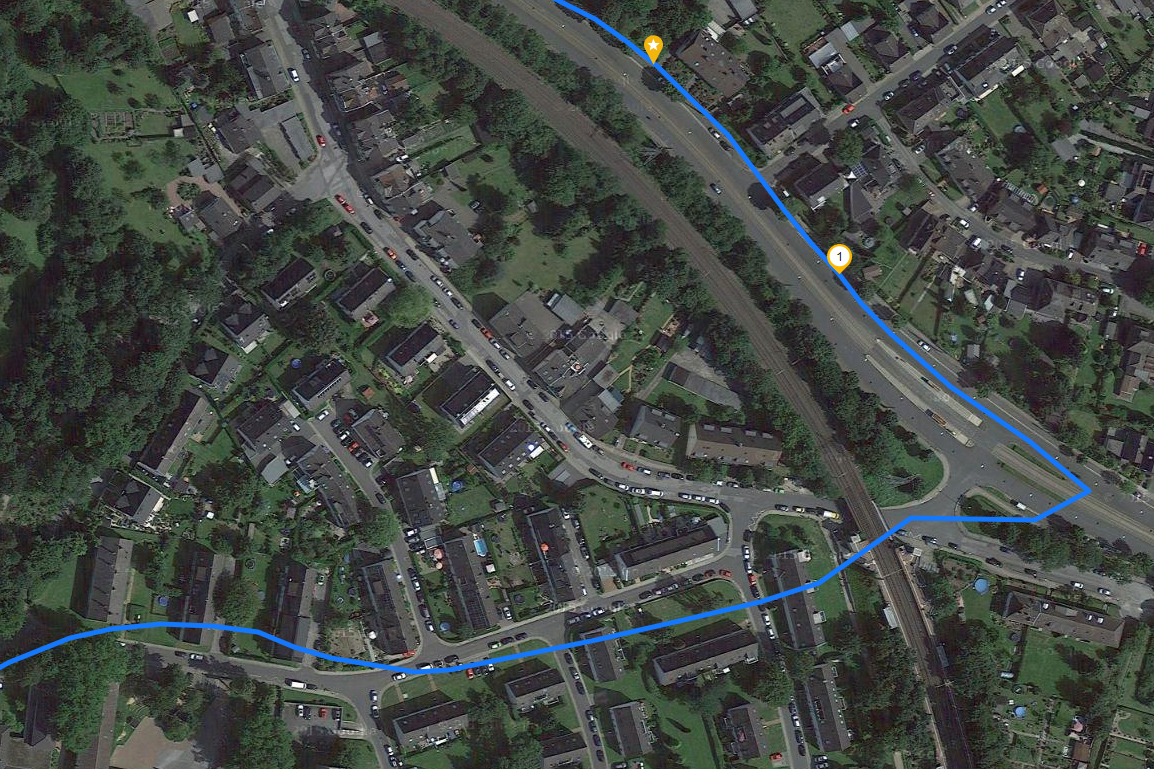

- GPS模组信号不稳定

- 麦克风在免提模式下音量小

- 无线网络仅支持2.4 GHz频段

- 不支持Miracast或MHL

- 在压力测试中有降频现象

In review: Samsung Galaxy J3 (2016) - SM-J320F/DS. Review sample courtesy of Notebooksbilliger.de

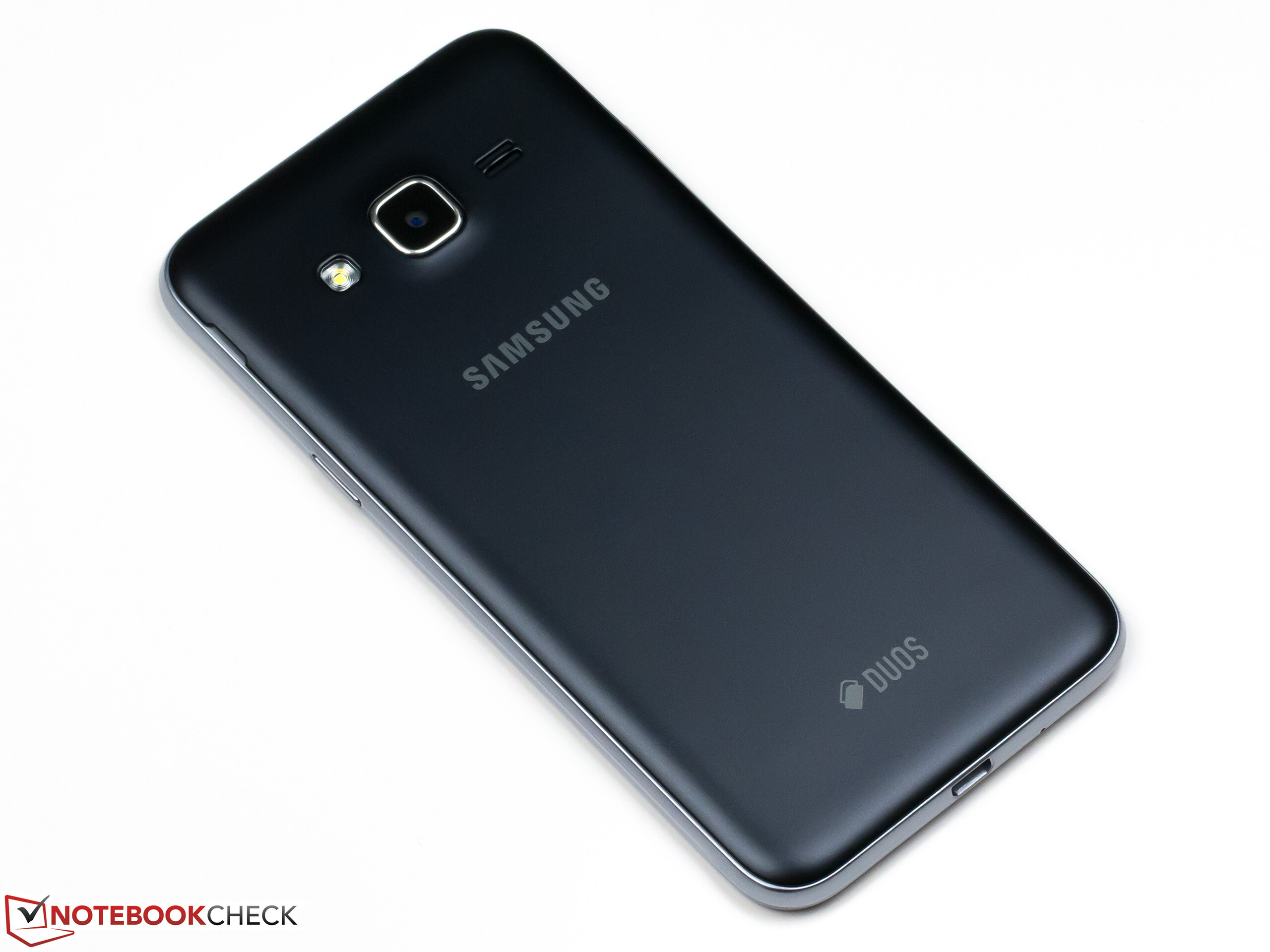

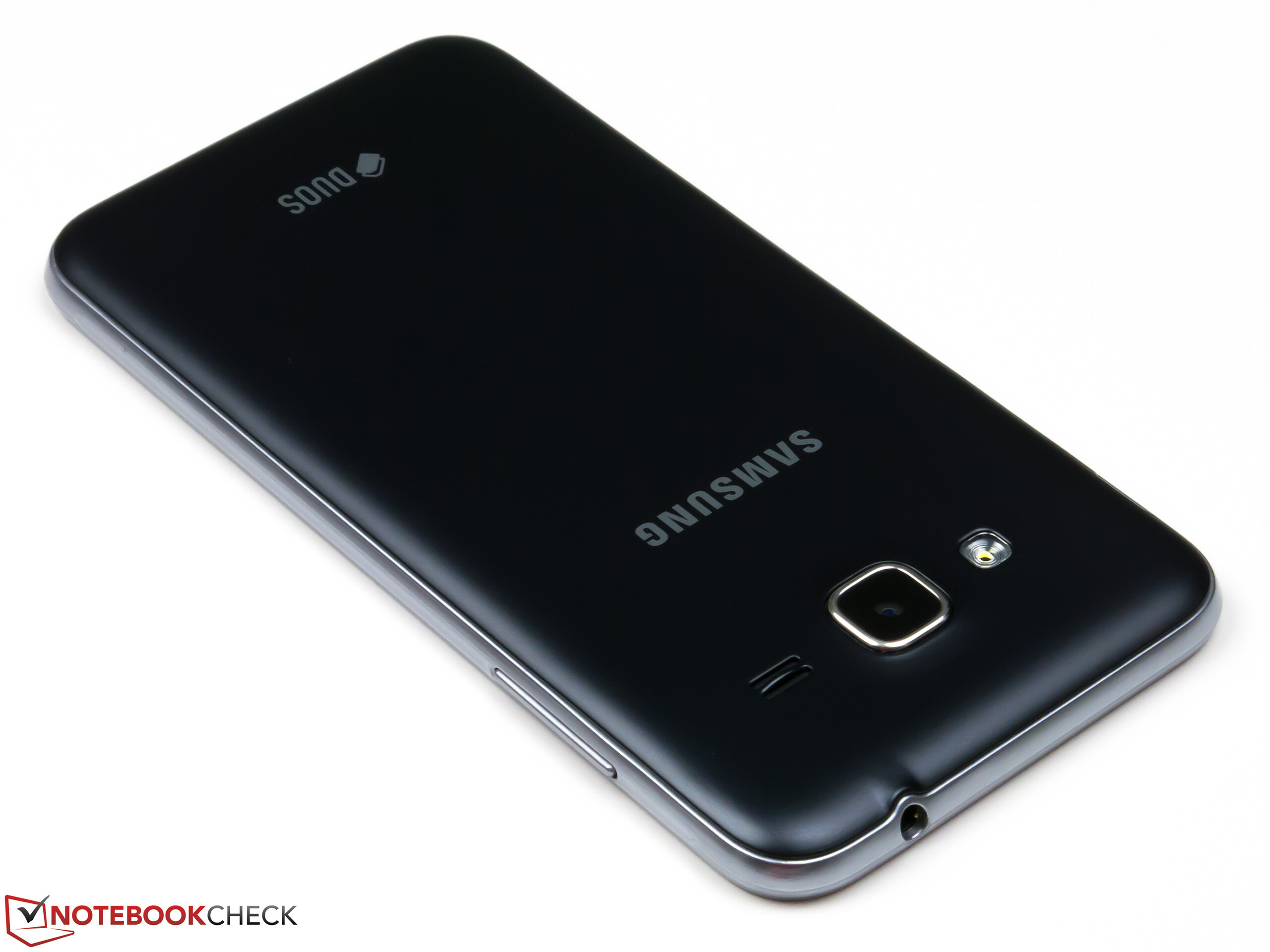

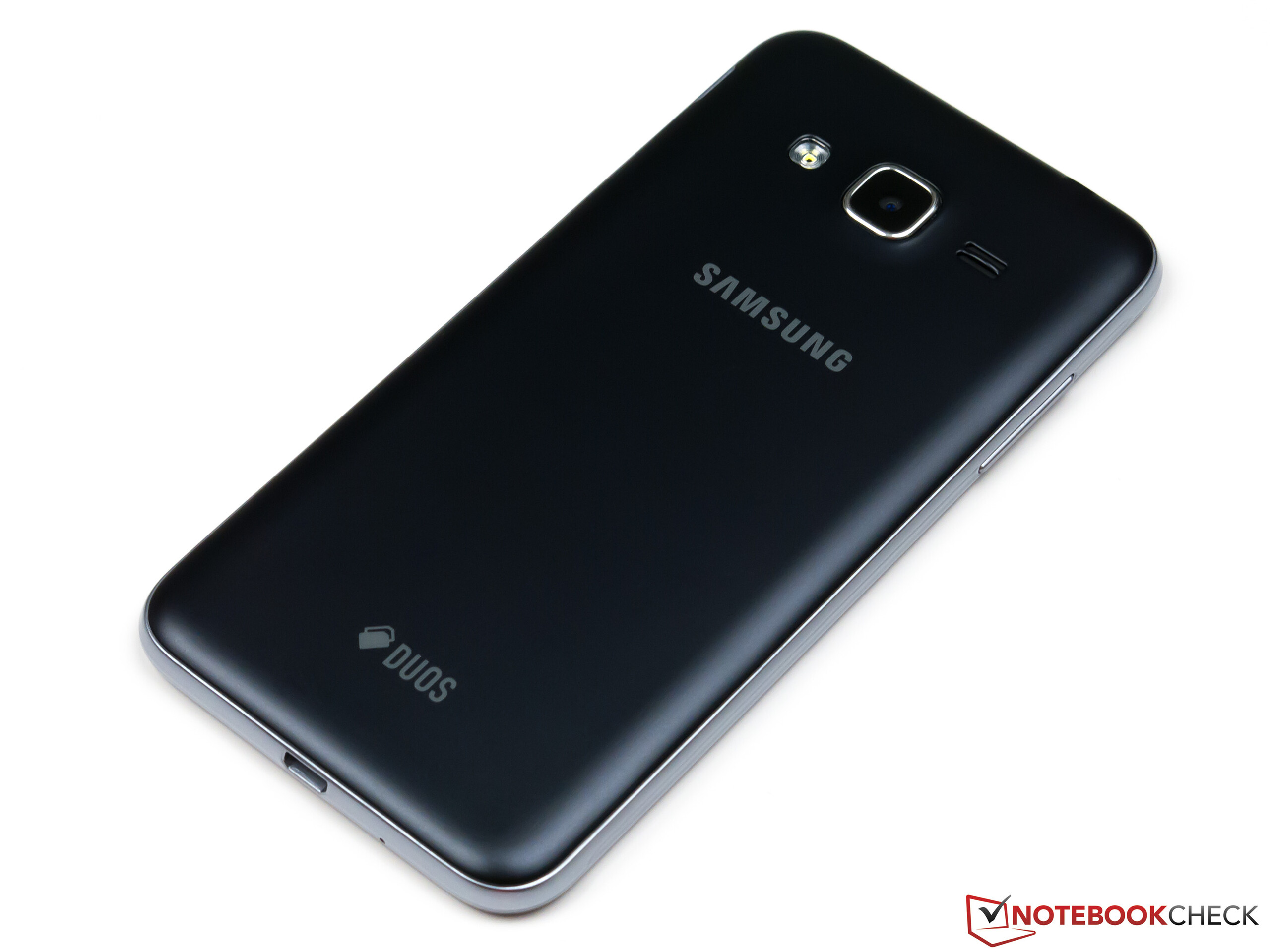

Galaxy J3 (SM-J320F/DS)看起来像是去年的Galaxy J5经过重新设计的Galaxy J5 (2016)的缩水版本。优秀的AMOLED屏幕和类似的设计很明显是出自较老的姐妹机型。它依然可以让用户方便的更换电池。另外，这台设备搭配了坚固优质的塑料材质机身。它的其它优势还包括了准确的触控屏幕和长时间续航。两个SIM卡槽和一个micro-SD卡槽可以同时使用，可以给用户带来不少方便。

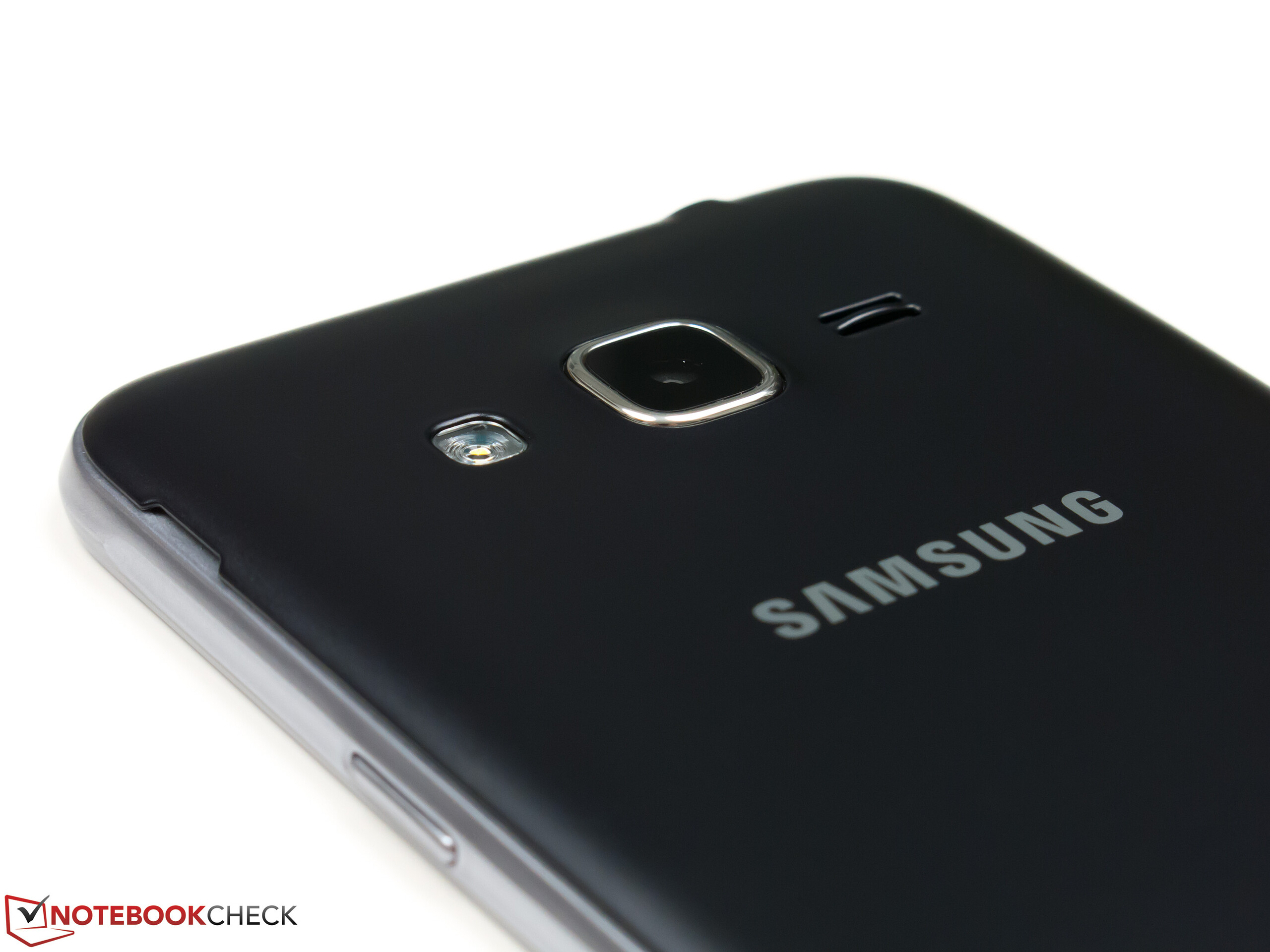

用户需要在相机上作出让步。我们的测试机搭配了品质一般的800万像素主相机，它只能在光线充足的环境下拍摄效果不错的照片。而且，在出厂状态下它只有4.35 GB的可用存储空间，在实际使用中应该会十分紧张。幸运的是，Galaxy J3支持USB OTG，应用可以移动到存储卡中，这应该可以缓解一部分存储空间的问题。尽管它搭配的Spreadtrum处理器在我们评测中表现垫底，这个缺点在日常使用中很难察觉到：这台测试机在使用中基本不会有卡顿延迟。

三星为用户带来了一台实用的入门级智能手机Galaxy J3 (2016)，它在不高的价位上提供了不少的优势。消费者需要接受它的一些明显短板如内置存储设备和主相机的一般拍摄效果。

除了设计相同已停产的三星 Galaxy J5，在对比中列出的同类机型也都是不错的选择。不过，用户需要接受更短的电池续航，但是一些同价位机型采用了金属机身（ZTE Blade V6）或提供了更强的性能（Huawei P8 lite等）。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Samsung Galaxy J3 2016 - 2016-06-17 06/17/2016 v5.1^(old)
Andreas Kilian

Chassis

84%

Keyboard

66 / 75 → 88%

Pointing Device

91%

Connectivity

40 / 60 → 66%

Weight

93%

Battery

91%

Display

82%

Games Performance

5 / 63 → 8%

Application Performance

25 / 70 → 36%

Temperature

91%

Noise

100%

Audio

50 / 91 → 55%

Camera

61%

Average

68%

81%

Smartphone - Weighted Average

Pricecompare

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 三星 Galaxy J3 (2016) Duos 智能手机简短评测

Andreas Kilian, 2016-06-30 (Update: 2016-07- 2)
