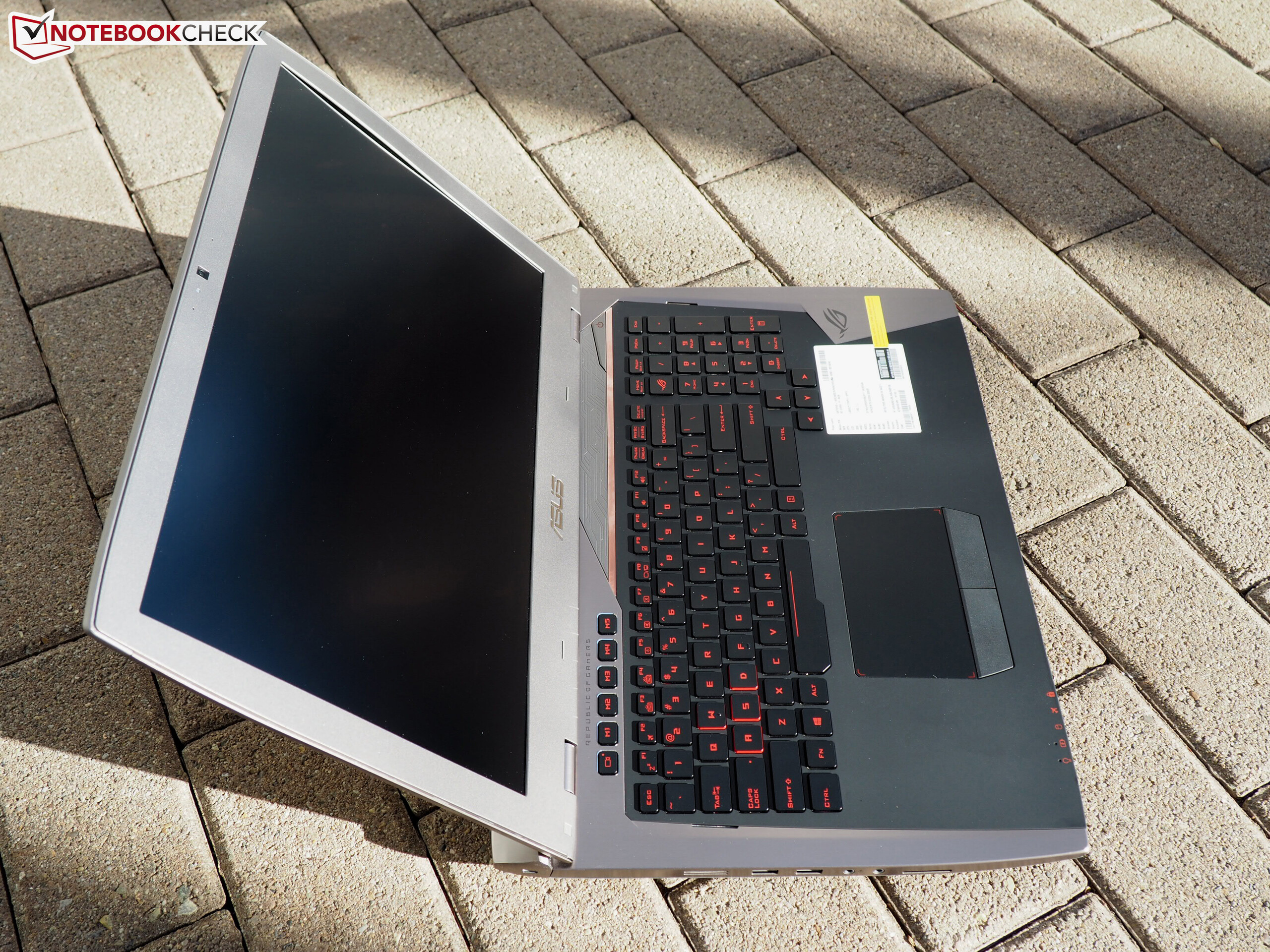

华硕 GX700 笔记本电脑简短评测

Name: Asus GX700
Brand: Asus

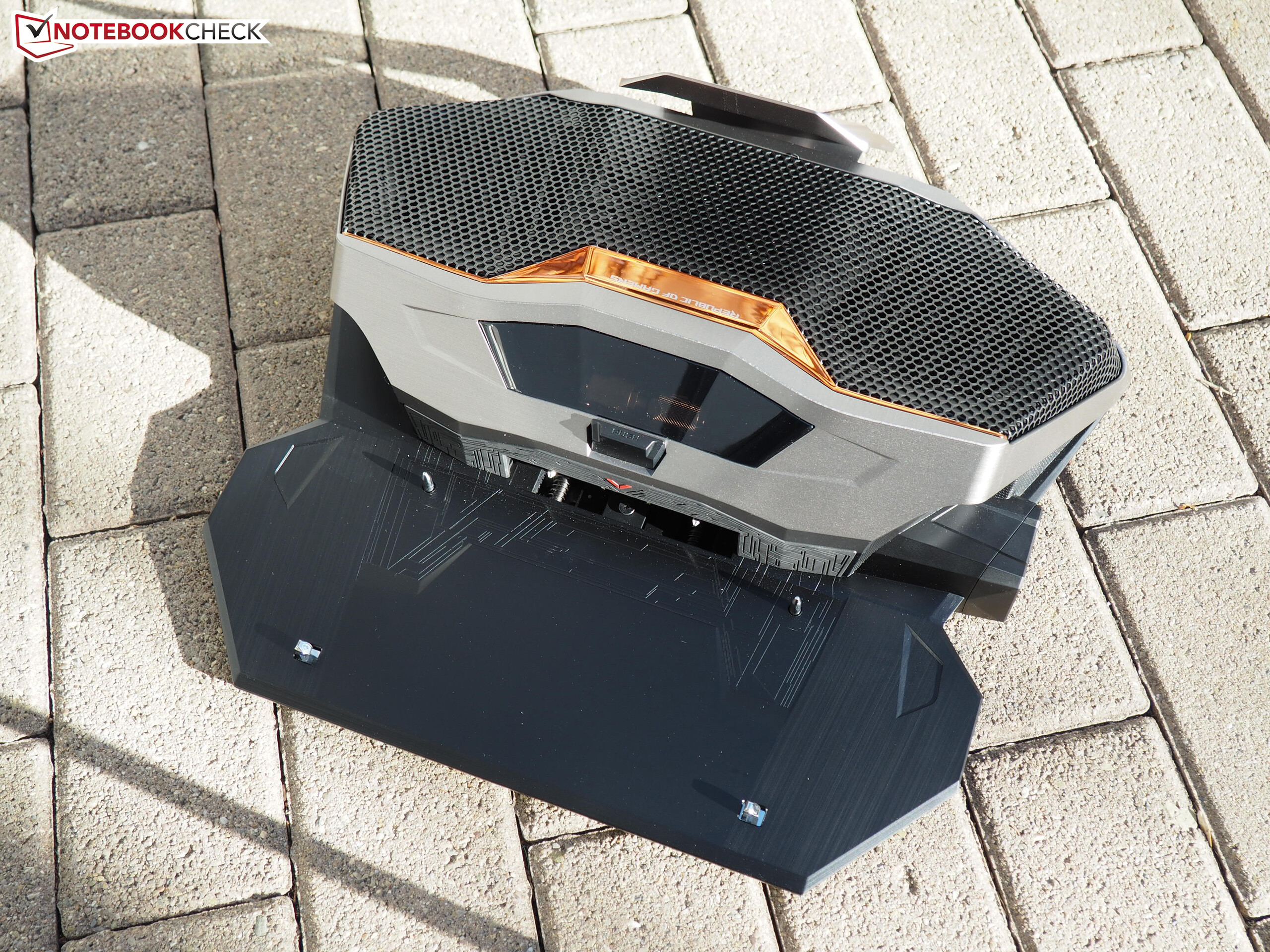

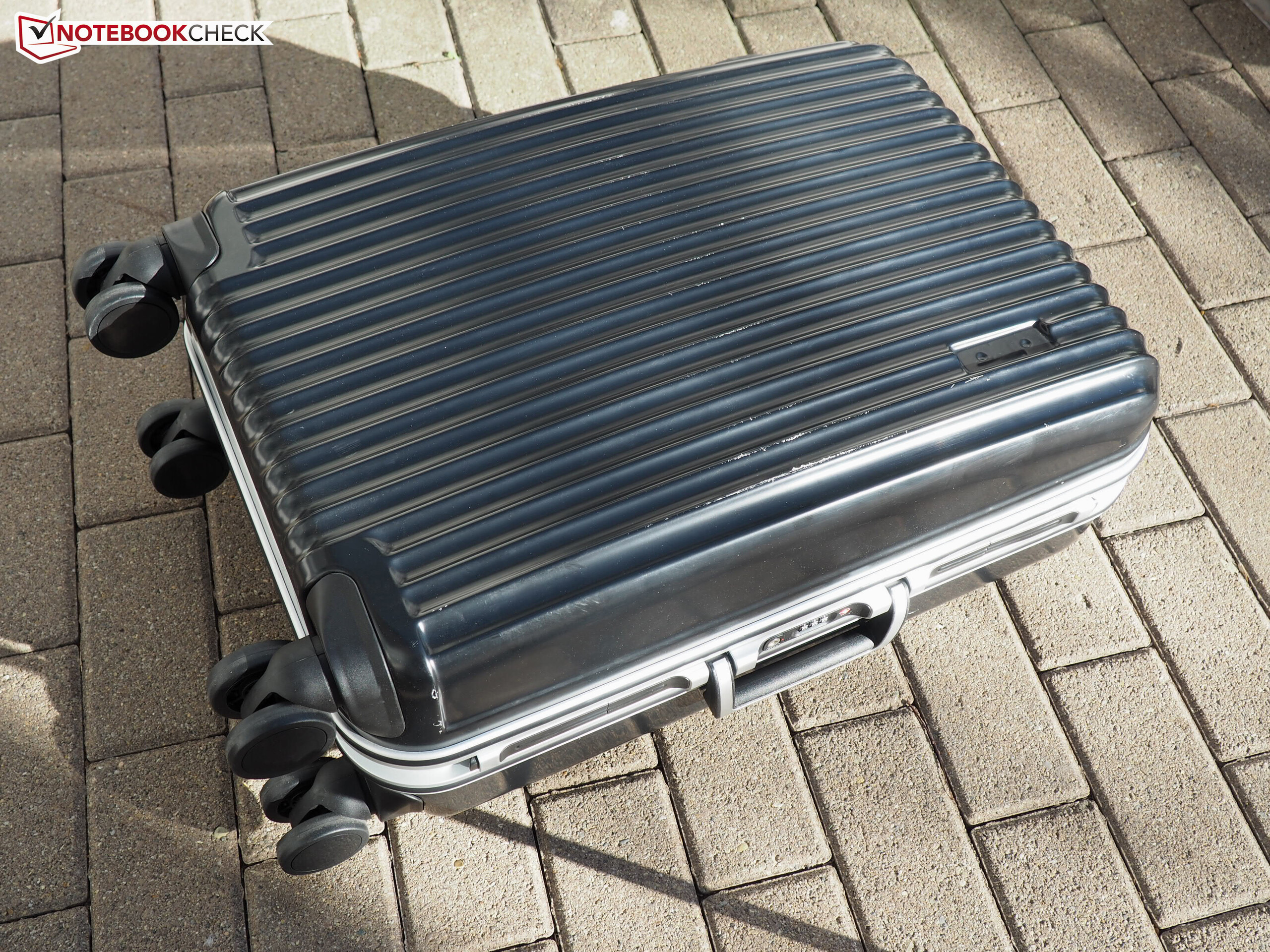

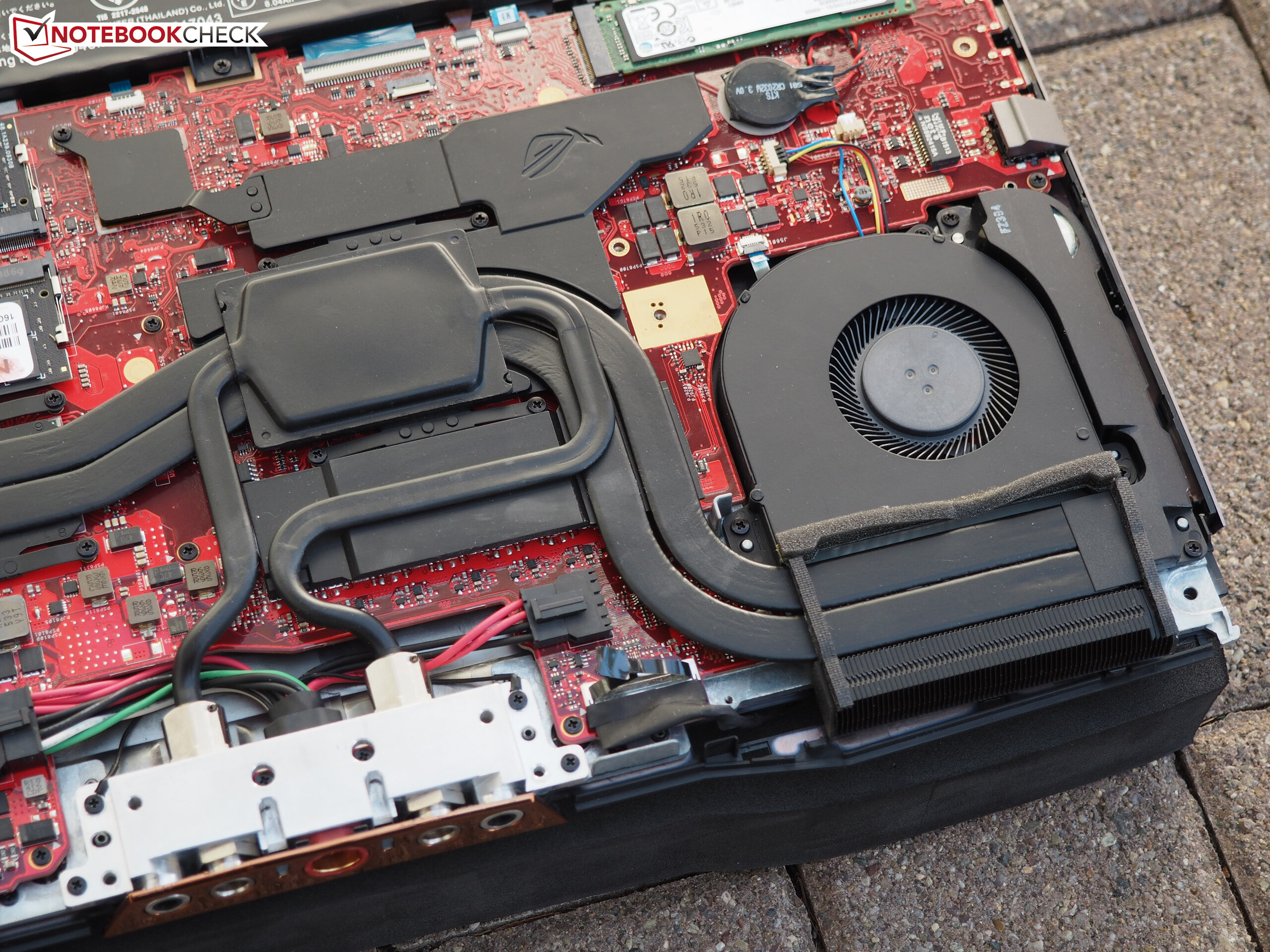

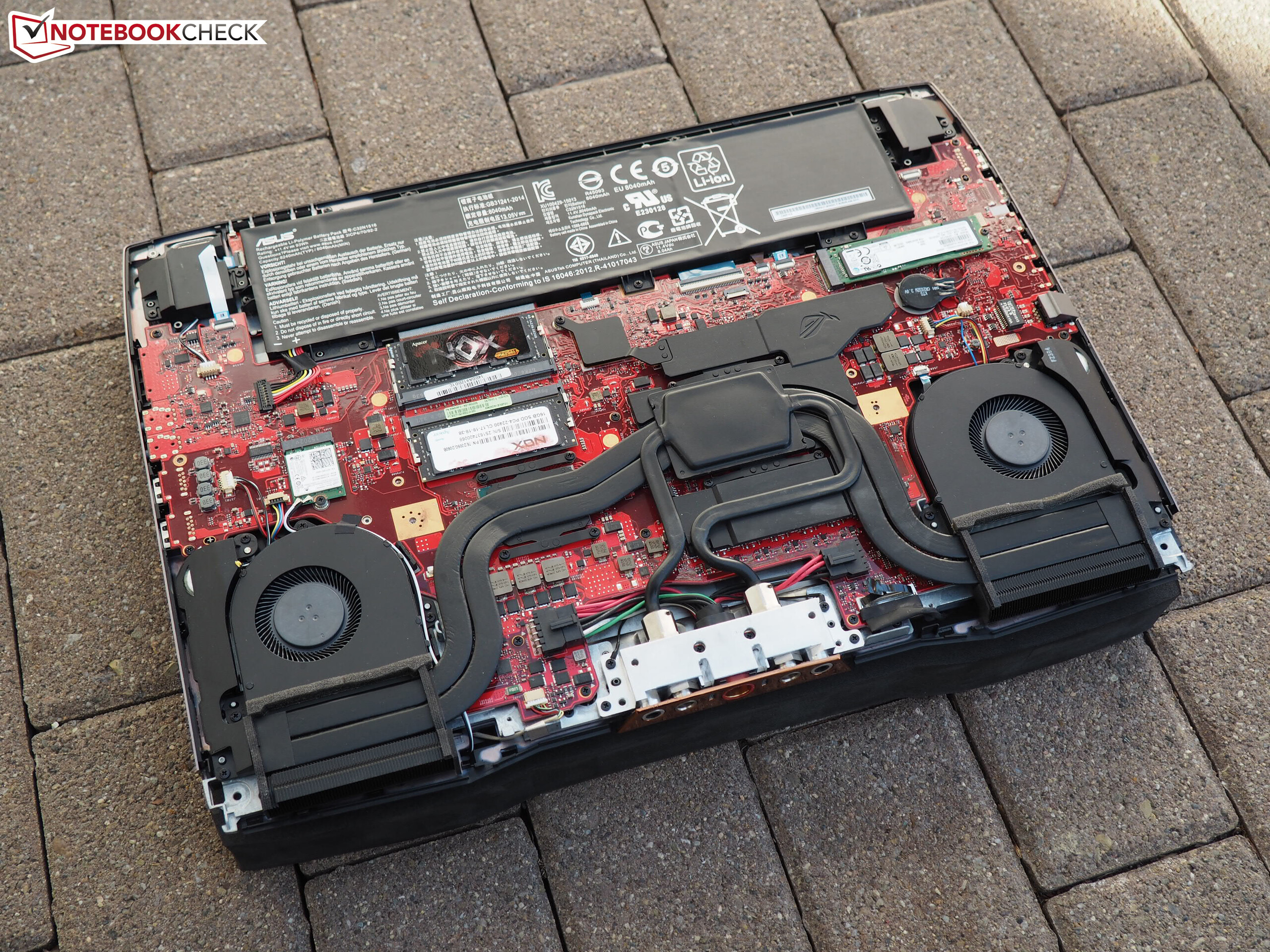

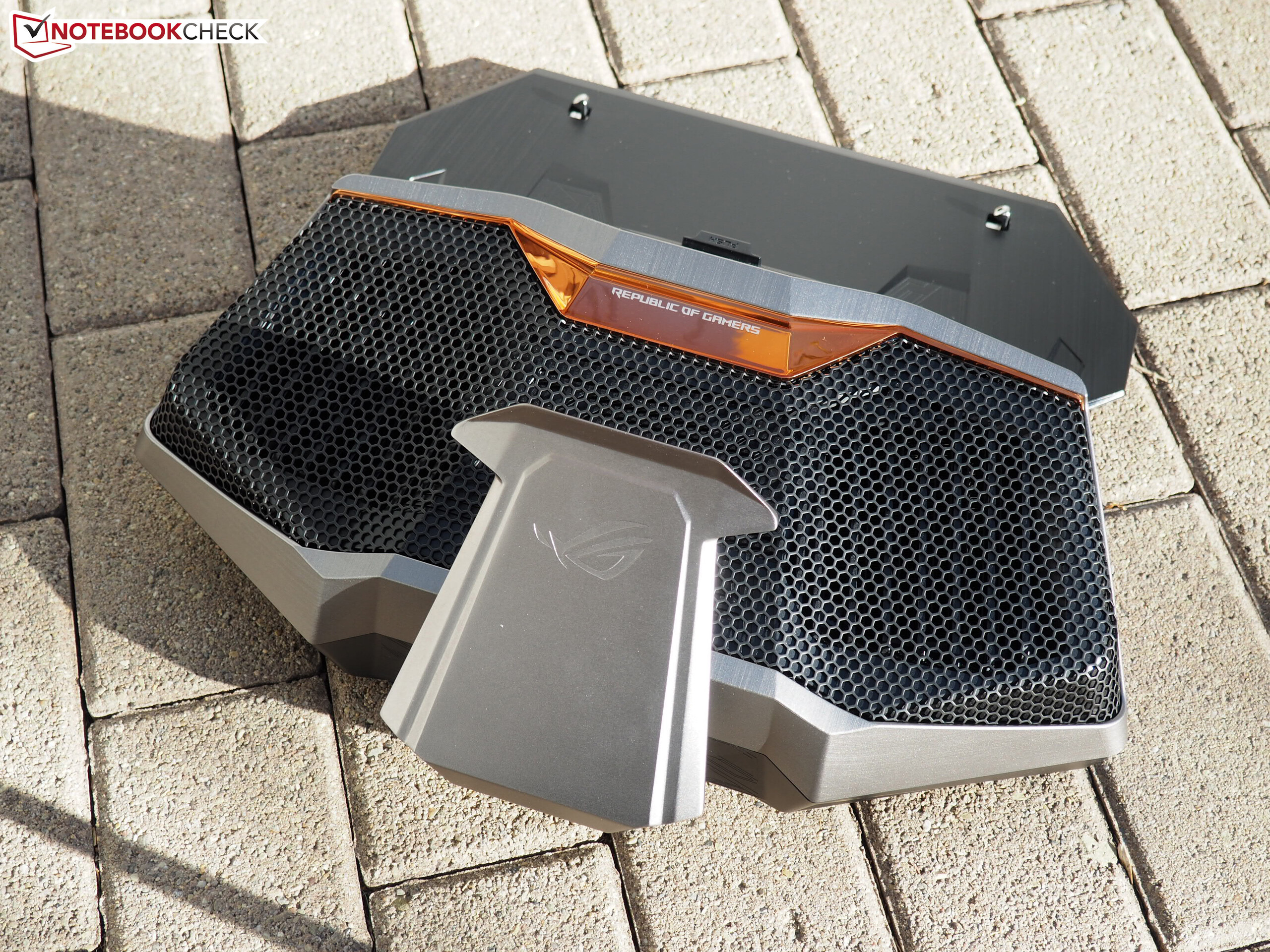

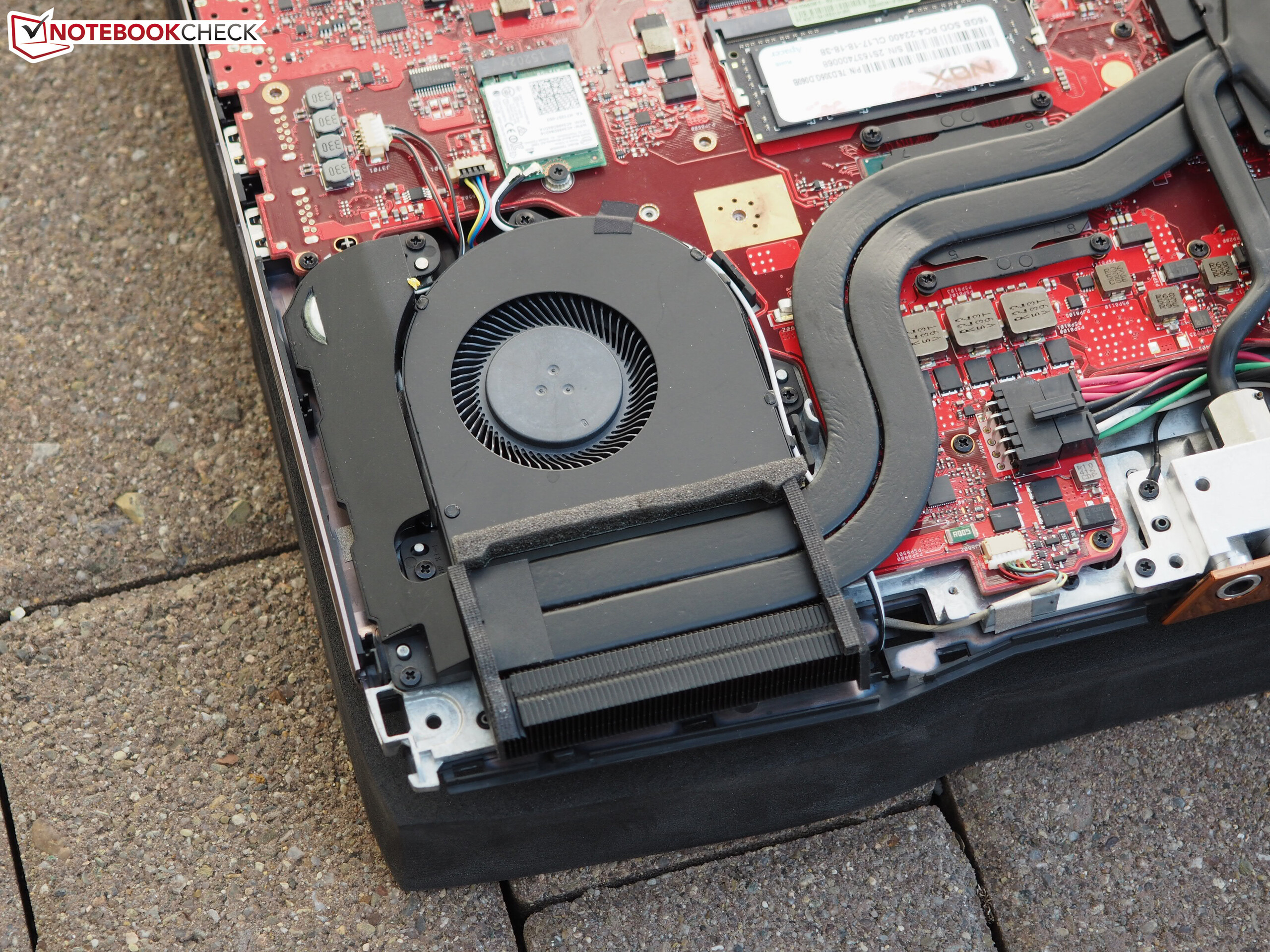

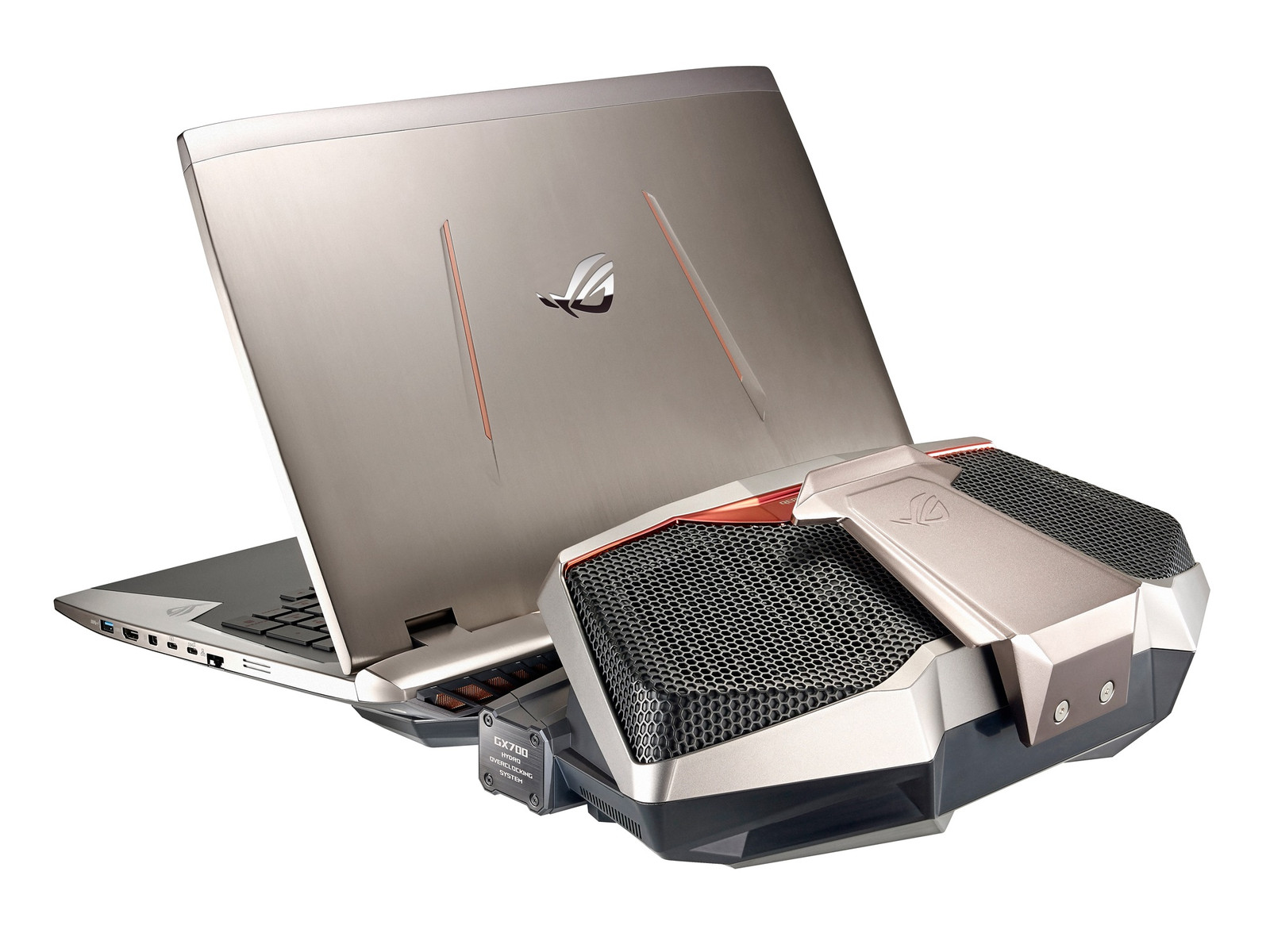

让水流进来吧！ 尽管水冷却的台式机系统并不少见，但绝大多数笔记本电脑都采用了风冷却设计。华硕在GX700的设计中迈进了一步，为高端笔记本电脑搭配了外置水冷系统。作为第一批媒体之一，我们得到了近距离测试它的机会。

Florian Glaser, ✓ Stefanie Voigt (translated by Yuchen Wang), Published 01/13/2016 🇺🇸 🇩🇪 ...

Gaming Geforce Laptop / Notebook Skylake Windows

Test device courtesy of Asus Deutschland

Download your licensed rating image as PNG / SVG

Asus GX700 (GX700 Series)

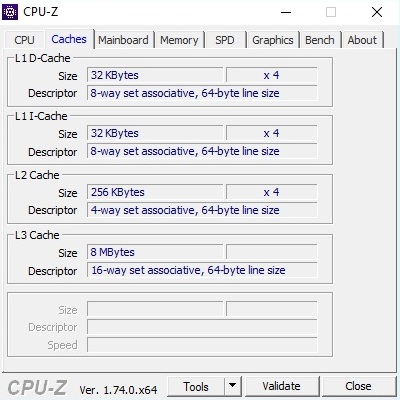

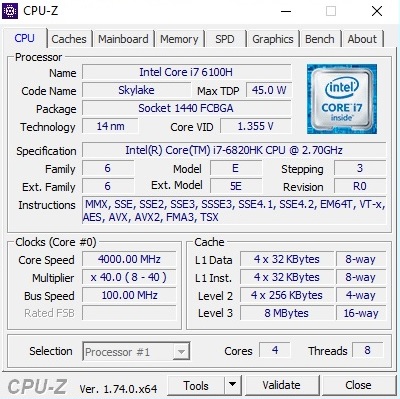

Processor

Intel Core i7-6820HK 4 x 2.7 - 3.6 GHz @ 4 GHz, Skylake

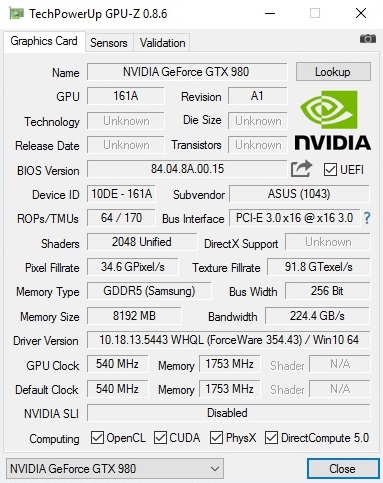

Graphics adapter

NVIDIA GeForce GTX 980 (Laptop) - 8 GB VRAM, Core: 1190 MHz, Memory: 3500 MHz, GDDR5, ForceWare 354.43

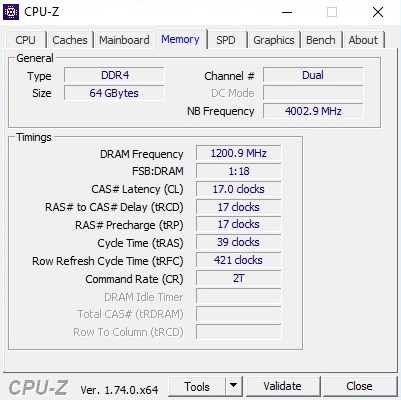

Memory

64 GB

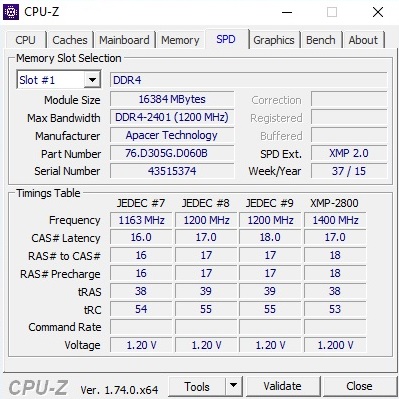

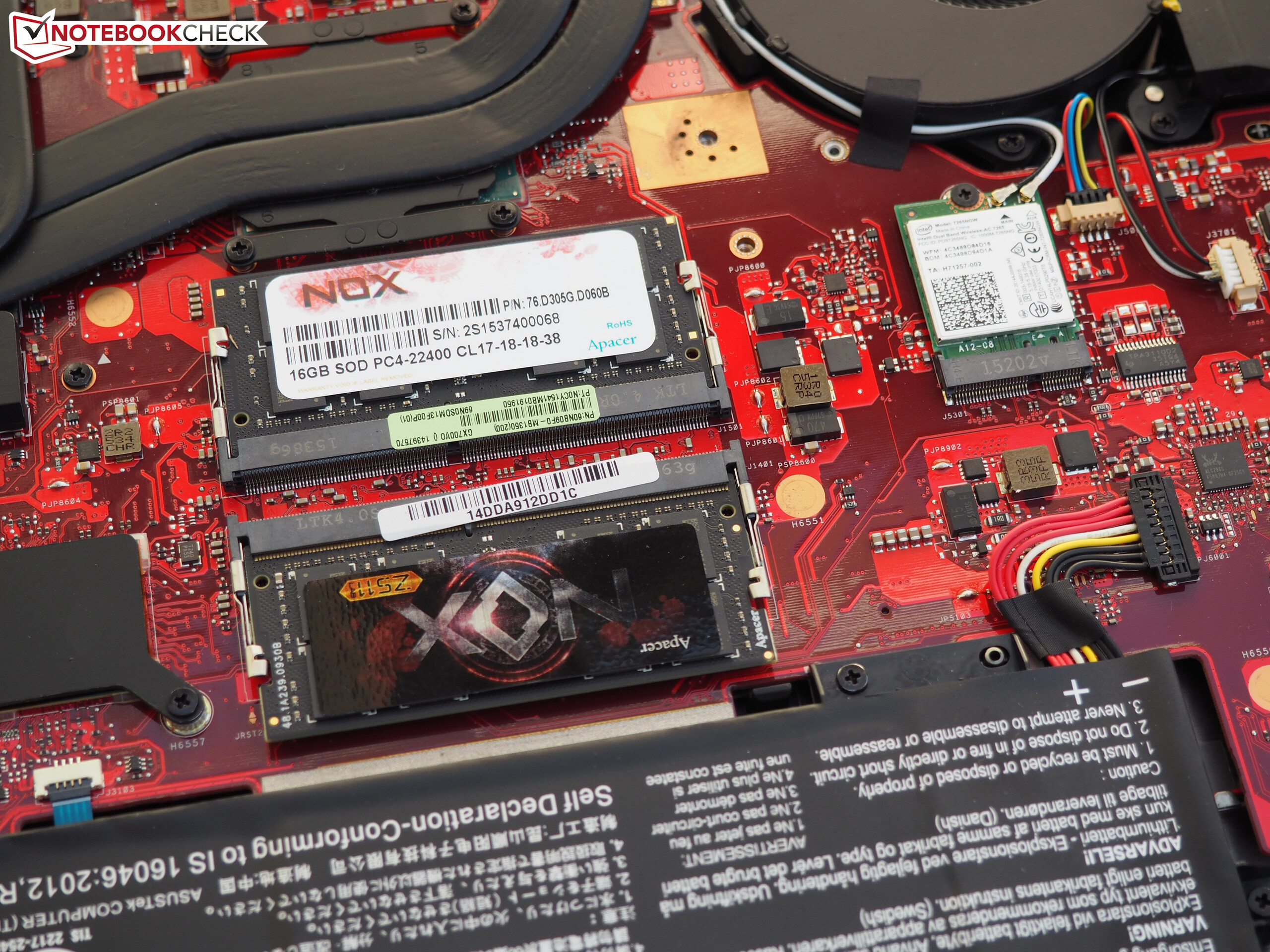

, 4x 16 GB DDR4-2400, 所有插槽均已占用

Display

17.30 inch 16:9, 1920 x 1080 pixel, LP173WF4-SPF3 (LGD04E8), IPS, 全高清, glossy: no

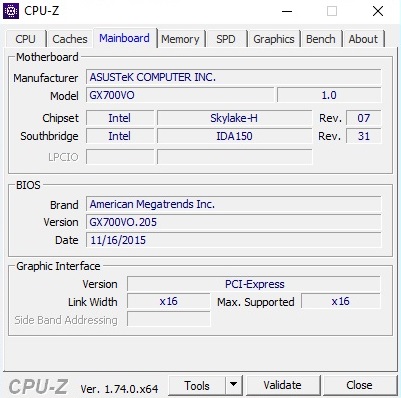

Mainboard

Intel Sunrise Point CM236

Storage

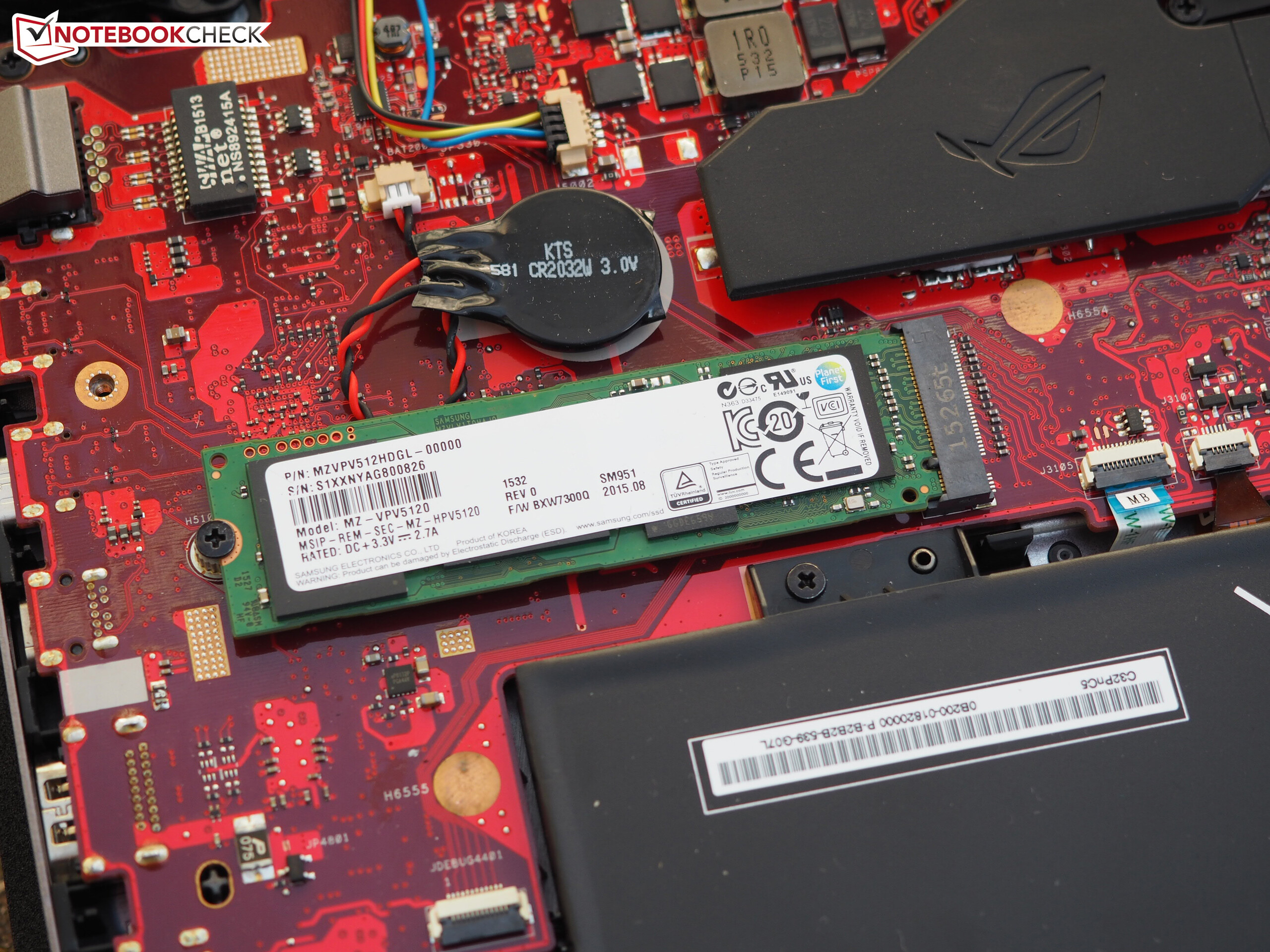

2x Samsung SM951 MZVPV512HDGL (RAID 0), 1024 GB

, M.2-固态硬盘

Soundcard

Realtek ALC286 @ Intel Sunrise Point PCH - High Definition Audio Controller

Connections

3 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 麦克风, 耳机 (S/PDIF), Card Reader: SD,SDHC,SDXC, 水冷却系统接口

Networking

Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7265 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0

Size

height x width x depth (in mm): 38 x 430 x 312

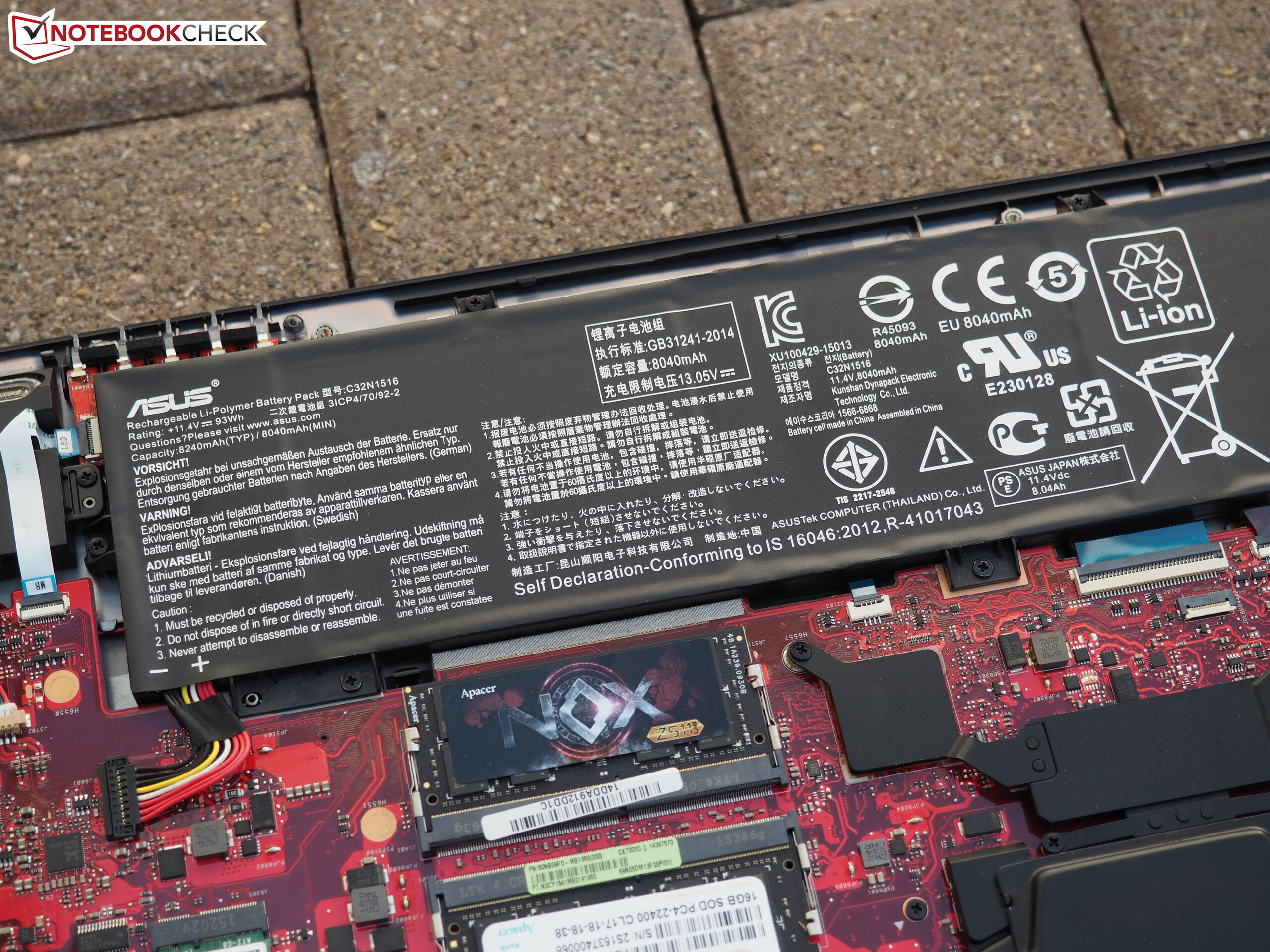

Battery

93 Wh, 8040 mAh Lithium-Polymer

Operating System

Microsoft Windows 10 Pro 64 Bit

Camera

Webcam: HD
Primary Camera: 1 MPix

Additional features

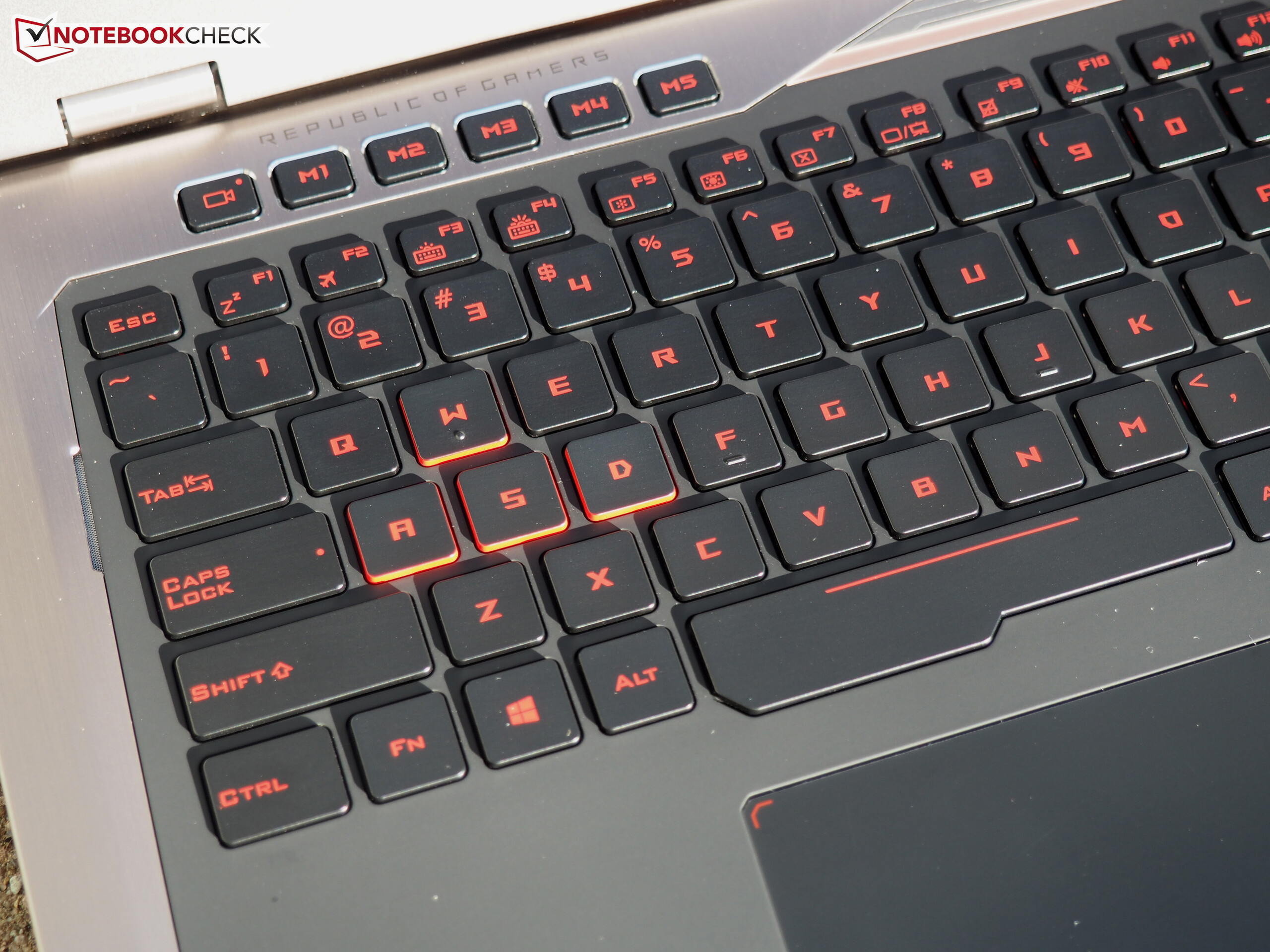

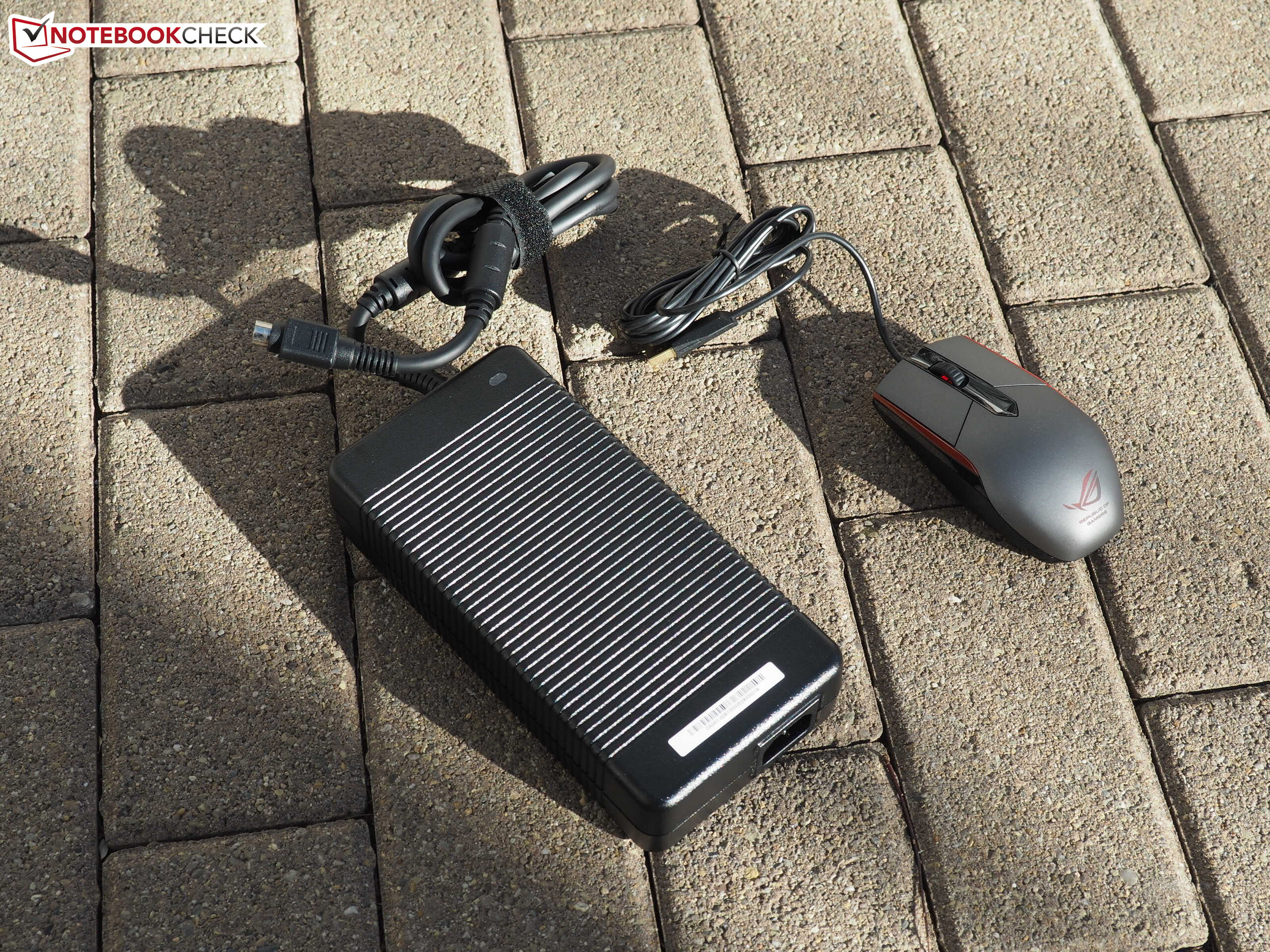

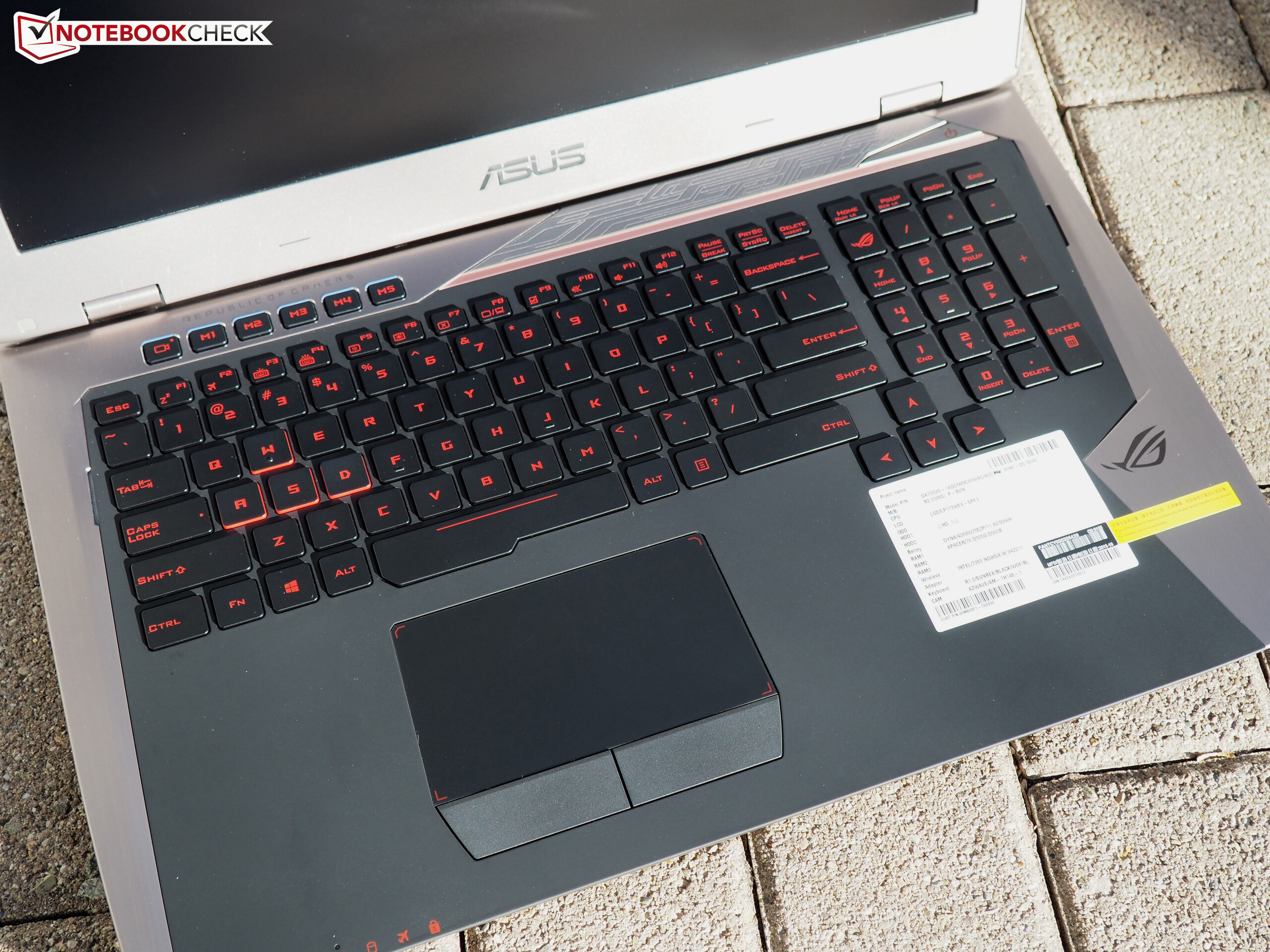

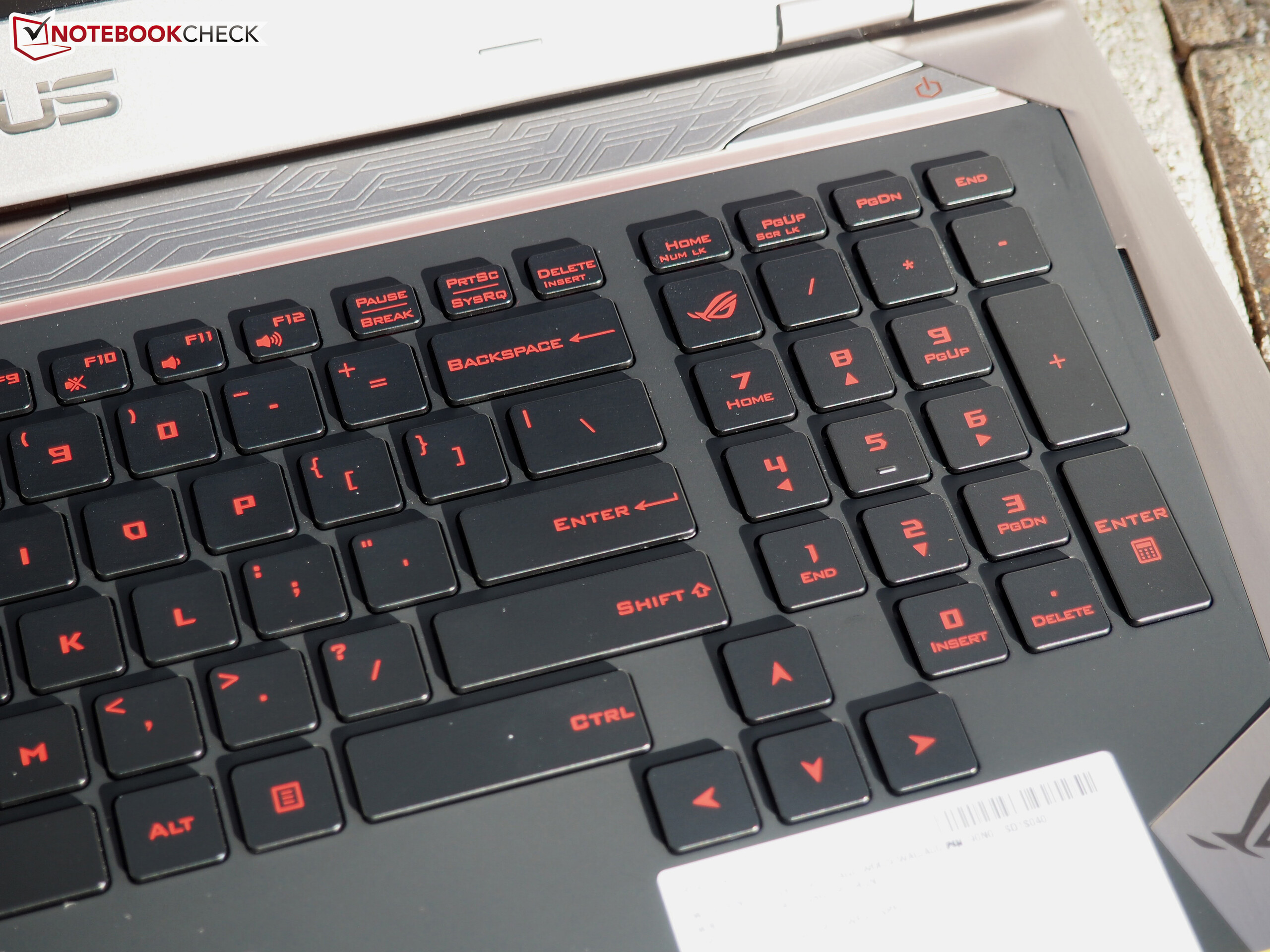

Speakers: 4.0, Keyboard: 孤岛式, Keyboard Light: yes, 电源适配器: 330 瓦 & 180 瓦, 配件: Hydra Overclocking System, SICA光学鼠标, 软件: CyberLink PhotoDirector 5, CyberLink PowerDirector 12, McAfee LiveSafe Internet Security 试用版, MS Office 365 试用版, 生产商的一些工具软件, 24 Months Warranty

Weight

3.9 kg, Power Supply: 1.23 kg

Links

Asus homepage
Asus notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

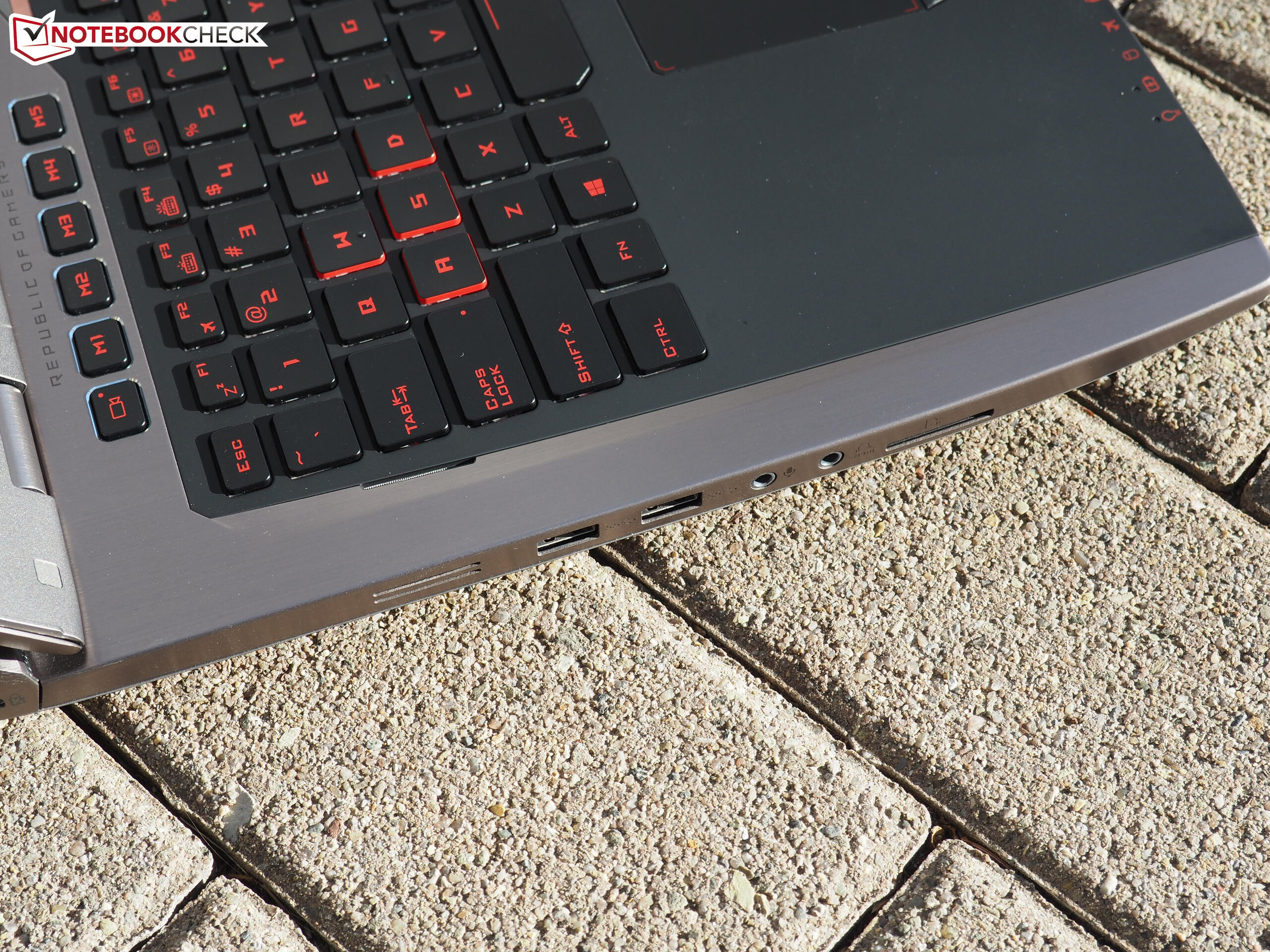

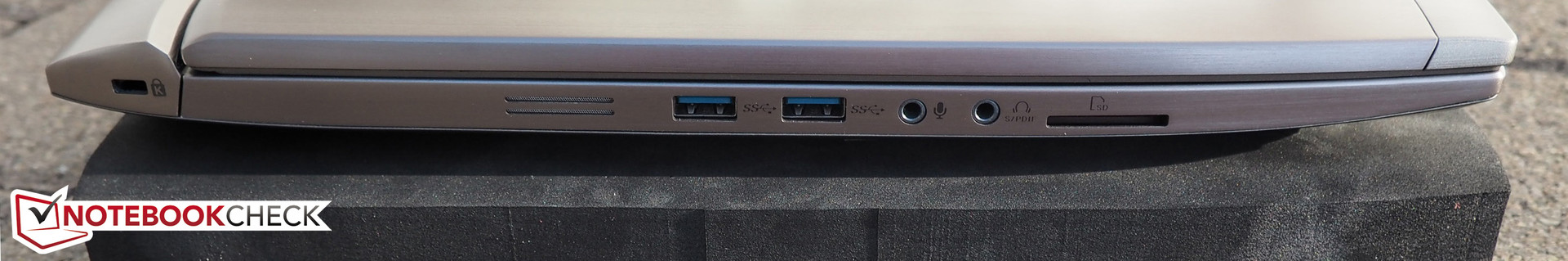

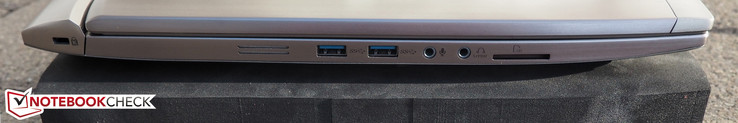

Left side: Kensington lock, 2x USB 3.0, microphone, headphones, card reader

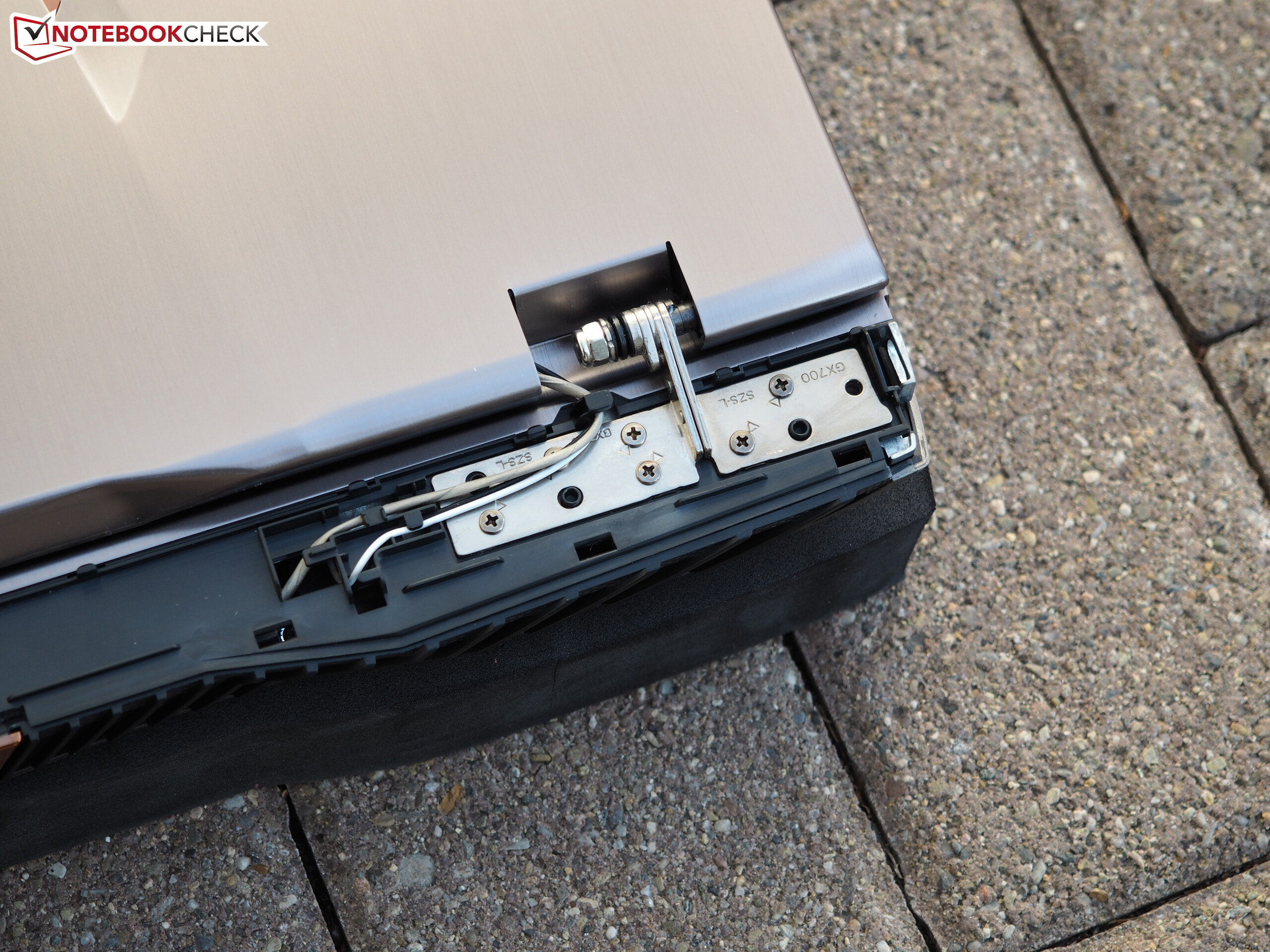

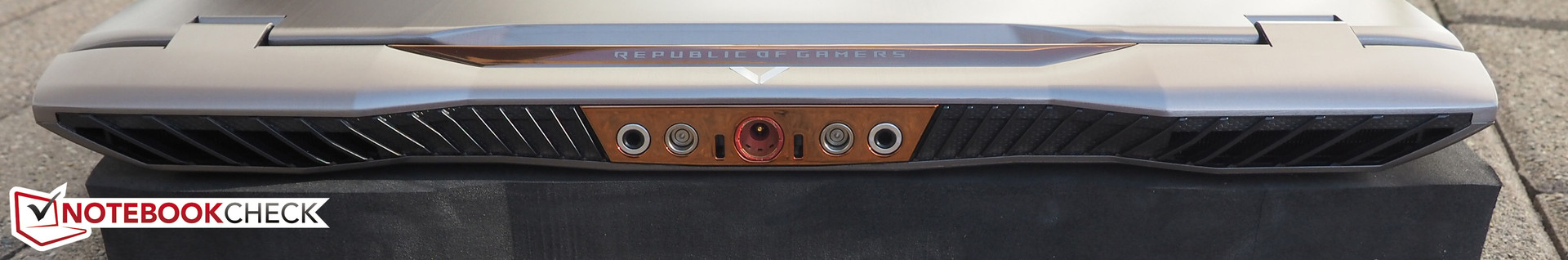

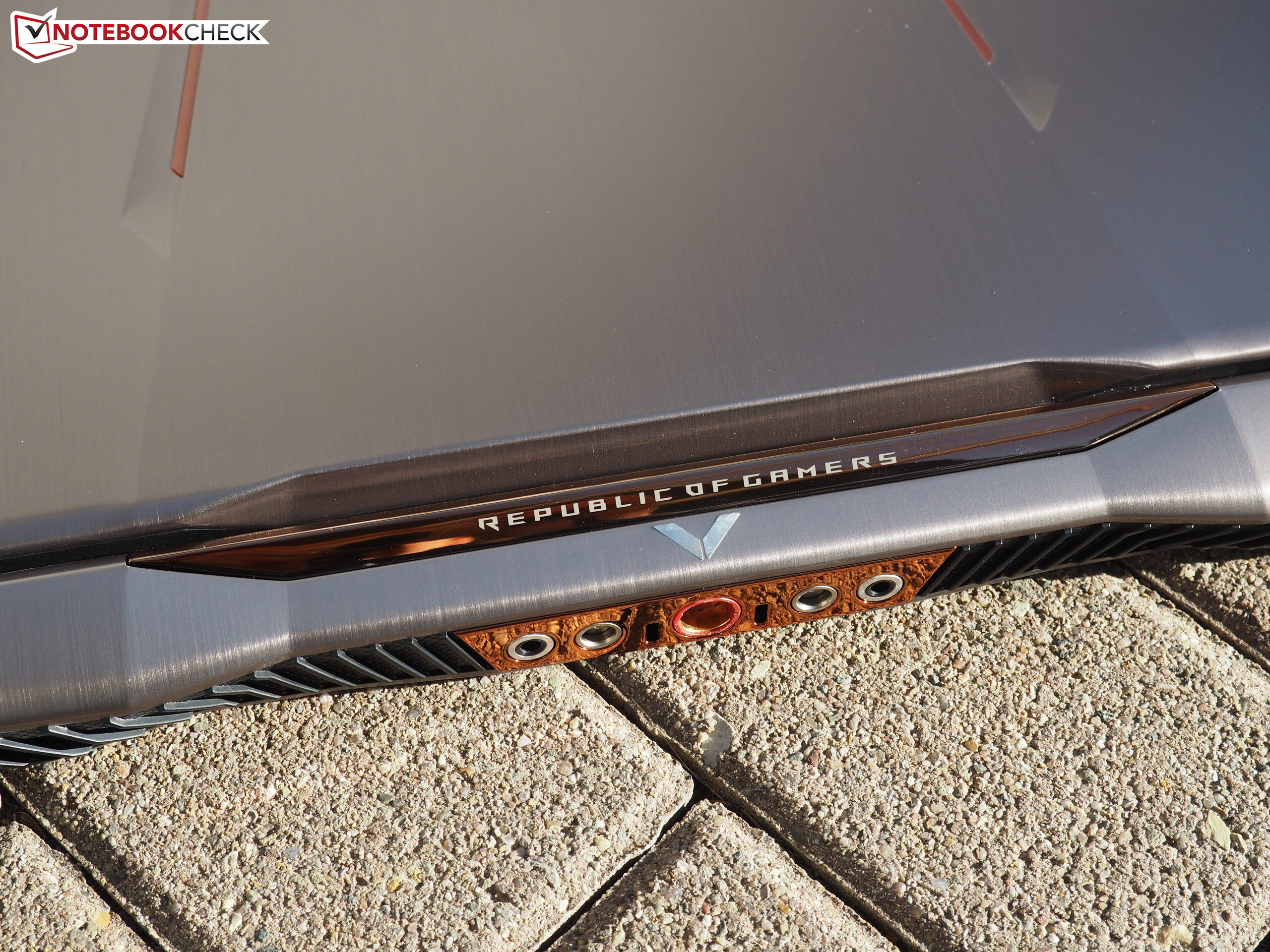

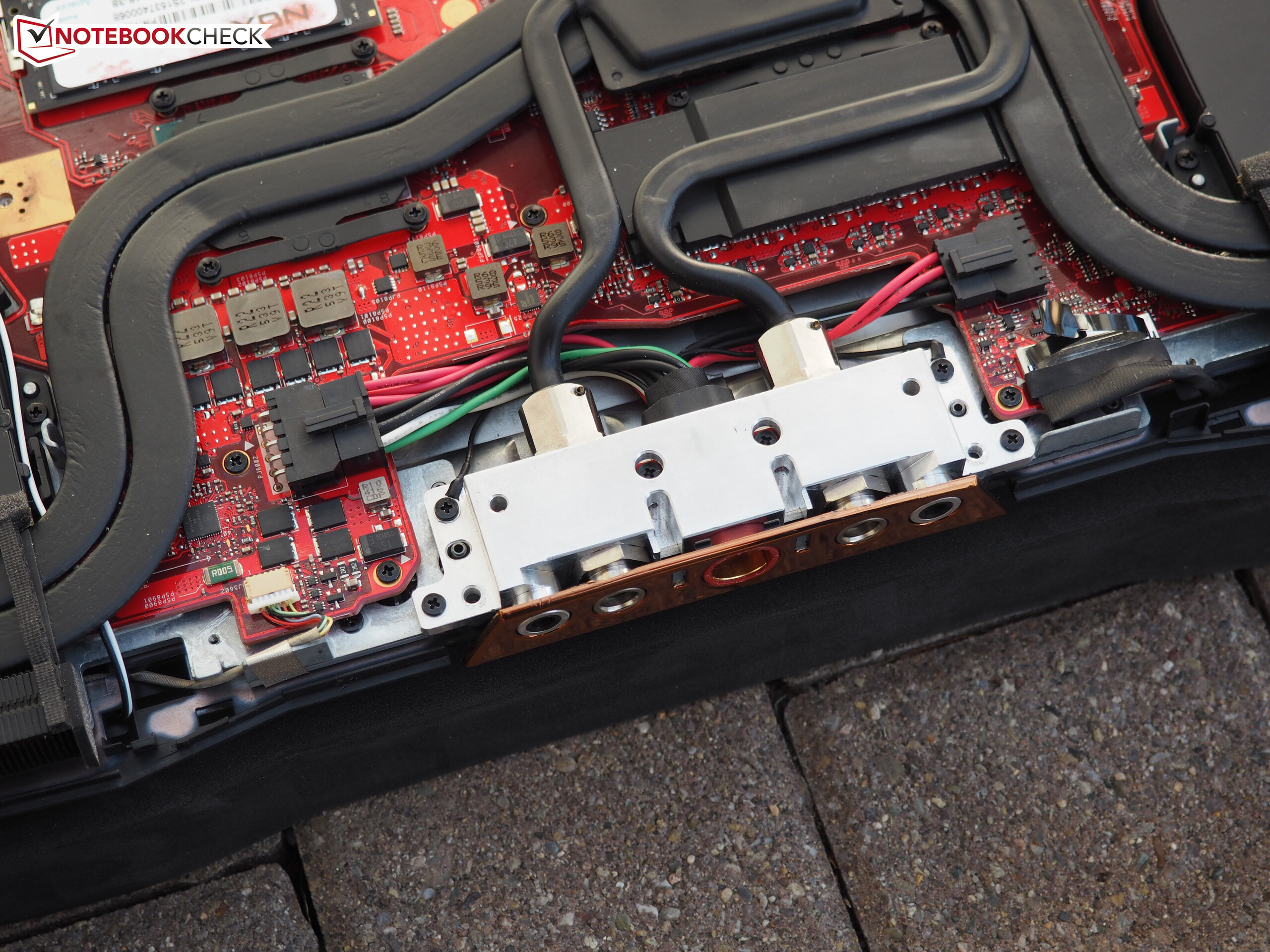

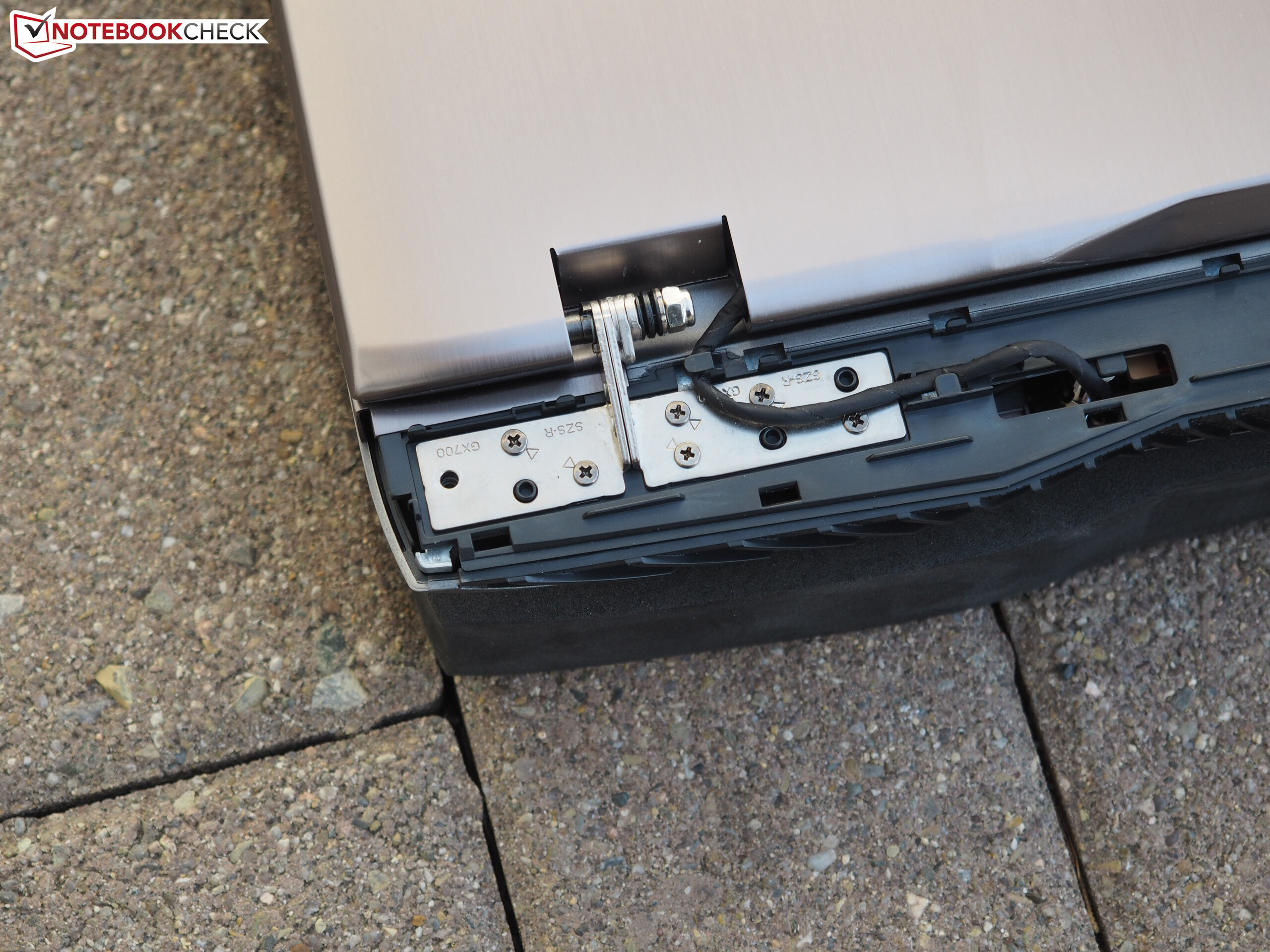

Rear: power/connectors for the water-cooling

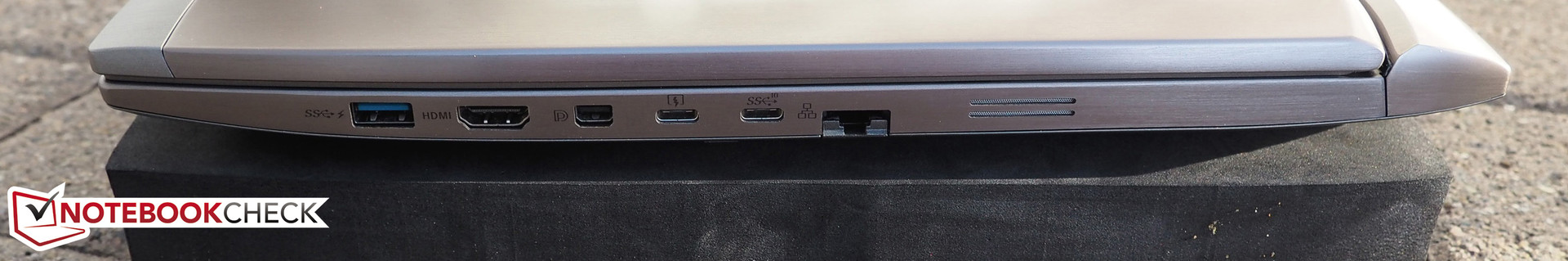

Right side: USB 3.0, HDMI, Mini-DisplayPort, Thunderbolt 3, USB 3.1 Type-C, RJ45-LAN


316 cd/m²	313 cd/m²	325 cd/m²
316 cd/m²	332 cd/m²	327 cd/m²
316 cd/m²	312 cd/m²	310 cd/m²

Distribution of brightness

LP173WF4-SPF3 (LGD04E8) tested with X-Rite i1Pro 2

Maximum: 332 cd/m² (Nits) Average: 318.6 cd/m²
Brightness Distribution: 93 %
Center on Battery: 332 cd/m²
Contrast: 976:1 (Black: 0.34 cd/m²)
ΔE Color 5.35 | 0.5-29.43 Ø5
ΔE Greyscale 6.45 | 0.57-98 Ø5.3
85% sRGB (Argyll 1.6.3 3D)
56% AdobeRGB 1998 (Argyll 1.6.3 3D)
62.1% AdobeRGB 1998 (Argyll 2.2.0 3D)
84.9% sRGB (Argyll 2.2.0 3D)
66.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.34

Download ICC File (X-Rite i1Pro 2)

	Asus GX700 LP173WF4-SPF3 (LGD04E8)	MSI GT72S 6QF Name: LG Philips LP173WF4-SPF1, ID: LGD0469	SCHENKER XMG U726 AU B173ZAN01.0 (AUO109B)	SCHENKER XMG U716 AU B173ZAN01.0 (AUO109B)	SCHENKER XMG U706 LG LP173WF4-SPD1	SCHENKER XMG P706 LG LP173WF4-SPD1	Asus G752VT
Display		1%	36%	36%	0%	0%	-0%
Display P3 Coverage	66.7	67.6 1%	87 30%	86.5 30%	66.6 0%	66.9 0%	66.3 -1%
sRGB Coverage	84.9	86.1 1%	100 18%	100 18%	84.7 0%	84.6 0%	84.5 0%
AdobeRGB 1998 Coverage	62.1	63 1%	98.9 59%	99 59%	61.9 0%	61.8 0%	61.8 0%
Response Times		-24%		-25%			-3%
Response Time Grey 50% / Grey 80% *	37 ?(14, 23)	43 ?(18, 24.8) -16%		45 ?(17, 28) -22%			30.4 ?(12.4, 18) 18%
Response Time Black / White *	22 ?(4, 18)	29 ?(6, 22.8) -32%		28 ?(6, 22) -27%			27.2 ?(4.4, 22.8) -24%
PWM Frequency
Screen		15%	15%	12%	7%	1%	9%
Brightness middle	332	356.7 7%	330 -1%	374 13%	298 -10%	306 -8%	357.2 8%
Brightness	319	326 2%	327 3%	356 12%	287 -10%	302 -5%	339 6%
Brightness Distribution	93	85 -9%	86 -8%	88 -5%	91 -2%	90 -3%	89 -4%
Black Level *	0.34	0.282 17%	0.38 -12%	0.4 -18%	0.305 10%	0.34 -0%	0.366 -8%
Contrast	976	1265 30%	868 -11%	935 -4%	977 0%	900 -8%	976 0%
Colorchecker dE 2000 *	5.35	4.16 22%	3 44%	4.23 21%	4.16 22%	5.49 -3%	3.69 31%
Greyscale dE 2000 *	6.45	2.47 62%	3.81 41%	5.48 15%	3.13 51%	3.97 38%	3.05 53%
Gamma	2.34 ^94%	2.29 ^96%	2.52 ^87%	2.35 ^94%	2.26 ^97%	2.15 ^102%	2.21 ^100%
CCT	7048 ^92%	6860 ^95%	6306 ^103%	6686 ^97%	6213 ^105%	6163 ^105%	6164 ^105%
Color Space (Percent of AdobeRGB 1998)	56	56 0%	88 57%	88 57%	55.5 -1%	55.5 -1%	55 -2%
Color Space (Percent of sRGB)	85	85 0%	100 18%	100 18%	84.5 -1%	84.5 -1%	84 -1%
Colorchecker dE 2000 max. *			5.3	6.7
Total Average (Program / Settings)		-3% / 6%	26% / 20%	8% / 12%	4% / 5%	1% / 1%	2% / 5%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

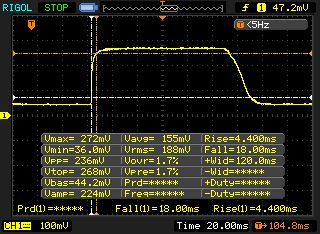

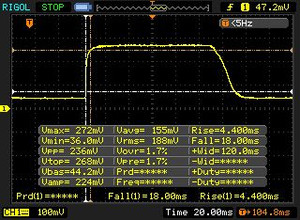

↔ Response Time Black to White
22 ms ... rise ↗ and fall ↘ combined	↗ 4 ms rise
22 ms ... rise ↗ and fall ↘ combined	↘ 18 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 42 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (21.5 ms).

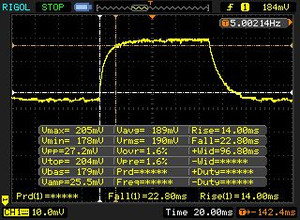

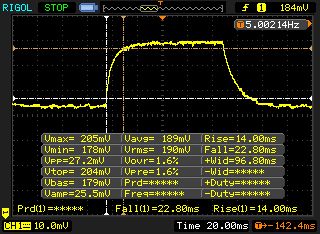

↔ Response Time 50% Grey to 80% Grey
37 ms ... rise ↗ and fall ↘ combined	↗ 14 ms rise
37 ms ... rise ↗ and fall ↘ combined	↘ 23 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 47 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (33.8 ms).

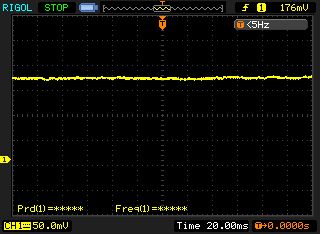

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17997 (minimum: 5 - maximum: 3846000) Hz was measured.

Cinebench R10 Rendering Single 32Bit

6541

Cinebench R10 Rendering Multiple CPUs 32Bit

25765

Cinebench R10 Shading 32Bit

8513

Cinebench R11.5 CPU Single 64Bit

1.95 Points

Cinebench R11.5 CPU Multi 64Bit

9.55 Points

Cinebench R11.5 OpenGL 64Bit

80.1 fps

Cinebench R15 CPU Single 64Bit

173 Points

Cinebench R15 CPU Multi 64Bit

875 Points

Cinebench R15 OpenGL 64Bit

120.9 fps

Help

... in comparison

Cinebench R15 | Cinebench R11.5

Cinebench R15
CPU Single 64Bit (sort by value)
Asus GX700 Intel Core i7-6820HK	173 Points
MSI GT72S 6QF Intel Core i7-6820HK	138 Points -20%
SCHENKER XMG U726 Intel Core i7-6700	171 Points -1%
SCHENKER XMG U716 Intel Core i7-6700	171 Points -1%
SCHENKER XMG U706 Intel Core i7-6700K	173 Points 0%
SCHENKER XMG P706 Intel Core i7-6820HK	151 Points -13%
Asus G752VT Intel Core i7-6700HQ	135 Points -22%
CPU Multi 64Bit (sort by value)
Asus GX700 Intel Core i7-6820HK	875 Points
MSI GT72S 6QF Intel Core i7-6820HK	703 Points -20%
SCHENKER XMG U726 Intel Core i7-6700	813 Points -7%
SCHENKER XMG U716 Intel Core i7-6700	791 Points -10%
SCHENKER XMG U706 Intel Core i7-6700K	875 Points 0%
SCHENKER XMG P706 Intel Core i7-6820HK	709 Points -19%
Asus G752VT Intel Core i7-6700HQ	680 Points -22%

Cinebench R11.5
CPU Single 64Bit (sort by value)
Asus GX700 Intel Core i7-6820HK	1.95 Points
MSI GT72S 6QF Intel Core i7-6820HK	1.58 Points -19%
SCHENKER XMG U726 Intel Core i7-6700	1.91 Points -2%
SCHENKER XMG U716 Intel Core i7-6700	1.94 Points -1%
SCHENKER XMG U706 Intel Core i7-6700K	1.97 Points +1%
SCHENKER XMG P706 Intel Core i7-6820HK	1.73 Points -11%
Asus G752VT Intel Core i7-6700HQ	1.69 Points -13%
CPU Multi 64Bit (sort by value)
Asus GX700 Intel Core i7-6820HK	9.55 Points
MSI GT72S 6QF Intel Core i7-6820HK	7.74 Points -19%
SCHENKER XMG U726 Intel Core i7-6700	8.94 Points -6%
SCHENKER XMG U716 Intel Core i7-6700	8.77 Points -8%
SCHENKER XMG U706 Intel Core i7-6700K	9.6 Points +1%
SCHENKER XMG P706 Intel Core i7-6820HK	7.78 Points -19%
Asus G752VT Intel Core i7-6700HQ	7.48 Points -22%

PCMark 7 Score		7933 points
PCMark 8 Home Score Accelerated v2		5669 points
PCMark 8 Creative Score Accelerated v2		8162 points
PCMark 8 Work Score Accelerated v2		6122 points
Help

... in comparison

PCMark 7 | PCMark 8

PCMark 7 - Score (sort by value)
Asus GX700 GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)	7933 Points
MSI GT72S 6QF GeForce GTX 980 (Laptop), 6820HK, 2x Micron M600 MTFDDAV128MBF NVMe (RAID 0)	7163 Points -10%
SCHENKER XMG U726 GeForce GTX 980 (Laptop), 6700, Samsung SM951 MZHPV512HDGL m.2 PCI-e	7093 Points -11%
SCHENKER XMG U716 GeForce GTX 980 (Laptop), 6700, Samsung SM951 MZHPV512HDGL m.2 PCI-e	7159 Points -10%
SCHENKER XMG U706 GeForce GTX 980M, 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e	6582 Points -17%
SCHENKER XMG P706 GeForce GTX 980M, 6820HK, Samsung SM951 MZHPV512HDGL m.2 PCI-e	6054 Points -24%
Asus G752VT GeForce GTX 970M, 6700HQ, Samsung PM951 NVMe MZVLV128	6343 Points -20%

PCMark 8
Home Score Accelerated v2 (sort by value)
Asus GX700 GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)	5669 Points
MSI GT72S 6QF GeForce GTX 980 (Laptop), 6820HK, 2x Micron M600 MTFDDAV128MBF NVMe (RAID 0)	5149 Points -9%
SCHENKER XMG U726 GeForce GTX 980 (Laptop), 6700, Samsung SM951 MZHPV512HDGL m.2 PCI-e	4343 Points -23%
SCHENKER XMG U716 GeForce GTX 980 (Laptop), 6700, Samsung SM951 MZHPV512HDGL m.2 PCI-e	4466 Points -21%
SCHENKER XMG U706 GeForce GTX 980M, 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e	5062 Points -11%
SCHENKER XMG P706 GeForce GTX 980M, 6820HK, Samsung SM951 MZHPV512HDGL m.2 PCI-e	3961 Points -30%
Asus G752VT GeForce GTX 970M, 6700HQ, Samsung PM951 NVMe MZVLV128	4614 Points -19%
Creative Score Accelerated v2 (sort by value)
Asus GX700 GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)	8162 Points
MSI GT72S 6QF GeForce GTX 980 (Laptop), 6820HK, 2x Micron M600 MTFDDAV128MBF NVMe (RAID 0)	7625 Points -7%
SCHENKER XMG U726 GeForce GTX 980 (Laptop), 6700, Samsung SM951 MZHPV512HDGL m.2 PCI-e	7134 Points -13%
SCHENKER XMG U716 GeForce GTX 980 (Laptop), 6700, Samsung SM951 MZHPV512HDGL m.2 PCI-e	7295 Points -11%
SCHENKER XMG U706 GeForce GTX 980M, 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e	6980 Points -14%
SCHENKER XMG P706 GeForce GTX 980M, 6820HK, Samsung SM951 MZHPV512HDGL m.2 PCI-e	4893 Points -40%
Asus G752VT GeForce GTX 970M, 6700HQ, Samsung PM951 NVMe MZVLV128	5715 Points -30%
Work Score Accelerated v2 (sort by value)
Asus GX700 GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)	6122 Points
MSI GT72S 6QF GeForce GTX 980 (Laptop), 6820HK, 2x Micron M600 MTFDDAV128MBF NVMe (RAID 0)	5462 Points -11%
SCHENKER XMG U726 GeForce GTX 980 (Laptop), 6700, Samsung SM951 MZHPV512HDGL m.2 PCI-e	4623 Points -24%
SCHENKER XMG U716 GeForce GTX 980 (Laptop), 6700, Samsung SM951 MZHPV512HDGL m.2 PCI-e	4681 Points -24%
SCHENKER XMG U706 GeForce GTX 980M, 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e	5423 Points -11%
SCHENKER XMG P706 GeForce GTX 980M, 6820HK, Samsung SM951 MZHPV512HDGL m.2 PCI-e	5022 Points -18%
Asus G752VT GeForce GTX 970M, 6700HQ, Samsung PM951 NVMe MZVLV128	5392 Points -12%

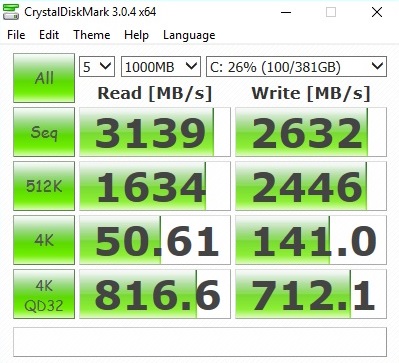

CrystalDiskMark 3.0

AS SSD

2x Samsung SM951 MZVPV512HDGL (RAID 0)

Sequential Read: 3139 MB/s

Sequential Write: 2632 MB/s

512K Read: 1634 MB/s

512K Write: 2446 MB/s

4K Read: 50.6 MB/s

4K Write: 141 MB/s

4K QD32 Read: 817 MB/s

4K QD32 Write: 712 MB/s

	Asus GX700 2x Samsung SM951 MZVPV512HDGL (RAID 0)	MSI GT72S 6QF 2x Micron M600 MTFDDAV128MBF NVMe (RAID 0)	SCHENKER XMG U726 Samsung SM951 MZHPV512HDGL m.2 PCI-e	SCHENKER XMG U716 Samsung SM951 MZHPV512HDGL m.2 PCI-e	SCHENKER XMG U706 Samsung SM951 MZVPV512HDGL m.2 PCI-e	SCHENKER XMG P706 Samsung SM951 MZHPV512HDGL m.2 PCI-e
AS SSD		-24%	-30%	-30%	-16%	-32%
Seq Write	2525	1279 -49%	1500 -41%	1516 -40%	1492 -41%	1273 -50%
Seq Read	2964	2544 -14%	1943 -34%	1942 -34%	1963 -34%	1863 -37%
4K Read	46.43	42.98 -7%	40.45 -13%	40.86 -12%	48.99 6%	39.93 -14%
4K Write	119.6	97.8 -18%	103.6 -13%	102.8 -14%	141.7 18%	95.3 -20%
Score Total	3655	2568 -30%	1930 -47%	1910 -48%	2630 -28%	2278 -38%

3DMark 11 Performance		15462 points
3DMark Ice Storm Standard Score		179732 points
3DMark Cloud Gate Standard Score		30430 points
3DMark Fire Strike Score		11440 points
Help

... in comparison

3DMark | 3DMark 11 | Unigine Heaven 4.0

3DMark
1920x1080 Fire Strike Score (sort by value)
Asus GX700 NVIDIA GeForce GTX 980 (Laptop)	11440 Points
MSI GT72S 6QF NVIDIA GeForce GTX 980 (Laptop)	11066 Points -3%
SCHENKER XMG U726 NVIDIA GeForce GTX 980 (Laptop)	11096 Points -3%
SCHENKER XMG U716 NVIDIA GeForce GTX 980 (Laptop)	10734 Points -6%
SCHENKER XMG U706 NVIDIA GeForce GTX 980M	8741 Points -24%
SCHENKER XMG P706 NVIDIA GeForce GTX 980M	8380 Points -27%
Asus G752VT NVIDIA GeForce GTX 970M	6598 Points -42%
3840x2160 Fire Strike Ultra Score (sort by value)
Asus GX700 NVIDIA GeForce GTX 980 (Laptop)	3221 Points
SCHENKER XMG U726 NVIDIA GeForce GTX 980 (Laptop)	3098 Points -4%
SCHENKER XMG U716 NVIDIA GeForce GTX 980 (Laptop)	3027 Points -6%

3DMark 11 - 1280x720 Performance (sort by value)
Asus GX700 NVIDIA GeForce GTX 980 (Laptop)	15462 Points
MSI GT72S 6QF NVIDIA GeForce GTX 980 (Laptop)	12645 Points -18%
SCHENKER XMG U726 NVIDIA GeForce GTX 980 (Laptop)	14925 Points -3%
SCHENKER XMG U716 NVIDIA GeForce GTX 980 (Laptop)	14477 Points -6%
SCHENKER XMG U706 NVIDIA GeForce GTX 980M	12326 Points -20%
SCHENKER XMG P706 NVIDIA GeForce GTX 980M	11514 Points -26%
Asus G752VT NVIDIA GeForce GTX 970M	9656 Points -38%

Unigine Heaven 4.0 - Extreme Preset DX11 (sort by value)
Asus GX700 NVIDIA GeForce GTX 980 (Laptop)	78.3 fps
SCHENKER XMG U726 NVIDIA GeForce GTX 980 (Laptop)	78.7 fps +1%
SCHENKER XMG U716 NVIDIA GeForce GTX 980 (Laptop)	78.1 fps 0%
SCHENKER XMG U706 NVIDIA GeForce GTX 980M	61.3 fps -22%

	low	med.	high	ultra	4K
Anno 2205 (2015)	168.2	156.2	103.1	34.2	41
Call of Duty: Black Ops 3 (2015)	184.1	179.7	103.8	92.7	35.7
Fallout 4 (2015)	195.2	173.4	99.8	80.8	34.4
Star Wars Battlefront (2015)	200	199.2	123.6	103.9	40.7
Assassin's Creed Syndicate (2015)	96.3	94.6	78.4	32.3	28.6
Rainbow Six Siege (2015)	327.5	247.7	149.4	114.1	50.4
Just Cause 3 (2015)	168.1	157.4	100.6	87	38.2

Just Cause 3
1920x1080 Very High / On AA:SM AF:16x (sort by value)
Asus GX700 GeForce GTX 980 (Laptop), 6820HK	87 fps
Desktop PC GeForce GTX 980, 6700K	84.2 (75^min) fps -3%
Schenker W504 GeForce GTX 980M, 4700MQ	59.7 (50^min) fps -31%
Schenker W504 GeForce GTX 970M, 4700MQ	50.7 (46^min) fps -42%
3840x2160 High / On AA:FX AF:8x (sort by value)
Asus GX700 GeForce GTX 980 (Laptop), 6820HK	38.2 fps
Desktop PC GeForce GTX 980, 6700K	36.6 (33^min) fps -4%
Schenker W504 GeForce GTX 980M, 4700MQ	23.6 (20^min) fps -38%
Schenker W504 GeForce GTX 970M, 4700MQ	19.9 (16^min) fps -48%

Rainbow Six Siege
1920x1080 Ultra Preset AA:T AF:16x (sort by value)
Asus GX700 GeForce GTX 980 (Laptop), 6820HK	114.1 fps
Desktop PC GeForce GTX 980, 6700K	107.6 (67^min) fps -6%
Schenker W504 GeForce GTX 980M, 4700MQ	80.3 (26^min) fps -30%
Schenker W504 GeForce GTX 970M, 4700MQ	63.5 (22^min) fps -44%
3840x2160 High Preset AA:T AF:4x (sort by value)
Asus GX700 GeForce GTX 980 (Laptop), 6820HK	50.4 fps
Desktop PC GeForce GTX 980, 6700K	50.1 (35^min) fps -1%
Schenker W504 GeForce GTX 980M, 4700MQ	35.9 (28^min) fps -29%
Schenker W504 GeForce GTX 970M, 4700MQ	27.5 (12^min) fps -45%

Star Wars Battlefront
1920x1080 Ultra Preset AA:FX (sort by value)
Asus GX700 GeForce GTX 980 (Laptop), 6820HK	103.9 fps
Desktop PC GeForce GTX 980, 6700K	104.1 (89^min) fps 0%
SCHENKER XMG U716 GeForce GTX 980 (Laptop), 6700	102.1 fps -2%
Schenker W504 GeForce GTX 980M, 4700MQ	73.1 (61^min) fps -30%
Schenker W504 GeForce GTX 970M, 4700MQ	59 (50^min) fps -43%
3840x2160 High Preset AA:FX (sort by value)
Asus GX700 GeForce GTX 980 (Laptop), 6820HK	40.7 fps
Desktop PC GeForce GTX 980, 6700K	40.4 (35^min) fps -1%
SCHENKER XMG U716 GeForce GTX 980 (Laptop), 6700	39.6 fps -3%
Schenker W504 GeForce GTX 980M, 4700MQ	27.9 (23^min) fps -31%
Schenker W504 GeForce GTX 970M, 4700MQ	21.9 (18^min) fps -46%

Assassin's Creed Syndicate
1920x1080 Ultra High Preset AA:4x MSAA + FX (sort by value)
Asus GX700 GeForce GTX 980 (Laptop), 6820HK	32.3 fps
Desktop PC GeForce GTX 980, 6700K	33.5 (27^min) fps +4%
SCHENKER XMG U716 GeForce GTX 980 (Laptop), 6700	32.3 fps 0%
Schenker W504 GeForce GTX 980M, 4700MQ	24.2 (19^min) fps -25%
Schenker W504 GeForce GTX 970M, 4700MQ	18.9 (15^min) fps -41%
3840x2160 High Preset AA:FX (sort by value)
Asus GX700 GeForce GTX 980 (Laptop), 6820HK	28.6 fps
Desktop PC GeForce GTX 980, 6700K	27.6 (26^min) fps -3%
SCHENKER XMG U716 GeForce GTX 980 (Laptop), 6700	28.2 fps -1%
Schenker W504 GeForce GTX 980M, 4700MQ	20.7 (18^min) fps -28%
Schenker W504 GeForce GTX 970M, 4700MQ	16.2 (14^min) fps -43%

Fallout 4
1920x1080 Ultra Preset AA:T AF:16x (sort by value)
Asus GX700 GeForce GTX 980 (Laptop), 6820HK	80.8 fps
SCHENKER XMG U716 GeForce GTX 980 (Laptop), 6700	78 fps -3%
Schenker W504 GeForce GTX 980M, 4700MQ	55 (42^min) fps -32%
Schenker W504 GeForce GTX 970M, 4700MQ	43.4 (33^min) fps -46%
3840x2160 High Preset AA:T AF:16x (sort by value)
Asus GX700 GeForce GTX 980 (Laptop), 6820HK	34.4 fps
SCHENKER XMG U716 GeForce GTX 980 (Laptop), 6700	33.7 fps -2%
Schenker W504 GeForce GTX 980M, 4700MQ	24 (18^min) fps -30%
Schenker W504 GeForce GTX 970M, 4700MQ	18 (9^min) fps -48%

Call of Duty: Black Ops 3
1920x1080 Extra / On AA:T2x SM (sort by value)
Asus GX700 GeForce GTX 980 (Laptop), 6820HK	92.7 fps
SCHENKER XMG U716 GeForce GTX 980 (Laptop), 6700	88.3 fps -5%
Schenker W504 GeForce GTX 980M, 4700MQ	66.7 (52^min) fps -28%
Schenker W504 GeForce GTX 970M, 4700MQ	53 (43^min) fps -43%
3840x2160 High / On AA:FX (sort by value)
Asus GX700 GeForce GTX 980 (Laptop), 6820HK	35.7 fps
SCHENKER XMG U716 GeForce GTX 980 (Laptop), 6700	34.2 fps -4%
Schenker W504 GeForce GTX 980M, 4700MQ	24.8 (10^min) fps -31%
Schenker W504 GeForce GTX 970M, 4700MQ	19.2 (9^min) fps -46%

Anno 2205
1920x1080 Ultra High Preset AA:8x (sort by value)
Asus GX700 GeForce GTX 980 (Laptop), 6820HK	34.2 fps
SCHENKER XMG U716 GeForce GTX 980 (Laptop), 6700	30.7 fps -10%
Schenker W504 GeForce GTX 980M, 4700MQ	22.7 (19^min) fps -34%
Schenker W504 GeForce GTX 970M, 4700MQ	16.8 (14^min) fps -51%
3840x2160 High Preset AA:4x (sort by value)
Asus GX700 GeForce GTX 980 (Laptop), 6820HK	41 fps
SCHENKER XMG U716 GeForce GTX 980 (Laptop), 6700	34.1 fps -17%
Schenker W504 GeForce GTX 980M, 4700MQ	23.8 (20^min) fps -42%
Schenker W504 GeForce GTX 970M, 4700MQ	18.6 (17^min) fps -55%

Noise Level

Idle		33 / 35 / 42 dB(A)
Load		46 / 48 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Audix TM1 (15 cm distance)

	Asus GX700 GeForce GTX 980 (Laptop), 6820HK	MSI GT72S 6QF GeForce GTX 980 (Laptop), 6820HK	SCHENKER XMG U726 GeForce GTX 980 (Laptop), 6700	SCHENKER XMG U716 GeForce GTX 980 (Laptop), 6700	SCHENKER XMG U706 GeForce GTX 980M, 6700K	SCHENKER XMG P706 GeForce GTX 980M, 6820HK	Asus G752VT GeForce GTX 970M, 6700HQ
Noise		5%	7%	2%	14%	11%	11%
Idle Minimum *	33	33.1 -0%	33 -0%	33 -0%	29 12%	30.9 6%	32.9 -0%
Idle Average *	35	33.3 5%	34 3%	35 -0%	30.8 12%	31.2 11%	33 6%
Idle Maximum *	42	37 12%	35 17%	38 10%	30.8 27%	31.2 26%	33.1 21%
Load Average *	46	39 15%	42 9%	45 2%	42.1 8%	40.5 12%	36.2 21%
Load Maximum *	48	52.2 -9%	46 4%	48 -0%	43.5 9%	47 2%	45.8 5%

* ... smaller is better

Max. Load

Idle


47.2 °C	48.7 °C	43.4 °C
45.5 °C	46.1 °C	41.9 °C
40.2 °C	39.9 °C	30.6 °C

Maximum: 48.7 °C
Average: 42.6 °C


°C	°C	°C
°C	°C	°C
°C	°C	°C

Maximum: 0 °C
Average: 0 °C

Power Supply (max.) 47.5 °C | Room Temperature 24 °C | Voltcraft IR-900

(-) The average temperature for the upper side under maximal load is 42.6 °C / 109 F, compared to the average of 33.8 °C / 93 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 48.7 °C / 120 F, compared to the average of 40.4 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(+) The bottom heats up to a maximum of 0 °C / 32 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 30.4 °C / 87 F, compared to the device average of 33.8 °C / 93 F.
(-) The palmrests and touchpad can get very hot to the touch with a maximum of 40.2 °C / 104.4 F.
(-) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-11.3 °C / -20.4 F).

	Asus GX700 GeForce GTX 980 (Laptop), 6820HK	MSI GT72S 6QF GeForce GTX 980 (Laptop), 6820HK	SCHENKER XMG U726 GeForce GTX 980 (Laptop), 6700	SCHENKER XMG U716 GeForce GTX 980 (Laptop), 6700	SCHENKER XMG U706 GeForce GTX 980M, 6700K	SCHENKER XMG P706 GeForce GTX 980M, 6820HK	Asus G752VT GeForce GTX 970M, 6700HQ
Heat		16%	-5%	-8%	-2%	6%	12%
Maximum Upper Side *	48.7	39.8 18%	46.9 4%	48.8 -0%	45.6 6%	44 10%	37.6 23%
Idle Upper Side *	32	27.8 13%	36.3 -13%	36.7 -15%	34.9 -9%	31.7 1%	31.6 1%
Maximum Bottom *		49	61	55.8	52.4	42.3	38
Idle Bottom *		26	40.8	37.3	36.3	29.9	30.6

* ... smaller is better

Power Consumption

Off / Standby	0.6 / 2.4 Watt
Idle	40 / 45 / 51 Watt
Load	149 / 313 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Asus GX700 GeForce GTX 980 (Laptop), 6820HK	SCHENKER XMG U726 GeForce GTX 980 (Laptop), 6700	SCHENKER XMG U716 GeForce GTX 980 (Laptop), 6700	SCHENKER XMG U706 GeForce GTX 980M, 6700K	SCHENKER XMG P706 GeForce GTX 980M, 6820HK
Power Consumption		3%	6%	31%	52%
Idle Minimum *	40	36 10%	35 12%	22 45%	12 70%
Idle Average *	45	45 -0%	44 2%	28.9 36%	17.9 60%
Idle Maximum *	51	53 -4%	51 -0%	29.8 42%	19.3 62%
Load Average *	149	139 7%	134 10%	126.8 15%	97.7 34%
Load Maximum *	313	306 2%	298 5%	261.6 16%	213 32%

* ... smaller is better

Battery Runtime

Idle (without WLAN, min brightness)		3h 21min
Big Buck Bunny H.264 1080p		2h 16min
Load (maximum brightness)		1h 28min

	Asus GX700 GeForce GTX 980 (Laptop), 6820HK	MSI GT72S 6QF GeForce GTX 980 (Laptop), 6820HK	SCHENKER XMG U726 GeForce GTX 980 (Laptop), 6700	SCHENKER XMG U716 GeForce GTX 980 (Laptop), 6700	SCHENKER XMG U706 GeForce GTX 980M, 6700K	SCHENKER XMG P706 GeForce GTX 980M, 6820HK	Asus G752VT GeForce GTX 970M, 6700HQ
Battery Runtime		47%	-4%	-11%	6%	40%	-2%
Reader / Idle	201	387 93%	170 -15%	158 -21%	245 22%	297 48%	230 14%
H.264	136				161 18%	220 62%
Load	88	89 1%	94 7%	88 0%	69 -22%	97 10%	72 -18%

Pros

+ 台式机级别性能

+ GTX 980可以完全利用加速性能

+ 高对比度IPS屏幕

+ USB 3.1和Thunderbolt接口

+ 处理器超频

+ 最大64GB DDR4内存

+ 硬件温度低

+ 有趣的工具软件

+ 大尺寸触控版

+ 美观的设计

+ 优秀的音效

+ 可定义按键

+ 固态硬盘RAID

Cons

- 我们的样机机身有工艺品质问题

- 无线网络接收范围较短

- 搭配水冷设备整机重量超高

- 不理想的接口布局

- 机身底盖容易划伤

- 软绵绵的键盘

- 功耗超高

- 水冷设备噪音

- 维护升级操作复杂

- 处理器和显卡均为板载

- 电池续航短

- 非常昂贵

In review: Asus GX700. Test model courtesy of Asus Germany.

在所有测试之后，GX700给了我们留下了非常复杂的感觉。使用水冷系统的想法听起来不错，不过我们几乎无法找到它相比传统风冷笔记本电脑的优势所在。确实这台笔记本电脑相比其它高端系统更轻更薄，但是它只有在连接水冷系统时才能发挥全部性能。加上外置冷却系统之后，GX700既不能算是紧凑，也不能说安静。

硬件的低温和较高的时钟频率无法完全弥补水冷系统的缺点（超高重量，低频噪音，占用空间大，漏水伤害风险）。我们认为，华硕应该让机身稍厚，采用和Clevo一些准系统（(P775DM1, P870DM等）相似的台式处理器。后者应该会对更换处理器有所帮助。Clevo的准系统提供了更方便的更新升级可能性。来自微星的GT72S 6QF同样在很多方面给我们留下了更好的印象（音效，接口布局，电池续航，机身温度，噪音控制）。
