华硕 GL752VW 笔记本电脑简短评测

依然没有IPS屏幕。 最新ROG设备的屏幕规格在网上有一些混乱。许多潜在消费者期待的是IPS屏幕,不过实际上它只有TN屏幕的型号。我们的评测将会考量这是否会对这台本应适合多媒体以及游戏的笔记本电脑造成影响。
Gaming Geforce Laptop / Notebook Skylake Windows
Asus GL752VW-T4168T (GL752 Series)

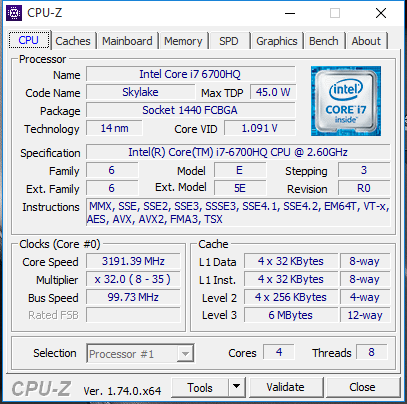

Processor
Intel Core i7-6700HQ 4 x 2.6 - 3.5 GHz, Skylake

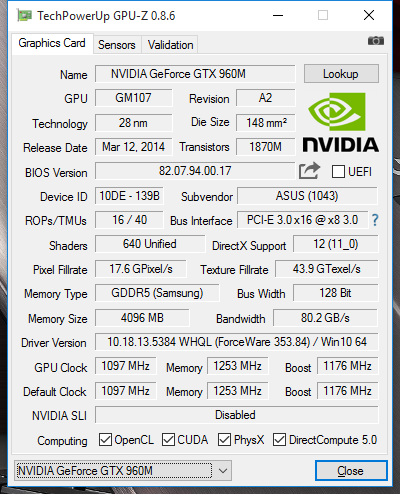

Graphics adapter
NVIDIA GeForce GTX 960M - 4 GB VRAM, Core: 1097 MHz, Memory: 5000 MHz, GDDR5, ForceWare 353.84, Nvidia Optimus

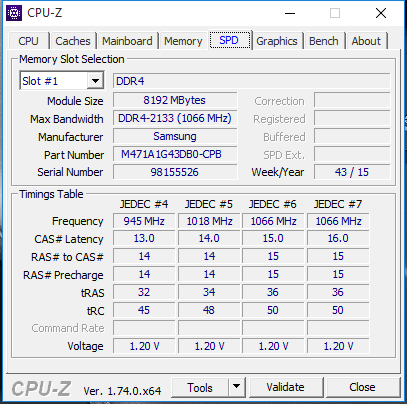

Memory
8 GB

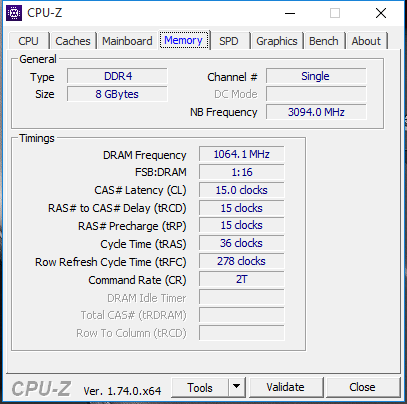

, DDR4, 2133 MHz, 单通道,四个内存槽一个已占用
Display
17.30 inch 16:9, 1920 x 1080 pixel, Chi Mei N173HGE-E11 / CMN1735, TN LED, glossy: no

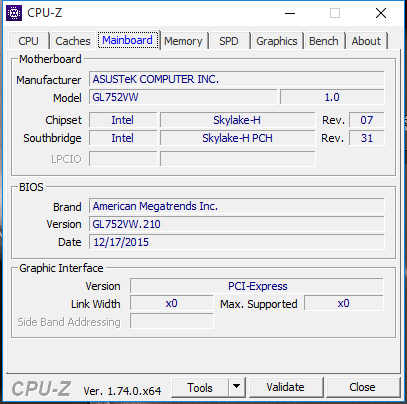

Mainboard
Intel HM170 (Skylake PCH-H)
Storage
Micron M600 MTFDDAV256MBF mSATA, 256 GB
, + 1 x Seagate ST2000LM003 HN-M201RAD 2 TB
Soundcard
Intel Skylake PCH-H High Definition Audio Controller
Connections
2 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5毫米立体声音频输入输出接口, Card Reader: SD/SDHC/SDXC, Brightness Sensor
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1
Optical drive

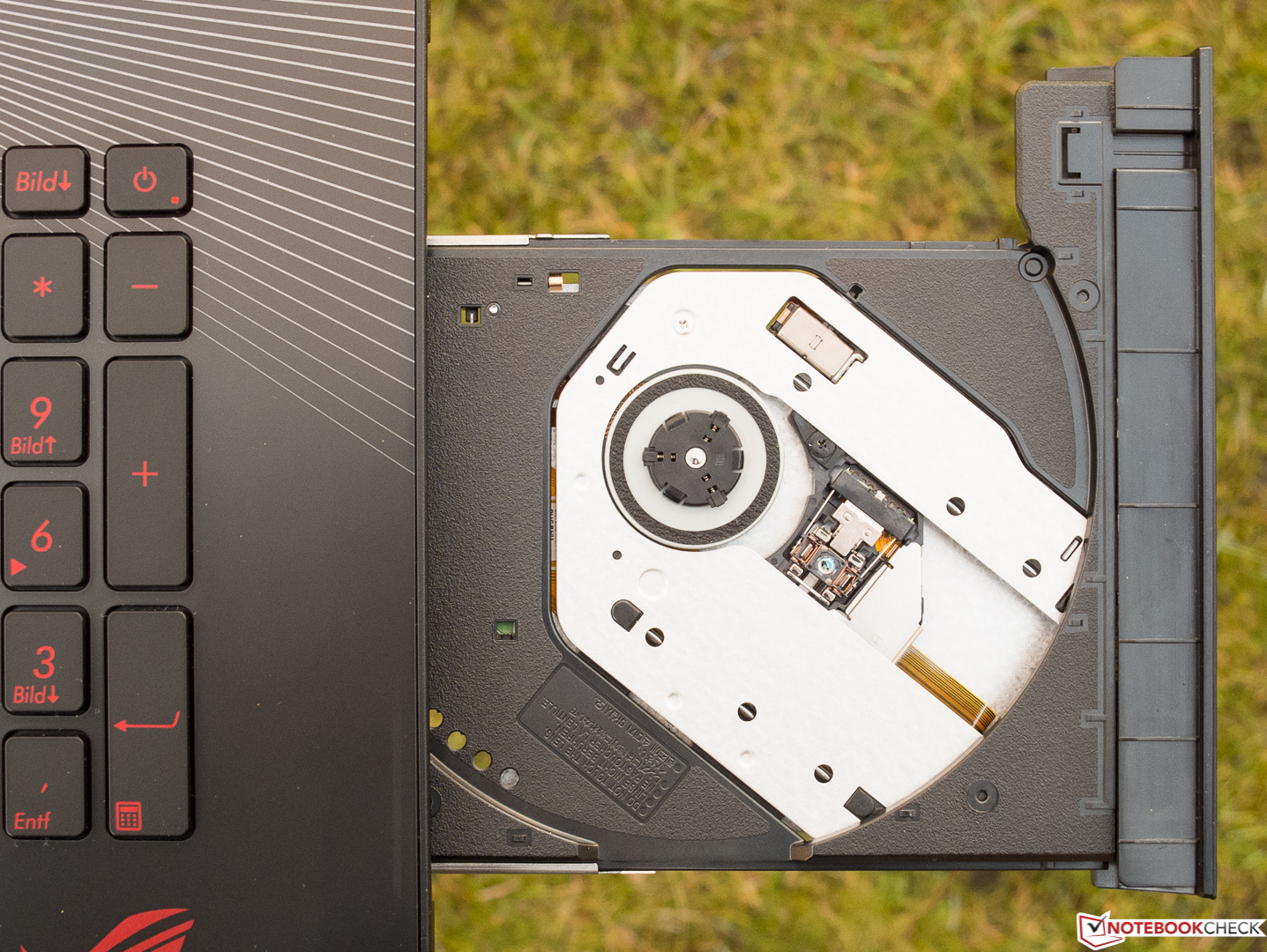

TSSTcorp CDDVDW SU-228CB
Size
height x width x depth (in mm): 32 x 415 x 270
Battery
48 Wh, 3200 mAh Lithium-Ion, 4 芯
Operating System
Microsoft Windows 10 Home 64 Bit

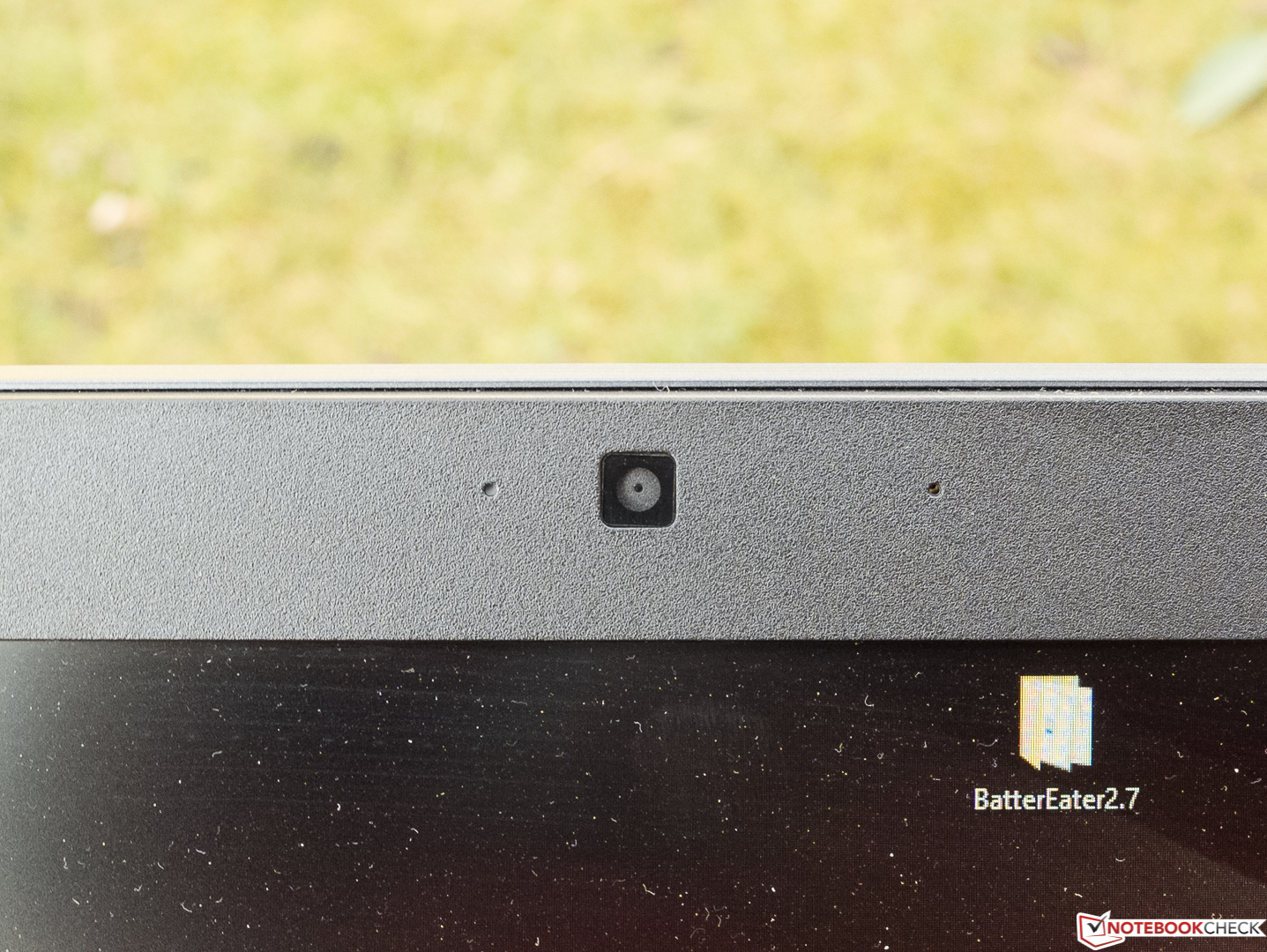

Camera
Webcam: 高清
Additional features

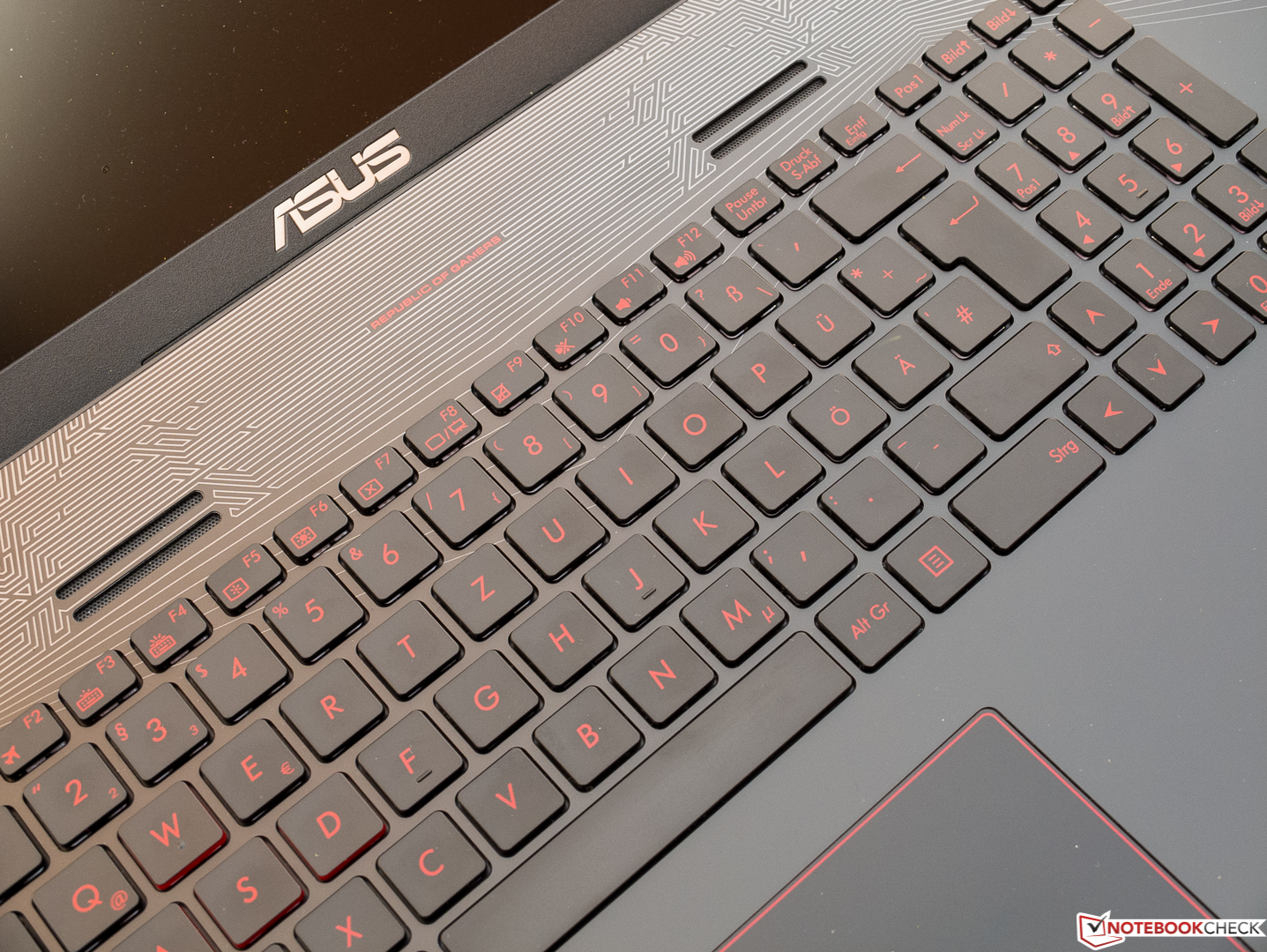

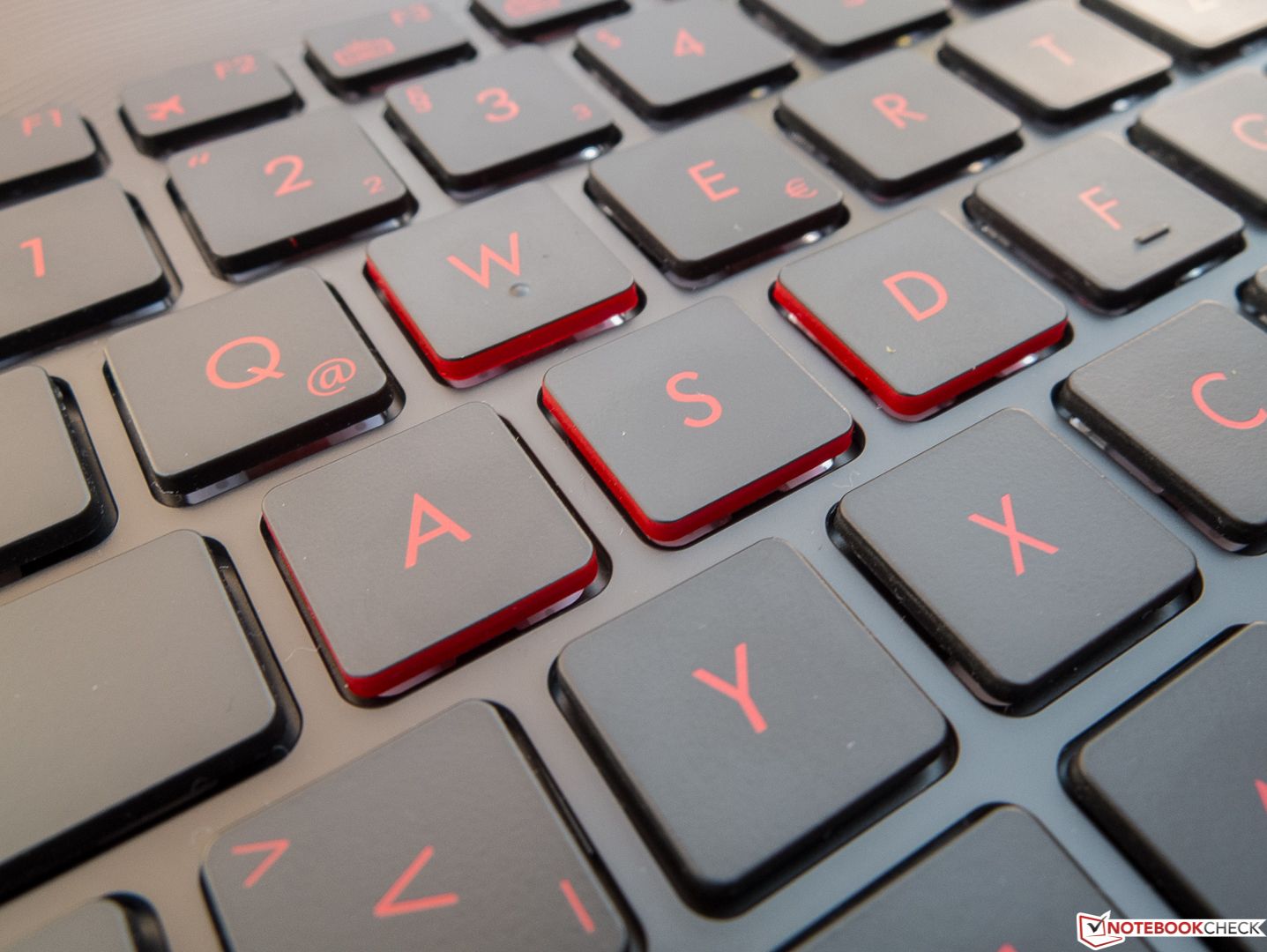

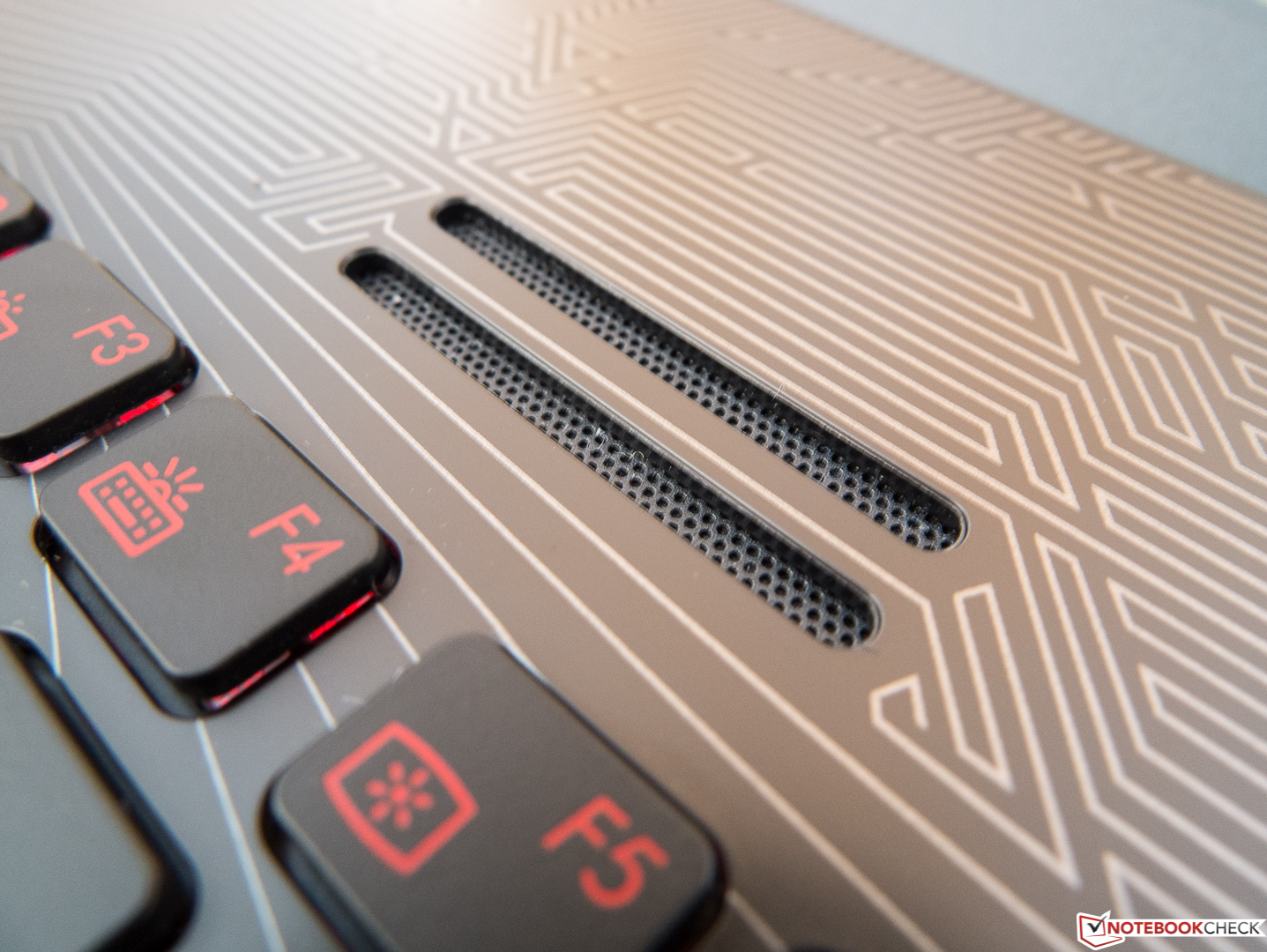

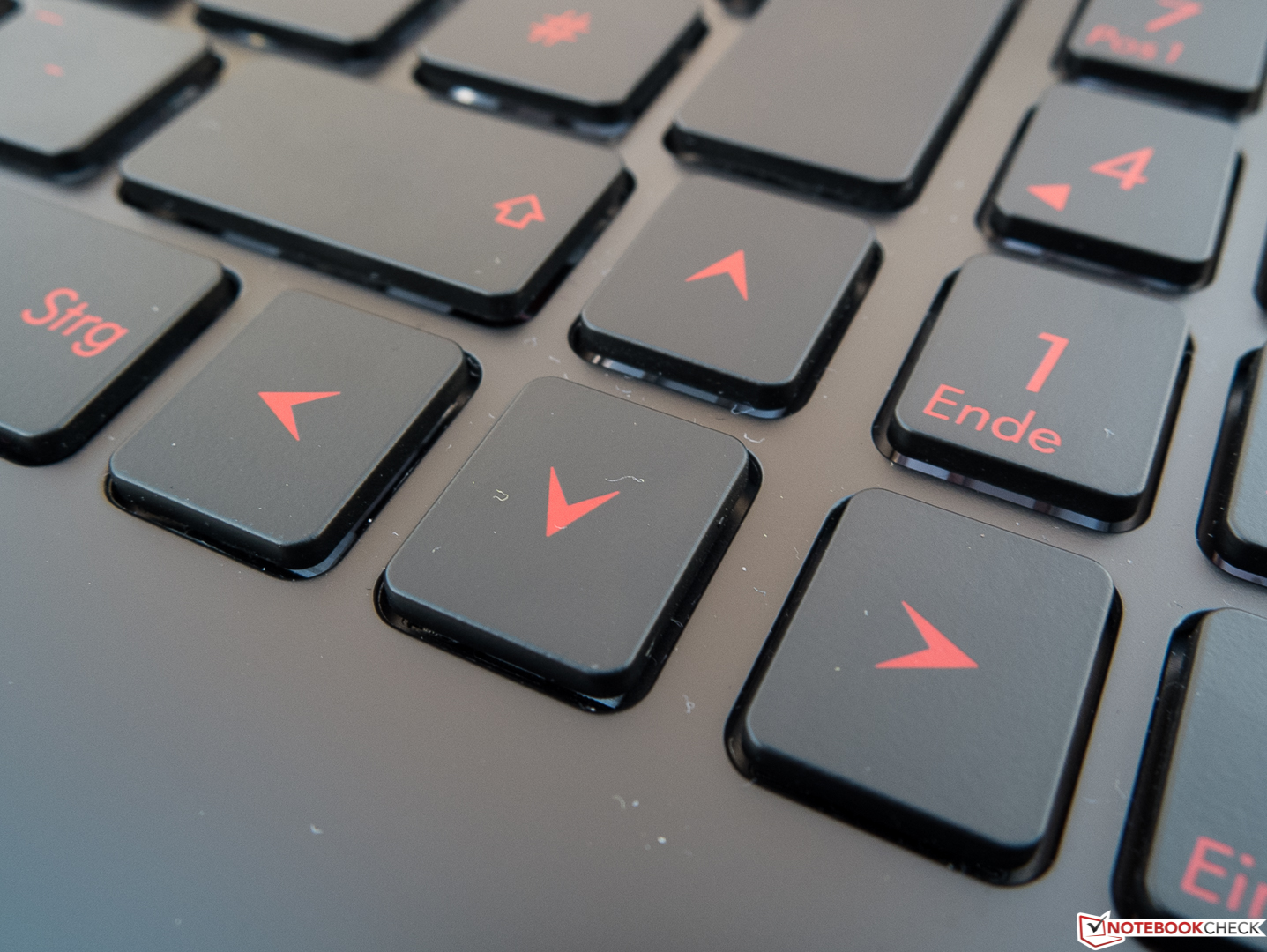

Speakers: 立体声+低音炮, Keyboard: Chiclet, Keyboard Light: yes, 清洁布,绑线扣, 24 Months Warranty
Weight
3 kg, Power Supply: 359 g
Price
1399 €
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Asus GL752VW
Asus GL752VW
Asus GL752VW
Asus GL752VW
Asus GL752VW
Asus GL752VW
Asus GL752VW
Asus GL752VW
Asus GL752VW
Asus GL752VW
Asus GL752VW
Asus GL752VW
Asus GL752VW
Asus GL752VW
Asus GL752VW
253
cd/m²
266
cd/m²
280
cd/m²
243
cd/m²
289
cd/m²
246
cd/m²
269
cd/m²
296
cd/m²
267
cd/m²
Distribution of brightness
Chi Mei N173HGE-E11 / CMN1735 tested with X-Rite i1Pro 2
Maximum: 296 cd/m² (Nits) Average: 267.7 cd/m² Minimum: 16 cd/m²
Brightness Distribution: 82 %
Center on Battery: 289 cd/m²
Contrast: 1156:1 (Black: 0.25 cd/m²)
ΔE Color 6.49 | 0.5-29.43 Ø5
ΔE Greyscale 7.8 | 0.57-98 Ø5.3
95% sRGB (Argyll 1.6.3 3D)
60% AdobeRGB 1998 (Argyll 1.6.3 3D)
65.7% AdobeRGB 1998 (Argyll 2.2.0 3D)
95.3% sRGB (Argyll 2.2.0 3D)
64.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.6

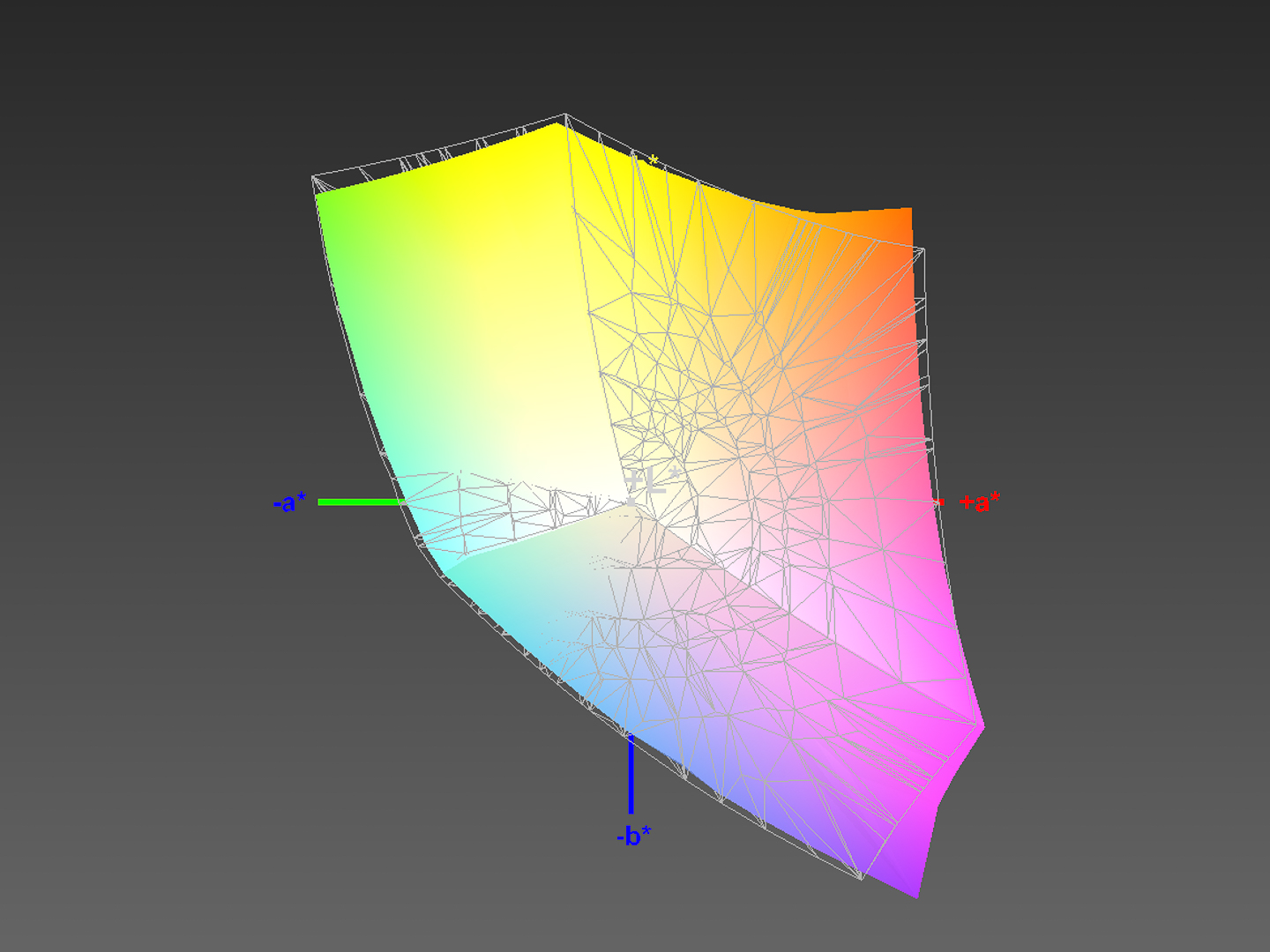

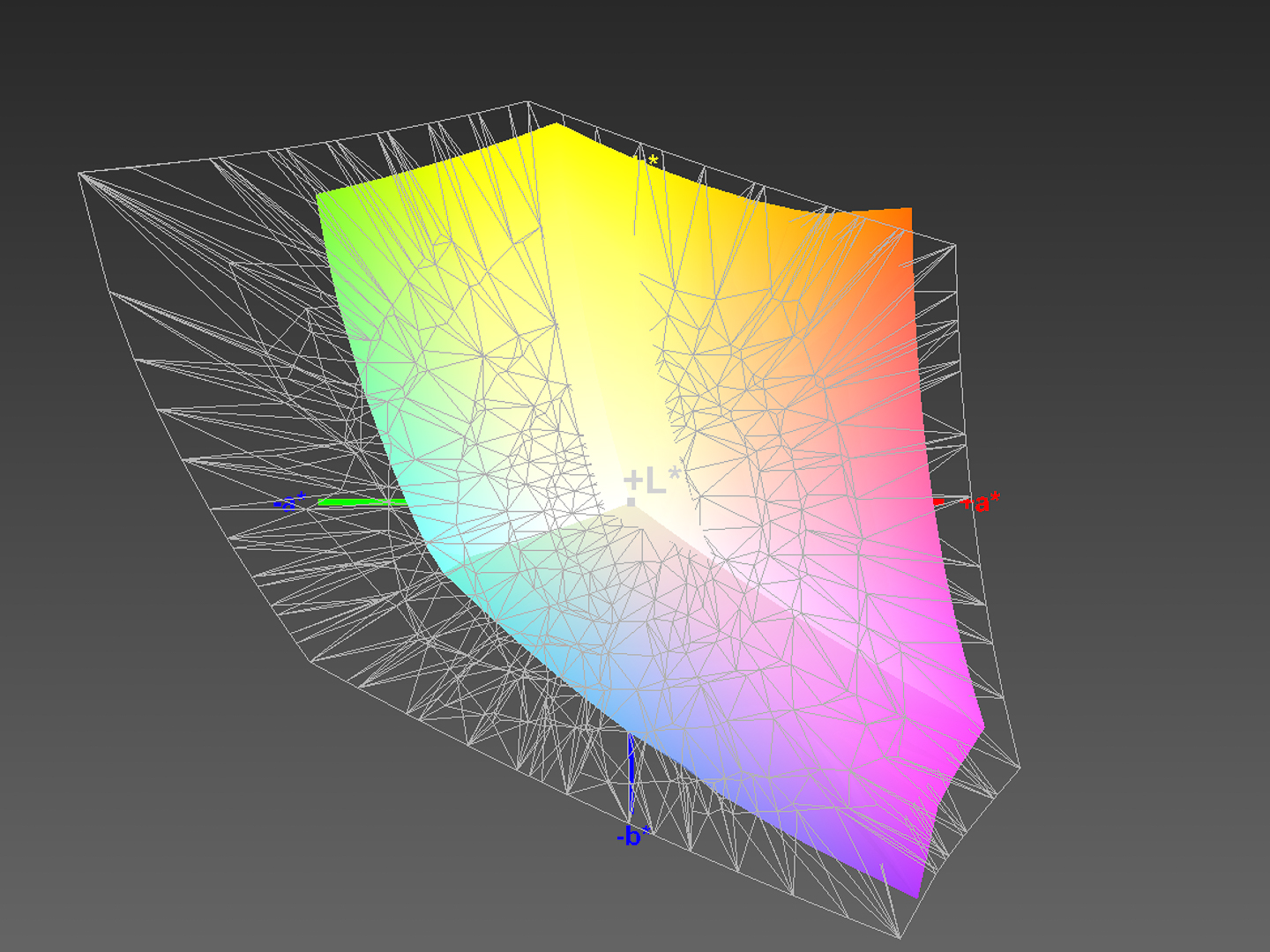

Asus GL752VW-T4168T vs. AdobeRGB
Asus GL752VW-T4168T vs. AdobeRGB
Asus GL752VW-T4168T vs. sRGB
Asus GL752VW-T4168T vs. sRGB

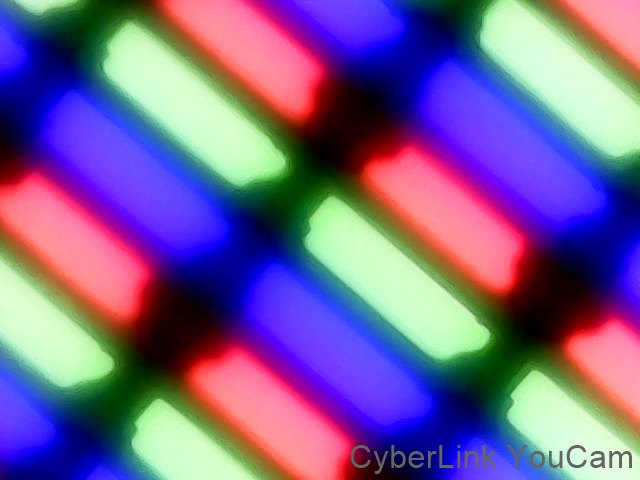

Subpixel arrangement
Subpixel arrangement
Asus GL752VW-T4168TAcer Aspire V Nitro Black Edition VN7-792G-74Q4HP Envy 17-n107ngMSI PE70-2QEi581Lenovo Ideapad Y700 17ISK 80Q0
Display
0%
2%
-5%
-4%
Display P3 Coverage
64.9
67
3%
65.7
1%
66.6
3%
67.4
4%
sRGB Coverage
95.3
91.3
-4%
97.2
2%
84.6
-11%
84.8
-11%
AdobeRGB 1998 Coverage
65.7
66.7
2%
67.6
3%
61.9
-6%
62
-6%
Response Times
-30%
-46%
-37%
Response Time Grey 50% / Grey 80% *
44 ?(22, 22)
58 ?(30, 28)
-32%
49 ?(16, 33)
-11%
51.6 ?(20, 31.6)
-17%
Response Time Black / White *
22 ?(7, 15)
28 ?(7, 21)
-27%
32 ?(9, 23)
-45%
34.4 ?(5.2, 29.2)
-56%
PWM Frequency
1020 ?(90)
198 ?(50)
-81%
Screen
15%
-32%
-9%
13%
Brightness middle
289
346
20%
341
18%
305
6%
349.7
21%
Brightness
268
326
22%
325
21%
265
-1%
332
24%
Brightness Distribution
82
88
7%
91
11%
79
-4%
90
10%
Black Level *
0.25
0.32
-28%
1.05
-320%
0.5
-100%
0.304
-22%
Contrast
1156
1081
-6%
325
-72%
610
-47%
1150
-1%
Colorchecker dE 2000 *
6.49
4.01
38%
4.6
29%
4.83
26%
3.99
39%
Colorchecker dE 2000 max. *
11.45
8.74
24%
Greyscale dE 2000 *
7.8
3.58
54%
6.08
22%
3.29
58%
3.34
57%
Gamma
2.6 85%
2.23 99%
2.43 91%
2.39 92%
2.23 99%
CCT
8187 79%
6426 101%
7627 85%
7080 92%
6111 106%
Color Space (Percent of AdobeRGB 1998)
60
62
3%
56
-7%
55.8
-7%
Color Space (Percent of sRGB)
95
97
2%
84
-12%
84.8
-11%
Total Average (Program / Settings)
-5% / 4%
-25% / -28%
-7% / -8%
-9% / 3%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

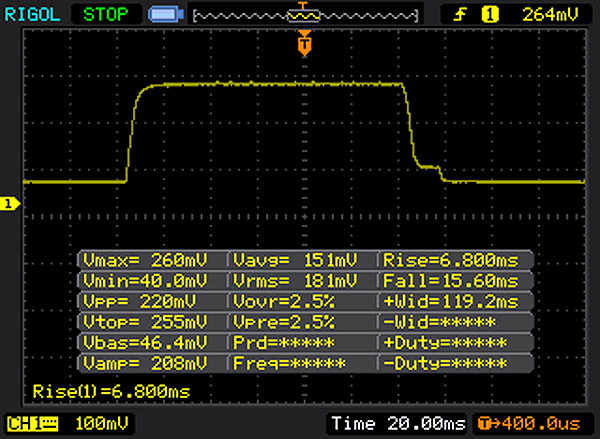

       Response Time Black to White
22 ms ... rise ↗ and fall ↘ combined↗ 7 ms rise
↘ 15 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 42 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (21.6 ms).

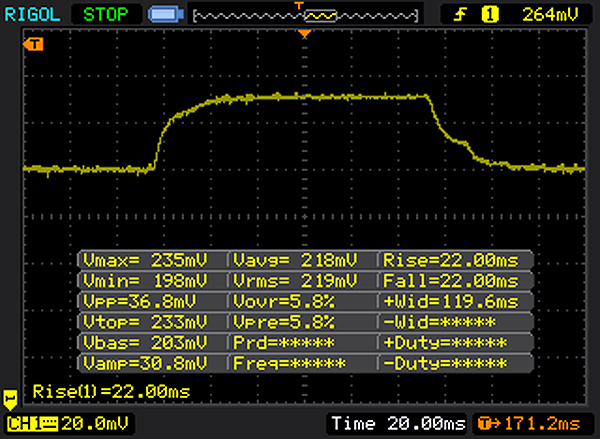

       Response Time 50% Grey to 80% Grey
44 ms ... rise ↗ and fall ↘ combined↗ 22 ms rise
↘ 22 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 69 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (33.9 ms).

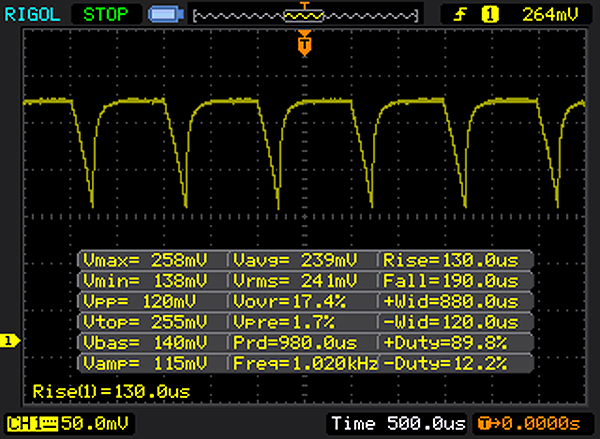

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 1020 Hz ≤ 90 % brightness setting

The display backlight flickers at 1020 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 1020 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18071 (minimum: 5 - maximum: 3846000) Hz was measured.


Cinebench R15
CPU Multi 64Bit (sort by value)
Asus GL752VW-T4168T
Intel Core i7-6700HQ
676 Points
Acer Aspire V Nitro Black Edition VN7-792G-74Q4
Intel Core i7-6700HQ
679 Points 0%
HP Envy 17-n107ng
Intel Core i7-6700HQ
667 Points -1%
MSI PE70-2QEi581
Intel Core i5-4210H
330 Points -51%
Lenovo Ideapad Y700 17ISK 80Q0
Intel Core i7-6700HQ
679 Points 0%
CPU Single 64Bit (sort by value)
Asus GL752VW-T4168T
Intel Core i7-6700HQ
145 Points
Acer Aspire V Nitro Black Edition VN7-792G-74Q4
Intel Core i7-6700HQ
139 Points -4%
HP Envy 17-n107ng
Intel Core i7-6700HQ
132 Points -9%
MSI PE70-2QEi581
Intel Core i5-4210H
127 Points -12%
Lenovo Ideapad Y700 17ISK 80Q0
Intel Core i7-6700HQ
128 Points -12%
Cinebench R11.5
CPU Multi 64Bit (sort by value)
Asus GL752VW-T4168T
Intel Core i7-6700HQ
7.45 Points
Acer Aspire V Nitro Black Edition VN7-792G-74Q4
Intel Core i7-6700HQ
7.43 Points 0%
HP Envy 17-n107ng
Intel Core i7-6700HQ
7.37 Points -1%
MSI PE70-2QEi581
Intel Core i5-4210H
3.65 Points -51%
Lenovo Ideapad Y700 17ISK 80Q0
Intel Core i7-6700HQ
7.44 Points 0%
CPU Single 64Bit (sort by value)
Asus GL752VW-T4168T
Intel Core i7-6700HQ
1.67 Points
Acer Aspire V Nitro Black Edition VN7-792G-74Q4
Intel Core i7-6700HQ
1.63 Points -2%
HP Envy 17-n107ng
Intel Core i7-6700HQ
1.45 Points -13%
MSI PE70-2QEi581
Intel Core i5-4210H
1.48 Points -11%
Lenovo Ideapad Y700 17ISK 80Q0
Intel Core i7-6700HQ
1.2 Points -28%
Cinebench R10
Rendering Multiple CPUs 32Bit (sort by value)
Asus GL752VW-T4168T
Intel Core i7-6700HQ
19685 Points
Acer Aspire V Nitro Black Edition VN7-792G-74Q4
Intel Core i7-6700HQ
18994 Points -4%
HP Envy 17-n107ng
Intel Core i7-6700HQ
20190 Points +3%
MSI PE70-2QEi581
Intel Core i5-4210H
11036 Points -44%
Lenovo Ideapad Y700 17ISK 80Q0
Intel Core i7-6700HQ
20213 Points +3%
Rendering Single 32Bit (sort by value)
Asus GL752VW-T4168T
Intel Core i7-6700HQ
5242 Points
Acer Aspire V Nitro Black Edition VN7-792G-74Q4
Intel Core i7-6700HQ
4919 Points -6%
HP Envy 17-n107ng
Intel Core i7-6700HQ
5383 Points +3%
MSI PE70-2QEi581
Intel Core i5-4210H
5019 Points -4%
Lenovo Ideapad Y700 17ISK 80Q0
Intel Core i7-6700HQ
4104 Points -22%
Cinebench R10 Rendering Single 32Bit
5242
Cinebench R10 Rendering Multiple CPUs 32Bit
19685
Cinebench R11.5 CPU Single 64Bit
1.67 Points
Cinebench R11.5 CPU Multi 64Bit
7.45 Points
Cinebench R15 CPU Single 64Bit
145 Points
Cinebench R15 CPU Multi 64Bit
676 Points
Help
PCMark 7
Score (sort by value)
Asus GL752VW-T4168T
GeForce GTX 960M, 6700HQ, Micron M600 MTFDDAV256MBF mSATA
5544 Points
Acer Aspire V Nitro Black Edition VN7-792G-74Q4
GeForce GTX 960M, 6700HQ, Toshiba MQ02ABD100H
4671 Points -16%
HP Envy 17-n107ng
GeForce GTX 950M, 6700HQ, Samsung SSD PM851 MZNTE512HMJH
5880 Points +6%
MSI PE70-2QEi581
GeForce GTX 960M, 4210H, Toshiba HG5d THNSNH256GMCT
3126 Points -44%
Lenovo Ideapad Y700 17ISK 80Q0
GeForce GTX 960M, 6700HQ, Samsung MZNLN128HCGR-000L2
5954 Points +7%
Productivity (sort by value)
Asus GL752VW-T4168T
GeForce GTX 960M, 6700HQ, Micron M600 MTFDDAV256MBF mSATA
4860 Points
Acer Aspire V Nitro Black Edition VN7-792G-74Q4
GeForce GTX 960M, 6700HQ, Toshiba MQ02ABD100H
3663 Points -25%
HP Envy 17-n107ng
GeForce GTX 950M, 6700HQ, Samsung SSD PM851 MZNTE512HMJH
4893 Points +1%
Lenovo Ideapad Y700 17ISK 80Q0
GeForce GTX 960M, 6700HQ, Samsung MZNLN128HCGR-000L2
5124 Points +5%
PCMark 8
Home Score Accelerated v2 (sort by value)
Asus GL752VW-T4168T
GeForce GTX 960M, 6700HQ, Micron M600 MTFDDAV256MBF mSATA
3434 Points
Acer Aspire V Nitro Black Edition VN7-792G-74Q4
GeForce GTX 960M, 6700HQ, Toshiba MQ02ABD100H
3751 Points +9%
HP Envy 17-n107ng
GeForce GTX 950M, 6700HQ, Samsung SSD PM851 MZNTE512HMJH
3634 Points +6%
MSI PE70-2QEi581
GeForce GTX 960M, 4210H, Toshiba HG5d THNSNH256GMCT
3194 Points -7%
Lenovo Ideapad Y700 17ISK 80Q0
GeForce GTX 960M, 6700HQ, Samsung MZNLN128HCGR-000L2
3848 Points +12%
Work Score Accelerated v2 (sort by value)
Asus GL752VW-T4168T
GeForce GTX 960M, 6700HQ, Micron M600 MTFDDAV256MBF mSATA
4648 Points
Acer Aspire V Nitro Black Edition VN7-792G-74Q4
GeForce GTX 960M, 6700HQ, Toshiba MQ02ABD100H
4660 Points 0%
HP Envy 17-n107ng
GeForce GTX 950M, 6700HQ, Samsung SSD PM851 MZNTE512HMJH
4887 Points +5%
MSI PE70-2QEi581
GeForce GTX 960M, 4210H, Toshiba HG5d THNSNH256GMCT
4407 Points -5%
Lenovo Ideapad Y700 17ISK 80Q0
GeForce GTX 960M, 6700HQ, Samsung MZNLN128HCGR-000L2
5044 Points +9%
PCMark 7 Score
5544 points
PCMark 8 Home Score Accelerated v2
3434 points
PCMark 8 Creative Score Accelerated v2
4349 points
PCMark 8 Work Score Accelerated v2
4648 points
Help
Micron M600 MTFDDAV256MBF mSATA
Sequential Read: 489.7 MB/s
Sequential Write: 448 MB/s
512K Read: 434.7 MB/s
512K Write: 434.7 MB/s
4K Read: 27.76 MB/s
4K Write: 79.4 MB/s
4K QD32 Read: 363.2 MB/s
4K QD32 Write: 301 MB/s
3DMark 11 - 1280x720 Performance GPU (sort by value)
Asus GL752VW-T4168T
GeForce GTX 960M
5114 Points
Acer Aspire V Nitro Black Edition VN7-792G-74Q4
GeForce GTX 960M
5400 Points +6%
HP Envy 17-n107ng
GeForce GTX 950M
4444 Points -13%
MSI PE70-2QEi581
GeForce GTX 960M
5249 Points +3%
Lenovo Ideapad Y700 17ISK 80Q0
GeForce GTX 960M
5237 Points +2%
3DMark
1920x1080 Fire Strike Graphics (sort by value)
Asus GL752VW-T4168T
GeForce GTX 960M
4211 Points
Acer Aspire V Nitro Black Edition VN7-792G-74Q4
GeForce GTX 960M
4380 Points +4%
HP Envy 17-n107ng
GeForce GTX 950M
3093 Points -27%
Lenovo Ideapad Y700 17ISK 80Q0
GeForce GTX 960M
4318 Points +3%
1280x720 Cloud Gate Standard Graphics (sort by value)
Asus GL752VW-T4168T
GeForce GTX 960M
29343 Points
Acer Aspire V Nitro Black Edition VN7-792G-74Q4
GeForce GTX 960M
30899 Points +5%
HP Envy 17-n107ng
GeForce GTX 950M
20707 Points -29%
Lenovo Ideapad Y700 17ISK 80Q0
GeForce GTX 960M
30055 Points +2%
3DMark 11 Performance
5327 points
3DMark Cloud Gate Standard Score
16847 points
3DMark Fire Strike Score
3913 points
Help
low med. high ultra
Rainbow Six Siege (2015) 105 55.5 45.6
Just Cause 3 (2015) 63.5 33.8 28.9

Noise Level

Idle
32 / 32 / 32 dB(A)
HDD
32.9 dB(A)
DVD
36.2 / dB(A)
Load
43.8 / 44 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Audix TM1 Arta (15 cm distance)   environment noise: 30.5 dB(A)
Max. Load
 34.6 °C38.1 °C25 °C
 35.1 °C41.5 °C27.2 °C
 30.6 °C44.1 °C27 °C
Maximum: 44.1 °C
Average: 33.7 °C
22.4 °C31 °C42.1 °C
23.2 °C44.8 °C42.1 °C
24.1 °C27.1 °C25.2 °C
Maximum: 44.8 °C
Average: 31.3 °C
Power Supply (max.)  38 °C | Room Temperature 21 °C | FIRT 550-Pocket
(±) The average temperature for the upper side under maximal load is 33.7 °C / 93 F, compared to the average of 31.2 °C / 88 F for the devices in the class Multimedia.
(±) The maximum temperature on the upper side is 44.1 °C / 111 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(±) The bottom heats up to a maximum of 44.8 °C / 113 F, compared to the average of 39.1 °C / 102 F
(+) In idle usage, the average temperature for the upper side is 26.8 °C / 80 F, compared to the device average of 31.2 °C / 88 F.
(-) The palmrests and touchpad can get very hot to the touch with a maximum of 44.1 °C / 111.4 F.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-15.3 °C / -27.6 F).
Asus GL752VW-T4168T
GeForce GTX 960M, 6700HQ, Micron M600 MTFDDAV256MBF mSATA
Acer Aspire V Nitro Black Edition VN7-792G-74Q4
GeForce GTX 960M, 6700HQ, Toshiba MQ02ABD100H
HP Envy 17-n107ng
GeForce GTX 950M, 6700HQ, Samsung SSD PM851 MZNTE512HMJH
MSI PE70-2QEi581
GeForce GTX 960M, 4210H, Toshiba HG5d THNSNH256GMCT
Power Consumption
21%
35%
-29%
Idle Minimum *
14.5
5.8
60%
5.5
62%
19.1
-32%
Idle Average *
19.3
9
53%
10.8
44%
24.3
-26%
Idle Maximum *
19.5
14.7
25%
11
44%
29.2
-50%
Load Average *
78
85
-9%
72
8%
88.6
-14%
Load Maximum *
100
121.5
-22%
85
15%
122
-22%

* ... smaller is better

Power Consumption
Off / Standbydarklight 2.8 / 3.9 Watt
Idledarkmidlight 14.5 / 19.3 / 19.5 Watt
Load midlight 78 / 100 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Battery Runtime
Idle (without WLAN, min brightness)
5h 05min
WiFi Websurfing
3h 02min
Load (maximum brightness)
1h 04min

Pros

+ 许多不同的配置型号
+ 坚固高品质的机身
+ USB C型接口,DisplayPort接口
+ 高速读卡器
+ 优秀的输入设备
+ 非常优秀的对比度
+ 非常优秀的色彩覆盖率
+ 非常优秀的加速利用率

Cons

- 电池无法直接更换

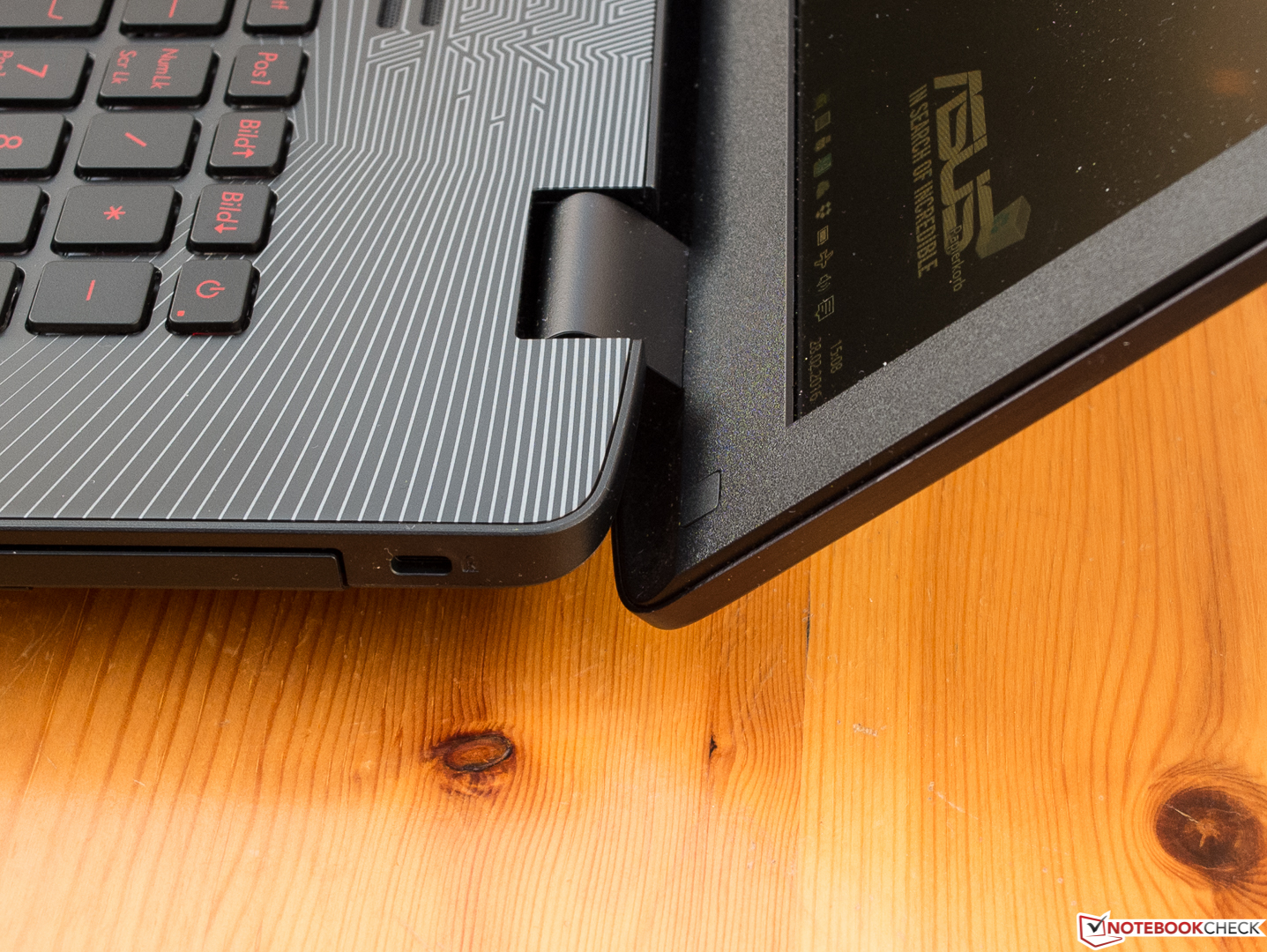

- 屏幕转轴在摇晃时会转动
- 接口在机身前方
- 非IPS屏幕
- 屏幕背光漏光有些烦人
- 使用电池运行3DMark 11连续遇到错误
- 音响系统弱
- 待机功耗过高

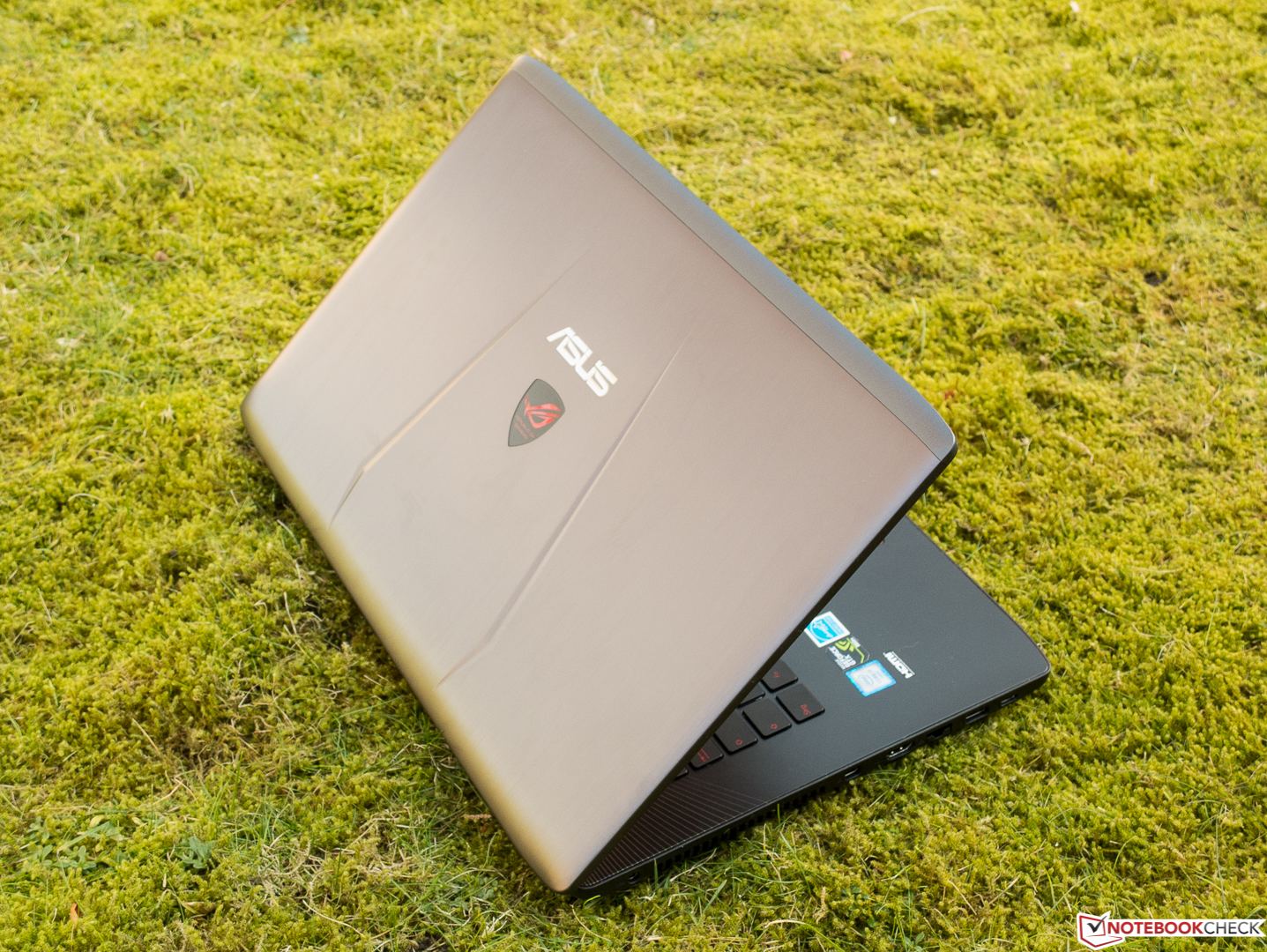

In review: Asus Asus GL752VW-T4168T. Test model courtesy of Asus Germany.
In review: Asus Asus GL752VW-T4168T. Test model courtesy of Asus Germany.

来自华硕的最新GL752VW整体上十分成功。我们更希望能看到一块IPS屏幕或可选的选项,不过还好它的TN屏幕品质不错。这在可视角度范围和色彩覆盖上十分显而易见。遗憾的还有它的音响系统对于多媒体笔记本电脑来说有些让人失望。在可维护性方面它的表现不太完善。还有一个问题就是在使用电池时测试程序连续崩溃的问题,这可能在运行游戏或其他对显卡要求高的程序时也会出现。

价位合理的华硕GL752VW并没有严重到让我们不推荐的问题。它的机身、输入设备和其他技术参数都十分优秀。

生产商在硬盘组合的选择上值得称赞,256GB固态硬盘搭配2TB传统硬盘堪称完美。这也是得分稍高的Acer Aspire Nitro的问题之一,它搭配的1TB混合硬盘很难提供快速的系统响应。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

Asus GL752VW-T4168T - 12/09/2016 v6(old)
Sven Kloevekorn

Chassis
79 / 98 → 81%
Keyboard
82%
Pointing Device
85%
Connectivity
58 / 81 → 72%
Weight
57 / 20-67 → 78%
Battery
69%
Display
83%
Games Performance
83 / 85 → 98%
Application Performance
88 / 92 → 96%
Temperature
90%
Noise
82 / 95 → 86%
Audio
66%
Camera
65 / 85 → 76%
Average
76%
84%
Multimedia - Weighted Average

Pricecompare

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > 华硕 GL752VW 笔记本电脑简短评测
Sven Kloevekorn, 2016-03-22 (Update: 2016-03-25)
