华硕 EeeBook X205TA-FD005BS 上网本简短评测

Name: Asus EeeBook X205TA-FD005BS
Brand: Asus

上网本，重定义。 华硕推出了一款基于Windows 8.1必应版的小巧亚笔记本，仅售219欧元（约1677人民币）。如此便宜的上网本用户可以寄予多大的期待呢？这款华硕笔记本以优雅设计，高端质感，性能，12小时上网续航和屏幕的亮眼色彩证明了自己。它同时包含了一年的Office 365使用期。

Sebastian Jentsch, ✓ Stefanie Voigt (translated by Yuchen Wang), Published 12/08/2014 🇺🇸 🇩🇪 ...

Windows Laptop / Notebook Bay Trail

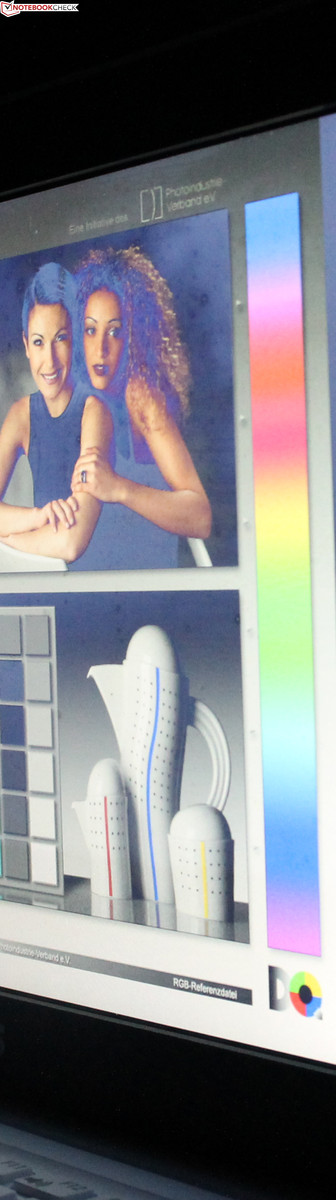

266 cd/m²	256 cd/m²	261 cd/m²
251 cd/m²	260 cd/m²	256 cd/m²
235 cd/m²	225 cd/m²	239 cd/m²

Distribution of brightness

tested with X-Rite i1Pro 2

Maximum: 266 cd/m² (Nits) Average: 249.9 cd/m²
Brightness Distribution: 85 %
Center on Battery: 260 cd/m²
Contrast: 684:1 (Black: 0.38 cd/m²)
ΔE Color 6.33 | 0.5-29.43 Ø5
ΔE Greyscale 6.25 | 0.57-98 Ø5.3
36% AdobeRGB 1998 (Argyll 1.6.3 3D)
39.14% AdobeRGB 1998 (Argyll 2.2.0 3D)
57% sRGB (Argyll 2.2.0 3D)
37.88% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.26

Download ICC File (X-Rite i1Pro 2)

	Asus EeeBook X205TA-FD005BS HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash	Lenovo S20-30 HD Graphics (Bay Trail), N2830, Western Digital Scorpio Blue WD5000LPCX-24C6HT0	Acer Aspire E3-111-C6LG HD Graphics (Bay Trail), N2930, Western Digital Scorpio Blue WD5000LPVX	Asus C200MA-KX003 HD Graphics (Bay Trail), N2830, 32 GB eMMC Flash	Lenovo ThinkPad Edge E145 Radeon HD 8240, E1-2500, Hitachi Travelstar Z5K500 HTS545050A7E380
Display		11%	7%		3%
Display P3 Coverage	37.88	41.96 11%	40.43 7%		39.2 3%
sRGB Coverage	57	63.2 11%	60.7 6%		58.8 3%
AdobeRGB 1998 Coverage	39.14	43.35 11%	41.8 7%		40.51 4%
Screen		-57%	-61%	-11%	-47%
Brightness middle	260	254 -2%	245 -6%	250 -4%	294 13%
Brightness	250	235 -6%	235 -6%	243 -3%	266 6%
Brightness Distribution	85	86 1%	85 0%	90 6%	86 1%
Black Level *	0.38	1.25 -229%	1.17 -208%	0.31 18%	0.89 -134%
Contrast	684	203 -70%	209 -69%	806 18%	330 -52%
Colorchecker dE 2000 *	6.33	10.77 -70%	12.53 -98%	9.3 -47%	11.14 -76%
Greyscale dE 2000 *	6.25	11.97 -92%	13.25 -112%	10.18 -63%	11.48 -84%
Gamma	2.26 ^97%	2.13 ^103%	2.68 ^82%	2.37 ^93%	2.1 ^105%
CCT	7906 ^82%	14771 ^44%	18403 ^35%	12578 ^52%	12680 ^51%
Color Space (Percent of AdobeRGB 1998)	36	40 11%	38.7 8%
Total Average (Program / Settings)		-23% / -39%	-27% / -43%	-11% / -11%	-22% / -32%

* ... smaller is better

Cinebench R10 | Sunspider | Mozilla Kraken 1.1 | Octane V2 | PCMark 7

Cinebench R10
Rendering Single 32Bit (sort by value)
Asus EeeBook X205TA-FD005BS	813 Points
Lenovo S20-30	1202 Points +48%
Acer Aspire E3-111-C6LG	1141 Points +40%
Lenovo ThinkPad Edge E145	1052 Points +29%
Acer Aspire Switch 10 SW5-012-13DP	774 Points -5%
Rendering Multiple CPUs 32Bit (sort by value)
Asus EeeBook X205TA-FD005BS	2867 Points
Lenovo S20-30	2224 Points -22%
Acer Aspire E3-111-C6LG	4013 Points +40%
Lenovo ThinkPad Edge E145	2016 Points -30%
Acer Aspire Switch 10 SW5-012-13DP	2424 Points -15%

Sunspider - 1.0 Total Score (sort by value)
Asus EeeBook X205TA-FD005BS	488 ms *
Lenovo S20-30	564 ms * -16%
Lenovo S20-30	337.3 ms * +31%
Asus C200MA-KX003	522 ms * -7%
Asus C200MA-KX003	491 ms * -1%
Acer Aspire Switch 10 SW5-012-13DP	604 ms * -24%

Mozilla Kraken 1.1 - Total (sort by value)
Asus EeeBook X205TA-FD005BS	9362 ms *
Lenovo S20-30	6996 ms * +25%
Lenovo S20-30	4867 ms * +48%
Asus C200MA-KX003	4482 ms * +52%

Octane V2 - Total Score (sort by value)
Asus EeeBook X205TA-FD005BS	3483 Points
Lenovo S20-30	7261 Points +108%
Lenovo S20-30	4542 Points +30%
Asus C200MA-KX003	7321 Points +110%
Asus C200MA-KX003	7161 Points +106%

PCMark 7 - Computation (sort by value)
Asus EeeBook X205TA-FD005BS	5830 Points
Acer Aspire E3-111-C6LG	6648 Points +14%
Lenovo ThinkPad Edge E145	3258 Points -44%
Acer Aspire Switch 10 SW5-012-13DP	5409 Points -7%

Legend

Asus EeeBook X205TA-FD005BS Intel Atom Z3735F, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash

Lenovo S20-30 Intel Celeron N2830, Intel HD Graphics (Bay Trail), Western Digital Scorpio Blue WD5000LPCX-24C6HT0

Acer Aspire E3-111-C6LG Intel Celeron N2930, Intel HD Graphics (Bay Trail), Western Digital Scorpio Blue WD5000LPVX

Asus C200MA-KX003 Intel Celeron N2830, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash

Lenovo ThinkPad Edge E145 AMD E1-2500, AMD Radeon HD 8240, Hitachi Travelstar Z5K500 HTS545050A7E380

Acer Aspire Switch 10 SW5-012-13DP Intel Atom Z3735F, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash

* ... smaller is better

Cinebench R10 Shading 32Bit

1740

Cinebench R10 Rendering Single 32Bit

813

Cinebench R10 Rendering Multiple CPUs 32Bit

2867

Help

... in comparison

PCMark 8 | PCMark 7

PCMark 8
Home Score Accelerated v2 (sort by value)
Asus EeeBook X205TA-FD005BS	1142 Points
Lenovo S20-30	1130 Points -1%
Acer Aspire E3-111-C6LG	1104 Points -3%
Storage Score (sort by value)
Lenovo ThinkPad Edge E145	1915 Points

PCMark 7
System Storage (sort by value)
Asus EeeBook X205TA-FD005BS	3676 Points
Acer Aspire E3-111-C6LG	1480 Points -60%
Lenovo ThinkPad Edge E145	417 Points -89%
Acer Aspire Switch 10 SW5-012-13DP	3730 Points +1%
Creativity (sort by value)
Asus EeeBook X205TA-FD005BS	4513 Points
Acer Aspire E3-111-C6LG	3670 Points -19%
Lenovo ThinkPad Edge E145	2865 Points -37%
Acer Aspire Switch 10 SW5-012-13DP	4422 Points -2%
Entertainment (sort by value)
Asus EeeBook X205TA-FD005BS	1614 Points
Acer Aspire E3-111-C6LG	1540 Points -5%
Lenovo ThinkPad Edge E145	1189 Points -26%
Acer Aspire Switch 10 SW5-012-13DP	1479 Points -8%
Productivity (sort by value)
Asus EeeBook X205TA-FD005BS	1761 Points
Acer Aspire E3-111-C6LG	839 Points -52%
Lenovo ThinkPad Edge E145	663 Points -62%
Acer Aspire Switch 10 SW5-012-13DP	850 Points -52%
Lightweight (sort by value)
Asus EeeBook X205TA-FD005BS	2214 Points
Acer Aspire E3-111-C6LG	1357 Points -39%
Lenovo ThinkPad Edge E145	1150 Points -48%
Acer Aspire Switch 10 SW5-012-13DP	1219 Points -45%
Score (sort by value)
Asus EeeBook X205TA-FD005BS	2388 Points
Acer Aspire E3-111-C6LG	1648 Points -31%
Lenovo ThinkPad Edge E145	1254 Points -47%
Acer Aspire Switch 10 SW5-012-13DP	2252 Points -6%

PCMark 7 Score		2388 points
PCMark 8 Home Score Accelerated v2		1142 points
Help

... in comparison

	Asus EeeBook X205TA-FD005BS	Lenovo S20-30	Acer Aspire E3-111-C6LG	Lenovo ThinkPad Edge E145	Acer Aspire Switch 10 SW5-012-13DP
CrystalDiskMark 3.0		-18%	-16%	-26%	46%
Read Seq	120	100.8 -16%	104.7 -13%	96.9 -19%	169.3 41%
Write Seq	46.54	101.3 118%	103.3 122%	96.3 107%	72.8 56%
Read 4k	12.03	0.396 -97%	0.387 -97%	0.102 -99%	18.31 52%
Write 4k	4.225	1.063 -75%	1.054 -75%	0.27 -94%	5.603 33%

CrystalDiskMark 3.0

AS SSD

32 GB eMMC Flash

Sequential Read: 120 MB/s

Sequential Write: 46.54 MB/s

512K Read: 81.7 MB/s

512K Write: 45.64 MB/s

4K Read: 12.03 MB/s

4K Write: 4.225 MB/s

4K QD32 Read: 32.36 MB/s

4K QD32 Write: 5.554 MB/s

	Asus EeeBook X205TA-FD005BS	Lenovo S20-30	Acer Aspire E3-111-C6LG	Lenovo ThinkPad Edge E145	HP Stream 14-z050ng	HP 15-g005ng	Asus F551MA-SX063H
3DMark 11		7%	25%	128%	113%	305%	23%
1280x720 Performance	212	226 7%	264 25%	464 119%	444 109%	831 292%	261 23%
1280x720 Performance GPU	182	194 7%	225 24%	429 136%	394 116%	759 317%	223 23%
3DMark		5%	-70%	47%	39%	136%	28%
1280x720 Cloud Gate Standard Score	1186	1176 -1%	354 -70%	1501 27%	1638 38%	2882 143%	1515 28%
1280x720 Cloud Gate Standard Graphics	1230	1349 10%	362 -71%	2273 85%	2099 71%	3291 168%	1471 20%
1280x720 Ice Storm Standard Score	15265	15256 0%	4791 -69%	18212 19%	16523 8%	32088 110%	20652 35%
1280x720 Ice Storm Standard Graphics	16059	17475 9%	5056 -69%	25296 58%	22434 40%	35930 124%	20760 29%
Total Average (Program / Settings)		6% / 5%	-23% / -38%	88% / 74%	76% / 64%	221% / 192%	26% / 26%

3DMark 11 Performance		212 points
3DMark Ice Storm Standard Score		15265 points
3DMark Cloud Gate Standard Score		1186 points
Help

... in comparison

Dishonored | Tomb Raider | Sleeping Dogs

Dishonored - 1024x768 Low / Off, FOV: 75 (sort by value)
Asus EeeBook X205TA-FD005BS HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash	12.5 fps
HP Stream 14-z050ng Radeon R3 (Mullins/Beema), A4 Micro-6400T, 32 GB eMMC Flash	17.6 fps +41%
HP 15-g005ng Radeon R5 (Beema/Carrizo-L), A8-6410, Hitachi Travelstar Z5K500 HTS545050A7E680	26.4 fps +111%
Asus F551MA-SX063H HD Graphics (Bay Trail), N3520, Western Digital Scorpio Blue WD5000LPVX	14.3 fps +14%

Tomb Raider - 1024x768 Low Preset (sort by value)
Asus EeeBook X205TA-FD005BS HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash	12.9 fps
Lenovo S20-30 HD Graphics (Bay Trail), N2830, Western Digital Scorpio Blue WD5000LPCX-24C6HT0	14.1 fps +9%
Acer Aspire E3-111-C6LG HD Graphics (Bay Trail), N2930, Western Digital Scorpio Blue WD5000LPVX	15 fps +16%
Lenovo ThinkPad Edge E145 Radeon HD 8240, E1-2500, Hitachi Travelstar Z5K500 HTS545050A7E380	21.8 fps +69%
HP Stream 14-z050ng Radeon R3 (Mullins/Beema), A4 Micro-6400T, 32 GB eMMC Flash	20.7 fps +60%
HP 15-g005ng Radeon R5 (Beema/Carrizo-L), A8-6410, Hitachi Travelstar Z5K500 HTS545050A7E680	34 fps +164%
Asus F551MA-SX063H HD Graphics (Bay Trail), N3520, Western Digital Scorpio Blue WD5000LPVX	15.5 fps +20%

Sleeping Dogs - 1024x768 Low Preset AA:Normal (sort by value)
Asus EeeBook X205TA-FD005BS HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash	13.2 fps
Lenovo ThinkPad Edge E145 Radeon HD 8240, E1-2500, Hitachi Travelstar Z5K500 HTS545050A7E380	16.4 fps +24%
HP 15-g005ng Radeon R5 (Beema/Carrizo-L), A8-6410, Hitachi Travelstar Z5K500 HTS545050A7E680	28.2 fps +114%

	low	med.	high	ultra
Sleeping Dogs (2012)	13.2	7.5
Dishonored (2012)	12.5	9.8
Tomb Raider (2013)	12.9	6.7

	Lenovo S20-30 HDD	Acer Aspire E3-111-C6LG HDD	Lenovo ThinkPad Edge E145 HDD
Noise
Idle Minimum *	33.4	29.8	30
Idle Average *	33.4	29.8	30
Idle Maximum *	33.4	29.8	30
Load Average *	34.7	29.8	32.8
Load Maximum *	35.4	29.8	35.1

* ... smaller is better

	Asus EeeBook X205TA-FD005BS Z3735F	Lenovo S20-30 N2830	Acer Aspire E3-111-C6LG N2930	Asus C200MA-KX003 N2830	Lenovo ThinkPad Edge E145 E1-2500
Heat		4%	-20%	12%	18%
Maximum Upper Side *	44.5	33.7 24%	48.1 -8%	36.1 19%	28.4 36%
Maximum Bottom *	46.8	42 10%	56.8 -21%	34.3 27%	27.5 41%
Idle Upper Side *	27.2	29 -7%	32.6 -20%	28.1 -3%	27.7 -2%
Idle Bottom *	27.2	30.4 -12%	35.8 -32%	26.2 4%	28 -3%

* ... smaller is better

Max. Load

Idle


27.2 °C	25.7 °C	23.5 °C
26.7 °C	25.7 °C	23.5 °C
23.8 °C	24.1 °C	23 °C

Maximum: 27.2 °C
Average: 24.8 °C


23.6 °C	26.3 °C	27.2 °C
23.2 °C	24.7 °C	25.3 °C
23.5 °C	24 °C	24.1 °C

Maximum: 27.2 °C
Average: 24.7 °C

Power Supply (max.) 30.8 °C | Room Temperature 22.2 °C | Voltcraft IR-360

(+) The average temperature for the upper side under maximal load is 31.9 °C / 89 F, compared to the average of 29.8 °C / 86 F for the devices in the class Netbook.
(±) The maximum temperature on the upper side is 44.5 °C / 112 F, compared to the average of 33.1 °C / 92 F, ranging from 21.6 to 53.2 °C for the class Netbook.
(-) The bottom heats up to a maximum of 46.8 °C / 116 F, compared to the average of 36.6 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.8 °C / 77 F, compared to the device average of 29.8 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.9 °C / 84 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 29.3 °C / 84.7 F (+0.4 °C / 0.7 F).

	Asus EeeBook X205TA-FD005BS Z3735F	Lenovo S20-30 N2830	Acer Aspire E3-111-C6LG N2930	Asus C200MA-KX003 N2830	Lenovo ThinkPad Edge E145 E1-2500
Power Consumption		-103%	-135%	-21%	-114%
Idle Minimum *	1.6	4.9 -206%	5 -213%	2.2 -38%	4.2 -163%
Idle Average *	2.9	6 -107%	7.3 -152%	3.6 -24%	5.9 -103%
Idle Maximum *	3.2	6.2 -94%	7.4 -131%		6.3 -97%
Load Average *	8.1	12.8 -58%	15 -85%		14.9 -84%
Load Maximum *	9	13.4 -49%	17.4 -93%	9 -0%	20.1 -123%

* ... smaller is better

Power Consumption

Off / Standby	0 / 0.05 Watt
Idle	1.6 / 2.9 / 3.2 Watt
Load	8.1 / 9 Watt


Key: min: , med: , max: Voltcraft VC 960 Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Battery Runtime
Reader / Idle (sort by value)
Asus EeeBook X205TA-FD005BS	1173 min
Acer Aspire E3-111-C6LG	436 min
Asus C200MA-KX003	1200 min
Lenovo ThinkPad Edge E145	1183 min
H.264 (sort by value)
Asus EeeBook X205TA-FD005BS	585 min
Acer Aspire E3-111-C6LG	271 min
Asus C200MA-KX003	640 min
WiFi (sort by value)
Asus EeeBook X205TA-FD005BS	545 min
Lenovo S20-30	328 min
Acer Aspire E3-111-C6LG	257 min
Asus C200MA-KX003	612 min
Lenovo ThinkPad Edge E145	499 min
Load (sort by value)
Asus EeeBook X205TA-FD005BS	305 min
Acer Aspire E3-111-C6LG	108 min
Asus C200MA-KX003	323 min
Lenovo ThinkPad Edge E145	241 min

Battery Runtime

Idle (without WLAN, min brightness)		19h 33min
WiFi Surfing		9h 05min
Big Buck Bunny H.264 1080p		9h 45min
Load (maximum brightness)		5h 05min

EeeBook X205TA-FD005BS: Browsing and office machine with a good screen

华硕将上网本的核心功能缩减到了最低的程度，而未忽视一定水准的质量和外观设计。重生的EeePC小巧，续航时间长，也有不错的输入设备。Bay Trail平台提供了不错的办公应用性能，但略低于同配置的其他上网本。原因可能来自于华硕采用的较慢eMMC闪存，它限制了处理器的加速性能。这款设备的亮点在于优秀的对比度和非常低的功耗。

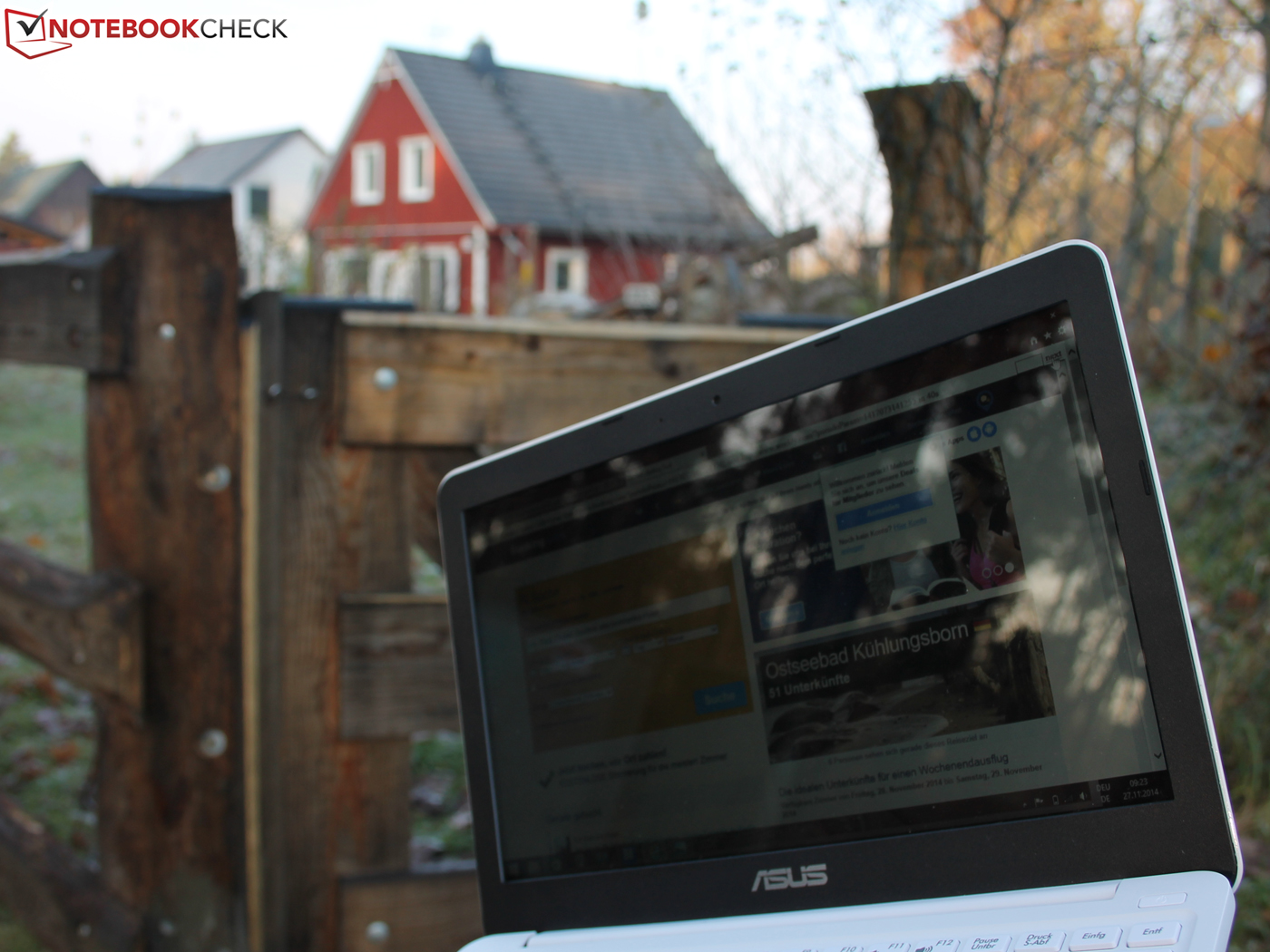

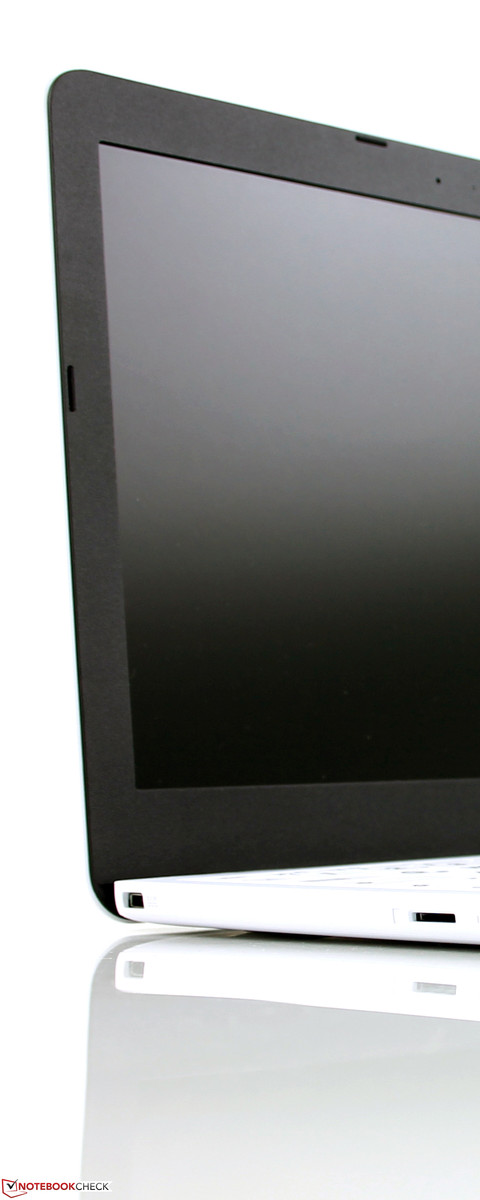

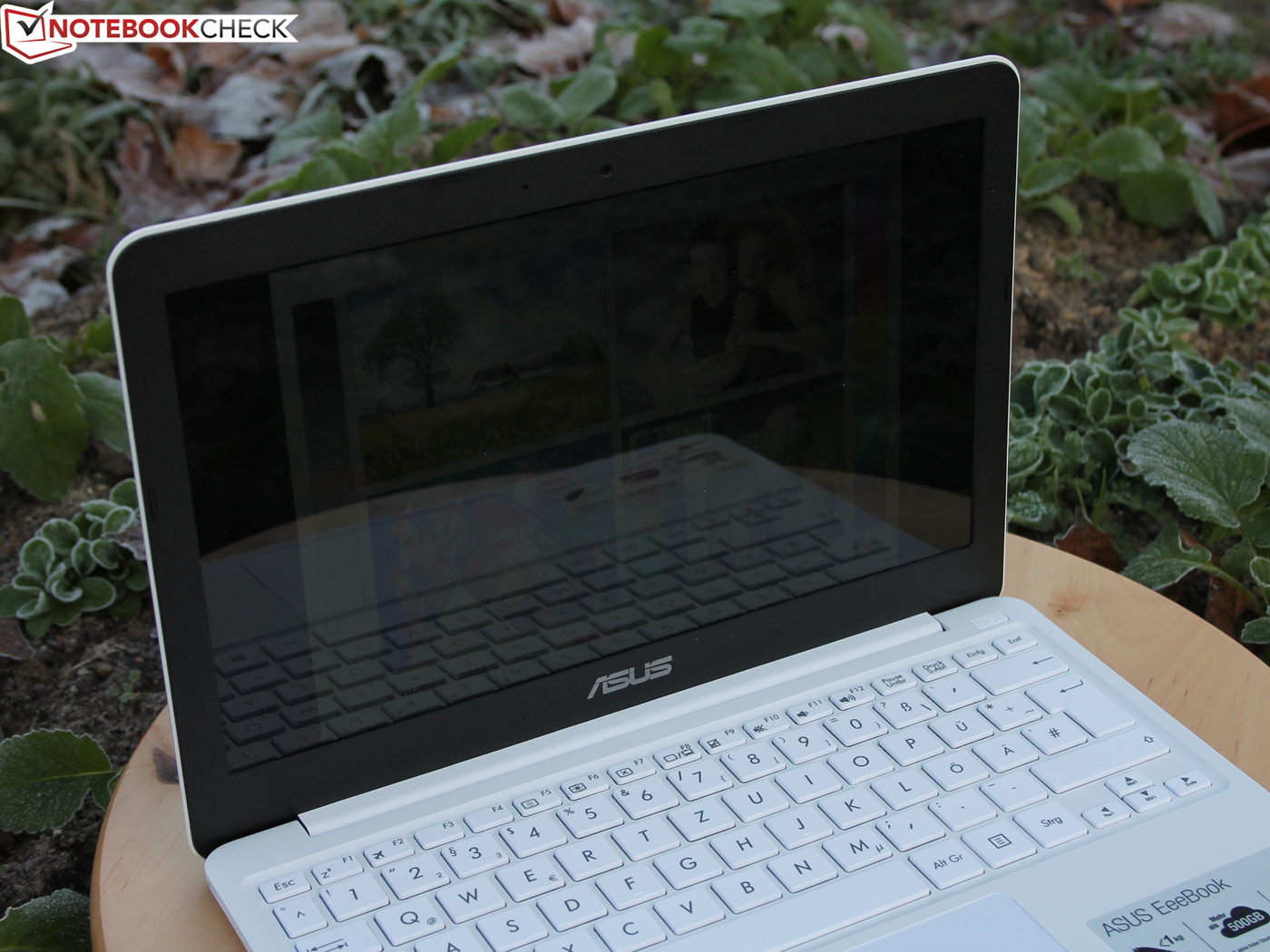

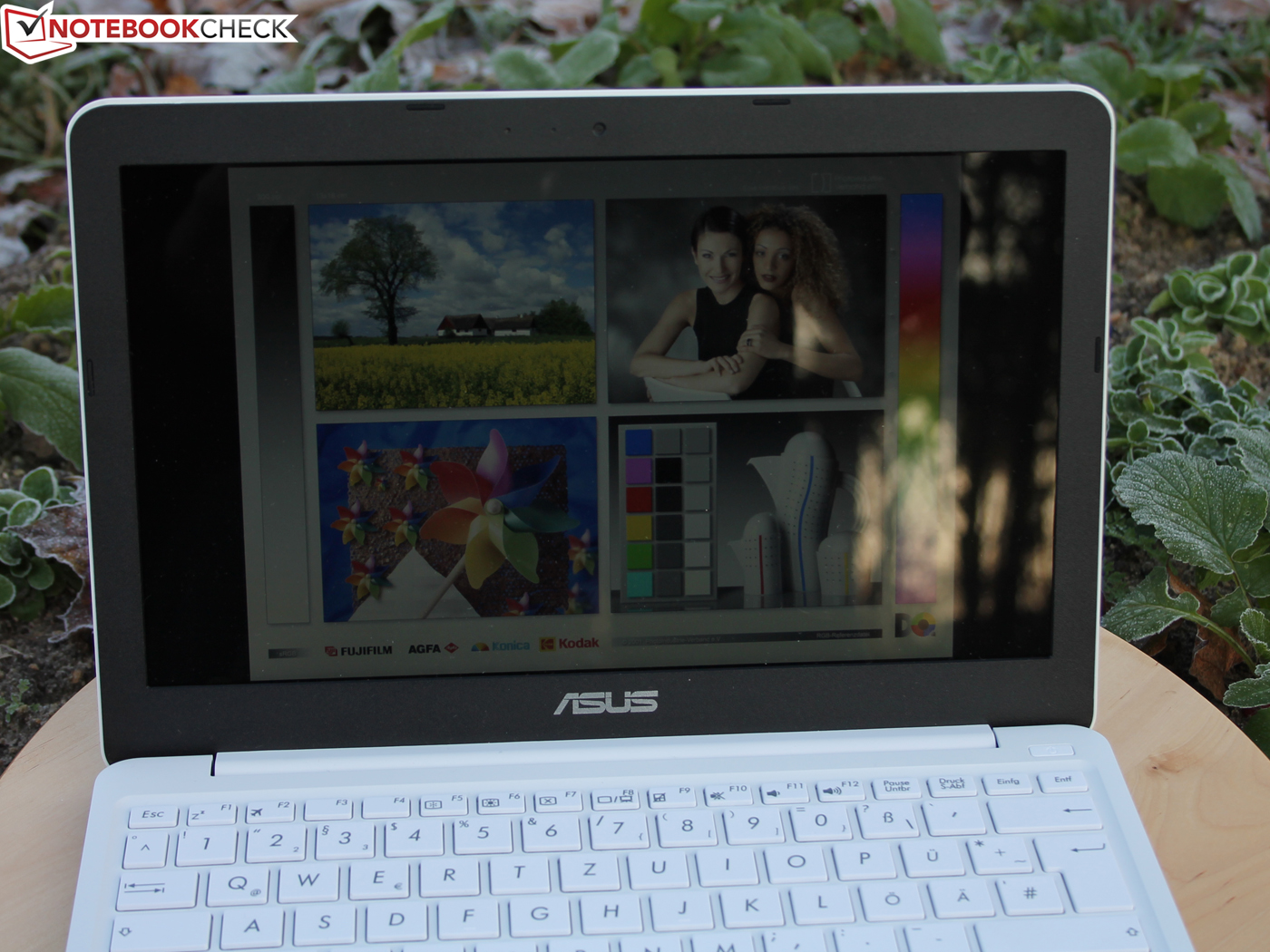

尽管华硕选择使用了一块镜面的TN屏幕，它的对比度和色彩还原却高于其他低价产品的通常水平。而完全无噪音的运行让较小的硬盘空间也变得可以忍受；采用传统硬盘的上网本在这方面显然更有优势。

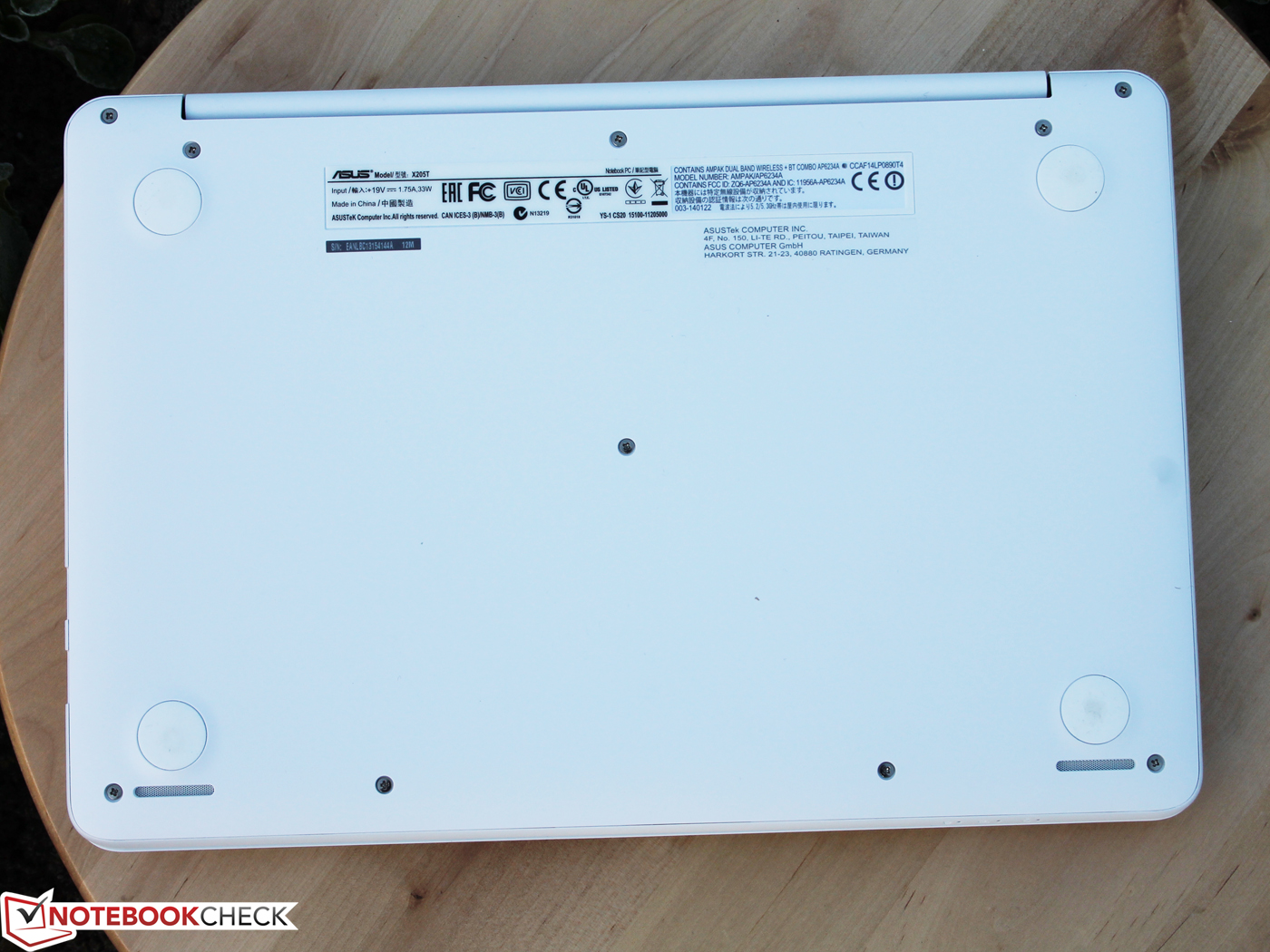

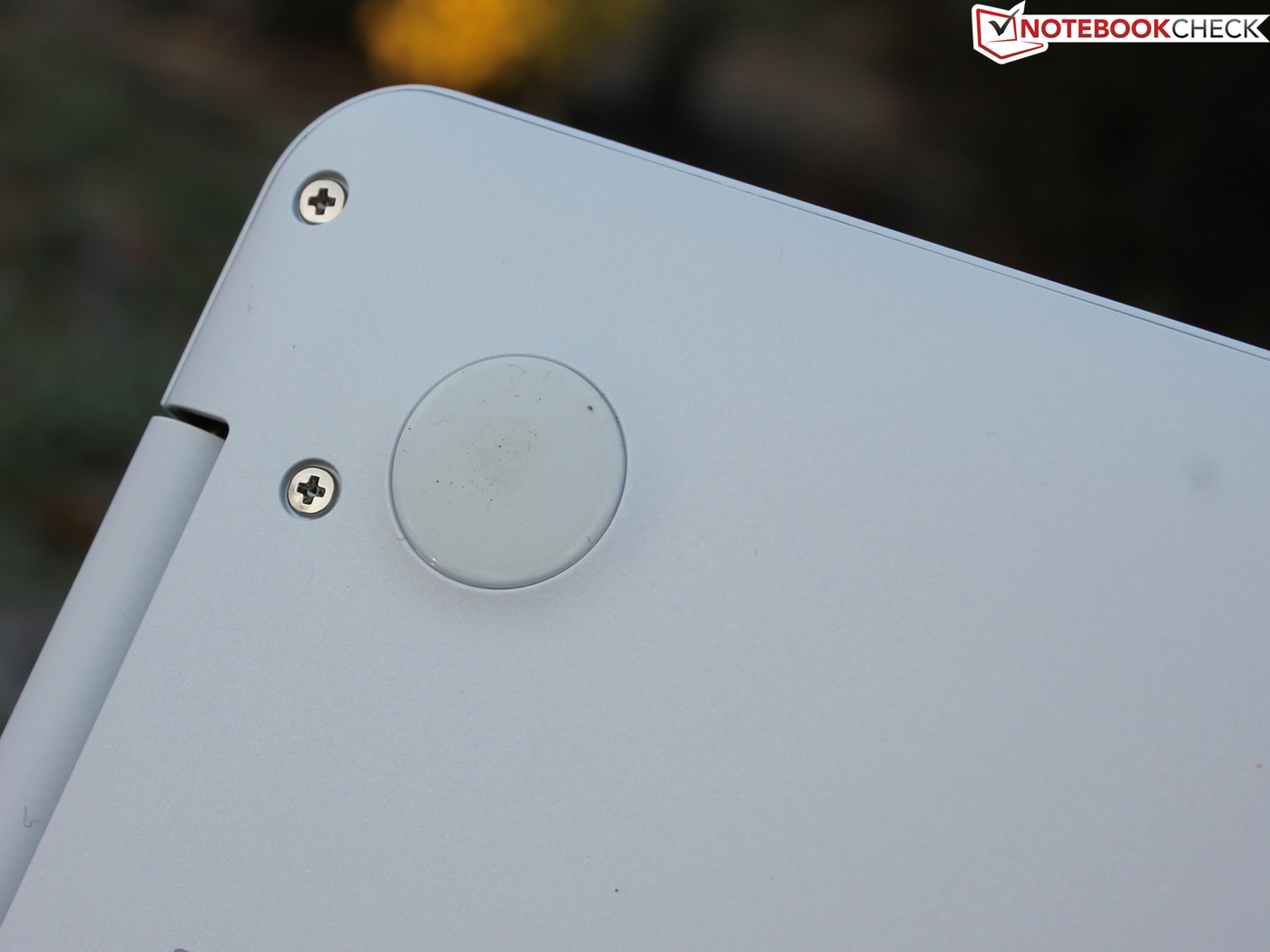

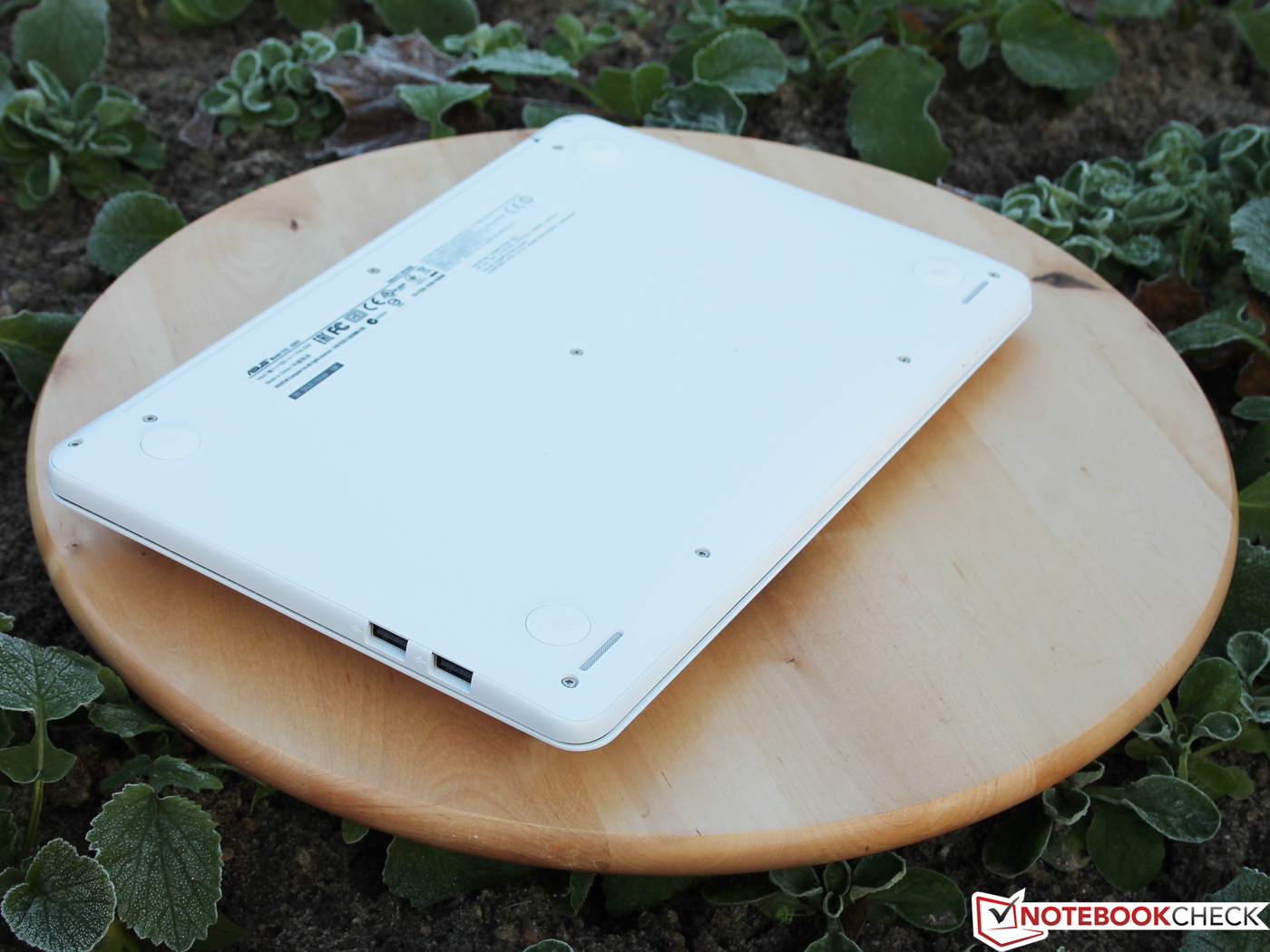

X205同样有一些严重的缺点：可维护性，它甚至连简单的更换电池都不可能。联想 ThinkPad Edge E145和Aspire E3-111-C6LG都更加为用户考虑，便于维护升级。它的摄像头拍摄的照片质量很低，甚至在日光下的拍摄效果都无法用于Ebay拍卖，不过作为补偿它的麦克风质量还算让人满意。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

难以置信？它仅仅219欧元却包括Windows 8.1和Office 365一年使用期的售价更加让人惊讶。

华硕 EeeBook X205TA: 值得尊重。它的无线信号距离甚至超过了一些高端设备。

Please share our article, every link counts!

Download your licensed rating image as PNG / SVG

Specifications

Asus EeeBook X205TA-FD005BS (EeeBook Series)

Processor

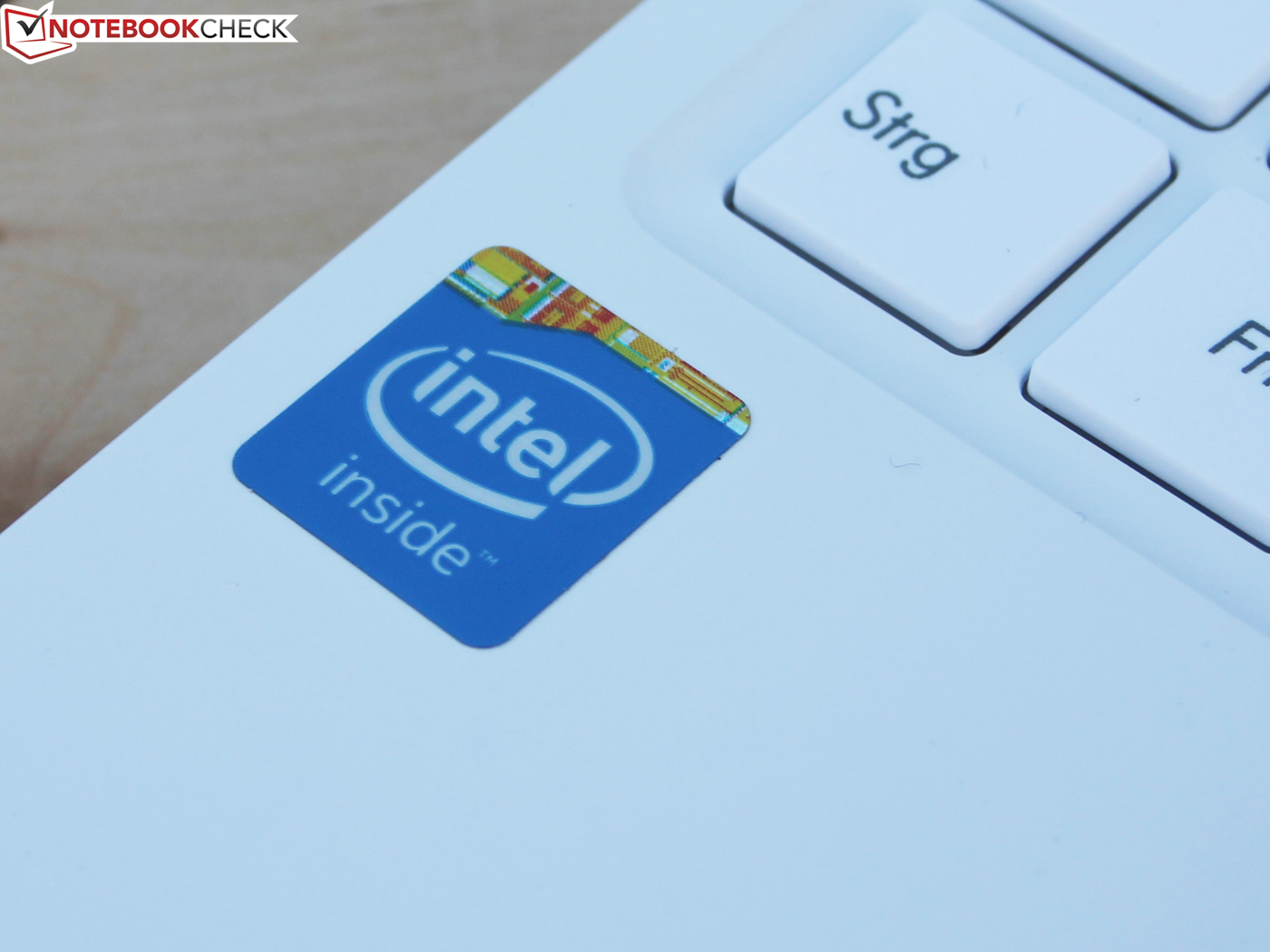

Intel Atom Z3735F 4 x 1.3 - 1.8 GHz, Bay Trail-T

Graphics adapter

Intel HD Graphics (Bay Trail)

Memory

2048 MB

, DDR3L 1333 MHz SDRAM, 板载

Display

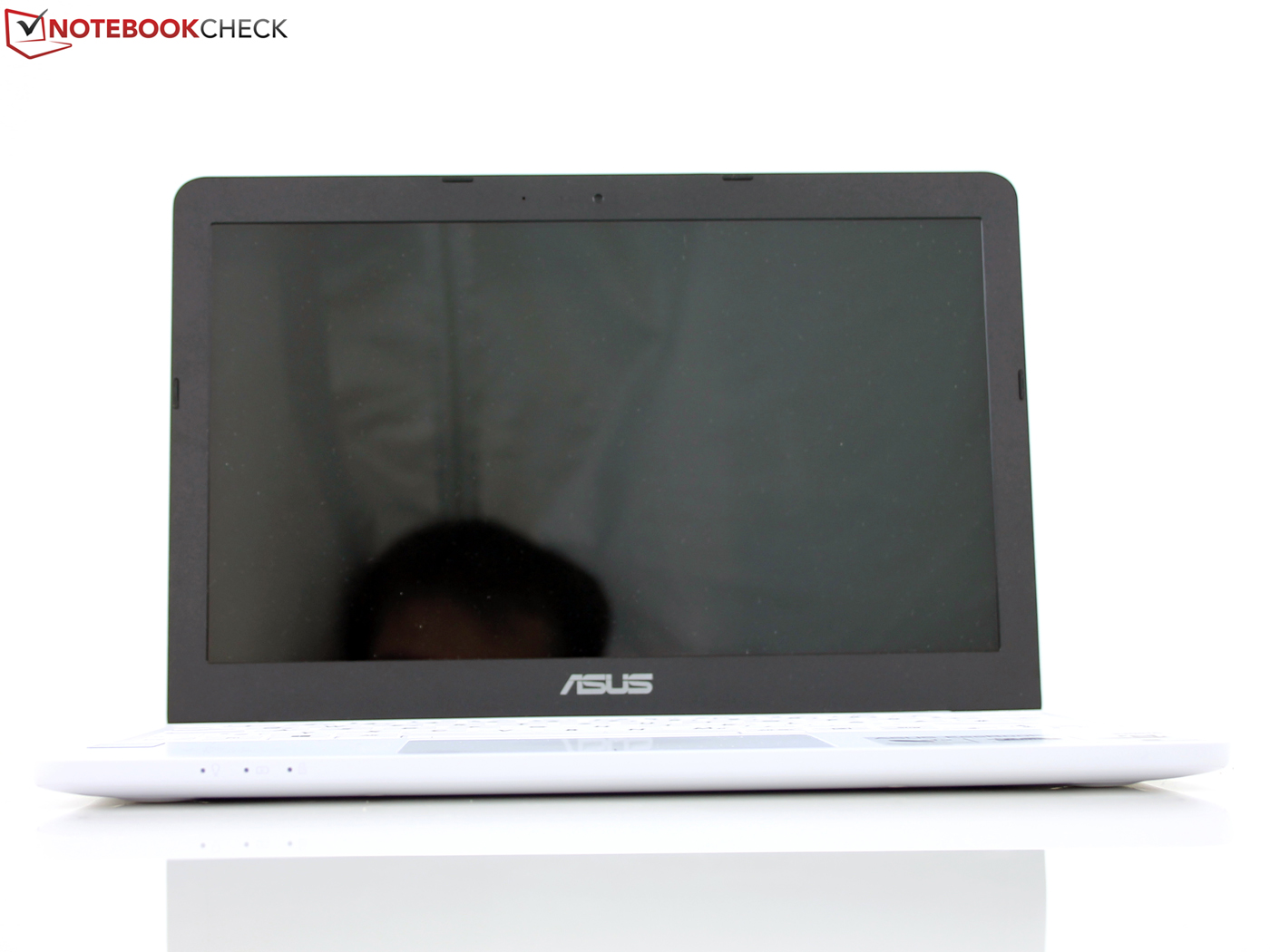

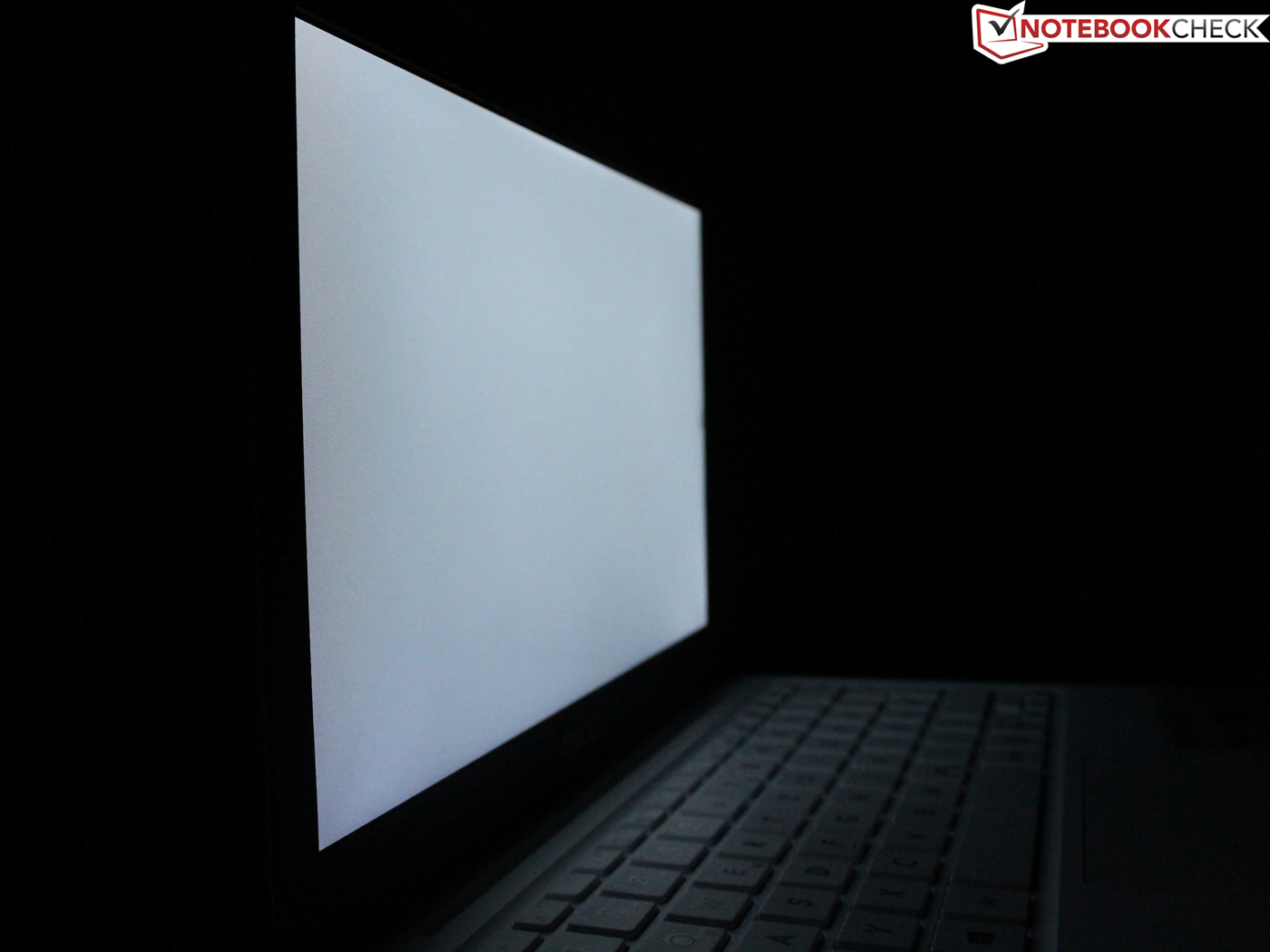

11.60 inch 16:9, 1366 x 768 pixel, TN, glossy: yes

Storage

32 GB eMMC Flash, 32 GB

, 14 GB free

Soundcard

HD Audio

Connections

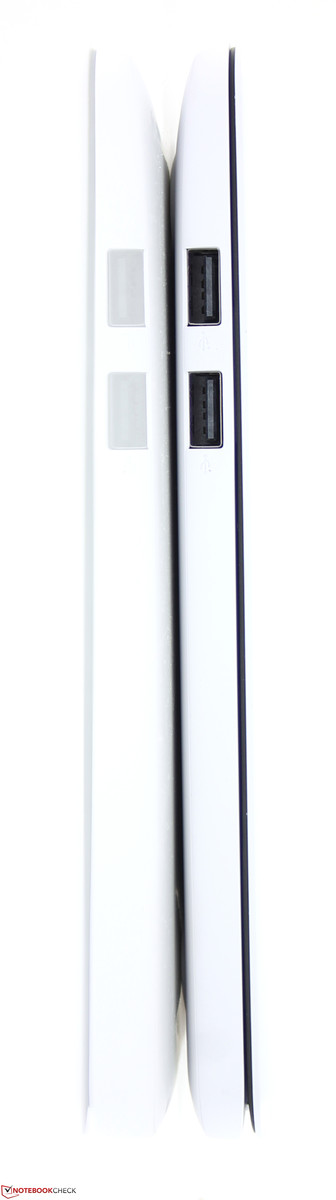

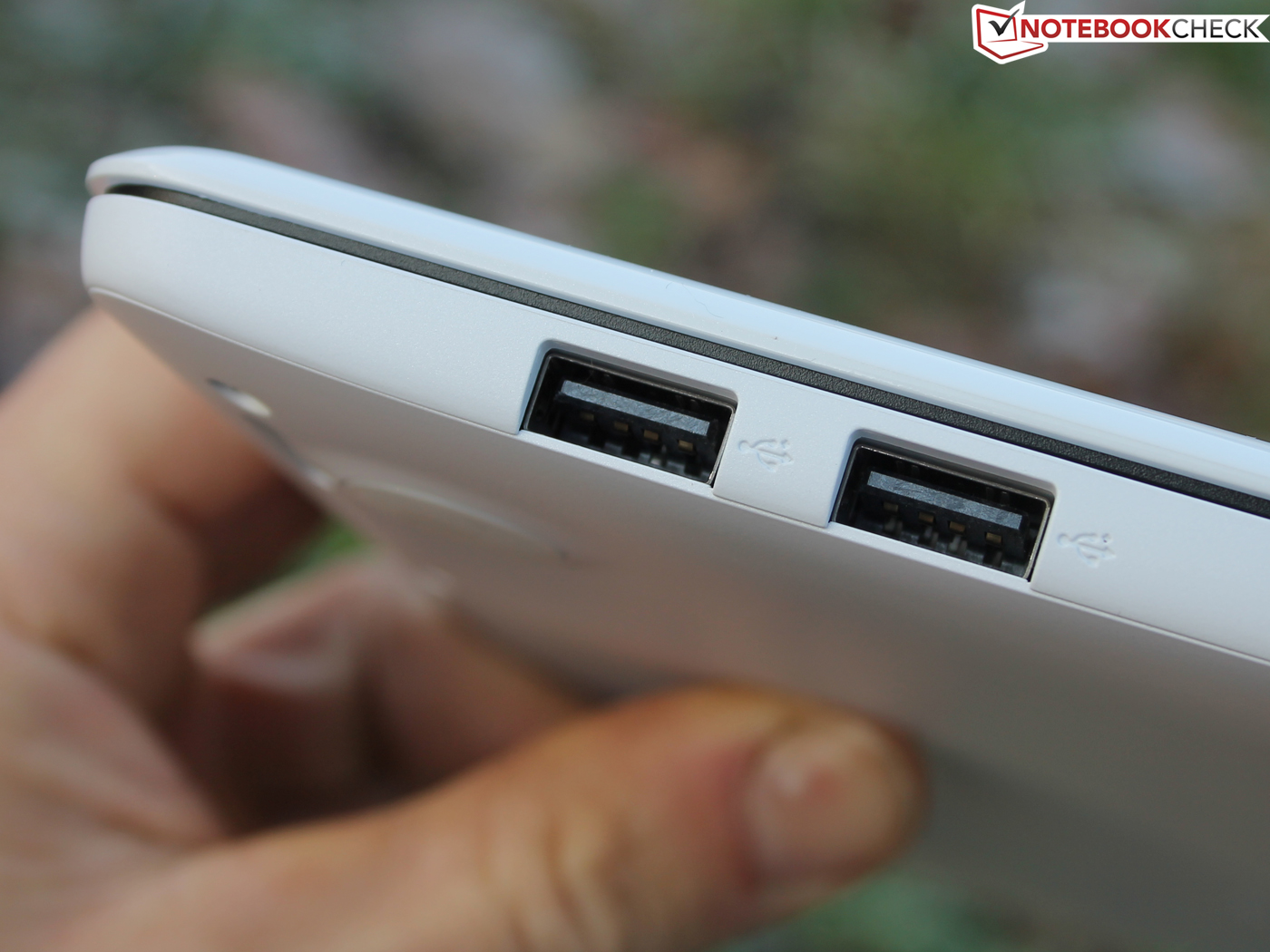

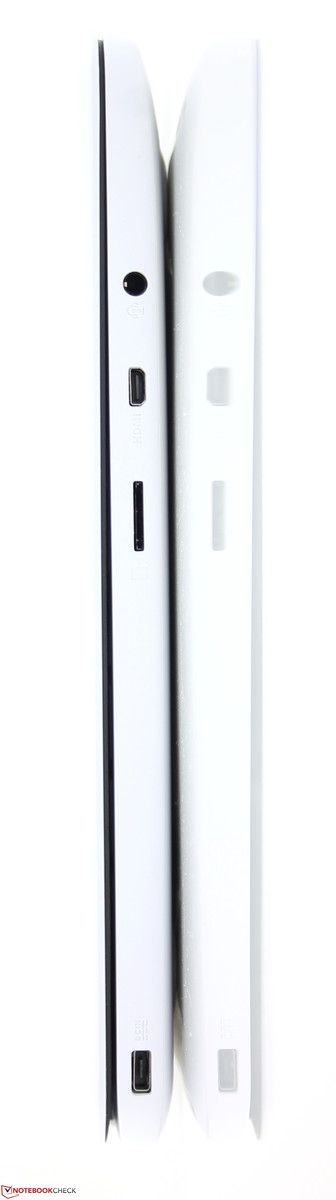

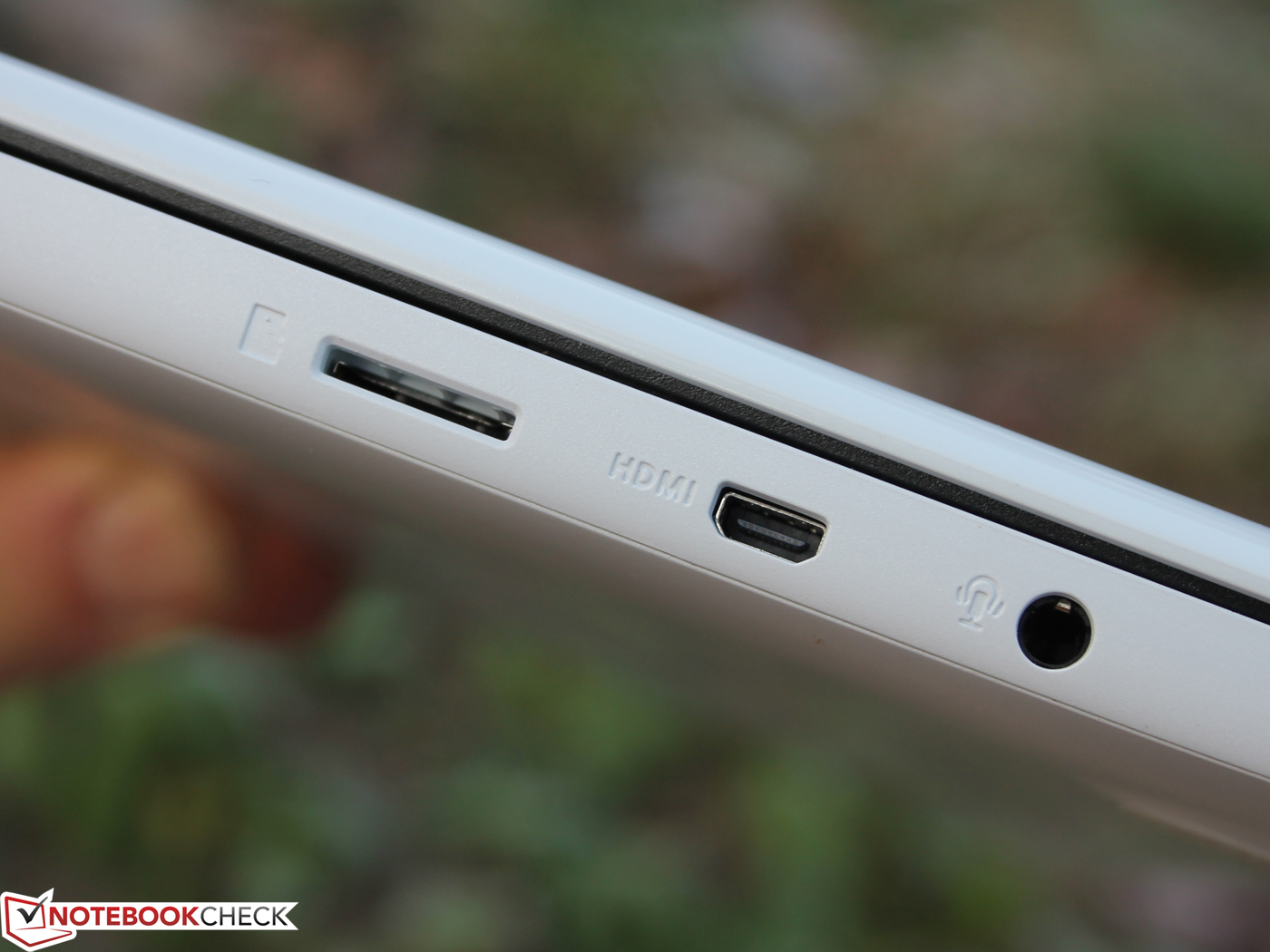

2 USB 2.0, 1 HDMI, Audio Connections: 整合耳机麦克风插口, Card Reader: Micro SD, Micro SDXC, Micro SDHC

Networking

Bluetooth 4.0

Size

height x width x depth (in mm): 17.5 x 286 x 193.3

Battery

38 Wh Lithium-Polymer, Battery runtime (according to manufacturer): 12 h

Operating System

Windows 8.1 (32 Bit) + Bing

Camera

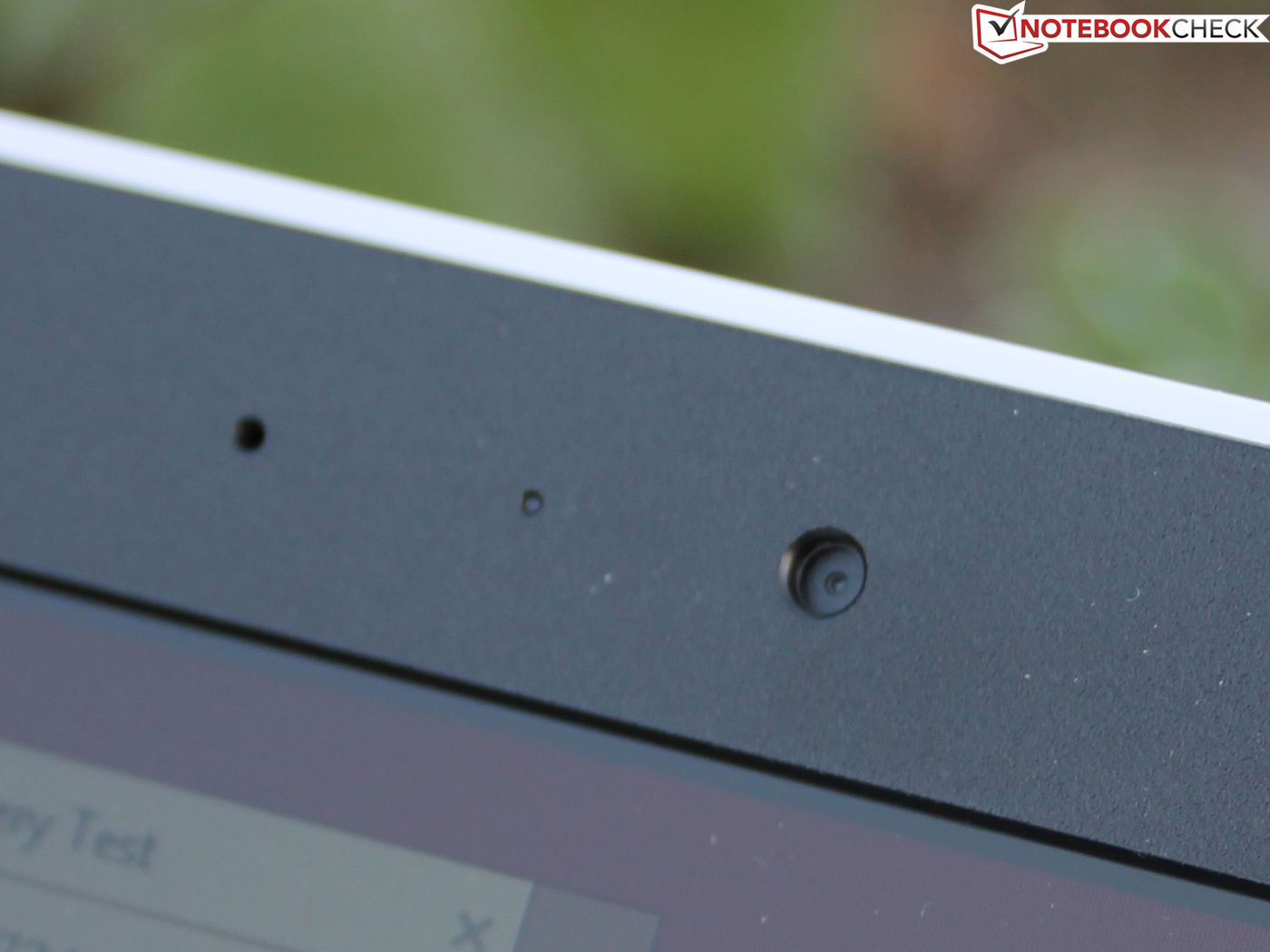

Webcam: VGA 640x480

Additional features

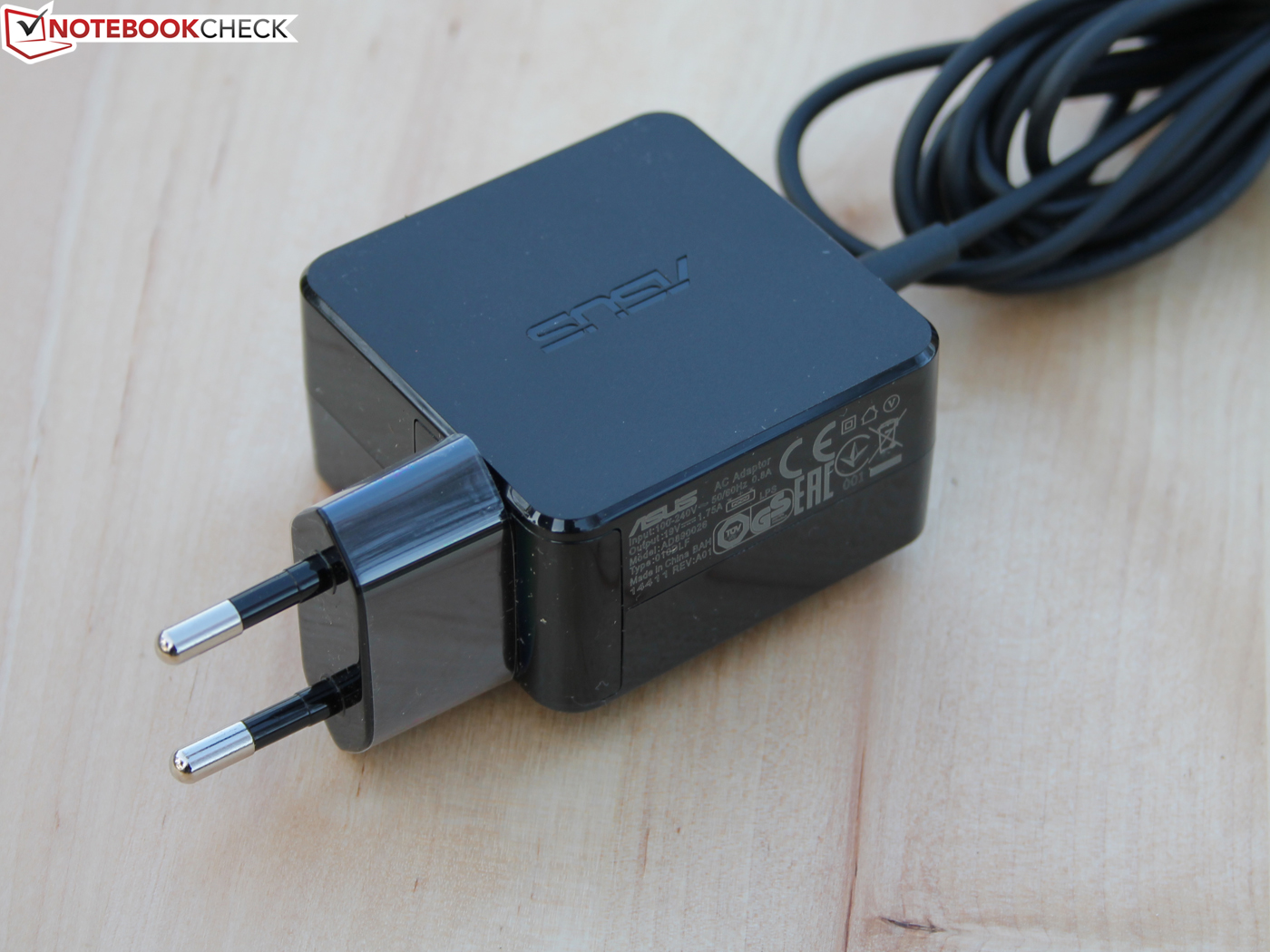

Speakers: 立体声+麦克风, Keyboard: 孤岛式, Keyboard Light: no, 33瓦电源适配器, 一年Office 365使用期, 12 Months Warranty

Weight

980 g, Power Supply: 200 g

Price

230 Euro

Links

Asus homepage
Asus notebook section

Similar devices from a different Manufacturer

联想 Ideapad 100S 笔记本电脑简短评测
HD Graphics (Bay Trail)

Devices from a different Manufacturer and/or with a different CPU

Acer Chromebook 11 CB3-111 简短评测
HD Graphics (Bay Trail), Celeron N2840

联想 N20p-59426642 双模式Chromebook简短评测
HD Graphics (Bay Trail), Celeron N2830

Acer Aspire E3-111-C6LG 笔记本电脑简短评测
HD Graphics (Bay Trail), Celeron N2930

华硕 C200MA-KX003 Chromebook 简短评测
HD Graphics (Bay Trail), Celeron N2830

Devices with the same GPU and/or Screen Size

联想 ThinkPad Yoga 11e Chromebook简短评测
HD Graphics (Bay Trail), Celeron N2930, 1.7 kg

Devices from the same Manufacturer

华硕 ExpertBook B3 评测：运行时间长达 11 小时的强大办公笔记本电脑
GeForce RTX 2050 Mobile, Raptor Lake-U i7-1355U, 14.00", 1.653 kg

Pros
+	低重量
+	长电池续航
+	实用的系统性能
+	亮度和对比度
+	安静且相对清凉
Cons
-	较弱的摄像头

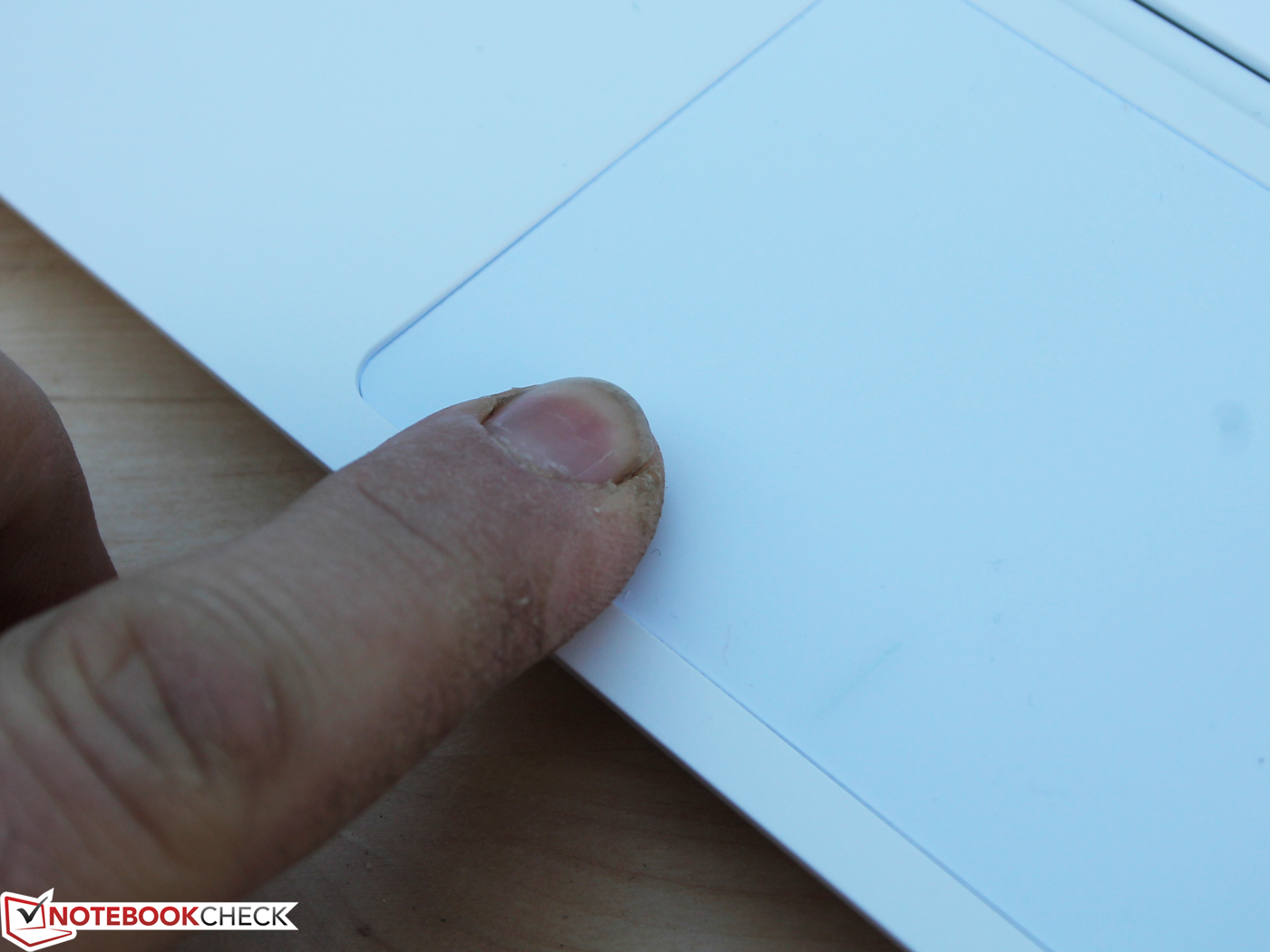

-	点击触控板不支持多点触控
-	仅USB2.0接口
-	镜面屏幕

华硕 EeeBook X205TA-FD005BS 上网本简短评测

Specifications

More articles related to this device

Pros

Cons
